Components Corporation TP-101 Series PCB Test Point Jumpers

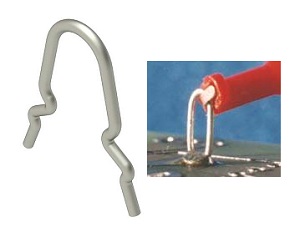

Components Corp tp-101 matte tin nickel This low cost, printed circuit mounted test point jumper provides a reliable and economical solution for board level, trouble shooting applications. Available in a variety of popular mounting dimensions and loop profiles, the TP-101 series offers the designer flexibility in the placement of crucial test points on high density circuits. Component Corp.’s TP-101 test point series provides designers with flexibility in placing essential test points on high-density circuits. Explore their TP-101 Series and PCB terminals, test points, and other PCB hardware and components.

FEATURES

  • Reliable and economical solution for board level, troubleshooting applications
  • Available in a variety of popular mounting dimensions and loop profiles, offering flexibility in the placement of crucial test points on high density circuits
  • Exclusive, detented leg feature permits greater production and installation efficiencies by providing self-positioning and retention during soldering operations
  • Above-board profile is substantially below that of headers and other devices used as test points, allowing a re-fit without any printed circuit board layout re-design costs, while significantly reducing test point height and improving function
  • Unique loop profiles ensure a secure anchor for spring loaded test hooks and scope probes; technicians need no longer fear puncture wounds when involved in circuit troubleshooting

Thru-Hole Mount Wave Leg Design: The unique wave leg design secures the jumper, making it ideal for both wave and hand soldering.

The exclusive, detented leg feature of the TP-101 series permits greater production and installation efficiencies by providing self-positioning and retention during soldering operations. When mounted in the recommended .040″, “plated through” hole, the detented legs provide a snug, interference fit that will maintain the test point’s position while under the pressure of wave soldering operations.

The “above board” profile of the TP-101 readily accepts a wide range of test probes and spring clips while offering a compact and space saving size. Formed from spring grade brass wire stock with matte tin over nickel plating, this product assures many years of reliable service at an economical cost.



Specifications & Materials

Contact Material: 020″ diameter 70/30 Brass Wire

Finish: .0001 Matte Tin over .00005 Nickel

Mounting Holes: Two, .040″ diameter +/- .003″, plated through holes

Taping Standard: 2.0 amperes



Part Number A B
TP-101-10-T .100 .200
TP-101-20-T .200 .300
TP-101-25-T .250 .360
TP-101-30-T .300 .400



*For other dimensions please contact the factory*

Certificate of Compliance with Directive 2015/863/EU RoHS and EU Regulation EC 1907/2006
