Hardware D-Sub, D-Shaped Connector Jackscrews

Jack screws, also known as screw lock assemblies, secure the connection between D-Sub connectors by physically fastening the male and female connectors together. They are crucial for maintaining reliable electrical connections, particularly in high-vibration environments. Some jack screws come with the necessary hardware included, while others may require additional hardware.

Jack screws and their corresponding sockets are threaded fasteners designed to enhance the stability of connections, reducing the risk of accidental disconnection, signal loss, or electrical discontinuity. Typically, the assembly consists of a male screw on one connector and a matching female threaded socket on the other, providing strong mechanical support.

These components are widely used in applications requiring secure connections, such as aerospace and telecommunications. Their precise design ensures easy installation and removal, making them essential for situations where connection reliability is critical.

Features and Benefits

• Male screw lock for D-Sub connectors
• Available in flight and engineering models
• Suitable for use with or without backshells
• Non-outgassing material
• Requires two part numbers per connector

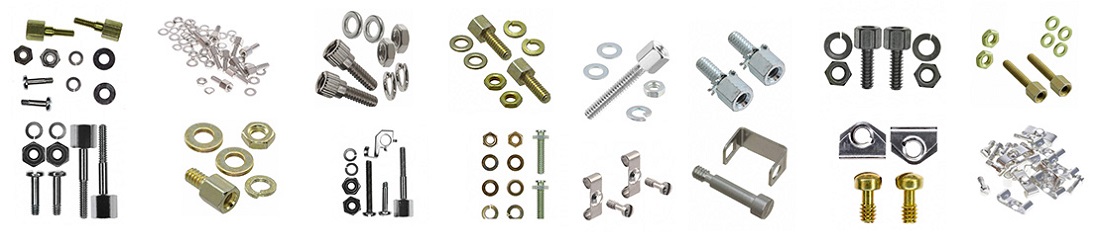

Jack screw D-Sub connectors, also known as screw locks, are essential components used to secure D-Sub connectors by locking the male and female connectors together. They come in various forms, such as hex, thumb screws, and screw lock assemblies, each offering different features for specific applications. These connectors are widely used across industries for their reliable performance in ensuring stable connections.

Available Types and Features:

• Screw Lock Female Short: Provides a compact screw lock solution for D-Sub connectors.
• Screw Lock Female and Male Sets: Available for different connector sizes and configurations.
• Hex Jack Screws: Feature a hexagonal shape for easy tightening and removal.
• Thumbscrew Locks: Designed for tool-free installation and adjustment.
• Sliding Lock Post Kits: Provide a flexible locking solution for D-Sub connections.
• Screw Retainers: Help secure connections with male or female screw locking mechanisms.
• Allen Screw Jackposts: Ideal for applications requiring precise torque settings.

Key Manufacturers:

• TE Connectivity AMP Connectors
• Keystone Electronics
• ITT Cannon, LLC
• NorComp Inc.
• Amphenol ICC (Commercial Products)
• Cinch Connectivity Solutions
• Molex

Additional Options:

• Some jack screws come in kits with nuts, washers, or additional hardware, while others may be available as bulk sets for larger installations.
• Various lengths and thread sizes ensure compatibility with different connector types and mounting requirements.
• Options for aerospace, defense, and marine applications offer enhanced durability and compliance with industry standards.

Jack screw D-Sub connectors are essential for ensuring secure and stable electronic connections in a wide range of applications, from commercial electronics to high-reliability environments.
