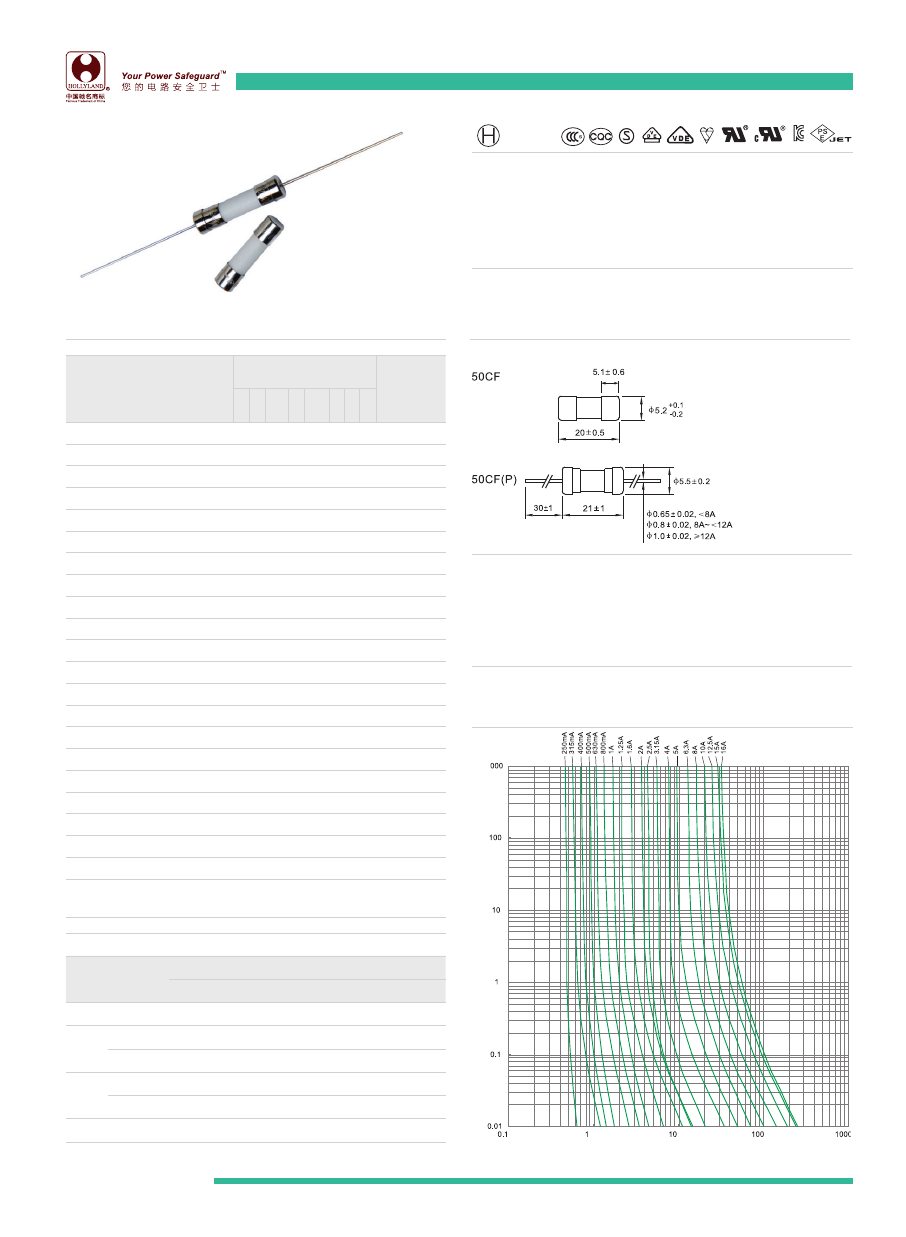

5.2x20mm IEC STANDARD FUSE RoHS Compliant & Pb-Free
HIGH BREAKING CAPACITY CERAMIC
TUBE FUSE (QUICK-ACTING)
高分断能力瓷保险丝管
（速断型）
Standards/ 标准：IEC 60127 GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃， 10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s
TECHNICAL PARAMETERS/ 技术参数 :
CATALOG
NO.
目录编号
CURRENT
RATING
额定电流
MAX.
VOLTAGE
DROP
最大电压降
（mv）
SAFETY APPROVALS
安全认证
REFERENCE
(A
2
.Sec.)
(RoHS)
I
2
T
参考值
CCC CQC SEMKO VDE UR/cUR BSI PSE KC
50CF-0250H
250mA
2800
●
●
●
●
●
●
0.0040
50CF-0315H
315mA
2500
●
●
●
●
●
●
0.0142
50CF-0400H
400mA
2000
●
●
●
●
●
●
0.0200
50CF-0500H
500mA
1800
●
●
●
●
●
●
0.0309
50CF-0630H
630mA
1500
●
●
●
●
●
●
0.0672
50CF-0800H
800mA
1200
●
●
●
●
●
●
0.1210
50CF-010H
1A
1000
●
●
●
●
● ● ●
0.2019
50CF-013H
1.25A
800
●
●
●
●
● ● ●
0.4489
50CF-016H
1.6A
600
●
●
●
●
● ● ●
1.243
50CF-020H
2A
500
●
●
●
●
● ● ●
2.204
50CF-025H
2.5A
400
●
●
●
●
● ● ●
1.995
50CF-032H
3.15A
350
●
●
●
●
● ● ●
4.271
50CF-040H
4A
300
●
●
●
●
● ● ●
12.22
50CF-050H
5A
250
●
●
●
●
● ● ●
24.20
50CF-063H
6.3A
200
●
●
●
●
● ● ●
51.30
50CF-080H
8A
200
●
●
●
●
● ● ●
102.2
50CF-100H
10A
200
●
●
●
●
● ● ●
204.7
50CF-120H
12A
200
●
●
●
360.5
50CF-125H
12.5A
180
●
●
●
407.6
50CF-150H
15A
180
●
●
●
602.5
50CF-160H
16A
180
●
●
642.7
H
DENOTES FOR 250V H
表示 250V
● DENOTES FOR APPROVED ● 表示已取得安全认证
INTERRUPTING CAPACITY/ 分断能力：
1,500 amperes at 250V AC
CURRENT(A)/ 电流 ( 安培 )
TIME(s)/
时间
(
秒
)
50CF
AVERAGE I-T CHARACTERISTICS CURVE
(FOR REFERENCE ONLY)
50CF
平均 I-T 曲线图
( 仅供参考 )
Dimensions/ 尺寸 :
50CF
ELECTRICAL CHARACTERISTICS/ 电气特性 :
RATING
额定
BLOWING TIME 熔断时间
250mA-4A
5A-6.3A
8A-10A
>10A
2.1In
Max. 最慢
30 minutes
30 minutes
30 minutes
30 minutes
2.75In
Min. 最快
10 ms
10 ms
40 ms
40 ms
Max. 最慢
2 seconds
3 seconds
20 seconds
20 seconds
4In
Min. 最快
3 ms
3 ms
10 ms
10 ms
Max. 最慢
300 ms
300 ms
1 second
1 second
10In
Max. 最慢
20 ms
20 ms
30 ms
40 ms
Unit 单位：mm
