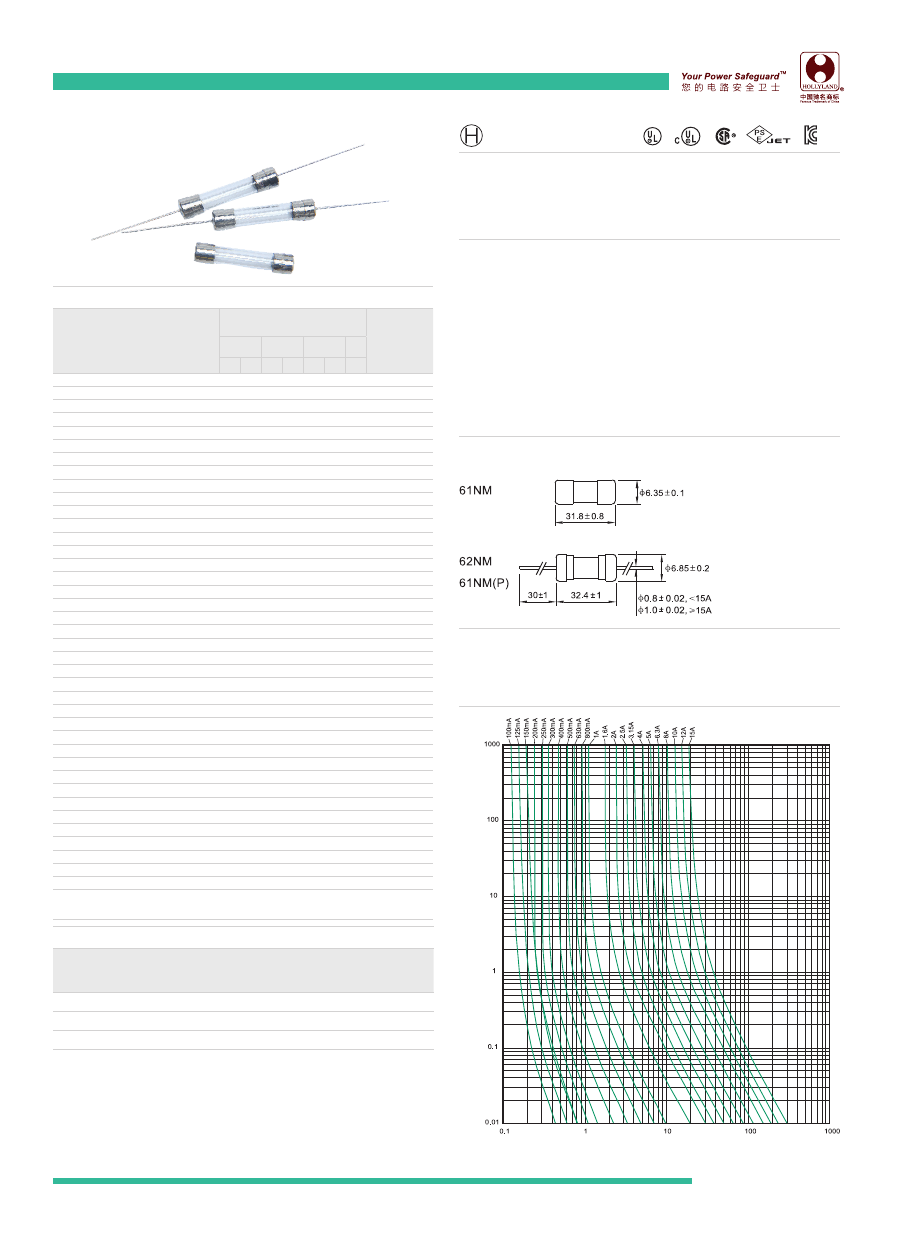

www.hollyfuse.com
43
Φ
6.35x32mm, RoHS Compliant & Pb-Free
GLASS TUBE FUSE (FAST BLOW)
玻璃保险丝管
（速断型）
Standards/ 标准：UL 248-1, UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s
TECHNICAL PARAMETERS/ 技术参数 :
CATALOG
NO.
目录编号
CURRENT
RATING
额定电流
SAFETY APPROVALS
安全认证
REFERENCE
(A
2
.Sec.)
(RoHS)
I
2
T 参考值
UL(cUL)
CSA
PSE
KC
H
L
H
L
H
L
H
61NM,62NM-0100H/L
100mA
●
●
●
●
●
0.00194
61NM,62NM-0125H/L
125mA
●
●
●
●
●
0.00373
61NM,62NM-0150H/L
150mA
●
●
●
●
●
0.00685
61NM,62NM-0160H/L
160mA
●
●
●
●
●
0.00782
61NM,62NM-0200H/L
200mA
●
●
●
●
●
0.00655
61NM,62NM-0250H/L
250mA
●
●
●
●
●
0.0123
61NM,62NM-0300H/L
300mA
●
●
●
●
●
0.0215
61NM,62NM-0315H/L
315mA
●
●
●
●
●
0.0239
61NM,62NM-0350H/L
350mA
●
●
●
●
●
0.0384
61NM,62NM-0400H/L
400mA
●
●
●
●
●
0.0515
61NM,62NM-0500H/L
500mA
●
●
●
●
●
0.112
61NM,62NM-0600H/L
600mA
●
●
●
●
●
0.213
61NM,62NM-0630H/L
630mA
●
●
●
●
●
0.239
61NM,62NM-0750H/L
750mA
●
●
●
●
●
0.399
61NM,62NM-0800H/L
800mA
●
●
●
●
●
0.504
61NM,62NM-010H/L
1A
●
●
●
●
●
●
●
0.968
61NM,62NM-012H/L
1.2A
●
●
●
●
●
●
●
1.751
61NM,62NM-013H/L
1.25A
●
●
●
●
●
●
●
1.788
61NM,62NM-015H/L
1.5A
●
●
●
●
●
●
●
3.565
61NM,62NM-016H/L
1.6A
●
●
●
●
●
●
●
4.026
61NM,62NM-020H/L
2A
●
●
●
●
●
●
●
8.57
61NM,62NM-025H/L
2.5A
●
●
●
●
●
●
●
14.21
61NM,62NM-030H/L
3A
●
●
●
●
●
●
●
23.12
61NM,62NM-032H/L
3.15A
●
●
●
●
●
●
●
25.70
61NM,62NM-035H/L
3.5A
●
●
●
●
●
●
●
32.15
61NM,62NM-040H/L
4A
●
●
●
●
●
●
●
43.65
61NM,62NM-050H/L
5A
●
●
●
●
●
●
●
72.54
61NM,62NM-060H/L
6A
●
●
●
●
●
●
●
120.2
61NM,62NM-063H/L
6.3A
●
●
●
●
●
●
●
138.6
61NM,62NM-070H/L
7A
●
●
●
●
●
●
●
195.3
61NM,62NM-080H/L
8A
●
●
●
●
●
●
●
239.9
61NM,62NM-090H/L
9A
●
●
●
●
●
●
●
296.4
61NM,62NM-100H/L
10A
●
●
●
●
●
●
●
370.2
61NM,62NM-120H/L
12A
●
●
556.1
61NM,62NM-150H/L
15A
●
●
912.4
61NM,62NM-160H/L
16A
●
●
61NM,62NM-200H/L
20A
●
●
61NM,62NM-250H/L
25A
●
●
61NM,62NM-300H/L
30A
●
●
● DENOTES FOR APPROVED
● 表示已取得安全认证
H DENOTES FOR 250V（H 代表 250V）, L DENOTES FOR 125V（L 代表 125V）
INTERRUPTING CAPACITY / 分断能力：
10,000 amperes at 125V AC (32mA-10A)
35 amperes at 250V AC (32mA-1A)
100 amperes at 250V AC (1.2A-3.5A)
200 amperes at 250V AC (4A-10A)
100 amperes at 125V AC (1A-30A) PSE (61NM)
500 amperes at 125V AC (1A-15A) PSE (62NM)
100 amperes at 125V AC (16A-30A) PSE (62NM)
100 amperes at 250V AC (1A-30A) PSE (61NM/62NM)
100 amperes at 250V AC (100mA-10A) KC
CURRENT(A)/ 电流 ( 安培 )
TIME(s)/
时间
(
秒
)
61NM/62NM
AVERAGE I-T CHARACTERISTICS CURVE
(FOR REFERENCE ONLY)
61NM/62NM
平均 I-T 曲线图
( 仅供参考 )
61NM,62NM
ELECTRICAL CHARACTERISTICS/ 电气特性 :
% of CURRENT RATING
额定电流的 %
BLOWING TIME
熔断时间
100%
4 hours Min. 最快 4 小时
135%
1 hour Max. 最慢 1 小时
200%
5 seconds Max. 最慢 5 秒
Dimensions/ 尺寸 :
