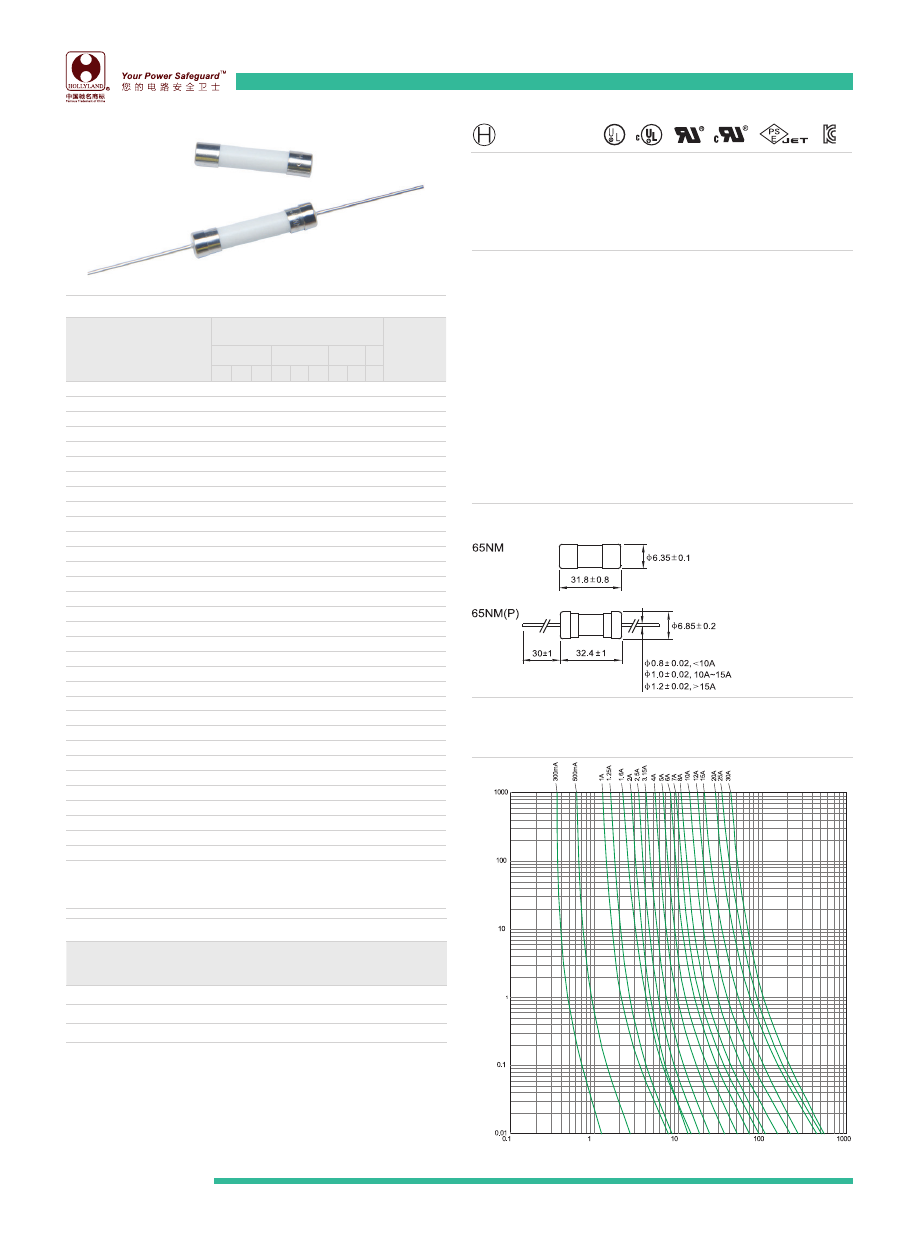

6.35x32mm, RoHS Compliant & Pb-Free
CERAMIC TUBE FUSE (FAST-BLOW)
瓷保险丝管
（速断型）
Standards/ 标准：UL 248-1, UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s
INTERRUPTING CAPACITY / 分断能力：
10,000 amperes at 125V AC (500mA-15A)
35 amperes at 250V AC (500mA-1A)
100 amperes at 250V AC (1.2A-3.5A)
200 amperes at 250V AC (4A-10A)
750 amperes at 250V AC (12A-15A)
100 amperes at 125V AC (20A-30A)
100 amperes at 250V AC (20A-30A)
500 amperes at 125V AC (1A-15A) PSE
100 amperes at 250V AC (1A-30A) PSE
100 amperes at 250V AC (300mA-3A) KC
100 amperes at 250V AC (4A-9A) KC
10,000 amperes at 125V DC (2.5A-15A) UL/cUL
400 amperes at 125V DC (20A-30A) UR/cUR
CURRENT(A)/ 电流 ( 安培 )
TIME(s)/
时间
(
秒
)
65NM
AVERAGE I-T CHARACTERISTICS CURVE
(FOR REFERENCE ONLY)
65NM
平均 I-T 曲线图
( 仅供参考 )
65NM
ELECTRICAL CHARACTERISTICS/ 电气特性 :
% of CURRENT RATING
额定电流的 %
BLOWING TIME
熔断时间
100%
4 hours Min. 最快 4 小时
135%
1 hour Max. 最慢 1 小时
200%
120 seconds Max. 最慢 120 秒
Dimensions/ 尺寸 :
TECHNICAL PARAMETERS/ 技术参数 :
CATALOG
NO.
目录编号
CURRENT
RATING
额定电流
SAFETY APPROVALS
安全认证
REFERENCE
(A
2
.Sec.)
(RoHS)
I
2
T 参考值
UL(cUL)
UR(cUR)
PSE
KC
H
L
L1
H
L
L1
H
L
H
65NM-0300H/L
300mA
●
0.0149
65NM-0315H/L
315mA
●
0.0169
65NM-0350H/L
350mA
●
0.0227
65NM-0375H/L
375mA
●
0.0272
65NM-0400H/L
400mA
●
0.0339
65NM-0500H/L
500mA
●
●
●
0.0716
65NM-0600H/L
600mA
●
●
●
0.1068
65NM-0630H/L
630mA
●
●
●
0.1162
65NM-0750H/L
750mA
●
●
●
0.2233
65NM-0800H/L
800mA
●
●
●
0.2871
65NM-010H/L
1A
●
●
●
●
●
0.5843
65NM-012H/L
1.2A
●
●
●
●
●
0.6298
65NM-013H/L
1.25A
●
●
●
●
●
0.7173
65NM-015H/L
1.5A
●
●
●
●
●
1.7168
65NM-016H/L
1.6A
●
●
●
●
●
2.011
65NM-020H/L
2A
●
●
●
●
●
1.712
65NM-025H/L/L1
2.5A
●
●
●
●
●
●
3.232
65NM-030H/L/L1
3A
●
●
●
●
●
●
5.032
65NM-032H/L/L1
3.15A
●
●
●
●
●
●
5.573
65NM-035H/L/L1
3.5A
●
●
●
●
●
8.111
65NM-040H/L/L1
4A
●
●
●
●
●
●
12.78
65NM-050H/L/L1
5A
●
●
●
●
●
●
25.64
65NM-060H/L/L1
6A
●
●
●
●
●
●
50.61
65NM-070H/L/L1
7A
●
●
●
●
●
●
84.09
65NM-080H/L/L1
8A
●
●
●
●
●
●
120.4
65NM-090H/L/L1
9A
●
●
●
●
●
●
167.1
65NM-100H/L/L1
10A
●
●
●
●
●
234.1
65NM-120H/L/L1
12A
●
●
●
●
●
467.2
65NM-150H/L/L1
15A
●
●
●
●
●
720.1
65NM-200H/L/L1
20A
●
●
●
●
2008
65NM-250H/L/L1
25A
●
●
●
●
2586
65NM-300H/L/L1
30A
●
●
●
●
3006
● DENOTES FOR APPROVED ● 表示已取得安全认证
H DENOTES FOR 250V (H 代表 250V), L DENOTES FOR 125V (L 代表 125V)
L1 DENOTES FOR 125V DC (L1 代 125V DC)
