www.hollyfuse.com
04

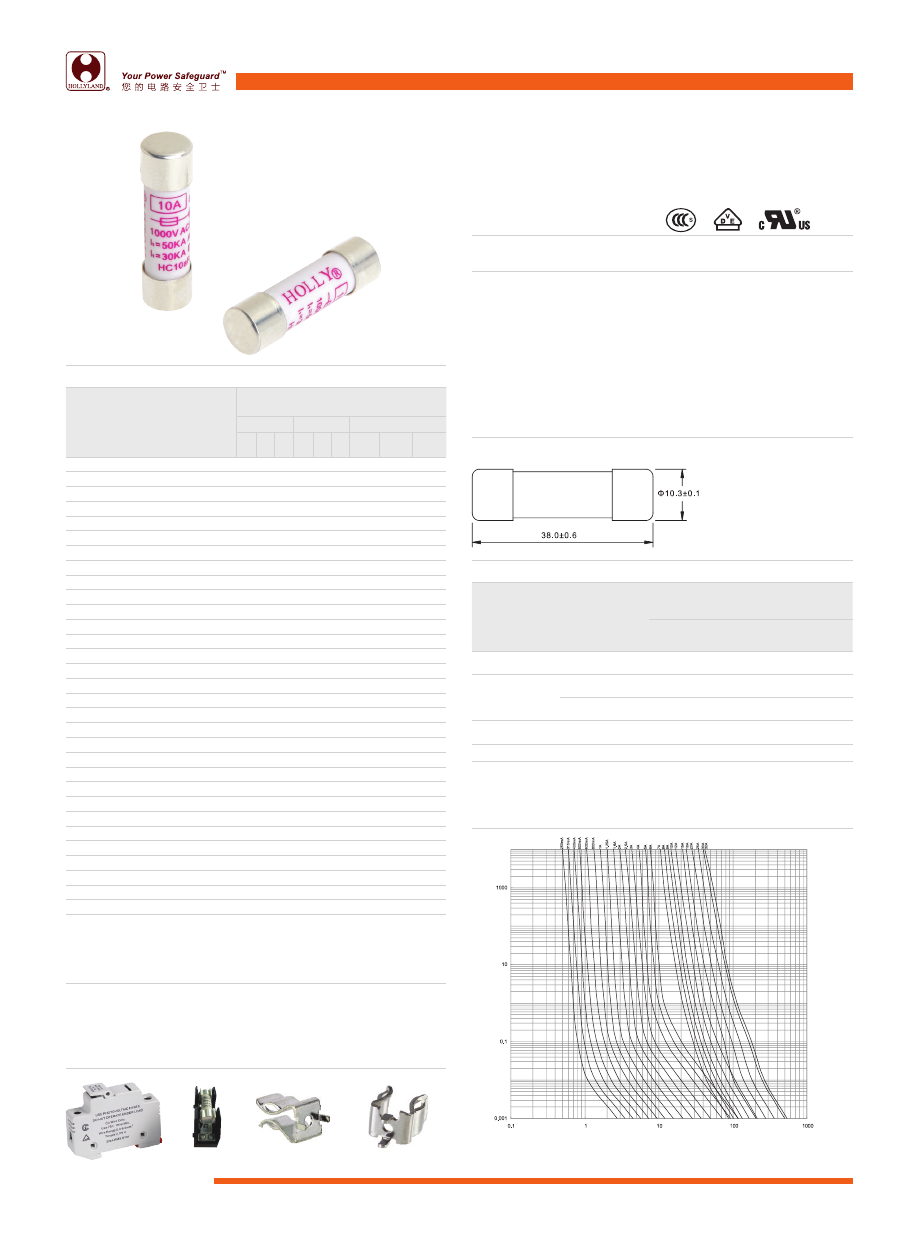

HC10aR 250mA-32A
Class of Operation:aR
保护特性：aR
INTERRUPTING CAPACITY / 分断能力：
120,000 amperes at 500V AC (250mA-30A ) CCC
120,000 amperes at 500V AC (250mA-32A ) VDE/CURUS
80,000 amperes at 690V AC (250mA-30A ) CCC
80,000 amperes at 690V AC (250mA-32A ) VDE/CURUS
50,000 amperes at 1000V AC (250mA-30A ) CCC
50,000 amperes at 1000V AC (250mA-32A ) CURUS
50,000 amperes at 1000V AC (250mA-10A ) VDE
120,000 amperes at 500V DC (250mA-32A ) CURUS
50,000 amperes at 690V DC (250mA-32A ) CURUS
30,000 amperes at 1000V DC (250mA-32A ) CURUS
CURRENT(A)/ 电流 ( 安培 )
TIME(s)/
时间
(
秒
)
HC10aR
平均 I-T 曲线图
( 仅供参考 )
AVERAGE I-T CHARACTERISTICS CURVE
(FOR REFERENCE ONLY)
Dimensions/ 尺寸 :
Unit 单位：mm
Standard/ 标准：IEC 60269-4，GB/T 13539.4，UL 248-13
TECHNICAL PARAMETERS/ 技术参数 :
CATALOG NO.
目录编号
CURRENT
RATING
额定电流
SAFETY APPROVALS
安全认证
CCC
VDE
cRus
U5
AC
U6
AC
U0
AC
U5
AC
U6
AC
U0
AC
U5
AC/DC
U6
AC/DC
U0
AC/DC
10aR0.25U5/U6/U0
250mA
● ● ● ● ● ●
●
●
●
10aR0.31U5/U6/U0
3.15mA
● ● ● ● ● ●
●
●
●
10aR0.4U5/U6/U0
400mA
● ● ● ● ● ●
●
●
●
10aR0.44U5/U6/U0
440mA
○ ○ ○ ○ ○ ○
●
●
●
10aR0.5U5/U6/U0
500mA
● ● ● ● ● ●
●
●
●
10aR0.63U5/U6/U0
630mA
● ● ● ● ● ●
●
●
●
10aR0.8U5/U6/U0
800mA
● ● ● ● ● ●
●
●
●
10aR1U5/U6/U0
1A
● ● ● ● ● ●
●
●
●
10aR1.25U5/U6/U0
1.25A
● ● ● ● ● ●
●
●
●
10aR1.6U5/U6/U0
1.6A
● ● ● ● ● ●
●
●
●
10aR2U5/U6/U0
2A
● ● ● ● ● ●
●
●
●
10aR2.5U5/U6/U0
2.5A
● ● ● ● ● ●
●
●
●
10aR3U5/U6/U0
3A
● ● ● ● ● ●
●
●
●
10aR3.15U5/U6/U0
3.15A
● ● ● ● ● ●
●
●
●
10aR4U5/U6/U0
4A
● ● ● ● ● ●
●
●
●
10aR5U5/U6/U0
5A
● ● ● ● ● ●
●
●
●
10aR6U5/U6/U0
6A
● ● ● ● ● ●
●
●
●
10aR6.3U5/U6/U0
6.3A
● ● ● ● ● ●
●
●
●
10aR7U5/U6/U0
7A
● ● ● ● ● ●
●
●
●
10aR8U5/U6/U0
8A
● ● ● ● ● ●
●
●
●
10aR9U5/U6/U0
9A
● ● ● ● ● ●
●
●
●
10aR10U5/U6/U0
10A
● ● ● ● ● ●
●
●
●
10aR11U5/U6/U0
11A
○ ○ ○ ○ ○ ○
●
●
●
10aR12U5/U6/U0
12A
● ● ● ● ● ○
●
●
●
10aR12.5U5/U6/U0
12.5A
● ● ● ● ● ○
●
●
●
10aR15U5/U6/U0
15A
● ● ● ● ● ○
●
●
●
10aR16U5/U6/U0
16A
● ● ● ● ● ○
●
●
●
10aR20U5/U6/U0
20A
● ● ● ● ● ○
●
●
○
10aR25U5/U6
25A
● ● ● ● ● ○
●
●
○
10aR30U5/U6
30A
● ● ● ● ● ○
●
●
○
10aR32U5/U6
32A
○ ○ ○ ● ● ○
●
●
○
U5 DENOTES FOR 500V
U5 表示 500V
U6 DENOTES FOR 690V
U6 表示 690V
U0 DENOTES FOR 1000V
U0 表示 1000V
● DENOTES FOR APPROVAL
● 表示已取得安全认证
ELECTRICAL CHARACTERISTICS/ 电气特性 :
% of CURRENT RATING
额定电流的 %
BLOWING TIME
熔断时间
250mA-5A
6A-32A
100%
最快 Min.
4 hours
4 hours
400%
最慢 Max.
1 seconds
10 seconds
最快 Min.
3 ms
10 ms
1000%
最慢 Max.
20 ms
30 ms
Recommended fuseblocks/fuseholders for 10.3mmx38mm fuses
See Model of product: HC101A HC101D HF-103D HF-104A
适用于 10.3mmx38mm 熔断体的支持件
详见产品型号：HC101A HC101D HF-103D HF-104A
