FUSE RoHS&Pb-free

好 利   保 险 丝 管

2013-2014

Your Power Safeguard

您 的 电 路 安 全 卫 士

TM

中国驰名商标

Famous Trademark of China

高新技术企业

High Technology Enterprise

好利来（中国）电子科技股份有限公司成立于1992年，是专业

研发、生产、销售电路保护器产品的高新技术企业。公司拥有众多专

利产品，是全球领先的电路保护器制造商。

公司秉持“以人为本、责任与分享”的经营理念。产品包括小

型熔断器、微型熔断器、SMD熔断器、温度保险丝、高/低压熔断器

及自复保险丝等电路保护器，广泛应用于通讯、计算机、交通、玩

具、家用电器、电池、新能源及其它电子电力系统保护。

公司的产品使命是作为“您的电路安全卫士”,“安全、可靠、

环保”是公司对顾客以及整个社会做出的承诺。所有产品均实现无铅

化生产并完全符合RoHS指令和REACH法规要求。公司通过了BSI

ISO9001、ISO/TS16949和CQC  ISO14001认证。公司荣获全球

众多著名制造商授予的优秀供应商、绿色合作伙伴等荣誉。

经过多年的探索与积累，公司赢得了良好的市场信誉，已发展成

为资历深厚、业绩骄人的业界知名企业。“      ”商标不仅获得了“中

国驰名商标”这一中国的最高荣誉，也获得了国际上的广泛认可。

我们相信，在全球竞争日益激烈的电路保护器领域，高效的运

营和可持续的竞争优势是公司成功的关键。公司始终把技术创新和产

品与服务的完善作为发展的驱动力。公司将人才视为最重要的资源，

聚集了一批来自海内外的电路保护器领域专家，拥有最顶尖的人才和

高效的运营团队。公司的竞争力来源于卓越的品质、一流的服务及持

续的创新能力。

公司注重了解、满足客户的需求，不断为客户创造更高价值。

不仅为客户提供标准产品，而且根据客户的需求，我们将一如既往积

极配合设计、选型、现场指导、品质跟踪等全过程的服务。

Founded in 1992, Hollyland (China) Electronics Technology Corporation Limited is a
high-technology company that specializes in the development, production and marketing of
circuit protection devices. As the world’s leading circuit protection devices manufacturer, the
company is proud to have developed and own a wide variety of patent products.

The company upholds the belief of “people-orientated, accountability and sharing” as the
business philosophy. It has a wide product ranges, including miniature fuses, micro fuses,
SMD fuses, high/low voltage fuses and PTC resettable fuses as well as other circuit
protection devices that are widely used in communications, computers, transportation, toys,
household appliances, batteries, new energy resource and other electronic power system
protection.

The mission of the company’s products is to be the “Your Power Safeguard”.  “Safety,
reliability and environmental friendly” are the company’s commitment to both the customers
and the society. All the products are lead-free that complies with RoHS Directive and
REACH regulations. The world-class production plant is accredited with BSI ISO9001,
ISO/TS16949 and CQC ISO14001 system certifications.In all these years, the company
has been awarded with the title of being best manufacturer as well as receiving the honor
of being the green partner by some of the world’s best well-known corporations.

With years of development and dedication, the company has won an excellent reputation in
the market and is being regarded as the one of the industry leaders. “     ” brand not only
has been awarded as “Famous Trademark of China” - the highest honor in the People’s
Republic of China, but it has also received respectful world - wide recognitions.

We believe that in the increasingly competitive circuit protection industry, efficient
operations and sustainable competitiveness are the key to the success of our business. The
company emphasizes in driving technological innovation as well as in promoting excellence
in both product quality and customer service. We also believe that people is one of our most
important resources; the company has successfully gathered circuit protection industry
experts from around the world and now has one of the best team of talents in our
operations. For more than two decades, the company has dedicated in providing the best
quality of solutions to our customers by having the strongest commitment in proprietary
research & development, vigorous quality control as well as innovation.

The company is also proud of its outstanding customer service. We focus on understanding
and meeting customers’ needs and are committed to create values for customers. Not only
do we provide standard products, we also offer customized design products. Depending on
customers’ requirements, we are proactive in providing the best tailor-made solutions,
offering services such as on-site special production, vigorous quality control and more.

为客户创造价值  为员工提供平台

Create  value  for  customers  and  provide
workplace for employees

为企业创造利润  为股东增加回报

Generate profits for the enterprises and for its
shareholders

用信誉赢得尊重  用责任回报社会

Earn respect with creditability and give back to
the society with social responsibility

Company

’

s Mission

公司宗旨

Company Introduction

公司简介

中国驰名商标

Famous Trademark of China

高新技术企业

High Technology Enterprise

Honors And Awards

公司荣誉

中国电器工业协会电器附件及家用控制器分会第六届事理会理事单位
Member of the 6th Council of China Electrical Industrial Association,
Accessories and Household Appliances Branch

中国电器工业协会会员单位
Member of China Electrical Industrial Association

全国熔断器标准化技术委员会低压熔断器分技术委员会成员
Member of the Low Voltage fuses Branch of National
Standardization Technical Committee

全国熔断器标准化技术委员会成员
Member of National Standardization Technical Committee

福建省创新型试点企业
An Experimental Enterprise in Innovation of Fujian Province

厦门市高新技术发展协会第三届理事会副会长单位
Vice President Organization of the 3rd Council of Xiamen
High-tech Development Association

厦门市重点高新技术企业
A Key High Technology Enterprise of Xiamen City

厦门市创新型示范企业
A Model Enterprise in Innovation of Xiamen City

讲诚信重质量企业
An Enterprise of High Credibility and Top Quality

“感动人的管理”企业
An Enterprise with Touching Management

信用等级为AA级企业
An Enterprise with AA Credit Rating

好利来（中国）电子科技股份有限公司成立于1992年，是专业

研发、生产、销售电路保护器产品的高新技术企业。公司拥有众多专

利产品，是全球领先的电路保护器制造商。

公司秉持“以人为本、责任与分享”的经营理念。产品包括小

型熔断器、微型熔断器、SMD熔断器、温度保险丝、高/低压熔断器

及自复保险丝等电路保护器，广泛应用于通讯、计算机、交通、玩

具、家用电器、电池、新能源及其它电子电力系统保护。

公司的产品使命是作为“您的电路安全卫士”,“安全、可靠、

环保”是公司对顾客以及整个社会做出的承诺。所有产品均实现无铅

化生产并完全符合RoHS指令和REACH法规要求。公司通过了BSI

ISO9001、ISO/TS16949和CQC  ISO14001认证。公司荣获全球

众多著名制造商授予的优秀供应商、绿色合作伙伴等荣誉。

经过多年的探索与积累，公司赢得了良好的市场信誉，已发展成

为资历深厚、业绩骄人的业界知名企业。“      ”商标不仅获得了“中

国驰名商标”这一中国的最高荣誉，也获得了国际上的广泛认可。

我们相信，在全球竞争日益激烈的电路保护器领域，高效的运

营和可持续的竞争优势是公司成功的关键。公司始终把技术创新和产

品与服务的完善作为发展的驱动力。公司将人才视为最重要的资源，

聚集了一批来自海内外的电路保护器领域专家，拥有最顶尖的人才和

高效的运营团队。公司的竞争力来源于卓越的品质、一流的服务及持

续的创新能力。

公司注重了解、满足客户的需求，不断为客户创造更高价值。

不仅为客户提供标准产品，而且根据客户的需求，我们将一如既往积

极配合设计、选型、现场指导、品质跟踪等全过程的服务。

Founded in 1992, Hollyland (China) Electronics Technology Corporation Limited is a
high-technology company that specializes in the development, production and marketing of
circuit protection devices. As the world’s leading circuit protection devices manufacturer, the
company is proud to have developed and own a wide variety of patent products.

The company upholds the belief of “people-orientated, accountability and sharing” as the
business philosophy. It has a wide product ranges, including miniature fuses, micro fuses,
SMD fuses, high/low voltage fuses and PTC resettable fuses as well as other circuit
protection devices that are widely used in communications, computers, transportation, toys,
household appliances, batteries, new energy resource and other electronic power system
protection.

The mission of the company’s products is to be the “Your Power Safeguard”.  “Safety,
reliability and environmental friendly” are the company’s commitment to both the customers
and the society. All the products are lead-free that complies with RoHS Directive and
REACH regulations. The world-class production plant is accredited with BSI ISO9001,
ISO/TS16949 and CQC ISO14001 system certifications.In all these years, the company
has been awarded with the title of being best manufacturer as well as receiving the honor
of being the green partner by some of the world’s best well-known corporations.

With years of development and dedication, the company has won an excellent reputation in
the market and is being regarded as the one of the industry leaders. “     ” brand not only
has been awarded as “Famous Trademark of China” - the highest honor in the People’s
Republic of China, but it has also received respectful world - wide recognitions.

We believe that in the increasingly competitive circuit protection industry, efficient
operations and sustainable competitiveness are the key to the success of our business. The
company emphasizes in driving technological innovation as well as in promoting excellence
in both product quality and customer service. We also believe that people is one of our most
important resources; the company has successfully gathered circuit protection industry
experts from around the world and now has one of the best team of talents in our
operations. For more than two decades, the company has dedicated in providing the best
quality of solutions to our customers by having the strongest commitment in proprietary
research & development, vigorous quality control as well as innovation.

The company is also proud of its outstanding customer service. We focus on understanding
and meeting customers’ needs and are committed to create values for customers. Not only
do we provide standard products, we also offer customized design products. Depending on
customers’ requirements, we are proactive in providing the best tailor-made solutions,
offering services such as on-site special production, vigorous quality control and more.

为客户创造价值  为员工提供平台

Create  value  for  customers  and  provide
workplace for employees

为企业创造利润  为股东增加回报

Generate profits for the enterprises and for its
shareholders

用信誉赢得尊重  用责任回报社会

Earn respect with creditability and give back to
the society with social responsibility

Company

’

s Mission

公司宗旨

Company Introduction

公司简介

中国驰名商标

Famous Trademark of China

高新技术企业

High Technology Enterprise

Honors And Awards

公司荣誉

中国电器工业协会电器附件及家用控制器分会第六届事理会理事单位
Member of the 6th Council of China Electrical Industrial Association,
Accessories and Household Appliances Branch

中国电器工业协会会员单位
Member of China Electrical Industrial Association

全国熔断器标准化技术委员会低压熔断器分技术委员会成员
Member of the Low Voltage fuses Branch of National
Standardization Technical Committee

全国熔断器标准化技术委员会成员
Member of National Standardization Technical Committee

福建省创新型试点企业
An Experimental Enterprise in Innovation of Fujian Province

厦门市高新技术发展协会第三届理事会副会长单位
Vice President Organization of the 3rd Council of Xiamen
High-tech Development Association

厦门市重点高新技术企业
A Key High Technology Enterprise of Xiamen City

厦门市创新型示范企业
A Model Enterprise in Innovation of Xiamen City

讲诚信重质量企业
An Enterprise of High Credibility and Top Quality

“感动人的管理”企业
An Enterprise with Touching Management

信用等级为AA级企业
An Enterprise with AA Credit Rating

Index  产品索引

TYPE

DESCRIPTION

RATING

APPROVALS

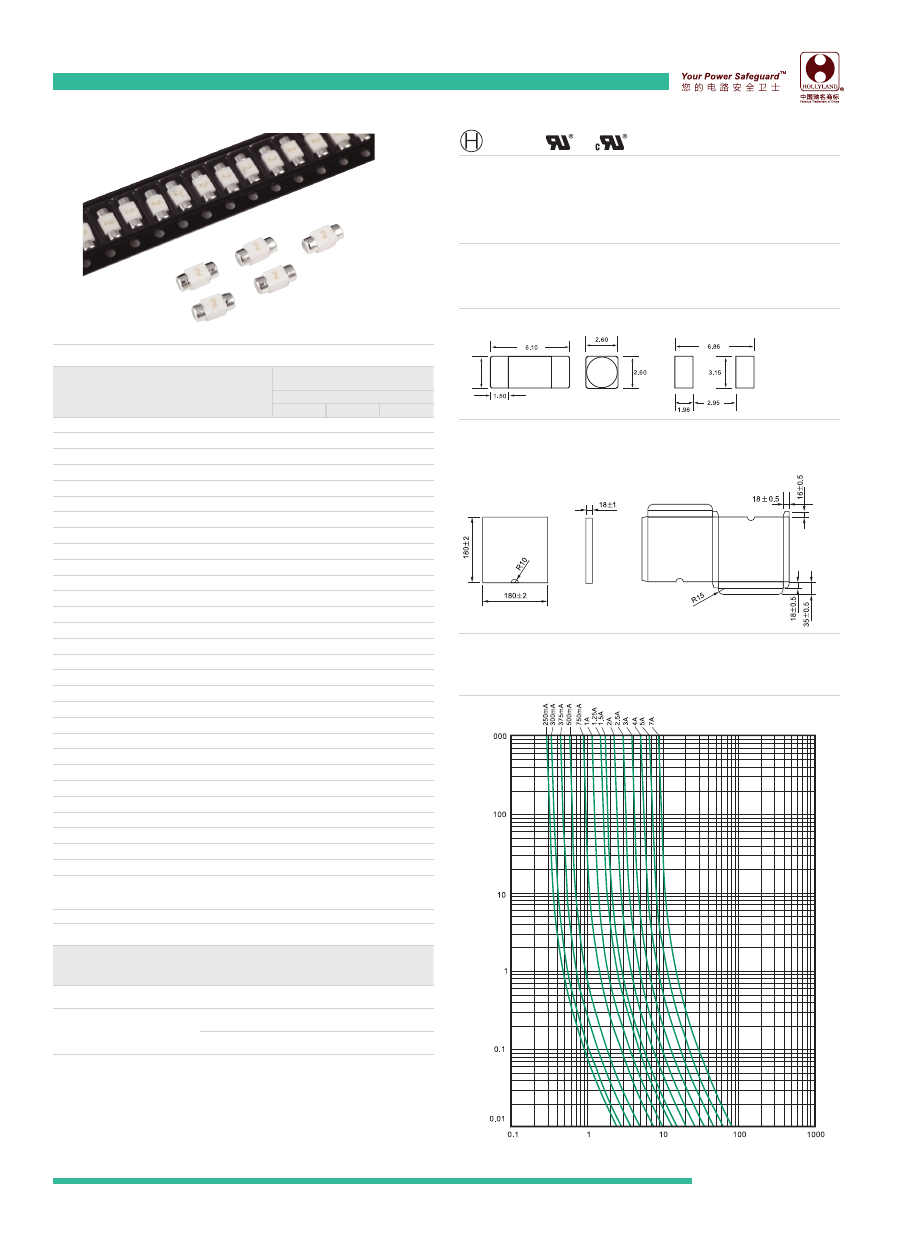

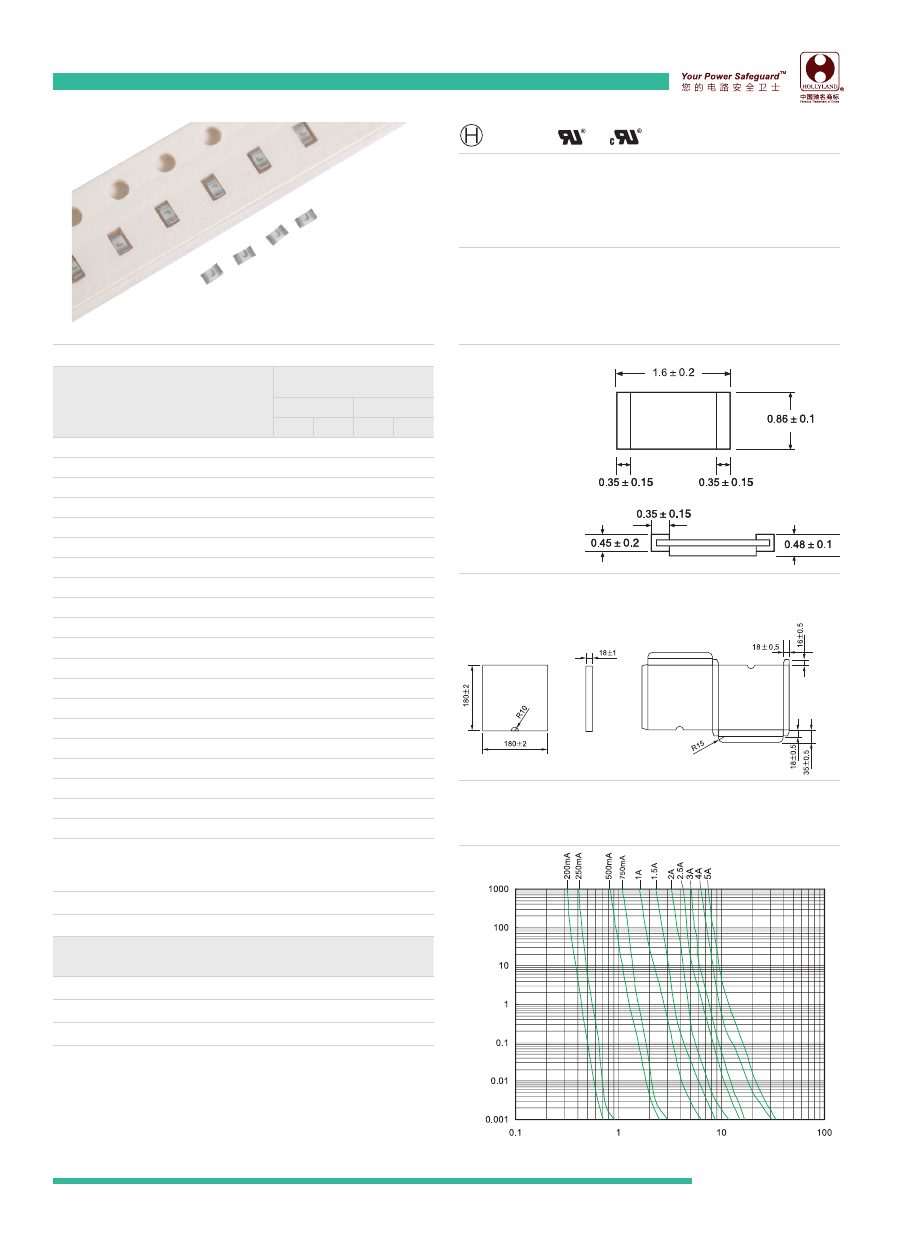

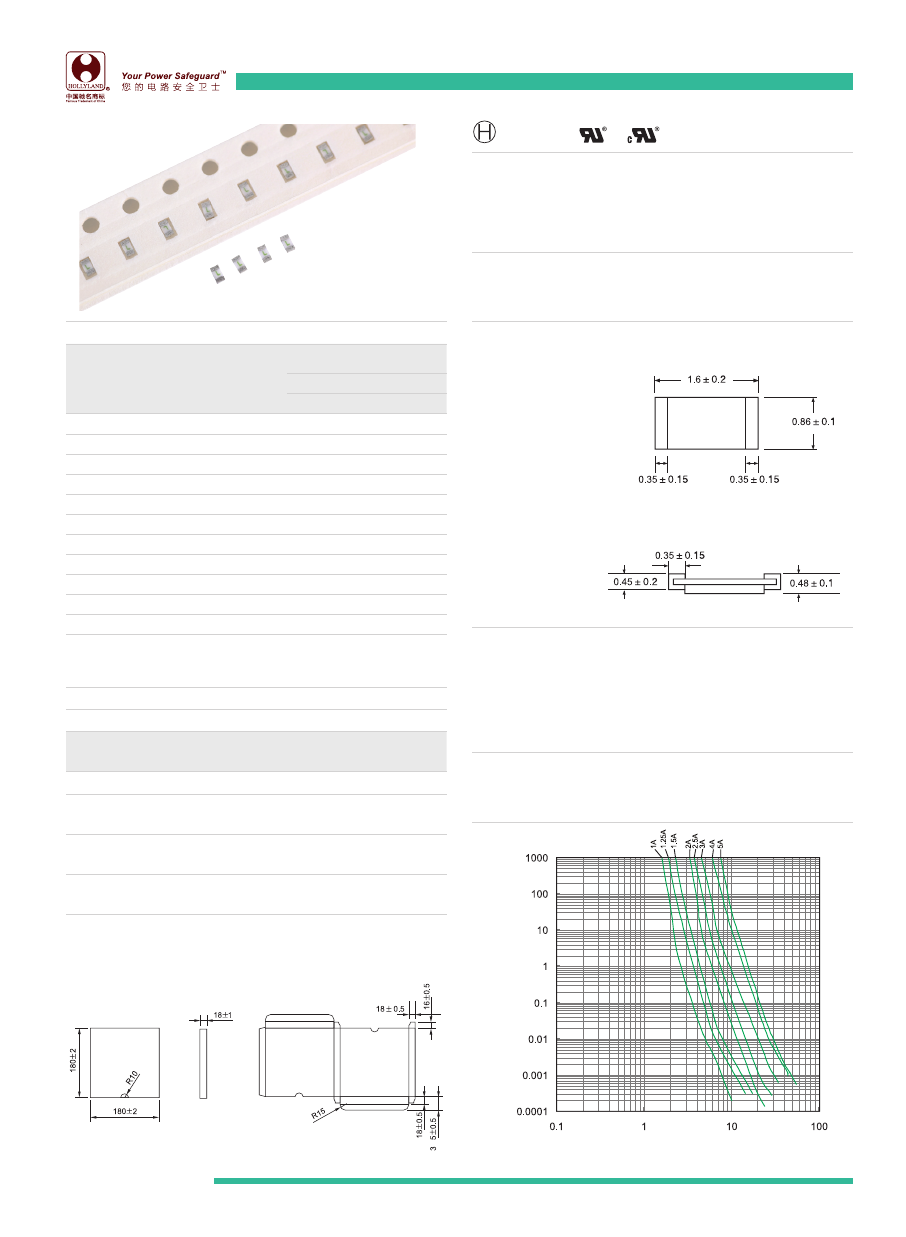

Surface

Mount Fuse

25F

Fast-Blow Type

100mA-10A, 125V / 250V; 12-15A,65V / 125V

UR, cUR

P07

25T

Slow-Blow Type

200mA-5A,125V / 250V

UR, cUR

P08

06F

Fast-Blow Type

200mA-5A,  32V / 63V

UR, cUR

P09

06T

Slow-Blow Type

1A-5A,  32V / 63V

UR, cUR

P10

12F

Fast-Blow Type

100mA-7A,  24V / 32V / 63V

UR, cUR

P11

12T

Slow-Blow Type

500mA-7A,  24V / 32V / 63V

UR, cUR

P12

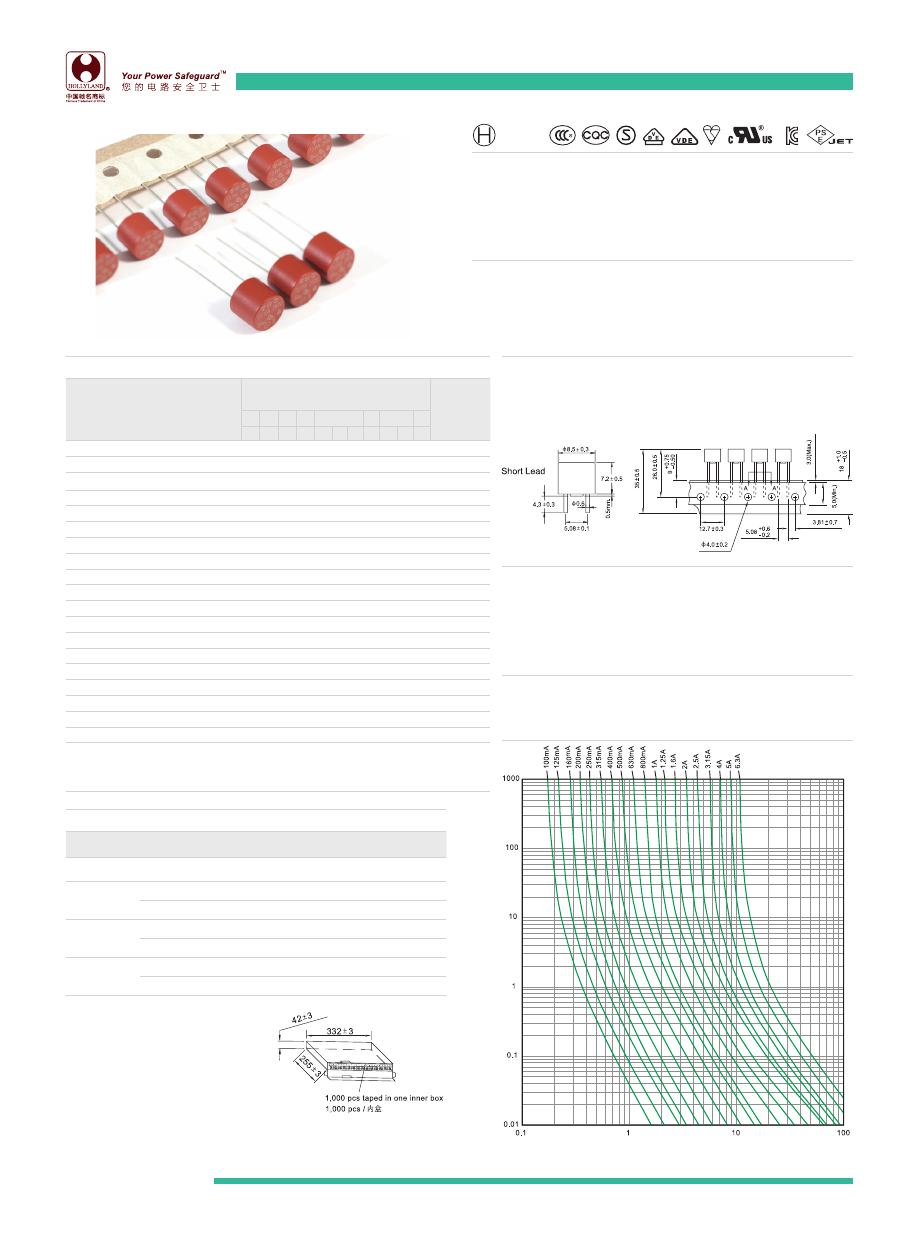

Φ8x8.5mm

Radial Lead

Microfuse

5RF

Quick-acting Type

315mA-6.3A, 250V

CCC, CQC, cURus, VDE, SEMKO, PSE

P13

5RT

Time-lag Type

100mA-6.3A, 125V / 250V / 300V

CCC, CQC, cURus, VDE, SEMKO, BSI, PSE, KC

P14

5EF

Quick-acting Type

315mA-6.3A, 250V

CQC, cURus, VDE, SEMKO, PSE

P15

5ET

Time-lag Type

100mA-10A, 125V / 250V / 300V

CQC, cURus, VDE, SEMKO, BSI, PSE, KC

P16

Φ2.4x7mm

Microfuse

20N

Very Quick-acting Type

100mA-10A, 125V / 250V;1 2-15A, 72V; 20A 60V

CCC, UL, cUL, UR, cUR, CSA, PSE

P17

20S

Medium Slow-Blow Type

200mA-10A, 125V / 250V

CCC, CQC, UL, cUL, CSA, PSE

P18

20T

Slow-Blow Type

375mA-7A, 125V / 250V

CCC, CQC, UR, cUR, CSA, PSE

P19

Φ3.6x10mm

Microfuse

30N

Fast-Blow Type

200mA-15A, 125V / 250V / 350V

UL, cUL, CSA, PSE

P20

25S

Slow-Blow Type

1A-2A, 125V / 250V

CQC, VDE, UR, cUR, PSE

P21

30TS

Slow-Blow Type

200mA-15A, 125V / 250V / 350V

CCC, CQC, VDE, UL, cUL, UR, cUR, CSA, PSE

P22

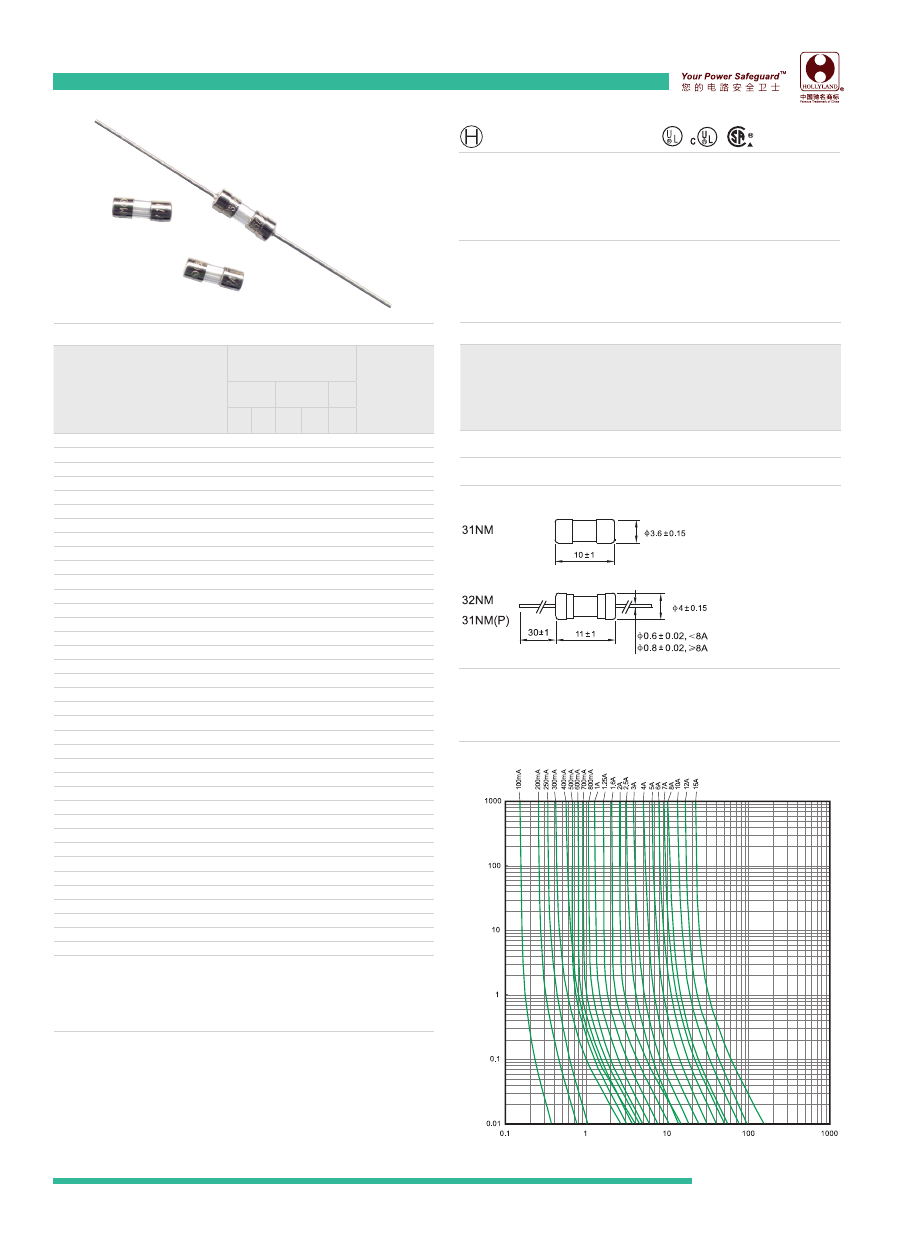

31NM, 32NM/31NM(P)

Fast-Blow Type

100mA-15A, 125V / 250V

UL, cUL, CSA

P23

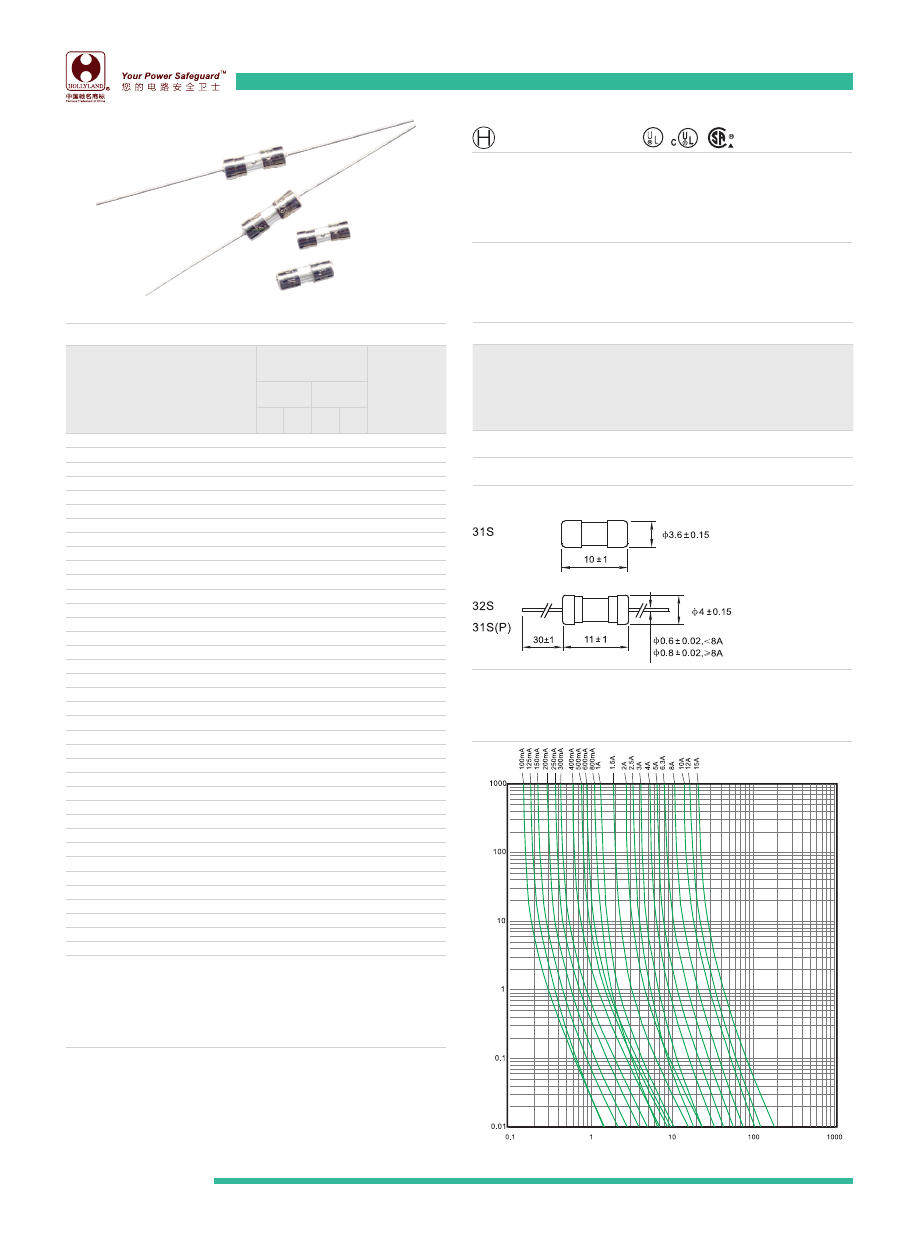

31S, 32S/31S(P)

Slow-Blow Type

100mA-15A, 125V / 250V

UL, cUL, CSA

P24

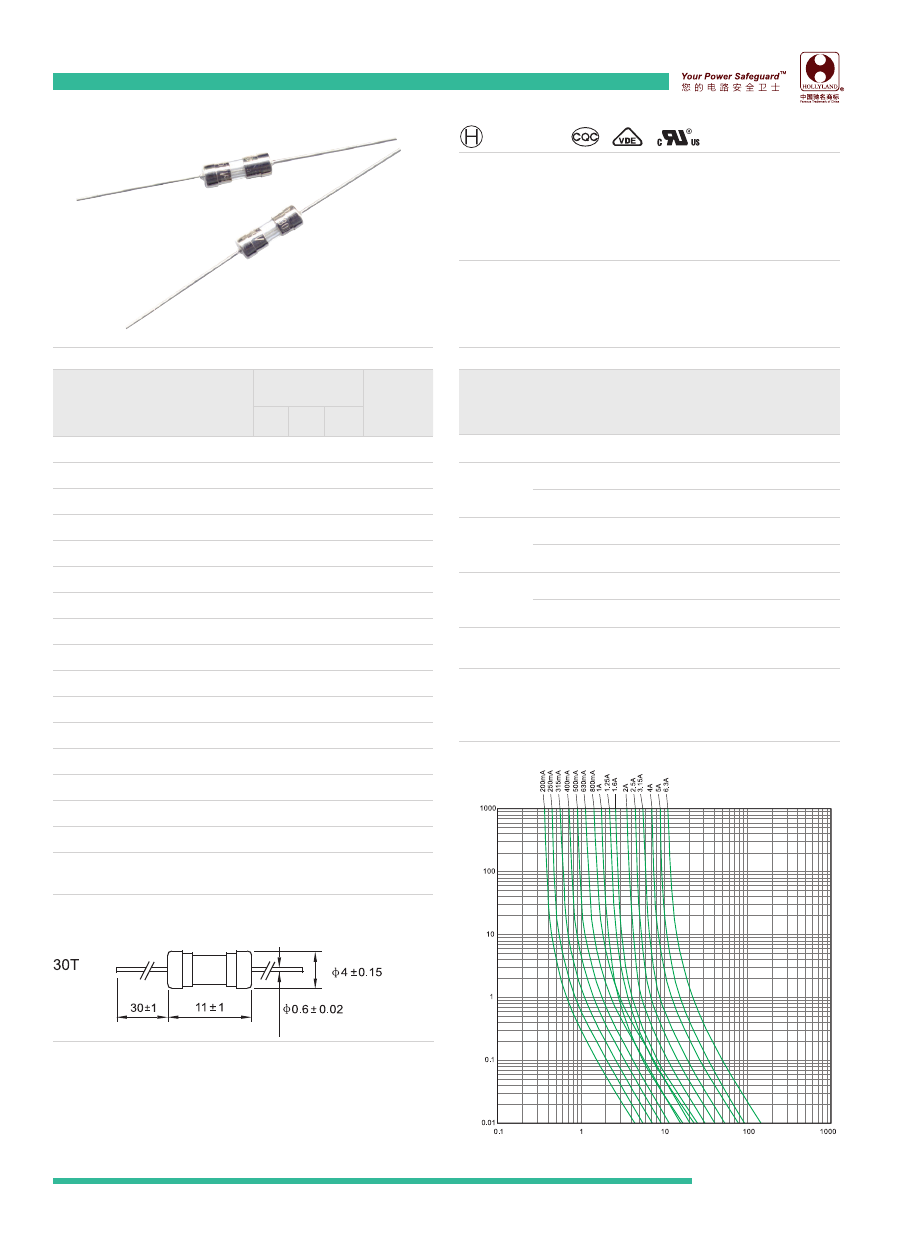

30T

Time-lag Type

200mA-6.3A, 250V

CQC, VDE, cURus

P25

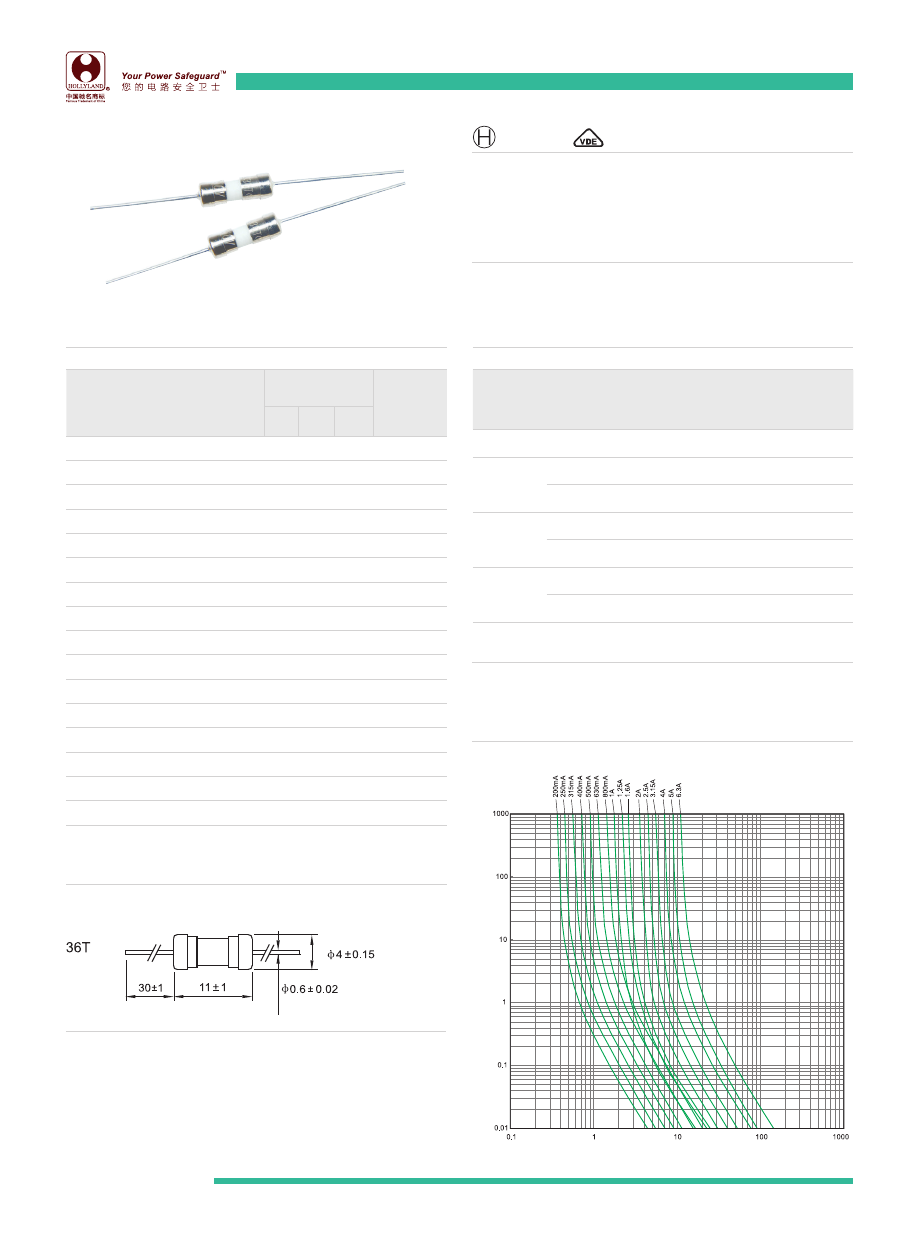

36T

Time-lag Type

200mA-6.3A, 250V

VDE

P26

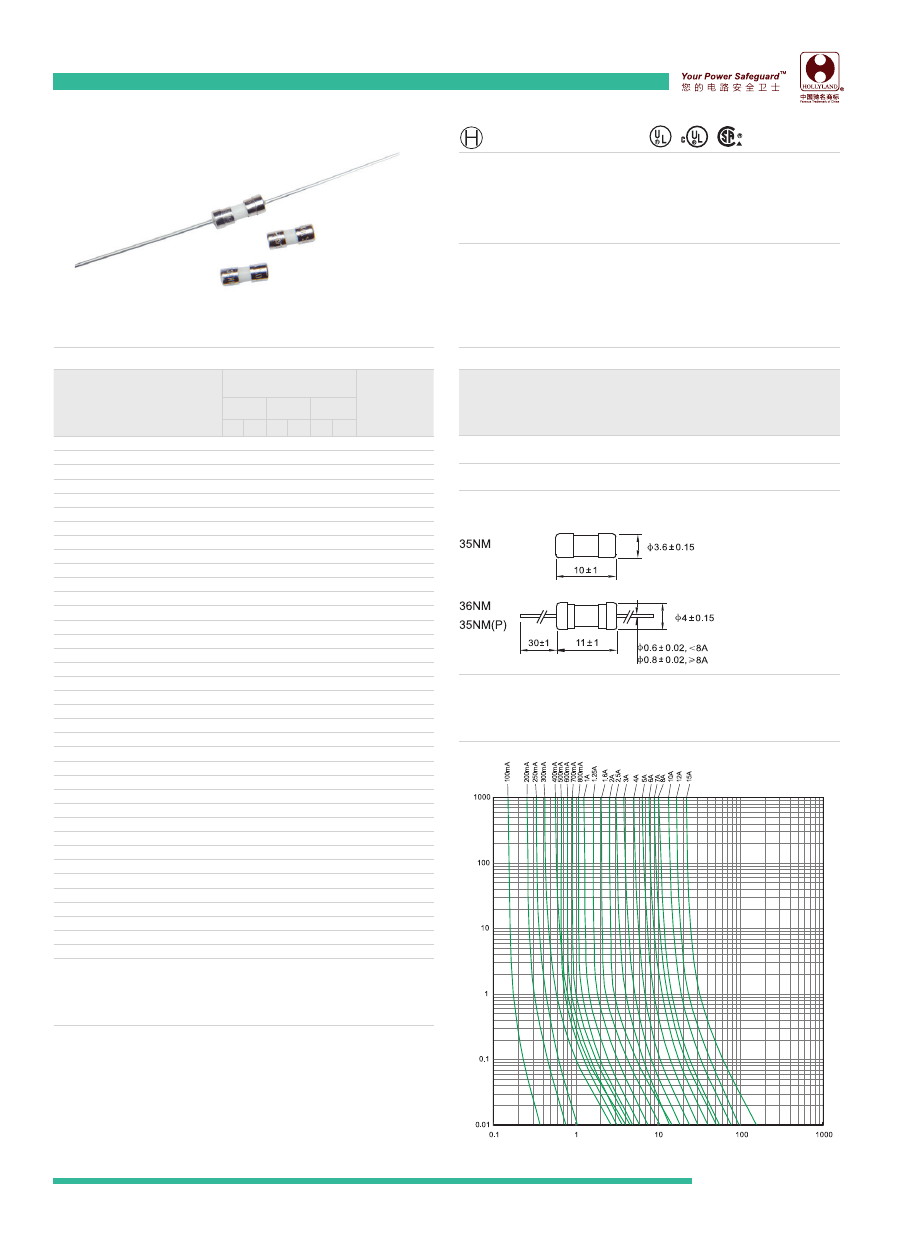

35NM, 36NM/35NM(P)

Fast-Blow Type

100mA-15A, 125V / 250V

UL, cUL, CSA

P27

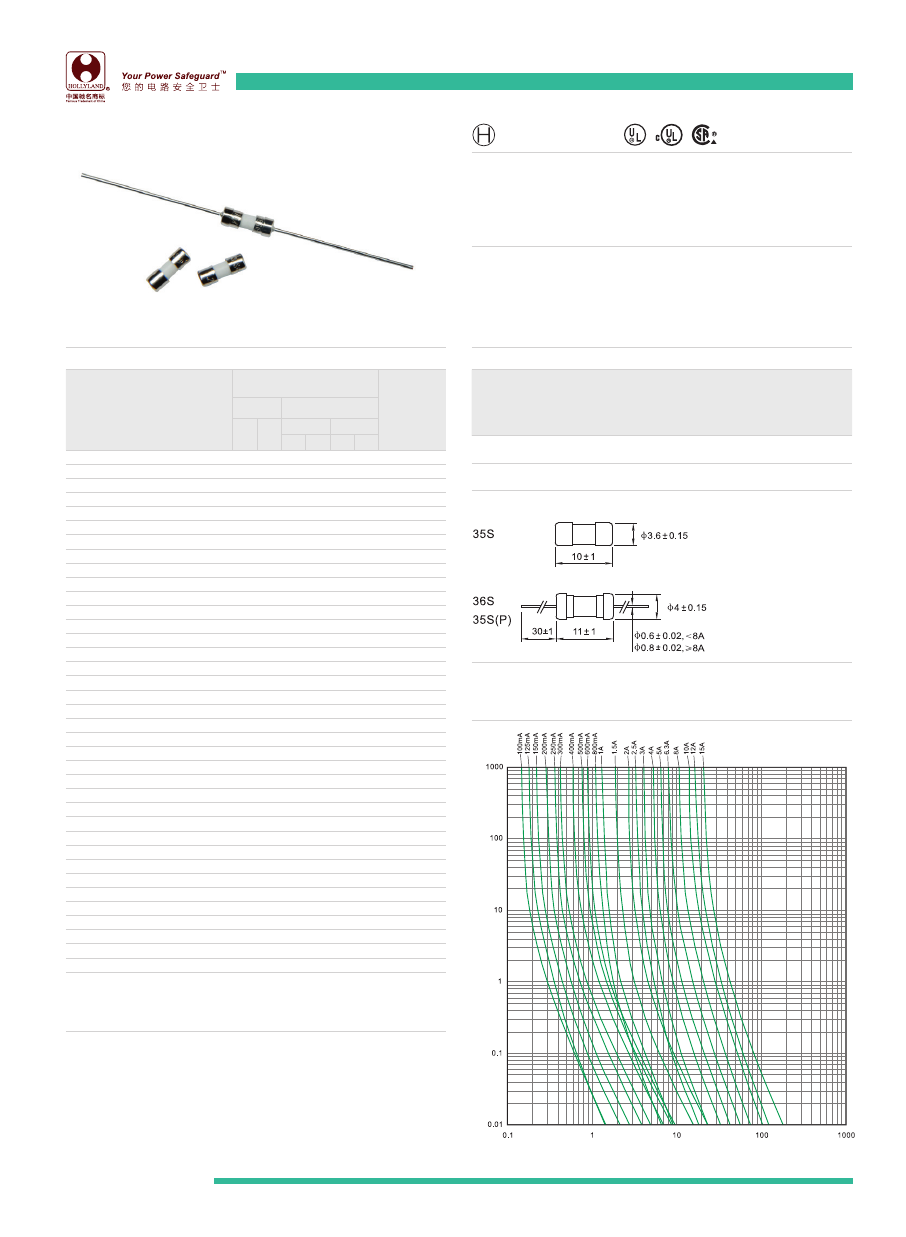

35S, 36S/35S(P)

Slow-Blow Type

100mA-15A, 125V / 250V

UL, cUL, CSA

P28

Φ4.5x15mm

Glass Tube

fuse

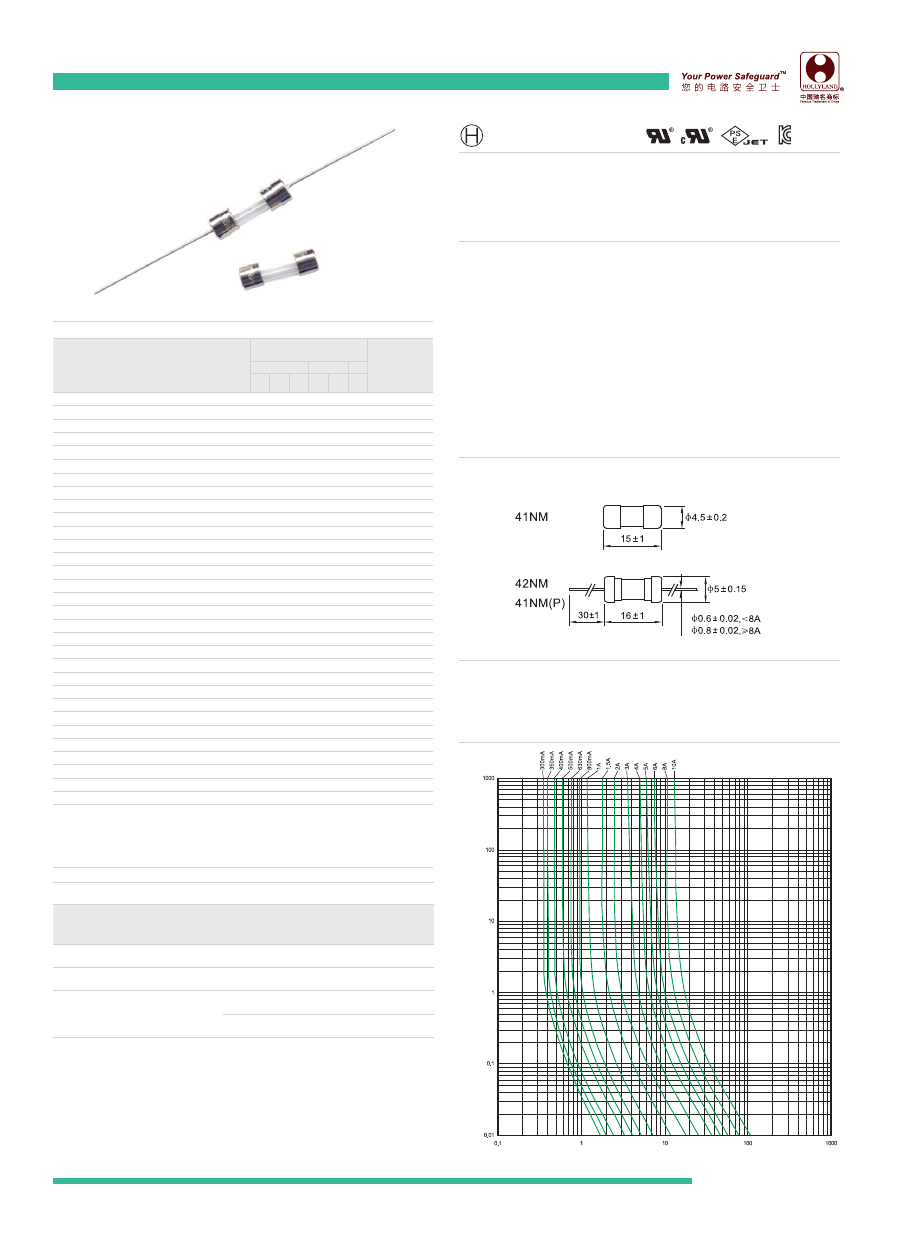

41NM, 42NM/41NM(P)

Fast-Blow Type

300mA-15A, 125V / 250V / 300V

UR, cUR, PSE, KC

P29

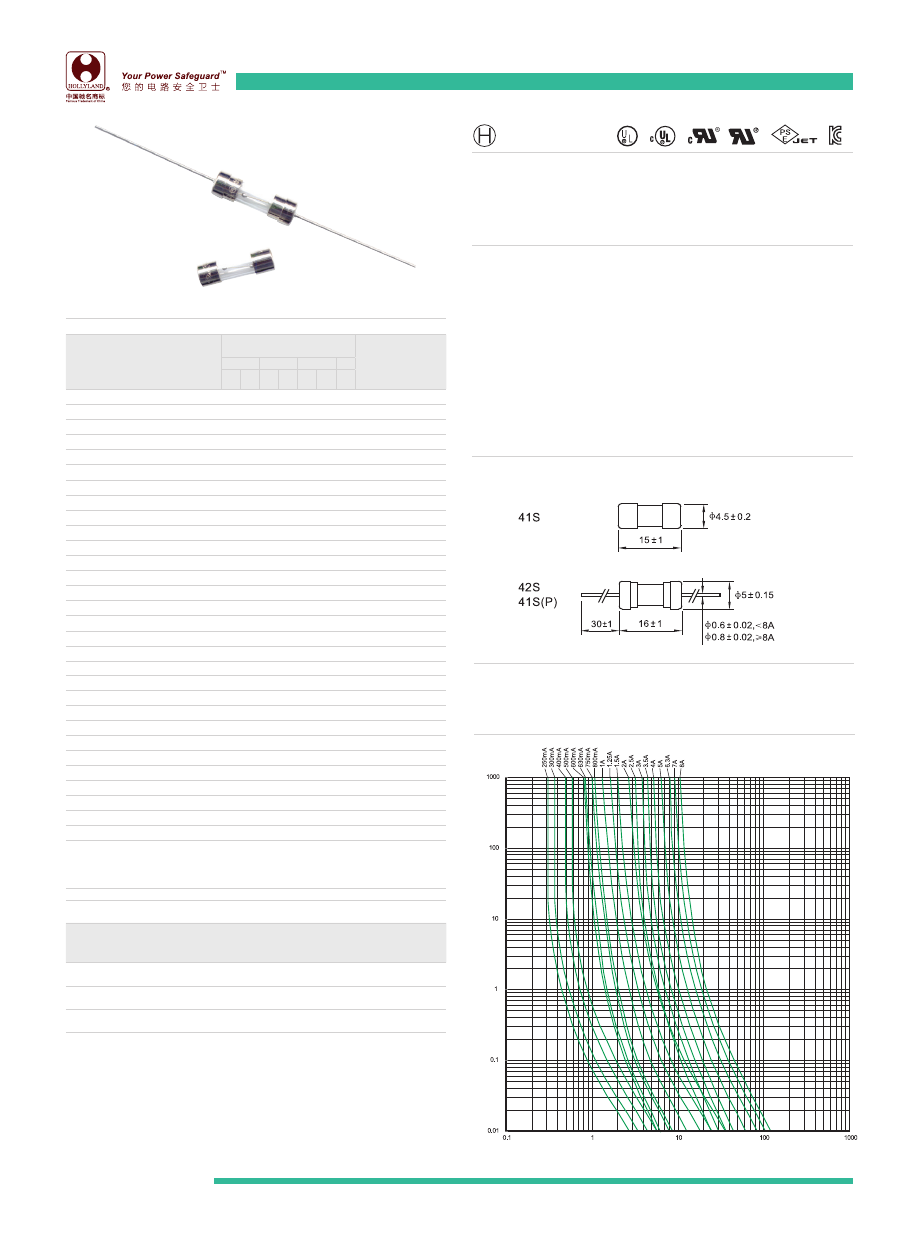

41S, 42S/41S(P)

Slow-Blow Type

200mA-10A, 125V / 250V

UL, cUL, UR, cUR, PSE, KC

P30

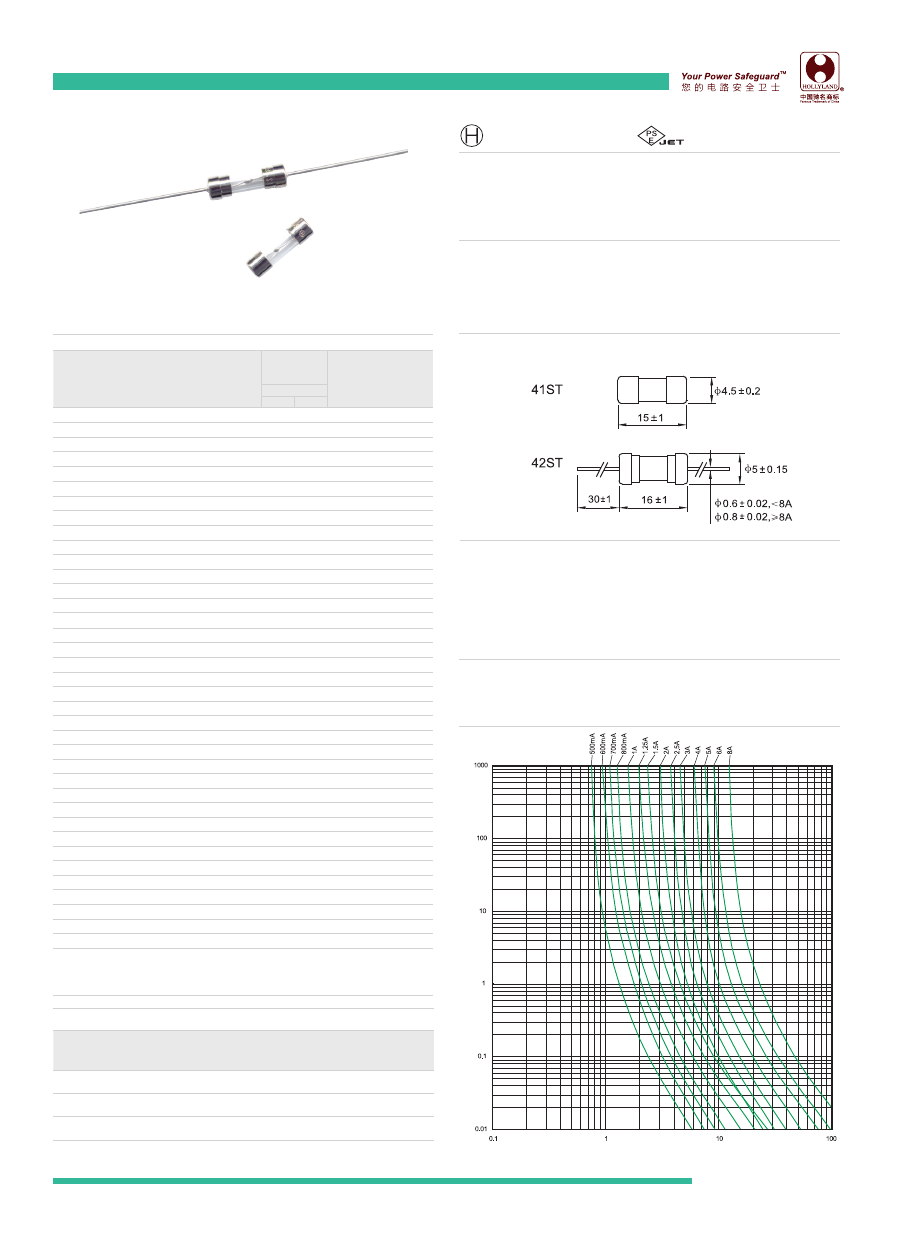

41ST, 42ST

Medium Slow-Blow Type

100mA-15A, 125V / 250V

PSE

P31

Φ5.2x20mm

Glass & Ceramic

Tube fuse

51NM, 52NM/51NM(P)

Fast-Blow Type

100mA-15A, 125V / 250V

UL, cUL, UR, cUR, CSA, PSE, KC

P32

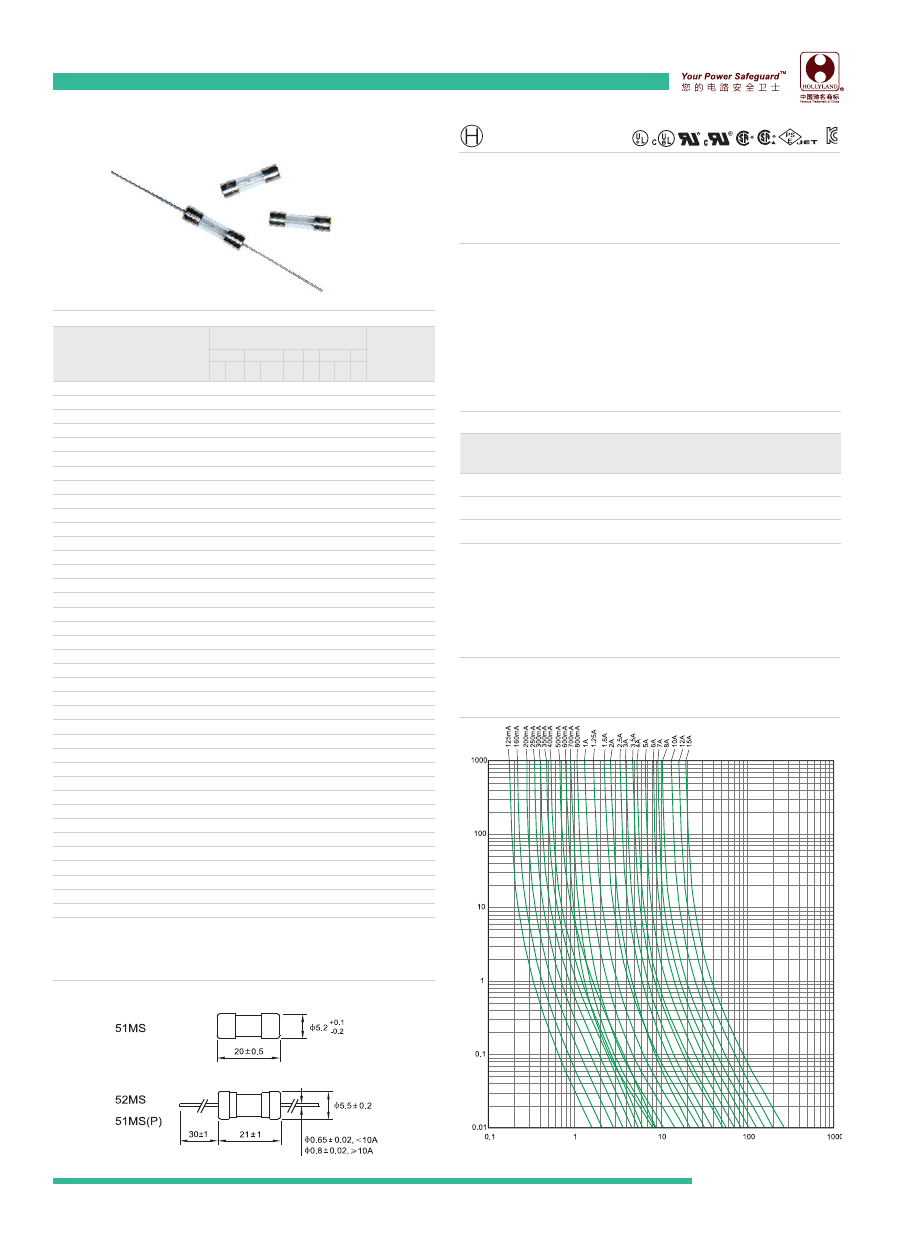

51MS, 52MS/51MS(P)

Medium Slow-Blow Type

100mA-15A, 125V / 250V

UL, cUL, UR, cUR, CSA, PSE, KC

P33

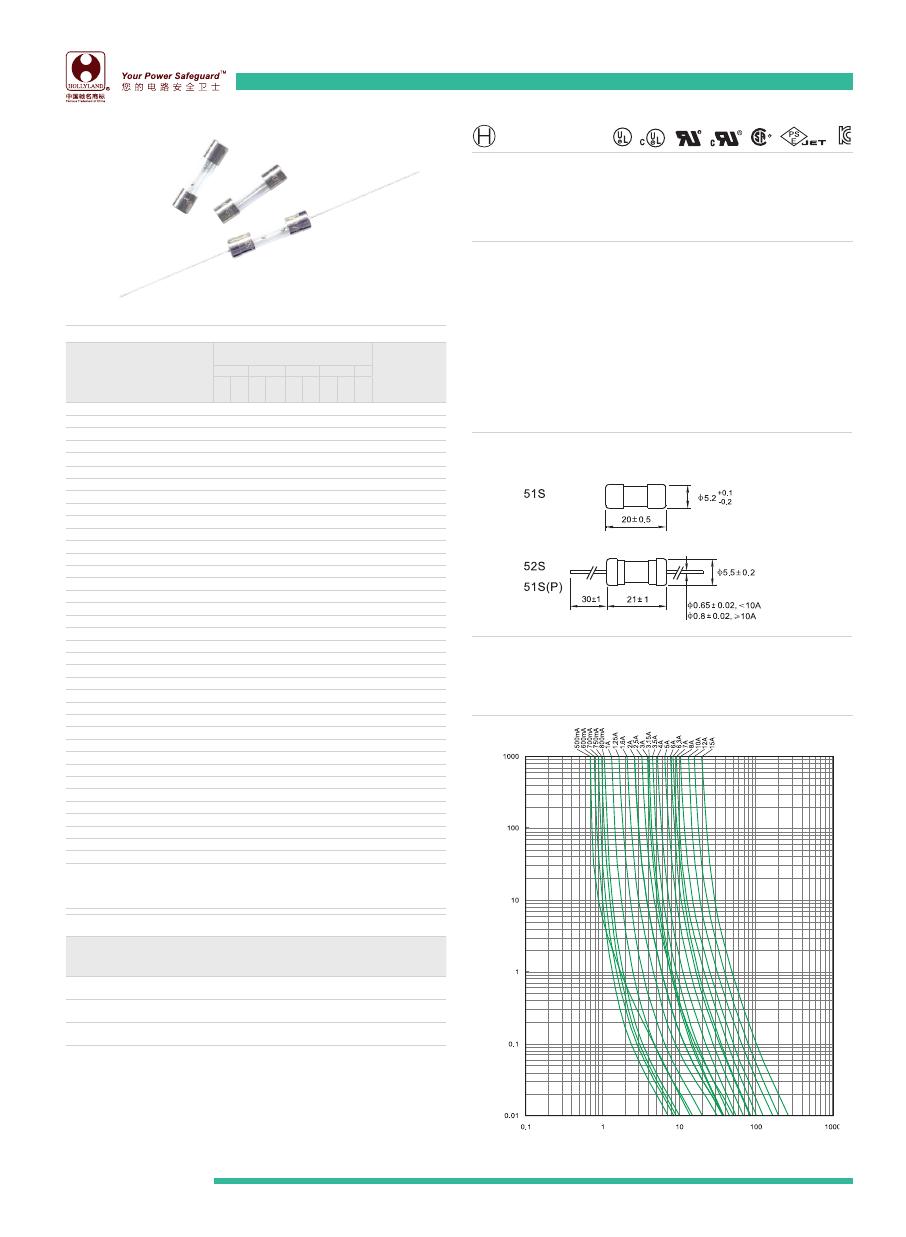

51S, 52S/51S(P)

Slow-Blow Type

100mA-15A, 125V / 250V

UL, cUL, UR, cUR, CSA, PSE, KC

P34

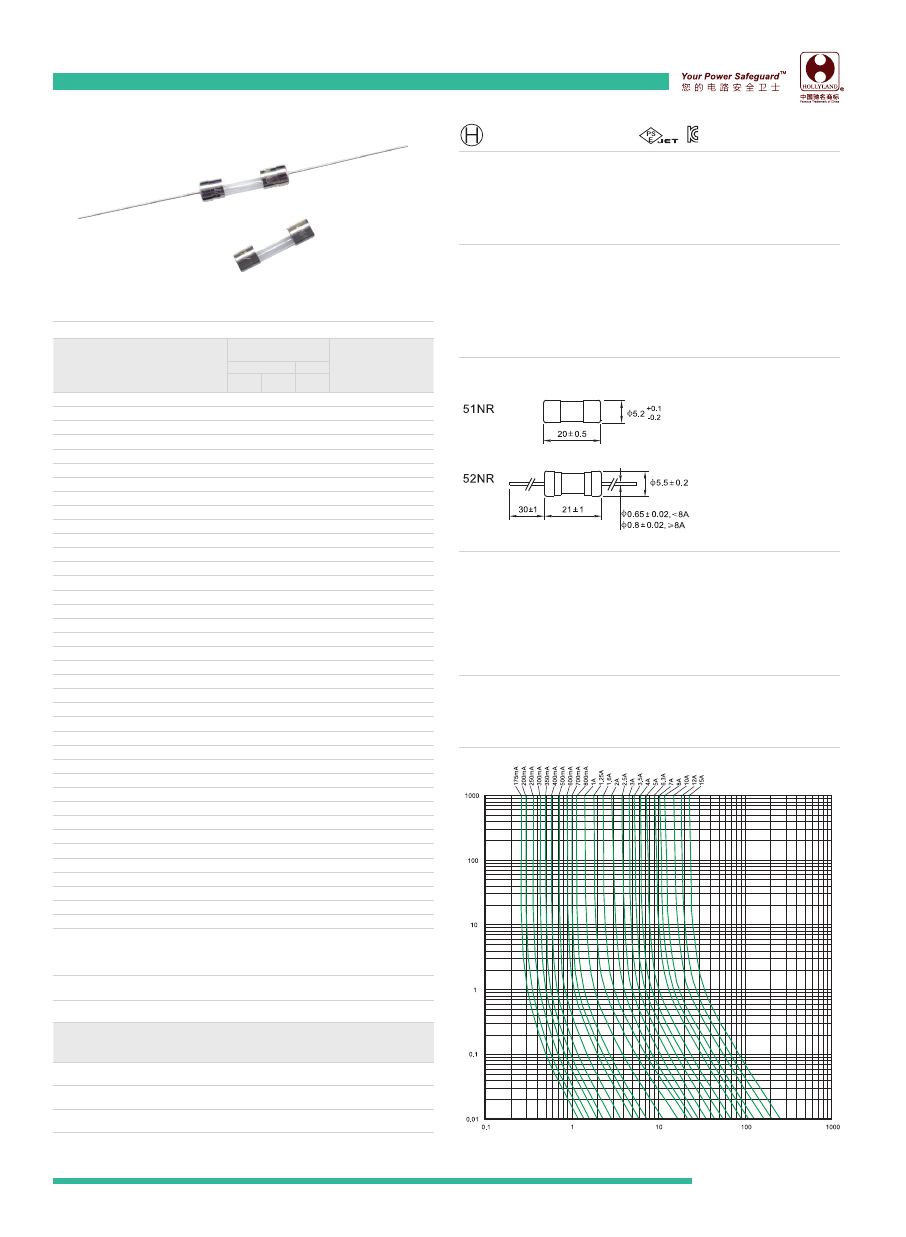

51NR, 52NR

Fast-Blow Type

100mA-15A, 125V / 250V

PSE, KC

P35

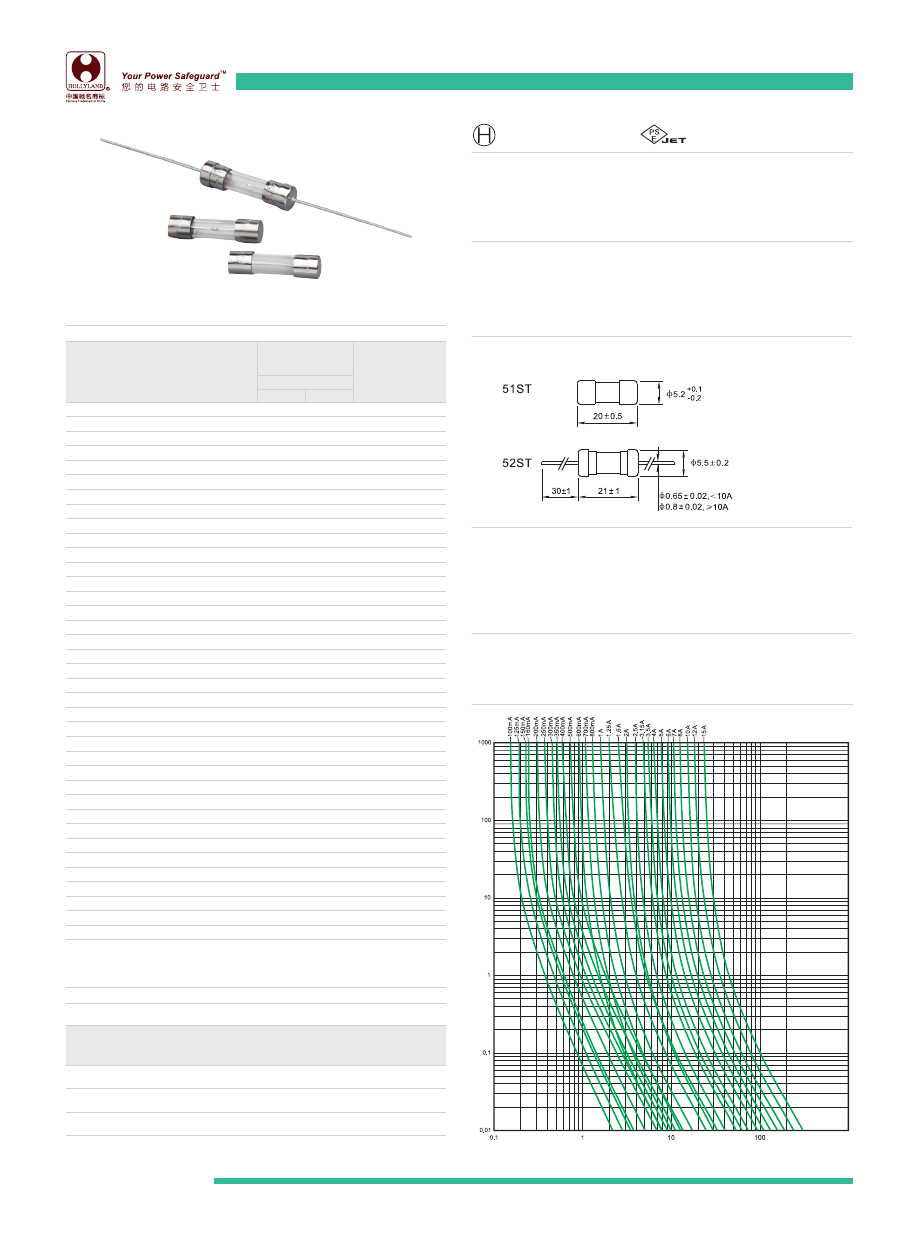

51ST, 52ST

Medium Slow-Blow Type

100mA-15A, 125V / 250V

PSE

P36

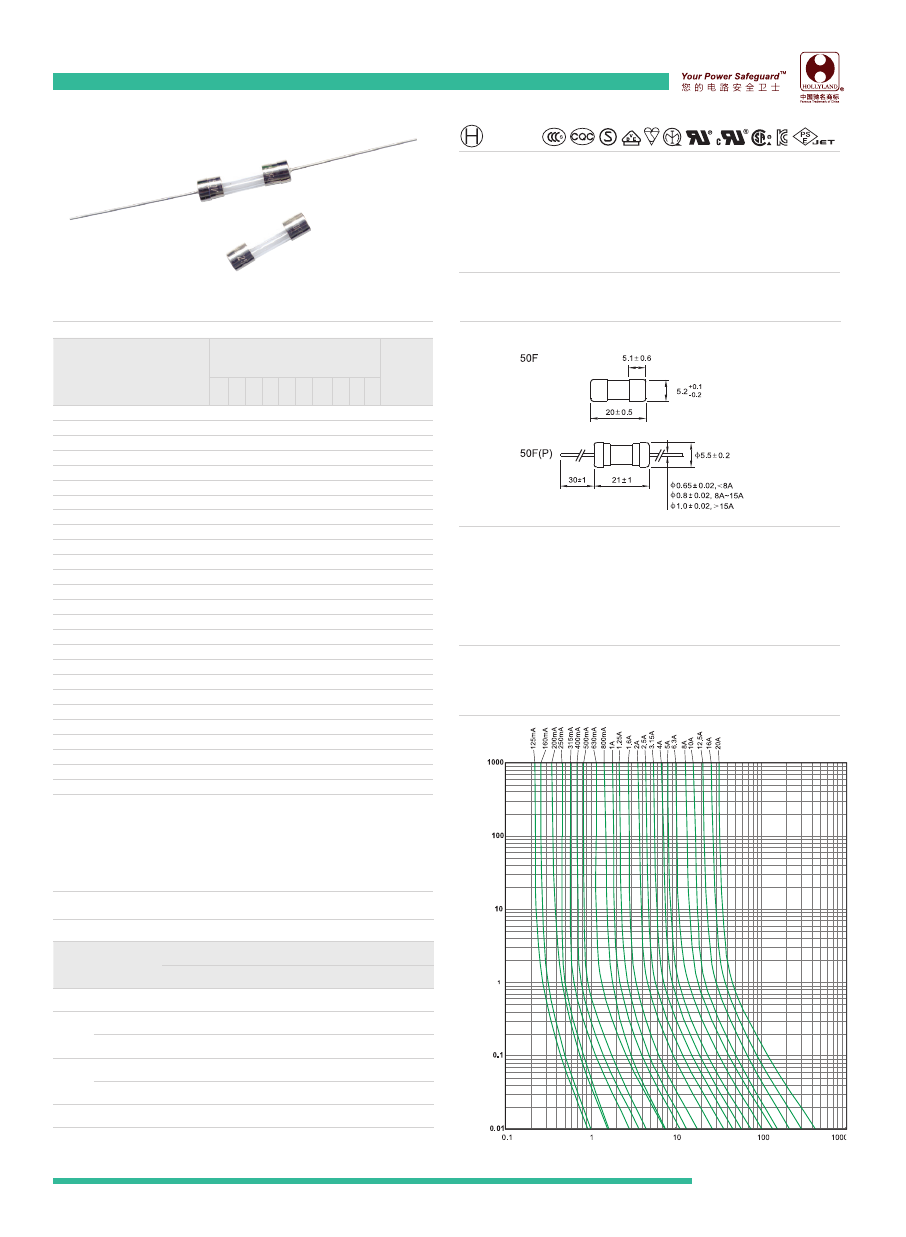

50F

Quick-acting Type

125mA-20A, 250V

CCC, CQC, SEMKO, VDE, BSI, IMQ, UR, cUR, CSA, PSE, KC

P37

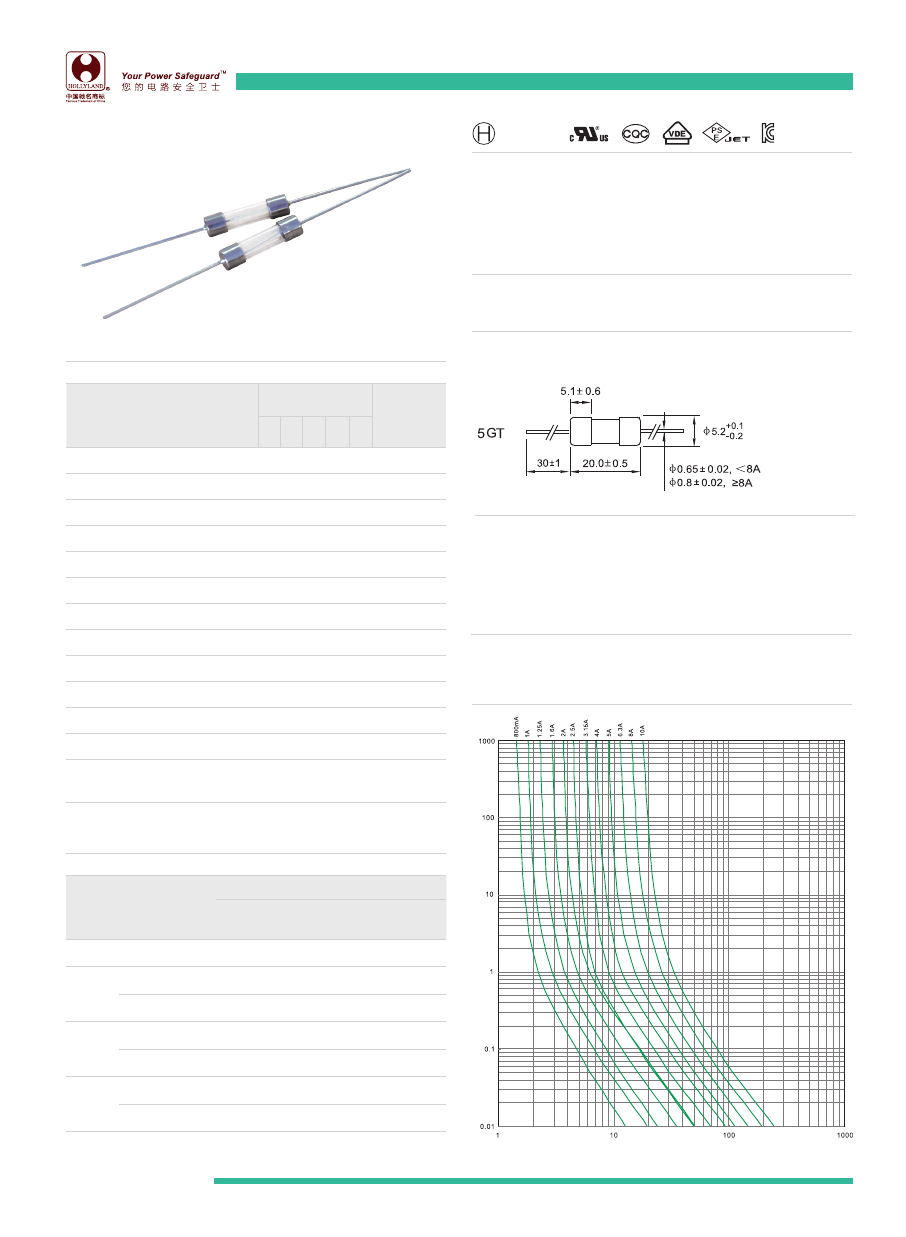

5GT

Time-lag Type

800mA-10A, 250V

CQC, VDE, PSE, cURus, KC

P38

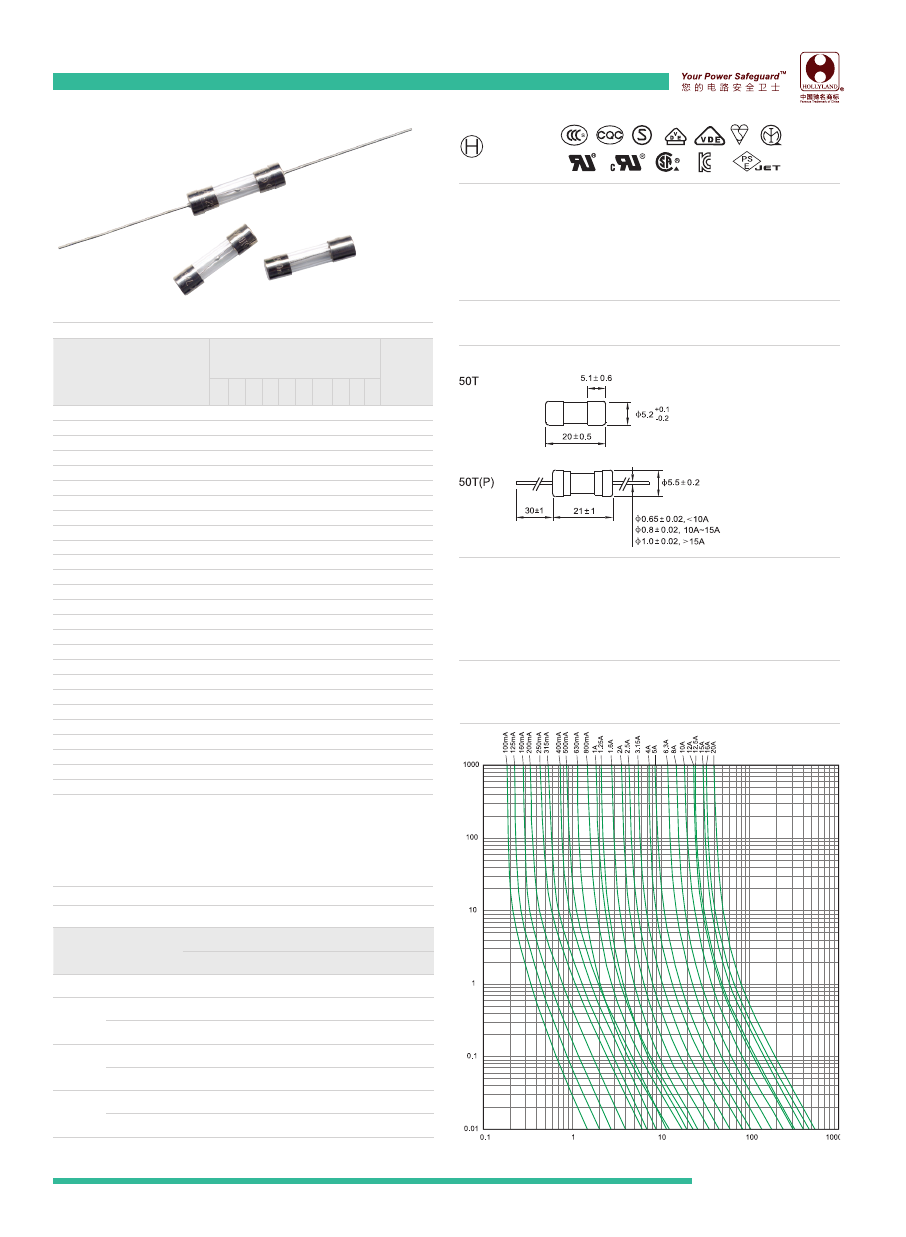

50T

Time-lag Type

100mA-20A,250V

CCC, CQC, SEMKO, VDE, BSI, IMQ, UR, cUR, CSA, PSE, KC

P39

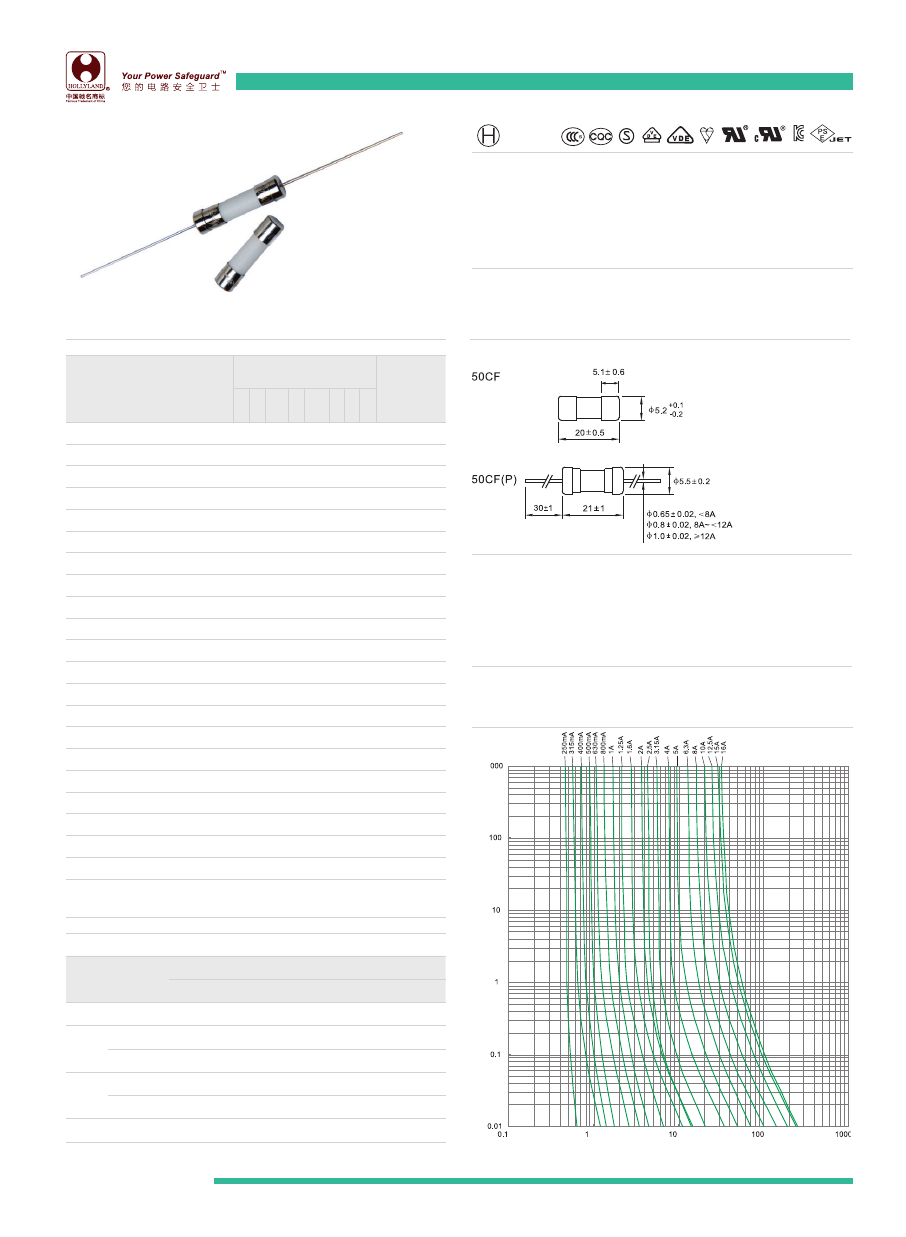

50CF

Quick-acting Type

250mA-16A,250V

CCC, CQC, SEMKO, VDE, BSI, UR, cUR, PSE, KC

P40

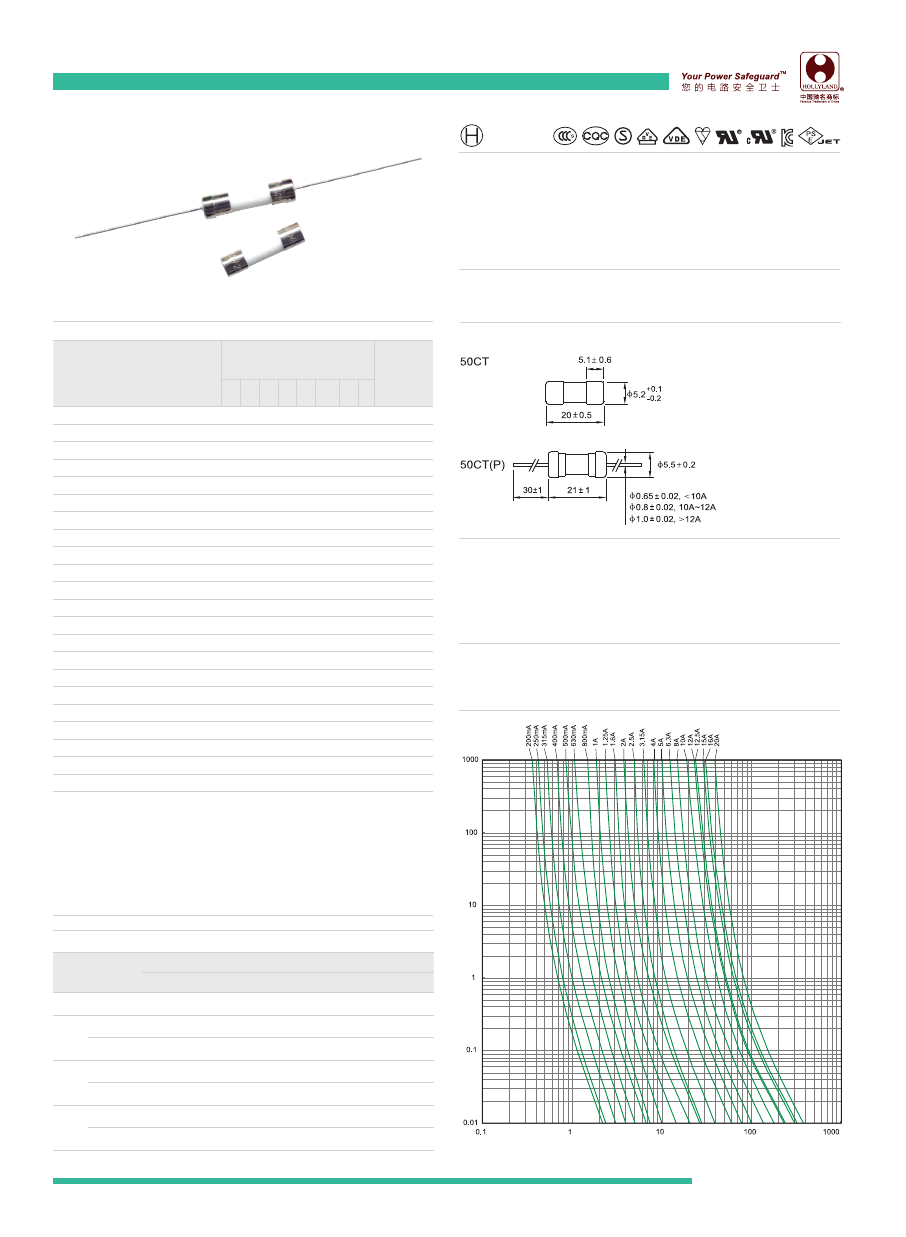

50CT

Time-lag Type

200mA-16A,250V

CCC, CQC, SEMKO, VDE, BSI, UR, cUR, PSE, KC

P41

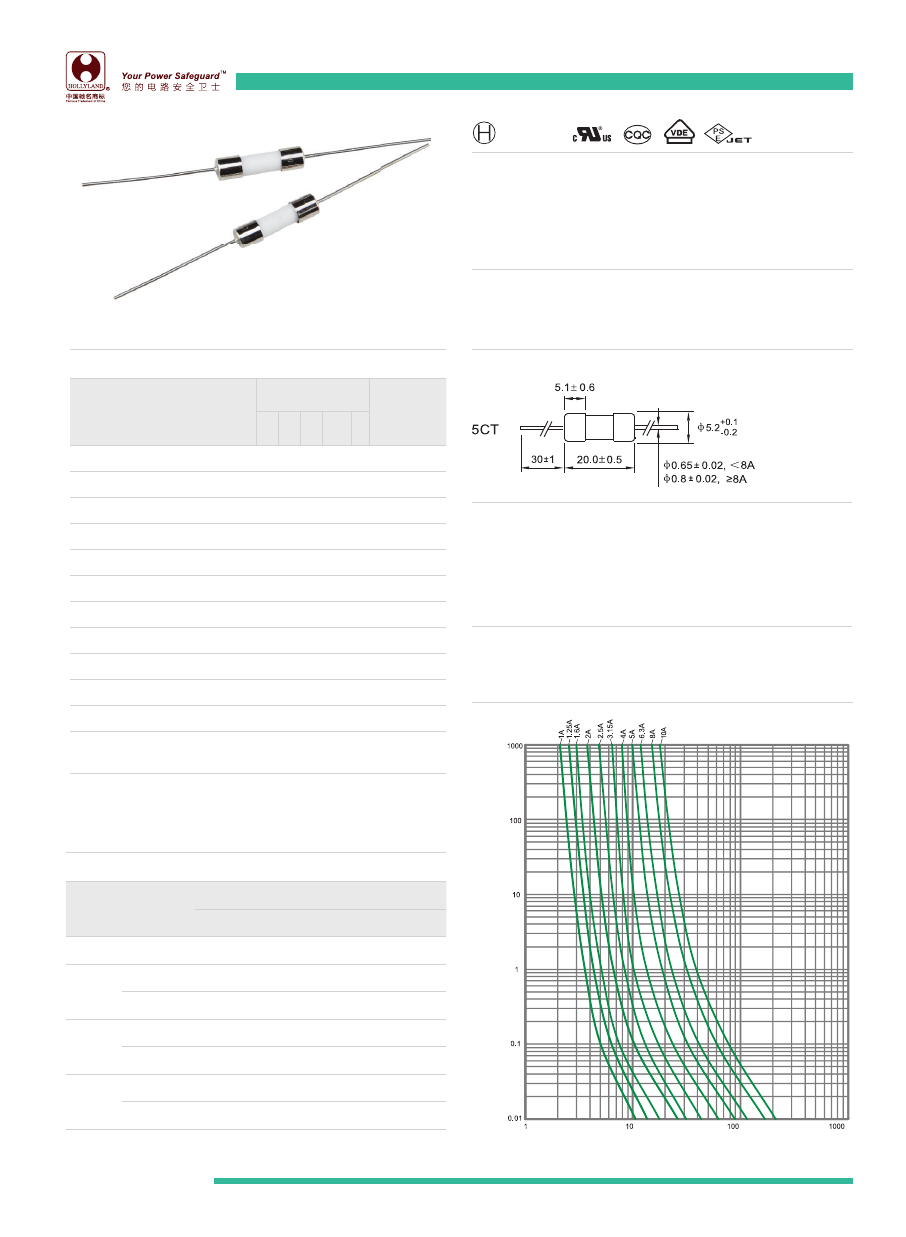

5CT

Time-lag Type

1A-10A, 250V

CQC, VDE, PSE, cURus, KC

P42

Φ6.35x32mm

Glass&Ceramic

Tube fuse

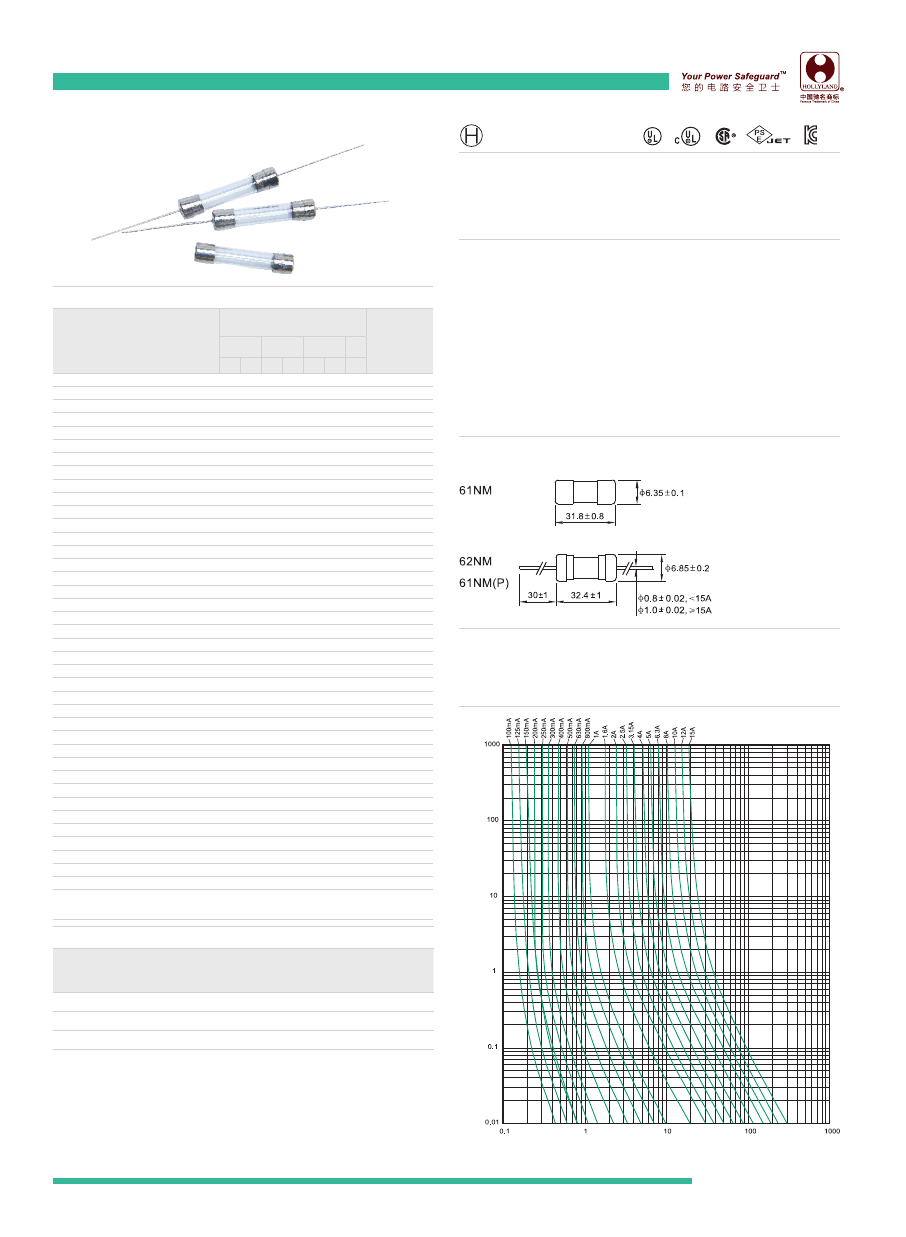

61NM, 62NM/61NM(P)

Fast-Blow Type

100mA-30A, 125V / 250V

UL, cUL, CSA, PSE, KC

P43

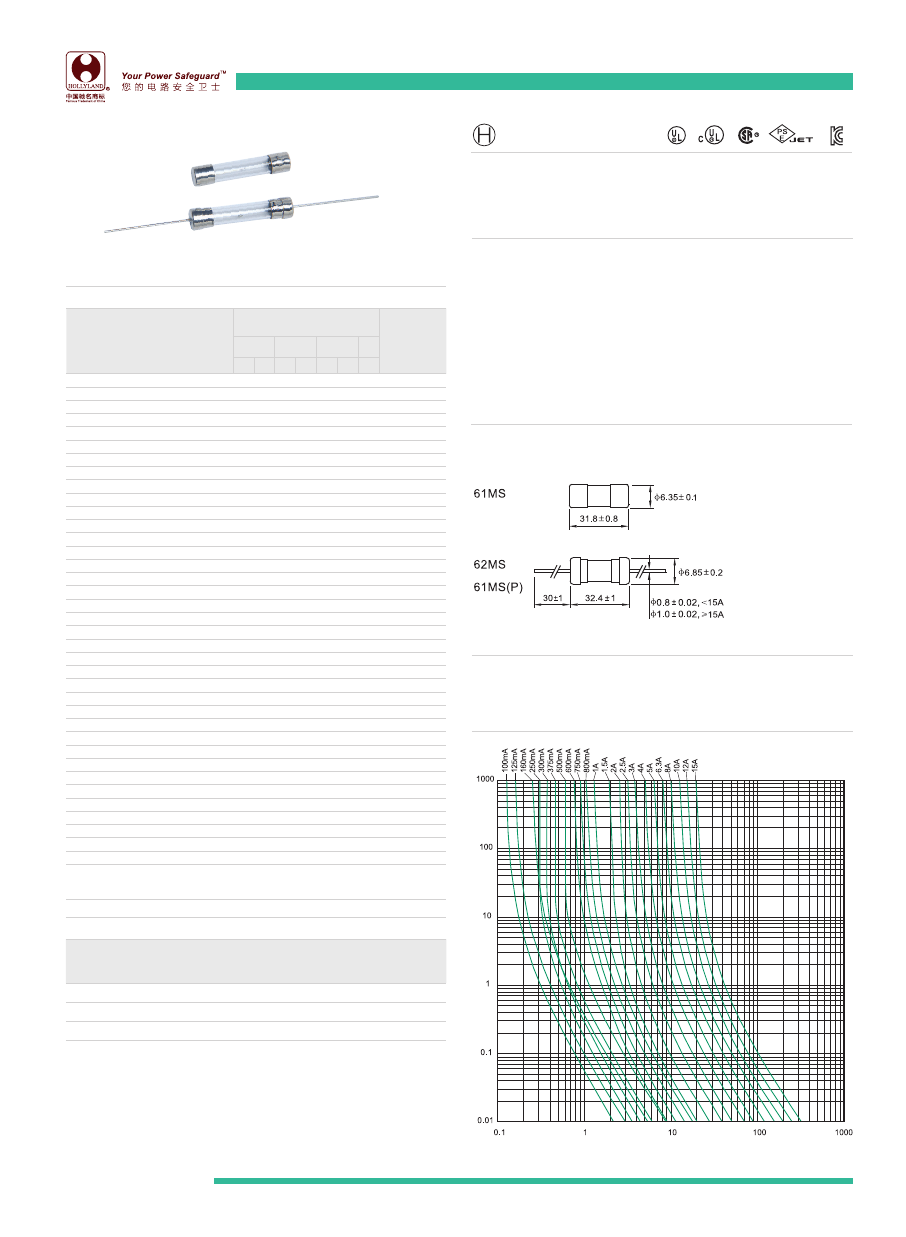

61MS, 62MS/61MS(P)

Medium Slow-Blow Type

100mA-15A, 125V / 250V

UL, cUL, CSA, PSE, KC

P44

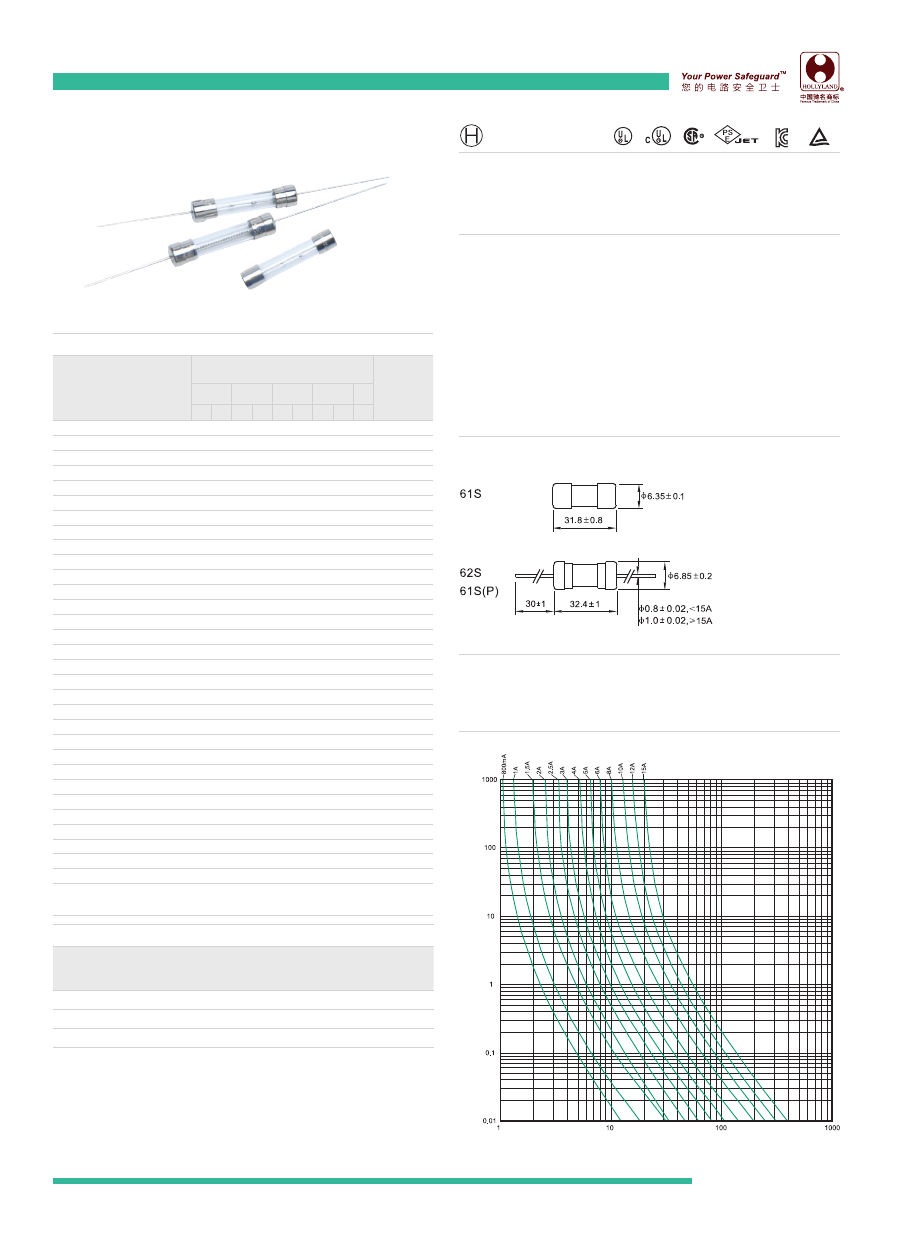

61S, 62S/61S(P)

Slow-Blow Type

200mA-15A, 125V / 250V

UL, cUL, CSA, PSE, TUV, KC

P45

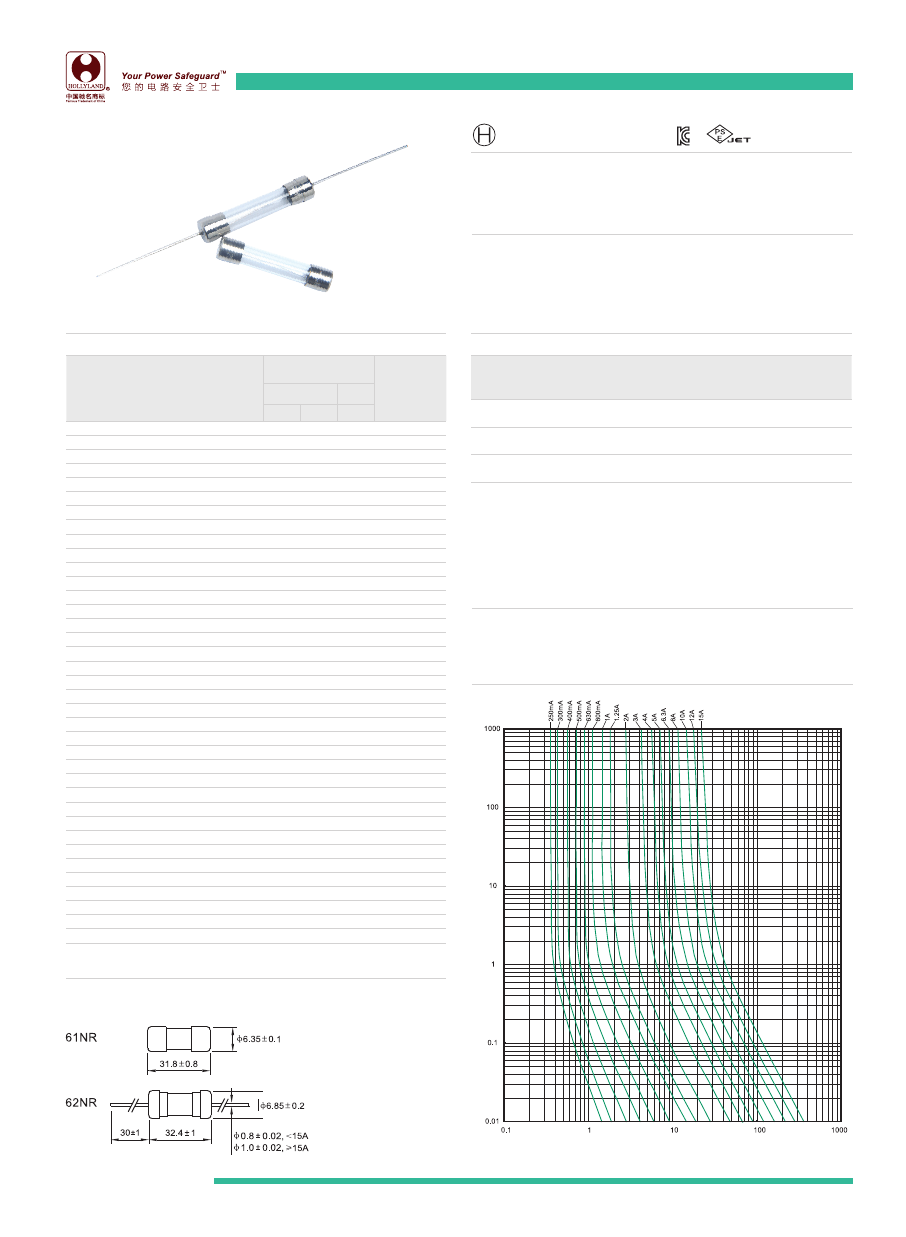

61NR, 62NR

Fast-Blow Type

100mA-15A, 125V / 250V

PSE, KC

P46

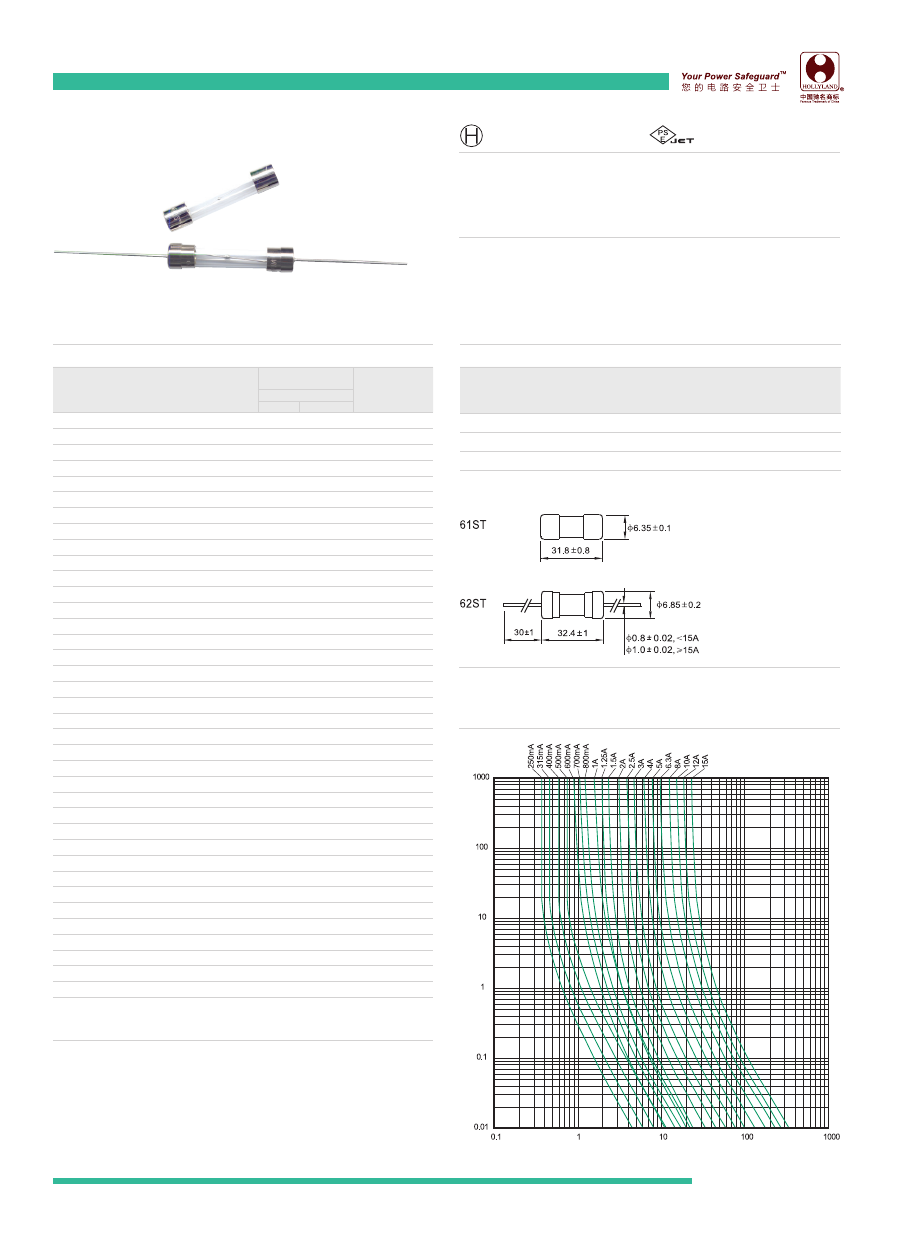

61ST, 62ST

Medium Slow-Blow Type

100mA-15A, 125V / 250V

PSE

P47

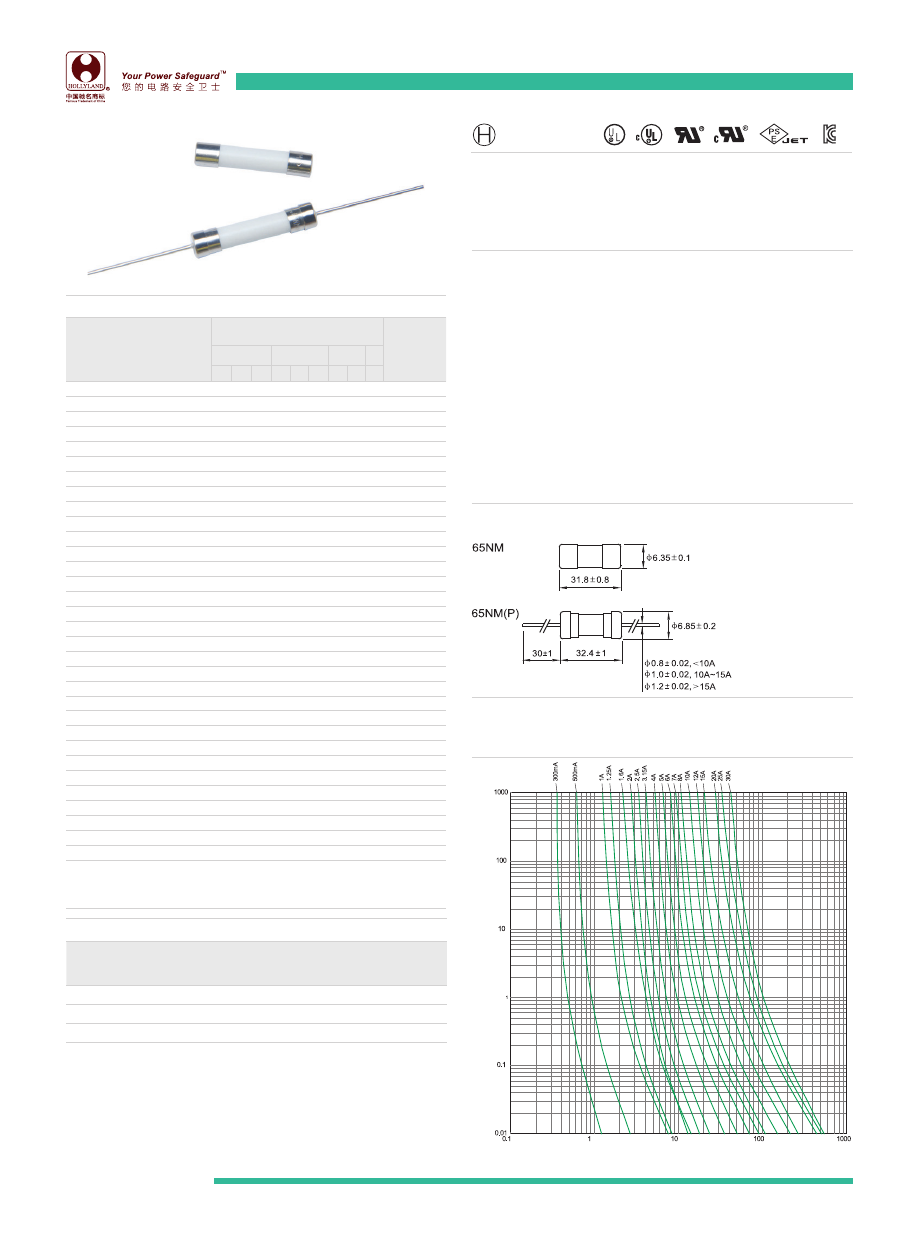

65NM

Fast-Blow Type

300mA-30A, 125V / 250V

UL, cUL, UR, cUR, PSE, KC

P48

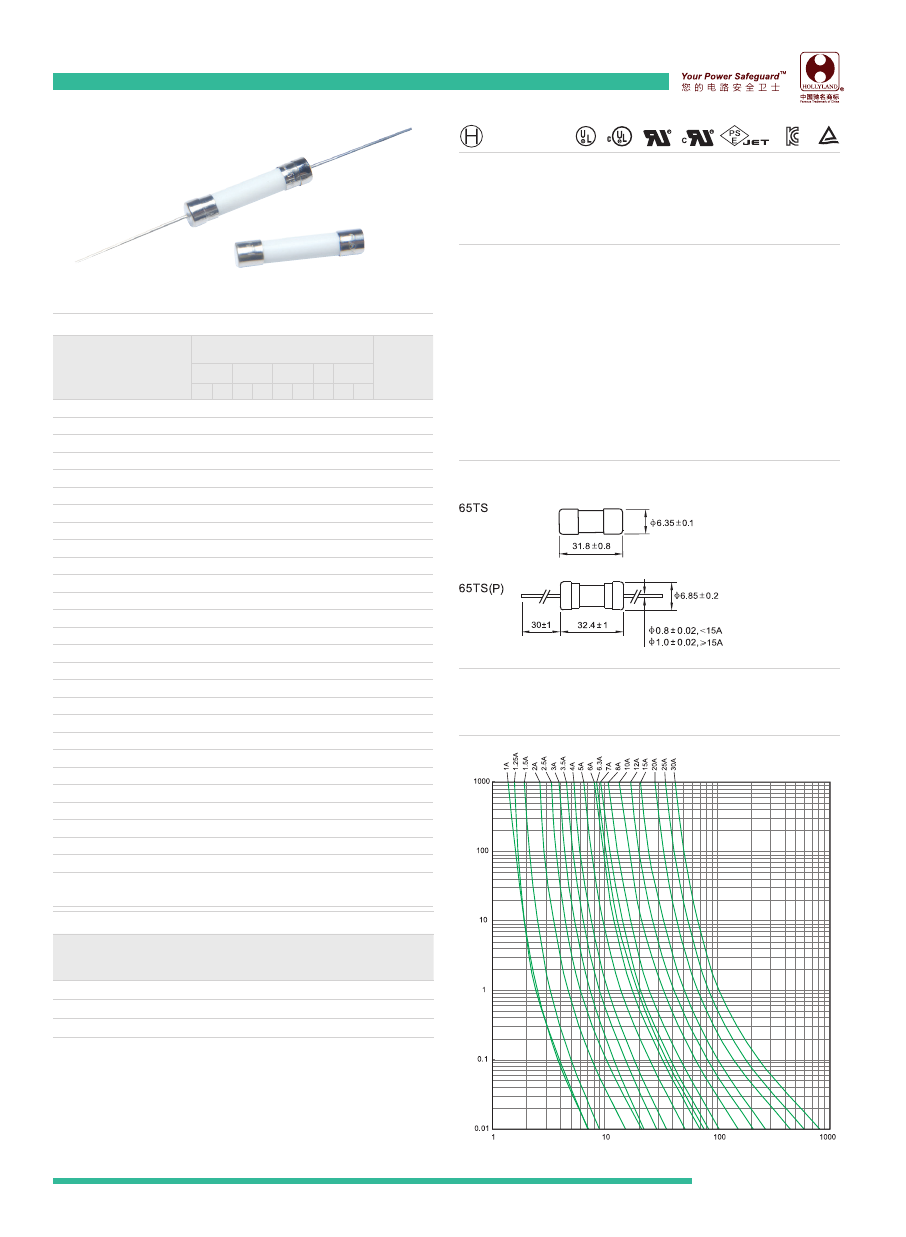

65TS

Slow-Blow Type

500mA-30A, 125V / 250V

UL, cUL, UR, cUR, PSE, KC, TUV

P49

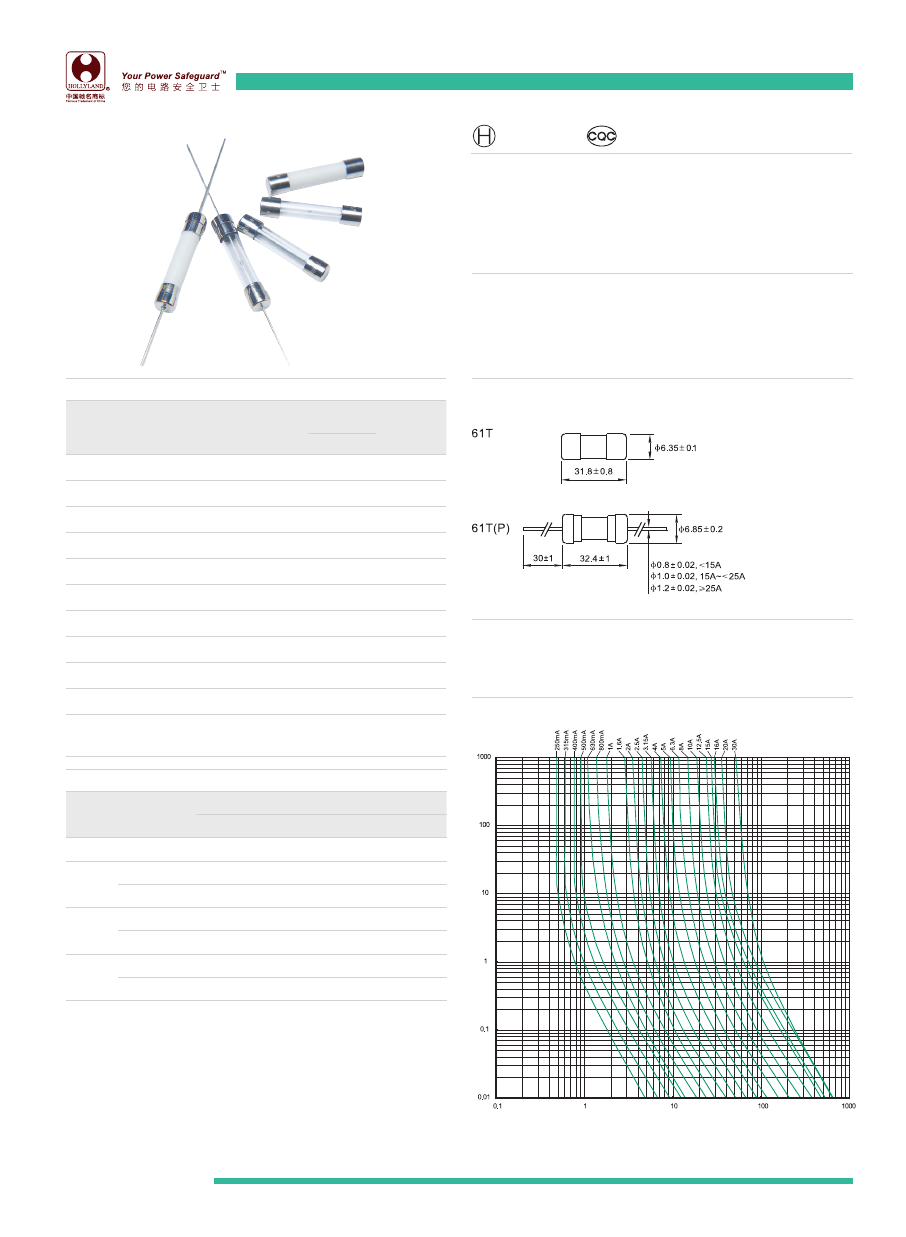

61T

Time-lag Type

8A-30A, 250V

CQC

P50

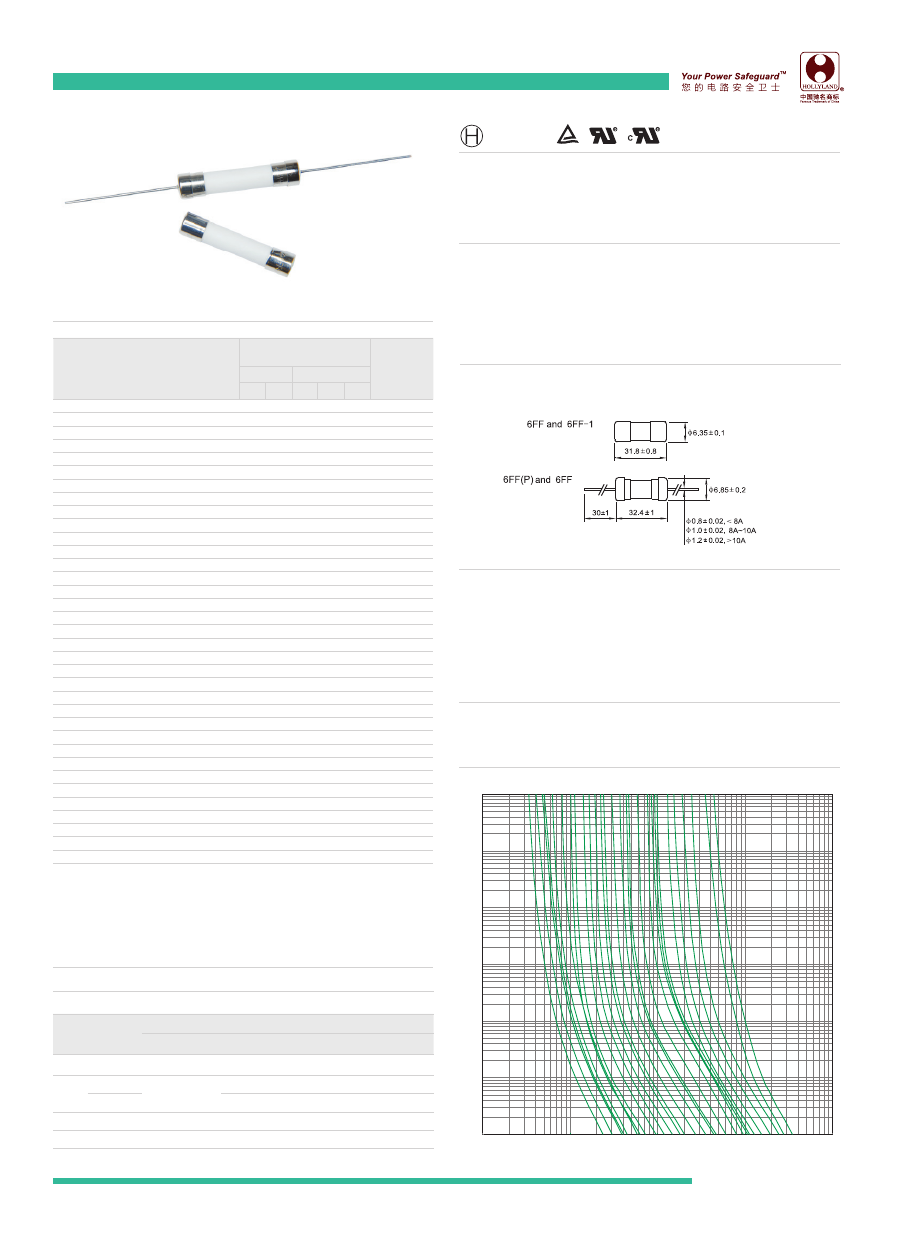

6FF

Very Fast-acting Type

200mA-2A, 1000V; 2.5A-16A,500V

TUV

P51

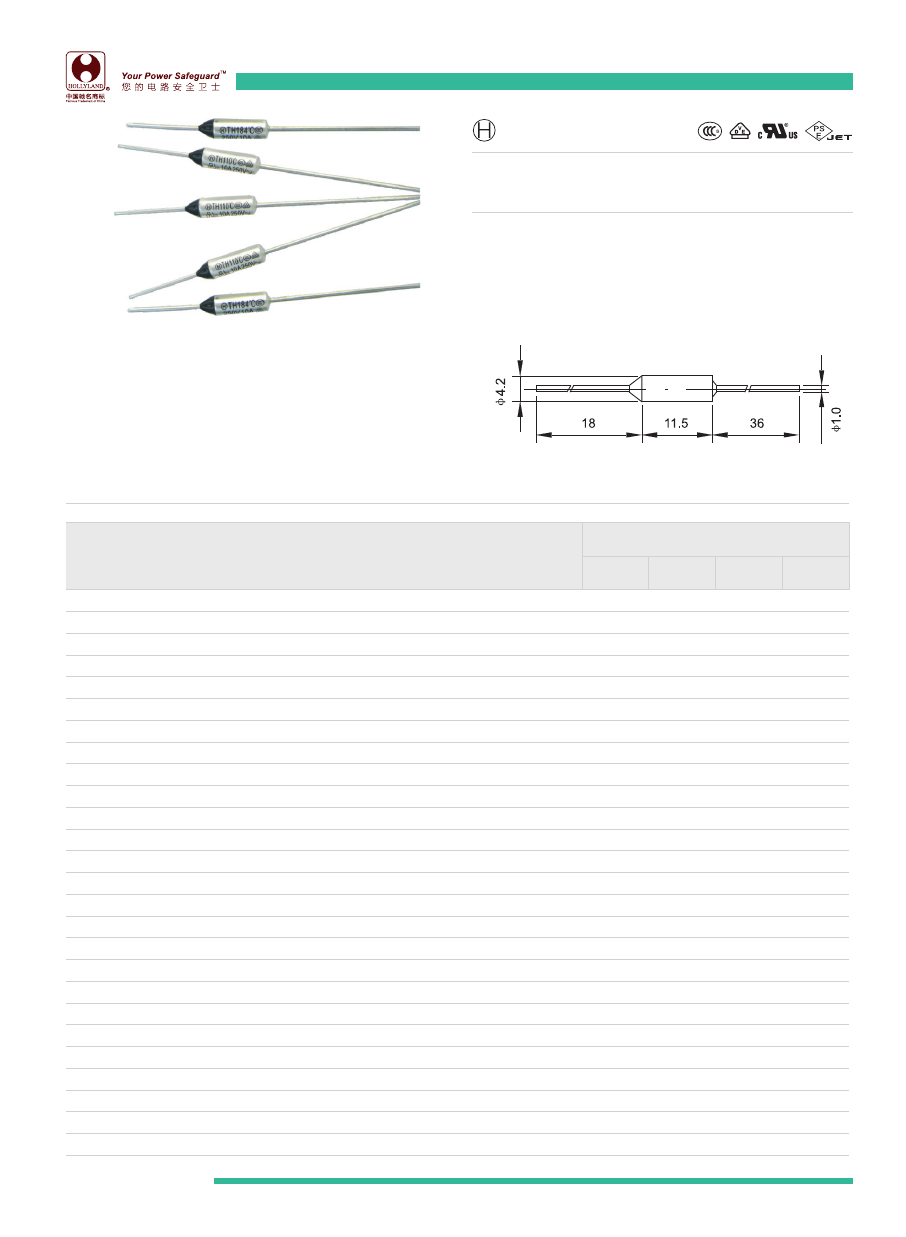

Thermal cutoff

TH Series

66-240℃

10A/15A, 250V

CCC, VDE, UR(10A)

P52

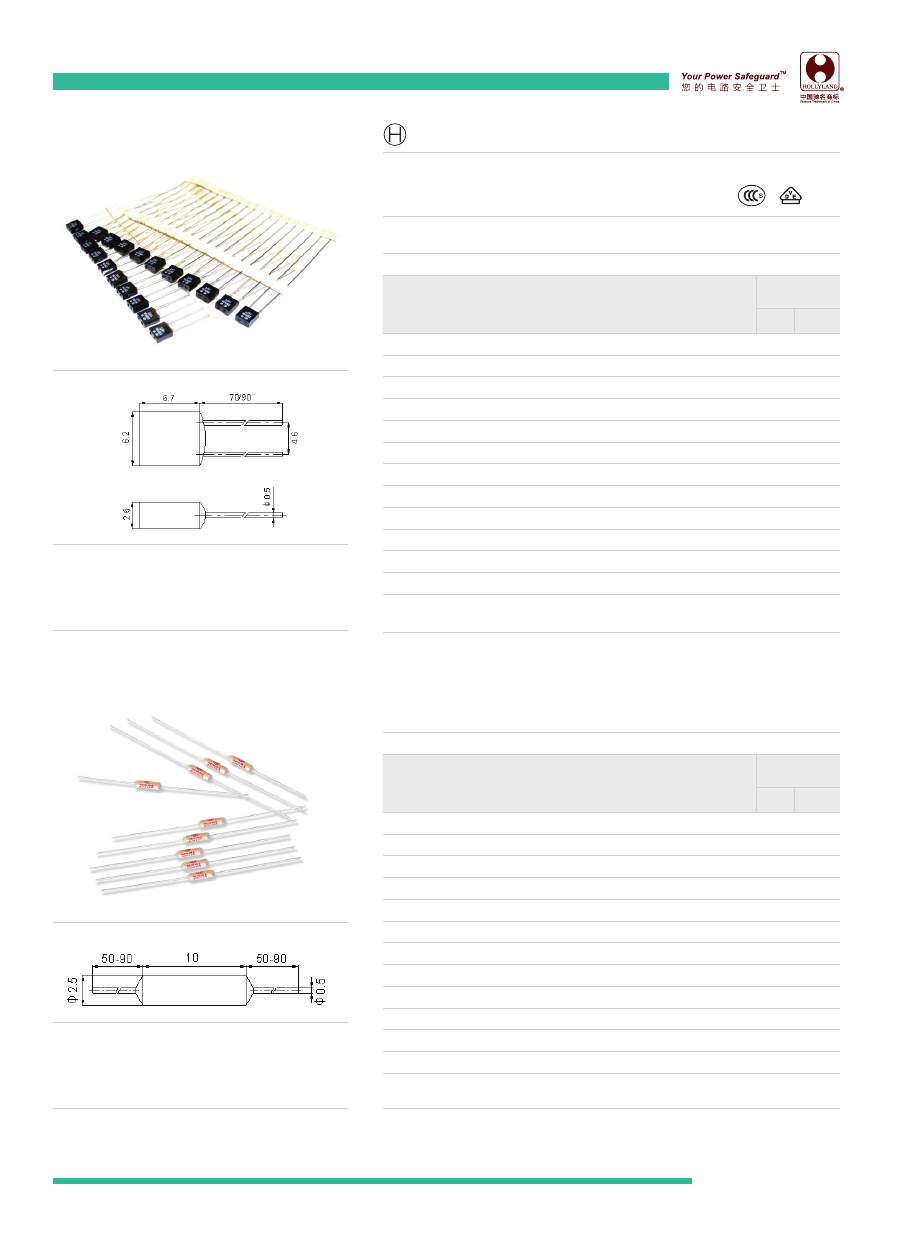

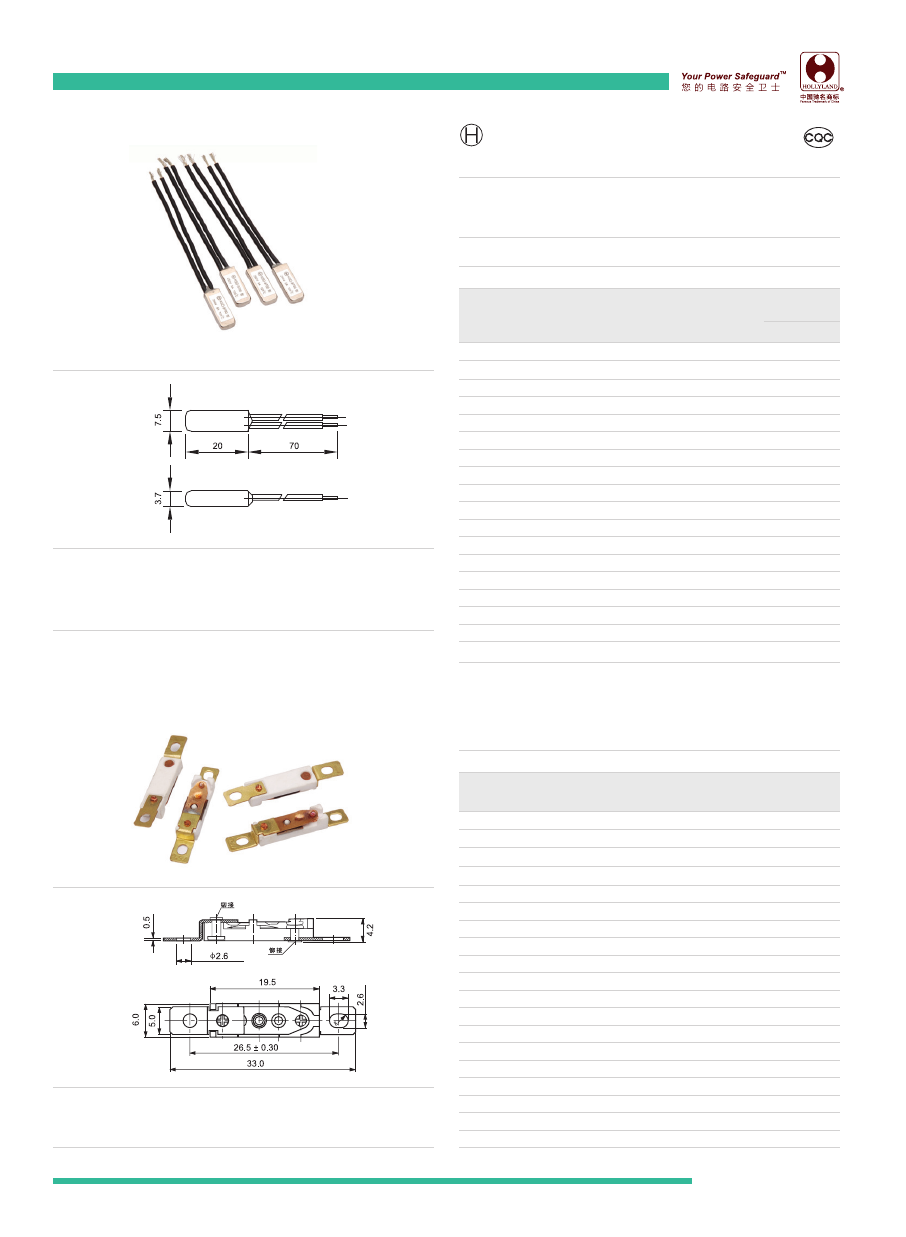

RH01 Series

75-150℃

1A/2A/3A, 250V

CCC, TUV

P53

RH03 Series

75-150℃

1A/2A/3A, 250V

CCC

Thermostat

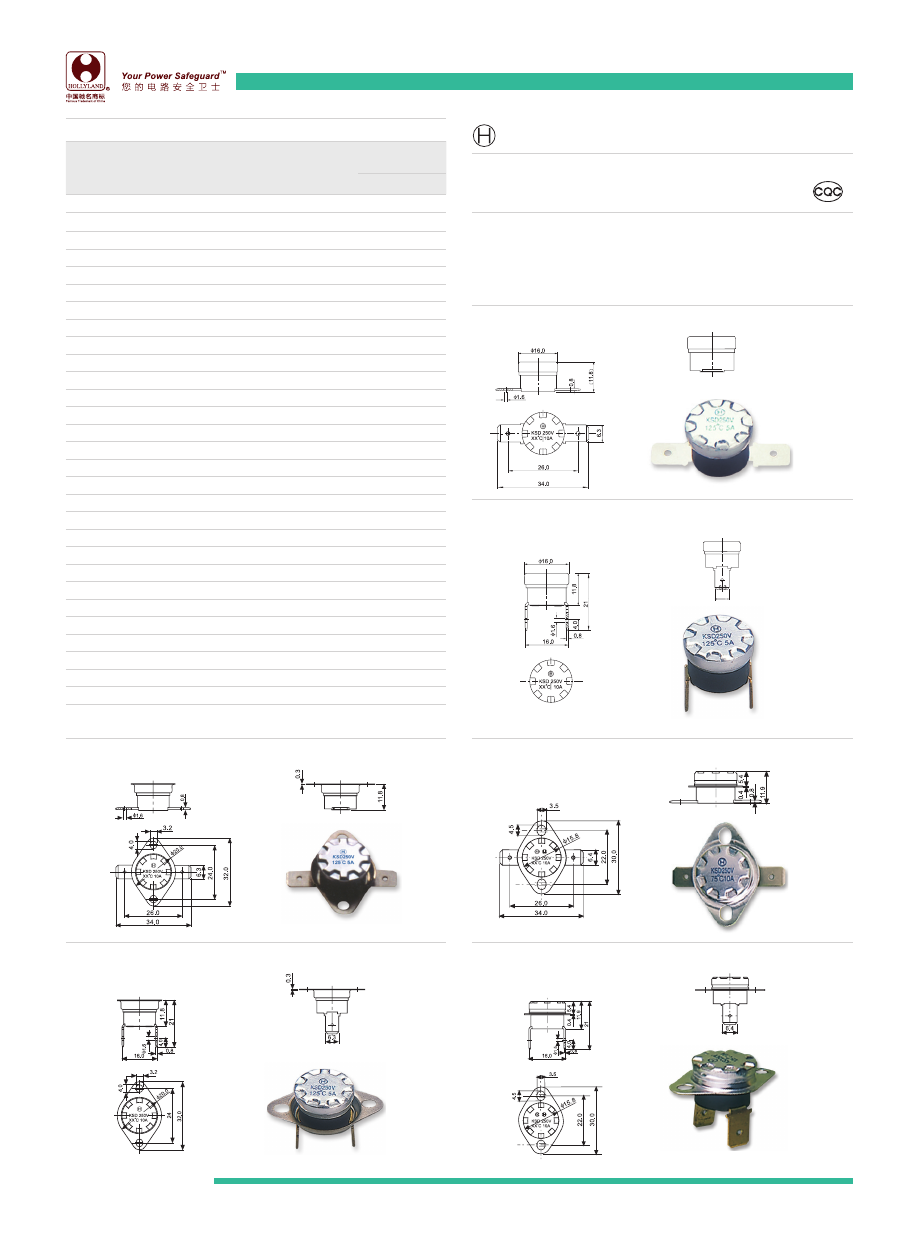

KSD-F01 Series

48±3℃ ~185±10℃

5A/10A, 250V

CQC(VDE PENDING)

P54

KSD-9700, CK-1 Series

60±5℃ ~150±5℃

5A/10A, 250V

CQC(KSD-9700)

P55

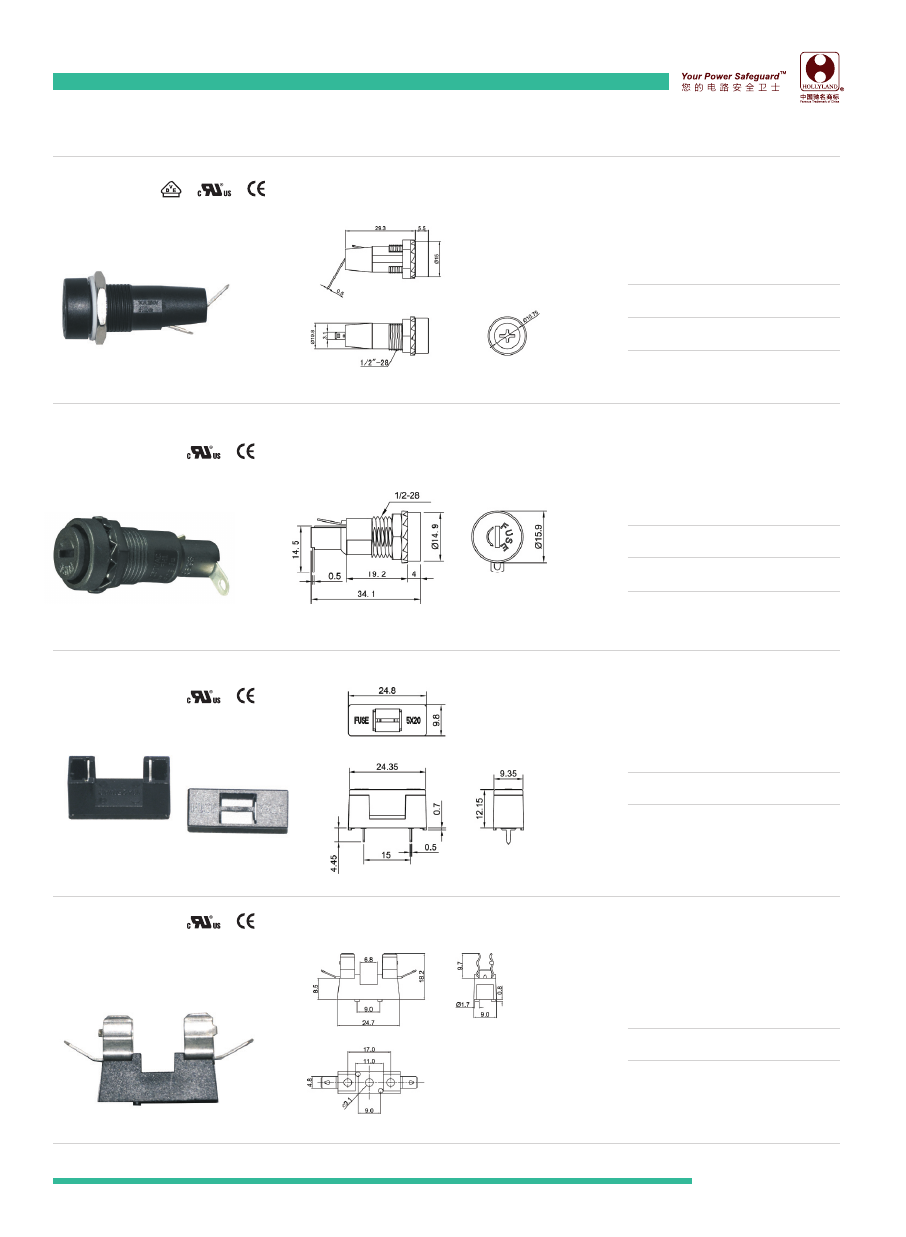

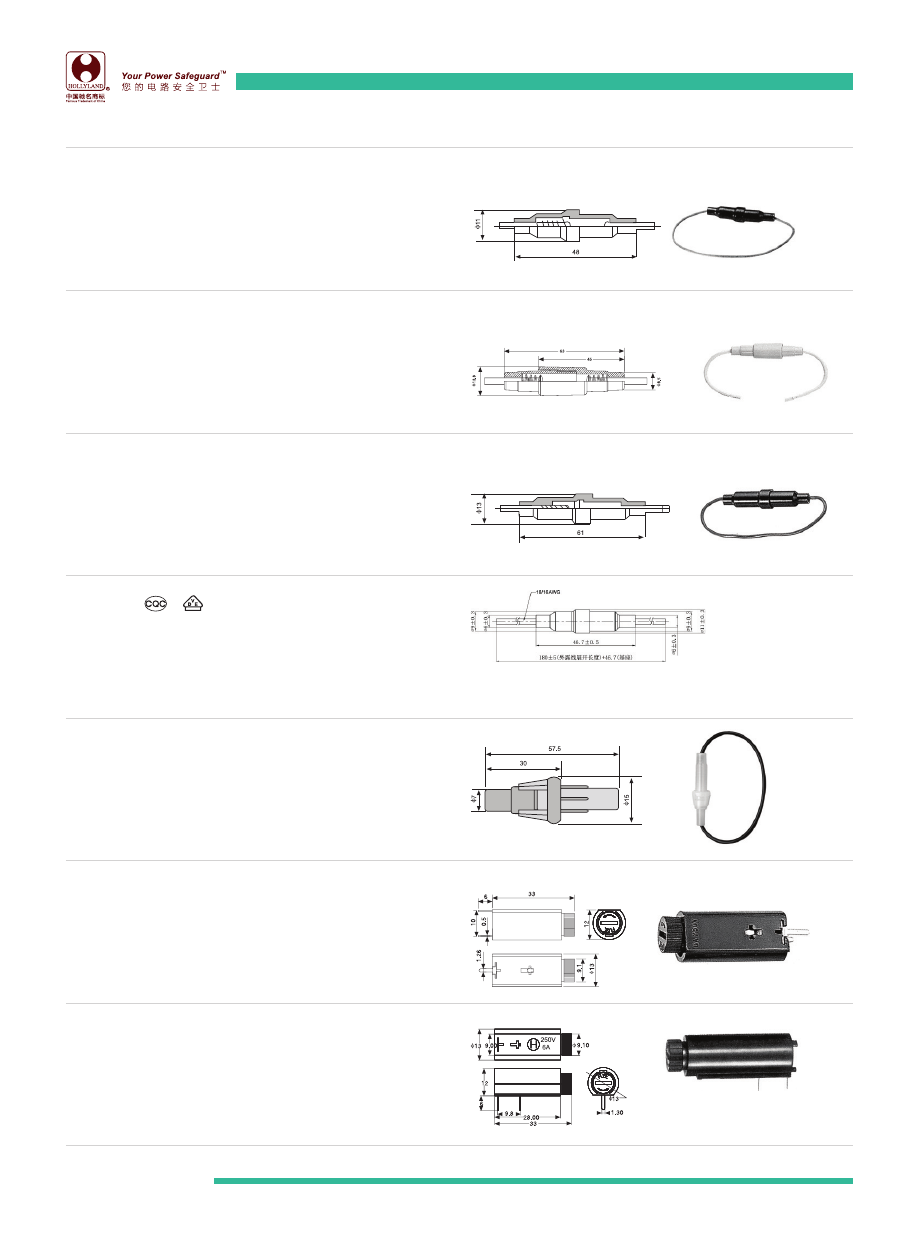

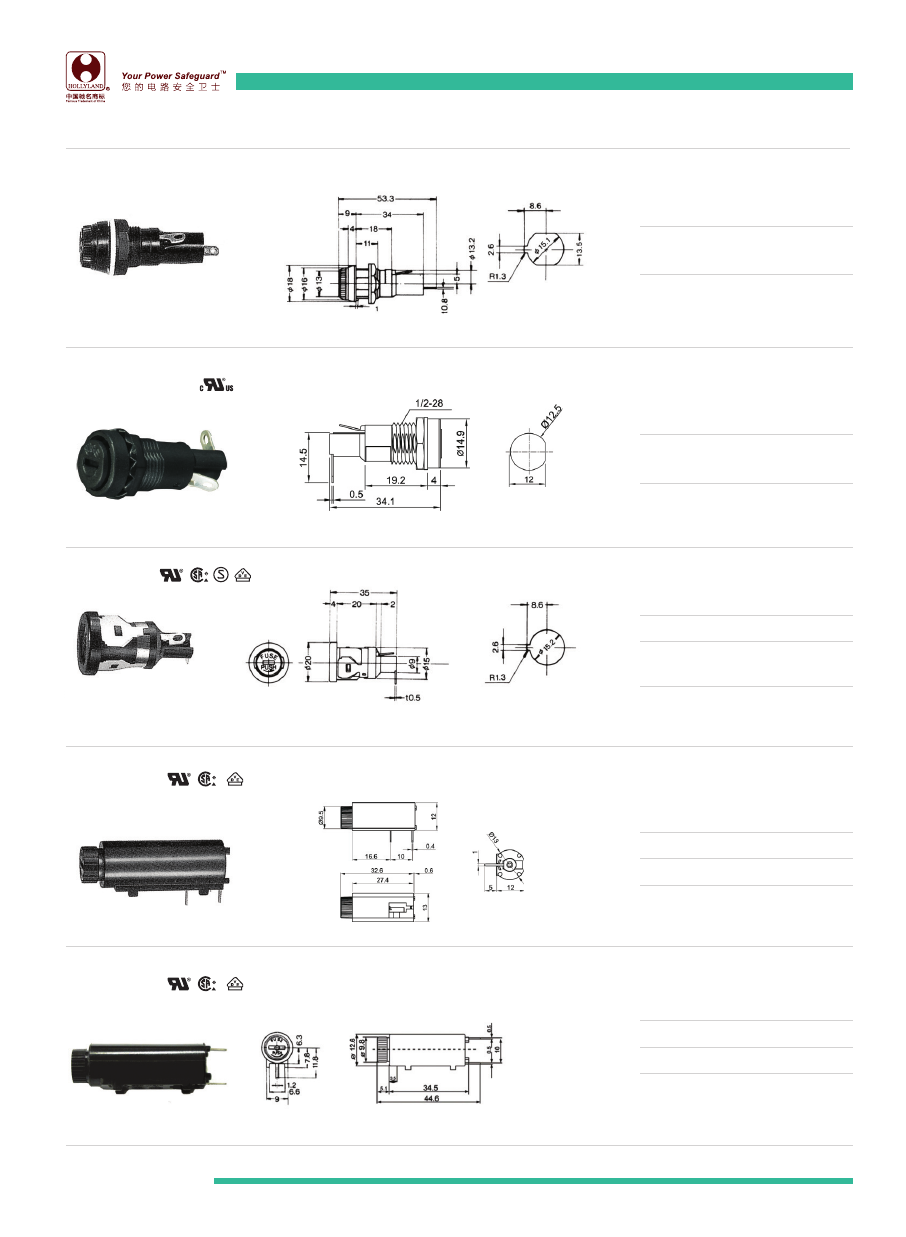

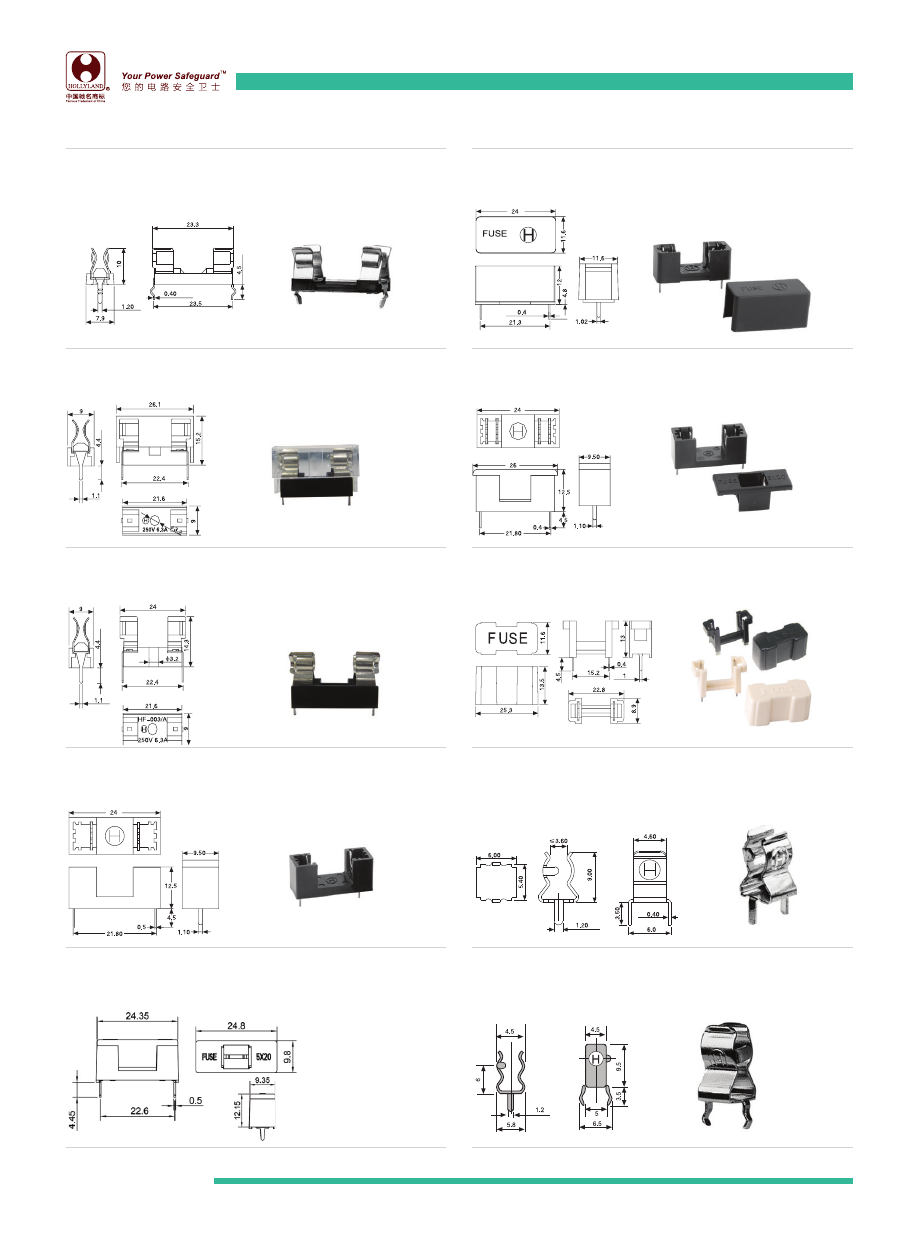

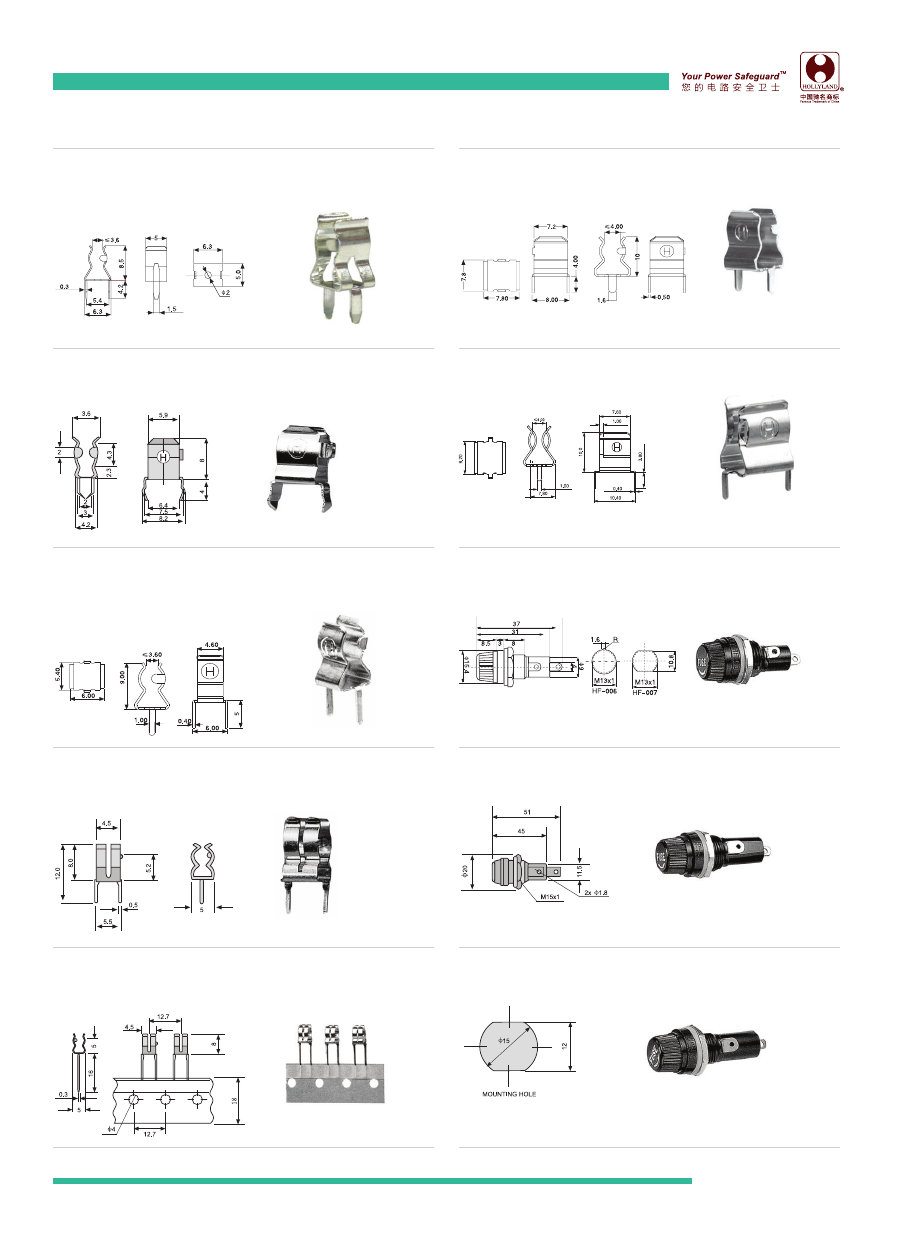

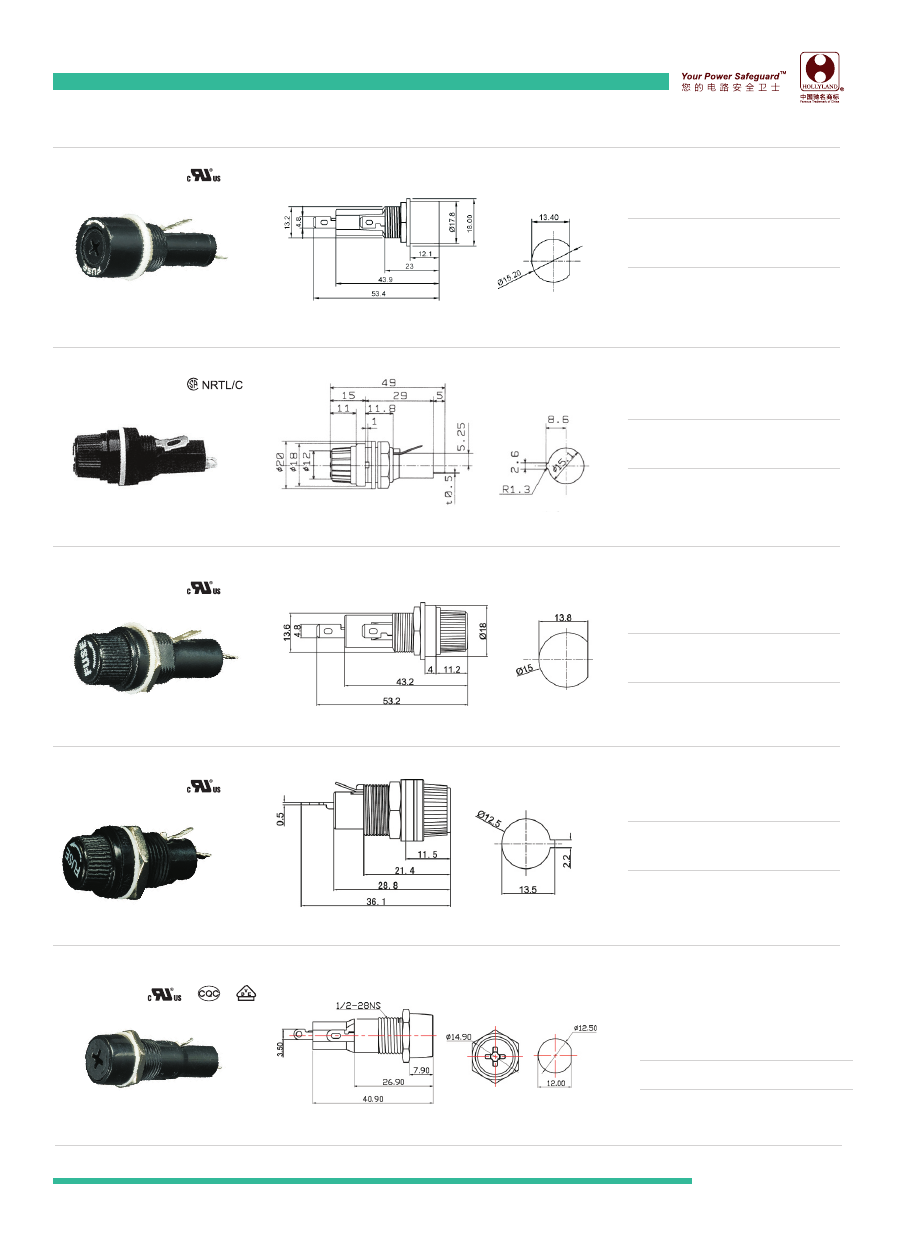

Fuse holder,

clip&block

P56-

61

www.hollyfuse.com

01

根据整机所需的安全认证决定保险丝管的安全认证，在此，

可初步确定选用 IEC 规格或 UL 规格保险丝管。

设计时电路中空间的限制。

安装方式

额定电压应大于等于有效的电路电压。

分断能力的电流应大于电路中的最大故障电流。

整机开关时电路中是否存在起动电流，起动电流在某些电

路中是正常的，这种场合应使用慢断型或中等慢断型保险

丝管 。

保险丝管必须切断的电流及持续时间（该条件由设计人员

依具体电路的保护需求而定），参考相应型号的 I-T 曲线，

取满足要求的最大额定电流作为上限值 A1。

通过保险丝管的稳态电流（依具体电路而定）。

IEC 规格及 UL 规格保险丝管的额定电流的差别，详见

“稳态电流”。

环境温度对保险丝管承载能力的影响，详见“环境温度”。

脉冲（冲击电流，浪涌电流，起动电流及电流瞬变值）

对保险丝管寿命的影响，详见“脉冲”。

起动电流及持续时间与相应型号的 I-T 曲线比较。

综合考虑以上五个因素后，选出满足要求的最小额定电

流作为下限 A2。

综合考虑以上因素后，选出最合适的型号及额定电流。

当 A1 ≥ A2 时，则可选用 A2 到 A1 区间内的任何一规

格的保险丝管。

当 A1 ＜ A2 时，则建议选用其它型号的保险丝管。

样品应在实际电路中试运行。

用户指南

保险丝管的选用

选用流程

需考虑因素

为便于用户针对所需保护的元件、电路或设备选用合

适的保险丝管，特制定本指南。保险丝管的选用可依以下

流程：

开  始

安全认证

形状尺寸

额定电压

分断能力

初步选择型号

测   试

结   束

决定额定电流上限A1

决定额定电流下限A2

具体的型号及电流

  www.hollyfuse.com

02

稳态电流

环境温度

在实际应用中和实验室之间有不同的条件，如：

有时使用保险丝盒；

电路中的电线横截面积；

保险丝管夹的接触电阻等。

考虑到以上因素，故在 25℃条件下所选用的保险丝管应

满足如下条件才可使得保险丝管持续可靠地工作：

IEC 规格：保险丝管的额定电流 In= 稳态电流 /0.9

UL 规格：保险丝管的额定电流 In= 稳态电流 /0.75

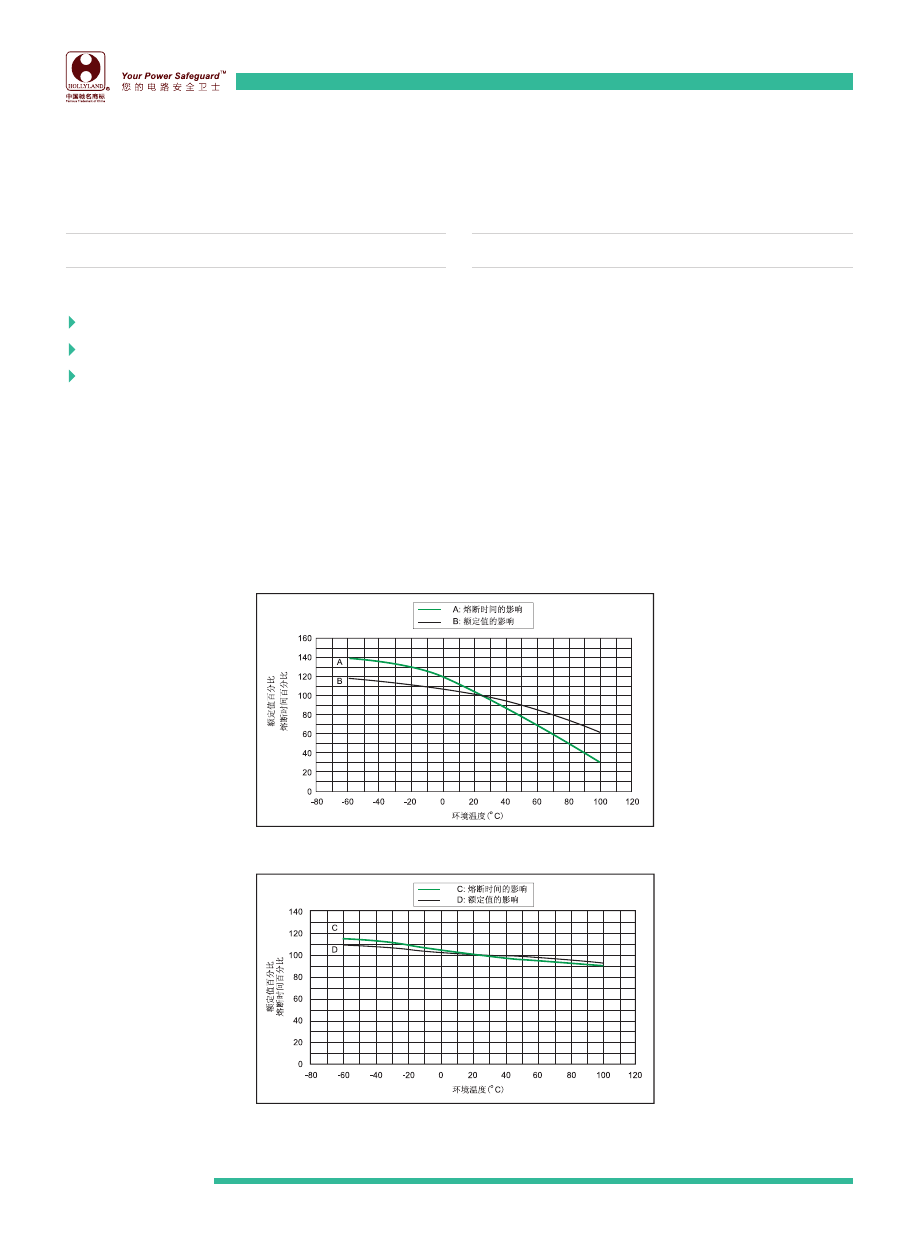

保险丝管的电流承载能力测试是在环境温度 25℃条

件下进行的，而保险丝管的电流承载能力是会受环境温度

影响的。环境温度越高，保险丝管的寿命越短，承载能力

就越低。所以选用保险丝管时应考虑保险丝管周边的环境

温度，环境温度对各类保险丝管承载能力的影响如下图所

示：

（a）表示环境温度对传统慢断型及中等慢断型保险丝管承载能力及 5In 熔断时间的影响

（b）表示环境温度对快速熔断型及慢断型保险丝管承载能力及 5In 熔断时间的影响

用户指南

www.hollyfuse.com

03

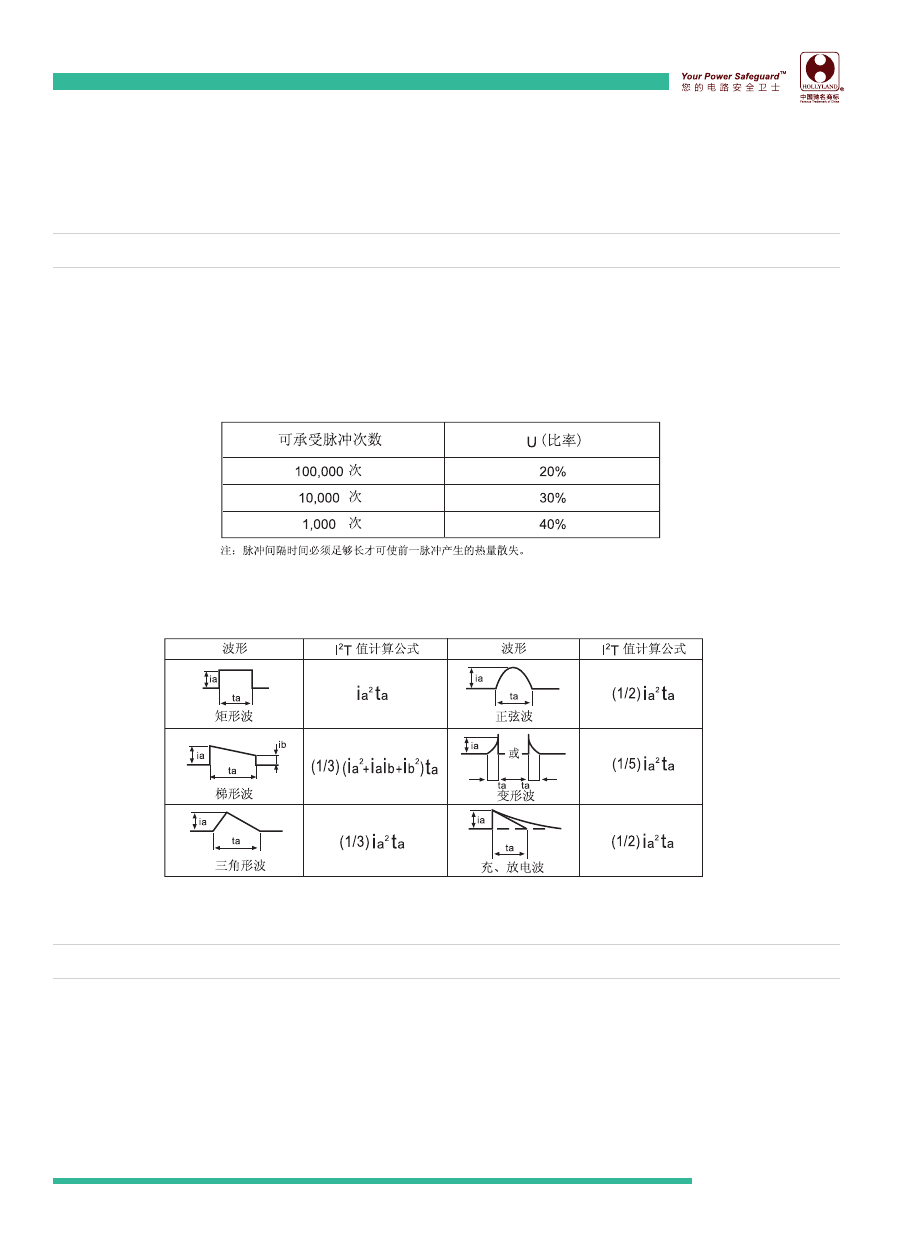

脉冲

测试

脉冲产生热循环，从而产生机械疲劳影响保险丝管寿命。设计时应使脉冲 I

2

T 远远小于保险丝管标称熔化热能 I

2

T。保险

丝管寿命（可承受的脉冲循环次数）与 U（脉冲 I

2

T 值与保险丝管 I

2

T 值之比率）的关系参照表 1。本目录提供的各种

规格的保险丝管熔化热能 I

2

T 可供参考，表 2 提供各种典型脉冲波形的 I

2

T 值近似计算公式：

表 1

表 2

所选定的样品必须在实际的被保护电路中进行测试，以验证所选择的保险丝管。此验证应包括正常条件及故障条件下的

测试，以确保所选择的保险丝管在被保护电路中能正常运行。

如您在电路保护方面遇见各种疑问，欢迎与好利来（中国）电子科技股份有限公司工程技术人员联系，好利来（中国）

电子科技股份有限公司将提供恰当建议协助您共同解决。

用户指南

  www.hollyfuse.com

04

The safety approvals required for fuse shall be determined
according  to  the  safety  approvals  required  on  the  end
product. It is the safety approval that determines initially the
selected fuse designed to IEC standard or UL standard.

The space limit of circuit in design.
Mounting mode.

The  voltage  rating  of  the  fuse  shall  be  greater  than,  or
equal to the available circuit voltage.

The  interrupting  rating  of  the  fuse  shoule  exceed  the
Maximum Fault Current of the circuit.

Does there exist “turn-on current” in a circuit when the
end product truns on or off? The “turn-on current” is
normal for some circuit and requires the slow-blow fuse or
medium slow-blow fuse.

The  overload  current  and  time  in  which  a  fuse  must
function  (It  may  be  specified  on  the  specific  protection
needs of circuit by a design engineer.). Referring to the
Time-Current  curve,  the  maximum  current  rating  which
meet the requirement would be taken as the upper limit for
current rating A1.

Steady  state  current  through  a  fuse  (based  on  the
specific circuit.).
The difference of current rating for fuse designed to IEC
standard  and  UL  standard,  refer  to  STEADY  STATE
CURRENT.
Effect  of  ambient  temperature  on  current-carrying
capacity of fuse, refer to AMBIENT TEMPERATURE.
Effect  of  pulse  (including  surge  currents,  turn-on
currents, in-rush currents and transients) on life of fuse,
refer to PULSE.
“Turn-on current” and duration should be compared
to Time-Current curve of relevant fuse.

When A1 ≥ A2, any rating can be selected from the range
of A2 to A1.
 When A1 ＜ A2, it is advised to select another type fuse.

The sample shall trial-operate in the actual circuit.

USER GUIDE

FUSE SELECTION

FLOW CHART

Factors taken into consideration

The  purpose  of  this  guide  is  for  users  to  properly

select  a  fuse  which  provides  protection  of  components,

circuit or equipments. The following flow is considered for

fuse selection.





Begin

Safety Approval

Physical Dimension

Interrupting Rating

Initial Selection for Fuse Type

Upper Limit for Current Rating A1

Lower Limit for Current Rating A2

Type & Current Rating

Testing

End

Voltage Rating

www.hollyfuse.com

05

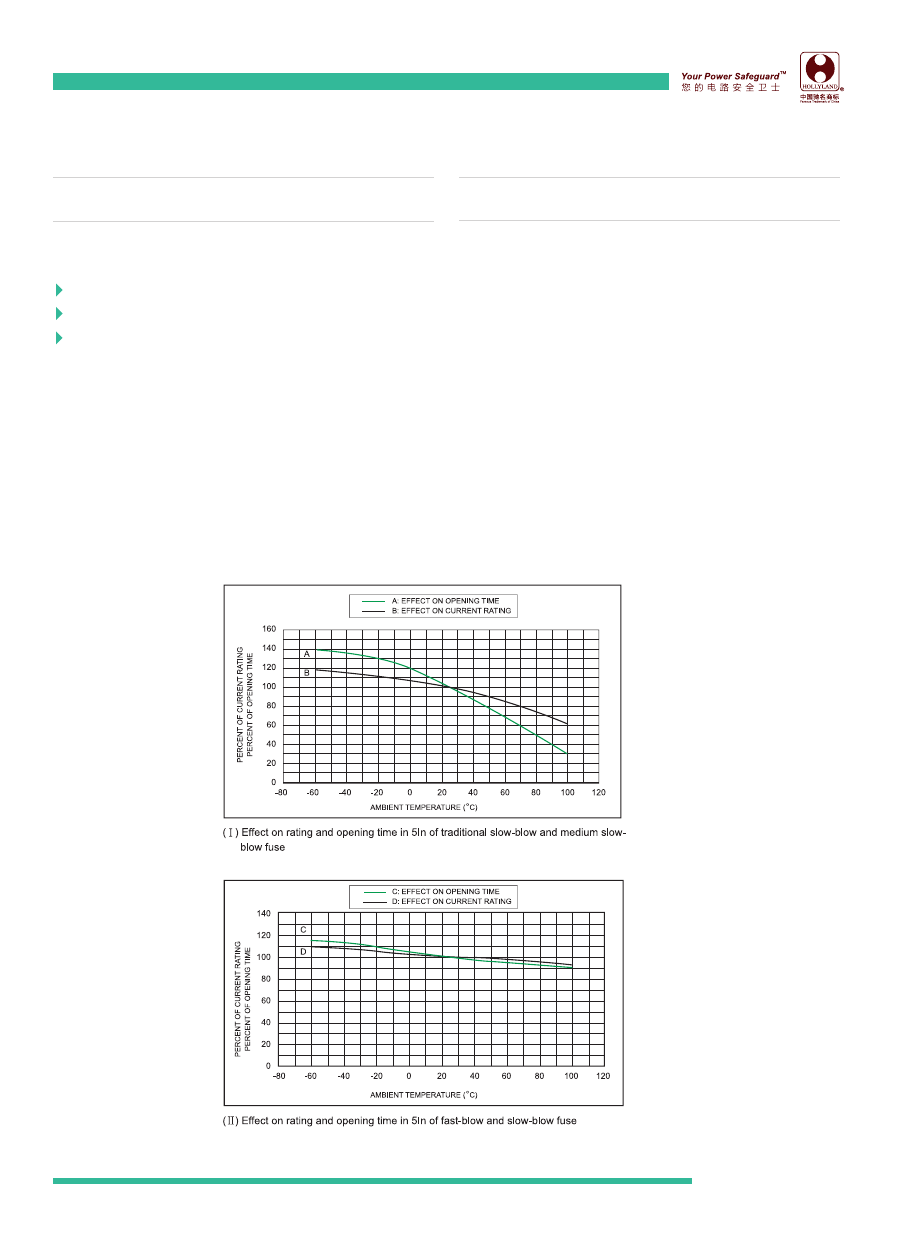

The current carrying capacity tests of a fuse are performed

at 25 ℃ and will be effected by changes with the ambient

temperature. The higher the ambient temperature is, the

shorter fuse life will be and the lower the current carrying

capacity  will  be.  So  the  ambient  temperature  shall  be

considered for proper fuse selection. Refer to the following

charts showing its effect on the current carrying capacity of

all kinds of fuse.

USER GUIDE

STEADY STATE CURRENT

AMBIENT TEMPERATURE

There  exist  the  different  conditions  between  the  actual

appliance and test conditions, such as,

Fuse-holder,

Connecting cable size,

Contacting resistance between fuse clip and fuse, etc.

The above factors should be taken into consideration when

selecting a fuse in a 25 ℃ ambient.To compensate for the

variation, the following conditions shall be melted to ensure

the fuse operating continuously and properly.

Fuse designed to IEC standard: current rating (In)=steady

state current of circuit/0.9

Fuse designed to UL standard: current rating (In)=steady

state current of circuit/0.75

  www.hollyfuse.com

06

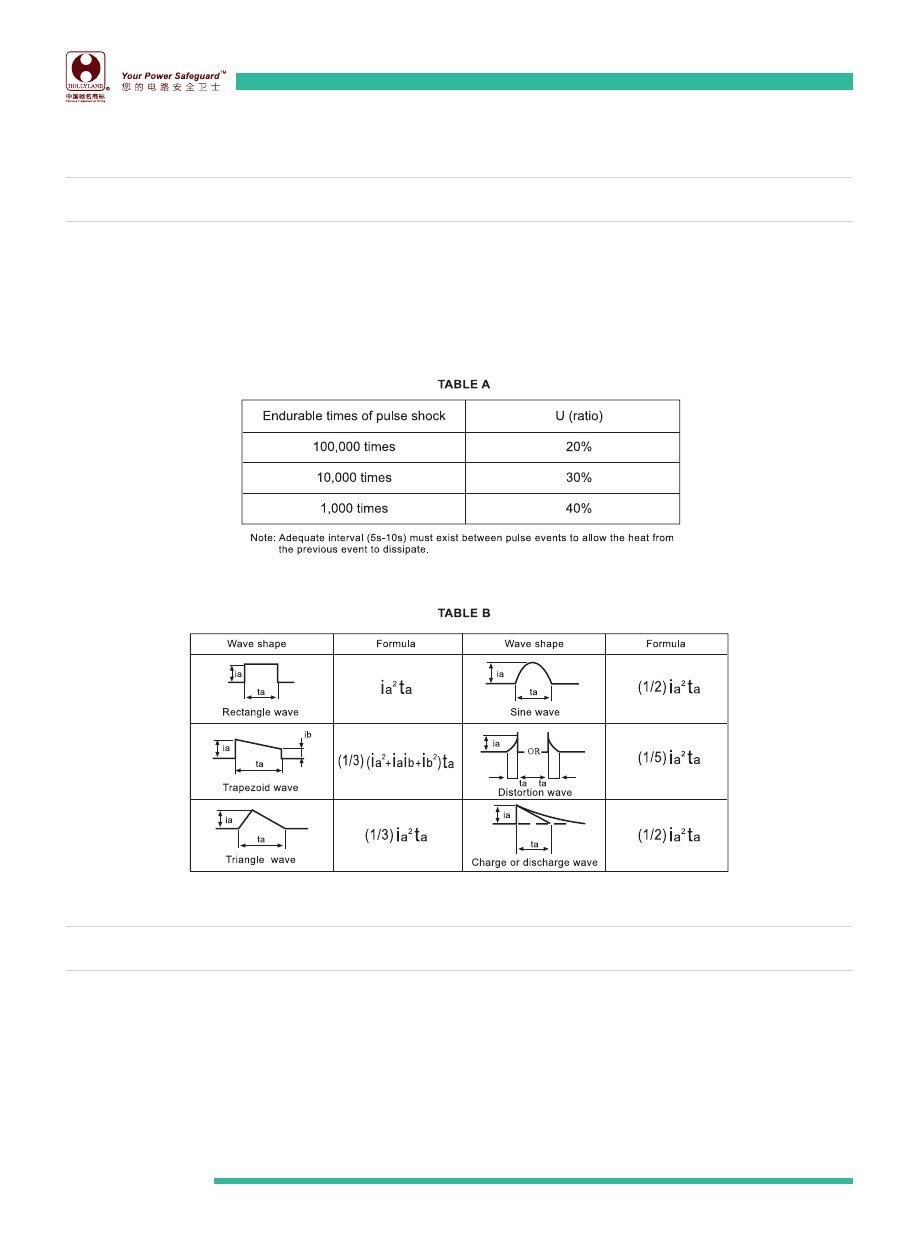

Pulse produces thermal cycling and mechanical fatigue which could affect the life of fuse. In design the selected fuse

should have a I

2

T value much greater than the I

2

T value of pulse. Refer to TABLE A showing the relationship between the

life of fuse (the endurable times of pulse shock ) and U (ratio between pulse I

2

T value and fuse I

2

T value ). The I

2

T value

of a fuse presented in theis catalog may be for your reference. The I

2

T value of a pulse can be approximated from the

following formulas for a typical wave shape, refer to TABLE B.

The selected sample should be tested in the actual circuit to verify the selection. The testing should include the tests under

normal and fault conditions to ensure that the fuse will operate properly in the circuit.

In all kinds of electrical protection doubts, contacting our engineers are welcome. Possibly we will work with you making

some special recommendations to help you solve these problems.

USER GUIDE

PULSE

TESTING

www.hollyfuse.com

07

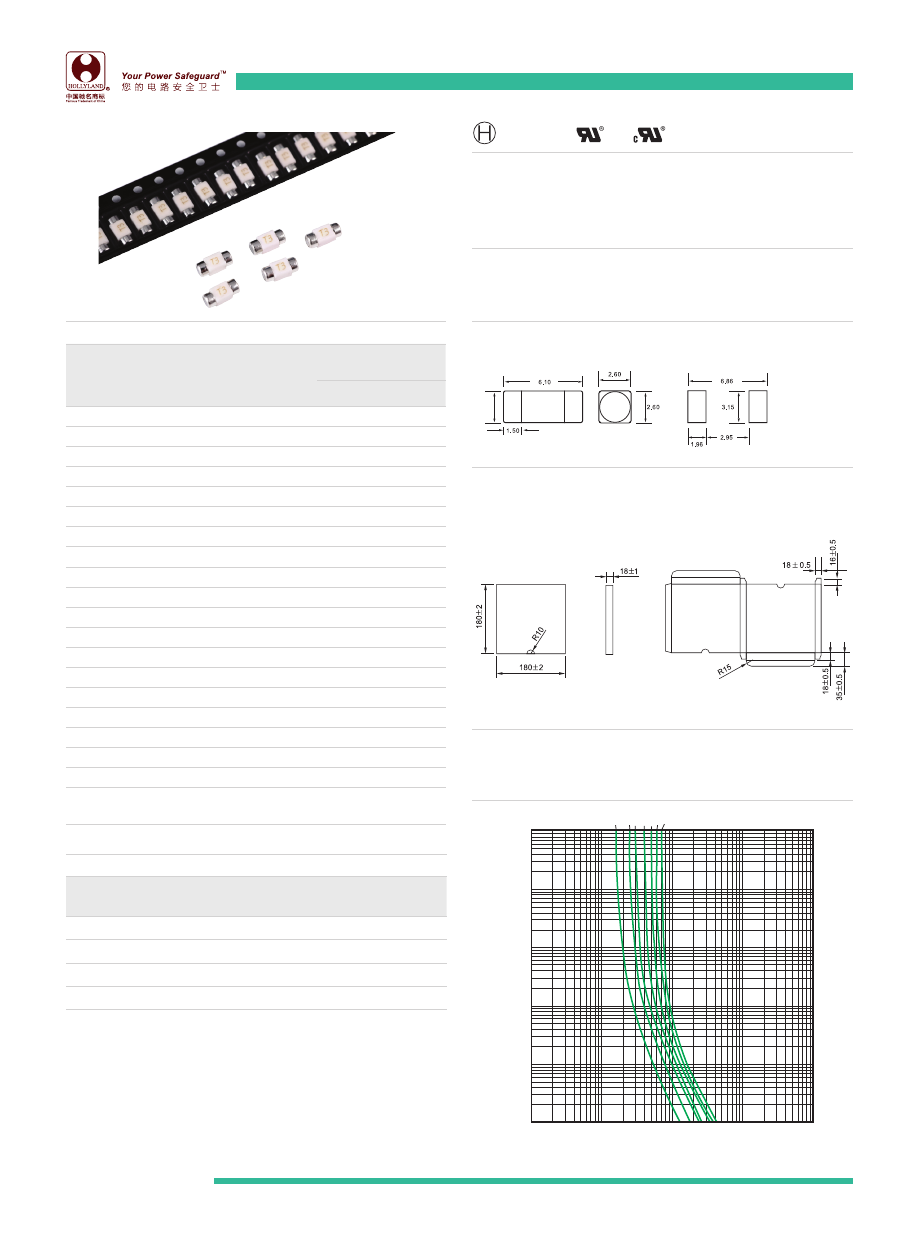

2410, RoHS Compliant & Pb-Free

SMD NANO FUSE (FAST-BLOW)

方型超微表面贴片式保险丝

（速断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃ ±5℃，30s±5s
Solderability/ 可焊性：MIL-STD-202, Method 208

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证
UR/cUR

H

L1

L2

25F -0100H/L1

100mA

●

●

25F -0125H/L1

125mA

●

●

25F -0160H/L1

160mA

●

●

25F -0200H/L1

200mA

●

●

25F -0250H/L1

250mA

●

●

25F -0315H/L1

315mA

●

●

25F -0375H/L1

375mA

●

●

25F -0400H/L1

400mA

●

●

25F -0500H/L1

500mA

●

●

25F -0630H/L1

630mA

●

●

25F -0750H/L1

750mA

●

●

25F -0800H/L1

800mA

●

●

25F -010H/L1

1A

●

●

25F -013H/L1

1.25A

●

●

25F -015H/L1

1.5A

●

●

25F -016H/L1

1.6A

●

●

25F -020H/L1

2A

●

●

25F -025H/L1

2.5A

●

●

25F -030H/L1

3A

●

●

25F -032H/L1

3.15A

●

●

25F -035H/L1

3.5A

●

●

25F -040H/L1

4A

●

●

25F -050H/L1

5A

●

●

25F -063H/L1

6.3A

●

●

25F -070H/L1

7A

●

●

25F -080H/L1

8A

●

●

25F -100H/L1

10A

●

●

25F -120L1/L2

12A

●

●

25F -150L1/L2

15A

●

●

●  DENOTES FOR APPROVED  ●  表示已取得安全认证

H DENOTES FOR 250V      L1 DENOTES FOR 125V      L2 DENOTES FOR 65V

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min. 最快 4 小时            (100mA-15A)

200%

5 seconds Max. 最慢 5 秒         (100mA-10A)

20 seconds Max. 最慢 20 秒    (12A-15A)

PACKING/ 包装：

1,000 PIECES TAPED AND REELED IN ONE BOX
每卷 1,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A at 250V AC (100mA-10A) ，50A at 125V AC/DC (12A-15A)
100A at 125V AC/DC (100mA-10A) ，100A at 65V DC (12A-15A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

25F

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

25F

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸                               Land Pattern:

Unit 单位：mm

Unit 单位：mm

25F

Φ2.60

2

  www.hollyfuse.com

08

2410, RoHS Compliant & Pb-Free

SMD NANO FUSE (SLOW-BLOW)

方型超微表面贴片式保险丝

（慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃ ±5℃，30s±5s
Solderability/ 可焊性：MIL-STD-202, Method 208

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

UR/cUR

25T-0200H/L

200mA

●

25T-0250H/L

250mA

●

25T-0315H/L

315mA

●

25T-0375H/L

375mA

●

25T-0400H/L

400mA

●

25T-0500H/L

500mA

●

25T-0630H/L

630mA

●

25T-0750H/L

750mA

●

25T-0800H/L

800mA

●

25T-010H/L

1A

●

25T-013H/L

1.25A

●

25T-015H/L

1.5A

●

25T-016H/L

1.6A

●

25T-020H/L

2A

●

25T-025H/L

2.5A

●

25T-030H/L

3A

●

25T-035H/L

3.5A

●

25T-040H/L

4A

●

25T-050H/L

5A

●

●  DENOTES FOR APPROVED  ●  表示已取得安全认证

H  DENOTES FOR 250V                   L  DENOTES FOR 125V

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                      最快 4 小时

200%

1-60 seconds                  1-60 秒

300%

0.2-3 seconds                  0.2-3 秒

800%

0.01-0.1 seconds            0.01-0.1 秒

PACKING/ 包装：

1,000 PIECES TAPED AND REELED IN ONE BOX

每卷 1,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A at 250V AC (200mA-5A)
100A at 125V DC/AC (200mA-5A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

25T

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

25T

平均 I-T 曲线图

( 仅供参考 )

Unit 单位：mm

25T

Unit 单位：mm

Φ2.60

T3

0.1

0.01

0.1

1

1

10

10

100

100

1000

1A

1.5A 2A

3A

4A

2.5A

3.5A

1000

Dimensions/ 尺寸                               Land Pattern:

www.hollyfuse.com

09

0603, RoHS Compliant & Pb-Free

SURFACE MOUNT CHIP FUSE (FAST-BLOW)

表面贴装片式保险丝

（速断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~90℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：235℃ ±5℃ , 3.5s+0.5/-0s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG  NO.

目录编号

CURRENT  RATING

额定电流

SAFETY APPROVALS

安全认证

UR

cUR

L1

L2

L1

L2

06F-0200L

200mA

●

●

●

●

06F-0250L

250mA

●

●

●

●

06F-0315L

315mA

●

●

06F-0375L

375mA

●

●

06F-0400L

400mA

●

●

06F-0500L

500mA

●

●

06F-0630L

630mA

●

●

06F-0750L

750mA

●

●

06F-0800L

800mA

●

●

06F-010L

1A

●

●

06F-013L

1.25A

●

●

06F-015L

1.5mA

●

●

06F-016L

1.6A

●

●

06F-020L

2A

●

●

06F-025L

2.5A

●

●

06F-030L

3.0A

●

●

06F-032L

3.15A

●

●

06F-035L

3.5A

●

●

06F-040L

4A

●

●

06F-050L

5A

●

●

●  DENOTES FOR APPROVED  ●  表示已取得安全认证

 L1 DENOTES FOR 32V                      L1 代表 32V

 L2 DENOTES FOR 63V                      L2 代表 63V

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min. 最快 4 小时

250%

10 seconds Max. 最慢 10 秒     (200mA-3A)

350%

1 second Max. 最慢 1 秒           (3.15A-5A)

PACKING/ 包装：

5,000 PIECES TAPED AND REELED IN ONE BOX
每卷 5,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A  32V  AC (200mA-1A）              35A  32V  AC (1.2A-5A)
50A  63V  DC (200mA-250mA)         50A  32V  DC (300mA-1A)
35A  32V  DC (1.2A-5A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

06F

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

06F

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

TOP VIEW/ 上面 :

SIDE VIEW/ 侧面 :

06F

Unit 单位：mm

Unit 单位：mm

  www.hollyfuse.com

10

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG  NO.

目录编号

CURRENT  RATING

额定电流

SAFETY APPROVALS

安全认证

UR

cUR

L1

L2

L1

L2

06T-010L

1A

●

●

06T-013L

1.25A

●

●

06T-015L

1.5A

●

●

06T-016L

1.6A

●

●

06T-020L

2A

●

●

06T-025L

2.5A

●

●

06T-030L

3A

●

●

06T-032L

3.15A

●

●

06T-035L

3.5A

●

●

06T-040L

4A

●

●

06T-050L

5A

●

●

●  DENOTES FOR APPROVED    ●  表示已取得安全认证

 L1 DENOTES FOR 32V                      L1 代表 32V

 L2 DENOTES FOR 63V                      L2 代表 63V

Dimensions/ 尺寸 :

0603, RoHS Compliant & Pb-Free

SURFACE MOUNT CHIP FUSE (SLOW-BLOW)

表面贴装片式保险丝

（慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~90℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：235℃ ±5℃ , 3.5s+0.5/-0s

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                      最快 4 小时

200%

1 second Min.                   最快 1 秒
120 seconds Max.           最慢 120 秒

300%

0.05 seconds Min.           最快 0.05 秒
3 seconds Max.               最慢 3 秒

800%

0.0005 seconds Min.      最快 0.0005 秒
0.05 seconds Max.         最慢 0.05 秒

PACKING/ 包装：

5,000 PIECES TAPED AND REELED IN ONE BOX

每卷 5,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A  32V  AC (1A)            35A  32V  AC (1.2A-5A)
50A  32V  DC (1A)            35A  32V  DC (1.2A-5A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

06T

AVERAGE I-T CHARACTERISTICS CURVE

       (FOR  REFERENCE ONLY)

06T

平均 I-T 曲线图

( 仅供参考 )

Unit 单位：mm

06T

TOP VIEW/ 上面 :

SIDE VIEW/ 侧面 :

Unit 单位：mm

www.hollyfuse.com

11

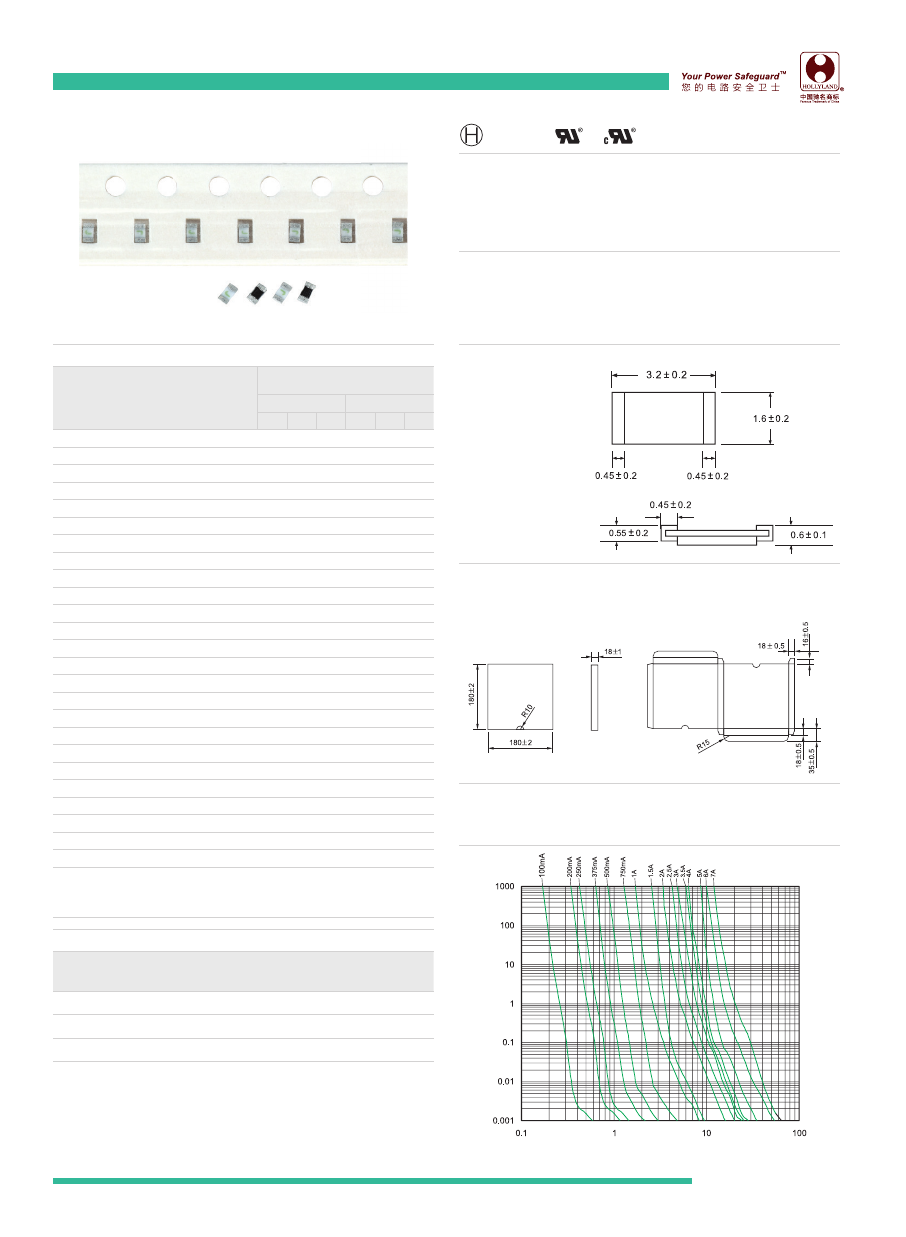

1206, RoHS Compliant & Pb-Free

SURFACE MOUNT CHIP FUSE (FAST-BLOW)

表面贴装片式保险丝

（速断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~90℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：235℃ ±5℃ , 3.5s+0.5/-0s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG  NO.

目录编号

CURRENT  RATING

额定电流

SAFETY APPROVALS

安全认证

UR

cUR

L1

L2

L3

L1

L2

L3

12F-0100L

100mA

●

●

●

●

12F-0125L

125mA

●

●

●

●

12F-0150L

150mA

●

●

●

●

12F-0200L

200mA

●

●

●

●

12F-0250L

250mA

●

●

●

●

12F-0315L

315mA

●

●

●

●

12F-0375L

375mA

●

●

●

●

12F-0400L

400mA

●

●

12F-0500L

500mA

●

●

12F-0630L

630mA

●

●

12F-0750L

750mA

●

●

12F-0800L

800mA

●

●

12F-010L

1A

●

●

12F-013L

1.25A

●

●

12F-015L

1.5A

●

●

12F-016L

1.6A

●

●

12F-020L

2A

●

●

12F-025L

2.5A

●

●

12F-030L

3A

●

●

12F-032L

3.15A

●

●

●

●

12F-035L

3.5A

●

●

●

●

12F-040L

4A

●

●

●

●

12F-050L

5A

●

●

●

●

12F-063L

6.3A

●

●

●

●

12F-070L

7A

●

●

●

●

●  DENOTES FOR APPROVED               ●  表示已取得安全认证

 L1 DENOTES FOR 24V (L1 代表 24V)       L2 DENOTES FOR 63V (L2 代表 32V)

 L3 DENOTES FOR 63V (L3 代表 63V)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.            最快 4 小时

250%

10 seconds Max.    最慢 10 秒    (100mA-5A)

350%

1 second Max.        最慢 1 秒       (6A-7A)

PACKING/ 包装：

5,000 PIECES TAPED AND REELED IN ONE BOX
每卷 5,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A  32V  AC (100mA-375mA )           50A  63V  AC (400mA-3A)
35A  24V  AC (3.15A-7A)                      50A  63V  DC (100mA-3A)
50A  32V  DC (3.15A-7A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

12F

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

12F

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

TOP VIEW/ 上面 :

SIDE VIEW/ 侧面 :

12F

Unit 单位：mm

Unit 单位：mm

  www.hollyfuse.com

12

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG  NO.

目录编号

CURRENT  RATING

额定电流

SAFETY APPROVALS

安全认证

UR

cUR

L1

L2

L3

L1

L2

L3

12T-0500L

500mA

●

●

12T-0630L

630mA

●

●

12T-0750L

750mA

●

●

12T-0800L

800mA

●

●

12T-010L

1A

●

●

12T-013L

1.25A

●

●

12T-015L

1.5A

●

●

12T-016L

1.6A

●

●

12T-020L

2A

●

●

12T-025L

2.5A

●

●

12T-030L

3A

●

●

12T-032L

3.15A

●

●

●

●

12T-035L

3.5A

●

●

●

●

12T-040L

4A

●

●

●

●

12T-050L

5A

●

●

●

●

12T-063L

6.3A

●

●

●

●

12T-070L

7A

●

●

●

●

●  DENOTES FOR APPROVED  ●  表示已取得安全认证

 L1 DENOTES FOR 24V (L1 代表 24V)      L2 DENOTES FOR 63V ( L2 代表 32V)

 L3 DENOTES FOR 63V (L3 代表 63V)

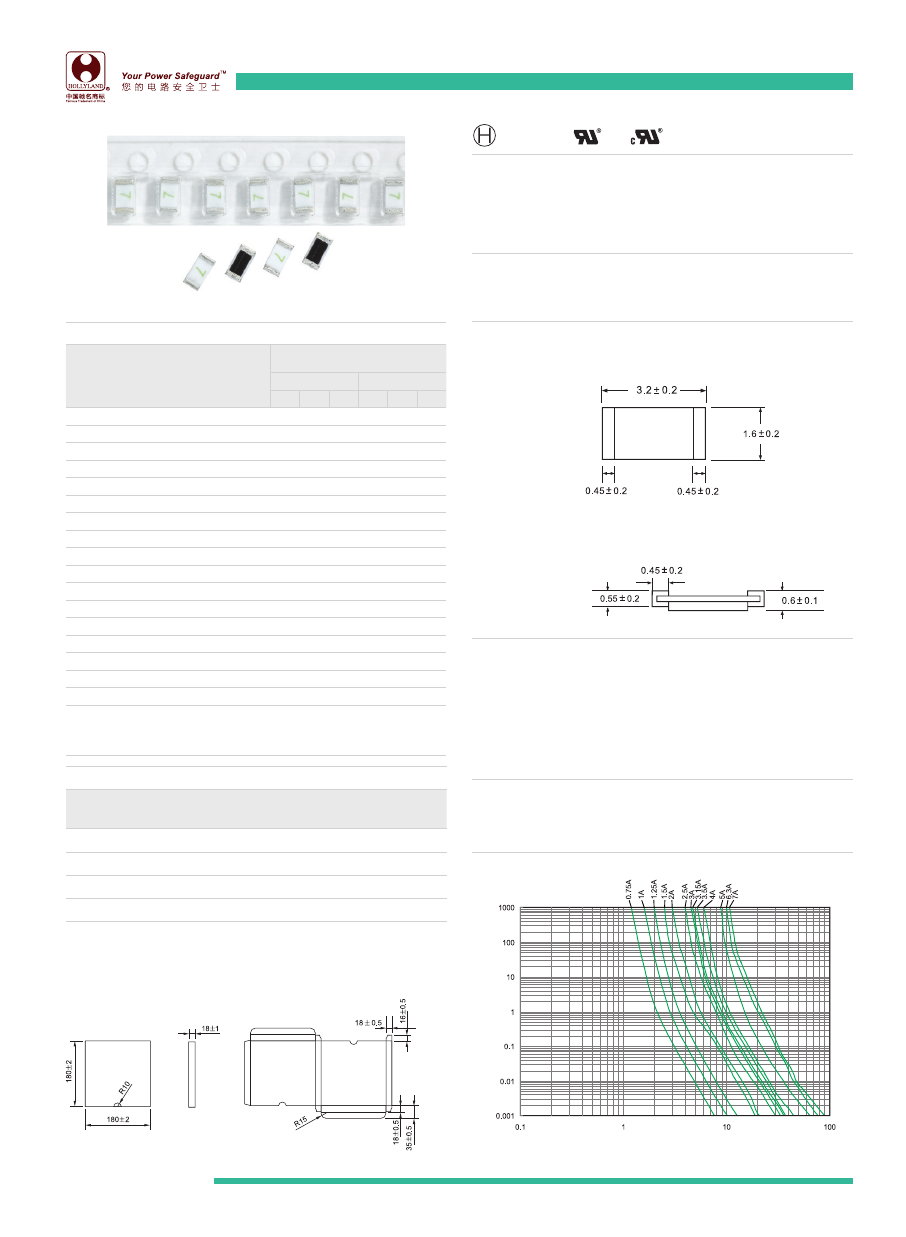

1206, RoHS Compliant & Pb-Free

SURFACE MOUNT CHIP FUSE (SLOW-BLOW)

表面贴装片式保险丝

（慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~90℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：235℃ ±5℃ , 3.5s+0.5/-0s

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                   最快 4 小时

200%

1-120 seconds             1-120 秒

300%

0.05-3.00 seconds      0.05-3.00 秒

800%

0.0015-0.05 seconds   0.0015-0.05 秒

PACKING/ 包装：

5,000 PIECES TAPED AND REELED IN ONE BOX

每卷 5,000 只保险丝，装入一个包装盒

BOX SIZE/ 包装盒尺寸：

INTERRUPTING CAPACITY / 分断能力：

50A  63V  AC (500mA-3A)            35A  24V  AC (3.15A-7A)
50A  63V  DC (500mA-3A)            50A  32V  DC (3.15A-7A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

12T

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

12T

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸

Unit 单位：mm

Unit 单位：mm

12T

TOP VIEW/ 上面 :

SIDE VIEW/ 侧面 :

www.hollyfuse.com

13

Φ

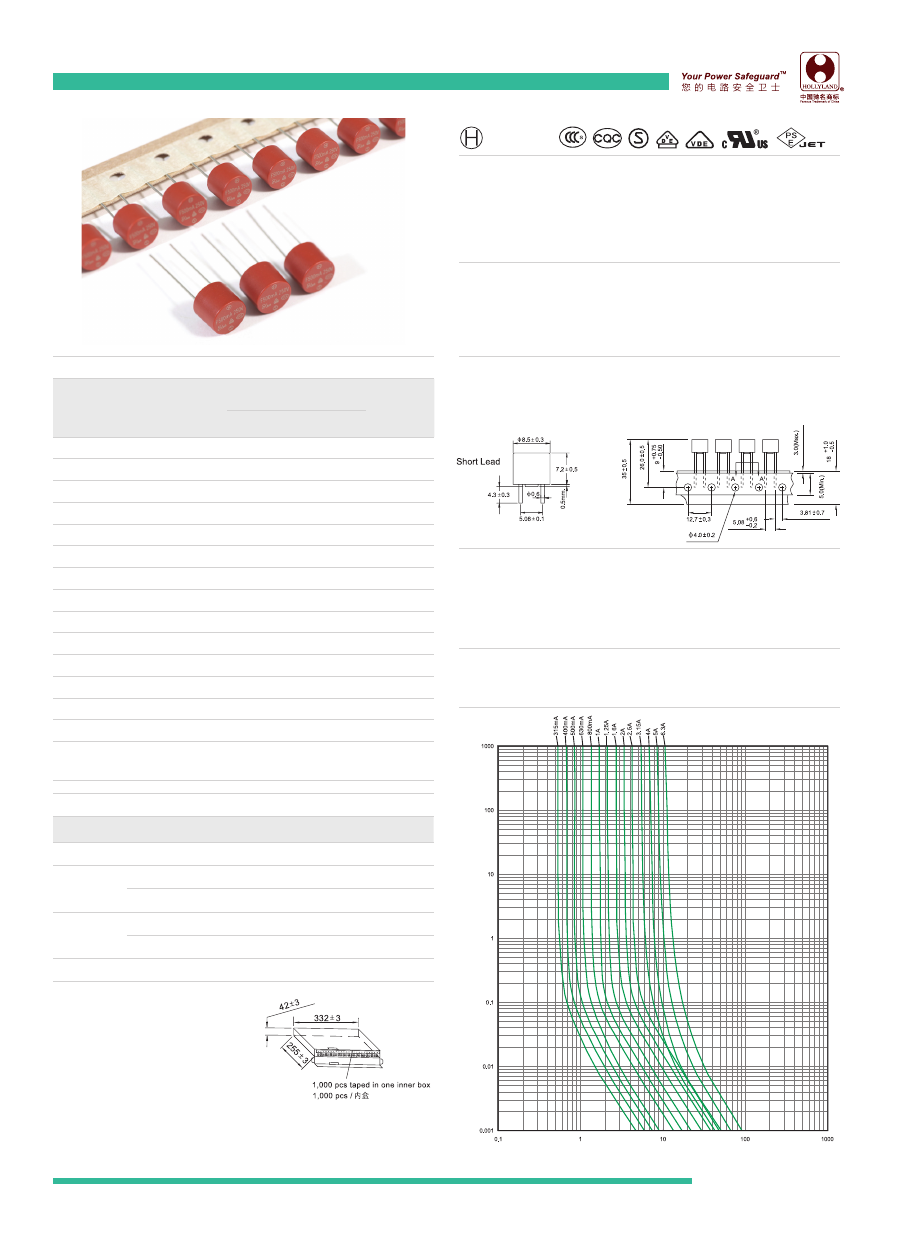

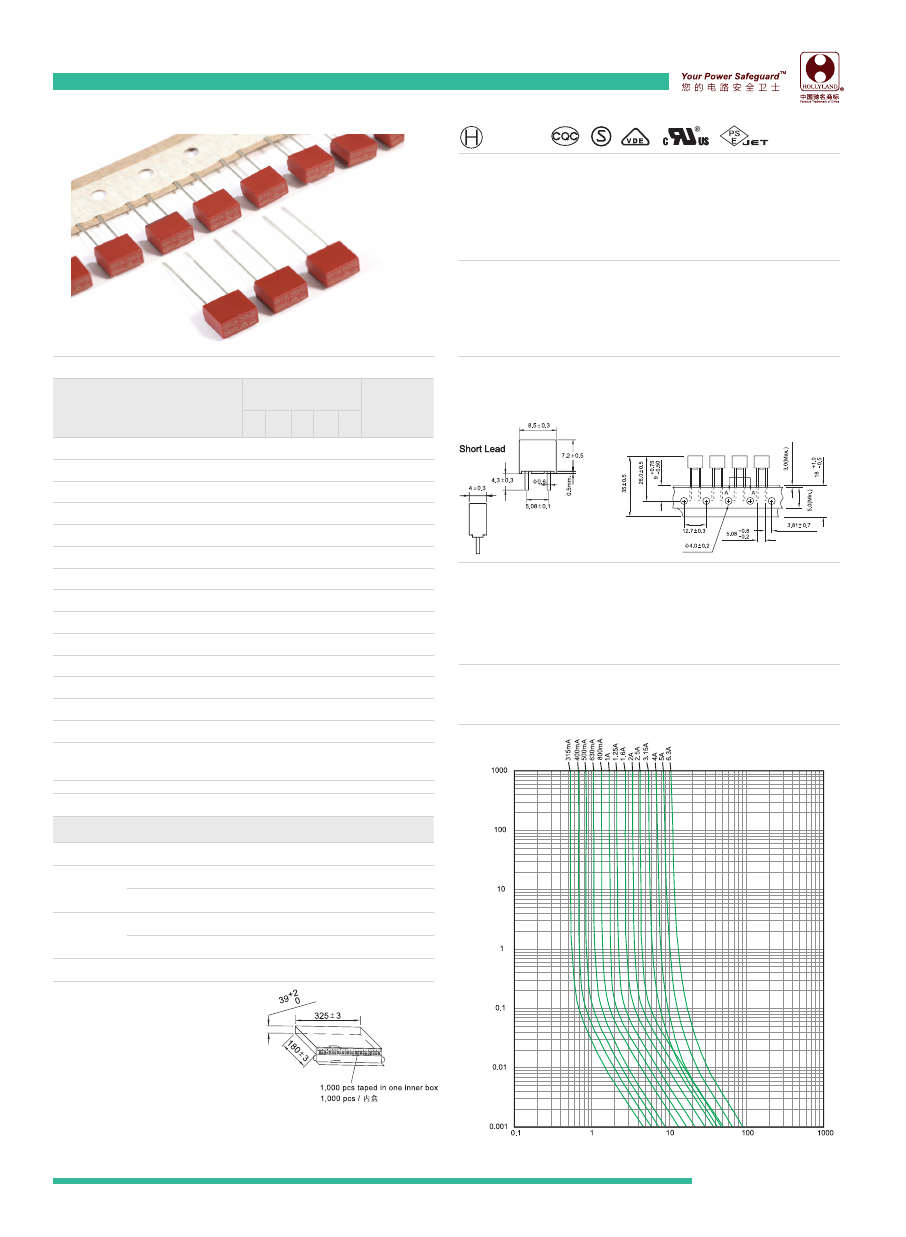

8x8.5mm, RoHS Compliant & Pb-Free

RADIAL LEAD MICROFUSE (QUICK-ACTING)

径向引线式保险丝管

（速断型）

Standards/ 标准：IEC 60127,  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC

CQC

SEMKO

VDE cURus PSE

5RF-0315H

315mA

400

●

●

●

●

0.02301

5RF-0400H

400mA

370

●

●

●

●

0.03848

5RF-0500H

500mA

350

●

●

●

●

0.06059

5RF-0630H

630mA

320

●

●

●

●

0.08831

5RF-0800H

800mA

300

●

●

●

●

0.1947

5RF-010H

1A

280

●

●

●

●

●

0.3133

5RF-013H

1.25A

280

●

●

●

●

●

0.5169

5RF-016H

1.6A

250

●

●

●

●

●

0.9379

5RF-020H

2A

240

●

●

●

●

●

1.542

5RF-025H

2.5A

200

●

●

●

●

●

2.555

5RF-032H

3.15A

180

●

●

●

●

●

2.085

5RF-040H

4A

160

●

●

●

●

●

2.816

5RF-050H

5A

150

●

●

●

●

●

5.473

5RF-063H

6.3A

150

●

●

●

●

●

10.31

●  DENOTES FOR APPROVED

●  表示已取得安全认证

 H  DENOTES FOR  250V                    H 代表 250V

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

30 minutes

2.75In

Min. 最快

10ms

Max. 最慢

3 seconds

4In

Min. 最快

3ms

Max. 最慢

300ms

10In

Max. 最慢

20ms

INTERRUPTING CAPACITY / 分断能力：

CCC / CQC / SEMKO / VDE / UR / BSI:
35A OR 10In 250V AC WHICHEVER IS GREATER
PSE: 100A   250V   AC

PATENT NO. 专利号 :ZL 200620053742.1

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

5RF

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

5RF

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :
5RF-XXXHL

TAPING SPECIFICATIONS /
编带规格 :5RF-XXXH

5RF

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸： L470x W355 x H285(mm)

MATERIALS: THERMOPLASTIC, UL94-V0
主体材料：阻燃塑料，UL94-V0

Unit 单位：mm

  www.hollyfuse.com

14

Φ

8x8.5mm, RoHS Compliant & Pb-Free

RADIAL LEAD MICROFUSE (TIME-LAG)

径向引线式保险丝管

（慢断型）

Standards/ 标准：IEC 60127,  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC

CQC SEMKO VDE

cURus

BSI

PSE

KC

H

H

H

H

H

1

H

L

H

H

1

H

H

5RT-0100H

1

/H/L

100mA

350

●

●

●

●

●

●

●

0.02623

5RT-0125H

1

/H/L

125mA

300

●

●

●

●

●

●

●

0.04499

5RT-0160H

1

/H/L

160mA

280

●

●

●

●

●

●

●

0.08755

5RT-0200H

1

/H/L

200mA

260

●

●

●

●

●

●

●

0.1181

5RT-0250H

1

/H/L

250mA

240

●

●

●

●

●

●

●

0.2030

5RT-0315H

1

/H/L

315mA

220

●

●

●

●

●

●

●

●

0.3597

5RT-0400H

1

/H/L

400mA

200

●

●

●

●

●

●

●

●

0.6893

5RT-0500H

1

/H/L

500mA

190

●

●

●

●

●

●

●

●

1.232

5RT-0630H

1

/H/L

630mA

180

●

●

●

●

●

●

●

●

2.185

5RT-0800H

1

/H/L

800mA

160

●

●

●

●

●

●

●

●

2.987

5RT-010H

1

/H/L

1A

140

●

●

●

●

●

●

●

●

●

●

6.319

5RT-013H

1

/H/L

1.25A

130

●

●

●

●

●

●

●

●

●

●

12.23

5RT-016H

1

/H/L

1.6A

120

●

●

●

●

●

●

●

●

●

●

22.03

5RT-020H

1

/H/L

2A

100

●

●

●

●

●

●

●

●

●

●

43.08

5RT-025H

1

/H/L

2.5A

100

●

●

●

●

●

●

●

●

●

●

50.05

5RT-032H

1

/H/L

3.15A

100

●

●

●

●

●

●

●

●

●

●

73.53

5RT-040H

1

/H/L

4A

100

●

●

●

●

●

●

●

●

●

●

88.16

5RT-050H

1

/H/L

5A

100

●

●

●

●

●

●

●

●

●

●

152.0

5RT-063H

1

/H/L

6.3A

100

●

●

●

●

●

●

●

●

●

●

255.7

●  DENOTES FOR APPROVED                        ●  表示已取得安全认证

 H

1

  DENOTES FOR  300V (H

1

代表 300V)          H   DENOTES FOR  250V (H



代表 250V)

 L    DENOTES FOR 125V  (L  代表 125V)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

2 minutes

2.75In

Min. 最快

400 ms

Max. 最慢

10 seconds

4In

Min. 最快

150 ms

Max. 最慢

3 seconds

10In

Min. 最快

20 ms

Max. 最慢

150 ms

INTERRUPTING CAPACITY / 分断能力：

CCC / CQC / SEMKO / VDE / UR / BSI / KTL:
35A OR 10In 250V AC WHICHEVER IS GREATER
PSE: 100A   250V   AC, cURus: 50A  300V  AC, 50A  125V  DC

PATENT NO. 专利号 :ZL 200620053742.1

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

5RT

AVERAGE I-T CHARACTERISTICS CURVE

         (FOR  REFERENCE ONLY)

5RT

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :
5RT-XXXHL

TAPING SPECIFICATIONS /
编带规格 :5RT-XXXH

5RT

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸： L470x W355 x H285(mm)

MATERIALS: THERMOPLASTIC, UL94-V0
主体材料：阻燃塑料，UL94-V0

Unit 单位：mm

www.hollyfuse.com

15

8x8.5mm, RoHS Compliant & Pb-Free

RADIAL LEAD MICROFUSE (QUICK-ACTING)

径向引线式保险丝管

（速断型）

Standards/ 标准：IEC 60127,  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CQC

SEMKO

VDE

cURus

PSE

5EF-0315H

315mA

400

●

●

●

●

0.02301

5EF-0400H

400mA

370

●

●

●

●

0.03848

5EF-0500H

500mA

350

●

●

●

●

0.06059

5EF-0630H

630mA

320

●

●

●

●

0.08831

5EF-0800H

800mA

300

●

●

●

●

0.1947

5EF-010H

1A

280

●

●

●

●

●

0.3133

5EF-013H

1.25A

280

●

●

●

●

●

0.5169

5EF-016H

1.6A

250

●

●

●

●

●

0.9379

5EF-020H

2A

240

●

●

●

●

●

1.542

5EF-025H

2.5A

200

●

●

●

●

●

2.555

5EF-032H

3.15A

180

●

●

●

●

●

2.085

5EF-040H

4A

160

●

●

●

●

●

2.816

5EF-050H

5A

150

●

●

●

●

●

5.473

5EF-063H

6.3A

150

●

●

●

●

●

10.31

●  DENOTES FOR APPROVED      ●  表示已取得安全认证

 H  DENOTES FOR  250V                    H 代表 250V

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

30 minutes

2.75In

Min. 最快

10 ms

Max. 最慢

3 seconds

4In

Min. 最快

3 ms

Max. 最慢

300 ms

10In

Max. 最慢

20 ms

INTERRUPTING CAPACITY / 分断能力：

CCC / CQC / SEMKO / VDE / UR / BSI:
35A OR 10In 250V AC WHICHEVER IS GREATER
PSE: 100A   250V   AC

PATENT NO. 专利号 :ZL 200620053742.1

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

5EF

AVERAGE I-T CHARACTERISTICS CURVE

         (FOR  REFERENCE ONLY)

5EF

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :
5EF-XXXHL

TAPING SPECIFICATIONS /
编带规格 :5EF-XXXH

5EF

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸： L440x W348 x H205(mm)

MATERIALS: THERMOPLASTIC, UL94-V0
主体材料：阻燃塑料，UL94-V0

Unit 单位：mm

  www.hollyfuse.com

16

Φ

8x8.5mm, RoHS Compliant & Pb-Free

RADIAL LEAD MICROFUSE (TIME-LAG)

径向引线式保险丝管

（慢断型）

Standards/ 标准：IEC 60127,  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CQC

SEMKO

VDE

cURus

BSI

PSE

KC

TÜV

H

1

H

H

H

1

H

H

1

H

L

H

H

1

H

H

H

5ET-0100H

1

/H/L

100mA

350

●

●

●

●

●

●

●

●

0.02623

5ET-0125H

1

/H/L

125mA

300

●

●

●

●

●

●

●

●

0.04499

5ET-0160H

1

/H/L

160mA

280

●

●

●

●

●

●

●

●

0.08755

5ET-0200H

1

/H/L

200mA

260

●

●

●

●

●

●

●

●

0.1181

5ET-0250H

1

/H/L

250mA

240

●

●

●

●

●

●

●

●

0.2030

5ET-0315H

1

/H/L

315mA

220

●

●

●

●

●

●

●

●

●

●

0.3597

5ET-0400H

1

/H/L

400mA

200

●

●

●

●

●

●

●

●

●

●

0.6893

5ET-0500H

1

/H/L

500mA

190

●

●

●

●

●

●

●

●

●

●

1.232

5ET-0630H

1

/H/L

630mA

180

●

●

●

●

●

●

●

●

●

●

2.185

5ET-0800H

1

/H/L

800mA

160

●

●

●

●

●

●

●

●

●

●

2.987

5ET-010H

1

/H/L

1A

140

●

●

●

●

●

●

●

●

●

●

●

●

●

6.619

5ET-013H

1

/H/L

1.25A

130

●

●

●

●

●

●

●

●

●

●

●

●

●

12.23

5ET-016H

1

/H/L

1.6A

120

●

●

●

●

●

●

●

●

●

●

●

●

●

22.03

5ET-020H

1

/H/L

2A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

43.08

5ET-025H

1

/H/L

2.5A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

50.05

5ET-032H

1

/H/L

3.15A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

73.53

5ET-040H

1

/H/L

4A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

88.16

5ET-050H

1

/H/L

5A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

152.0

5ET-063H

1

/H/L

6.3A

100

●

●

●

●

●

●

●

●

●

●

●

●

●

255.7

5ET-080H

1

/H/L

8A

100

●

●

●

305.7

5ET-100H

1

/H/L

10A

100

●

●

●

439.2

●  DENOTES FOR APPROVED

                   ●  表示已取得安全认证

 H

1

  DENOTES FOR  300V (H

1

代表 300V)       H  DENOTES FOR  250V (H



代表 250V)

 L    DENOTES FOR 125V  (L  代表 125V)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

2 minutes

2.75In

Min. 最快

400 ms

Max. 最慢

10 seconds

4In

Min. 最快

150 ms

Max. 最慢

3 seconds

10In

Min. 最快

20 ms

Max. 最慢

150 ms

INTERRUPTING CAPACITY

/ 分断能力：

CQC / SEMKO / VDE / BSI / KTL:
35A OR 10In 250V AC WHICHEVER IS GREATER
VDE: 35A OR 10In 300V AC WHICHEVER IS GREATER(1A-6.3A)
CQC: 35A OR 10In 300V AC WHICHEVER IS GREATER (100mA-6.3A)
PSE: 100A   250V   AC
cURus: 50A  300V  AC,  50A  125V  DC,  130A  250V AC (0.315A-10A)
T

Ü

V: 130A  250V  AC (315mA-10A)

PATENT NO. 专利号 :ZL 200620053742.1

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

5ET

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

5ET

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :
5ET-XXXHL

TAPING SPECIFICATIONS /
编带规格 :5ET-XXXH

5ET

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L440x W348 x H205(mm)

MATERIALS: THERMOPLASTIC, UL94-V0
主体材料：阻燃塑料，UL94-V0

Unit 单位：mm

www.hollyfuse.com

17

Φ

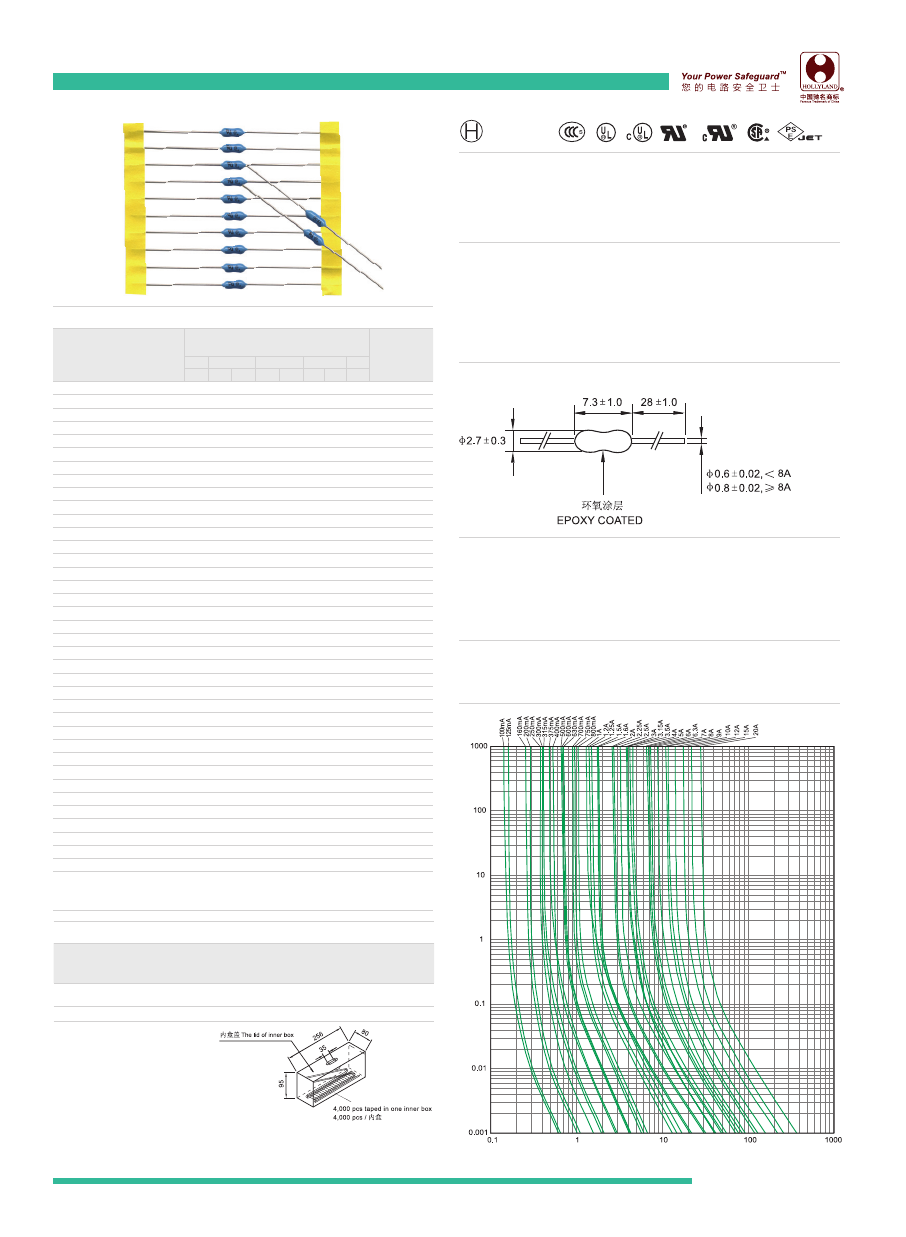

2.4x7mm, RoHS Compliant & Pb-Free

MICROFUSE (VERY QUICK-ACTING)

微型保险丝管

（特快熔断型）

Standards/ 标准：UL 248-1,   UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC

UL(cUL)

UR(cUR)

CSA

PSE

L

H

L

H

L

H

L

L

20N-0100H/L

20N-0125H/L

125mA

●

●

●

●

0.0009489

20N-0160H/L

160mA

●

●

●

●

0.002313

20N-0200H/L

200mA

●

●

●

●

0.002719

20N-0250H/L

250mA

●

●

●

●

●

0.005643

20N-0300H/L

300mA

●

●

●

●

0.008507

20N-0315H/L

315mA

●

●

●

●

●

0.009699

20N-0375H/L

375mA

●

●

●

●

0.01937

20N-0400H/L

400mA

●

●

●

●

●

0.01841

20N-0500H/L

500mA

●

●

●

●

●

0.03792

20N-0600H/L

600mA

●

●

●

●

0.03965

20N-0630H/L

630mA

●

●

●

●

●

0.04021

20N-0700H/L

700mA

●

●

●

●

0.07328

20N-0750H/L

750mA

●

●

●

●

0.08122

20N-0800H/L

800mA

●

●

●

●

●

0.1002

20N-010H/L

1A

●

●

●

●

●

●

0.4457

20N-012H/L

1.2A

●

●

●

●

●

0.2627

20N-013H/L

1.25A

●

●

●

●

●

●

0.3341

20N-015H/L

1.5A

●

●

●

●

●

0.5409

20N-016H/L

1.6A

●

●

●

●

●

●

0.5568

20N-020H/L

2A

●

●

●

●

●

●

1.038

20N-023H/L

2.25A

●

●

●

●

●

1.076

20N-025H/L

2.5A

●

●

●

●

●

●

1.899

20N-030H/L

3A

●

●

●

●

●

2.851

20N-032H/L

3.15A

●

●

●

●

●

●

2.049

20N-035H/L

3.5A

●

●

●

●

●

2.704

20N-040H/L

4A

●

●

●

●

●

●

3.666

20N-050H/L

5A

●

●

●

●

●

●

6.102

20N-060H/L

6A

●

●

●

●

6.802

20N-063H/L

6.3A

●

●

●

●

8.075

20N-070H/L

7A

●

●

●

●

10.18

20N-080H/L

8A

●

●

●

●

16.21

20N-090H/L

9A

●

●

●

●

18.77

20N-100H/L

10A

●

●

●

●

25.54

20N-120H/L

12A

●

●

50.89

20N-150H/L

15A

●

●

68.28

20N-200H/L

20A

●

147.1

●  DENOTES FOR APPROVED

●  表示已取得安全认证

 H  DENOTES FOR  250V (H 代表 250V) ,  L  DENOTES FOR  125V(L



代表 125V 100mA-10A)

 L   DENOTES FOR 72V (L 代表 72V 12A-15A), L  DENOTES FOR 60V( L  代表 60V 20A)

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V AC (100mA-3A) , 50 amperes at 250V AC (375mA-3A)
30 amperes at 125V AC (3.15A-10A)
30 amperes at 250V AC (100mA-350mA,3.15A-10A)
30 amperes at 72V AC (12A-15A), 50 amperes at 60V DC (20A)
100 amperes at 125V AC (1A-5A) PSE, 50amperes at 125V DC (250mA-5A) CCC
50 amperes at 125V DC (100mA-3A) UL/cUL, 50 amperes at 125V DC (3.15A-10A)UR/cUR

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

20N

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

20N

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

20N

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L440x W270 x H230(mm)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                 最快 4 小时

200%

20 seconds Max.         最慢 20 秒

Unit 单位：mm

  www.hollyfuse.com

18

Φ

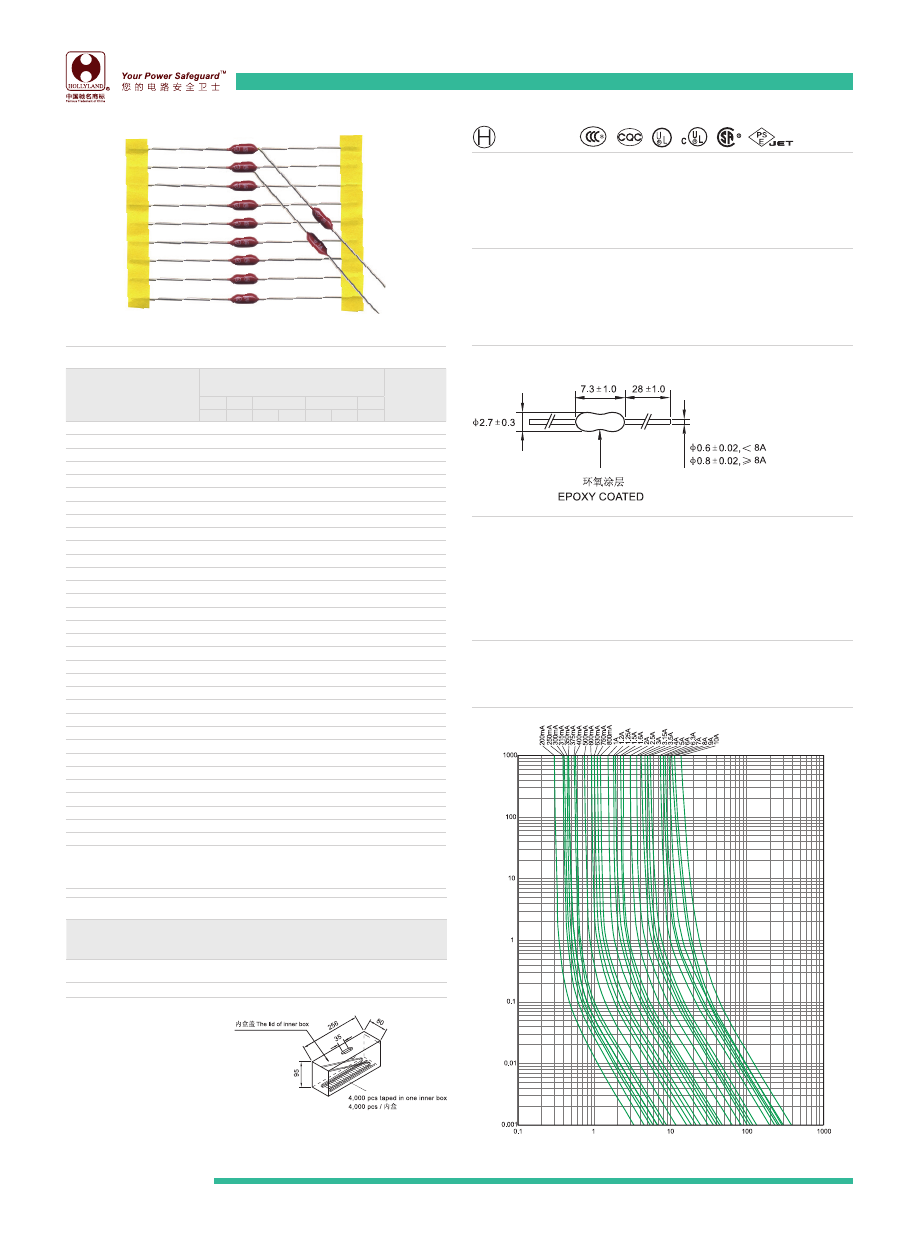

2.4x7mm, RoHS Compliant & Pb-Free

MICROFUSE (MEDIUM SLOW-BLOW)

微型保险丝管

（中等慢断型）

Standards/ 标准：UL 248-1,   UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC CQC

UL(cUL)

CSA

PSE

H

H

H

L

H

L

L

20S-0200H/L

200mA

●

●

●

●

●

0.01230

20S-0250H/L

250mA

●

●

●

●

●

0.02431

20S-0300H/L

300mA

●

●

●

●

0.03270

20S-0315H/L

315mA

●

●

●

●

●

0.03671

20S-0350H/L

350mA

●

●

●

●

0.04738

20S-0375H/L

375mA

●

●

●

●

0.06790

20S-0400H/L

400mA

●

●

●

●

0.08190

20S-0500H/L

500mA

●

●

●

●

●

0.1543

20S-0600H/L

600mA

●

●

●

●

0.1591

20S-0630H/L

630mA

●

●

●

●

●

0.2808

20S-0700H/L

700mA

●

●

●

●

●

0.3874

20S-0750H/L

750mA

●

●

●

●

0.4989

20S-0800H/L

800mA

●

●

●

●

●

0.6133

20S-010H/L

1A

●

●

●

●

●

●

0.9903

20S-012H/L

1.2A

●

●

●

●

●

1.435

20S-013H/L

1.25A

●

●

●

●

●

●

1.749

20S-015H/L

1.5A

●

●

●

●

●

2.002

20S-016H/L

1.6A

●

●

●

●

●

●

2.374

20S-020H/L

2A

●

●

●

●

●

●

4.334

20S-023H/LL

2.25A

●

●

●

●

●

●

6.002

20S-025H/L

2.5A

●

●

●

●

●

●

7.569

20S-030H/L

3A

●

●

●

●

●

11.64

20S-032H/L

3.15A

●

●

●

●

●

●

12.20

20S-035H/L

3.5A

●

●

●

●

●

15.72

20S-040H/L

4A

●

●

●

●

●

●

20.88

20S-050H/L

5A

●

●

●

●

●

●

42.76

20S-060H/L

6A

●

●

●

●

58.61

20S-063H/L

6.3A

●

●

●

●

●

67.99

20S-070H/L

7A

●

●

●

●

92.44

20S-080H/L

8A

●

●

●

●

74.48

20S-090H/L

9A

●

●

●

●

93.07

20S-100H/L

10A

●

●

●

●

153.6

●  DENOTES FOR APPROVED              ●  表示已取得安全认证

 H  DENOTES FOR  250V (H 代表 250V) , L  DENOTES FOR  125V (L 代表 125V)

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V/250V AC (200mA-10A)
100 amperes at 125V AC (1A-5A)  PSE

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

20S

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

20S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

20S

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸： L440x W270 x H230(mm)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                 最快 4 小时

200%

60 seconds Max.         最慢 60 秒

Unit 单位：mm

www.hollyfuse.com

19

Φ

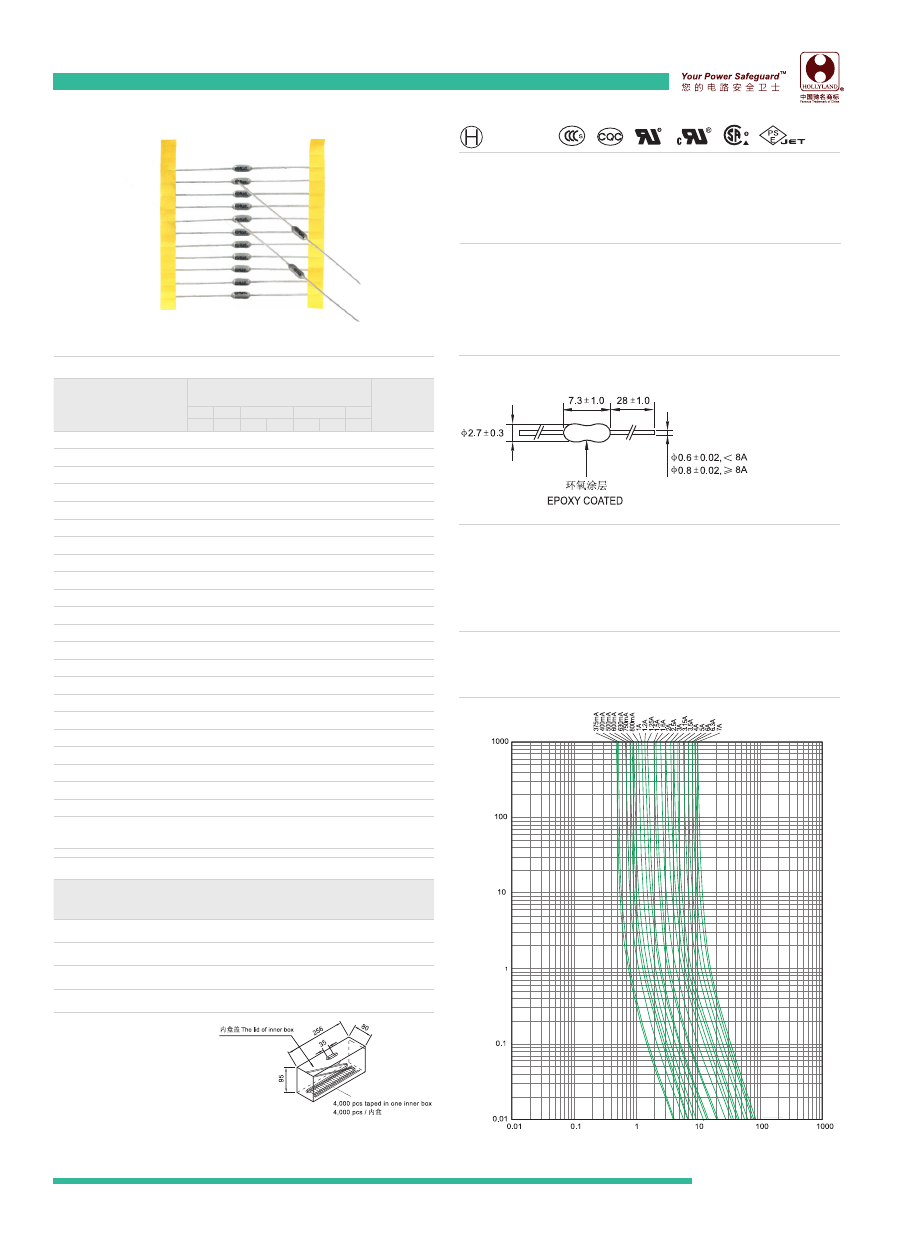

2.4x7mm, RoHS Compliant & Pb-Free

MICROFUSE (SLOW-BLOW)

微型保险丝管

（慢断型）

Standards/ 标准：UL 248-1,   UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC CQC

UR(cUR)

CSA

PSE

H

H

H

L

H

L

L

20T-0375H/L

375mA

●

●

●

●

0.1614

20T-0400H/L

400mA

●

●

●

●

0.1713

20T-0500H/L

500mA

●

●

●

●

●

0.3374

20T-0600H/L

600mA

●

●

●

●

0.4662

20T-0630H/L

630mA

●

●

●

●

●

0.4890

20T-0750H/L

750mA

●

●

●

●

0.7074

20T-0800H/L

800mA

●

●

●

●

●

0.8908

20T-010H/L

1A

●

●

●

●

●

●

1.916

20T-012H/L

1.2A

●

●

●

●

●

2.061

20T-013H/L

1.25A

●

●

●

●

●

●

2.139

20T-015H/L

1.5A

●

●

●

●

●

3.982

20T-016H/L

1.6A

●

●

●

●

●

●

4.191

20T-020H/L

2A

●

●

●

●

●

●

7.803

20T-025H/L

2.5A

●

●

●

●

●

●

11.95

20T-030H/L

3A

●

●

●

●

●

14.11

20T-032H/L

3.15A

●

●

●

●

●

●

18.62

20T-035H/L

3.5A

●

●

●

●

●

20.89

20T-040H/L

4A

●

●

●

●

●

●

31.89

20T-050H/L

5A

●

●

●

●

●

●

39.51

20T-060H/L

6A

●

●

●

●

65.06

20T-063H/L

6.3A

●

●

●

●

●

68.31

20T-070H/L

7A

●

●

●

●

72.91

●  DENOTES FOR APPROVED

      ●  表示已取得安全认证

 H  DENOTES FOR  250V (H 代表 250V)          L  DENOTES FOR  125V (L 代表 125V)

INTERRUPTING CAPACITY / 分断能力：

30 amperes at 125V AC (100mA-7A)
30 amperes at 250V AC (100mA-7A)
100 amperes at 125V AC (1A-5A) PSE

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

20T

AVERAGE I-T CHARACTERISTICS CURVE

       (FOR  REFERENCE ONLY)

20T

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

20T

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L440x W270 x H230(mm)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

1-60 seconds                 1-60 秒

300%

0.2-3 seconds                0.2-3 秒

800%

0.02-0.1 second            0.02-0.1 秒

Unit 单位：mm

  www.hollyfuse.com

20

Φ

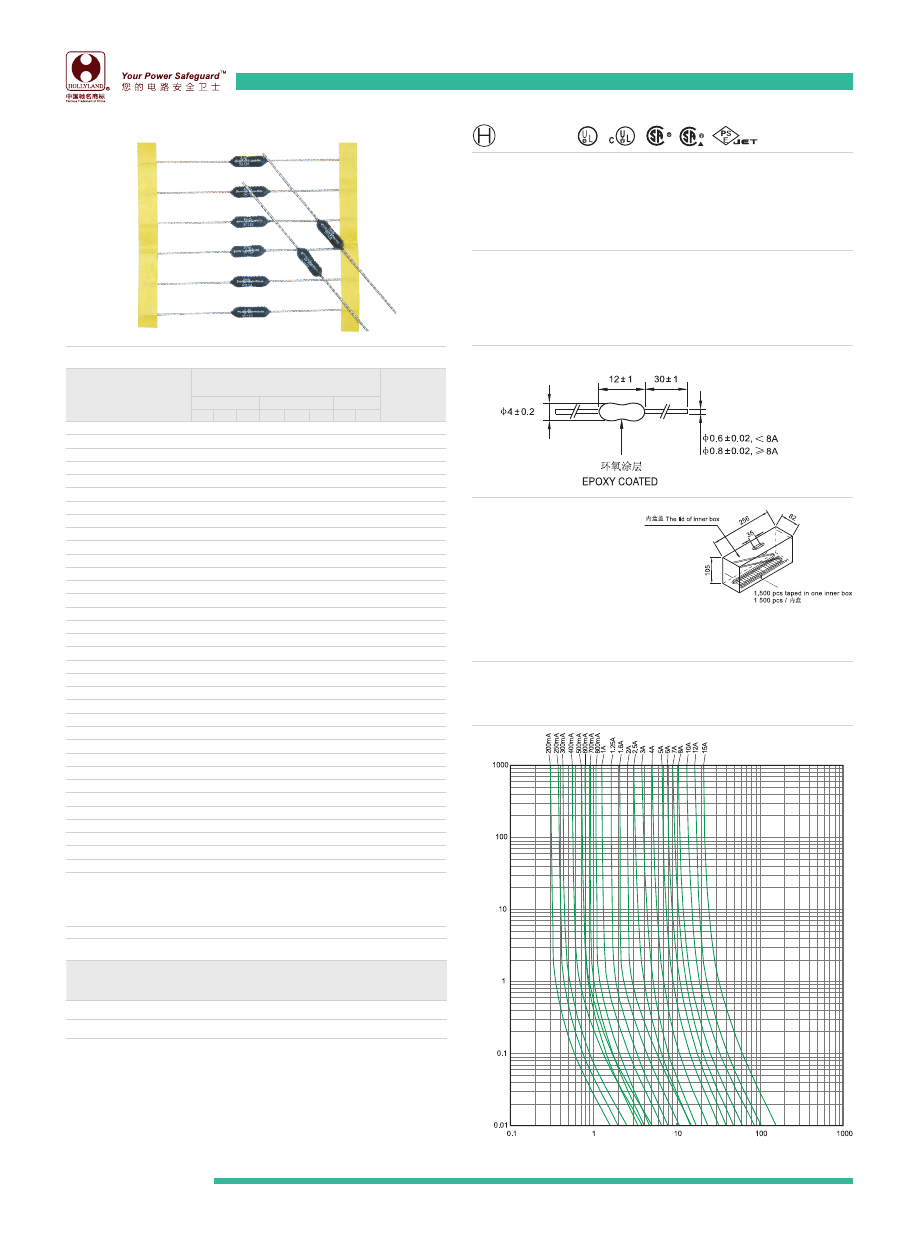

3.6x10mm, RoHS Compliant

FAST-BLOW MICROFUSE

速断型保险丝管

Standards/ 标准：UL 248-1,   UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

UL(cUL)

CSA

PSE

H

1

H

2

L

H

1

H

2

L

H

2

L

30N-0200H1/H2/L

200mA

●

●

●

0.02502

30N-0250H1/H2/L

250mA

●

●

●

0.03852

30N-0300H1/H2/L

300mA

●

●

●

0.06389

30N-0315H1/H2/L

315mA

●

●

●

0.08730

30N-0350H1/H2/L

350mA

●

●

●

0.1118

30N-0375H1/H2/L

375mA

●

●

●

0.1426

30N-0400H1/H2/L

400mA

●

●

●

0.1488

30N-0500H1/H2/L

500mA

●

●

●

0.2581

30N-0600H1/H2/L

600mA

●

●

●

0.1189

30N-0630H1/H2/L

630mA

●

●

●

0.1279

30N-0700H1/H2/L

700mA

●

●

●

0.1680

30N-0750H1/H2/L

750mA

●

●

●

0.1978

30N-0800H1/H2/L

800mA

●

●

●

●

●

●

0.2285

30N-010H1/H2/L

1A

●

●

●

●

●

●

●

●

0.4373

30N-012H1/H2/L

1.2A

●

●

●

●

●

●

●

●

0.6019

30N-013H1/H2/L

1.25A

●

●

●

●

●

●

●

●

0.6261

30N-015H1/H2/L

1.5A

●

●

●

●

●

●

●

●

0.9885

30N-016H1/H2/L

1.6A

●

●

●

●

●

●

●

●

1.159

30N-020H1/H2/L

2A

●

●

●

●

●

●

●

●

2.297

30N-023H1/H2/L

2.25A

●

●

●

●

●

●

●

●

2.919

30N-025H1/H2/L

2.5A

●

●

●

●

●

●

●

●

2.152

30N-030H1/H2/L

3A

●

●

●

●

●

●

●

●

3.005

30N-032H1/H2/L

3.15A

●

●

●

●

●

●

●

●

4.174

30N-035H1/H2/L

3.5A

●

●

●

●

●

●

●

●

5.182

30N-040H1/H2/L

4A

●

●

●

●

●

●

●

●

5.712

30N-050H1/H2/L

5A

●

●

●

●

●

●

●

●

10.55

30N-060H1/H2/L

6A

●

●

●

●

●

●

15.84

30N-063H1/H2/L

6.3A

●

●

●

●

●

●

18.58

30N-070H1/H2/L

7A

●

●

●

●

●

●

23.32

30N-080H1/H2/L

8A

●

●

●

●

●

●

38.20

30N-090H1/H2/L

9A

●

●

●

●

●

●

54.34

30N-100H1/H2/L

10A

●

●

●

●

●

●

75.76

30N-120H1/H2/L

12A

●

●

●

●

●

●

110.4

30N-150H1/H2/L

15A

●

●

●

●

●

●

250.9

●  DENOTES FOR APPROVED

           ●  表示已取得安全认证

 H1  DENOTES FOR  350V (H1 代表 350V)          H2  DENOTES FOR  250V (H2 代表 250V)

 L     DENOTES FOR 125V (L 代表 125V)

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V/250V/350V AC (100mA-15A)
100 amperes at 125V/250V AC (1A-5A)  PSE

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

30N

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

30N

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

30N

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                 最快 4 小时

200%

60 seconds Max.         最慢 60 秒

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L440x W270 x H230(mm)

Unit 单位：mm

www.hollyfuse.com

21

Φ

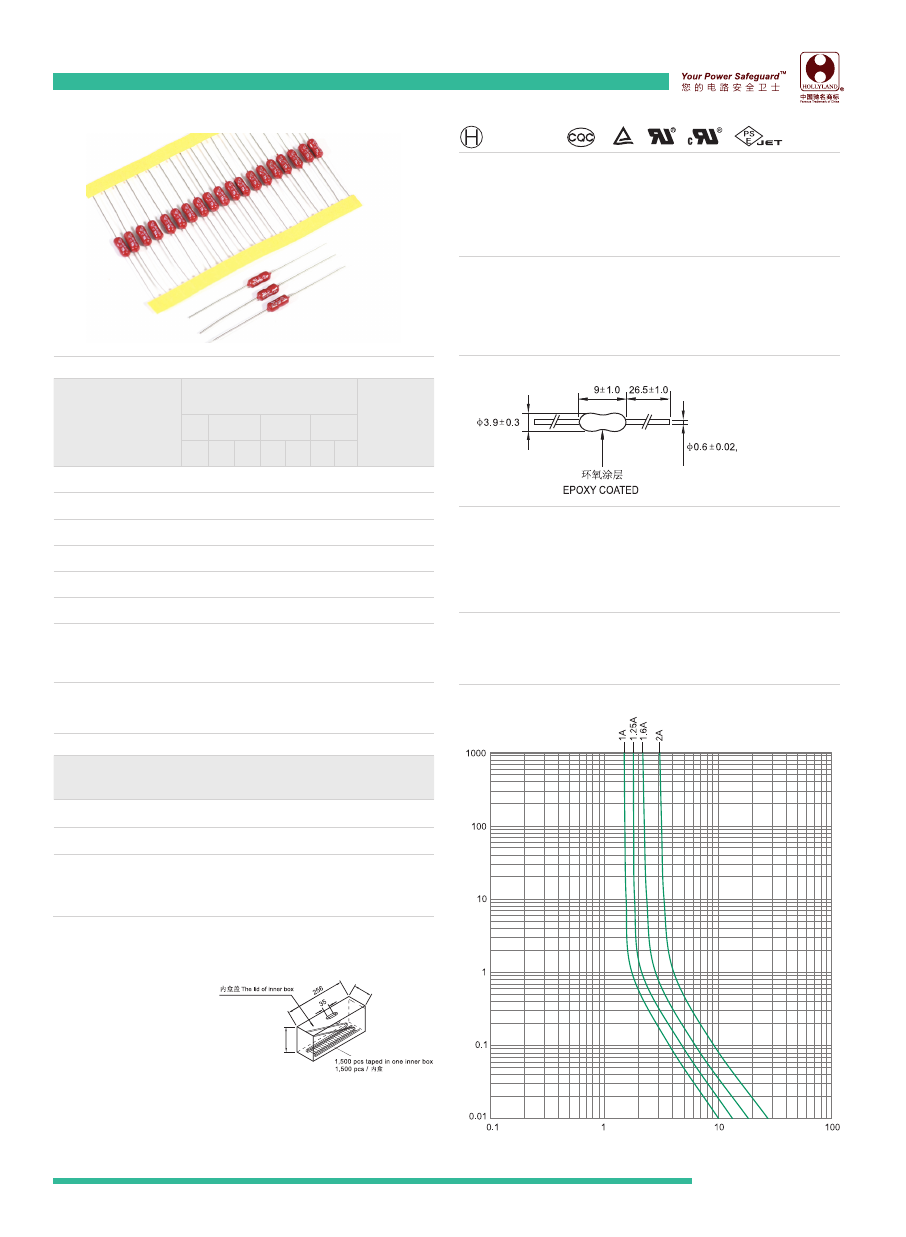

3.6x10mm, RoHS Compliant

SLOW-BLOW MICROFUSE

慢断型保险丝管

Standards/ 标准：UL 248-1,  UL 248-14, IEC 60127-1  IEC 60127-7
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CQC

T

Ü

V

UR(cUR)

PSE

H

H

L

H

L

H

L

25S-010H/L

1A

●

●

●

●

●

●

1.032

25S-012H/L

1.2A

●

●

●

●

●

●

1.715

25S-013H/L

1.25A

●

●

●

●

●

●

●

1.825

25S-015H/L

1.5A

●

●

●

●

●

●

3.185

25S-016H/L

1.6A

●

●

●

●

●

●

●

3.452

25S-020H/L

2A

●

●

●

●

●

●

●

7.623

●  DENOTES FOR APPROVED       ●  表示已取得安全认证

 H  DENOTES FOR  250V                      H 代表 250V

 L  DENOTES FOR  125V                       L 代表 125V

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V/250V AC
35 amperes at 250V AC   CQC

PATENT NO. 专利号：ZL 201120540121.7

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

25S

AVERAGE I-T CHARACTERISTICS CURVE

        (FOR  REFERENCE ONLY)

25S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

25S

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L400x W270 x H220(mm)

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

60 seconds Max.            最慢 60 秒

74

102

  www.hollyfuse.com

22

Φ

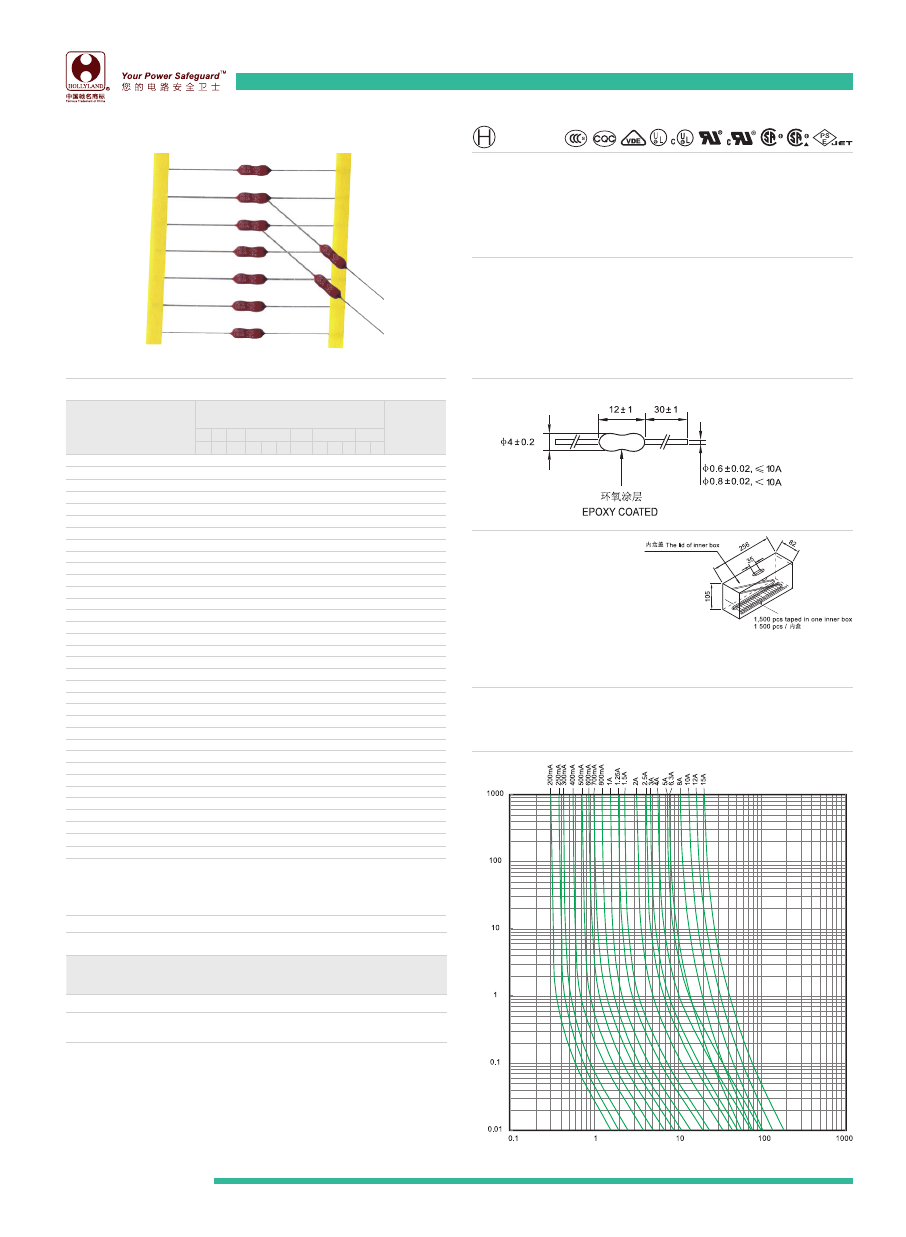

3.6x10mm, RoHS Compliant

SLOW-BLOW MICROFUSE

慢断型保险丝管

Standards/ 标准：UL 248-1,   UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CCC CQC

VDE

UL(cUL)

UR(cUR)

CSA

PSE

H

2

H

2

H

2

/L H

1

H

2

L

H

1

H

1

H

2

L

H

2

L

30TS-0200H1/H2/L

200mA

●

● ●

●

● ● ●

0.02501

30TS-0250H1/H2/L

250mA

●

●

● ●

●

● ● ●

0.03851

30TS-0300H1/H2/L

300mA

● ●

●

● ● ●

0.06389

30TS-0315H1/H2/L

315mA

●

●

● ●

●

● ● ●

0.08730

30TS-0350H1/H2/L

350mA

● ●

●

● ● ●

0.1118

30TS-0375H1/H2/L

375mA

● ●

●

● ● ●

0.1426

30TS-0400H1/H2/L

400mA

● ●

●

● ● ●

0.1488

30TS-0500H1/H2/L

500mA

●

●

● ●

●

● ● ●

0.2581

30TS-0600H1/H2/L

600mA

● ●

●

● ● ●

0.4782

30TS-0630H1/H2/L

630mA

●

● ●

●

● ● ●

0.6634

30TS-0700H1/H2/L

700mA

● ●

●

● ● ●

0.8058

30TS-0750H1/H2/L

750mA

● ●

●

● ● ●

0.9581

30TS-0800H1/H2/L

800mA

●

● ●

●

● ● ●

1.227

30TS-010H1/H2/L

1A

●

●

● ●

●

● ● ● ● ●

2.063

30TS-012H1/H2/L

1.2A

● ●

●

● ● ● ● ●

4.005

30TS-013H1/H2/L

1.25A

●

● ●

●

● ● ● ● ●

4.101

30TS-015H1/H2/L

1.5A

● ●

●

● ● ● ● ●

5.725

30TS-016H1/H2/L

1.6A

●

●

● ●

●

● ● ● ● ●

6.024

30TS-020H1/H2/L

2A

●

●

● ● ●

● ● ● ● ●

12.05

30TS-023H1/H2/L

2.25A

● ● ●

● ● ● ● ●

15.36

30TS-025H1/H2/L

2.5A

●

●

● ● ●

● ● ● ● ●

20.53

30TS-030H1/H2/L

3A

● ● ●

● ● ● ● ●

27.28

30TS-032H1/H2/L

3.15A

●

● ● ●

● ● ● ● ●

30.07

30TS-035H1/H2/L

3.5A

● ● ●

● ● ● ● ●

34.43

30TS-040H1/H2/L

4A

●

● ● ●

● ● ● ● ●

57.55

30TS-050H1/H2/L

5A

●

●

● ● ●

● ● ● ● ●

98.26

30TS-060H1/H2/L

6A

● ● ●

● ● ●

29.38

30TS-063H1/H2/L

6.3A

●

● ● ●

● ● ●

33.44

30TS-070H1/H2/L

7A

● ● ●

● ● ●

44.28

30TS-080H1/H2/L

8A

● ● ●

● ● ●

62.39

30TS-090H1/H2/L

9A

● ● ●

● ● ●

78.70

30TS-100H1/H2/L

10A

● ● ●

● ● ●

109.5

30TS-120H1/H2/L

12A

187.1

30TS-150H1/H2/L

15A

345.2

●  DENOTES FOR APPROVED

                ●  表示已取得安全认证

 H1  DENOTES FOR  350V (H1 代表 350V)              H2  DENOTES FOR  250V (H2 代表 250V)

 L     DENOTES FOR 125V  (L 代表 125V)

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V/250V/ AC (100mA-10A)
30 amperes at 350V AC (200mA-1.6A)
50 amperes at 350V AC (2A-10A)
100 amperes at 125V/250V AC (1A-5A)  PSE

PATENT NO. 专利号：ZL 02220684.1

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

30TS

AVERAGE I-T CHARACTERISTICS CURVE

          (FOR  REFERENCE ONLY)

30TS

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

30TS

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                 最快 4 小时

200%

60 seconds Max.   最慢 60 秒 (200mA-800mA)

1-60 seconds Max.  1-60 秒（1A-10A）

PACKING/ 包装：

1. INNER BOX/ 内盒 : AMMO PACK

2. OUTER CARTON/ 外箱 : 10 INNER BOXES / CARTON
CARTON SIZE / 尺寸：L440x W270 x H230(mm)

Unit 单位：mm

www.hollyfuse.com

23

Φ

3.6x10mm, RoHS Compliant & Pb-Free

GLASS TUBE MICROFUSE (FAST-BLOW)

玻璃保险丝管

（速断型）

Standards/ 标准：UL 248-1,  UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

UL

cUL

CSA

H

L

H

L

L

31NM,32NM 0100H/L

100mA

●

●

●

●

●

0.001375

31NM,32NM 0125H/L

125mA

●

●

●

●

●

0.001763

31NM,32NM 0150H/L

150mA

●

●

●

●

●

0.004396

31NM,32NM 0160H/L

160mA

●

●

●

●

●

0.004689

31NM,32NM 0200H/L

200mA

●

●

●

●

●

0.005861

31NM,32NM 0250H/L

250mA

●

●

●

●

●

0.01093

31NM,32NM 0300H/L

300mA

●

●

●

●

●

0.07196

31NM,32NM 0315H/L

315mA

●

●

●

●

●

0.08236

31NM,32NM 0350H/L

350mA

●

●

●

●

●

0.09546

31NM,32NM 0375H/L

375mA

●

●

●

●

●

0.1172

31NM,32NM 0400H/L

400mA

●

●

●

●

●

0.1389

31NM,32NM 0500H/L

500mA

●

●

●

●

●

0.09975

31NM,32NM 0600H/L

600mA

●

●

●

●

●

0.1354

31NM,32NM 0630H/L

630mA

●

●

●

●

●

0.1422

31NM,32NM 0750H/L

750mA

●

●

●

●

●

0.1956

31NM,32NM 0800H/L

800mA

●

●

●

●

●

0.2463

31NM,32NM 010H/L

1A

●

●

●

●

●

0.3606

31NM,32NM 012H/L

1.2A

●

●

●

●

●

0.5181

31NM,32NM 013H/L

1.25A

●

●

●

●

●

0.5728

31NM,32NM 015H/L

1.5A

●

●

●

●

●

0.8601

31NM,32NM 016H/L

1.6A

●

●

●

●

●

1.115

31NM,32NM 020H/L

2A

●

●

●

●

2.189

31NM,32NM 023H/L

2.25A

●

●

●

●

2.463

31NM,32NM 025H/L

2.5A

●

●

●

●

1.911

31NM,32NM 030H/L

3A

●

●

●

●

3.420

31NM,32NM 032H/L

3.15A

●

●

●

●

3.833

31NM,32NM 035H/L

3.5A

●

●

●

●

5.155

31NM,32NM 040H/L

4A

●

●

●

●

5.891

31NM,32NM 050H/L

5A

●

●

●

●

9.401

31NM,32NM 060H/L

6A

●

●

●

●

16.34

31NM,32NM 063H/L

6.3A

●

●

●

●

20.59

31NM,32NM 070H/L

7A

●

●

●

●

26.03

31NM,32NM 080H/L

8A

●

●

●

●

30.86

31NM,32NM 090H/L

9A

●

●

●

●

46.89

31NM,32NM 100H/L

10A

●

●

●

●

59.32

31NM,32NM 120H/L

12A

●

●

●

●

92.27

31NM,32NM 150H/L

15A

●

●

●

●

243.7

●  DENOTES FOR APPROVED             ●  表示已取得安全认证

 H  DENOTES FOR  250V (H 代表 250V) ,   L  DENOTES FOR  125V (L 代表 125V)

cUL APPROVAL IS EQUIVALENT TO CSA APPROVAL

cUL 认证同等 CSA 认证使用

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V AC (100mA-15A)
50 amperes at 250V AC (100mA-15A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

31NM/32NM

AVERAGE I-T CHARACTERISTICS CURVE

                       (FOR  REFERENCE ONLY)

31NM/32NM

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

31NM, 32NM

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

60 seconds Max.            最慢 60 秒

  www.hollyfuse.com

24

Φ

3.6x10mm, RoHS Compliant & Pb-Free

GLASS TUBE MICROFUSE (SLOW-BLOW)

玻璃保险丝管

（慢断型）

Standards/ 标准：UL 248-1,  UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

UL/cUL

CSA

H

L

H

L

31S,32S 0100H/L

100mA

●

●

0.02127

31S,32S 0125H/L

125mA

●

●

●

●

0.02058

31S,32S 0150H/L

150mA

●

●

●

●

0.04566

31S,32S 0160H/L

160mA

●

●

●

●

0.04362

31S,32S 0200H/L

200mA

●

●

●

●

0.07841

31S,32S 0250H/L

250mA

●

●

●

●

0.1531

31S,32S 0300H/L

300mA

●

●

●

●

0.2431

31S,32S 0315H/L

315mA

●

●

●

●

0.2107

31S,32S 0350H/L

350mA

●

●

●

●

0.5416

31S,32S 0375H/L

375mA

●

●

●

●

0.5196

31S,32S 0400H/L

400mA

●

●

●

●

0.4975

31S,32S 0500H/L

500mA

●

●

●

●

0.7752

31S,32S 0600H/L

600mA

●

●

●

●

0.9302

31S,32S 0630H/L

630mA

●

●

●

●

1.623

31S,32S 0750H/L

750mA

●

●

●

●

1.508

31S,32S 0800H/L

800mA

●

●

●

●

0.4494

31S,32S 010H/L

1A

●

●

●

●

1.104

31S,32S 012H/L

1.2A

●

●

●

●

1.548

31S,32S 013H/L

1.25A

●

●

●

●

1.612

31S,32S 015H/L

1.5A

●

●

●

●

2.534

31S,32S 016H/L

1.6A

●

●

●

●

2.940

31S,32S 020H/L

2A

●

●

●

●

5.579

31S,32S 023H/L

2.25A

●

●

●

●

6.276

31S,32S 025H/L

2.5A

●

●

●

●

3.375

31S,32S 030H/L

3A

●

●

●

●

5.342

31S,32S 032H/L

3.15A

●

●

●

●

5.854

31S,32S 035H/L

3.5A

●

●

●

●

7.045

31S,32S 040H/L

4A

●

●

●

●

11.05

31S,32S 050H/L

5A

●

●

●

●

18.64

31S,32S 060H/L

6A

●

●

●

●

29.38

31S,32S 063H/L

6.3A

●

●

●

●

32.13

31S,32S 070H/L

7A

●

●

●

●

44.28

31S,32S 080H/L

8A

●

●

●

●

56.69

31S,32S 090H/L

9A

●

●

●

●

82.90

31S,32S 100H/L

10A

●

●

●

●

109.1

31S,32S 120H/L

12A

150.7

31S,32S 150H/L

15A

337.4

●  DENOTES FOR APPROVED    ●  表示已取得安全认证

 H  DENOTES FOR  250V                   H  代表 250V

 L  DENOTES FOR  125V                    L   代表 125V

cUL APPROVAL IS EQUIVALENT TO CSA APPROVAL  cUL

认证同等 CSA 认证使用

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V AC (100mA-15A)
50 amperes at 250V AC (100mA-15A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

31S/32S

AVERAGE I-T CHARACTERISTICS CURVE

                (FOR  REFERENCE ONLY)

31S/32S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

Unit 单位：mm

31S, 32S

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

1-60 seconds                 1-60 秒

www.hollyfuse.com

25

Φ

3.6x10mm IEC STANDARD FUSE

RoHS Compliant & Pb-Free

GLASS TUBE MICROFUSE (TIME-LAG)

玻璃保险丝管

（慢断型）

Standards/ 标准：IEC 60127  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

INTERRUPTING CAPACITY / 分断能力：

CQC / VDE / UR /cUR:
35A OR 10In 250V AC WHICHEVER IS GREATER

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

30T

AVERAGE I-T CHARACTERISTICS CURVE

       (FOR  REFERENCE ONLY)

30T

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

30T

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

2 minutes

2.75In

Min. 最快

400 ms

Max. 最慢

10 seconds

4In

Min. 最快

150 ms

Max. 最慢

3 seconds

10In

Min. 最快

20 ms

Max. 最慢

150 ms

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CQC

VDE

cURus

30T 0200H

200mA

260

●

●

0.1981

30T 0250H

250mA

240

●

●

●

0.3120

30T 0315H

315mA

220

●

●

●

0.5219

30T 0400H

400mA

200

●

●

●

0.8606

30T 0500H

500mA

190

●

●

●

1.323

30T 0630H

630mA

180

●

●

●

2.473

30T 0800H

800mA

160

●

●

●

4.165

30T 010H

1A

140

●

●

●

2.811

30T 013H

1.25A

130

●

●

●

5.300

30T 016H

1.6A

120

●

●

●

6.315

30T 020H

2A

100

●

●

●

9.668

30T 025H

2.5A

100

●

●

●

16.72

30T 032H

3.15A

100

●

●

●

28.92

30T 040H

4A

100

●

●

●

60.86

30T 050H

5A

100

●

●

●

84.99

30T 063H

6.3A

100

●

●

213.8

●  DENOTES FOR APPROVED    ●  表示已取得安全认证

 H  DENOTES FOR  250V                   H  代表 250V

  www.hollyfuse.com

26

Φ

3.6x10mm IEC STANDARD FUSE

RoHS Compliant & Pb-Free

CERAMIC TUBE MICROFUSE (TIME-LAG)

瓷保险丝管

（慢断型）

Standards/ 标准：IEC 60127  GB 9364
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

Max.

VOLTAGE

DROP（mv）

最大电压降

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

CQC

VDE

cURus

36T 0200H

200mA

260

○

○

○

0.1981

36T 0250H

250mA

240

○

○

○

0.3120

36T 0315H

315mA

220

○

●

○

0.5219

36T 0400H

400mA

200

○

●

○

0.8606

36T 0500H

500mA

190

○

○

○

1.323

36T 0630H

630mA

180

○

○

○

2.473

36T 0800H

800mA

160

○

○

○

4.165

36T 010H

1A

140

○

●

○

2.811

36T 013H

1.25A

130

○

●

○

5.300

36T 016H

1.6A

120

○

○

○

6.315

36T 020H

2A

100

○

○

○

9.668

36T 025H

2.5A

100

○

○

○

16.72

36T 032H

3.15A

100

○

○

○

28.92

36T 040H

4A

100

○

○

○

60.86

36T 050H

5A

100

○

○

○

84.99

36T 063H

6.3A

100

○

○

○

213.8

●  DENOTES FOR APPROVED    ●  表示已取得安全认证

○

  DENOTES FOR PENDING



○

  表示申请中

 H  DENOTES FOR  250V                   H  代表 250V

INTERRUPTING CAPACITY / 分断能力：

CQC / VDE / UR /cUR:
35A OR 10In 250V AC WHICHEVER IS GREATER

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

36T

AVERAGE I-T CHARACTERISTICS CURVE

       (FOR  REFERENCE ONLY)

36T

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

36T

ELECTRICAL CHARACTERISTICS/ 电气特性 :

RATING 额定

BLOWING TIME 熔断时间

2.1In

Max. 最慢

2 minutes

2.75In

Min. 最快

400 ms

Max. 最慢

10 seconds

4In

Min. 最快

150 ms

Max. 最慢

3 seconds

10In

Min. 最快

20 ms

Max. 最慢

150 ms

www.hollyfuse.com

27

Φ

3.6x10mm, RoHS Compliant & Pb-Free

CERAMIC TUBE MICROFUSE (FAST-BLOW)

瓷保险丝管

（速断型）

Standards/ 标准：UL 248-1,  UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

UL

cUL

CSA

H

L

H

L

H

L

35NM,36NM-0100H/L

100mA

●

●

●

●

●

●

0.001375

35NM,36NM-0125H/L

125mA

●

●

●

●

●

●

0.001763

35NM,36NM-0150H/L

150mA

●

●

●

●

●

●

0.004396

35NM,36NM-0160H/L

160mA

●

●

●

●

●

●

0.004689

35NM,36NM-0200H/L

200mA

●

●

●

●

●

●

0.005861

35NM,36NM-0250H/L

250mA

●

●

●

●

●

●

0.01093

35NM,36NM-0300H/L

300mA

●

●

●

●

●

●

0.07196

35NM,36NM-0315H/L

315mA

●

●

●

●

●

0.08236

35NM,36NM-0350H/L

350mA

●

●

●

●

●

0.09546

35NM,36NM-0375H/L

375mA

●

●

●

●

●

0.1172

35NM,36NM-0400H/L

400mA

●

●

●

●

●

0.1389

35NM,36NM-0500H/L

500mA

●

●

●

●

●

0.09975

35NM,36NM-0600H/L

600mA

●

●

●

●

●

0.1354

35NM,36NM-0630H/L

630mA

●

●

●

●

●

0.1422

35NM,36NM-0750H/L

750mA

●

●

●

●

●

0.1956

35NM,36NM-0800H/L

800mA

●

●

●

●

●

0.2463

35NM,36NM-010H/L

1A

●

●

●

●

●

0.3606

35NM,36NM-012H/L

1.2A

●

●

●

●

●

0.5181

35NM,36NM-013H/L

1.25A

●

●

●

●

●

0.5728

35NM,36NM-015H/L

1.5A

●

●

●

●

●

0.8601

35NM,36NM-016H/L

1.6A

●

●

●

●

●

1.115

35NM,36NM-020H/L

2A

●

●

●

●

2.189

35NM,36NM-023H/L

2.25A

●

●

●

●

2.463

35NM,36NM-025H/L

2.5A

●

●

●

●

1.911

35NM,36NM-030H/L

3A

●

●

●

●

3.420

35NM,36NM-032H/L

3.15A

●

●

●

●

3.833

35NM,36NM-035H/L

3.5A

●

●

●

●

5.155

35NM,36NM-040H/L

4A

●

●

●

●

5.891

35NM,36NM-050H/L

5A

●

●

●

●

9.401

35NM,36NM-060H/L

6A

●

●

●

●

16.34

35NM,36NM-063H/L

6.3A

●

●

●

●

20.59

35NM,36NM-070H/L

7A

●

●

●

●

26.03

35NM,36NM-080H/L

8A

●

●

●

●

30.86

35NM,36NM-090H/L

9A

●

●

●

●

46.89

35NM,36NM-100H/L

10A

●

●

●

●

59.32

35NM,36NM-120H/L

12A

●

●

●

●

92.27

35NM,36NM-150H/L

15A

●

●

●

●

243.7

●  DENOTES FOR APPROVED              ●  表示已取得安全认证

 H  DENOTES FOR  250V (H 代表 250V),  L DENOTES FOR  125V (L 代表 125V)

cUL APPROVAL IS EQUIVALENT TO CSA APPROVAL

cUL 认证同等 CSA 认证使用

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V AC (100mA-15A)
50 amperes at 250V AC (100mA-15A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

35NM/36NM

AVERAGE I-T CHARACTERISTICS CURVE

                       (FOR  REFERENCE ONLY)

35NM/36NM

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

35NM, 36NM

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

60 seconds Max.            最慢 60 秒

  www.hollyfuse.com

28

Φ

3.6x10mm, RoHS Compliant & Pb-Free

CERAMIC TUBE MICROFUSE (SLOW-BLOW)

瓷保险丝管

（慢断型）

Standards/ 标准：UL 248-1,  UL 248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max.
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING

额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T 参考值

UL(cUL)

CSA

H

L

H

L

35S

36S

35S

36S

35S,36S-0100H/L

100mA

●

●

●

●

●

●

0.02127

35S,36S-0125H/L

125mA

●

●

●

●

●

●

0.02058

35S,36S-0150H/L

150mA

●

●

●

●

●

●

0.04566

35S,36S-0160H/L

160mA

●

●

●

●

●

●

0.04362

35S,36S-0200H/L

200mA

●

●

●

●

●

●

0.07841

35S,36S-0250H/L

250mA

●

●

●

●

●

●

0.1531

35S,36S-0300H/L

300mA

●

●

●

●

●

●

0.2431

35S,36S-0315H/L

315mA

●

●

●

●

●

●

0.2107

35S,36S-0350H/L

350mA

●

●

●

●

●

●

0.5416

35S,36S-0375H/L

375mA

●

●

●

●

●

●

0.5196

35S,36S-0400H/L

400mA

●

●

●

●

●

●

0.4975

35S,36S-0500H/L

500mA

●

●

●

●

●

●

0.7752

35S,36S-0600H/L

600mA

●

●

●

●

●

●

0.9302

35S,36S-0630H/L

630mA

●

●

●

●

●

●

1.623

35S,36S-0750H/L

750mA

●

●

●

●

●

●

1.508

35S,36S-0800H/L

800mA

●

●

●

●

●

●

0.4494

35S,36S-010H/L

1A

●

●

0.8224

35S,36S-012H/L

1.2A

●

●

1.548

35S,36S-013H/L

1.25A

●

●

1.612

35S,36S-015H/L

1.5A

●

●

2.534

35S,36S-016H/L

1.6A

●

●

2.940

35S,36S-020H/L

2A

●

●

5.579

35S,36S-023H/L

2.25A

●

●

6.276

35S,36S-025H/L

2.5A

●

●

●

3.375

35S,36S-030H/L

3A

●

●

●

5.342

35S,36S-032H/L

3.15A

●

●

●

5.854

35S,36S-035H/L

3.5A

●

●

●

7.045

35S,36S-040H/L

4A

●

●

●

11.05

35S,36S-050H/L

5A

●

●

●

18.64

35S,36S-060H/L

6A

●

●

●

29.38

35S,36S-063H/L

6.3A

●

●

●

32.13

35S,36S-070H/L

7A

●

●

●

44.28

35S,36S-080H/L

8A

●

●

●

56.69

35S,36S-090H/L

9A

●

●

●

82.90

35S,36S-100H/L

10A

●

●

●

109.1

35S,36S-120H/L

12A

150.7

35S,36S-150H/L

15A

337.4

●  DENOTES FOR APPROVED    ●  表示已取得安全认证

 H  DENOTES FOR  250V                  H   代表 250V

 L  DENOTES FOR  125V                   L   代表 125V

INTERRUPTING CAPACITY / 分断能力：

50 amperes at 125V AC (100mA-15A)
50 amperes at 250V AC (100mA-15A)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

35S/36S

AVERAGE I-T CHARACTERISTICS CURVE

               (FOR  REFERENCE ONLY)

35S/36S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

35S, 36S

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                     最快 4 小时

200%

1-60 seconds                  1-60 秒

Unit 单位：mm

www.hollyfuse.com

29

Φ

4.5x15mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (FAST-BLOW)

玻璃保险丝管

（速断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

UR/cUR

PSE

KC

H

1

H

2

L

H

2

L

H

2

41NM,42NM-0300H1/H2/L

300mA

●

●

●

●

0.0293

41NM,42NM-0315H1/H2/L

315mA

●

●

●

●

0.0335

41NM,42NM-0350H1/H2/L

350mA

●

●

●

●

0.040

41NM,42NM-0375H1/H2/L

375mA

●

●

●

●

0.044

41NM,42NM-0400H1/H2/L

400mA

●

●

●

●

0.060

41NM,42NM-0500H1/H2/L

500mA

●

●

●

●

0.109

41NM,42NM-0600H1/H2/L

600mA

●

●

●

●

0.167

41NM,42NM-0630H1/H2/L

630mA

●

●

●

●

0.174

41NM,42NM-0750H1/H2/L

750mA

●

●

●

●

0.275

41NM,42NM-0800H1/H2/L

800mA

●

●

●

●

0.284

41NM,42NM-010H1/H2/L

1A

●

●

●

●

●

●

0.525

41NM,42NM-012H1/H2/L

1.2A

●

●

●

●

●

●

0.604

41NM,42NM-013H1/H2/L

1.25A

●

●

●

●

●

●

0.626

41NM,42NM-015H1/H2/L

1.5A

●

●

●

●

●

●

1.426

41NM,42NM-016H1/H2/L

1.6A

●

●

●

●

●

●

1.500

41NM,42NM-020H1/H2/L

2A

●

●

●

●

●

●

3.436

41NM,42NM-023H1/H2/L

2.25A

●

●

●

●

●

●

3.727

41NM,42NM-025H1/H2/L

2.5A

●

●

●

●

●

●

5.695

41NM,42NM-030H1/H2/L

3A

●

●

●

●

●

●

6.546

41NM,42NM-032H1/H2/L

3.15A

●

●

●

●

●

●

7.202

41NM,42NM-035H1/H2/L

3.5A

●

●

●

●

●

●

9.454

41NM,42NM-040H1/H2/L

4A

●

●

●

●

●

●

13.37

41NM,42NM-050H1/H2/L

5A

●

●

●

●

●

●

21.78

41NM,42NM-060H1/H2/L

6A

●

●

●

33.06

41NM,42NM-063H1/H2/L

6.3A

●

●

●

36.45

41NM,42NM-070H1/H2/L

7A

●

●

●

45.44

41NM,42NM-080H1/H2/L

8A

●

●

65.46

41NM,42NM-090H1/H2/L

9A

●

●

84.27

41NM,42NM-100H1/H2/L

10A

●

●

106.7

41NM,42NM-120H1/H2/L

12A

●

●

41NM,42NM-150H1/H2/L

15A

●

●

●

H

1

  DENOTES FOR  300V                   H

1

表示 300V

H

2

  DENOTES FOR  250V                   H

2

表示 250V

L    DENOTES FOR  125V                   L   表示 125V

●  DENOTES FOR APPROVED   ●  表示已取得安全认证

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 housr Min.                            最快 4 小时

135%

1 hour Max.                            最慢 1 小时

200%

5 seconds Max.(125/250V)     最慢 5 秒

120 seconds Max.(300V)       最慢 120 秒

INTERRUPTING  CAPACITY/ 分断能力：

50 amperes at 300V AC (300mA-5A)
100 amperes at 300V AC (15A)
50 amperes at 250V AC (300mA-2.25A)
100 amperes at 250V AC (2.5A-5A)
500 amperes at 125V AC (300mA-5A)
100 amperes at 125V AC (1A-15A) PSE (41NM)
500 amperes at 125V AC (1A-15A) PSE (42NM)
100 amperes at 250V AC (1A-15A) PSE (41NM/42NM)
100 amperes at 250V AC (300mA-7A) KC

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

41NM/42NM

AVERAGE I-T CHARACTERISTICS CURVE

                       (FOR  REFERENCE ONLY)

41NM/42NM

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

41NM, 42NM

  www.hollyfuse.com

30

Φ

4.5x15mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (SLOW-BLOW)

玻璃保险丝管

（慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

UL(cUL)

UR(cUR)

PSE

KC

H

L

H

L

H

L

H

41S,42S-0200H/L

200mA

● ●

●

0.0462

41S,42S-0250H/L

250mA

● ●

●

0.0735

41S,42S-0300H/L

300mA

● ●

●

0.108

41S,42S-0315H/L

315mA

● ●

●

0.120

41S,42S-0350H/L

350mA

● ●

●

0.152

41S,42S-0375H/L

375mA

● ●

●

0.178

41S,42S-0400H/L

400mA

● ●

●

0.212

41S,42S-0500H/L

500mA

● ●

●

0.363

41S,42S-0600H/L

600mA

● ●

●

0.382

41S,42S-0630H/L

630mA

● ●

●

0.420

41S,42S-0750H/L

750mA

● ●

●

0.968

41S,42S-0800H/L

800mA

● ●

●

1.152

41S,42S-010H/L

1A

● ●

● ● ●

2.245

41S,42S-012H/L

1.2A

● ●

● ● ●

3.824

41S,42S-013H/L

1.25A

● ●

● ● ●

4.418

41S,42S-015H/L

1.5A

● ●

● ● ●

6.635

41S,42S-016H/L

1.6A

● ●

● ● ●

7.189

41S,42S-020H/L

2A

●

●

● ● ●

13.45

41S,42S-025H/L

2.5A

●

●

● ● ●

6.14

41S,42S-030H/L

3A

●

●

● ● ●

9.25

41S,42S-032H/L

3.15A

●

●

● ● ●

9.83

41S,42S-035H/L

3.5A

●

●

● ● ●

12.53

41S,42S-040H/L

4A

● ● ● ●

19.62

41S,42S-050H/L

5A

● ● ● ●

37.27

41S,42S-060H/L

6A

● ● ● ●

61.39

41S,42S-063H/L

6.3A

● ● ● ●

72.20

41S,42S-070H/L

7A

● ● ● ●

108.4

41S,42S-080H/L

8A

● ● ●

147.9

41S,42S-090H/L

9A

● ● ●

41S,42S-100H/L

10A

● ● ●

H



  DENOTES FOR  250V                      H



表示 250V

L    DENOTES FOR  125V                     L 表示 125V

●  DENOTES FOR APPROVED      ●表示已取得安全认证

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                        最快 4 小时

135%

1 hour Max.                        最慢 1 小时

200%

120 seconds Max.                最慢 120 秒

INTERRUPTING  CAPACITY/ 分断能力：

10,000 amperes at 125V AC (200mA-3.5A)
35 amperes at 250V AC (200mA-1A)
100 amperes at 250V AC (1.2A-3.5A)
100 amperes at 125V/250V AC (4A-10A)
100 amperes at 125V AC (1A-15A) PSE (41S)
500 amperes at 125V AC (1A-15A) PSE (42S)
100 amperes at 250V AC (1A-15A) PSE (41S/42S)
100 amperes at 125V AC (200mA-7A) KC

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

41S/42S

AVERAGE I-T CHARACTERISTICS CURVE

                 (FOR  REFERENCE ONLY)

41S/42S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

41S,42S

Unit 单位：mm

www.hollyfuse.com

31

Φ

4.5x15mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (MEDIUM SLOW-BLOW)

玻璃保险丝管

（中等慢断型）

Standards/ 标准：JIS  C6575
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃， 10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG
NO.
目录编号

CURRENT

RATING
额定电流

SAFETY

APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

PSE

H

L

41ST,42ST-0100H/L

100mA

41ST,42ST-0125H/L

125mA

41ST,42ST-0150H/L

150mA

41ST,42ST-0160H/L

160  mA

41ST,42ST-0200H/L

200mA

41ST,42ST-0250H/L

250mA

41ST,42ST-0300H/L

300mA

41ST,42ST-0315H/L

315mA

41ST,42ST-0350H/L

350mA

41ST,42ST-0375H/L

375mA

41ST,42ST-0400H/L

400mA

41ST,42ST-0500H/L

500mA

0.345

41ST,42ST-0600H/L

600mA

0.568

41ST,42ST-0630H/L

630mA

0.627

41ST,42ST-0700H/L

700mA

0.872

41ST,42ST-0750H/L

750mA

0.923

41ST,42ST-0800H/L

800mA

1.23

41ST,42ST-010H/L

1A

●

●

2.239

41ST,42ST-012H/L

1.2A

●

●

3.895

41ST,42ST-013H/L

1.25A

●

●

4.227

41ST,42ST-015H/L

1.5A

●

●

6.918

41ST,42ST-016H/L

1.6A

●

●

7.709

41ST,42ST-020H/L

2A

●

●

6.23

41ST,42ST-025H/L

2.5A

●

●

10.14

41ST,42ST-030H/L

3A

●

●

15.82

41ST,42ST-032H/L

3.15A

●

●

17.44

41ST,42ST-035H/L

3.5A

●

●

23.12

41ST,42ST-040H/L

4A

●

●

30.44

41ST,42ST-050H/L

5A

●

●

59.58

41ST,42ST-060H/L

6A

●

●

90.45

41ST,42ST-063H/L

6.3A

●

●

103.1

41ST,42ST-070H/L

7A

●

●

133.8

41ST,42ST-080H/L

8A

●

●

194.1

41ST,42ST-090H/L

9A

●

●

41ST,42ST-100H/L

10A

●

●

41ST,42ST-120H/L

12A

●

●

41ST,42ST-150H/L

15A

●

●

H  DENOTES FOR  250V                         H



表示 250V

L    DENOTES FOR  125V                        L   表示 125V

●  DENOTES FOR APPROVED         ●  表示已取得安全认证

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

130%

1 hour Min.                         最快 1 小时

160%

1 hour Max.                       最慢 1 小时

200%

120 seconds Max.                最慢 120 秒

INTERRUPTING  CAPACITY/ 分断能力：



100 amperes at 125V AC (1A-15A) PSE (41ST)
500 amperes at 125V AC (1A-15A) PSE (42ST)
100 amperes at 250V AC (1A-15A) PSE (41ST/42ST)

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

41ST/42ST

AVERAGE I-T CHARACTERISTICS CURVE

                      (FOR  REFERENCE ONLY)

41ST/42S

平均 I-T 曲线图

( 仅供参考 )

41ST,42ST

Dimensions/ 尺寸 :

Unit 单位：mm

  www.hollyfuse.com

32

Φ

5.2x20mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (FAST-BLOW)

玻璃保险丝管

（速断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃， 10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG
NO.
目录编号

CURRENT

RATING
额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

UL(cUL) UR(cUR)

CSA

PSE

KC

H

L

H

L

H

L

H

L

H

51NM,52NM-0100H/L

100mA

● ●

● ●

●

51NM,52NM-0125H/L

125mA

● ●

● ●

●

51NM,52NM-0150H/L

150mA

● ●

● ●

●

51NM,52NM-0160H/L

160mA

● ●

● ●

●

51NM,52NM-0200H/L

200mA

● ●

● ●

●

0.02697

51NM,52NM-0250H/L

250mA

● ●

● ●

●

0.03371

51NM,52NM-0300H/L

300mA

● ●

● ●

●

0.04045

51NM,52NM-0315H/L

315mA

● ●

● ●

●

0.04247

51NM,52NM-0350H/L

350mA

● ●

● ●

●

0.04719

51NM,52NM-0400H/L

400mA

● ●

● ●

●

0.06145

51NM,52NM-0500H/L

500mA

● ●

● ●

●

0.07681

51NM,52NM-0600H/L

600mA

● ●

● ●

●

0.1224

51NM,52NM-0630H/L

630mA

● ●

● ●

●

0.1790

51NM,52NM-0750H/L

750mA

● ●

● ●

●

0.3040

51NM,52NM-0800H/L

800mA

● ●

● ●

●

0.3550

51NM,52NM-010H/L

1A

● ●

● ● ● ● ●

0.6167

51NM,52NM-012H/L

1.2A

● ●

● ● ● ● ●

1.400

51NM,52NM-013H/L

1.25A

● ●

● ● ● ● ●

1.540

51NM,52NM-015H/L

1.5A

● ●

● ● ● ● ●

2.076

51NM,52NM-016H/L

1.6A

● ●

● ● ● ● ●

3.450

51NM,52NM-020H/L

2A

● ●

● ● ● ● ●

5.149

51NM,52NM-025H/L

2.5A

● ●

● ● ● ● ●

5.761

51NM,52NM-030H/L

3A

● ●

● ● ● ● ●

9.722

51NM,52NM-032H/L

3.15A

● ●

● ● ● ● ●

9.835

51NM,52NM-035H/L

3.5A

● ●

● ● ● ● ●

13.52

51NM,52NM-040H/L

4A

● ●

● ● ● ● ●

15.80

51NM,52NM-050H/L

5A

● ●

● ● ● ● ●

29.11

51NM,52NM-060H/L

6A

● ●

● ● ● ● ●

47.42

51NM,52NM-063H/L

6.3A

● ●

● ● ● ● ●

59.24

51NM,52NM-070H/L

7A

● ●

● ● ● ● ●

73.10

51NM,52NM-080H/L

8A

● ●

● ● ● ●

100.0

51NM,52NM-090H/L

9A

● ●

153.9

51NM,52NM-100H/L

10A

● ●

171.0

51NM,52NM-120H/L

12A

● ●

306.2

51NM,52NM-150H/L

15A

● ●

382.8

H



  DENOTES FOR 250V                         H



表示 250V

L    DENOTES FOR  125V                        L 表示 125V

●  DENOTES FOR APPROVED         ●表示已取得安全认证

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                       最快 4 小时

135%

1 hour Max.                        最慢 1 小时

200%

5 seconds Max.                    最慢 5 秒

INTERRUPTING  CAPACITY/ 分断能力：

10,000 amperes at 125V AC (32mA-8A)
35 amperes at 250V AC (32mA-1A)
100 amperes at 250V AC (1.2A-3.5A)
200 amperes at 250V AC (4A-8A)

100 amperes at 125V AC (1A-15A) PSE (51NM)
500 amperes at 125V AC (1A-15A) PSE (52NM)
100 amperes at 250V AC (1A-15A) PSE (51NM/52NM)
100 amperes at 250V AC (100mA-7A) KC

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

51NM/52NM

AVERAGE I-T CHARACTERISTICS CURVE

                       (FOR  REFERENCE ONLY)

51NM/52NM

平均 I-T 曲线图

( 仅供参考 )

51NM,52NM

Dimensions/ 尺寸 :

Unit 单位：mm

www.hollyfuse.com

33

Φ

5.2x20mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (MEDIUM SLOW-BLOW)

玻璃保险丝管

（中等慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~90℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃，10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

UL(cUL) UR(cUR)

CSA

PSE

KC

H

L

H

L

H

L

H

L

H

51MS,52MS-0100H/L

100mA

● ●

● ●

●

0.01227

51MS,52MS-0125H/L

125mA

● ●

● ●

●

0.02530

51MS,52MS-0150H/L

150mA

● ●

● ●

●

0.02325

51MS,52MS-0160H/L

160mA

● ●

● ●

●

0.04315

51MS,52MS-0200H/L

200mA

● ●

● ●

●

0.08063

51MS,52MS-0250H/L

250mA

● ●

● ●

●

0.1341

51MS,52MS-0300H/L

300mA

● ●

● ●

●

0.2167

51MS,52MS-0315H/L

315mA

● ●

● ●

●

0.2393

51MS,52MS-0350H/L

350mA

● ●

● ●

●

0.3061

51MS,52MS-0375H/L

375mA

● ●

● ●

●

0.4017

51MS,52MS-0400H/L

400mA

● ●

● ●

●

0.3766

51MS,52MS-0500H/L

500mA

● ●

● ●

●

0.7704

51MS,52MS-0600H/L

600mA

● ●

● ●

●

0.6552

51MS,52MS-0630H/L

630mA

● ●

● ●

●

0.6880

51MS,52MS-0700H/L

700mA

● ●

● ●

●

0.7551

51MS,52MS-0750H/L

750mA

● ●

● ●

●

0.8669

51MS,52MS-0800H/L

800mA

● ●

● ●

●

1.165

51MS,52MS-010H/L

1A

● ●

● ● ● ● ●

2.112

51MS,52MS-012H/L

1.2A

● ●

● ● ● ● ●

3.608

51MS,52MS-013H/L

1.25A

● ●

● ● ● ● ●

3.962

51MS,52MS-015H/L

1.5A

● ●

● ● ● ● ●

6.713

51MS,52MS-016H/L

1.6A

● ●

● ● ● ● ●

7.795

51MS,52MS-020H/L

2A

● ●

● ● ● ● ●

4.888

51MS,52MS-023H/L

2.25A

● ●

● ● ● ● ●

6.383

51MS,52MS-025H/L

2.5A

● ●

● ● ● ● ●

10.49

51MS,52MS-030H/L

3A

● ●

● ● ● ● ●

15.50

51MS,52MS-032H/L

3.15A

● ●

● ● ● ● ●

17.41

51MS,52MS-035H/L

3.5A

● ●

● ● ● ● ●

27.88

51MS,52MS-040H/L

4A

● ●

● ● ● ● ●

33.47

51MS,52MS-050H/L

5A

● ●

● ● ● ● ●

51.13

51MS,52MS-060H/L

6A

● ●

● ● ● ● ●

75.02

51MS,52MS-063H/L

6.3A

● ●

● ● ● ● ●

84.15

51MS,52MS-070H/L

7A

● ●

● ● ● ● ●

112.1

51MS,52MS-080H/L

8A

● ●

● ● ● ● ●

167.0

51MS,52MS-090H/L

9A

● ● ●

190.3

51MS,52MS-100H/L

10A

● ●

● ● ● ● ●

257.8

51MS,52MS-120H/L

12A

● ●

408.1

51MS,52MS-150H/L

15A

● ●

731.9

H



  DENOTES FOR  250V                                                     H



表示 250V

L    DENOTES FOR  125V                                                    L   表示 125V

●  DENOTES FOR APPROVED                                     ●  表示已取得安全认证

REMARK:52MS-100H  WITHOUT  UL  APPROVAL    备注：52MS-100H 未取得 UL

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                          最快 4 小时

135%

1 hour Max.                          最慢 1 小时

200%

20 seconds Max.                         最慢 20 秒

INTERRUPTING  CAPACITY/ 分断能力：

10,000 amperes at 125V AC (100mA-8A/10A)
35 amperes at 250V AC (100mA-1A)
100 amperes at 250V AC (1.2A-3.5A)
200 amperes at 250V AC (4A-8A/10A)
100 amperes at 125V AC (1A-15A) PSE (51MS)
500 amperes at 125V AC (1A-15A) PSE (52MS)
100 amperes at 250V AC (1A-15A) PSE (51MS/52MS)
100 amperes at 250V AC (100mA-10A) KC

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

51MS/52MS

AVERAGE I-T CHARACTERISTICS CURVE

                       (FOR  REFERENCE ONLY)

51MS/52MS

平均 I-T 曲线图

( 仅供参考 )

51MS,52MS

Dimensions/ 尺寸 :

Unit 单位：mm

  www.hollyfuse.com

34

Φ

5.2x20mm, RoHS Compliant & Pb-Free

GLASS TUBE FUSE (SLOW-BLOW)

玻璃保险丝管

（慢断型）

Standards/ 标准：UL 248-1,   UL  248-14
Operating Temperature/ 工作温度：-55℃ ~125℃
Storaging Temperature/ 储存温度：-55℃ ~85℃
Resistance to soldering heat/ 耐焊接热性：260℃， 10s Max
Solderability/ 可焊性：245℃ ±5℃ , 5s±0.5s

TECHNICAL PARAMETERS/ 技术参数 :

CATALOG

NO.

目录编号

CURRENT

RATING
额定电流

SAFETY APPROVALS

安全认证

REFERENCE

(A

2

.Sec.)

(RoHS)

I

2

T

参考值

UL(cUL) UR(cUR)

CSA

PSE

KC

H

L

H

L

H

L

H

L

H

51S,52S-0100H/L

100mA

● ●

● ●

●

0.03971

51S,52S-0125H/L

125mA

● ●

● ●

●

0.04963

51S,52S-0150H/L

150mA

● ●

● ●

●

0.1613

51S,52S-0160H/L

160mA

● ●

● ●

●

0.1720

51S,52S-0200H/L

200mA

● ●

● ●

●

0.2224

51S,52S-0250H/L

250mA

● ●

● ●

●

0.2780

51S,52S-0300H/L

300mA

● ●

● ●

●

0.4817

51S,52S-0315H/L

315mA

● ●

● ●

●

0.5257

51S,52S-0350H/L

350mA

● ●

● ●

●

0.9952

51S,52S-0375H/L

375mA

● ●

● ●

●

0.8734

51S,52S-0400H/L

400mA

● ●

● ●

●

1.2604

51S,52S-0500H/L

500mA

● ●

● ●

●

1.9567

51S,52S-0600H/L

600mA

● ●

● ●

●

0.5040

51S,52S-0630H/L

630mA

● ●

● ●

●

0.5660

51S,52S-0700H/L

700mA

● ●

● ●

●

0.7183

51S,52S-0750H/L

750mA

● ●

● ●

●

0.8350

51S,52S-0800H/L

800mA

● ●

● ●

●

1.030

51S,52S-010H/L

1A

● ●

● ● ● ● ●

2.242

51S,52S-012H/L

1.2A

● ●

● ● ● ● ●

3.960

51S,52S-013H/L

1.25A

● ●

● ● ● ● ●

4.070

51S,52S-015H/L

1.5A

● ●

● ● ● ● ●

8.440

51S,52S-016H/L

1.6A

● ●

● ● ● ● ●

9.800

51S,52S-020H/L

2A

● ●

● ● ● ● ●

13.95

51S,52S-025H/L

2.5A

● ●

● ● ● ● ●

24.49

51S,52S-030H/L

3A

● ●

● ● ● ● ●

14.15

51S,52S-032H/L

3.15A

● ●

● ● ● ● ●

14.35

51S,52S-035H/L

3.5A

● ●

● ● ● ● ●

21.12

51S,52S-040H/L

4A

● ●

● ● ● ● ●

30.80

51S,52S-050H/L

5A

● ●

● ● ● ● ●

46.97

51S,52S-060H/L

6A

● ● ● ● ● ● ●

69.59

51S,52S-063H/L

6.3A

● ● ● ● ● ● ●

73.07

51S,52S-070H/L

7A

● ● ● ● ● ● ●

104.5

51S,52S-080H/L

8A

● ● ● ● ● ● ●

152.0

51S,52S-090H/L

9A

● ● ●

206.8

51S,52S-100H/L

10A

● ● ●

274.6

51S,52S-120H/L

12A

● ●

387.9

51S,52S-150H/L

15A

● ●

690.3

H



  DENOTES FOR  250V                        H



表示 250V

L    DENOTES FOR  125V                       L 表示 125V

●  DENOTES FOR APPROVED        ●表示已取得安全认证

ELECTRICAL CHARACTERISTICS/ 电气特性 :

% of CURRENT RATING
额定电流的 %

BLOWING TIME
熔断时间

100%

4 hours Min.                      最快 4 小时

135%

1 hour Max.                       最慢 1 小时

200%

120 seconds Max.               最慢 120 秒

INTERRUPTING  CAPACITY/ 分断能力：

10,000 amperes at 125V AC (32mA-8A)
35 amperes at 250V AC (32mA-1A)
100 amperes at 250V AC (1.2mA-3.5A)
200 amperes at 250V AC (4A-8A)
100 amperes at 125V AC (1A-15A) PSE (51S)
500 amperes at 125V AC (1A-15A) PSE (52S)
100 amperes at 250V AC (1A-15A) PSE (51S/52S)
100 amperes at 250V AC (100mA-10A) KC

CURRENT(A)/ 电流 ( 安培 )

TIME(s)/

时间

(

秒

)

51S/52S

AVERAGE I-T CHARACTERISTICS CURVE

                 (FOR  REFERENCE ONLY)

51S/52S

平均 I-T 曲线图

( 仅供参考 )

Dimensions/ 尺寸 :

51S,52S

Unit 单位：mm
