LEMO’s M Series Ratchet Coupling Type Connectors

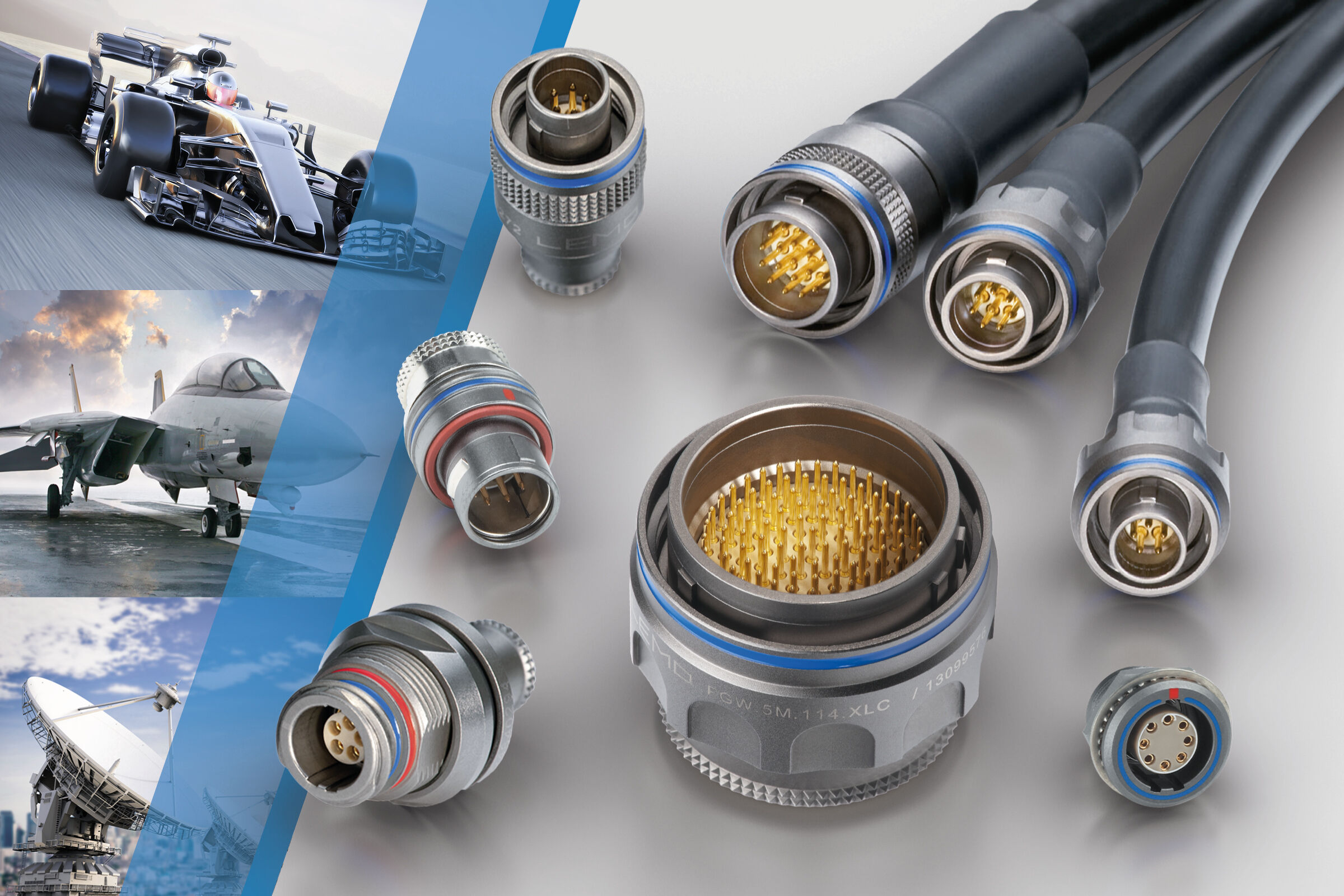

In harsh environments connectors need to be reliable, strong and resistant to vibration. The LEMO’s M series, used in the aerospace, UAV, defence, and motorsport industries, uses a ratchet screw system for rapid and secure coupling. Lightweight and compact yet robust and oil/fuel resistant, the M series is available in a variety of sizes (including miniature), watertight and vacuum-tight models, threaded model compatible with standard MIL-DTL-38999L backshells. The keying system offers high contact density for secure signal transmission, and sensitive signals are protected by 360Degrees EMC shielding. A large selection of insert configurations including high-density low voltage, high power, high-speed, coaxial and fibre optic contacts and as well as hybrid solutions is available.
The M Series connector from LEMO features an innovative design tailored for motorsport applications and military systems. Constructed from high-strength aluminum, this connector stands out as one of the lightest and most compact in the LEMO product line. Its one-grip ratchet screw system allows for quick and secure coupling. The arctic grip ensures easy manipulation, even when wearing gloves or when the connector is in a hard-to-reach area. Regardless of the environment’s severity, LEMO has a ready-to-implement solution for you today.
Form & Material
- Environment
- Broad metallic high quality circular connector range for rugged environments (IP68)
- Latching system
- Ratchet Coupling enabling easy fast easy yet secure and reliable frequent connect and disconnect, and with very strong resistance to shocks and vibrations
- Keying system
- Keying system allowing for a high contact density, with multiple key options and color coding to prevent mismating
- Construction
- Field proven solid, light & compact construction, oil and fuel resistant
- Ergonomy
- Ergonomic design with knurled or arctic grip patterns, scoop proof
- Size and model
- Various sizes and models including miniature, watertight and vaccumtight models, MIL-DTL-38999L backshell
LEMO® Connector Advanced Applications
Sleek and streamlined, LEMO push-pull connectors offer a modular design ideal for highly ruggedized applications. These connectors excel in environments requiring mission-critical connections under conditions of vibration, shock, and heat. Engineered for reliability, longevity, and aesthetic appeal, push-pull connectors are perfect for settings where these attributes are essential. LEMO’s connectors are precisely designed to accommodate most types of electronic connections. Common applications for LEMO connectors include:
- Medical – LEMO Connectors can be found in electrophysiology catheters, electrosurgical devices, heart pumps, robotic surgical devices, MRI machines, and more.
- Defense – LEMO Connectors can be found in many defense and security industry products including command & control devices, communications, computers, land vehicles, airborne devices, and personal equipment.
- Film Industry – LEMO Connectors have been used on many high-budget films and TV shows. They are regularly used for professional cameras and underwater equipment.
- Motor Sports – LEMO Connectors are used consistently within Formula 1 race car instrumentation, mechanical equipment, and gear
- Instrumentation – LEMO Connectors are used in a variety of demanding industries such as agriculture, construction, surveying, and machine control production.
Features
- Ratchet-coupling mechanism
- Quick mating: 3/4 turn to seat
- Compact design for space savings
- Lightweight
- Oil and fuel resistant
- Scoop proof
- High vibration and shock resistance
- 360° screening for full EMC shielding
- Sealed to IP68 when mated
- Requires 2x the coupling force to unmate
- Threaded for MIL-DTL-38999L backshell
- Pin configuration from 2 to 114 contacts
