- SolidMatrix® Surface Mount Chip Fuses
- Multilayer Ferrite Chip Beads, Multilayer Ferrite Power Beads and Multilayer Ferrite/Ceramic Inductors
- Process Equipment for Multilayer Ceramic Component
|
| Applications:(SolidMatrix® Surface Mount Chip Fuses) |
Slow-blow Chip Fuse
- High inrush current withstanding capability
- Glass Ceramic Monolithic structure
- Sliver fusing element and silve termination with nickel and tin plating
- Lead-free materials
- Standard EIA 1206 / EIAJ (3216) size
- Symmetrical design with marking on both sides (optional)
- Operating temperature: -55C to 125C (with de-rating)
|
|
 |
Fast Acting Chip Fuse
- Size from 0402 to 1206, current rating from 0.25A to 8.0A and voltage rating from 24-125VAC/DC
- Monolithic structure with glass ceramic body and silver fuse element
- Silver termination with nickel and solder plating(lead free), providing excellent solder ability
- Compatible with both wave and reflow soldering processes
- Operation temperature range:-55oC to +125oC(with de-rating)
- Tape and reel packaging
|
|
 |
| Characteristics: Cross Reference (SolidMatrix® Surface Mount Chip Fuses) |
Cross Reference SolidMatrix® Surface Mount Chip Fuses(Slow-blow Chip Fuse)
| Current Carry Capacity: |
| Size |
Rated Current |
Rated Voltage |
| 1206 |
1A – 2.0A |
63V |
| 1206 |
2.5A -5.0A |
32V |
| 1206 |
6.0A -8.0A |
24V |
| |
Cross Reference SolidMatrix® Surface Mount Chip Fuses(Fast Acting Chip Fuse)
| Current Carry Capacity: |
| Size |
Rated Current |
Rated Voltage |
| 0402 |
0.25A-4.0A |
24V |
| 0603 |
0.25A-5.0A |
32V |
| 0603 |
6.0A |
24V |
| 1206 |
0.25A-0.375A |
125V |
| 1206 |
0.5A – 2.0A |
63V |
| 1206 |
2.5A – 5.0A |
32V |
| 1206 |
6.0A – 8.0A |
24V |
|
| Specifications:(SolidMatrix® Surface Mount Chip Fuses) |
SolidMatrix® Surface Mount Chip Fuses(Slow-blow Chip Fuse)
SolidMatrix® Surface Mount Chip Fuses(Fast Acting Chip Fuse)
|
| Applications:(Ferrite Chip Beads) |
| Ferrite Chip Beads
The MCB Series ferrite chip beads for surface mount are manufactured with AEM’s unique multilayer process and equipment technologies as well as proprietary materials, including ferrites, internal electrode ink and termination paste.
|
|
 |
| Ferrite Chip Bead Arrays
The Multilayer Ferrite Chip Bead Array retains all the features of Multilayer Ferrite Chip Beads. In addition, it provides multiple circuits in a single package, which reduce the required land space on PCB and reduce the cost for assembly. Complete Datasheet.
|
|
 |
| Ferrite Power Beads
Monolithic structure for closed megnetic path and high reliability with superior termination bonding strength.
|
|
 |

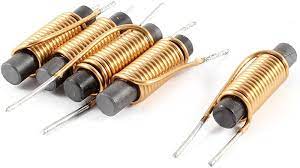

| Ferrite Inductors
The MCI series multilayer ferrite chip inductors for surface mount are manufactured in the U.S.A., with AEM’s unique multilayer process and equipment technologies as well as proprietary materials, including ferrites, internal electrode ink and termination paste.
|
|
 |
| Ceramic Inductors
High quality ceramic material and unique manufacturing processes provide high Q at high frequency and high self-resonant frequency.
|
|
 |
| Land Pattern and Soldering Temperature
Recommended PC Board land patterns and tempurature profiles for soldering.
|
|
 |
| Packaging and Storage
AEM’s multilayer components are provided on tape-and-reel for use in pick-and-place machines or in bulk for special applications.
|
|
|
| Reliability Tests
Comparison of reliability tests.
|
|
 |
Characteristics:(Ferrite Chip Beads)
Since 1995, AEM has used its technological expertise to successfully grow its current limiting micro-fuse production and holds a dominant position in the circuit protection market in the aerospace industry. AEM is the sole supplier of FM12 style high-reliability fuses listed on the DSCC approved QPL. AEM high-reliability fuses are used by NASA and every other major manufacturer of satellite, spacecraft and space related hardware throughout the world. AEM is also the world’s sole manufacturer of high-reliability ferrite chip beads designed for space and military use. |
| |
| Specifications:Ferrite Chip Beads Ferrite chip beads, also known as ferrite beads or ferrite chip inductors, are passive electronic components used to suppress or filter unwanted high-frequency electromagnetic interference (EMI) and noise in electronic circuits. They are widely employed in various electronic devices and systems to enhance signal quality and prevent interference between different components. |
AEM designs and produces mission critical, passive circuit protection components through two divisions. AEM’s A&D division provides advanced, high-reliability fuses, ferrite chip beads, and tin whisker mitigation products for satellite, defense, and aerospace applications. Its products, which are often custom and application-specific in nature, are used in harsh, technical environments where performance is mission critical. AEM has a deep heritage in high-reliability components and a reputation as a market leading supplier of such components.
From automotive electronics to consumer electronic products like mobile phones and computers, AEM ferrite/ceramic chip beads and inductors are used globally for EMI signal filtering in electronic industries.
