Motherboard Standoffs

Hardware Motherboard Standoffs

What are Standoffs? Standoffs are small metal (sometimes plastic) pieces similar to screws, but instead of a head, they have an anchor where another screw can be inserted. They are traditionally screwed into a computer case, and then the motherboard is placed on top of them and secured with screws. Each motherboard screw requires a standoff. The number of screws and standoffs needed depends on the form factor of the motherboard (e.g., ATX, mATX, mini-ITX).

Standardization The shape and size of motherboard standoffs are standardized to match various motherboard form factors such as ATX, Micro-ATX, and Mini-ITX. The number and arrangement of mounting holes on the motherboard vary depending on the form factor and manufacturer.

Preinstalled Standoffs Many computer cases come with standoffs either built directly onto the case or preinstalled. Regardless of whether the standoffs are built-in, preinstalled, or included separately, you must ensure your case supports your motherboard’s form factor.

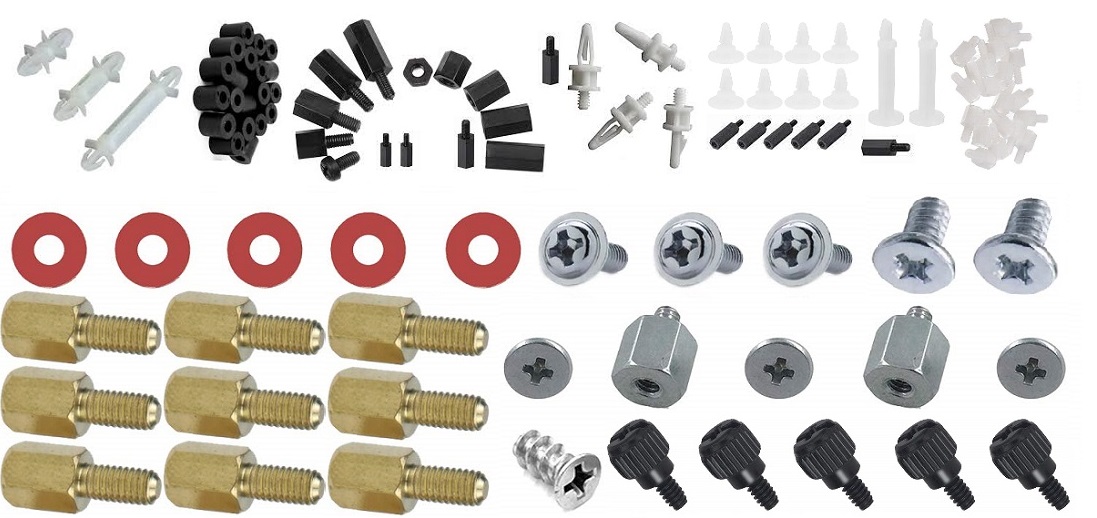

Motherboard Standoffs

Male-Female Standoffs

Male-female standoffs are versatile components used to separate, position, or connect parts within an assembly. They are commonly found in computers and electronic devices, where they create space between circuit boards, promoting airflow and providing clearance for installed components. Due to their wide range of sizes and thread types, these standoffs are utilized across various industries as thread adapters, spacers, and connectors, among other applications.

These standoffs come in multiple materials, platings, threads, and lengths to suit specific needs. Available materials include:

  • Aluminum
  • Brass
  • Nylon
  • Stainless Steel
  • Steel

Thread options are offered in both metric and standard inch sizes, with custom threads available upon request. Additional customizations, such as non-standard thread depths and custom lengths, are also possible. If you require any other unique modifications, production can easily accommodate them.

Male-Male Standoffs

Male-male standoffs feature male threads on both ends, allowing them to connect two female-threaded components. These standoffs often serve as adapters, with options for identical or differently sized external threads on either end. The hexagonal body allows for easy tightening with a wrench, ensuring a secure connection between components.

Like male-female standoffs, male-male standoffs are available in a variety of materials, platings, and thread combinations. Material options include:

  • Aluminum
  • Brass
  • Stainless Steel
  • Steel

Custom lengths and thread sizes are common customization options, and additional modifications can be integrated into production to meet unique requirements.

Types of Standoffs

  1. Plastic Standoffs:

    • Material: Commonly made from nylon.
    • Use: Provide electrical insulation, preventing conductive contact between the motherboard and the case.
    • Variations: Available in different heights and designs.
    • Standard Use: Often used for AT motherboards, snapping sideways into a V in the motherboard tray and then through the corresponding hole in the motherboard.

  2. Metal Standoffs:

    • Types: Brass, Steel, and Aluminum.
    • Common Type: Brass standoffs, often gold-plated to prevent corrosion.
    • Function: Maintain separation between the motherboard’s electric circuits and the metallic tray in the case, providing grounding for both the motherboard and the case.

Installation and Function Motherboard standoffs are essential for building a computer, ensuring the motherboard is securely mounted to the case for stability and proper functioning. They create space between the motherboard and the case, preventing soldered parts from contacting the case and providing grounding.

When assembling a PC, align the standoffs with the mounting holes on the motherboard and secure them. Ensure you do not have more standoffs than necessary, as this can cause problems.

Do Motherboards Come with Standoffs? Motherboards typically do not include standoffs and screws in their standard packaging. Since motherboards are designed to be compatible with various case sizes and configurations, it is impractical for manufacturers to include standoffs and screws, which are usually provided with the case.

Conclusion Motherboard standoffs, also known as spacers or risers, are crucial components in mounting your motherboard to your case or test bench, preventing shorts and ensuring proper grounding. We distribute a variety of standoffs to meet your needs.
