Key Features
- Modern style
- Heavy duty extruded aluminum handle
- Sold singly
- Hardware included
- Clear anodized finish available for all sizes. Black anodized finish available for most sizes. Check table below for availability
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
| Clear | Black | Handle | Handle | Handle | Handle | Screw |
|---|---|---|---|---|---|---|
| Part No. | Part No. | Profile | Mounting | |||
| (Sold Individually) | (Sold Individually) | Shape | Hole Centers | Depth | Width | Thread |
| M3299-1131 | M3299-1133 | Rectangle | 1.26 | 1.57 | 0.31 | M4-0.7 |
| 1427C3AL | 1427C3BK | Oval | 2.16 | 1.14 | 0.63 | 10-32 |
| 1427C6 | 1427C6BK | Square | 2.75 | 1.50 | 0.38 | 8-32 |
| M3299-1231 | M3299-1233 | Rectangle | 3.00 | 1.58 | 0.31 | M4-0.7 |
| M268-2 | M268-2BK | Rectangle | 3.50 | 1.58 | 0.47 | M5-0.8 |

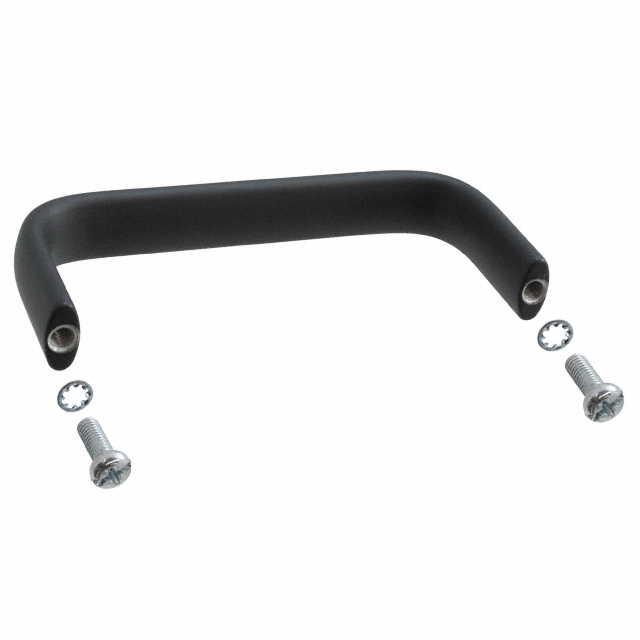

| 1427C2 | 1427C2BK | Oval | 4.00 | 1.75 | 0.67 | 10-32 |
| 1427C5 | 1427C5BK | Oval | 4.00 | 1.34 | 0.87 | 8-32 |
| 1427C4A | 1427C4 | Rectangle | 4.40 | 0.98 | 0.37 | 8-32 |
| M3299-1301 | M3299-1303 | Rectangle | 4.72 | 1.58 | 0.31 | M4-0.7 |

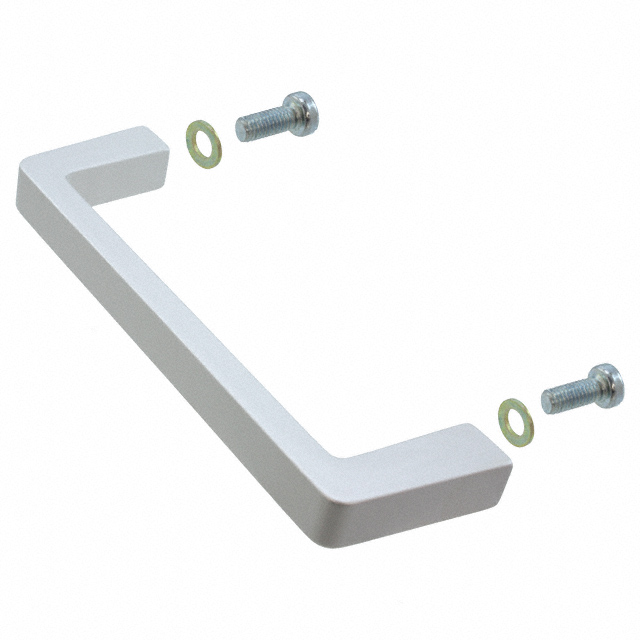

| M268-3 | M268-3BK | Rectangle | 4.76 | 1.58 | 0.47 | M5-0.8 |
| 1427C9 | 1427C9BK | Oval | 6.00 | 1.75 | 0.63 | 10-32 |
| M268-4 | Rectangle | 7.13 | 1.58 | 0.47 | M5-0.8 | |
| M268-5 | Rectangle | 9.25 | 1.58 | 0.47 | M5-0.8 |
Data subject to change without notice.
