Models # 303139 and 303140 - Molded Surface Mount Space and Military
Grade Resistors SMRxDZ with Screen/Test Flow in Compliance with
EEE-INST-002, (Tables 2A and 3A, Film/Foil, Level 1) and MIL-PRF-55182
303139, 303140
Vishay Foil Resistors
Document Number: 63165
For any questions, contact:
foil@vishaypg.com
www.foilresistors.com
Revision: 27-Jul-10
1
INTRODUCTION
The 303139, 303140 are ultra high precision molded surface
mountable resistors offering all the elements of precision;
including low TCR, tight tolerance, long term stability, low
noise, low thermal EMF, and non-measurable voltage
coefficient. One of the important parameters influencing
stability is the temperature coefficient of resistance (TCR).
Although the TCR of foil resistors is considered extremely
low, this characteristic has been further refined over the
years. These resistors utilize ultra high precision Bulk Metal
®
Z-Foil.

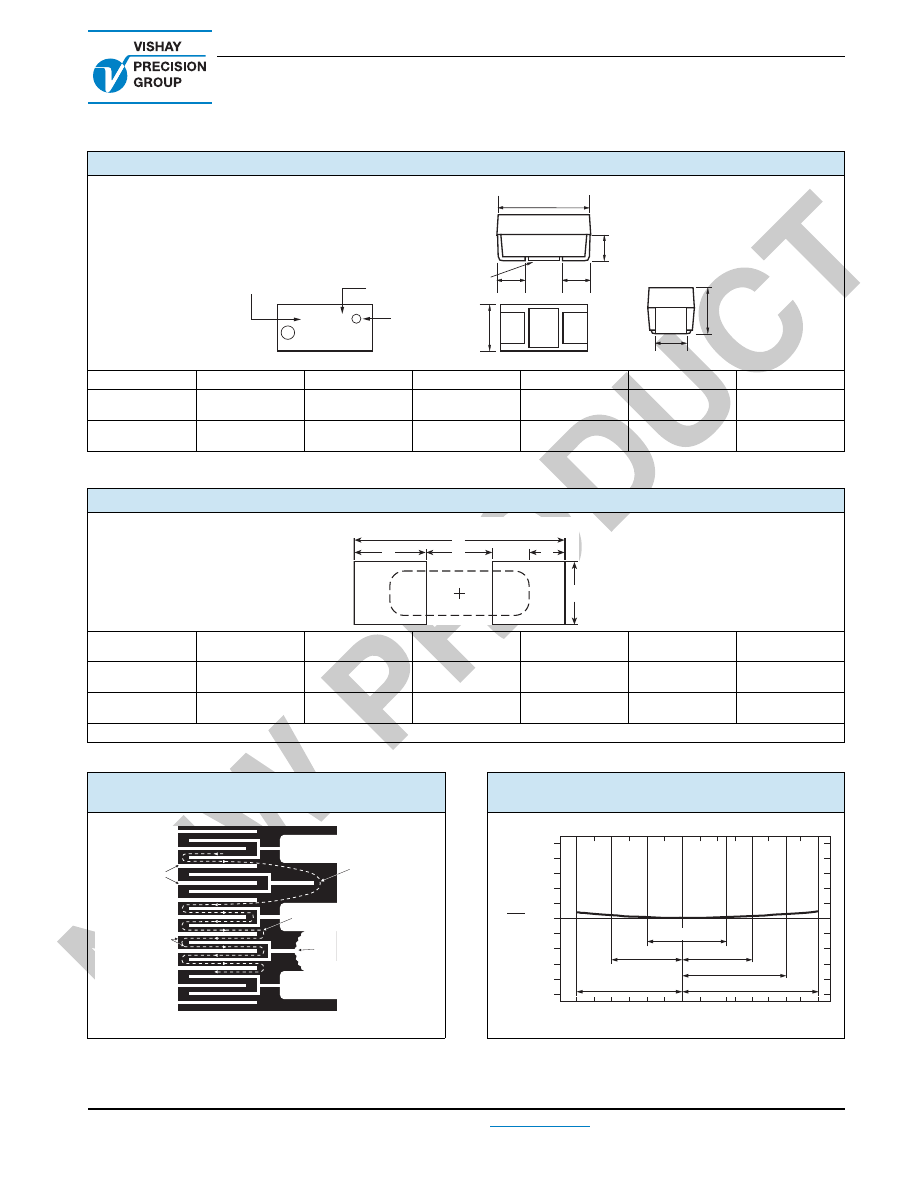

The Z-Foil technology provides a significant reduction of
the resistive element’s sensitivity to ambient temperature
variations (TCR) and to self heating when power is applied
(power coefficient).
Voltage division with tight tracking < 2 ppm/°C can be
achieved with 2
randomly
selected units even with a large
ratio between the two values.
Our application engineering department is available to
advise and make recommendations.
FEATURES
•
Temperature coefficient of resistance (TCR):
± 0.2 ppm°C typical (- 55 °C to + 125 °C, + 25 °C ref.)
•
Tolerance: to ± 0.02 %
•
Power coefficient of resistance (PCR)
“
Δ
R due to self heating”: 5 ppm at rated power
•
Flexible terminations ensure minimal stress transference
from the PCB due to a difference in thermal coefficient of
expansions (TCE)
•
Electrostatic discharge (ESD) up to 25 000 V
•
Load life stability: ± 0.005 % (70 °C, 2000 h at rated power)
•
Resistance range: 5
Ω
to 40 k
Ω
•
Vishay Foil resistors are not restricted to standard values;
specific “as requested” values can be supplied at no extra
cost or delivery (e.g. 1K2345 vs. 1K)
•
Maximum power: to 600 mW at 70 °C
•
Non-inductive, non-capacitive design
•
Current noise: - 40 dB
•
Voltage coefficient: < 0.1 ppm/V
•
Non-inductive: < 0.08 µH typical
•
Non hot spot design
•
Terminal finish: tin/lead alloy
•
Matched sets with TCR tracking are available upon
request
•
For oriented performances please contact us
•
For prototype units, append a “U” to the model number
(example: 303139U). These units pass all tests per table 3
(page 4) with no destructive qualification testing required
(table 4, page 4). For more information, please contact
foil@vishaypg.com
TABLE 1 - TOLERANCE AND TCR VS.
RESISTANCE VALUE
(- 55 °C to + 125 °C, + 25 °C ref.)
VALUE
ABSOLUTE
TOLERANCE
TYPICAL TCR AND
MAX. SPREAD
(ppm/°C)
250
Ω
to 40 k
Ω
± 0.02 %
± 0.2 ± 1.8
50
Ω
to < 250
Ω
± 0.05 %
± 0.2 ± 1.8
20
Ω
to < 50
Ω
± 0.1 %
± 0.2 ± 2.8
10
Ω
to < 20
Ω
± 0.2 %
± 0.2 ± 4.8
5
Ω
to < 10
Ω
± 0.5 %
± 0.2 ± 6.8

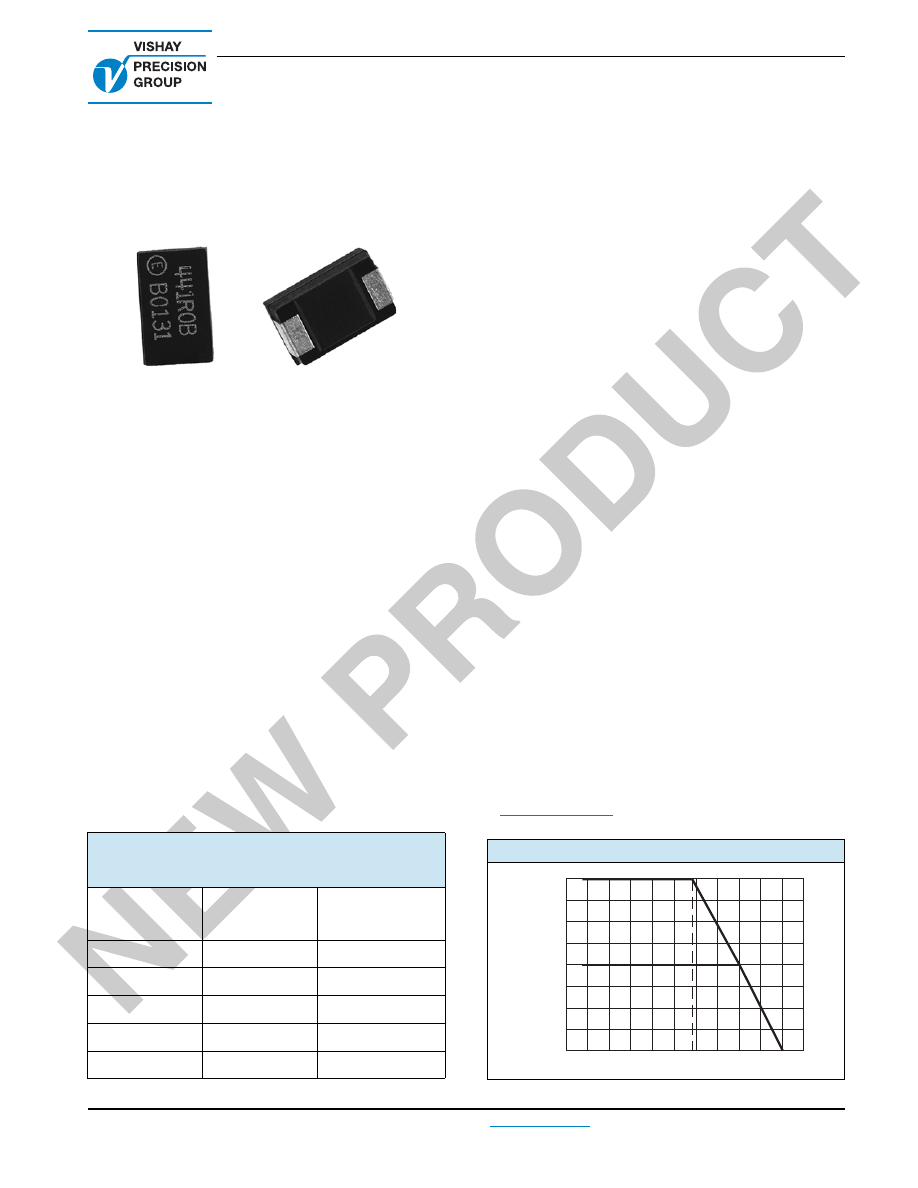

FIGURE 1 - POWER DERATING CURVE
200
175
150
125
100
75
50
25
0
- 75
- 25
+ 25
+ 75
+ 125
+ 175
Ambient Temperature (°C)
Rated Power (%)
- 55 °C
+ 70 °C
