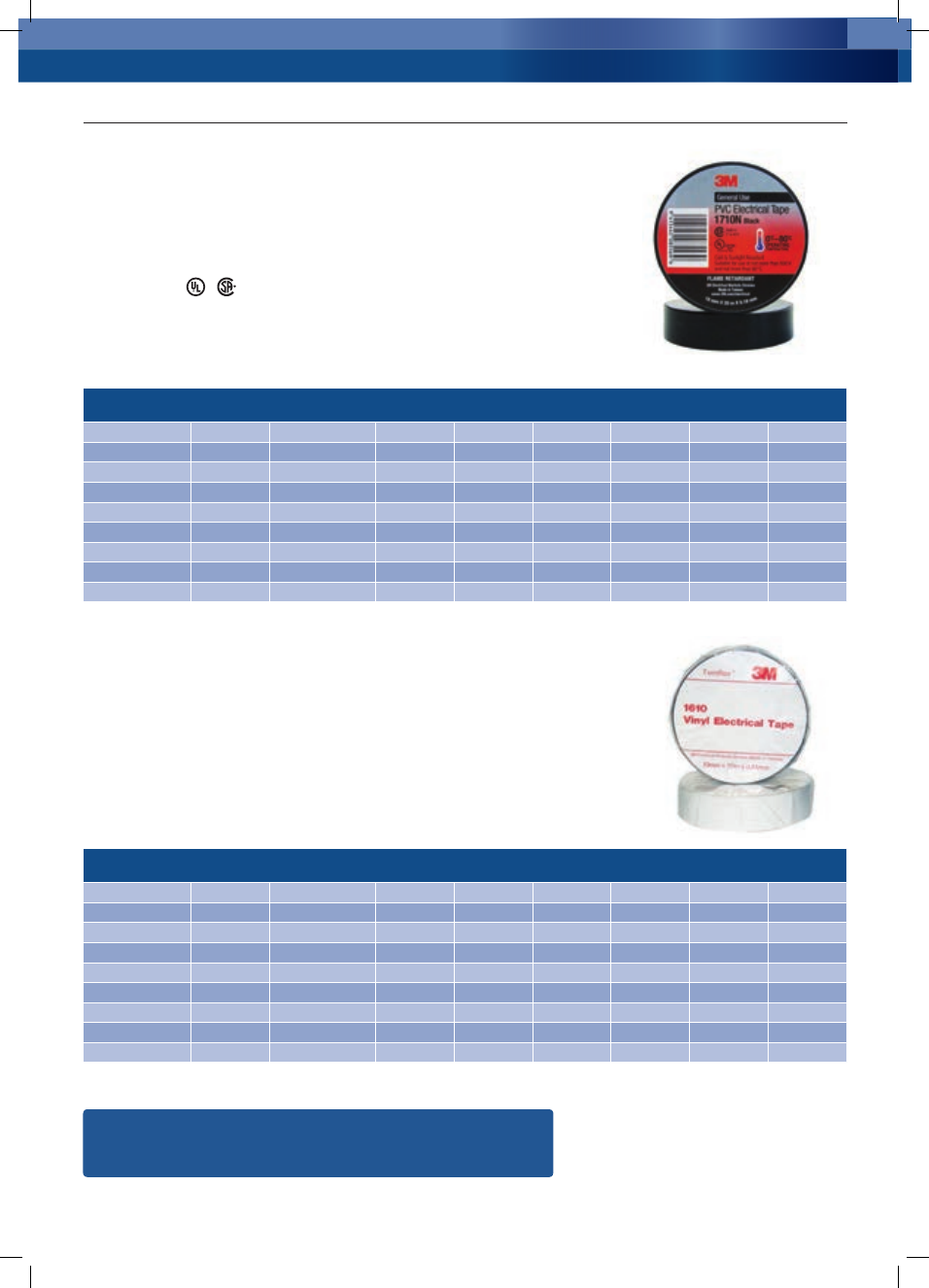

PVC Electrical Tapes - General Use ________________________________________________________________________ 3

Splicing & Insulating Tapes - Self Amalgamating ______________________________________________________________ 4

Splicing & Insulating Tapes - Other _______________________________________________________________________ 5-6

Splicing & Insulating Tapes - Glass Cloth ____________________________________________________________________ 7

Sealing & Insulating Tapes - Rubber Mastic, Mastic, Putty, Vinyl Mastic, Cable Repair ____________________________________ 8-9

Industrial Tapes - Duct, Cloth, Sealing & Joining ______________________________________________________________ 10

Special Use Tapes including Armorcast Structural Material ____________________________________________________ 11-12

Insulating and Conductive (OEM) Tapes __________________________________________________________________ 13-14

™

Scotchcast

™

Resin Cable Joint Kits and Resins ___________________________________ 15

Overview & Selection Chart __________________________________________________________________________ 15

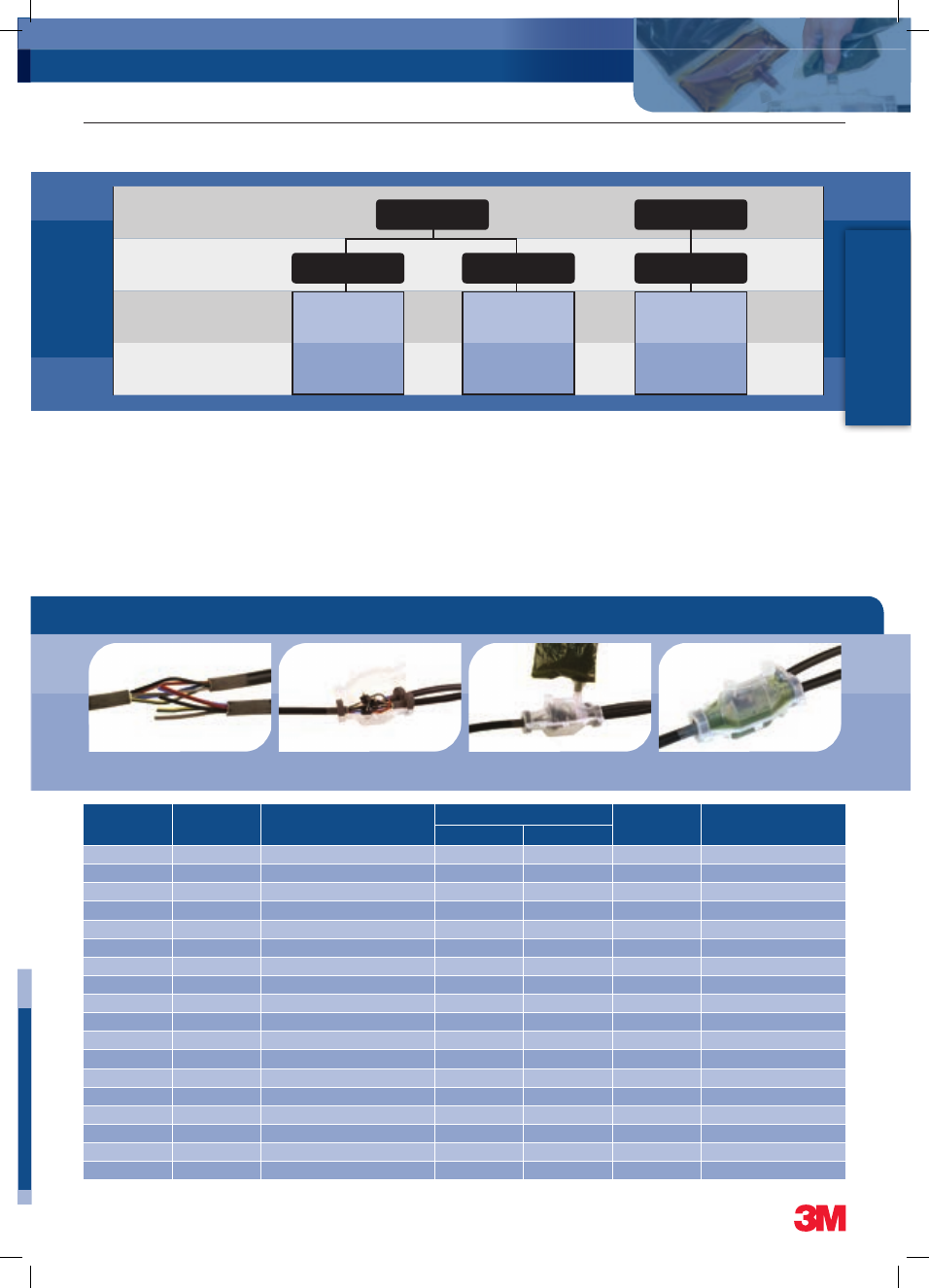

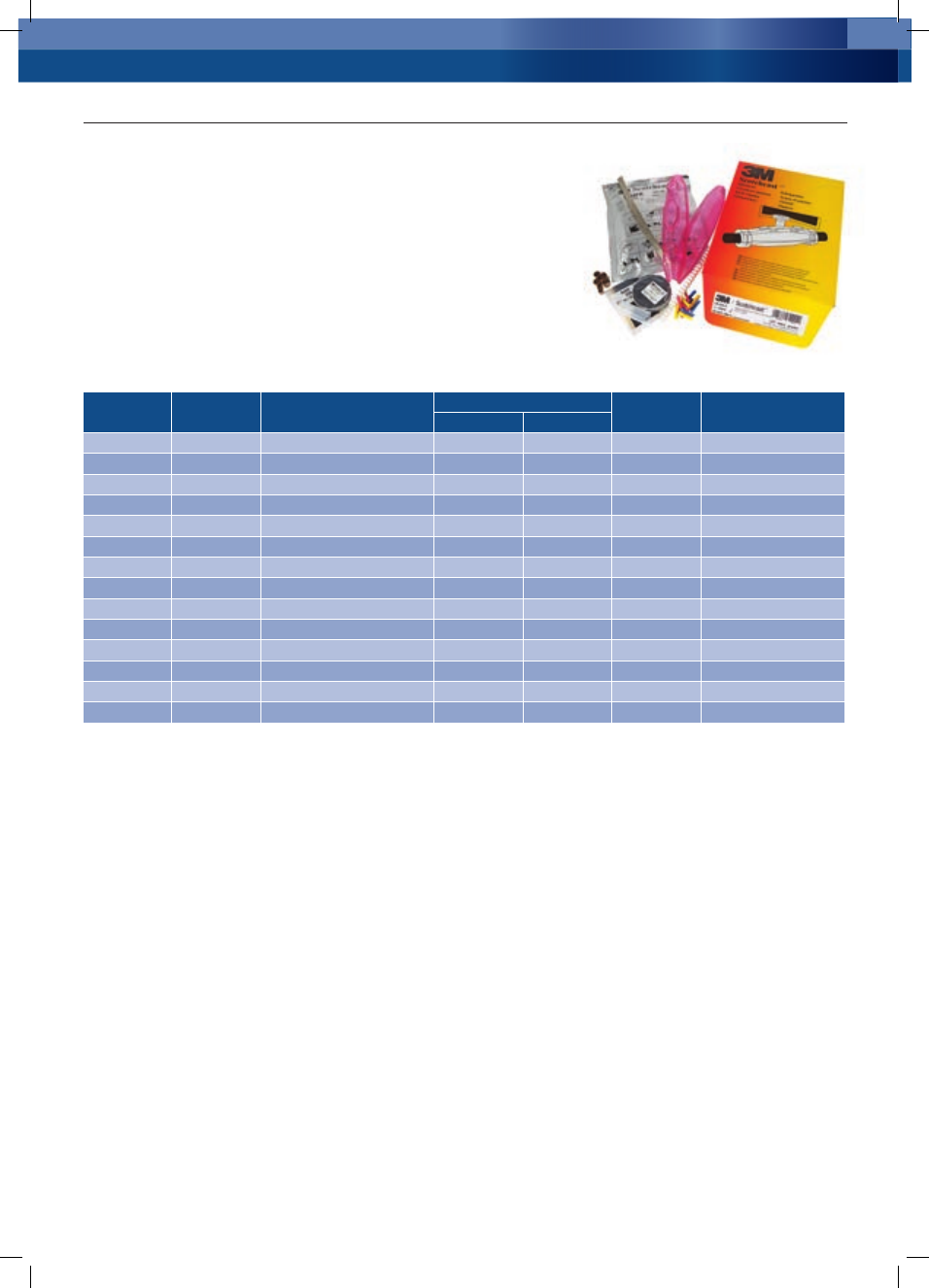

Scotchcast Resin Joint Kits __________________________________________________________________________ 16-18

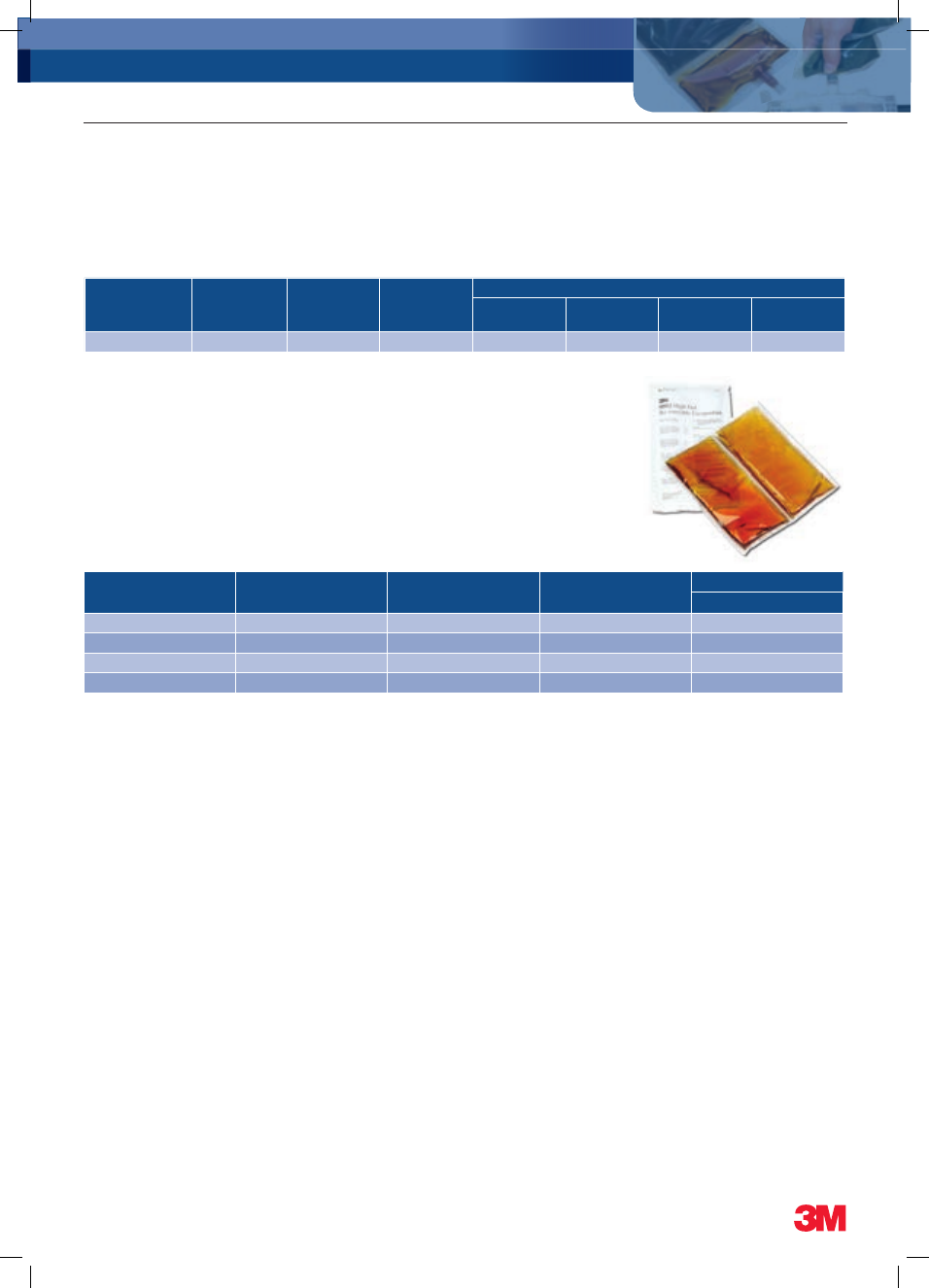

Scotchcast Resin Packs ____________________________________________________________________________ 19-20

™

Cold Shrink Low Voltage Insulators and Joint Kits _________________________________ 21

Overview

________________________________________________________________________________________ 21

Cold Shrink Joint Kits ________________________________________________________________________________ 22

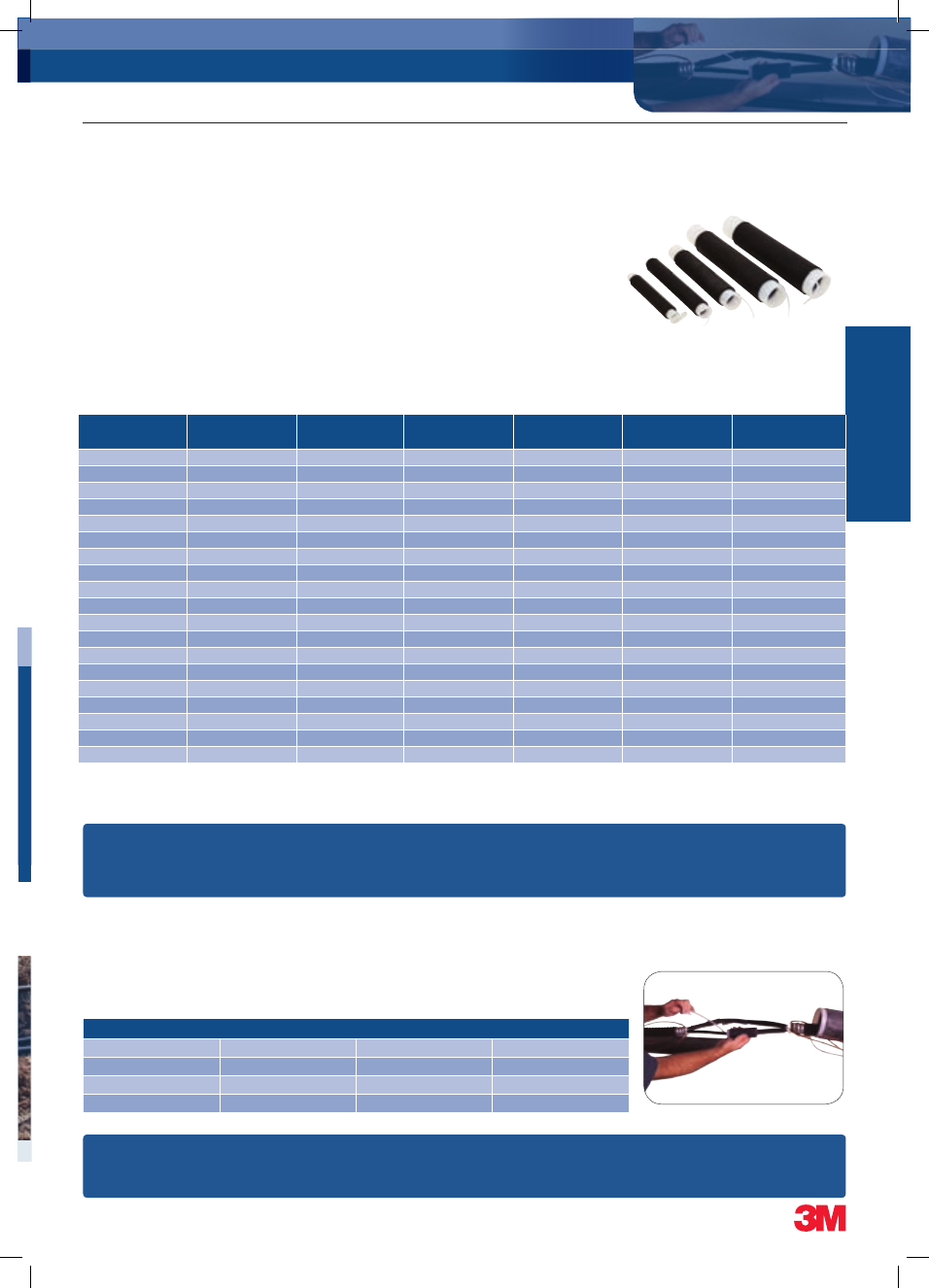

Cold Shrink Insulators ________________________________________________________________________________ 22

™

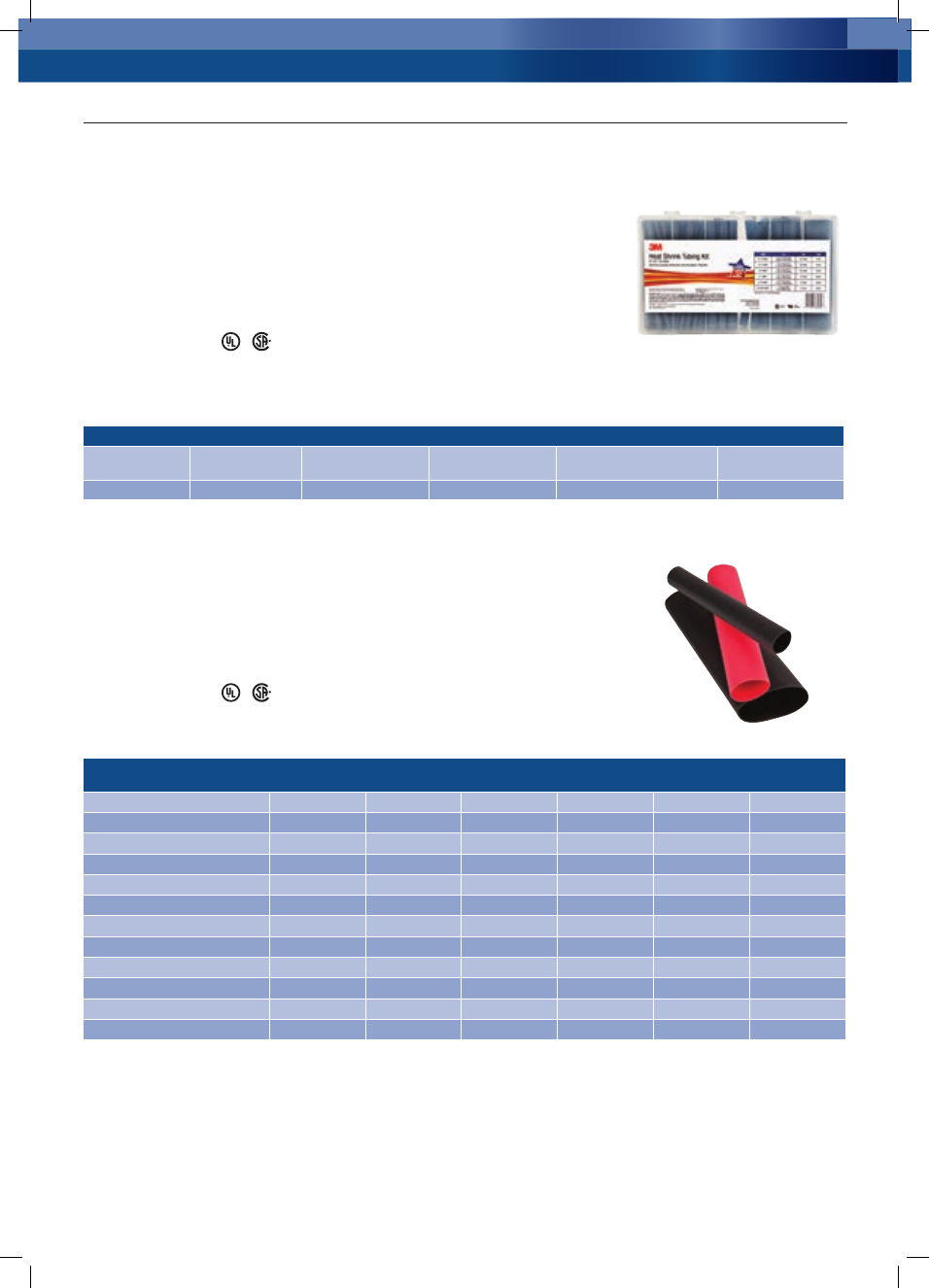

Heat Shrink Tubing _________________________________________________________ 23

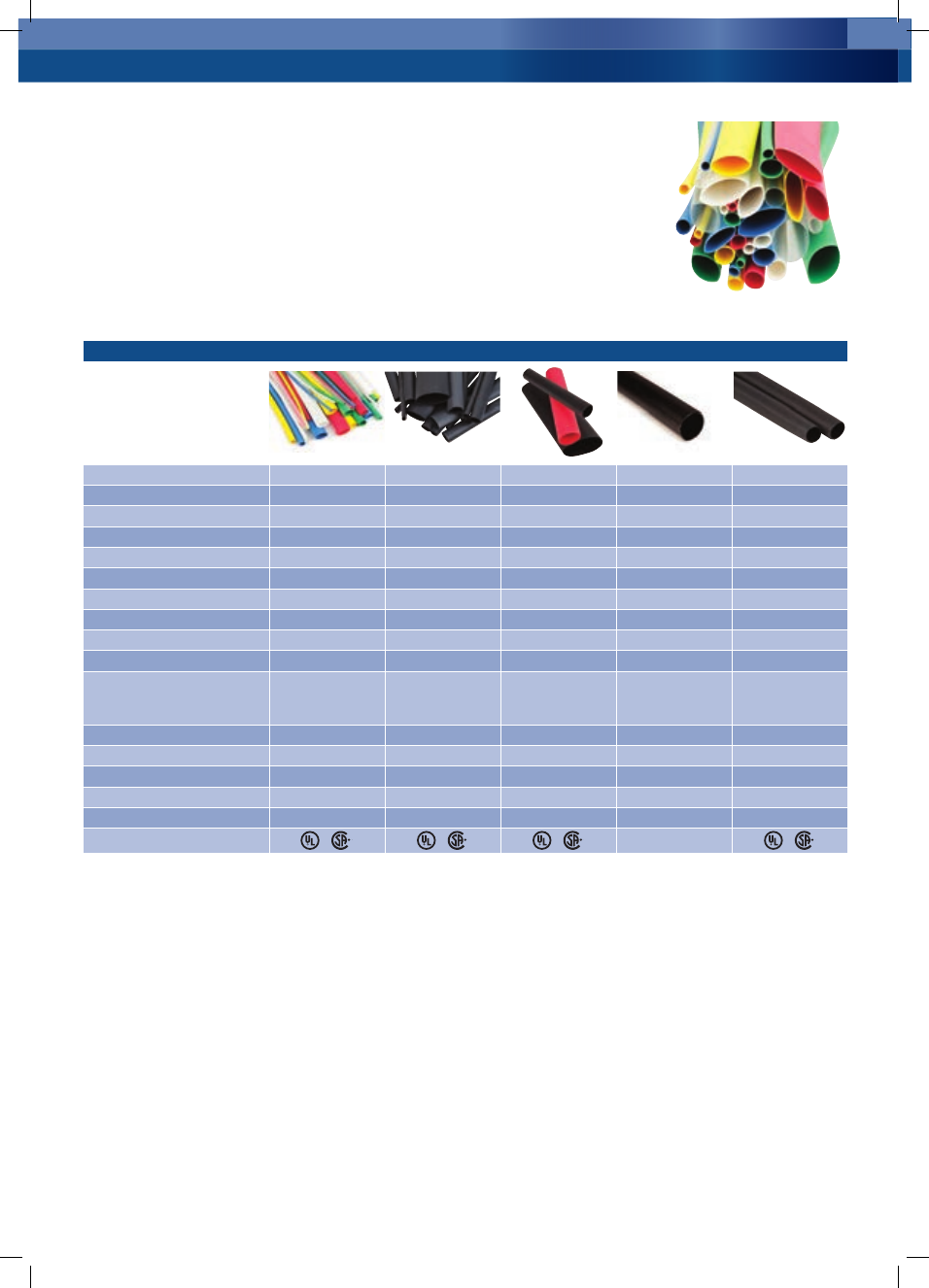

Overview & Selection Chart _________________________________________________________________________ 23

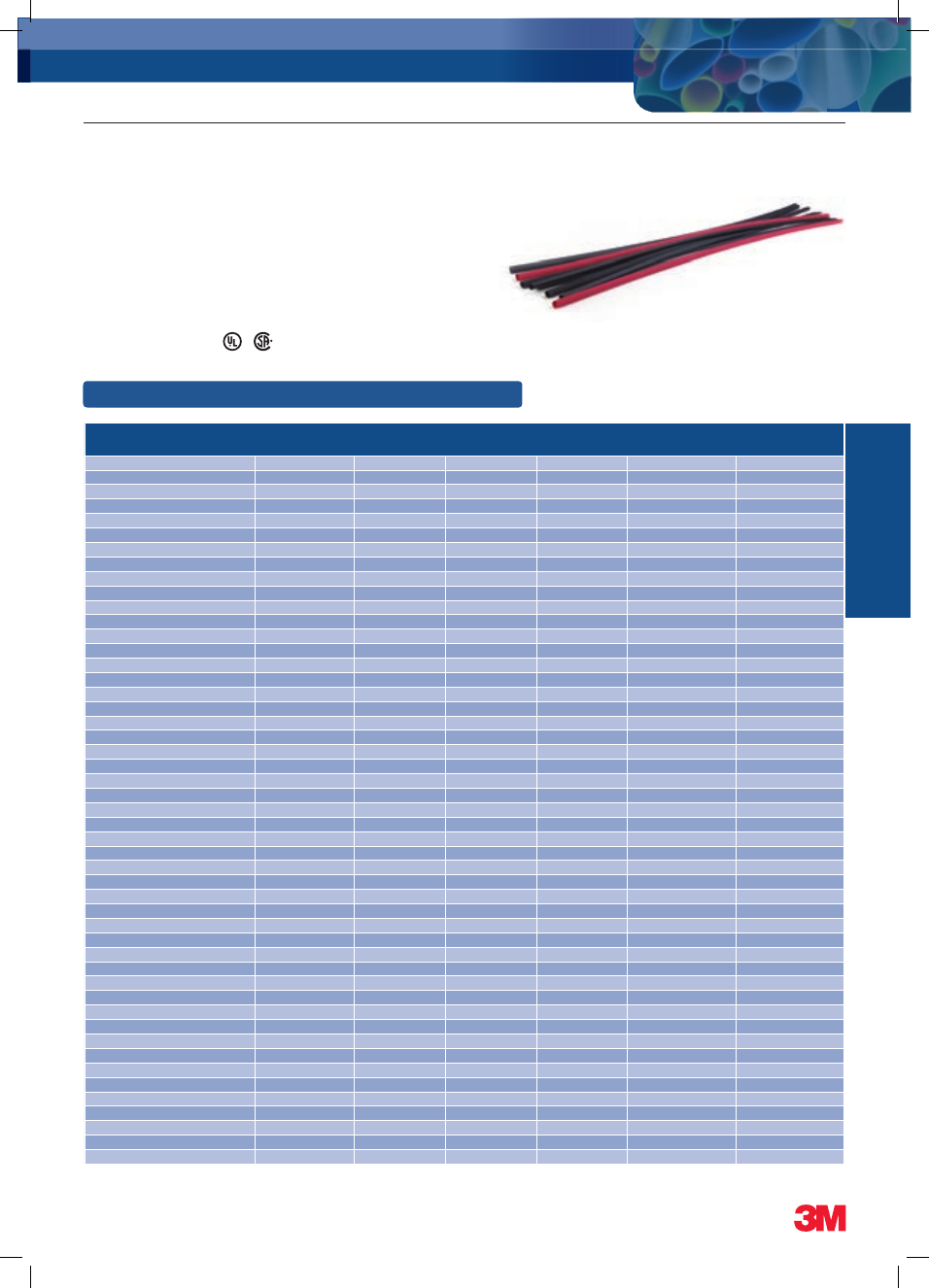

Heat Shrink - Thin Wall _____________________________________________________________________________ 24-25

Heat Shrink - Adhesive Lined ___________________________________________________________________________ 25

Heat Shrink - Medium and Heavy Wall ____________________________________________________________________ 26

™

Cable Accessories _________________________________________________________ 27

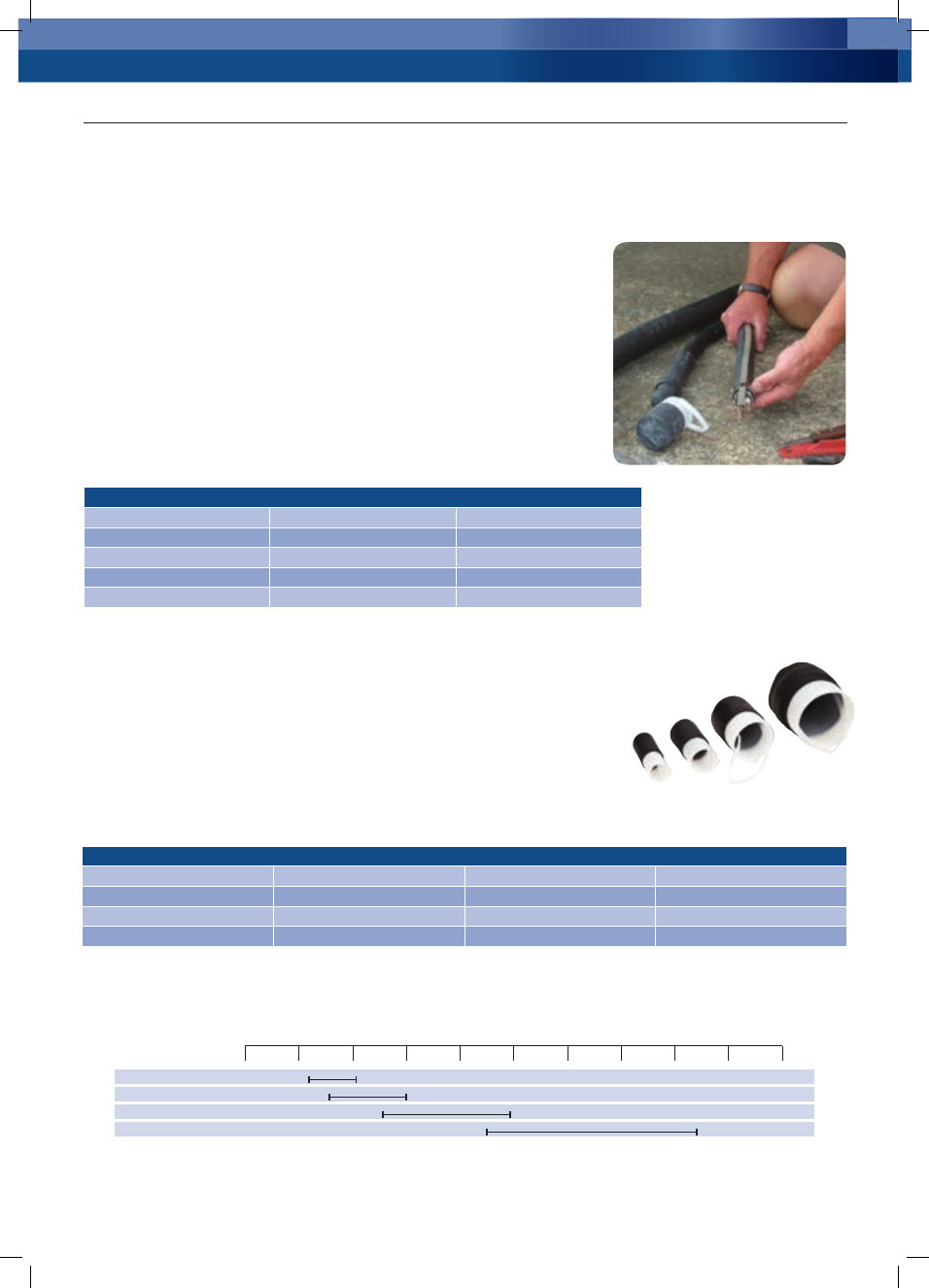

Cold Shrink Abandonment Kits CSCAK Series _______________________________________________________________ 27

Cold Shrink End Caps EC Series _________________________________________________________________________ 27

HDCW Wraparound Heat Shrink Cable Repair _______________________________________________________________ 28

Heat Shrink End Caps SKE Series ________________________________________________________________________ 28

Heat Shrink Break Out Boots SKE Series ___________________________________________________________________ 29

Constant Force Springs _______________________________________________________________________________ 29

Cleaning Products __________________________________________________________________________________ 30

Lubricants and Coatings ______________________________________________________________________________ 30

™

& 3M

™

Scotchlok

™

Wire Connectors & Tools _____________________________________ 31

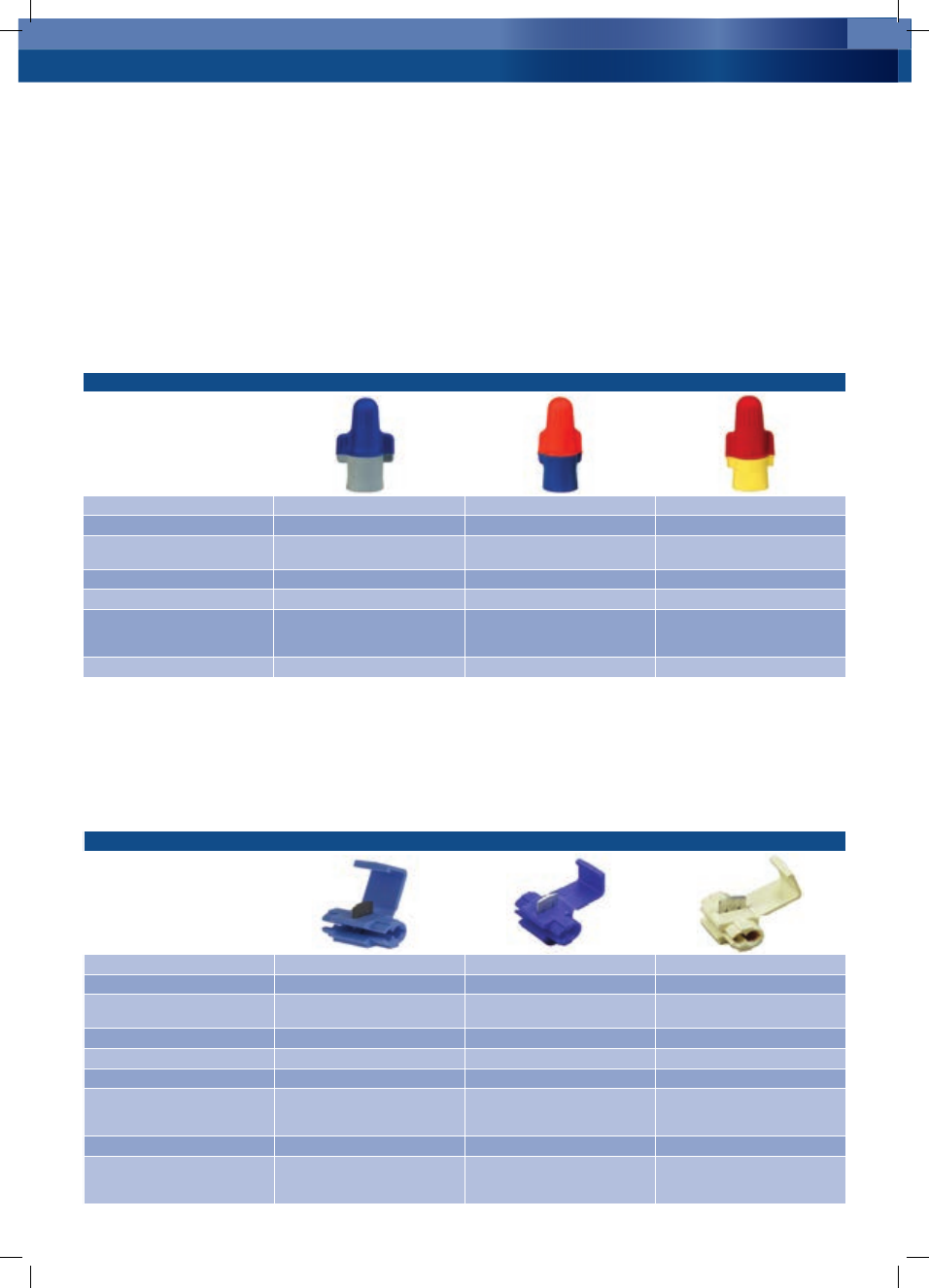

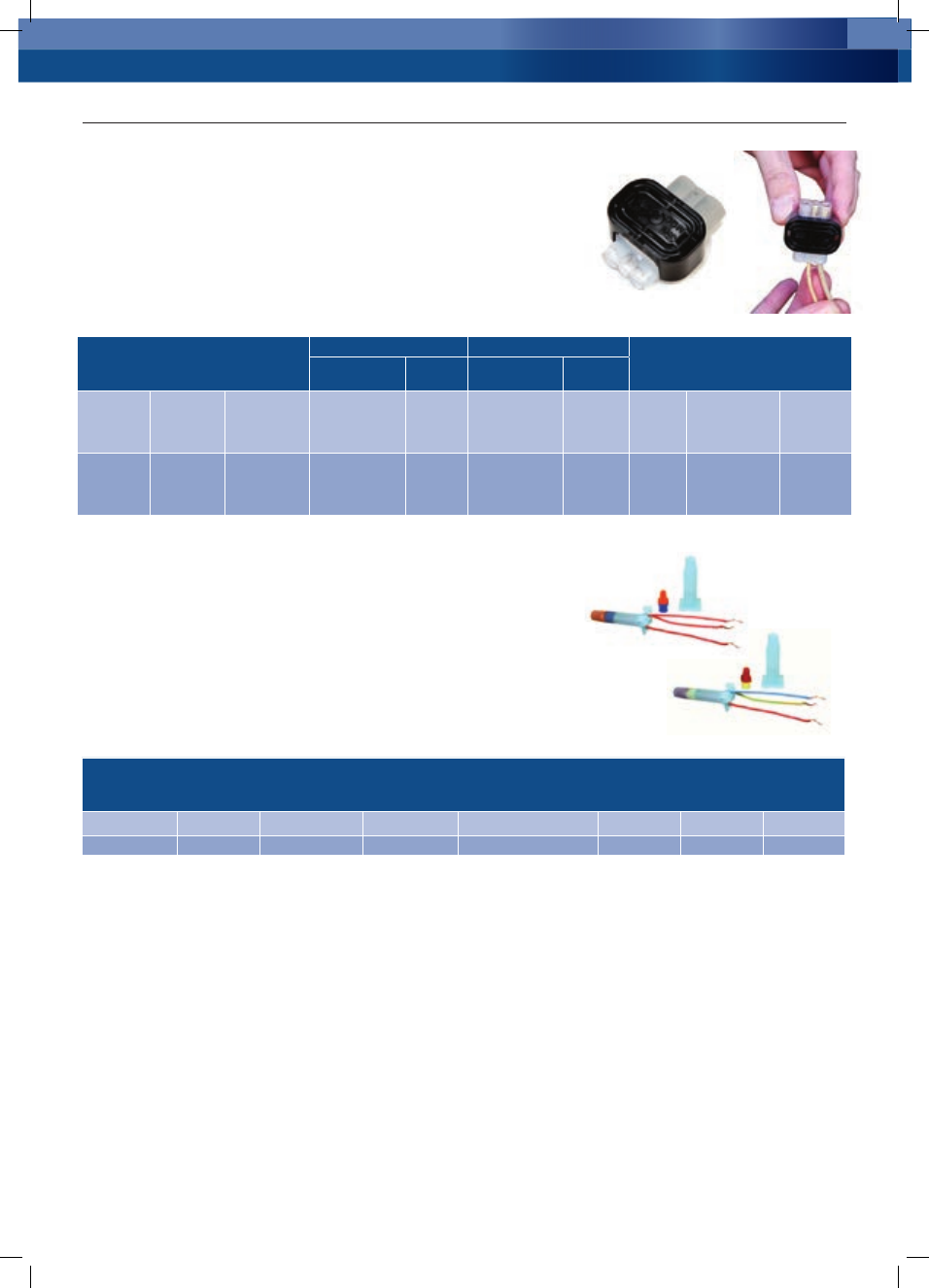

Spring Connectors __________________________________________________________________________________ 31

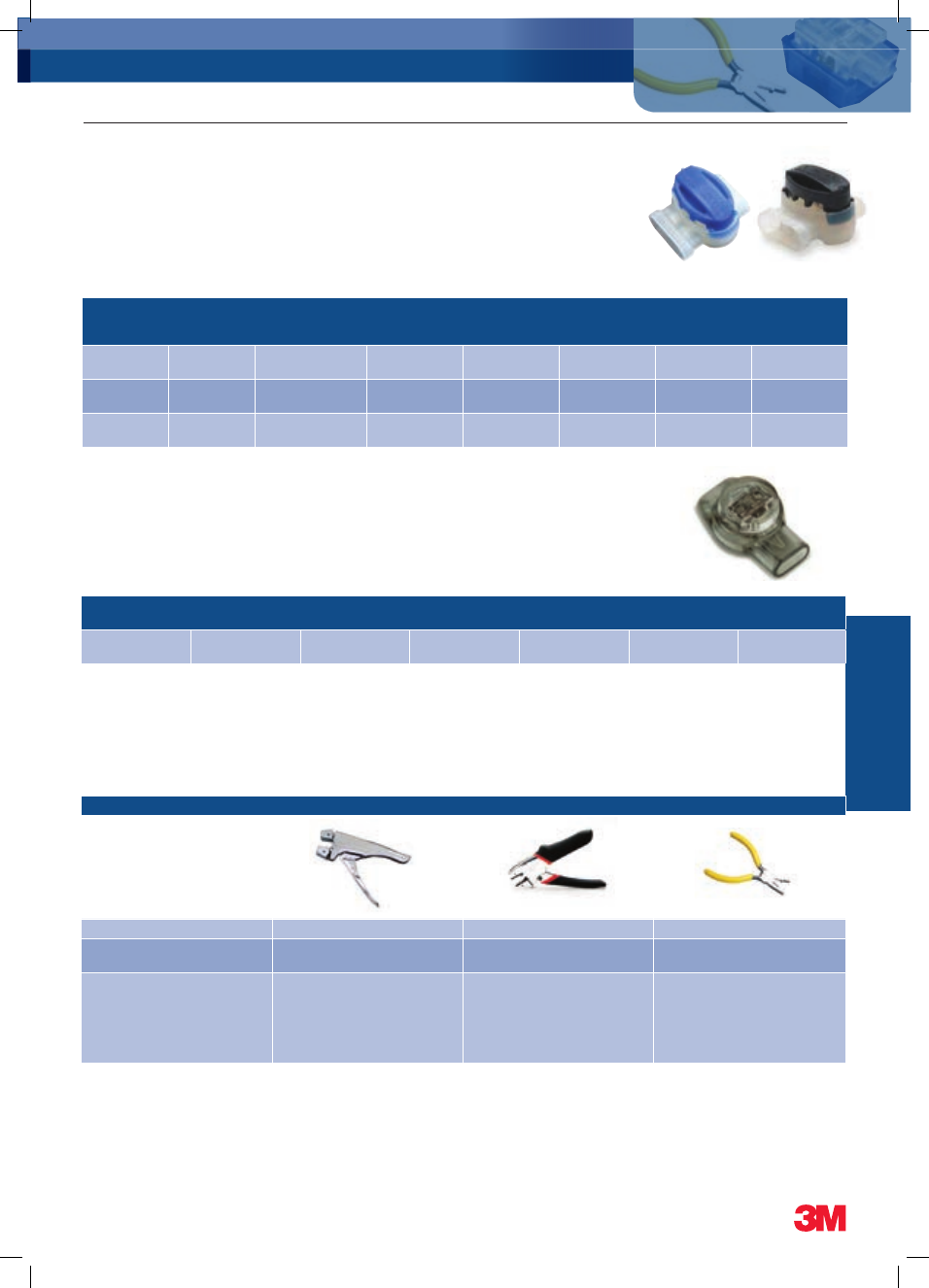

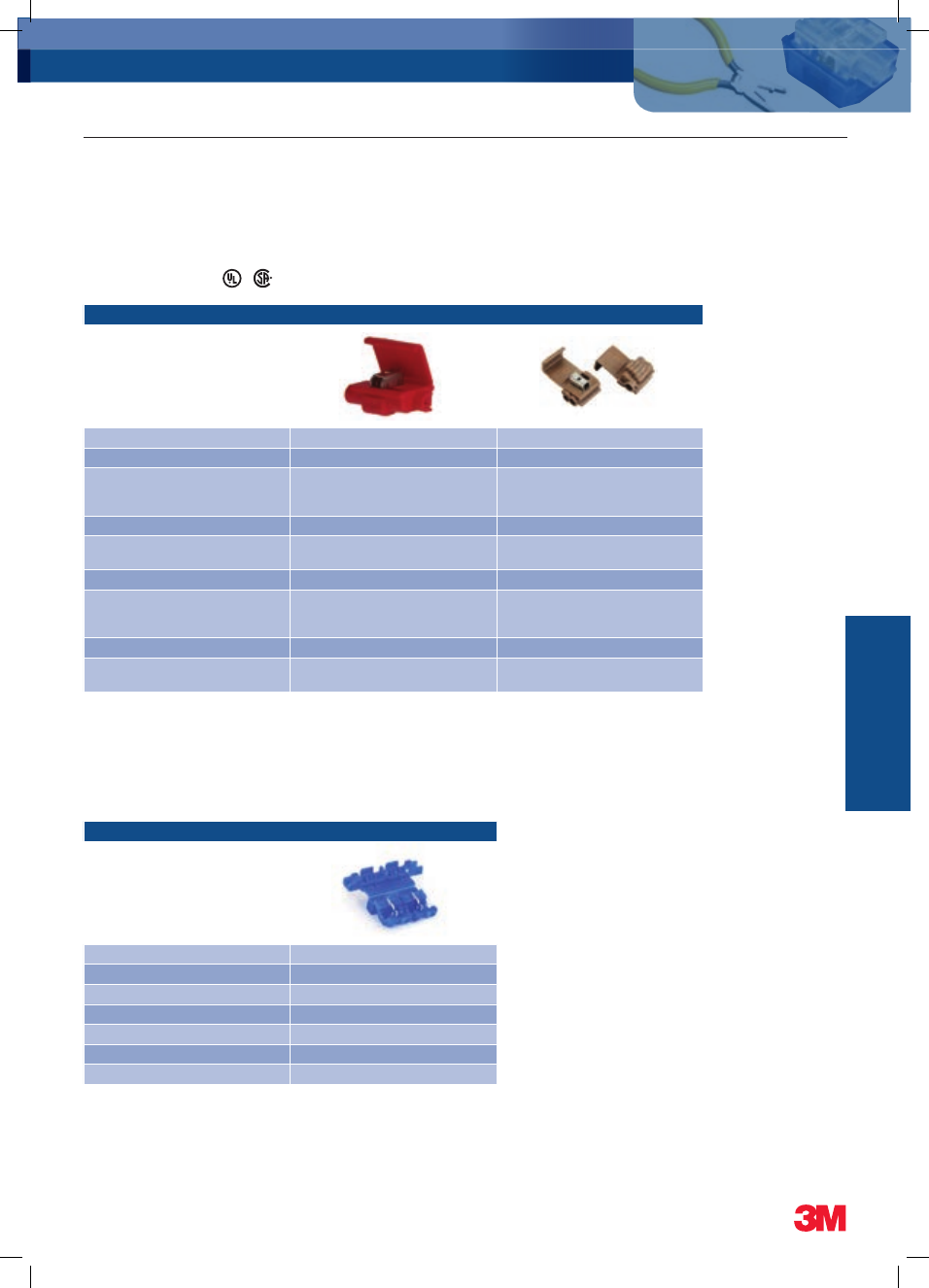

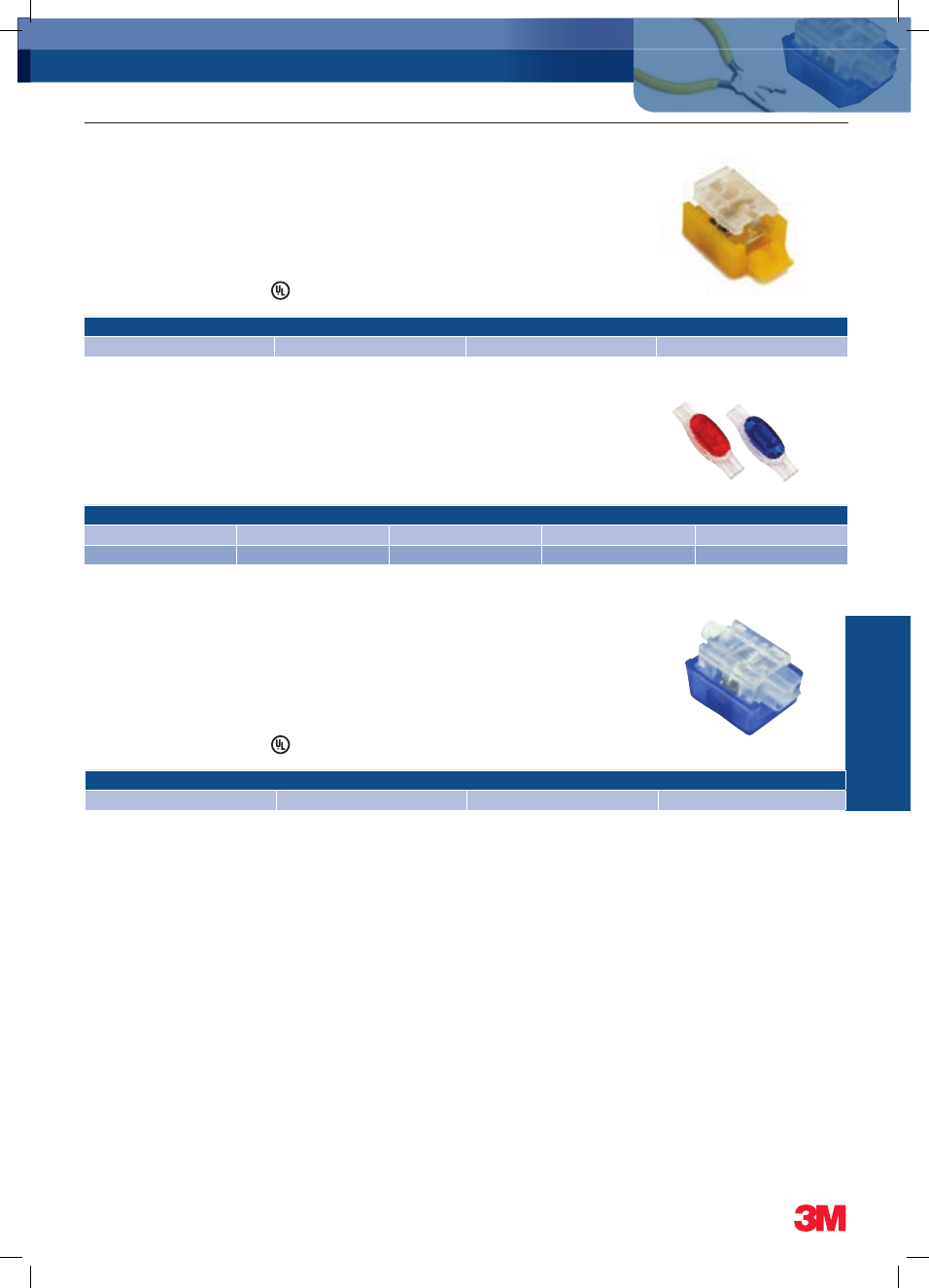

Scotchlok IDC Connectors for Electrical Applications _________________________________________________________ 31-32

Scotchlok IDC Connectors for Communication Applications ____________________________________________________ 33-34

Irrigation/Moisture Resistant Connectors ___________________________________________________________________ 35

Crimping Tools _____________________________________________________________________________________ 36

™

Electrical Solutions -

Contents

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Medium Voltage Solutions up to 33 kV __________________________________________ 37

Introduction & Terminations Overview _________________________________________________________________ 37

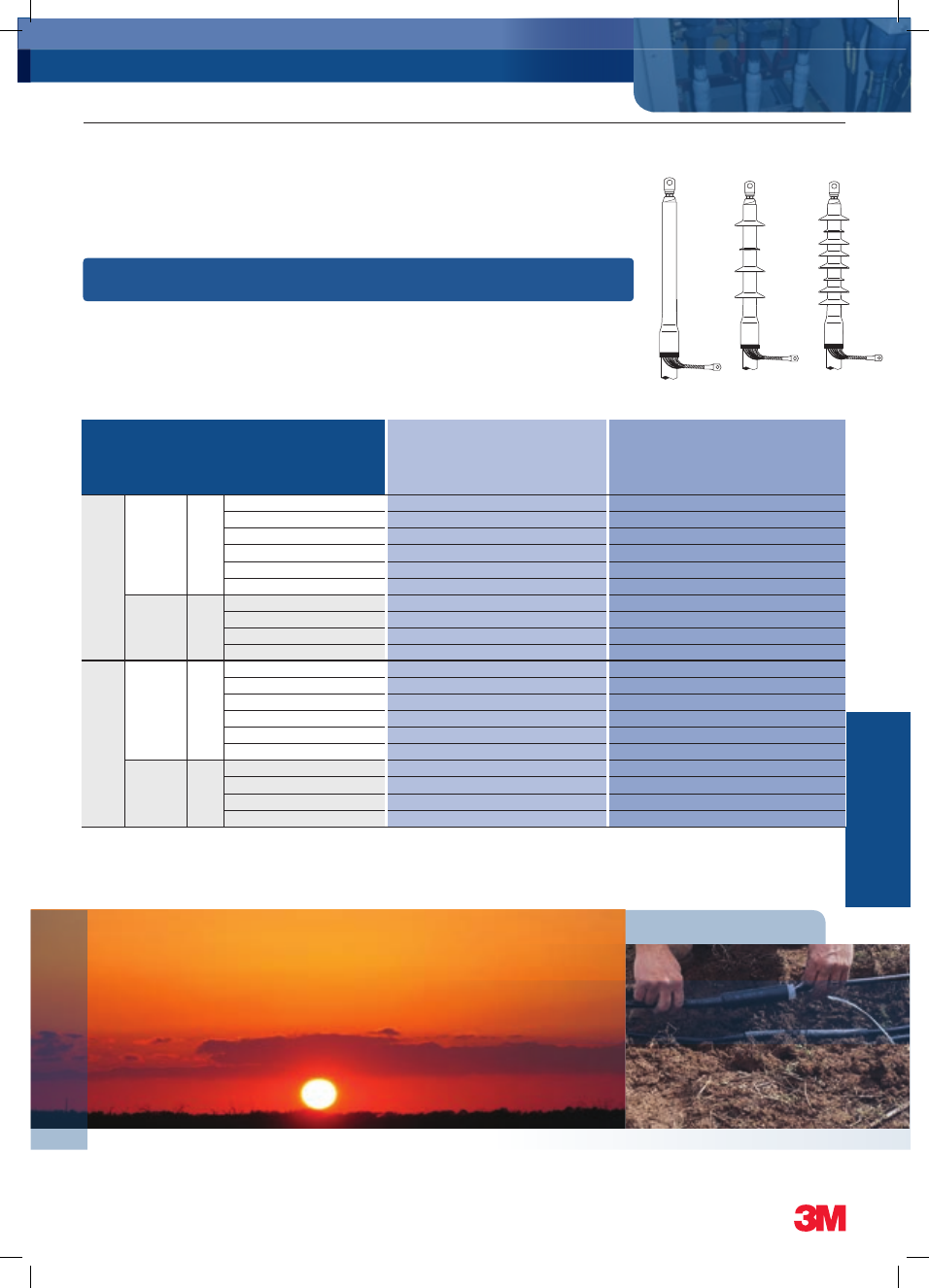

Cold Shrink QT-III Cable Termination Kits for Single Core Cable - Australia __________________________________________ 38-39

Cold Shrink QT-III Cable Termination Kits for Three Core Cable - Australia __________________________________________ 40-41

Cold Shrink QT-II Cable Termination Kits for Single Core Cable - Australia __________________________________________ 42-43

Cold Shrink QT-II Cable Termination Kits for Three Core Cable - Australia _____________________________________________ 44

Cold Shrink Trifurcating Kits - Australia ____________________________________________________________________ 45

Cold Shrink QT-III Cable Termination Kits for Single Core Cable - New Zealand _________________________________________ 46

Cold Shrink QT-III Cable Termination Kits for Three Core Cable - New Zealand _________________________________________ 47

Cold Shrink Trifurcating Kits - New Zealand _________________________________________________________________ 48

Joints Overview __________________________________________________________________________________ 49

Cold Shrink QS2000E Cable Jointing Kits - Australia ___________________________________________________________ 50

Cold Shrink QS2000E Cable Jointing Kits - New Zealand _______________________________________________________ 51

Transition Joint Kits - New Zealand _______________________________________________________________________ 51

Termination Barrier Boots _____________________________________________________________________________ 52

Electrostatic Animal Guard ____________________________________________________________________________ 52

™

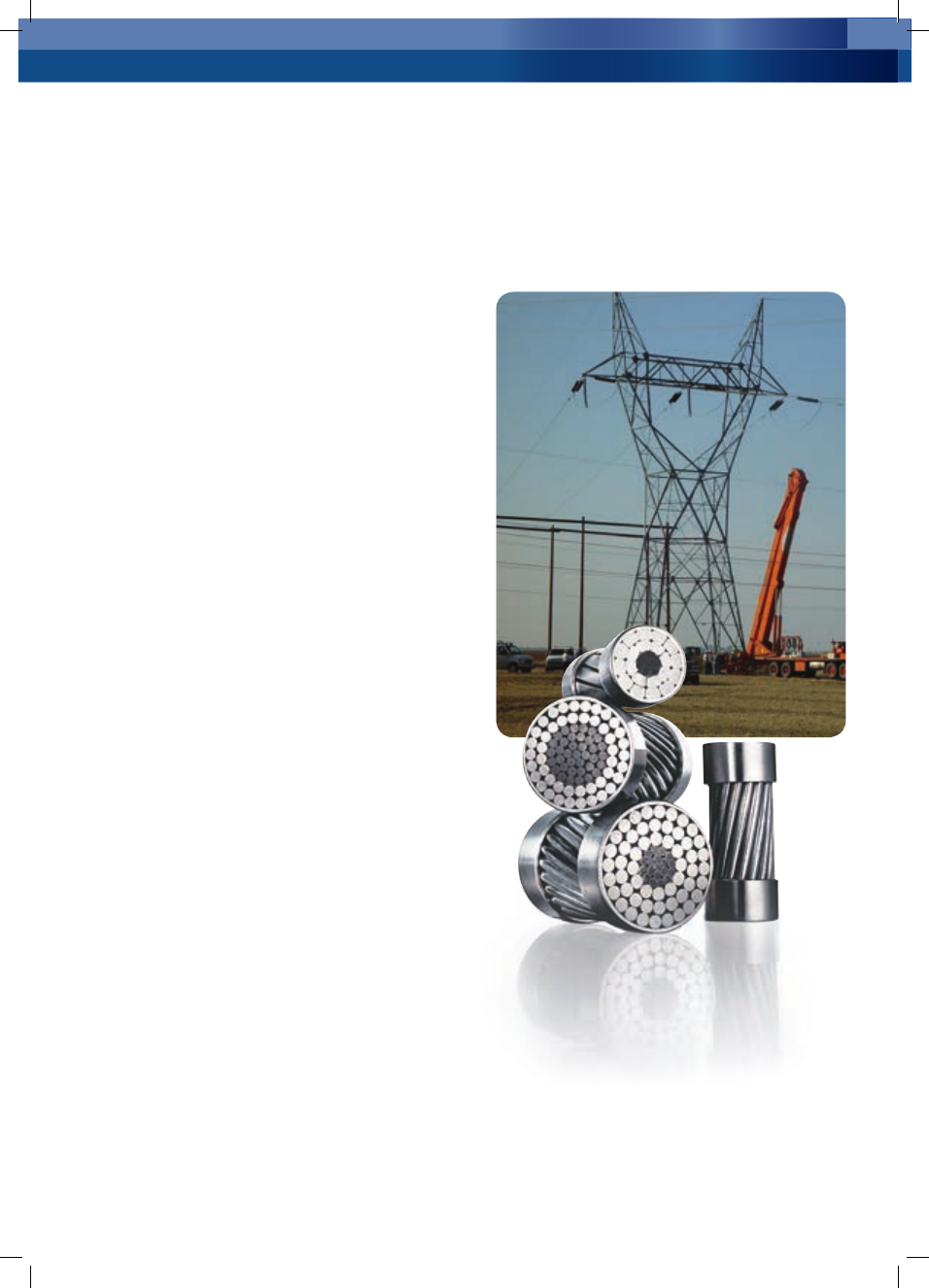

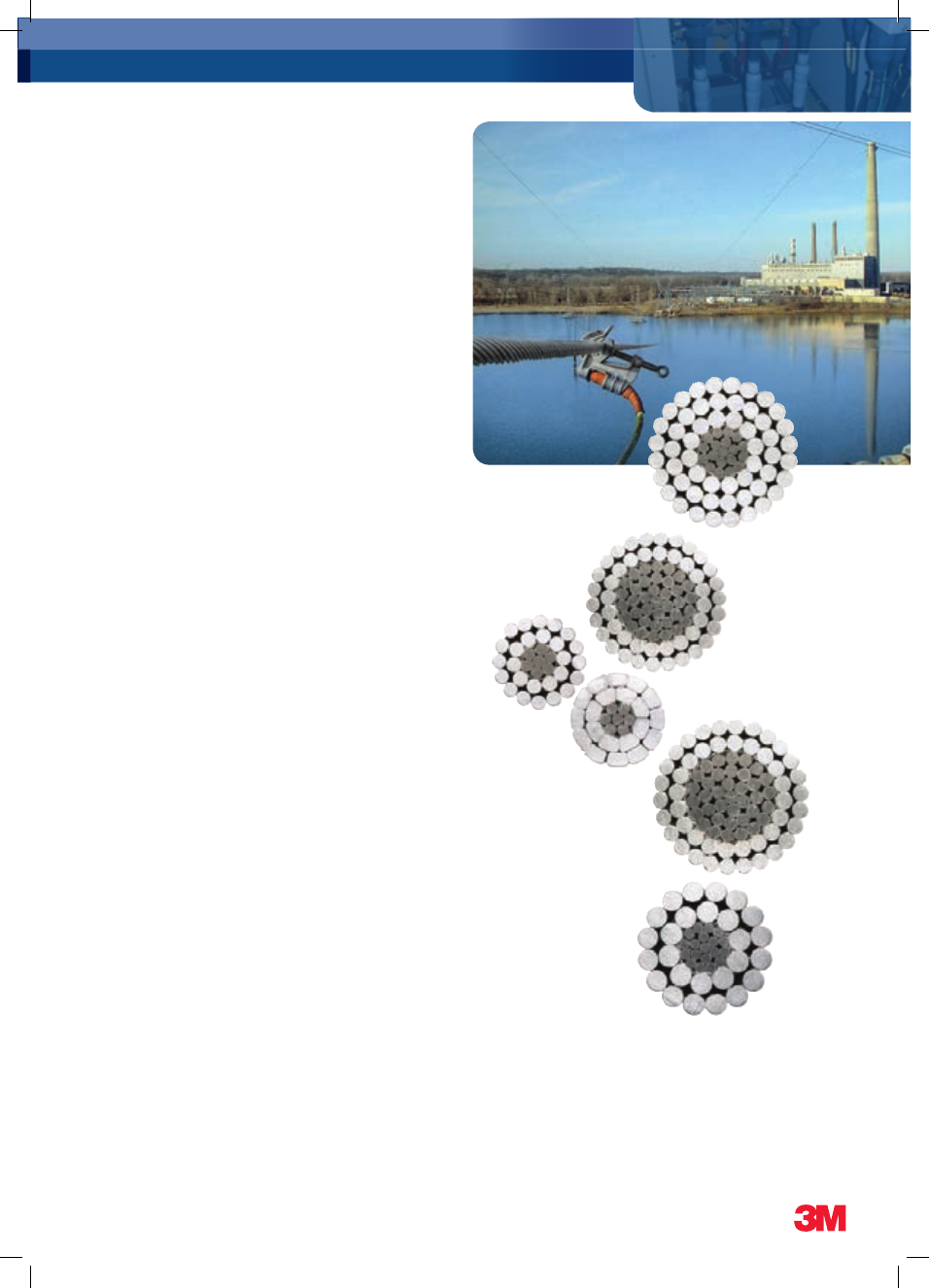

Aluminum Conductor Composite Reinforced (ACCR) _____________________________ 53-54

™

Identification Systems ______________________________________________________ 55

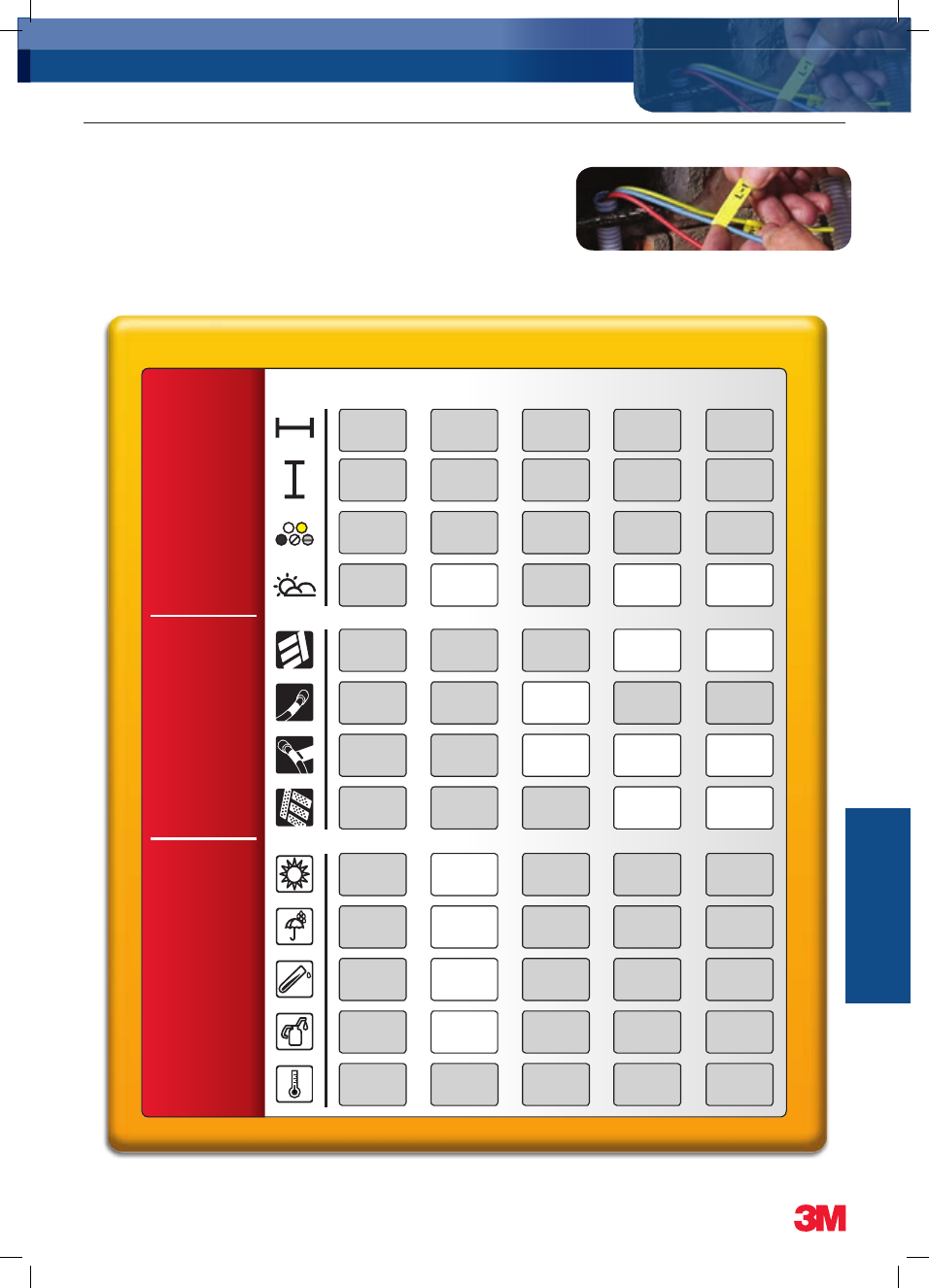

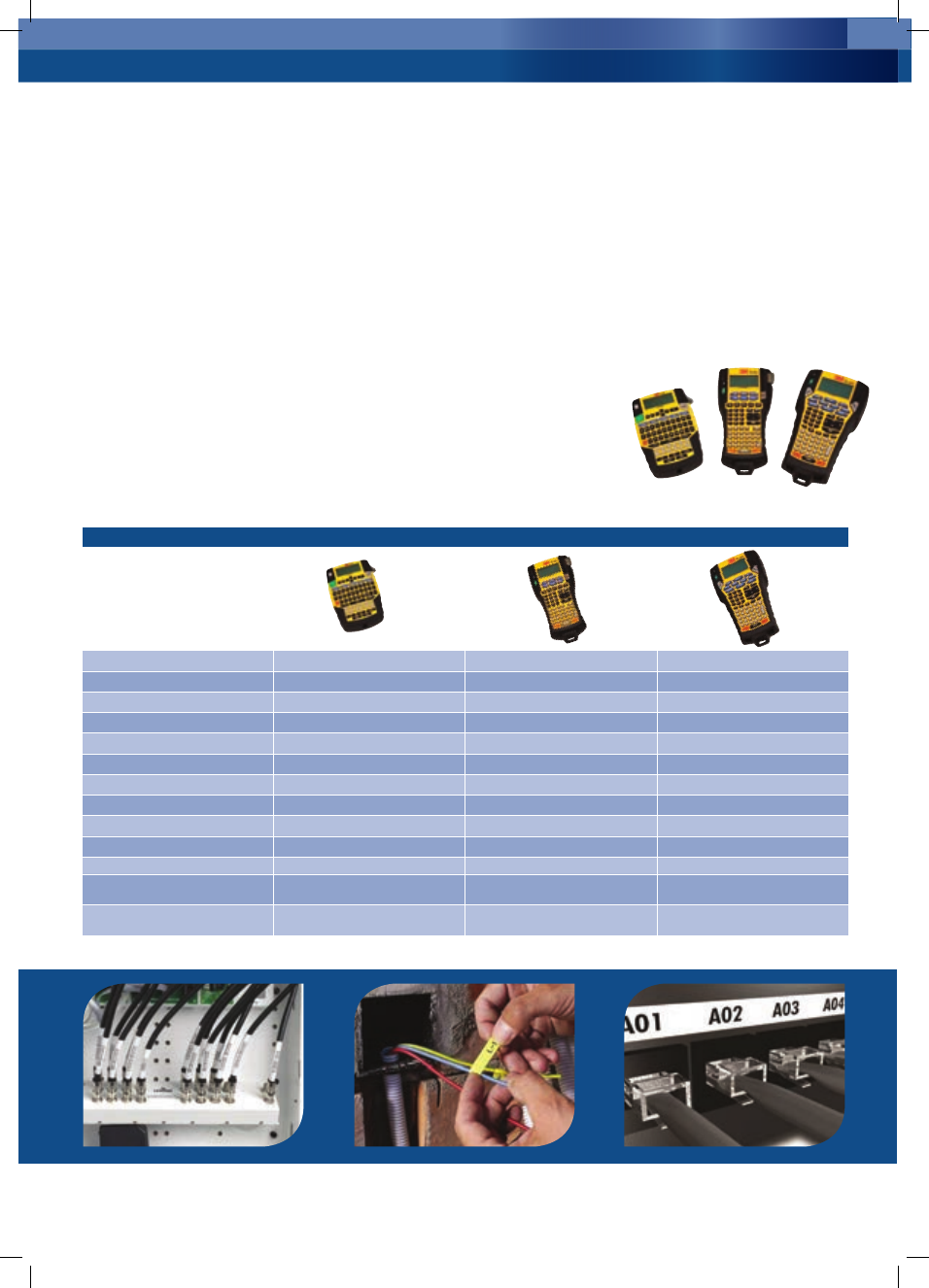

Labellers Overview & Selection Chart __________________________________________________________________ 55

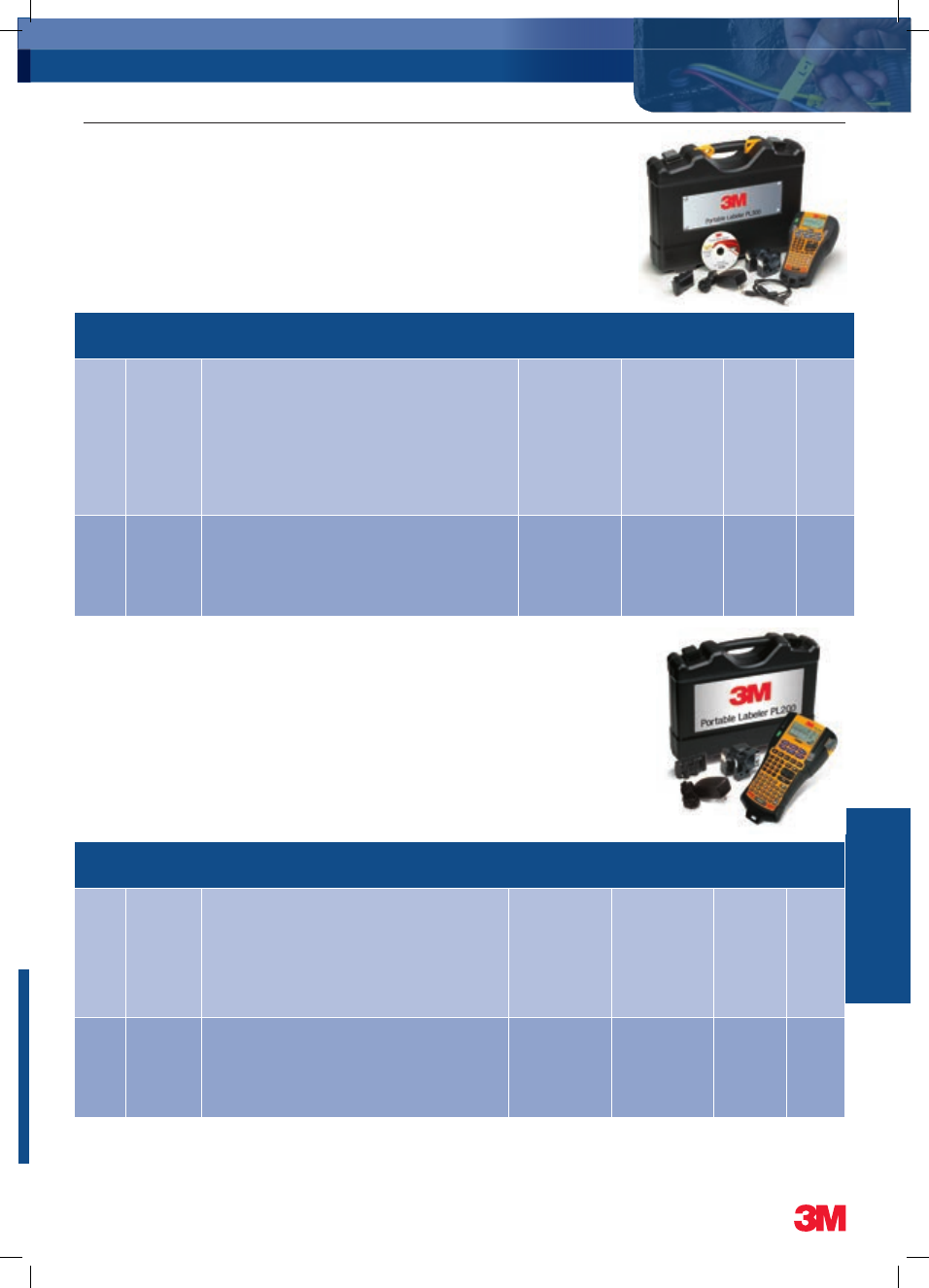

Portable Labellers ________________________________________________________________________________ 56-57

Cartridges Overview & Selection Chart _________________________________________________________________ 58

Portable Labeller Refill Cartridges ______________________________________________________________________ 58-59

Portable Labeller Embosser PLE & Tapes ___________________________________________________________________ 57

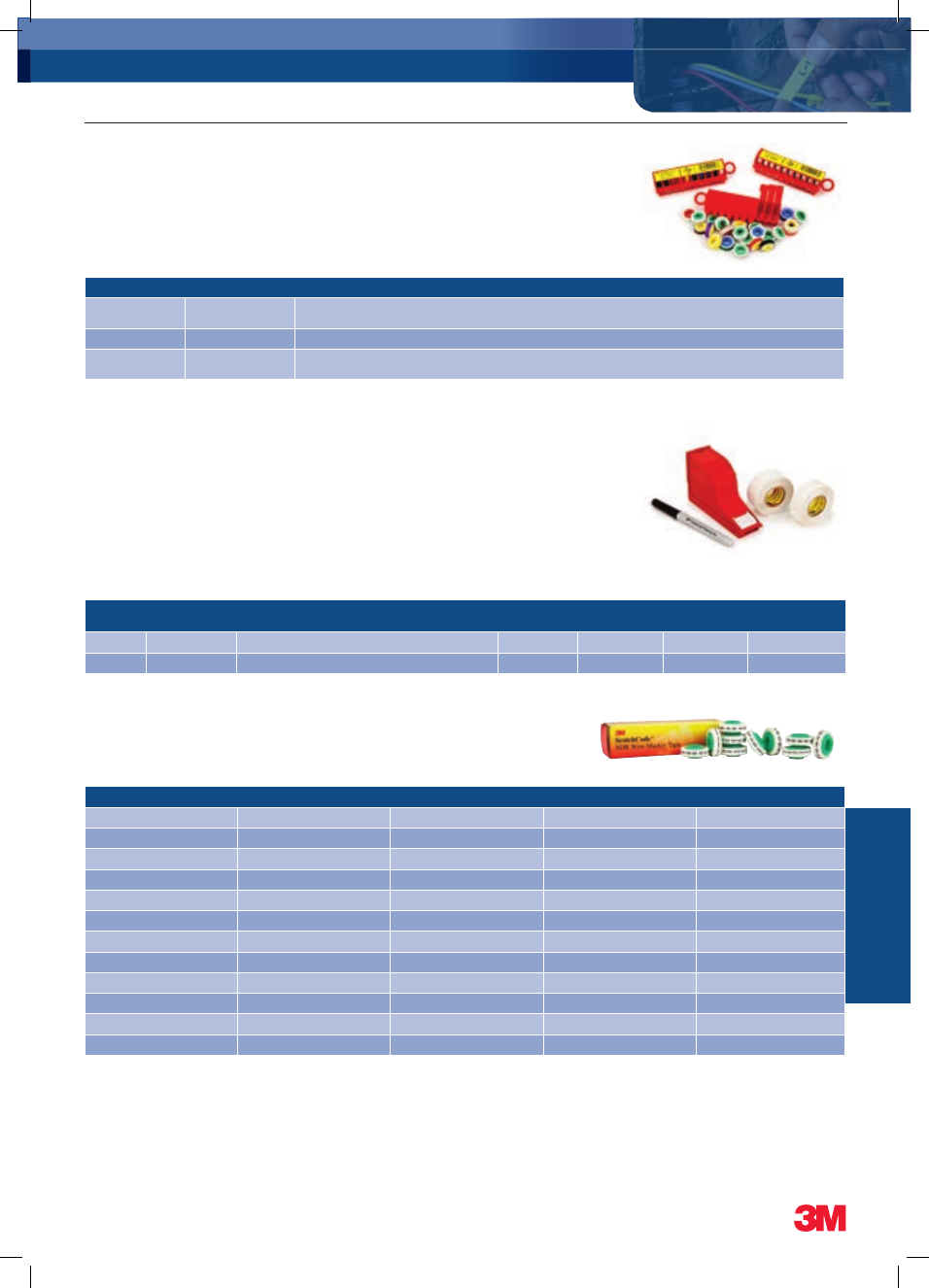

ScotchCode™ Wire Marker Systems _____________________________________________________________________ 60

™

Dynatel

™

Locating & Marking Systems __________________________________________ 61

Overview ________________________________________________________________________________________ 61

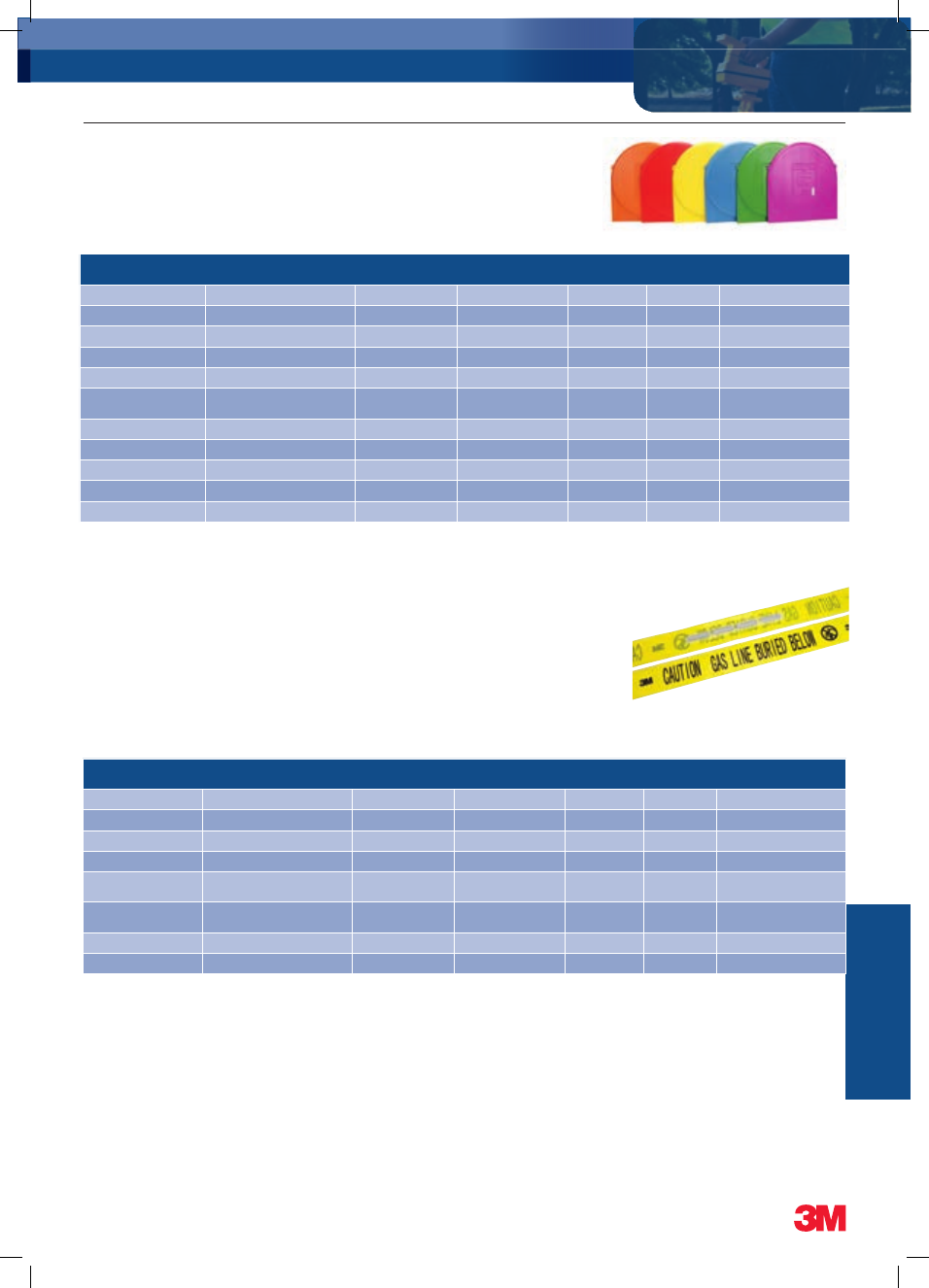

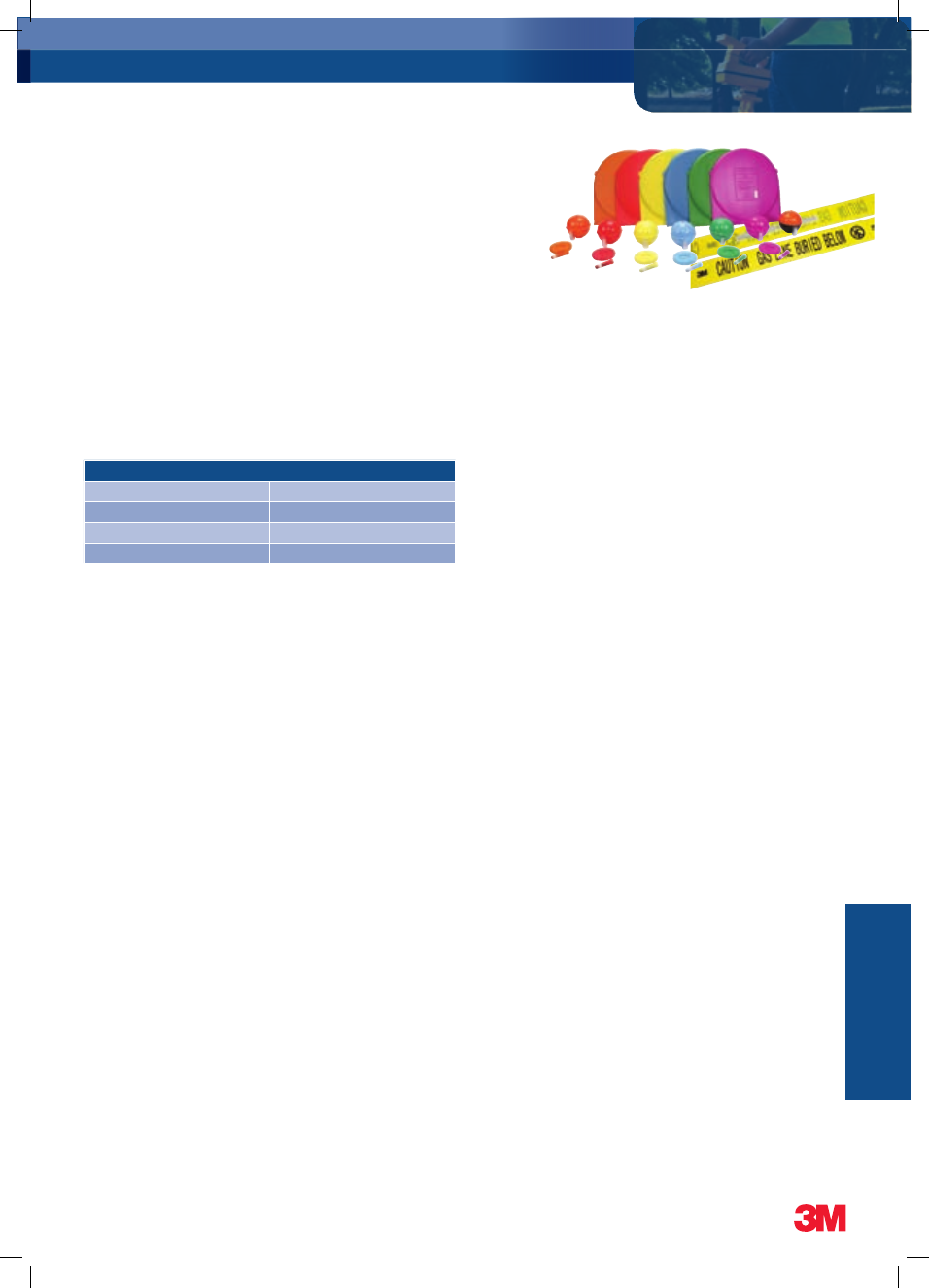

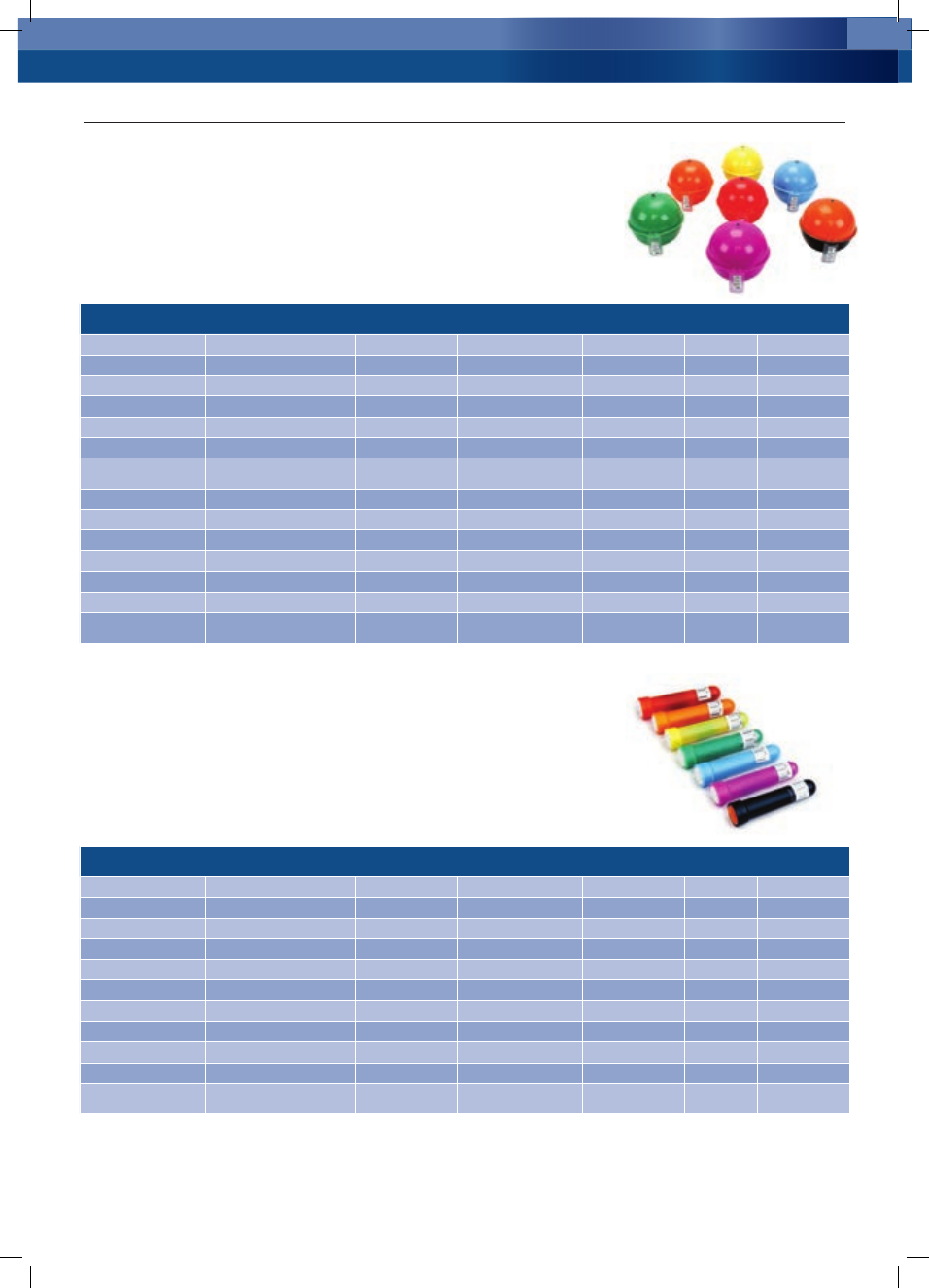

Electronic Marking Systems & Caution Tape ______________________________________________________________ 62-64

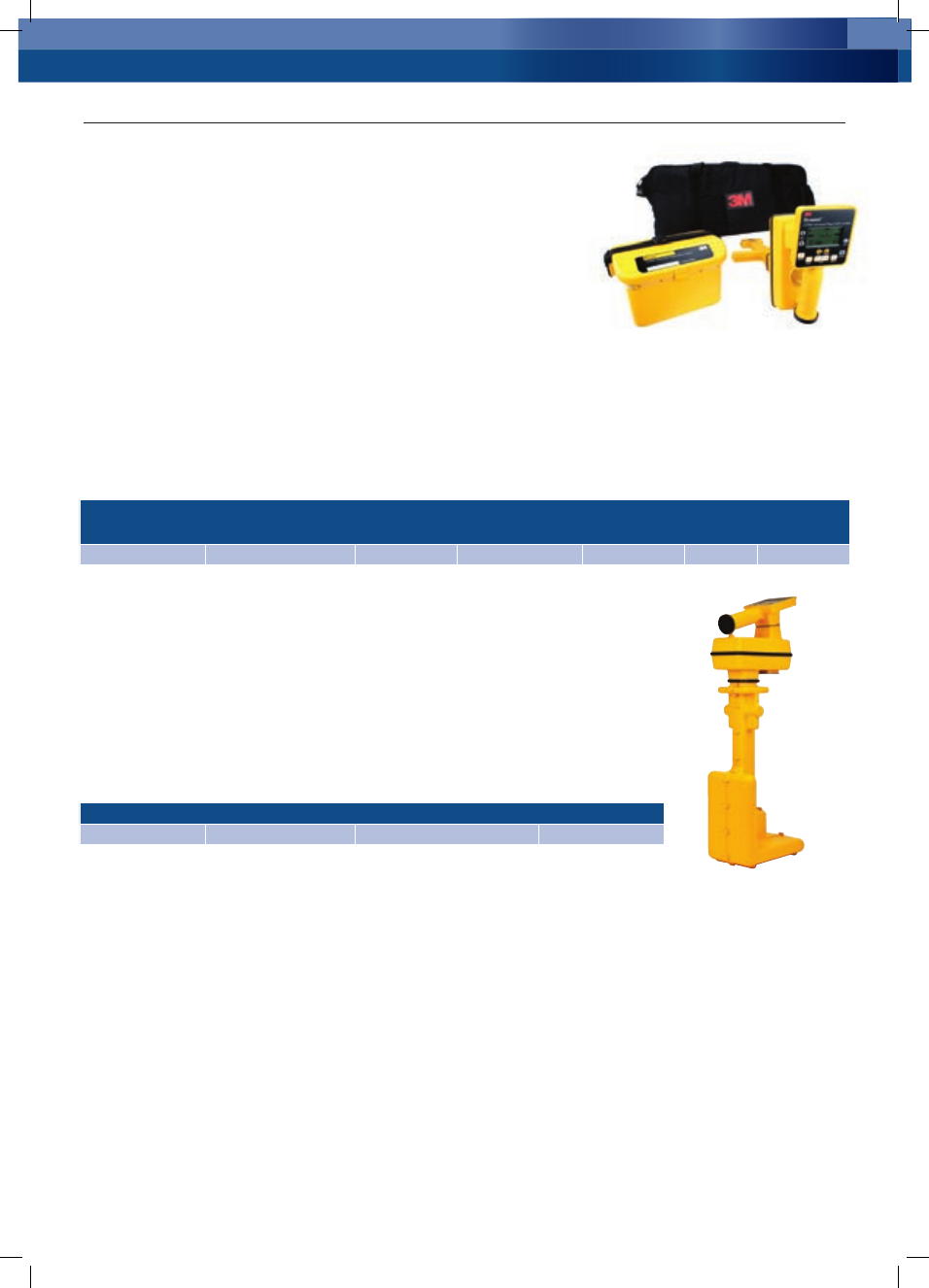

Locators

_______________________________________________________________________________________ 65-66

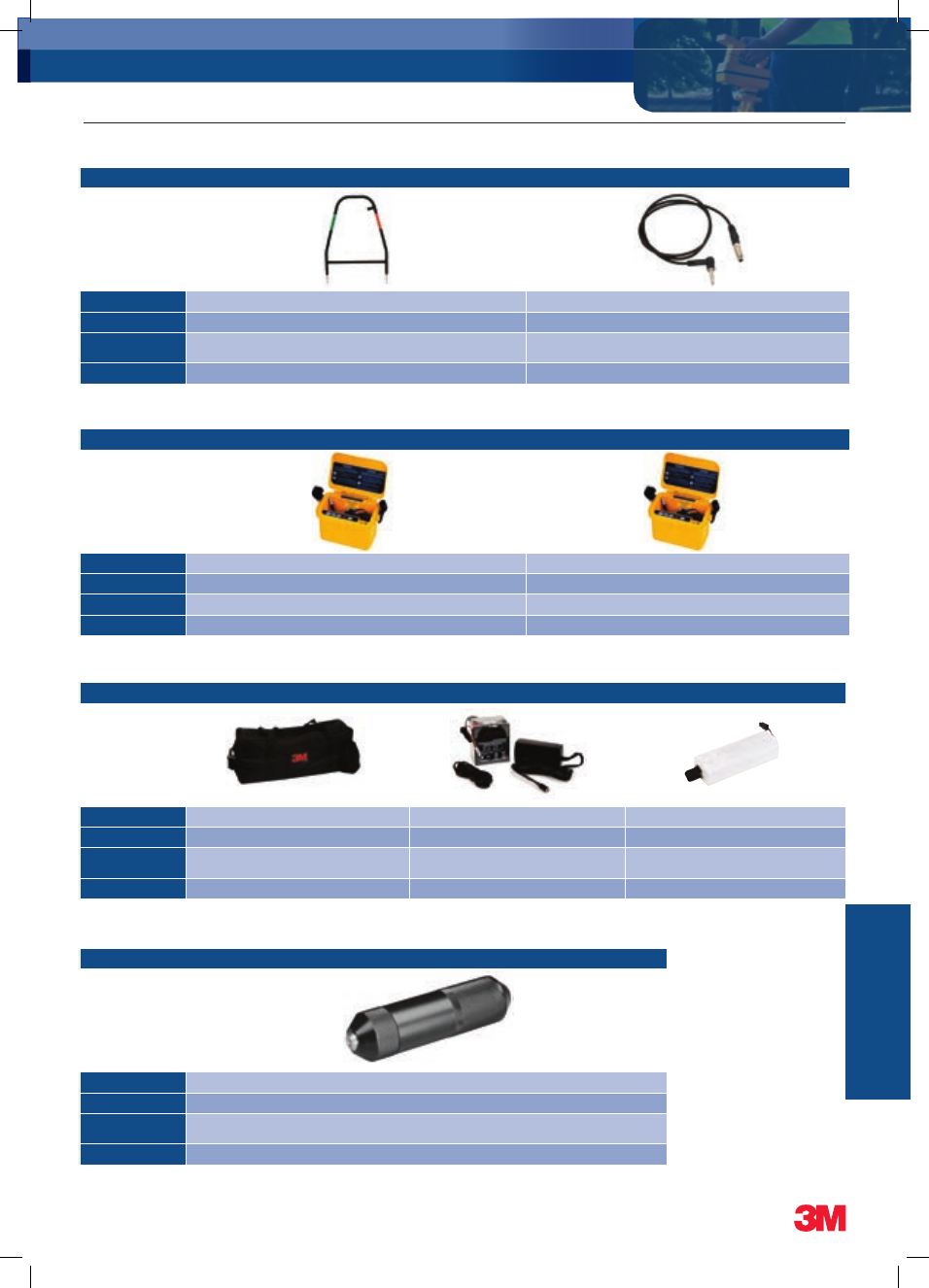

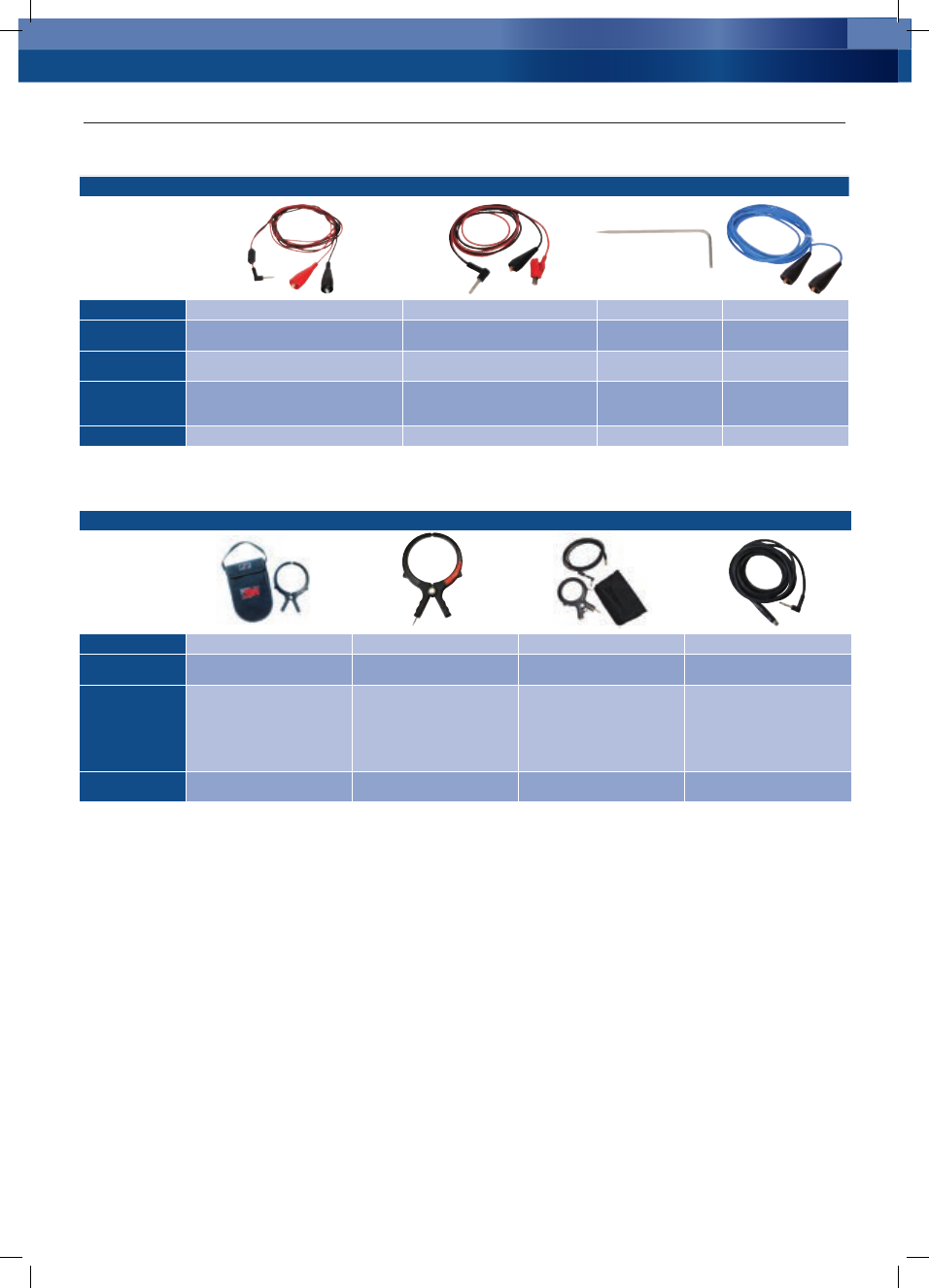

Locator Accessories _______________________________________________________________________________ 67-68

™

Personal Safety Products ____________________________________________________ 69

Overview ________________________________________________________________________________________ 69

Passive Hearing Protection ____________________________________________________________________________ 70

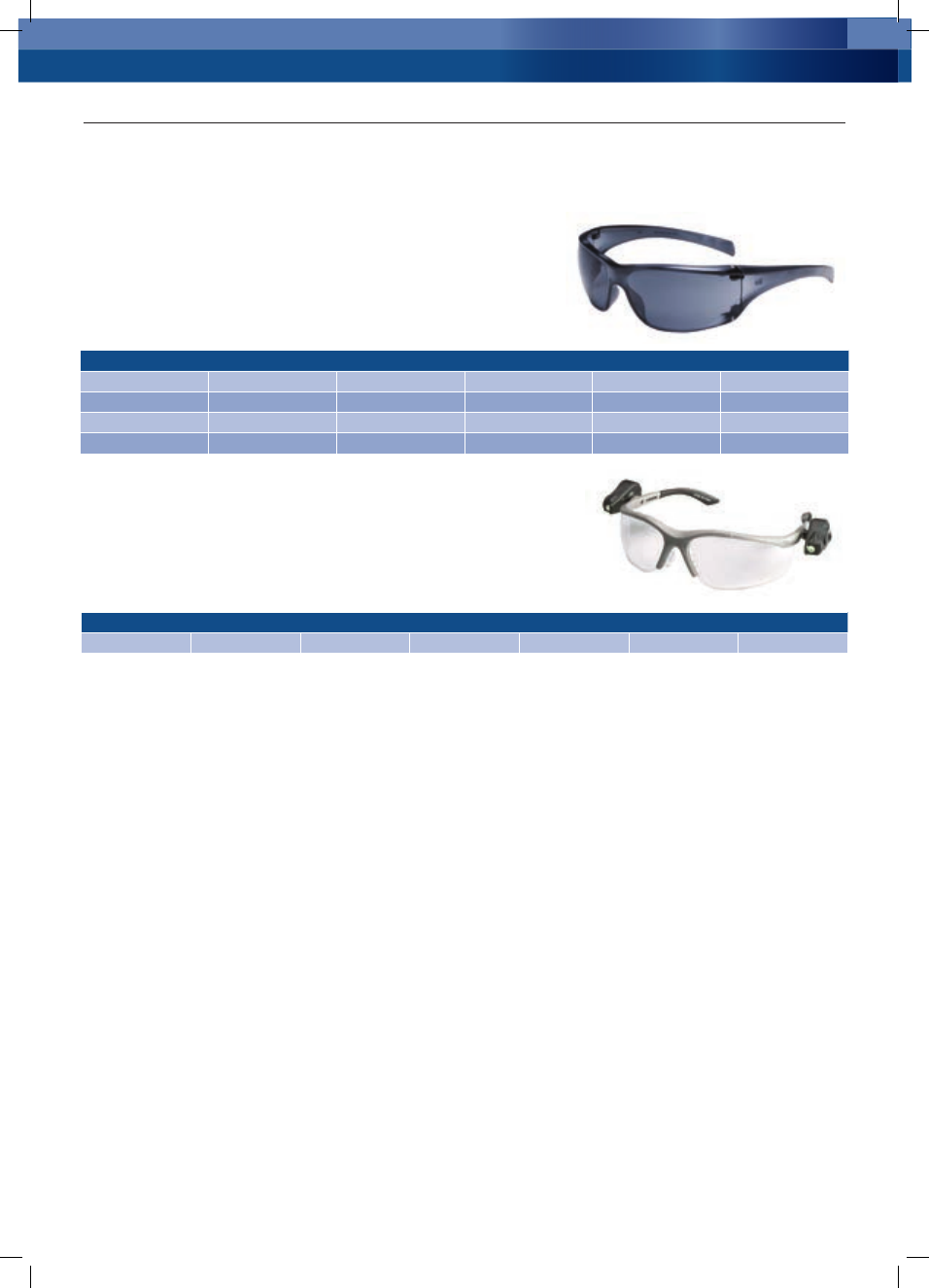

Eye Protection _____________________________________________________________________________________ 71

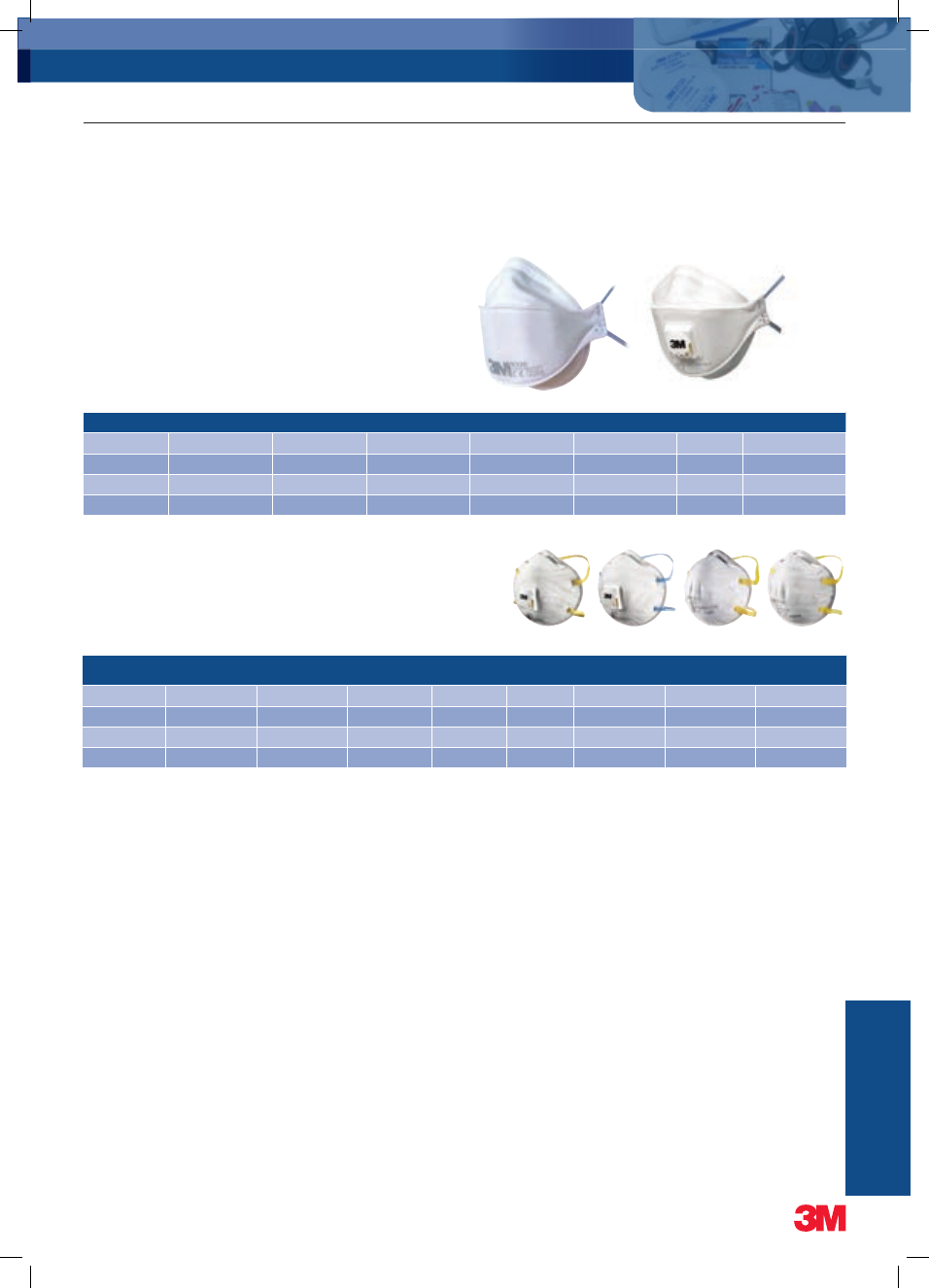

Disposable Respiratory Protection _______________________________________________________________________ 72

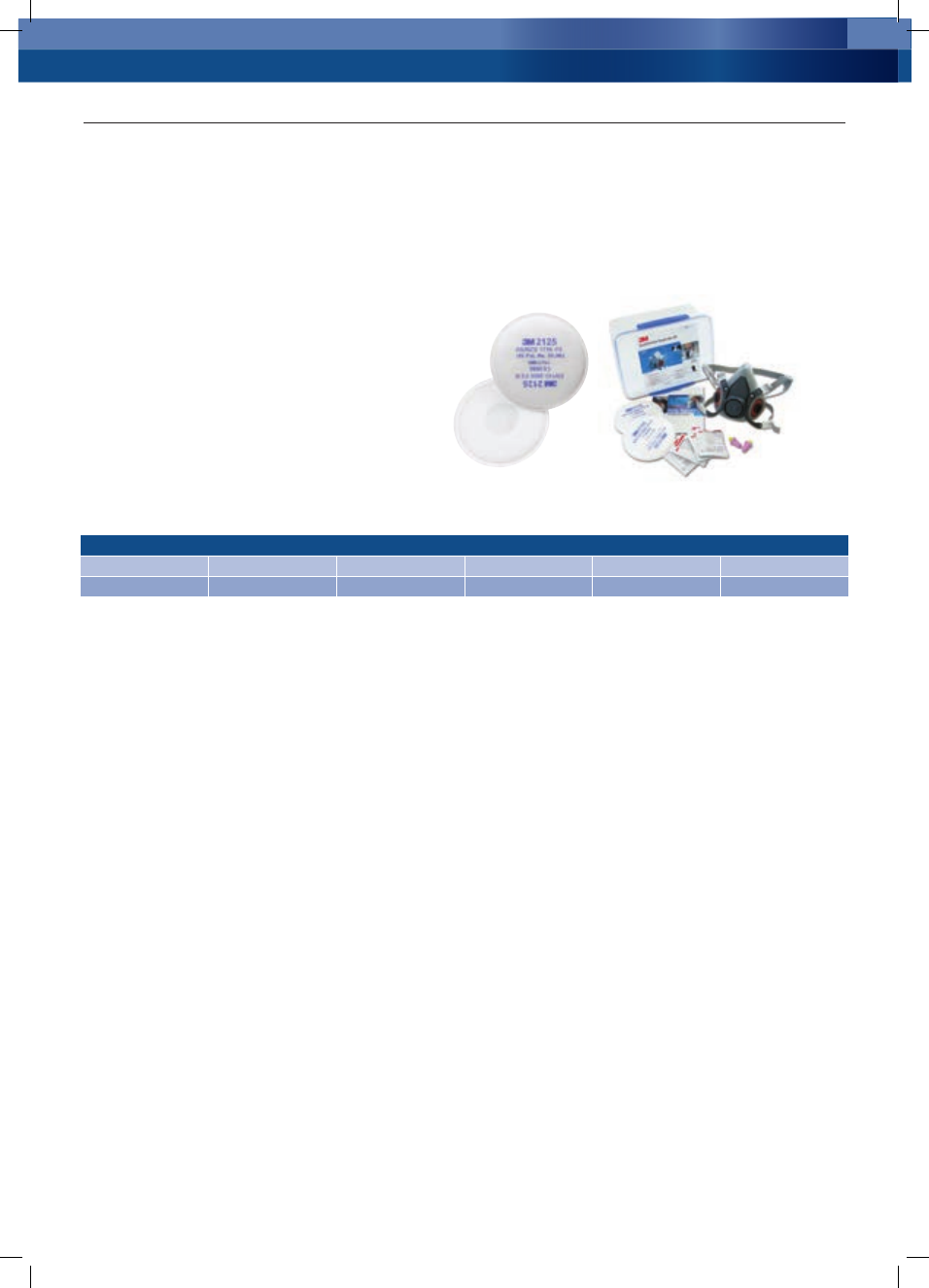

Reusable Respiratory Protection __________________________________________________________________________ 73

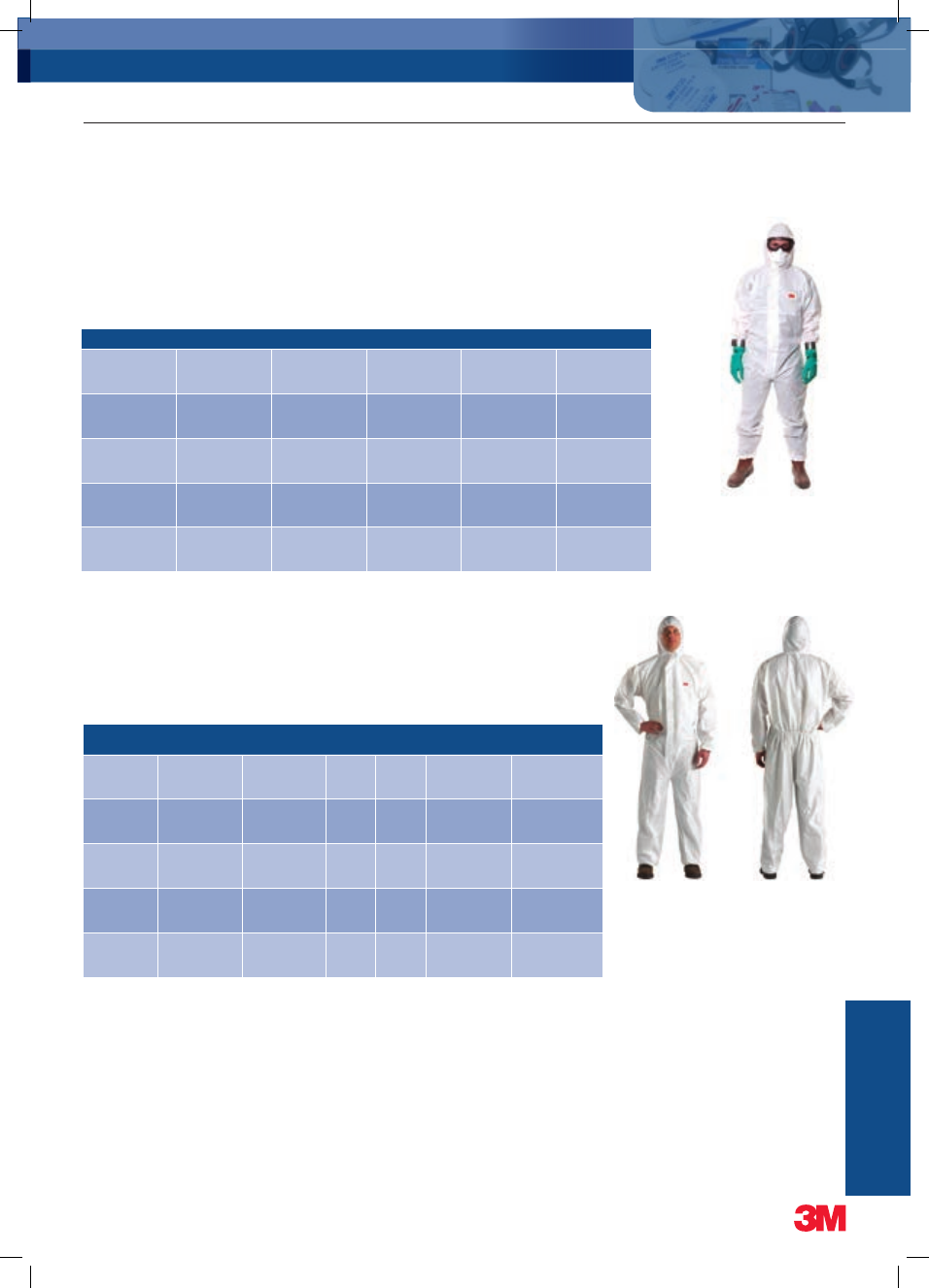

Body Protection ____________________________________________________________________________________ 74

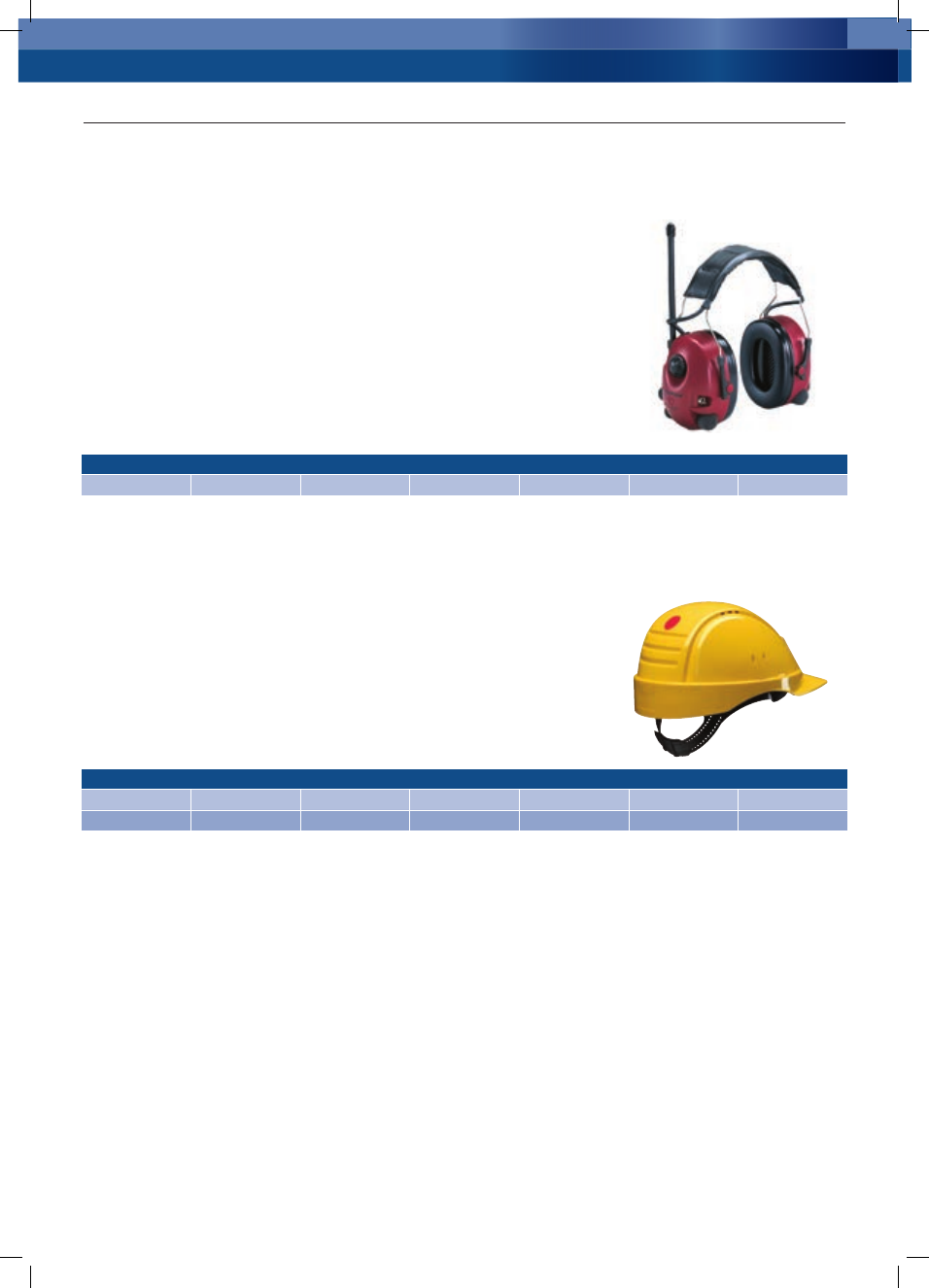

Active Hearing Protection _____________________________________________________________________________ 75

Head & Face Protection ______________________________________________________________________________ 75

Index _____________________________________________________________________ 76-78

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

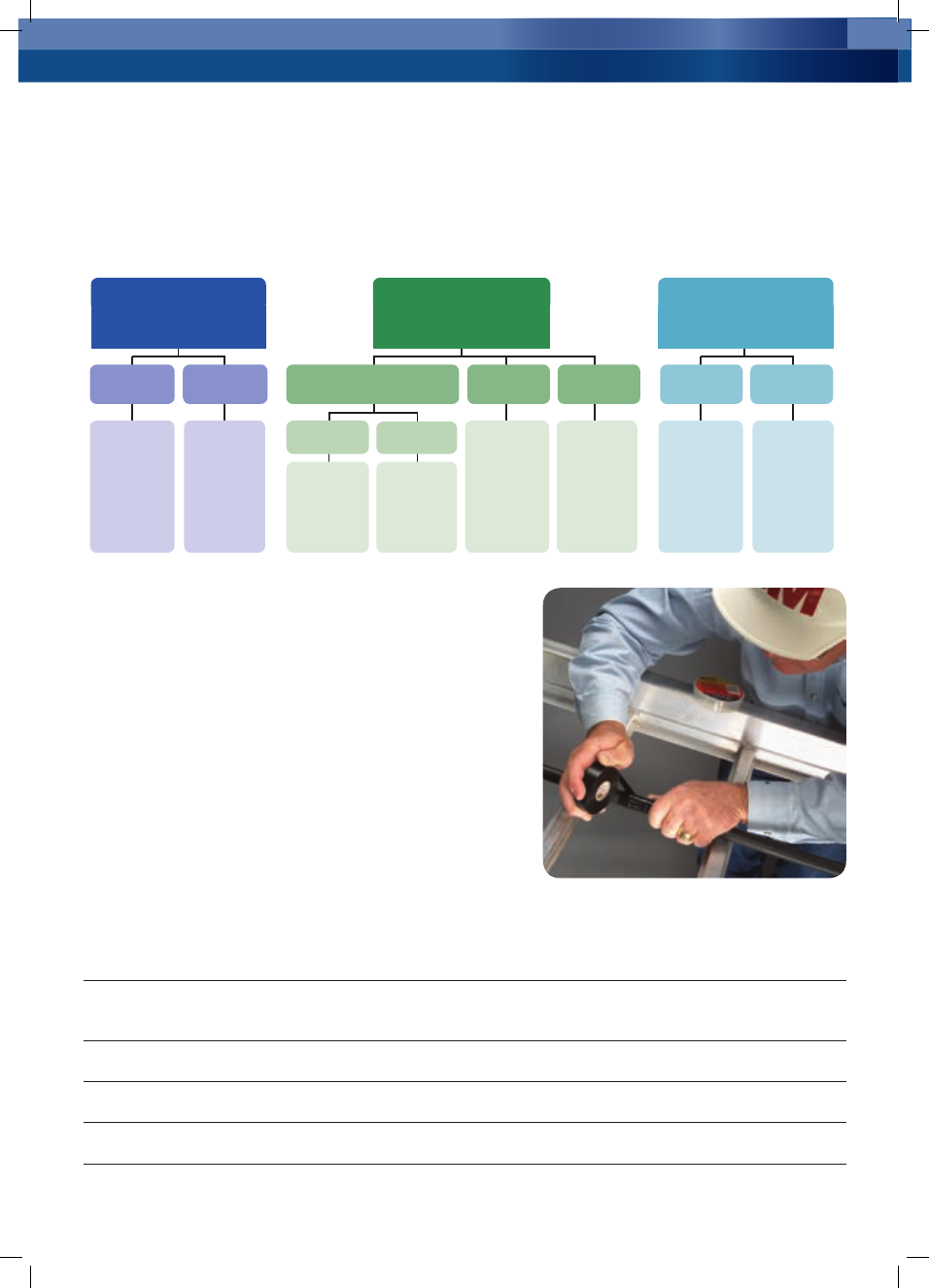

Electrical Tapes

3M has been developing and manufacturing high performance, easy handling electrical tapes since the 1940s. The 3M Electrical Tapes range includes
tapes for low and medium voltage insulating, colour coding, moisture sealing, padding, shaping, protective jacketing, bundling, and harnessing.
Additionally, 3M manufactures a variety of tapes for technical applications; semi-conducting tape to reconstruct a medium voltage cable, track resistant
tapes for terminations, and fire retardant electric arc proofing tapes to protect cables from arcs and fires from nearby cable failures.

Taping Tips

To ensure the safest, most reliable use of PVC Electrical Tapes, always:

• Apply tape with enough stretch to conform to the objects you’re wrapping. Be

sure to let the last 50 mm relax before tabbing it down to prevent unwinding
(sometimes called “flagging”).

• Wrap an irregular mechanical connector, such as a split bolt, with rubber or

mastic tape to pad sharp edges, before overwrapping with vinyl electrical tape.

• Wrap tapered shapes “uphill” – that is, from the smallest to the largest point. This

way you always secure the previous layer.

• Always use scissors or a knife to cut tape. If you must tear it by hand, then keep

fingers close together when tearing tape. The farther apart they are, the more the
tape will stretch before it tears.

• Use the right tape for the right conditions. Vinyl tapes are rated for cold weather

application in two classes: 0°C and -18°C. Tapes formulated for high temperature
environments are typically rated 80°C or 105°C. Only professional grade tapes
should be used on cables rated for less than 0°C and higher than 80°C.

Type of Tape

Number of Layers/Application Instructions

Vinyl Electrical Tapes -

Jacketing and Mechanical Protection

Always use a minimum of two half-lapped layers. The last layer should be
wrapped in a more relaxed manner - let the last wrap relax to prevent the
layer from flagging.

Rubber Tapes -

Electrical Insulation, Mechanical Padding, Water

Sealing and Shaping

Wrap tape tightly to achieve the watertight seal. Rubber tapes are typically
overwrapped with vinyl tape.

High Voltage Tapes -

Insulating and Semi-conductive Layers

Apply outside of roll to the cable, in highly stretched half-lapped layers.
Never use a semi-conductive tape as an insulation.

Mastic Compounds -

Insulating, Mechanical Padding, Moisture

Sealing and Shaping

Mastic compounds are to be overwrapped with vinyl tapes to initiate flow and
watertight seal. Do not apply excessive amount of mastic to prevent oozing.

Wrapping Tips

PVC Electrical Tapes

Provide mechanical protection and

low voltage electrical insulation

General Use

™

Tape 1710N

Temflex

™

Tape

1610

Sealing & Insulating Tapes

Provide moisture resistance and

padding of sharp corners

Sealing

Sealing & Insulating

Scotch

Rubber

Mastic Tape 2228
Scotch

Vinyl

Mastic Tape VM
Scotch

Heavy

Duty Mining

Tape 31
Scotch

Cable

Jacket Repair

Tape 2234

Scotchfil Putty

Scotch-Seal

Mastic Tape 2229

Splicing & Insulating Tapes

Self-Amalgamating

Semi-Conducting

High Temperature

Silicone

Scotch

Tape 27

(150°C)

Scotch

Tape 69

(200°C)

Scotch

Tape 13

Scotch

Tape 70

Rubber

Insulating

Scotch

Tape 130C

(Linerless)

Scotch

™

Temflex

™

Tape 2155

Tape 23

(Linered)

Professional Use

Scotch

Tape 22

(Heavy Duty)

Scotch

Super

33+ Tape
Scotch

Tape 35

(coloured)

™

Scotch

Electrical,

Industrial &

Special

Use T

apes

PVC Electrical Tapes

Provide mechanical protection and

low voltage electrical insulation

General Use

™

Tape 1710N

Temflex

™

Tape

1610

Sealing & Insulating Tapes

Provide moisture resistance and

padding of sharp corners

Sealing

Sealing & Insulating

Scotch

Rubber

Mastic Tape 2228
Scotch

Vinyl

Mastic Tape VM
Scotch

Heavy

Duty Mining

Tape 31
Scotch

Cable

Jacket Repair

Tape 2234

Scotchfil Putty

Scotch-Seal

Mastic Tape 2229

Splicing & Insulating Tapes

Self-Amalgamating

Semi-Conducting

High Temperature

Silicone

Scotch

Tape 27

(150°C)

Scotch

Tape 69

(200°C)

Scotch

Tape 13

Scotch

Tape 70

Rubber

Insulating

Scotch

Tape 130C

(Linerless)

Scotch

™

Temflex

™

Tape 2155

Tape 23

(Linered)

Professional Use

Scotch

Tape 22

(Heavy Duty)

Scotch

Super

33+ Tape
Scotch

Tape 35

(coloured)

™

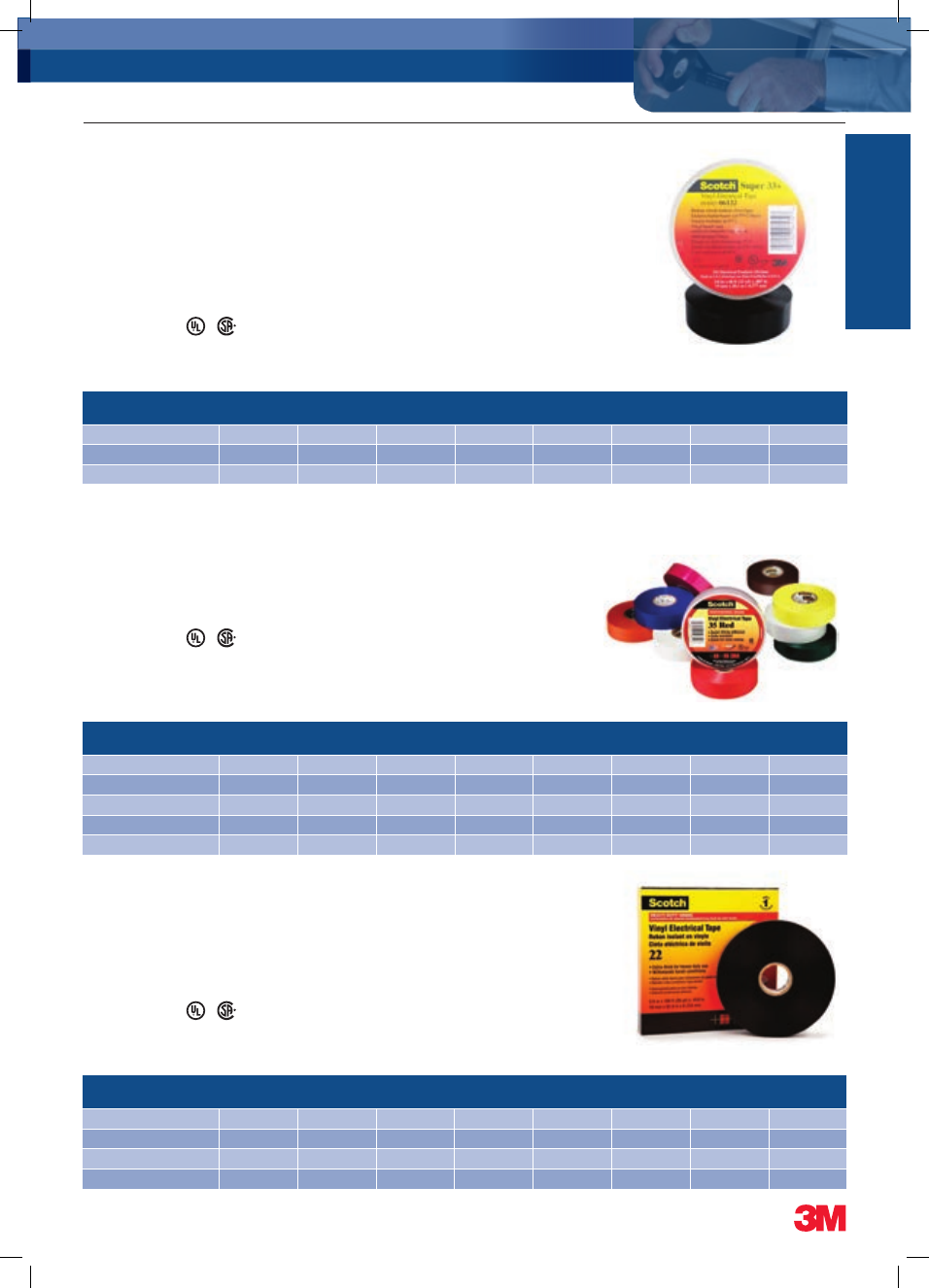

PVC Electrical Tapes - Professional Use

Scotch

Super 33+

™

Vinyl Electrical Tape

Scotch

Super 33+

™

Vinyl Electrical Tape is a premium grade, 0.18 mm thick, flame retardant, all weather

vinyl insulating tape. It is designed to perform continuously between a temperature range of -18 to 105°C.
It has excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
(including ultraviolet exposure). The combination of elastic backing and aggressive adhesive provides moisture
tight electrical and mechanical protection with minimum bulk. Scotch

Super 33+

™

Vinyl Electrical Tape is an

Underwriters’ Laboratories Listed and Canadian Standards Association Certified “Insulating Tape.” Available in
custom sizes in addition to standard sizes below.

Agency Approvals:

Applications:

Primary insulation for splices up to 600 V and 105°C

Protective jacketing in indoor and outdoor environments

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

Super 33+ 19 mm x 20 m

80611207012

Black

19 mm

20 m

0.18 mm

45 kV/mm

2.6 kN/m

-18 to 105°C

Super 33+ 19 mm x 33 m

80610138929

Black

19 mm

33 m

0.18 mm

45 kV/mm

2.6 kN/m

-18 to 105°C

Super 33+ 25 mm x 33 m

80014001020

Black

25 mm

33 m

0.18 mm

45 kV/mm

2.6 kN/m

-18 to 105°C

Scotch

Vinyl Colour Coding Electrical Tape 35

Scotch

Vinyl Electrical Tape 35 is a 0.18 mm thick PVC colour-coding, flame retardant tape. Outstanding

electrical and mechanical properties make this tape excellent for use in phase identification, colour coding of
motor leads and piping systems, and for marking safety areas. Scotch

Tape 35 operates over a wide range

of temperatures between 0 to 105°C. This tape is available in fade-resistant colours.

Agency Approvals:

Applications:

Phase identification and marking

Harnessing

Insulating splices up to 600 V

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

35 Blue

80610833925

Blue

19 mm

20 m

0.18 mm

49 kV/mm

3.0 kN/m

0 to 105°C

35 Green

80610834048

Green

19 mm

20 m

0.18 mm

49 kV/mm

3.0 kN/m

0 to 105°C

35 Red

80610833909

Red

19 mm

20 m

0.18 mm

49 kV/mm

3.0 kN/m

0 to 105°C

35 White

80610833982

White

19 mm

20 m

0.18 mm

49 kV/mm

3.0 kN/m

0 to 105°C

35 Yellow

80610833966

Yellow

19 mm

20 m

0.18 mm

49 kV/mm

3.0 kN/m

0 to 105°C

Scotch

Heavy Duty Vinyl Electrical Tape 22

Scotch

Heavy Duty Vinyl Electrical Tape 22 is one of 3M’s thickest (0.25 mm) premium vinyl electrical tapes.

It is designed for insulation applications that require greater mechanical strength and abrasion resistance.
Scotch

Tape 22 provides moisture-resistant electrical and mechanical protection with fewer wraps than

thinner tapes.

Agency Approvals:

Applications:

Bus bar insulation

Cable jacket repair

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

22 - 19 mm x 33 m

80012017044

Black

19 mm

33 m

0.25 mm

47.2 kV/mm

3.5 kN/m

-10 to 80°C

22 - 25 mm x 33 m

80012017051

Black

25 mm

33 m

0.25 mm

47.2 kV/mm

3.5 kN/m

-10 to 80°C

22 - 38 mm x 33 m

80012017069

Black

38 mm

33 m

0.25 mm

47.2 kV/mm

3.5 kN/m

-10 to 80°C

22 - 50 mm x 33 m

80012017077

Black

50 mm

33 m

0.25 mm

47.2 kV/mm

3.5 kN/m

-10 to 80°C

www.3M.com.au/electrical • www.3M.co.nz/electrical

PVC Electrical Tapes - General Use

™

PVC Electrical Tape 1710N

3M PVC Electrical Tape 1710N is a good quality general purpose PVC insulating tape. It has very good
resistance to abrasion, moisture, alkalis, acids, copper corrosion and varying weather conditions. It is flame
retardant, has a high wet dielectric strength, is conformable, and provides excellent mechanical protection
with minimum bulk. This tape is an Underwriters’ Laboratories Listed and Canadian Standards Association
Certified “Insulating Tape.”

Agency Approvals:

Applications:

Primary electrical insulation for all wire and cable joints rated up to 600 volts and 80°C

Protective jacketing for cable joints and repairs

Harnessing of wires and cables

For indoor or outdoor applications

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

1710N Black

XE000724635

Black

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Blue

XE000724668

Blue

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Green

XE000724676

Green

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Red

XE000724650

Red

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N White

XE000724643

White

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Yellow

XE000724684

Yellow

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Yellow/Green

XE000724692

Yellow/Green Stripe

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Rainbow NZ*

XE000724700

Rainbow NZ

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

1710N Rainbow AU**

XE000724718

Rainbow AU

18 mm

20 m

0.18 mm

39.4 kV/mm

2.6 kN/m

0 to 80°C

™

Temflex

™

General Purpose Electrical Tape 1610

3M Temflex Electrical Tape 1610 is a good quality, economical, general purpose vinyl insulating tape. Temflex
Tape 1610 is designed for use in phase identification, colour coding of motor leads and piping systems and
for marking safety areas. It has very good resistance to abrasion, moisture, alkalis, acids and varying weather
conditions (including sunlight).

Applications:

Phase identification

Colour coding

Harnessing

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

1610 Black

AE010586764

Black

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Blue

AE010586749

Blue

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Brown

AE019172450

Brown

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Green/Yellow

AE010586723

Green/Yellow Stripe

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Grey

AE019312394

Grey

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Orange

AE019172443

Orange

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Red

AE010586731

Red

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 White

AE010586756

White

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

1610 Rainbow

AE009162835

Rainbow

19 mm

20 m

0.15 mm

39.4 kV/mm

2.8 kN/m

0 to 80°C

*Rainbow NZ pack includes 2 rolls each of black, white, red, blue and green
**Rainbow AU pack includes 3 rolls of black, 2 rolls each of white, red and blue, and 1 roll of yellow/green stripe

**Rainbow pack includes 3 rolls of black, 2 rollls each of white, red and blue, and 1 roll of yellow/green stripe

™

Scotchkote

™

Electrical Coating

provides vinyl tapes with an extra oil, moisture and

corrosion resistant layer of flexible coating for problem areas.
See page 30 for more details.

Scotch

Electrical,

Industrial &

Special

Use T

apes

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Elongation

Breaking

Strength

Operating

Temperature

Emergency

Operating

Temperature

23 - 19 mm x 9 m

HT002007413

Black

19 mm

9 m

0.76 mm

31.5 kV/mm

1000%

1.4 kN/m

Up to 90°C

130°C

23 - 19 mm x 9 m Bulk*

HT002007330

Black

19 mm

9 m

0.76 mm

31.5 kV/mm

1000%

1.4 kN/m

Up to 90°C

130°C

23 - 25 mm x 9 m

HT002001283

Black

25 mm

9 m

0.76 mm

31.5 kV/mm

1000%

1.4 kN/m

Up to 90°C

130°C

23 - 38 mm x 9 m

HT002001275

Black

38 mm

9 m

0.76 mm

31.5 kV/mm

1000%

1.4 kN/m

Up to 90°C

130°C

23 - 50 mm x 9 m

HC000599767

Black

50 mm

9 m

0.76 mm

31.5 kV/mm

1000%

1.4 kN/m

Up to 90°C

130°C

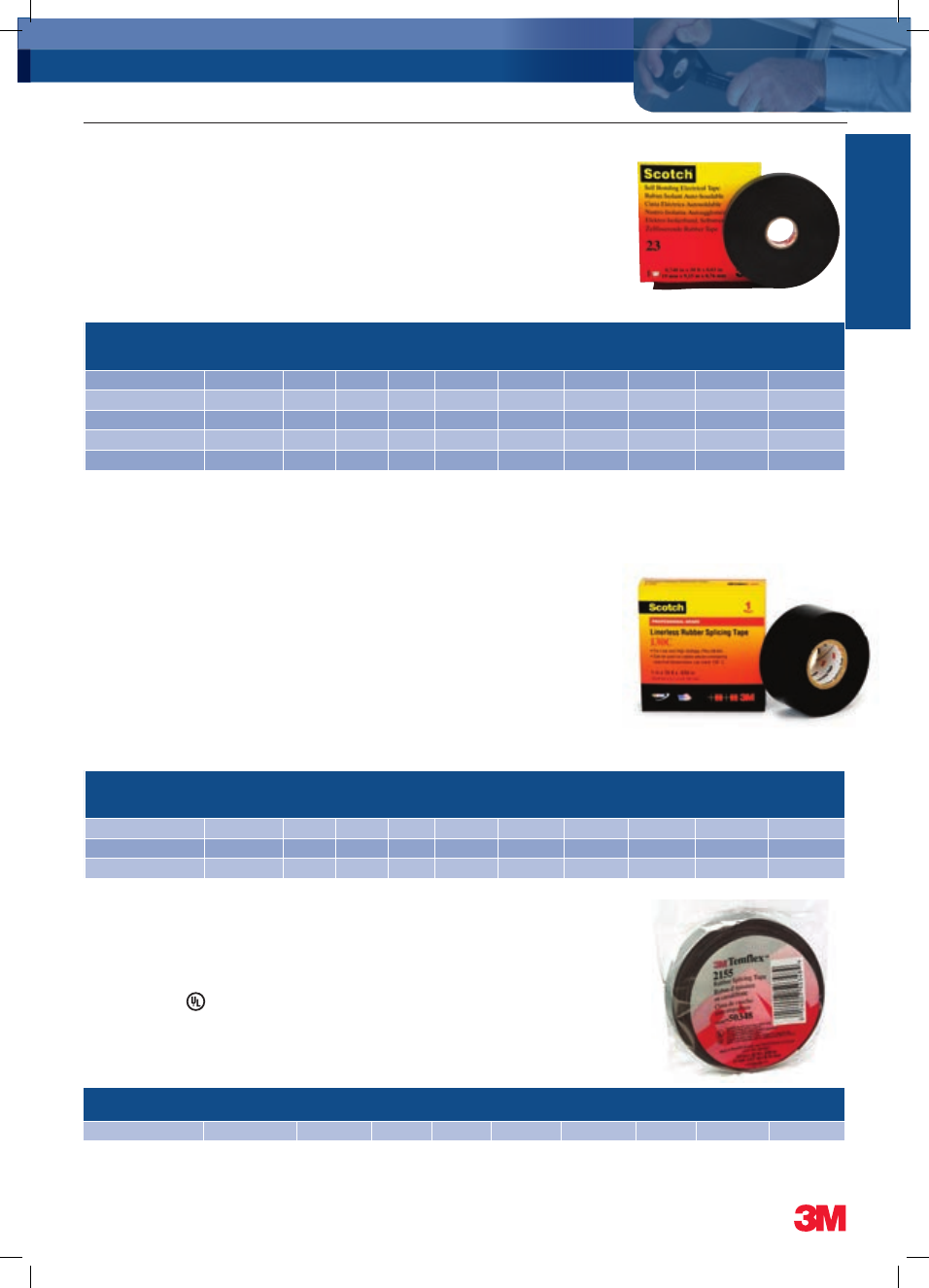

Splicing and Insulating Tapes - Self Amalgamating

Scotch

Rubber Splicing Tape 23

Scotch

Rubber Splicing Tape 23 is a premium, highly conformable, self-fusing Ethylene Propylene Rubber

(EPR), high voltage insulating tape. Scotch

Tape 23 has a “snakeskin” liner that is easily removed as the tape

is applied. This product can be used for low and high voltage (through 69 kV) applications.

Applications:

Primary electrical insulation for splicing all solid dielectric cables through 69 kV

Moisture sealing electrical connections

Jacketing on high voltage splices and terminations

Scotch

Linerless Rubber Splicing Tape 130C

Scotch

Linerless Rubber Splicing Tape 130C is a premium, highly conformable, linerless Ethylene Propylene

Rubber (EPR), high voltage insulating tape that provides excellent thermal dissipation of splice heat. Scotch

Splicing Tape 130C meets industry specifications and has excellent physical and electrical properties, which
helps provide immediate moisture seal and void free buildups. Scotch

Splicing Tape 130C is rated up to

90°C continuous operating temperatures and short term 130°C overload service. This product can be used
for low and high voltage (through 69 kV) applications. This tape should be applied like any rubber tape - that
is, the side of the tape wrapped inside the roll should be applied outside on the splice (tacky side up). This will
help prevent the roll from getting progressively further away from the work area.

Applications:

Primary electrical insulation for splicing all solid dielectric cables through 69 kV

Moisture sealing electrical connections

Jacket repairs

™

Temflex

™

Rubber Splicing Tape 2155

™

Temflex

™

Rubber Splicing Tape 2155 is a conformable self-fusing rubber electrical insulating tape.

Temflex Tape 2155 is compatible with solid dielectric cable insulations. Flexible over a wide temperature
range, it is Underwriters Laboratories (UL) Listed for use up to 600 volts.

Agency Approvals:

Applications:

Low voltage electrical insulating up to 600 V

Moisture sealing

Product

3M Order

Code

Colour

Width

Length

Thickness

Dielectric

Strength

Elongation

Breaking

Strength

Operating

Temperature

Emergency

Operating

Temperature

130C - 19 mm x 9 m

80610833404

Black

19 mm

9 m

0.76 mm

29.5 kV/mm

850%

1.3 kN/m

Up to 90°C

130°C

130C - 25 mm x 9 m

80610833750

Black

25 mm

9 m

0.76 mm

29.5 kV/mm

850%

1.3 kN/m

Up to 90°C

130°C

130C - 38 mm x 9 m

80610833412

Black

38 mm

9 m

0.76 mm

29.5 kV/mm

850%

1.3 kN/m

Up to 90°C

130°C

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric

Strength

Elongation

Breaking

Strength

Operating

Temperature

2155 - 19 mm x 6.7 m

HC000592382

Black

19 mm

6.7 m

0.76 mm

23.6 kV/mm

700%

1.57 kN/m

Up to 80°C

*Bulk pack is 90 rolls per carton, each roll shrink wrapped

www.3M.com.au/electrical • www.3M.co.nz/electrical

Splicing and Insulating Tapes

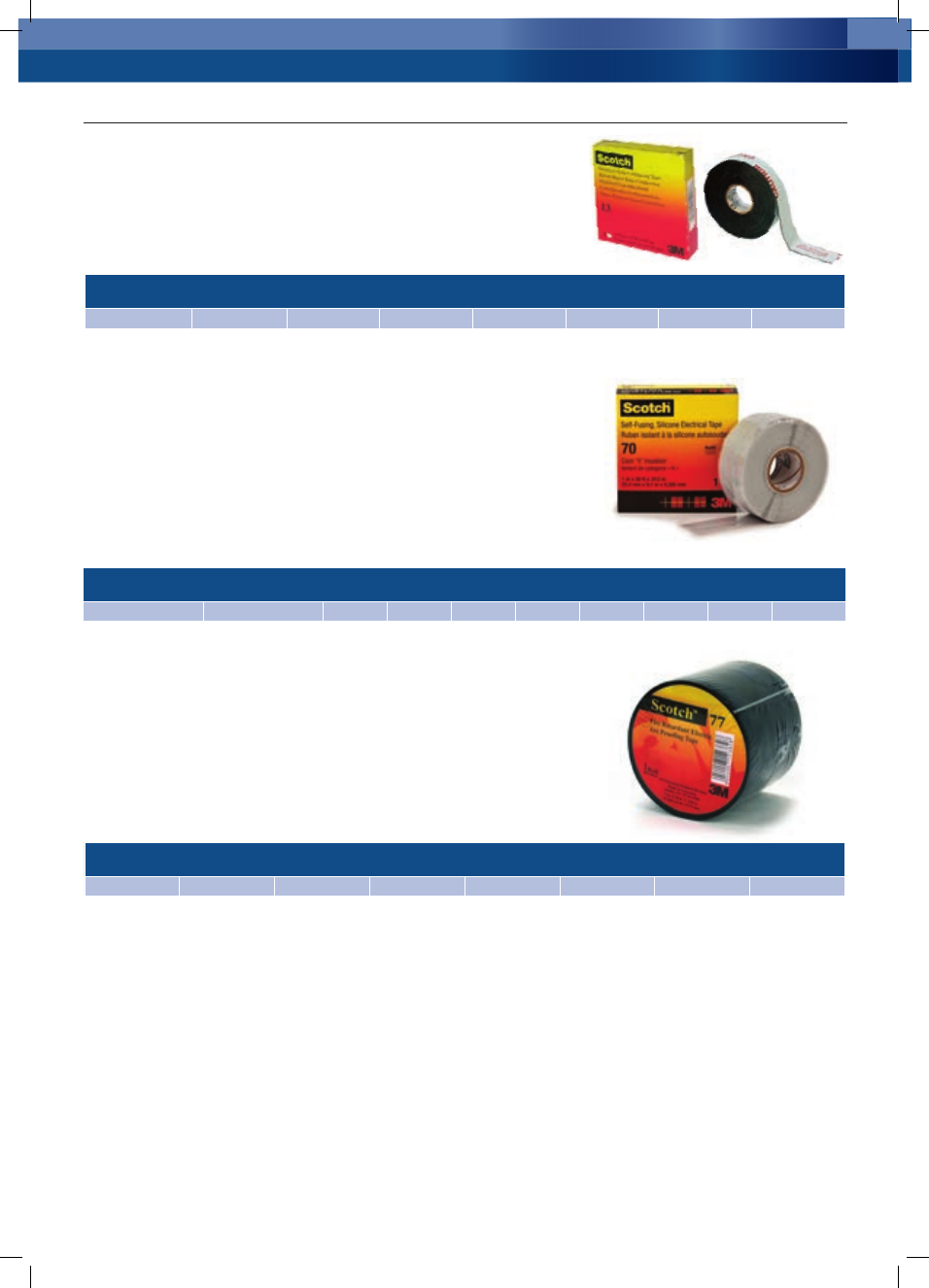

Scotch

Electrical Semi-Conducting Tape 13

Scotch

Electrical Semi-Conducting Tape 13 is a highly conformable, linered, semi-conducting

Ethylene Propylene Rubber (EPR) based, high voltage splicing tape. Scotch

Tape 13 elongates

easily to conform to irregular shapes and retains its conductivity when stretched.

Applications:

Provides cable shield continuation

Product

3M Order Code

Colour

Width

Length

Thickness

Elongation

Breaking

Strength

13 - 19 mm x 4.5 m

HT002000327

Black

19 mm

4.5 m

0.76 mm

800%

1.0 kN/m

Scotch

Self-Fusing Silicone Rubber Electrical Tape 70

Scotch

Self-Fusing Silicone Rubber Electrical Tape 70 is a high temperature, arc and track resistant

tape composed of self-fusing, inorganic silicone rubber with an easy-tear and easy-strip liner. It has
excellent UV and ozone resistance and is workable at extremely low temperatures. Scotch

Self-Fusing

Silicone Rubber Electrical Tape 70 can be used as base tape layer to to enable clean re-entry of
connections. Meets the requirements of Mil A-A-59163 Class I, Type I.

Applications:

Protects and overlaps high voltage cable terminations and serves as base layer to

provide clean re-entry into connections

Protective overwrap for terminating high voltage cables

Product

3M Order Code

Colour

Width

Length

Thickness

Elongation

Dielectric

Strength

Breaking

Strength

Operating

Temperature

70 - 25 mm x 9 m

80611438617

Grey

25 mm

9 m

0.3 mm

450%

34 kV/mm

2.1 kN/m

Up to 180°C

Scotch

Fire-Retardant and Electric Arc Proofing Tape 77

Scotch

Fire and Electric Arc Proofing Tape 77 is a premium non-adhesive tape designed to

protect most types of electrical cables when exposed to failures in an adjacent cable. Its specially
formulated material expands in fire to form a thick char buildup between the flame and the cable.
The resulting firewall acts as a heat shield and flame barrier, thus protecting the wrapped cables
and accessories.

Applications:

Protects cable until limiting devices can interrupt faulted current

Use on high-energy cables that are within 457 mm of other high energy cables

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

77 - 38 mm x 6 m

80611605975

Black

38 mm

6 m

0.76 mm

19.7 kV/mm

6.3 kN/m

Scotch

Electrical,

Industrial &

Special

Use T

apes

Splicing and Insulating Tapes

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric

Strength

Breaking

Strength

Operating

Temperature

2510 - 25 mm x 33 m

80100220054

Yellow

25 mm

33 m

0.18 mm

31.4 kV/mm

8.8 kN/m

Up to 105°C

2510 - 50 mm x 33 m

80100220096

Yellow

50 mm

33 m

0.18 mm

31.4 kV/mm

8.8 kN/m

Up to 105°C

Scotch

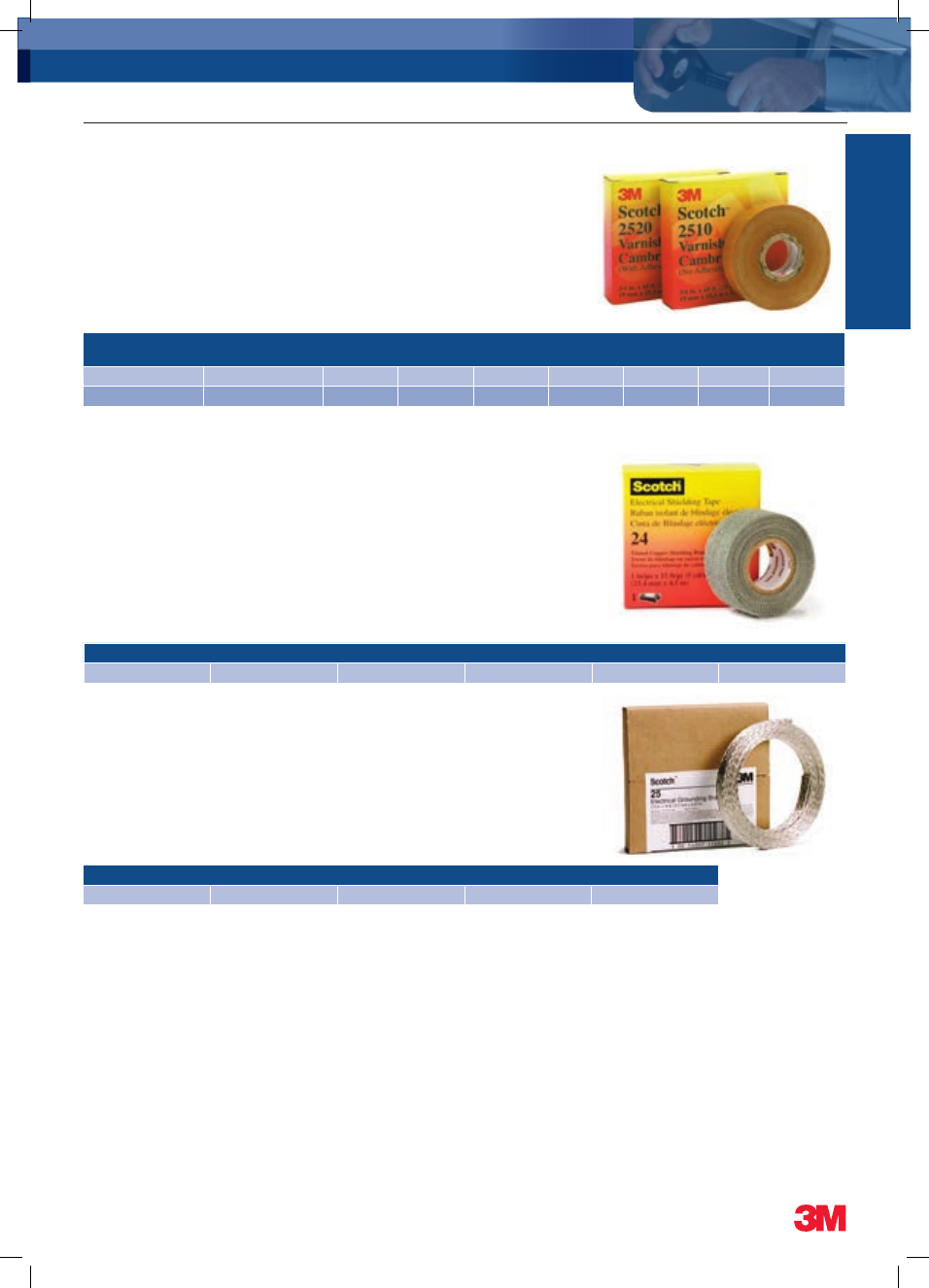

Varnished Cambric Tape 2510

Scotch

Varnished Cambric Tape 2510 is made from straight-cut woven cotton cambric fabric.

The fabric is oil primed and coated with a high grade yellow electrical insulating varnish. Varnished
cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish.
Scotch

Tape 2510 tape is yellow, non-adhesive coated and 0.18 mm thick, providing an excellent

dielectric strength with high puncture and cut-through resistance. Its electrical properties are stable
up to 105°C.

Applications:

Insulation of bus bars, motor leads (for re-entry), service drop connectors

Scotch

Electrical Shielding Tape 24

Scotch

Electrical Shielding Tape 24 is an all-metal, flat, tinned copper open-weave shielding mesh

that is compatible with power cable insulations and all high voltage splicing and terminating materials.
Scotch

Electrical Shielding Tape 24 elongates easily to conform and is temperature stable.

Note:

Scotch

Electrical Shielding Tape 24 should not be used as a ground strap or jumper wire.

Its ampacity is not great enough to carry large fault currents. For ground strap applications please
refer to Scotch

Electrical Grounding Braid 25.

Applications:

Continuous electrostatic shielding across splices

Product

3M Order Code

Width

Length

Thickness

Breaking Strength

24 - 25 mm x 4.5 m

80012024016

25 mm

4.5 m

0.4 mm

3.8 kN/m

Scotch

Electrical Grounding Braid 25

Scotch

Electrical Grounding Braid 25 is a flat, all-metal woven electrical grounding braid that is

compatible with power cable insulations and high voltage splicing and terminating materials. The
Scotch

Electrical Grounding Braid 25 is conformable and temperature stable, and has a current

carrying capacity approximately that of 12 mm² wire.

Applications:

Conformable ground braid for splices and terminations

Product

3M Order Code

Width

Length

Thickness

25 - 12.7 mm x 4.5 m

80610000210

12.7 mm

4.5 m

2 mm

www.3M.com.au/electrical • www.3M.co.nz/electrical

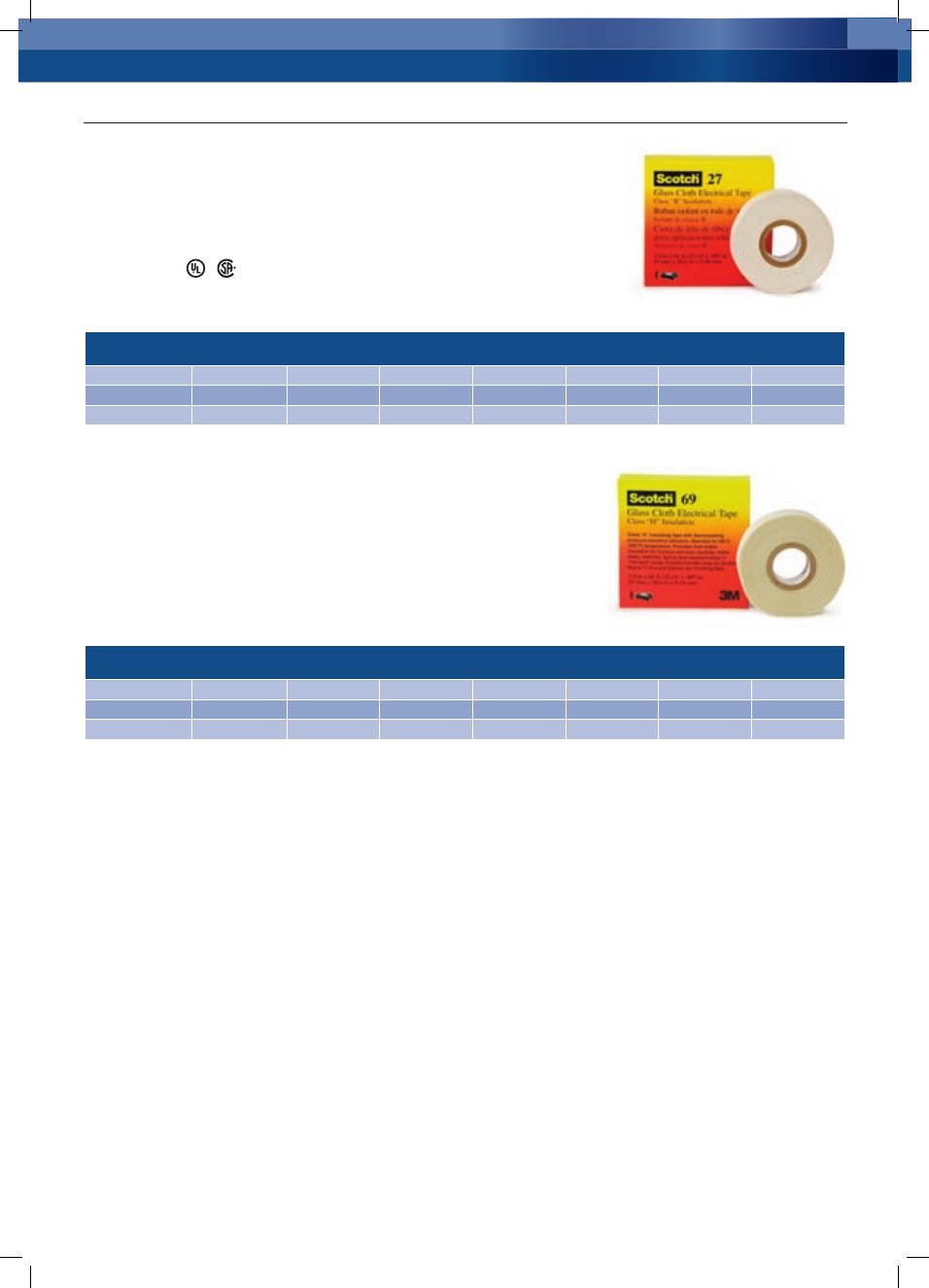

Splicing and Insulating Tapes - Glass Cloth

Scotch

Glass Cloth Electrical Tapes 27

Scotch

Glass Cloth Electrical Tape 27 is a 0.18 mm thick woven insulating glass cloth tape with

pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry
applications requiring high mechanical strength and resistance to high temperatures. The glass cloth
is specially treated and prepared to provide corrosion protection.

Agency Approvals:
Applications:

Heat stable insulation for furnace and oven controls, motor leads and switches

Provides corrosion free protection

Product

3M Order Code

Colour

Width

Length

Thickness

Breaking

Strength

Operating

Temperature

27 - 12.7 mm x 20 m

80012020352

White

12.7 mm

20 m

0.18 mm

26 kN/m

Up to 150°C

27 - 19 mm x 20 m

80012020360

White

19 mm

20 m

0.18 mm

26 kN/m

Up to 150°C

27 - 25 mm x 55 m

80012020139

White

25 mm

55 m

0.18 mm

26 kN/m

Up to 150°C

Scotch

Glass Cloth Electrical Tape 69

Scotch

Glass Cloth Electrical Tape 69 is a white glass cloth tape with a high temperature

thermosetting silicone adhesive. The thermosetting adhesive provides an increased bond once
applied in areas of high ambient temperatures. Scotch

Tape 69 is UL recognised for continuous

use up to 200°C. It conforms to Military Specification No. MIL-I-19166C.

Applications:

Heat stable insulation for furnace and oven controls, motor leads and switches

Replaces Scotch

Glass Cloth Electrical Tape 27 in locations where a higher

temperature tape is needed

Product

3M Order Code

Colour

Width

Length

Thickness

Breaking

Strength

Operating

Temperature

69 - 12.7 mm x 33 m

80018002420

White

12.7 mm

33 m

0.18 mm

31.5 kN/m

Up to 200°C

69 - 19 mm x 33 m

80012040046

White

19 mm

33 m

0.18 mm

31.5 kN/m

Up to 200°C

69 - 25 mm x 33 m

80012040053

White

25 mm

33 m

0.18 mm

31.5 kN/m

Up to 200°C

Scotch

Electrical,

Industrial &

Special

Use T

apes

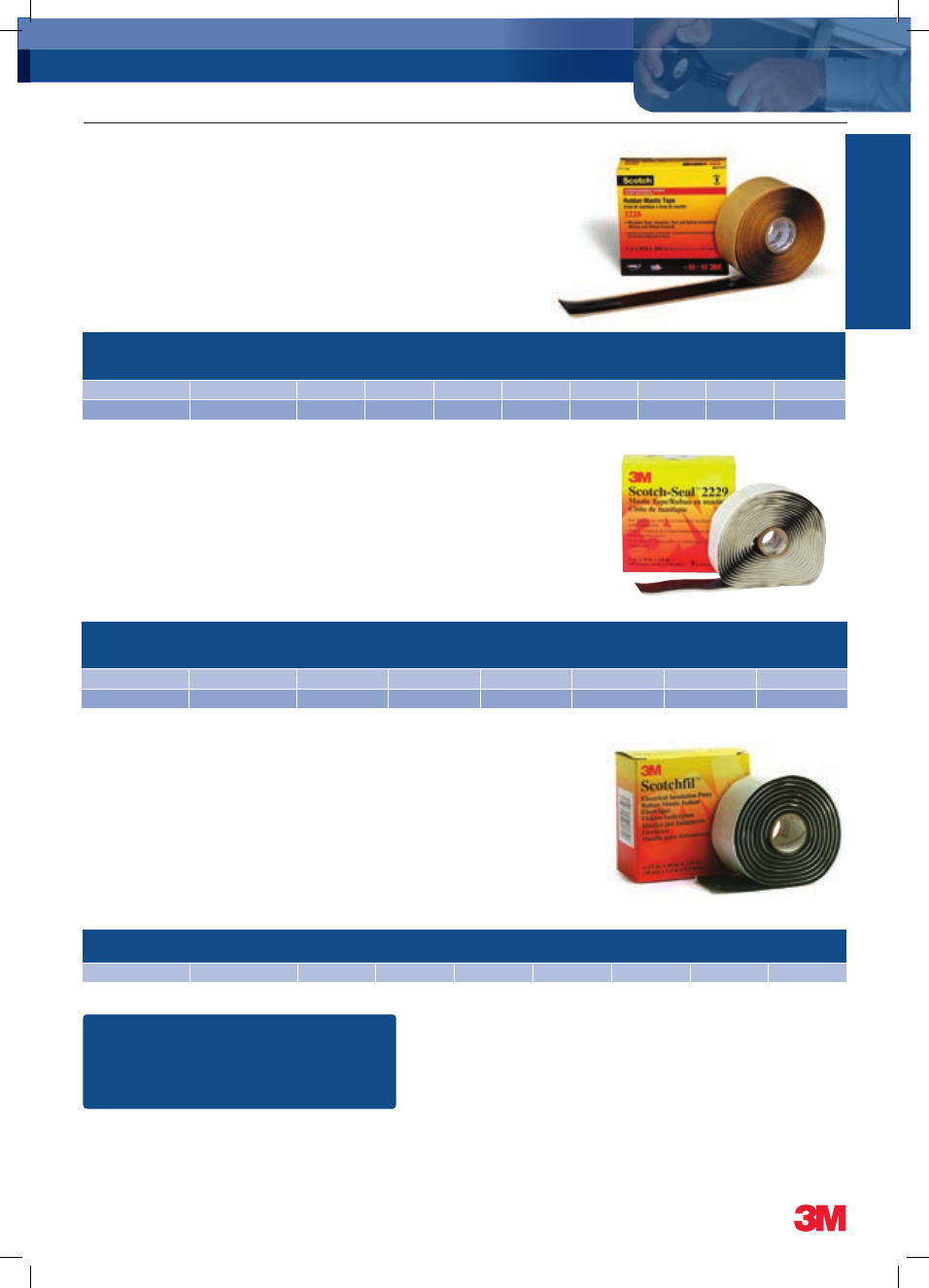

Sealing and Insulating Tapes - Rubber Mastic and Putty

Scotch

Rubber Mastic Tape 2228

Scotch

Rubber Mastic Tape 2228 is a conformable self-fusing rubber electrical insulating and

sealing tape. Scotch Rubber Mastic 2228 consists of ethylene propylene rubber (EPR) backing
coated with a strong, temperature-stable mastic adhesive. The tape is 1.65 mm thick for quick
application build–up. It is designed for electrical insulating and moisture sealing applications.

Applications:

Primary electrical insulation for joints up to 1000 V

Insulate, pad and seal bus bar connections rated up to 35 kV

Environmental and moisture seal

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric

Strength

Elongation

Breaking

Strength

Maximum

Operating

Temperature

2228 - 25 mm x 3 m

80610737662

Black

25 mm

3 m

1.65 mm

19.7 kV/mm

1000%

1.7 kN/m

90°C

2228 - 50 mm x 3 m

80610322945

Black

50 mm

3 m

1.65 mm

19.7 kV/mm

1000%

1.7 kN/m

90°C

™

Scotch-Seal

™

Mastic Tape Compound 2229

Scotch-Seal Mastic Tape Compound 2229 is designed for quick and easy insulating, padding,
shaping and sealing of electrical connections. It is a conformable, durable, tacky mastic with an easy
release liner for easy application over irregular surfaces and provides excellent moisture resistance.
It features excellent self-healing characteristics after being punctured or cut.

Applications:

Sealing high voltage cables and accessories

Environmental and moisture seal

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric

Strength

Maximum

Operating

Temperature

2229 - 25 mm x 3 m

80610732911

Black

25 mm

3 m

3.2 mm

14.9 kV/mm

90°C

2229 - 95 mm x 3 m

80610594410

Black

95 mm

3 m

3.2 mm

14.9 kV/mm

90°C

™

Scotchfil

™

Electrical Insulation Putty

Use as a build-up compound on highly irregular surfaces such as fittings and valves, providing a
smooth, waterproof taping surface. Scotchfil Electrical Insulation Putty is soft and pliable - simply
press putty into place on irregular surfaces, mould with finger pressure and overtape using standard
methods.

Applications:

Insulation of connections up to 600 V

Smoothing of bus bar irregularities

Shaping and padding for split bolt connections

Product

3M Order Code

Colour

Width

Length

Thickness

Elongation

Dielectric

Strength

Operating

Temperature

Scotchfil Putty

80610833727

Black

38 mm

1.5 m

3.2 mm

1000%

22.6 kV/mm

0 to 80°C

For best mechanical and UV protection, overwrap

• Scotch

Rubber Mastic Tape 2228

• 3M

™

Scotch-Seal Mastic Tape Compound 2229

• 3M Scotchfil

™

Electrical Insulation Putty

with Scotch

Super 33+

™

Vinyl Electrical Tape (see page 2)

www.3M.com.au/electrical • www.3M.co.nz/electrical

Sealing and Insulating Tapes - Vinyl Mastic, Cable Repair

Scotch

Vinyl Mastic Tape VM

Two tapes in one - vinyl and mastic, designed to provide low voltage insulation, seal out moisture
and protect against corrosion. Scotch

Vinyl Mastic (VM) Tape seals out moisture and protects

against corrosion in one step, without the need for heating tools or using other tapes.

Applications:

Cable sheath repair

Splice case and load case protection

Auxiliary sleeve and cable reel end sealing

Drop wire insulating

Conduit repair and protection of CATV components

Product

3M Order Code

Colour

Width

Length

Thickness

Dielectric Strength

VM - 38 mm x 6 m

80050045014

Black

38 mm

6 m

1.1 mm

11.8 kV/mm

VM - 102 mm x 3 m

80050045022

Black

102 mm

3 m

1.1 mm

11.8 kV/mm

VM - 152 mm x 3 m

80050045030

Black

152 mm

3 m

1.1 mm

11.8 kV/mm

Scotch

Heavy Duty Mining Tape 31

Scotch

Heavy Duty Mining Tape 31 has a tough, abrasion resistant backing for jacket repair on

mining cables. Mining cables are exposed to extremely abrasive environments which often results in
the damage of their original jackets. MSHA-approved Scotch

Heavy Duty Mining Tape 31 offers an

innovative solution for cable repair. With its abrasion-resistant properties and flame retardant mastic,
Scotch

Heavy Duty Mining Tape 31 applies easily and remains flexible while maintaining a strong

moisture seal. The tape is printed with the MSHA logo/approval number.

Applications:

Jacket repair of mining cables

Splicing of mine conduit

Product

3M Order

Code

Colour

Width

Length

Thickness

Elongation

Dielectric

Strength

Breaking

Strength

Operating

Temperature

31 - 50 mm x 2.6 m

80611434004

Black

50 mm

2.6 m

1.5 mm

500%

15.7 kV/mm

27.3 kN/m

-30 to 105°C

Scotch

Cable Jacket Repair Tape 2234

Scotch

Cable Jacket Repair Tape 2234 has a tough abrasion-resistant backing for jacket repair on

industrial cables, such as flexible portable power cables, draglines, diesel locomotive cable, welding
and shipboard cables. Due to abrasive dragging and reeling of these flexible cables, the original
jacketing gets damaged often and needs to be repaired. Scotch

Cable Jacket Repair Tape 2234 is

flexible and the self-healing property of the mastic helps keep out moisture.

Agency Approvals:
Applications:

Jacket repair on electrical cables in extremely harsh environments

Product

3M Order

Code

Colour

Width

Length

Thickness

Elongation

Dielectric

Strength

Breaking

Strength

Operating

Temperature

2234 - 50 mm x 1.8 m

80611440936

Black

50 mm

1.8 m

1.5 mm

500%

15.7 kV/mm

27.3 kN/m

-30 to 105°C

Scotch

Electrical,

Industrial &

Special

Use T

apes

™

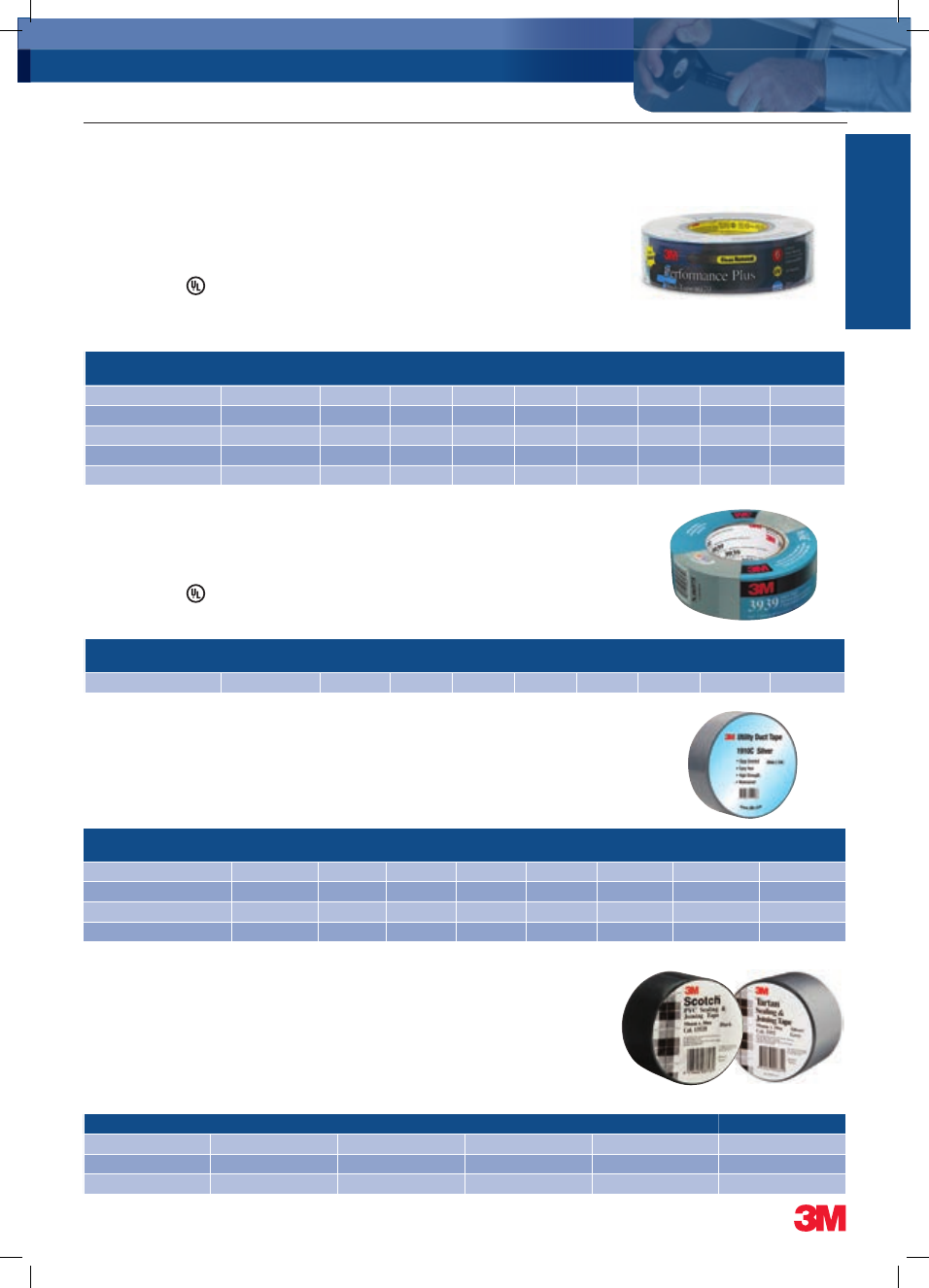

Performance Plus Duct Tape 8979

3M Performance Plus Duct Tape 8979 has a unique tape construction that allows for both permanent and
temporary applications whether indoors or outdoors. It is removable with little or no adhesive residue from
most opaque surfaces up to six months after application. The tape is conformable, abrasion resistant, and
water resistant. The polyethylene film and cloth scrim with rubber adhesive construction provides straight,
easy tear with high tensile strength for some of the most demanding applications.

Agency Approvals:
Applications:

Cap pipe ends and conduit stored outside

Hanging, sealing poly drapes

Industrial Tapes - Duct, Cloth, Sealing and Joining

Product

3M Order Code

Colour

Width

Length

Thickness

Elongation

Breaking

Strength

Operating

Temperature

Adhesion to

Steel

8979 - Blue - 48 mm x 23 m

70006412756

Slate Blue

48 mm

23 m

0.32 mm

21%

6.3 kN/m

Up to 93°C

57 N/100 mm

8979 - Blue - 48 mm x 55 m

70006413457

Slate Blue

48 mm

55 m

0.32 mm

21%

6.3 kN/m

Up to 93°C

57 N/100 mm

8979 - Olive - 48 mm x 55 m

70006413499

Olive

48 mm

55 m

0.32 mm

21%

6.3 kN/m

Up to 93°C

57 N/100 mm

8979 - Black - 48 mm x 55 m

70006413507

Black

48 mm

55 m

0.32 mm

21%

6.3 kN/m

Up to 93°C

57 N/100 mm

8979 - Black - 72 mm x 55 m

70006704590

Black

72 mm

55 m

0.32 mm

21%

6.3 kN/m

Up to 93°C

57 N/100 mm

™

Duct Tape 3939

3M Duct Tape 3939 is composed of waterproof polyethylene film over cloth scrim backing with a rubber
adhesive used for demanding duct tape applications. Meets UL 723.

Agency Approvals:
Applications:

Sealing heating ventilation and air conditioning ducts

Product

3M Order Code

Colour

Width

Length

Thickness

Elongation

Breaking

Strength

Operating

Temperature

Adhesion to

Steel

3939 - 48 mm x 55 m

70006250131

Silver

48 mm

55 m

0.23 mm

17%

4.4 kN/m

Up to 93°C

60 N/100 mm

™

Utility Duct Tape 1910C

Polyethylene coated cloth backing with tacky rubber adhesive for sealing, holding, bundling.
Available in black or silver.

Applications:

Sealing, holding, bundling

Product

3M Order Code

Colour

Width

Length

Thickness

Breaking

Strength

Operating

Temperature

Adhesion to

Steel

1910C - Black - 48 mm x 10 m

XT000706728

Black

48 mm

10 m

0.15 mm

2.0 kN/m

Up to 50°C

106 N/100mm

1910C - Black - 48 mm x 50 m

XT000706744

Black

48 mm

50 m

0.15 mm

2.0 kN/m

Up to 50°C

106 N/100mm

1910C - Silver - 48 mm x 10 m

XT000706736

Silver

48 mm

10 m

0.15 mm

2.0 kN/m

Up to 50°C

106 N/100mm

1910C - Silver - 48 mm x 50 m

XT000706751

Silver

48 mm

50 m

0.15 mm

2.0 kN/m

Up to 50°C

106 N/100mm

Scotch

1352B & Tartan

™

2352 PVC Sealing & Joining Tapes

Scotch

1352B and Tartan

™

2352 Tapes are stabilised and plasticised PVC film coated tapes suitable for

most light industrial sealing and joining applications.

Applications:

Joining polythene sheeting

Sealing air ducts

Temporary holding

Product

3M Order Code

Colour

Width

Length

Thickness

1352B (NZ) - 50 mm x 30 m

XT000732013

Black

50 mm

30 m

0.15 mm

1352B (AU) - 50 mm x 30 m

AT010575275

Black

50 mm

30 m

0.15 mm

2352 - 50 mm x 30 m

AT010575283

Silver

50 mm

30 m

0.13 mm

www.3M.com.au/electrical • www.3M.co.nz/electrical

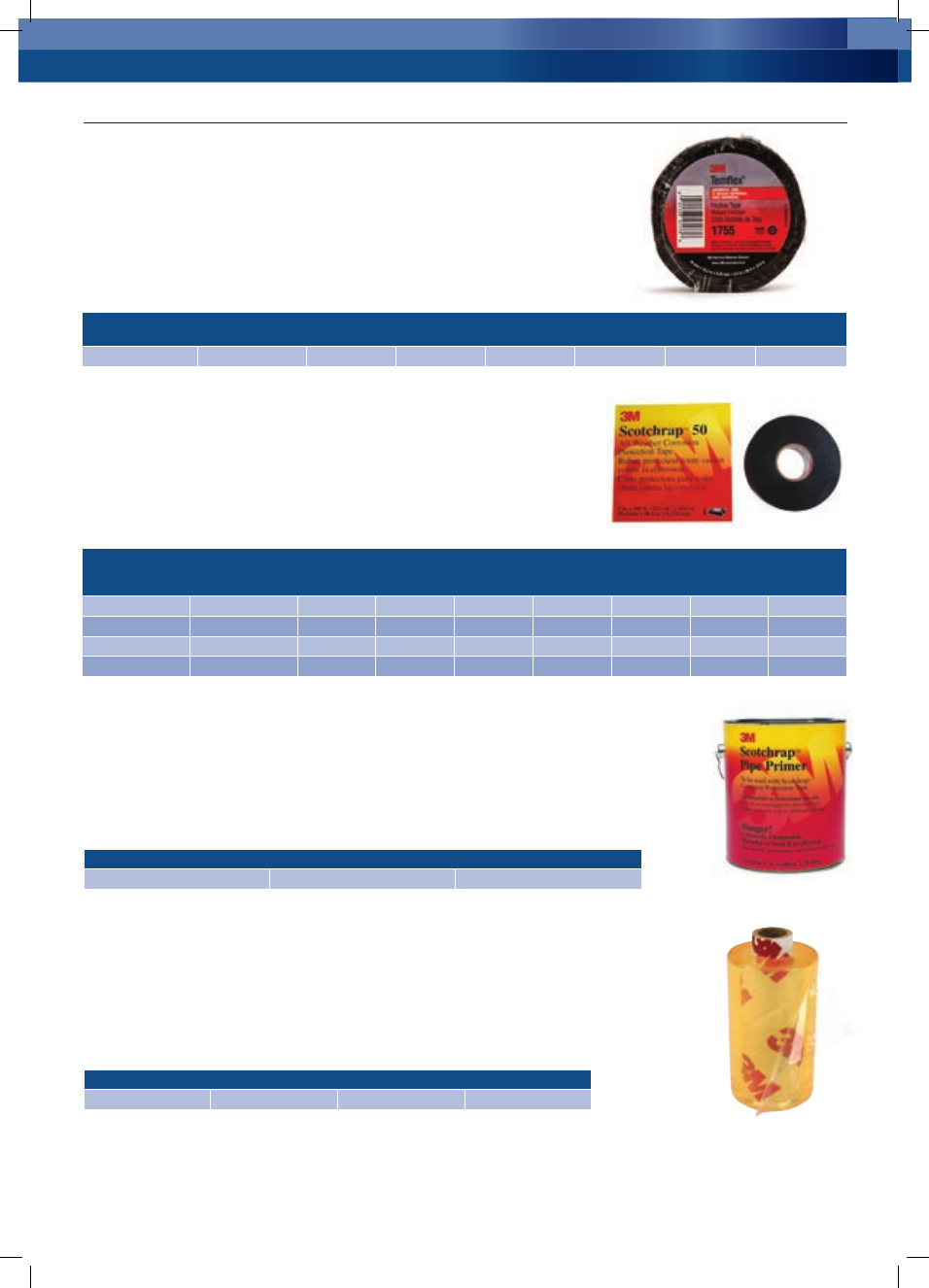

Special Use Tapes

™

Temflex

™

Cotton Friction Tape 1755

3M Temflex Cotton Friction Tape 1755 is a high-grade, black friction tape designed to provide mechanical
protection against abrasion and cut-through for cable, wire splices and connections insulated with rubber
electrical tape. The 0.33 mm thick tape is composed of a high quality cotton fabric, coated on both sides with
an electrical grade, solvent free, rubber adhesive. Friction Tape 1755 has high break strength and low stretch,
making it ideal as a heavy duty binding and harnessing tape.

Applications:

Abrasion protection for splices and connections

Product

3M Order Code

Colour

Width

Length

Thickness

Breaking

Strength

Operating

Temperature

1755 - 19 mm x 18.3 m

80611437734

Black

19 mm

18.3 m

0.33 mm

8.4 kN/m

Up to 80°C

™

Scotchrap

™

Corrosion Protection Tape 50

3M Scotchrap Corrosion Protection Tape 50 is a tough PVC tape with high tack adhesive that resists
corrosion of metal piping systems above and below ground. It applies over a wide temperature range
and is resistant to impact, abrasion and punctures. Coat the pipe or other metal surfaces with 3M
Scotchrap Pipe Primer before wrapping with Scotchrap Tape 50.

Applications:

Protects pipe, conduits and fittings from corrosion

Product

3M Order Code

Colour

Width

Length

Thickness

Breaking

Strength

Installation

Temperature

Range

Service

Temperature

Range

50 - 25 mm x 30 m

80008006621

Black

25 mm

30 m

0.25 mm

3.5 kN/m

-12 to 65°C

-48 to 80°C

50 - 50 mm x 30 m

80008006639

Black

50 mm

30 m

0.25 mm

3.5 kN/m

-12 to 65°C

-48 to 80°C

50 - 100 mm x 30 m

80008006647

Black

100 mm

30 m

0.25 mm

3.5 kN/m

-12 to 65°C

-48 to 80°C

50 - 150 mm x 30 m

80008006654

Black

150 mm

30 m

0.25 mm

3.5 kN/m

-12 to 65°C

-48 to 80°C

™

Clear Plastic Sealing and Compression Tape E-Z Wrap 2183

A tough, thin elastic vinyl material which sticks to itself when wrapped in layers. Forms a compact, durable, flexible,
moisture-proof covering.

Applications:

Wrap up and protect bundles of copper pairs in communications cable joints

Assists in easier re-entry where re-enterable sealants are used

Recommended for use in foam sealed and better buried compression closures

Product

3M Order Code

Width

Length

2183 - 100 mm x 30 m

80610759559

100 mm

30 m

™

Scotchrap

™

Pipe Primer

A quick-drying, non-sag rubber based primer that fills metal surface pits and irregularities, preparing the surface for tape
application. Compatible with the special adhesive on 3M Scotchrap Tapes, it enhances adhesion. To be used with 3M
Scotchrap Corrosion Protection Tape 50.

Applications:

Used with Scotchrap Corrosion Protection Tape 50 to resist corrosion of above and

below ground metal piping systems

Product

3M Order Code

Size

Pipe Primer

80610925739

3.8 L

Scotch

Electrical,

Industrial &

Special

Use T

apes

Product

3M Order Code

Colour

Width*

Length* Thickness

Breaking

Strength

Adhesion to

Steel

Static Charge Generation at 50% RH

Remove from Roll

Remove from

Stainless Steel

40PR - 6.4 mm x 66 m

80610872592

Clear with

printing

6.4 mm

66 m

0.056 mm

3.5 kN/m

17 N/100mm

5 V

40PR - 19 mm x 66 m

80610872642

Clear with

printing

19 mm

66 m

0.056 mm

3.5 kN/m

17 N/100mm

5 V

Special Use Tapes

™

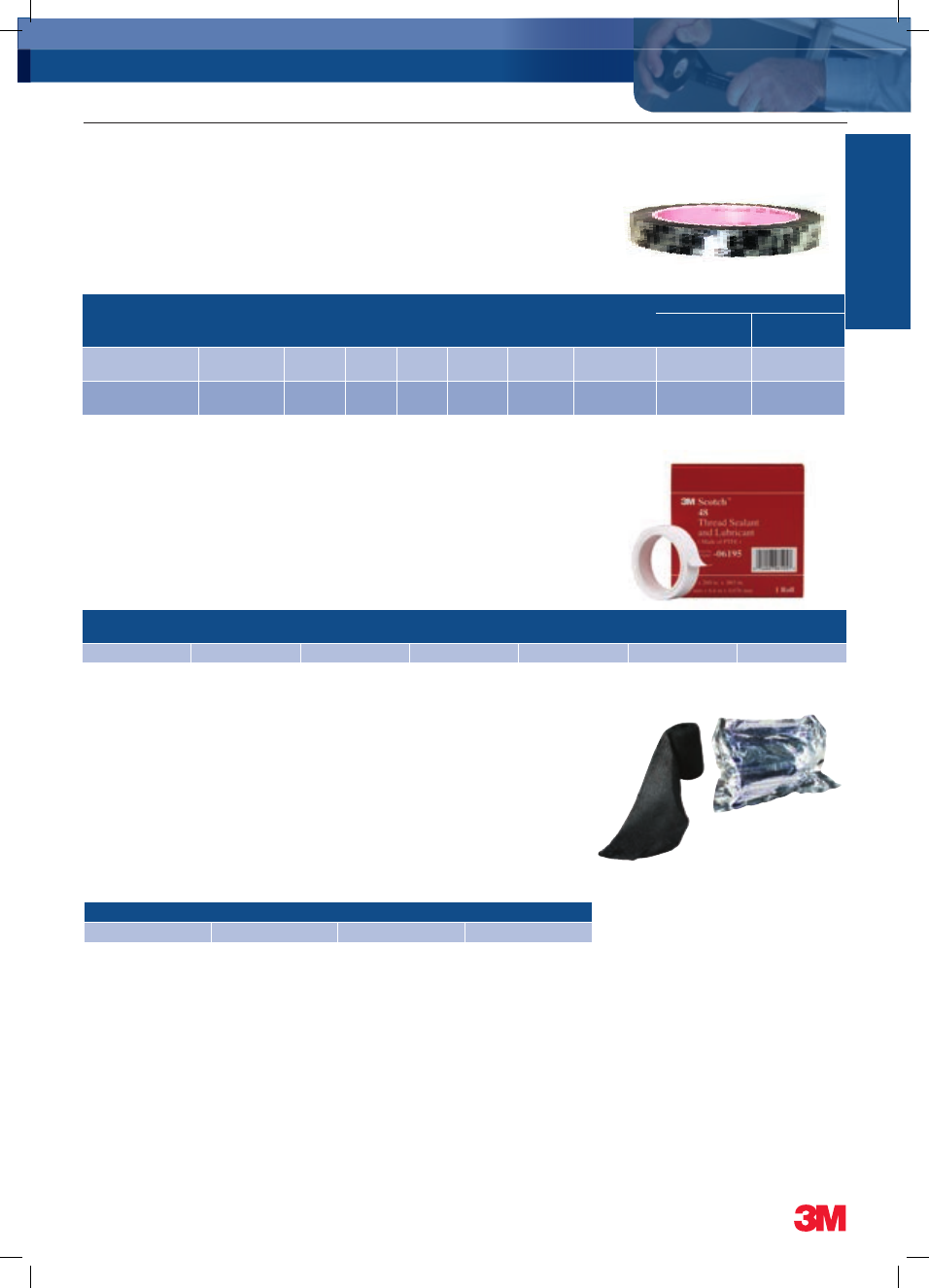

Antistatic Utility Tape 40PR

General use utility tape, clear polyester film backing, anti-static conductive polymer adhesive. With preprinted
static symbol. Helps prevent electrostatic discharge (ESD) damage to sensitive electronic components in
manufacturing environments.

Applications:

For use in static sensitive areas

Closing static shielding bags

*Also available from 3M converters in other standard and custom sizes.

Scotch

Pipe Thread Sealant Tape 48

A high temperature-stable (PTFE) thread sealant that provides a leak-proof seal.

Product

3M Order Code

Colour

Width

Length

Thickness

Operating

Temperature

48 - 12.7 mm x 33 m

80018003915

White

12.7 mm

33 m

0.076 mm

-268 to 260°C

™

Armorcast Structural Material

3M Armorcast Structural Material (roll format) is packed dry in a sealed foil envelope and is a flexible
fiberglass knit fabric strip that has been saturated with a curable black urethane resin syrup that starts to
cure when water is added. Once wet, the fiber strip becomes tacky and sticks to itself, so it wraps easily
around almost any shape or size. Armorcast Structural Material is resistant to moisture, fungus, acid, alkali,
ozone, sunlight, gasoline and high temperatures. It combines long life and very little maintenance.

Applications:

Creates maintenance free mechanical protection for power cable splices

For strengthening old cable, splices and auxiliary seals

For sheath repairs as well as repairs to lead auxiliaries

Product

3M Order Code

Width

Length

4560 - 100 mm x 3 m

YP206100015

100 mm

3 m

www.3M.com.au/electrical • www.3M.co.nz/electrical

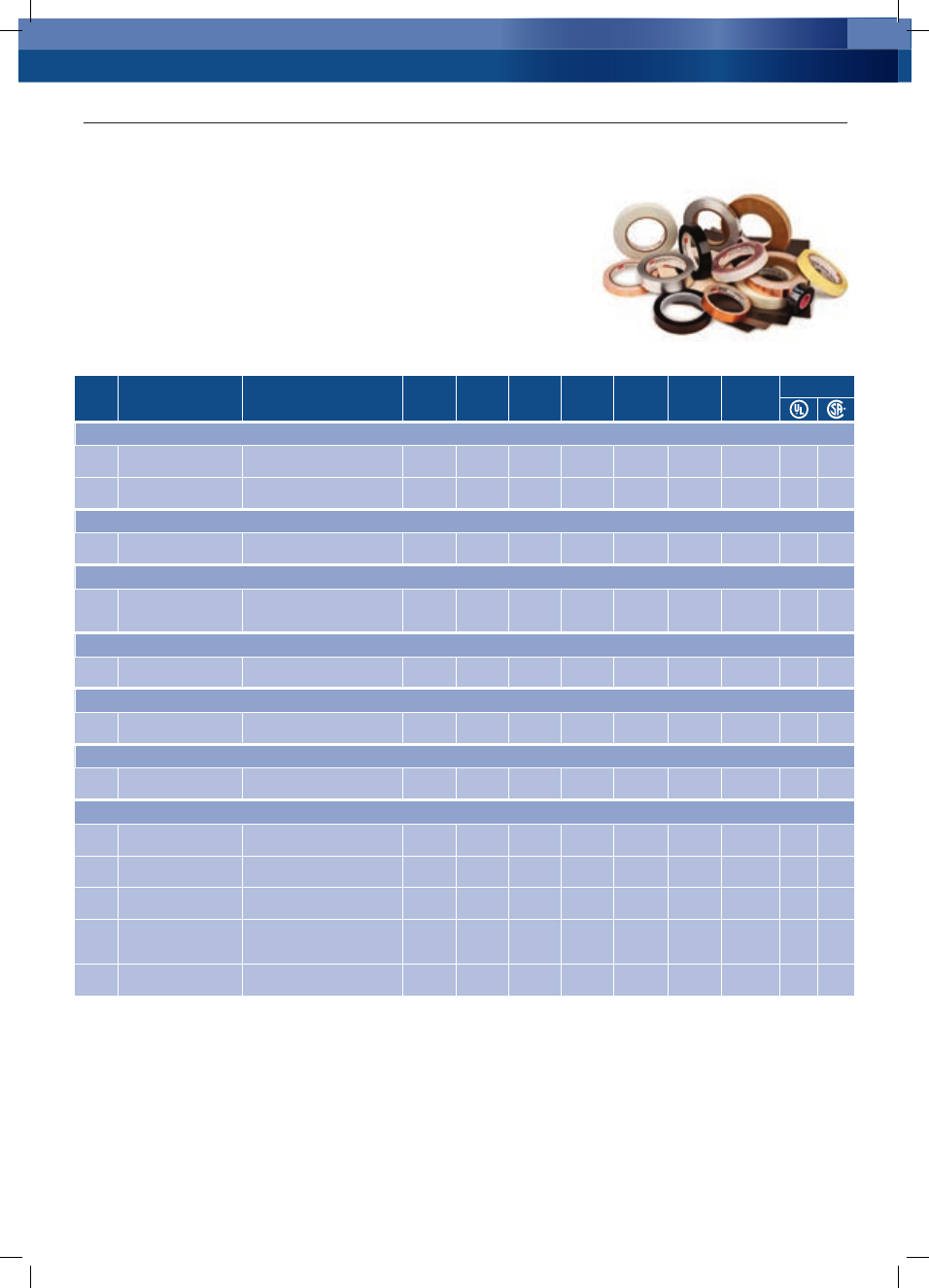

Insulating and Conductive (OEM) Tapes

™

Insulating and Conductive Tapes

3M Insulating and Conductive Tapes are made from a broad range of backings and adhesives to
meet the uniquely demanding requirements of different applications and environments. Extensive
quality control and testing, combined with accurate process controls, are just part of the reason that
3M consistently provides high quality products.

These tapes are typically available from 3M converters in standard and custom sizes. Some tapes
are available in slit sizes from 3M. Please contact your 3M representative for more details.

Product

Description

Features

Total

Thickness

Operating

Temperature

UL Flame
retardant

Dielectric

Breakdown

Insulation

Resistance

Breaking

Strength

Adhesion

to Steel

Agency Approvals

Glass Cloth Electrical Tapes

Scotch

Glass Cloth Electrical

Tape 27

High-performance glass cloth tape that is
tough and conformable. White

0.18 mm

150°C

3000 V

48 x 10

MΩ 25.2 kN/m 33 N/100 mm

Scotch

Glass Cloth Electrical

Tape 69

High-temperature (200°C) glass cloth tape.
UL 510 flame retardant. Printable. White

0.18 mm

200°C

Yes

3000 V

48 x 10

MΩ 31.4 kN/m 44 N/100 mm

Filament Reinforced Paper Electrical Tape

1076

™

Paper Backed Filament

Electrical Filament Tape 1076

Paper/glass filament backing designed for
oil-filled transformer applications

0.25mm

105°C

3500 V

48.1 kN/m 44 N/100 mm

Glass Fibre Reinforced Polyester Film Electrical Tape

1039

™

Glass Fibre Reinforced

Polyester Film Electrical Tape
1039

Solvent-resistant filament tape with
pressure sensitive acrylic adhesive

0.18 mm

130°C

5500 V

1 x 10

MΩ

48.1 kN/m 38 N/100 mm

Acetate Cloth Electrical Tape

™

Acetate Cloth Electrical

Tape 28

Thermosetting Rubber adhesive.
Printable. White

0.20 mm

105°C

2500 V

20 x 10

MΩ

7 kN/m

44 N/100 mm

Crepe Paper Electrical Tape

™

Crepe Paper Electrical

Tape 16

Paper tape with aggressive rubber resin
adhesive. Coil cover on bobbin-wound coils

0.23 mm

105°C

2500 V

>1 x 10

MΩ

4.4 kN/m

55 N/100 mm

Epoxy Film Electrical Tape

Super 20

™

Super 20 Restricting

Tape White

Thick double sided epoxy for higher
temperature and dielectric

0.13 mm

155°C

Yes

8000 V

>1 x 10

MΩ

7.9 kN/m

33 N/100 mm

Polyester Film Electrical Tape

™

Polyester Film Electrical

Tape 5

General purpose polyester tape with acrylic
adhesive. 0.025 mm film. Clear

0.06 mm

130°C

5500 V

>1 x 10

MΩ

4.4 kN/m

38 N/100 mm

1318-1

™

Polyester Film Electrical

Tape 1318-1

Acrylic adhesive. 0.025 mm film.
Printable. Black or White

0.06 mm

130°C

5500 V

>1 x 10

MΩ

4.4 kN/m

33 N/100 mm

1350F-1

™

Polyester Film Electrical

Tape 1350F-1

Acrylic adhesive. 0.025 mm film.
UL510 flame retardant. Yellow

0.06 mm

130°C

Yes

5500 V

>1 x 10

MΩ

4.4 kN/m

33 N/100 mm

™

Polyester Film Electrical

Tape 56

General purpose polyester tape with
thermosetting rubber adhesive.
0.025 mm film. Yellow

0.06 mm

130°C

5500 V

>1 x 10

MΩ

4.4 kN/m

55 N/100 mm

™

Polyester Film Electrical

Tape 58

Thicker, higher dielectric. Thermosetting
rubber adhesive. 0.05 mm film. Clear

0.08 mm

130°C

7000 V

>1 x 10

MΩ

8.8 kN/m

65 N/100 mm

Scotch

Electrical,

Industrial &

Special

Use T

apes

Insulating and Conductive (OEM) Tapes

™

Insulating and Conductive Tapes

continued

Product

Description

Features

Total

Thickness

Operating

Temperature

UL Flame
retardant

Dielectric

Breakdown

Insulation

Resistance

Breaking

Strength

Electrical

Resistance

Adhesion

to Steel

Agency Approvals

Composite Film Tape

™

Polyester Film

Electrical Tape 44

Economical, general purpose
composite film tape. This
puncture-resistant tape is tough and
conformable with excellent electrical
properties. For general purpose
insulation, anchoring, and banding in
motors and transformers

0.14 mm

130°C

5500 V

>1 x 10

MΩ

7 kN/m

71 N/100 mm

44D-A

™

Reinforced Polyester

Film Electrical Tape 44D-A

A version of 44 Tape with twice
the backing thickness for greater
dielectric strength

0.30 mm

130°C

6000 V

>1 x 10

MΩ

7 kN/m

38 N/100 mm

Polyimide Film Electrical Tape

™

Polyimide Film

Electrical Tape 92

Silicone adhesive and 0.025 mm
film. High temperature, puncture
resistant, printable, flame retardant.
Stable in coils,harnesses and
capacitors that are subjected to high
temperatures

0.08 mm

180°C

Yes

7500 V

>1 x 10

MΩ 5.3 kN/m

28 N/100 mm

PTFE Film Electrical Tape

™

PTFE Film Electrical

Tape 60

Translucent, 0.05 mm PTFE film tape
with silicone adhesive. For use on
high temperature coils, capacitors
and wire harnesses. UL510 flame
retardant

0.10 mm

180°C

Yes

9500 V

>1 x 10

MΩ 3.5 kN/m

32 N/100 mm

™

PTFE Film Electrical

Tape 61

Translucent, thicker (0.127 mm)
PTFE film tape with silicone adhesive.
For use on high temperature coils,
capacitors and wire harnesses where
high dielectric and breaking strength
are required. UL510 flame retardant

0.18 mm

180°C

Yes

15000 V

>1 x 10

MΩ 7.9 kN/m

38 N/100 mm

™

PTFE Film Electrical

Tape 63

Translucent, 0.05 mm PTFE
film tape with solvent resistant
acrylic adhesive. For use on coils,
capacitors and wire harnesses. For
use where chemical properties are
more important than temperature
resistance

0.09 mm

155°C

Yes

9500 V

>1 x 10

MΩ 3.5 kN/m

38 N/100 mm

EMI Shielding Tapes

1170

™

Aluminium Foil Tape

with Conductive Adhesive
1170

Conductive acrylic adhesive,
0.05 mm aluminium foil

0.08 mm

Yes

3.5 kN/m

0.01 Ω

38 N/100 mm

1181

™

Copper Foil Tape with

Conductive Adhesive 1181

Conductive acrylic adhesive,
0.04 mm copper foil

0.07 mm

Yes

4.4 kN/m

0.005 Ω

38 N/100 mm

1182

™

Copper Foil Tape with

Conductive Adhesive on
both sides 1182

Conductive acrylic adhesive on both
sides, 0.04 mm copper foil

0.09 mm

Yes

4.4 kN/m

0.01 Ω

38 N/100 mm

1194

™

Copper Foil Tape with

Nonconductive Adhesive
1194

Nonconductive adhesive,
0.07 mm copper foil

0.08 mm

Yes

4.4 kN/m

n/a

51 N/100 mm

1245

™

Embossed Copper

Foil Tape 1245

Conductive acrylic adhesive,
embossed 0.04 mm copper foil

0.10 mm

Yes

4.4 kN/m

0.001 Ω

38 N/100 mm

www.3M.com.au/electrical • www.3M.co.nz/electrical

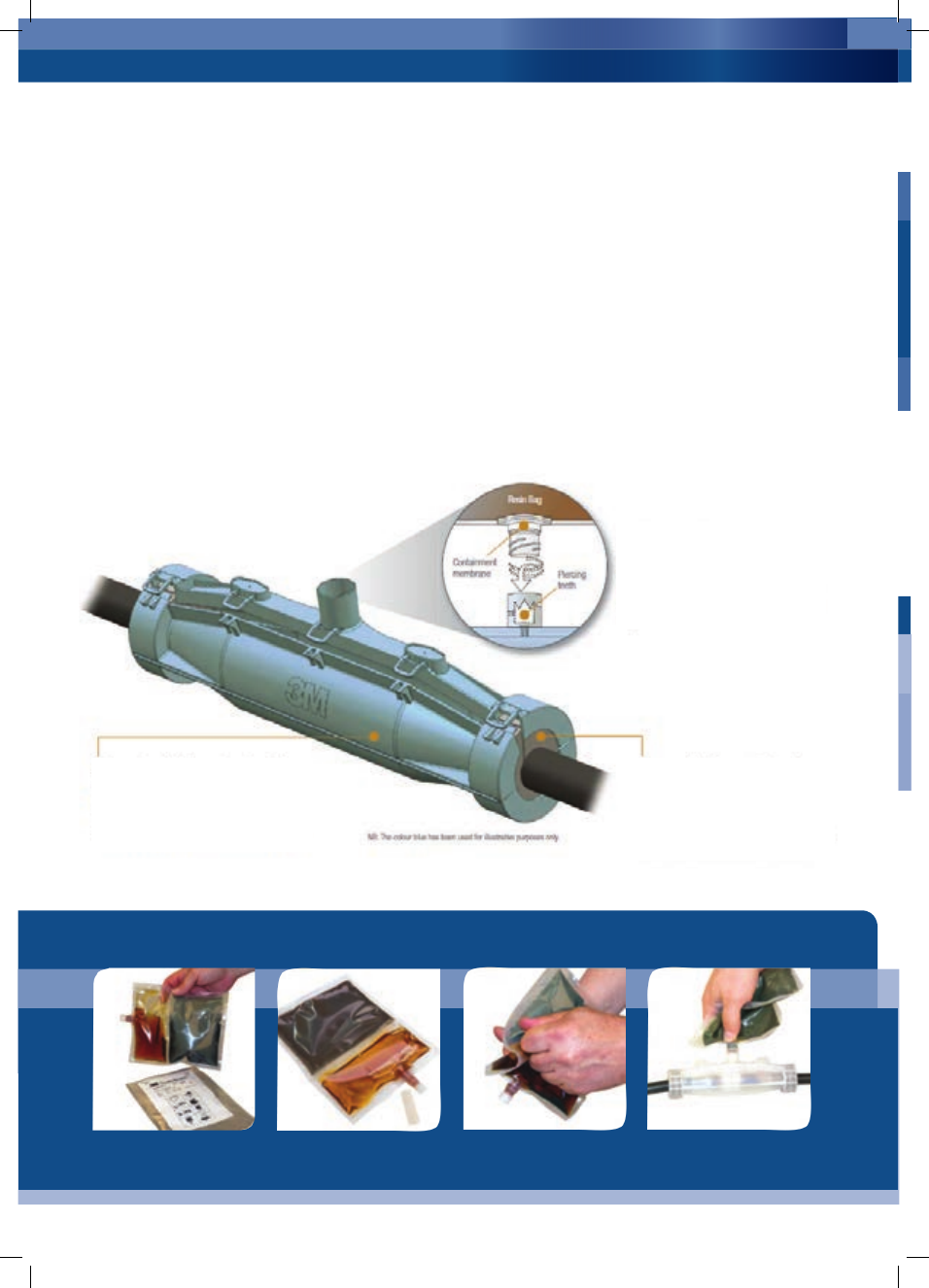

Featuring a one-part mould body with innovative sealing system requiring no cutting to size or taping, 3M

Scotchcast™ Resin Cable Joints offer unmatched speed of installation. 3M Scotchcast™ Closed Mix-Pour resin

bags are now enhanced with a new integrated resin delivery system. Designed to eliminate almost any chance

of skin contact and reduce vapour inhalation from the resin itself, this gives the user superb control over the

resin mixing and pouring process – avoiding unneccessary spills and wastage. Further, 3M Scotchcast™ high

quality resin compounds, renowned for their durability and reliability, are redeveloped to fully comply with the

latest global environmental and user safety regulations.

Inline

Branch

The 3M Scotchcast™ Closed Mix-Pour resin system allows mixing and pouring of the two-part resin without exposure to the user. Further, no tools or

mixing containers are required.

Sawing and taping the ends of the resin mould is
eliminated, regardless of cable size
Extra fast setup time, no tools required

Compressible foam seals at each

end of the mould body

Benefit

Simpler installation process and a reduced chance
of resin leakage - no need for extra taping

One-part mould body construction

with a top seal and fast fixing clips

Benefit

This innovative design significantly reduces the
chances of resin wastage, skin contact and
vapour inhalation

Fully integrated resin

delivery system

Benefit

™

Scotchast

™

Resin Cable Joint Kits

The 3M Scotchcast Resin Cable Joint range is designed to make the installation process faster, safer and more reliable than ever before. The range
includes hydrocarbon resistant products specially developed for the oil and gas industries, as well as dedicated products to suit armoured cable types
commonly found in mining and industrial environments. The range caters to a broad range of cable sizes and configurations, including inline and branch
jointing applications.

Features available in the new Scotchcast Resin Cable Joint Kit range include:

• “Express” one-part mould body with innovative sealing system requiring no cutting to size or taping, allowing unmatched speed of installation

(excludes LVI-3 series, which uses a hydrocarbon resistant two-part mould body, and the 82-A series sold in New Zealand).

• Closed Mix-Pour with integrated resin delivery system. Designed to eliminate almost any chance of skin contact, user safety is increased and

wastage from spills is minimized (excludes LVI-3 series and 82-A series).

• High quality 3M resin compounds which offer confidence through renowned reliability, and provide durability to avoid costly re-work and

system down time.

The 3M Scotchcast Closed Mix-Pour resin system allows mixing and pouring of the two-part resin without exposure to the

user. Further, no tools or mixing containers are required.

Sealed, two part resin bag

Integrated delivery system.

Included nozzle accessory

used for LVI-3 series

Internal mixing is safe

and clean

Resin is released and safely

poured in one easy step

Featuring a one-part mould body with innovative sealing system requiring no cutting to size or taping, 3M

Scotchcast™ Resin Cable Joints offer unmatched speed of installation. 3M Scotchcast™ Closed Mix-Pour resin

bags are now enhanced with a new integrated resin delivery system. Designed to eliminate almost any chance

of skin contact and reduce vapour inhalation from the resin itself, this gives the user superb control over the

resin mixing and pouring process – avoiding unneccessary spills and wastage. Further, 3M Scotchcast™ high

quality resin compounds, renowned for their durability and reliability, are redeveloped to fully comply with the

latest global environmental and user safety regulations.

Inline

Branch

The 3M Scotchcast™ Closed Mix-Pour resin system allows mixing and pouring of the two-part resin without exposure to the user. Further, no tools or

mixing containers are required.

Resin Joint Kits - Hazardous Area

™

Scotchcast

™

Resin Cable Joint Kits

Cable Type

Joint Configuration

Non-Armoured

Scotchcast

™

Joint Kit

Premium Range

Scotchcast

™

Joint Kit

Hazardous Area Range

Armoured

Inline

Branch

92-NBB-U Series

92-NBB-Series (Y-branch)

92-NBC-Series (T-branch)

Inline

92-NBA Series

LVl-2 Series

LVl-3 Series

™

Scotchcast Resin Cable

Joint Kits and Resins

The 3M

™

Scotchcast

™

“Express” one-part mould body is available in inline, T-branch and Y-branch (pictured) configurations.

Prepare and connect cables

Install mould

Mix and pour resin

Joint complete when resin has

completely filled the mould

™

Scotchcast

™

Premium Resin Cable Joint Range

3M Scotchcast Premium Resin Cable Joints feature 3M

™

Scotchcast

™

Electrical Insulating Resin 40, which is a high quality two part polyurethane

compound designed for electrical insulation and mechanical protection. Scotchcast Premium Resin Cable Joints are available in a range of sizes and
configurations to suit inline, Y-branch, T-branch applications, and joints requiring cable armouring components. All products in this range utilise the
“express” one-part mould body, providing time and cost savings through extra fast set up.

Applications:

Indoor, outdoor, underground and submerged applications

Product

3M Order Code

Cable Type

Cable Diameter

Joint

Configuration

Mould Body

Main

Branch

92-NBA0

KE235117568

Non-armoured

6 - 16 mm

Inline

Express one-part

92-NBA1

KE235117576

Non-armoured

10 - 22 mm

Inline

Express one-part

92-NBA2

KE235117584

Non-armoured

12 - 25 mm

Inline

Express one-part

92-NBA3

KE235117592

Non-armoured

13 - 32 mm

Inline

Express one-part

92-NBA4

KE235117600

Non-armoured

18 - 36 mm

Inline

Express one-part

92-NBA5

KE235117618

Non-armoured

19 - 45 mm

Inline

Express one-part

92-NBA6

KE235117626

Non-armoured

27 - 54 mm

Inline

Express one-part

92-NBA7

KE235117634

Non-armoured

29 - 64 mm

Inline

Express one-part

92-NBB0

KE235119358

Non-armoured

8 - 19 mm

Branch (Y Config)

Express one-part

92-NBB1

KE235119366

Non-armoured

11 - 25 mm

Branch (Y Config)

Express one-part

92-NBB2

KE235119374

Non-armoured

16 - 35 mm

Branch (Y Config)

Express one-part

92-NBC2

KE235119408

Non-armoured

16 - 35 mm

Branch (T Config)

Express one-part

LVI-2/2*

KE235112288

Armoured

12 - 25 mm

Inline

Express one-part

LVI-2/3*

KE235112296

Armoured

13 - 32 mm

Inline

Express one-part

LVI-2/4

KE235112320

Armoured

18 - 36 mm

Inline

Express one-part

LVI-2/5

KE235112338

Armoured

19 - 45 mm

Inline

Express one-part

LVI-2/6

KE235112346

Armoured

27 - 54 mm

Inline

Express one-part

LVI-2/7

KE235112353

Armoured

29 - 64 mm

Inline

Express one-part

*Connectors (crimp) included

www.3M.com.au/electrical • www.3M.co.nz/electrical

Resin Joint Kits

™

Scotchcast

™

Hazardous Area Resin Cable Joint Range

Scotchcast Hazardous Area Resin Cable Joints feature 3M

™

Scotchcast

™

Insulating Resin 1402FR.

Scotchcast 1402FR resin is flame retardant, halogen free, and remains virtually unaffected by
immersion in hydrocarbons and chemical solvents. When exposed to petrol, diesel and aggressive
solvents, rapid deterioration can be experienced by standard encapsulating resins – especially those
commonly found in conventional, low cost resin jointing kits. 1402FR is an ultra-high quality, highly
modified resin that demonstrates superior performance compared to other encapsulating resin
types. 3M Scotchcast Hazardous Area resin joint kits are recommended for industrial or specialist
applications where hydrocarbons are present.

Applications:

Indoor, outdoor, underground and submerged applications

For use within Zone 1 and 2 areas

Product

3M Order Code

Cable Type

Cable Diameter

Joint

Configuration

Mould Body

Main

Branch

LVI-3/2*

KE235119523

Armoured

14 - 30 mm

Inline

Hydrocarbon two-part

LVI-3/3*

KE235119531

Armoured

23 - 35 mm

Inline

Hydrocarbon two-part

LVI-3/4

KE235119549

Armoured

28 - 47 mm

Inline

Hydrocarbon two-part

LVI-3/5

KE235119556

Armoured

35 - 60 mm

Inline

Hydrocarbon two-part

LVI-3/6

KE235119564

Armoured

45 - 70 mm

Inline

Hydrocarbon two-part

LVI-3/7

KE235119572

Armoured

45 - 90 mm

Inline

Hydrocarbon two-part

LVI-3/8

KE235120810

Armoured

45 - 100 mm

Inline

Hydrocarbon two-part

LVI-3/2-IC

KE235119580

Instrumentation/Control, Armoured

14 - 30 mm

Inline

Hydrocarbon two-part

LVI-3/3-IC

KE235119598

Instrumentation/Control, Armoured

23 - 35 mm

Inline

Hydrocarbon two-part

LVI-3/4-IC

KE235119606

Instrumentation/Control, Armoured

28 - 47 mm

Inline

Hydrocarbon two-part

LVI-3/5-IC

KE235119614

Instrumentation/Control, Armoured

35 - 60 mm

Inline

Hydrocarbon two-part

LVI-3/6-IC

KE235119622

Instrumentation/Control, Armoured

45 - 70 mm

Inline

Hydrocarbon two-part

92-NBB1-U

KE235109110

Non-Armoured

11 - 23 mm

Branch (Y config)

Express one-part

92-NBB2-U

KE235109128

Non-Armoured

16 - 33 mm

Branch (Y config)

Express one-part

*Connectors (crimp) included

3M Customised Resin Kit Solutions

The comprehensive 3M Scotchcast Resin Cable Joint range covers a vast array of applications and sizes; however we recognise that many projects
require a customised solution to meet specific needs. For customised kit options, including termite and flame protection, please contact 3M with
your enquiry.

www.3M.com.au/electrical • www.3M.co.nz/electrical

Resin Packs

™

Scotchcast

™

Electrical Insulating Resin 40

3M Scotchcast Premium Electrical Insulating Resin 40 is a high quality two part polyurethane room
temperature curing (low exotherm) resin designed for electrical insulation and mechanical protection. Once
hardening is complete, the resin provides impact resistance and durability against moisture and atmospheric
corrosion. It features a Closed Mix and Pour Delivery System designed to improve user safety and minimise
wastage from spills (note - 40 size C without nozzle does not use a closed pour system). Pot life at 23°C is
20 minutes.

Applications:

Mechanical protection and electrical insulation of low voltage electrical joints installed for indoor

and outdoor, underground and submerged applications

Product

3M Order Code

Size

Viscosity at 23°C

(mixed)

Cured Properties

Hardness

Shore D

Tensile Strength

Elongation at

Break

Dielectric

Strength

40 Size A

KE235117667

A 90 mL (100 g)

900 mPas

15 MPa

50%

>20 kV/mm

40 Size B

KE235117675

B 200 mL (225 g)

900 mPas

15 MPa

50%

>20 kV/mm

40 Size C

KE235117683

C 370 mL (420 g)

900 mPas

15 MPa

50%

>20 kV/mm

40 Size C no nozzle*

KE235117741

C 370 mL (420 g)

without nozzle

900 mPas

15 MPa

50%

>20 kV/mm

*No nozzle format is recommended for resin pressure method (RPM) applications

™

Scotchcast

™

Encapsulating and Blocking Compound 4407

3M Scotchcast Encapsulating and Blocking Compound 4407 is a hard encapsulant designed specifically for
permanent splice protection and cable blocking applications using telecommunications cables.

Applications:

Telecommunication applications requiring a hard, non-re-enterable compound with good

handling and performance characteristics

Product

3M Order Code

Size

Viscosity at 23°C

(mixed)

Cured Properties

Hardness

Shore A

Tensile Strength

Elongation at Break

4407 Size A

80610060339

89 mL

1200 mPas

3.45 Mpa

150%

4407 Size B

80610060347

197 mL

1200 mPas

3.45 Mpa

150%

4407 Size C

80610060362

396 mL

1200 mPas

3.45 Mpa

150%

4407 Size D

80610060388

637 mL

1200 mPas

3.45 Mpa

150%

™

Scotchcast

™

Electrical Insulating Resin 1402FR

3M Scotchcast Hazard Area Electrical Insulating Resin 1402FR is a halogen free, flame retardant, two
component polyurethane resin. The resin is designed with flame retardant and chemical resistant properties
for electrical insulation and mechanical protection of electrical cable joints.

Applications:

Electrical insulation and mechanical protection of low and medium voltage electrical joints

installed for indoor and outdoor, underground and submerged applications in conditions where

flame retardancy and/or resistance to chemicals such as hydrocarbons is required

Product

3M Order Code

Size

Viscosity at 23°C

(mixed)

Cured Properties

Hardness

Shore D

Tensile Strength

Elongation at

Break

Dielectric

Strength

1402FR

KE235108906

C 370 mL

2500 mPas

25 MPa

>20 kV/mm

™

Cold Shrink Lo

Volta

Insula

tors and Joint Kits

Cold Shrink Low Voltage Insulators & Inline Joint Kits

™

Cold Shrink Connector Insulators 8420 and 8430 Series

3M Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s unique cold shrink
delivery system. Products are supplied prestretched on a removable core for efficiency and ease of
installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into
position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material
promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range
from -40 to 90°C.

Important:

Use cable insulation/jacket diameters and connector outer diameter for final sizing confirmation

Applications:

Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and

cable splicing rated to 1000 V

Good for repairs and environmental sealing for communication and other non-electrical

applications

Product

3M Order Code

Typical Cable Size

Minimum Cable

Diameter for Seal

Maximum Diameter

(Cable or Connector)

Maximum Connector

Length

Relaxed Tube Length

8423-6

80610839484

14 - 16 mm²

7.8 mm

14 mm

51 mm

152 mm

8424-8**

80610921928

6 - 50 mm²

2.5 mm

21 mm

76 mm

203 mm

8425-8

80610921936

35 - 50 mm²

10.1 mm

21 mm

76 mm

203 mm

8426-9

80610927669

70 - 125 mm²

13.9 mm

30 mm

127 mm

229 mm

8426-11

80610927677

70 - 125 mm²

13.9 mm

30 mm

178 mm

279 mm

8427-6*

80610456164

16.8 mm

35 mm

51 mm

152 mm

8427-12

80610134035

125 - 200 mm²

16.8 mm

35 mm

203 mm

305 mm

8427-16

80610134043

125 - 200 mm²

16.8 mm

35 mm

305 mm

406 mm

8428-6*

80610456172

24.1 mm

49 mm

51 mm

152 mm

8428-8

80611230212

300 - 400 mm²

24.1 mm

49 mm

76 mm

203 mm

8428-12

80610154603

300 - 400 mm²

24.1 mm

49 mm

203 mm

305 mm

8428-18

80610134050

300 - 400 mm²

24.1 mm

49 mm

356 mm

457 mm

8429-6*

80610456180

32.2 mm

68 mm

51 mm

152 mm

8429-9*

80610456313

500 mm²

32.2 mm

68 mm

127 mm

229 mm

8429-12

80610921910

500 mm²

32.2 mm

68 mm

203 mm

305 mm

8429-15

80610970446

500 mm²

32.2 mm

68 mm

280 mm

381 mm

8429-18

80610134068

500 mm²

32.2 mm

68 mm

356 mm

457 mm

8430-9*

80610839492

630 - 1000 mm²

42.6 mm

94 mm

127 mm

229 mm

8430-18

80610921902

630 - 1000 mm²

42.6 mm

94 mm

356 mm

457 mm

*These sizes are not designed to be used as primary insulation. These shorter length tubes are for conduit sealing and breakouts.
**8424-8 contains range-extending adapters (without adapters, 8424–8 and 8425–8 products are identical).
Note: Insulation, connector and/or jacket can be overwrapped with Scotch Rubber Mastic Tape 2228 to build up diameter if required.

For 8420 and 8430 Series Cold Shrink Tubes continuously exposed to high levels of UV radiation, 3M recommends overwrapping with

Scotch

Super 33+ Vinyl Electrical Tape or Scotch

Self Fusing Silicone Rubber Tape 70. See pages 2 and 5.

Other sizes of cold shrink tubes are available on request - please contact 3M.

™

Low Voltage Inline Joint Kits 5732-5735 Series

These kits are suitable for indoor and outdoor installations, including direct burial, aerial and submersible
applications. For use with three core armoured cable up to 1000 V. Connectors are not included,
pre-insulated crimp connectors preferred.

Product

3M Order Code

Cable Size

Cable Diameter

5732

80610981740

35 - 50 mm²

24 - 61 mm

5733

80610981757

70 - 120 mm²

29 - 84 mm

5734

80610981765

120 - 240 mm²

39 - 102 mm

5735

80610981773

240 - 400 mm²

39 - 102 mm

Note:

If increased structural integrity is required, the joint can be overwrapped with two-half lapped layers of 3M

™

Armorcast Structural Material

(purchased separately). For 3 metre long rolls use the following number of rolls per kit: 5732 (2 rolls), 5733 & 5734 (3 rolls) and 5735 (5 rolls).

See page 12 for ordering details.

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Heat Shrink Tubing

3M Heat Shrink Tubing products provide an effective means of applying skin tight insulating and protective
coverings for a wide variety of electrical, electronic and mechanical applications. 3M heat shrink products
offer the important advantages of simple installation, improved performance and long term reliability. They
are abrasion resistant, and withstand heat, corrosion, moisture and other hostile environments whilst offering
superior dielectric properties.

Typical Properties

FP-221VW

FP-301

EPS-300

IMCSN

ITCSN

Adhesive Lined?

Yes

Operating Temperature Range

-55°C to 135°C

-55 to 110°C

Shrink Temperature (Minimum)

100°C

121°C

Shrink Ratio

2:1

3:1

up to 4:1

Standard Sizes Expanded Diameter

1.5 - 50 mm

1.2 - 25.4 mm

4.8 - 38 mm

10 - 109 mm

10 - 152 mm

Dielectric Strength

35.4 kV/mm

27.6 kV/mm

19.7 kV/mm

Volume Resistivity

Ω-cm

Tensile Strength

16.5 N/mm²

14.4 N/mm²

16.5 N/mm²

Elongation

400%

450%

475%

Longitudinal Change

+1,-10%

+/- 5%

+1,-15%

+1,-10%

Flammability

Self-Extinguish meets UL

224 VW-1

Self-Extinguish meets

UL 224 All-Tubing Flame

Test (except clear)

Self-Extinguish meets

UL224 All-Tubing Flame

Test (jacket)

n/a

Corrosive Effective

Non-corrosive

Abrasion Resistance

Good

Fuel and Oil Resistance

Good

Solvent Resistance

Excellent

Good

Resistance to Acids and Alkalis

Excellent

Agency Approvals

™

Hea

t Shrink

Tubing

™

Heat Shrink Thin Wall Tubing FP-221VW

3M Heat Shrink Tubing FP-221VW offers a simple and reliable method to apply insulation, protection, or
covering for a wide variety of electrical, electronic, and mechanical applications.
FP-221VW Tubing has a 2:1 shrink ratio. When freely recovered, the tubing will shrink to 50% of its as
supplied internal diameter. FP-221VW is highly flame resistant and meets UL 224 VW-1.

Format:

1.2 m lengths

Voltage:

600 V

Operating Temperature:

-55°C to 135°C

Shrink Temperature:

100°C

Agency Approvals

Applications:

Fire-resistant coverings of components and flammable wire assemblies

Heat Shrink Tubing - Thin Wall

Product

3M Order Code

Colour

Expanded Inner

Diameter

Recovered Inner

Diameter

Expanded Wall

Thickness as Supplied

Maximum Recovered

Wall Thickness*

FP-221VW Black 1.5 mm

XA003859007

Black

1.5 mm

0.75 mm

0.2 +/- 0.05 mm

0.4 +/- 0.05 mm

FP-221VW Black 3 mm

XA003859015

Black

3 mm

1.5 mm

0.25 +/- 0.05 mm

0.45 + 0.1 mm

FP-221VW Black 5 mm

XA003859023

Black

5 mm

2.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Black 7 mm

XA003859031

Black

7 mm

3.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Black 10 mm

XA003859049

Black

10 mm

5 mm

0.35 +/- 0.1 mm

0.60 + 0.1 mm

FP-221VW Black 13 mm

XA003859056

Black

13 mm

6.5 mm

0.35 +/- 0.15 mm

0.70 + 0.1 mm

FP-221VW Black 20 mm

XA003859064

Black

20 mm

10 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Black 25 mm

XA003859072

Black

25 mm

12.5 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Black 40 mm

XA003859080

Black

40 mm

20 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Black 50 mm

XA003859098

Black

50 mm

25 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Blue 1.5 mm

XA003859304

Blue

1.5 mm

0.75 mm

0.2 +/- 0.05 mm

0.4 +/- 0.05 mm

FP-221VW Blue 3 mm

XA003859312

Blue

3 mm

1.5 mm

0.25 +/- 0.05 mm

0.45 + 0.1 mm

FP-221VW Blue 5 mm

XA003859320

Blue

5 mm

2.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Blue 7 mm

XA003859338

Blue

7 mm

3.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Blue 10 mm

XA003859346

Blue

10 mm

5 mm

0.35 +/- 0.1 mm

0.60 + 0.1 mm

FP-221VW Blue 13 mm

XA003859353

Blue

13 mm

6.5 mm

0.35 +/- 0.15 mm

0.70 + 0.1 mm

FP-221VW Blue 20 mm

XA003859361

Blue

20 mm

10 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Blue 25 mm

XA003859379

Blue

25 mm

12.5 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Blue 40 mm

XA003859387

Blue

40 mm

20 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Blue 50 mm

XA003859395

Blue

50 mm

25 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Green/Yellow 3 mm

XA003859411

Green/Yellow

3 mm

1.5 mm

0.25 +/- 0.05 mm

0.45 + 0.1 mm

FP-221VW Green/Yellow 5 mm

XA003859429

Green/Yellow

5 mm

2.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Green/Yellow 7 mm

XA003859437

Green/Yellow

7 mm

3.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Green/Yellow 10 mm

XA003859445

Green/Yellow

10 mm

5 mm

0.35 +/- 0.1 mm

0.60 + 0.1 mm

FP-221VW Green/Yellow 13 mm

XA003859452

Green/Yellow

13 mm

6.5 mm

0.35 +/- 0.15 mm

0.70 + 0.1 mm

FP-221VW Green/Yellow 20 mm

XA003859460

Green/Yellow

20 mm

10 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Green/Yellow 25 mm

XA003859478

Green/Yellow

25 mm

12.5 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Green/Yellow 40 mm

XA003859486

Green/Yellow

40 mm

20 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Green/Yellow 50 mm

XA003859494

Green/Yellow

50 mm

25 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Red 1.5 mm

XA003859106

Red

1.5 mm

0.75 mm

0.2 +/- 0.05 mm

0.4 +/- 0.05 mm

FP-221VW Red 3 mm

XA003859114

Red

3 mm

1.5 mm

0.25 +/- 0.05 mm

0.45 + 0.1 mm

FP-221VW Red 5 mm

XA003859122

Red

5 mm

2.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Red 7 mm

XA003859130

Red

7 mm

3.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW Red 10 mm

XA003859148

Red

10 mm

5 mm

0.35 +/- 0.1 mm

0.60 + 0.1 mm

FP-221VW Red 13 mm

XA003859155

Red

13 mm

6.5 mm

0.35 +/- 0.15 mm

0.70 + 0.1 mm

FP-221VW Red 20 mmm

XA003859163

Red

20 mm

10 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Red 25 mm

XA003859171

Red

25 mm

12.5 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW Red 40 mm

XA003859189

Red

40 mm

20 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW Red 50 mm

XA003859197

Red

50 mm

25 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW White 1.5 mm

XA003859205

White

1.5 mm

0.75 mm

0.2 +/- 0.05 mm

0.4 +/- 0.05 mm

FP-221VW White 3 mm

XA003859213

White

3 mm

1.5 mm

0.25 +/- 0.05 mm

0.45 + 0.1 mm

FP-221VW White 5 mm

XA003859221

White

5 mm

2.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW White 7 mm

XA003859239

White

7 mm

3.5 mm

0.35 +/- 0.1 mm

0.55 + 0.1 mm

FP-221VW White 10 mm

XA003859247

White

10 mm

5 mm

0.35 +/- 0.1 mm

0.60 + 0.1 mm

FP-221VW White 13 mm

XA003859254

White

13 mm

6.5 mm

0.35 +/- 0.15 mm

0.70 + 0.1 mm

FP-221VW White 20 mm

XA003859262

White

20 mm

10 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW White 25 mm

XA003859270

White

25 mm

12.5 mm

0.5 +/- 0.15 mm

0.90 + 0.1 mm

FP-221VW White 40 mm

XA003859288

White

40 mm

20 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

FP-221VW White 50 mm

XA003859296

White

50 mm

25 mm

0.55 +/- 0.2 mm

1.00 + 0.2 mm

Note:

Always order the largest size that will shrink snugly over the item to be covered

* Note: Wall thickness will be less if tubing recovery is restricted during shrinkage.

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Heat Shrink Thin-Wall Tubing FP-301 Assorted Sizes Kits

The 3M Heat Shrink Thin-Wall Tubing FP-301 Kits are a versatile assortment of flexible polyolefin heat
shrink tubing, and are available in black or assorted colours. These rugged plastic kits include product
and installation information on the cover and allow an engineer, designer or technician to have a complete
selection of popular sizes and colours for small projects and product development programs. FP-301 tubing
has a 2:1 shrink ratio and is rated for continuous operation from -55 to 135°C.

Voltage:

600 V

Operating Temperature:

-55°C to 135°C

Shrink Temperature:

100°C

Agency Approvals

Applications:

Electrical insulation over cable splices and terminations

Lightweight wire harness covering, wire marking, wire bundling, component packaging

and fire resistant covering

Heat Shrink Tubing - Thin Wall and Adhesive Lined

Product

3M Order Code

Description

Colour(s)

Sizes

Format

FP-301 Kit Assorted

Colours

80610855779

133 pieces/kit, 7 colours

and 6 sizes

Black, red, white, yellow,

blue, green, and clear

2.4, 3.2, 4.8, 6.4, 9.5, 12.7 mm

152 mm long pieces

FP-301 Kit Black

80610906317

102 pieces/kit, 6 sizes

Black

4.8, 6.4, 9.5, 12.7, 19.1, 25.4 mm

152 mm long pieces

Product

3M Order Code

Colour

Expanded Inner

Diameter

Recovered Inner

Diameter

Total Recovered

Wall Thickness

Melted Recovered

Wall Thickness

EPS-300 Black 4.8 mm

80611473895

Black

4.8 mm

1.6 mm

1.0 mm

0.5 mm

EPS-300 Black 6.4 mm

80611473903

Black

6.4 mm

2.0 mm

1.0 mm

0.5 mm

EPS-300 Black 6.4 mm Bulk

80611601792

Black

6.4 mm

2.0 mm

1.0 mm

0.5 mm

EPS-300 Black 9.5 mm

80611473911

Black

9.5 mm

3.1 mm

1.4 mm

0.6 mm

EPS-300 Black 12.7 mm

80611473929

Black

12.7 mm

4.1 mm

1.8 mm

0.8 mm

EPS-300 Black 19.1 mm

80611473937

Black

19.1 mm

6.4 mm

2.2 mm

0.9 mm

EPS-300 Black 19.1 mm Bulk

80611601826

Black

19.1 mm

6.4 mm

2.2 mm

0.9 mm

EPS-300 Black 25.4 mm

80611473945

Black

25.4 mm

8.1 mm

2.5 mm

1.0 mm

EPS-300 Black 25.4 mm Bulk

80611601834

Black

25.4 mm

8.1 mm

2.5 mm

1.0 mm

EPS-300 Black 38.1 mm

80611601842

Black

38.1 mm

13.0 mm

2.5 mm

1.0 mm

EPS-300 Red 12.7 mm

80611600232

Red

12.7 mm

4.1 mm

1.8 mm

0.8 mm

EPS-300 Red 19.1 mm

80611600240

Red

19.1 mm

6.4 mm

2.2 mm

0.9 mm

™

Thin-Wall Adhesive Lined Tubing EPS-300

Flexible, adhesive lined thin wall polyolefin with a 3:1 shrink ratio. For insulation, strain relief and
environmental protection of wire bundles and splices. Rated to 110°C (black).

Format:

1.2 m lengths

Voltage:

600 V

Operating Temperature:

-55 to 110°C

Shrink Temperature:

121°C

Agency Approvals

Applications:

Environmental protection of components, splices, wire bundles and wire

harness breakouts

™

Hea

t Shrink

Tubing

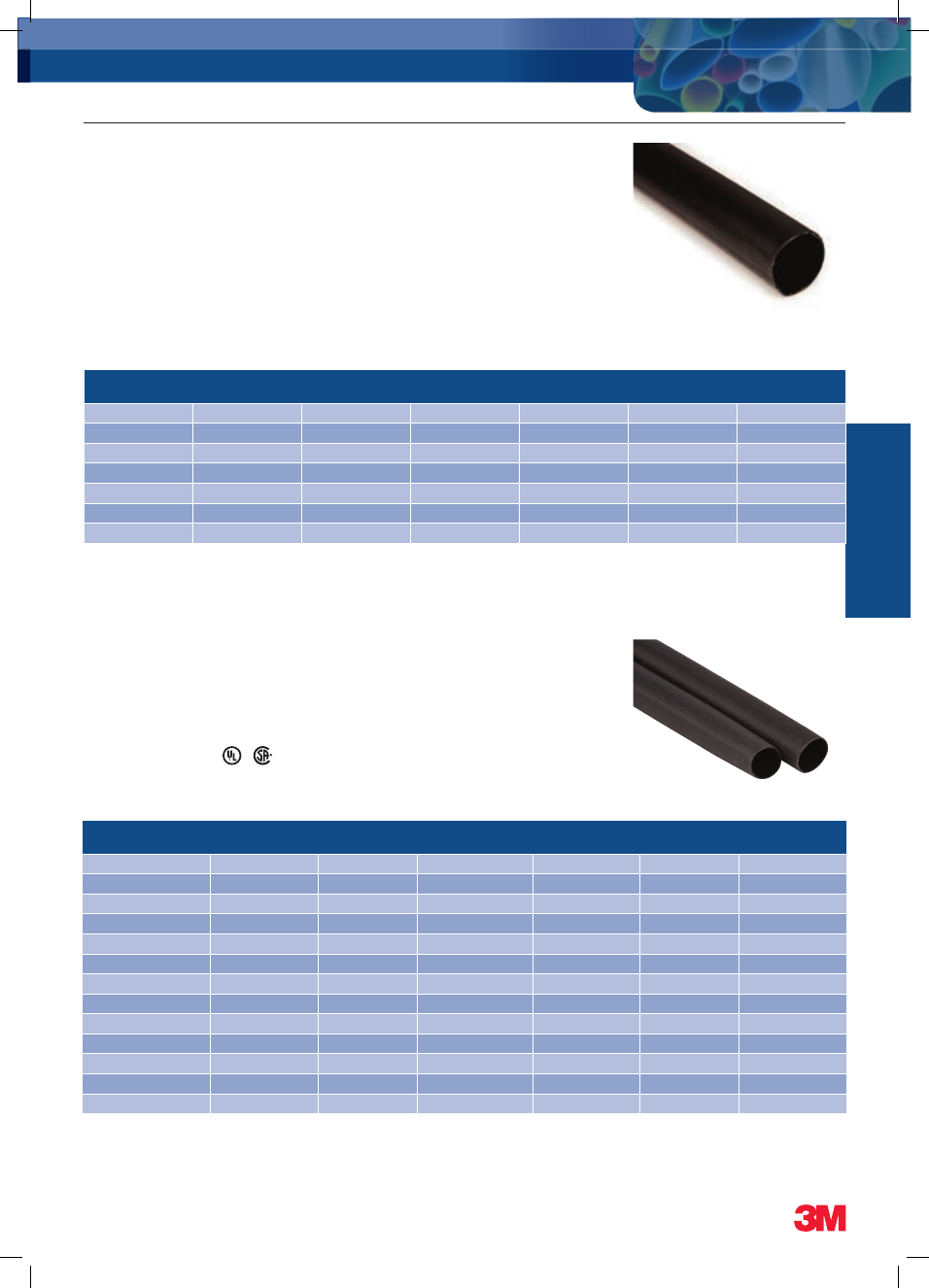

Heat Shrink Tubing - Medium and Heavy Wall

Product

3M Order Code

Colour

Cable Size

Cable Diameter

(maximum - minimum)

Expanded Inner

Diameter

Recovered Inner

Diameter

IMCSN-0400-48A

80610677603

Black

4 - 10 mm²

8.8 - 3.8 mm

10 mm

3.8 mm

IMCSN-0800-48A

80610677611

Black

10 - 25 mm²

18 - 5.6 mm

20 mm

5.6 mm

IMCSN-1100-48A

AE010581880

Black

35 - 60 mm²

24 - 9.4 mm

28 mm

9.4 mm

IMCSN-1500-48A

AE010582920

Black

60 - 120 mm²

33 - 13 mm

38 mm

13 mm

IMCSN-2000-48A

80610677645

Black

185 - 250 mm²

44 - 19 mm

51 mm

19 mm

IMCSN-3000-48A

80610677652

Black

325 - 625 mm²

63 - 25 mm

76 mm

25 mm

IMCSN-4300-48A

80610677595

Black

625 - 1000 mm²

91 - 38 mm

109 mm

38 mm

™

Heat Shrink Medium-Wall Cable Sleeves IMCSN

Adhesive lined, medium wall polyolefin tubing with a 3:1 shrink ratio. Split resistant tubing designed to
provide reliable performance for electrical splices, connections, and terminations as well as mechanical and
environmental protection. Rated to 1000 V.

Format:

1.2 m lengths

Voltage:

1000 V

Operating Temperature:

-55 to 110°C

Shrink Temperature:

121°C

Applications:

Protection and sealing of 1 kV joints, connections and terminations in indoor and

outdoor applications

Product

3M Order Code

Colour

Cable Size

Cable Diameter

(maximum - minimum)

Expanded Inner

Diameter

Recovered Inner

Diameter

ITCSN-0400 48A

80610229611

Black

4 - 10 mm²

8.9 - 4.3 mm

10 mm

3.8 mm

ITCSN-0400 48A Bulk

80008007181

Black

4 - 10 mm²

8.9 - 4.3 mm

10 mm

3.8 mm

ITCSN-0800 48A

80610229629

Black

10 - 15 mm²

17 - 6.1 mm

20 mm

5.1 mm

ITCSN-0800 48A Bulk

80008007223

Black

10 - 15 mm²

17 - 6.1 mm

20 mm

5.1 mm

ITCSN-1100 48A

80610229637

Black

35 - 95 mm²

22 - 10 mm

28 mm

9.4 mm

ITCSN-1100 48A Bulk

80008007264

Black

35 - 95 mm²

22 - 10 mm

28 mm

9.4 mm

ITCSN-1500 48A

80610229645

Black

95 - 185 mm²

30 - 15 mm

38 mm

13 mm

ITCSN-2000 48A

80610229652

Black

150 - 300 mm²

41 - 19 mm

51 mm

17 mm

ITCSN-2000 48A Bulk

80008007322

Black

150 - 300 mm²

41 - 19 mm

51 mm

17 mm

ITCSN-3000 48A

80610229660

Black

400 - 625 mm²

57 - 31 mm

76 mm

25 mm

ITCSN-3000 48A Bulk

80008007348

Black

400 - 625 mm²

57 - 31 mm

76 mm

25 mm

ITCSN-4500 48A

80610858716

Black

800 - 1000 mm²

102 - 38 mm

114 m

38 mm

ITCSN-6000 48A Bulk

80008007363

Black

140 - 46 mm

152 mm

46 mm

™

Heat Shrink Heavy-Wall Cable Sleeves ITCSN

Adhesive lined, thick wall polyolefin tubing with a shrink ratio as high as 4:1. Split resistant tubing designed to
provide reliable performance for electrical splices, connections and terminations, as well as mechanical and
abrasion resistance. Rated to 1000 V.

Format:

1.2 m lengths

Voltage:

1000 V

Operating Temperature:

-55 to 110°C

Shrink Temperature:

121°C

Agency Approvals:

Applications:

Protection and sealing of 1 kV joints, connections and terminations in indoor and

outdoor applications

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Cable Accessories

3M offers accessory products to assist with splice repair, cable jacket sealing, cable preparation and cleaning, cable handling and surface protection.

Product

3M Order Code

Cable Diameter

CSCAK/1

TE100048780

12 - 18 mm

CSCAK/2

TE100048798

18 - 25 mm

CSCAK/3

TE100048806

25 - 42 mm

CSCAK/4

TE100048814

42 - 55 mm

CSCAK/5

TE100048822

56 - 81 mm

™

Cold Shrink Cable Abandonment Kits CSCAK

3M Cold Shrink Cable Abandonment Kits are a complete solution to abandon low voltage polymeric
cables either temporarily or permanently. Environmental sealing and mechanical protection is provided
using 3M Cold Shrink technology, eliminating the need for heat and special tools, making a quick, simple
and reliable installation.

Kit Contents:

• Cold shrink end cap

• Armour/earth connection components

• Cold shrink tube

• Full installation Instructions

• Self-amalgamating insulating tape

Applications:

Single and multi core low voltage polymeric power cables up to and including

1.9/3.3 kV (with or without lead sheath and/or armour)

Cold Shrink Cable Accessories

Product

3M Order Code

Colour

Cable Diameter

EC-1

XA003895001

Black

12 - 21 mm

EC-2

XA003895019

Black

16 - 30 mm

EC-3

XA003895027

Black

26 - 49 mm

EC-4

XA003895035

Black

46 - 84 mm

™

Cold Shrink End Caps EC-Series

3M Cold Shrink End Caps EC-Series are close-ended, tubular rubber sleeves that are factory expanded
and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object,
the core is removed to provide a reliable environmental seal. Four different end caps are available to
accommodate a wide range of sizes. They are easily installed and can be removed cleanly.

Applications:

Environmentally seal and mechanically protect exposed cable ends using no tools,

mastics or tapes

Protect cables and pipes from exposure to moisture, contamination, corrosion,

ozone, ultra-violet radiation and other environmental hazards

Cable Diameter (mm)

EC-1
EC-2

EC-3

EC-4

- 21

100

™

Cable Accessories

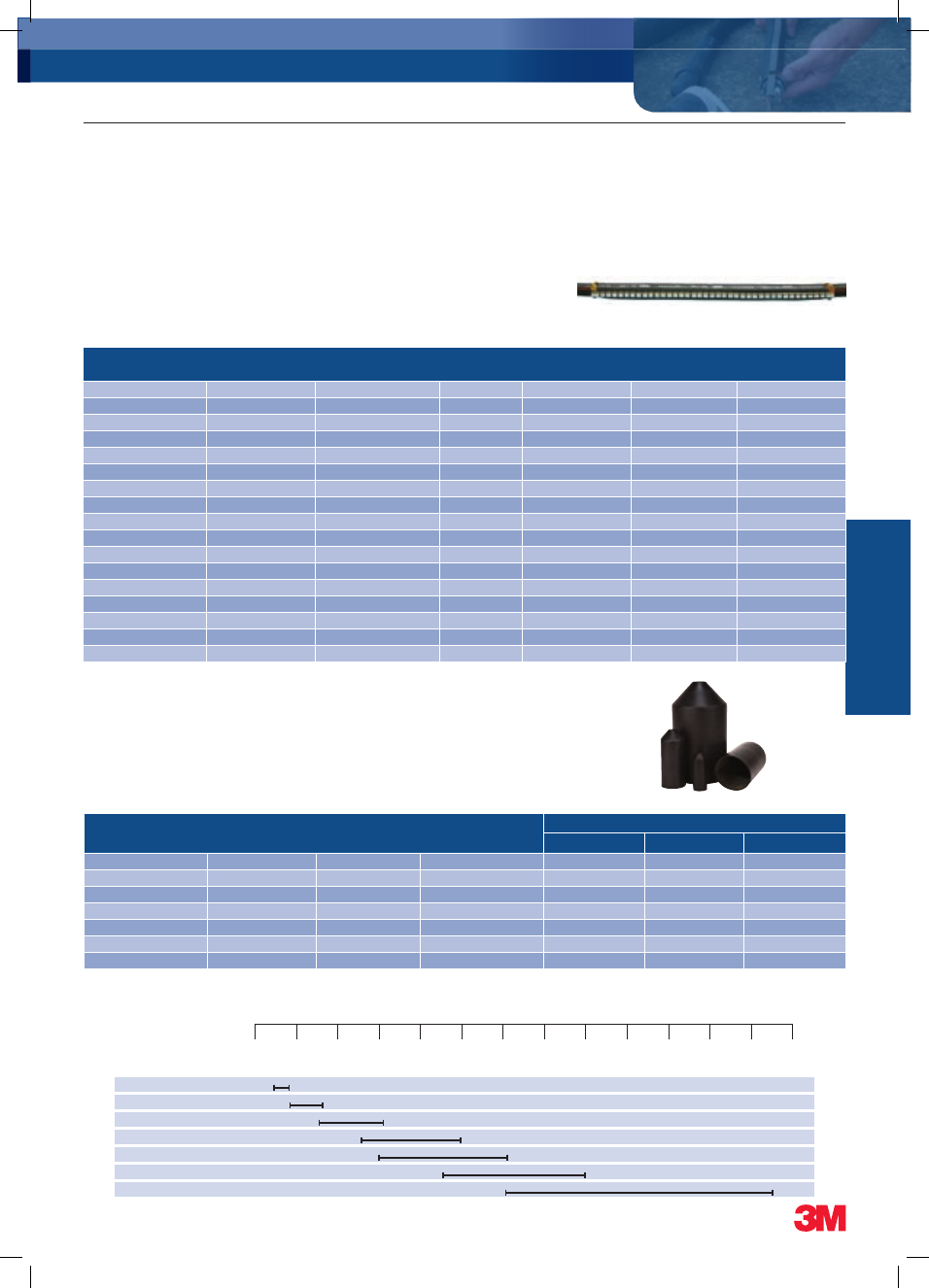

Heat Shrink End Caps and Cable Repair Wrap Sleeve

Product

3M Order Code

Cable Diameter

(maximum - minimum)

Length

Expanded Inner

Diameter

Recovered Inner

Diameter

Minimum Recovered

Wall Thickness

HDCW 35/10-250

DE272920799

35 - 10 mm

250 mm

50 mm

8 mm

2.0 mm

HDCW 35/10-500

DE272920781

35 - 10 mm

500 mm

50 mm

8 mm

2.0 mm

HDCW 35/10-750

DE272920773

35 - 10 mm

750 mm

50 mm

8 mm

2.0 mm

HDCW 35/10-1000

DE272920765

35 - 10 mm

1000 mm

50 mm

8 mm

2.0 mm

HDCW 55/15-250

DE272909834

55 - 15 mm

250 mm

75 mm

13 mm

2.0 mm

HDCW 55/15-500

DE272909842

55 - 15 mm

500 mm

75 mm

13 mm

2.0 mm

HDCW 55/15-750

DE272909859

55 - 15 mm

750 mm

75 mm

13 mm

2.0 mm

HDCW 55/15-1000

DE272909867

55 - 15 mm

1000 mm

75 mm

13 mm

2.0 mm

HDCW 80/25-250

DE272909883

80 - 25 mm

250 mm

100 mm

23 mm

2.0 mm

HDCW 80/25-500

DE272909891

80 - 25 mm

500 mm

100 mm

23 mm

2.0 mm

HDCW 80/25-750

DE272909909

80 - 25 mm

750 mm

100 mm

23 mm

2.0 mm

HDCW 80/25-1000

DE272909917

80 - 25 mm

1000 mm

100 mm

23 mm

2.0 mm

HDCW 110/30-500

DE272909941

110 - 30 mm

500 mm

132 mm

25 mm

2.0 mm

HDCW 110/30-1000

DE272909966

110 - 30 mm

1000 mm

132 mm

25 mm

2.0 mm

HDCW 140/40-250

DE272909982

140 - 40 mm

250 mm

145 mm

32 mm

1.8 mm

HDCW 140/40-500

DE272909990

140 - 40 mm

500 mm

145 mm

32 mm

1.8 mm

HDCW 140/40-1000

DE272910014

140 - 40 mm

1000 mm

145 mm

32 mm

1.8 mm

™

Heat Shrink Wraparound Cable Repair Wrap Sleeve HDCW

3M Wraparound Heat Shrink Cable Repair Sleeve HDCW is designed to repair damaged cable sheaths. It is
also suitable for use with cable joints and as additional corrosion protection on undamaged cables. Quick
and easy to apply, it provides maximum protection against mechanical stress, even in the most aggressive
environments. The inner wall of the sleeve is coated with hot melt adhesive to achieve a safe and watertight
bond with the cable and give a perfect seal when heat is applied, while a corrosion proof metal clip is used to
fully close the sleeve.

Applications:

Quickly and safely repair damaged cable sheaths

Additional corrosion protection on joints or undamaged cables

Product

3M Order Code

Cable Diameter

Expanded Diameter

Fully Recovered Dimensions

Diameter

Length

Wall Thickness

SKE 4/10

DE272919635

4 - 8 mm

10 mm

4 mm

40 mm

2.5 mm

SKE 8/20

DE272919643

8 - 16 mm

20 mm

8 mm

65 mm

2.5 mm

SKE 15/40

DE272919718

15 - 32 mm

40 mm

15 mm

105 mm

3.0 mm

SKE 25/63

DE272919650

25 - 51 mm

63 mm

25 mm

160 mm

4.5 mm

SKE 30/76

DE272919668

30 - 61 mm

76 mm

30 mm

140 mm

4.5 mm

SKE 45/100

DE272919676

45 - 80 mm

100 mm

45 mm

160 mm

4.0 mm

SKE 61/158

DE272919767

61 - 126 mm

158 mm

63 mm

190 mm

4.0 mm

™

Heat Shrink Heavy Duty End Caps SKE

3M Heat Shrink End Caps provide a reliable and easy method of sealing cables for both indoor and outdoor
applications whilst offering excellent electrical and mechanical protection. Internal adhesive helps to form a
watertight seal. The materials used are halogen free.

Applications:

Insulating/sealing of cable ends for indoor and outdoor applications

Cable Diameter (mm)

100

110

120

130

Heat Shrink
Part Numbers

SKE 4/10
SKE 8/20

SKE 15/40

SKE 25/63

SKE 30/76

SKE 45/100

SKE 61/158

61 - 126

45 - 80

30 - 61

25 - 51

15 - 32

8 - 16

4 - 8

www.3M.com.au/electrical • www.3M.co.nz/electrical

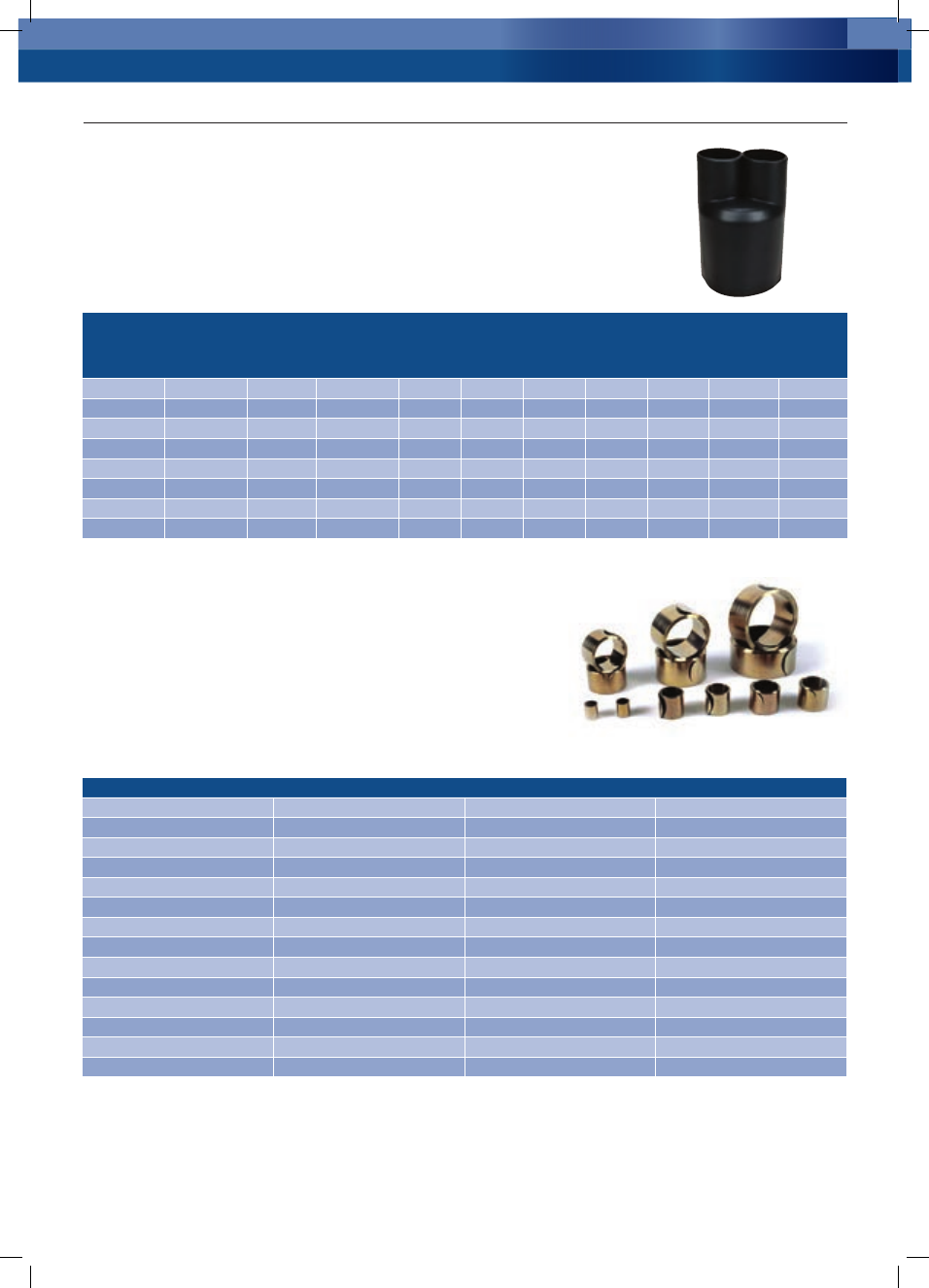

Heat Shrink Cable Breakouts & Constant Force Springs

Product

3M Order Code

Description

Conductor Size

Range

(LV cable)

Neck

Expanded

Diameter

Neck

Recovered

Diameter

Finger

Expanded

Diameter

Finger

Recovered

Diameter

Recovered

Length

Neck

Recovered

Wall

Thickness

Finger

Recovered

Wall

Thickness

SKE-3F/1-1.5

DE272919734

3 way outlet

6 - 16 mm

25 mm

9 mm

3 mm

70 mm

2.5 mm

1.8 mm

SKE-3F/2

DE272919577

3 way outlet

10 - 50 mm

35 mm

15 mm

13 mm

4 mm

100 mm

2.5 mm

1.8 mm

SKE-3F/4

DE272919684

3 way outlet

50 - 150 mm

55 mm

23 mm

30 mm

8 mm

170 mm

3.5 mm

2.7 mm

SKE-3F/5

DE272919783

3 way outlet

185 - 400 mm

110 mm

35 mm

50 mm

17 mm

215 mm

3.5 mm

SKE-3F/6

DE272919817

4 way outlet

110 mm

35 mm

50 mm

17 mm

215 mm

3.5 mm

SKE-4F/1+2

DE272919528

4 way outlet

4 - 35 mm

35 mm

15 mm

4 mm

100 mm

3.8 mm

1.8 mm

SKE-4F/3+4

DE272919536

4 way outlet

25 - 150 mm

57 mm

23 mm

30 mm

6 mm

170 mm

4.0 mm

3.0 mm

SKE-4F/5

DE272919601

4 way outlet

120 - 400 mm

95 mm

36 mm

38 mm

14 mm

220 mm

3.5 mm

2.5 mm

™

Heat Shrink Cable Breakouts

3M Heat Shrink Cable Breakouts are designed for quick and easy insulation and sealing of cable breakout
areas, and provide resistance to abrasion, weathering and chemical attack. The parts are made from
semi-rigid, cross-linked modified polyolefin material that is coated internally with hot melt adhesive. The
materials used are halogen free. On application of heat the adhesive melts and the part shrinks forming a
watertight seal.

Applications:

Cable breakout area sealing

Product

3M Order Code

Application Range

Country Availability

CFS 1

78801595196

12 - 20 mm

CFS 2

78801595170

17 - 32 mm

CFS 3

78801595188

20 - 37 mm

CFS 4

78801899465

25 - 56 mm

CFS 5

78801899820

38 - 74 mm

CFS 6

78801899838

45 - 107 mm

P59

DE713059009

4 - 10 mm

P60

DE713060007

9 - 15 mm

P61

DE713061005

14 - 22 mm

P62

DE713062003

18.5 - 29 mm

AU, NZ

P63

DE713063001

23.5 - 37 mm

P64

DE713064009

31 - 50 mm

P65

DE713065006

44 - 70 mm

P66

DE713066004

58 - 94 mm

™

Constant Force Springs

3M Constant Force Springs are a range of solderless connections for earthing or grounding use on:
•

Lead and aluminium cable sheaths

•

Cable screening tapes or wires

•

Steel or aluminium armour wires

The spring is easily applied by rolling onto the cable core or outside diameter, whereupon it
continues to exert a constant radial pressure.

Applications:

For power, control or telecom cables

For use on lead or aluminium sheaths and copper screened cables

™

Cable Accessories

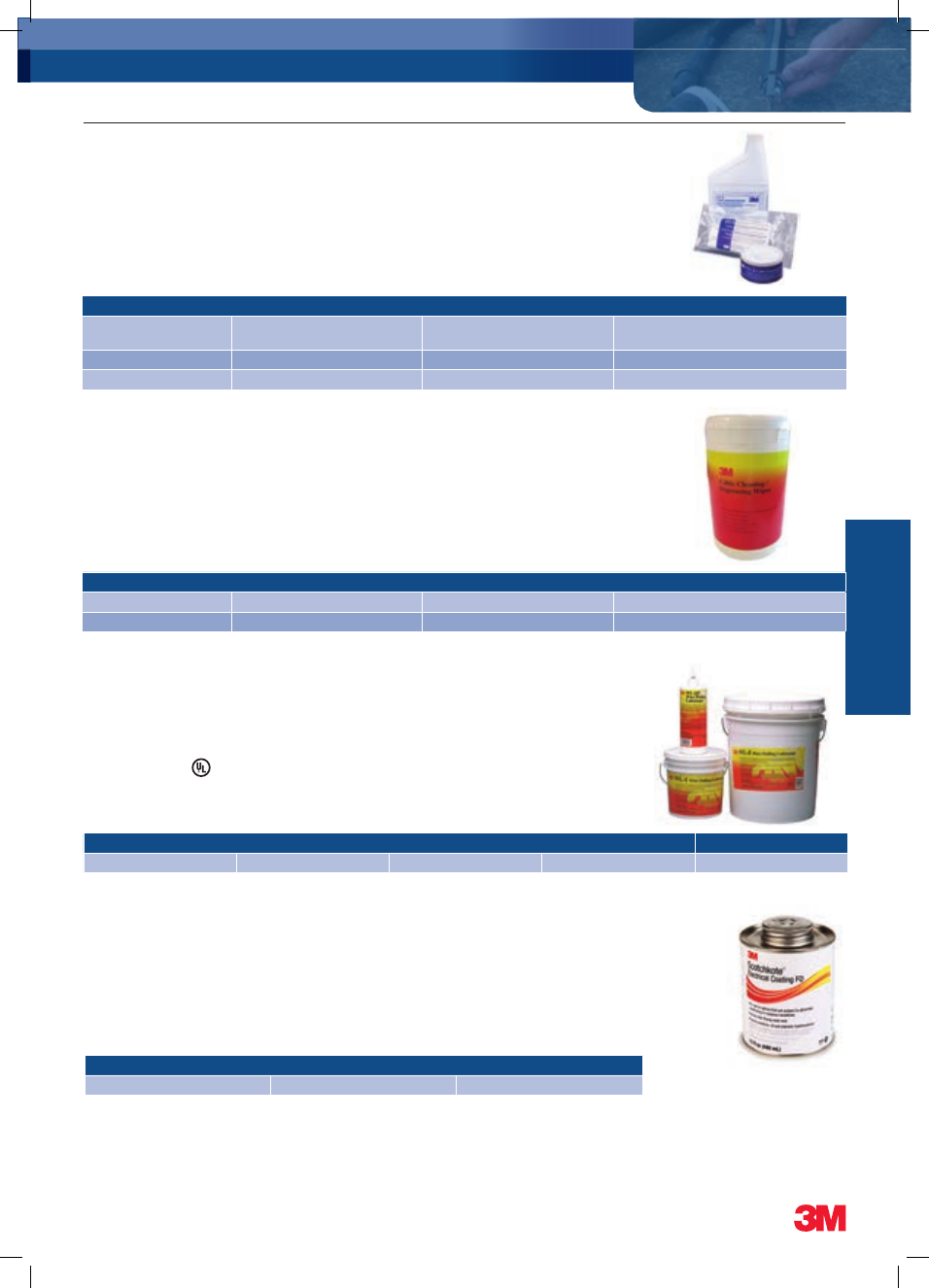

Cleaning Products, Lubricants and Coatings

™

Cable Cleaning System CC Series

3M Cable Cleaning System CC Series cleans cable insulation, metal, electrical and mechanical parts.
CC series solvent is suitable for use on transformers, generators, motors and metal parts of all sorts.
It can be used for PCB cleanup and in parts cleaners for degreasing. It removes surface oils, tars and heavy
greases. Use of solvent on carbon-containing semiconductive surfaces such as cable insulation shields is not
recommended. 3M Cable Cleaning System CC Series solvent can effectively replace 1,1,1- trichloroethane
and other hazardous solvents.

Product

3M Order Code

Description

Kit Contents

CC-2

80610592992

Cable Cleaning Preparation Kit

3 x solvent saturated cable cleaning pads

1 x Non-conductive grit abrasive cloth

CC-3

80610593008

Cable Cleaning Pad Kit

3 x solvent saturated pads

CC-4

AE010587481

Cable Cleaning Solvent

940 mL

™

Cable Cleaning/Degreasing Wipes

3M Cable Cleaning/Degreasing Wipes are designed specifically to remove contaminants such as grease, oil, sealants
and cable gel from switchgear and cables. The product will even remove heavy or old deposits without hazard to the user,
environment, substrate or insulation materials.

Applications:

Cable cleaning prior to jointing

Removal of protective greases and gel from switchgear

Product

3M Order Code

Description

Kit Contents

Cleaning Wipes 1 L

GE700027966

1 L pail

75 wipes

Cleaning Wipes 3 L

GE700027974

3 L pail

250 wipes

Product

3M Order Code

Size

Colour

Temperature Use Range

WL-QT

80610736623

950 mL

Clear

-6 to 43°C

™

Scotchkote

™

Electrical Coating FD

3M Scotchkote Electrical Coating FD is designed as a fast-drying sealant and bonding agent intended for use on joints
wrapped with vinyl electrical tape. For direct burial, direct water immersion or above-ground applications. A brush-on, fast
drying sealant with self contained applicator for quick and easy application.

Applications:

Provides vinyl tapes with an extra oil, moisture and corrosion-resistant layer of flexible

coating for problem areas

Product

3M Order Code

Size

Scotchkote

80611604135

440 mL

™

Wire Pulling Lubricant Gel

3M Wire Pulling Lubricant is a clear, colourless, slow-drying, easy-to-apply gel which is an excellent lubricant
for everyday pulling of both electrical and communication cable. The clear formula makes this an ideal choice
where cleanliness is a concern. 3M Wire Pulling Lubricant has a low residue (less than 5% solids).

Agency Approvals:

Applications:

For pulling a wide variety of cable types, such as power, control, instrumentation and

communication cables, including coaxial and fibre optic cables

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Connectors and 3M

™

Scotchlok

™

Connectors & Tools

3M Connectors and 3M Scotchlok Connectors offer the quick installation and reliability that contractors demand. They come in a variety of shapes and sizes
with different properties to fit a wide range of applications and cable sizes. See page 36 for details of recommended 3M

™

Scotchlok

™

Crimping Tools.

Spring Connectors - 3M

™

Performance Plus Wire Connectors

Because of their increased wire range, just three 3M

™

Performance Plus Wire Connectors do the work of eight standard connectors and are suitable

for commercial, residential, industrial and maintenance applications. The rounded wings make 3M wire connectors exceptionally easy to handle. The
flexible skirt covers over-strips yet conforms to whatever space is available in a box. Inside, the unique spring grips quickly and bites into conductors for
solid, secure connections.

Electrical Wire Connectors

Product

B/G+BOX

O/B+BOX

R/Y+BOX

3M Order Code

80610984330

80610984298

80610984314

Colour

Blue/Grey

Orange/Blue

Red/Yellow

Conductor Size Combinations*

3 x 2.5 mm² to 2 x 10 mm²

Solid/Stranded

2 x 0.5 mm² Solid/Stranded to

3 x 2.5 mm² Solid

2 x 1.0 mm² to 2 x 6 mm²

Solid/Stranded

Connector Style

Twist On

Flame Retardant

Yes

Maximum Voltage Rating

600 V

(1000 V in signs, lighting

fixtures and luminaries)

600 V

(1000 V in signs, lighting

fixtures and luminaries)

600 V

(1000 V in signs, lighting

fixtures and luminaries)

Maximum Operating Temperature

105°C

™

Scotchlok

™

IDC Electrical Double Run or Tap Connectors 560, 560B and 564

3M Scotchlok IDC Electrical Connectors 560 and 560B electrically connect a (tap) wire end to a through (run) wire and insulates the connection. 3M
Scotchlok IDC Electrical Connector 564 electrically connects two through (run) wires and insulates the connection.

Insulation Displacement Connectors and Tools for Electrical Applications

Product

560

560B

564

3M Order Code

80610031058

80610052773

80601103031

Colour

Light Blue

Blue

White

Conductor Size

0.75 - 1.0 mm² Solid/Stranded

1.5 mm² Stranded

0.75 - 1.0 mm² Solid/Stranded

1.5 mm² Stranded

0.75 - 1.5 mm² Solid/Stranded

Connector Style

Insulation Displacement (IDC)

Maximum Insulation Diameter

3.7 mm

Flame Retardant

Yes

Maximum Voltage Rating

600 V

(1000 V in signs, lighting fixtures and

luminaries)

600 V

(1000 V in signs, lighting fixtures and

luminaries)

32 V

Maximum Operating Temperature

105°C

90°C

Recommended Installation Tools

3M Crimping Tool E-9BM

Linesman Pliers

3M Crimping Tool E-9BM

Linesman Pliers

3M Crimping Tool E-9BM

Linesman Pliers

Multigrip (Slip Joint) Pliers

* See data sheet for all combinations

™

& 3M

™

Scotchlok

™

Wire Connectors &

Tools

™

Scotchlok

™

IDC Run and Tap Connectors 558 and 567

Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance
wiring, signal and PA systems, and automotive, boat or recreational vehicle wiring. Flame retardant.

Agency Approvals:

Insulation Displacement Connectors and Tools for Electrical Applications

Product

558

567

3M Order Code

80014000808

80610031439

Colour

Red

Brown

Conductor Size

0.5 - 1.5 mm² Solid/Stranded

Tap: 0.75 - 1.5 mm²

Run: 3.0 - 4.0 mm²

Solid/Stranded

Connector Style

Insulation Displacement (IDC)

Maximum Insulation Diameter

3.0 mm

Tap: 3.7 mm

Run: 4.8 mm

Flame Retardant

Yes

Maximum Voltage Rating

600 V

(1000 V in signs, lighting fixtures and

luminaries)

600 V

(1000 V in signs, lighting fixtures and

luminaries)

Operating Temperature

105°C

Recommended Installation Tools

3M Crimping Tool E-9BM

Linesman Pliers

3M Crimping Tool E-9BM

Linesman Pliers

Electrical Wire Connectors

™

Scotchlok

™

Fuse Holder 972

The 3M Scotchlok Fuse Holder 972 is used to install a blade-type automotive fuse between power source and device.

Recommended installation tool:

Multigrip (Slip Joint) Pliers

Product

972

3M Order Code

80611441579

Colour

Blue

Conductor Size

0.75 - 1.5 mm²

Connector Style

Insulation Displacement (IDC)

Maximum Insulation Diameter

3.8 mm

Flame Retardant

Operating Temperature

105°C

www.3M.com.au/electrical • www.3M.co.nz/electrical

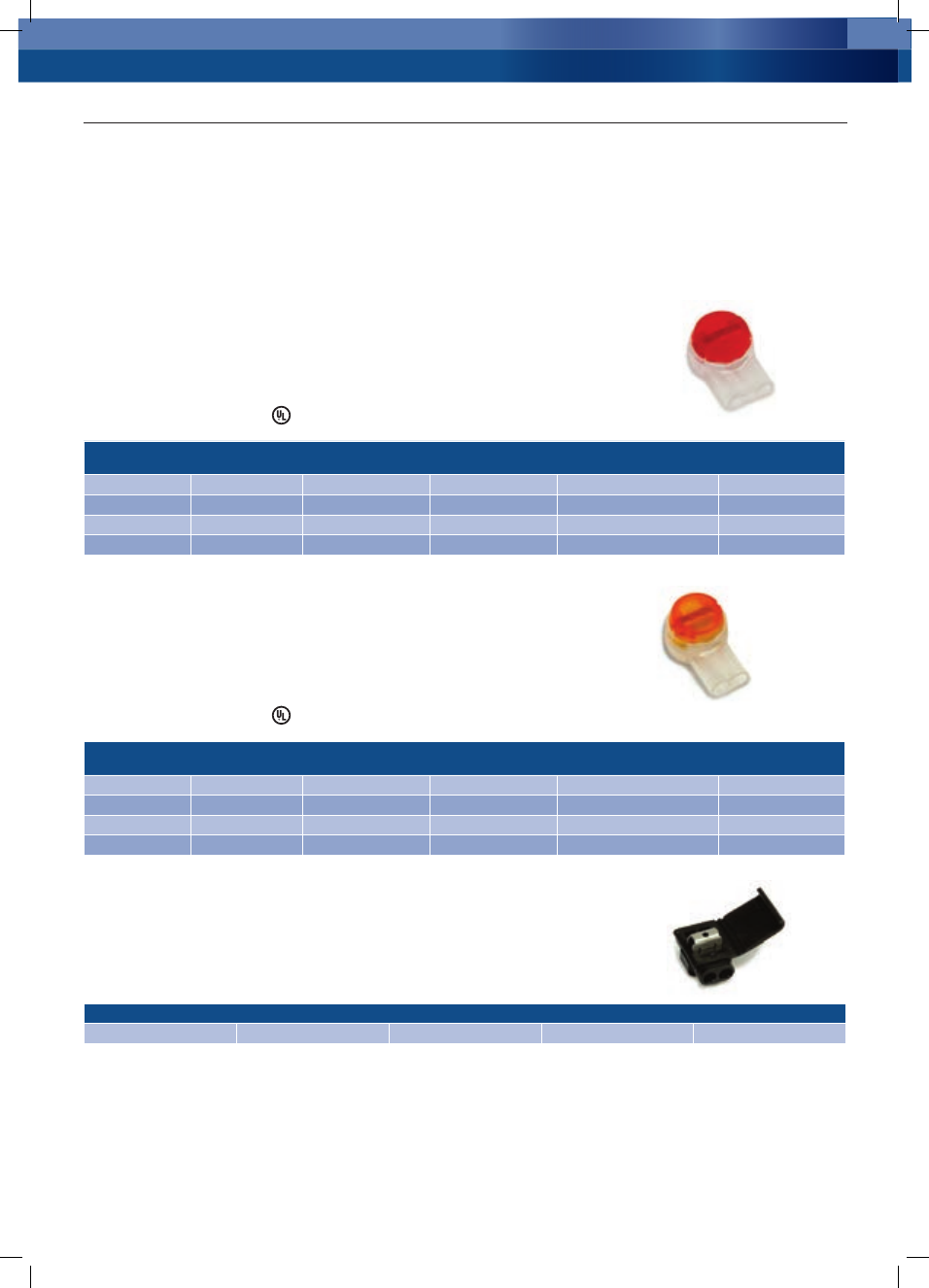

Insulation Displacement Connectors for Communication Applications

Communication Connectors

™

Scotchlok

™

IDC Butt Connectors UR2 and UY2

3M Scotchlok IDC Butt Connectors employ a specially designed, wire insulation displacement contact to make a reliable electrical connection to each
wire. A “live-spring” joint is made by driving the wire down into the “U” contact connector. This simple process displaces the insulation and grasps all
conductors with a firm, resilient pressure, all in one motion. No stripping of wire insulation is required. Scotchlok butt connectors include a factory-installed
sealant to protect against corrosion and seal out moisture.

™

Scotchlok

™

Butt Connector UR2

The UR2 connector accepts two or three solid copper conductors for butt splicing. The connector is filled with
a sealant to provide moisture resistance.

Recommended installation tool:

3M Crimping Tools E-9BM, E-9J or E-9Y

Agency Approvals:

Product

3M Order Code

Connector Type

Colour

Conductor Size

Maximum Insulation

Diameter

UR2 25/pk

80611326754

Butt, 2 or 3 Conductor, IDC

Red (top)

0.4 - 0.9 mm

2.1 mm

UR2 100/pk AU

AE010419032

Butt, 2 or 3 Conductor, IDC

Red (top)

0.4 - 0.9 mm

2.1 mm

UR2 100/box NZ

80611327596

Butt, 2 or 3 Conductor, IDC

Red (top)

0.4 - 0.9 mm

2.1 mm

UR2 500/jar

80611327653

Butt, 2 or 3 Conductor, IDC

Red (top)

0.4 - 0.9 mm

2.1 mm

™

Scotchlok

™

Butt Connector UY2

The small size of the UY2 connector reduces the splicing bundle size to a minimum. The connector’s
two ports accept two solid copper conductors. The connector is filled with a sealant to provide moisture
resistance.

Recommended installation tool:

3M Crimping Tools E-9BM, E-9J or E-9Y

Agency Approvals:

™

Scotchlok

™

Self Stripping Dropwire Connector 557-TG2

Use the 557-TG2 aerial dropwire connector to electrically connect two solid copper conductors, insulate the
connection and provide moisture protection. Flame retardant. Available in NZ only.

Recommended installation tool:

3M Crimping Tools E-9BM or E-9J

Product

3M Order Code

Connector Type

Colour

Conductor Size

Maximum Insulation

Diameter

UY2 25/pk

80611326770

Butt, 2 Conductor, IDC

Yellow (top)

0.4 - 0.9 mm

2.1 mm

UY2 100/pk AU

AE010419024

Butt, 2 Conductor, IDC

Yellow (top)

0.4 - 0.9 mm

2.1 mm

UY2 100/box NZ

80611326796

Butt, 2 Conductor, IDC

Yellow (top)

0.4 - 0.9 mm

2.1 mm

UY2 500/jar

80611326762

Butt, 2 Conductor, IDC

Yellow (top)

0.4 - 0.9 mm

2.1 mm

Product

557-TG2 100/Jar

557-TG2 500/Box

Conductor Size

Maximum Insulation Diameter

557-TG2

XE000700049

80611322076

0.6 - 1.3 mm

3.0 mm

™

& 3M

™

Scotchlok

™

Wire Connectors &

Tools

Insulation Displacement Connectors for Communication Applications

™

Scotchlok

™

Trim-out Connector 211

The 3M Scotchlok Trim-out Connector 211 is a moisture-resistant, self-stripping insulation displacement
connector with a built-in cut-off blade and a test port. Wires are positioned in the connector from the sides,
allowing the 211 connector to be used without interrupting service. The 211 connector may also be used for
standard two-wire butt type splicing operations. For interruption free butt splice replacement.

Recommended installation tool:

3M Crimping Tools E-9BM, E-9J or E-9Y

Agency Approvals:

Product

3M Order Code

Conductor Size

Maximum Insulation Diameter

211

80611327430

0.4 - 0.9 mm

2.1 mm

Product

3M Order Code

Conductor Size

Maximum Insulation Diameter

UB2A

80611327471

0.4 - 0.9 mm

2.1 mm

™

Scotchlok

™

Inline Connectors U1R and U1B

The U1R and U1B connectors are sealed moisture-resistant four-wire (1 full pair) inline connectors for larger
gauge solid copper.

Recommended installation tool:

3M Crimping Tool E-9BM

™

Scotchlok

™

Tap Connector UB2A

By positioning the 3M Scotchlok IDC Tap Connector UB2A on the conductor and pre-crimping, the conductor is
prevented from slipping out of the connector before the crimp is completed. The UB2A permits tapping directly
onto an existing conductor without interrupting service. In ready access closures, the UB2A eliminates cutting
cable pairs, opening pairs, and piecing out wires. The conductors joined can be different sizes.

Recommended installation tool:

3M Crimping Tools E-9BM, E-9J or E-9Y

Agency Approvals:

Product

3M Order Code

Colour

Wire Range

Maximum Insulation Diameter

U1R

FQ100057535

Red (top)

0.5 - 0.9 mm

3.2 mm

U1B

FQ100057527

Blue (top)

0.9 - 1.3 mm

3.2 mm

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Scotchlok

™

Moisture Guard Connector (MGC)

The 3M Scotchlok Moisture Guard Connector MGC provides a convenient way to connect wires for
landscape irrigation and lighting applications. Just press the MGC cap and a metal element inside
pushes through the wire insulation to make a secure, reliable connection. The grease in the MGC
protects against moisture while the MGC housing is UV resistant for above-ground applications.

Recommended installation tool:

Multigrip (Slip Joint) Pliers

Applications:

Residential and commercial landscape lighting

Irrigation applications

™

Direct Bury Splice Kits DBO/B-6 and DBR/Y-6

The 3M Direct Bury Splice Kits DBO/B-6 and DBR/Y-6 are used to electrically connect two or
more pre-stripped copper wires and moisture seal the connection for direct burial. The DBO/B-6
kit includes a 3M Performance Plus Wire Connector O/B+ and a high impact, UV-resistant
polypropylene tube prefilled with moisture-resistant grease and is flame retardant. The DBR/Y-6
kit includes a 3M Performance Plus Wire Connector R/Y+ and a high impact, UV-resistant
polypropylene tube prefilled with moisture-resistant grease. Flame retardant.

Applications:

Wiring up to 600 V in water-intensive applications such as golf courses,

irrigation controls and outdoor lighting

Irrigation/Moisture Resistant Connectors

Product

name

3M Order

Code

Connector Style

Outside port

Inside port

Flame

Retardant

Maximum

Voltage Rating

Maximum

Operating

Temperature

Wire Range

Insulation

Diameter

Wire Range

Insulation

Diameter

MGC (25/Bag) 80611434152

Insulation

Displacement

(IDC)

1.0 mm² - 2.5 mm²

Solid/Stranded

5.3 mm

0.5 mm² Stranded,

0.75 mm²

Solid/Stranded

3.8 mm

Yes

600 V

(1000 V in signs,

lighting fixtures
and luminaries)

105°C

MGC (100/Jar) 80611434160

Insulation

Displacement

(IDC)

1.0 mm² - 2.5 mm²

Solid/Stranded

5.3 mm

0.5 mm² Stranded,

0.75 mm²

Solid/Stranded

3.8 mm

Yes

600 V

(1000 V in signs,

lighting fixtures
and luminaries)

105°C

Product name

3M Order Code

Conductor Size

Connector Style

Common Wire

Combinations

(Copper only)*

Flame

Retardant

Maximum

Voltage Rating

Maximum

Operating

Temperature

DBO/B-6 BULK

80611467293

0.75 mm² - 2.5 mm²

Direct Bury

2 x 1.0 mm² to 3 x 2.5 mm²

Yes

600 V

105°C

DBR/Y-6 BULK

80611457195

1.0 mm² - 6.0 mm²

Direct Bury

2 x 1.0 mm² to 3 x 4.0 mm²

Yes

600 V

105°C

* See data sheet for all combinations

™

& 3M

™

Scotchlok

™

Wire Connectors &

Tools

Irrigation Connectors and Crimping Tools

™

Scotchlok

™

Moisture Resistant Connectors 314 and 316IR

3M Scotchlok Connectors 314 and 316IR are used to electrically connect two or three wire ends, insulate
the connection, and provide a moisture resistant seal. 316-IR is recommended for use with low energy
underground circuit wires, sprinkler systems, landscape lighting or other moisture-resistant applications less
than 30 volts.

Recommended installation tool:

™

Scotchlok

™

Crimp Tool E-9BM or Multigrip (Slip Joint) Pliers

™

Scotchlok

™

Crimping Tools

3M recommends the use of 3M Scotchlok Crimping Tools when installing 3M Scotchlok IDC Connectors. These tools ensure repeated fast, reliable
connections. In projects where large numbers of connectors are being used, the high mechanical advantage designed into the tool will ensure minimal
operator fatigue.

™

Scotchlok

™

Butt Connector UAL

The UAL connector is a sealed, moisture resistant two or three wire insulation displacement connector.
Outside ports accept solid copper, aluminium or a combination of both.

Recommended installation tool:

™

Scotchlok

™

Crimp Tool E-9BM,E-9J or E-9Y

Product

3M Order Code

Colour

Conductor Size

Maximum
Insulation

Diameter

Flame Retardant

Maximum

Voltage Rating

Maximum

Operating

Temperature

314

80610253660

Blue Cap, White Body

0.5 - 1.5 mm²

Solid/Stranded

3.8 mm

Yes

600 V

105°C

314 (bulk)

80610253678

Blue Cap, White Body

0.5 - 1.5 mm²

Solid/Stranded

3.8 mm

Yes

600 V

105°C

316IR

80610734537

Black Cap, White Body

0.5 - 1.0 mm²

Solid/Stranded

3.9 mm

Yes

30 V

105°C

Product

3M Order Code

Colour

Conductor Size

Maximum Insulation

Diameter

Flame Retardant

Maximum Operating

Temperature

UAL

80611327463

Clear

0.5 - 1.2 mm

Outside port: 2.1 mm

Centre port: 1.9 mm

140°C

Product

E-9BM

E-9J

E-9Y-P

3M Order Code

80611141294

80611314065

80611323645

Product name

3M™ Scotchlok™ Hand Crimping

Tool E-9BM

3M™ Scotchlok™ Hand Crimping

Tool E-9J

3M™ Scotchlok™ Hand Crimping

Tool E-9Y-P

Description

This heavy duty tool is capable of

crimping all Scotchlok connectors.

Its closing action and adjustable jaws

provide a 10 to 1 mechanical advantage,

allowing it to handle all wire gauges.

The E-9J tool is a lightweight, handheld

tool featuring a single stroke, with a

work-saving 10 to 1 mechanical

advantage over applied hand force.

For use with Scotchlok butt and tap

connectors.

The E-9Y tool has stepped jaws and a

long nose and side wire cutter which

provides crimping action for two or

three conductor splicing.

The E-9Y tool is not recommended for 0.9

mm and larger conductors.

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

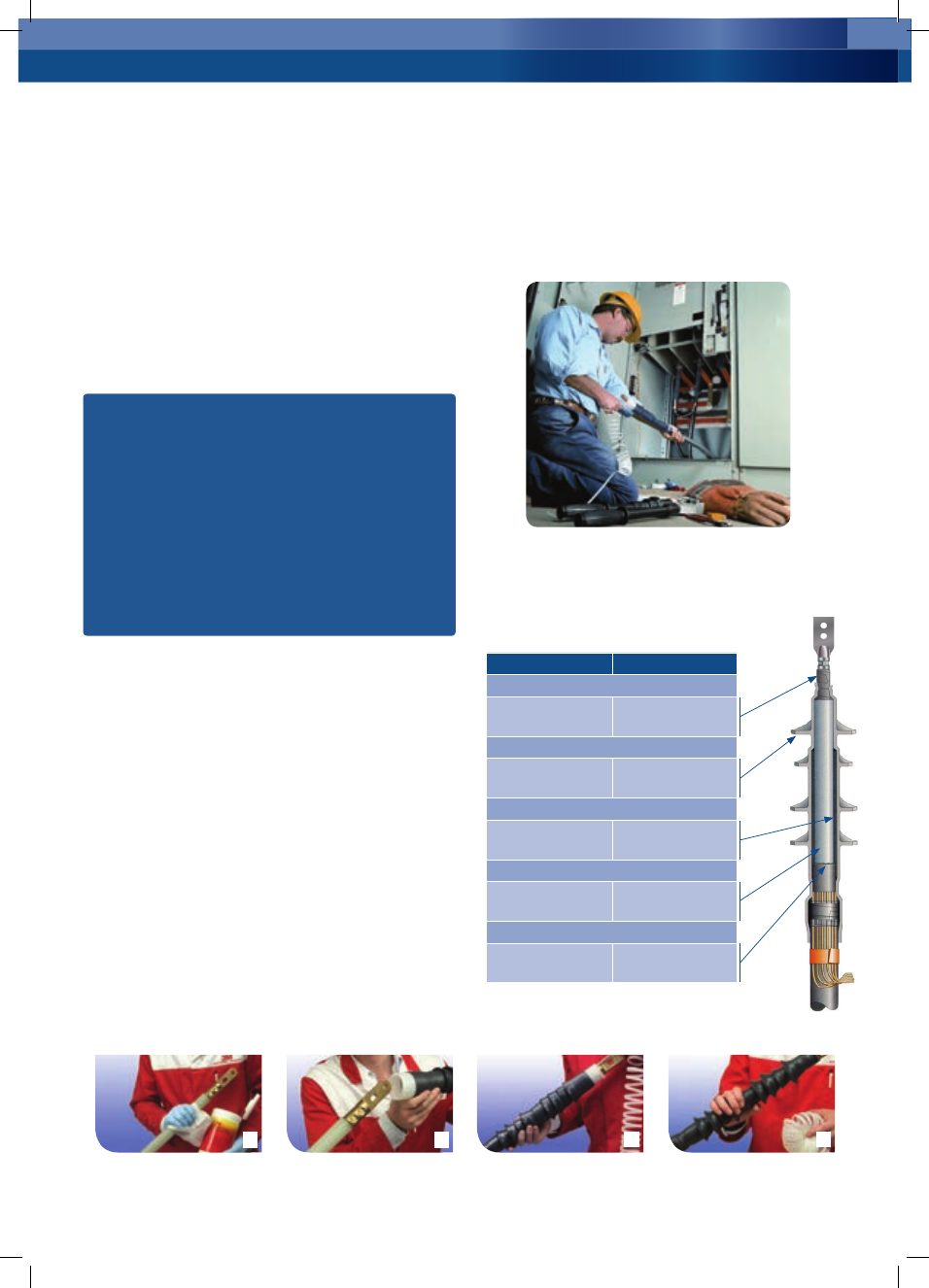

Medium Voltage Cold Shrink

Cable Terminations & Joints up to 33 kV

Since the conception of 3M Cold Shrink more than 40 years ago, 3M Cold Shrink technology has been found to be a safer, more reliable and easier
to install solution for medium and high voltage jointing and terminating versus conventional heat shrink alternatives. It is a preferred solution for power
utilities, private power network operators and electrical specifiers globally.

Medium and High Voltage Cable Accessories

After many years of developing our 3M cold shrink product range, with
our customers’ needs in mind, we are proud to offer contractors a wide
range of time and money saving joints and terminations to fit almost any
application.

Why move to 3M Cold Shrink?

•  Fast, straightforward installation
•  No flame required
•  No special site permits needed
•  No cooling time needed before energising
•  Easier to use in enclosed areas
•  Constant radial pressure for optimised environmental

performance

• Less chance of damaging XLPE cable material
• Extensive quality and factory testing programmes

3M cold shrink products

installed and trusted worldwide

for over

40 years

™

Cold Shrink Cable Termination Products

Premium 3M

™

Cold Shrink Terminations

Fully Integrated: Quick Term III (QT-III)

This fully integrated premium cable termination offers the greatest simplicity
and flexibility in our range. Our premium QT-III termination covers a wide
range of cable sizes and types as well as accommodating voltages up to
69 kV. Shorter installation length enables this product to fit into a wide range
of boxes, and fewer installation steps reduce the risk of error.

Standard 3M

™

Cold Shrink Terminations

Part Integrated: Quick Term II (QT-II)

Our part integrated Cold Shrink termination offers a viable cost-based
alternative to heat shrink cable terminating technology. Additional process
steps to our QT-III premium range mean that comparative time savings are
less but the benefits of not having to use heat or extra tooling still apply.
This range covers many of the most common cable configurations and size
ranges.

QT-III

QT-II

Moisture Blocking Mastic

Integrated into
termination

Applied separately

Outer Insulator

Very good track
resistance

Good track resistance

Stress Control Tube

Integrated into
termination

Silicone Grease - Stress Relief

No - Integrated
mastic is sufficient

Yes - Applied
separately

Stress Control Mastic

Integrated into
termination

No - Requires
silicone grease

The simple application of a 3M

™

Cold Shrink Cable Termination

Prepare the cable as normal and clean with
3M

™

Cable Wipes

Place the 3M

™

Cold Shrink Termination Body

over the cable end and position at the correct
point on the cable

Begin to remove the inner core, allowing the
termination to shrink down onto the cable

Once the inner core has been fully removed, the
termination installation is complete!

™

Medium

Volta

ge Solutions

up to 33 kV

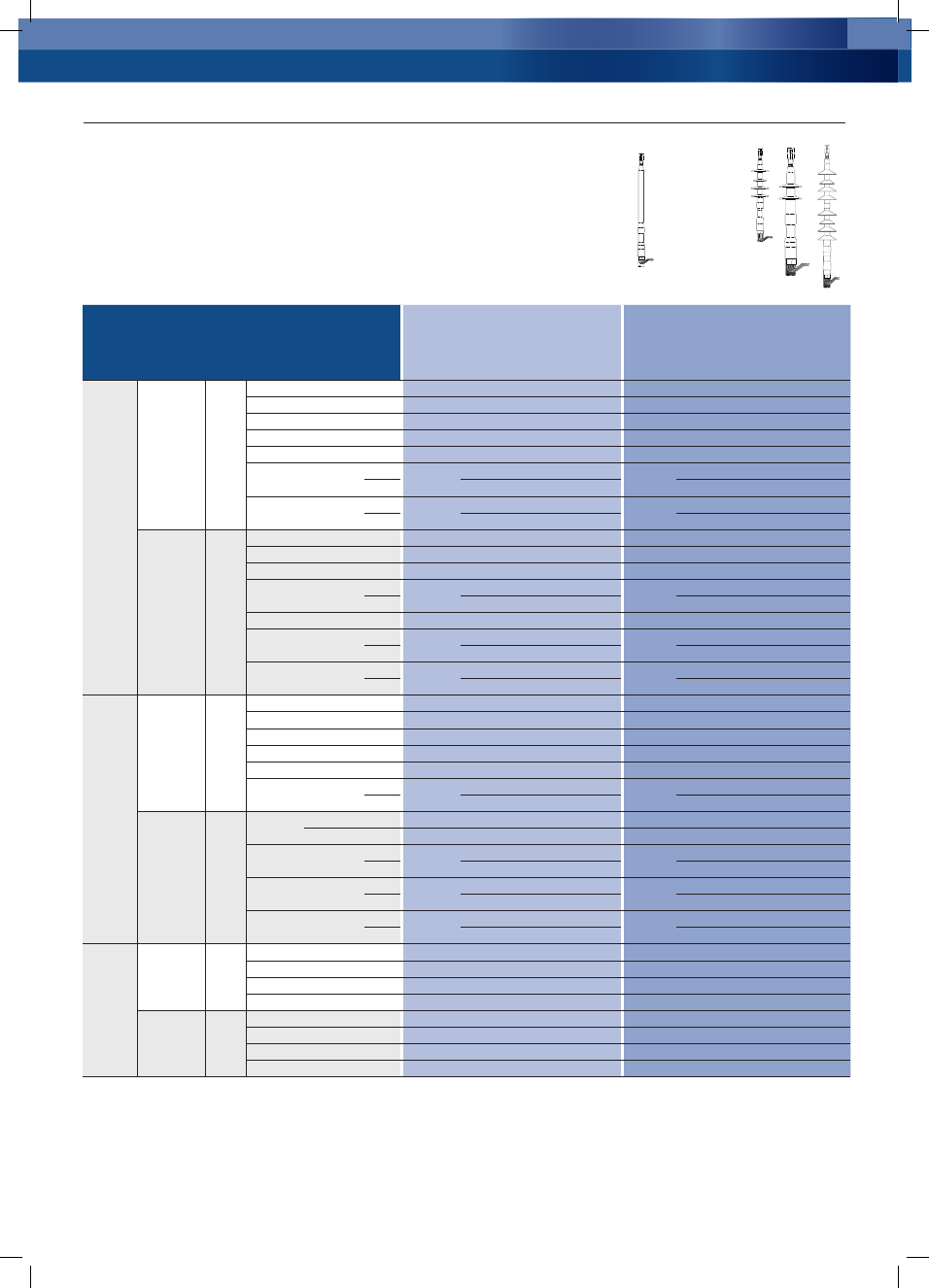

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Final determining factors are cable jacket and insulation diameters.
* Kits for copper tape screened cable available on request

™

Cold Shrink QT-III Termination Kits for Single Core Cable (AU)

3M Cold Shrink QT-III Terminations offer easy and safe installation, and reliable, consistent performance
when terminating indoor and outdoor medium voltage cable. No flame is required for installation. The silicone
rubber body provides UV stability, track and erosion resistance, high creepage and BIL, hydrophobicity and
constant radial pressure, resulting in maximum performance and durability. Kits are designed for use with
crimp lugs. For use with mechanical lugs please contact 3M.

3M Cold Shrink QT-III Termination Kits / Single Core Cable - 3.3 kV, 6.6 kV, 11 kV

Cable:

Polymeric Insulation, Copper Wire Screened*, Non-Armoured or Armoured

Contents:

Each kit will make three single core terminations. Lugs not included.

Termination kits for single
and three core cable are
specifically designed and
optimised for Australian
conditions, and meet or
exceed the requirements of
IEC 60502 and IEEE
Standard 48.

Voltage Description

No.

Cores

Cable

Size

Cable

Insulation

Range

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Jacket

Diameter

Range

3M Kit

3M Order Code

Jacket

Diameter

Range

3M Kit

3M Order

Code

3.3 kV

Indoor

8.2 - 15.0

13 - 20

7620-T-95-AU

AE010591541

14 - 24

7620-T-95-AR-AU

AE010591731

35 - 95

11.2 - 22.7

17 - 27

7621-T-95-AU

AE010591558

23 - 41

7621-T-95-AR-AU

AE010591749

120 - 185

16.3 - 27.4

110

25 - 38

7642-T-110-AU

AE010591566

25 - 41

7642-T-110-AR-AU

AE010591756

240 - 400

21.1 - 38.9

110

28 - 48

7644-T-110-AU

AE010591574

33 - 56

7644-T-110-AR-AU

AE010591764

500 - 630

26.7 - 45.7

110

35 - 61

7645-T-110-AU

AE010591582

42 - 79

7645-T-110-AR-AU

AE010591772

800 - 1000 38.9 - 58.9

110

47 - 71

7646-T-110-AU

AE010591590

47 - 79

7646-T-110-AR-AU

AE010591780

Outdoor

8.2 - 15.0

13 - 20

7620-S-2-AU

AE010591632

14 - 24

7620-S-2-AR-AU

AE010591863

35 - 95

11.2 - 22.7

17 - 27

7621-S-2-AU

AE010591640

23 - 41

7621-S-2-AR-AU

AE010591871

120 - 185

16.3 - 27.4

150

25 - 38

7652-S-4-AU

AE010591657

25 - 41

7652-S-4-AR-AU

AE010591889

240 - 400

21.1 - 38.9

150

28 - 48

7654-S-4-AU

AE010591665

33 - 56

7654-S-4-AR-AU

AE010591897

500 - 630

26.7 - 45.7

150

35 - 61

7655-S-4-AU

AE010591673

42 - 79

7655-S-4-AR-AU

AE010591905

800 - 1000 38.9 - 58.9

150

47 - 71

7656-S-4-AU

AE010591681

47 - 79

7656-S-4-AR-AU

AE010591913

6.6 kV

Indoor

16 - 25

8.2 - 15.0

13 - 20

7620-T-95-AU

AE010591541

14 - 24

7620-T-95-AR-AU

AE010591731

35 - 70

11.2 - 22.7

17 - 27

7621-T-95-AU

AE010591558

23 - 41

7621-T-95-AR-AU

AE010591749

95 - 150

16.3 - 27.4

110

25 - 38

7642-T-110-AU

AE010591566

25 - 41

7642-T-110-AR-AU

AE010591756

185 - 240

21.1 - 38.9

110

28 - 48

7644-T-110-AU

AE010591574

33 - 56

7644-T-110-AR-AU

AE010591764

300 - 500

26.7 - 45.7

110

35 - 61

7645-T-110-AU

AE010591582

42 - 79

7645-T-110-AR-AU

AE010591772

630 - 1000 38.9 - 58.9

110

47 - 71

7646-T-110-AU

AE010591590

47 - 79

7646-T-110-AR-AU

AE010591780

Outdoor

16 - 25

8.2 - 15.0

13 - 20

7620-S-2-AU

AE010591632

14 - 24

7620-S-2-AR-AU

AE010591863

35 - 70

11.2 - 22.7

17 - 27

7621-S-2-AU

AE010591640

23 - 41

7621-S-2-AR-AU

AE010591871

95 - 150

16.3 - 27.4

150

25 - 38

7652-S-4-AU

AE010591657

25 - 41

7652-S-4-AR-AU

AE010591889

185 - 240

21.1 - 38.9

150

28 - 48

7654-S-4-AU

AE010591665

33 - 56

7654-S-4-AR-AU

AE010591897

300 - 500

26.7 - 45.7

150

35 - 61

7655-S-4-AU

AE010591673

42 - 79

7655-S-4-AR-AU

AE010591905

630 - 1000 38.9 - 58.9

150

47 - 71

7656-S-4-AU

AE010591681

47 - 79

7656-S-4-AR-AU

AE010591913

11 kV

Indoor

8.2 - 15.0

13 - 20

7620-T-95-AU

AE010591541

14 - 24

7620-T-95-AR-AU

AE010591731

25 - 70

11.2 - 22.7

17 - 27

7621-T-95-AU

AE010591558

23 - 41

7621-T-95-AR-AU

AE010591749

95 - 150

16.3 - 27.4

110

25 - 38

7642-T-110-AU

AE010591566

25 - 41

7642-T-110-AR-AU

AE010591756

185 - 240

21.1 - 38.9

110

28 - 48

7644-T-110-AU

AE010591574

33 - 56

7644-T-110-AR-AU

AE010591764

120 - 400

18.3 - 32.8

150

26 - 41

7653-T-150-AU

AE010591608

33 - 56

7653-T-150-AR-AU

AE010591798

300 - 500

26.7 - 45.7

110

35 - 61

7645-T-110-AU

AE010591582

42 - 79

7645-T-110-AR-AU

AE010591772

150

7655-T-150-AU

AE010591616

7655-T-150-AR-AU

AE010591806

630 - 1000 38.9 - 58.9

110

47 - 71

7646-T-110-AU

AE010591590

47 - 79

7646-T-110-AR-AU

AE010591780

150

7656-T-150-AU

AE010591624

7656-T-150-AR-AU

AE010591814

Outdoor

8.2 - 15.0

13 - 20

7620-S-2-AU

AE010591632

14 - 24

7620-S-2-AR-AU

AE010591863

25 - 70

11.2 - 22.7

17 - 27

7621-S-2-AU

AE010591640

23 - 41

7621-S-2-AR-AU

AE010591871

95 - 150

16.3 - 27.4

150

25 - 38

7652-S-4-AU

AE010591657

25 - 41

7652-S-4-AR-AU

AE010591889

185 - 240

21.1 - 38.9

150

28 - 48

7654-S-4-AU

AE010591665

33 - 56

7654-S-4-AR-AU

AE010591897

200

7664-S-8-AU

AE010591707

7664-S-8-AR-AU

AE010591830

120 - 400

18.3 - 32.8

200

26 - 41

7663-S-8-AU

AE010591699

33 - 56

7663-S-8-AR-AU

AE010591822

300 - 500

26.7 - 45.7

150

35 - 61

7655-S-4-AU

AE010591673

42 - 79

7655-S-4-AR-AU

AE010591905

200

7665-S-8-AU

AE010591715

7665-S-8-AR-AU

AE010591848

630 - 1000 38.9 - 58.9

150

47 - 71

7656-S-4-AU

AE010591681

47 - 79

7656-S-4-AR-AU

AE010591913

200

7666-S-8-AU

AE010591723

7666-S-8-AR-AU

AE010591855

www.3M.com.au/electrical • www.3M.co.nz/electrical

Single Core

Indoor Terminations

Single Core

Outdoor Terminations

* Suitable for indoor & outdoor terminations.
** Kits for copper tape screened cable available on request
Final determining factors are cable jacket and insulation diameters.

Cold Shrink QT-III Termination Kits for Single Core Cable (AU)

3M Cold Shrink QT-III Termination Kits

Single Core Cable - 15 kV, 22 kV, 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened**, Non-Armoured or Armoured

Contents:

Each kit will make three single core terminations. Lugs not included.

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Voltage

Description

No.

Cores

Cable Size

Cable

Insulation

Range

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Jacket

Diameter

Range

3M Kit

3M Order Code

Jacket

Diameter

Range

3M Kit

3M Order Code

15 kV

Indoor

8.2 - 15.0

13 - 20

7620-T-95-AU

AE010591541

14 - 24

7620-T-95-AR-AU

AE010591731

11.2 - 22.7

17 - 27

7621-T-95-AU

AE010591558

23 - 41

7621-T-95-AR-AU

AE010591749

35 - 120

16.3 - 27.4

110

25 - 38

7642-T-110-AU

AE010591566

25 - 41

7642-T-110-AR-AU

AE010591756

120 - 240

21.1 - 38.9

110

28 - 48

7644-T-110-AU

AE010591574

33 - 56

7644-T-110-AR-AU

AE010591764

70 - 150

18.3 - 32.8

150

26 - 41

7653-T-150-AU

AE010591608

33 - 56

7653-T-150-AR-AU

AE010591798

240 - 500

26.7 - 45.7

110

35 - 61

7645-T-110-AU

AE010591582

42 -79

7645-T-110-AR-AU

AE010591772

150

7655-T-150-AU

AE010591616

7655-T-150-AR-AU

AE010591806

500 - 1000 38.9 - 58.9

110

47 - 71

7646-T-110-AU

AE010591590

47 - 79

7646-T-110-AR-AU

AE010591780

150

7656-T-150-AU

AE010591624

7656-T-150-AR-AU

AE010591814

Outdoor

8.2 - 15.0

13 - 20

7620-S-2-AU

AE010591632

14 - 24

7620-S-2-AR-AU

AE010591863

11.2 - 22.7

17 - 27

7621-S-2-AU

AE010591640

23 - 41

7621-S-2-AR-AU

AE010591871

35 - 120

16.3 - 27.4

150

25 - 38

7652-S-4-AU

AE010591657

25 - 41

7652-S-4-AR-AU

AE010591889

120 - 240

21.1 - 38.9

150

28 - 48

7654-S-4-AU

AE010591665

33 - 56

7654-S-4-AR-AU

AE010591897

200

7664-S-8-AU

AE010591707

7664-S-8-AR-AU

AE010591830

70 - 150

18.3 - 32.8

200

26 - 41

7663-S-8-AU

AE010591699

33 - 56

7663-S-8-AR-AU

AE010591822

240 - 500

26.7 - 45.7

150

35 - 61

7655-S-4-AU

AE010591673

42 - 79

7655-S-4-AR-AU

AE010591905

200

7665-S-8-AU

AE010591715

7665-S-8-AR-AU

AE010591848

630 - 1000 38.9 - 58.9

150

47 - 71

7656-S-4-AU

AE010591681

47 - 79

7656-S-4-AR-AU

AE010591913

200

7666-S-8-AU

AE010591723

7666-S-8-AR-AU

AE010591855

22 kV

Indoor

35 - 150

18.3 - 32.8

150

26 - 41

7653-T-150-AU

AE010591608

33 - 56

7653-T-150-AR-AU

AE010591798

35 - 120

18.3 - 32.8

200

26 - 41

7663-S-8-AU*

AE010591699

33 - 56

7663-S-8-AR-AU*

AE010591822

70 - 150

21.1 - 38.9

200

28 - 48

7664-S-8-AU*

AE010591707

33 - 56

7664-S-8-AR-AU*

AE010591830

185 - 400

26.7 - 45.7

150

35 - 61

7655-T-150-AU

AE010591616

42 - 79

7655-T-150-AR-AU

AE010591806

150 - 400

26.7 - 45.7

200

35 - 61

7665-S-8-AU*

AE010591715

42 - 79

7665-S-8-AR-AU*

AE010591848

500 - 800

38.9 - 58.9

150

47 - 71

7656-T-150-AU

AE010591624

47 - 79

7656-T-150-AR-AU

AE010591814

200

7666-S-8-AU*

AE010591723

7666-S-8-AR-AU*

AE010591855

Outdoor

35 - 120

16.3 - 27.4

150

25 - 38

7652-S-4-AU

AE010591657

25 - 41

7652-S-4-AR-AU

AE010591889

18.3 - 32.8

200

26 - 41

7663-S-8-AU

AE010591699

33 - 56

7663-S-8-AR-AU

AE010591822

70 - 150

21.1 - 38.9

150

28 - 48

7654-S-4-AU

AE010591665

33 - 56

7654-S-4-AR-AU

AE010591897

200

7664-S-8-AU

AE010591707

7664-S-8-AR-AU

AE010591830

150 - 400

26.7 - 45.7

150

35 - 61

7655-S-4-AU

AE010591673

42 - 79

7655-S-4-AR-AU

AE010591905

200

7665-S-8-AU

AE010591715

7665-S-8-AR-AU

AE010591848

500 - 800

38.9 - 58.9

150

47 - 71

7656-S-4-AU

AE010591681

47 - 79

7656-S-4-AR-AU

AE010591913

200

7666-S-8-AU

AE010591723

7666-S-8-AR-AU

AE010591855

33 kV

Indoor

35 - 70

18.3 - 32.8

200

26 - 41

7663-S-8-AU*

AE010591699

33 - 56

7663-S-8-AR-AU*

AE010591822

35 - 120

21.1 - 38.9

200

28 - 48

7664-S-8-AU*

AE010591707

33 - 56

7664-S-8-AR-AU*

AE010591830

95 - 300

26.7 - 45.7

200

35 - 61

7665-S-8-AU*

AE010591715

42 - 79

7665-S-8-AR-AU*

AE010591848

400 - 800

38.9 - 58.9

200

47 - 71

7666-S-8-AU*

AE010591723

47 - 79

7666-S-8-AR-AU*

AE010591855

Outdoor

35 - 70

18.3 - 32.8

200

26 - 41

7663-S-8-AU

AE010591699

33 - 56

7663-S-8-AR-AU

AE010591822

35 - 120

21.1 - 38.9

200

28 - 48

7664-S-8-AU

AE010591707

33 - 56

7664-S-8-AR-AU

AE010591830

95 - 300

26.7 - 45.7

200

35 - 61

7665-S-8-AU

AE010591715

42 - 79

7665-S-8-AR-AU

AE010591848

400 - 800

38.9 - 58.9

200

47 - 71

7666-S-8-AU

AE010591723

47 - 79

7666-S-8-AR-AU

AE010591855

™

Medium

Volta

ge Solutions

up to 33 kV

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Final determining factors are cable jacket and insulation diameters.
* Kits for copper tape screened cable available on request

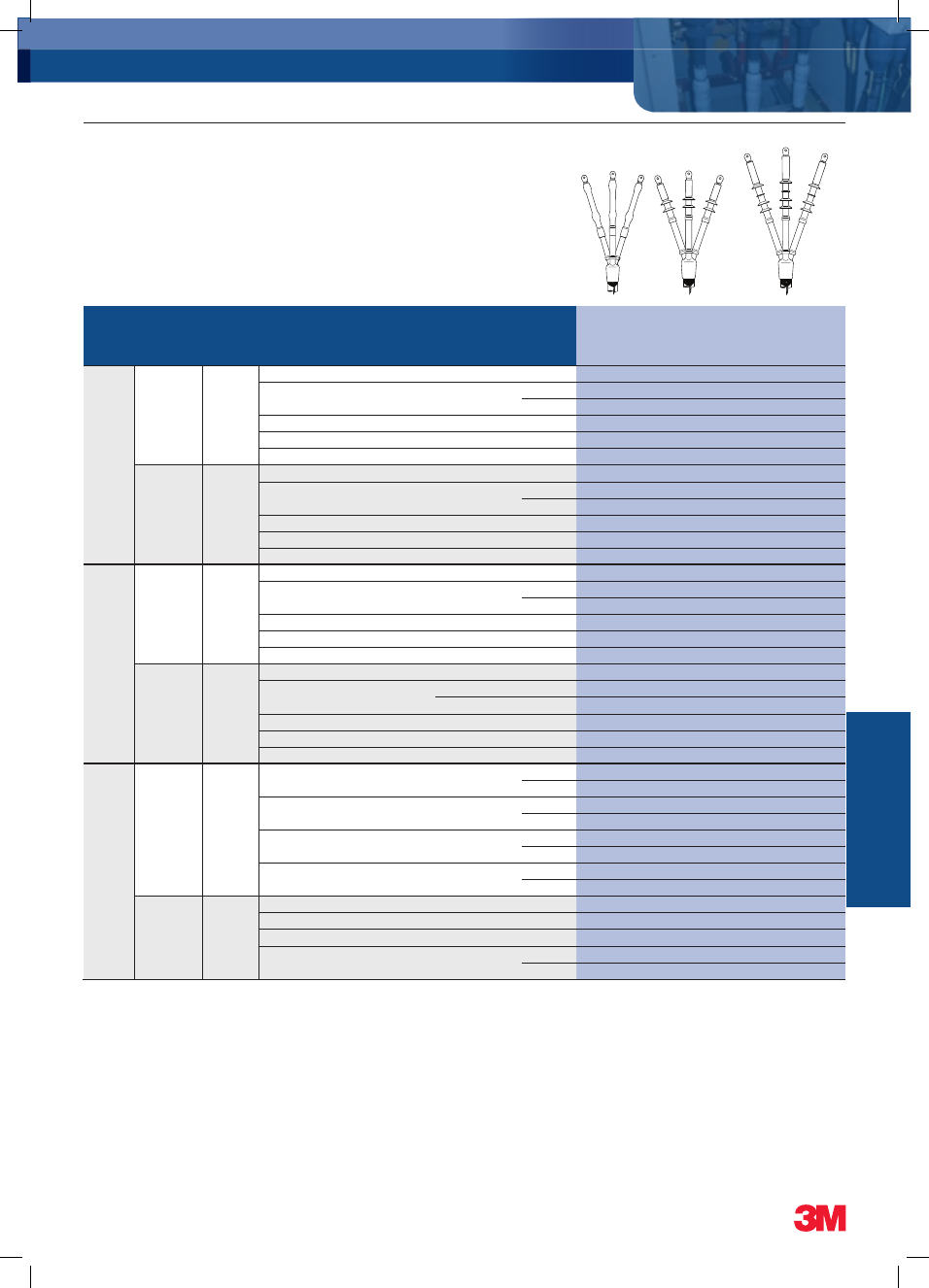

Three Core

Outdoor Terminations

Three Core

Indoor Terminations

Cold Shrink QT-III Termination Kits for Three Core Cable (AU)

3M Cold Shrink QT-III Termination Kits

Three Core Cable - 3.3 kV, 6.6 kV, 11 kV

Cable:

Polymeric Insulation, Copper Wire Screened*, Non-Armoured or Armoured

Contents:

Each kit will make one three core termination. Lugs not included.

Voltage

Description No. Cores

Cable Size

Cable

Insulation

Range

Jacket

Diameter

Range

BIL

NON-ARMOURED or

ARMOURED CABLE

3M Kit

3M Order Code

3.3 kV

Indoor

16 - 35

8.4 - 12.7

33 - 49

7620-T-95-3W-AU

AE010592309

50 - 95

12.7 - 17.8

37 - 68

7621-T-95-3W-AU

AE010592317

110

7621-T-110-3W-AU

AE010592325

120 - 185

17.8 - 23.4

49 - 79

110

7622-T-110-3W-AU

AE010592333

240 - 300

23.4 - 30.0

64 - 110

110

7624-T-110-3W-AU

AE010592341

400 - 500

30.0 - 38.6

66 - 119

110

7625-T-110-3W-AU

AE010592358

Outdoor

16 - 35

8.4 - 12.7

33 - 49

7620-S-2-3W-AU

AE010592408

50 - 95

12.7 - 17.8

37 - 68

7621-S-2-3W-AU

AE010591178

150

7691-S-4-3W-AU

AE010592424

120 - 185

17.8 - 23.4

49 - 79

150

7692-S-4-3W-AU

AE010591525

240 - 300

23.4 - 30.0

64 - 110

150

7693-S-4-3W-AU

AE010592440

400 - 500

30.0 - 38.6

66 - 119

150

7695-S-4-3W-AU

AE010592457

6.6 kV

Indoor

16 - 25

8.4 - 12.7

33 - 49

7620-T-95-3W-AU

AE010592309

35 - 70

12.7 - 17.8

37 - 68

7621-T-95-3W-AU

AE010592317

110

7621-T-110-3W-AU

AE010592325

95 - 150

17.8 - 23.4

49 - 79

110

7622-T-110-3W-AU

AE010592333

185 - 300

23.4 - 30.0

64 - 110

110

7624-T-110-3W-AU

AE010592341

400 - 500

30.0 - 38.6

66 - 119

110

7625-T-110-3W-AU

AE010592358

Outdoor

16 - 25

8.4 - 12.7

33 - 49

7620-S-2-3W-AU

AE010592408

35 - 70

12.7 - 17.8

37 - 68

7621-S-2-3W-AU

AE010591178

37 - 68

150

7691-S-4-3W-AU

AE010592424

95 - 150

17.8 - 23.4

49 - 79

150

7692-S-4-3W-AU

AE010591525

185 - 300

23.4 - 30.0

64 - 110

150

7693-S-4-3W-AU

AE010592440

400 - 500

30.0 - 38.6

66 - 119

150

7695-S-4-3W-AU

AE010592457

11 kV

Indoor

10 - 50

12.7 - 17.8

37 - 68

7621-T-95-3W-AU

AE010592317

110

7621-T-110-3W-AU

AE010592325

70 - 150

17.8 - 23.4

49 - 79

110

7622-T-110-3W-AU

AE010592333

150

7693-T-150-3W-AU

AE010592366

185 - 300

23.4 - 30.0

64 - 110

110

7624-T-110-3W-AU

AE010592341

150

7694-T-150-3W-AU

AE010592374

400 - 500

30.0 - 38.6

66 - 119

110

7625-T-110-3W-AU

AE010592358

150

7695-T-150-3W-AU

AE010592382

Outdoor

10 - 50

12.7 - 17.8

37 - 68

150

7691-S-4-3W-AU

AE010592424

70 - 150

17.8 - 23.4

49 - 79

150

7692-S-4-3W-AU

AE010591525

185 - 300

23.4 - 30.0

64 - 110

150

7693-S-4-3W-AU

AE010592440

400 - 500

30.0 - 38.6

66 - 119

150

7695-S-4-3W-AU

AE010592457

200

7685-S-8-3W-AU

AE010592390

www.3M.com.au/electrical • www.3M.co.nz/electrical

Cold Shrink QT-III Termination Kits for Three Core Cable (AU)

3M Cold Shrink QT-III Termination Kits

Three Core Cable - 15 kV, 22 kV, 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened**, Non-Armoured or Armoured

Contents:

Each kit will make one three core termination. Lugs not included.

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Voltage

Description

No. Cores

Cable Size

Cable

Insulation

Range

Jacket

Diameter

Range

BIL

NON-ARMOURED or

ARMOURED CABLE

3M Kit

3M Order Code

15 kV

Indoor

16 - 25

12.7-17.8

37 - 68

110

7621-T-110-3W-AU

AE010592325

35 - 95

17.8 - 23.4

49 - 79

110

7622-T-110-3W-AU

AE010592333

150

7693-T-150-3W-AU

AE010592366

120 - 185

23.4 - 30.0

64 - 110

110

7624-T-110-3W-AU

AE010592341

150

7694-T-150-3W-AU

AE010592374

240 - 300

30.0 - 38.6

66 - 119

110

7625-T-110-3W-AU

AE010592358

150

7695-T-150-3W-AU

AE010592382

Outdoor

16 - 25

12.7 - 17.8

37 - 68

150

7691-S-4-3W-AU

AE010592424

35 - 95

17.8 - 23.4

49 - 79

150

7692-S-4-3W-AU

AE010591525

120 - 185

23.4 - 30.0

64 - 110

150

7693-S-4-3W-AU

AE010592440

240 - 300

30.0 - 38.6

66 - 119

150

7695-S-4-3W-AU

AE010592457

240 - 300

30.0 - 38.6

66 - 119

200

7685-S-8-3W-AU

AE010592390

22 kV

Indoor

25 - 70

17.8 - 23.4

49 - 79

150

7693-T-150-3W-AU

AE010592366

95 - 185

23.4 - 30.0

64 - 110

150

7694-T-150-3W-AU

AE010592374

240 - 300

30.0 - 38.6

66 - 119

150

7695-T-150-3W-AU

AE010592382

200

7685-S-8-3W-AU*

AE010592390

Outdoor

25 - 70

17.8 - 23.4

49 - 79

150

7692-S-4-3W-AU

AE010591525

95 - 185

23.4 - 30.0

64 - 110

150

7693-S-4-3W-AU

AE010592440

240 - 300

30.0 - 38.6

66 - 119

150

7695-S-4-3W-AU

AE010592457

240 - 300

30.0 - 38.6

66 - 119

200

7685-S-8-3W-AU

AE010592390

33 kV

Indoor

95 - 240

30.0 - 38.6

66 - 119

200

7685-S-8-3W-AU*

AE010592390

Outdoor

95 - 240

30.0 - 38.6

66 - 119

200

7685-S-8-3W-AU*

AE010592390

* Suitable for indoor & outdoor terminations.
** Kits for copper tape screened cable available on request
Final determining factors are cable jacket and insulation diameters.

™

Medium

Volta

ge Solutions

up to 33 kV

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Voltage Description

No.

Cores

Cable Size

Cable

Insulation

Range

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Jacket

Diameter

Range

3M Kit

3M Order Code

Jacket

Diameter

Range

3M Kit

3M Order Code

3.3 kV

Indoor

25 - 70

11.2 - 16.5

Max. 23

92-EB 60-1-AU

AE010591962

14 - 24

92-EB 60-1-AR-AU

AE010592135

70 - 185

14.2 - 22.1

Max. 28

92-EB 61-1-AU

AE010591970

23 - 41

92-EB 61-1-AR-AU

AE010592143

95 - 300

15.9 - 30.0

18 - 37

92-EB 62-1-AU

AE010591988

23 - 41

92-EB 62-1-AR-AU

AE010592150

240 - 500

22.6 - 41.4

25 - 50

92-EB 63-1-AU

AE010591996

33 - 56

92-EB 63-1-AR-AU

AE010592168

400 - 630

27.3 - 49.3

29 - 61

92-EB 64-1-AU

AE010592002

42 - 79

92-EB 64-1-AR-AU

AE010592176

500 - 1000

31.5 - 61.5

34 - 74

92-EB 65-1-AU

AE010592010

42 - 79

92-EB 65-1-AR-AU

AE010592184

Outdoor

95 - 300

16.0 - 28.5

125

23 - 35

93-EB 62-1-AU

AE010592028

23 - 41

93-EB 62-1-AR-AU

AE010592192

240 - 500

21.3 - 35.0

125

30 - 44

93-EB 63-1-AU

AE010592036

33 - 56

93-EB 63-1-AR-AU

AE010592200

400 - 630

27.0 - 45.7

125

35 - 52

93-EB 64-1-AU

AE010592044

35 - 56

93-EB 64-1-AR-AU

AE010592218

500 - 1000

33.0 - 53.3

125

41 - 65

93-EB 65-1-AU

AE010592051

42 - 79

93-EB 65-1-AR-AU

AE010592226

6.6 kV

Indoor

25 - 50

11.2 - 16.5

Max. 23

92-EB 60-1-AU

AE010591962

14 - 24

92-EB 60-1-AR-AU

AE010592135

70 - 150

14.2 - 22.1

Max. 28

92-EB 61-1-AU

AE010591970

23 - 41

92-EB 61-1-AR-AU

AE010592143

95 - 300

15.9 - 30.0

18 - 37

92-EB 62-1-AU

AE010591988

23 - 41

92-EB 62-1-AR-AU

AE010592150

240 - 500

22.6 - 41.4

25 - 50

92-EB 63-1-AU

AE010591996

33 - 56

92-EB 63-1-AR-AU

AE010592168

400 - 630

27.3 - 49.3

29 - 61

92-EB 64-1-AU

AE010592002

42 - 79

92-EB 64-1-AR-AU

AE010592176

500 - 1000

31.5 - 61.5

34 - 74

92-EB 65-1-AU

AE010592010

42 - 79

92-EB 65-1-AR-AU

AE010592184

Outdoor

95 - 240

16.0 - 28.5

125

23 - 35

93-EB 62-1-AU

AE010592028

23 - 41

93-EB 62-1-AR-AU

AE010592192

240 - 400

21.3 - 35.0

125

30 - 44

93-EB 63-1-AU

AE010592036

33 - 56

93-EB 63-1-AR-AU

AE010592200

400 - 630

27.0 - 45.7

125

35 - 52

93-EB 64-1-AU

AE010592044

35 - 56

93-EB 64-1-AR-AU

AE010592218

500 - 1000

33.0 - 53.3

125

41 - 65

93-EB 65-1-AU

AE010592051

42 - 79

93-EB 65-1-AR-AU

AE010592226

Final determining factors are cable jacket and insulation diameters.

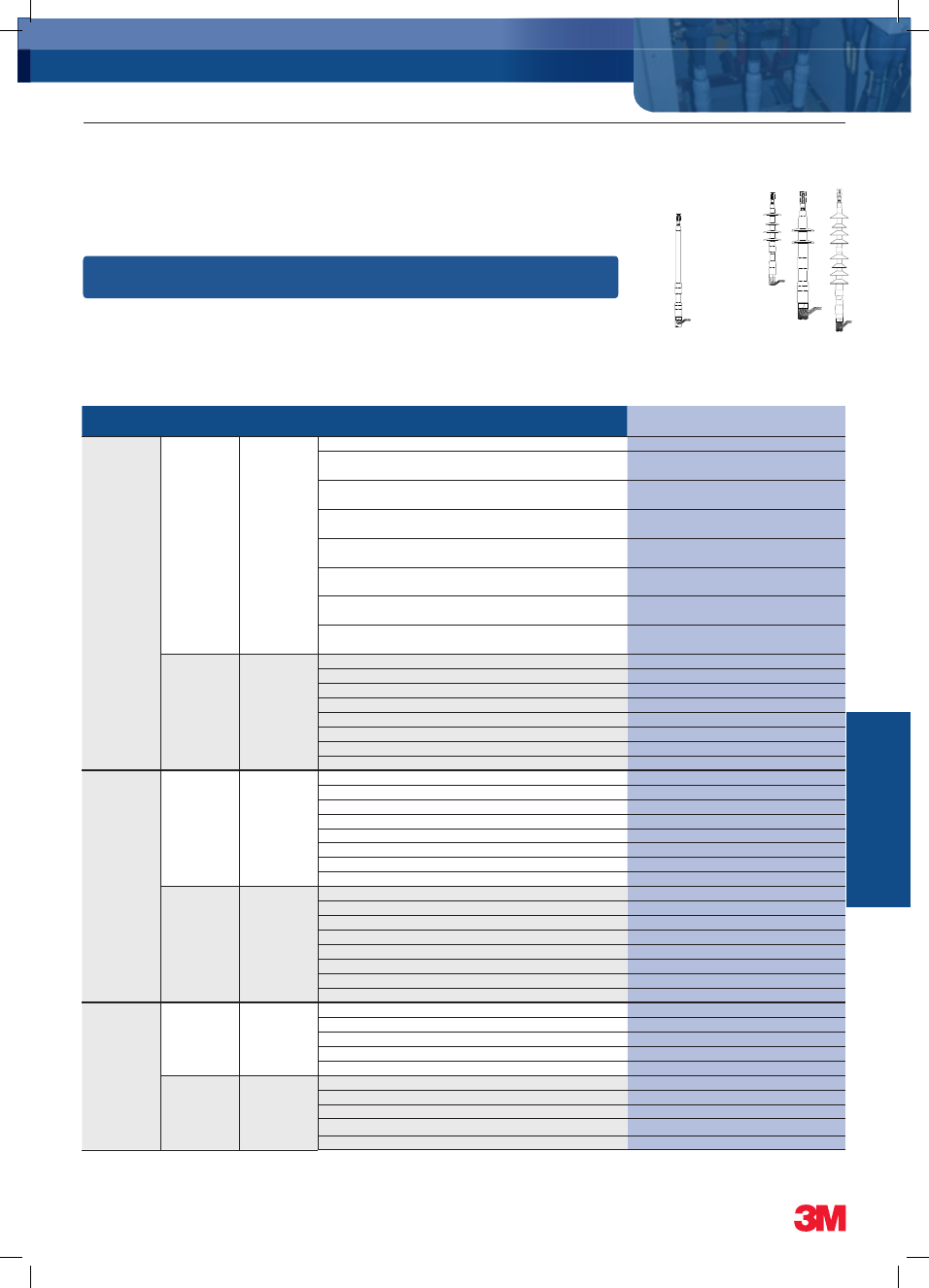

Cold Shrink QT-II Termination Kits for Single Core Cable (AU)

3M Cold Shrink QT-II terminations provide easy installation for a broad spectrum of indoor and outdoor
applications. The Cold Shrink QT-II is based on specially formulated, track-resistant silicone rubber insulators
with built-in Hi-K stress relief. Once applied this provides a void-free, flexible seal without the need for special
tools or torches. Kits are designed for use with crimp lugs. For use with mechanical lugs please contact 3M.

3M Cold Shrink QT-II Termination Kits

Single Core Cable - 3.3 kV, 6.6 kV

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured or Armoured

Contents:

Each kit will make three single core terminations. Lugs not included.

Termination kits for single and three core cable are specifically designed and optimised for Australian

conditions, and meet or exceed the requirements of IEC 60502-4 and IEEE Standard 48.

Total fire ban?

No hot work permit? No worries.

™

Cold Shrink Cable Accessories.

www.3M.com.au/electrical • www.3M.co.nz/electrical

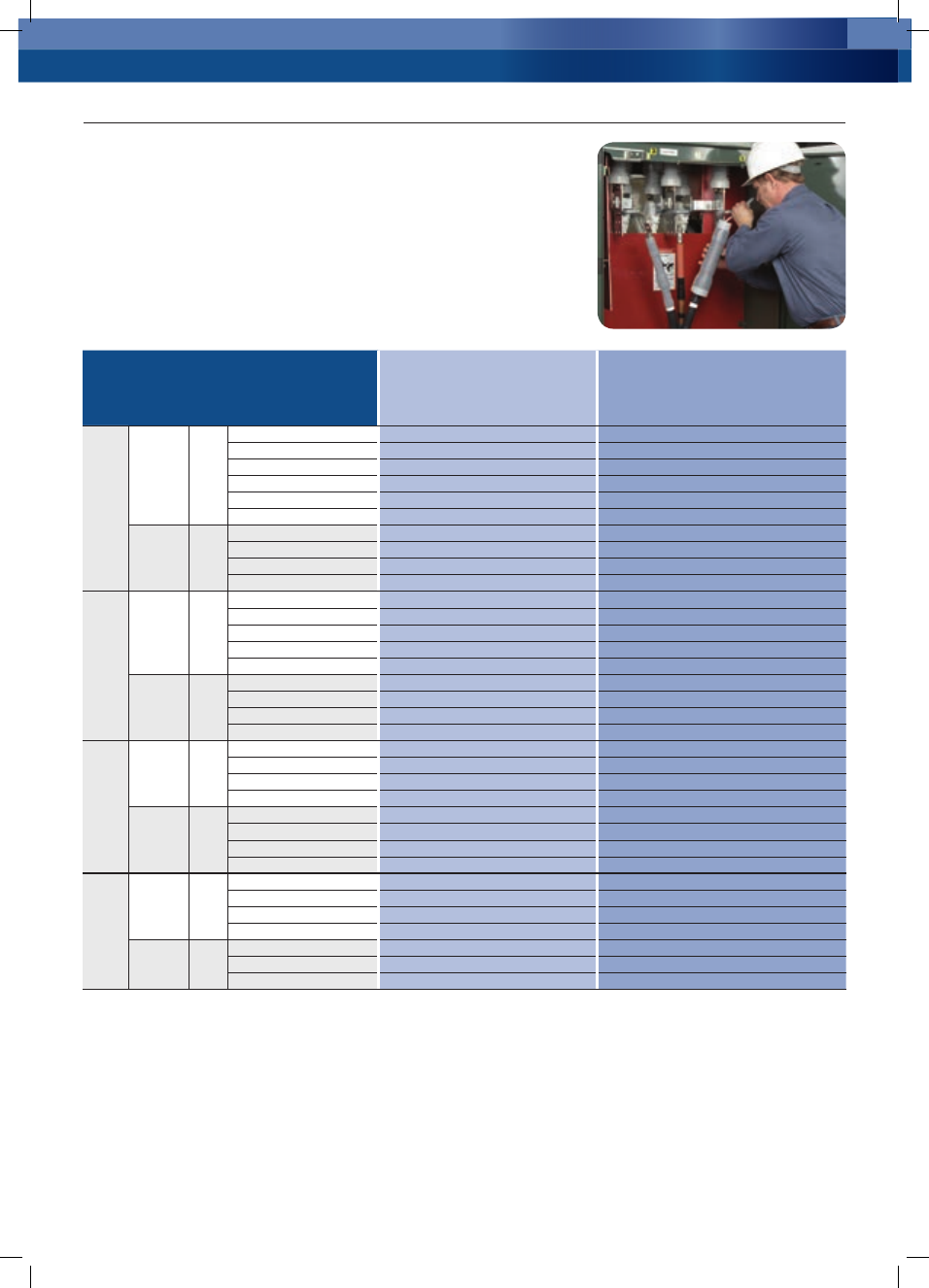

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Final determining factors are cable jacket and insulation diameters.

Voltage Description

No.

Cores

Cable Size

Cable

Insulation

Range

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Jacket

Diameter

Range

3M Kit

3M Order Code

Jacket

Diameter

Range

3M Kit

3M Order Code

11 kV

Indoor

16 - 25

11.2 - 16.5

Max. 23

92-EB 60-1-AU

AE010591962

14 - 24

92-EB 60-1-AR-AU

AE010592135

14.2 - 22.1

Max. 28

92-EB 61-1-AU

AE010591970

23 - 41

92-EB 61-1-AR-AU

AE010592143

50 - 150

15.9 - 30.0

18 - 37

92-EB 62-1-AU

AE010591988

23 - 41

92-EB 62-1-AR-AU

AE010592150

185 - 500

22.6 - 41.4

25 - 50

92-EB 63-1-AU

AE010591996

33 - 56

92-EB 63-1-AR-AU

AE010592168

300 - 630

27.3 - 49.3

29 - 61

92-EB 64-1-AU

AE010592002

42 - 79

92-EB 64-1-AR-AU

AE010592176

500 - 1000 31.5 - 61.5

34 - 74

92-EB 65-1-AU

AE010592010

42 - 79

92-EB 65-1-AR-AU

AE010592184

Outdoor

50 - 150

16.0 - 28.5 125

23 - 35

93-EB 62-1-AU

AE010592028

23 - 41

93-EB 62-1-AR-AU

AE010592192

150 - 300

21.3 - 35.0 125

30 - 44

93-EB 63-1-AU

AE010592036

33 - 56

93-EB 63-1-AR-AU

AE010592200

300 - 630

27.0 - 45.7 125

35 - 52

93-EB 64-1-AU

AE010592044

35 - 56

93-EB 64-1-AR-AU

AE010592218

500 - 1000 33.0 - 53.3 125

41 - 65

93-EB 65-1-AU

AE010592051

42 - 79

93-EB 65-1-AR-AU

AE010592226

15 kV

Indoor

14.2 - 22.1

Max. 28

92-EB 61-1-AU

AE010591970

23 - 41

92-EB 61-1-AR-AU

AE010592143

35 - 120

15.9 - 30.0

18 - 37

92-EB 62-1-AU

AE010591988

23 - 41

92-EB 62-1-AR-AU

AE010592150

150 - 400

22.6 - 41.4

25 - 50

92-EB 63-1-AU

AE010591996

33 - 56

92-EB 63-1-AR-AU

AE010592168

240 - 500

27.3 - 49.3

29 - 61

92-EB 64-1-AU

AE010592002

42 - 79

92-EB 64-1-AR-AU

AE010592176

400 - 800

31.5 - 61.5

34 - 74

92-EB 65-1-AU

AE010592010

42 - 79

92-EB 65-1-AR-AU

AE010592184

Outdoor

35 - 120

16.0 - 28.5 125

23 - 35

93-EB 62-1-AU

AE010592028

23 - 41

93-EB 62-1-AR-AU

AE010592192

120 - 240

21.3 - 35.0 125

30 - 44

93-EB 63-1-AU

AE010592036

33 - 56

93-EB 63-1-AR-AU

AE010592200

240 - 500

27.0 - 45.7 125

35 - 52

93-EB 64-1-AU

AE010592044

35 - 56

93-EB 64-1-AR-AU

AE010592218

400 - 1000 33.0 - 53.3 125

41 - 65

93-EB 65-1-AU

AE010592051

42 - 79

93-EB 65-1-AR-AU

AE010592226

22 kV

Indoor

25 - 95

16.0 - 28.5 125

23 - 35

93-EB 62-1-AU

AE010592028

23 - 41

93-EB 62-1-AR-AU

AE010592192

70 - 240

21.3 - 35.0 125

30 - 44

93-EB 63-1-AU

AE010592036

33 - 56

93-EB 63-1-AR-AU

AE010592200

185 - 500

27.0 - 45.7 125

35 - 52

93-EB 64-1-AU

AE010592044

35 - 56

93-EB 64-1-AR-AU

AE010592218

400 - 1000 33.0 - 53.3 125

41 - 65

93-EB 65-1-AU

AE010592051

42 - 79

93-EB 65-1-AR-AU

AE010592226

Outdoor

25 - 95

16.2 - 28.5 170

23 - 35

94-EB 62-1-AU

AE010592069

23 - 41

94-EB 62-1-AR-AU

AE010592234

70 - 240

21.3 - 35.0 170

30 - 44

94-EB 63-1-AU

AE010592077

33 - 56

94-EB 63-1-AR-AU

AE010592242

185 - 500

27.4 - 45.7 170

35 - 52

94-EB 64-1-AU

AE010592085

35 - 56

94-EB 64-1-AR-AU

AE010592259

400 - 1000 33.3 - 53.3 170

41 - 65

94-EB 65-1-AU

AE010592093

42 - 79

94-EB 65-1-AR-AU

AE010592267

33 kV

Indoor

25 - 50

16.2 - 28.5 170

23 - 35

94-EB 62-1-AU

AE010592069

23 - 41

94-EB 62-1-AR-AU

AE010592234

50 - 150

21.3 - 35.0 170

30 - 44

94-EB 63-1-AU

AE010592077

33 - 56

94-EB 63-1-AR-AU

AE010592242

120 - 300

27.4 - 45.7 170

35 - 52

94-EB 64-1-AU

AE010592085

35 - 56

94-EB 64-1-AR-AU

AE010592259

240 - 500

33.3 - 53.3 170

41 - 65

94-EB 65-1-AU

AE010592093

42 - 79

94-EB 65-1-AR-AU

AE010592267

Outdoor

50 - 150

21.3 - 35.0 170

30 - 44

94-EB 62-2-AU

AE010592101

33 - 56

94-EB 62-2-AR-AU

AE010592275

120 - 240

27.0 - 45.7 170

34 - 52

94-EB 63-2-AU

AE010592119

34 - 56

94-EB 63-2-AR-AU

AE010592283

240 - 630

33.3 - 53.3 170

41 - 65

94-EB 64-2-AU

AE010592127

42 - 79

94-EB 64-2-AR-AU

AE010592291

Cold Shrink QT-II Termination Kits for Single Core Cable (AU)

3M Cold Shrink QT-II Termination Kits

Single Core Cable - 11kV, 15 kV, 22 kV, 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured or Armoured

Contents:

Each kit will make three single core terminations. Lugs not included.

™

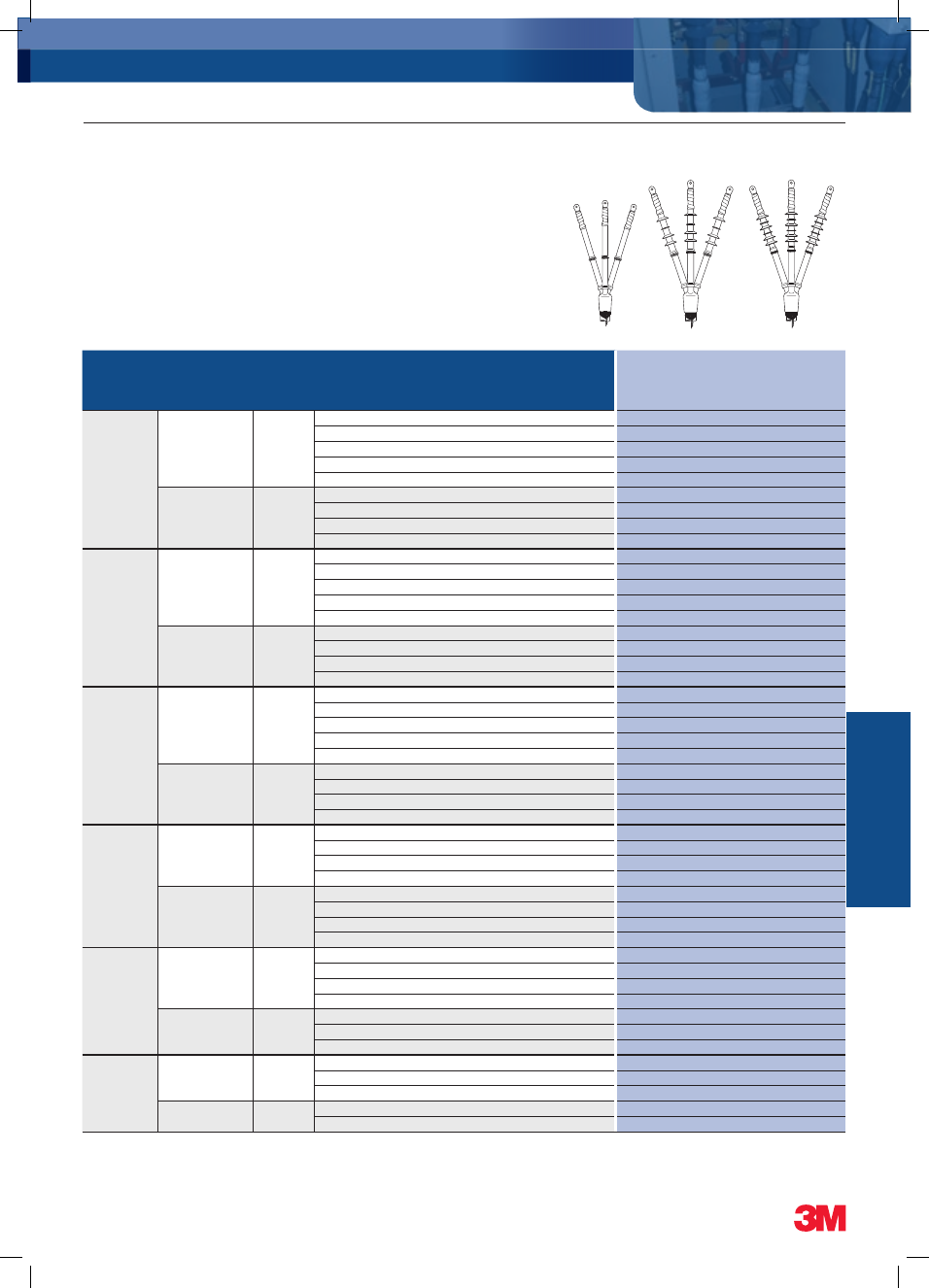

Medium

Volta

ge Solutions

up to 33 kV

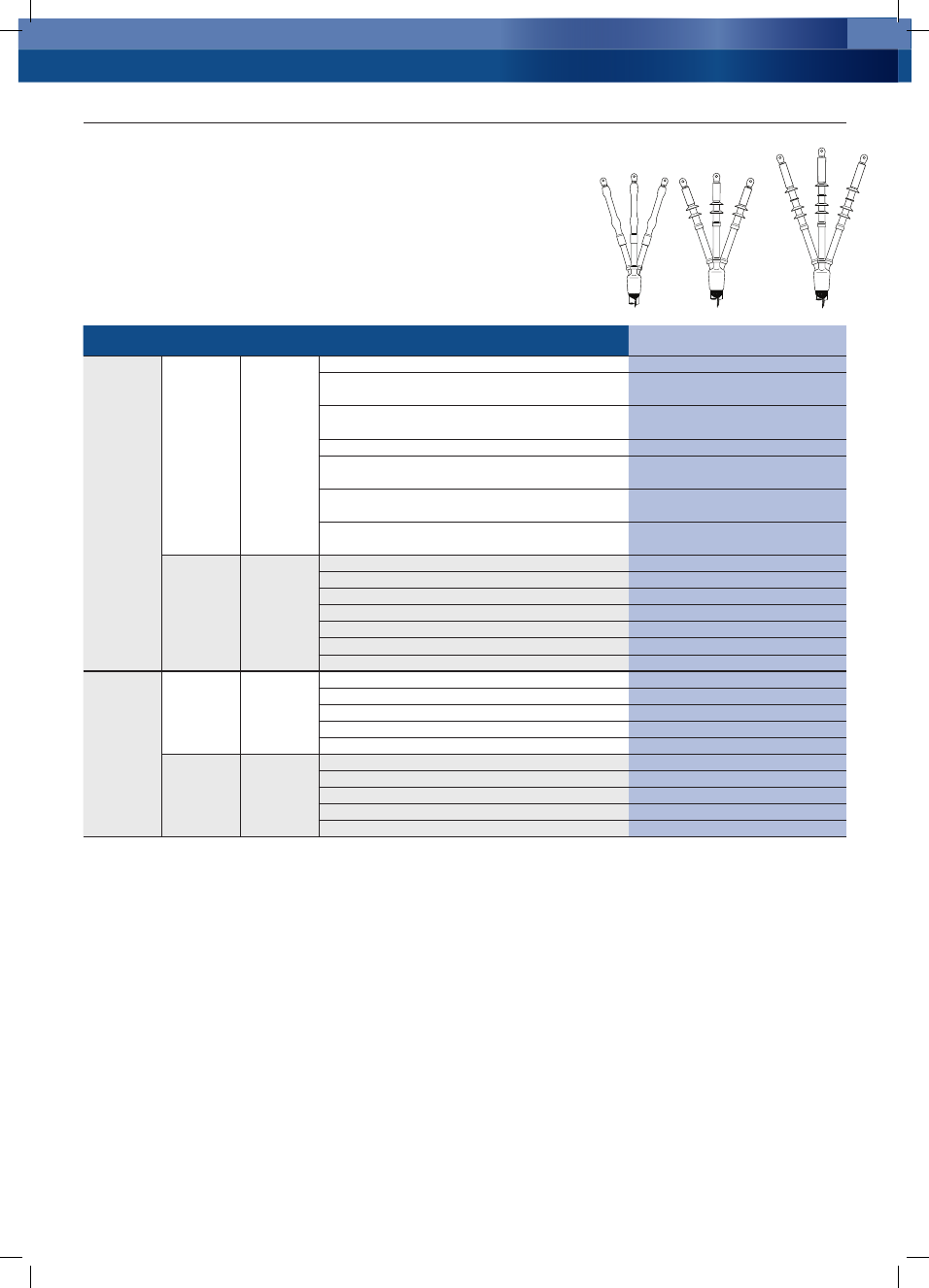

Medium Voltage Cold Shrink Cable Termination Kits

(Australia)

Final determining factors are cable jacket and insulation diameters.

Voltage

Description

No. Cores

Cable

Size

Cable

Insulation

Range

Jacket

Diameter

Range

BIL

NON-ARMOURED or

ARMOURED CABLE

3M Kit

3M Order Code

3.3 kV

Indoor

25 - 70

11.2 - 16.5

36 - 61

92-EB 60-3-AU

AE010592473

70 - 185

14.2 - 22.1

36 - 61

92-EB 61-3-AU

AE010592481

95 - 185

16.5 - 22.1

49 - 79

92-EB 62-3-AU

AE010592499

185 - 400

19.8 - 33.0

49 - 79

92-EB 63-3-AU

AE010592507

240 - 400

22.0 - 33.0

64 - 110

92-EB 64-3-AU

AE010592515

Outdoor

50 - 150

14.2 - 22.1

36 - 61

125

93-EB 60-3-AU

AE010592523

95 - 150

16.0 - 28.4

36 - 61

125

93-EB 61-3-AU

AE010592531

185 - 300

16.0 - 28.4

49 - 79

125

93-EB 62-3-AU

AE010592549

400 - 500

21.3 - 35.0

64 - 110

125

93-EB 63-3-AU

AE010592556

6.6 kV

Indoor

25 - 70

11.2 - 16.5

36 - 61

92-EB 60-3-AU

AE010592473

70 - 150

14.2 - 22.1

36 - 61

92-EB 61-3-AU

AE010592481

95 - 150

16.5 - 22.1

49 - 79

92-EB 62-3-AU

AE010592499

185 - 300

19.8 - 33.0

49 - 79

92-EB 63-3-AU

AE010592507

240 - 400

22.0 - 33.0

64 - 110

92-EB 64-3-AU

AE010592515

Outdoor

50 - 150

14.2 - 22.1

36 - 61

125

93-EB 60-3-AU

AE010592523

95 - 150

16.0 - 28.4

36 - 61

125

93-EB 61-3-AU

AE010592531

185 - 300

16.0 - 28.4

49 - 79

125

93-EB 62-3-AU

AE010592549

400 - 500

21.3 - 35.0

64 - 110

125

93-EB 63-3-AU

AE010592556

11 kV

Indoor

10 - 25

11.2 - 16.5

36 - 61

92-EB 60-3-AU

AE010592473

35 - 70

14.2 - 22.1

36 - 61

92-EB 61-3-AU

AE010592481

70 - 95

16.5 - 22.1

49 - 79

92-EB 62-3-AU

AE010592499

120- 150

19.8 - 33.0

49 - 79

92-EB 63-3-AU

AE010592507

185 - 300

22.0 - 33.0

64 - 110

92-EB 64-3-AU

AE010592515

Outdoor

14.2 - 22.1

36 - 61

125

93-EB 60-3-AU

AE010592523

50 - 70

16.0 - 28.4

36 - 61

125

93-EB 61-3-AU

AE010592531

95 - 150

16.0 - 28.4

49 - 79

125

93-EB 62-3-AU

AE010592549

185 - 300

21.3 - 35.0

64 - 110

125

93-EB 63-3-AU

AE010592556

15 kV

Indoor

25 - 50

14.2 - 22.1

36 - 61

92-EB 61-3-AU

AE010592481

50 - 70

16.5 - 22.1

49 - 79

92-EB 62-3-AU

AE010592499

95 - 120

19.8 - 33.0

49 - 79

92-EB 63-3-AU

AE010592507

150 - 240

22.0 - 33.0

64 - 110

92-EB 64-3-AU

AE010592515

Outdoor

14.2 - 22.1

36 - 61

125

93-EB 60-3-AU

AE010592523

35 - 50

16.0 - 28.4

36 - 61

125

93-EB 61-3-AU

AE010592531

70 - 120

16.0 - 28.4

49 - 79

125

93-EB 62-3-AU

AE010592549

150 - 240

21.3 - 35.0

64 - 110

125

93-EB 63-3-AU

AE010592556

22 kV

Indoor

10 - 16

14.2 - 22.1

36 - 61

125

93-EB 60-3-AU

AE010592523

25 - 35

16.0 - 28.4

36 - 61

125

93-EB 61-3-AU

AE010592531

50 - 120

16.0 - 28.4

49 - 79

125

93-EB 62-3-AU

AE010592549

120 - 240

21.3 - 35.0

64 - 110

125

93-EB 63-3-AU

AE010592556

Outdoor

25 - 35

16.2 - 24.4

36 - 61

170

94-EB 61-3-AU

AE010592564

50 - 120

16.2 - 28.4

49 - 79

170

94-EB 62-3-AU

AE010592572

120 - 240

21.3 - 35.0

64 - 110

170

94-EB 63-3-AU

AE010592580

33 kV

Indoor

25 - 50

16.2 - 28.4

49 - 79

170

94-EB 62-3-AU

AE010592572

25 - 150

21.3 - 35.0

64 - 110

170

94-EB 63-3-AU

AE010592580

95 - 240

27.4 - 45.7

64 - 110

170

94-EB 64-3-AU

AE010592598

Outdoor

25 - 150

21.3 - 35.0

64 - 110

170

94-EB 63-4-AU

AE010592606

95 - 240

27.4 - 45.7

64 - 110

170

94-EB 64-4-AU

AE010592614

Cold Shrink QT-II Termination Kits for Three Core Cable (AU)

3M Cold Shrink QT-II Termination Kits

Three Core Cable - 3.3 kV to 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured or Armoured

Contents:

Each kit will make one three core termination. Lugs not included.

www.3M.com.au/electrical • www.3M.co.nz/electrical

Cold Shrink Trifurcating Kits

™

Cold Shrink Trifurcating Kits - Above Ground

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured

Contents:

Each kit contains components for three cores.

For converting three core cables to three single cores.

Note

that 3M termination kits for three core cables already include trifurcating components.

Trifurcation kits will make each core up to 4 m in length.

Cable Size mm

Jacket

Diameter

Range

Phase

Diameter

Range

3M Kit

3M Order Code

3.3 kV

6.6 kV

11 kV

15 kV

22 kV

33 kV

50 - 150

35 - 120

25 - 50

25 - 35

37 - 68

15 - 21

RJK-1-AU

AE019309515

185 - 240

150 - 185

70 - 150

50 - 120

35 - 70

49 - 79

21 - 26

RJK-2-AU

AE019309523

300 - 400

240 - 400

185 - 240

150 - 185

95 - 185

50 - 120

64 - 110

26 - 33

RJK-3-AU

AE019309531

300 - 400

240 - 400

150 -240

66 - 119

33 - 41

RJK-4-AU

AE019309549

™

Cold Shrink Trifurcating Kits - Direct Bury

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured

Contents:

Each kit contains components for three cores

For converting three core cables to three single cores. Kits contain EPDM components.

Trifurcation kits will make each core up to 4 m in length.

Cable Size mm

Jacket

Diameter

Range

Phase

Diameter

Range

3M Kit

3M Order Code

3.3 kV

6.6 kV

11 kV

15 kV

22 kV

33 kV

50 - 150

35 - 120

25 - 50

25 - 35

37 - 61

15 - 24

RJK-DB-1-AU

AE019311495

185 - 240

150 - 185

70 - 150

50 - 120

35 - 70

49 - 78

21 - 35

RJK-DB-2-AU

AE019311503

300 - 400

240 - 400

185 - 300

150 - 185

95 - 185

50 - 120

64 - 110

26 - 41

RJK-DB-3-AU

AE019311511

300 - 400

240 - 400

150 -240

66 - 120

27 - 49

RJK-DB-4-AU

AE019311529

Final determining factors are cable jacket and phase diameters.

™

Medium

Volta

ge Solutions

up to 33 kV

Medium Voltage Cold Shrink Cable Termination Kits

(New Zealand)

™

Cold Shrink QT-III Termination Kits for Single Core Cable

3M Cold Shrink QT-III Terminations offer easy and safe installation, and reliable, consistent performance
when terminating indoor and outdoor medium voltage cable. No flame is required for installation. The silicone
rubber body provides UV stability, track and erosion resistance, hydrophobicity and constant radial pressure,
resulting in maximum performance and durability.

3M Cold Shrink QT-III Termination Kits

Single Core Cable - 11 kV, 22 kV, 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened*, Non-Armoured

Contents:

Each kit will make three single core terminations and is supplied with mechanical lugs

Termination kits for single and three core cable are specifically designed and optimised for

New Zealand conditions, and meet or exceed the requirements of IEC 60502-4 and IEEE Standard 48.

Single Core

Indoor Terminations

Single Core

Outdoor Terminations

Voltage

Description

No. Cores

Cable Size mm

Insulation

Diameter mm

BIL kV

3M Kit

11 kV

Indoor

25 - 50

11.2 - 22.7

7621-T-95-NZ-1

70 - 95

16.3 - 27.4

110

7642-T-110-NZ-1

18.3 - 32.8

150

7653-T-150-NZ-1

120 - 150

21.1 - 38.9

110

7644-T-110-NZ-2

18.3 - 32.8

150

7653-T-150-NZ-2

185 - 240

21.1 - 38.9

110

7644-T-110-NZ-3

18.3 - 32.8

150

7653-T-150-NZ-3

300

26.7 - 45.7

110

7645-T-110-NZ-4

26.7 - 45.7

150

7655-T-150-NZ-4

400

26.7 - 45.7

110

7645-T-110-NZ-5

26.7 - 45.7

150

7655-T-150-NZ-5

500

26.7 - 45.7

110

7645-T-110-NZ-6

26.7 - 45.7

150

7655-T-150-NZ-6

630

38.9 - 58.9

110

7646-T-110-NZ-6

38.9 - 58.9

150

7656-T-150-NZ-6

Outdoor

25 - 50

11.2 - 22.7

7621-S-2-NZ-1

70 - 95

18.3 - 32.8

150

7653-S-4-NZ-1

120 - 150

18.3 - 32.8

150

7653-S-4-NZ-2

185 - 240

18.3 - 32.8

150

7653-S-4-NZ-3

300

26.7 - 45.7

150

7655-S-4-NZ-4

400

26.7 - 45.7

150

7655-S-4-NZ-5

500

26.7 - 45.7

150

7655-S-4-NZ-6

630

38.9 - 58.9

150

7656-S-4-NZ-6

22 kV

Indoor

35 - 95

18.3 - 32.8

150

7653-T-150-NZ-1

120 - 150

18.3 - 32.8

150

7653-T-150-NZ-2

185 - 240

26.7 - 45.7

150

7655-T-150-NZ-3

300

26.7 - 45.7

150

7655-T-150-NZ-4

400

26.7 - 45.7

150

7655-T-150-NZ-5

500 - 630

38.9 - 58.9

150

7656-T-150-NZ-6

800

40.4 - 55.9

150

7695-T-150(S)-NZ-7

1000 - 1200

46.0 - 64.8

150

7696-T-150(S)-NZ-7

Outdoor

35 - 95

18.3 - 32.8

150

7653-S-4-NZ-1

120 - 150

18.3 - 32.8

150

7653-S-4-NZ-2

185 - 240

26.7 - 45.7

150

7655-S-4-NZ-3

300

26.7 - 45.7

150

7655-S-4-NZ-4

400

26.7 - 45.7

150

7655-S-4-NZ-5

500 - 630

38.9 - 58.9

150

7656-S-4-NZ-6

800

40.4 - 55.9

200

7695-S-4(S)-NZ-7

1000 - 1200

46.0 - 64.8

200

7696-S-4(S)-NZ-7

33 kV

Indoor

21.1 - 38.9

200

7664-S-8-NZ-1**

70 - 240

26.7 - 45.7

200

7665-S-8-NZ-3**

300 - 630

38.9 - 58.9

200

7666-S-8-NZ-6**

800

40.4 - 55.9

200

7695-S-4(S)-NZ-7*

1000

46.0 - 64.8

200

7696-S-4(S)-NZ-7*

Outdoor

21.1 - 38.9

200

7664-S-8-NZ-1

70 - 240

26.7 - 45.7

200

7665-S-8-NZ-3

300 - 630

38.9 - 58.9

200

7666-S-8-NZ-6

800

40.4 - 55.9

200

7695-S-4(S)-NZ-7

1000

46.0 - 64.8

200

7696-S-4(S)-NZ-7

*Kits for copper tape screened cable available on request.
**Suitable for indoor and outdoor terminations
For information on using higher voltage terminations for lower voltage applications please contact 3M.
Final determining factors are cable jacket and insulation diameters.

www.3M.com.au/electrical • www.3M.co.nz/electrical

Medium Voltage Cold Shrink Cable Termination Kits

(New Zealand)

™

Cold Shrink QT-III Termination Kits for Three Core Cable

Kits include all components required to terminate a pre-prepared cable including trifurcation
standard tail lengths of one metre. Other lengths are available on request.

3MTM Cold Shrink QTIII Termination Kits - Three Core Cable

Three Core Cable - 11 kV, 22 kV

Cable:

Polymeric Insulation, Copper Wire Screened*, Non-Armoured

Contents:

Each kit will make one three core termination and is supplied with mechanical lugs

Voltage

Description

No. Cores

Cable Size mm

Insulation

Diameter mm

BIL kV

3M Kit

11 kV

Indoor

25 - 50

12.7 - 17.8

7621-T-95-3W-NZ-1

70 - 95

17.8 - 21.1

110

7642-T-110-3W-NZ-1

17.8 - 23.4

150

7653-T-150-3W-NZ-1

120 - 150

21.1 - 23.4

110

7643-T-110-3W-NZ-2

17.8 - 23.4

150

7653-T-150-3W-NZ-2

185

23.4 - 26.1

110

7644-T-110-3WS-NZ-3

185 - 240

23.4 - 30.0

110

7644-T-110-3W-NZ-3

23.4 - 30.0

150

7654-T-150-3W-NZ-3

300

30.0 - 38.6

110

7645-T-110-3W-NZ-4

30.0 - 38.6

150

7655-T-150-3W-NZ-4

400

30.0 - 38.6

110

7645-T-110-3W-NZ-5

30.0 - 38.6

150

7655-T-150-3W-NZ-5

Outdoor

25 - 50

12.7 - 17.8

7621-S-2-3W-NZ-1

70 - 95

17.8 - 23.4

150

7653-S-4-3W-NZ-1

120 - 150

17.8 - 23.4

150

7653-S-4-3W-NZ-2

185

23.4 - 26.1

150

7654-S-4-3WS-NZ-3

185 - 240

23.4 - 30.0

150

7654-S-4-3W-NZ-3

300

30.0 - 38.6

150

7655-S-4-3W-NZ-4

400

30.0 - 38.6

150

7655-S-4-3W-NZ-5

22 kV

Indoor

35 - 70

17.8 - 23.4

150

7653-T-150-3W-NZ-1

23.4 - 26.1

150

7654-T-150-3WS-NZ-1

120 - 150

23.4 - 30.3

150

7654-T-150-3W-NZ-2

185

23.4 - 30.3

150

7654-T-150-3W-NZ-3

240 - 400

30.0 - 38.6

150

7655-T-150-3W-NZ-5

Outdoor

35 - 70

17.8 - 23.4

150

7653-S-4-3W-NZ-1

23.4 - 26.1

150

7654-S-4-3WS-NZ-1

120 - 150

23.4 - 30.3

150

7654-S-4-3W-NZ-2

185

23.4 - 30.3

150

7654-S-4-3W-NZ-3

240 - 400

30.0 - 38.6

150

7655-S-4-3W-NZ-5

*Kits for copper tape screen cable available on request.
For information on using higher voltage terminations for lower voltage applications please contact 3M.
Final determining factors are cable jacket and insulation diameters.

Three Core

Outdoor Terminations

Three Core

Indoor Terminations

™

Medium

Volta

ge Solutions

up to 33 kV

Medium Voltage Cold Shrink Cable Termination Kits

(New Zealand)

™

Cold Shrink Trifurcating Kits - Above Ground

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured

Contents:

Each kit contains components for three cores.

For converting three core cables to three single cores.

Note

that kits listed previously for three core cables already include trifurcating components.

Trifurcation kits will make each core up to 4 m in length (specify required length when ordering).

™

Cold Shrink Trifurcating Kits - Direct Bury

Cable:

Polymeric Insulation, Copper Wire Screened, Non-Armoured

Contents:

Each kit contains components for three cores.

For converting three core cables to three single cores. Kits contain EPDM components.

Trifurcation kits will make each core up to 3 m in length (specify required length when ordering).

Cable Size mm

Jacket Diameter

Range mm

Phase

Diameter Range mm

3M Kit

11 kV

22 kV

25 - 70

37 - 68

15 - 21

RJK-1-NZ

95 - 185

35 - 95

49 - 79

21 - 26

RJK-2-NZ

240 - 300

120 - 240

64 - 110

26 - 33

RJK-3-NZ

400

300 - 400

66 - 120

33 - 41

RJK-4-NZ

Cable Size mm

Jacket Diameter

Range mm

Phase

Diameter Range mm

3M Kit

11 kV

22 kV

25 - 70

37 - 61

15 - 24

RJK-DB-1-NZ

95 - 185

35 - 95

49 - 78

21 - 35

RJK-DB-2-NZ

240 - 300

120 - 240

64 - 110

26 - 41

RJK-DB-3-NZ

400

300 - 400

66 - 120

27 - 49

RJK-DB-4-NZ

Final determining factors are cable jacket and phase diameters.

™

Medium

Volta

ge Solutions

up to 33 kV

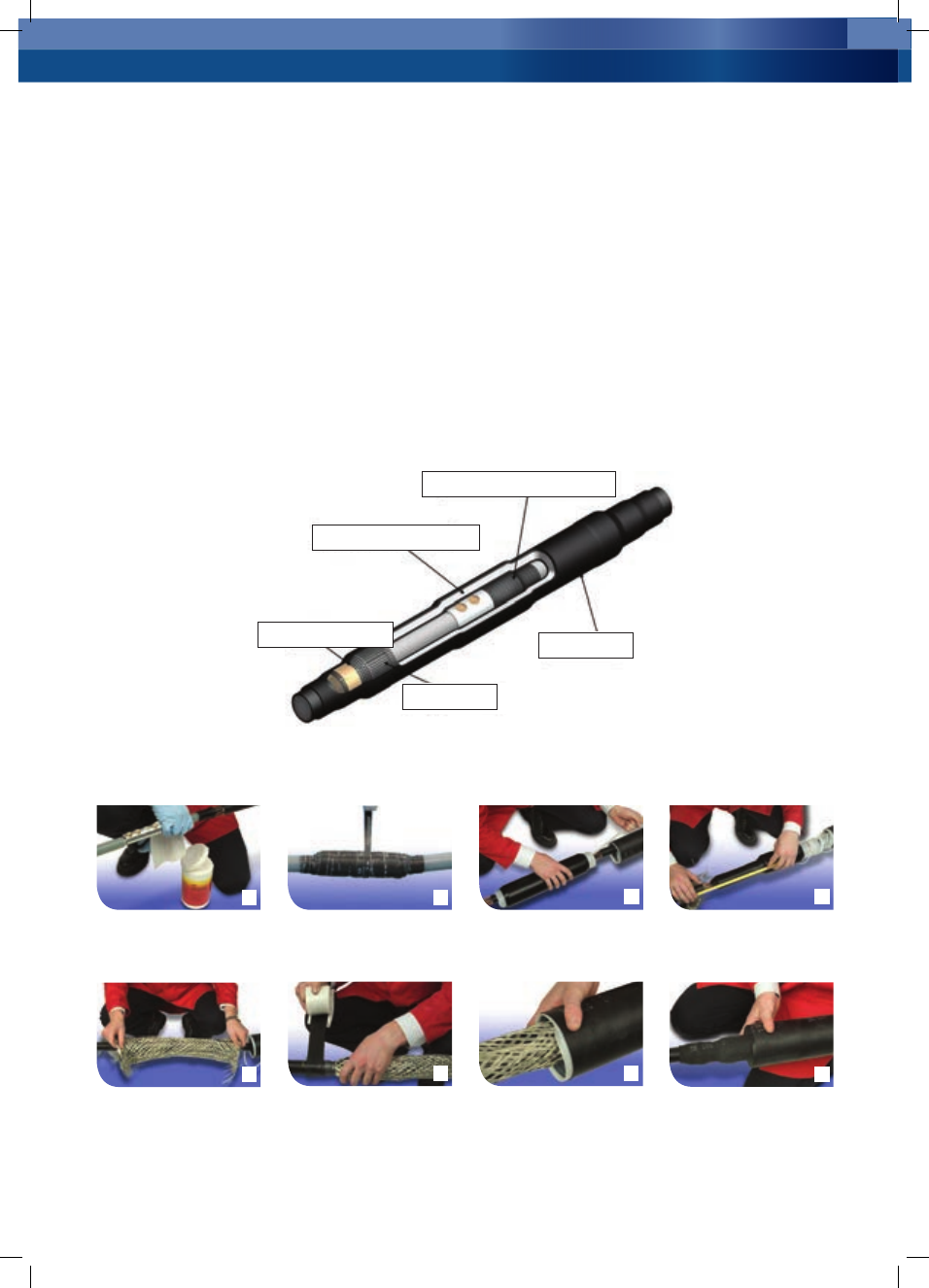

Medium Voltage Cold Shrink Cable Jointing Kits

(Australia)

3M Cold Shrink QS2000E Cable Jointing Kits

Single Core Cable

Cable:

Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured or Armoured

Contents:

Each kit contains components for one single core cable. Connectors not included. See data sheet for connector compatibility details.

3M Cold Shrink QS2000E Cable Jointing Kits

Three Core Cable

Cable:

Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured or Armoured

Contents:

Each kit contains components for three cores. Connectors not included. See data sheet for connector compatibility details.

Voltage

No.

Cores

Cable

Size

Cable

Insulation

Range

Jacket

Diameter

Range

Connector

Dimensions

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Max. mm

Diameter

Max. mm

Length

Max. mm

3M Kit

3M Order

Code

3M Kit

3M Order

Code

6.6 kV

70 - 185

14.6 - 25.2

135

92-AS 610-1-AU**

AE010595203

92-AS 610-1-AR-AU**

AE010595328

240 - 400 19.1 - 36.8

230

92-AS 620-1-AU**

AE010595211

92-AS 620-1-AR-AU**

AE010595336

11 kV

25* - 150 14.6 - 25.2

135

92-AS 610-1-AU**

AE010595203

92-AS 610-1-AR-AU**

AE010595328

185 - 400 19.1 - 36.8

230

92-AS 620-1-AU**

AE010595211

92-AS 620-1-AR-AU**

AE010595336

500 - 800 33.4 - 67.6

300

92-AS 630-1-AU**

AE010595229

92-AS 630-1-AR-AU**

AE010595344

22 kV

35 - 300

19.1 - 36.8

170

125

93-AS 620-1-AU***

AE010595237

93-AS 620-1-AR-AU***

AE010595351

400 - 630 33.4 - 67.6

270

125

93-AS 630-1-AU***

AE010595245

93-AS 630-1-AR-AU***

AE010595369

33 kV

50 - 240

20.6 - 36.8

150

194

94-AS 620-1-AU

AE010595252

94-AS 620-1-AR-AU

AE010595377

300 - 630 35.9 - 67.6

250

194

94-AS 630-1-AU

AE010595260

94-AS 630-1-AR-AU

AE010595385

Voltage

No.

Cores

Cable

Size

Cable

Insulation

Range

Connector

Dimensions

BIL

NON-ARMOURED CABLE

ARMOURED CABLE

Diameter

Max. mm

Length

Max. mm

3M Kit

3M Order

Code

3M Kit

3M Order

Code

6.6 kV

70 - 185

14.6 - 25.2

135

92-AS 610-3-AU**

AE010595278

92-AS 610-3-AR-AU**

AE010595393

240 - 400

19.1 - 36.8

230

92-AS 620-3-AU**

AE010595286

92-AS 620-3-AR-AU**

AE010595401

11 kV

25* - 150

14.6 - 25.2

135

92-AS 610-3-AU**

AE010595278

92-AS 610-3-AR-AU**

AE010595393

185 - 400

19.1 - 36.8

230

92-AS 620-3-AU**

AE010595286

92-AS 620-3-AR-AU**

AE010595401

22 kV

35 - 300

19.1 - 36.8

170

125

93-AS 620-3-AU***

AE010595294

93-AS 620-3-AR-AU***

AE010595419

*With adaptor kit 92-PG 610-1-AU (1 kit per core)/92-PG 610-3-AU (1 kit per set of three cores).
∞Kits for copper tape screened cable available on request.
**Note: These joints are also suitable for 3.3 kV cables. Please select the right kit based on the jacket and insulation diameter ranges.
***Note: These joints are also suitable for 15 kV cables. Please select the right kit based on the jacket and insulation diameter ranges.
Final determining factors are cable size and cable insulation diameters.

™

Cold Shrink QS2000E Cable Jointing Kits

•  Simple installation - easier to use in enclosed areas
•  Safe installation - no torches or heat required
•  Extensive quality and factory testing programme

Joints for single and three core cables are specifically designed and optmised for Australian

conditions, and meet or exceed the requirements of IEC 60502-4 and CENELEC HD 629.1

www.3M.com.au/electrical • www.3M.co.nz/electrical

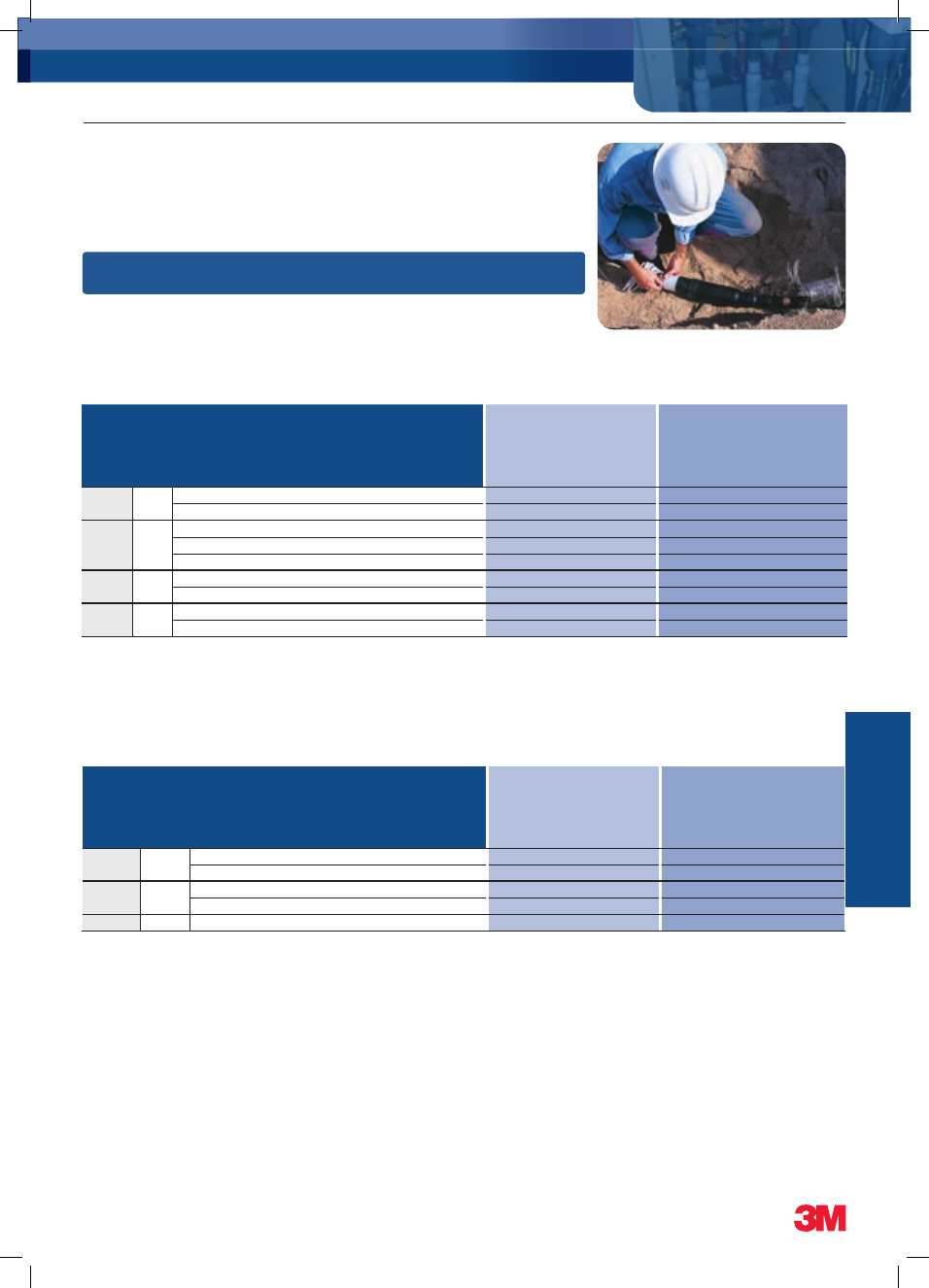

Medium Voltage Cold Shrink Cable Jointing Kits

(New Zealand)

™

Cold Shrink QS2000E Cable Jointing Kits

Single Core Cable - 11 kV, 22 kV, 33 kV

Cable:

Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured

Contents:

Each kit will make three single core joints and is supplied with mechanical connectors

™

Cold Shrink QS2000E Cable Jointing Kits

Three Core Cable - 11 kV, 22 kV

Cable:

Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured

Contents:

Each kit will make one three core joint and is supplied with mechanical connectors

™

Cold Shrink QS2000E Cable Jointing Kits

•  Simple installation - easier to use in enclosed areas
•  Safe installation - no torches or heat required
•  Extensive quality and factory testing programme

™

Transition Joint Kits

Joints are specifically designed and optmised for New Zealand conditions, and meet or exceed the requirements of IEC 60502-4.

Voltage

No. Cores

Cable Size

Cable Insulation Range mm

BIL kV

3M Kit

11 kV

25** - 95

14.6 - 25.2

92-AS 610-1-NZ-1

50 - 120

14.6 - 25.2

92-AS 610-1-NZ-2

120 - 300

19.1 - 36.8

92-AS 620-1-NZ-4

500 - 630

33.4 - 67.6

92-AS 630-1-NZ-6

22 kV

35 - 95

19.1 - 36.8

125

93-AS 620-1-NZ-1

50 - 150

19.1 - 36.8

125

93-AS 620-1-NZ-2

120 - 300

19.1 - 36.8

125

93-AS 620-1-NZ-4

400 - 630

33.4 - 67.6

125

93-AS 630-1-NZ-6

33 kV

50 - 150

20.6 - 36.8

194

94-AS 620-1-NZ-2

120 - 240

20.6 - 36.8

194

94-AS 620-1-NZ-4

300 - 630

35.9 - 67.6

194

94-AS 630-1-NZ-6

Voltage

No. Cores

Cable Size

Cable Insulation Range mm

BIL kV

3M Kit

11 kV

25** - 95

14.6 - 25.2

92-AS 610-3-NZ-1

50 - 120

14.6 - 25.2

92-AS 610-3-NZ-2

120 - 300

19.1 - 36.8

92-AS 620-3-NZ-4

22 kV

35 - 95

19.1 - 36.8

125

93-AS 620-3-NZ-1

50 - 150

19.1 - 36.8

125

93-AS 620-3-NZ-2

120 - 300

19.1 - 36.8

125

93-AS 620-3-NZ-4

∞Kits for copper tape screened cable available on request.
**Adaptor Kit 92-PG 610-1-NZ (1 kit per core) or 92-PG-610-3 (1 kit per set of three cores) required for 25mm

cable

Final determining factors are cable jacket and insulation diameters.

™

QS2000E Three Core Transition Straight Joint Kit

11 kV Cable

Cable:

Three core armoured PILC to Three Single Core XLPE (Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured)

Contents:

Each kit contains components to joint three cores and is supplied with mechanical connectors

Cable:

Three core armoured PILC to Three Core XLPE (Polymeric Insulation, Copper Wire Screened

∞

, Non-Armoured)

Contents:

Each kit contains components to joint three cores and is supplied with mechanical connectors

Voltage

Paper Insulated Cable

Polymeric Insulated Cable

BIL kV

3M Kit

No. Cores

Cable Size mm

Cable Insulation Range

No. Cores

Cable Size mm

Cable Insulation

Range mm

11 kV

25 - 95

25* - 95

14.6 - 25.2

92-FS 213-3-1-NZ-1

95 - 300

17.4

120 - 300

19.1 - 36.8

92-FS 233-3-1-NZ-4

Voltage

Paper Insulated Cable

Polymeric Insulated Cable

BIL kV

3M Kit

No. Cores

Cable Size mm

Cable Insulation Range

No. Cores

Cable Size mm

Cable Insulation

Range mm

11 kV

25 - 95

25* - 95

14.6 - 25.2

92-FS 213-3-3-NZ-1

95 - 300

17.4

120 - 300

19.1 - 36.8

92-FS 233-3-3-NZ-4

* With adapter tubes (included in kit). † Round Conductors only. ∞Kits for copper tape screened cable available on request.

* With adapter tubes (included in kit) † Round Conductors only. ∞Kits for copper tape screened cable available on request.

Joints for single and three core cables are specifically designed and optmised for New Zealand

conditions, and meet or exceed the requirements of IEC 60502-4 and CENELEC HD 629.1

™

Medium

Volta

ge Solutions

up to 33 kV

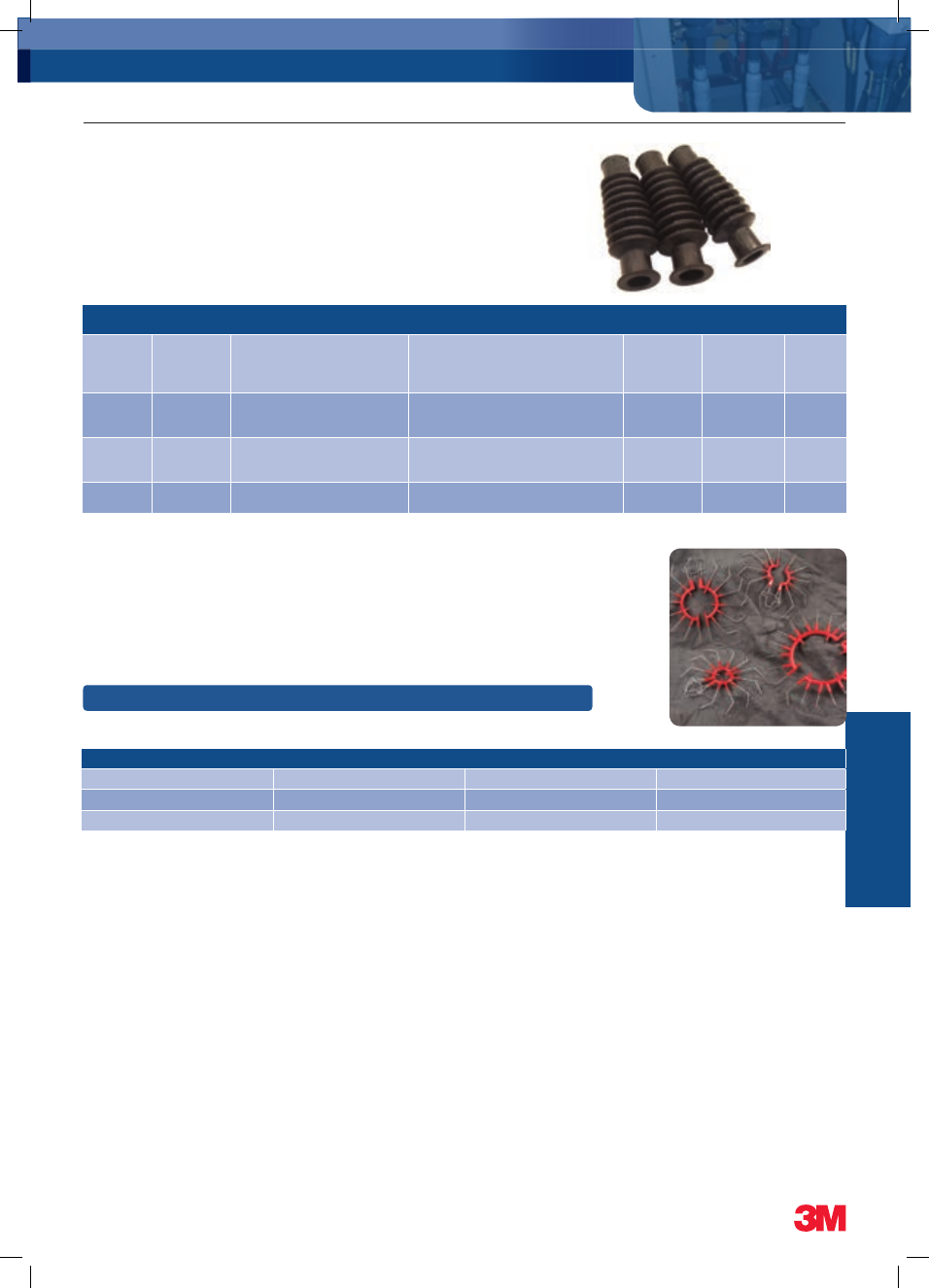

Medium Voltage Termination Barrier Boots and Electrostatic Animal Guard

™

Termination Barrier Boots

3M Barrier Boots are suitable for both cold shrink and heat shrink medium
voltage terminations and cover a wide range of cable sizes.

™

Electrostatic Animal Guard

This is a patented electrostatic barrier that attaches to energised electrical insulators/bushings rated up to 35 kV. The
3M Electrostatic Animal Guard consists of rugged plastic with metal spokes radiating outward. When an animal touches
the spokes, it receives an electric shock, similar to those generated by electrified livestock fences. The animal is not
injured and power service is not interrupted.

Product

3M Order Code

Description

Features

Application

Range

Voltage Rating Availability

92-EE 616-1

KE232079936

15 kV Inline or Right Angle Barrier Boot

(3 cores/kit)

• One piece push on silicone boot

• Suitable for straight and right angle application

• Easy installation

• Facilitates direct voltage testing

50 - 300 mm

up to 15 kV

AU, NZ

92-EE 717-1

TE100052030

15 kV Inline or Right Angle Barrier Boot

(3 cores/kit)

• One piece push on EPDM boot

• Suitable for straight and right angle application

• Easy installation

50 - 300 mm

up to 15 kV

AU, NZ

MB63-NZ

11 kV Inline Cold Shrink Barrier Boot

(3 cores/kit)

• Cold shrink technology

• Easy installation

• Track resistant EPDM material

up to 630 mm

up to 11 kV

MB61-NZ

11 kV Universal Taped System

(3 cores/kit)

• Versatile taped barrier boot system

• Inline and right angle application

up to 1000 mm

up to 11 kV

Product

3M Order Code

Insulator Neck Diameter Range

Voltage

GG-1525

80610981120

38 - 64 mm

Up to 35 kV

GG-2545

80610981138

64 - 114 mm

Up to 35 kV

GG-4565

80610981146

114 - 165 mm

Up to 35 kV

Note:

Insulator neck diameter range is defined as the diameter of the insulator in between the skirts

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

Identification Systems

3M Identification Systems help you quickly and easily create highly visible and durable identification for wires, panels, terminal blocks, devices and other
components.

The

3M Portable Labeller and Refill Cartridge

portfolio (pages 56 to 59) offers rugged portable labellers paired with convenient cartridge format

labels in various materials including heat shrink tubing and adhesive backed flexible nylon, polyester and vinyl.

The

3M Portable Labeller Embosser

tool (page 57) is used with rolls of aluminium or stainless steel to create durable embossed tags for harsh

environments.

The

3M Scotchcode

™

Wire Marker System

(page 60) features handy and portable pre-printed or write-on materials to label components and cable.

™

Portable Labellers

3M Portable Labellers are rugged, powerful and lightweight labellers for industrial applications. All units
feature exclusive one-touch hot keys that provide shortcuts for common formatting tasks. The chart below
highlights the key features of each machine. See next pages for more details.

3M Portable Labellers PL200 and PL300 are also available in a hard case kit format (PL200K and PL300K).

PL150

PL200K/PL200

PL300K/PL300

Hot Keys

PC Connectivity

Backlit LCD

Power Cutter

Rubber protective bumper

Symbol library terms

122

150

Bar code capability

Label storage

100+

1000+

Prints on heat shrink

Maximum label width

19 mm

24 mm

Offered as a kit

AC adaptor

Optional extra

PL200K - included

PL200 - optional extra

Rechargeable battery

Optional extra

PL200K - included

PL200 - optional extra

PL300K - included

PL300 - optional extra

™

Identifica

tion Systems

Portable Labellers

™

Portable Labeller PL300K/PL300

The 3M Portable Labeller PL300 is a revolutionary printer with excellent ease-of-use, ideal functionality and
PC connectivity. The 3M Portable Labeller PL300 printer features exclusive one-touch “hot keys” for quick
and easy creation of commonly used label types. Utilising the 3M Portable Labeller Software, the installer can
create labels before reaching the worksite or create and edit labels on site.

Tape Widths:

6 mm to 24 mm

Tape Types:

All (PLFN, PLHS, PLP, PLV, PLSL)

™

Portable Labeller PL200K/PL200

The 3M Portable Labeller PL200 is an excellent portable labelling tool for high-end electrical, MRO, datacom
and construction professionals. The 3M Portable Labeller PL200 is the advanced, easy-to-use labelling
system that saves time and helps deliver a professional result. Used in real-world jobsite conditions, the
rugged, powerful and lightweight 3M Portable Labeller PL200 offers features and functionality to save time
and money.

Tape Widths:

6 mm to 19 mm

Tape Types:

PLFN, PLHS, PLP, PLV

Product

3M Order

Code

Kit Includes

Power

Suggested

Accessories*

Product

Dimensions

(H x W x D)

Unit

Weight

PL300K

AE010585246

•

3M Portable Labeller PL300

•

3M Portable Labeller Software

•

Durable hard carry case

•

Refill cartridge 19 mm black on white vinyl (PLV-WHT-3/4)

•

Refill cartridge 12 mm black on white polyester (PLP-WHT-1/2)

•

3M Rechargeable Lithium-Ion Battery Pack PL300-BAT

•

3M AC Adaptor PL-ACPS

•

USB cable

•

Quick Reference Guide

•

User Guide on CD

•

Limited one-year warranty

Lithium-ion

rechargeable battery

with AC adaptor

(included) or optional

6 “AA” batteries

349 x 445 x

102 mm (kit)

2.3 kg (kit)

PL300

AE010585238

•

3M Portable Labeller PL300

•

User Guide on CD

•

Quick Reference Guide

•

1 refill cartridge 19 mm black on white vinyl (PLV-WHT-3/4)

•

AC Adaptor PL-ACPS

•

Limited one-year warranty

6 "AA" batteries or

optional lithium-ion

rechargeable battery

(not included)

PL300-BAT

246 x 137 x

64 mm

1.8 kg

Product

3M Order

Code

Kit Includes

Power

Suggested

Accessories*

Product

Dimensions

(H x W x D)

Unit

Weight

PL200K

AE010585279

•

3M Portable Labeller PL200

•

Durable hard carry case

•

Refill cartridge 19 mm black on white vinyl (PLV-WHT-3/4)

•

Refill cartridge 12 mm black on white polyester (PLP-WHT-1/2)

•

Rechargeable lithium-ion battery pack PL200-BAT

•

AC Adaptor PL-ACPS

•

Quick Reference Guide

•

User Guide on CD

•

Limited one-year warranty

Lithium-ion

rechargeable battery

with AC adaptor

(included) or optional

6 “AA” batteries

349 x 368 x

119 mm (kit)

2.5 kg (kit)

PL200

AE010585261

•

3M Portable Labeller PL200

•

User Guide on CD

•

Quick Reference Guide

•

Refill cartridge 19 mm black on white vinyl (PLV-WHT-3/4)

•

Limited one-year warranty

6 "AA" batteries or
optional lithium ion

rechargeable battery

(not included)

PL150-PL200-BAT

PL-ACPS

234 x 125 x

64 mm

0.9 kg

*See page 57 for details of Accessories

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

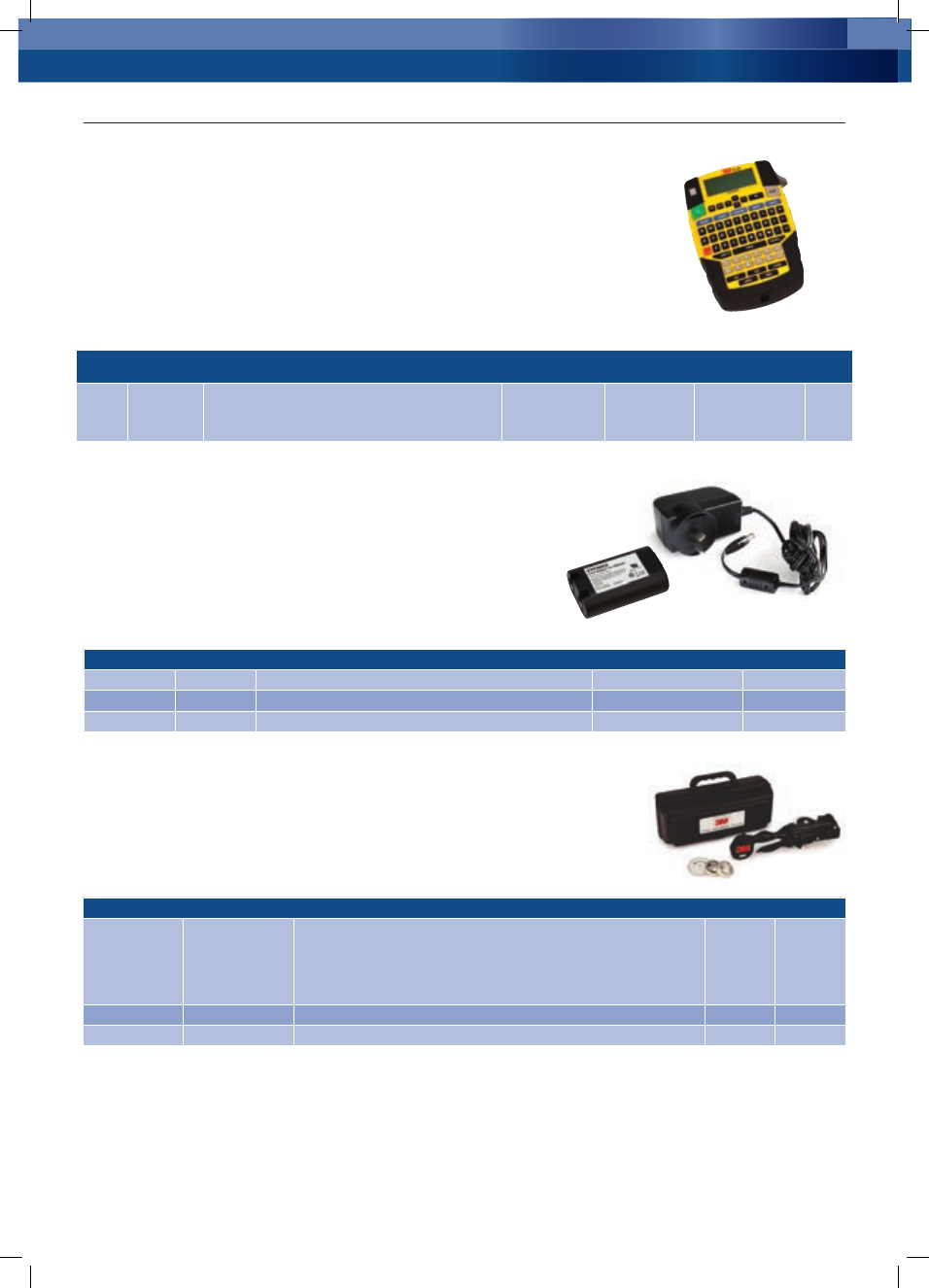

Portable Labeller PL150

The 3M Portable Labeller PL150 features the same keyboard layout as a standard PC or device (QWERTY),
along with one-touch hot keys that allow the quick creation of wire/cable wraps, flags, Code 39 and Code
128 barcodes, fixed-length labels, breaker labels and more. Print labels up to 19 mm wide in flexible nylon,
permanent polyester and durable vinyl materials – plus print directly on heat shrink tubes. Save even more
time with great new features like the “Favourites” and “Custom” keys which provide single-key access to
commonly used labels, symbols and terms and eliminate repeated steps by saving customised settings.

Tape Widths:

6 mm to 19 mm

Tape Types:

PLFN, PLHS, PLP, PLV

™

Portable Labeller Accessories

The following accessories are available for the 3M Portable Labeller family.

Product

3M Order

Code

Kit Includes

Power

Suggested

Accessories*

Product Dimensions

(H x W x D)

Unit

Weight

PL150

AE010587937

•

3M Portable Labeller PL150

•

Refill cartridge 12 mm black on white vinyl (PLV-WHT-1/2)

•

Quick Reference Guide

•

Limited one-year warranty

6 “AA”batteries

(not included) or

lithium Ion battery

(not included)

PL150-PL200-BAT

PL-ACPS

178 x 117 x 57 mm

0.9 kg

Product

3M Order Code

Product Name

Description

Compatible With

PL150-PL200-BAT

80611456536

3M Portable Labeller Rechargeable Battery Pack PL150-PL200-BAT

Rechargeable Battery Pack

PL150, PL200

PL300-BAT

80611456569

3M Portable Labeller Rechargeable Battery Pack PL300-BAT

Rechargeable Battery Pack

PL300

PL-ACPS

80611456544

3M Portable Labeller AC Power Supply PL-ACPS

AC Power Supply

PL150, PL200, PL300

Portable Labellers

*See below for details of Accessories

™

Portable Labeller Embosser PLE & Tapes

The 3M Portable Labeller Embosser PLE is tough enough to accompany you in the field and is easy to use.
Since it can make labels on site that are capable of weathering harsh conditions, there’s no need for
time-consuming trips to an engraving shop. Simply type, cut and attach. Features front scissor cut-off for fast
and easy label application, and built-in hole punches for easy label attachment using cable ties or screws or
wire.

Product

3M Order Code

Contents/Description

Width

Length

PLE

80611467681

•

3M Portable Labeller Embosser PLE

•

Reverse image wheel

•

Roll 12 mm x 4.8 m aluminium tape without adhesive (PLE-ALNA-1/2)

•

Roll 12 mm x 6.4 m stainless steel tape without adhesive (PLE-SSNA-1/2)

•

Carrying case

•

Instruction manual

–

PLE-ALNA-1/2

80611467640

Non-adhesive aluminium embossing tape

12 mm

4.8 m

PLE-SSNA-1/2

80611467657

Non-adhesive stainless steel embossing tape

12 mm

6.4 m

™

Identifica

tion Systems

™

Portable Labeller Refill Cartridges

3M Portable Labeller Refill Cartridges are industrial grade labels for a variety of surfaces and
environments. Cartridges are interchangeable and are easy to load, print and peel. There is less
tape waste between labels which means more labels per cartridge. Cartridges are available in a
variety of materials, including heat shrink.

The chart below shows the properties and formats available. See the next page for more details.

Portable Labeller Refill Cartridges

High Performance Label Options for the 3M

™

Portable Labeller Family

Outdoor

Length

Width

Colour

Flag

Flat

Textured

Wiring

Chemicals

Oils

Temperature

(maximum

recommended)

Water

Resistance

Surf

aces

Nylon

3.5m

12mm, 19mm,

24mm

Self-

Laminating

5.5m

24mm

Vinyl

5.5m

9mm, 12mm,

19mm, 24mm

White, Black

White, Yellow

White

Polyester

5.5m

6mm, 9mm, 12mm,

19mm, 24mm

Heat Shrink

1.5m

6mm, 9mm,

12mm, 19mm

90ºC

120ºC

135ºC

90ºC

Labels

White, Clear,

Metallic

White, Yellow

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

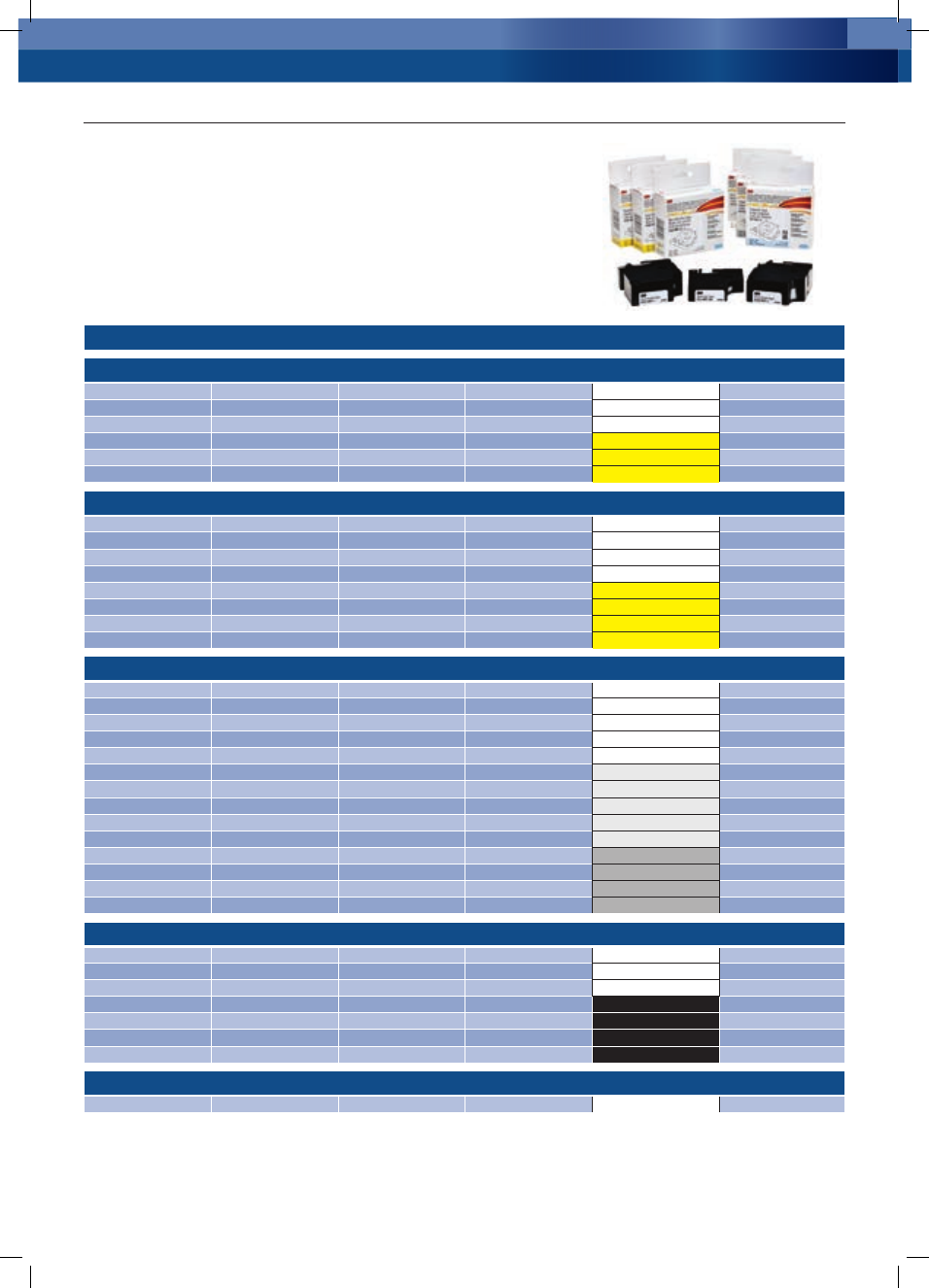

Portable Labeller Refill Cartridges

3M Portable Labeller Refill Cartridges are available in a variety of materials, including heat shrink, for
a variety of surfaces and environments. The label cartridges are interchangeable, easy to install, and
have less waste.

Applications:

Labelling panels, cabinets and racks

Cable wraps and flags

Equipment and asset labelling

Portable Labeller Refill Cartridges

Product

3M Order Code

Width

Length

Print & Label Colour

Labeller Compatibility

Flexible Nylon

PLFN-WHT-1/2

80611456452

12 mm

3.5 m

Black on White

PL150, PL200, PL300

PLFN-WHT-3/4

80611456460

19 mm

3.5 m

Black on White

PL150, PL200, PL300

PLFN-WHT-1

80611456478

24 mm

3.5 m

Black on White

PL300

PLFN-YEL-1/2

80611456486

12 mm

3.5 m

Black on Yellow

PL150, PL200, PL300

PLFN-YEL-3/4

80611456494

19 mm

3.5 m

Black on Yellow

PL150, PL200, PL300

PLFN-YEL-1

80611456502

24 mm

3.5 m

Black on Yellow

PL300

Heat Shrink

PLHS-WHT-1/4

80611456197

6 mm

1.5 m

Black on White

PL150, PL200, PL300

PLHS-WHT-3/8

80611456114

9 mm

1.5 m

Black on White

PL150, PL200, PL300

PLHS-WHT-1/2

80611456122

12 mm

1.5 m

Black on White

PL150, PL200, PL300

PLHS-WHT-3/4

80611456130

19 mm

1.5 m

Black on White

PL150, PL200, PL300

PLHS-YEL-1/4

80611456205

6 mm

1.5 m

Black on Yellow

PL150, PL200, PL300

PLHS-YEL-3/8

80611456148

9 mm

1.5 m

Black on Yellow

PL150, PL200, PL300

PLHS-YEL-1/2

80611456155

12 mm

1.5 m

Black on Yellow

PL150, PL200, PL300

PLHS-YEL-3/4

80611456163

19 mm

1.5 m

Black on Yellow

PL150, PL200, PL300

Polyester

PLP-BLK-WHT-1/4

80611470420

6 mm

5.5 m

Black on White

PL150, PL200, PL300

PLP-WHT-3/8

80611456213

9 mm

5.5 m

Black on White

PL150, PL200, PL300

PLP-WHT-1/2

80611456221

12 mm

5.5 m

Black on White

PL150, PL200, PL300

PLP-WHT-3/4

80611456239

19 mm

5.5 m

Black on White

PL150, PL200, PL300

PLP-WHT-1

80611456247

24 mm

5.5 m

Black on White

PL300

PLP-BLK-CLR-1/4

80611470412

6 mm

5.5 m

Black on Clear

PL150, PL200, PL300

PLP-CLR-3/8

80611456254

9 mm

5.5 m

Black on Clear

PL150, PL200, PL300

PLP-CLR-1/2

80611456429

12 mm

5.5 m

Black on Clear

PL150, PL200, PL300

PLP-CLR-3/4

80611456437

19 mm

5.5 m

Black on Clear

PL150, PL200, PL300

PLP-BLK-CLR-1

80611470453

24 mm

5.5 m

Black on Clear

PL300

PLP-MTL-3/8

80611456288

9 mm

5.5 m

Black on Metallic

PL150, PL200, PL300

PLP-MTL-1/2

80611456262

12 mm

5.5 m

Black on Metallic

PL150, PL200, PL300

PLP-MTL-3/4

80611456270

19 mm

5.5 m

Black on Metallic

PL150, PL200, PL300

PLP-BLK-MTL-1

80611470503

24 mm

5.5 m

Black on Metallic

PL300

Vinyl

PLV-WHT-3/8

80611455942

9 mm

5.5 m

Black on White

PL150, PL200, PL300

PLV-WHT-1/2

80611455959

12 mm

5.5 m

Black on White

PL150, PL200, PL300

PLV-WHT-3/4

80611455967

19 mm

5.5 m

Black on White

PL150, PL200, PL300

PLV-WHT-BLK-3/8

80611470370

9 mm

5.5 m

White on Black

PL150, PL200, PL300

PLV-WHT-BLK-1/2

80611470388

12 mm

5.5 m

White on Black

PL150, PL200, PL300

PLV-WHT-BLK-3/4

80611470396

19 mm

5.5 m

White on Black

PL150, PL200, PL300

PLV-WHT-BLK-1

80611470404

24 mm

5.5 m

White on Black

PL300

Self-Laminating

PLSL-WHT-1

80611457286

25 mm

5.5 m

Black on White

PL300

™

Identifica

tion Systems

™

ScotchCode

™

Wire Marker Tape Dispensers STD

The 3M ScotchCode Tape Dispenser STD is a compact, carry-along dispenser with 10 refillable
compartments that holds 2 metre rolls of non-smear polyester tape. Used for marking binder groups, wire or
cable, the tapes’ high-tack acrylic adhesive resists solvents, oil and water, and adheres firmly to insulation
surfaces. An end-loop hooks the dispenser easily to a tool pouch or belt. Dispensers can be ordered empty or
filled with 10 rolls of pre-printed numbers 0–9.

™

ScotchCode

™

Write-On Dispensers and Pen

This self-laminating, write-on marker dispenser is handy for identifying wire and cable as well as household,
automotive, plumbing and sporting equipment. It is easy to use, refillable and comes with a SMP permanent
marking pen. The dispenser’s design provides convenience and protects the die-cut adhesive markers. The
pen performs well on nonporous surfaces, has an extra fine point with permanent, quick drying black ink.
It has excellent UV and water resistance.

Applications

Marking communications, security and sound system components

Marking pipes, hoses, tubes, parts, vents

™

ScotchCode

™

Tape Refill Rolls

This aggressive adhesive system, combined with the flexible polyester film backing, provides a thin,
conformable tape that is durable, and will hold up in most industrial electrical applications.

Product

3M Order Code

Description

STD-X

80610592554

Compact, carry-along dispenser with 10 refillable compartments that hold 20 cm rolls of non-smear polyester tape.

Dispenser only

STD-0-9X

80610733901

Dispenser filled with 10 rolls of numbered tape (one each of 0-9)

STD-CX

80610733760

Dispenser filled with 10 rolls of coloured tape (one each of black, blue, brown, green, grey, orange,

red, violet, white and yellow)

Product

3M Order Code

Description

Labels per roll

Write-on area

Marker Size

Recommended

Wire Diameter

SLW

80610593917

Larger sized dispenser with tape and SMP marking pen

25 x 19 mm

25 x 127 mm

5.8 to 33.5 mm

SMP-B

80611443435

Black marker pen

Product

3M Order Code

Printed Text Type

Printed Text

Write-on area

SDR-0-9

80611424617

Numeric

"0" through "9"

SDR-0

80610733919

Numeric

"0"

SDR-1

80610733927

Numeric

"1"

SDR-2

80610733935

Numeric

"2"

SDR-3

80610733943

Numeric

"3"

SDR-4

80610733950

Numeric

"4"

SDR-5

80610733968

Numeric

"5"

SDR-6

80610733976

Numeric

"6"

SDR-7

80610733984

Numeric

"7"

SDR-8

80610733992

Numeric

"8"

SDR-9

80610734008

Numeric

"9"

SLW-REFILL

80611428097

Write-on

25 x 19 mm

Wire Marker Systems

www.3M.com.au/electrical • www.3M.co.nz/electrical

™

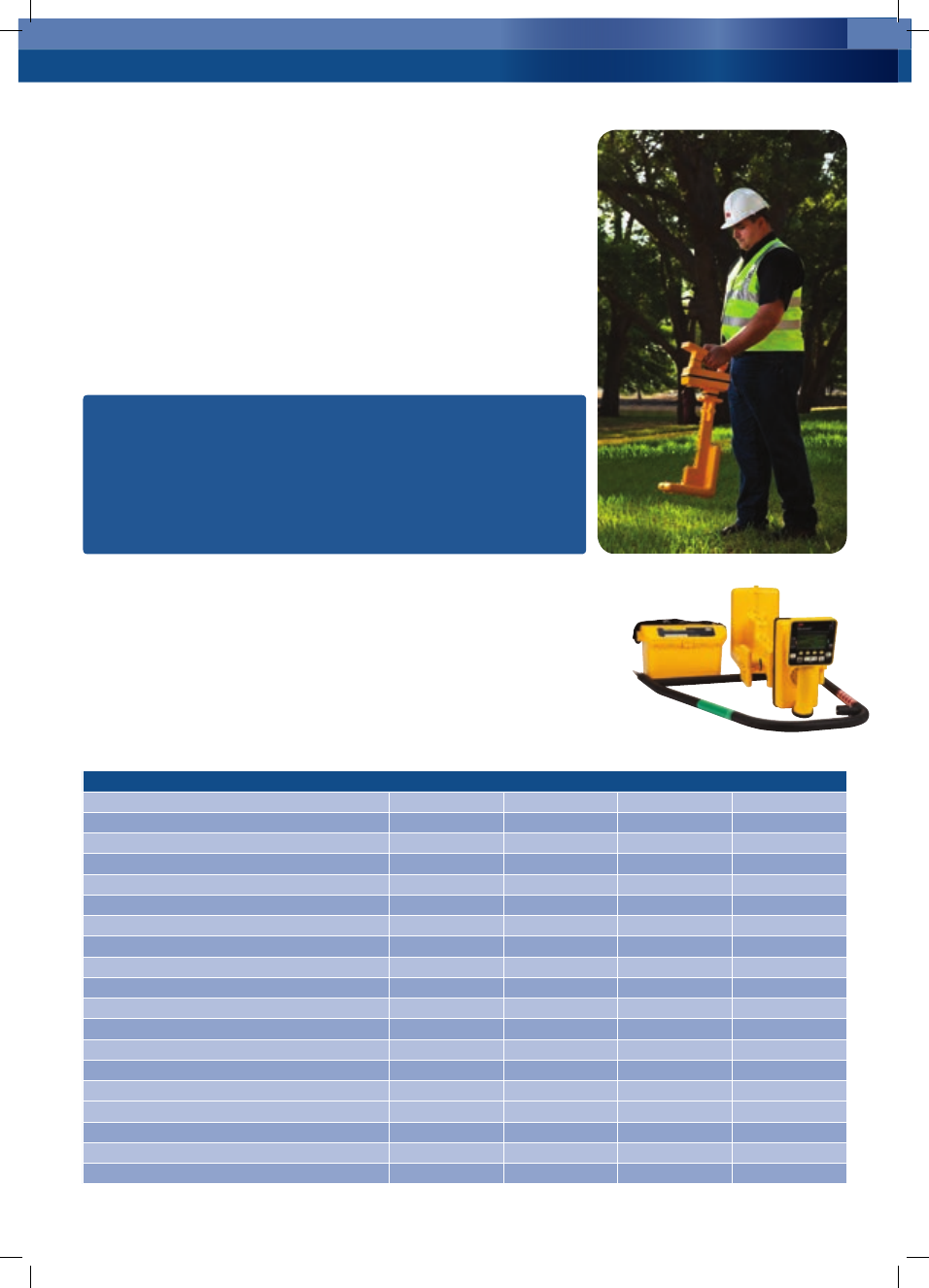

Dynatel Locating & Marking

Systems

The full line of 3M Dynatel locators and markers helps you quickly and accurately identify
underground assets. From finding the exact path and estimated depth of underground utilities,
to locating buried passive markers, to reading and writing information directly to the iD version
markers, to locating plastic pipes and conduits, to locating cable sheath faults, 3M offers the
precision tools needed to manage your assets.

Certain 3M Dynatel locators interface with select GPS/GIS field mapping instruments. Together,
these tools provide a complete locating and marking solution with the performance and reliability
you trust from 3M.

3M National Accredited Underground Asset Location Course

This training course is intended for contractors and organisations who install or maintain
underground services and need the skills and knowledge to accurately locate and/or
mark those assets with 3M Dynatel equipment, and therefore avoid damage to buried
underground assets.
Qualification issued on completion: RIICCM202A - Identify, locate and protect underground
services, a core competency from RII30909 - Certificate III in Civil Construction.

™

Dynatel Locators

3M Dynatel Locators combine simple interfaces, large backlit high resolution graphics, excellent balance
and ergonomics with precision locating capabilities to help you quickly and accurately identify underground
assets.

Dyantel Locators are available in a range of configurations from fully featured pipe, cable and electronic
marker locators to basic cable avoidance systems.

™

Dynatel

™

Locator Features by Model

2220M

7420

7550

7573

Pipe and cable locate

Electronic marker locate/read/write

EMS Caution Tape locate

GPS compatible

Active frequencies

Passive power

Passive LF

Sonde locating

Fault locate (A-frame)

Transmitter output

3 W

12 W

Dyna-coupler size

76 mm

114 mm

Direct connect cable (S/L Clips)

Large

Ground rod and pouch

USB to Serial Adaptor Cable

7000RB rechargeable battery (locator)

2200RB rechargeable battery (transmitter)

Cigarette lighter adaptor cable

Carry bag

Replaces earlier models

1420

2250, 2250M, 2550

2273, 2573

www.3M.com.au/electrical • www.3M.co.nz/electrical

Electronic Marking System

™

EMS Ball Markers

The 3M EMS Ball Markers have a self-leveling design providing accurate, horizontal position regardless of
how the ball is placed in the ground, making the job of precisely locating underground facilities easier.

Product

3M Order Code

Programmable/

Passive

Application

Colour

Depth

Diameter

1401-XR

80611161136

Passive

Telephone

Orange

1.5 m

102 mm

1402-XR

80611161144

Passive

Power

Red

1.5 m

102 mm

1403-XR

80630000323

Passive

Water

Blue

1.5 m

102 mm

1404-XR

80630000331

Passive

Wastewater

Green

1.5 m

102 mm

1405-XR

80630000257

Passive

Gas

Yellow

1.5 m

102 mm

1407-XR

80611161151

Passive

CATV

Orange/Black

1.5 m

102 mm

1408-XR

80611168354

Passive

General Purpose/
Recyclable Water

Purple

1.5 m

102 mm

1421-XR/ID

80611142193

Programmable

Telephone

Orange

1.5 m

102 mm

1422-XR/ID

80611142201

Programmable

Power

Red

1.5 m

102 mm

1423-XR/ID

80611143225

Programmable

Water

Blue

1.5 m

102 mm

1424-XR/ID

80611143233

Programmable

Wastewater

Green

1.5 m

102 mm

1425-XR/ID

80611143241

Programmable

Gas

Yellow

1.5 m

102 mm

1427-XR/ID

80611142219

Programmable

CATV

Orange/Black

1.5 m

102 mm

1428-XR/ID

80611142227

Programmable

General Purpose/
Recyclable Water

Purple

1.5 m

102 mm

™

EMS Near-Surface Markers

3M EMS Near-Surface Markers provide an accurate, long lasting method of marking underground
facilities. The markers have a range of up to 1 metre from marker to locator and can be programmed
to include customer specific information (iD version).

Product

3M Order Code

Programmable/

Passive

Application

Colour

Depth

Height x Diameter

1432

80610230312

Passive

Telephone

Orange

0.6 m

76 mm x 20 mm

1433

80610230379

Passive

Power

Red

0.6 m

76 mm x 20 mm

1434

80610230387

Passive

Water

Blue

0.6 m

76 mm x 20 mm

1435

80610230395

Passive

Wastewater

Green

0.6 m

76 mm x 20 mm

1436

80610230403

Passive

Gas

Yellow

0.6 m

76 mm x 20 mm

1432-XR/ID

80611321292

Programmable

Telephone

Orange

0.9 m

76 mm x 20 mm

1433-XR/ID

80611321300

Programmable

Power

Red

0.9 m

76 mm x 20 mm

1434-XR/ID

80611321318

Programmable

Water

Blue

0.9 m

76 mm x 20 mm

1435-XR/ID

80611321326

Programmable

Wastewater

Green

0.9 m

76 mm x 20 mm

1436-XR/ID

80611321334

Programmable

Gas

Yellow

0.9 m

76 mm x 20 mm

1438-XR/ID

80611321342

Programmable

General Purpose/
Recyclable Water

Purple

0.9 m

76 mm x 20 mm

™

Dyna

tel

™

Loca

ting &

Marking Systems

Electronic Marking System

™

EMS Full-Range Markers

3M EMS Full-Range Markers provide an accurate, convenient, long lasting method of marking
underground facilities. The marker has a range of up to 2.4 metres from marker to locator.

Product

3M Order Code

Programmable/

Passive

Application

Colour

Depth

Diameter x Thickness

1250

80610221071

Passive

Telephone

Orange

2.4 m

381 mm x 17 mm

1251

80610221295

Passive

Power

Red

2.4 m

381 mm x 17 mm

1252

80610221519

Passive

Water

Blue

2.4 m

381 mm x 17 mm

1253

80610221501

Passive

Wastewater

Green

2.4 m

381 mm x 17 mm

1254

80610221550

Passive

Gas

Yellow

2.4 m

381 mm x 17 mm

1248-XR/ID

80611321284

Programmable

General Purpose/
Recyclable Water

Purple

2.4 m

381 mm x 17 mm

1250-XR/ID

80611321235

Programmable

Telephone

Orange

2.4 m

381 mm x 17 mm

1251-XR/ID

80611321243

Programmable

Power

Red

2.4 m

381 mm x 17 mm

1252-XR/ID

80611321250

Programmable

Water

Blue

2.4 m

381 mm x 17 mm

1253-XR/ID

80611321268

Programmable

Wastewater

Green

2.4 m

381 mm x 17 mm

1254-XR/ID

80611321276

Programmable

Gas

Yellow

2.4 m

381 mm x 17 mm

™

EMS Caution Tape 7600 Series

3M Electronic Marking System Caution Tape uses a new EMS marker technology embedded into a caution
tape for installation near the buried facility and helps to provide continuous path location. When energised
using a 3M Dynatel 7000 Series Locator the markers are activated. The markers require no batteries, and
there is no need to hook up an external transmitter or search for access points.

The markers work independently, so even if a section of caution tape is cut or removed, the other markers
on the tape would continue to provide accurate location.

Each version of 3M EMS Caution Tape is tuned to a frequency specific to the path of that utility.

Product

3M Order Code

Programmable/

Passive

Application

Colour*

Depth

Width x Roll Length

7645-CT-GAS

80630003111

Passive

Gas

Yellow

0.6 m

150 mm x 300 m

7655-CT-GAS

80630003236

Passive

Gas

Yellow

0.6 m

150 mm x 500 m

7642-CT-PWR

80630003103

Passive

Power

Orange

0.6 m

150 mm x 300 m

7652-CT-PWR

80630003210

Passive

Power

Orange

0.6 m

150 mm x 500 m

7644-CT-RW

80630003129

Passive

General Purpose/
Recyclable Water

Purple

0.6 m

150 mm x 300 m

7654-CT-RW

80630003228

Passive

General Purpose/
Recyclable Water

Purple

0.6 m

150 mm x 500 m

7641-CT-TEL

80630003095

Passive

Telephone

White

0.6 m

150 mm x 300 m

7645-CT-TEL

80630003202

Passive

Telephone

White

0.6 m

150 mm x 500 m

*Compliant to AS/NZS Standards

www.3M.com.au/electrical • www.3M.co.nz/electrical

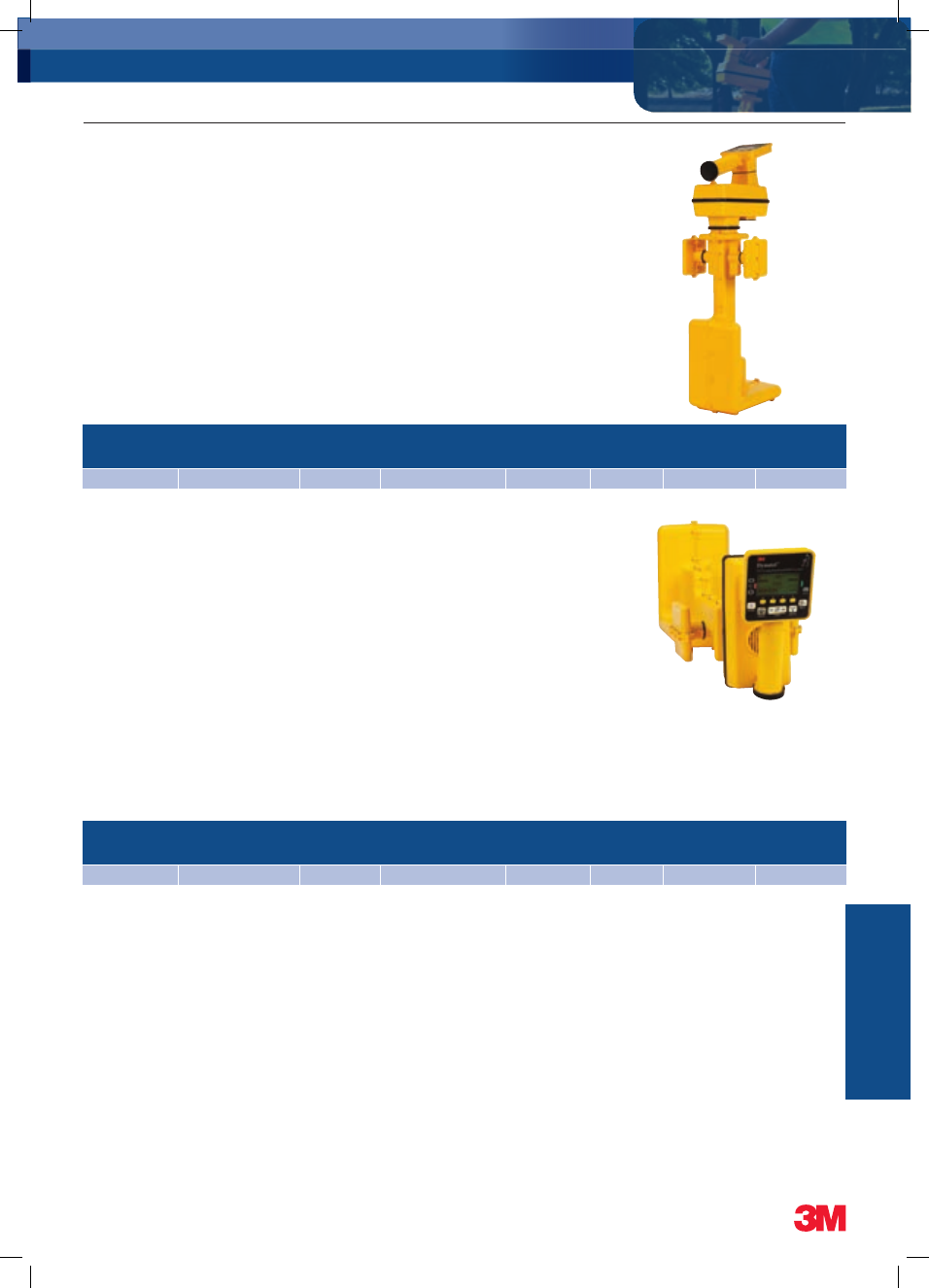

Locators

™

Dynatel

™

Pipe/Cable Locators 2220M Series

The 3M Dynatel Locator 2220M Series is designed to find the path and estimated depth of buried pipes
and cables.

Features include:
•

Two active frequencies (8 kHz, 82 kHz)

•

Passive frequencies for power, cathodic protection systems

•

Detects frequencies from sondes and remote transmitters (512 Hz, 640 Hz, 33 kHz)

•

Direct readout of active duct probe (sonde)

•

Cable/pair identification

•

Receivers incorporate an “expander” function to make peaks and nulls more pronounced

•

Receiver and transmitter self-test each time the unit is turned on

Cable/Pipe Locate:

Yes

Ball and Marker Locate:

Caution Tape Locate:

Earth Return Fault Locate:

GPS Adaptable:

Product

3M Order Code

Transmitter

Direct Connect Cable

Coupler Size

2200RB

Rechargeable

Battery

Carrying Bag

Included

2220M-U3W3-CPLR

80611326812

3 watt

Large clips

76 mm

Yes

™

Dynatel

™

Marker/Tape Locator 7420

The new 7420 locators will allow the user to locate EMS Caution Tape and electronic markers (balls, near-surface
and full range). The locator will read/write to 3M iD markers.

Cable/Pipe Locate:

Ball and Marker Locate:

Yes

Caution Tape Locate:

Yes

Earth Return Fault Locate:

GPS Adaptable:

Yes

Product

3M Order Code

7000RB Rechargeable Battery

Carrying Bag Included

7420

80611611400

Yes

™

Dyna

tel

™

Loca

ting &

Marking Systems

Locators

™

Dynatel

™

Pipe/Cable/EMS Locators 7550-iD

3M Dynatel Locators 7500 series offer a broad feature set with advanced digital processing and simple
interfaces with precision locating capabilities. The new 7500 series locators will allow the user to locate
EMS Caution Tape and electronic markers (balls, near-surface, full range). In addition, all 7500 series
locators will read/write to 3M iD markers. All 7500 series locators offer six active frequencies.

The 7500 series provides accurate pipe, cable or sonde depth measurements. They are compatible with
GPS/GIS field mapping instruments for real time mapping of electronic markers or pipe and cable facilities.

Cable/Pipe Locate:

Yes

Ball and Marker Locate:

Yes

Caution Tape Locate:

Yes

Earth Return Fault Locate:

GPS Adaptable:

Yes

Product

3M Order Code

Transmitter

Direct Connect Cable

Coupler Size

7000RB

Rechargeable

Battery

2200RB

Rechargeable

Battery

Carrying Bag

Included

7550-ID/U12

80611611478

12 watt

Large clips

114 mm

Yes

™

Dynatel

™

Pipe/Cable/Fault/EMS Locator 7573-iD

Cable/Pipe Locate:

Yes

Ball and Marker Locate:

Yes

Caution Tape Locate:

Yes

Earth Return Fault Locate:

Yes

GPS Adaptable:

Yes

Product

3M Order Code

Transmitter

Direct Connect Cable

Coupler Size

7000RB

Rechargeable

Battery

2200RB

Rechargeable

Battery

Carrying Bag

Included

7573-ID/U12

80611611486

12 watt

Large clips

114 mm

Yes

www.3M.com.au/electrical • www.3M.co.nz/electrical

Locator Accesories

™

Direct Connect Accessories

Product

2876

2892

8006

9043

3M Order Code

80610598130

80610598668

80610126841

80610126833

Product Name

™

Large Clip Direct-Connect Transmitter

Cable for Most Cable/Fault Locators 2876

™

Small Clip Direct-Connect Transmitter

Cable for All Cable/Fault Locators 2892

™

Ground Rod 8006

™

Ground Extension

Cable 9043

Description

Two lead, 3 m cables used for direct connection

to cable and ground

Two lead, 3 m cables used for direct

connection to cable and ground

For applying ground

capability. Stainless steel

Extends ground capability

to 3.6 m

Compatible with

2250/2273, 2220M, 2250M/2273M,

2550/2573, 7550, 7573

2250/2273, 2220M, 2250M/2273M,

2550/2573, 7550, 7573

2250/2273, 2220M,

2250M/2273M,

2550/2573, 7550, 7573

2250/2273, 2220M,

2250M/2273M,

2550/2573, 7550, 7573

Not in NZ

™

Couplers

Product

1196

4001

4519

9011

3M Order Code

80610411185

80611325830

80611335201

80610074843

Product Name

™

152 mm Dyna-Coupler

with Pouch 1196

™

114 mm Dyna-Coupler 4001

™

Dynatel

™

Locator Coupler

Accessory Kit 4519

™

Coupler Cable 9011

Description

Permits coupling of RF trace tone

to large diameter cables, bundle

cables, and cables enclosed in

accessible non-metallic ducts. For
use on cables and conduits with a

maximum diameter of 2.1 m

Permits coupling of RF trace tone to

cables with a maximum diameter

of 1.3 m

The 4519 Accessory Kit contains a
4001 114 mm Dyna-coupler and a

9011 Coupler Cable with a case that

can be attached to the transmitter

For use with any Dynatel

Transmitter, Receiver, or Coupler:

length of 3.6 m

Compatible with

2250/2273, 2220M, 2250M/2273M,

2550/2573, 7550, 7573

2250/2273, 2220M, 2250M/2273M,

2550/2573, 7550, 7573

2250/2273, 2220M, 2250M/2273M,

2550/2573,7550, 7573

2250/2273, 2220M, 2250M/2273M,

2550/2573, 7550, 7573

™

Dyna

tel

™

Loca

ting &

Marking Systems

Locators & Markers - Accesories

™

Fault Finding Accessories

Product

3014

9026

3M Order Code

80610074777

80610074942

Product name

™

Earth Contact Frame 3014

™

Earth Contact Frame Cable 9026

Description

Used only when locating sheath (earth return) faults. It indicates direction to

the fault and is colour coded to correspond with the receiver's indicator

For use with the 3014 Earth Contact Frame for sheath

(earth return) fault location; length of 1.2 m

Compatible with

2273, 2273M, 2573, 7550, 7573

2273, 2273M, 2573,7550, 7573

™

Dynatel

™

Transmitters

Product

5 Watt Transmitter

12 Watt Transmitter

3M Order Code

78900002755

80611331085

Product Name

™

Dynatel

™

5 Watt Transmitter

™

Dynatel

™

12 Watt Transmitter

Description

Includes 5 watt transmitter, ground rod, and rechargeable battery

Includes 12 watt transmitter, ground rod, and rechargeable battery

Compatible with

2250, 2250M, 2273M, 7550

2550, 2573, 7573

™

Locator Carrying Bags and Batteries

Product

2200M

2200RB

7000RB

3M Order Code

80611146715

80611306517

80630002535

Product Name

™

Soft Carrying Bag

™

Rechargeable Battery 2200RB

™

Rechargeable Battery 7000RB

Description

Soft carrying bag for the 1420, 2200M, 2500M,

2273M and 7000 series locators

Rechargeable battery for 5 watt and 12 watt

transmitter units

Rechargeable battery for 7000 series locators

Compatible with

1420, 2200M, 2250M/2273M, 7420, 7550, 7573

2273, 2250, 7550, 7573

7420, 7550, 7573

™

Sondes

Product

3229

3M Order Code

80610757785

Product Name

™

ADP 33KHZ Sonde 3229 for use with Dynatel Series Locators

Description

The 3200 Series Active Duct Probe is an active mini-transmitter (sonde) which allows the user to trace the

path of conduit. The ADP can help the user pinpoint key points, such as J-boxes, handholes and stubs

Compatible with

2250/2273, 2220M, 2250M/2273M, 2550/2573, 7550, 7573

™

ersonal Safety Products

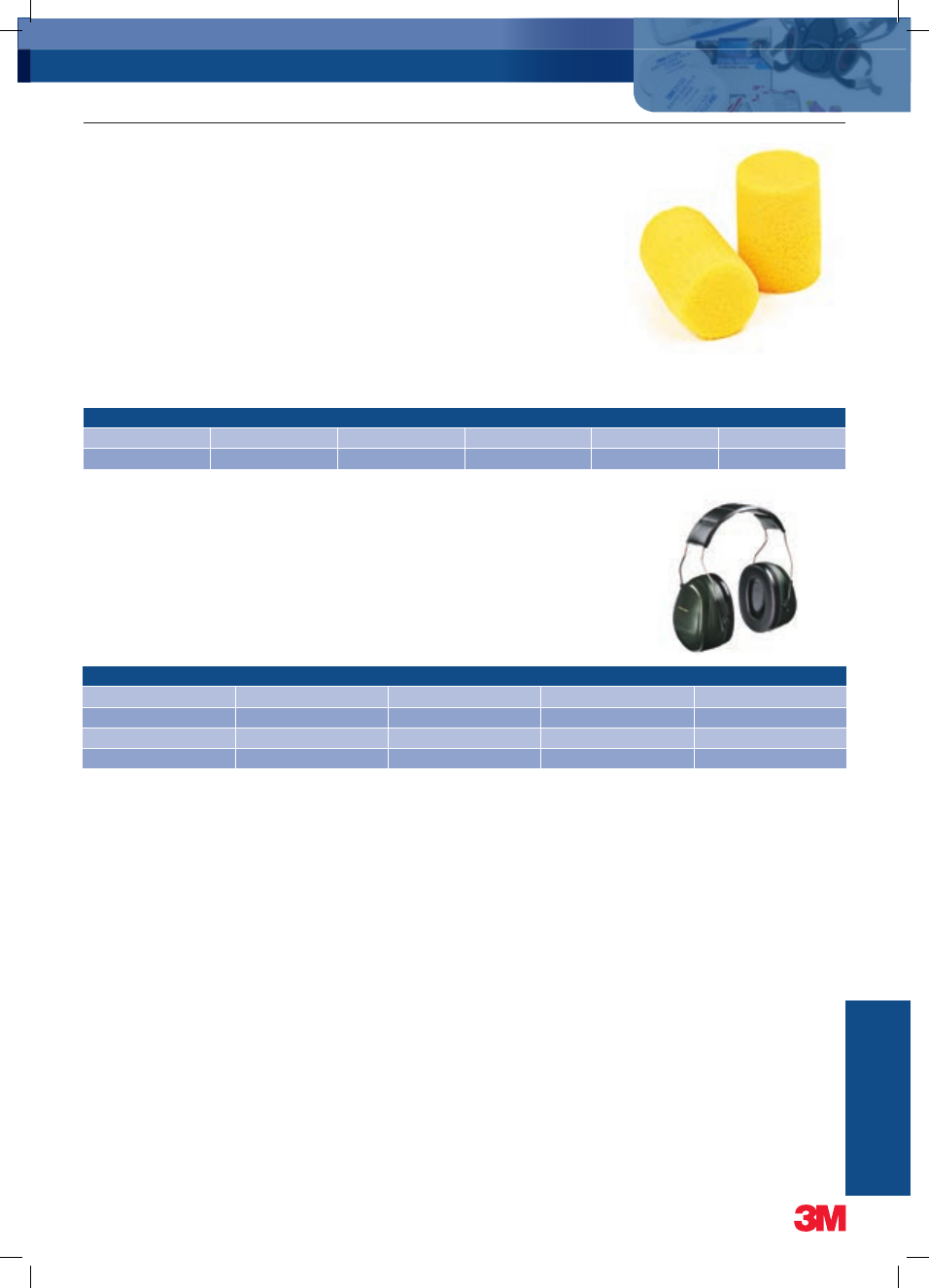

Passive Hearing Protection

™

Passive Hearing Protection

The 3M

™

, E-A-R

™

and Peltor

™

brands offer a hearing protection solution for anyone who spends time

in noisy environments. The comprehensive range of 3M and E-A-R earplugs includes disposable,
reusable, no-roll down and banded models. They are available in multiple shapes and sizes to comfortably
accommodate different wearer and workplace needs. Many 3M and Peltor earmuffs are available in
headband, neckband, helmet attachable and folded models to meet virtually every application need and
wearer preference.

™

E-A-R

™

Classic

™

Earplugs

•

The original PVC plug that still stands up to the competition

•

PVC foam provides a comfortable seal with high protection levels

•

SLC80: 21 dB (Class 3 Corded)

•

SLC80 23 dB (Class 4)

Product Code

3M Order Code

Corded

Colour

Pack

Protection Rating

310-1001

70071514916

Uncorded

Yellow

Pillow Pack

Class 4

312-1201

70071514932

Uncorded

Yellow

Poly Bag

Class 4

™

Peltor

™

Earmuffs H7 Series

•

Versatile high quality earmuffs meet the protection needs of almost any working environment

•

Available in headband, neckband and helmet attachment formats

•

High visibility option available

•

Liquid and foam filled cushions provide a quality noise seal with low pressure for all day wearer comfort

•

Stainless steel headband wires with four point suspension helps distribute cushion pressure evenly and

earcups pivot for consistent fit

•

SLC80 30 dB (Class 5).

Product Code

3M Order Code

Description

Colour

Protection Rating

H7A

70071516226

Headband

Olive Green

Class 5

H7B

70071516317

Neckband

Olive Green

Class 5

H7P3E

70071516283

Helmet Attached

Olive Green

Class 5

H7F

70071516309

Folding

Olive Green

Class 5

™

ersonal Safety Products

Disposable Respiratory Protection

™

Disposable Respiratory Protection

3M offers respirators that fit well, are comfortable and provide the protection you need. 3M disposable respirators are compatible with eyewear and
hearing protection products from 3M. Additionally, 3M disposable respirators meet the performance requirements of AS/NZS 1716:2012 ‘Respiratory
protective devices’. To achieve the assigned protection of a tight fitting face-piece there must be a good seal between the edges of the respirator and
your face. Conducting a fit test to AS/NZS 1715:2009 is considered best practice as part of a general respiratory protection program.

™

Flat Fold Particulate Respirators 9300 Series

•

Unique 3-panel design fits a wide range of face sizes

•

Low profile provides good field of vision

•

Proprietary 3M Cool Flow

™

exhalation valve reduces heat and

moisture build-up, making breathing easier (9322 & 9312)

•

Individually packaged for portability in the workplace

•

Applications eg P2: light welding, infection control, shipbuilding

Product Code

3M Order Code

Description

Valve

Weight

Nose Clip

Staples

Standard

9322

XA010001874

Valved

15 g

Aluminium

Steel

AS/NZS 1716:2012

9320

XA010002005

Unvalved

10 g

Aluminium

Steel

AS/NZS 1716:2012

9312

XA010001908

Valved

15 g

Aluminium

Steel

AS/NZS 1716:2012

9310

XA010001999

Unvalved

10 g

Aluminium

Steel

AS/NZS 1716:2012

™

Cupped Particulate Respirators 8000 Series

•

Lightweight construction for added comfort and increased wearer time

•

Galvanised steel nose clip for use in intrinsically safe environment (8812 & 8710)

•

Adjustable nose clip helps reduce eyewear fogging

•

Applications eg P1: sawing, drilling. P2: composting, handling infected animals

Product Code

3M Order Code

Protection Type

Valve

Weight

Nose Clip

Staples

Standard

8210

WX700900011

Unvalved

8 g

Aluminium

No staples

AS/NZS 1716:2012

8710

WX700900029

Unvalved

8 g

Galvanised Steel

No staples

AS/NZS 1716:2012

8822

AT010561051

WX700900359

Valved

13 g

Galvanised Steel

Steel

AS/NZS 1716:2012

8812

AT010561036

WX700900243

Valved

13 g

Galvanised Steel

Steel

AS/NZS 1716:2012

www.3M.com.au/electrical • www.3M.co.nz/electrical

Reusable Respiratory Protection

™

Reusable Respiratory Protection

With the ability to reuse the facepiece, the 3M range of reusable half and full face respirators offer value and versatility for a wide variety of
environments and hazards, while giving you the confidence in protection you deserve. 3M gas and vapour cartridges and particulate filters are
lightweight, well balanced and provide excellent field of vision when fitted to a respirator.

™

Respirator Starter Kits

3M Respirator Starter Kits are convenient and easy to use providing an ideal solution to get you started. All kits include a pair of 3M

™

Earplugs, 3M

™

Respirator

Cleaning Wipes and a 3M Respiratory Protection Guide. To avoid moisture and contaminant exposure, store the respirator in the handy, sealable storage container.

™

Dust/Particle Respirator Kit 6225 Components:

1 x 3M

™

Half Face Respirator 6000 Series - Medium

1 x pair of 3M

™

Particulate Filters 2125, P2

1 x 3M

™

No-Touch

™

Foam Earplugs P2000, Class 4

4 x 3M

™

Respirator Cleaning Wipes 504

1 x 3M Respiratory Protection Guide
1 x Storage Container

™

Dust/Particle Respirator Kit 6225 Applications:

Sanding/Sawing - Wood/plaster dust; Lead Paint Removal - Metal fume and/or particles; Food Manufacturing - Fine food powders; Insulation - Fibreglass
particles; Drilling/Cutting - Metal/wood/plastic particles; Masonry - Stone particles; Grinding - Metal dust and particles; Powder Coating - Dust

Product Code

3M Order Code AU

3M Order Code NZ

Protection Type

Standards

Respirator Size

6225

AT010590613

XH000789525

AS/NZS 1716:2012

Medium

2125

70071486180

AS/NZS 1716:2012

Product Code

3M Order Code AU 3M Order Code NZ

Colour

Size

Type Rating

4515

GT700004127

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588898

GT700004135

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588906

GT700004143

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588914

GT700004150

White

XXL

Type 5/6 - for

hazardous dust

and splash

4515

GT700000265

White

3XL

Type 5/6 - for

hazardous dust

and splash

™

ersonal Safety Products

Body Protection

™

Body Protection

3M offers a comprehensive range of disposable coveralls that provide protection for a variety of applications. Harmful dust, light liquid splashes, and
biological contaminants are just some of the dangers in today’s industrial workplace. The 3M line of quality disposable coveralls help protect at-risk
workers and offers quality and reliability, helping workers to manoeuvre freely and operate efficiently.

™

Protective Coverall 4515

The 4515 coverall is made from a breathable material and is ideal for a wide range of applications, particularly those requiring protection
from hazardous dusts. A two-way zipper provides on-off convenience and elasticated hood, cuffs, waist and ankles allow for a
comfortable fit.

Product Code

3M Order Code AU 3M Order Code NZ

Colour

Size

Type Rating

4515

GT700004127

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588898

GT700004135

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588906

GT700004143

White

Type 5/6 - for

hazardous dust

and splash

4515

AT010588914

GT700004150

White

XXL

Type 5/6 - for

hazardous dust

and splash

4515

GT700000265

White

3XL

Type 5/6 - for

hazardous dust

and splash

™

Protective Coverall 4510

The 4510 coverall is constructed of high quality, ultra low-linting, laminated microporous material and is
designed to offer cost effective protection against hazardous dusts and light liquid chemical splashes. The 4510
also has a two-way zipper with storm flap for added convenience and extra protection. Elasticated hood, cuffs,
waist and ankles provide for a comfortable fit.

Product Code

3M Order Code

Colour

Size

Type Rating

Treatment

4510

XL451000050

White

Type 5/6 - for

hazardous dust

and splash

Anti-static - EN

1149- 5:2008

4510

AT010588864

XL451000068

White

Type 5/6 - for

hazardous dust

and splash

Anti-static - EN

1149- 5:2008

4510

AT010588872

XL451000076

White

Type 5/6 - for

hazardous dust

and splash

Anti-static - EN

1149- 5:2008

4510

AT010588880

XL451000084

White

XXL

Type 5/6 - for

hazardous dust

and splash

Anti-static - EN

1149- 5:2008

4510

GT700000893

White

3XL

Type 5/6 - for

hazardous dust

and splash

Anti-static - EN

1149- 5:2008

www.3M.com.au/electrical • www.3M.co.nz/electrical

Active Hearing & Head and Face Protection

™

Active Hearing Protection

3M’s Peltor brand is a world leader in communication equipment. The extensive range provides hearing protection and enables wearers to communicate
effectively within their immediate environment as well as with people further away.

™

Peltor

™

Worktunes

™

Plus

The Worktunes Plus provides hearing protection and music while you work via an AM/FM radio. The level
dependent function allows you to hear sounds, warning signals, machinery and conversations. Sudden impulse
noise at harmful levels is immediately attenuated. There are easy-to-handle volume control knobs for the radio
and level dependent functions. The Worktunes Plus also switches automatically from stereo to mono for the best
reception in the event of a weak signal.

Product Code

3M Order Code

Description

Colour

Weight

Protection Rating

Frequency

M2RX7A 290

XH001650072

Headband

Red

400 g

Class 5

AM/FM

™

Head & Face Protection

3M is the trusted leader in the head and face protection market providing robust, comfortable and easy-to-use products to a wide spectrum of
industries. These products are designed for strength, all day comfort , enhanced visibility, and sometimes serve as a “carrier” to other personal protective
equipment (PPE) products.

™

Peltor

™

G2000 Hard Hat

Attractive design and excellent protection is the best way to summarise the Peltor G2000 Hard Hat. The hard
hat goes well beyond the requirements for formal testing and is comfortable with its low back and relatively low
profile. It was designed to accommodate additional accessories, visor and hearing protection. The G2000 also
incorporates the 3M

™

Peltor

™

Uvicator

™

which provides a visible indication of the damage caused by

UV-radiation from the sun. The Uvicator gradually turns from Red to White to show when it is time to replace
your hard hat.

Product Code

3M Order Code

Colour

Material

Weight

Size

Standards

G2000CUV-GU

GT600000498

Yellow

UV-stabilised ABS

340 g

54 - 62 cm

AS/NZS 1801

G2000CUV-OR

XH001650122

Orange

UV-stabilised ABS

340 g

54 - 62 cm

AS/NZS 1801

Code Page

1039 .........................................................................13
10425-00000 ...........................................................71
1076 .........................................................................13
1170 .........................................................................14
1181 .........................................................................14
11815-00000-100AS ..............................................71
11817-00000-100AS ..............................................71
11818-00000-100AS ..............................................71
1182 .........................................................................14
11847-00000-100AS ..............................................71
1194 .........................................................................14
1196 .........................................................................67
1245 .........................................................................14
1248-XR/ID ...............................................................64
1250 .........................................................................64
1250-XR/ID ...............................................................64
1251 .........................................................................64
1251-XR/ID ...............................................................64
1252 .........................................................................64
1252-XR/ID ...............................................................64
1253 .........................................................................64
1253-XR/ID ...............................................................64
1254 .........................................................................64
1254-XR/ID ...............................................................64
13 ...............................................................................5
130C ...........................................................................4
1318-1 .....................................................................13
1350F-1....................................................................13
1352B .......................................................................10
1401-XR ...................................................................63
1402-XR ...................................................................63
1402FR .....................................................................19
1403-XR ...................................................................63
1404-XR ...................................................................63
1405-XR ...................................................................63
1407-XR ...................................................................63
1408-XR ...................................................................63
1421-XR/ID ...............................................................63
1422-XR/ID ...............................................................63
1423-XR/ID ...............................................................63
1424-XR/ID ...............................................................63
1425-XR/ID ...............................................................63
1427-XR/ID ...............................................................63
1428-XR/ID ...............................................................63
1432 .........................................................................63
1432-XR/ID ...............................................................63
1433 .........................................................................63
1433-XR/ID ...............................................................63
1434 .........................................................................63
1434-XR/ID ...............................................................63
1435 .........................................................................63
1435-XR/ID ...............................................................63
1436 .........................................................................63
1436-XR/ID ...............................................................63
1438-XR/ID ...............................................................63
16 .............................................................................13
1610 ...........................................................................3
1710N .........................................................................3
1755 .........................................................................11
1910C .......................................................................10
211 ...........................................................................34
2125 .........................................................................73

Index by Product Code

Code Page

2155 ...........................................................................4
2183 .........................................................................11
22 ...............................................................................2
2200M ......................................................................68
2200RB.....................................................................68
2220M-U3W3-CPLR .................................................65
2228 ...........................................................................8
2229 ...........................................................................8
2234 ...........................................................................9
23 ...............................................................................4
2352 .........................................................................10
24 ...............................................................................6
25 ...............................................................................6
2510 ...........................................................................6
27 ..........................................................................7,13
28 .............................................................................13
2876 .........................................................................67
2892 .........................................................................67
3014 .........................................................................68
31 ...............................................................................9
310-1001 .................................................................70
312-1201 .................................................................70
314 ...........................................................................36
316IR ........................................................................36
3229 .........................................................................68
33+Super ...................................................................2
35 ...............................................................................2
3939 .........................................................................10
40 .............................................................................19
40PR .........................................................................12
4001 .........................................................................67
44 .............................................................................14
44D-A .......................................................................14
4407 .........................................................................19
4510 .........................................................................74
4515 .........................................................................74
4519 .........................................................................67
4560 .........................................................................12
48 .............................................................................12
48FR .........................................................................20
5 ...............................................................................13
50 .............................................................................11
557-TG2 ...................................................................33
56 .............................................................................13
5732 .........................................................................22
5733 .........................................................................22
5734 .........................................................................22
5735 .........................................................................22
58 .............................................................................13
60 .............................................................................14
61 .............................................................................14
6225 .........................................................................73
63 .............................................................................14
69 ..........................................................................7,13
70 ...............................................................................5
7000RB.....................................................................68
7420 .........................................................................65
7550-ID/U12 .............................................................66
7573-ID/U12 .............................................................66
7620-S-2-3W-AU .....................................................40
7620-S-2-AR-AU .................................................38,39
7620-S-2-AU .......................................................38,39

Code Page

7620-T-95-3W-AU ...................................................40
7620-T-95-AR-AU ...............................................38,39
7620-T-95-AU .....................................................38,39
7621-S-2-3W-AU .....................................................40
7621-S-2-3W-NZ-1..................................................47
7621-S-2-AR-AU .................................................38,39
7621-S-2-AU .......................................................38,39
7621-S-2-NZ-1 ........................................................46
7621-T-110-3W-AU ............................................40,41
7621-T-95-3W-AU ...................................................40
7621-T-95-3W-NZ-1 ................................................47
7621-T-95-AR-AU ...............................................38,39
7621-T-95-AU .....................................................38,39
7621-T-95-NZ-1 .......................................................46
7622-T-110-3W-AU ............................................40,41
7624-T-110-3W-AU ............................................40,41
7625-T-110-3W-AU ............................................40,41
7641-CT-TEL ............................................................64
7642-CT-PWR ..........................................................64
7642-T-110-3W-NZ-1 ..............................................47
7642-T-110-AR-AU .............................................38,39
7642-T-110-AU ...................................................38,39
7642-T-110-NZ-1 ....................................................46
7643-T-110-3W-NZ-2 ..............................................47
7644-CT-RW.............................................................64
7644-T-110-3W-NZ-3 ..............................................47
7644-T-110-3WS-NZ-3 ...........................................47
7644-T-110-AR-AU .............................................38,39
7644-T-110-AU ...................................................38,39
7644-T-110-NZ-2 ....................................................46
7644-T-110-NZ-3 ....................................................46
7645-CT-GAS ...........................................................64
7645-CT-TEL ............................................................64
7645-T-110-3W-NZ-4 ..............................................47
7645-T-110-3W-NZ-5 ..............................................47
7645-T-110-AR-AU .............................................38,39
7645-T-110-AU ...................................................38,39
7645-T-110-NZ-4 ....................................................46
7645-T-110-NZ-5 ....................................................46
7645-T-110-NZ-6 ....................................................46
7646-T-110-AR-AU .............................................38,39
7646-T-110-AU ...................................................38,39
7646-T-110-NZ-6 ....................................................46
7652-CT-PWR ..........................................................64
7652-S-4-AR-AU .................................................38,39
7652-S-4-AU .......................................................38,39
7653-S-4-3W-NZ-1..................................................47
7653-S-4-3W-NZ-2..................................................47
7653-S-4-NZ-1 ........................................................46
7653-S-4-NZ-2 ........................................................46
7653-S-4-NZ-3 ........................................................46
7653-T-150-3W-NZ-1 ..............................................47
7653-T-150-3W-NZ-2 ..............................................47
7653-T-150-AR-AU .............................................38,39
7653-T-150-AU ...................................................38,39
7653-T-150-NZ-1 ....................................................46
7653-T-150-NZ-2 ....................................................46
7653-T-150-NZ-3 ....................................................46
7654-CT-RW.............................................................64
7654-S-4-3W-NZ-2..................................................47
7654-S-4-3W-NZ-3..................................................47
7654-S-4-3WS-NZ-1 ...............................................47

www.3M.com.au/electrical • www.3M.co.nz/electrical

Code Page

7654-S-4-3WS-NZ-3 ...............................................47
7654-S-4-AR-AU .................................................38,39
7654-S-4-AU .......................................................38,39
7654-T-150-3W-NZ-2 ..............................................47
7654-T-150-3W-NZ-3 ..............................................47
7654-T-150-3WS-NZ-1 ...........................................47
7655-CT-GAS ...........................................................64
7655-S-4-3W-NZ-4..................................................47
7655-S-4-3W-NZ-5..................................................47
7655-S-4-AR-AU .................................................38,39
7655-S-4-AU .......................................................38,39
7655-S-4-NZ-3 ........................................................46
7655-S-4-NZ-4 ........................................................46
7655-S-4-NZ-5 ........................................................46
7655-S-4-NZ-6 ........................................................46
7655-T-150-3W-NZ-4 ..............................................47
7655-T-150-3W-NZ-5 ..............................................47
7655-T-150-AR-AU .............................................38,39
7655-T-150-AU ...................................................38,39
7655-T-150-NZ-3 ....................................................46
7655-T-150-NZ-4 ....................................................46
7655-T-150-NZ-5 ....................................................46
7655-T-150-NZ-6 ....................................................46
7656-S-4-AR-AU .................................................38,39
7656-S-4-AU .......................................................38,39
7656-S-4-NZ-6 ........................................................46
7656-T-150-AR-AU .............................................38,39
7656-T-150-AU ...................................................38,39
7656-T-150-NZ-6 ....................................................46
7663-S-8-AR-AU .................................................38,39
7663-S-8-AU .......................................................38,39
7664-S-8-AR-AU .................................................38,39
7664-S-8-AU .......................................................38,39
7664-S-8-NZ-1 ........................................................46
7665-S-8-AR-AU .................................................38,39
7665-S-8-AU .......................................................38,39
7665-S-8-NZ-3 ........................................................46
7666-S-8-AR-AU .................................................38,39
7666-S-8-AU .......................................................38,39
7666-S-8-NZ-6 ........................................................46
7685-S-8-3W-AU ................................................40,41
7691-S-4-3W-AU ................................................40,41
7692-S-4-3W-AU ................................................40,41
7693-S-4-3W-AU ................................................40,41
7693-T-150-3W-AU ............................................40,41
7694-T-150-3W-AU ............................................40,41
7695-S-4-3W-AU ................................................40,41
7695-T-150-3W-AU ............................................40,41
77 ...............................................................................5
8006 .........................................................................67
8210 .........................................................................72
82-A1 .......................................................................18
82-A2 .......................................................................18
82-A3 .......................................................................18
8423 .........................................................................22
8424 .........................................................................22
8425 .........................................................................22
8426 .........................................................................22
8427 .........................................................................22
8428 .........................................................................22
8429 .........................................................................22
8430 .........................................................................22

Code Page

8710 .........................................................................72
8812 .........................................................................72
8822 .........................................................................72
8882 .........................................................................20
8979 .........................................................................10
9011 .........................................................................67
9026 .........................................................................68
9043 .........................................................................67
92 .............................................................................14
92-AS 610-1-AR-AU .................................................50
92-AS 610-1-AU ......................................................50
92-AS 610-1-NZ.......................................................51
92-AS 610-3-AR-AU .................................................50
92-AS 610-3-AU ......................................................50
92-AS 610-3-NZ.......................................................51
92-AS 620-1-AR-AU .................................................50
92-AS 620-1-AU ......................................................50
92-AS 620-1-NZ.......................................................51
92-AS 620-3-AR-AU .................................................50
92-AS 620-3-AU ......................................................50
92-AS 630-1-AR-AU .................................................50
92-AS 630-1-AU ......................................................50
92-AS 630-1-NZ.......................................................51
92-EB 60-1-AR-AU ..............................................42,43
92-EB 60-1-AU ....................................................42,43
92-EB 60-3-AU .........................................................44
92-EB 61-1-AR-AU ..............................................42,43
92-EB 61-1-AU ....................................................42,43
92-EB 61-3-AU .........................................................44
92-EB 62-1-AR-AU ..............................................42,43
92-EB 62-1-AU ....................................................42,43
92-EB 62-3-AU .........................................................44
92-EB 63-1-AR-AU ..............................................42,43
92-EB 63-1-AU ....................................................42,43
92-EB 63-3-AU .........................................................44
92-EB 64-1-AR-AU ..............................................42,43
92-EB 64-1-AU ....................................................42,43
92-EB 64-3-AU .........................................................44
92-EB 65-1-AR-AU ..............................................42,43
92-EB 65-1-AU ....................................................42,43
92-EE 616-1 .............................................................52
92-EE 717-1 .............................................................52
92-FS 213-3-1 .........................................................51
92-FS 213-3-3 .........................................................51
92-FS 233-3-1 .........................................................51
92-FS 233-3-3 .........................................................51
92-NBA .....................................................................16
92-NBB ................................................................16,17
92-NBC .....................................................................16
9310 .........................................................................72
9312 .........................................................................72
9320 .........................................................................72
9322 .........................................................................72
93-AS 620-1-AR-AU .................................................50
93-AS 620-1-AU ......................................................50
93-AS 620-1-NZ.......................................................51
93-AS 620-3-AR-AU .................................................50
93-AS 620-3-AU ......................................................50
93-AS 620-3-NZ.......................................................51
93-AS 630-1-AR-AU .................................................50
93-AS 630-1-AU ......................................................50
93-AS 630-1-NZ.......................................................51

Code Page

93-EB 60-3-AU .........................................................44
93-EB 61-3-AU .........................................................44
93-EB 62-1-AR-AU ..............................................42,43
93-EB 62-1-AU ....................................................42,43
93-EB 62-3-AU .........................................................44
93-EB 63-1-AR-AU ..............................................42,43
93-EB 63-1-AU ....................................................42,43
93-EB 63-3-AU .........................................................44
93-EB 64-1-AR-AU ..............................................42,43
93-EB 64-1-AU ....................................................42,43
93-EB 65-1-AR-AU ..............................................42,43
93-EB 65-1-AU ....................................................42,43
94-AS 620-1-AR-AU .................................................50
94-AS 620-1-AU ......................................................50
94-AS 620-1-NZ.......................................................51
94-AS 630-1-AR-AU .................................................50
94-AS 630-1-AU ......................................................50
94-AS 630-1-NZ.......................................................51
94-EB 61-3-AU .........................................................44
94-EB 62-1-AR-AU ...................................................43
94-EB 62-1-AU .........................................................43
94-EB 62-2-AR-AU ...................................................43
94-EB 62-2-AU .........................................................43
94-EB 62-3-AU .........................................................44
94-EB 63-1-AR-AU ...................................................43
94-EB 63-1-AU .........................................................43
94-EB 63-2-AR-AU ...................................................43
94-EB 63-2-AU .........................................................43
94-EB 63-3-AU .........................................................44
94-EB 63-4-AU .........................................................44
94-EB 64-1-AR-AU ...................................................43
94-EB 64-1-AU .........................................................43
94-EB 64-2-AR-AU ...................................................43
94-EB 64-2-AU .........................................................43
94-EB 64-3-AU .........................................................44
94-EB 64-4-AU .........................................................44
94-EB 65-1-AR-AU ...................................................43
94-EB 65-1-AU .........................................................43
ACCR ..................................................................53-54
CC .............................................................................30
CFS ...........................................................................29
CLEANING-WIPES .....................................................30
CSCAK ......................................................................27
DBO/B-6 ...................................................................35
DBR/Y-6 ....................................................................35
DYNATEL-TRANSMITTER ..........................................68
EC .............................................................................27
EPS-300 ...................................................................25
FP-221 ......................................................................24
FP-301 ......................................................................25
G2000CUV ................................................................75
GG-1525 ...................................................................52
GG-2545 ...................................................................52
GG-4565 ...................................................................52
H7A ...........................................................................70
H7B ...........................................................................70
H7F ...........................................................................70
H7P3E .......................................................................70
HDCW .......................................................................28
IMCSN .......................................................................26
ITCSN ........................................................................26
LVI ........................................................................16,17

Index by Product Code

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but
the accuracy or completeness is not guaranteed. All values are typical values and are not intended for specification purposes. Before using
this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements
contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorised officer of 3M.

Limited Liability

Except where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this
3M product, regardless of the legal theory asserted.

Index by Product Code

Code Page

M2RX7A ....................................................................75
MB61-NZ ..................................................................52
MB63-NZ ..................................................................52
MGC ..........................................................................35
P59 ...........................................................................29
P60 ...........................................................................29
P61 ...........................................................................29
P62 ...........................................................................29
P63 ...........................................................................29
P64 ...........................................................................29
P65 ...........................................................................29
P66 ...........................................................................29
PIPE-PRIMER .............................................................11
PL150 .......................................................................57
PL150-PL200-BAT ....................................................57
PL200 .......................................................................56
PL200K .....................................................................56
PL300 .......................................................................56
PL300-BAT ...............................................................57
PL300K ....................................................................56
PL-ACPS ...................................................................57
PLE............................................................................57
PLE-ALNA .................................................................57
PLE-SSNA .................................................................57
PLFN .........................................................................59
PLHS .........................................................................59
PLP ...........................................................................59
PLSL-WHT ................................................................59
PLV ............................................................................59
RJK-AU .....................................................................45
RJK-DB-AU ...............................................................45
RJK-DB-NZ ...............................................................48
RJK-NZ .....................................................................48
SCOTCHFIL .................................................................8
SCOTCHKOTE ...........................................................30
SDR ...........................................................................60
SKE ......................................................................28,29
SLW ...........................................................................60
SLW-REFILL ...............................................................60
SMP-B ......................................................................60
STD-0-9X ..................................................................60
STD-CX .....................................................................60
STD-X........................................................................60
SUPER20...................................................................13
U1B ...........................................................................34
U1R ...........................................................................34
UAL ...........................................................................36
UB2A .........................................................................34
UR2 ...........................................................................33
UY2 ...........................................................................33
VM ..............................................................................9
WL-QT ......................................................................30
