Heat Sinks

Assemblies

Accessories

THE GLOBAL EXPERT

IN

SOLID STATE RELAY

TECHNOLOGY

Heat Sinks & SSR Assemblies

A

i

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

C

rydom has a

distinguished record of

providing advanced, high

quality products with

timely delivery and

competitive pricing. Your

success in today’s

fastpaced global markets

hinges on working with suppliers who respond

quickly and appropriately to your every need.

In addition to an extensive selection of catalog

off-the-shelf items, Crydom offers

custom-designed solid state relays. Fact is we

specialize in satisfying the most demanding

environmental and performance requirements

our customers can devise. Give us your specs,

and watch us exceed your expectations!

At Crydom’s custom-built

100,000 square

foot manufacturing facility,

 virtually

everything is accomplished in-house to assure

complete control over delivery, production, and

above all quality. With design, development,

manufacturing and management personnel

under one roof, we’re geared for fast response

to your requirements.

In

Design Engineering

, we focus on pushing

performance, reliability and quality standards

ever higher. Working under a conservative

design and rating philosophy, Crydom’s

seasoned engineering team makes extensive

use of CAD to optimize design of mechanical

parts.

As a result of these efforts, Crydom has

acquired an impressive list of patents in solid

state relay technology, while continuing to

create new circuit and technology-related

inventions as part of our ongoing R & D

programs.

Once the design is solidified,

Production

Engineering

 is responsible for the engineering

control of the techniques used throughout

manufacturing. This department works closely

with our design engineering group, establishes

assembly processes, and oversees a

comprehensive on-premises machine shop

which fabricates our assembly fixtures.

As the work progresses,

Material and

Production Control

 employ our advanced

computer system, upgraded with our

customized software to keep manufacturing

operations humming. The computer system

employs integral MRP and MSP capabilities to

generate detailed scheduling and planning

information.

Ceramic Hybrid Manufacturing

 also is

performed in-house. Crydom manufactures all

metallized ceramic substrates used in our

relays — a major factor in product performance

and reliability, including direct bond copper

substrates.



www.crydom.com

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Quality Assurance

 conducts ongoing product reliability

verification tests,  gathering precise data on the quality
of our power semiconductor vendors and the silicon
chips they provide. Additional tests are performed to
meet specific customer burn-in requirements.

Crydom tests are exhaustive, including

100%

verification

 at final test. After units are completely

assembled, they must pass a complete set of electrical
tests, which are performed twice, once prior to
encapsulation and then again afterward.

Because of our dedication to quality, Crydom was one of
the first American companies to achieve full certification
to the demanding standards of ISO 9001. In addition,
most Crydom products are approved by UL, CSA, VDE,
TUV and carry the CE Mark signifying conformance with
the latest European directives. Certain panel mount and
din rail mount relays carry UL 508A SCCR ratings.

Learn how an alliance with the world leader in solid state
relays can pay off for you. For details, call your
authorized Crydom distributor today.

Heat Sinks & SSR Assemblies

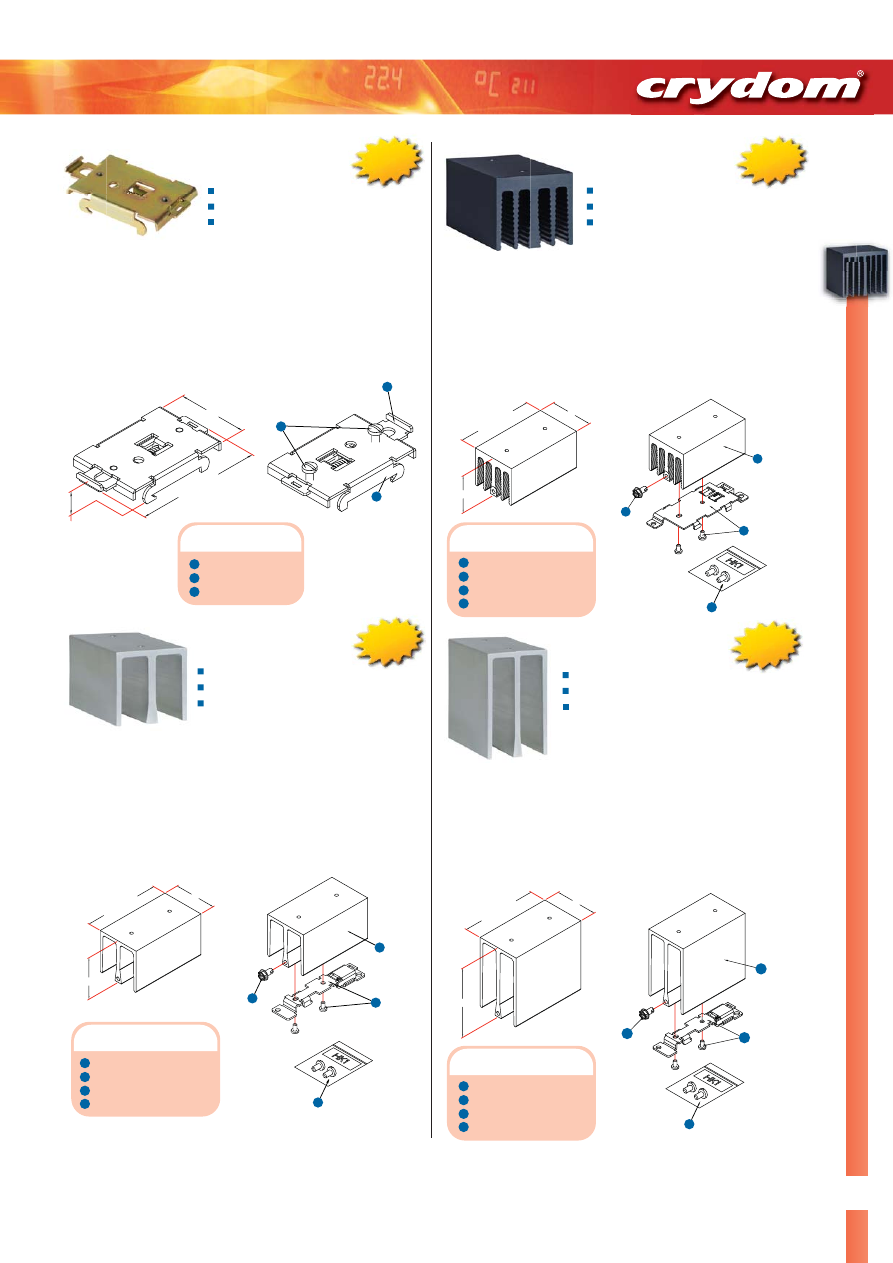

Crydom HS Series Heat Sinks

Crydom SSR and Heat Sink Assemblies

Thermal Management is of prime importance in the application and
use of Panel Mount Solid State Relays due to their internal power
dissipation of approximately 1 watt/amp of switched load current.

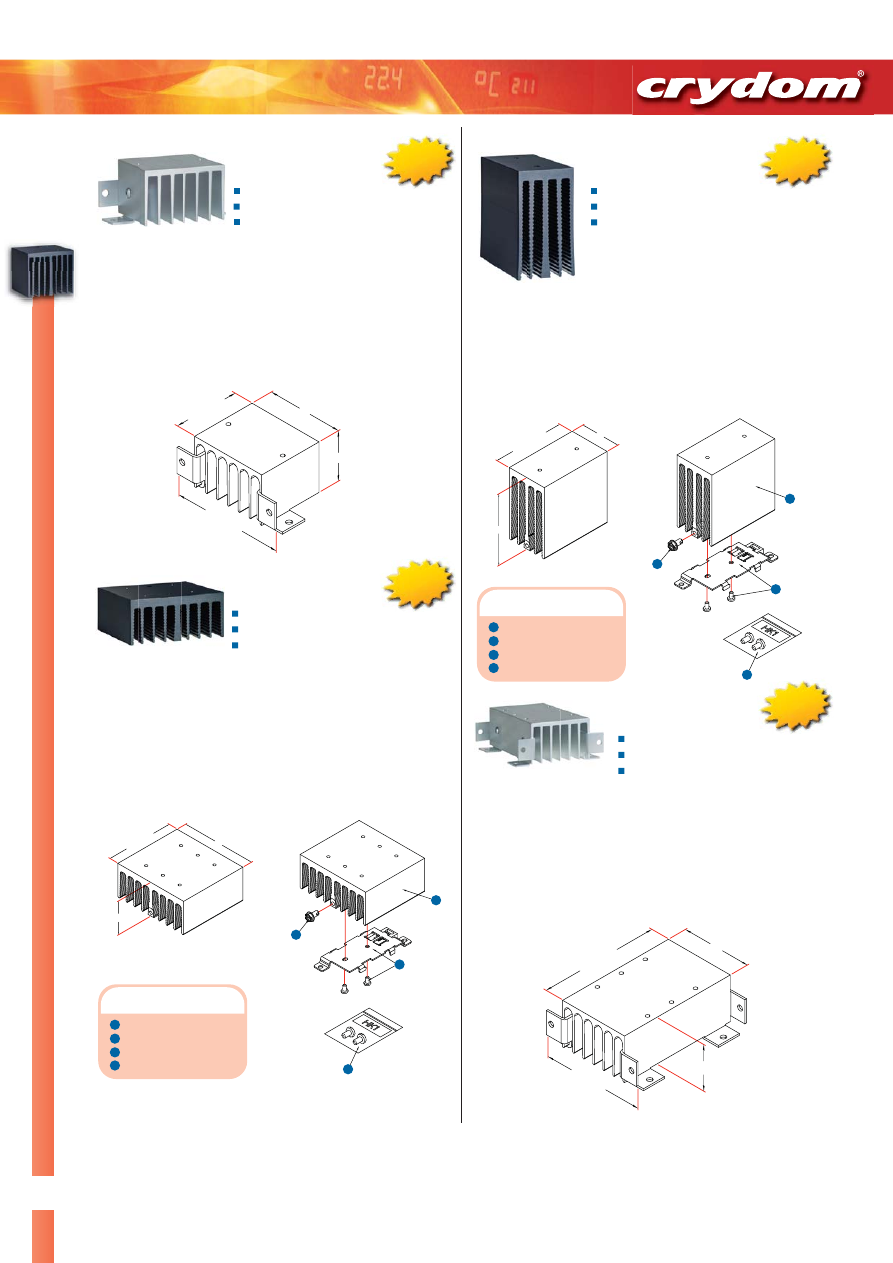

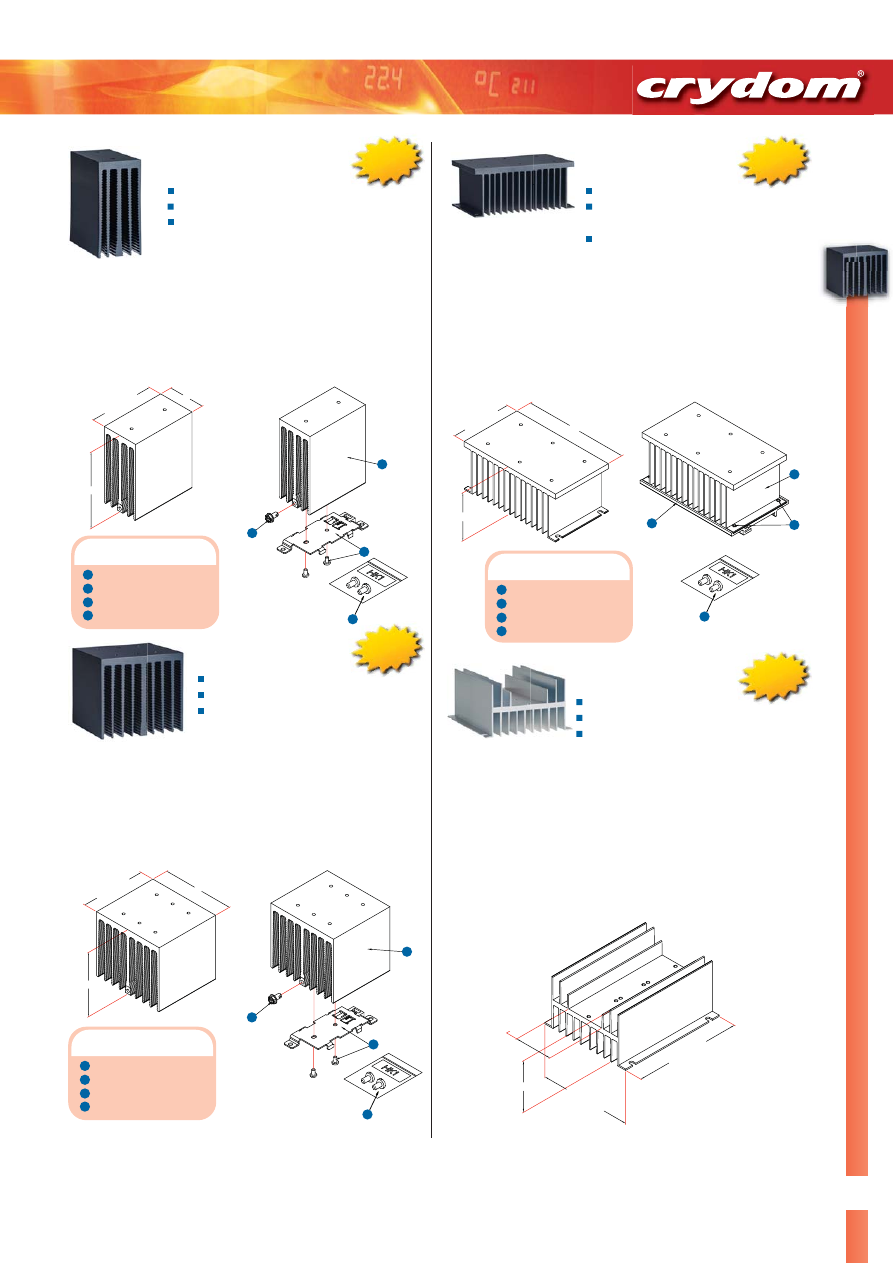

Crydom’s HS Series of heat sinks, designed with “state of the art”
thermal design software, offers optimized thermal performance,
size and cost for a variety of single, dual and three phase Solid State
Relay applications.

Designed to accept industry standard SSRs, the HS series includes
heat sinks with ratings from 5 °C per watt to 0.5 °C per watt which
are suitable for combined loads from 10 amps to 100 amps. With
models accepting one, two or three SSRs, the HS series heat sinks
can be either panel mounted or DIN rail mounted when combined
with optional DIN rail mounting bracket kits.

Crydom also offers a variety of accessories which make it easier for
the user to select, configure and install SSRs and heat sinks for your
application including Thermal Interface pads, clear touch safe SSR
covers, SSR mounting hardware and Heat Sink mounting hardware
including DIN rail brackets.

For more information on Heat Sink selection and available
calculation tools from Crydom, see page 4 of this catalog or go to

www.crydom.com/en/HSseries

.

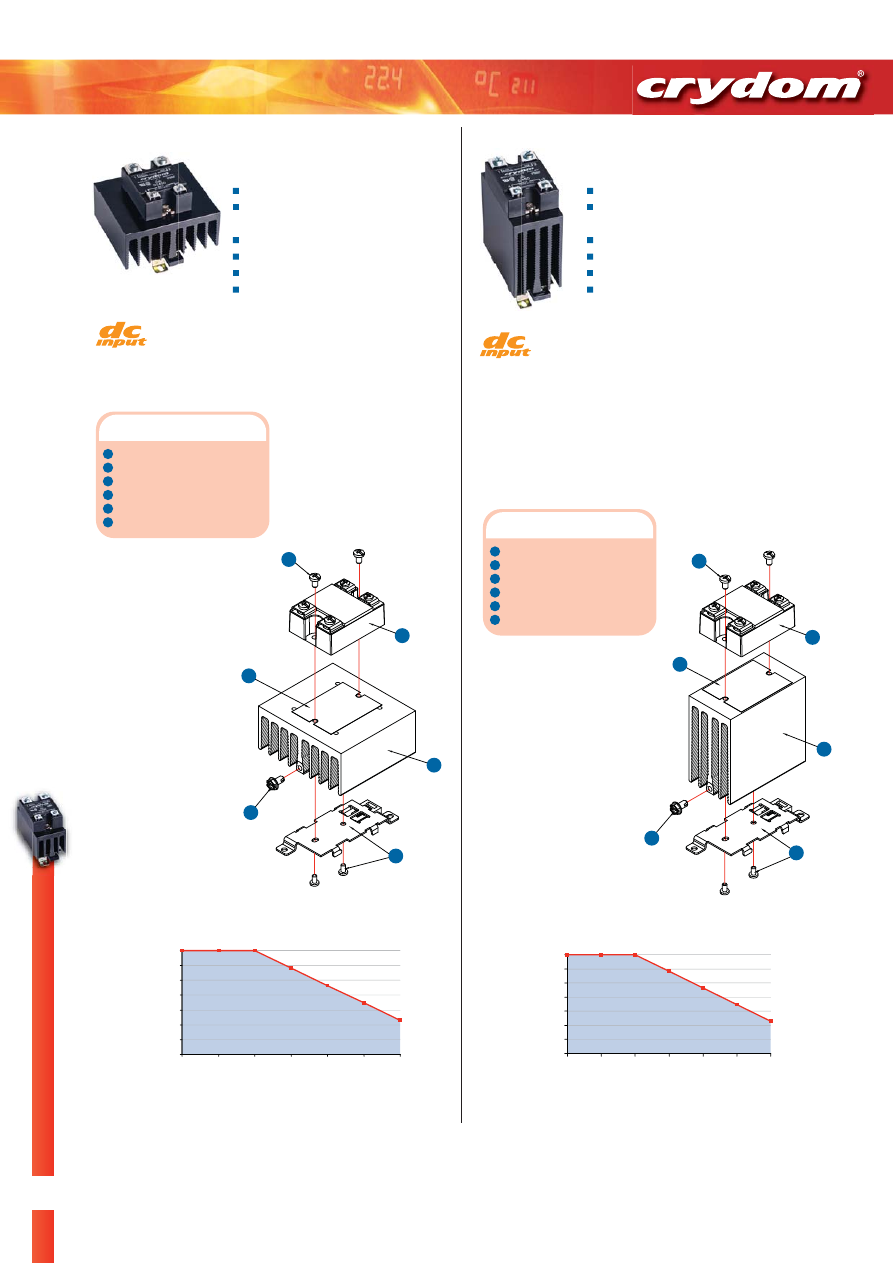

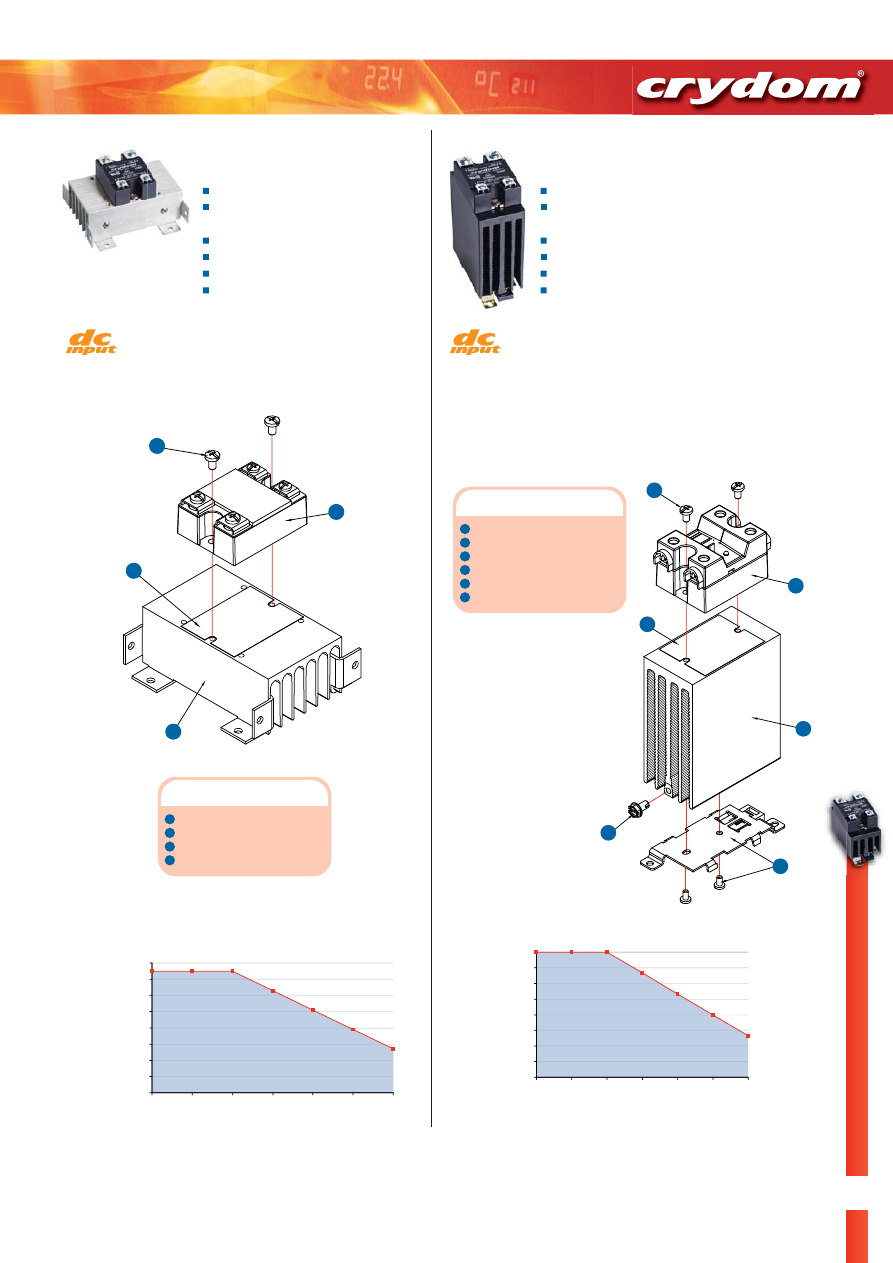

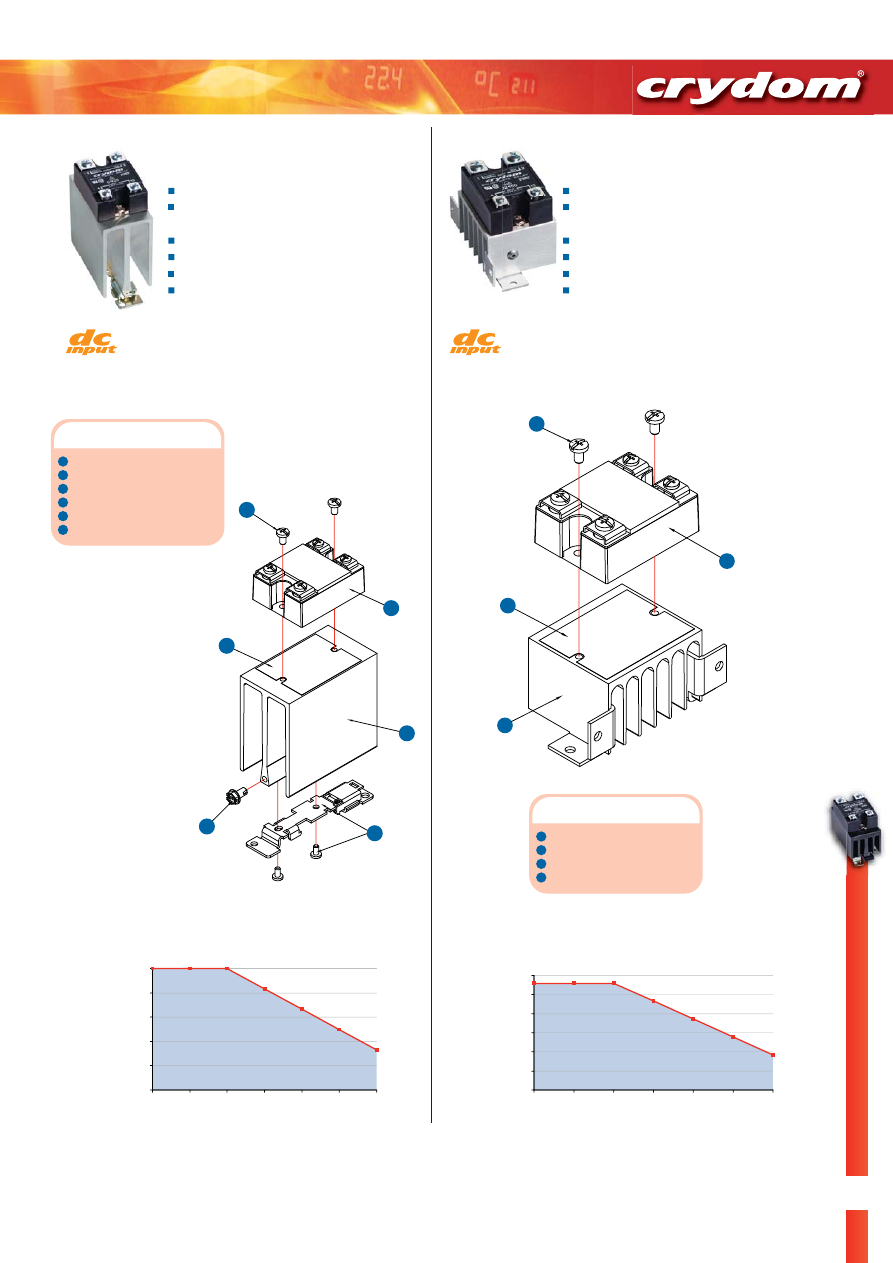

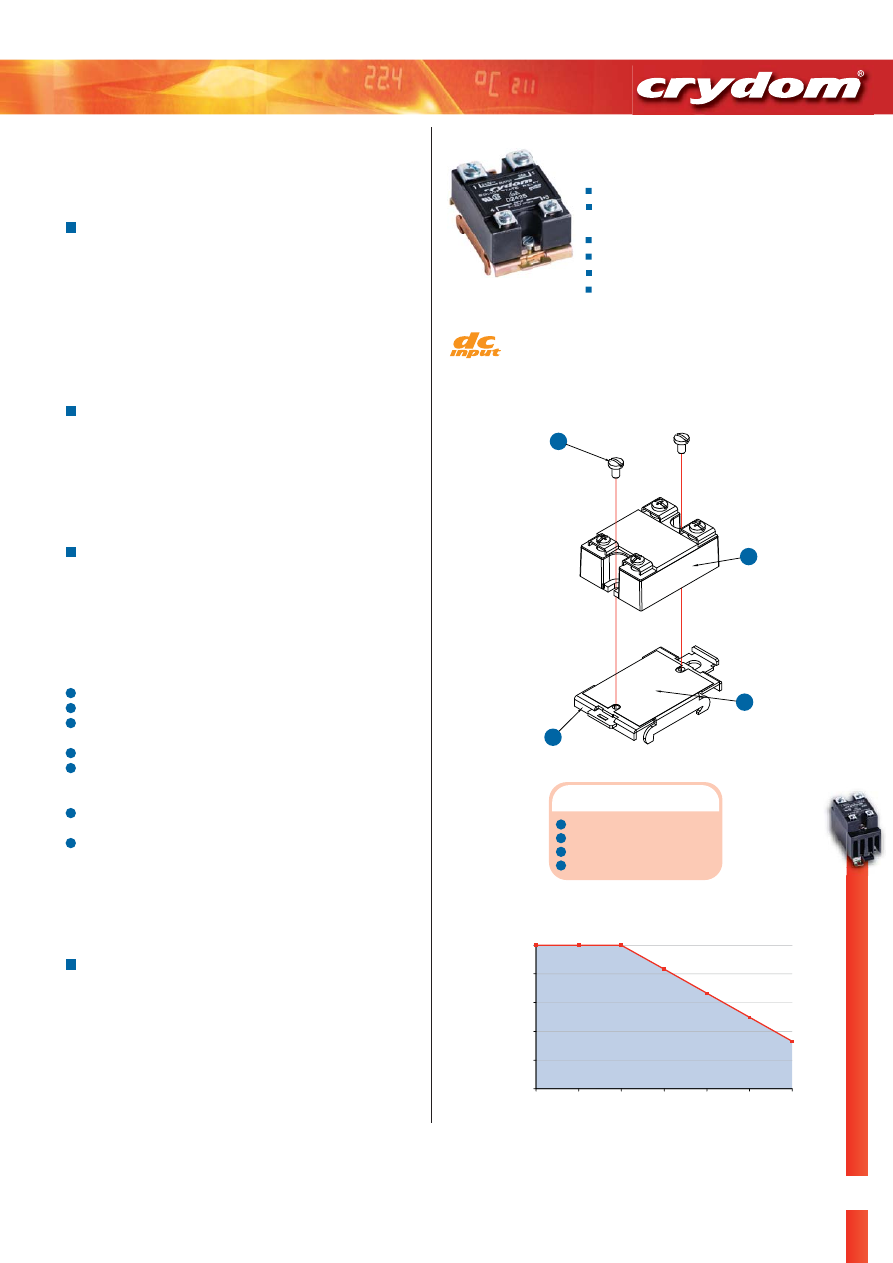

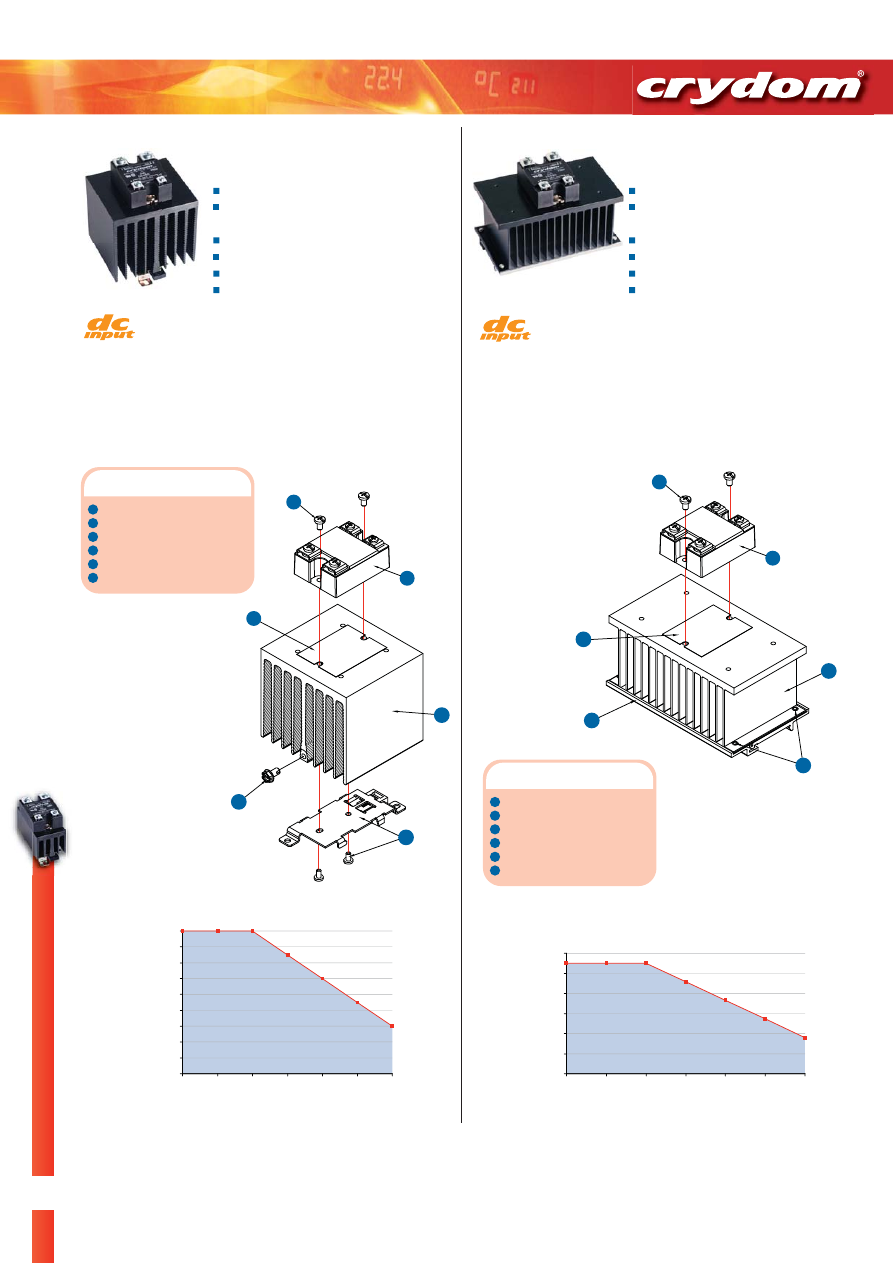

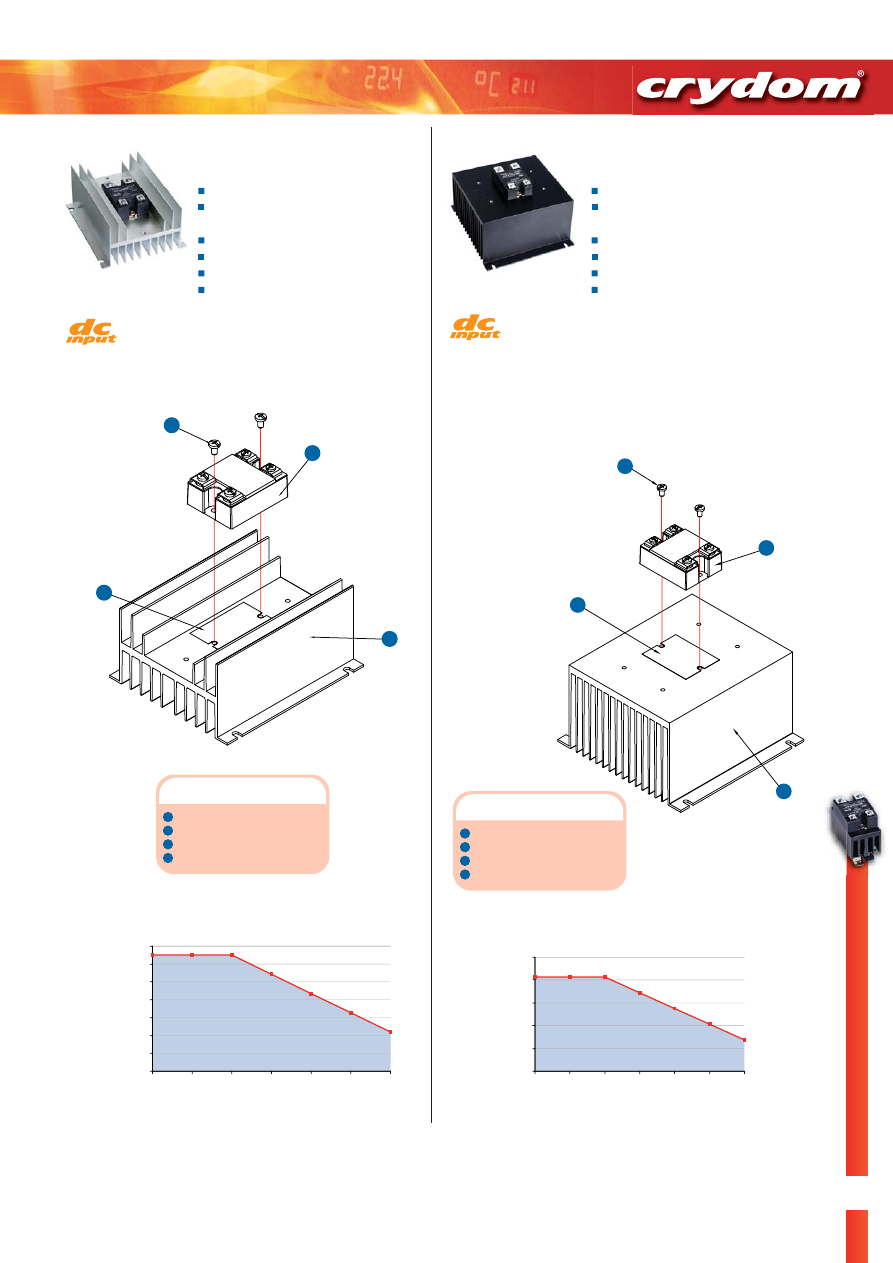

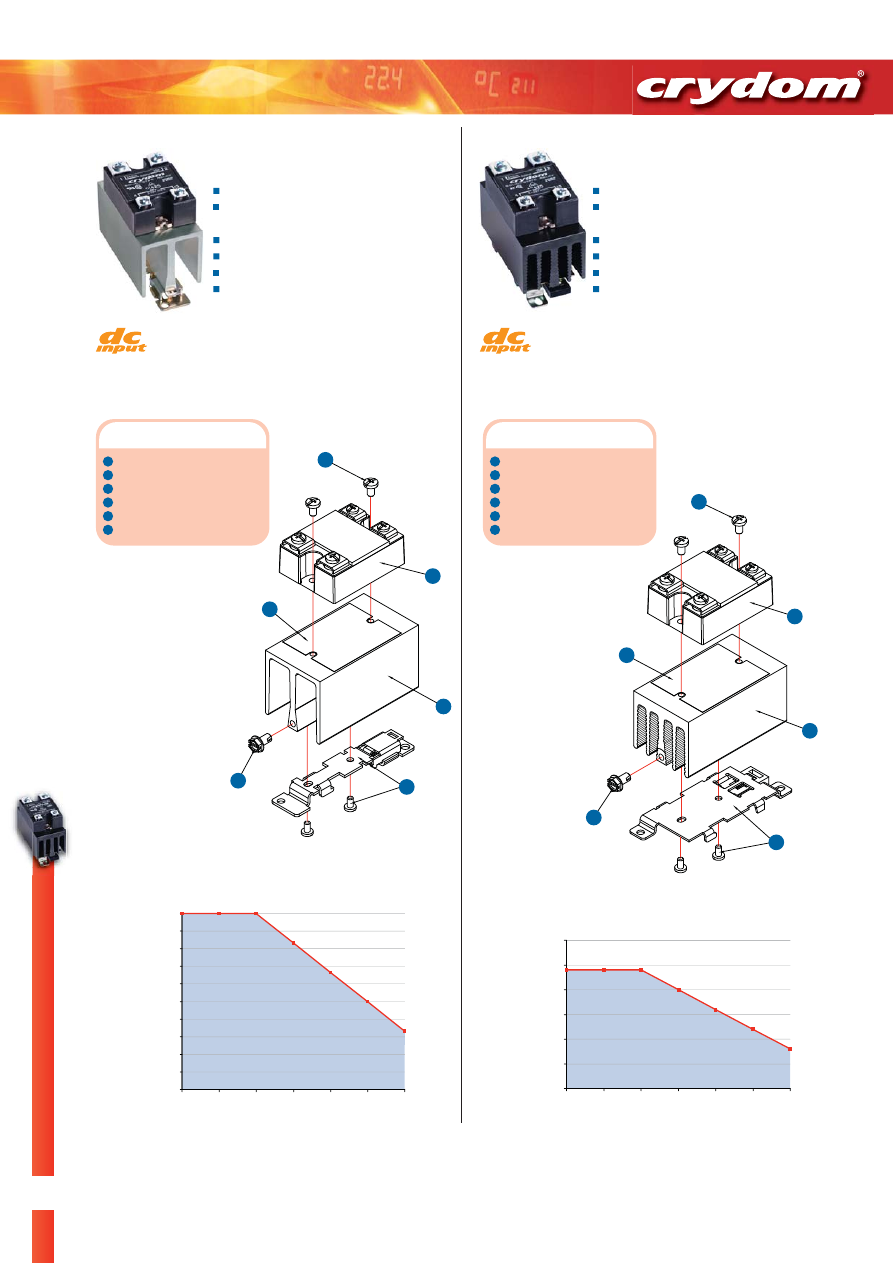

Crydom offers a variety of its world class standard off-the-shelf
single, dual and three phase Solid State Relays mounted on the new
Crydom HS series Heat Sinks.  Our expertise in both SSR design and
thermal management enables us to offer optimized pre-assembled
solutions for SSR applications from 5 to 80+ amps.  Each Assembly
is ready-to-use thus reducing procurement activities, secondary
machining, and assembly labor.

The standard Crydom SSR/Heat Sink assemblies are either DIN rail
mounted or Panel mounted depending upon model selected, and
are available with either one pre-installed single channel SSR, dual
SSR or three phase SSR . Customer installed options available for
the assemblies include clear plastic touch safe SSR covers and
copper terminal lugs suitable for up to 6 AWG wire.

If you don’t find the exact combination of Crydom SSRs and Heat
Sinks that you need, Crydom offers custom adapted assemblies for
applications where further optimization is required for cost, size or
performance.

For more information on SSR/Heat Sink selection and available
selection tools from Crydom, see page 9 of this catalog or go to

www.crydom.com/en/HSseries

.

Heat Sinks

Heat Sinks

Accessories

Accessories

Assemblies

Assemblies

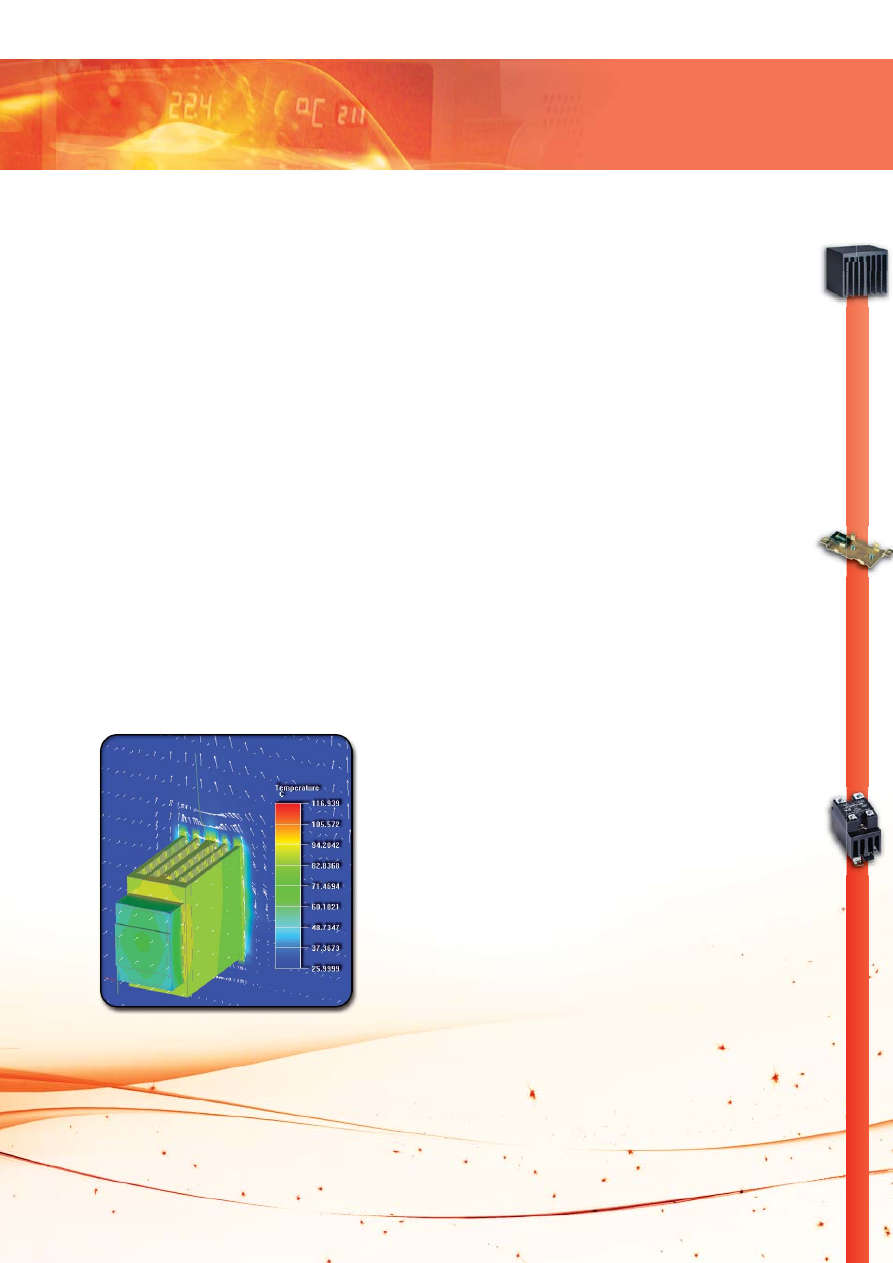

SSR/Heat Sink Assembly Thermal Simulation

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

4

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

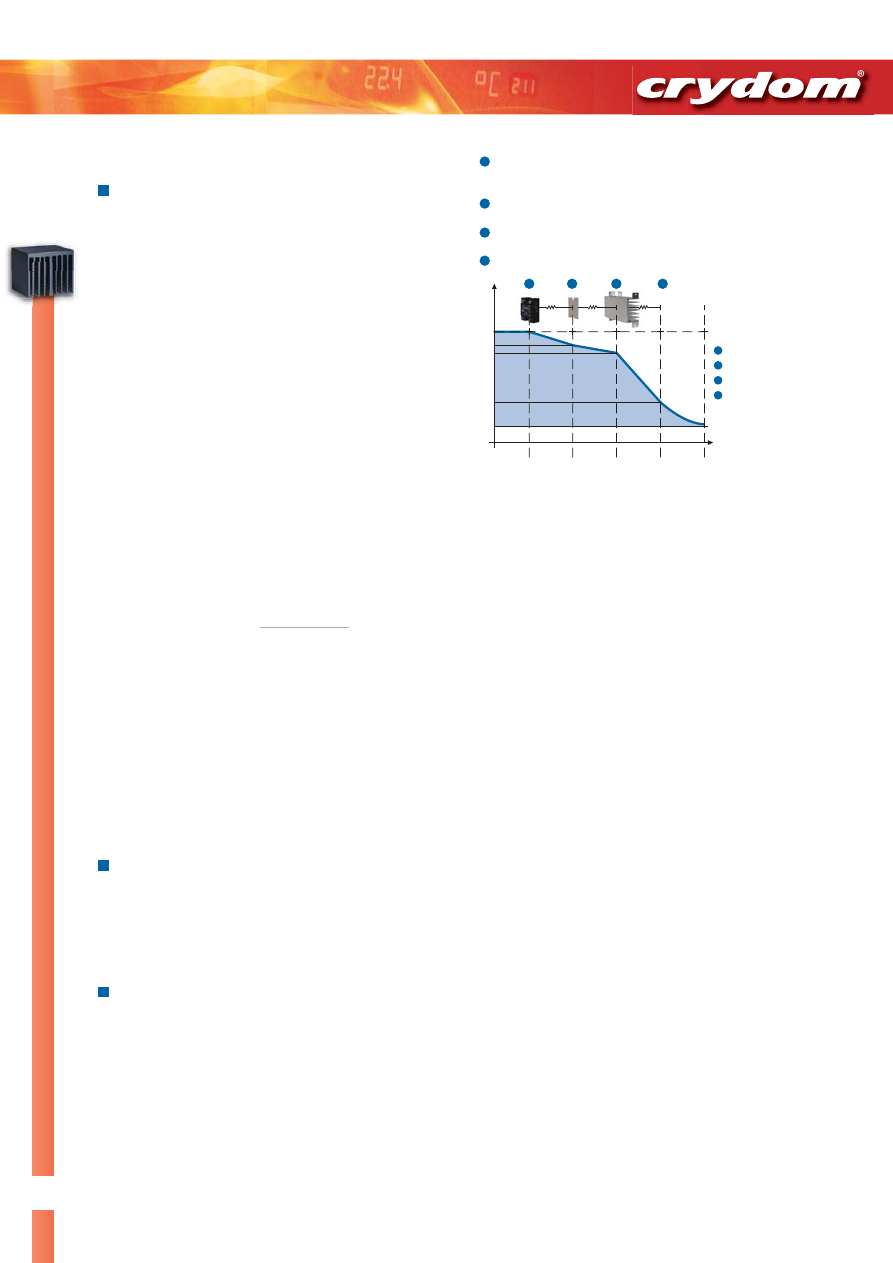

Why Heat Sinks are required for Reliable Solid

State Relay operation

How to calculate and select a Heat Sink for a

given Solid State Relay application

Heat Sinks

 are required to insure the proper operation and long term

reliability of Solid State Relays because they provide a means to dissipate
the power that is normally developed internally in the SSR into the
surrounding ambient air and maintain a safe operating temperature.

All SSRs in their conduction state create thermal energy in the output
semiconductor at the rate of approximately 1 to 1.5 watts per ampere of load
current for AC output SSRs, and 0.2 to 1.5 watts per ampere of load current
for DC output SSRs depending upon their design. This power dissipation
raises the Solid State Relay’s operating temperature above the surrounding
ambient.

Solid State Relays can operate reliably with out heat sinks up to
approximately 5 amps of load current depending upon model, duty cycle
and ambient temperature.  Free air ratings of traditional panel mount SSRs
may be as high as 8 to 10 amps, but this rating relies on the SSRs exposed
metal base plate acting as a heat sink, meaning that it must be exposed to
ambient air.

Heat Sinks

 are made of high thermal conductive material such as

aluminum.  Not only is aluminum’s thermal conductivity high, its cost is
relatively low.  Although other materials such as steel may provide a limited
measure of heat sinking, thermal conductivity of these materials are
relatively low compared to aluminum and therefore far less effective as a

Heat Sink

.  Coatings also tend to diminish the thermal dissipation

effectiveness of most materials and except anodizing, should be avoided.

Heat Sink

 performance is rated by thermal impedance, measured in °C per

watt (°C/W) (thermal impedance is the inverse of thermal conductivity).
Thermal impedance represents the resistance to the transfer of thermal
energy, therefore lower numerical thermal impedance ratings mean more
efficient heat transfer.

Thermal Impedance ratings of

Heat Sinks

 are based upon natural

convection air flow.  To achieve this performance, the

Heat Sink

 must be

oriented such that air flow over its finned surface is maximized.  Generally
this means the fins should be orientated vertically.

Significant improvement in

Heat Sink

 performance can be achieved by

providing forced air flow over the

Heat Sink’s

 surface area.  Fans delivering

relatively small volumes of air can reduce the Heat Sink’s thermal
impedance substantially, thereby improving its efficiency and consequently
the SSRs reliability.

The basic structure of a Solid State Relay includes an internal power
semiconductor mounted to an electrical insulator which in turn is mounted
to the Solid State Relay’s base plate.  To form an assembly, the SSR with an
accompanying thermal interface material placed on its base plate is then
torque mounted to the

Heat Sink

.

The thermal model representing the above configuration includes the
following elements:

Selecting a Heat Sink for a given Solid State

Relay application

Crydom offers technical assistance selecting a heat sink for any given SSR
application through its Applications Engineering Department and on its web
site.  Available “White Papers” and a selection “tool” to calculate a heat sink
rating based upon load current and ambient temperature are available at

www.crydom.com

.

To determine the minimum Heat Sink rating (R

Θ

hs

) required for a particular

application, the SSRs internal power dissipation must first be calculated.
The power developed in the SSR will be the product of the actual load
current in amps times the SSRs specified on state voltage drop at that
current ( P

d

 = I

f

 x V

f

). Note: Manufacturers generally specify 'maximum

forward voltage drop' in their data sheets. Typical voltage drops are often
much lower.

For this example, assume that a 25 amp AC output SSR is selected to switch
an AC load current of 18 amps with forward voltage drop specified to be 1.25
volts.  Therefore the power generated in the SSR is 18 amps times 1.25 volts
=  22.5 watts.

Next, determine the Solid State Relay’s specified thermal impedance and
allowed maximum internal temperature (if the max internal temperature is
not specified by the manufacturer, assume 125 °C as this is a common value
for many AC power semiconductors). For this example, assume R

Θ

ssr

 of 0.3

°C/W and T

j

   of 125 °C.

The next step is to determine the maximum operating ambient temperature
(T

A

) in °C that the SSR will be expected to operate in its application.  The

ambient value should be the ambient air temperature of the local
environment such as the interior of a control cabinet where the SSR and
Heat Sink are to be mounted.  In this example, assume T

A

 of 55 °C.

Finally, the thermal impedance of the interface material (R

Θ

tp

) must be

determined. These materials will vary from 0.02 to 0.1 °C per watt
depending upon the type and thickness selected.  For this example, assume
that the thermal impedance of the selected interface material R

Θ

tp

 is 0.05

°C/W.

The first calculation is to determine the temperature span (

∆

t) that the

SSRs power must be dissipated into in order to maintain its proper
operation.  This will be the difference between the SSRs maximum allowed
internal temperature and the local ambient temperature.

∆

t = T

j

 max – T

A

.

In this example the result would be:

∆

t  = 125 – 55  =  70 °C.

The maximum allowed temperature rise noted above,

∆

t, must then be less

than or equal to the combined sum of temperature rises across the three
impedances times the power being developed in the SSR.

∆

t  < (R

Θ

 ssr + R

Θ

 tp + R

Θ

 hs) times Pd.  For this example it would be 70 < (0.3 + 0.05 + R

Θ



hs) x 22.5.  Therefore the Heat Sink thermal impedance is R

Θ

 hs < (

∆

t /Pd)

– (R

Θ

 ssr + R

Θ

 tp) or 70/22.5 – 0.35, equaling 2.76 °C/W.

Therefore in this example, a 2.75 °C/W or larger (lower numerical value)
Heat Sink should be used with the Solid State Relay in the application as
described above.

Panel Mount SSR

A

Thermal Interface Material

B

Heat Sink

C

Ambient Air

D

A

B

C

D

R

θSSR



T

J

T

B

T

HS2

T

A

T

HS1

T

A

R

θTP

R

θHS

Solid State Relay - Heat Sink Assembly Thermal Model

Heat Sink Selection

The selected SSR with specified thermal impedance (R

Θ

 ssr

), forward

voltage drop (V

f

), and maximum allowed internal operating temperature

(T

j

).

The thermal interface material placed between the SSR and the

Heat

Sink

 and its specified thermal impedance (R

Θ

 tp

).

The calculated minimum

Heat Sink

thermal impedance rating (R

Θ

 hs

)

required for proper SSR operation.
The operating environment’s max ambient air temperature in °C (T

A

).

D

C

B

A

Heat Sinks

Heat Sinks

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Heat Sinks

Heat Sinks

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

5

New

HS351, HS351DR

HS351

HS351DR

3.5°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail or panel mounting

2

1

3

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.78 x 3.20 x 1.78
45.2 x 81.0 x 45.2
44.9/290
Aluminum
Natural Aluminum
.28/128
Two 8x32, 15 to 20/1.7 to 2.2
No

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 2 (DRK2)

Heat Sink (HS351)

One Hardware Kit 1 (HK1)

1

2

4

3

HS351DR includes

*

4

3.20 [81.0]

1.78 [45.2]

1.78 [45.2]

New

HS301, HS301DR

HS301

HS301DR

3.0°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail or panel mounting

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.78 x 3.20 x 1.58
45.2 x 81.0 x 40.1
59.0/381
Aluminum
Black Anodized
.40/178
Two 8x32, 15 to 20/1.7 to 2.2
Yes/one 40

3

2

1

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 1 (DRK1)

Heat Sink (HS301)

One Hardware Kit 1 (HK1)

HS301DR includes

*

1

2

4

3

4

1.78 [45.2]

3.20 [81.00]

1.58 [40.1]

New

HS501DR

HS501DR

5.0°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail mounting

Size (W x L x H) [in]
Size (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.75 x 3.15 x .60
44.5 x 80.0 x 15.3
19.0/122
Steel
Yellow zinc
.12/52
Two M4, 15 to 20/1.7 to 2.2
No

3.15 [80.0]

1.75 [44.5]

.60 [15.3]

2

1

3

HS501DR includes

*

DIN Mounting Bracket

M4 Mounting Screws

Latch Release

1

2

3

New

HS271, HS271DR

HS271

HS271DR

2.7°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail or panel mounting

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.78 x 3.20 x 2.96
45.2 x 81.0 x 75.2
68.5/442
Aluminum
Natural Aluminum
.45/204
Two 8x32, 15 to 20/1.7 to 2.2
No

2

3

1

HS271DR includes

*

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 2 (DRK2)

Heat Sink (HS271)

One Hardware Kit 1 (HK1)

1

2

4

3

4

1.78 [45.2]

3.20 [81.0]

2.96 [75.2]

*

HSxxxDR components are pre-installed at the factory prior to shipment.

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

6

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

Heat Sinks

Heat Sinks

New

HS172

1.7°C/W Thermal resistance
Suitable for 1 or 2 single or dual SSRs
Panel mounting

Size w/o Brackets (W x L x H) [in]
Size w/o Brackets (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]

***

Accepts fan(s)/qty & size [mm]

***

For HS172 heat sink, we recommend the HK1 hardware kit for SSR mounting.

The number of kits required depends upon the number and type of SSRs to be mounted.

2.31 x 3.95 x 1.51
58.7 x 100.3 x 38.4
102.2/659
Aluminum
Natural Aluminum
.43/196
Six 8x32, 15 to 20/1.7 to 2.2
No

2.31 [58.7]

3.95 [100.3]

3.36 [85.3]

1.51 [38.4]

New

HS202, HS202DR

HS202

HS202DR

2.0°C/W Thermal resistance
Suitable for 1 or 2 single or dual SSRs
DIN rail or panel mounting available

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

3.55 x 3.20 x 1.58
90.2 x 81.3 x 40.1
106.7/688
Aluminum
Black Anodized
.70/319
Six 8x32, 15 to 20/1.7 to 2.2
Yes/one or two 40

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 1 (DRK1)

Heat Sink (HS202)

Two Hardware Kits 1 (HK1)

HS202DR includes

*

1

2

4

3

4

3.55 [90.2]

3.20 [81.3]

1.58 [40.1]

3

1

2

New

HS251

2.5°C/W Thermal resistance
Suitable for 1 single or dual SSR
Panel mounting

Size w/o Brackets (W x L x H) [in]
Size w/o Brackets (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]

**

Accepts fan(s)/qty & size [mm]

**

 HS251 requires a hardware kit (HK1) to mount the SSR.

2.31 x 1.98 x 1.51
58.7 x 50.3 x38.4
52.1/336
Aluminum
Natural Aluminum
.22/99
Two 8x32, 15 to 20/1.7 to 2.2
No

2.31 [58.7]

1.98 [50.3]

1.51 [38.4]

3.36 [85.3]

New

HS201, HS201DR

HS201

HS201DR

2.0°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail or panel mounting available

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.78 x 3.20 x 3.15
45.2 x 81.0 x 80.0
116.3/750
Aluminum
Black Anodized
.71/322
Two 8x32, 15 to 20/1.7 to 2.2
Yes/one 40

HS201DR includes

*

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 1 (DRK1)

Heat Sink (HS201)

One Hardware Kit 1 (HK1)

1

2

4

3

3.20 [81.0]

1.78 [45.2]

3.15 [80.0]

3

2

1

4

*

HSxxxDR components are pre-installed at the factory prior to shipment.

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

7

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

Heat Sinks

Heat Sinks

New

HS122, HS122DR

HS122

HS122DR

1.2°C/W Thermal resistance
Suitable for 1 or 2 single or dual SSRs
DIN rail or panel mounting available

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

3.54 x 3.20 x 3.15
90.0 x 81.3 x 80.0
210.3/1360
Aluminum
Black Anodized
1.17/532
Six 8x32, 15 to 20/1.7 to 2.2
Yes/one 60

HS122DR includes

*

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 1 (DRK1)

Heat Sink (HS122)

Two Hardware Kits 1 (HK1)

1

2

4

3

4

3.54 [90.0]

3.20 [81.3]

3.15 [80.0]

1

2

3

HS072

0.7°C/W Thermal resistance
Suitable for 1 or 2 single or dual SSRs
Panel mounting

Size (W x L x H) [in]
Size (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]

***

Accepts fan(s)/qty & size [mm]

***

For HS072 heat sinks, we recommend the HK1 hardware kit for SSR mounting.

The number of kits required depends upon the number and type of SSRs to be mounted.

4.75 x 5.50 x 2.63
120.7 x 149.7 x 66.8
253.6/1640
Aluminum
Natural Aluminum
1.16/526
Six 8x32, 15 to 20/1.7 to 2.2
No

5.50 [149.7]

2.63 [66.8]

1.95 [49.5]

4.75 [120.7]

New

New

HS151, HS151DR

HS151DR

HS151

1.5°C/W Thermal resistance
Suitable for 1 single or dual SSR
DIN rail or panel mounting available

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

1.78 x 3.20 x 3.74
45.2 x 81.3 x 95.0
138.0/891
Aluminum
Black Anodized
.85/319
Two 8x32, 15 to 20/1.7 to 2.2
Yes/one 40

HS151DR includes

*

Ground Screw (10-32 x 3/8 in)

DIN Rail Kit 1 (DRK1)

Heat Sink (HS151)

One Hardware Kit 1 (HK1)

1

2

4

3

1.78 [45.2]

3.20 [81.3]

3.74 [95.0]

3

2

1

4

New

HS103, HS103DR

HS103

HS103DR

1.0°C/W Thermal resistance
Suitable for 1, 2, or 3 single or
dual SSRs; one 3 Phase SSR
DIN rail or panel mounting available

Size w/o Bracket (W x L x H) [in]
Size w/o Bracket (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight w/o DIN Bracket [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]
Accepts fan(s)/qty & size [mm]

5.20 x 3.00 x 2.37
132.0 x 76.2 x 60.2
227.2/1470
Aluminum
Black Anodized
.97/439
Six 8x32, 15 to 20/1.7 to 2.2
Yes/one or two 40

HS103DR includes

*

Heat Sink (HS103)

Extruded DIN Rail Bracket

Fasteners

Three Hardware Kits 1 (HK1)

1

2

3

4

3.00 [76.2]

5.20 [132.0]

2.37 [60.2]

1

2

3

4

*

HSxxxDR components are pre-installed at the factory prior to shipment.

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

8

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

Accessories

Accessories

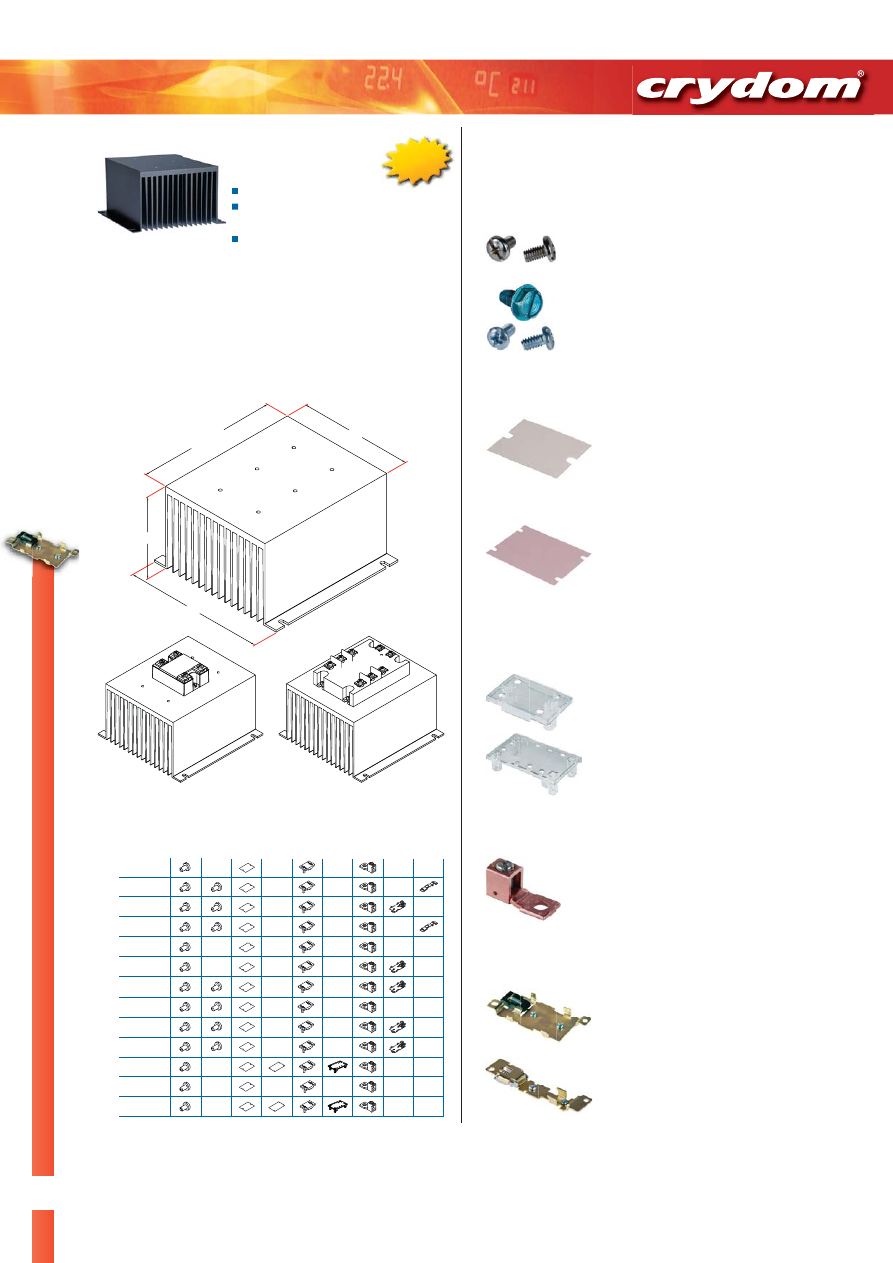

New

HS053

0.5°C/W Thermal resistance
Suitable for 1, 2, or 3 single or
dual SSRs; one 3 Phase SSR
Panel mounting

Size (W x L x H) [in]
Size (W x L x H) [mm]
Surface Area [square inches/square cm]
Heat Sink Material
Heat Sink Surface Finish
Weight [lbs/grs]
SSR Mounting Holes, Screw Torque [in lbs/Nm]

***

Accepts fan(s)/qty & size [mm]

***

For HS053 heat sink, we recommend the HK1 hardware kit for SSR mounting.

The number of kits required depends upon the number and type of SSRs to be mounted.

6.00 x 6.00 x 3.50
152.4 x 152.4 x 88.9
694.3/4480
Aluminum
Black Anodized
3.14/1423
Six 8x32, 15 to 20/1.7 to 2.2
Yes/one 80

4.90 [124.5]

6.00 [152.4]

6.00 [152.4]

3.50 [88.9]

HK1, HK2

Hardware Kit 1

Part no.: HK1
Bag with 2 SSR mounting screws 8-32 x 3/8.

Hardware Kit 2

Part no.: HK2
Bag with 1 ground screw 10-32 x 3/8 and 2 bracket
screws 6-32 x 1/4.

Hardware Kits

Accessories

HSP1, HSP3, TP01, TP03

Single Phase Heat Transfer Pads

Part no.: HSP1
2.3x1.8 in or 58.4 x 45.7 mm Non-adhesive thermal pad
for single phase and dual panel mount SSRs (25 pack).

Part no.: TP01

TP01

TP03

2.1x1.6 in or 53.3x40.6 mm Thermal pad for single phase
or dual panel mount SSRs. Includes adhesive on one side.

Three Phase Heat Transfer Pads

Part no.: HSP3

Part no.: TP03
3.9x2.8 in or 99.1x71.1 mm Thermal pad for three phase
panel mount SSRs. Includes adhesive on one side.

4.1x2.9 in or 104.1x73.7 mm Thermal pad for three phase
panel mount SSRs.

Thermal Pads

DRK1, DRK2

DIN Rail Bracket Kits

DIN Rail Kit 2

Part no.: DRK2
Weight 0.7lbs/31grs.
Spring, DIN Rail Latch, 22.5mm DIN Rail bracket
and 2 screws 6-32 x 1/4.

DIN Rail Kit 1

Part no.: DRK1
Weight 0.8lbs/34grs.
Spring, Retaining clip, 45mm DIN Rail bracket and
2 screws 6-32 x 1/4.

KS100, KS300

Single Phase SSR Cover

Part no.: KS100
Clear plastic cover for standard single phase SSRs.

Three Phase SSR Cover

Part no.: KS300
Clear plastic cover for three phase SSRs.

KS Covers

Product/Accessories Index

5

HS501DR

5

HS351

5

HS301

5

HS271

6

HS251

6

HS202

6

HS172

7

HS151

7

HS122

7

HS103

7

HS072

8

HS053

6

HS201

Page Part number

HK1

HK2

HSP1

TP01

HSP3

TP03 KS100 KS300

DRK1

TRM6

DRK2

TRM6

Copper wire lug for SSR

Output Terminals

Part no.: TRM6
Accepts AWG 14 to AWG 6 wire size.
Mounts with #8 ,#10, M4 or M5 screws.

Wire Lug Terminal

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

9

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

Assemblies

Assemblies

How to Select a Solid State Relay/Heat Sink

Assembly from the catalog

Each Assembly carries a maximum load current rating verses ambient
temperature, line voltage rating and control voltage rating.  There are load
current ratings available up to 80+ amps AC, line voltage ratings available
up to 660 VAC and all models are available with DC control voltage.

Selection of the best assembly can be accomplished as follows:

You may choose to go to our website at

www.crydom.com/en/HSseries

and use the assembly selection tool available there. The selection tool
requires the same parameters as noted above to select an SSR/Heat Sink
Assembly.

Don’t find the combination of ratings

you need?

Crydom markets a broad selection of class leading Solid State Relays.  We
not only offer the customer the ability to select among a wide range of
standard panel mount power SSR products, including AC output or DC
output, random or zero turn on, single, dual or 3 phase SSRs mounted to
any of our available heat sinks, but we can adapt the design of the Solid State
Relay and even the

Heat Sinks

 themselves to precisely meet your

application requirements.  Consult your local Crydom Representative for
more information and assistance.

Why Select a SSR/Heat Sink Assembly versus

a Solid State Relay and a Heat Sink?

Assemblies offer the advantage of eliminating the calculations and heat sink
selection during the design phase of a project, and they eliminate the
assembly process during the production phase of a project. Thermal
derating curves for each SSR/Heat Sink combination make the selection of
the best possible solution significantly easier. The SSRs and Heat Sinks
arrive fully assembled with thermal interface material and mounting screws
torqued to the correct values and are “ready to use”.  Optional available DIN
rail mounting brackets can also be ordered pre-installed on the heat sink,
further easing mounting.

Selecting a Solid State Relay/Heat Sink

Assembly for an Application

Crydom offers technical assistance selecting a SSR/Heat Sink Assembly for
any given SSR application through its Applications Engineering Department
and on its web site.  Available “White Papers” and a selection “tool” to
determine the optimum SSR/Heat Sink Assembly for an application based
upon load current & voltage, control voltage and ambient temperature are
available at

www.crydom.com/en/HSseries

.

Solid State Relay/Heat Sink
Assembly Selection

Determine what maximum line voltage is required for the application.
Determine the input control voltage required or voltage range available.
Determine the maximum load current and maximum ambient
temperature that the Assembly is expected to operate in.
Establish the preferred mounting method, panel or DIN rail.
Once the above information is gathered, examine each Assembly’s
derating chart in the catalog and select models with suitable combined
rating for the required load current at the required ambient temperature.
From this group of Assemblies, select a model with the correct
combination of line voltage, control voltage and required mounting.
Order the Crydom SSR/Heat Sink assembly from your preferred Crydom
Distributor or contact your local Crydom Representative or Regional
Sales Office for more information or technical assistance.

1
2
3

4
5

6

7

1

2

3

4

DIN Mounting Bracket (HS501DR)
Thermal Pad (TP01)
SSR (See table above for options)
M4 Mounting Screws

Assembly includes

1

3

4

2

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS501DR-D2425

24-280

.04-10

3-32

3.4 @ 5Vdc

48-660

.04-10

3-32

2.0 @ 5Vdc

1
1

HS501DR-HD6025

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

2

4

6

8

10

HS501DR w/25 A single channel SSR

Loa

d C

ur

re

nt

, A

m

ps

HS501DR Assemblies

10 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

Assemblies

Assemblies

10

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

HS351DR Assemblies

20 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 2 (DRK2)
Heat Sink (HS351)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS351DR-D2425

24-280

.04-20

3-32

3.4 @ 5Vdc

48-660

.04-20

3-32

2.0 @ 5Vdc

1
1

HS351DR-HD6025

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

2

4

6

8

10

12

14

16

18

20

HS351DR w/25 A single channel SSR

Loa

d C

ur

re

nt

, A

m

ps

6

2

1

5

3

4

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 1 (DRK1)
Heat Sink (HS301)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS301DR-D2425

24-280

.04-24

3-32

3.4 @ 5Vdc

48-660

.04-24

3-32

2.0 @ 5Vdc

1
1

HS301DR-HD6025

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

HS301DR w/25 A single channel SSR

Loa

d C

ur

re

nt

, A

m

ps

HS301DR Assemblies

24 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

6

5

3

2

1

4

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

11

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

Assemblies

Assemblies

HS271DR Assemblies

25 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 2 (DRK2)
Heat Sink (HS271)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS271DR-D2425

24-280

.04-25

3-32

3.4 @ 5Vdc

48-660

.04-25

3-32

2.0 @ 5Vdc

1
1

HS271DR-HD6025

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

HS271DR w/25 A single channel SSR

Loa

d C

ur

re

nt

, A

m

ps

2

6

5

3

1

4

1

2

3

4

Heat Sink (HS251)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS251-D2450

24-280

.04-28

3-32

3.4 @ 5Vdc

48-660

.04-28

3-32

2.0 @ 5Vdc

1
1

HS251-HD6050

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

HS251 w/50 A single channel SSR

Loa

d C

ur

re

nt

, A

m

ps

HS251 Assemblies

28 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
Panel mounted
UL, CSA, VDE, CE approved SSRs

4

3

2

1

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

12

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

Assemblies

Assemblies

HS202DR Assemblies

35 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 1 (DRK1)
Heat Sink (HS202)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS202DR-D2450

24-280

.04-35

3-32

3.4 @ 5Vdc

48-660

.04-35

3-32

2.0 @ 5Vdc

1
1

HS202DR-HD6050

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

35

HS202DR w/50 A single channel SSR

Load C

u

rr

e

n

t, A

m

p

s

3

2

1

6

5

4

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 1 (DRK1)
Heat Sink (HS201)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

6

5

3

1

4

2

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS201DR-D2450

Dual

24-280

.04-35

3-32

3.4 @ 5Vdc

24-280

.04-35

3-32

2.0 @ 5Vdc

1
1

Line
Voltage
Range

Load
Current
Range

*

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

24-280

.15-35

4-32

10 @ 12Vdc

1

HS201DR-HD6050

HS201DR-CC2425W3U

*

 Output current specification is total combined load current for all conducting channels.

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

35

HS201DR w/50 A single channel

or 25 A/channel dual SSR

*

Combined Load

C

u

rr

e

n

t, A

m

p

s

HS201DR Assemblies

35 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single or Dual channel outputs
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

13

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

Assemblies

Assemblies

HS172 Assemblies

36 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
Panel mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

Heat Sink (HS172)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS172-D2450

24-280

.04-36

3-32

3.4 @ 5Vdc

48-660

.04-36

3-32

2.0 @ 5Vdc

1
1

HS172-HD6050

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

35

40

HS172 w/50 A single channel SSR

Load C

u

rr

e

n

t, A

m

p

s

2

1

3

4

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 1 (DRK1)
Heat Sink (HS151)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS151DR-D2450

Dual

24-280

.04-40

3-32

3.4 @ 5Vdc

48-660

.04-40

3-32

2.0 @ 5Vdc

1
1

Line
Voltage
Range

Load
Current
Range

*

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

24-280

.15-40

4-32

10 @ 12Vdc

1

HS151DR-HD6050

HS151DR-CC2450W3U

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

35

40

HS151DR w/50 A single channel

or 50 A/channel dual SSR

*

C

o

m

b

in

e

d

 Load

C

u

rr

e

n

t, A

m

p

s

HS151DR Assemblies

40 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single or Dual channel outputs
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

6

5

4

3

2

1

*

 Output current specification is total combined load current for all conducting channels.

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

14

Questions?

Call or e-mail

+1 (877) 502 5500

 +44 (0) 1202 606030

sales@crydom.com

sales-europe@crydom.com

Americas

Europe

Assemblies

Assemblies

HS122DR Assemblies

45 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single or Dual channel outputs
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

5

6

Ground Screw (10-32 x 3/8 in)
DIN Rail Kit 1 (DRK1)
Heat Sink (HS122)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS122DR-D2450

Dual

24-280

.04-45

3-32

3.4 @ 5Vdc

48-660

.04-45

3-32

2.0 @ 5Vdc

1
1

Line
Voltage
Range

Load
Current
Range

*

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

24-280

.15-45

4-32

10 @ 12Vdc

1

HS122DR-HD6050

HS122DR-CC2450W3U

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

5

10

15

20

25

30

35

40

45

HS122DR w/50 A single channel

or 50 A/channel dual SSR

C

o

m

b

in

e

d

 Load

C

u

rr

e

n

t, A

m

p

s

3

2

1

*

 Output current specification is total combined load current for all conducting channels.

1

2

3

4

5

6

Fasteners
Extruded DIN Rail Bracket
Heat Sink (HS103)
Thermal Pad (TP01/TP03)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS103DR-D2490

24-280

.04-55

3-32

3.4 @ 5Vdc

48-660

.04-55

3-32

2.0 @ 5Vdc

1
1

HS103DR-HD6090

3 Phase

Line
Voltage
Range

Load
Current
Range

*

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

48-530

.05-55

3-32

10 @ 5Vdc

1

HS103DR-D53TP25D

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

10

20

30

40

50

60

HS103DR w/90 A single channel

or 25 A/channel 3 Phase SSR

*

C

o

m

b

in

e

d

 Load

C

u

rr

e

n

t, A

m

p

s

HS103DR Assemblies

55 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel or 3 phase outputs
3 to 32 VDC input control voltage
DIN Rail mounted
UL, CSA, VDE, CE approved SSRs

3

1

2

4

6

5

*

 Output current specification is total combined load current for all conducting channels.

6

5

4

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

15

For comprehensive mechanical specifications of these and other Crydom products visit

www.crydom.com

Assemblies

Assemblies

1

2

3

4

Heat Sink (HS053)
Thermal Pad (TP01/TP03)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS053-D24125

24-280

.15-82.5

3-32

3.4 @ 5Vdc

48-660

.15-82.5

3-32

2.0 @ 5Vdc

1
1

HS053-HD60125

3 Phase

Line
Voltage
Range

Load
Current
Range

*

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

48-530

.05-82.5

3-32

10 @ 5Vdc

1

HS053-D53TP50D

*

 Output current specification is total combined load current for all conducting channels.

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

20

40

60

80

100

HS053 w/125 A single channel
or 50 A/channel 3 Phase SSR

*

C

o

m

b

in

e

d

 Load

C

u

rr

e

n

t, A

m

p

s

HS053 Assemblies

82.5 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel or 3 phase outputs
3 to 32 VDC input control voltage
Panel mounted
UL, CSA, VDE, CE approved SSRs

4

3

2

1

HS072 Assemblies

65 Amp AC output @ 40 °C
24 to 280 or 48 to 660 VAC line
voltage range
Single channel output
3 to 32 VDC input control voltage
Panel mounted
UL, CSA, VDE, CE approved SSRs

1

2

3

4

Heat Sink (HS072)
Thermal Pad (TP01)
SSR (See table above for options)
Hardware Kit 1 (HK1)

Assembly includes

Line
Voltage
Range

Load
Current
Range

Control
Voltage
Range

Control
Current

Included
SSRs

Vrms

Arms

Vdc

mA

HS072-D2490

24-280

.04-65

3-32

3.4 @ 5Vdc

48-660

.04-65

3-32

2.0 @ 5Vdc

1
1

HS072-HD6090

Derating Curve

Ambient Temperature, °C

20

30

40

50

60

70

80

0

10

20

30

40

50

60

70

HS072 w/90 A single channel SSR

Load

 C

u

rr

e

n

t, A

m

p

s

2

3

4

1

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com

© 2009 Crydom Inc., All Rights Reserved.

07/2009

Specifications are subject to change without prior notice.
Crydom and the Crydom logo are registered trademarks
of Crydom Inc.

Distributed by :

Across the Globe

 AMERICAS

USA & CANADA

Crydom Inc

2320 Paseo de las Americas,
Suite 201
San Diego CA 92154

sales@crydom.com

support@crydom.com

Sales Support

Sales Support

Tel.: +1 (877) 502 5500

Tech Support

Tel.: +1 (877) 702 7700

tech-europe@crydom.com

Tech Support

Fax: +1 (619) 710 8540

ASIA
PACIFIC

CHINA & HONG KONG

Custom Sensors &
Technologies Asia
(Shanghai) Ltd.

2 Floor, Innovation Building,
No.1009, Yi Shan Road,
Shanghai, 200233
Tel.: +86 (21) 2401 7766
Fax: +86 (21) 6249 0701
sales-cn@crydom.com

EUROPE
MIDDLE EAST
AFRICA

Crydom SSR Ltd

Arena Business Centre
Holyrood, Close
Poole, Dorset BH17 7FJ

Tel.: +44 (0) 1202 606030
Fax: +44 (0) 1202 606035
sales-europe@crydom.com

CST Latinoamerica

SOUTHERN AND

CENTRAL AMERICAN

COUNTRIES

INDIA

SOUTH KOREA

CST Sensors India Pvt Ltd

Unit 1301 and 1302 Prestige
Meridian II
30 M.G.Road,
Bangalore - 560001
INDIA
Tel.: +91 (80) 4113 2204/05
Fax: +91 (80) 4113 2206
india@cstsensors.com

OTHER ASIAN AND

PACIFIC COUNTRIES

AUSTRIA & SWITZERLAND

BELGIUM

Tel.: +32 (0) 2 460 4413
Fax:

Tel.:
Fax:

+32 (0) 2 461 2614

sales-europe@crydom.com

UNITED KINGDOM

FRANCE

sales-europe@crydom.com

Tel.: +44 (0) 1202 606030
Fax: +44 (0) 1202 606035
vertrieb@crydom.com

GERMANY

Tel.: +49 (0) 180 3000 506
Fax: +49 (0) 180 3205 227
vertrieb@crydom.com

ITALY

Tel.: +39 (0) 2 665 99 260
Fax: +39 (0) 2 665 99 268
sales-europe@crydom.com

THE NETHERLANDS

Tel.: +31 (0) 71 582 0068
Fax: +31 (0) 71 542 1648
sales-europe@crydom.com

SPAIN

Tel.: +34 902 876 217
Fax: +34 902 876 219
sales-europe@crydom.com

MIDDLE EAST,

AFRICA AND OTHER

EUROPEAN COUNTRIES

Tel.: +44 (0) 1202 606030
Fax: +44 (0) 1202 606035
sales-europe@crydom.com

+33 (0) 810 123 963
+33 (0) 810 057 605

Custom Sensors &
Technologies

3F, No. 39, Ji-Hu Road
Nei-Hu Dist.
Taipei 114, Taiwan
Tel.:
Fax:

+886 2 8751 6388
+886 2 2657 8725

eap@cstsensors.com

TAIWAN

Custom Sensors &
Technologies

3F, No. 39, Ji-Hu Road
Nei-Hu Dist.
Taipei 114, Taiwan
Tel.: +886 2 8751 6388
Fax: +886 2 2657 8725
taiwan@cstsensors.com

MEXICO

Automatismo Crouzet
S.A. de C.V.

Calzada Zavaleta 2505 - C
Col Sta Cruz Buenavista
C.P. 72150 - Puebla
MEXICO
Tel.: +52 (222) 409 7000
Fax: +52 (222) 409 7810
01 800 087 6333

Custom Sensors &
Technologies

5F, Jeil Bldg.,
94-46 Youngdeungpo-dong 7-ga
Youngdeungpo-gu,
Seoul, 150-037
South Korea
Tel.: +82 2 2629 8312
Fax: +82 2 2629 8310
korea@cstsensors.com

BRASIL

info@cst-latinoamerica.com

sales-mx@crydom.com

Alameda Rio Negro, 1.084-cj.A31
Centro Empresarial de Alphaville
CEP: 06454-000
Barueri - SP

Tel.: +55 (11) 4191 9797
Fax: +55 (11) 4191 9136

CAT/CR/HS/EN

Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
