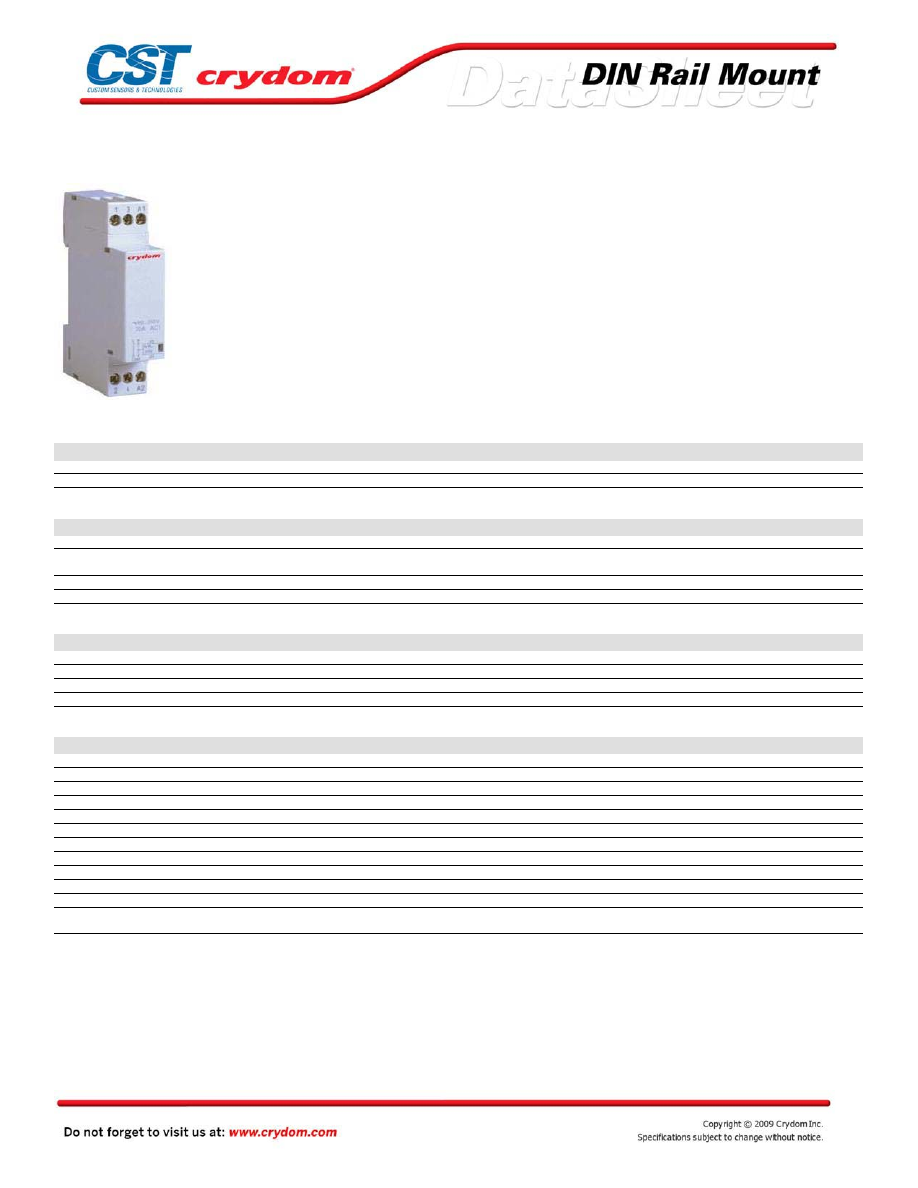

1RHP Series
•
Combined SSR and EMR advantages
•
Lifetime > 5 million operations full load
•
No heat sink required
• Input status LED indicator
•
Quiet Operation
•
17.5 mm DIN rail mount
•
UL/cUL Listed, CE & RoHS Compliant
• US Patent No. 6,347,024 B1
PRODUCT SELECTION
Control Voltage
4-32 VDC
1RHP2520D32
90-250 VAC
1RHP2520A
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-63Hz) [Vrms]
90-250
Maximum Load Current [Arms] (Resistive Load
Only)
20
Minimum Current [mArms]
100
Maximum Off-State Leakage Current [mArms]
5
INPUT SPECIFICATIONS (1)
Description
DC
AC
Control Voltage Range
4-32 VDC
90-250 VAC
Maximum Input Current [mA]
30
4.85
Minimum Input Current
2.3
1.65
Drop out Voltage
1 VDC
46 VAC
GENERAL SPECIFICATIONS (1)
Description
Parameters
Contacts
N.O.
Ambient Operating Temperature Range
-5 to 70°C
Ambient Storage Temperature Range
-40 to 85°C
Maximum Turn-On Time 50/60 Hz [msec]
20 / 16.6
Maximum Turn-Off Time 50/60 Hz [msec]
40 / 32
Maximum Number of Operations
20/min
Lifetime Number of Operations
>5 Million
Torque
8.85 in lb (1 Nm) max
Acoustic noise ON position
<35 db @ 3.2 ft (1m)
Acoustic noise switching
<50 db @ 1.6 ft (0.5m) max
Weight (typical)
70 gr
Terminal capacity
2x AWG 14 (1.5mm²) with ferrule:2 x AWG 12 (2.5mm²)
without ferrule
GENERAL NOTES
1) Specif ications @ 25°C unless othe rwise no ted.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

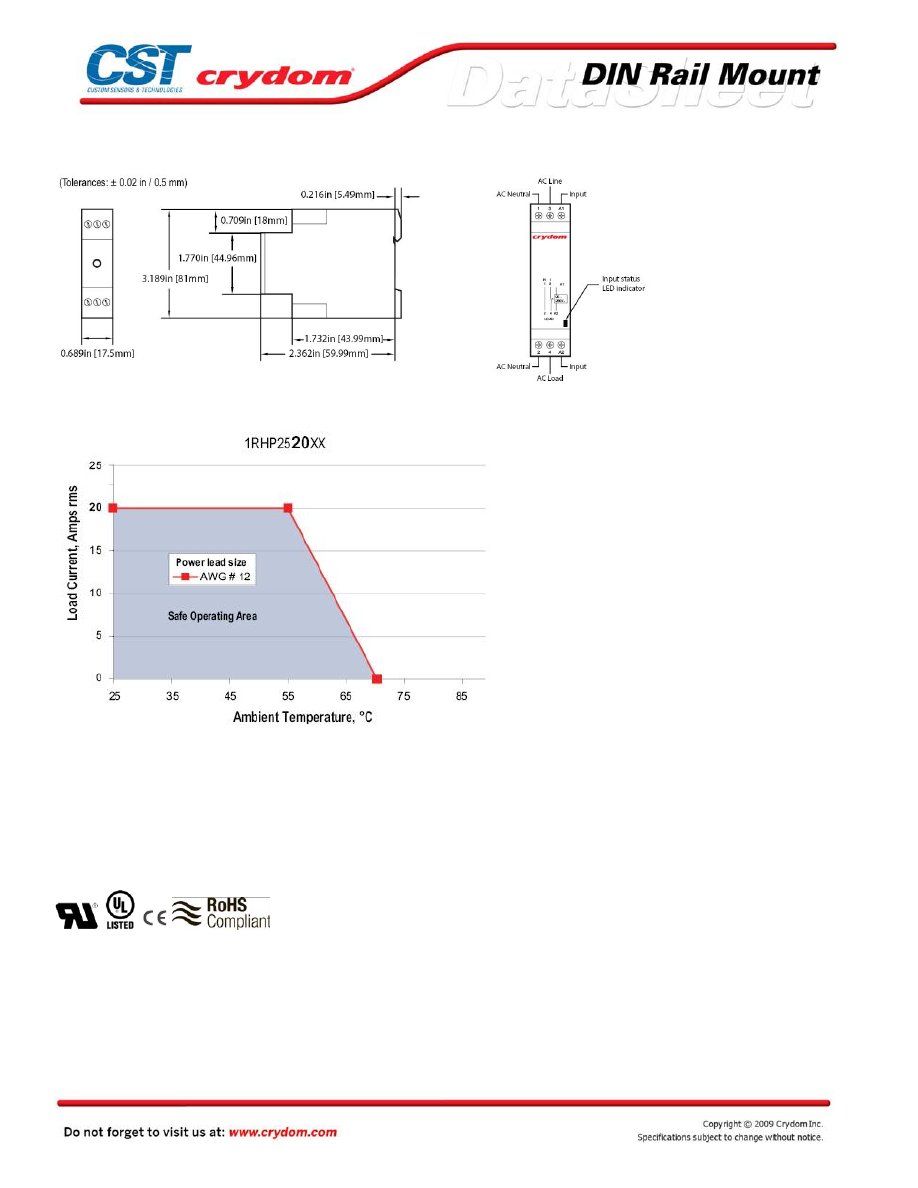

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
AGENCY APPROVALS
IEC 60947-4-3 (Industrial environment)
IEC 60669-2-1 (Household environment)
IEC 60601-1-1 (Medical environment)
IEC 60947-7-1 (Connections in industrial environment)
IEC 60998-2-1 (Connections in household environment)
Rev.
1210808
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

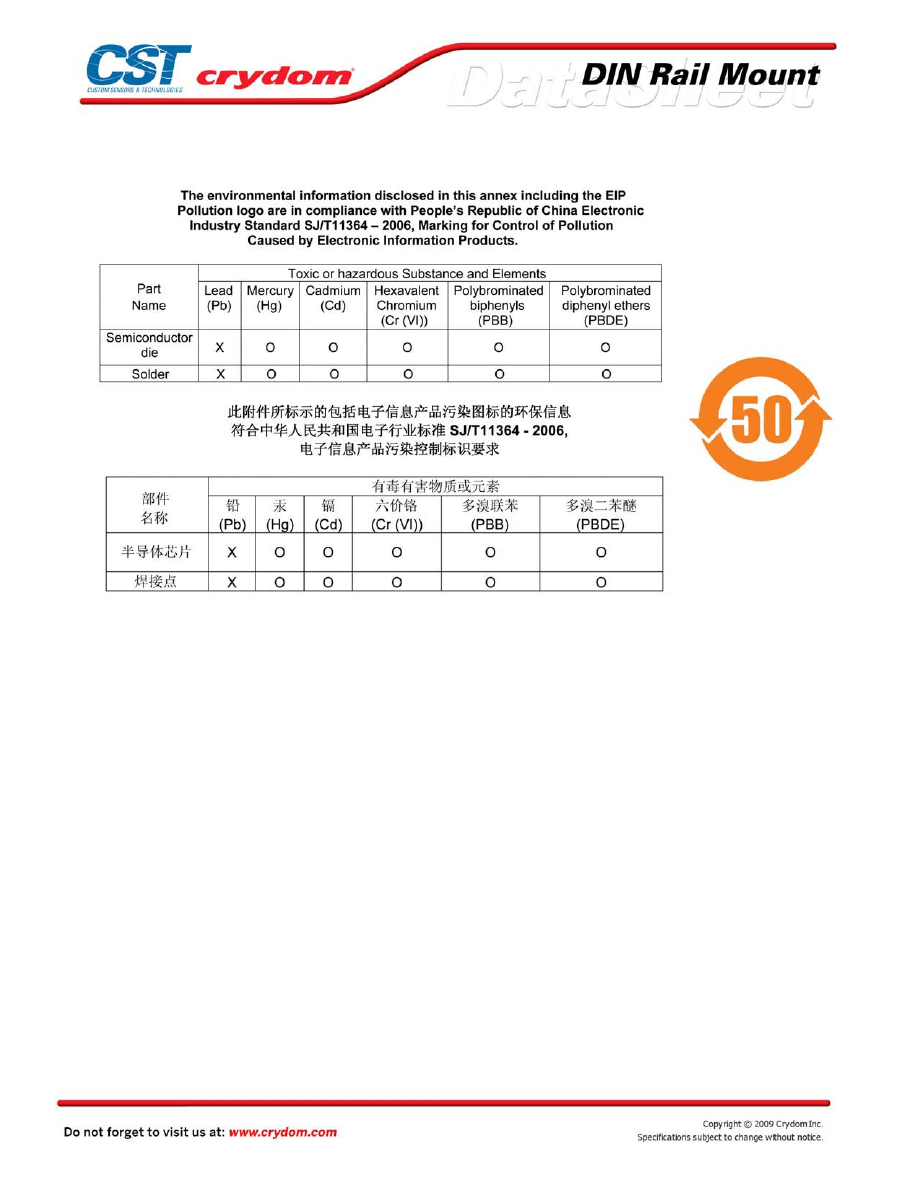

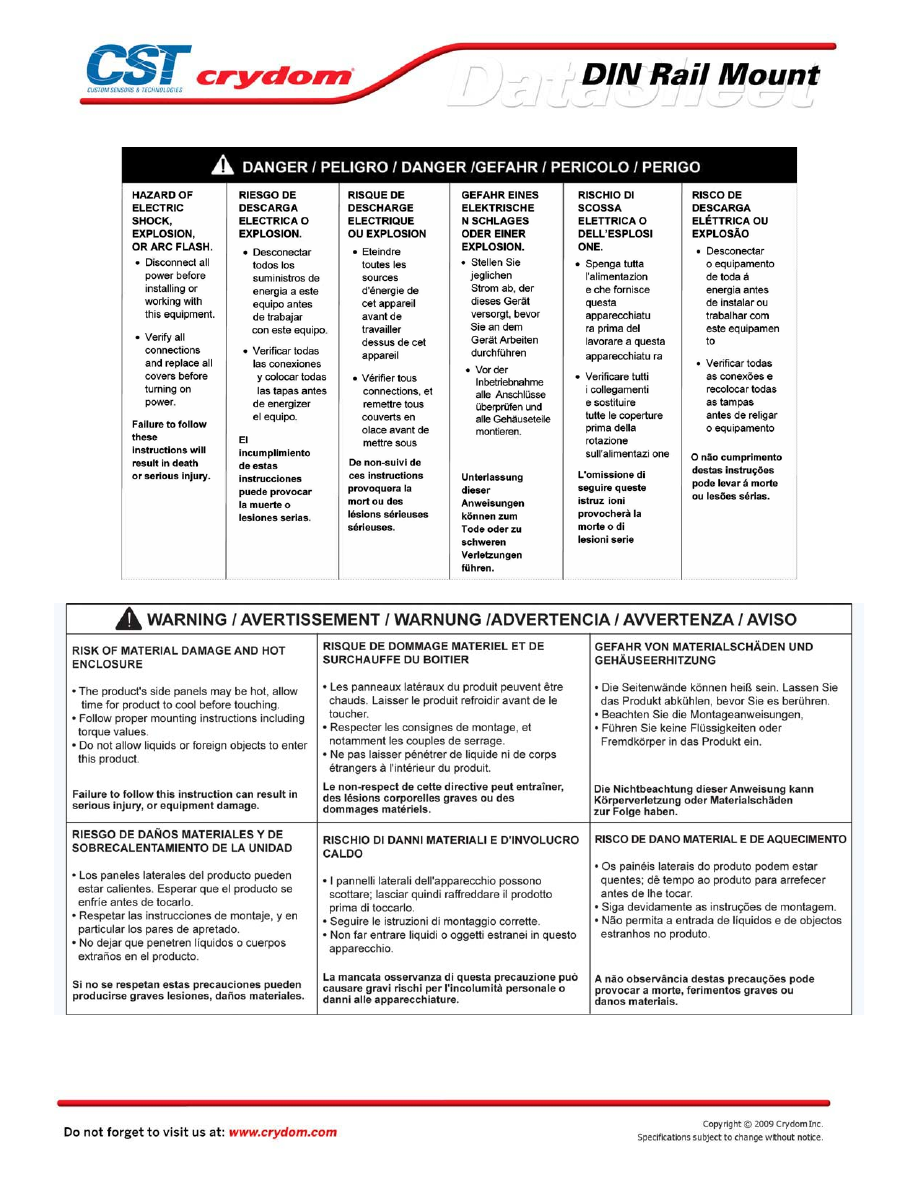

ANNEX - ENVIROMENTAL INFORMATION
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
3RHP Series AC Control
• 40 and 50A output
• Voltage ratings to 600 VAC
• Lifetime 2 million operations at full load
• LED input status indicator
• Wire, lug or quick connect termination
• Industry Standard DP contactor mounting
PRODUCT SELECTION
Control Voltage
40A 280 VAC
50A 280 VAC
40A 600 VAC
50A 600 VAC
20-26 VAC
3RHP2840E
3RHP2850E
3RHP6040E
3RHP6050E
100-130 VAC
3RHP2840F
3RHP2850F
3RHP6040F
3RHP6050F
208-240 VAC
3RHP2840G
3RHP2850G
3RHP6040G
3RHP6050G
OUTPUT SPECIFICATIONS (voltage)
Description
280 VAC
600 VAC
Operating Voltage (47-63Hz) [Vrms]
24-280
48-600
Maximum Off-State Leakage Current per channel
0.05 mA @ 240 VAC
0.06 mA @ 480 VAC
OUTPUT SPECIFICATIONS (current)
Description
40A
50A
Maximum Load Current per phase @ 40°C [Arms] (1)
40A Resistive / 30A Inductive
50A Resistive / 40A Inductive
Power terminals
1/4" Quick Connect and 10x32 binder
head screws
1/4" Quick Connect and box lugs
Wire Size
8-14 AWG
6-14 AWG
INPUT SPECIFICATIONS
Description
SUFIX E
SUFIX F
SUFIX G
Coil Voltage [50/60 Hz]
20-26 VAC
100-130 VAC
208-240 VAC
Min. Turn-On Voltage
20 VAC
100 VAC
208 VAC
Min. Turn-Off Voltage
12 VAC
24 VAC
48 VAC
Coil Power Consumption, inrush.
56 VA @ 220 VAC
56 VA @ 220 VAC
56 VA @ 220 VAC
Coil Power Consumption, sealed.
6.6 VA @ 220 VAC
6.6 VA @ 220 VAC
6.6 VA @ 220 VAC
GENERAL SPECIFICATIONS
Description
Parameters
Dielectric Strength, Input to Output
4000 Vrms
Dielectric Strength, Input/Output to ground
2500 Vrms
Contacts (2)
Three Normally Open
Ambient Operating Temperature Range (3)
-20 to 65 °C
Ambient Storage Temperature Range
-40 to 100 °C
Max. Turn-On Time 50/60 Hz
20 ms / 16.6 ms
Max. Turn-Off Time 50/60Hz
40 ms / 32 ms
Maximum Number of Operations
30 per Minute
Lifetime Number of Operations @ Rated Current (4)
> 2 Million
Weight (typical)
1.19 lbs (540 g)
Screw Torque (input/Output) 40A
10 in lb (1.13 Nm) / 18 in lb (2.1 Nm)
Screw Torque (input/Output) 50A
10 in lb (1.13 Nm) / 25 in lb (2.9 Nm)
GENERAL NOTES
(1) See Derating curves for additional operating conditions.
(2) The R HP includes a Solid Stat e Relay, therefore electrical isolation is not provided.
(3) The R HP includes over temperature protection for the solid state relay.
(4) 40°C ambient temperature, 30 operations/min, maximum voltage control.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

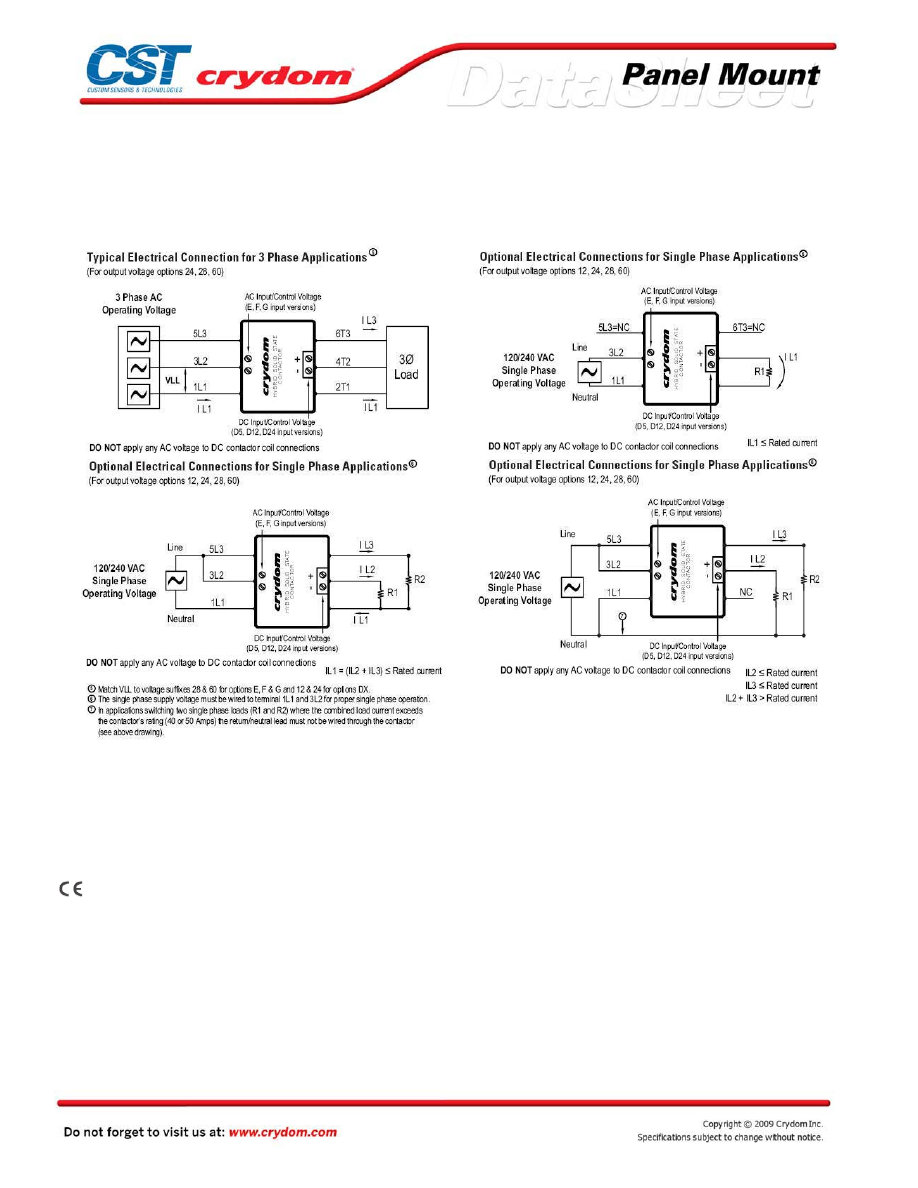

TYPICAL ELECTRICAL CONNECTIONS
AGENCY APPROVALS
UL/ cUL
Rev. 011409
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

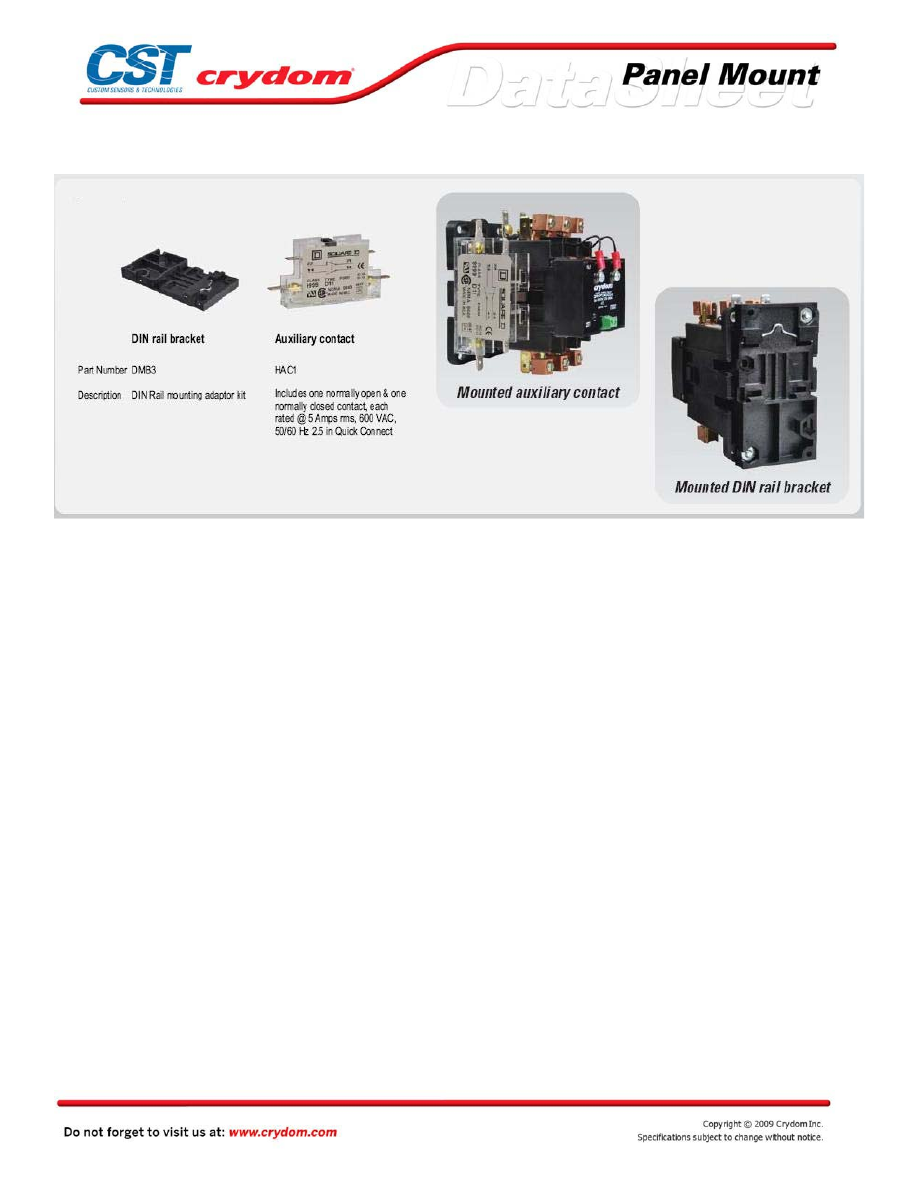

ACCESSORIES
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

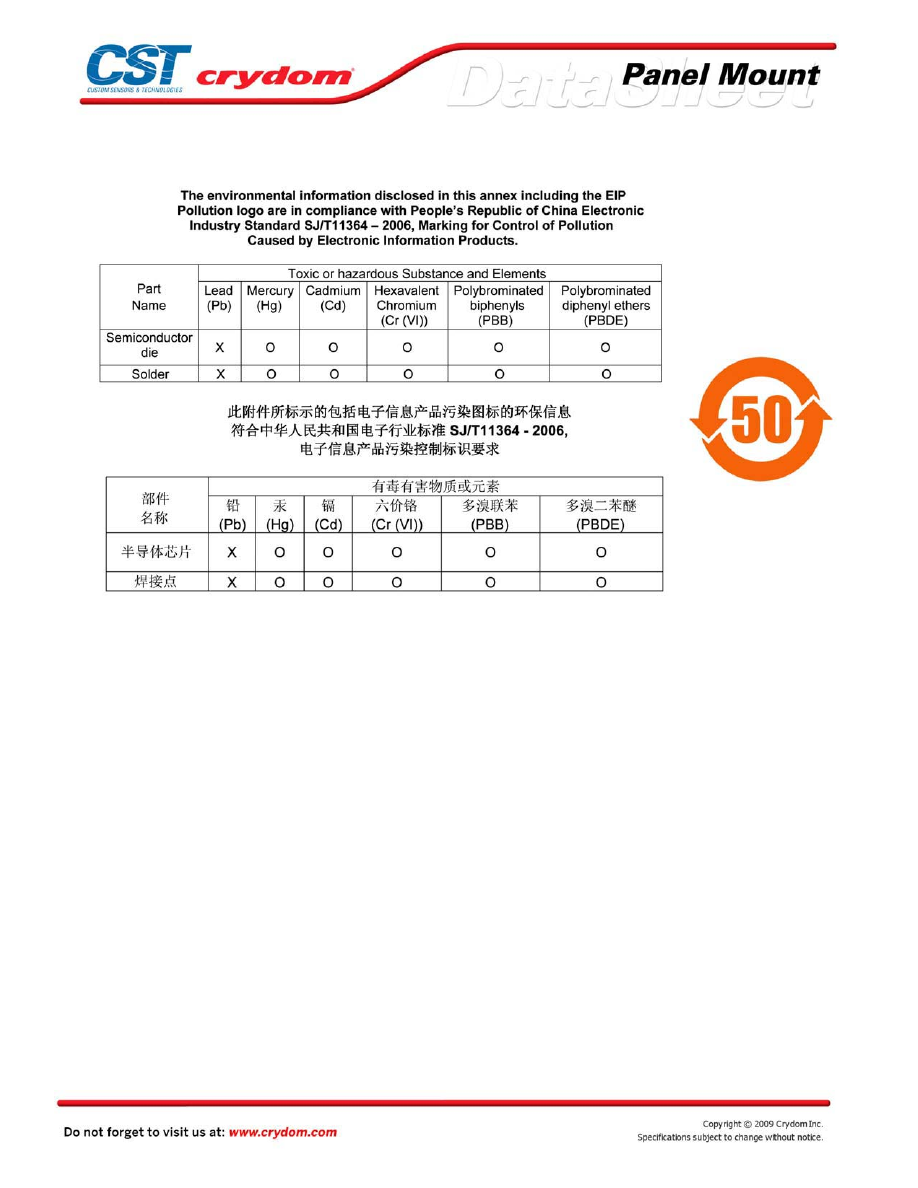

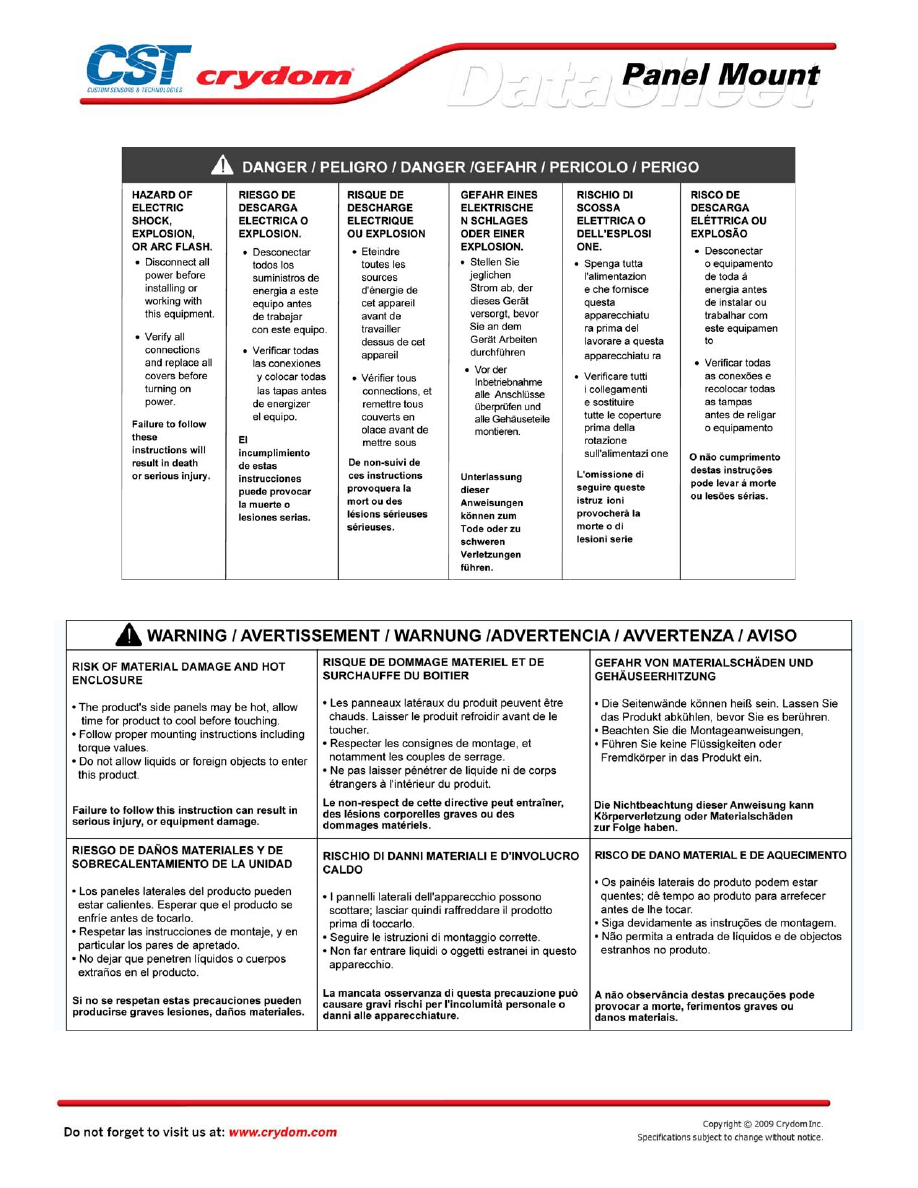

ANNEX - ENVIROMENTAL INFORMATION
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

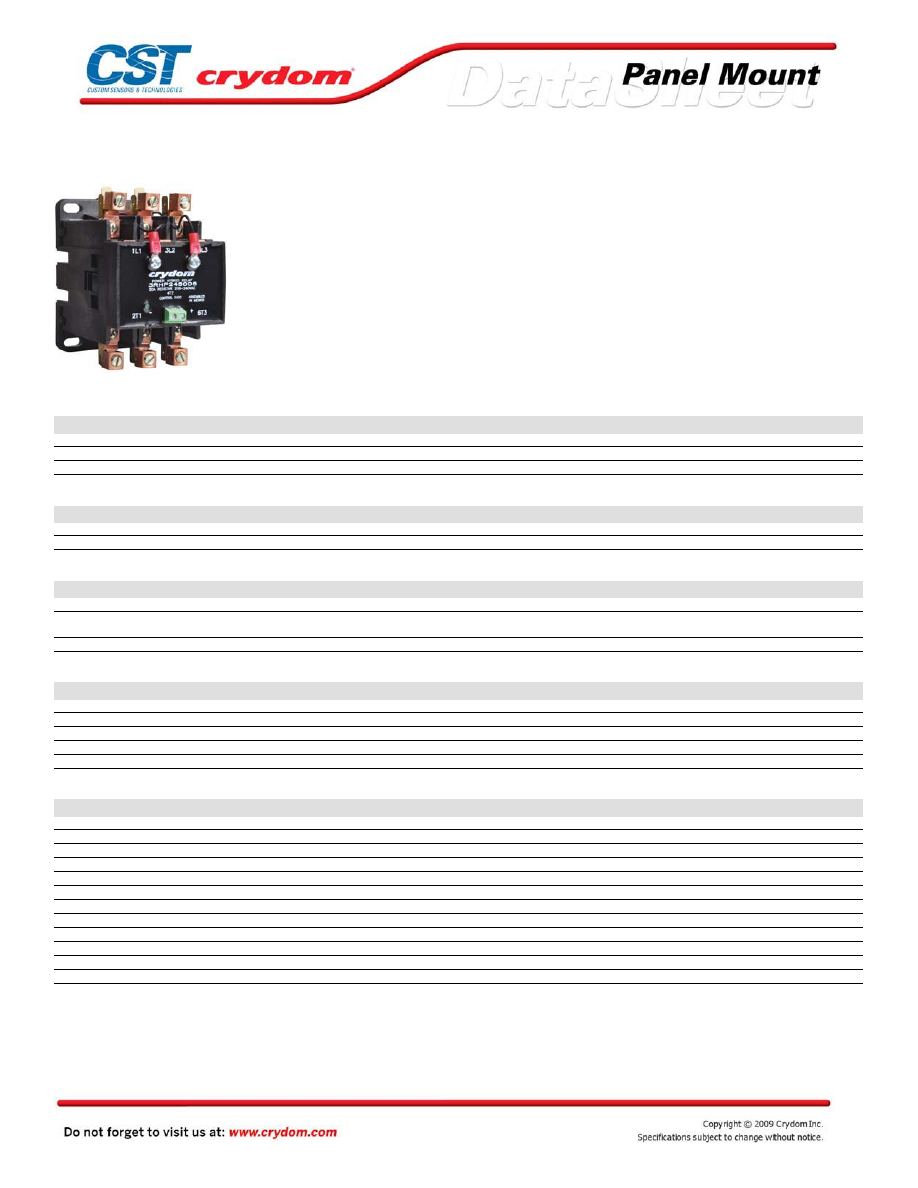

3RHP Series DC Control
• 40 and 50A output
• Voltage ratings to 240 VAC
• Lifetime 2 million operations at full load
• LED input status indicator
• Wire, lug or quick connect termination
• Industry Standard DP contactor mounting
PRODUCT SELECTION
Control Voltage
40A 120 VAC
50A 120 VAC
40A 240 VAC
50A 240 VAC
4.5-5.5 VDC
3RHP1240D5
3RHP1250D5
3RHP2440D5
3RHP2450D5
10-15 VDC
3RHP1240D12
3RHP1250D12
3RHP2440D12
3RHP2450D12
22-27 VDC
3RHP1240D24
3RHP1250D24
3RHP2440D24
3RHP2450D24
OUTPUT SPECIFICATIONS (voltage)
Description
120 VAC
240 VAC
Operating Voltage (47-63Hz) [Vrms]
100-120
208-240
Maximum Off-State Leakage Current per channel
0.05 mA @ 120 VAC
0.06 mA @ 240 VAC
OUTPUT SPECIFICATIONS (current)
Description
40A
50A
Maximum Load Current per phase @ 40°C [Arms] (1)
40A Resistive / 30A Inductive
50A Resistive / 40A Inductive
Power terminals
1/4" Quick Connect and 10x32 binder
head screws
1/4" Quick Connect and box lugs
Wire Size
8-14 AWG
6-14 AWG
INPUT SPECIFICATIONS
Description
SUFIX D5
SUFIX D12
SUFIX D24
Coil Voltage
4.5-5.5 VDC
10-15 VDC
22-27 VDC
Max. Reverse Voltage
-5.5 VDC
-15.5 VDC
-27.5 VDC
Input Current
12mA @ 5 VDC
12mA @ 12 VDC
12mA @ 24 VDC
Min. Turn-On Voltage
4.5 VDC
9.5 VDC
9.5 VDC
Min. Turn-Off Voltage
1 VDC
2 VDC
2 VDC
GENERAL SPECIFICATIONS
Description
Parameters
Dielectric Strength, Input to Output
4000 Vrms
Dielectric Strength, Input/Output to ground
2500 Vrms
Contacts (2)
Three Normally Open
Ambient Operating Temperature Range (3)
-20 to 75 °C
Ambient Storage Temperature Range
-40 to 100 °C
Max. Turn-On Time 50/60 Hz
20 ms / 16.6 ms
Max. Turn-Off Time 50/60Hz
40 ms / 32 ms
Maximum Number of Operations
30 per Minute
Lifetime Number of Operations @ Rated Current (4)
> 2 Million
Weight (typical)
1.19 lbs (540 g)
Screw Torque (input/Output) 40A
5.31 in lb (0.6 Nm) / 18 in lb (2.1 Nm)
Screw Torque (input/Output) 50A
5.31 in lb (0.6 Nm) / 25 in lb (2.9 Nm)
GENERAL NOTES
(1) See Derating curves for additional operating conditions.
(2) The R HP includes a Solid State Relay, therefore electrical isolation is not provided.
(3) The R HP includes over temperature protection for the solid state relay.
(4) 40°C ambient temperature, 30 operations/min, maximum voltage control.
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

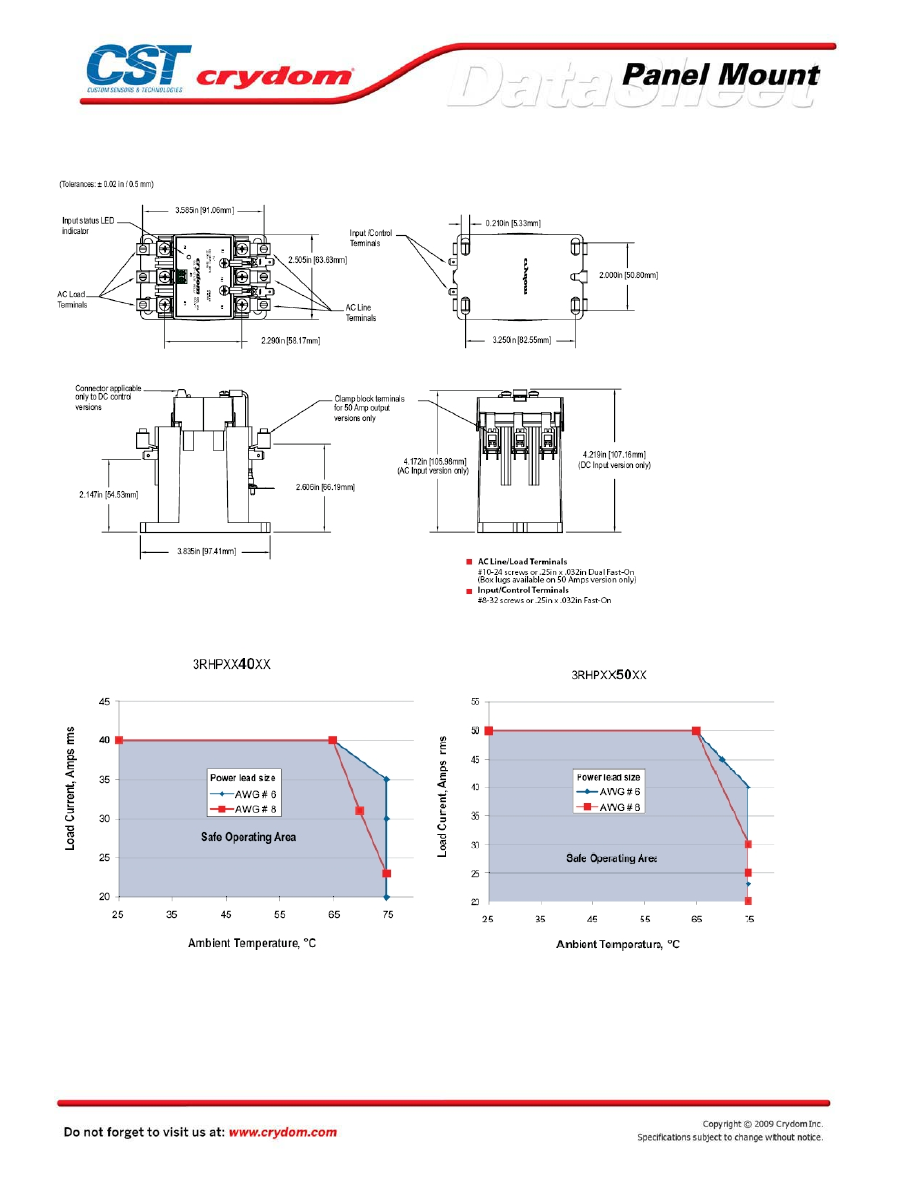

MECHANICAL SPECIFICATIONS
THERMAL DERATE INFORMATION
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

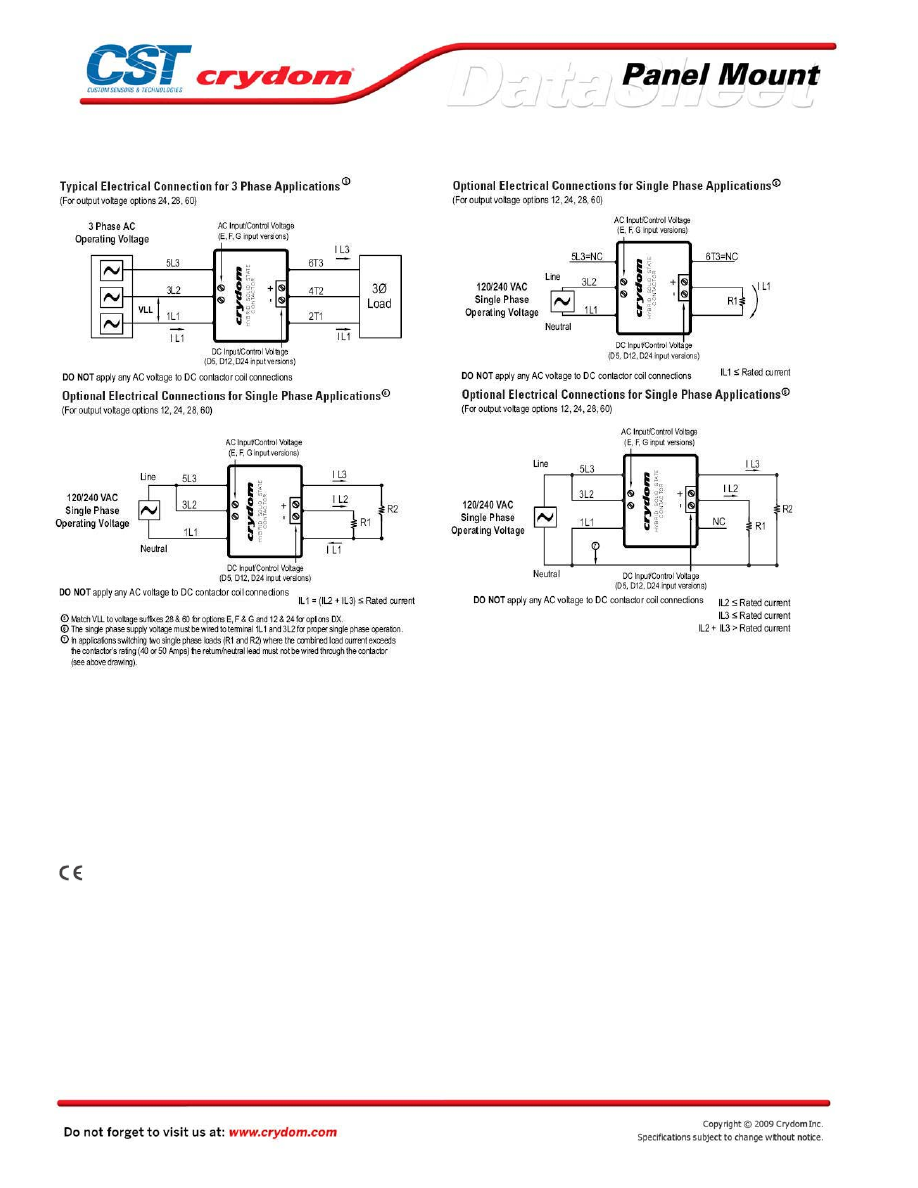

TYPICAL ELECTRICAL CONNECTIONS
AGENCY APPROVALS
UL/cUL
Rev. 011409
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html

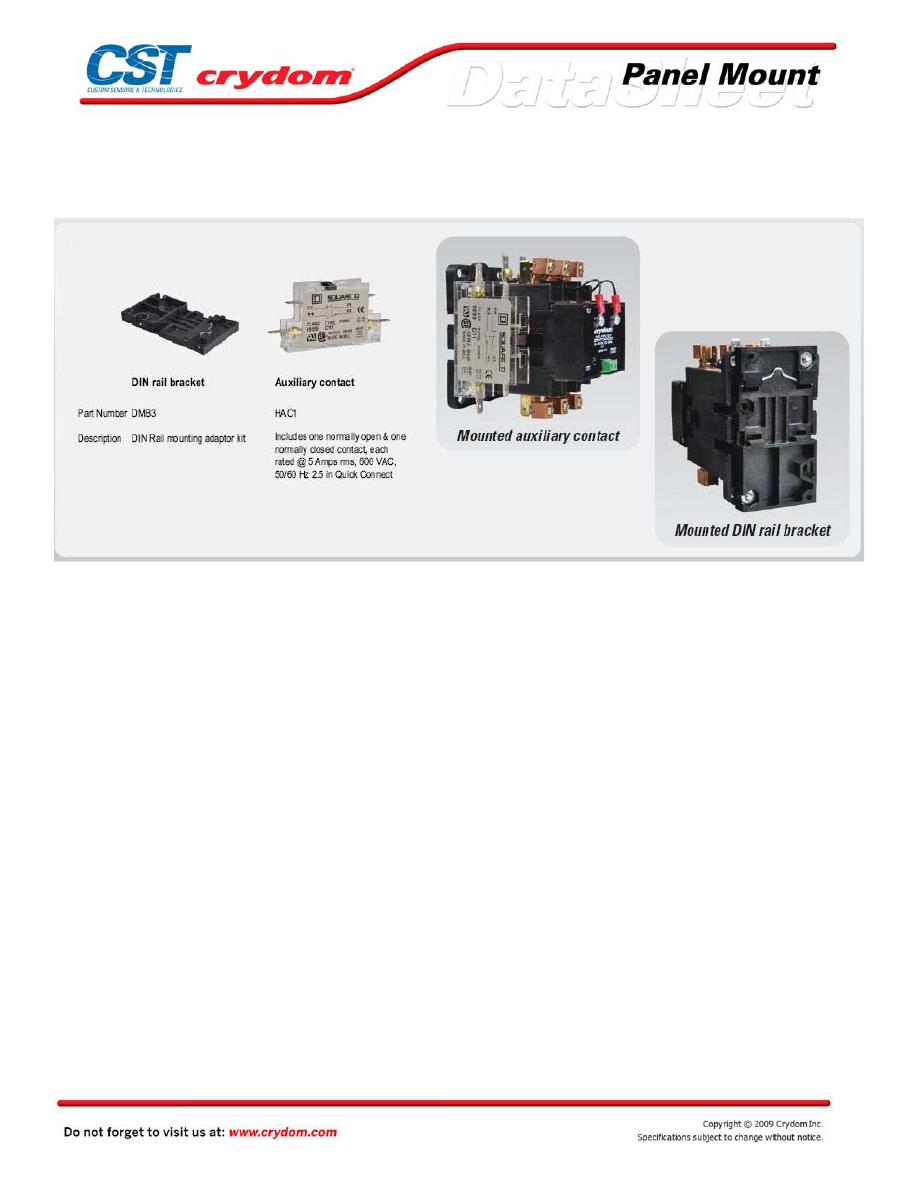

ACCESSORIES
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
Courtesy of Steven Engineering, Inc.-230 Ryan Way, South San Francisco, CA 94080-6370-Main Office: (650) 588-9200-Outside Local Area: (800) 258-9200-www.stevenengineering.com
60RELAY_RHP-html.html
ANNEX - ENVIROMENTAL INFORMATION
