Selecting and ordering your drive

Type designation is a unique reference number that clearly
identifies the drive by construction, power and voltage
rating and selected options. Using the type designation
you can specify your drives from the wide range of options
available. Options are added to the type designation using the
corresponding “plus” (+) code.

Build up your own ordering code using the type designation
key below or contact your local ABB drives sales office and let
them know what you want.

Type designation:



Product series

Ratings and types

Voltages

Constructions

Options

AC250

-

0XU

-

0XAX

-

X

+

XXXX

                                                                ABB ACS250 Technical Catalog  3

ACS250, micro drive

Table of contents

ACS250

Introduction

4

Main features

5

ACS250-IP20

Overview

6

Data sheet

7

Ratings and types

8

Dimensions and weights

9

ACS250-IP66

Overview

10

Data sheet

11

Ratings and types

12

Dimensions and weights

13

Technical data

Cooling

14

Fuses and cable sizes

15

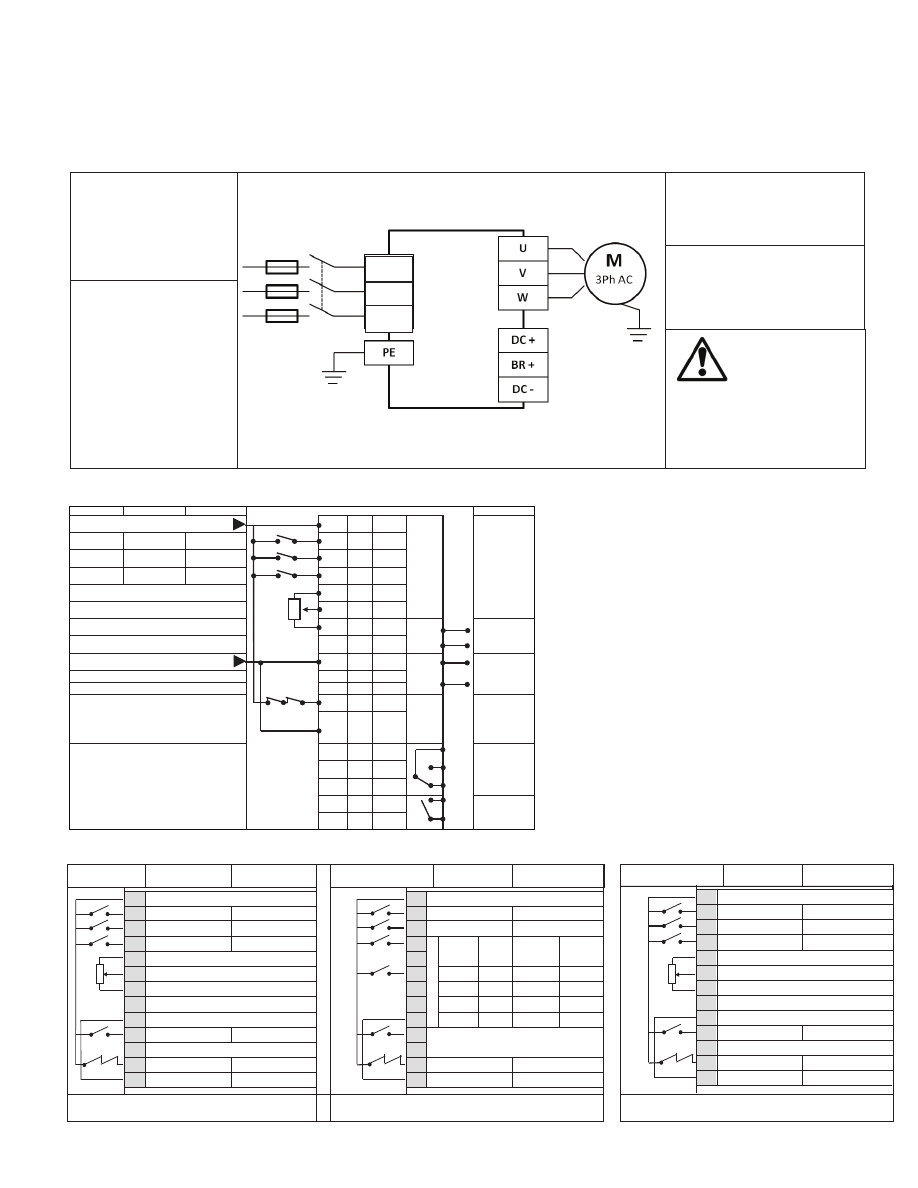

Control connections for 115, 240 and 480 V

16

Control connections for 600 V

17

Options

Options

18

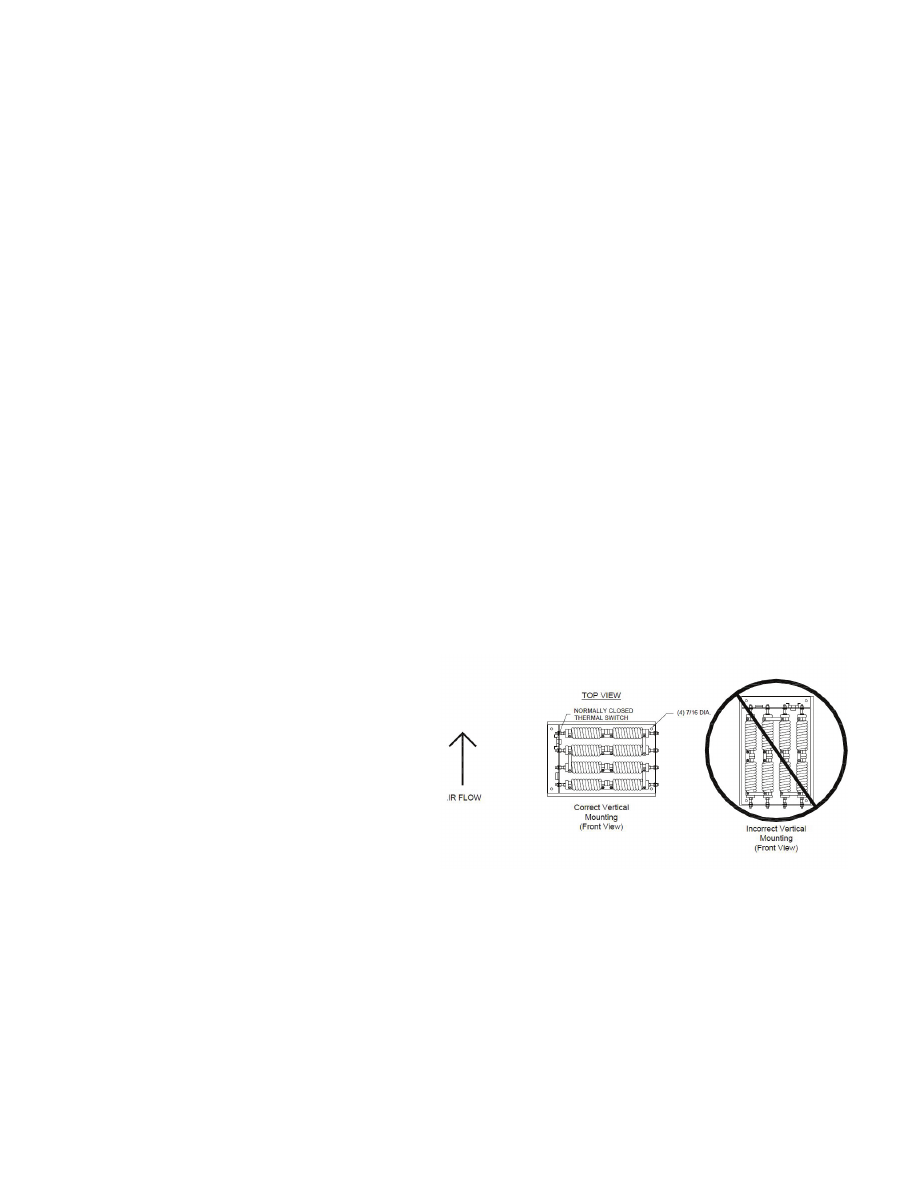

Braking resistors

Single-phase

19

Three-phase

20

Resistor technical data

23

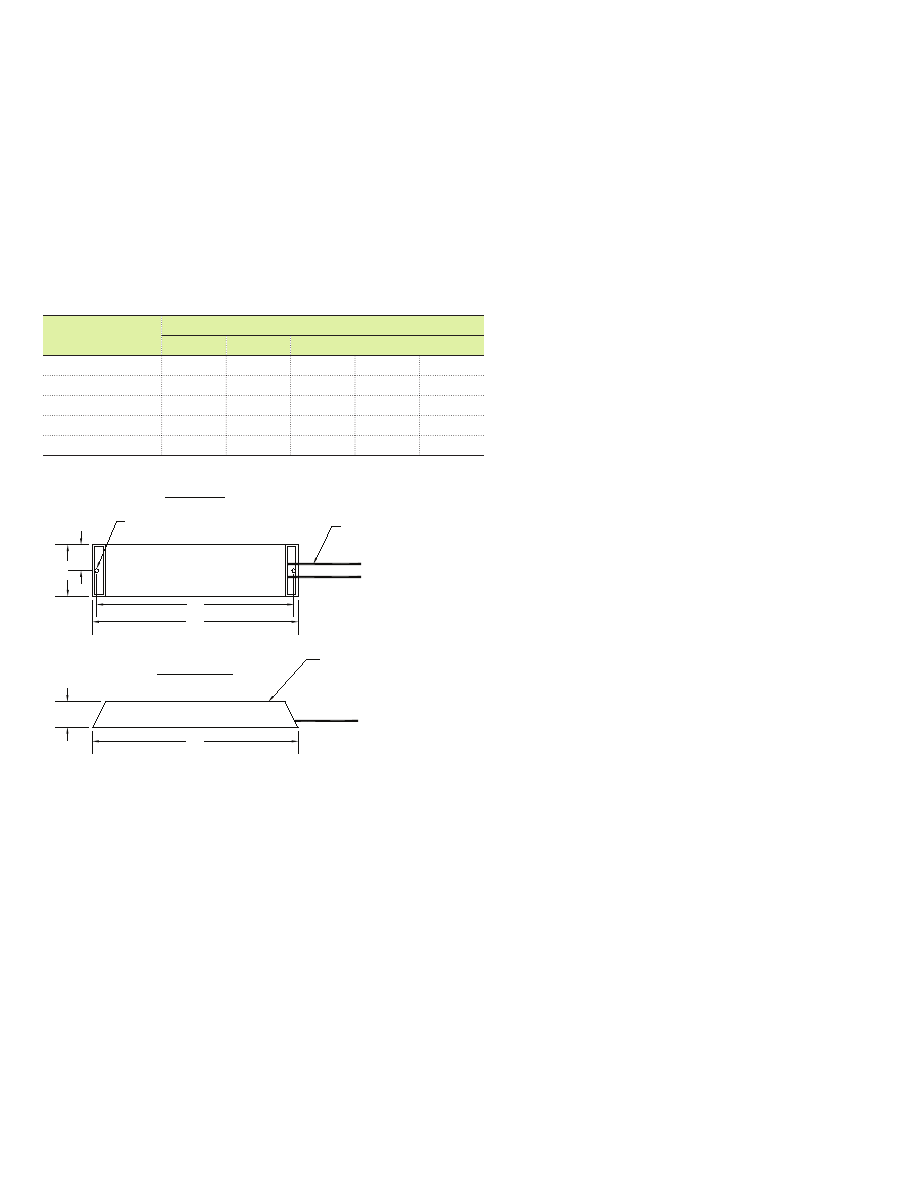

CR case resistor

24

GCE resistor

25

Installation instructions

26

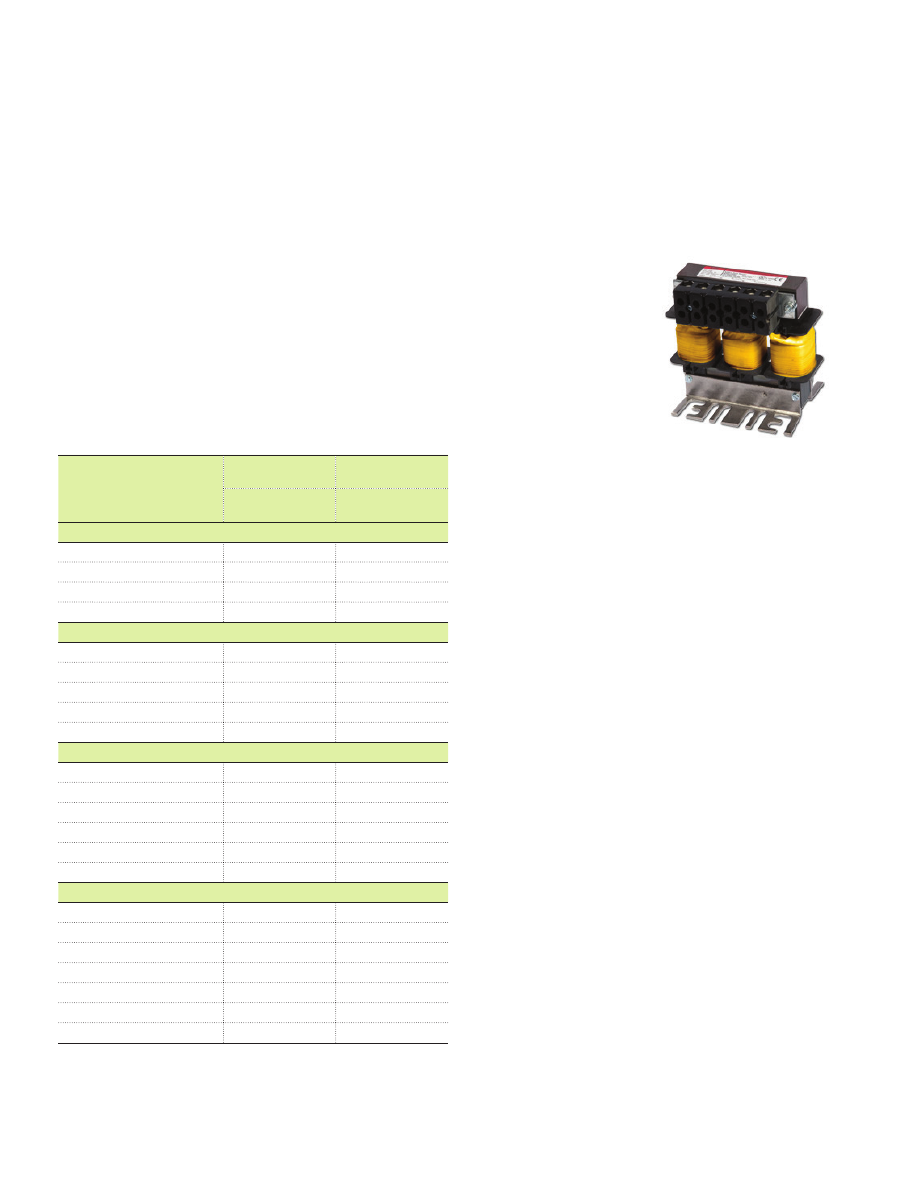

Reactors

Input reactors

27

Output filters

32

Life cycle management

Life cycle management

35

AC250

-

0XU

-

0XAX

-

X

+

XXXX

4  ABB ACS250 Technical Catalog

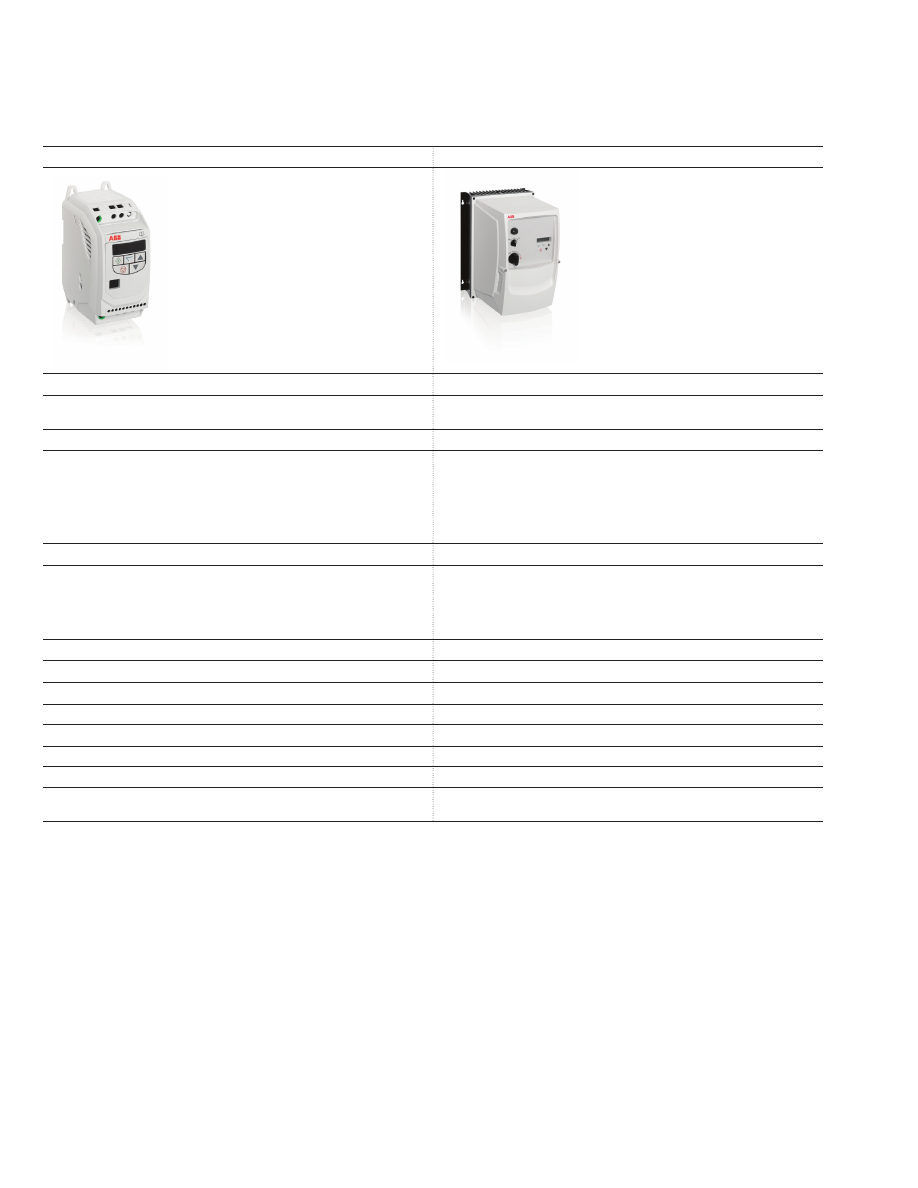

Introduction to the ACS250

ACS250 IP20

ACS250 IP66 - NEMA 4X

Main attributes

Main attributes

Feed-thru wiring, embedded Modbus-RTU, built-in macros for simple
machine interface

Wide range of input voltages, high protection class enclosure for harsh
environments, Modbus-RTU as standard

HP range

HP range

1~115 V - 0.5 to 1.5 HP
3~600 V - 0.75 - 20 HP

1~115 V - 0.5 to 1.5 HP
1~230 V - 0.5 to 3 HP
3~230 V - 0.5 to 5 HP
3~460 V - 1 to 10 HP
3~600 V - 0.75 - 15 HP

Voltage range

Voltage range

1~120 V In / 3~ 230 V Out
3~600 V In / Out

1~115 V In / 3~230 V Out
1~230 V In / 3~230 V Out
3~230 V In / Out
3~460 V In / Out
3~600 V In / Out

Enclosure type

Enclosure type

UL type 0 (IP20)

UL type 4X (IP66)

Control mode

Control mode

Scalar (V/Hz) variable torque and constant torque V/Hz profiles

Scalar (V/Hz) variable torque and constant torque V/Hz profiles

Communications options

Communications options

Embedded Modbus-RTU

Embedded Modbus-RTU

Operator interface

Operator interface

Integral and/or
remote mount keypad

Integral and/or
remote mount keypad

                                                                ABB ACS250 Technical Catalog  5

Main features

Overview

The ACS250 drive is a part of ABB’s complete range of micro
drives, offering a solution for every need.  The IP20 drives offer
115V and 600V options to enhance other IP20 product lines.
The IP66 drives have a complete input voltage range from 115
to 600V.

ACS250 variable frequency drives feature an intuitive integrated
control panel with LED display.  Built-in macros and only the
essential parameters make commissioning straightforward.
Built-in Modbus-RTU serial communication provides ready
integration with control and monitoring systems.

ACS250 micro drives are compact and offer flexible mounting
options without the need for accessory mounting kits.  Rapid
programming and commissioning are possible using the on
board setup macros.  The copy stick tool can be used to trans-
fer parameter sets between drives.

The ACS250 drive is ideal for panel builders and OEM’s need-
ing a micro drive with low cost, flexible mounting options, and
rapid parameter setup.

Highlights



−

Power range: 0.5 to 20 Hp, 1 & 3 phase input



−

150% peak overload capacity



−

Modbus-RTU built-in



−

User-friendly control panel with LED display



−

Wall or DIN rail mounting options for IP20 drives



−

Feed thru wiring on IP20 drives



−

PI control



−

Built-in brake chopper (Sizes 2 & 3)



−

Sensorless vector and STO (600V drives only)



−

Conformally coated boards



−

Easy access to power and I/O connections for rapid instal-
lation



−

Selection options for braking resistors, input reactors, &
output filters

Applications



−

Conveyors



−

Mixers



−

Material handling



−

Fans and pumps



−

Automated Gate Control



−

Food and Beverage



−

Printing



−

Woodworking Machinery

Feature

Advantage

Benefit

Simple interface

Integrated keypad and display is easy to learn and makes commissioning
straightforward
ABB common programming parameter structure

Time and labor cost savings with rapid setup and
commissioning

Drive & network
connectivity

RS485 serial interface with embedded Modbus RTU for real time control
(or monitoring)
RJ45 connection port can be used with:
    Optional Y-splitter for daisy chain networking
    Remote control panel
    Copy Stick tool for transferring parameters between drives

Flexibility with RJ45 connectivity options
Time savings with simple plug-and-play connectivity

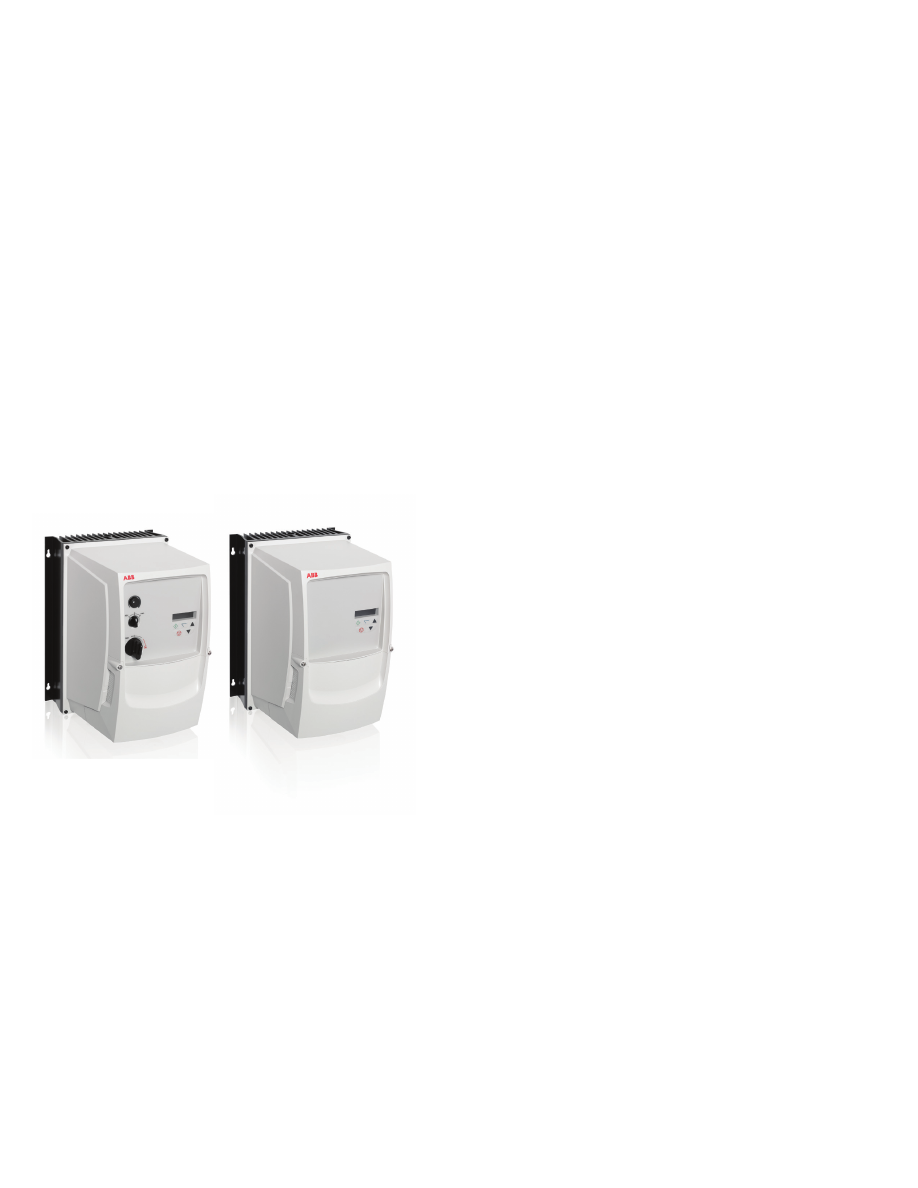

IP66 Construction with
Optional Controls

Optional operator controls: Disconnect, Fwd/Off/Rev, & Speed
Potentiometer
Dust and water proof design built with tough ABS plastic cover, epoxy
coated heatsink that withstands high pressure washdown for food and
beverage applications.
Optional operator controls allows mounting directly on processing
equipment located in extreme environments

Save panel building cost
Less cost due to shorter motor cables with machine
mounted drive
Operator controls located on the machine

Full voltage range in IP66
drives

IP66 offering throughout the voltage range - 110V to 600V
Global input voltage range to cover a wide range of applications

Standardize on one supplier with global input
voltage range save procurement and inventory cost

Feed Through Wiring &
Flexible Mounting Options
(IP20 Drives)

Allows for easy replacement of motor starters or soft starters in existing
panels with power wires in at the top and motor cables out at the bottom
Flexible mounting options - wall or DIN rail

Saves time and material cost for panel builders

600V Ratings in IP20 and
IP66 Enclosures

600V capacity in a micro drive
Safe Torque Off (SIL2) & Open loop vector control

Panel design standardization with compact micro
drive sizing in a 600V drive - similar to 115, 230, &
460Vmicro drives

ACS250

-

0XU

-

0XAX

-

X

6  ABB ACS250 Technical Catalog

Replacing a motor starter or soft starter with a drive can help
your customer improve their overall energy efficiency, reduce
mechanical stresses and enhance their process control. With
its feed-thru wiring, the ACS250 can easily replace motor
starters for general purpose low power applications, such as;
augers, mixers, pumps, fans and conveyors. The key features
include a integrated keypad for easy configuration, precise
process control with an enhanced V/Hz control with variable
torque and constant torque V/Hz profiles, and embedded,
Modbus-RTU communication interface for real time control
and monitoring.

Main features



−

Integrated display and keypad



−

Feed-thru wiring



−

50°C no de-rate / 60°C max.



−

Built-in macros and only the essential parameters make
commissioning straightforward



−

Enhanced V/Hz control (all models)



−

Adjustable current limit



−

Power loss ride-through



−

DC injection braking



−

DC magnetizing start (provides maximum starting torque)



−

Internal braking chopper (except frame E1)



−

Modbus-RTU fieldbus as standard



−

Open loop vector - speed & torque control
(600 V only)



−

SIL2 Safe torque-off (600 V only)



−

Integrated help card


Applications



−

Variable torque, constant torque or constant horsepower
applications requiring a compact drive solution for cabinet
mounting

Capabilities



−

V/Hz control with peak overload capacity of 175%



−

Feed-thru wiring DIN rail mountable IP20 enclosure



−

Intuitive integrated keypad



−

Designed to be easy to program for simple machine inter-
face

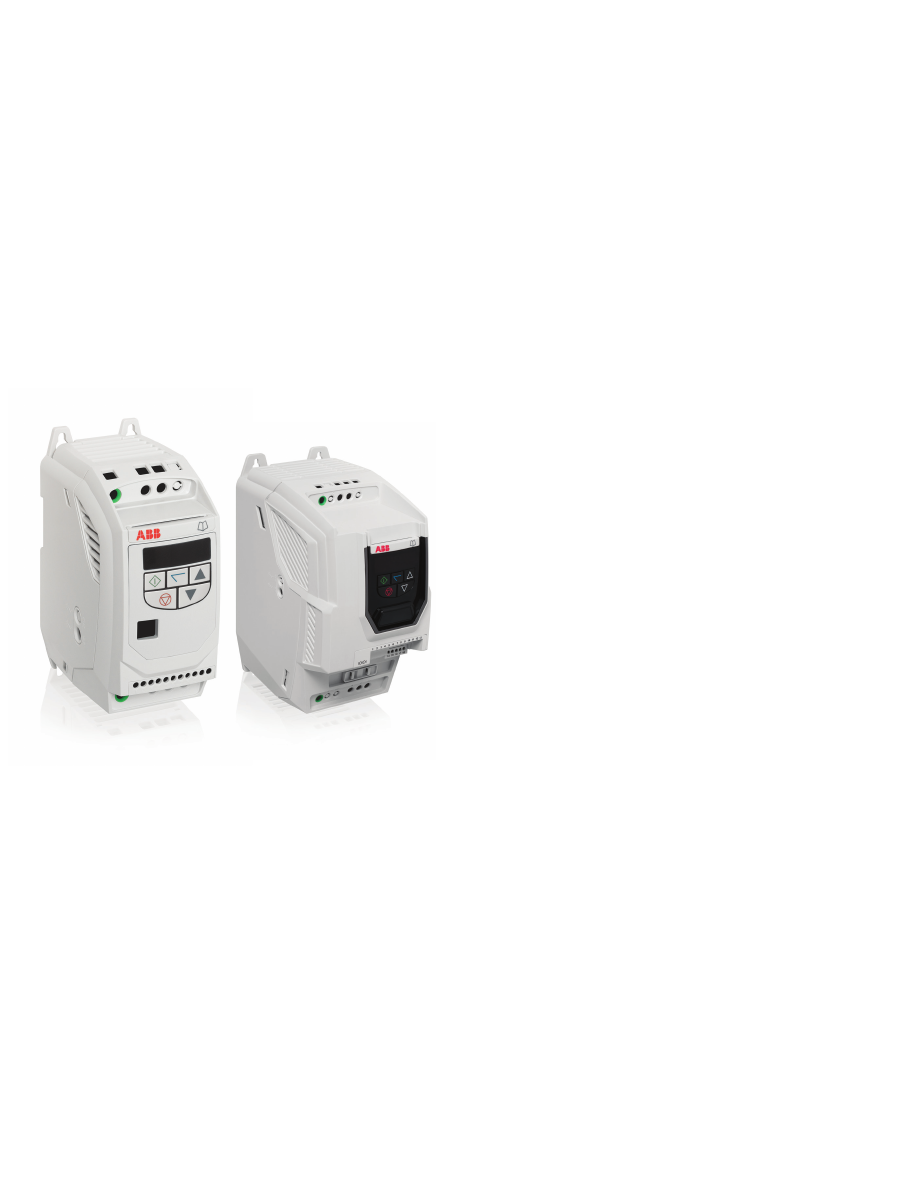

ACS250 IP20

Overview

                                                                ABB ACS250 Technical Catalog  7

ACS250 IP20

Data sheet

0.5 thru 1.5 HP (1~115 V In/ 3~230V Out)       1 thru 20 HP (3~600 V In/Out)

Performance features

Control modes

115 VAC: V/Hz
600 VAC: V/Hz and open loop vector

Operator interface module

Integral drive mounted

Display lines

6-character LED display

Programmable preset
speeds

Four

Analog output: one

One (0-10 VDC)

Auto restart

Yes – up to 5 attempts

Frequency avoidance

One band

Fault history

Last four faults

Digital inputs: four

Two programmable digital inputs, two user selectable analog/digital inputs

Digital inputs type

Pull-up

Drive specifications

Analog inputs: two

0-10 VDC, 4 to 20mA

Relay output: one

Built-in form C relay

Analog output / digital
outout

0-10 VDC: one analog usable for meter (freq., current, voltage) or digital
output

Overload capacity

Drive output 150% for one minute and 175% for 2 seconds

Maximum load

1.5 HP @ 120 V In/230 V Out, 20 HP @ 600 V In/Out

Input voltage ranges

115 VAC  (99-126); 600 VAC (450-660)

Rated input frequency

50-60 Hz (±5%)

Carrier frequency

4-32 kHz (8 kHz default)

Operating temperature

-10° to 50°C

Snubber (dynamic braking)

Built-in transistor (frames 2 and 3)

Dynamic braking external

Up to 150% dynamic braking with appropriately sized resistor

DC injection braking

Included

Volts/Hz

Linear V/Hz, user defined, energy optimizer & boost function

Frequency control range

0-500 Hz

Accel/decel:

Independently adjustable accel. & decel. ramps

Time range

0.00 to 600.0 Seconds

Keypad speed control

Yes

Sink/source  inputs                                             Source, 24 VDC logic
Electronic overload trip

Electronic motor overload inverse 150% for 1 minute or 175% for 2 seconds

Communications

Built-in Modbus-RTU (RS-485) communications

PI control

Built-in

Protective features

Under voltage

Level depends on voltage class ($408)

Output short circuit

Phase-to-phase on drive output

Over temperature

Heat sink monitor

DC bus overvoltage

DC bus level trip

Drive overload

Exceed drive rating of 150% for one minute or 175% for 2 seconds

Over current

Over-current/short-circuit protection

Output phase

Trips on open output phase

Loss of reference

Trips on loss of speed command signal

Communication error

Detects a communication error (fault)

Agency certifications

UL, cUL, CE, C-tick, gost

Service conditions

Altitude

1,000 m (3,300 ft.), derate by 1% per 100M up to 2,000 on maximum

Ambient temperature

-10°C (14°F) to 50°C (102°F)

Storage temperature:

-40°C (-40°F) to 60°C (140°F)

Relative humidity

10% to 95%, non-condensing

8  ABB ACS250 Technical Catalog

ACS250, IP20

Ratings and types

Type designation

This is the unique reference number (shown above and in
the first column, below) that clearly identifies your drive by
power rating and frame size. Once the drive’s type designation
has been selected, the frame size (column 7) can be used to
determine the drive dimensions, shown on the next page.

Voltages

ACS250 is available in two voltage ranges:
1 = 110 to 120 V
6 = 500 to 600 V

Insert either “1” or “6”, depending on your chosen voltage, into
the type designation shown above.

Construction

“01U” within the type designation (shown above) varies
depending on the drive phase and EMC filtering. Choose below
the one you need.

01 = 1-phase
03 = 3-phase
U   = No EMC filter

ACS250

-

0XU

-

0XAX

-

X

Type code

Braking chopper

(included)

P

N







HP

P

N







kW

Output

current

I

2N



A

Weight

lbs

Frame size

1-phase supply voltage 110 to 120 V, +/-10%, 3-phase output 200 to 240 V

ACS250-01U-02A3-1

---

0.5

0.37

2.3

2.2

E1

ACS250-01U-04A3-1

---

1

0.75

4.3

2.2

E1

ACS250-01U-05A8-1

STD

1.5

1.1

5.8

3.75

E2

3-phase supply voltage 500 to 600 V, +/-10%

ACS250-03U-02A1-6

STD

1

0.75

2.1

4.0

P2

ACS250-03U-03A1-6

STD

2

1.5

3.1

4.0

P2

ACS250-03U-04A1-6

STD

3

2.2

4.1

4.0

P2

ACS250-03U-06A5-6

STD

5

4.0

6.5

4.0

P2

ACS250-03U-09A0-6

STD

7.5

5.5

9

4.0

P2

ACS250-03U-12A0-6

STD

10

7.5

12

7.7

P3

ACS250-03U-17A0-6

STD

15

11

17

7.7

P3

ACS250-03U-22A0-6

STD

20

15

22

7.7

P3

Notes:

I

2N

: continuous base current with 110% overload for 1 minute / 10 minutes.

P

N

: Typical motor power for most 4-pole NEMA motors in normal use.

                                                                ABB ACS250 Technical Catalog  9

120 V

ACS250, IP20

Dimensions and weights

W

D

H

W

H

D

600 V

W

D

H

12

H

D

W

Frame

size

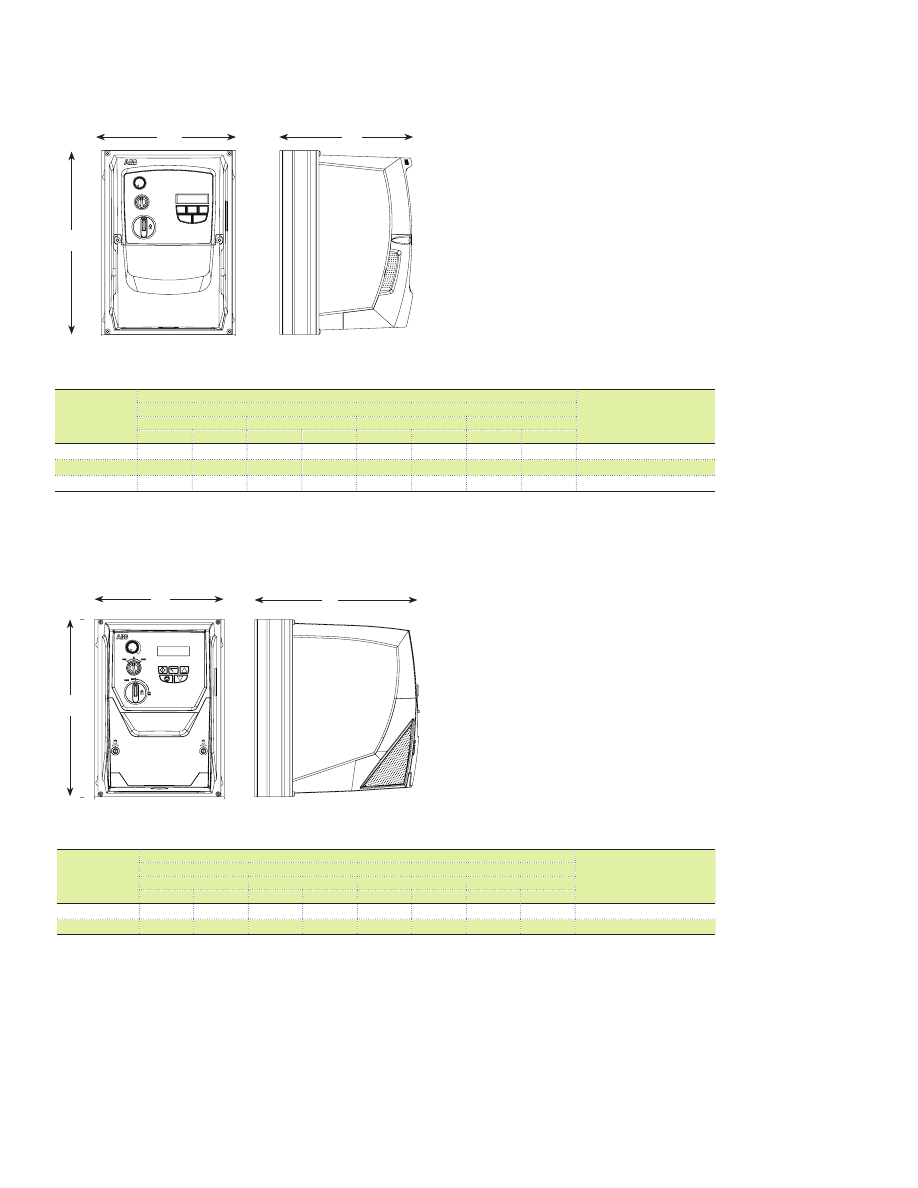

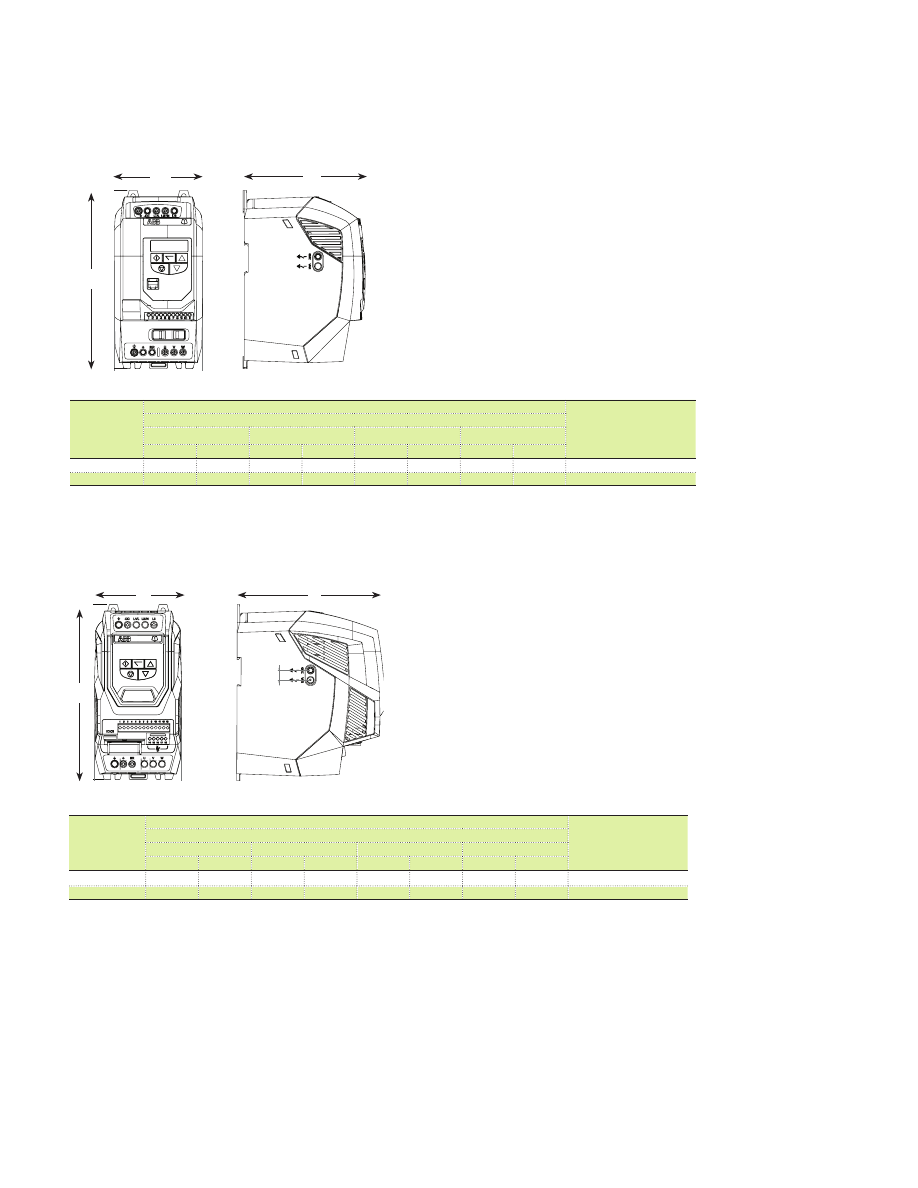

Dimensions and weights

Dimension

drawing

IP20 120 V

Height

Width

Depth

Weight

in

mm

in

mm

in

mm

lb

kg

E1

6.81

173

3.23

82

4.84

123

2.20

1

3AXD10000274006

E2

8.70

221

4.29

109

5.91

150

3.75

1.70

3AXD10000274008

Frame

size

Dimensions and weights

Dimension

drawing

IP20 600 V

Height

Width

Depth

Weight

in

mm

in

mm

in

mm

lb

kg

P2

8.70

221

4.41

112

7.28

185

4

1.80

3AXD10000274014

P3

10.28

261

5.16

131

8.07

205

7.70

3.50

3AXD10000274016

H = Height
W = Width
D = Depth

H = Height
W = Width
D = Depth

12

H

D

W

10  ABB ACS250 Technical Catalog

Screws, mixers, pumps, fans and conveyors are commonly
installed in harsh environments containing dust, moisture
and chemicals. The IP66/NEMA 4X ACS250 was designed
to thrive in these types of conditions. The drive’s design and
ease of setup benefit a broad range of industries that require
machine mounted drives.

Hygienic protection

The drive was designed with materials that meet stringent hy-
giene standards, preventing the drive from trapping bacteria.
The integrated keypad provides straightforward drive commis-
sioning and maintenance in extreme environments. The drive’s
sealed ABS enclosure and corrosion-resistant heat sink are
ideal for wash-down applications.

Main features



−

Built-in  macros  and  only  the  essential  parameters  make
commissioning straightforward



−

Can be mounted directly on processing equipment installed
in extreme environments



−

Conduit cable entry



−

Intuitive keypad control



−

Optional switch features; speed potentiometer,



−

FWD-OFF-REV and disconnect switches



−

IP66/NEMA 4X dust and waterproof design



−

Designed for wash-down applications



−

Specially coated corrosion-resistant heat sink



−

Sealed top cover with separate terminal access cover pro-
vides ready access without exposing components



−

Widely spaced heat sink fans with no external fans to fail or
get clogged in washdown environments



−

Modbus-RTU fieldbus as standard



−

Built-in brake chopper (except frame E1)



−

Safe torque off function (SIL2) which can be used as
emergency stop or to prevent unexpected startup (600 V
only)



−

Open loop vector speed and vector torque control mode
(600 V only)

Applications





−

Variable torque, constant torque or constant horsepower
applications in harsh environments or requiring on machine
mounting

Capabilities



−

NEMA 4X IP66 enclosure for indoor use



−

V/Hz control with peak overload capacity of 175%



−

Embedded Modbus-RTU



−

Intuitive integrated keypad



−

Designed to be easy to program for simple machine inter-
face local control & disconnect

ACS250, IP66



Overview

                                                                ABB ACS250 Technical Catalog  11

0.5 thru 1.5 HP (1~115 V In/ 3~230V Out)     0.5 thru 3 HP (1~230 V In/ 3~230V Out)
0.5 thru 5 HP (3~230 V In/Out)     1 thru 10 HP (3~460 V In/Out)

 1 thru 15 HP (3~600 V In/Out)

ACS250, IP66

Data sheet

Performance features

Control modes

115-460 VAC: V/Hz
600 VAC: V/Hz and open loop vector

Operator interface module

Integral drive mounted

Display lines

6-character LED display

Programmable preset

speeds

Four

Analog output: one

One (0-10 VDC)

Auto restart

Yes- Up to 5 attempts

Frequency avoidance

One band

Fault history

Last four faults

Digital Inputs: four

Three configurable inputs

Digital inputs type

Pull-up

Drive specifications

Analog inputs: two

0-10 VDC, 4 to 20mA

Relay output: one

One built-in form C relay

Analog output / digital

output

0-10 VDC: one analog usable for meter (freq., current, voltage) or digital output

Maximum load

5 HP @ 230 VAC, 10 HP @ 460 VAC, 15 HP @ 600 VAC

Overload capacity

Drive output 150% for one minute and 175% for 2 seconds

Input voltage ranges

115 VAC  (99-126); 230 VAC (198-264); 460 VAC (342-528); 600 VAC (450-660)

Rated input frequency

50-60 Hz (±5%)

Carrier frequency

4-32 kHz (8 kHz default)

Operating temperature

-10° to 40°C

Snubber (dynamic braking)

Built-in transistor (frames 2 and 3)

Dynamic braking external

Up to 150% dynamic braking with appropriately sized resistor

DC injection braking

Included

Volts/Hz

Linear V/Hz, user defined, energy optimizer & boost function

Frequency control range

0-500 Hz

Accel/decel:

Independently adjustable accel. & decel. ramps

Time range

0.00 to 600.0 seconds

Keypad speed control

Yes

Sink/source  inputs

Source, 24 VDC logic

Electronic overload trip

Electronic motor overload inverse 150% for 1 minute or 175% for 2 seconds

Communications

Built-in Modbus-RTU (RS-485) communications

PI control

Built-in

Protective features

Under voltage

Level depends on voltage class (120, 240, 480, or 575)

Output short circuit

Phase-to-phase on drive output

Over temperature

Heat sink monitor

DC bus overvoltage

DC Bus level trip

Drive overload

Exceed drive rating of 150% for one minute or 175% for 2 seconds

Over current

Over-current/short-circuit protection

Output phase

Trips on open output phase

Loss of reference

Trips on loss of speed command signal

Communication error

Detects a communication error (fault)

Agency certifications

UL, cUL, CE, C-tick, Gost

Service conditions

Altitude

1,000 m (3,300 ft.), derate by 1% per 100M up to 2,000m maximum

Ambient temperature

-10°C (14°F) to 40°C (122°C)

Storage temperature:

-40°C (-40°F) to 60°C (140°F)

Relative humidity

10% to 95%, non-condensing

Intermittent overload

150% overload capacity for up to 1 minute, 175% overload capacity for up to 2
seconds

12  ABB ACS250 Technical Catalog

ACS250, IP66

Ratings and types

Type code

Braking

chopper

(included)

P

N

HP

P

N

kW

Output

current

I

2N

A

Weight

(lbs)

Frame size

1-phase supply voltage 110 to 120V, +/-10%, 3-phase output 200 to 240 V

ACS250-01U-02A3-1+B063+F278

-

0.5

0.37

2.3

6.5

E1

ACS250-01U-04A3-1+B063+F278

-

1.0

0.75

4.3

6.5

E1

ACS250-01U-05A8-1+B063+F278

X

1.5

1.1

5.8

9.3

E2

1-phase supply voltage 200 to 240V, +/-10%, 3-phase output 200 to 240 V

ACS250-01U-02A3-2+B063+F278

-

0.5

0.37

2.3

6.5

E1

ACS250-01U-04A3-2+B063+F278

-

1.0

0.75

4.3

6.5

E1

ACS250-01U-07A0-2+B063+F278

-

2.0

1.5

7.0

6.5

E1

ACS250-01U-10A5-2+B063+F278

X

3.0

2.2

10.5

9.3

E2

3-phase supply voltage 200 to 240 V, +/-10%

ACS250-03U-02A3-2+B063+F278

 -

0.5

0.37

2.3

6.5

E1

ACS250-03U-04A3-2+B063+F278

 -

1.0

0.75

4.3

6.5

E1

ACS250-03U-07A0-2+B063+F278

X

2.0

1.5

7.0

9.3

E2

ACS250-03U-10A5-2+B063+F278

X

3.0

2.2

10.5

9.3

E2

ACS250-03U-18A0-2+B063+F278

X

5.0

4.0

18.0

17.0

E3

3-phase supply voltage 380 to 480 V, +/-10%

ACS250-03U-02A2-4+B063+F278

-

1.0

0.75

2.2

6.5

E1

ACS250-03U-04A1-4+B063+F278

-

2.0

1.5

4.1

6.5

E1

ACS250-03U-05A8-4+B063+F278

X

3.0

2.2

5.8

9.3

E2

ACS250-03U-09A5-4+B063+F278

X

5.0

4.0

9.5

9.3

E2

ACS250-03U-14A0-4+B063+F278

X

7.5

5.5

14.0

17.0

E3

ACS250-03U-18A0-4+B063+F278

X

10.0

7.5

18.0

17.0

E3

3-phase supply voltage 500 to 600 V, +/-10%

ACS250-03U-02A1-6+B063+F278

X

1.0

0.75

2.1

10.6

P2

ACS250-03U-03A1-6+B063+F278

X

2.0

1.5

3.1

10.6

P2

ACS250-03U-04A1-6+B063+F278

X

3.0

2.2

4.1

10.6

P2

ACS250-03U-06A5-6+B063+F278

X

5.0

4.0

6.5

10.6

P2

ACS250-03U-09A0-6+B063+F278

X

7.5

5.5

9.0

10.6

P2

ACS250-03U-12A0-6+B063+F278

X

10.0

7.5

12.0

16.1

P3

ACS250-03U-17A0-6+B063+F278

X

15.0

11.0

17.0

16.1

P3

Type designation

This is the unique reference number (shown above and in
the first column, below) that clearly identifies your drive by
power rating and frame size. Once the drive’s type designation
has been selected, the frame size (column 7) can be used to
determine the drive dimensions, shown on the next page.

Voltages

ACS250 is available in two voltage ranges:
1   =  110 to 120 V
2   =  200 to 240 V
4   =  380 to 480 V
6   =  500 to 600 V

Insert either “1”, “2”, “4” or “6”, depending on your chosen
voltage, into the type designation shown above.

Construction

“01U” within the type designation (shown above) varies
depending on the drive phase and EMC filtering. Choose below
the one you need.

01

=   1-phase

03

=   3-phase

U

=   No EMC filter

F278   =   Operator controls: Disconnect,




FWD/REV/OFF selector, Speed

   Potentiometer

ACS250

-

0XU

-

0XAX

-

X

+

B063

+

F278

P

N

 for kW = Typical motor power in 400 V at normal use

P

N

 for hp  = Typical motor power in 460 V at normal use

I

2N

 for A    = Continuous rms current. 50% overload is allowed for one minute in ten minutes.

                                                                ABB ACS250 Technical Catalog  13

ACS250, IP66

Dimensions and weights

Frame

size

Dimensions and weights

Dimension

drawing

IP66  120, 240 & 480 V

Height

Width

Depth

Weight

in

mm

in

mm

in

mm

lb

kg

E1

9.13

232

6.34

161

7.05

179

6.50

2.95

3AXD10000274009

E2

10.12

257

7.40

188

7.34

186

9.26

4.20

3AXD10000274011

E3

12.20

310

8.29

210

9.00

229

16.97

7.70

3AXD10000274012

Frame

size

Dimensions and weights

Dimension

drawing

IP66 600 V

Height

Width

Depth

Weight

in

mm

in

mm

in

mm

lb

kg

P2

10.12

257

7.40

188

9.41

239

10.60

4.80

3AXD10000274017

P3

12.20

310

8.29

211

9.88

251

16.10

7.30

3AXD10000274018

H = Height
W = Width
D = Depth

H = Height
W = Width
D = Depth

W

H

D

120, 240, 480 V

W

D

H

H

W

D

600 V

W

D

H

H

W

D

14  ABB ACS250 Technical Catalog

Cooling

Cooling air fl ow for IP20 drives

IP20 drives are designed to be installed in a protective enclo-
sure.  Heat dissipation and air flow values are given to assist
with sizing enclosure sizes and cooling provisions.  ACS250
drives 1 HP and above are fitted with heat sink cooling fans as
standard.  Drives below 1 HP do not have an internal cooling
fan and rely on natural convection to cool the internal compo-

nents.  The cooling air must be free from corrosive substances
and must not be above the maximum ambient temperature of 40
°C (50 °C with derating on IP20 drives only). For more specific
limits see the individual Data Sheet pages (for IP20 & IP66 drives)
in this catalog.

Cooling air fl ow

Type designation

Frame

size

Heat dissipation

Air flow

[W]

BTU/hr

m

3

/h

ft

3

/min

1-phase AC supply, 110 to 120 V

ACS250-01U-02A3-1

E1

11

38

19

11

ACS250-01U-04A3-1

E1

23

77

19

11

ACS250-01X-05A8-1

E2

33

113

44

26

3-phase AC supply, 500 to 600 V

ACS250-03U-02A1-6

P2

23

77

19

11

ACS250-03U-03A1-6

P2

45

154

19

11

ACS250-03U-04A1-6

P2

66

225

19

11

ACS250-03U-06A5-6

P2

120

409

19

11

ACS250-03U-09A0-6

P2

165

563

19

11

ACS250-03U-12A0-6

P3

225

768

44

26

ACS250-03U-17A0-6

P3

330

1126

44

26

ACS250-03U-22A0-6

P3

450

1535

44

26

Note:

 IP66 drives are designed to be mounted outside of an enclosure.  The heat sink is designed for maximum cooling with natural

convected airfl ow.

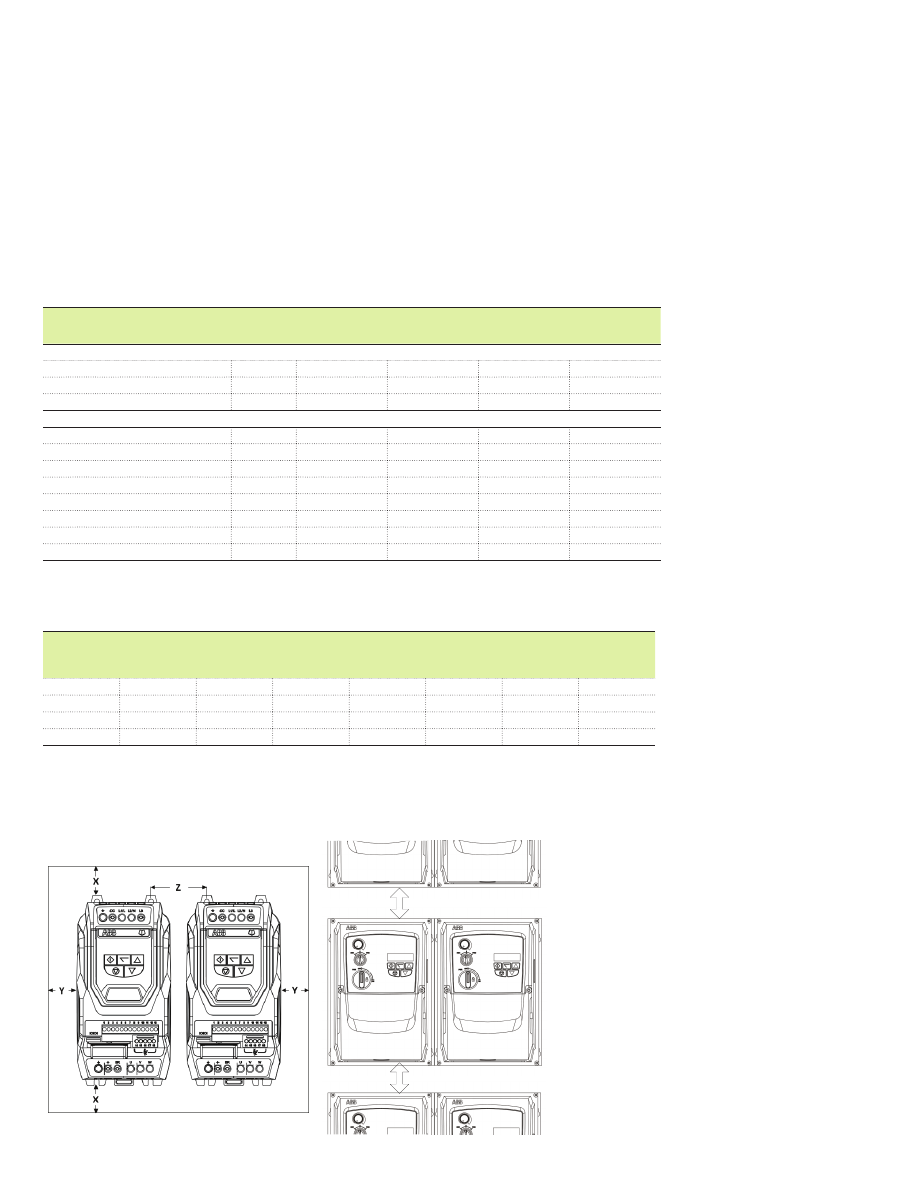

Free Space Requirements

Enclosure

Type

Frame size

Space Above & Below

(X)

Space Either Side

(Y)

Space Between

(Z)

1

in

mm

in

mm

in

mm

IP20

1

1.97

50

1.97

50

1.30

33

IP20

2

2.95

75

1.97

50

1.81

46

IP20

3

3.94

100

1.97

50

2.05

52

IP66

All

7.87

200

0.39

10

0

0

Notes:





1) Dimension Z assumes that the drives are mounted side by side with no clearance. For the IP66 drives, can be installed side-by-side

with the heatsink fl anges touching.  This gives adequate ventilation space between drives.







2) Drive must be installed on a vertical fl at surface that is able to support the weight of the drive.







3) Spacing requirements are guidelines only and do not take into account other sources of heat in the environment.  Operating ambient
temperature of the drive must be maintained at all times.













X

X



                                                                ABB ACS250 Technical Catalog  15

Fuses and cable sizes

The following table provides the output current rating informa-
tion for the various ACS250 models. ABB Drives always recom-
mend that selection of the correct ACS250 is based upon the
motor full load current at the incoming supply voltage.

Cable dimensioning for nominal rated currents is shown in the
table below together with the corresponding fuse types for
short-circuit protection of the input power cable.

The rated fuse currents given in the table are the maximums
for the mentioned fuse types. If smaller fuse ratings are used,
check that the fuse rms current rating is larger than the nominal
input current.

If 150% output power is needed, multiply nominal input current
by 1.5.

Check that the operating time of the fuse is below 0.5 sec-
onds. The operating time depends on the fuse type, the supply
network impedance as well as the cross-sectional area, mate-
rial and length of the supply cable. In case the 0.5 seconds
operating time is exceeded with the gG or T fuses, ultra rapid
(aR) fuses in most cases reduce the operating time to an ac-
ceptable level.

Model Number

Power

(HP)

Fuse

(A)

Supply and PE Cable

Size

Nominal

Output

Current

(A)

Motor Cable Size

Maximum Motor

Cable Length

Frame

Size

gG

UL Class

CC or J

mm

2

AWG

mm

2

AWG

m

1-phase 110V…115V AC (+/-10%) - 3 Phase 230V Output

ACS250-01U-02A3-1

0.5

16

15

2.5

14

2.3

1.5

14

100

E1

ACS250-01U-04A3-1

1

25

25

4

10

4.3

1.5

14

100

E1

ACS250-01U-05A8-1

1.5

32

35

6

8

5.8

1.5

14

100

E2

1-phase 200…240V AC (+/-10%) - 3 Phase Output

ACS250-01U-02A3-2

0.5

10

10

1.5

14

2.3

1.5

14

100

E1

ACS250-01U-04A3-2

1

16

15

2.5

12

4.3

1.5

14

100

E1

ACS250-01U-07A0-2

2

25

20

4

10

7

1.5

14

100

E2

ACS250-01U-10A5-2

3

25

25

4

8

10.5

1.5

14

100

E2

3-phase 200…240V AC (+/-10%) - 3 Phase Output

ACS250-03U-02A3-2

0.5

6

6

1.5

14

2.3

1.5

14

100

E1

ACS250-03U-04A3-2

1

10

10

1.5

14

4.3

1.5

14

100

E1

ACS250-03U-07A0-2

2

10

10

1.5

14

7

1.5

14

100

E2

ACS250-03U-10A5-2

3

16

15

2.5

12

10.5

1.5

14

100

E2

ACS250-03U-18A0-2

5

25

30

4

8

18

2.5

10

100

E3

3-phase 380…480V AC (+/-10%) - 3 Phase Output

ACS250-03U-02A2-4

1

10

6

1.5

14

2.2

1.5

14

100

E1

ACS250-03U-04A1-4

2

10

6

1.5

14

4.1

1.5

14

100

E2

ACS250-03U-05A8-4

3

10

10

1.5

14

5.8

1.5

14

100

E2

ACS250-03U-09A5-4

5

16

15

2.5

12

9.5

1.5

14

100

E2

ACS250-03U-14A0-4

7.5

25

20

4

10

14

1.5

12

100

E3

ACS250-03U-18A0-4

10

40

25

10

8

18

2.5

10

100

E3

3-phase 500…600V AC (+/-10%) - 3 Phase Output

ACS250-03U-02A1-6.. 1

10

6

1.5

14

2.1

1.5

14

100

P2

ACS250-03U-03A1-6.. 2

10

6

1.5

14

3.1

1.5

14

100

P2

ACS250-03U-04A1-6.. 3

10

10

1.5

14

4.1

1.5

14

100

P2

ACS250-03U-06A5-6.. 5

10

10

1.5

14

6.5

1.5

14

100

P2

ACS250-03U-09A0-6.. 7.5

16

15

2.5

12

9

1.5

14

100

P2

ACS250-03U-12A0-6.. 10

25

20

4

10

12

1.5

14

100

P3

ACS250-03U-17A0-6.. 15

25

25

4

8

17

2.5

10

100

P3

ACS250-03U-22A0-6.. 20

40

35

10

8

22

4

10

100

P3

Notes:



1) Larger fuses must not be used when the input power cable is selected according to this table.













2) For UL compliant installation, use Copper wire with a minimum insulation temperature rating of 70°C, UL Class CC or Class J Fuses







3) Other fuse types can be used if they meet the ratings and the melting curve of the fuse does not exceed the melting curve of the fuse mentioned in this table.



4) The maximum motor cable length stated applies to using a shielded motor cable. When using an unshielded cable, the maximum cable length limit may be increased by 50%.
When using the ABB Drives recommended output choke, the maximum cable length may be increased by 100%











5)The PWM output switching from any inverter when used with a long motor cable length can cause an increase in the voltage at the motor terminals, depending on the motor cable
length and inductance. The rise time and peak voltage can affect the service life of the motor. ABB Drives recommend using an output choke for motor cable lengths of 50m or more
to ensure good motor service life

16  ABB ACS250 Technical Catalog

+24 Volt

Run (Enable)

For / Rev

Analog / Preset

+ 10 Volts

Reference

0 Volts

+24 Volt

Run (Enable)

Analog / Preset

Preset 1 / Preset 2

+ 10 Volts

Reference

0 Volts

Analog speed input with 1 preset speed and

fwd/rev switch

Analog speed input with 2 preset speeds

4 preset speeds and max speed select switch.

Effectively giving 5 preset speeds

+24 Volt

Run (Enable)

Preset Speeds 1-4
Select

Preset / Max

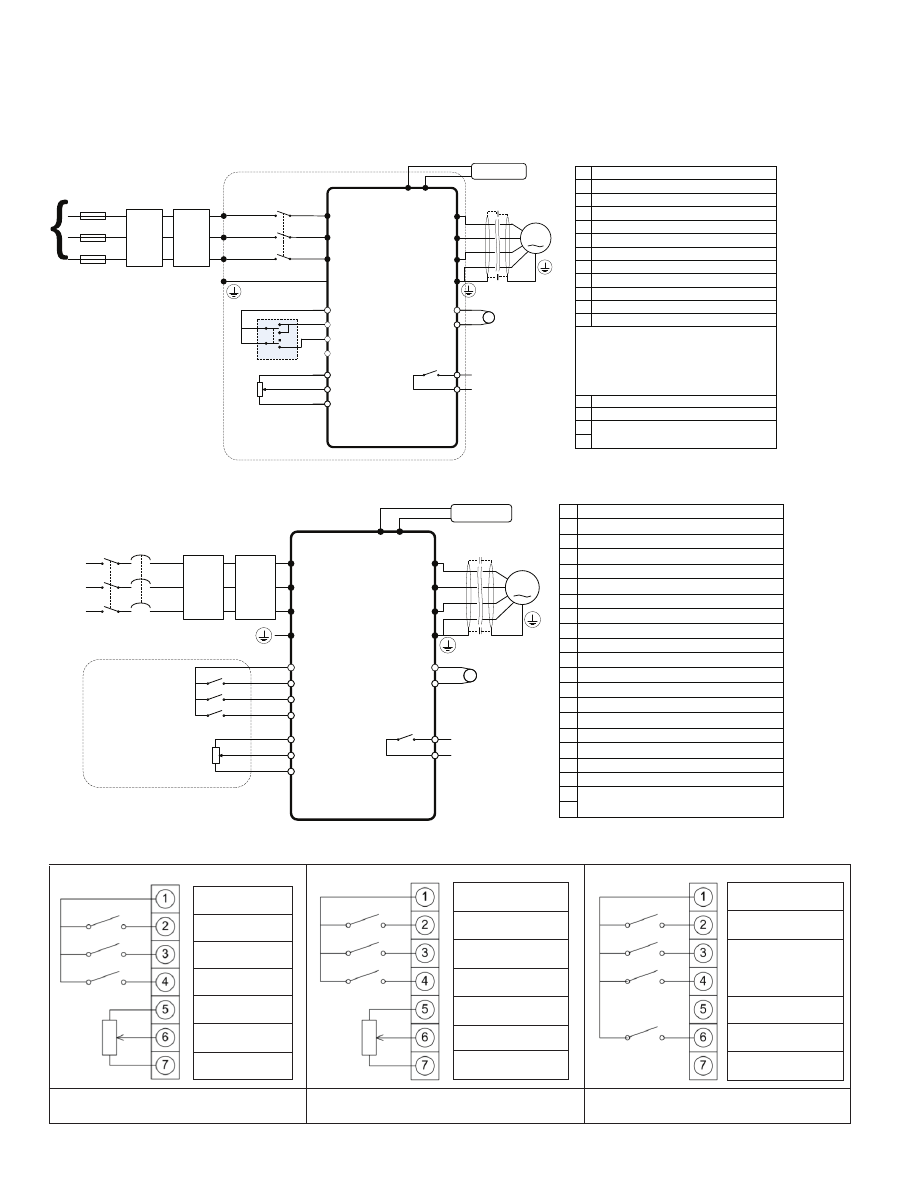

Control connections for 115, 240 & 480 V drives

IP66 (NEMA 4X) Switched Units

IP20 & IP66 (NEMA 4X) Non-Switched Units

Typical I/O Connections

M

1 +24V Output

2 Digital Input 1

3 Digital Input 2

4 Digital Input 3

5 +10V Output

6 Analog Input 1

7 0V

11

10

Analog Output 8

0V 9

V

Isolator

MCB or

Fuse

3 phase

AC input

50/60Hz

L1/L

L2/N

L3

Earth

Earth

W

V

U

Optional Brake

Resistor

+DC BR

(Sizes 2 & 3)

Relay Common

Relay Contact

Cable

Screen

0-10V

Stop - Run

Analog - Preset

Fwd - Rev

Optional

External

Input Choke

Optional

External

Input Filter

1 phase

AC input

50/60Hz

{

Default External

Analog & Digital

Input Connections

Analog

Speed

Reference

10k

Ω

nominal

1k

Ω

minimum

Power Connections

A   Incoming Power Source
B   External Mains Disconnect
C   External Fuse
D   Optional Input Choke
E   Optional Input Filter
F   Optional Brake Resistor
G  Shielded Motor Cable
I    Relay Output

Control Connections

1    + 24 Volt (100mA) User Output
2    Digital Input 1:  Drive Run / Stop
3    Digital Input 2:  Forward / Reverse
4    Digital Input 3:  Analog / Preset Speed
5   + 10 Volt Output
6    Analog Input 1: 0 – 10 Volt
7    0 Volt
8    Analog Output: 0 – 10 Volts
9    0 Volt
10  Relay Output
11  ‘Drive READY’ = Closed

M

1

2

3

4

5

6

7

11

10

8

9

V

L1/L

L2/N

L3

PE

PE

W

V

U

+DC BR

G

H

I

F

D

C

B

A

E

J

Power Connections

A    Incoming Power Source
B    External Fuse
C   Optional Input Choke
D   Optional Input Filter
E    Internal Mains Disconnect
F    Optional Brake Resistor
G   Shielded Motor Cable
I     Relay Output

Control Connections

J    Internal Forward / Off / Reverse Switch
K   Internal Speed Control Pot

8    Analog Output:  0 – 10 Volts
9    0 Volt
10  Relay Output
11 ‘Drive READY’ = Closed

                                                                ABB ACS250 Technical Catalog  17

Control connections for 600V drives

(Default Macro)

Open

Closed

Fwd/Rev w/ preset speeds



Open

Closed

1  +24 Volt Common

1  +24 Volt Common

2  Stop

Run

2  Stop

Run

3  Forward Rotation

Reverse Rotation

3  Forward Rotation

Reverse Rotation

4  Selected Speed ref

Preset Speed ref

4

Term. 4  Term. 6  Term. 10

Preset

5  +10 Volt

5

6  Analog Input 1

6

Open

Open

Open

Speed 1

7  0 Volts

7

Closed

Open

Open

Speed 2

8

8

Open

Closed

Open

Speed 3

9  0 Volts

9

Closed

Closed

Open

Speed 4

10  Preset Speed 1

Preset Speed  2



(1203(

10

or

ma

l

Op

er

11

11

12  Safe Inhibit

Normal Operation

12  Safe Inhibit

Normal Operation

13  Safe Inhibit

Normal Operation

13  Safe Inhibit

Normal Operation







1  +24 Volt Common
2  Stop

Run

3  Forward Rotation

Reverse Rotation

4  Selected Speed ref

Preset Speed 1

5  +10 Volt
6  Analog Input 1
7  0 Volts
8
9

10

or
m

al
O

Decel ramp 1

Decel ramp 2

11
12  Safe Inhibit

Normal Operation

13  Safe Inhibit

Normal Operation



Open

Closed

Analog speed input w/ 1 preset speed & Fwd/Rev

Analog speed input w/ Fwd/Rev and two decel ramps

Power Terminal Designations

Control Terminal Connections & Factory Settings

Typical I/O Connections



+24V

1







DI1

2







DI2

3







DI3

4







+10V

5



DI/AI4

6

0V

7

0V





8

AO1



0V

9

0V





DI/AI5

10



11

AO2



STO+

12

STO-

13



14

R01COM







15

R01NO

16

R01NC

17

R02NO





18

R02COM

Open                     Closed

+24V Supply (100mA) / External Input

Digital Input 1                Stop                   Run (Enable)

Digital Input 2       Forward Rotation     Reverse Rotation

Digital Input 3       Analog Speed Ref       Preset Speed

Digital Inputs: 8 - 30 Volt DC
+10 Volt, 10mA Output

Analog Input 1

Analog Ouput: 0 - 10 Volt / 4 - 20mA, 20mA Max

0 Volt Supply / External Input

Analog Input 2

Analog Ouput: 0 - 10 Volt / 4 - 20mA, 20mA Max

SAFE TORQUE OFF Input
Refer to User Manual 3AUA0000138354 for further
information on the STO function.
Logic High = 18-30 Volt DC ("SAFE TORQUE OFF"
Standby mode)

Output Speed

Output Current

Default Function:
Drive Ready /
Fault

Default Function:
Running























.













L1

L2
L3



Incoming Power Source
Connect to L1, L2 & L3
Phase sequence is not
important

Protective Earth / Ground
connection
The drive must be Earthed /
Grounded

Motor Connections
Connect the motor to the U, V & W
terminals
The motor eart must be connected
to the drive
Optional Brake Resistor & DC Bus
Connections
Where a Brake Resistor is used, it
must be connected to the “BR” and
“+” terminals

               The brake resistor should
be protected from overheating by
means of a thermal switch which
interrupts the mains supply in a
brake resistor fault situation.

18  ABB ACS250 Technical Catalog

Model

Code

Field kit

Description

RCCS-01
copying tool

N/A

RCCS-01

Copy stick, which is used to upload and download the parameters
through RJ45 connection
Parameters can only be copied between drives of the same product range and power rating (size)

RCRO-01
relay
output card

N/A

RCRO-01

The second relay output module can be used in applications where the analog output from the drive is
converted to a relay output.

Max relay switching voltage: 250 VAC/220 VDC
Max relay switching current: 1A
Max input voltage: +/- 50 VDC
Environmental: -10ºC … +50ºC
Conformity: IP00, UL94V-0

Not compatible with 600 V drives

RCRP-01
external LED
keypad

N/A

RCRP-01

Remote keypad that can be added through RJ45 connection.

Signal interface: standard 6-way RJ45 connector
Supply input: 10V … 36 VDC, 30mA
RS485 signal: industry standard 2-wire +5V differential
Environmental: operational 0 … 50 °C
Storage: -40°C … 60°C
Relative humidity: < 95% (non condensing)
Protection rating: IP54
Max cable length: 20m (unscreened, total length)
100m (screened, twisted pair, total length)

RCRJ-01
RJ45 Y-cable
splitter

N/A

RCRJ-01

The data cable splitter is a 3-way “Y” cable splitter suitable for a RS-485 network of drives. The option is
compatible with standard  CAT 5 or CAT 6 type cable and can be used for Modbus-RTU or an RS-485
remote keypad network.

RCNT-01
RJ45 Y-cable
splitter w/
term.

N/A

RCNT-01

The data cable splitter with terminal block is a 3-way “Y” cable splitter with one terminal block suitable for
an RS-485 network of drives. Two of the three connections are compatible with standard CAT 5 or CAT
6 type cable and the third is a terminal block that can be used to connect a PLC or network terminating
resistor.

ACS250
democase

N/A

ACS250-IP20
DEMOCASE

Powered by 115 VAC, the program case does includes an ACS250 drive and IO board with switches,
speed potentiometer and LED. Ideal for demonstrating the programability of the ACS250. There is no
motor included in this democase

N/A

+F278

N/A

Operator controls assembled on the front cover of the drive: Disconnect, FWD/OFF/REV selector, and
speed potentiometer.

Available on IP66 drives only.

Options

NOTE:
Options are shipped separately and not available pre-assembled on the drive unless noted with a plus code.

                                                                ABB ACS250 Technical Catalog  19

Single-phase 100-120 V applications, stopping duty only

Type CR resistors (availale for the small HP drives as listed below)



DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-01U-05A8-1

1.5

P14494-CR-06

50

100

P14494-CR-18

50

200

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-01U-05A8-1

1.5

P14494-CR-24

50

300

P14494-CR-32

50

400

Standard enclosed resistor packages

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-01U-05A8-1

1.5

P14494-24

45

300

P14494-24

45

300

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

Resistor part no.

Ohms

Watts

Resistor part no.

Ohms

Watts

ACS250-01U-05A8-1

1.5

P14494-24

45

300

P14494-24

45

300

Notes:   To determine resistor type, dimensions and weights refer to Resistor Technical Data Tables

Braking resistors

Single-phase 200-240 V applications, stopping duty only

Type CR resistors (availale for the small HP drives as listed below)

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-01U-10A5-2

3

P14494-CR-12

50

150

P14494-CR-24

50

300

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-01U-10A5-2

3

P14494-CR-32

50

400

Standard enclosed resistor packages

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-01U-10A5-2

3

P14494-31

35

300

P14494-31

35

300

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-01U-10A5-2

3

P14494-32

35

820

P14494-32

35

820

Notes:   To determine resistor type, dimensions and weights refer to Resistor Technical Data Tables

20  ABB ACS250 Technical Catalog

Braking resistors

Three-phase 200-240 V applications, stopping duty only




Type CR resistors (availale for the small HP drives as listed below)



DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-07A0-2

2

P14494-CR-06

50

100

P14494-CR-18

50

200

ACS250-03U-10A5-2

3

P14494-CR-12

50

150

P14494-CR-24

50

300

ACS250-03U-18A0-2

5

P14494-CR-26

40

300

P14494-CR-34

40

400

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-07A0-2

2

P14494-CR-24

50

300

P14494-CR-32

50

400

ACS250-03U-10A5-2

3

P14494-CR-32

50

400

Standard enclosed resistor packages

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-03U-07A0-2

2

P14494-31

35

300

P14494-31

35

300

ACS250-03U-10A5-2

3

P14494-31

35

300

P14494-31

35

300

ACS250-03U-18A0-2

5

P14494-31

35

300

P14494-32

35

820

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-01U-07A0-2

2

P14494-31

35

300

P14494-32

35

820

ACS250-01U-10A5-2

3

P14494-32

35

820

P14494-32

35

820

ACS250-03U-18A0-2

5

P14494-32

35

820

P14494-32

35

820

Notes:   To determine resistor type, dimensions and weights refer to Resistor Technical Data Tables



                                                                ABB ACS250 Technical Catalog  21

Braking resistors

Braking resistors

Three-phase 380-480 V applications, stopping duty only




Type CR resistors (availale for the small HP drives as listed below)



DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-04A1-4

2

P14494-CR-03

150

100

P14494-CR-15

150

200

ACS250-03U-05A8-4

3

P14494-CR-11

100

150

P14494-CR-22

100

300

ACS250-03U-09A5-4

5

P14494-CR-22

100

300

P14494-CR-30

100

400

ACS250-03U-14A0-4

7.5

P14494-CR-32

50

400

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-04A1-4

2

P14494-CR-21

150

300

P14494-CR-29

150

400

ACS250-03U-05A8-4

3

P14494-CR-30

100

400

Standard enclosed resistor packages

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

Resistor part no.

Ohms

Watts

Resistor part no.

Ohms

Watts

ACS250-03U-04A1-4

2

P14494-15

150

300

P14494-15

150

300

ACS250-03U-05A8-4

3

P14494-15

150

300

P14494-15

150

300

ACS250-03U-09A5-4

5

P14494-19

75

300

P14494-20

75

600

ACS250-03U-14A0-4

7.5

P14494-25

45

800

P14494-25

45

800

ACS250-03U-18A0-4

10

P14494-25

45

800

P14494-26

45

1260

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-03U-04A1-4

2

P14494-15

150

300

P14494-16

150

600

ACS250-03U-05A8-4

3

P14494-16

150

600

P14494-16

150

600

ACS250-03U-09A5-4

5

P14494-20

75

600

P14494-21

75

1000

ACS250-03U-14A0-4

7.5

P14494-26

45

1260

P14494-27

45

1920

Notes:   To determine resistor type, dimensions and weights refer to Resistor Technical Data Tables

22  ABB ACS250 Technical Catalog

Braking resistors

Three-phase 575-600 V applications, stopping duty only






Type CR resistors (availale for the small HP drives as listed below)



DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-02A1-6

1.5

P14494-CR-02

200

100

P14494-CR-13

250

200

ACS250-03U-03A1-6

2

P14494-CR-08

250

150

P14494-CR-19

250

300

ACS250-03U-04A1-6

3

P14494-CR-22

100

300

P14494-CR-30

100

400

ACS250-03U-06A5-6

5

P14494-CR-22

100

300

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

CR part no.

Ohms Watts

CR part no.

Ohms

Watts

ACS250-03U-02A1-6

1.5

P14494-CR-19

250

300

P14494-CR-27

250

400

ACS250-03U-03A1-6

2

P14494-CR-19

250

300

P14494-CR-27

250

400

ACS250-03U-04A1-6

3

P14494-CR-27

250

400

Standard enclosed resistor packages

DutyCycle=3sec on/27sec off

DutyCycle=10sec on/50sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-03U-02A1-6

1.5

P14494-11

250

300

P14494-11

250

300

ACS250-03U-03A1-6

2

P14494-11

250

300

P14494-11

250

300

ACS250-03U-04A1-6

3

P14494-11

250

300

P14494-11

250

300

ACS250-03U-06A5-6

5

P14494-13

200

300

P14494-14

200

600

DutyCycle=30sec on/180sec off

DutyCycle=60sec on/180sec off

Drive type code

HP

Resistor part no.

Ohms Watts

Resistor part no.

Ohms

Watts

ACS250-03U-02A1-6

1.5

P14494-11

250

300

P14494-11

250

300

ACS250-03U-03A1-6

2

P14494-11

250

300

P14494-11

250

300

ACS250-03U-04A1-6

3

P14494-12

250

600

P14494-12

250

600

ACS250-03U-06A5-6

5

P14494-14

200

600

P14494-18

150

1200

ACS250-03U-09A0-6

7.5

ABB-48431-052

80

800

P14494-63

80

1050

ACS250-03U-12A0-6

10

P14494-62

63

800

ABB-48431-140

63

1200

ACS250-03U-17A0-6

15

ABB-41163

35

900

P14494-34

35

1600

ACS250-03U-22A0-6

20

P14494-33

35

1200

ABB-44534

40

2010

Notes:   To determine resistor type, dimensions and weights refer to Resistor Technical Data Tables

                                                                ABB ACS250 Technical Catalog  23

Resistor technical data

Part number

Ohms

Watts

Encl

Dimensions
W x D x H (inches)

Weight
(lbs)

P14494-11

250

300

GCE1

12W x 5D x 5H

7

P14494-12

250

600

GCE2

12W x 7D x 5H

10

P14494-13

200

300

GCE1

12W x 5D x 5H

7

P14494-14

200

600

GCE2

12W x 7D x 5H

10

P14494-15

150

300

GCE1

12W x 5D x 5H

7

P14494-16

150

600

GCE2

12W x 7D x 5H

10

P14494-18

150

1200

GCE4

12W x 13D x 5H

16

P14494-19

75

300

GCE1

12W x 5D x 5H

7

P14494-20

75

600

GCE2

12W x 7D x 5H

10

P14494-21

75

1000

GCE3

12W x 10D x 5H

13

P14494-25

45

800

GCE2

12W x 7D x 5H

10

P14494-26

45

1260

GCE3

12W x 10D x 5H

13

P14494-27

45

1920

GCE5

12W x 16D x 5H

18

P14494-31

35

300

GCE1

12W x 5D x 5H

7

P14494-32

35

820

GCE2

12W x 7D x 5H

10

P14494-34

35

1600

GCE4

12W x 13D x 5H

16

P14494-CR-02

200

100

CR100

6W x 1.5D x 0.75H

1

P14494-CR-03

150

100

CR100

6W x 1.5D x 0.75H

1

P14494-CR-06

50

100

CR100

6W x 1.5D x 0.75H

1

P14494-CR-08

250

150

CR150

9W x 1.5D x 0.75H

1

P14494-CR-11

100

150

CR150

9W x 1.5D x 0.75H

1

P14494-CR-12

50

150

CR150

9W x 1.5D x 0.75H

1

P14494-CR-13

250

200

CR200

6W x 3D x 1.5H

2

P14494-CR-15

150

200

CR200

6W x 3D x 1.5H

2

P14494-CR-18

50

200

CR200

6W x 3D x 1.5H

2

P14494-CR-19

250

300

CR300

9W x 3D x 1.5H

3

P14494-CR-21

150

300

CR300

9W x 3D x 1.5H

3

P14494-CR-22

100

300

CR300

9W x 3D x 1.5H

3

P14494-CR-24

50

300

CR300

9W x 3D x 1.5H

3

P14494-CR-26

40

300

CR300

9W x 3D x 1.5H

3

P14494-CR-27

250

400

CR400

12W x 3D x 1.5H

4

P14494-CR-29

150

400

CR400

12W x 3D x 1.5H

4

P14494-CR-30

100

400

CR400

12W x 3D x 1.5H

4

P14494-CR-31

75

400

CR400

12W x 3D x 1.5H

4

P14494-CR-32

50

400

CR400

12W x 3D x 1.5H

4

P14494-CR-34

40

400

CR400

12W x 3D x 1.5H

4

ABB-48431-052

80

800

GCE2

12W x 7D x 5H

10

P14494-63

80

1050

GCE3

12W x 10D x 5H

13

P14494-62

63

800

GCE2

12W x 7D x 5H

10

ABB-48431-140

63

1200

GCE3

12W x 10D x 5H

13

ABB-41163

35

900

GCE3

12W x 10D x 5H

13

P14494-34

35

1600

GCE4

12W x 13D x 5H

16

P14494-33

35

1200

GCE3

12W x 10D x 5H

13

ABB-44534

40

2010

GCE5

12W x 16D x 5H

18

24  ABB ACS250 Technical Catalog

Type CR Case resistor

Information and dimensions

Overview

Powerohm’s Type CR resistors are manufactured with quality components for superior performance and increased life expectancy.
Our case resistors feature a nickel-chromium wire helically wound, then placed inside a ceramic fixture and inserted into a corro-
sion resistant aluminum case. Each coil end is terminated to high temperature wire leads and encapsulated with a ceramic potting
material. The result is a resistor element electrically isolated, but thermally bound to the outer case to allow the element heat to
transfer to the metallic case and efficiently cool. The units are supplied with 18” wire leads, and the case is machined to include
two mounting holes for easy installation.

Electrical Ratings & Dimensions of Standard Size Case Resistors

Wattage

Dimension (in)

A

B

C

D

E

100

6

1-1/2

3/4

5-1/2

3/4

150

9

1-1/2

3/4

8-1/2

3/4

200

6

3

1-1/2

5-1/2

1-1/2

300

9

3

1-1/2

8-1/2

1-1/2

400

12

3

1-1/2

11-1/2

1-1/2

B

C

D
A

E

(2) 18" HIGH TEMP

SILICONE LEADS

(2) 7/32" DIA.

TOP VIEW

FRONT VIEW

ALUMINUM CASE

A

                                                                ABB ACS250 Technical Catalog  25

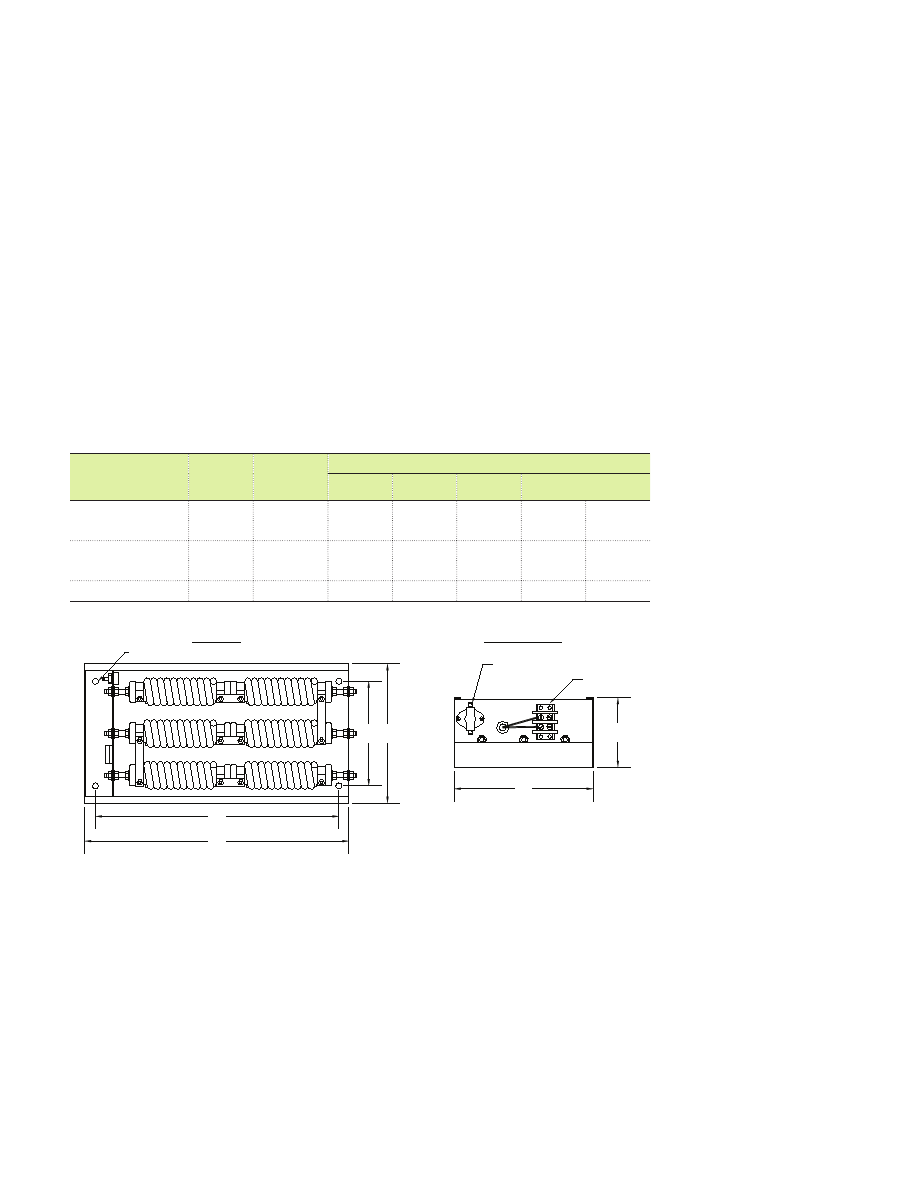

Type GCE resistor

Information and dimensions

Overview

The type GCE enclosures are heavy gage screened enclosures featuring a solid bottom and a built-in wiring compartment sepa-
rated from the resistor assembly. The resistors are factory wired to a terminal block mounted in this compartment using high
temperature Teflon or silicone wire. The terminal compartment also houses a normally closed thermal switch used for detecting re-
sistor temperature overloads. During installation, standard 90ºC rated wire is routed into the compartment through the removable
1/2 inch conduit knockouts and connected to the factory wired terminal block.

Our standard unit includes a screened cover which is CNC punched to obtain maximum cooling and professional aesthetics.
Mounting holes are located inside the enclosure and can be easily accessed by removing the cover. Resistor coils are inter-
connected using stainless steel bus bars, producing a corrosion resistant current path to withstand nearly any harsh industrial
environment. The standard finish is galvanized, but an optional powder coated, aluminum or stainless steel finish is available upon
request. As shown in the table below, the size of the enclosure will vary depending on the number of resistor coils required for
your application. Units are available with louvered covers; add “-W” to the part number and note that the ‘A’ and ‘B’ dimensions
will increase by an inch. Please do not hesitate to call the factory if you need assistance.

GCE Enclosure Dimensions and Coil Options

Part No.

Max. No.
WR Cols

Max No.
SXR, VR or
ER

Dimensions (in)

A

B

C

D

E

GCE1

1

(1) Size 2

12

5

5

10-1/2

---

GCE2

2

(2) Size 2

12

7

5

10-1/2

4-1/2

GCE3

3

(3) Size 2

12

10

5

10-1/2

7-1/2

GCE4

4

(4) Size 2

12

13

5

10-1/2

10-1/2

GCE5

5

(5) Size 2

12

16

5

10-1/2

13-1/2

C

B

B

A

D

E

NORMALLY CLOSED

THERMOSTAT

TWO POINT

TERMINAL BLOCK

(4) 7/16 DIA.

TOP VIEW

LEFT SIDE VIEW

26  ABB ACS250 Technical Catalog

Installation instructions for Powerohm Brake Resistors

CONSTRUCTION: Powerohm braking resistors consists of smoothwound, wirewound or edgewound type resistor coils mounted
in ventilated enclosures. All current carrying components used to manufacture our resistor coils including the elements and termi-
nals are stainless steel for maximum corrosion resistance. Standard enclosures will be mill galvanized with terminals factory wired
to a terminal block and normally closed thermal switch. Braking resistors are available with a variety of options such as special
enclosure finishes and outdoor ratings.

INSPECTION: Upon receipt of your Powerohm Braking Resistor, be sure to inspect the unit carefully for any shipping damage.
After unpacking, check the unit for loose, broken, bent or otherwise damaged parts due to shipping. Report any shipping damage
immediately to the freight carrier. Be sure to verify that the part number and ratings listed on the nameplate conform to the order
specification. The ohm rating listed on the nameplate is critical (too low of an ohm value may cause damage to the drive).

INSTALLATION:
IMPORTANT: The National Electric Code (NEC) and local regulations govern the installation and wiring of electrical equipment
such as braking resistors. DC power wiring, AC power wiring, control wiring and conduit must be installed in accordance with
these codes.

Powerohm braking assemblies cool by natural convection causing hot air to rise vertically from the enclosure. Braking resistors
should be mounted in a well ventilated location free of any combustible materials or equipment affected by heat. Units should
be installed with at least 24 inches of free space above the enclosure top and 6 inches of free space surrounding the enclosure
sides. If necessary, units can be mounted on spacers or channels to limit heat from conducting from the resistor enclosure to its
mounting surface.

Braking resistor enclosures 28 inches or less in width, can be mounted vertically or horizontally. If the unit is mounted vertically,
it is important that the resistor coils remain in a horizontal position. Also, if a thermal switch is included with the unit, position the
equipment so the switch remains near the top of the enclosure. See below for vertical mounting details.

Smaller 28 inch wide enclosures have convenient conduit
knockouts for easy connection. Remove the proper knockout
after determining a suitable entry point. Larger units may require
field punching for conduit entry. It is preferable to route con-
duit near the bottom of the resistor enclosure. After attaching
conduit, pull wiring into the enclosure for connection to resistor.
If connecting directly to the terminals on the resistor elements, it
is necessary to use high temperature silicon or Teflon wire rated
200ºC. Try to route wiring along the bottom of the enclosure
and avoid running the wiring across the top or near the resistor
elements. Units are supplied with either #10, 3/8 or 1/2 inch
terminal hardware. If you choose to use the factory installed
terminal block, then you may connect to if using standard 90ºC
rated wire. Be sure to properly ground the resistor enclosure to
prevent electrical shock.
A normally closed thermal switch is included with the unit, featuring ¼ inch quick connect terminals.

After installing and wiring to your Powerohm Braking Resistor, return the ventilated cover to its proper position. Securely tighten cover
hardware (do not exceed 20 inch-pounds of torque).

MAINTENANCE: Periodically check the unit for loose connections and an accumulation of dust or dirt on the inside and outside of the re-
sistor enclosure. Be sure to allow the unit to cool before servicing (contact may result in burn injury). Remove all power before servicing unit
to avoid electrical shock. Allow at least one minute after input power has been removed for the bus voltage to discharge. Electric shock
can cause injury or death.Resistor elements should not glow red under normal operating conditions. If the resistor elements glow red you
may need a higher ratedbraking resistor.

TECHNICAL SUPPORT: If you have any questions about your braking resistor, contact Powerohm for assistance at (800) 838-4694.

                                                                ABB ACS250 Technical Catalog  27

Input reactors

Applications:

Line side power conditioning for AC motor controls to prevent unwanted harmonics and nuisance drive trips as well as to
prevent excess current during line disturbances that can damage power semi-conductors. There should be a minimum imped-
ance associated with the drive using either AC or DC magnetics.  In many applications, this impedance can come from a supply
transformer, or if long enough, the supply cable themselves. In most cases, however, the use of an additional input reactor is
recommended.
If any of the following conditions exist use of at least a 3% line reactor is recommended:



−

Installation has voltage spikes in excess of 6000V peak or lightning strikes.



−

Installation has switched power factor correction capacitors.



−

Installation has power interruptions or voltage sags in excess of 200Vac.



−

When the distribution system kVA is more than 10 times larger than the drive kVA .

Features:



Open, UL Type 1 and UL Type 3R construction with connection terminals. 3%  and 5%
impedance rating at rated current.

Code

Input without
Reactor

Input with 3%
Reactor

Input
A

Input
A

 Single Phase Drive - 200-240 V Applications

ACS250-01U-02A3-2

6.4

5.0

ACS250-01U-04A3-2

8.5

7.5

ACS250-01U-07A0-2

15.2

13.5

ACS250-01U-10A5-2

19.5

17.3

 Three Phase Drive - 200-240 V Applications

ACS250-03U-02A3-2

3.8

3.1

ACS250-03U-04A3-2

4.5

3.5

ACS250-03U-07A0-2

7.0

5.5

ACS250-03U-10A5-2

10.5

8.6

ACS250-03U-18A0-2

18.0

15.0

 Three Phase Drive  - 380-480 V Applications

ACS250-03U-02A2-4

2.9

2.2

ACS250-03U-04A1-4

5.1

4.1

ACS250-03U-05A8-4

7.5

5.5

ACS250-03U-09A5-4

11.2

9.0

ACS250-03U-14A0-4

19.0

16.0

ACS250-03U-18A0-4

21.0

17.0

 Three Phase Drive  - 550-600 V Applications

ACS250-03U-02A1-6

2.7

2.1

ACS250-03U-03A1-6

3.7

3.1

ACS250-03U-04A1-6

4.8

4.1

ACS250-03U-06A5-6

7.1

6.5

ACS250-03U-09A0-6

10.2

9.0

ACS250-03U-12A0-6

14.4

12.0

ACS250-03U-17A0-6

19.1

17.0

28  ABB ACS250 Technical Catalog

Drive Part #

HP

ND

Input/
Output
Current

KDR UR 5%,
Open, Not UL

KDR UR 5%,
NEMA 1, Not UL

KDR 5%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRA53H

KDRA53HC1

KDRULA53H

16.8

4x4.18x3.75

4

ACS250-01U-04A3-2

1

4.3

KDRA26H

KDRA26HC1

KDRULA26H

30.5

4x4.18x3.75

4

ACS250-01U-07A0-2

2

7

KDRB25H

KDRB25HC1

KDRULB25H

53.1

5x6x4

8

ACS250-01U-10A5-2

3

10.5

KDRB26H

KDRB26HC1

KDRULB26H

66.5

5x6x4

8

Drive Part #

HP

ND

Input/
Output
Current

KDR 5%, UL Type 1 Enclosure

KDR 5%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRULA53HE01

16.8

12.25x12.5x6.75

14.5

KDRULA53HE3R

16.8

11.5x10x12

19

ACS250-01U-04A3-2

1

4.3

KDRULA26HE01

30.5

12.25x12.5x6.75

14.5

KDRULA26HE3R

30.5

11.5x10x12

19

ACS250-01U-07A0-2

2

7

KDRULB25HE01

53.1

12.25x12.5x6.75

18.5

KDRULB25HE3R

53.1

11.5x10x12

23

ACS250-01U-10A5-2

3

10.5

KDRULB26HE01

66.5

12.25x12.5x6.75

18.5

KDRULB26HE3R

66.5

11.5x10x12

23

Input reactors for single phase 200-240V applications

High Impedance

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 3%,
Open, Not UL

KDR UR 3%,
NEMA 1, Not UL

KDR 3%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRA25L

KDRA25LC1

KDRULA25L

11

4x4.18x3.75

4

ACS250-01U-04A3-2

1

4.3

KDRA27L

KDRA27LC1

KDRULA27L

21

4x4.18x3.75

4

ACS250-01U-07A0-2

2

7

KDRB22L

KDRB22LC1

KDRULB22L

38

5x6x4

8

ACS250-01U-10A5-2

3

10.5

KDRB22L

KDRB22LC1

KDRULB22L

38

5x6x4

8

Drive Part #

HP
ND

Input/
Output
Current

KDR 3%, UL Type 1 Enclosure

KDR 3%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRULA25LE01

11

12.25x12.5x6.75

14.5

KDRULA25LE3R 11

11.5x10x12

19

ACS250-01U-04A3-2

1

4.3

KDRULA27LE01

21

12.25x12.5x6.75

14.5

KDRULA27LE3R 21

11.5x10x12

19

ACS250-01U-07A0-2

2

7

KDRULB22LE01

38

12.25x12.5x6.75

18.5

KDRULB22LE3R 38

11.5x10x12

23

ACS250-01U-10A5-2

3

10.5

KDRULB22LE01

38

12.25x12.5x6.75

18.5

KDRULB22LE3R 38

11.5x10x12

23

Low Impedance

                                                                ABB ACS250 Technical Catalog  29

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 5%,
Open, Not UL

KDR UR 5%,
NEMA 1, Not UL

KDR 5%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRA54H

KDRA54HC1

KDRULA54H

14

4x4.18x3.75

4

ACS250-01U-04A3-2

1

4.3

KDRA25H

KDRA25HC1

KDRULA25H

23.6

4x4.18x3.75

4

ACS250-01U-07A0-2

2

7

KDRA26H

KDRA26HC1

KDRULA26H

30.5

4x4.18x3.75

4

ACS250-01U-10A5-2

3

10.5

KDRA28H

KDRA28HC1

KDRULA28H

43.1

4x4.18x3.75

4

ACS250-01U-18A0-2

5

18

KDRB25H

KDRB25HC1

KDRULB25H

53.1

5x6x4

8

Drive Part #

HP
ND

Input/
Output
Current

KDR 5%, UL Type 1 Enclosure

KDR 5%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRULA54HE01

14

12.25x12.5x6.75

14.5

KDRULA54HE3R 14

11.5x10x12

19

ACS250-01U-04A3-2

1

4.3

KDRULA25HE01

23.6

12.25x12.5x6.75

14.5

KDRULA25HE3R 23.6

11.5x10x12

19

ACS250-01U-07A0-2

2

7

KDRULA26HE01

30.5

12.25x12.5x6.75

14.5

KDRULA26HE3R 30.5

11.5x10x12

19

ACS250-01U-10A5-2

3

10.5

KDRULA28HE01

43.1

12.25x12.5x6.75

14.5

KDRULA28HE3R 43.1

11.5x10x12

19

ACS250-01U-18A0-2

5

18

KDRULB25HE01

53.1

12.25x12.5x6.75

18.5

KDRULB25HE3R 53.1

11.5x10x12

23

Input reactors for three phase 200-240V applications

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 3%,
Open, Not UL

KDR UR 3%,
NEMA 1, Not UL

KDR 3%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

KDRA54L

KDRA54LC1

KDRULA54L

7

4x4.18x3.75

4

ACS250-01U-04A3-2

1

4.3

KDRA25L

KDRA25LC1

KDRULA25L

11

4x4.18x3.75

4

ACS250-01U-07A0-2

2

7

KDRA27L

KDRA27LC1

KDRULA27L

21

4x4.18x3.75

4

ACS250-01U-10A5-2

3

10.5

KDRA28L

KDRA28LC1

KDRULA28L

29

4x4.18x3.75

4

ACS250-01U-18A0-2

5

18

KDRB22L

KDRB22LC1

KDRULB22L

38

5x6x4

8

Drive Part #

HP
ND

Input/
Output
Current

KDR 3%, UL Type 1 Enclosure

KDR 3%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2 0.5

2.3

KDRULA54LE01

7

12.25x12.5x6.75 14.5

KDRULA54LE3R

7

11.5x10x12

19

ACS250-01U-04A3-2 1

4.3

KDRULA25LE01

11

12.25x12.5x6.75 14.5

KDRULA25LE3R

11

11.5x10x12

19

ACS250-01U-07A0-2 2

7

KDRULA27LE01

21

12.25x12.5x6.75 14.5

KDRULA27LE3R

21

11.5x10x12

19

ACS250-01U-10A5-2 3

10.5

KDRULA28LE01

29

12.25x12.5x6.75 18.5

KDRULA28LE3R

29

11.5x10x12

19

ACS250-01U-18A0-2 5

18

KDRULB22LE01

38

12.25x12.5x6.75 18.5

KDRULB22LE3R

38

11.5x10x12

23

High Impedance

Low Impedance

30  ABB ACS250 Technical Catalog

Drive Part #

HP

ND

Input/
Output
Current

KDR UR 5%,
Open, Not UL

KDR UR 5%,
NEMA 1, Not UL

KDR 5%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

KDRA8H

KDRA8HC1

KDRULA8H

12

4x4.18x3.75

4

ACS250-03U-04A1-4

2

4.1

KDRA1H

KDRA1HC1

KDRULA1H

33

4x4.18x3.75

4

ACS250-03U-05A8-4

3

5.8

KDRA2H

KDRA2HC1

KDRULA2H

38

4x4.18x3.75

4

ACS250-03U-09A5-4

5

9.5

KDRA3H

KDRA3HC1

KDRULA3H

80

4x4.18x3.75

4

ACS250-03U-14A0-4

7.5

14

KDRA4H

KDRA4HC1

KDRULA4H

77

4x4.18x3.75

5

ACS250-03U-18A0-4

10

18

KDRA5H

KDRA5HC1

KDRULA5H

111

4x4.18x3.75

5

Drive Part #

HP

ND

Input/
Output
Current

KDR 5%, UL Type 1 Enclosure

KDR 5%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

KDRULA8HE01

12

 12.25x12.5x6.75  14.5

KDRULA8HE3R

12

11.5x10x12

19

ACS250-03U-04A1-4

2

4.1

KDRULA1HE01

33

 12.25x12.5x6.75  14.5

KDRULA1HE3R

33

11.5x10x12

19

ACS250-03U-05A8-4

3

5.8

KDRULA2HE01

38

 12.25x12.5x6.75  14.5

KDRULA2HE3R

38

11.5x10x12

19

ACS250-03U-09A5-4

5

9.5

KDRULA3HE01

80

 12.25x12.5x6.75  14.5

KDRULA3HE3R

80

11.5x10x12

19

ACS250-03U-14A0-4

7.5

14

KDRULA4HE01

77

 12.25x12.5x6.75  15.5

KDRULA4HE3R

77

11.5x10x12

20

ACS250-03U-18A0-4

10

18

KDRULA5HE01

111

 12.25x12.5x6.75  15.5

KDRULA5HE3R

111

11.5x10x12

20

Input reactors for three phase 380-480V applications

High Impedance

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 3%,
Open, Not UL

KDR UR 3%,
NEMA 1, Not UL

KDR 3%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

KDRA8L

KDRA8LC1

KDRULA8L

10.4

4x4.18x3.75

4

ACS250-03U-04A1-4

2

4.1

KDRA1L

KDRA1LC1

KDRULA1L

19

4x4.18x3.75

4

ACS250-03U-05A8-4

3

5.8

KDRA2L

KDRA2LC1

KDRULA2L

23

4x4.18x3.75

4

ACS250-03U-09A5-4

5

9.5

KDRA3L

KDRA3LC1

KDRULA3L

49

4x4.18x3.75

4

ACS250-03U-14A0-4

7.5

14

KDRA4L

KDRA4LC1

KDRULA4L

40

4x4.18x3.75

4

ACS250-03U-18A0-4

10

18

KDRA5L

KDRA5LC1

KDRULA5L

64

4x4.18x3.75

5

Drive Part #

HP
ND

Input/
Output
Current

KDR 3%, UL Type 1 Enclosure

KDR 3%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

KDRULA8LE01

10.4

 12.25x12.5x6.75  14.5

KDRULA8LE3R

10.4

11.5x10x12

19

ACS250-03U-04A1-4

2

4.1

KDRULA1LE01

19

 12.25x12.5x6.75  14.5

KDRULA1LE3R

19

11.5x10x12

19

ACS250-03U-05A8-4

3

5.8

KDRULA2LE01

23

 12.25x12.5x6.75  14.5

KDRULA2LE3R

23

11.5x10x12

19

ACS250-03U-09A5-4

5

9.5

KDRULA3LE01

49

 12.25x12.5x6.75  14.5

KDRULA3LE3R

49

11.5x10x12

19

ACS250-03U-14A0-4

7.5

14

KDRULA4LE01

40

 12.25x12.5x6.75  14.5

KDRULA4LE3R

40

11.5x10x12

19

ACS250-03U-18A0-4

10

18

KDRULA5LE01

64

 12.25x12.5x6.75  14.5

KDRULA5LE3R

64

11.5x10x12

19

Low Impedance

                                                                ABB ACS250 Technical Catalog  31

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 5%,
Open, Not UL

KDR UR 5%,
NEMA 1, Not UL

KDR 5%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6

1

2.1

KDRA50H

KDRA50HC1

KDRULA50H

17

4x4.18x3.75

4

ACS250-03U-03A1-6

2

3.1

KDRA43H

KDRA43HC1

KDRULA43H

23

4x4.18x3.75

4

ACS250-03U-04A1-6

3

4.1

KDRA44H

KDRA44HC1

KDRULA44H

34

4x4.18x3.75

4

ACS250-03U-06A5-6

5

6.5

KDRA45H

KDRA45HC1

KDRULA45H

47

4x4.18x3.75

4

ACS250-03U-09A0-6

7.5

9

KDRB42H

KDRB42HC2

KDRULB42H

61

5x6x4

8

ACS250-03U-12A0-6

10

12

KDRB43H

KDRB43HC2

KDRULB43H

70

5x6x4

8

ACS250-03U-17A0-6

15

17

KDRB44H

KDRB44HC2

KDRULB44H

73

5x6x4

8

Drive Part #

HP
ND

Input/
Output
Current

KDR 5%, UL Type 1 Enclosure

KDR 5%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6

1

2.1

KDRULA50HE01

17

 12.25x12.5x6.75  14.5

KDRULA50HE3R 17

11.5x10x12

19

ACS250-03U-03A1-6

2

3.1

KDRULA43HE01

23

12.25x12.5x6.75

14.5

KDRULA43HE3R 23

11.5x10x12

19

ACS250-03U-04A1-6

3

4.1

KDRULA44HE01

34

12.25x12.5x6.75

14.5

KDRULA44HE3R 34

11.5x10x12

19

ACS250-03U-06A5-6

5

6.5

KDRULA45HE01

47

 12.25x12.5x6.75  14.5

KDRULA45HE3R 47

11.5x10x12

19

ACS250-03U-09A0-6

7.5

9

KDRULB42HE01

61

 12.25x12.5x6.75  18.5

KDRULB42HE3R 61

11.5x10x12

23

ACS250-03U-12A0-6

10

12

KDRULB43HE01

70

 12.25x12.5x6.75  18.5

KDRULB43HE3R 70

11.5x10x12

23

ACS250-03U-17A0-6

15

17

KDRULB44HE01

73

 12.25x12.5x6.75  18.5

KDRULB44HE3R 73

11.5x10x12

23

Input reactors for three phase 550-600V applications

Drive Part #

HP
ND

Input/
Output
Current

KDR UR 3%,
Open, Not UL

KDR UR 3%,
NEMA 1, Not UL

KDR 3%, UL Listed, Open

Part Number

Part Number

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6

1

2.1

KDRA50L

KDRA50LC1

KDRULA50L

12

4x4.18x3.75

4

ACS250-03U-03A1-6

2

3.1

KDRA46L

KDRA46LC1

KDRULA46L

22

4x4.18x3.75

4

ACS250-03U-04A1-6

3

4.1

KDRA52L

KDRA52LC1

KDRULA52L

23.3

4x4.18x3.75

4

ACS250-03U-06A5-6

5

6.5

KDRA47L

KDRA47LC1

KDRULA47L

34.7

4x4.18x3.75

4

ACS250-03U-09A0-6

7.5

9

KDRA48L

KDRA48LC1

KDRULA48L

42.9

4x4.18x3.75

4

ACS250-03U-12A0-6

10

12

KDRA49L

KDRA49LC1

KDRULA49L

43.8

4x4.18x3.75

5

ACS250-03U-17A0-6

15

17

KDRB45L

KDRB45LC1

KDRULB45L

66.2

5x6x4

8

Drive Part #

HP
ND

Input/
Output
Current

KDR 3%, UL Type 1 Enclosure

KDR 3%, UL Type 3R Enclosure

Part Number

Watts

Dimensions
(HxWxD)

Weight

Part Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6 1

2.1

KDRULA50LE01

12

 12.25x12.5x6.75  14.5

KDRULA50LE3R

12

11.5x10x12

19

ACS250-03U-03A1-6 2

3.1

KDRULA46LE01

22

 12.25x12.5x6.75  14.5

KDRULA46LE3R

22

11.5x10x12

19

ACS250-03U-04A1-6 3

4.1

KDRULA52LE01

23.3

 12.25x12.5x6.75  14.5

KDRULA52LE3R

23.3

11.5x10x12

19

ACS250-03U-06A5-6 5

6.5

KDRULA47LE01

34.7

 12.25x12.5x6.75  14.5

KDRULA47LE3R

34.7

11.5x10x12

19

ACS250-03U-09A0-6 7.5

9

KDRULA48LE01

42.9

 12.25x12.5x6.75  14.5

KDRULA48LE3R

42.9

11.5x10x12

19

ACS250-03U-12A0-6 10

12

KDRULA49LE01

43.8

 12.25x12.5x6.75  14.5

KDRULA49LE3R

43.8

11.5x10x12

19

ACS250-03U-17A0-6 15

17

KDRULB45LE01

66.2

 12.25x12.5x6.75  18.5

KDRULB45LE3R

66.2

11.5x10x12

23

High Impedance

Low Impedance

32  ABB ACS250 Technical Catalog

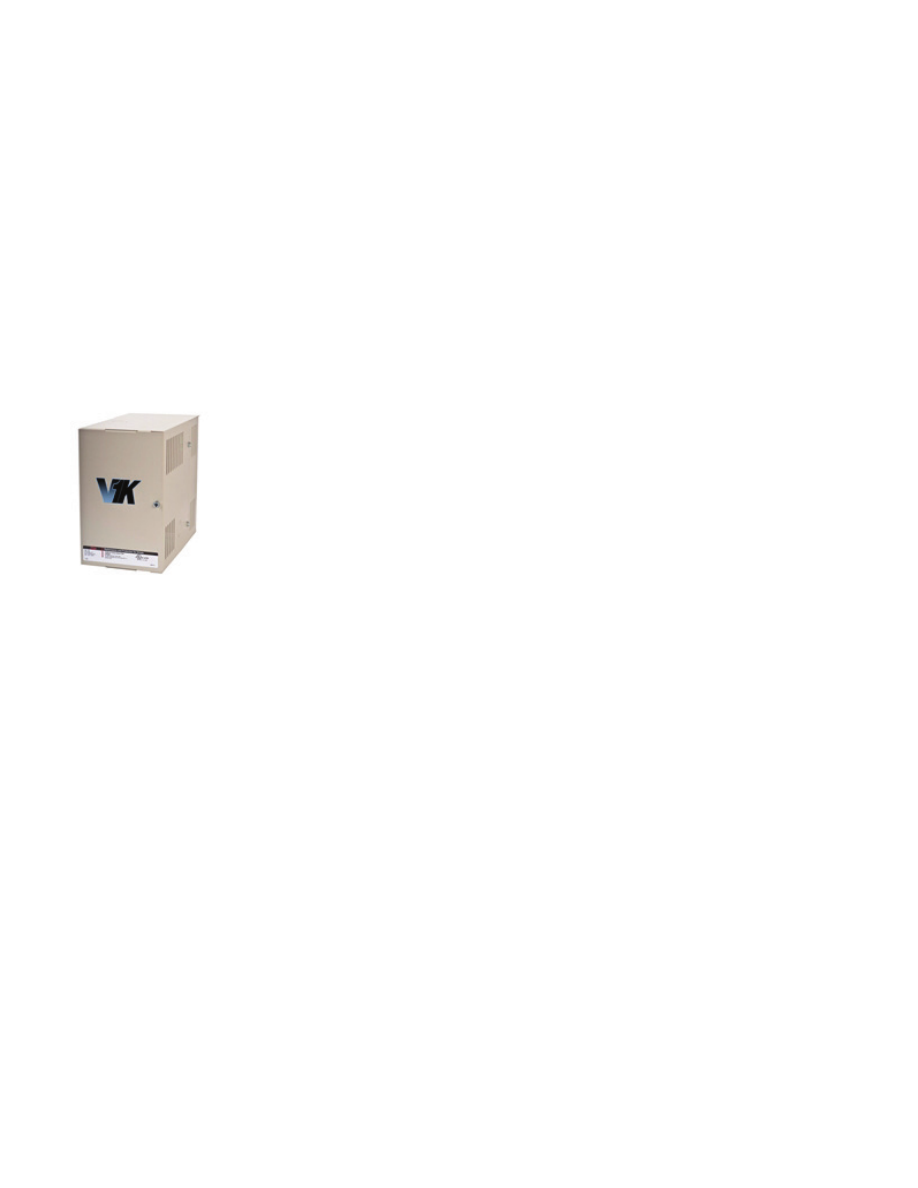

dv/dt output filters

Applications:
V1k Output Filters provide motor protection by limiting voltage spikes to 1,000 volts, or below, for long motor cable applications.
Greatly extends the life of the motor and cable for all applications up to 1000 feet.
For multi-motor applications note that motor lead length is cumulative and the 1000 foot limit still applies.
30% reduction in common mode current enough,

Features:



UL Open, UL Type 1 and UL Type 3R construction with connection terminals.

Note:



The drives internal EMC filter must remain disconnected when using these filters.



When applying these output filters the drive output frequency is limited to 60Hz.

                                                                ABB ACS250 Technical Catalog  33

Drive Part #

HP
ND

Input/
Output
Current

V1K UL Open

V1K UL Type 1 Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

Part
Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

V1K3A00

75

9.00x5.50x7.25

8

V1K3A01

75

 9.00x5.50x10.00  11

ACS250-01U-04A3-2

1

4.3

V1K6A00

80

9.00x5.50x7.25

8

V1K6A01

80

 9.00x5.50x10.00  11

ACS250-01U-07A0-2

2

7

V1K8A00

90

9.00x5.50x7.25

8

V1K8A01

90

 9.00x5.50x10.00  11

ACS250-01U-10A5-2

3

10.5

V1K12A00

95

9.00x5.50x7.25

8

V1K12A01

95

 9.00x5.50x10.00  11

Output filters for single phase 200-240V applications

Drive Part #

HP
ND

Input/
Output
Current

V1k UL Type 3R Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

ACS250-01U-02A3-2

0.5

2.3

V1K3A03

75

11.45x10.00x12.00

25

ACS250-01U-04A3-2

1

4.3

V1K6A03

80

11.45x10.00x12.00

25

ACS250-01U-07A0-2

2

7

V1K8A03

90

11.45x10.00x12.00

25

ACS250-01U-10A5-2

3

10.5

V1K12A03

95

11.45x10.00x12.00

25

Drive Part #

HP
ND

Input/
Output
Current

V1K UL Open

V1K UL Type 1 Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

Part
Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A3-2

0.5

2.3

V1K3A00

75

9.00x5.50x7.25

8

V1K3A01

75

 9.00x5.50x10.00  11

ACS250-03U-04A3-2

1

4.3

V1K6A00

80

9.00x5.50x7.25

8

V1K6A01

80

 9.00x5.50x10.00  11

ACS250-03U-07A0-2

2

7

V1K8A00

90

9.00x5.50x7.25

8

V1K8A01

90

 9.00x5.50x10.00  11

ACS250-03U-10A5-2

3

10.5

V1K12A00

95

9.00x5.50x7.25

8

V1K12A01

95

 9.00x5.50x10.00  11

ACS250-03U-18A0-2

5

18

V1K16A00

95

9.00x5.50x8.25

12

V1K16A01

95

 9.00x5.50x10.00  15

Output filters for three phase 200-240V applications

Drive Part #

HP
ND

Input/
Output
Current

V1k UL Type 3R Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A3-2

0.5

2.3

V1K3A03

75

11.45x10.00x12.00

25

ACS250-03U-04A3-2

1

4.3

V1K6A03

80

11.45x10.00x12.00

25

ACS250-03U-07A0-2

2

7

V1K8A03

90

11.45x10.00x12.00

25

ACS250-03U-10A5-2

3

10.5

V1K12A03

95

11.45x10.00x12.00

25

ACS250-03U-18A0-2

5

18

V1K16A03

95

11.45x10.00x12.00

29

34  ABB ACS250 Technical Catalog

Drive Part #

HP
ND

Input/
Output
Current

V1K UL Open

V1K UL Type 1 Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

Part
Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

V1K3A00

75

9.00x5.50x7.25

8

V1K3A01

75

 9.00x5.50x10.00  11

ACS250-03U-04A1-4

2

4.1

V1K4A00

75

9.00x5.50x7.25

8

V1K4A01

75

 9.00x5.50x10.00  11

ACS250-03U-05A8-4

3

5.8

V1K6A00

80

9.00x5.50x7.25

8

V1K6A01

80

 9.00x5.50x10.00  11

ACS250-03U-09A5-4

5

9.5

V1K8A00

90

9.00x5.50x7.25

8

V1K8A01

90

 9.00x5.50x10.00  11

ACS250-03U-14A0-4

7.5

14

V1K12A00

95

9.00x5.50x7.25

8

V1K12A01

95

 9.00x5.50x10.00  11

ACS250-03U-18A0-4

10

18

V1K16A00

95

9.00x5.50x8.25

12

V1K16A01

95

 9.00x5.50x10.00  15

Output filters for three phase 380-480V applications

Drive Part #

HP
ND

Input/
Output
Current

V1k UL Type 3R Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A2-4

1

2.2

V1K3A03

11

11.45x10.00x12.00

25

ACS250-03U-04A1-4

2

4.1

V1K4A03

11

11.45x10.00x12.00

25

ACS250-03U-05A8-4

3

5.8

V1K6A03

11

11.45x10.00x12.00

25

ACS250-03U-09A5-4

5

9.5

V1K8A03

11

11.45x10.00x12.00

25

ACS250-03U-14A0-4

7.5

14

V1K12A03

11

11.45x10.00x12.00

25

ACS250-03U-18A0-4

10

18

V1K16A03

15

11.45x10.00x12.00

29

Drive Part #

HP
ND

Input/
Output
Current

V1K UL Open

V1K UL Type 1 Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

Part
Number

Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6

1

2.1

V1K2A00

75

9.00x5.50x7.25

8

V1K2A01

75

9.00x5.50x10.00

11

ACS250-03U-03A1-6

2

3.1

V1K3A00

75

9.00x5.50x7.25

8

V1K3A01

75

9.00x5.50x10.00

11

ACS250-03U-04A1-6

3

4.1

V1K4A00

75

9.00x5.50x7.25

8

V1K4A01

75

9.00x5.50x10.00

11

ACS250-03U-06A5-6

5

6.5

V1K8A00

90

9.00x5.50x7.25

8

V1K8A01

90

9.00x5.50x10.00

11

ACS250-03U-09A0-6

7.5

9

V1K12A00

95

9.00x5.50x7.25

8

V1K12A01

95

9.00x5.50x10.00

11

ACS250-03U-12A0-6

10

12

V1K12A00

95

9.00x5.50x7.25

8

V1K12A01

95

9.00x5.50x10.00

11

ACS250-03U-17A0-6

15

17

V1K18A00

110

9.00x5.50x8.25

12

V1K18A01

110

9.00x5.50x10.00

15

Output filters for three phase 550-600V applications

Drive Part #

HP
ND

Input/
Output
Current

V1k UL Type 3R Enclosure

Part Number Watts

Dimensions
(HxWxD)

Weight

ACS250-03U-02A1-6

1

2.1

V1K2A03

11

11.45x10.00x12.00

25

ACS250-03U-03A1-6

2

3.1

V1K3A03

11

11.45x10.00x12.00

25

ACS250-03U-04A1-6

3

4.1

V1K4A03

11

11.45x10.00x12.00

25

ACS250-03U-06A5-6

5

6.5

V1K8A03

11

11.45x10.00x12.00

25

ACS250-03U-09A0-6

7.5

9

V1K12A03

11

11.45x10.00x12.00

25

ACS250-03U-12A0-6

10

12

V1K12A03

95

11.45x10.00x12.00

25

ACS250-03U-17A0-6

15

17

V1K18A03

110

11.45x10.00x12.00

25

                                                                ABB ACS250 Technical Catalog  35

ABB drive life cycle management model

Spare part, maintenance and repair
services are available as long as materials
can be obtained.

ABB cannot guarantee availability of life
cycle services for technical reasons or
within reasonable cost.

Limited life cycle services

Caution! A drive entering the limited or obsolete phase has limited repair options. This
may result in unpredictable process downtime. To avoid this possibility, the drive should
be kept in the active or classic phase.

Limited

Obsolete

Active

Classic

The drive, with complete life cycle ser-
vices, is available for purchase.

The drive, with complete life cycle
services, is available for plant extensions.

Complete life cycle services

To ensure the availability of complete life cycle services, a drive must be in the active or

classic phase. A drive can be kept in the active or classic phase by upgrading, retrofi t-

ting or replacing.

Secure uptime throughout the drive life cycle

ABB follows a four-phase model for managing the life cycles
of its drives. The life cycle phases are active, classic, limited
and obsolete. Within each phase, every drive series has a
defined set of services.

Examples of individual services are drive selection and di-
mensioning, installation and commissioning, preventive and
corrective maintenance, remote monitoring and intelligent
diagnostics, technical support, upgrade and retrofit, replace-
ment and recycling plus training and learning.

In the active phase the drive is in serial production. The drive,
with complete life cycle services, is available for purchase.
In the classic phase, the serial production of the drive has
ended. The drive, with complete life cycle services, is avail-
able for plant extensions.

In the limited phase, the drive is no longer available. The life
cycle services are limited. Spare parts as well as maintenance
and repair services are available as long as materials can be
obtained.

In the obsolete phase, the drive is not available. ABB can-
not guarantee availability of services for technical reasons or
within reasonable cost.

To ensure the availability of complete life cycle services, ABB
recommends that a drive is kept in the active or classic phase
by upgrading, retrofitting or replacing.

In the classic phase ABB carries out an annual review for
each drive life cycle plan. Should any changes to the availabil-
ity or duration of the services be necessary, ABB gives a life
cycle announcement indicating eventual change of life cycle
phase and/or any change in the duration of services.
In the limited phase, ABB issues a life cycle phase change an-
nouncement, half a year prior to shifting the product into the
obsolete phase.

Maximizing return on investment

The four-phase life cycle management model provides cus-
tomers with a transparent method for managing their invest-
ment in drives. In each phase, customers clearly see what
life cycle services are available, and more importantly, what
services are not available. Decisions on upgrading, retrofitting
or replacing drives can be made with confidence.

ABB Inc.

Discrete Automation & Motion
Drives and Controls
16250 West Glendale Drive
New Berlin, WI 53151

Telephone  +1 800 752-0696

Website  www.abb.com/drives

Contact us

ACS250-PHTC01U-EN REV A Ef

fective 05/01/2015
