The ACS380 drives are easy to adapt and configure
to machines

The ACS380 drives are made to control constant torque
applications such as conveyors, mixers, extruders, winders
and overhead cranes in the food and beverage and
material handling industries. With ACS380, commissioning
is quick and easy thanks to its intuitive control panel.
Also, connecting to automation systems is easy thanks to
preconfigured fieldbus protocols. On the hardware side,
ease of use has been enhanced by having all the essential
features built-in as standard. This reduces the need for
additional hardware and simplifies drive selection.

Persistent predictability



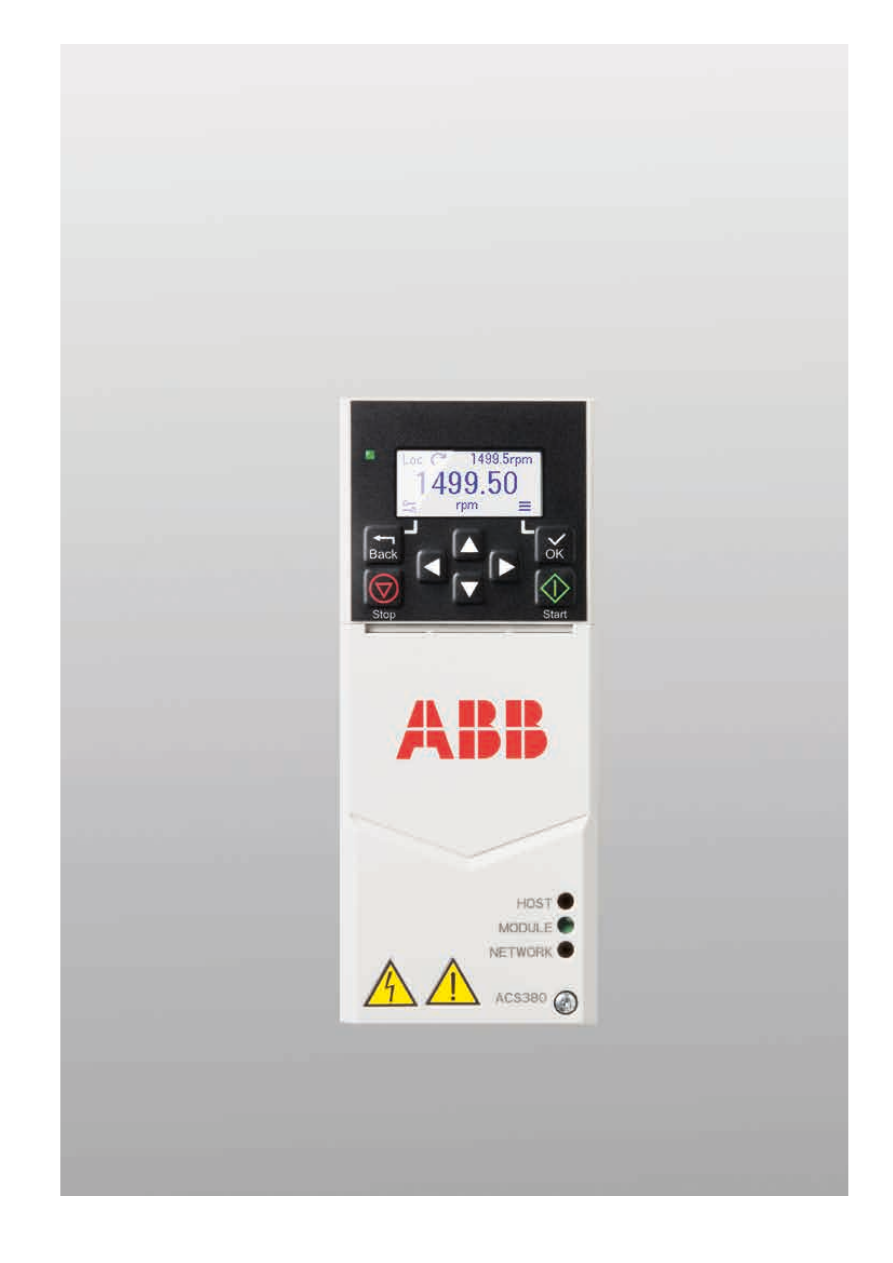

The ACS380 machinery drive is a robust and compact drive
ideal for machine building. It is ready-customized and comes
in a power range from 0.25 to 7.5 kW, and voltages from
200 to 240 V (one-phase) and 380 to 480 V (three-phase).























The drive has enclosure class IP20 as standard. ACS380
offers EMC and connectivity variants with built-in EMC filters
and/or preconfigured fieldbus protocols for ease of integration
and connectivity. This saves a lot of time and money for
machine builders using large numbers of drives per year.
Typically, there is a fixed space in the machine for automation
and motor control, and the drive needs to meet the space
restrictions and connectivity requirements (fieldbus, I/O
etc.). The ACS380 is a drive that meets a range of customer
needs: from easy and quick installation and engineering to
customization.

The ACS380 machinery drives are part of ABB's all-
compatible drives portfolio. Together with other all-compatible
drives they share the same architecture and user interfaces,
yet there is an optimal drive for virtually any application. Once
you have used one all-compatible drive, you can use them all.

Reliability and consistent high quality



The ACS380 drives have improved durability and reliability in
harsh conditions, including coated boards as standard. All
drives are tested during production at maximum temperatures
with nominal loads. Tests cover both performance and all
protective functions. The drives are designed for an ambient
temperature of up to 50°C without derating. The drives have
in their class a unique 3-phase measurement that gives very
reliable earth fault protection. Also, the foil coated control
panel offers a good protection against dust and gases and the
galvanically isolated fieldbus gives good noise immunity.



The ACS380 machinery drives

4

Reliability and persistence for machine building

6

What does all-compatible mean for you?

8

Technical data

9

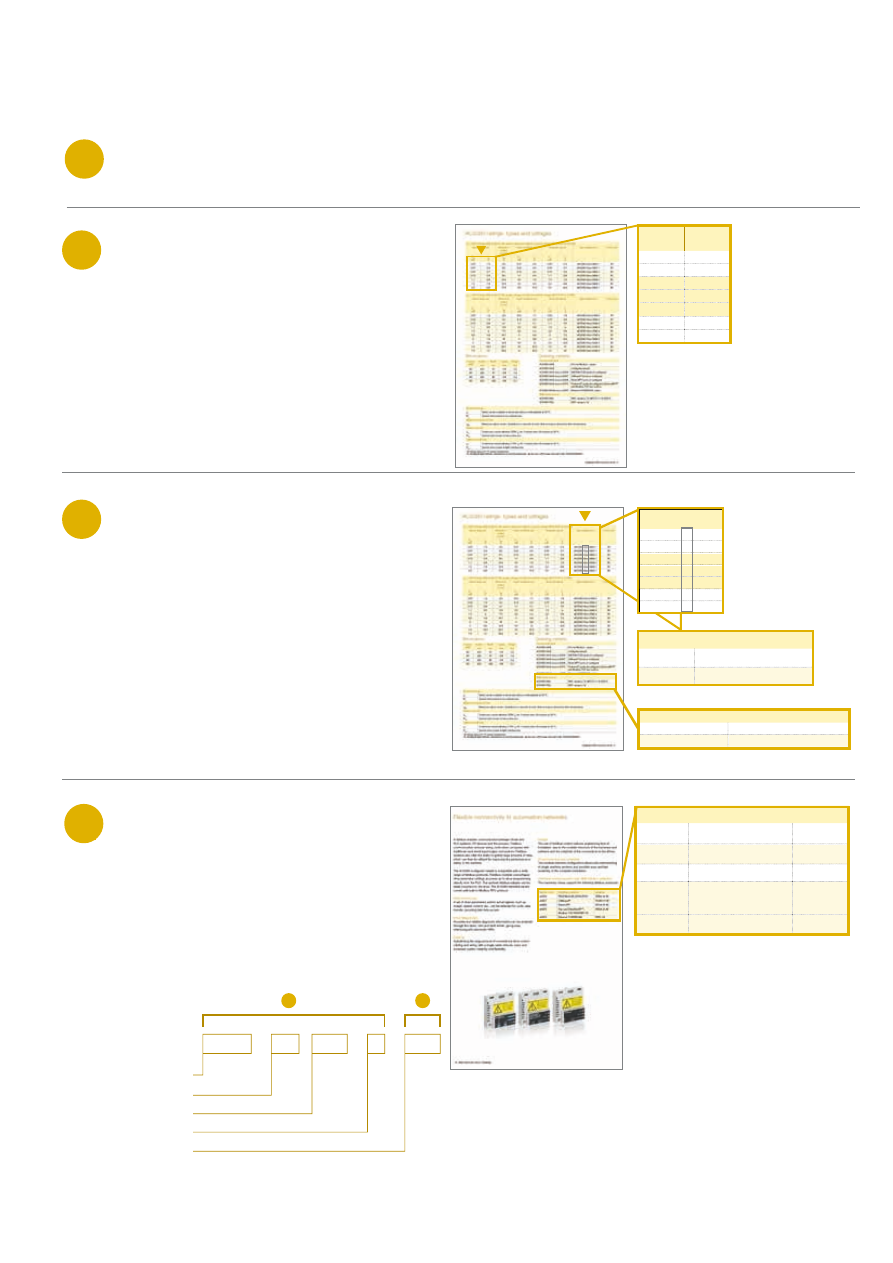

How to select a drive

10  Persistent predictability with ACS380 machinery drives
11  ACS380 ratings, types and voltages
12

Connectivity and flexibility to meet your needs

13  Standard software with versatile features
14  PC tool for drive monitoring and process tuning capabilities
15  Drive commissioning and adaptable use with your control panel
16  Flexible connectivity to automation networks
17  Standard interface and extensions for ACS380 machinery drives
18  Input/output, extension and feedback modules for increased connectivity
19  Brake options

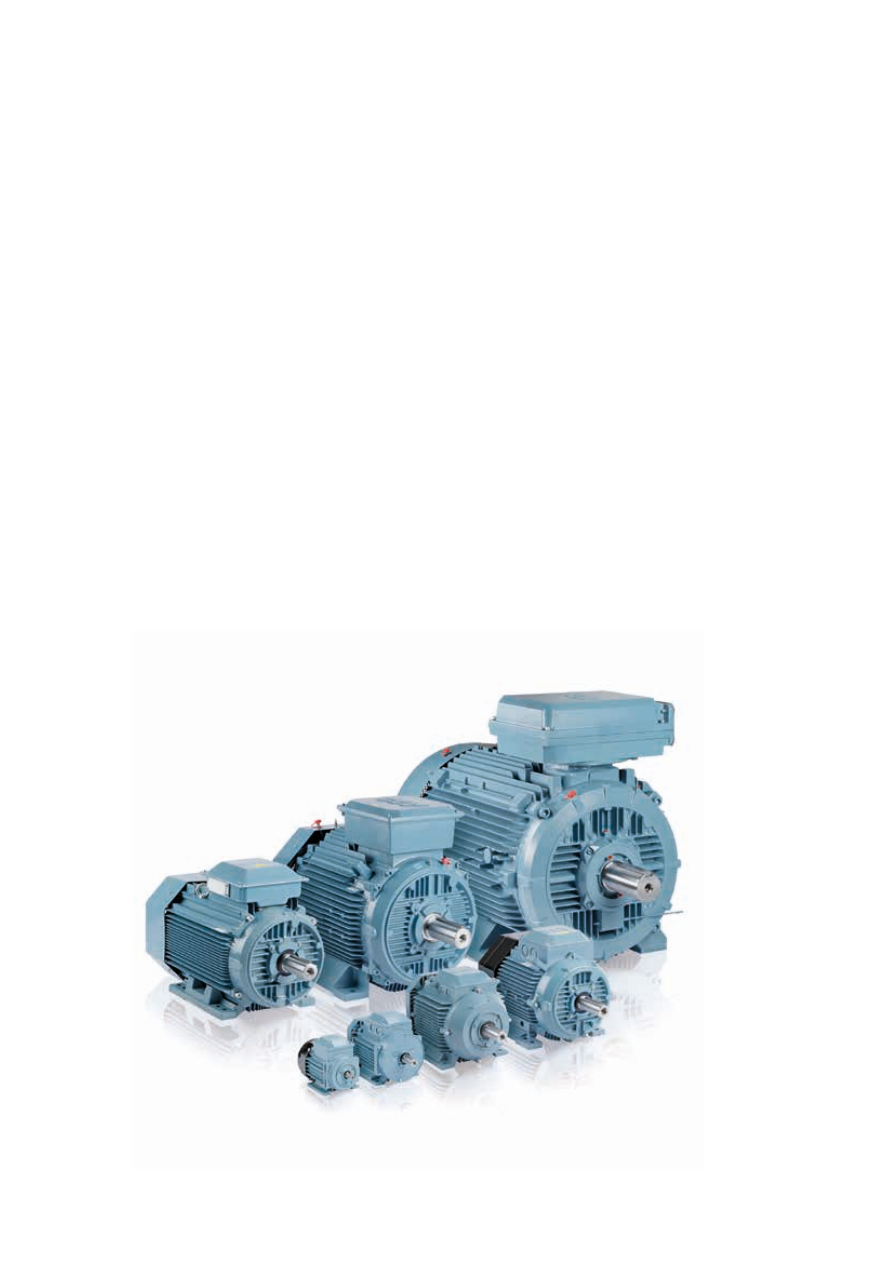

20  Need a motor? This is our offering.
21  Save time, ease troubleshooting and improve drive performance with ABB smartphone apps
22  Drives service
23  Drives service
24  Contact us

Catalog



|

ABB machinery drives 3

Persistent and adaptable
performance

4



ABB machinery drives

| Catalog

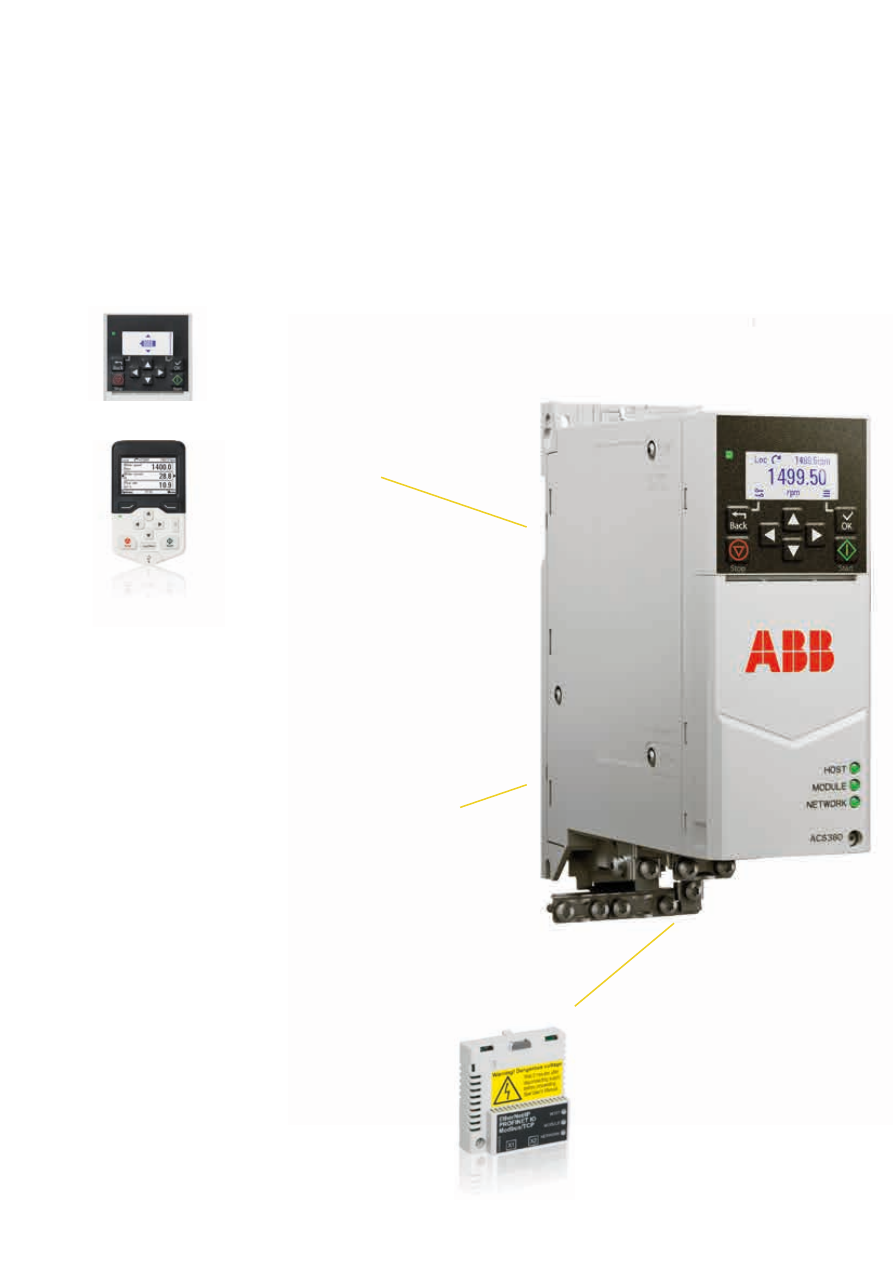

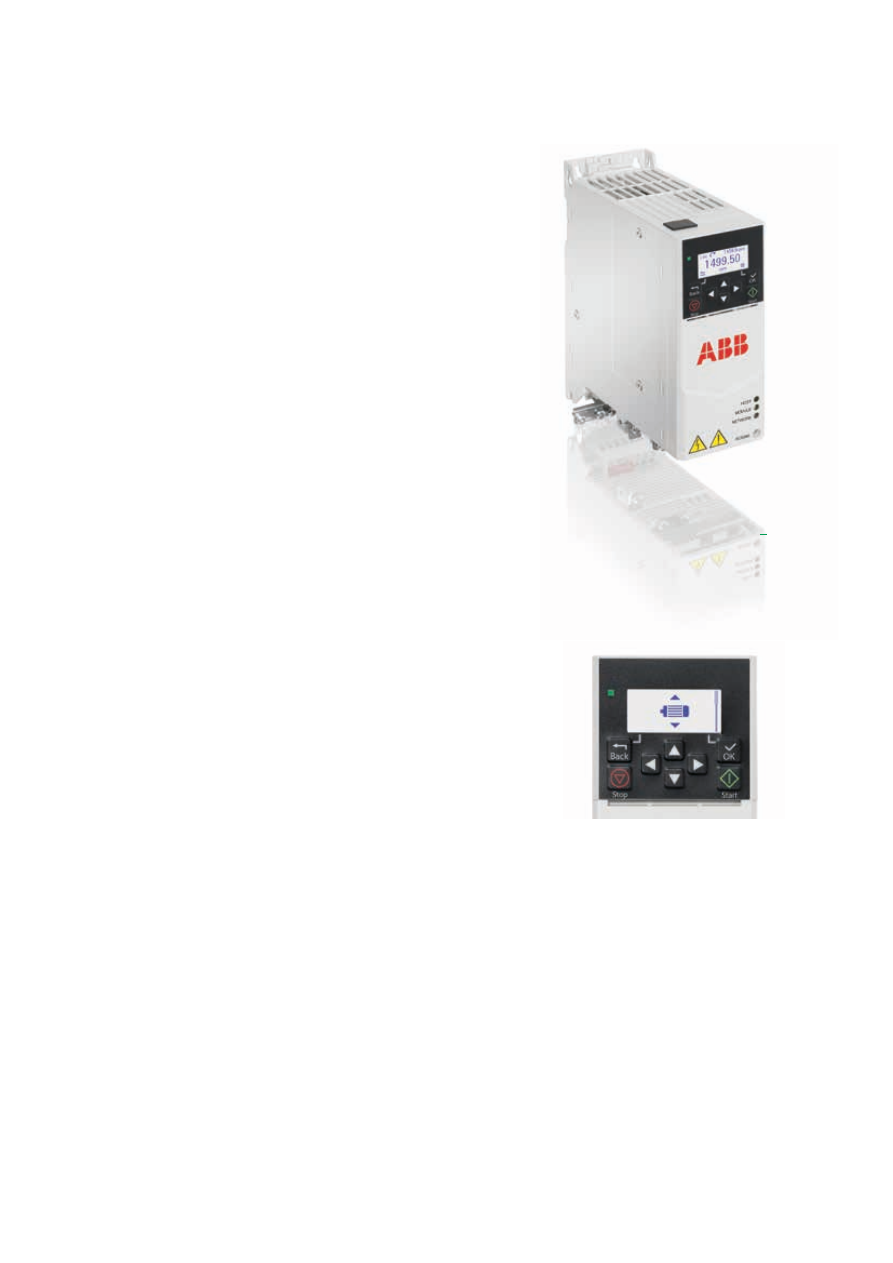

Adaptability at your fingertips

The control panel's icon-based
menu helps you set up the
drive quickly and effectively. An
alphanumeric graphical user panel is
available for users, who need it.

Reliability and persistence for machine building

The ACS380 machinery drives are part of ABB’s all-compatible
drives portfolio. The drives gives you persistent predictability
throughout their whole life cycle. They also offer a wider range
of standard and optional features for optimal machine building.

Simple to select, install and use

Built-in features such as an EMC filter,
a Modbus RTU fieldbus interface and
safe torque off functionality simplify
drive selection, installation and use.
DriveSize helps to select the optimal
drive and motor for the application.

Communication with all
major automation networks

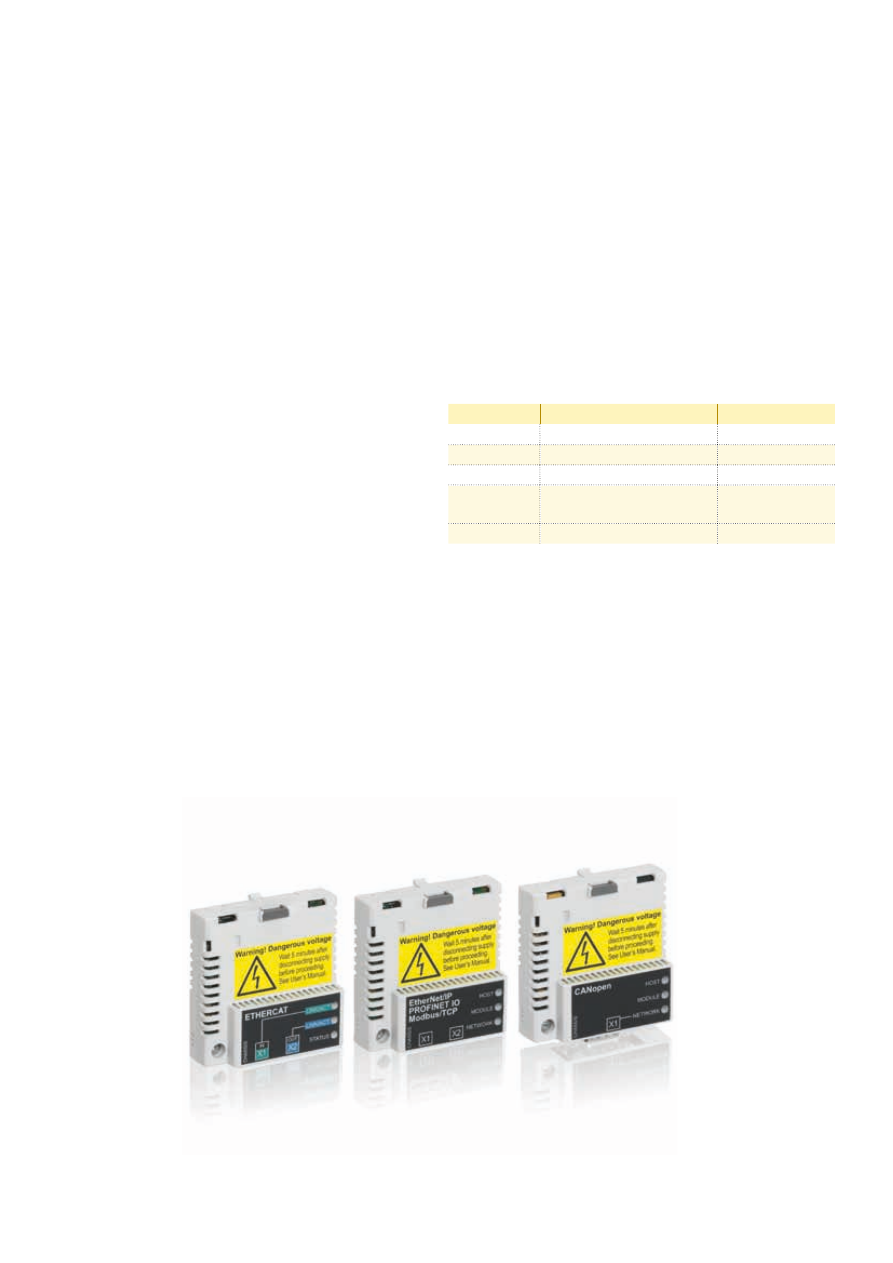

Preconfigured fieldbus adapters
enable connectivity with all major
industrial automation networks with
minimized effort and complexity.

Catalog



|

ABB machinery drives 5

Boosting energy efficiency

Energy optimizer and energy efficiency
information help you monitor and save
the energy used in your process.

Adaptive programming

ACS380 has built-in as standard
possibility for adaptive programming
that enables customizing the drive
software by using either sequential or
block programming. This can in some
cases even eliminate the need of a
separate PLC.

Designed for maximum reliability



Design features like coated control
boards, minimized air flow through
the control board section, reliable
earth fault protection by 3-phase
current measurement and design
for 50°C ambient temperature
make ACS380 a safe choice for
customers expecting high reliability.
This is topped up by full load test
that is done to every single drive
during the production.

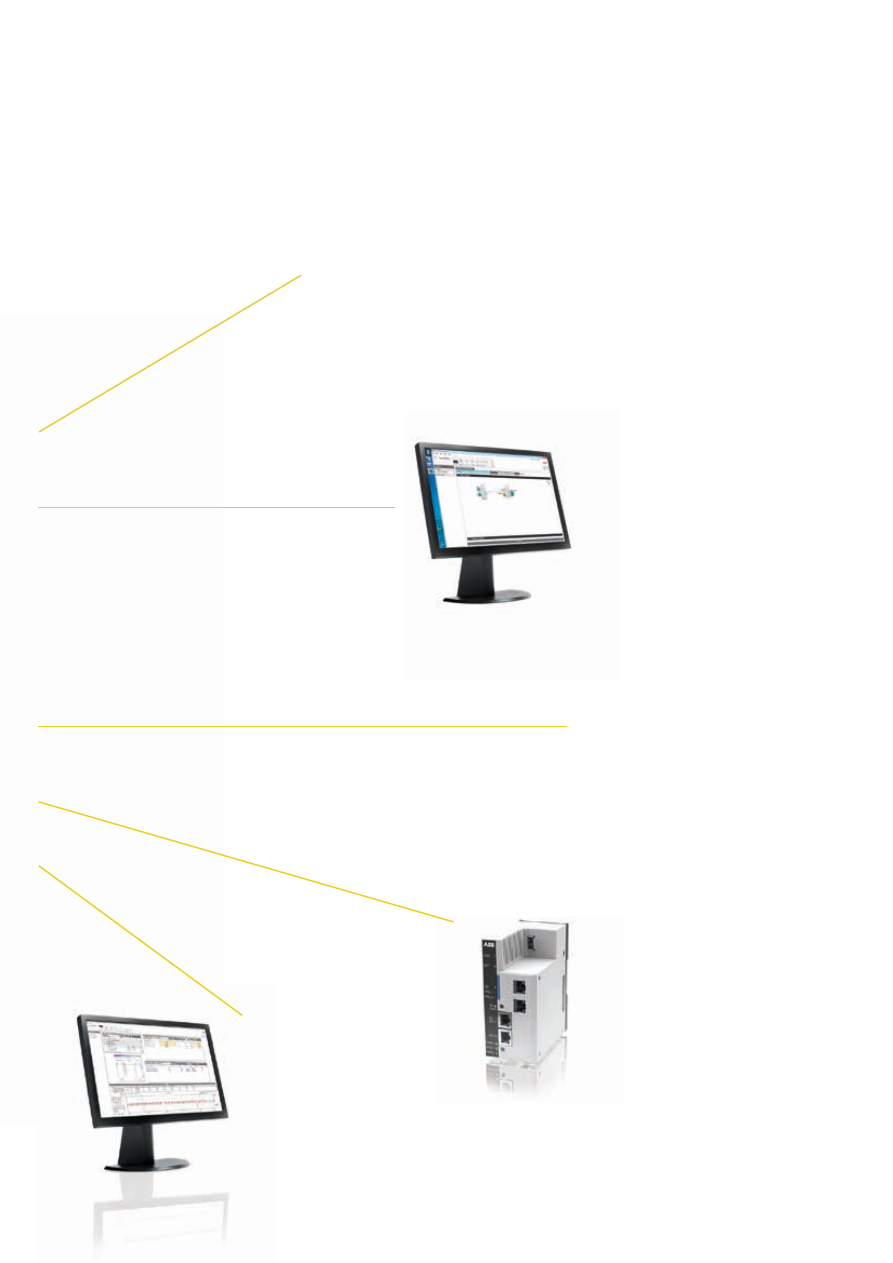

Startup and
maintenance tool

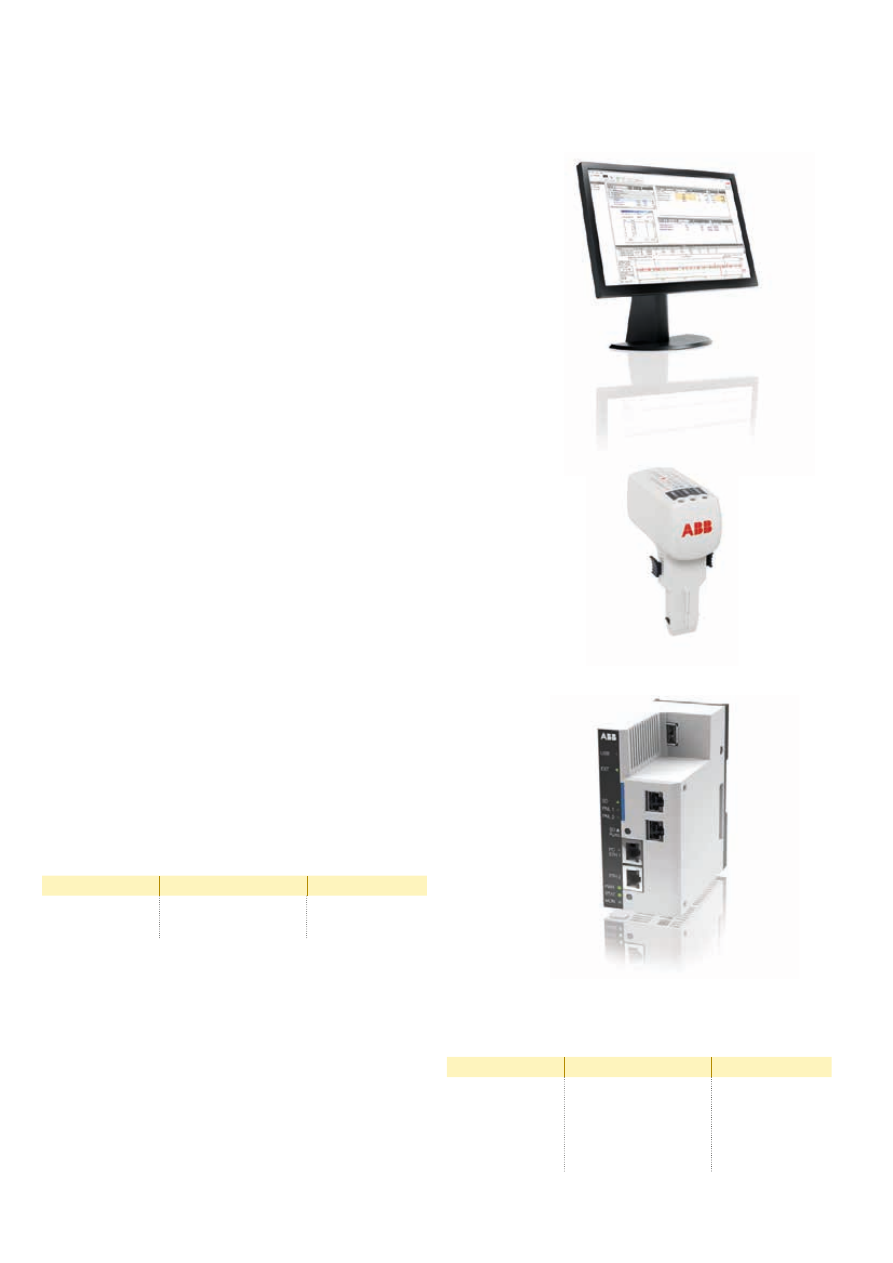

Drive composer PC tool for
startup, configuration, monitoring
and process tuning. Automation
builder for automation engineering
and Drive Manager for single point
of commissioning.

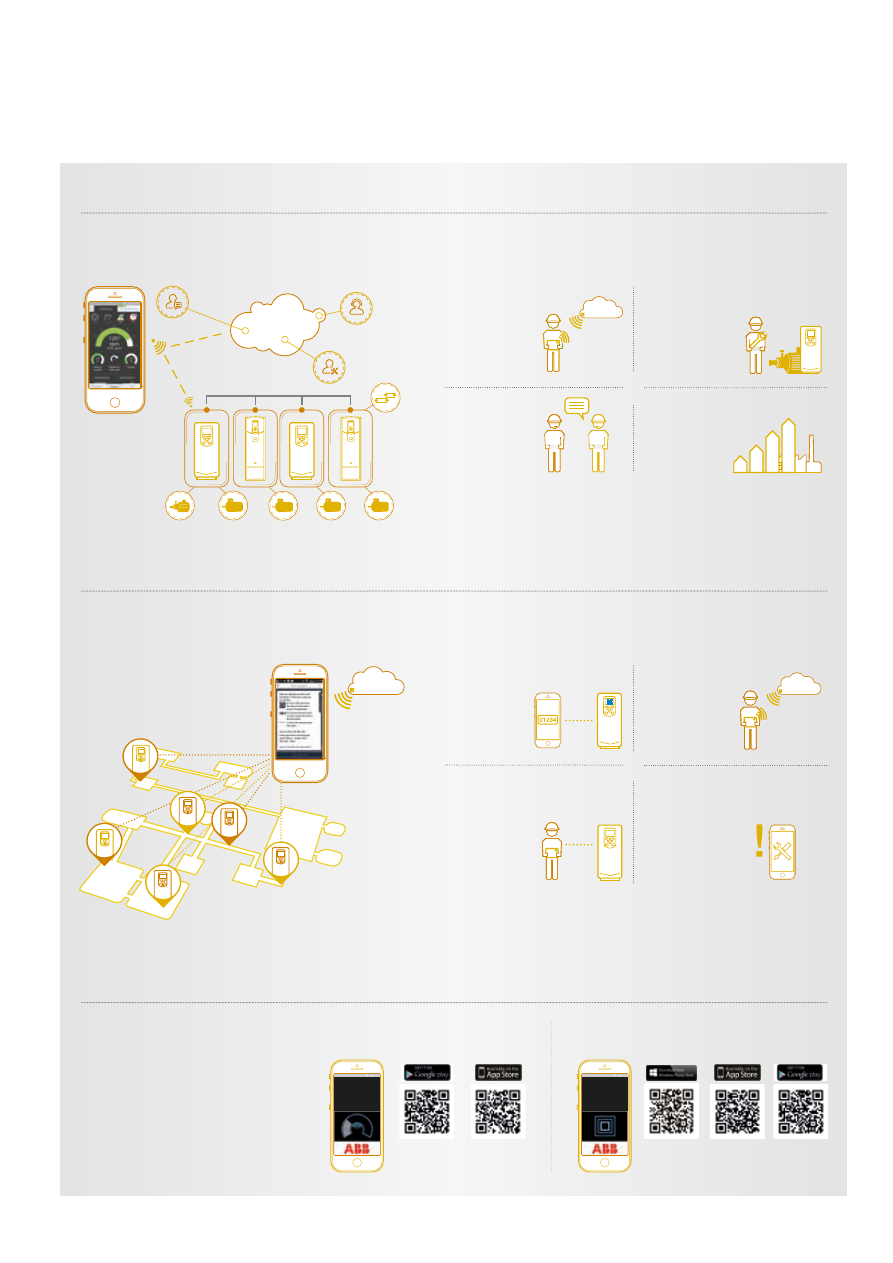

Remote monitoring

With a built-in web server and
standalone data logger, NETA-21
remote monitoring tool kit enables
worldwide and secure remote
access to drive.

6



ABB machinery drives

| Catalog

What does all-compatible

mean for you?

Business all-compatible

Usually, any drive is a justified investment with a short payback time as it
helps to lower energy consumption and improve process efficiency.

When you choose an all-compatible machinery drive from ABB, you get
more than just a drive.

You get our services to support your business, including our decades of
experience in various industries. You will find local ABB offices  in over
90 countries and our global value provider network members will be near
to you.

Process all-compatible

The machinery drives are ready for a broad range of constant torque
applications and all essential features are built-in as standard. The drives
support adaptive programming for fine tuning the performance of the
application. The machinery drives offer a wide range of fieldbus protocols
for extensive automation connectivity.

The drives cover a broad range of motors in various applications by
providing adaptability and scalability for your machine and increasing
its performance. With integrated safety features, you end up having
a process which is not only efficient, but safe for both the persons
operating the machine and your property.

Catalog



|

ABB machinery drives 7

Human all-compatible

The machinery drives are designed to save you time and energy during engineering,
installation, commissioning and use.

When designing a machine, you will have a wide selection of design tools available
to support your work. When you select a drive for your machine, you will save time
as configuration is straight forward. The different variants of control panels available
provide you with a smart way to set up the drive quickly and easily. One glance
at the control panel's editable display will show you the status of the drive and its
process.

The Drive composer PC tool provides extensive drive monitoring and process
tuning capabilities. The Automation Builder is used both for engineering individual
industry devices and putting together entire automation projects. It includes the
Drive Manager tool, used for single point access to multiple drives in an automation
network. The integrated safety functionality saves you time and money in wiring and
certification.

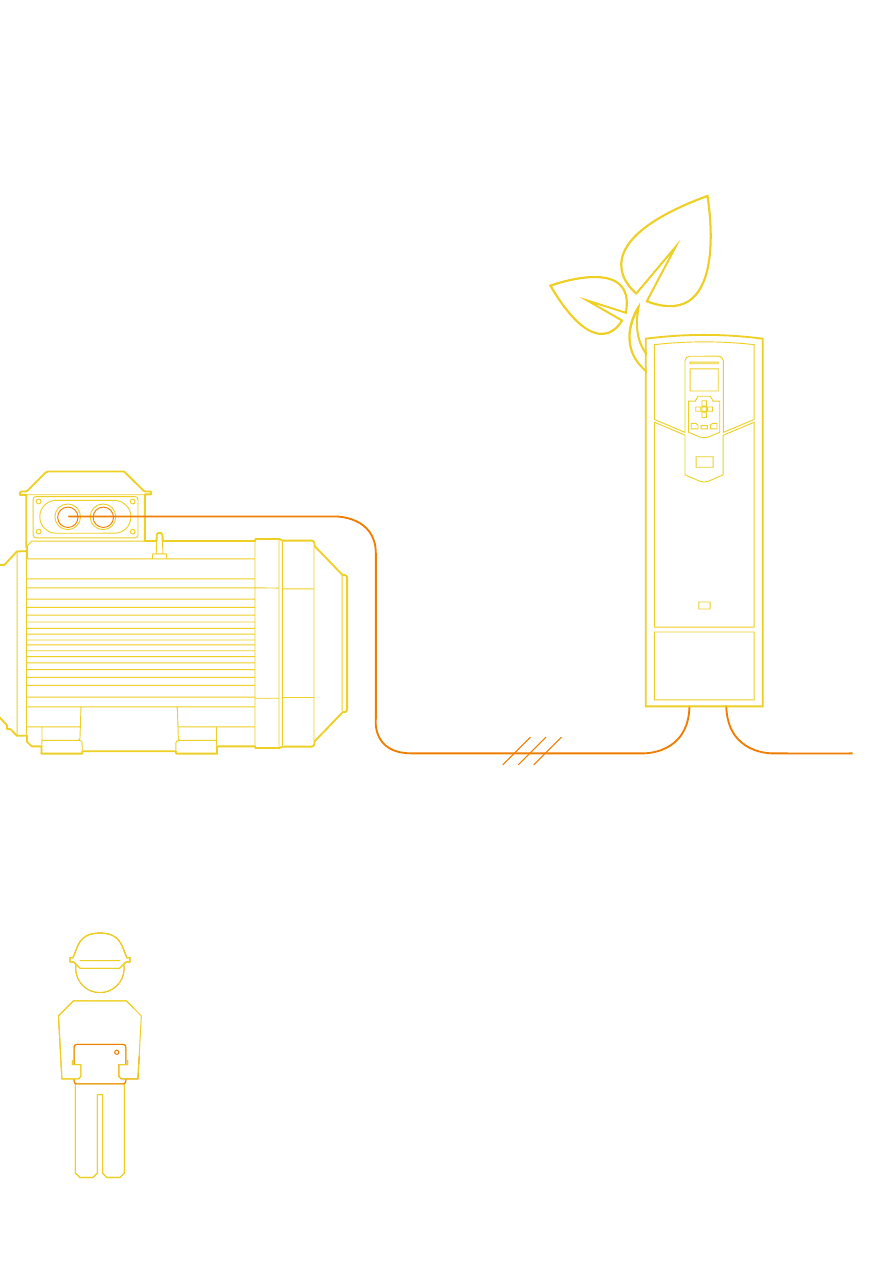

Environment all-compatible

With ABB and the machinery drives, you are not only optimizing the energy
consumption of an electric motor, but also your whole process.

The machinery drives help you use only the exact amount of energy needed
to run your motor. The energy optimizer feature ensures maximum torque
per ampere, reducing energy drawn from the supply. The drive fulfills the
highest IE2 drive (EN 50598-2) energy efficiency class and is compatible with
high-efficiency IE4 motors, further reducing total life cycle costs. In addition,
the built-in energy efficiency calculators help you to analyze and optimize
processes. With the help of our life cycle services, you will be able to keep
your process running reliably and efficiently throughout the life cycle of the
drives.

8



ABB machinery drives

| Catalog

Technical data

Mains connection

Voltage and

power range

1-phase, 200 to 240 V, +10%/-15%
0.25 to 2.2 kW
3-phase, 380 to 480 V, +10%/-15%
0.25 to 7.5 kW

Frequency

50/60 Hz ± 5%

Common DC connection

DC voltage level

-1 types 270 to 325 V ±10%
-4 types 485 to 620 V ±10%

Charging circuit

Internal charging circuit

Motor connection

Voltage

0 to UN, 3-phase

Frequency

0 to 599 Hz

Motor control

Scalar control
Vector control

Switching frequency

1 to 12 kHz, default 4 kHz

Dynamic braking

Flux braking (moderate or full)
Resistor braking (optional)

Motor control performance

Speed control performance, open loop

Static accuracy

20% of motor rated slip

Dynamic accuracy

1%s with 100% torque step

Speed control performance, closed loop

Static accuracy

0.1% of motor rated speed

Dynamic accuracy

<1%s with 100% torque step

Torque control performance

Torque step rise time

< 10 ms, rated torque step

Non-linearity

±5% with rated torque

Braking power connection

Brake chopper

Built-in brake chopper as standard

Brake resistor

External resistor connected to drive

Functional safety

Built-in safety features

Safe torque off (STO) acc. to
EN/IEC61800-5-2: IEC61508 ed2: SIL 3,
IEC 61511: SIL 3, IEC 62061: SIL CL 3,
EN ISO 13849-1: PL e

Environmental limits

Ambient temperature

Transportation and storage

-40 to +70 ºC (-40 to +158 ºF)

Operation

-10 to +50 ºC (14 to 122 ºF),
with derating up to 60 ºC (except R0, which
has max temperature of 50 ºC)

Cooling method

Air-cooled, dry clean air

Altitude

0 to 4000m, (0 to 13000 ft) for 400V units
(see allowed power systems in HW manual)
0 to 2000m, ( 0 to 6600 ft) for 200V units
derating above 1000m (3300 ft)

Relative humidity

5 to 95%, no condensation allowed

Degree of protection

IP20 as standard

Contamination levels

No conductive dust allowed

Storage

IEC 60721-3-1, Class 1C2 (chemical gases)

Class 1S2 (solid particles)

Transportation

IEC 60721-3-2, Class 2C2 (chemical gases)

Class 2S2 (solid particles)

Operation

IEC 60721-3-3, Class 3C2 (chemical gases)

Class 3S2 (solid particles)

Product compliance

CE
Low Voltage Directive 2006/95/EC, EN 61800-5-1: 2007
Machinery Directive 2006/42/EC, EN 61800-5-2: 2007
EMC Directive 2004/108/EC, EN 61800-3: 2004 + A1: 2012
UL, cUL certification
TUV Certification for functional safety
Quality assurance system ISO 9001
Environmental system ISO 14001
Waste electrical and electronic equipment directive (WEEE) 2002/96/EC
RoHS directive 2011/65/EU
EAC

with derating (except R0,
which has max
temperature of 50 C)

3

It is very easy to select the right drive. This is how you build
up your own ordering code using the type designation key.

Choose your motor’s power and current rating



from the ratings table on page 11.

Start with identifying your supply voltage



This tells you what rating table to use. See
page 11.

Choose your options

 Add the option codes (pages

16 and 18) to the drive’s ordering code. Remember to
use a “+” mark before each option code.

2

1

4

How to select a drive

Select the ordering code for the ACS380
machinery drive by choosing either the
standard or the configured variant. Then
choose the desired EMC level on page 11.

If the configured variant is selected, choose
your fieldbus protocol (page 11) by selecting the
correct option code and add the option codes to
drive’s ordering code.

P

Hd

kW

I

Hd

A

0.25

1.8

0.37

2.4

0.55

3.7

0.75

4.8

1.1

6.9

1.5

7.8

2.2

9.8

Connectivity types

ACS380-04x

S

Standard variant

ACS380-04x

C

Configured variant

EMC filtering level

ACS380-040x

EMC category C3 (400 V) or C4 (230 V)

ACS380-042x

EMC category C2

Type designation

ACS380-04xx-02A4-1
ACS380-04xx-03A7-1
ACS380-04xx-04A8-1
ACS380-04xx-06A9-1
ACS380-04xx-07A8-1
ACS380-04xx-09A8-1
ACS380-04xx-12A2-1



Option code

Fieldbus protocol

Adapter

+K454

PROFIBUS DP, DPV0/DPV1

FPBA-01-M

+K457

CANopen

®

FCAN-01-M

+K469

EtherCAT

®

FECA-01-M

+K475

Two port EtherNet/IP™,
Modbus TCP, PROFINET IO

FENA-21-M

+K470

Ethernet POWERLINK

FEPL-02

Catalog



|

ABB machinery drives 9

3

4

Type designation:

Product series
Types and construction
Rating
Voltage

Option code

ACS380

XXXX

XXXX

+

04XX

X

–

–

–

10



ABB machinery drives

| Catalog

Persistent predictability with ACS380 drives

Built on ABB's common drives architecture, the
ACS380 drive module is ideal for machine building
that requires motor technologies with powers from
0.25 to 7.5 kW and voltages from 200 to 480 V.
With enclosure class IP20 as standard, these
modular drives are easy to place inside cabinets
for use in industries such as food and beverage,
material handling and textile. Typical constant torque
applications include mixers, conveyors, cranes
and other constant-torque applications in machine
building.

Easy to install and use



The compact ACS380 comes in different frame
sizes (R0 to R3) and several variants (for both EMC
and connectivity use) providing easy installation
and commissioning. The drive is remarkably easy
to integrate into machine designs as the configured
variant of the drive has pre-configured fieldbus
protocols (EtherCAT

®

, PROFIBUS, PROFINET,

CANopen

®

). The standard variant of the drive

comes with extensive I/O and built-in Modbus RTU
protocols.

Other highlights



− reliability thanks to e.g. advanced coatings,

cooling management and protections



− an icon based basic control panel as standard,

an alphanumerical, graphical assistant control
panel as an option



− good motor control thanks to the 3-phase

current measurement



− easy integration by preconfigured fieldbus

protocols



− speed feedback from the motor available as an

option



− adaptive programming giving the possibility for

free block or sequence programming



− part of the ABB's all-compatible product portfolio



− controlling of a broad range of motors from

permanent magnet and asynchronous motors to
synchronous reluctance motors



− safe torque off (STO) built-in as standard

The built-in icon based control
panel interface for easy
commissioning and configuration

Connectivity type

ACS380-04x

S

I/O and Modbus -variant

ACS380-04x

C

Configured variant

ACS380-04x

C

-xxxx-x+K454

PROFIBUS DP protocol configured

ACS380-04x

C

-xxxx-x+K457

CANopen

®

 protocol configured

ACS380-04x

C

-xxxx-x+K469

EtherCAT

®

 protocol configured

ACS380-04x

C

-xxxx-x+K475

Profinet I/O protocol configured. Ethernet/IP™
and Modbus TCP also built-in.

ACS380-040x

C

-xxxx-x+K470

Ethernet POWERLINK variant

EMC filtering level

ACS380-040x

EMC category C3 (400 V) or C4 (230 V)

ACS380-042x

EMC category C2

Catalog



|

ABB machinery drives 11

Nominal ratings

I

N

Rated current available continuously without overloadability at 50 °C.

P

N

Typical motor power in no-overload use.

Maximum output current

I

max

Maximum output current. Available for 2 seconds at start, then as long as allowed by drive temperature.

Heavy-duty use

I

Hd

Continuous current allowing 150%

I

Ld

for 1 minute every 10 minutes at 50 °C.

P

Hd

Typical motor power in heavy-duty use.

Light-overload use

I

Ld

Continuous current allowing 110%

I

Ld

for 1 minute every 10 minutes at 50 °C.

P

Ld

Typical motor power in light-overload use.

The ratings apply at 50

°C

 ambient temperatures.

For derating at higher altitudes, temperatures or switching frequencies, see the user's HW manual, document code: 3AXD50000029274

U

N

 = 200 V (range 200 to 240 V). The power ratings are valid at nominal voltage 200 V (0.25 to 3.0 kW)

Heavy-duty use

Maximum

output

current

Light-overload use

Nominal ratings

Type designation

Frame size

P

Hd

kW

I

Hd

A

I

max

A

P

Ld

kW

I

Ld

A

P

N

kW

I

N

A

0.25

1.8

3.2

0.37

2.3

0.37

2.4

ACS380-04xx-02A4-1

R0

0.37

2.4

4.3

0.55

3.5

0.55

3.7

ACS380-04xx-03A7-1

R0

0.55

3.7

6.7

0.75

4.6

0.75

4.8

ACS380-04xx-04A8-1

R1

0.75

4.8

8.6

1.1

6.6

1.1

6.9

ACS380-04xx-06A9-1

R1

1.1

6.9

12.4

1.5

7.4

1.5

7.8

ACS380-04xx-07A8-1

R1

1.5

7.8

14.0

2.2

9.3

2.2

9.8

ACS380-04xx-09A8-1

R2

2.2

9.8

17.6

3.0

11.6

3.0

12.2

ACS380-04xx-12A2-1

R2

ACS380 ratings, types and voltages

Frames

IP20

Height

Width

Depth

Weight

mm

mm

mm

kg

R0

220

70

174

1.4

R1

220

70

174

1.6

R2

220

95

174

1.9

R3

220

169

174

3.0

U

N

 = 400 V (range 380 to 480 V). The power ratings are valid at nominal voltage 400 V (0.37 to 11 kW)

Heavy-duty use

Maximum

output

current

Light-overload use

Nominal ratings

Type designation

Frame size

P

Hd

kW

I

Hd

A

I

max

A

P

Ld

kW

I

Ld

A

P

N

kW

I

N

A

0.37

1.2

2.2

0.55

1.7

0.55

1.8

ACS380-04xx-01A8-4

R0

0.55

1.8

3.2

0.75

2.5

0.75

2.6

ACS380-04xx-02A6-4

R1

0.75

2.6

4.7

1.1

3.1

1.1

3.3

ACS380-04xx-03A3-4

R1

1.1

3.3

5.9

1.5

3.8

1.5

4

ACS380-04xx-04A0-4

R1

1.5

4

7.2

2.2

5.3

2.2

5.6

ACS380-04xx-05A6-4

R1

2.2

5.6

10.1

3

6.8

3

7.2

ACS380-04xx-07A2-4

R1

3

7.2

13

4

8.9

4

9.4

ACS380-04xx-09A4-4

R1

4

9.4

16.9

5.5

12

5.5

12.6

ACS380-04xx-12A6-4

R2

5.5

12.6

22.7

7.5

16.2

7.5

17

ACS380-04xx-17A0-4

R3

7.5

17

30.6

11

23.8

11

25

ACS380-04xx-25A0-4

R3

Dimensions

Ordering variants

Connectivity and flexibility to meet your needs

When designing a machine, all necessary devices have to
be compatible with each other to form a high-performing
system level solution. Devices such as drives, programmable
logic controllers (PLCs), motors, human machine interfaces
(HMIs), fieldbuses, safety functions and connectivity need to
be integrated seamlessly into one common system and to
provide reliability, cost efficiency and flexibility for the entire
design process.

All-compatible machinery drives



ABB’s machinery drives have hundreds of hours of testing
behind them. They are proven, meeting the high standards
required for industrial automation. They connect smoothly to
PLCs through a wide range of available fieldbus protocols,
enabling fast and secure communication between them. On
the motor connection side, ACS380 can control virtually any
type of motor optimally, saving energy and the environment
at the same time. On the human interface side, there are
various options for various needs. The options vary from
the integrated icon-based user interface to advanced
alphabetic multilingual graphical control panels and full
scale touchscreen HMIs for an optimized user experience.

Preconfigured fieldbus protocols

Preconfigured fieldbus protocols allow easy and fast
commissioning directly from the PLC.

Reliable solution

ABB machinery drives form with other automation devices a
reliable and rapid connection that saves time and money for
the machine builder. Still, as everything is compatible, there
must be flexibility to optimize the functionality of the machine.
ABB also offers support and maintenance services throughout
the life cycle of the drives in the machine.

12



ABB machinery drives

| Catalog

Standard software with versatile features

Reduced motor noise

The drive reduces motor noise by spreading the switching
frequencies over a user-specified range. The user can define
the used switching frequency to optimize the motor noise.
As a result, the drive maximizes the actual used switching
frequency based on thermal measurement. A higher used
switching frequency reduces motor noise at low load without
limiting full current at maximum load.

Optimized energy use

The machinery drives come with features that help you save
and manage energy. The energy optimizer feature operates in
scalar and vector control modes ensuring maximum torque
per ampere and reducing energy drawn from the supply.
You can monitor the hourly, daily and cumulative energy
consumption via kWh counters. When the drive replaces other
control methods (e.g., throttling), you can follow how much
energy, CO

2

 emissions or money you are saving and see how

fast the drive brings you a return on investment.

Easy diagnostics for trouble-free operation

The external remote control panel's (the assistant control
panel) diagnostics menu enables you to effectively analyze
and resolve issues regarding why the drive is performing as it
is - running, stopped or running at the present speed. Active
faults, warnings and event logs are shown in the menu. The
menu shows if there are any active limitations to the drive
operation and gives instructions on how to resolve them. The
Drive composer PC tool offers more detailed diagnosis and
signal monitoring. The entry level PC tool is available for free
via the ABB website (www.abb.com).

Adapt the drive and machine to run optimally

Adaptive programming with sequence and block programming
possibilitites offers an easy alternative for simple programming
needs. It is embedded inside the software of the drive and is
especially handy when there is a need to distribute some of
the machine’s control logic to the drive. Adaptive programming
brings savings when the drive is adjusted to control the
application optimally. The Drive composer pro PC tool is used
for setting up adaptive programming.

Commissioning easier than ever before

The icon-based control panel of the ACS380 is intuitive and
easy to use for basic operation, settings and fault tracking.
The optional all-compatible assistant control panels have a
clear and intuitive multilingual graphical user interface as well
as different assistants to make the drive easy to set up and
use. This saves on commissioning and learning time.

Optimized motor control

ACS380 drives offer sophisticated process control in scalar
and vector control modes. The drive supports a wide range of
motors, including induction and permanent magnet motors.
Many embedded protection and other features improve
performance of the motor and process.

Flying start

Flying start is available for scalar and vector control modes.
Catching a running motor, enabled by the flying start feature,
is often required in applications with long freewheeling times.

Load profile

The load profile feature collects drive values to a log such
as current. The log shows how the drive is operating and
enables you to analyze and optimize the application.

Catalog



|

ABB machinery drives 13

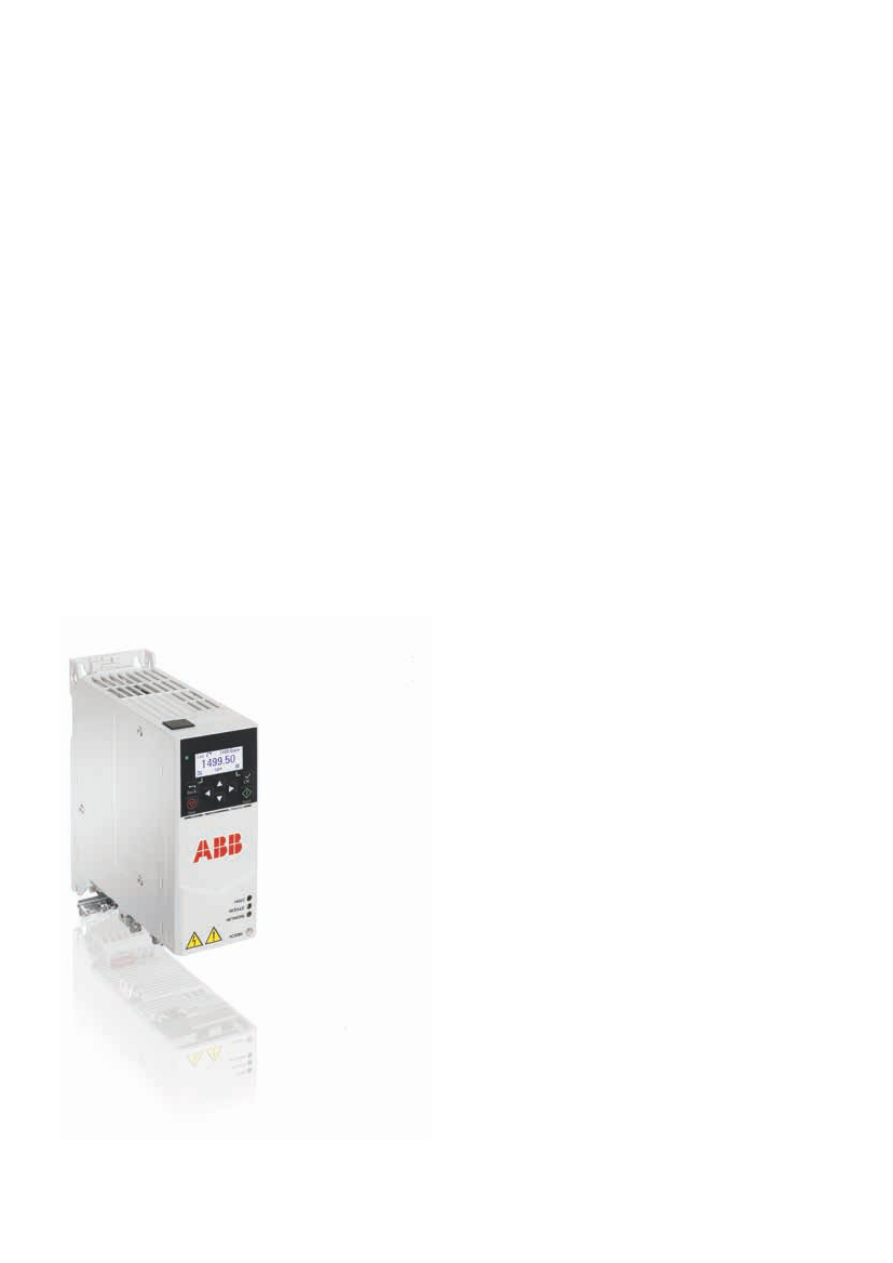

PC tool for drive monitoring and process tuning capabilities

The Drive composer PC tool offers fast and harmonized
setup, commissioning, and monitoring for the whole
all-compatible drives portfolio. The free version of the tool
provides startup and maintenance capabilities, and gathers all
drive information such as parameter loggers, faults, backups
and event lists into a support diagnostics file with a single
mouse click. This provides faster fault tracking, shortens
downtime and reduces operational and maintenance costs.

Using the BCBL-01 cable, the PC can be connected directly
to the RJ-45 panel port on the top of the ACS380 drive. When
using the the assistant control panel, the Drive composer tool
is connected to the drive using the mini USB connection on
the panel. All drive information such as parameter loggers,
faults, backups and event lists are gathered into a support
diagnostics file with a single mouse click. This provides faster
fault tracking, shortens downtime and reduces operational
and maintenance costs.

Drive composer pro offers extended functionality

Drive composer pro provides additional features such as
custom parameter windows, graphical control diagrams
of the drive’s configuration and improved monitoring and
diagnostics. The control diagrams save users from browsing
long lists of parameters and help to set the drive’s logic
quickly and easily. The tool has fast monitoring capabilities
of multiple signals from several drives in the panel bus. Full
backup and restore functions are also included.

The remote monitoring tool, NETA-21, gives easy access to
the drive via the Internet or local Ethernet network. NETA-21
comes with a built-in web server. Compatible with standard
web browsers, it ensures easy access to a web-based user
interface. Through the web interface, the user can configure
drive parameters, monitor drive log data, load levels, run time,
energy consumption, I/O data and bearing temperatures of
the motor connected to the drive.

Remote monitoring access worldwide

Remote monitoring option

Ordering code

Description

Type designation

3AUA0000094517

2 x panel bus interface,
2 x 32 = max. 64 drives
2 x Ethernet interface
SD memory card
USB port for WLAN/3G

NETA-21

Remote monitoring option

Ordering code

Description

Type designation

3AXD50000019865

Cold configurator
adapter, packed kit

CCA-01

Safe configuration for unpowered drives

Cold configuration adapter CCA-01 provides a serial
communication interface for unpowered ACS380 drives,
among other selected drives. With the adapter, safety
isolation of both serial communication and control board
power supply is possible. The power supply is taken from a
PC USB port.

14



ABB machinery drives

| Catalog

Almost anyone can set up and commission the machinery
drive using available control panels. The ACS380 comes with
the integrated icon based control panel as standard. You do
not need to know any drive parameters as the control panel
helps you to set up the essential settings quickly and get the
drive into action. In addition, ACS380 supports the assistant
control panel (AP-I, AP-S or AP-W).

Easy drive setup



− The assistant control panel offers a settings menu with

embedded assistants providing a smart and quick way to
set up the drive.



− The integrated icon based control panel in the ACS380

makes drive setup fast and easy.



− Each setting for both control panels is clearly named or

shown with an icon by its function, such as motor, ramp or
limit settings.

Simplified process monitoring



− One glance at the assistant control panel's editable display

will show the status of the drive and its processes.



− See how the electrical terminals are configured, what is the

actual status and get a quick access to the related settings
from the I/O menu.



− Add information eg, to I/O signals, customize fault and

warning messages or give the drive a unique name with
the assistant control panel’s text editor.



− Connect the PC tool to the drive through the USB

connector on the assistant control panel.

Simplified drive maintenance



− Faults or warnings are quickly resolved in the assistant

control panel provides context sensitive guidance and
troubleshooting instructions.



− Automatic backup and restore functions in the assistant

control panel (with name, date and content).

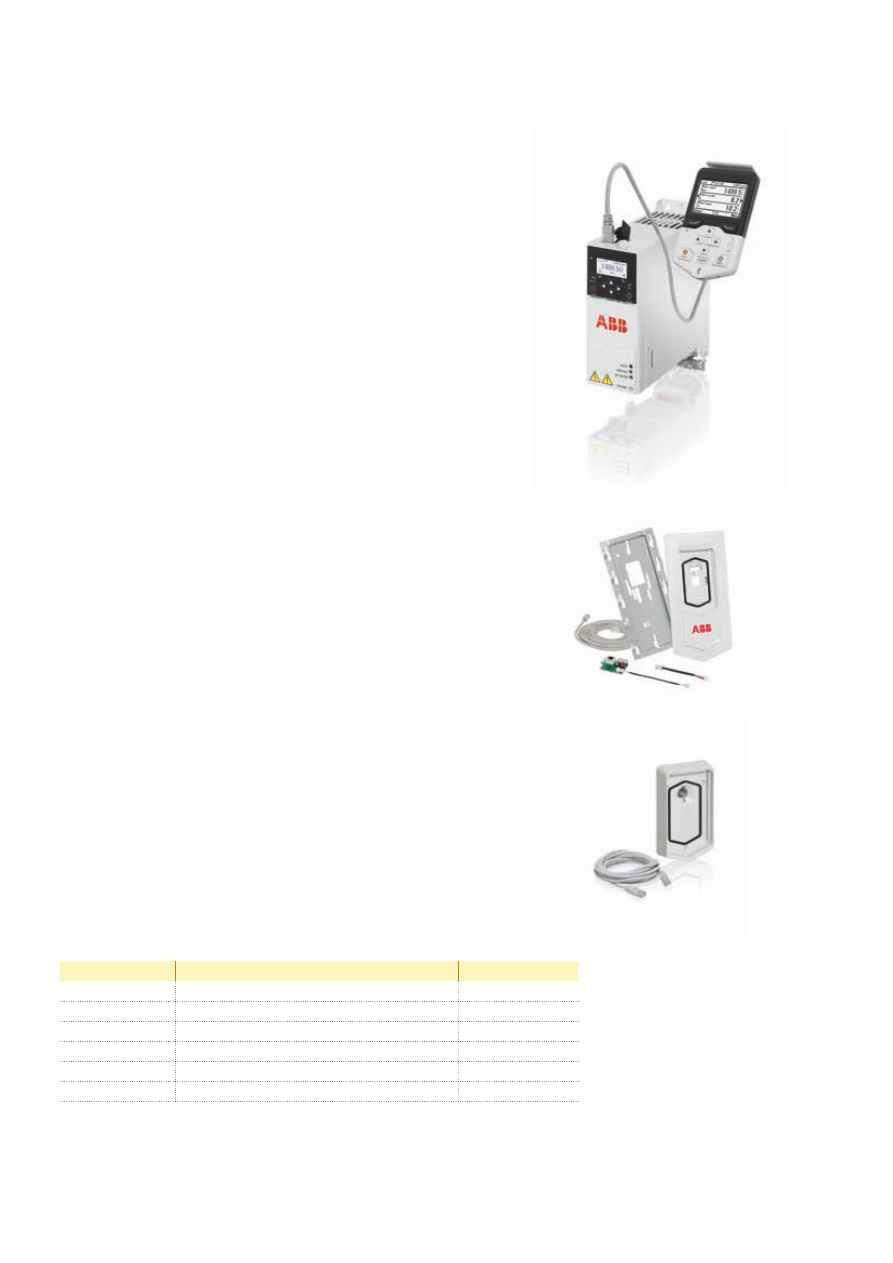

Control panel options

Control panel mounting platforms are available for mounting the
optional assistant control panel e.g. on the cabinet door. There are
two different platform variants: one for flush mounting and another
one for surface mounting.

Drive commissioning and adaptable use with your control panel

Ordering code

Description

Type designation

3AUA0000088311

Assistant control panel

ACS-AP-I

3AUA0000064884

Assistant control panel

ACS-AP-S

3AXD0000025965

Assistant control panel with bluetooth interface

ACS-AP-W

3AXD0000028828

Basic control panel

ACS-BP-S

3AUA0000108878

Control panel mounting platform (flush mounted)

DPMP-01

3AXD0000009374

Control panel mounting platform (surface mounted)

DPMP-02

Catalog



|

ABB machinery drives 15

A fieldbus enables communication between drives and
PLC systems, I/O devices and the process. Fieldbus
communication reduces wiring costs when compared with
traditional hard wired input/output connections. Fieldbus
systems also offer the ability to gather large amounts of data,
which can then be utilized for improving the performance or
safety of the machine.

The ACS380 configured variant is compatible with a wide
range of fieldbus protocols. Fieldbus modules preconfigure
drive parameter settings at power-up to allow programming
directly from the PLC. The optional fieldbus adapter can be
easily mounted on the drive. The ACS380 standard variant
comes with built-in Modbus RTU protocol.

Drive monitoring

A set of drive parameters and/or actual signals, such as
torque, speed, current, etc., can be selected for cyclic data
transfer, providing fast data access.

Drive diagnostics

Accurate and reliable diagnostic information can be obtained
through the alarm, limit and fault words, giving easy
interfacing with plantwide HMIs.

Cabling

Substituting the large amount of conventional drive control
cabling and wiring with a single cable reduces costs and
increases system reliability and flexibility.

Design

The use of fieldbus control reduces engineering time at
installation due to the modular structure of the hardware and
software and the simplicity of the connections to the drives.

Commissioning and assembly

The modular machine configuration allows precommissioning
of single machine sections and provides easy and fast
assembly of the complete installation.

Universal communication with ABB fieldbus adapters

The machinery drives support the following fieldbus protocols:

Flexible connectivity to automation networks

Option code

Fieldbus protocol

Adapter

+K454

PROFIBUS DP, DPV0/DPV1

FPBA-01-M

+K457

CANopen

®

FCAN-01-M

+K469

EtherCAT

®

FECA-01-M

+K475

Two port EtherNet/IP™,
Modbus TCP, PROFINET IO

FENA-21-M

+K470

Ethernet POWERLINK

FEPL-02

16



ABB machinery drives

| Catalog

Electrical installation   63

„

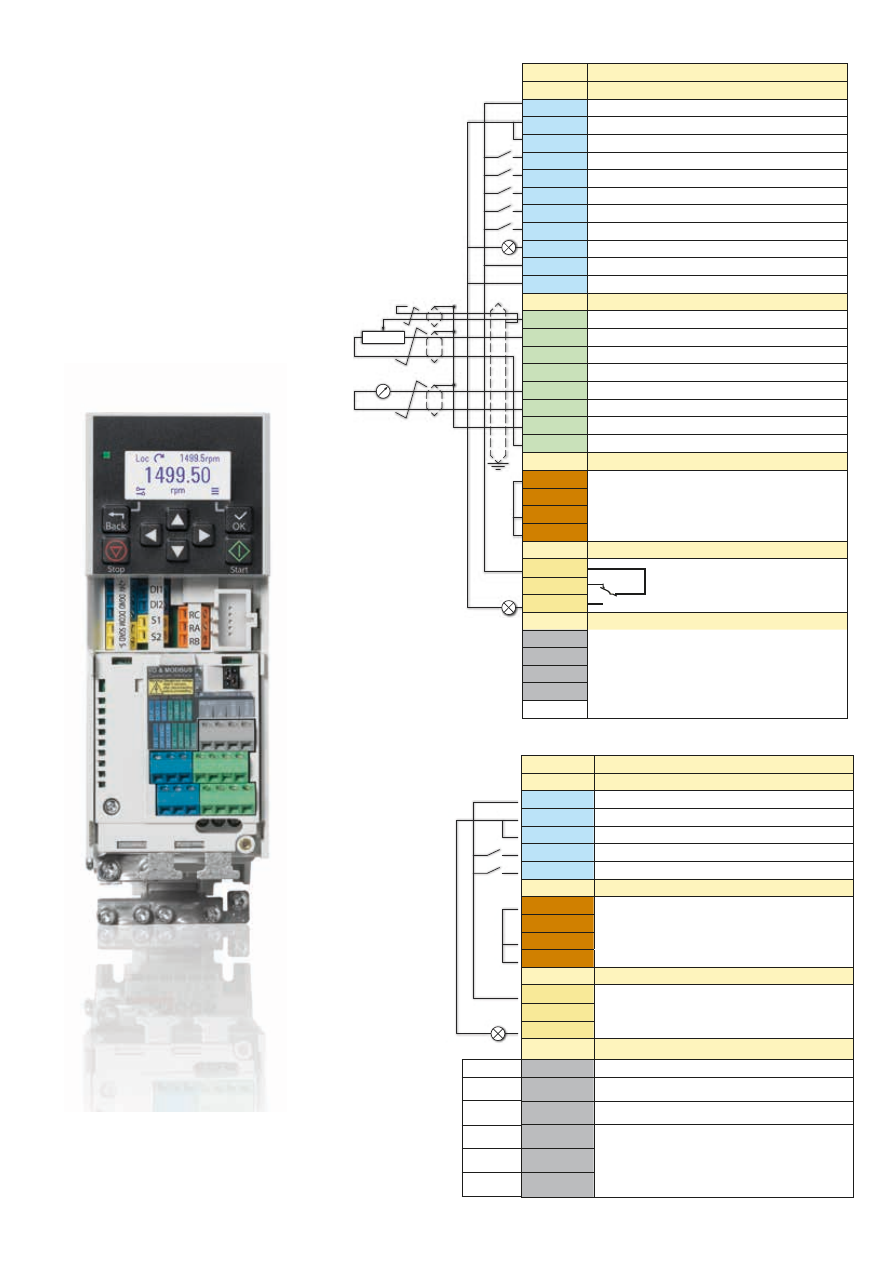

Default I/O connection diagram (ABB standard macro)

Terminals

Descriptions

Aux. voltage output and digital connections

Aux. voltage output +24 V

DC

, max. 250 mA

Aux. voltage output common

Digital input common for all

Digital input 1: Stop (0)/Start (1)

Digital input 2: Forward (0)/Reverse (1)

Digital input 3: Speed selection

Digital input 4: Speed selection

Digital input function: Ramp set 1 (0)/Ramp set 2 (1)

Digital output function: Ready to run (0)/Not ready (1)

Signal cable shield (screen)

Digital input common for all

Reference voltage and analog I/O

Output frequency/Speed reference (0...10 V)

Analog input circuit common

Not configured

Analog input circuit common

Output frequency (0...20 mA)

Analog output circuit common

Signal cable shield (screen)

Reference voltage

Safe torque off (STO)

Safe torque-off function. Connected at factory. Drive

starts only when both circuits are closed. Refer to

Safe

torque off function

 on page

111

.

Relay output

Fault (-1)

250 V

AC

/30 V

DC

2 A

EIA-485 Modbus RTU

Embedded Modbus RTU (EIA-485)

+24V

DGND

DCOM

DI 1

DI 2

DI 3

DI 4

DIO 1

DIO 2

DIO SRC

DIO COM

AI 1

AGND

AI 2

AGND

AO

AGND

SCR

+10V

S+

SGND

S 1

S 2

RC

RA

RB

B+

A-

BGND

Shield

Termination

Standard interface

and extensions for ACS380

machinery drives

Terminals

Descriptions



Aux. voltage output and digital connections

+24 V

Aux. voltage output +24 V DC, max. 250 mA

DGND

Aux. voltage output common

DCOM

Digital input common for all

DI 1

Digital input 1: Stop (0)/Start (1)

DI 2

Digital input 2: Forward (0)/Reverse (1)

DI 3

Digital input 3: Speed selection

DI 4

Digital input 4: Speed selection

DIO 1

Digital input function: Ramp set 1 (0)/Ramp set 2 (1)

DIO 2

Digital output function: Ready to run (0)/Not ready (1)

DIO SRC

Signal cable shield (screen)

DIO COM

Digital input common for all

Reference voltage and analog I/O

AI 1

Output frequency/Speed reference (0...10 V)

AGND

Analog input circuit common

AI 2

Not configured

AGND

Analog input circuit common

AO

Output frequency (0...20 mA)

AGND

Analog output circuit common

SCR

Signal cable shield (screen)

+10 V

Reference voltage

Safe torque off (STO)

S+

Safe torque-off function. Connected at factory. Drive

SGND

starts only when both circuits are closed. Refer to Safe

S 1

torque off function in the hardware manual.

S 2

Relay output

RC

RA

                      No fault [Fault (-1)]

RB



EIA-485 Modbus RTU

B+

Embedded Modbus RTU (EIA-485)

A-

BGND

Shield

Termination

64   Electrical installation

„

Fieldbus connection diagram

Terminals

Descriptions

Aux. voltage output and digital connections

Aux. voltage output +24 V

DC

, max. 250 mA

Aux. voltage output common

Digital input common for all

Digital input 1: Stop (0)/Start (1)

Digital input 2: Forward (0)/Reverse (1)

Safe torque off (STO)

Safe torque-off function. Connected at factory. Drive

starts only when both circuits are closed. Refer to

Safe

torque off function

 on page

111

.

Relay output

Fault (-1)

250 V

AC

/30 V

DC

2 A

Extension module connections

Connections depending on the product variant.

+24V

DGND

DCOM

DI 1

DI 2

S+

SGND

S 1

S 2

RC

RA

RB

DSUB9

DSUB9

RJ45 X 2

RJ45 X 2

RJ45 X 2

RJ45

CANopen

Profibus

EtherCAT

Ethernet IP

Profinet

Modbus TCP

DSUB9

DSUB9

RJ-45 x2

RJ-45 x2

Terminals

Descriptions



Aux. voltage output and digital connections

+24 V

Aux. voltage output +24 V DC, max. 250 mA

DGND

Aux. voltage output common

DCOM

Digital input common for all

DI 1

Digital input 1: Stop (0)/Start (1)

DI 2

Digital input 2: Forward (0)/Reverse (1)

Safe torque off (STO)

S+

Safe torque-off function. Connected at factory. Drive

SGND

starts only when both circuits are closed. Refer to Safe

S 1

torque off function in the hardware manual.

S 2

Relay output

RC

Fault (-1)

RA

250 V AC/30 V DC

RB

2 A

Extension module connections

PROFIBUS

+K454

CANopen

®

+K457

EtherCAT

®

+K469

PROFINET

+K475

Ethernet/IP™

ModbusTCP

Default I/O connections of standard variant

The ACS380 machinery drives offer two different standard
interfaces: the standard variant (I/O and Modbus) and the
configured variant with different interfaces. In addition, the
drive has one option slot available that can be used for
speed feedback, relay extensions or options which allow an
external +24 V supply. For further information please see
the ACS380 hardware and firmware manuals.

Default connections of configured variant

Catalog



|

ABB machinery drives 17

Standard input and output of ACS380 machinery drives
can be extended by using optional input/output extension
modules. The modules are easily installed in the extension
slots located in the drive. It is also possible to use an
optional speed feedback  module that supports TTL and
HTL pulse encoders.

Input/output, extension and feedback modules

for increased connectivity

Extension module options

Option code

Description

Type
designation

+L534

External 24 C DC

BAPO-01

+L511

External relay option (4xRO)

BREL-01

Feedback interface module options

Option code

Connections

Option

+L535

Encoder interface + External 24 V DC

BTAC-02

18



ABB machinery drives

| Catalog

Brake chopper

The brake chopper is built-in as standard for the ACS380. It
not only controls braking, but also supervises system status
and detects failures such as brake resistor and resistor cable
short-circuits, chopper short-circuit, and calculated resistor
over-temperature.

Control of the mechanical brake

Mechanical brake control is integrated into the ACS380
machinery drives. It uses state machine logic to control brake
opening, closing, holding, wait and delay to integrate complex
brake operation into the application.

Brake resistor

The brake resistors are separately available for the ACS380.
Resistors other than the standard option resistors may be
used, provided that the specified resistance value is within
the specified limits and that the heat dissipation capacity of
the resistor is sufficient for the drive application (see hardware
manual). No separate fuses in the brake circuit are required
if the conditions for e.g., the mains cable is protected with
fuses and no mains cable/fuse overrating takes place.

The ACS380 machinery drives are equipped with a built-in
filter to reduce high frequency emissions. Low EMC filters (C3
for 200V and C4 for 400V) are standard on ACS380-040X
drives. High EMC filters (C2 for all voltages) are denoted by
type codes ACS380-042X.

EMC standards

The EMC product standard (EN 61800-3) covers the specific
EMC requirements stated for drives (tested with motor and
cable) within the EU. EMC standards such as EN 55011 or
EN 61000-6-3/4 are applicable to industrial and domestic
equipment and systems including components inside the
drive. Drive units complying with the requirements of
EN 61800-3 are compliant with comparable categories in
EN 55011 and EN 61000-6-3/4, but not necessarily vice
versa. EN 55011 and EN 61000-6-3/4 do not specify cable

length or require a motor to be connected as a load. The
emission limits are comparable to EMC standards according
to the table below.

Domestic environments versus public low voltage networks

The first environment includes domestic premises. It also
includes establishments directly connected without an
intermediate transformer to a low voltage power supply
network that supplies buildings used for domestic purposes.
The second environment includes all establishments directly
connected to public low voltage power supply networks.

Brake options

EMC – electromagnetic compatibility

Comparison of EMC standards

EMC according to EN 61800-3
product standard

EN 61800-3
product
standard

EN 55011, product
family standard for
industrial, scientific
and medical (ISM)
equipment

EN 61000-6-4, generic
emission standard for
industrial environments

EN 61000-6-3, generic
emission standard for
residential, commercial and
light-industrial environment

1

st

 environment, unrestricted distribution

Category C1

Group 1, Class B

Not applicable

Applicable

1

st

 environment, restricted distribution

Category C2

Group 1, Class A

Applicable

Not applicable

2

nd

 environment, unrestricted distribution

Category C3

Group 2, Class A

Not applicable

Not applicable

2

nd

 environment, restricted distribution

Category C4

Not applicable

Not applicable

Not applicable

Catalog



|

ABB machinery drives 19

Our machinery drives control virtually any type of AC
motor including induction, permanent magnet, servo and
synchronous reluctance motors. Our adaptable machinery
drives ensure an energy efficient and reliable motor controller
with significant cost savings for the user.

Machinery drives and induction motors form a reliable
combination

Induction motors are used throughout the industry in several
types of industry applications which demand robust and high
enclosure motor and drive solutions. The ACS380 machinery
drives fit perfectly together with this type of motor, used in a
wide range of industrial environments.

Need a motor? This is our offering.

Machinery drives and permanent magnet motors for
smooth operation

Permanent magnet technology is often used for improved
motor characteristics such as energy efficiency, compactness
and control performance. Actual characteristics between
different permanent magnet motors can vary considerably.
Machinery drives can control ABB's and most other
permanent magnet motors in an efficient way.

Machinery drives and IE4 synchronous reluctance motors
for a package with high efficiency

Combining the machinery drives control technology with our
synchronous reluctance (SynRM) motors provides an IE4
motor and drive package that gives you great energy savings
benefits. The key is in the rotor design. The synchronous
reluctance rotor replaces the traditional induction rotor and
requires no permanent magnets. ABB has tested the SynRM
motor and drive packages and produced manufacturer’s
statements providing verified system (drive and motor
efficiency).

20



ABB machinery drives

| Catalog

Save time, ease troubleshooting and improve drive performance

with ABB smartphone apps

Easy and fast access to product information
and support

Search for support documents and contacts

Maintain and service all your installed drives on
one or multiple sites

Start up,

commission and

tune your drive

and application

Easy access to

cloud-based

drive and process

information

from anywhere

via an online

connection

Simplified user

guidance with

instant access to

drive status and

configuration

Performance

optimization

via drive

troubleshooting

features and

fast support

Better connectivity and user experience with Drivetune

Services and support on the go with Drivebase

Manage your drives and the process lines and
machines they control

Access

your drive‘s

diagnostics data

Get 6 months

extra warranty

for free by

registering

your drive with

the Drivebase

app

Access your product

and service

information

in the cloud

from anywhere

Push notifications

for critical product

and service

updates

Access information anywhere

Download the apps using the

QR codes below

 or directly from

the app stores

Drivebase

 for ensured reliability and reduced

downtime on production sites

Drivetune



for commissioning

and managing drives

12:3

Drivetune

12:3

Drivebase

Catalog



|

ABB machinery drives 21

Drives service

A lifetime of peak performance

You are in control of every life cycle phase of your drives.
At the heart of drive services is a four-phase product life
cycle management model. This model defines the services
recommended and available throughout the drive's lifespan.

Now it’s easy for you to see the exact service and
maintenance available for your drives.

Keeping you informed

We notify you every step of the way using life cycle status
statements and announcements.

Your benefit is clear information about your drives’ status
and precise services available. It helps you plan the preferred
service actions ahead of time and make sure that continuous
support is always available.

Product is in

active sales and

manufacturing

phase.

Full range of life cycle

services is available.

Full range of life cycle

services is available.



Product enhancements

may be available through

upgrade and retrofit

solutions.

Limited range of life cycle

services is available.



Spare parts availability

is limited to available

stock.

Product is no longer

available.

Product is no longer

available.

Active

Classic

Limited

Obsolete

ABB drives life cycle phases explained:

Full range of life cycle services and support

Limited range of life cycle

services and support

Replacement and

end-of-life services

Serial production has
ceased. Product may

be available for plant

extensions, as a spare

part or for installed

base renewal.

Pr

oduct

Services

Replacement and

end-of-life services

are available.

Life Cycle Status Announcement

Provides early information about the upcoming
life cycle phase change and how it affects the
availability of services.

Life Cycle Status Statement

Provides information about the drive's current life
cycle status, availability of product and services,
life cycle plan and recommended actions.

Step 1

Step 2

22



ABB machinery drives

| Catalog

The future of your drives depends on the service
you choose.



Whatever you choose, it should be a well-informed decision
with no room for guesswork. We have the expertise and
experience to help you find and implement the right service
for your drive equipment. You can start by asking yourself
these two critical questions:



−

Why should my drive be serviced?



−

What would my optimal service options be?

From here, you have our guidance and full support along the
course you take, throughout the entire lifetime of your drives.

Drives service

Your choice, your future

Service to match your needs

Your choice, your business efficiency

The ABB Drive Care agreement lets you focus on your core
business. A selection of predefined service options matching
your needs provides optimal, more reliable performance,
extended drive lifetime and improved cost control. So you can
reduce the risk of unplanned downtime and find it easier to
budget for maintenance.

We can help you more by knowing where you are!

Register your drive at www.abb.com/drivereg for extended
warranty options and other benefits.

Performance

improvement

Operational

efficiency

Rapid

response

Life cycle

management

Your service needs depend on your operation, the life cycle of your equipment and business priorities. We have
identified our customers’ four most common needs and defined service options to satisfy them. What is your choice to
keep your drives at peak performance?



Is rapid response a

key consideration?

If your drives require immediate

action, our global network is at

your service.

Example services include:



Technical Support



Drive Exchange



On-site Repair



Response time agreements

Need to extend your

assets’ lifetime?

Maximize your drive’s lifetime

with our services.

Example services include:



Life Cycle Assessment



Replacement, Disposal and

Recycling

Is performance

most critical to

your operation?

Get optimal performance out of

your machinery and systems.

Example services include:



Training

Is uptime

your priority?

Keep your drives running with

precisely planned and executed

maintenance.

Example services include:



Life Cycle Assessment



Installation and

Commissioning



Spare Parts



Preventive Maintenance



ABB Drive Care agreement

24

Catalog



|

ABB machinery drives 23

© Copyright 2017 ABB. All rights reserved.
Specifications subject to change without notice.

Contact us

3AUA0000187460 REV B EN 26.6.2017

www.abb.com/drives
www.abb.com/drivespartners
www.abb.com/motors&generators
