LOW VOLTAGE AC DRIVES
ABB industrial drives
ACS880, drive modules
0.55 to 3200 kW
2
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Reliability, performance and safety.
ACS880 series.
3
—
Table of contents
The all-compatible ACS880 series
Simplify your world without limiting your possibilities
Optimized for cabinet assembly
Cost and time savings with drive-based functional safety
Compatible with all kinds of processes
Application- and industry-specific solutions and programmability
Standard interface and extensions for plug-in connectivity

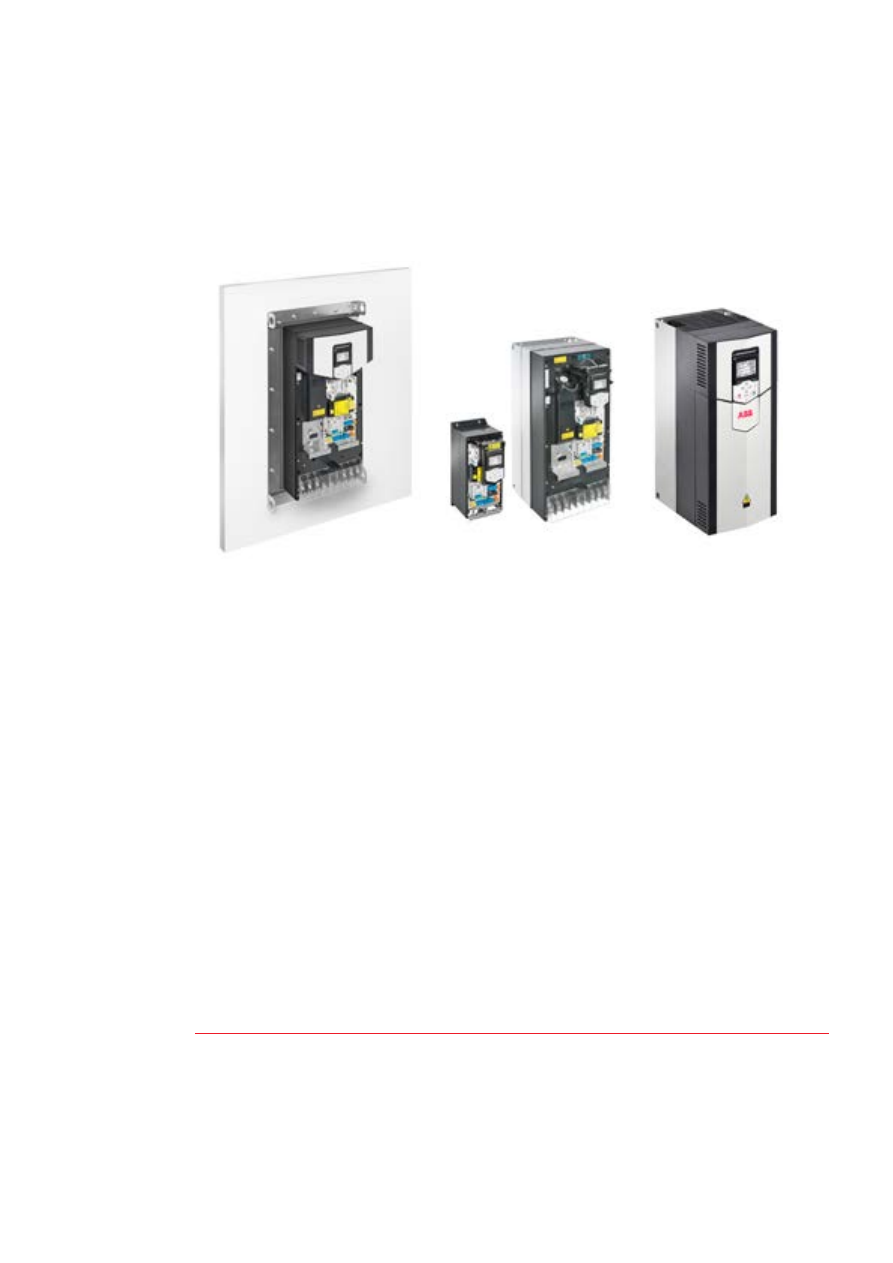

Wall-mounted single drive modules, ACS880-01 with option +P940 or +P944
Single drive modules, ACS880-04, ACS880-04F and ACS880-04XT
High power single drive module packages, ACS880-04
Regenerative drive modules, ACS880-11+P940, ACS880-14
Ultra-low harmonic drive modules, ACS880-31+P940 and ACS880-34

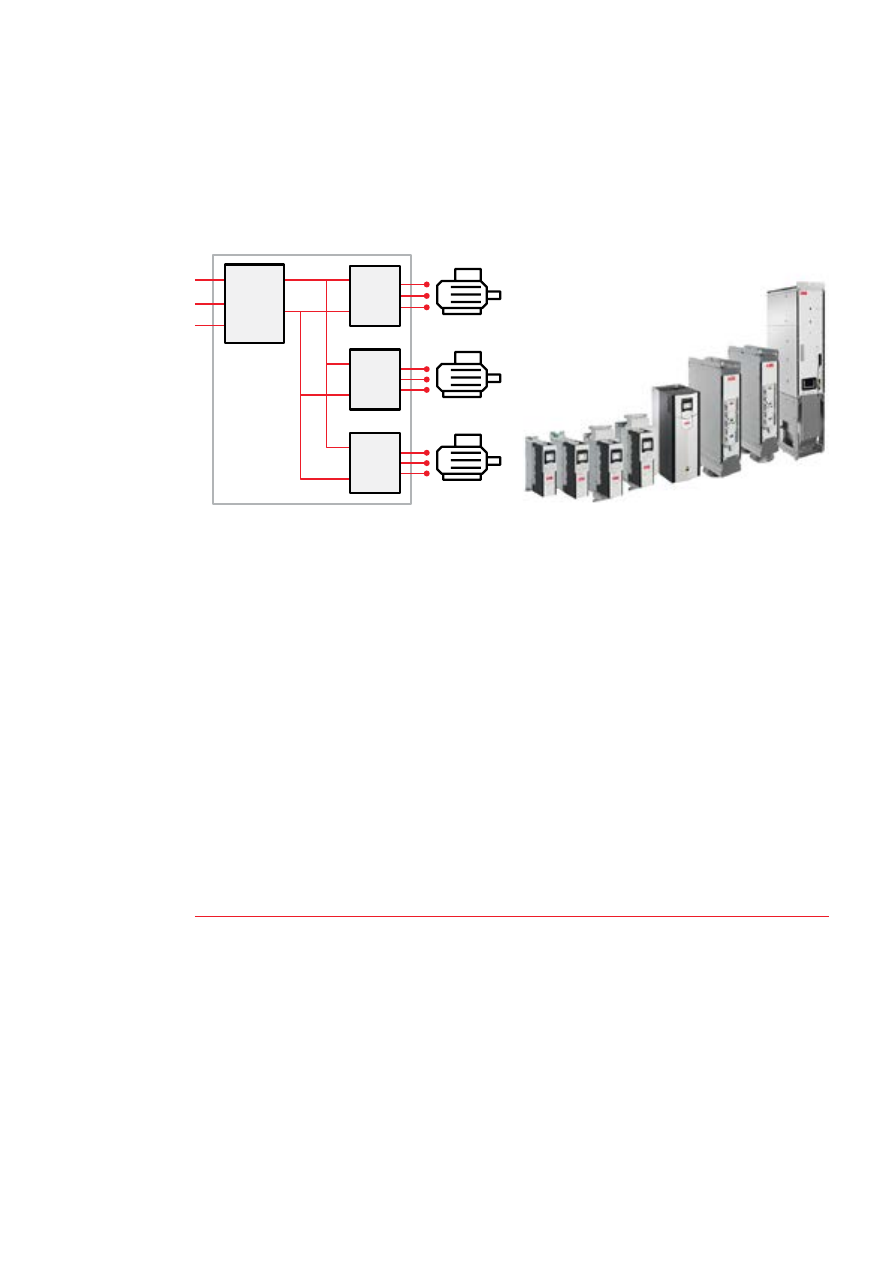

Multidrive modules, ACS880-X04
Liquid-cooled modules, ACS880-X04LC, -1007LC

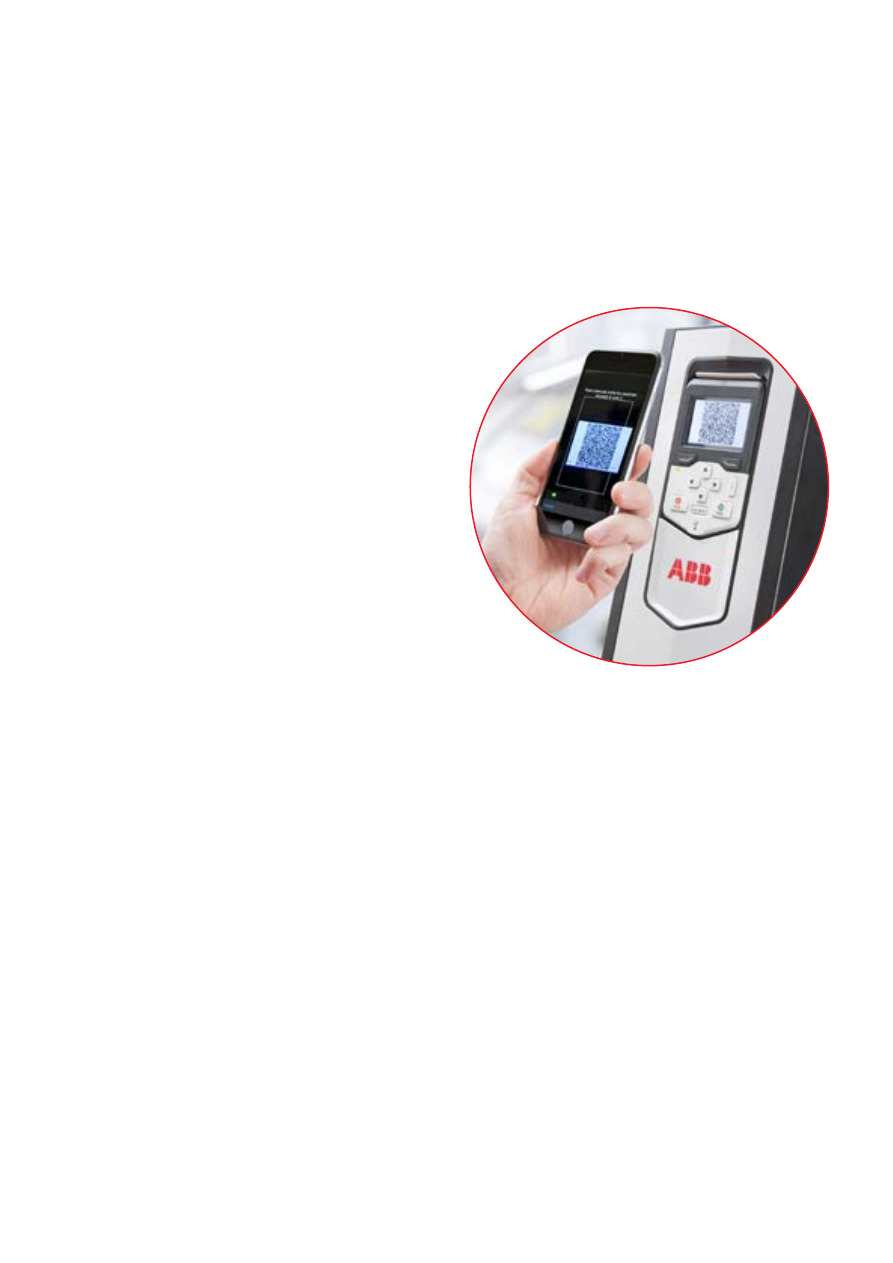

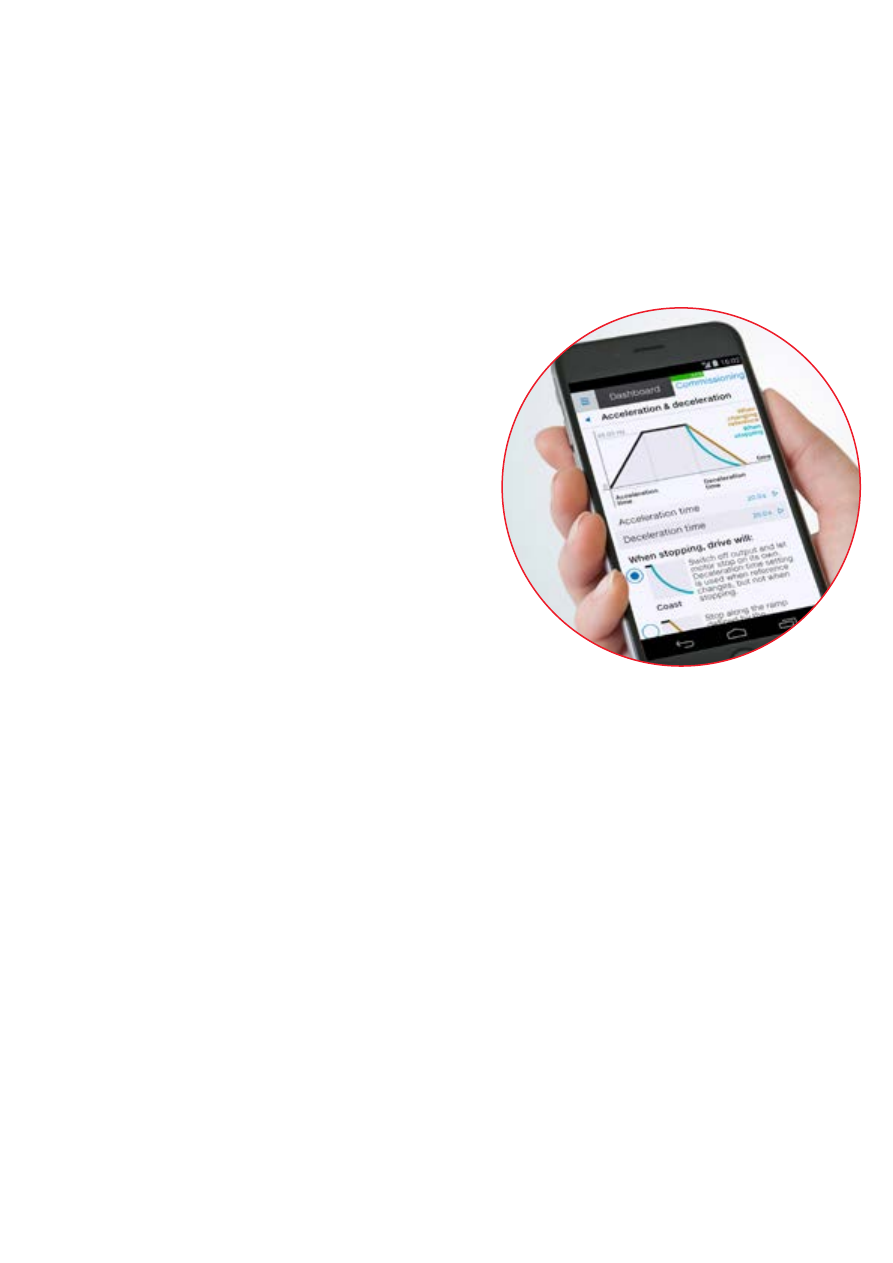

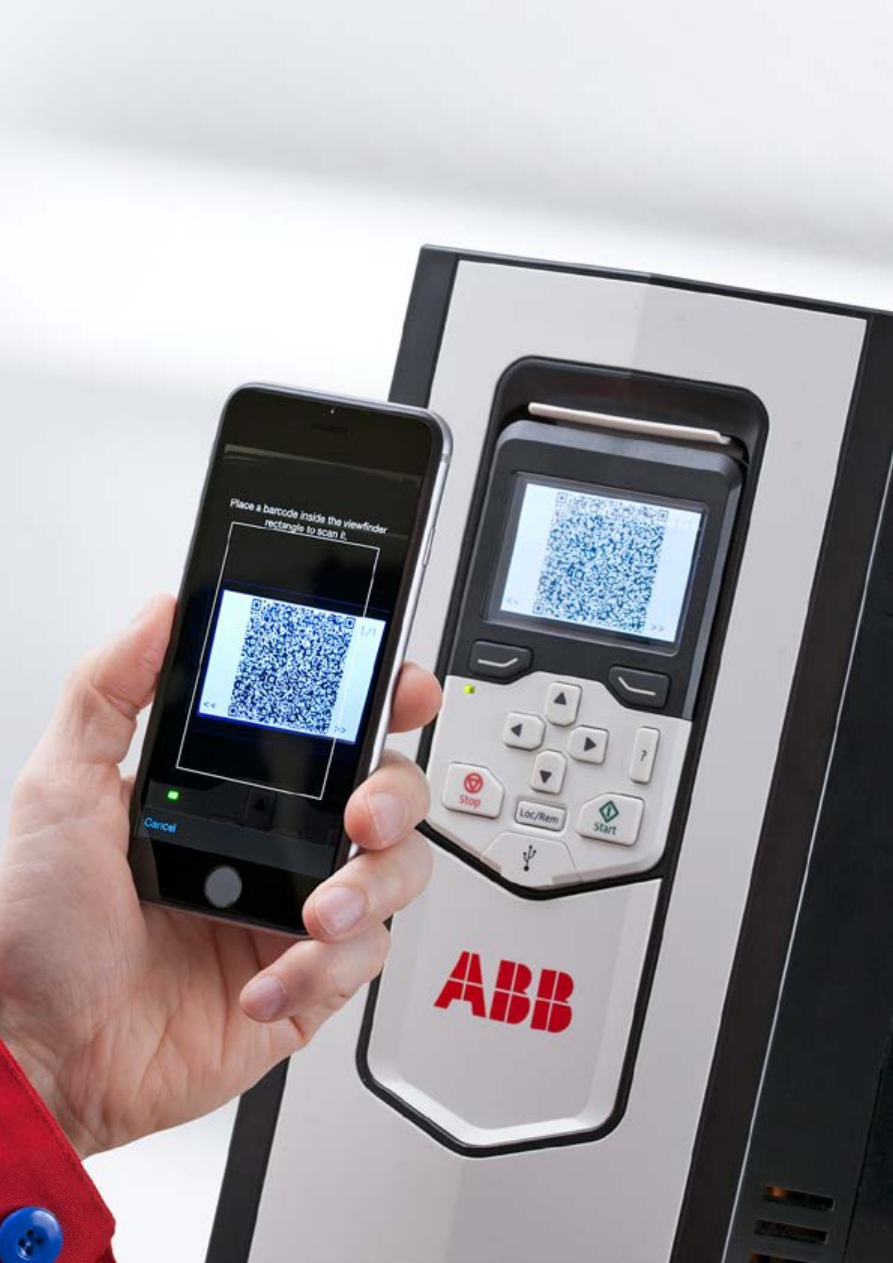

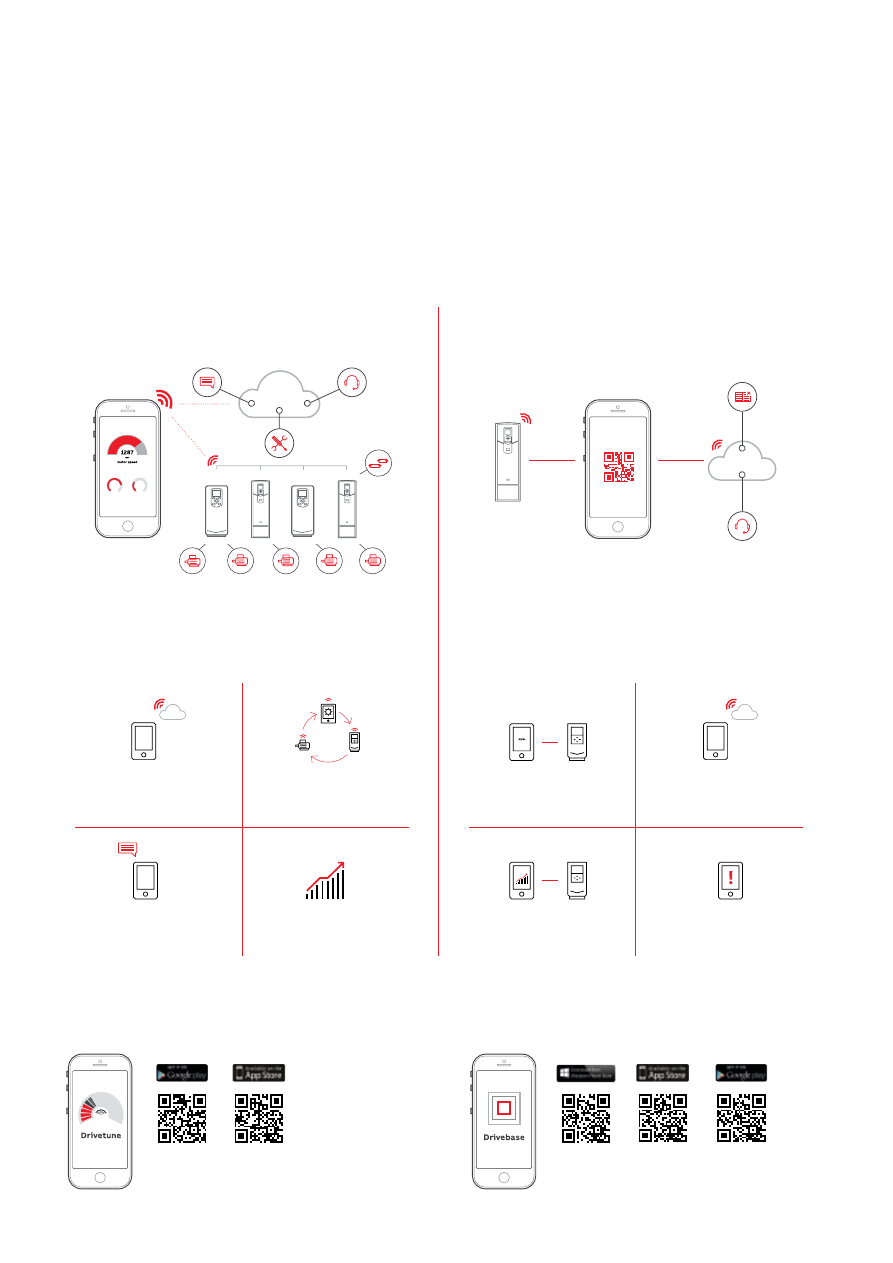

Save time, ease troubleshooting and improve drive performance with
ABB smartphone apps
60
Connectivity to automation systems
61
62
63
64
66
EMC – electromagnetic compatibility
68

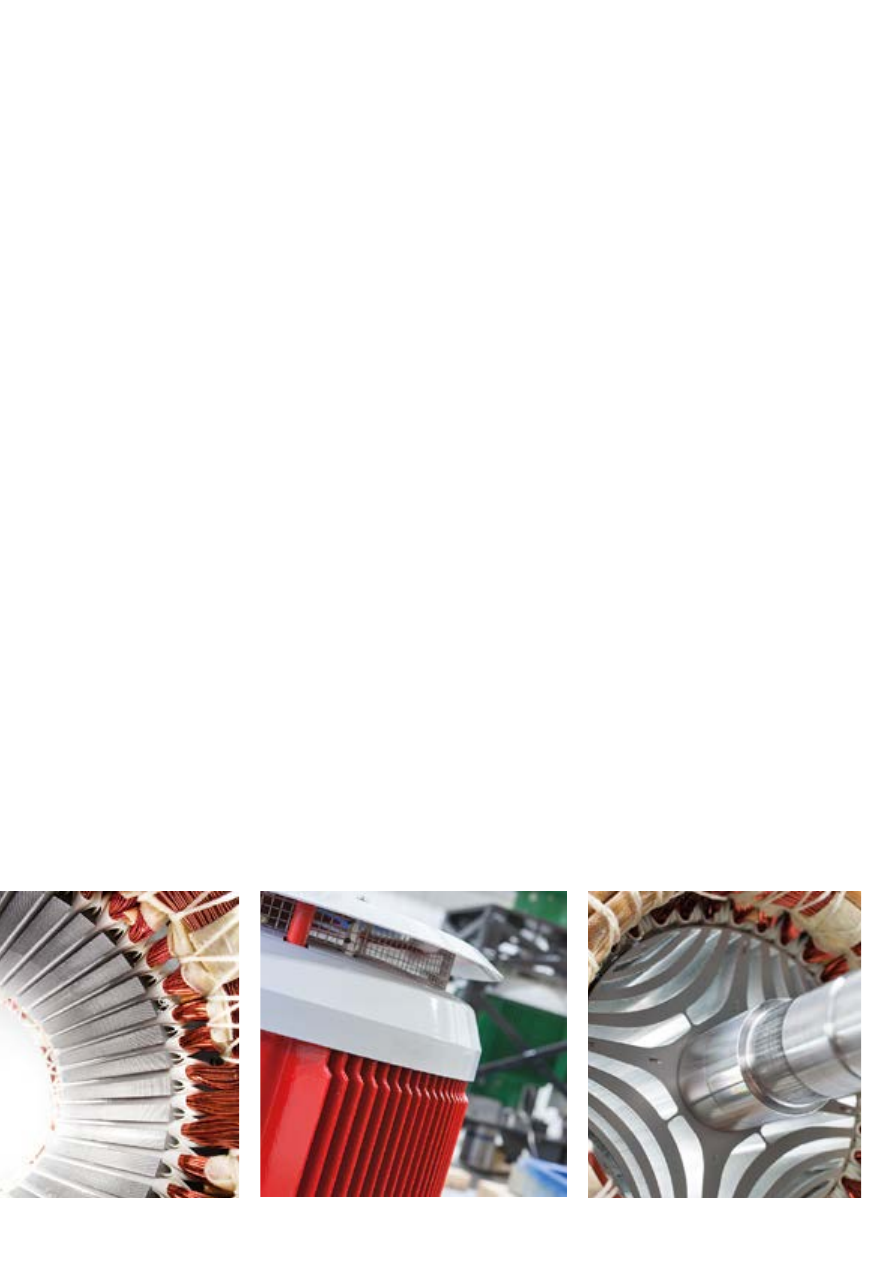

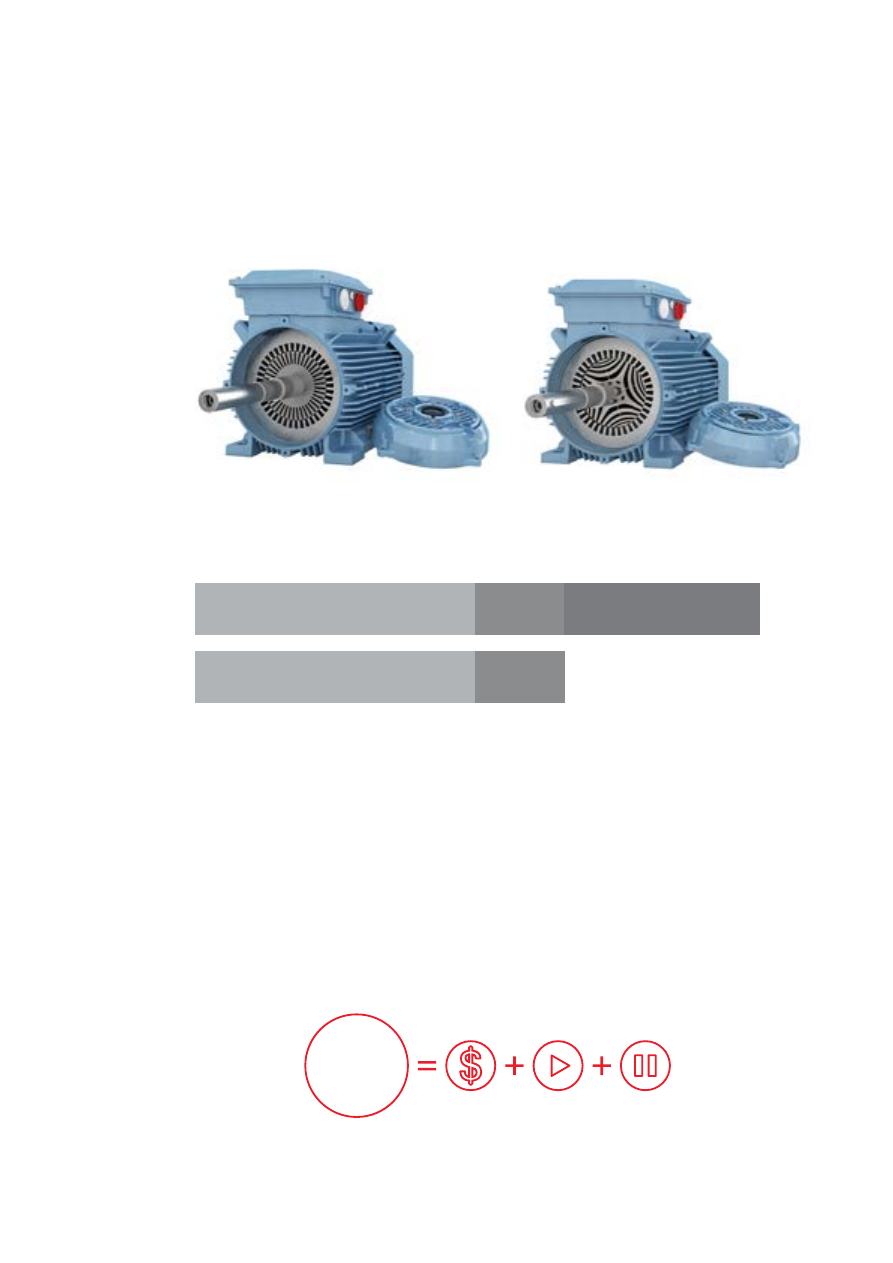

Choose the right motor for your application
70
72
76
84
87
92
Typical
industries
Food and
beverage
Material
handling
Mining and minerals
Oil and gas
Marine
Power plants
Sawmill
Automotive
Rubber and plastics
Chemical
4
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
ABB’s all-compatible drives are designed
to provide customers across industries and
applications with unprecedented levels of
compatibility and flexibility.

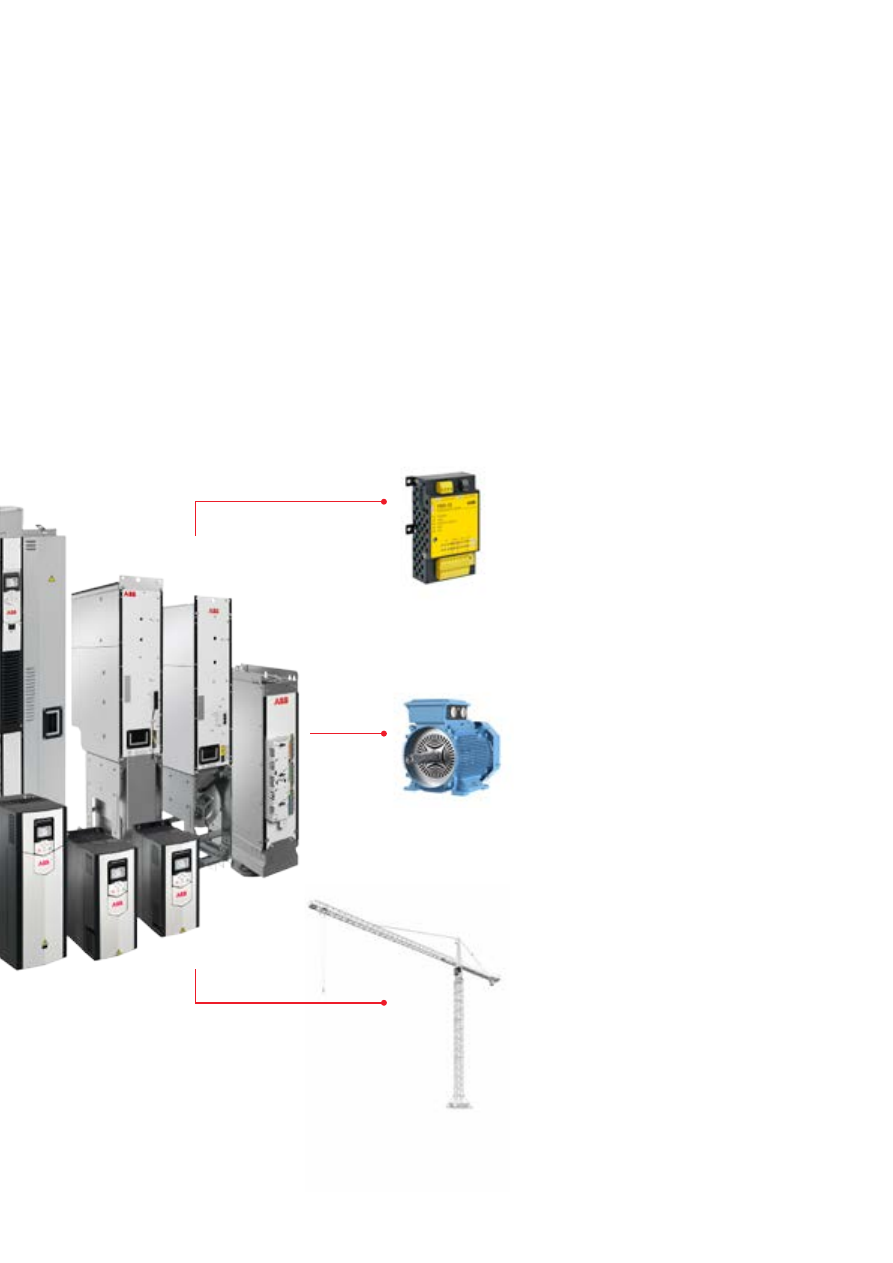

Our ACS880 drive
modules are optimized for panel building. They
are customized to meet the particular needs of
specific industries, such as oil and gas, mining,
metals, chemicals, cement, power plants, material
handling, pulp and paper, sawmills, marine,
water and wastewater, food and beverage, and
automotive. They can control a wide range of
applications, including cranes, extruders,
winches, winders, conveyors, mixers,
compressors, centrifuges, test benches,
elevators, extruders, pumps and fans.
—
High quality
Reliability and consistent high quality
ACS880 drives are designed for customers
who value high quality and robustness in their
applications. They have features such as coated
boards, making the ACS880 suitable for harsh
conditions. Additionally, every ACS880 drive is
factory-tested at full load to ensure maximum
reliability. The tests include performance and all
protective functions.
High performance, safety and configurability
The ACS880 offers the highest level of
performance. The drives are equipped with
ABB’s signature direct torque control (DTC),
which provides precise speed and torque control
for all applications and supports virtually any
type of motor.
Extensive ACS880 offering includes wall-mounted
drives, drive modules and cabinet-built drives, as
well as low harmonic and regenerative variants.
The ACS880 has all the essential features built-in
reducing the time required for engineering,
installation and commissioning. A wide range of
options are also available to optimize the drive
for different requirements, including certified,
integrated safety features.
—
The all-compatible ACS880 series
Reliability and flexibility
The AC880 is an all-compatible
ABB industrial drive, offered in a
range of wall-mounted drives,
drive modules and cabinet-built
drives.
5
T H E A L L- CO M PAT I B L E AC S 8 8 0 SER I E S
6
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Simplify your world
without limiting your possibilities
The ACS880 industrial drive modules are designed for cabinet installation,
with features such as optimized location of the power terminals and wheels
for easy maneuvering. A wide selection of module variants and options,
as well as extensive programming and connectivity possibilities, make
the ACS880 suitable for various different requirements and applications.
Ease of use and engineering
• All-compatible ACS880 drives share
the same easy-to-use user interface.
• Minimized engineering and installation effort
with integrated features and components
• Extensive selection of support material and
tools for engineering
Optimized for cabinet assembly
• Flexible mounting directions and product
configurations
• Power terminal locations designed for optimal
and compact cabinet layout
• High power modules with wheels for easy
maneuvering
• Possibility for flange (push through) mounting
• Mechanical kits for easy cabinet assembly
Extended connectivity
• Communication with all major automation
networks

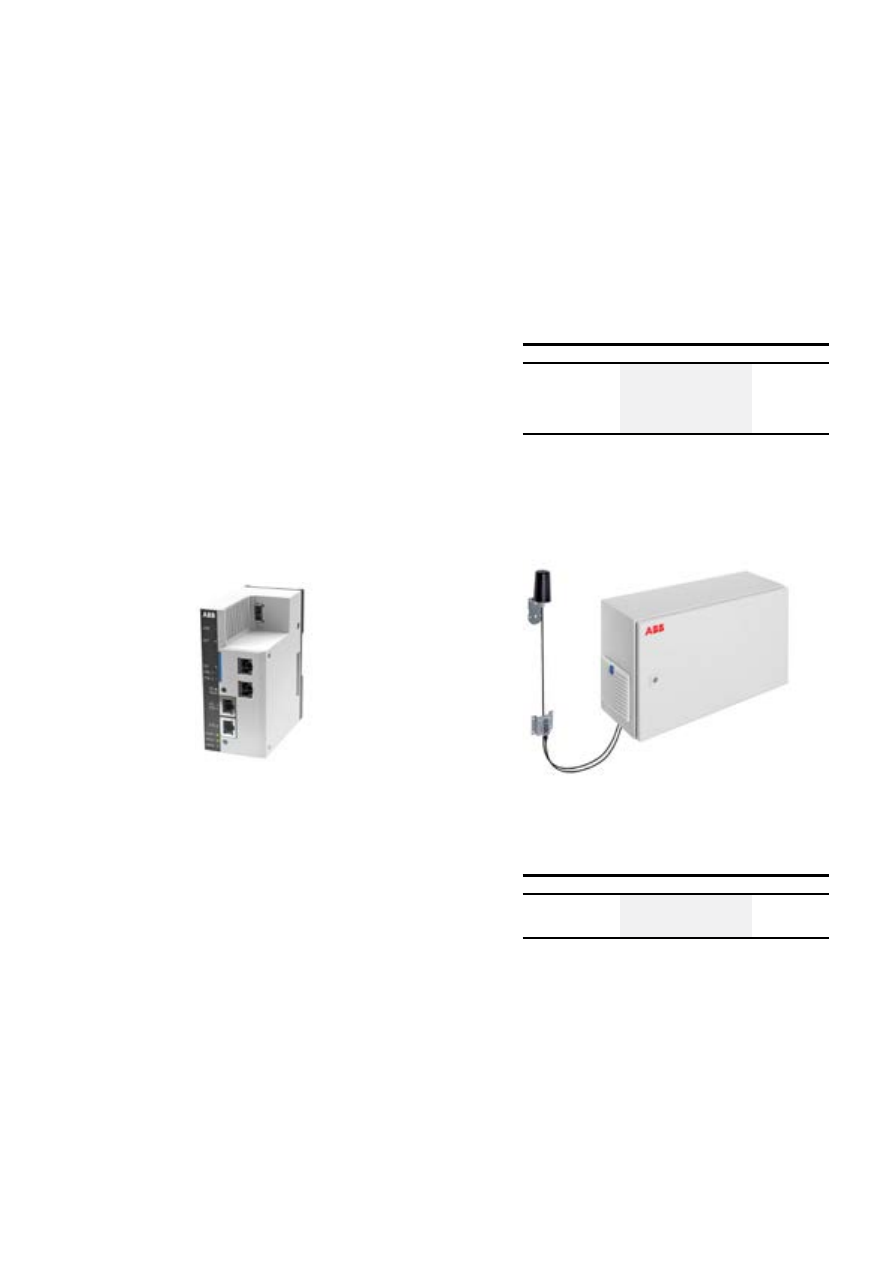

• Remote monitoring
• Mobile connectivity
• Integration tools for PLCs from ABB and
various other manufacturers
Reliability
• Robust, long lifetime design for
maximum reliability

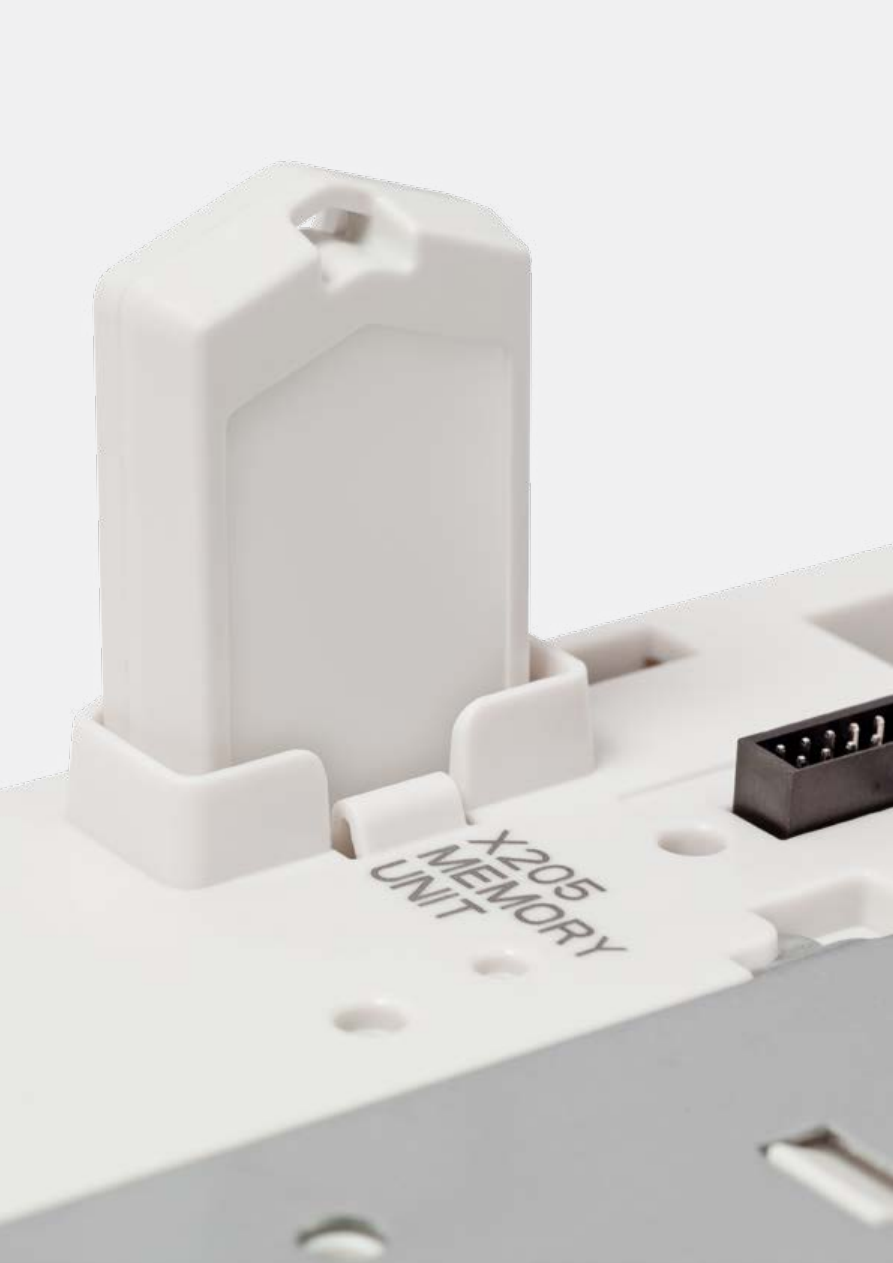

• Removable memory unit
• Each drive factory tested at full load
• Nine-year service interval
—
9-year maintenance interval
77
S I M P L I F Y YO U R W O R L D W I T H O U T L I M I T I N G YO U R P OSS I B I L I T I E S
—
ACS880 module drives are
designed for easy engineering
and installation
Cost and time savings with
drive-based functional safety
• Safe torque off built-in as standard

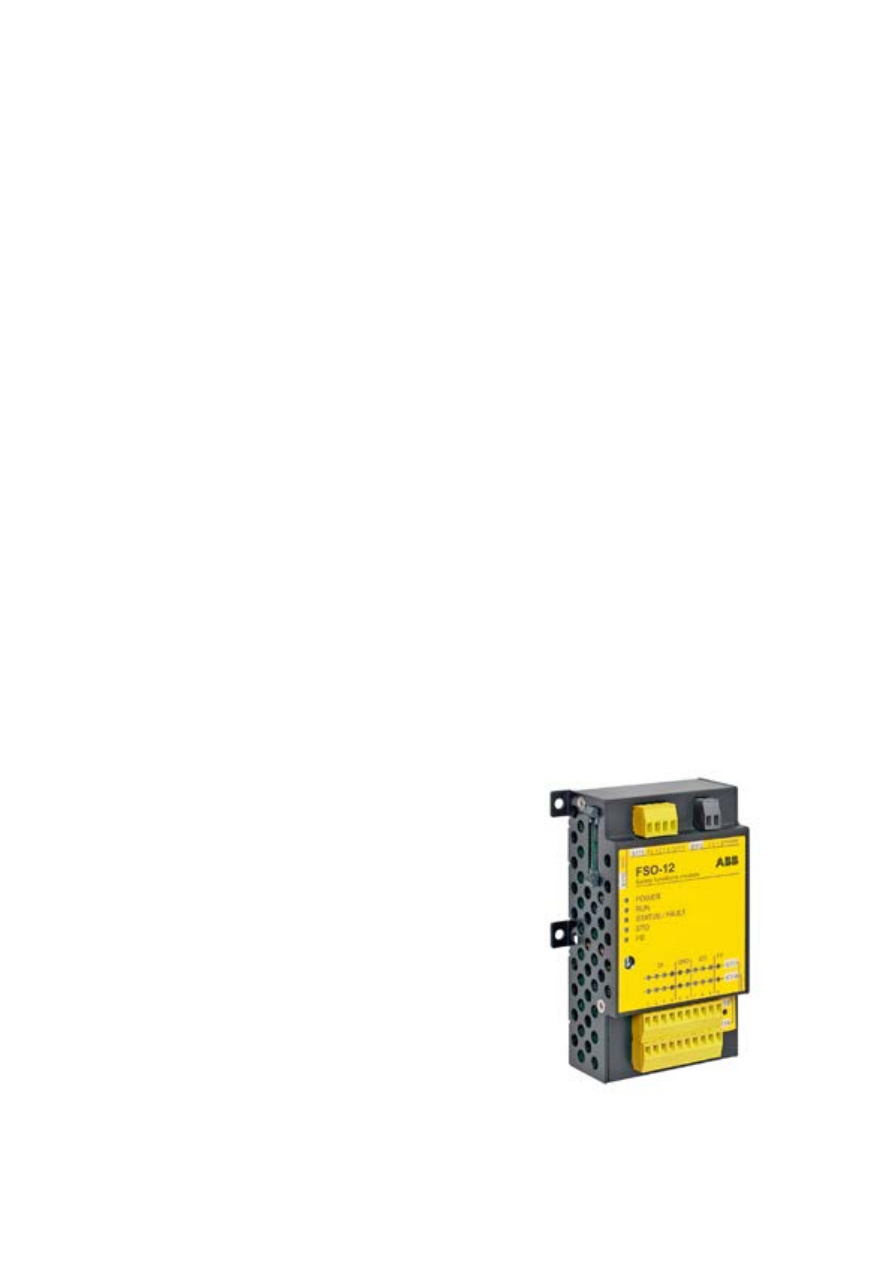

• Optional safety modules for extended
safety functions
Compatible with all kinds of processes
• Direct torque control (DTC) for precise
speed and torque control

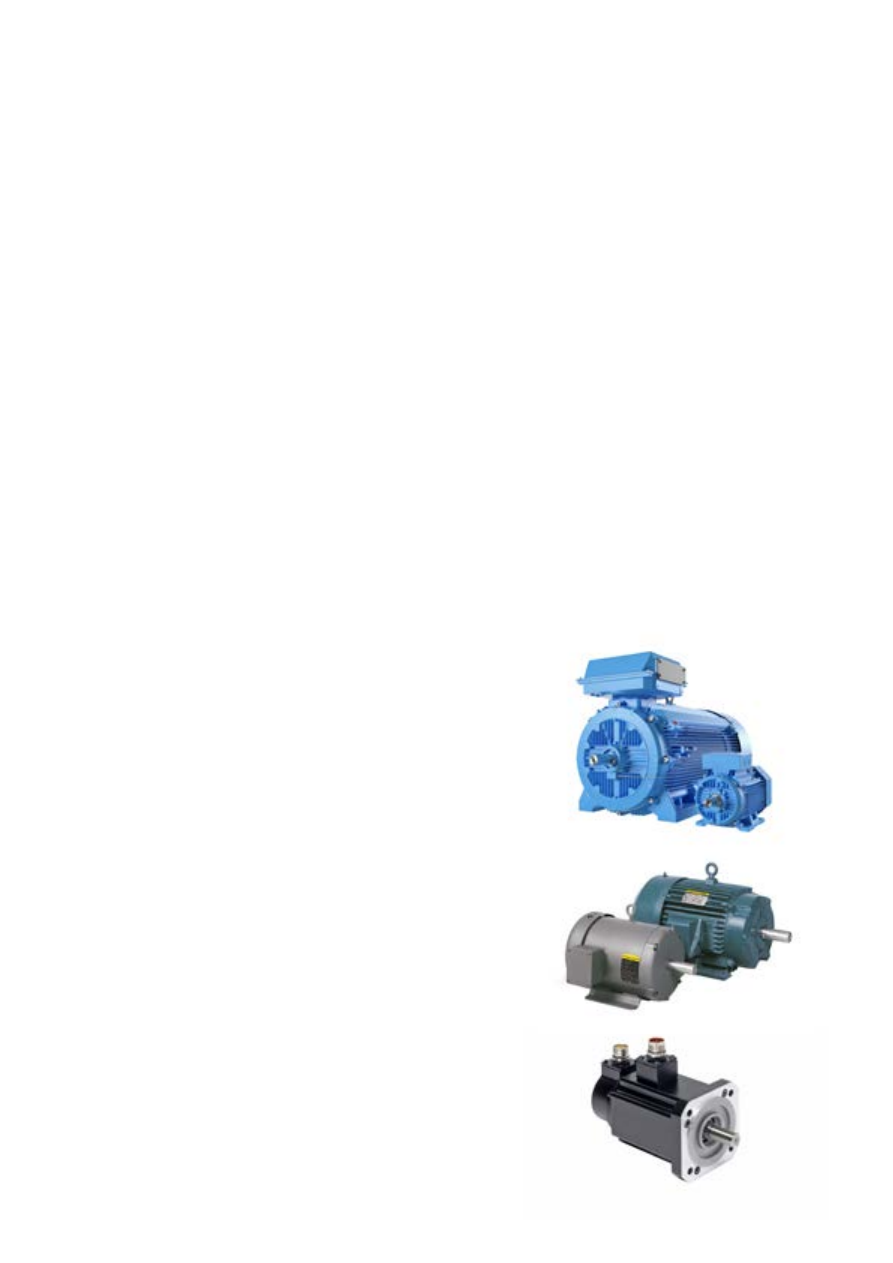

• Support for various motor types
• Extensive selection of drives, including
regenerative and ultra-low harmonic variants
• Global product approvals, e.g. CE, UL, cUL, CSA,
marine certifications, ATEX
• Worldwide service and support
Optimized solution for different needs
• Wide selection of options and variants
• Drive-based application programming - PLC
programmability within the drive.
• Tailored, optimized solutions for various
applications and industries
8
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—

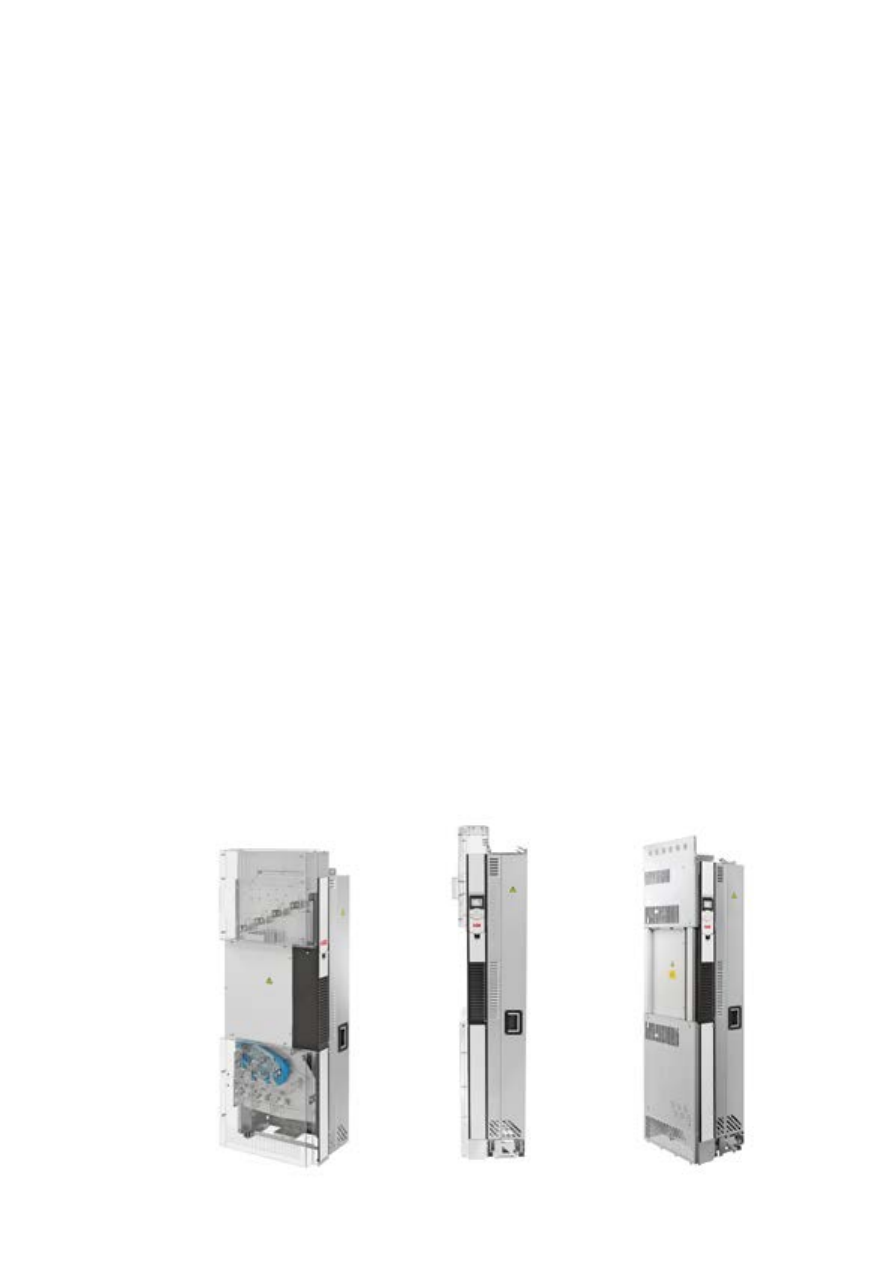

Optimized for cabinet assembly
Optimized mechanical design for
cabinet assembly
ACS880 drive modules have been optimized for
assembly into the customer’s own cabinets to
ensure high quality and compact installation at
minimal cost. High power modules have wheels
for easy maneuvering, and the power terminal
locations have been designed for optimal and
compact cabinet layout.
For harsh environments, flange mounting (push
through) with IP55 back side protection is
offered for complete drive modules. In flange
mounting, the control electronics are separated
from the cooling airflow for better thermal
management and higher reliability.
Flexible mounting and cabling directions enable
adaptation to various cabinet enclosures.
All the complete ACS880 drive modules have
IP20 enclosure class to minimize engineering
and assembly effort, as well as to reduce the
total cost and ensure a safe ready-made
cabinet.
Support for cabinet assembly
A large variety of support material is available
for making cabinet assembly, planning and
implementation as straightforward and rapid
as possible. Cabinet assembly accessories help
shorten engineering and assembly time, and
help to reduce the risk of errors.
A wide selection of both mechanical and electrical
installation accessories are offered for high
power modules. These accessories are available
giving full design to install the modules into
customer enclosures. Alternatively, ABB
authorized and registered system integrators and
panel builders can offer their assistance.
—
Ease of use and engineering
All-compatible user interface saves
commissioning and learning time
The ACS880 is part of ABB’s all-compatible
drives portfolio. Other drives in this portfolio
are the ACS380, ACS480 and ACS580.
These drives share the same easy-to-use PC
tools and multilingual control panels. To further
enhance the user experience, they also have the
same parameter structure, which saves time
on commissioning and learning.
The drives also share the same communication
options, simplifying the use of drives and spare
parts handling.

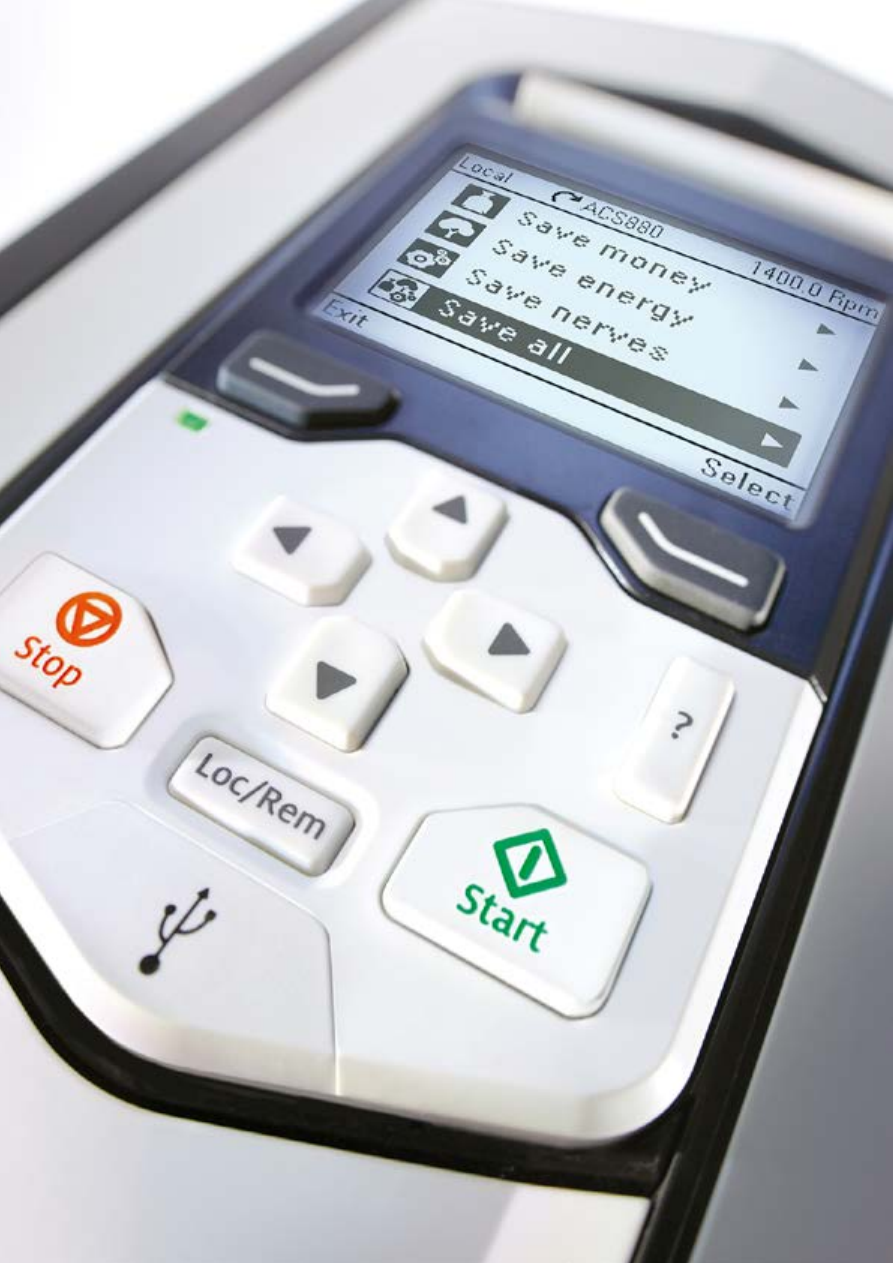

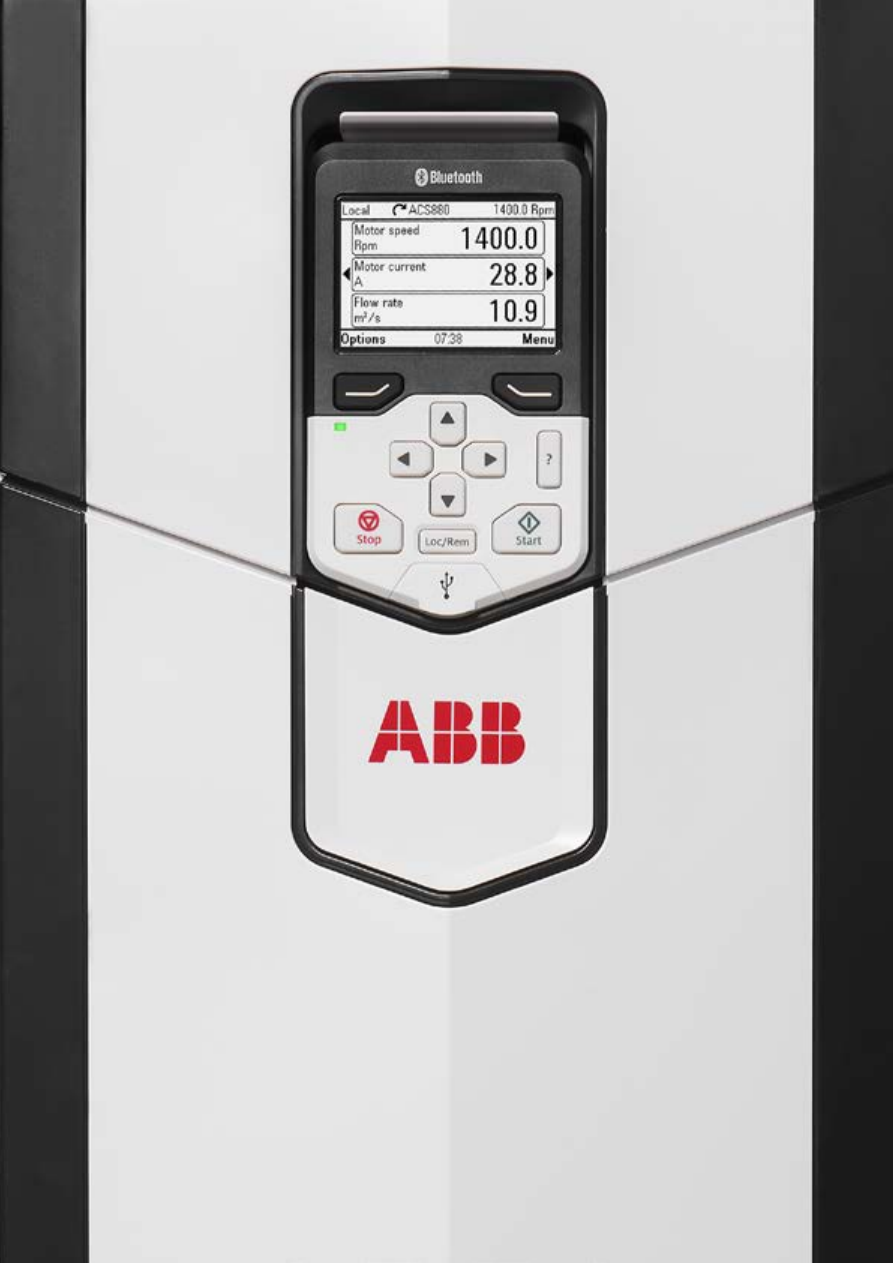

Simplicity at your fingertips as standard
The control panel’s assistants and pre-
programmed application macros help you to set
up the drive quickly and effectively. The intuitive,
high-contrast, high-resolution display offers
easy navigation in multiple languages.

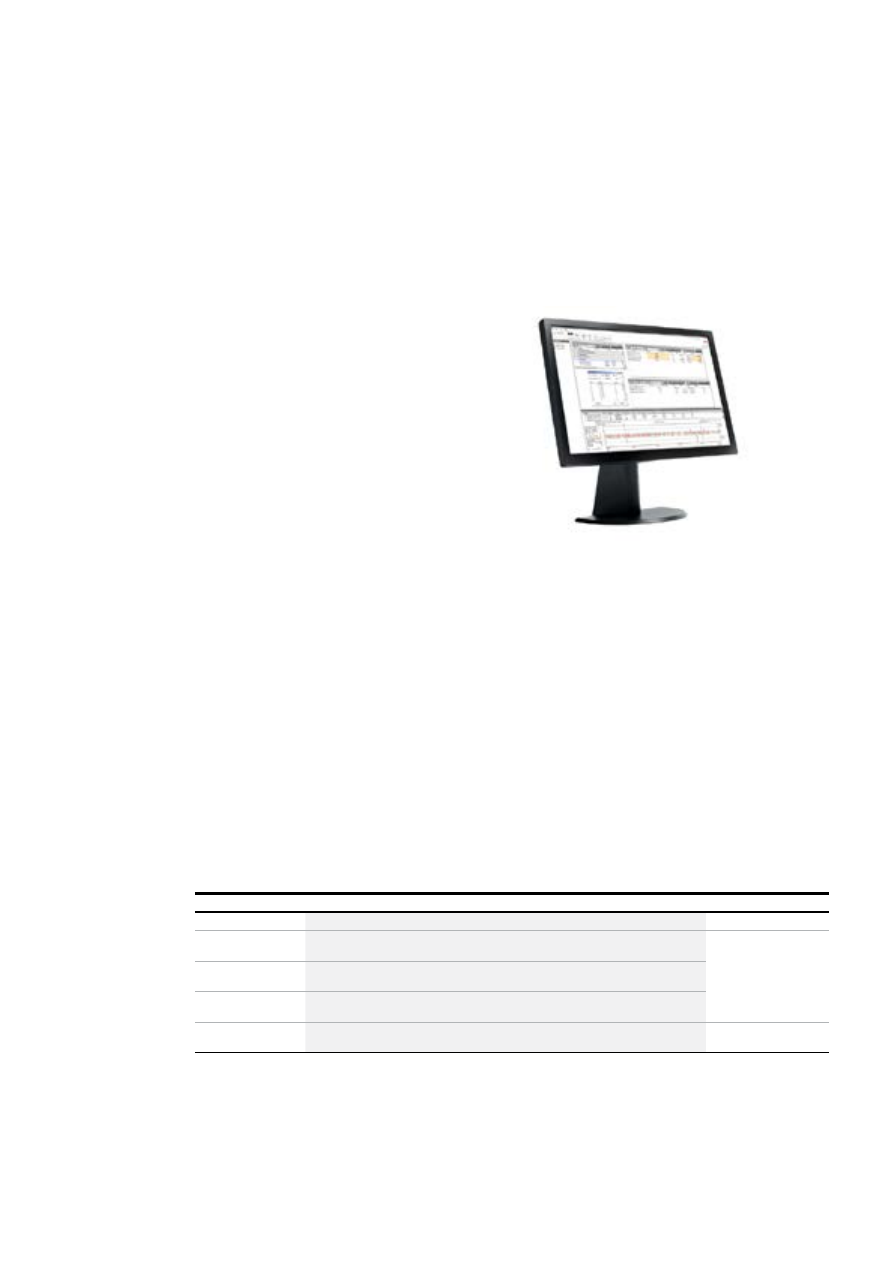

The PC tool for commissioning and configuration
provides extensive drive monitoring capabilities
and quick access to drive settings, as well as
features like a graphical interface for configuring
safety functions, visual control diagrams, and
direct links to user manuals.
Built-in features simplify ordering
and installation
All ACS880 drives have a choke for harmonic
filtering, a Modbus RTU fieldbus interface,
and safe torque off functionality as standard.
Other built-in features, standard or optional,
include EMC filters, brake choppers, du/dt filters,
low harmonic or regenerative functionality and
various I/O extensions, fieldbus communication,
and functional safety modules.
The built-in features shorten engineering and
installation time as well as reduce the risk of
errors. As result, the total cost is lower and
the whole drive system is more compact.
Engineering support
ABB provides an extensive selection of support
material and tools to help in engineering,
such as:
• Dimensioning tools, e.g. DriveSize
• Step by step installation instructions
• E-learnings
• Safety circuit design tools
• EPLAN P8 macros
• Selection tool for choosing external
components, e.g. fuses and circuit breakers
• Dimensional (2D and 3D) and electrical
drawings
• Application guides
• Drive installation and configuration videos
These tools and support from our experts ensure
that the drive system can be set up easily and
reliably.
9
DriveSize dimensioning tool for
selecting the optimal drive
DriveSize is designed to help select the
optimal drive, motor and transformer for
the application. Based on data supplied by
the user, the tool calculates and suggests
which drive and motors to use.
DriveSize is a free software and can be used
either online or downloaded for PC from
http://new.abb.com/drives/software-tools/
drivesize

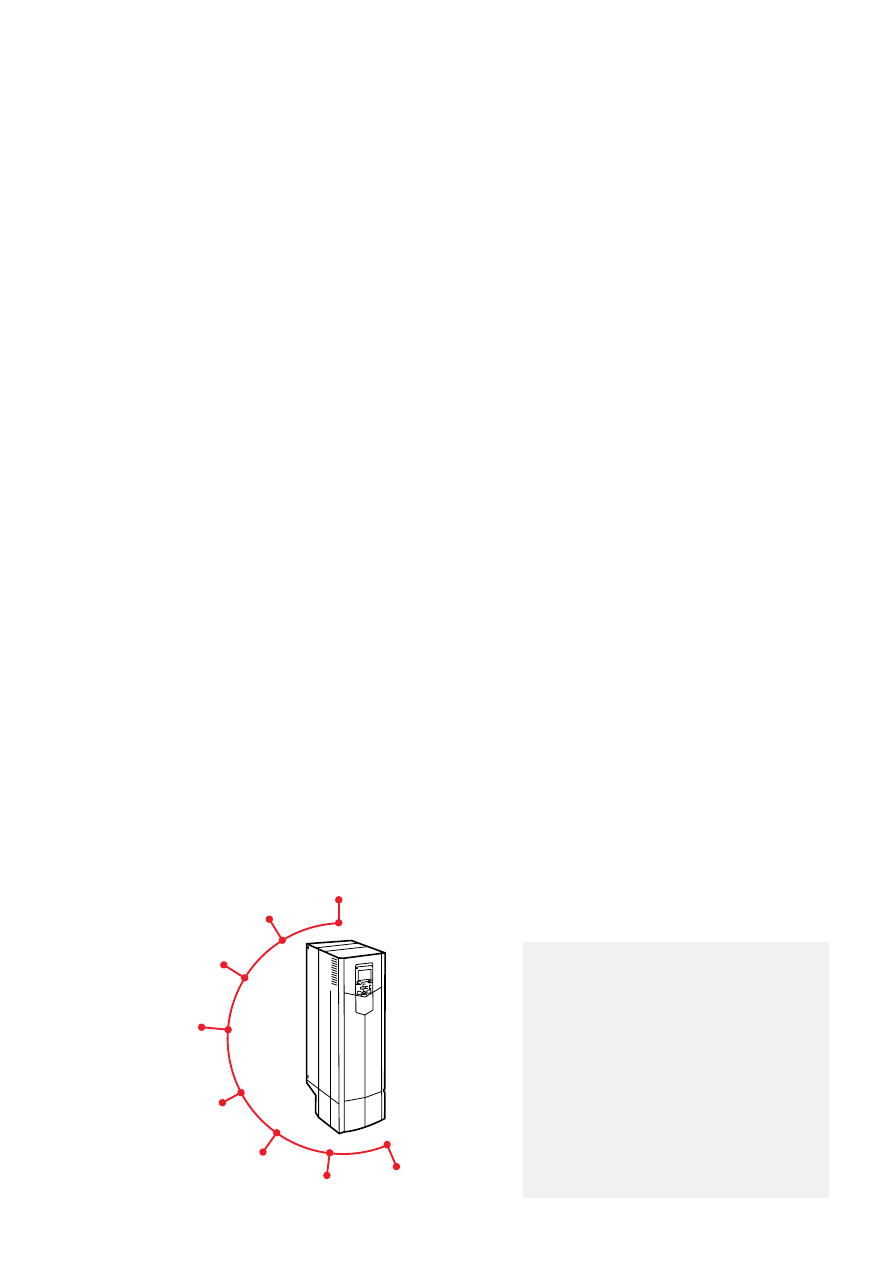

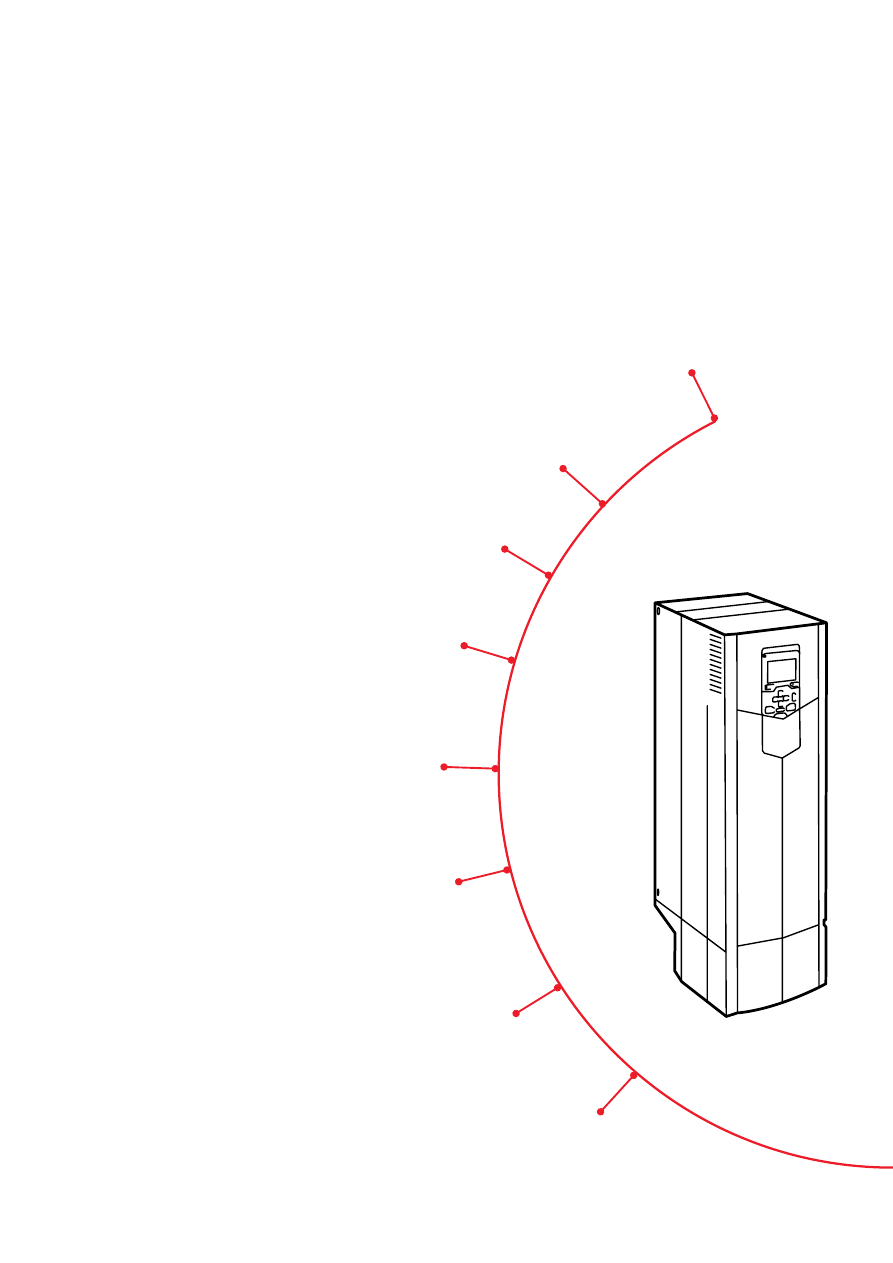

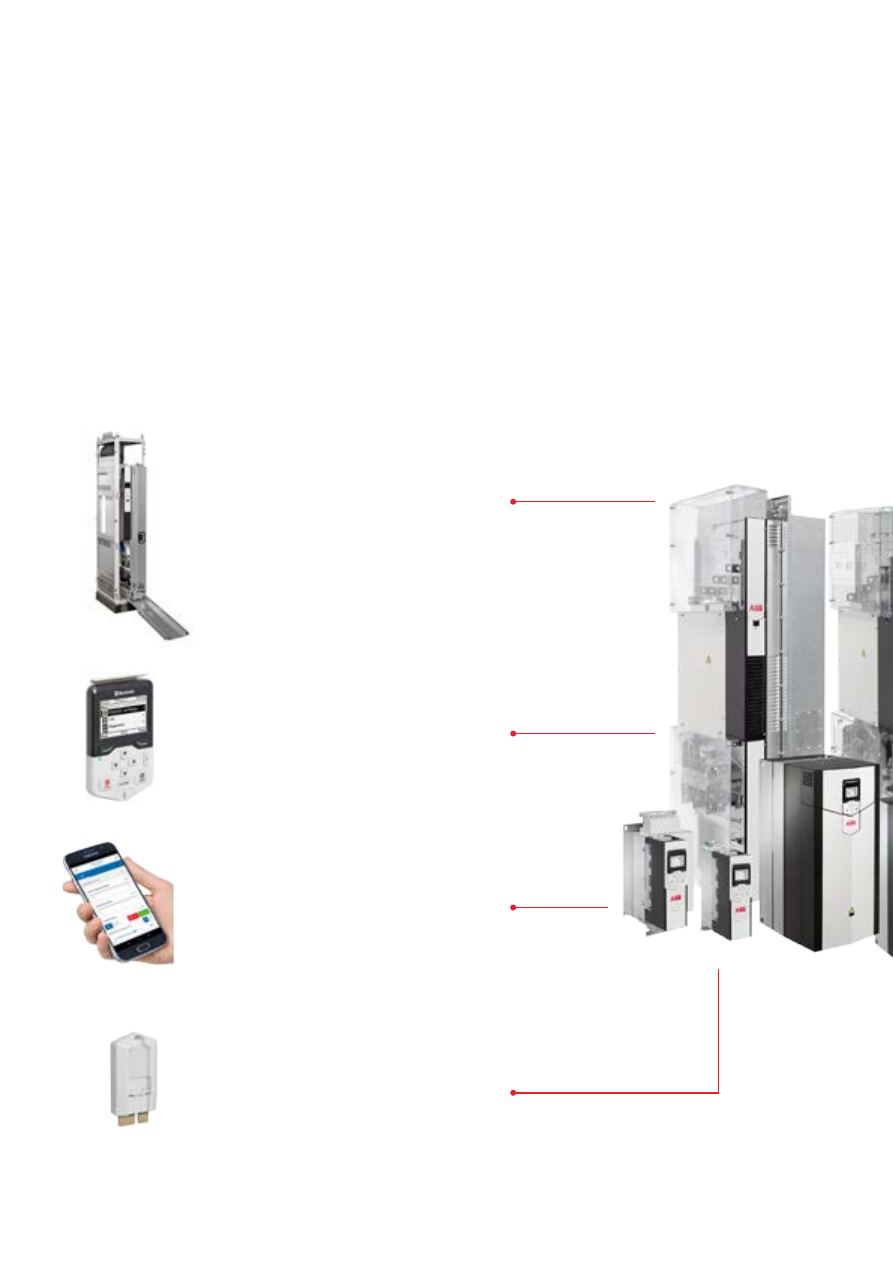

Choke
Safety functions
Modbus RTU interface
EMC filter
Extensive I/O
Up to IP55 enclosure class
Brake chopper
Direct torque control
10
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Extended connectivity
Communication with all major
automation networks
ACS880 drives come with Modbus RTU fieldbus
interface and drive-to-drive communication link

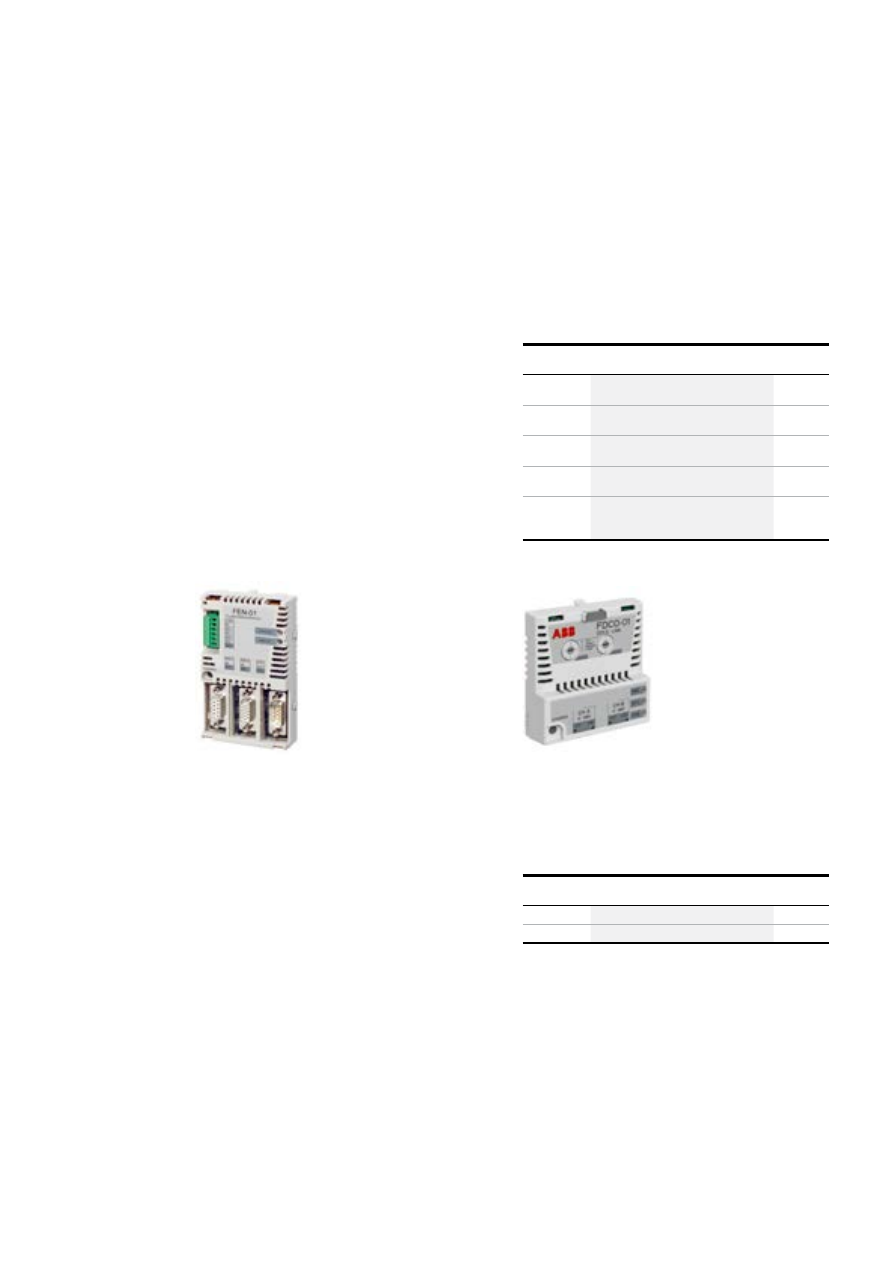

as standard. Plug-in connectivity adapters
enable communication with all major industrial
automation networks.
The drives support advanced fieldbus
communication features:
• Redundant fieldbus communication
• Functional safety over fieldbus
• Multiple fieldbus communication
• Shared Ethernet connection – the Ethernet
connection can use a shared network with
Ethernet-based fieldbuses and PC tool
To minimize connectivity-related risks,
cybersecurity is a built-in, integral part of
the ACS880.
To simplify ACS880ʼs connectivity to automation
systems, ABB offers support tools for seamless
integration with PLCs from ABB and several other
manufacturers.
Remote monitoring
With a built-in web server and standalone data
logger, the NETA-21 remote monitoring tool
enables secure worldwide access to your drives.
Drive data can also be collected via a 3G mobile
connection with the RMDE reliability monitoring
device.
—
Better connectivity and
user experience
Mobile connectivity

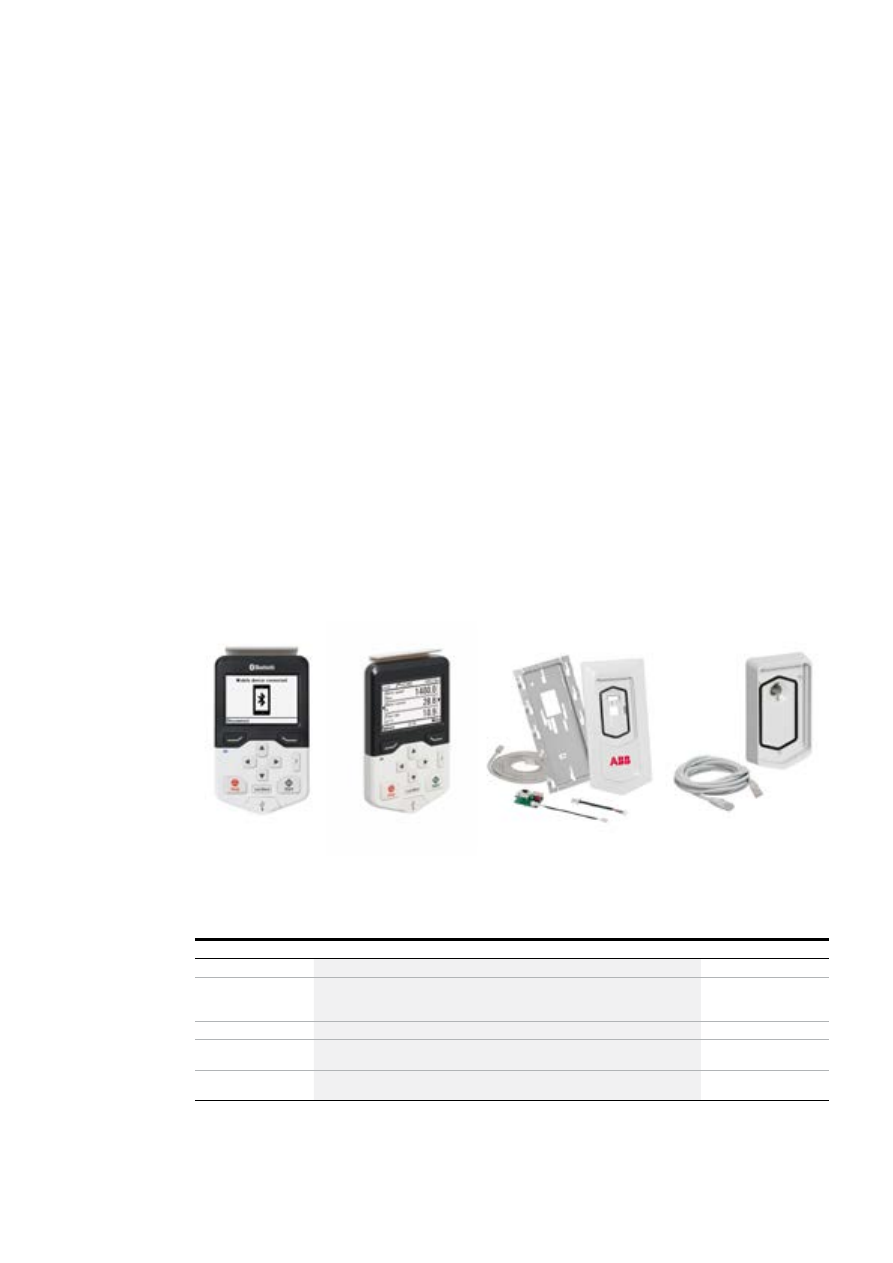

The drive has a Bluetooth panel enabling easy
connection to mobile devices.
ABB offers several smartphone applications,
like Drivetune and Drivebase, to ease and enhance
the use of ABB drives. These tools provide a
user-friendly and easy-to-use approach for
commissioning, servicing and using ABB drives.
11
—
Reliability
Advanced features for analyzing and
resolving issues
The ACS880 has timers and counters that can be
configured to remind you when the drive needs
maintenance.
Accurate and reliable diagnostic information is
obtained through warning, limit and fault words.
Data loggers store critical values before and
during an event, such as a fault. The real-time
clock allows you to see the exact times of events.
For faster remote support, all relevant drive data
and changed parameters can be saved in a single
file package that you can easily create with the
PC tool or by creating a QR code with the
control panel.
Robust, long life time design
The ACS880 is designed to last for a long
time, even in harsh conditions. The benefits
include a
nine-year service interval and
good tolerance for vibrations and
contamination.
Several design features make the
ACS880 a safe choice:
• Coated circuit boards
• Minimized airflow through the
control board section
• Designed for ambient temperatures
up to 55 °C
• Advanced IGBT and earth fault
protections
Each ACS880 drive unit is tested in the
factory at full load to ensure maximum
reliability.
Removable memory unit
The memory unit stores the drive software,
which includes parameter settings and motor
data. This unit can be switched from one drive
to another, allowing simple and rapid drive
replacement without any special equipment,
software loading, parameter settings, or other
adjustments in the drive or automation system.
It also eliminates the risk of software
incompatibility. The new drive is ready to run
as soon as the memory unit is plugged in.
—
Nine-year service interval
—
Cost and time savings with
drive-based functional safety
Safety functions
ACS880 drives have a safe torque off (STO)
function as a standard. Extended safety
functions are provided by optional safety
modules, which are easy to integrate inside the
drive. Integration with automation systems is
quick and reliable using PROFIsafe connectivity.
Most safety functions achieve the SIL 3/PL e
safety level.
Scalable safety with PROFIsafe and safety PLC
The safety functionality can be scaled to your
needs. From STO wired to an emergency push
button, to a complete safety system with
PROFIsafe and a safety PLC, e.g. the AC500-S.
Safely limited speed with or without encoders
The SIL 3/PL e-certified safely limited speed (SLS)
function prevents the motor from exceeding a
defined speed limit, with or without using an
encoder. This allows machine interaction to be
performed at a safe speed without stopping
the process.
Available safety functionality
The following safety functions are supported:
• Safe torque off (STO)
• Safe stop 1 (SS1)
• Safe stop emergency (SSE)
• Safe brake control (SBC)
• Safely-limited speed (SLS)
• Safe maximum speed (SMS)
• Prevention of unexpected startup (POUS)
• Safe direction (SDI)
• Safe speed monitor (SSM)
• Safe temperature monitoring (SMT)
Safety for explosive atmospheres
ACS880 and ABB Ex motors have been certified
as a package providing a safe, proven solution for
explosive atmospheres. ACS880 safety options
for ATEX environments:
• ATEX-approved thermistor protection module
• ATEX-approved safe torque off
—
Integrated safety simplifies
configuration
Easy configuration
Configuring the safety functions module is
easy thanks to the graphical user interface of
the Drive composer pro PC tool.
TÜV-certified safety design tool
The FSDT-01 functional safety design tool
can be used to design complete safety circuits.
It helps to increase the safety of users in the
vicinity of machines. You can perform functional
safety modeling, design, calculations and
verification for machine functional safety.
12
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Compatible with all kinds of
processes
Direct torque control (DTC)
ABB's signature motor control technology
provides precise speed and torque control, with
or without an encoder, even close to zero speed.
DTC provides reliable starts and rapid reactions
to load or network changes, and ensures smooth
and continuous operation. DTC provides
optimal control, even with sine filters.
The energy optimizer feature maximizes motor
efficiency by ensuring maximum torque per
ampere, reducing the power drawn from
the supply.
Support for different motor types
The ACS880 provides reliable control for various
motors, such as squirrel cage, high-torque or
servo-type permanent magnet, synchronous
reluctance (SynRM), submersible and high-speed
motors.
Regardless of the motor type, drive
commissioning is easy, with no need for
laborious manual tuning.
Low harmonic content
All ACS880 drives have a choke for harmonic
reduction. If lower harmonic content is needed,
an ultra-low harmonic variant is available.
It produces exceptionally low harmonic content
and meets the requirements of harmonics
recommendations like IEEE519, IEC61000-3-12
and G5/4.
Regeneration of energy
The ACS880 offers a number of solutions for
applications where electrical braking is needed.
As standard, ACS880 drives have a flux braking
feature that provides greater deceleration by
increasing the motor flux. If this is not sufficient,
the internal brake chopper can be used together
with a brake resistor.
The most advanced solution is the ACS880
regenerative drive variant, which allows full,
continuous braking, providing the possibility
for remarkable energy savings.
Global product approvals and support
The ACS880 is a global product and has all the
major global approvals, such as CE, UL, cUL, EAC,
RCM and TÜV. Industry-specific approval, like
different kinds of marine approval, ATEX and
SEMI F47 are available either as standard or
as an option.
For true global coverage, ABB offers worldwide
support via its extensive pre- and after-sales
network, structured to make sure that you have
the experts you need close by, locally and globally.
—
Process all-compatible
13
Cranes (EOT cranes), +N5050
• Mechanical brake control
• Slow down and end limit logic
• Antisway
• Hoist speed optimization
• Shaft synchro
—
Application- and industry-specific
solutions and programmability
Tower cranes, +N5650
• Slew control
• Mechanical brake control
• Mobile access via Bluetooth
Winches, +N5100
• Mooring
• Anchor control
• Accurate open loop speed & torque control
• Winch interface for multiple control stands
Winders, +N5000
• Roll diameter calculation
• Tension control
• Dancer and load cell control
• Inertia and friction compensation
Artificial oil lifting, ESP, +N5600
• Submersible motor control (induction
and PM motors)
• Motor temperature minimization
• Backspin speed observer
• Rocking start
• Flow calculation
Artificial oil lifting, PCP +N5200
• Backspin control
• Automatic pump speed control
• Induction and PM motor control
• Protections for pump mechanics
Artificial oil lifting, rod pump +N5250
• Optimization of the pump speed
• Protections for pump mechanics
• Pump and well identification run
Tunnel ventilation (override control), +N5450
• Override of protections in an emergency situation
• Built-in PID control
• Energy optimizer for maximum motor efficiency
14
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Textile (spinning), +N5500
• Wobbulation function
• Manual/auto off function
• Production history
Test bench, +N5300
• Fast communication
• High torque accuracy and linearity
• Acceleration damping
• Minimized motor noise
Centrifuge, decanter, +N5150
• Accurate speed and torque control, even without an
encoder
• Speed difference control of scroll drives for decanters
Cooling tower, +N5350
• Support for slow, high-torque cooling tower motors
• Trickle current to keep the motor warm and dry,
preventing condensation
• Anti-windmill function
Chemical industry
• Direct torque control with sine filters
• Nine-year service interval
• Functionality that conforms with NAMUR requirements
Explosive atmospheres
• Type approval with ABB Ex motors
• ATEX-approved safe torque off, STO (+Q971) and thermistor
protection module (+L537)
Marine
• Type approval from various key classification bodies (+C132)
• Product certification process
• 440 V variant
By working closely with customers over many
years, ABB has developed application control
programs and specific software features for
specific applications and industries. This results
in programs and features that include lessons
learned from many customers, and that are
designed to give you the flexibly to adapt the
programs to your specific needs.
Advantages:
• Enhanced application usability
• Lower energy consumption
• Increased safety
• Reduced need for PLCs
• Protected machinery
• Optimized application productivity
• Optimized time usage and lower
operational costs
Drive programming
To meet your specific application needs,
you can customize your ACS880 with an extensive
range of user-definable software settings
(parameters) and adaptive programming.
This makes fine-tuning the ready-made
application control program functionalities easy.
For further customization, drive application
programming based on IEC 61131 standard
is available for full PLC programmability.
IEC programming uses the same programming
environment as ABB PLCs. It is also easy to
integrate the ACS880 with other components,
such as PLCs and HMIs.
Adaptive
programming
is
an easy to use dynamic
programming which allows
flexible adjustments to
the ACS880 software.
IEC programming
based on IEC 61131 standard
for full scale PLC
programmability is available
as an option.
15
A P P L I C AT I O N - A N D I N D US T R Y-SP EC I FI C S O LU T I O N S A N D P R O G R A M M A B I L I T Y
16
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—

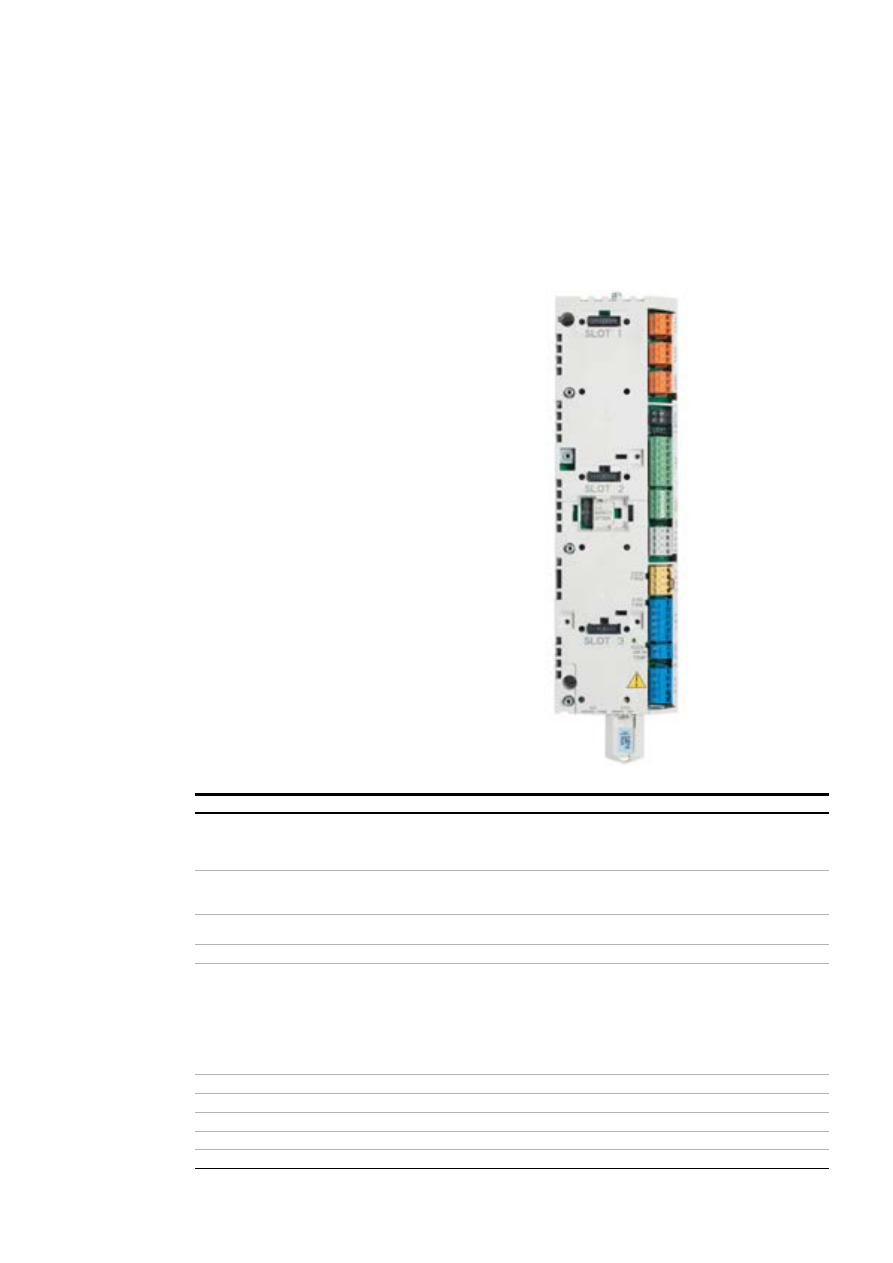

Standard interface and extensions
for plug-in connectivity

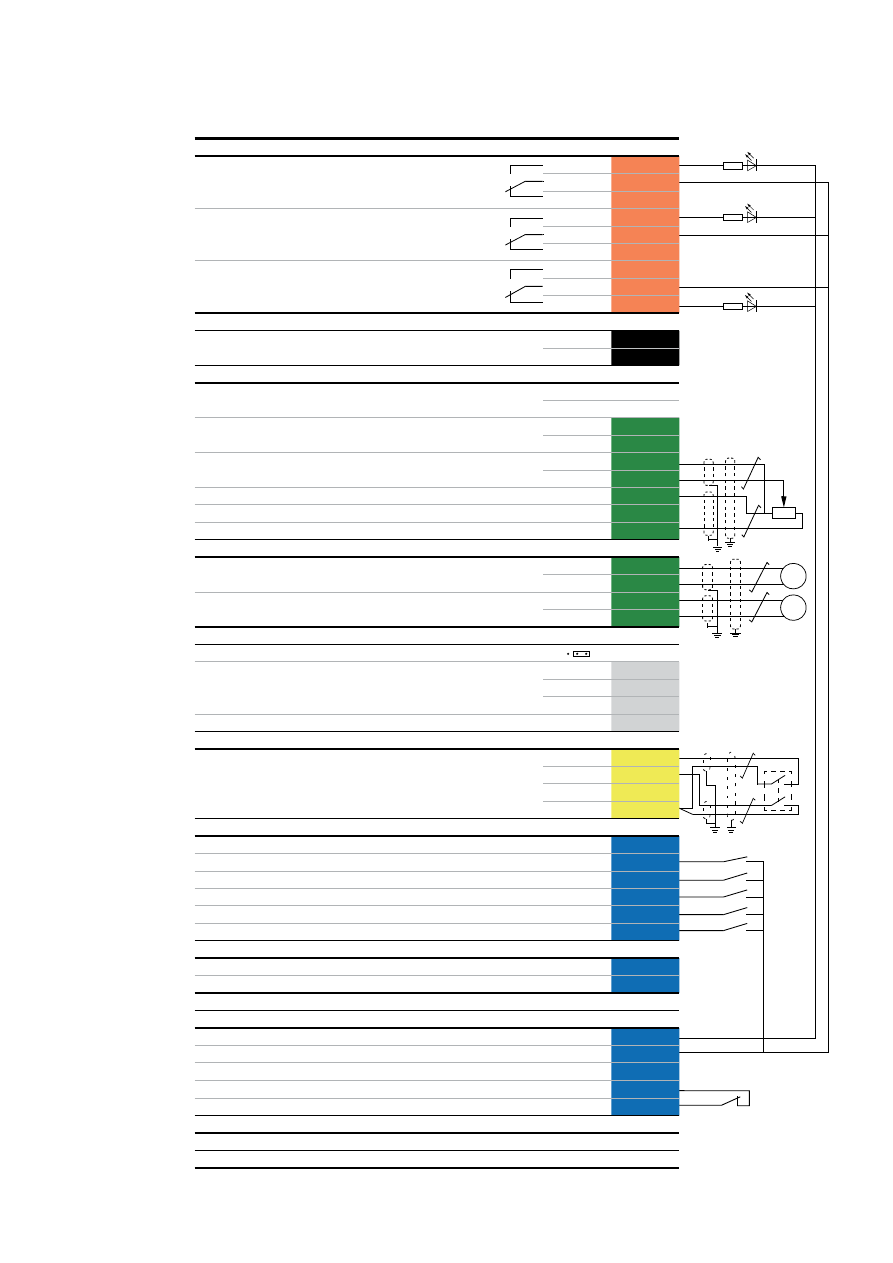

Control connections
Description
2 analog inputs (XAI)
Current input: -20 to 20 mA,
R
in
: 100 ohm
Voltage input: -10 to 10 V,
R
in
> 200 kohm
Resolution: 11 bit + sign bit
2 analog outputs (XAO)
0 to 20 mA,
R
load
< 500 ohm
Frequency range: 0 to 300 Hz
Resolution: 11 bit + sign bit
6 digital inputs (XDI)
Input type: NPN/PNP (DI1 to DI5), NPN (DI6)
DI6 (XDI:6) can alternatively be used as an input for a PTC thermistor.
Digital input interlock (DIIL)
Input type: NPN/PNP
2 digital inputs/outputs (XDIO)
As input:
24 V logic levels:
“0” < 5 V, “1” > 15 V
R
in
: 2.0 kohm
Filtering: 0.25 ms
As output:
Total output current from 24 V DC is limited to 200 mA
Can be set as pulse train input and output
3 relay outputs (XRO1, XRO2, XRO3)
250 V AC/30 V DC, 2 A
Safe torque off (XSTO)
For the drive to start, both connections must be closed
Drive-to-drive link (XD2D)
Physical layer: EIA-485
Built-in Modbus
EIA-485
Assistant control panel/PC tool connection
Connector: RJ-45
ACS880 drive modules offer a wide range
of standard interfaces. In addition, the drive
control unit (ZCU/BCU) has three option slots
that can be used for extensions, including
fieldbus adapter modules, input/output
extension modules, feedback modules, and
a safety functions module. For I/O extensions,
see page 60.
External control unit BCU-X2 is used with
all parallel connected modules, such as
n×R8i and DxT.
—
01
—
01 Control unit ZCU
—
02 Example of a
typical drive modules
input/output
connection diagram.
Variations maybe
possible. For further
information, please
see the ACS880
user manual.
17
S TA N DA R D I N T ER FAC E A N D E X T EN S I O N S FO R P LU G - I N CO N N EC T I V I T Y
Fault
Relay outputs
XRO1, XRO2, XRO3
Ready
250 V AC/30 V DC
2 A
NO
13
COM
12
NC
11
Running
250 V AC/30 V DC
2 A
NO
23
COM
22
NC
21
Faulted(-1)
250 V AC/30 V DC
2 A
NO
33
COM
32
NC
31
External power input
XPOW
24 V DC, 2 A
GND
2
+24VI
1
Reference voltage and analog inputs
J1, J2, XAI
AI1/AI2 current/voltage selection
AI1:U
AI2:U
AI1:I
AI2:I
By default not in use.
0(4) to 20 mA, R
in
= 100 ohm
AI2-
7
AI2+
6
Speed reference
0(2) to 10 V, R
in
> 200 kohm
AI1-
5
AI1+
4
Ground
AGND
3
-10 V DC, R
L
1 to 10 kohm
-VREF
2
10 V DC, R
L
1 to 10 kohm
+VREF
1
Analog outputs
XAO
Motor current 0 to 20 mA,
R
L
< 500 ohm
AGND
4
AO2
3
Motor speed rpm 0 to 20 mA,
R
L
< 500 ohm
AGND
2
AO1
1
Drive-to-drive link
J3, XD2D
Drive-to-drive link termination
ON OFF
Drive-to-drive link or built-in Modbus
Shield
4
BGND
3
A
2
B
1
Safe torque off
XSTO
Safe torque off. Both circuits must be closed for the drive to start.
IN2
4
IN1
3
SGND
2
OUT
1
Digital inputs
XDI
By default not in use
DI6
6
Constant speed 1 select (1 = on)
DI5
5
Acceleration and deceleration select
DI4
4
Reset
DI3
3
Forward (0)/Reverse (1)
DI2
2
Stop (0)/Start (1)
DI1
1
Digital input/outputs
XDIO
Output: Running
DIO2
2
Output: Ready
DIO1
1
Ground selection
Auxiliary voltage output, digital input interlock
XD24
Digital input/output ground
DIOGND
5
+24 V DC 200 mA
+24VD
4
Digital input ground
DICOM
3
+24 V DC 200 mA
+24VD
2
Digital interlock
DIIL
1
Safety functions module connection
X12
Control panel/PC connection
X13
Memory unit connection
X205
—
02
18
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
21
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 01 W I T H O P T I O N +P 9 4 0 O R +P 9 4 4
—
Ratings, types and voltages
ACS880-01 with option +P940 or +P944
U
N
= 230 V (range 208 to 240 V). The power ratings are valid at nominal voltage 230 V (0.55 to 75 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level Heat dissipation
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-04A6-2
R1
4.6
6.3
0.75
4.4
0.75
3.7
0.55
46
73
44
ACS880-01-06A6-2
R1
6.6
7.8
1.1
6.3
1.1
4.6
0.75
46
94
44
ACS880-01-07A5-2
R1
7.5
11.2
1.5
7.1
1.5
6.6
1.1
46
122
44
ACS880-01-10A6-2
R1
10.6
12.8
2.2
10.1
2.2
7.5
1.5
46
172
44
ACS880-01-16A8-2
R2
16.8
18.0
4.0
16.0
4.0
10.6
2.2
51
232
88
ACS880-01-24A3-2
R2
24.3
28.6
5.5
23.1
5.5
16.8
4
51
337
88
ACS880-01-031A-2
R3
31.0
41
7.5
29.3
7.5
24.3
5.5
57
457
134
ACS880-01-046A-2
R4
46
64
11
44
11
38
7.5
62
500
134
ACS880-01-061A-2
R4
61
76
15
58
15
45
11
62
630
280
ACS880-01-075A-2
R5
75
104
18.5
71
18.5
61
15
62
680
280
ACS880-01-087A-2
R5
87
122
22
83
22
72
18.5
62
730
280
ACS880-01-115A-2
R6
115
148
30
109
30
87
22
67
840
435
ACS880-01-145A-2
R6
145
178
37
138
37
105
30
67
940
435
ACS880-01-170A-2
R7
170
247
45
162
45
145
37
67
1260
450
ACS880-01-206A-2
R7
206
287
55
196
55
169
45
67
1500
450
ACS880-01-274A-2
R8
3)
274
362
75
260
75
213
55
65
2100
550
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (0.55 to 250 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level Heat dissipation
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-02A4-3
R1
2.4
3.1
0.75
2.3
0.75
1.8
0.55
46
30
44
ACS880-01-03A3-3
R1
3.3
4.1
1.1
3.1
1.1
2.4
0.75
46
40
44
ACS880-01-04A0-3
R1
4.0
5.6
1.5
3.8
1.5
3.3
1.1
46
52
44
ACS880-01-05A6-3
R1
5.6
6.8
2.2
5.3
2.2
4.0
1.5
46
73
44
ACS880-01-07A2-3
R1
8.0
9.5
3
7.6
3
5.6
2.2
46
94
44
ACS880-01-09A4-3
R1
10
12.2
4
9.5
4
8.0
3
46
122
44
ACS880-01-12A6-3
R1
12.9
16
5.5
12
5.5
10
4
46
172
44
ACS880-01-017A-3
R2
17
21
7.5
16
7.5
12.6
5,5
51
232
88
ACS880-01-025A-3
R2
25
29
11
24
11
17
7.5
51
337
88
ACS880-01-032A-3
R3
32
42
15
30
15
25
11
57
457
134
ACS880-01-038A-3
R3
38
54
18.5
36
18.5
32
15
57
562
134
ACS880-01-045A-3
R4
45
64
22
43
22
38
18.5
62
667
134
ACS880-01-061A-3
R4
61
76
30
58
30
45
22
62
907
280
ACS880-01-072A-3
R5
72
104
37
68
37
61
30
62
1117
280
ACS880-01-087A-3
R5
87
122
45
83
45
72
37
62
1120
280
ACS880-01-105A-3
R6
105
148
55
100
55
87
45
67
1295
435
ACS880-01-145A-3
R6
145
178
75
138
75
105
55
67
1440
435
ACS880-01-169A-3
R7
169
247
90
161
90
145
75
67
1940
450
ACS880-01-206A-3
R7
206
287
110
196
110
169
90
67
2310
450
ACS880-01-246A-3
R8
246
350
132
234
132
206
110
65
3300
550
ACS880-01-293A-3
R8
3)
293
418
160
278
160
246
1)
132
65
3900
550
ACS880-01-363A-3
R9
6)
363
498
200
345
200
293
160
68
4800
1150
ACS880-01-430A-3
R9
5)
430
545
250
400
200
363
2)
200
68
6000
1150
21
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 01 W I T H O P T I O N +P 9 4 0 O R +P 9 4 4
—
Ratings, types and voltages
ACS880-01 with option +P940 or +P944
U
N
= 230 V (range 208 to 240 V). The power ratings are valid at nominal voltage 230 V (0.55 to 75 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level Heat dissipation
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-04A6-2
R1
4.6
6.3
0.75
4.4
0.75
3.7
0.55
46
73
44
ACS880-01-06A6-2
R1
6.6
7.8
1.1
6.3
1.1
4.6
0.75
46
94
44
ACS880-01-07A5-2
R1
7.5
11.2
1.5
7.1
1.5
6.6
1.1
46
122
44
ACS880-01-10A6-2
R1
10.6
12.8
2.2
10.1
2.2
7.5
1.5
46
172
44
ACS880-01-16A8-2
R2
16.8
18.0
4.0
16.0
4.0
10.6
2.2
51
232
88
ACS880-01-24A3-2
R2
24.3
28.6
5.5
23.1
5.5
16.8
4
51
337
88
ACS880-01-031A-2
R3
31.0
41
7.5
29.3
7.5
24.3
5.5
57
457
134
ACS880-01-046A-2
R4
46
64
11
44
11
38
7.5
62
500
134
ACS880-01-061A-2
R4
61
76
15
58
15
45
11
62
630
280
ACS880-01-075A-2
R5
75
104
18.5
71
18.5
61
15
62
680
280
ACS880-01-087A-2
R5
87
122
22
83
22
72
18.5
62
730
280
ACS880-01-115A-2
R6
115
148
30
109
30
87
22
67
840
435
ACS880-01-145A-2
R6
145
178
37
138
37
105
30
67
940
435
ACS880-01-170A-2
R7
170
247
45
162
45
145
37
67
1260
450
ACS880-01-206A-2
R7
206
287
55
196
55
169
45
67
1500
450
ACS880-01-274A-2
R8
3)
274
362
75
260
75
213
55
65
2100
550
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (0.55 to 250 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level Heat dissipation
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-02A4-3
R1
2.4
3.1
0.75
2.3
0.75
1.8
0.55
46
30
44
ACS880-01-03A3-3
R1
3.3
4.1
1.1
3.1
1.1
2.4
0.75
46
40
44
ACS880-01-04A0-3
R1
4.0
5.6
1.5
3.8
1.5
3.3
1.1
46
52
44
ACS880-01-05A6-3
R1
5.6
6.8
2.2
5.3
2.2
4.0
1.5
46
73
44
ACS880-01-07A2-3
R1
8.0
9.5
3
7.6
3
5.6
2.2
46
94
44
ACS880-01-09A4-3
R1
10
12.2
4
9.5
4
8.0
3
46
122
44
ACS880-01-12A6-3
R1
12.9
16
5.5
12
5.5
10
4
46
172
44
ACS880-01-017A-3
R2
17
21
7.5
16
7.5
12.6
5,5
51
232
88
ACS880-01-025A-3
R2
25
29
11
24
11
17
7.5
51
337
88
ACS880-01-032A-3
R3
32
42
15
30
15
25
11
57
457
134
ACS880-01-038A-3
R3
38
54
18.5
36
18.5
32
15
57
562
134
ACS880-01-045A-3
R4
45
64
22
43
22
38
18.5
62
667
134
ACS880-01-061A-3
R4
61
76
30
58
30
45
22
62
907
280
ACS880-01-072A-3
R5
72
104
37
68
37
61
30
62
1117
280
ACS880-01-087A-3
R5
87
122
45
83
45
72
37
62
1120
280
ACS880-01-105A-3
R6
105
148
55
100
55
87
45
67
1295
435
ACS880-01-145A-3
R6
145
178
75
138
75
105
55
67
1440
435
ACS880-01-169A-3
R7
169
247
90
161
90
145
75
67
1940
450
ACS880-01-206A-3
R7
206
287
110
196
110
169
90
67
2310
450
ACS880-01-246A-3
R8
246
350
132
234
132
206
110
65
3300
550
ACS880-01-293A-3
R8
3)
293
418
160
278
160
246
1)
132
65
3900
550
ACS880-01-363A-3
R9
6)
363
498
200
345
200
293
160
68
4800
1150
ACS880-01-430A-3
R9
5)
430
545
250
400
200
363
2)
200
68
6000
1150
Select your drive’s order code (drive type) from
the rating table based on the load current, or, if it
is unknown, select the drive based on your
motor’s power and current ratings.
Start by identifying the required drive variant and
your supply voltage and select the related rating
table. Or use ABB’s DriveSize dimensioning tool.
2
3
Drive type:
Product series
Types and construction
Rating
Voltage
Options
ACS880
02A4
L501
+
xx
3
–
–
–
—

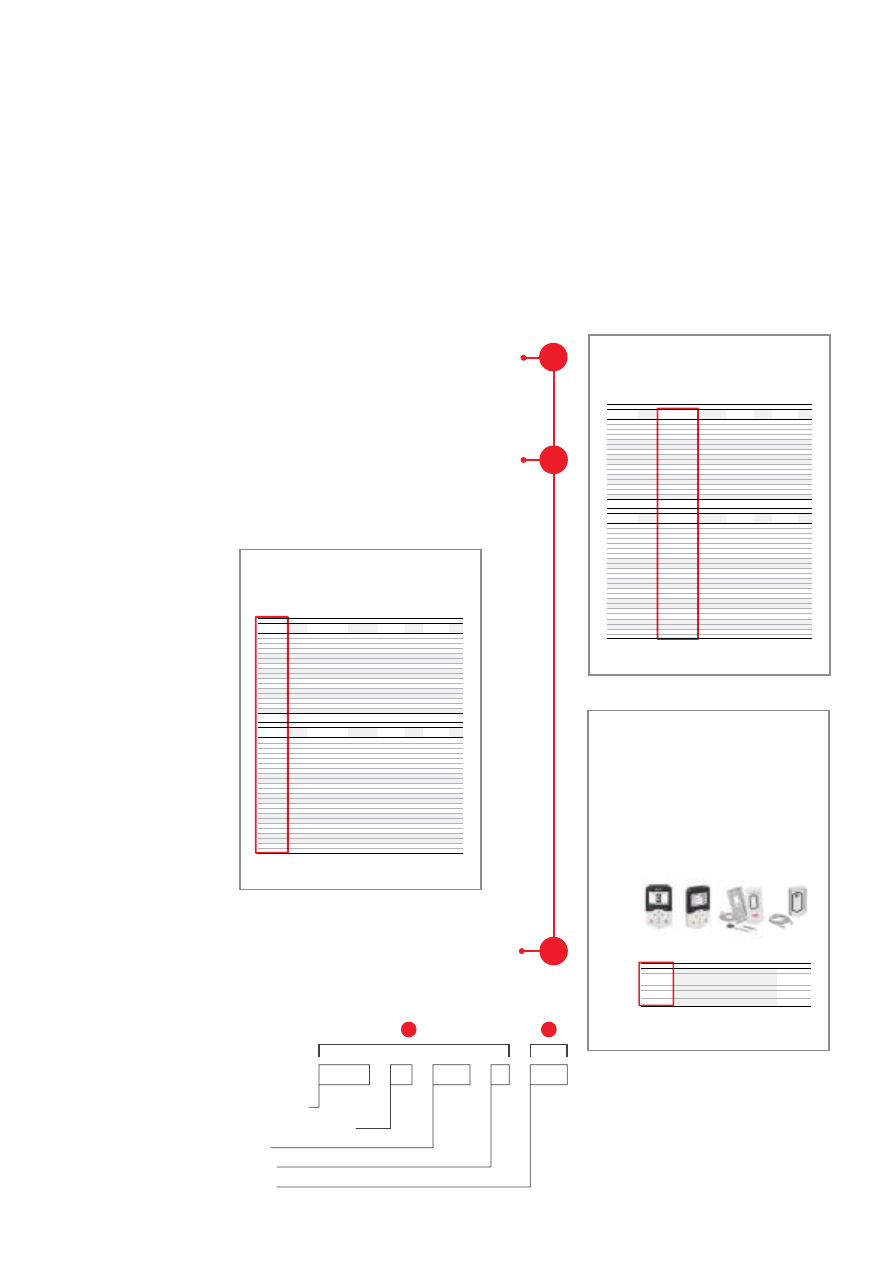

How to select a drive
The right drive is extremely easy to select. The following instructions
show you how to order the right drive for your application.
2
1
Choose your options and add the option codes
to the drive’s order code. Remember to use a “+”
mark before each option code.
3
58
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
02
—
01
—
Control panel options
Bluetooth control panel, ACS-AP-W
(standard control panel
*
)
Commissioning and operation of the ACS880 is
easy with the assistant control panel. The panel
has a multilingual graphical display, Bluetooth
connectivity and a USB interface for PC tool
connection. The panel can be used with all drives
belonging to ABB’s all-compatible product
portfolio.
There is no need to know any drive parameters,
as the control panel helps you set up the essential
settings quickly and get the drive into action.
The Bluetooth connection enables the use of
mobile apps like Drivetune. This app is available
Option code
Description
Type
+0J400
1)
No control panel
–
As standard or
3AXD50000025965
Assistant control panel with Bluetooth.
*Assistant control panel is included as standard for ACS880-01/11/31 and
ACS880-04/04F up to frame size R11
.
ACS-AP-W
+J425
1)
Industrial Assistant control panel without Bluetooth connection
ACS-AP-I
3AUA0000108878
Control panel mounting platform, flush mounted, IP54 / UL Type 12
(does not include control panel)
DPMP-01
3AXD50000009374
Control panel mounting platform, surface mounted, IP65 / UL Type 12
(does not include control panel)
DPMP-02
1)
Plus codes are valid for ACS880-01/11/31/04/04F and -14/34 frame R11.
—
Control panel options
—
01 Assistant control
panel with Bluetooth
—
02 Industrial Assistant
control panel without
Bluetooth
—
03 Control panel
mounting platform
DPMP-01
—
04 Control panel
mounting platform
DPMP-02
—
03
for free on the Google Play and the Apple App
store. Drivetune features include: commissioning,
troubleshooting, monitoring and controlling the
drive remotely. Drivetune also has full parameter
access and backup and restore functionality.
Industrial control panel, ACS-AP-I
The ACS-AP-I industrial control panel has the
same functionality as the ACS-AP-W Bluetooth
panel, but without the Bluetooth connectivity.
Control panel mounting platform, DPMP-01/02
The DPMP-01 mounting platform is for flush
mountings, and the DPMP-02 is for surface
mountings.
—
04
19
Mains connection
Voltage and
power range
3-phase,
U
N2
208 to 240 V, +10%/-15% (-01)
3-phase,
U
N3
380 to 415 V, +10%/-15% (-01, -04, -04F,
-11, -31, -14, -34)
3-phase,
U
N5
380 to 500 V, +10%/-15% (-01, -04, -04F,
-11, -31, -14, -34)
3-phase,
U
N7
525 to 690 V, +10%/-15% (-01, -04, -14, -34)
3-phase, U
N3
380 to 415 V, ±10% (-x04, -x4
3)
)
3-phase, U
N5
380 to 500 V, ±10% (-x04, -x4
3)
)
3-phase, U
N7
525 to 690 V, ±10% (-x04, -x04LC, -x4
3)
)
ACS880-01, -04, -04F, -11, -31, -14, -34, -x4
3)
, -104,
-104LC: 0.55 to 3200 kW
Diode supply unit (DSU) 55 to 5445 kVA
IGBT supply unit (ISU) 5.5 to 3679 kVA
Regenerative rectifier unit (RRU) 400 to 4135 kVA
Frequency
50/60 Hz ±5%
Power factor
ACS880-01, -04,
-04F
ACS880-11, -31,
-14, -34
IGBT supply unit
(ISU)
Diode supply
unit (DSU) and
Regenerative
rectifier unit
(RRU)
cos
ϕ
= 0.98 (fundamental)
cos
ϕ
= 0.93 to 0,95 (total)
cos
ϕ
= 1 (fundamental)
cos
ϕ
= 1 (fundamental)
cos
ϕ
= 0.99 (total)
cos
ϕ
= 0.98 (fundamental)
cos
ϕ
= 0.93 to 0.95 (total)
Efficiency
(at nominal
power)
ACS880-01, -04, -04F, -104, DSU, RRU: 98%.
ACS880-11, -31, -14, -34, ISU: 97%
Motor connection
Voltage
3-phase output voltage 0 to
U
N2
/
U
N3
/
U
N5
/
U
N7
Frequency
0 to ±598 Hz
1)
Motor control
Direct torque control (DTC)
Torque control
Open loop
Closed loop
Open loop
Closed loop
Torque step rise time:
<5 ms with nominal torque
<5 ms with nominal torque
Non-linearity:
± 4% with nominal torque
± 3% with nominal torque
Speed control
Open loop
Closed loop
Open loop
Closed loop
Static accuracy:
10% of motor nominal slip
0.01% of nominal speed
Dynamic accuracy:
0.3 to 0.4% seconds with 100% torque step
0.1 to 0.2% seconds with 100% torque step
Product compliance
CE
Low Voltage Directive 2014/35/EU
Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU
ATEX Directive 2014/34/EU
Quality assurance system ISO 9001 and Environmental system ISO 14001
RoHS
UL, cUL, UL 508C or UL 61800-5-1 and CSA, C22.2 NO. 0, 14 and 274,
RCM, EAC
4)
Functional safety: STO TÜV Nord certificate
ATEX-certified Safe Disconnection Function, Ex II (2) GD
7)
Marine type approvals for -01, -04: ABS, Bureau veritas, CCS, DNV GL,
Lloydʼs, NK, RINA. For other modules, see http://new.abb.com/drives/
segments/marine/marine-type-approvals
EMC according to EN 61800-3: 2004 + A1: 2012. See page 67.
1
st
environment category C2 included as option (-01, -04, -04F, -x4
3)
,
-11
9)
, -31
9)
, -14, -34, -x04).
2
nd
environment category C3 included as standard (-x04, -x04LC, -x4
3)
)
2
nd
environment category C3 included as option (-01, -04, -04F, -11, -31,
-x4
2) 3)
, -14, -34)
2
nd
environment category C4 included as standard
Environmental limits
Ambient
temperature
Transport
Storage
Operation area
(air-cooled)
(liquid-cooled)
-40 to +70 °C
-40 to +70 °C
-15 to +40 °C as standard (-01, -04, -04F, -11,
-31, -14, -34)
0 to +40 °C as standard (-x04, -x4
3)
)
+40 to +55 °C with derating of 1%/1 °C (-01,-04,
-04F, -11, -31, -14, -34)
+40 to +50 °C with derating of 1%/1 °C (-x04, -x4
3
)
0 to +45 °C as standard (-x04LC )
+45 to +55 °C with derating of 0,5%/1 °C (-x04LC)
Cooling method
Air-cooled
Liquid-cooled
Dry clean air
Direct liquid-cooling, Antifrogen® L
Incoming coolant temperature to module (x04LC):
0 to +40 °C as standard
+40 to +45 °C with derating of 2%/1 °C
+45 to +50 °C with derating of 2%/1 °C or 6%/1 °C
8)
Incoming coolant temperature to optional liquid-
cooling unit (-1007LC) (fresh water or sea water):
0 to +36 °C as standard
+36 to +45 °C with derating of 2%/1 °C
Altitude
0 to 1,000 m
1,000 to 4,000 m
Without derating
With derating of 1%/ 100 m
6)
Relative
humidity
5 to 95%, no condensation allowed
Degree of
protection
IP00
IP20
-x4
3)
, -x04, -x04LC
-01, -04, -04F, -11, -31, -14, -34
Paint color
RAL 9017/9002
Contamination
levels
No conductive dust allowed
Storage
IEC 60721-3-1, Class 1C2 (chemical gases),
Class 1S2 (solid particles)
*
)
Operation
IEC 60721-3-3, Class 3C2 (chemical gases),
Class 3S2 (solid particles)
*
)
Transportation
IEC 60721-3-2, Class 2C2 or 3C2 (chemical gases),
Class 2S2 (solid particles without air inlet filters)
*
)
Functional safety
Standard
With internal
safety functions
module
Safety over
fieldbus
Safe torque off (STO according EN/IEC 61800-5-2)
IEC 61508 ed2: SIL 3, IEC 61511: SIL 3,
EN/IEC 62061: SIL CL 3, EN ISO 13849-1: PL e
Safe stop 1 (SS1), safely-limited speed (SLS), safe stop
emergency (SSE), safe brake control (SBC) and safe
maximum speed (SMS), prevention of unexpected
startup (POUS), Safe direction (SDI), Safe speed
monitor (SSM)
EN/IEC 61800-5-2, IEC 61508 ed2: SIL 3,
IEC 61511: SIL 3, EN/IEC 62061: SIL CL 3,
EN ISO 13849-1: PL e TÜV Nord certified
5)
PROFIsafe over PROFINET, certified.
*
)
C = Chemically active substances, *
)
S = Mechanically active substances
1)
For higher operational output frequencies please contact your local
ABB office.
Operation above 120 Hz might require type specific derating, please
contact your local ABB office.
Output filters may limit the output frequency. See product specific
hardware manual for details.
2)
Please check availably per drive type
3)
Single drive module packages ACS880-04, -14 and -34 which consist
of several modules
4)
EAC has replaced GOST R
5)
For available certificates, see http://new.abb.com/drives/functional-safety
6)
Derating reduced by lower than 40 °C ambient temperature
7)
With plus code +Q971
8)
See product specific hardware manual for detailed derating rules.
9)
Please check availability for -11 and -31 frame size R8.
—
Technical data
20
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Wall-mounted single drive modules
ACS880-01 with option +P940 or +P944
Easy engineering and cabinet assembly
ACS880-01 drives have all the essential features
built-in. These features include as standard a
choke for harmonic filtering as well as options
such as a brake chopper, EMC filter and fieldbus
communication, functional safety and I/O
extension modules. The all built-in design
simplifies engineering and installation reducing
the total cost and risk of errors. One complete
package, together with side-by-side mounting,
reduces the required cabinet space.
Flange (push through) mounting with IP55 heat
sink is available making ACS880-01 ideal for
harsh environments. In flange mounting the
control electronics are separated from the
cooling airflow for better thermal management.
Wall-mounted single drive modules,
ACS880-01+P940/P944
• Power ratings: 0.55 to 250 kW
• Enclosure classes: IP20, in flange mounting heat
sink side IP55 for dusty and wet environments
Main options:
• Flange mounting
• C2 and C3 EMC filters, see page 66
• Brake chopper (as standard in frames R1 to R4),
see page 76
• Brake resistor, see page 76
• Marine type approval from various key
classification bodies
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Speed feedback interfaces, see page 63
• Functional safety modules, see page 64
• Remote monitoring options, see page 62
• Application specific software, see page 14
• Du/dt filters, see page 84
• Sine filters, see page 72
Higlights
• Robust and reliable design with IP20 enclosure
class
• Compact, single package with all the essential
features built-in
• Side-by-side mounting
• Possibility for flange (push through)
mounting
The drives have an extensive selection of built-in features and options. See page 92.
—
01 ACS880-01+P490
with flange mounting
—
02 ACS880-01+P940
—
03 ACS880-01+P944
—
01
—
02
—
03
• Incoming air temperature measurement
for protecting the drive from different
temperature related failures
• Optional marine type approved version
• Tools and documents (like EPLAN macros,
line apparatus selection tool) to support
engineering
21
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 01 W I T H O P T I O N +P 9 4 0 O R +P 9 4 4
—
Ratings, types and voltages
ACS880-01 with option +P940 or +P944
U
N
= 230 V (range 208 to 240 V). The power ratings are valid at nominal voltage 230 V (0.55 to 75 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use Noise level Heat dissipation Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-04A6-2
R1
4.6
6.3
0.75
4.4
0.75
3.7
0.55
46
73
44
ACS880-01-06A6-2
R1
6.6
7.8
1.1
6.3
1.1
4.6
0.75
46
94
44
ACS880-01-07A5-2
R1
7.5
11.2
1.5
7.1
1.5
6.6
1.1
46
122
44
ACS880-01-10A6-2
R1
10.6
12.8
2.2
10.1
2.2
7.5
1.5
46
172
44
ACS880-01-16A8-2
R2
16.8
18.0
4.0
16.0
4.0
10.6
2.2
51
232
88
ACS880-01-24A3-2
R2
24.3
28.6
5.5
23.1
5.5
16.8
4
51
337
88
ACS880-01-031A-2
R3
31.0
41
7.5
29.3
7.5
24.3
5.5
57
457
134
ACS880-01-046A-2
R4
46
64
11
44
11
38
7.5
62
500
134
ACS880-01-061A-2
R4
61
76
15
58
15
45
11
62
630
280
ACS880-01-075A-2
R5
75
104
18.5
71
18.5
61
15
62
680
280
ACS880-01-087A-2
R5
87
122
22
83
22
72
18.5
62
730
280
ACS880-01-115A-2
R6
115
148
30
109
30
87
22
67
840
435
ACS880-01-145A-2
R6
145
178
37
138
37
105
30
67
940
435
ACS880-01-170A-2
R7
170
247
45
162
45
145
37
67
1260
450
ACS880-01-206A-2
R7
206
287
55
196
55
169
45
67
1500
450
ACS880-01-274A-2
R8
3)
274
362
75
260
75
213
55
65
2100
550
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (0.55 to 250 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use Noise level Heat dissipation Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-02A4-3
R1
2.4
3.1
0.75
2.3
0.75
1.8
0.55
46
30
44
ACS880-01-03A3-3
R1
3.3
4.1
1.1
3.1
1.1
2.4
0.75
46
40
44
ACS880-01-04A0-3
R1
4.0
5.6
1.5
3.8
1.5
3.3
1.1
46
52
44
ACS880-01-05A6-3
R1
5.6
6.8
2.2
5.3
2.2
4.0
1.5
46
73
44
ACS880-01-07A2-3
R1
8.0
9.5
3
7.6
3
5.6
2.2
46
94
44
ACS880-01-09A4-3
R1
10
12.2
4
9.5
4
8.0
3
46
122
44
ACS880-01-12A6-3
R1
12.9
16
5.5
12
5.5
10
4
46
172
44
ACS880-01-017A-3
R2
17
21
7.5
16
7.5
12.6
5,5
51
232
88
ACS880-01-025A-3
R2
25
29
11
24
11
17
7.5
51
337
88
ACS880-01-032A-3
R3
32
42
15
30
15
25
11
57
457
134
ACS880-01-038A-3
R3
38
54
18.5
36
18.5
32
15
57
562
134
ACS880-01-045A-3
R4
45
64
22
43
22
38
18.5
62
667
134
ACS880-01-061A-3
R4
61
76
30
58
30
45
22
62
907
280
ACS880-01-072A-3
R5
72
104
37
68
37
61
30
62
1117
280
ACS880-01-087A-3
R5
87
122
45
83
45
72
37
62
1120
280
ACS880-01-105A-3
R6
105
148
55
100
55
87
45
67
1295
435
ACS880-01-145A-3
R6
145
178
75
138
75
105
55
67
1440
435
ACS880-01-169A-3
R7
169
247
90
161
90
145
75
67
1940
450
ACS880-01-206A-3
R7
206
287
110
196
110
169
90
67
2310
450
ACS880-01-246A-3
R8
246
350
132
234
132
206
110
65
3300
550
ACS880-01-293A-3
R8
3)
293
418
160
278
160
246
1)
132
65
3900
550
ACS880-01-363A-3
R9
6)
363
498
200
345
200
293
160
68
4800
1150
ACS880-01-430A-3
R9
5)
430
545
250
400
200
363
2)
200
68
6000
1150
22
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (0.55 to 250 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use Noise level Heat dissipation Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-02A1-5
R1
2.1
3.1
0.75
2.0
0.75
1.7
0.55
46
30
44
ACS880-01-03A0-5
R1
3.0
4.1
1.1
2.8
1.1
2.1
0.75
46
40
44
ACS880-01-03A4-5
R1
3.4
5.6
1.5
3.2
1.5
3.0
1.1
46
52
44
ACS880-01-04A8-5
R1
4.8
6.8
2.2
4.6
2.2
3.4
1.5
46
73
44
ACS880-01-05A2-5
R1
5.2
9.5
3
4.9
3
4.8
2.2
46
94
44
ACS880-01-07A6-5
R1
7.6
12.2
4
7.2
4
5.2
3
46
122
44
ACS880-01-11A0-5
R1
11
16
5.5
10.4
5.5
7.6
4
46
172
44
ACS880-01-014A-5
R2
14
21
7.5
13
7.5
11
5.5
51
232
88
ACS880-01-021A-5
R2
21
29
11
19
11
14
7.5
51
337
88
ACS880-01-027A-5
R3
27
42
15
26
15
21
11
57
457
134
ACS880-01-034A-5
R3
34
54
18.5
32
18.5
27
15
57
562
134
ACS880-01-040A-5
R4
40
64
22
38
22
34
19
62
667
134
ACS880-01-052A-5
R4
52
76
30
49
30
40
22
62
907
280
ACS880-01-065A-5
R5
65
104
37
62
37
52
30
62
1117
280
ACS880-01-077A-5
R5
77
122
45
73
45
65
37
62
1120
280
ACS880-01-096A-5
R6
96
148
55
91
55
77
45
67
1295
435
ACS880-01-124A-5
R6
124
178
75
118
75
96
55
67
1440
435
ACS880-01-156A-5
R7
156
247
90
148
90
124
75
67
1940
450
ACS880-01-180A-5
R7
180
287
110
171
110
156
90
67
2310
450
ACS880-01-240A-5
R8
4)
240
350
132
228
132
180
110
65
3300
550
ACS880-01-260A-5
R8
3)
260
418
160
247
160
240
1)
132
65
3900
550
ACS880-01-361A-5
R9
6)
361
542
200
343
200
302
200
68
4800
1150
ACS880-01-414A-5
R9
5)
414
542
250
393
250
361
2)
200
68
6000
1150
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (4 to 250 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use Noise level Heat dissipation Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W)
(m
3
/h)
ACS880-01-07A4-7
R3
7.4
12.2
5.5
7.0
5.5
5.6
4
57
114
134
ACS880-01-09A9-7
R3
9.9
18
7.5
9.4
7.5
7.4
5.5
57
143
134
ACS880-01-14A3-7
R3
14.3
22
11
13.6
11
9.9
7.5
57
207
134
ACS880-01-019A-7
R3
19
28.9
15
18.1
15
14.3
11
57
274
134
ACS880-01-023A-7
R3
23
38
18.5
21.9
18.5
19
15
57
329
134
ACS880-01-027A-7
R3
27
46
22
25.7
22
23
18.5
57
405
134
ACS880-01-07A3-7
R5
7.3
12.2
5.5
6.9
5.5
5.6
4
62
217
280
ACS880-01-09A8-7
R5
9.8
18
7.5
9.3
7.5
7.3
5.5
62
284
280
ACS880-01-14A2-7
R5
14.2
22
11
13.5
11
9.8
7,5
62
399
280
ACS880-01-018A-7
R5
18
29
15
17
15
14.2
11
62
490
280
ACS880-01-022A-7
R5
22
44
18.5
21
18.5
18
15
62
578
280
ACS880-01-026A-7
R5
26
54
22
25
22
22
18.5
62
660
280
ACS880-01-035A-7
R5
35
64
30
33
30
26
22
62
864
280
ACS880-01-042A-7
R5
42
70
37
40
37
35
30
62
998
280
ACS880-01-049A-7
R5
49
71
45
47
45
42
37
62
1120
280
ACS880-01-061A-7
R6
61
104
55
58
55
49
45
67
1295
435
ACS880-01-084A-7
R6
84
124
75
80
75
61
55
67
1440
435
ACS880-01-098A-7
R7
98
168
90
93
90
84
75
67
1940
450
ACS880-01-119A-7
R7
119
198
110
113
110
98
90
67
2310
450
ACS880-01-142A-7
R8
142
250
132
135
132
119
110
65
3300
550
ACS880-01-174A-7
R8
3)
174
274
160
165
160
142
132
65
3900
550
ACS880-01-210A-7
R9
7)
210
384
200
200
200
174
160
68
4200
1150
ACS880-01-271A-7
R9
5)
271
411
250
257
250
210
200
68
4800
1150
23
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 01 W I T H O P T I O N +P 9 4 0 O R +P 9 4 4
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 55 °C) the derating is 1%/1 °C.
1)
130% overload
2)
125% overload
3)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature .
At higher temperature the derating is from 40 to 45 °C 1%/1 °C and 45 to 55 °C 2.5%/1 °C.
4)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature.
At higher temperature the derating is from 40 to 50 °C 1%/1 °C and 50 to 55 °C 2.5%/1 °C.
5)
For drives with enclosure class IP55 the maximum ambient temperature is 35 °C
6)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature.
At higher temperatures the derating is from 40 to 45 °C.
1%/1 °C and 45 to 50 °C 2.5%/1 °C and 50 to 55 °C 5%/1 °C.
7)
For drives with IP55 enclosure class the ratings apply at 40 °C ambient temperature.
At higher temperatures the derating is from 40 to 45 °C 3.5%/1 °C.
Note: Maximum ambient temperature is 45 °C.
8)
135% overload
24
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Single drive modules
ACS880-04, ACS880-04F and ACS880-04XT
Flexibility and ease of cabinet assembly
ACS880-04/04F/04XT has all the essential
features built-in including a choke for harmonic
filtering as standard, and options such as a brake
chopper, EMC filter and fieldbus communication,
functional safety and I/O extension modules.
The all built-in design combined with IP20
protection significantly simplifies engineering.
The drive's compact size, flexible cabling
directions and versatile mounting possibilities
from narrow bookshelf to flat mounting and
horizontal mounting make it an ideal fit for
almost any enclosure. The control unit with I/O
and communication connections can be mounted
outside the power module or integrated into it.
The ACS880-04F flange mounting variant with
IP55 heat sink makes the drive suitable for harsh
environments. ACS880-04XT with parallell
connected drive modules extends the power
range up to 1200 kW.
Single drive modules, ACS880-04/04F/04XT
• Power ratings: 200 to 1200 kW
• Enclosure classes: -04: IP20, -04F: IP20 (IP55 for
heat sink side), -04XT: IP00 (IP20 with optional
shrouds)
Main options:
• Flange (push through) mounting (-04F)
• C2 and C3 EMC filters, see page 66
• Flat (sideways) mounting
• Various cabling related options, see page 92
• Internal control unit
• Brake chopper and resistor, see page 76
• Marine type approvals
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Application specific software, see page 14
• Speed feedback interfaces, see page 63
• Remote monitoring options, see page 62
• Functional safety modules, see page 64
• Du/dt filters, see page 84
• Sine filters, see page 72
Higlights
• IP20 enclosure class
• Compact package with all the essential features
built-in
• Wheels for easy maneuvering
• Flexible mounting and cabling directions
• Optimal drive layout
The drives have an extensive selection of built-in features and options. See page 92.
—

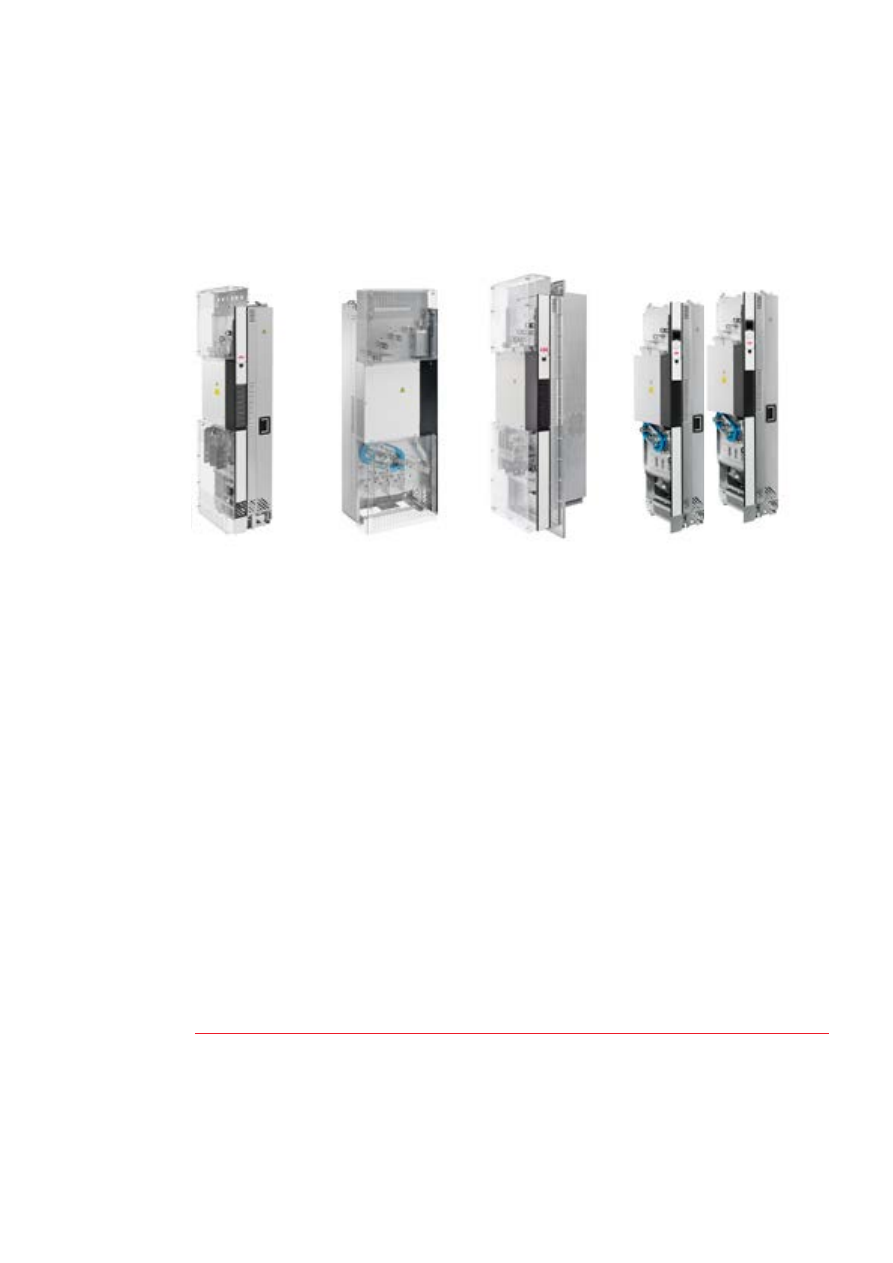

01 ACS880-04 standard
single drive module
—
02 ACS880-04
flat (sideways)
mounting single drive
module variant
—
03 ACS880-04F
flange mounted
single drive module
—
04 ACS880-04XT high
power single drive
unit with parallel
connected modules
—
01
—
03
—
02
—
04
• Possibility for flange (push through)
mounting (-04F)
• Tools and documents to support engineering
(e.g. installation videos, EPLAN macros,
accessories selection tool)
• Available as 6- or 12-pulse variant (-04XT)
25
H I G H P O W ER S I N G L E D R I V E M O D U L E PAC K AG E S , AC S 8 8 0 - 0 4
Ready-made packages for easy installation
The ACS880-04 high power single drive module
package includes a supply unit and a separate
inverter unit. The supply unit consists of D7T or
D8T half-controlled diode modules with thyristor
charging. Parallel connected R8i modules are
utilized in the inverter unit. The drive module
packages are ready-dimensioned and are
available as 6-pulse or 12-pulse variants.
Installing and transporting the modules is easy,
as they are equipped with wheels. Connecting the
modules to the motor cables inside the cabinet is
fast with the quick connectors. The modules can
also be easily pulled out from a cabinet without
any need for disconnecting the motor cables.
The inverter module comes equipped with a
removable fan pedestal, which makes motor
cabling easy. To further shorten the engineering
and assembly time several mechanical and
electrical accessories are available.
High power single drive module packages,
ACS880-04
• Power ratings: 400 to 2200 kW
• Enclosure classes: IP00
• Built-in choke as standard for input
harmonics reduction
• External control unit
• Speed controlled cooling fans
• Large power terminals allowing the use of
a wide range of cable sizes
• Internal du/dt filters as standard in
R8i inverter modules
Main options:
• EMC filters, see page 66
• Brake chopper and resistor, see page 76
• Internal module heaters
• Direct-on-line, DOL, cooling fans
—
High power single drive
module packages ACS880-04
—

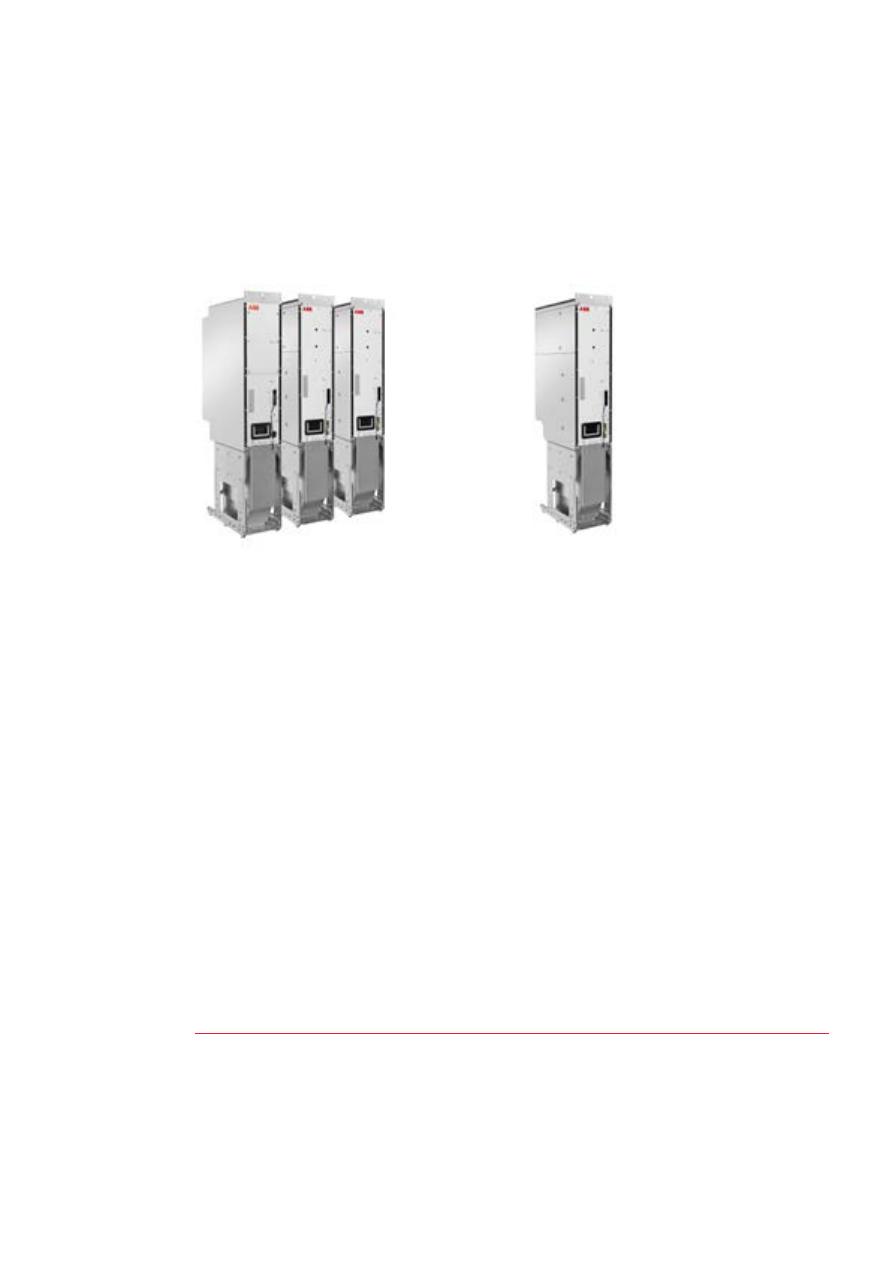

01 ACS880 high power
drive module package
with
D8T+2×R8i
—
02 ACS880 R8i
module which is
used in ACS880-04
module packages
—
01
Higlights
• Optimized design for easy cabinet assembly
(comes with wheels and quick connectors
for motor cables)
• Wide selection of installation accessories
• Compact and modular design
• Complete cabinet design for Rittal TS8
cabinet installation
The drives have an extensive selection of built-in features and options. See page 92.
—
02
• Tools and documents to support engineering
(e.g. installation videos, EPLAN macros,
accessories selection tool, 3D models)
• Simple selection and ordering with
ready-dimensioned module packages
26
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
ACS880-04, -04F, -04XT
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (200 to 900 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
I
max_start
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-505A-3
R10
505
560
671
250
485
250
361
200
72
5602
1200
ACS880-04-585A-3
R10
585
730
828
315
575
315
429
250
72
6409
1200
ACS880-04-650A-3
R10
650
730
954
355
634
355
477
250
72
8122
1200
ACS880-04-725A-3
R11
725
1020
1100
400
715
400
566
315
72
8764
1200
ACS880-04-820A-3
R11
820
1020
1100
450
810
450
625
355
72
9862
1200
ACS880-04-880A-3
R11
880
1100
1100
500
865
500
725
1)
400
71
10578
1420
6- or 12-pulse
ACS880-04XT-1010A-3
2xR10
1010
1270
1441
560
997
560
746
400
75
12818
2400
ACS880-04XT-1190A-3
2xR10
1190
1343
1755
630
1167
630
878
500
75
16244
2400
ACS880-04XT-1330A-3
2xR11
1330
1886
2024
710
1316
710
1041
560
75
17528
2400
ACS880-04XT-1610A-3
2xR11
1610
2024
2024
900
1570
900
1334
1)
710
74
21156
2840
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
I
max_start
Maximum output current at start. When enabled, available for 2 seconds only at start every 7 seconds.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C
4)
or up to 55 °C
5)
) the derating is 1%/1 °C.
4)
ACS880-04 high power single drive package.
5)
ACS880-04 single drive module.
U
N
= 500 V (range 380 to 505 V). The power ratings are valid at nominal voltage 500 V (200 to 1000 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
I
max_start
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-460A-5
R10
460
560
671
315
450
315
330
200
72
4403
1200
ACS880-04-503A-5
R10
503
560
671
355
483
315
361
250
72
5602
1200
ACS880-04-583A-5
R10
583
730
828
400
573
400
414
250
72
6409
1200
ACS880-04-635A-5
R10
635
730
954
450
623
450
477
315
72
8122
1200
ACS880-04-715A-5
R11
715
850
1100
500
705
500
566
400
72
8764
1200
ACS880-04-820A-5
R11
820
1020
1100
560
807
560
625
450
71
9862
1420
ACS880-04-880A-5
R11
880
1100
1100
630
857
560
697
2)
500
71
11078
1420
6- or 12-pulse
ACS880-04XT-1010A-5
2xR10
1010
1270
1441
710
997
710
720
500
75
12818
2400
ACS880-04XT-1160A-5
2xR10
1160
1343
1755
800
1146
800
878
630
75
16244
2400
ACS880-04XT-1310A-5
2xR11
1310
1564
2024
900
1297
900
1041
710
75
17528
2400
ACS880-04XT-1610A-5
2xR11
1610
2024
2024
1000
1570
1000
1282
2)
900
74
21156
2840
27
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 0 4 , - 0 4 F, - 0 4X T
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (250 to 1200 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
I
max_start
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-330A-7
R10
330
480
510
315
320
315
255
250
72
4403
1200
ACS880-04-370A-7
R10
370
520
650
355
360
355
325
315
72
5602
1200
ACS880-04-430A-7
R10
430
540
720
400
420
450
360
3)
350
72
6409
1200
ACS880-04-470A-7
R11
470
655
830
450
455
450
415
400
72
8122
1200
ACS880-04-522A-7
R11
522
685
910
500
505
500
455
450
72
8764
1200
ACS880-04-590A-7
R11
590
800
1010
560
571
560
505
500
71
9862
1200
ACS880-04-650A-7
R11
650
825
1100
630
630
630
571
3)
560
71
10578
1420
ACS880-04-721A-7
R11
721
825
1100
710
705
630
571
3)
560
71
10578
1420
6- or 12-pulse
ACS880-04XT-0810A-7
2xR10
810
1017
1356
800
791
710
678
3)
630
75
12818
2400
ACS880-04XT-0960A-7
2xR11
960
1260
1674
900
929
900
837
800
75
17528
2400
ACS880-04XT-1080A-7
2xR11
1080
1472
1858
1000
1051
1000
929
900
75
19724
2400
ACS880-04XT-1320A-7
2xR11
1320
1509
2024
1200
1297
1200 1051
3)
1000
74
21156
2840
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (200 to 950 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
I
max_start
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
ACS880-04F-504A-3
R11
504
560
671
250
485
250
361
200
75
5650
1520
ACS880-04F-584A-3
R11
584
730
828
315
575
315
429
250
75
6450
1520
ACS880-04F-649A-3
R11
649
730
954
355
634
355
477
250
75
8150
1520
ACS880-04F-725A-3
R11
725
1020
1100
400
715
400
566
315
75
8800
1520
ACS880-04F-820A-3
R11
820
1020
1100
450
810
450
625
355
75
9900
1520
ACS880-04F-880A-3
R11
880
1100
1100
500
865
500
725
1)
400
75
10600
1520
U
N
= 500 V (range 380 to 505 V). The power ratings are valid at nominal voltage 500 V (200 to 500 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
I
max_start
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
ACS880-04F-459A-5
R11
459
560
671
315
450
315
330
200
75
4450
1520
ACS880-04F-502A-5
R11
502
560
671
355
483
315
361
250
75
5650
1520
ACS880-04F-582A-5
R11
582
730
828
400
573
400
414
250
75
6450
1520
ACS880-04F-634A-5
R11
634
730
954
450
623
450
477
315
75
8150
1520
ACS880-04F-715A-5
R11
715
850
1100
500
705
500
566
400
75
8800
1520
ACS880-04F-820A-5
R11
820
1020
1100
560
807
560
625
450
75
9900
1520
ACS880-04F-880A-5
R11
880
1100
1100
630
857
560
697
2)
500
75
11100
1520
1)
= 40% overload
2)
= 45% overload
3)
= 44% overload
28
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
ACS880-04 nxR8i
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (400 to 1400 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-1140A-3
D8T+2×R8i
1140
1482
630
1072
560
787
400
73
18000
4290
ACS880-04-1250A-3
2×D8T+2×R8i
1250
1630
710
1200
630
935
500
74
21000
5720
ACS880-04-1480A-3
2×D8T+2×R8i
1480
1930
800
1421
800
1107
630
74
25000
5720
ACS880-04-1760A-3
2×D8T+2×R8i
1760
2120
1000
1690
900
1316
710
74
29000
5720
ACS880-04-2210A-3
3×D8T+3×R8i
2210
2880
1200
2122
1200
1653
900
76
37000
8580
ACS880-04-2610A-3
3×D8T+3×R8i
2610
3140
1400
2506
1400
1952
1000
76
44000
8580
6- or 12-pulse
ACS880-04-0990A-3+A004
2×D7T+2×R8i
990
1287
560
950
500
741
400
73
15000
5720
ACS880-04-1250A-3+A004
2×D8T+2×R8i
1250
1630
710
1200
630
935
500
74
21000
5720
ACS880-04-1480A-3+A004
2×D8T+2×R8i
1480
1930
800
1421
800
1107
630
74
25000
5720
ACS880-04-1760A-3+A004
2×D8T+2×R8i
1760
2120
1000
1690
900
1316
710
74
29000
5720
ACS880-04-2210A-3+A004
4×D8T+3×R8i
2210
2880
1200
2122
1200
1653
900
76
35000
10010
ACS880-04-2610A-3+A004
4×D8T+3×R8i
2610
3140
1400
2506
1400
1952
1000
76
44000
10010
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (560 to 1400 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-1070A-5
D8T+2×R8i
1070
1391
710
1027
710
800
560
73
18000
4290
ACS880-04-1320A-5
2×D8T+2×R8i
1320
1716
900
1267
900
987
710
74
22000
5720
ACS880-04-1450A-5
2×D8T+2×R8i
1450
1890
1000
1392
900
1085
710
74
25000
5720
ACS880-04-1580A-5
2×D8T+2×R8i
1580
2060
1100
1517
1000
1182
800
74
27000
5720
ACS880-04-1800A-5
2×D8T+3×R8i
1800
2340
1250
1728
1200
1346
900
75
32000
7150
ACS880-04-1980A-5
2×D8T+3×R8i
1980
2574
1400
1901
1300
1481
1000
75
36000
7150
6- or 12-pulse
ACS880-04-0990A-5+A004
2×D7T+2×R8i
990
1287
710
950
630
741
500
73
16000
5720
ACS880-04-1320A-5+A004
2×D8T+2×R8i
1320
1716
900
1267
900
987
710
74
22000
5720
ACS880-04-1450A-5+A004
2×D8T+2×R8i
1450
1890
1000
1392
900
1085
710
74
25000
5720
ACS880-04-1580A-5+A004
2×D8T+2×R8i
1580
2060
1100
1517
1000
1182
800
74
27000
5720
ACS880-04-1800A-5+A004
2×D8T+3×R8i
1800
2340
1250
1728
1200
1346
900
75
32000
7150
ACS880-04-1980A-5+A004
2×D8T+3×R8i
1980
2574
1400
1901
1300
1481
1000
75
36000
7150
29
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 - 0 4 n X R 8 i
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (560 to 2200 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(W) (m
3
/h)
6-pulse
ACS880-04-0800A-7
D8T+2×R8i
800
1200
800
768
710
598
560
73
16000
4290
ACS880-04-0900A-7
D8T+2×R8i
900
1350
900
864
800
673
630
74
20000
4290
ACS880-04-1160A-7
2×D8T+2×R8i
1160
1740
1100
1114
1100
868
800
74
26000
5720
ACS880-04-1450A-7
2×D8T+3×R8i
1450
2175
1400
1392
1250
1085
1000
75
32000
7150
ACS880-04-1650A-7
2×D8T+3×R8i
1650
2475
1600
1584
1500
1234
1200
75
36500
7150
ACS880-04-2300A-7
3×D8T+4×R8i
2300
3450
2200
2208
2000
1720
1600
76
52000
10010
6- or 12-pulse
ACS880-04-0800A-7+A004
2×D7T+2×R8i
800
1200
800
768
710
598
560
73
16000
5720
ACS880-04-0950A-7+A004
2×D8T+2×R8i
950
1425
900
912
800
711
630
74
20000
5720
ACS880-04-1160A-7+A004
2×D8T+2×R8i
1160
1740
1100
1114
1100
868
800
74
26000
5720
ACS880-04-1450A-7+A004
2×D8T+3×R8i
1450
2175
1400
1392
1250
1085
1000
75
32000
7150
ACS880-04-1650A-7+A004
2×D8T+3×R8i
1650
2475
1600
1584
1500
1234
1200
75
36500
7150
ACS880-04-2300A-7+A004
4×D8T+4×R8i
2300
3450
2200
2208
2000
1720
1600
77
52000
11440
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
I
max_start
Maximum output current at start. When enabled, available for 2 seconds only at start every 7 seconds.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C or up to 55 °C) the derating is 1%/1 °C.
30
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Regenerative drive modules
ACS880-11+P940 and ACS880-14
ABB regenerative drive modules are optimized
for cabinet assembly. ACS880-11+P940 and
ACS880-14 frame R11 are compact and complete
drive solutions, with everything needed for
regenerative operation in cyclic or continuous
braking applications. For high power applications
ACS880-14 single drive module packages are
available. The package consist of a regenerative
supply unit with a line filter and of a separate
inverter unit. R8i modules are utilized in both
units, and the package is ready-dimensioned.
Energy savings
With regenerative functionality, the braking
energy of the motor is returned to the drive and
distributed to the supply network so that it can
be utilized by other equipment. Compared to
mechanical or resistor braking, where braking
energy is wasted as heat, regenerative drive
operation offers significant savings in energy
consumption and cooling.
The drive reaches a unity power factor. This high
power factor indicates that electrical energy is
used to its full potential.
Minimized downtime
Regenerative drive offers immunity to network
disturbances. The drive will not interrupt the
process or affect its quality in unstable supply
network conditions. Drive’s active supply unit is
able to boost output voltage, enabling full motor
voltage even when the supply voltage is below
nominal. The drive can even compensate for rapid
variations in supply voltage, ensuring reliable
operation during network fluctuations. Voltage
boost capability can also be utilized to overcome
a voltage drop caused by long supply or motor
cables or output filters.
Optimized cost and space
Everything needed for regenerative operation,
such as an active supply unit and low harmonic
line filter are included, and no external braking
devices are needed.
Advantages:
• Quick, easy drive installation
• Small installation footprint
• No need to add cooling to handle the heat
generated by mechanical or resistor braking
• Simplified wiring
• Less spare parts needed
The “all inside” design for frames up to R11 and
mechanical installation kits for module packages
help to cut engineering and assembly time, as
well as to reduce equipment costs and the risk
of errors.
The drive’s voltage boost capability can be an
advantage in motor dimensioning. With a higher
motor voltage, the same power is achieved with
less current, which may allow a smaller motor
to be used.
The drive offers a possibility for network power
factor correction to compensate for low power
factors of equipment connected to the same
network. It reduces the need for additional power
factor correction equipment, such as filters and
large capacitor banks. It can also help to avoid
penalty charges from electrical utilities for
poor power factors.
Maximized motor performance and efficiency
The drive is able to provide full motor voltage in
all conditions. Regeneration can occur for as long
as necessary and as often as needed.
The drive features direct torque control (DTC)
as standard, making it suitable also for very
demanding applications. DTC provides precise
speed and torque control for maximum motor
performance and motor efficiency.
Low harmonic content
The drive produces exceptionally low harmonic
content and exceeds the requirements of even
the most stringent harmonic recommendations,
like IEEE 519, IEC 61000-3-2, IEC 61000-3-12 and
G5/4. Compared to conventional drives, the
harmonic content is up to 97% lower. The total
harmonic current distortion is typically <3% in
nominal situation and undistorted network.
For more information, visit
drives/regenerativedrives
.

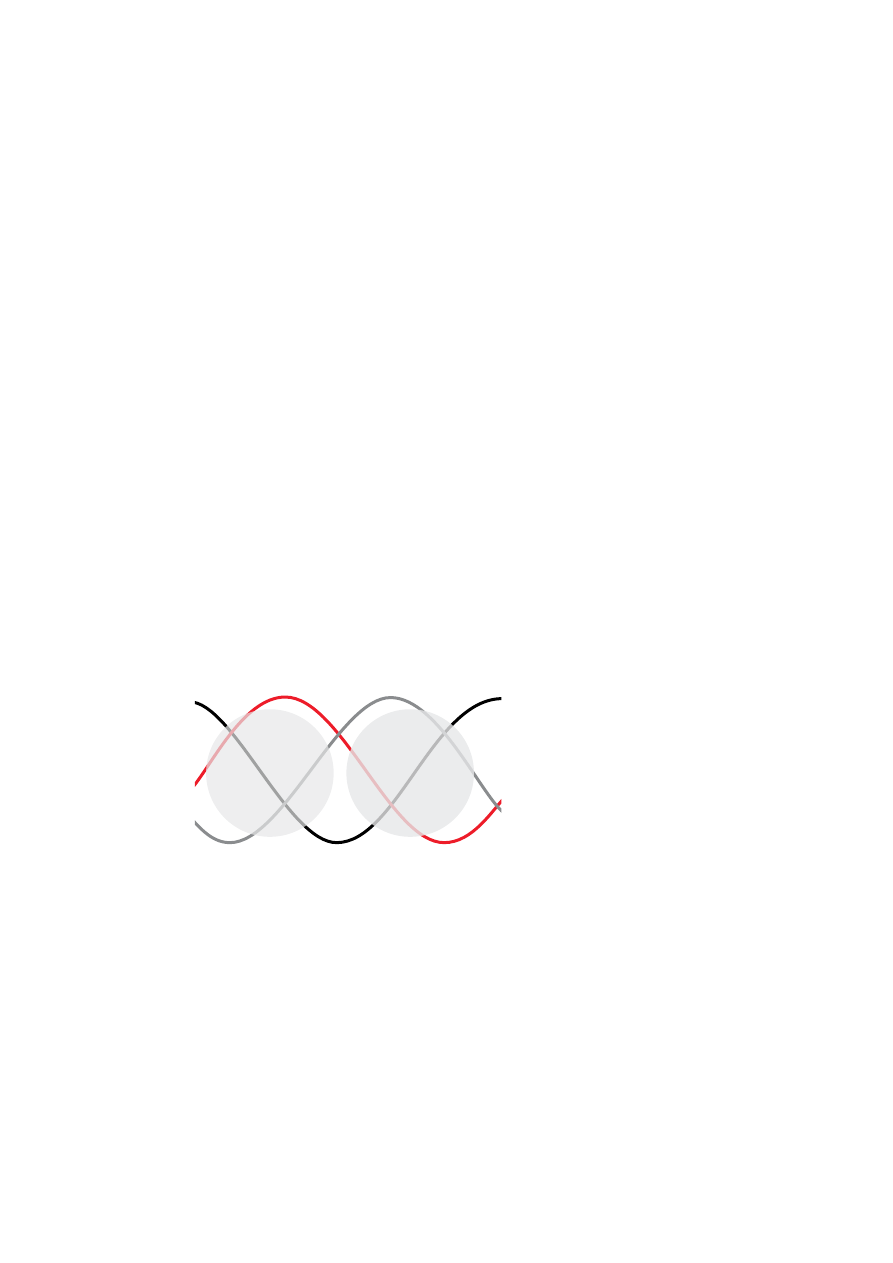

Speed
Power
+
-
—
01
—
01 Speed and
power curves in
cyclic operation
31
R EG EN ER AT I V E D R I V E M O D U L E S , AC S 8 8 0 -1 1+P 9 4 0 A N D AC S 8 8 0 -14
Regenerative single drive modules,
ACS880-11+P940 and ACS880-14 frame R11
• Power ratings: 2.2 to 400 kW
• Enclosure classes: IP20, in flange mounting
(ACS880-11) heat sink side IP55
Main options:
• Flange mounting
• C2 and C3 EMC filters, see page 66
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Speed feedback interfaces, see page 63
• Functional safety modules, see page 64
• Remote monitoring options, see page 62
• Application specific software, see page 14
• Du/dt filters, see page 84
• Sine filters, see page 72
Regenerative single drive module package,
ACS880-14, BLCL line filter and R8i frames
• Power ratings: 160 to 2200 kW
• Enclosure class: IP00
• External control unit
• Speed controlled cooling fans in R8i modules.
Direct-on-line fans in BLCL filters.
• Internal du/dt filters in R8i modules
Main options:
• C2 EMC filters, see page 66
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Speed feedback interfaces, see page 63
• Functional safety modules, see page 64
• Remote monitoring options, see page 62
• Application specific software, see page 14
• Internal heaters in R8i and BLCL modules
• Direct-on-line cooling fans
Higlights
• Everything for regenerative operation in one
compact IP20 package up to 355 kW
/
frame R11
•
Possibility to regenerate 100% of the power
continuously
• The total harmonic current distortion is
typically <3% in nominal situation and
undistorted network
• Clear energy savings compared to other
braking methods
The drives have an extensive selection of built-in features and options. See page 92.
—

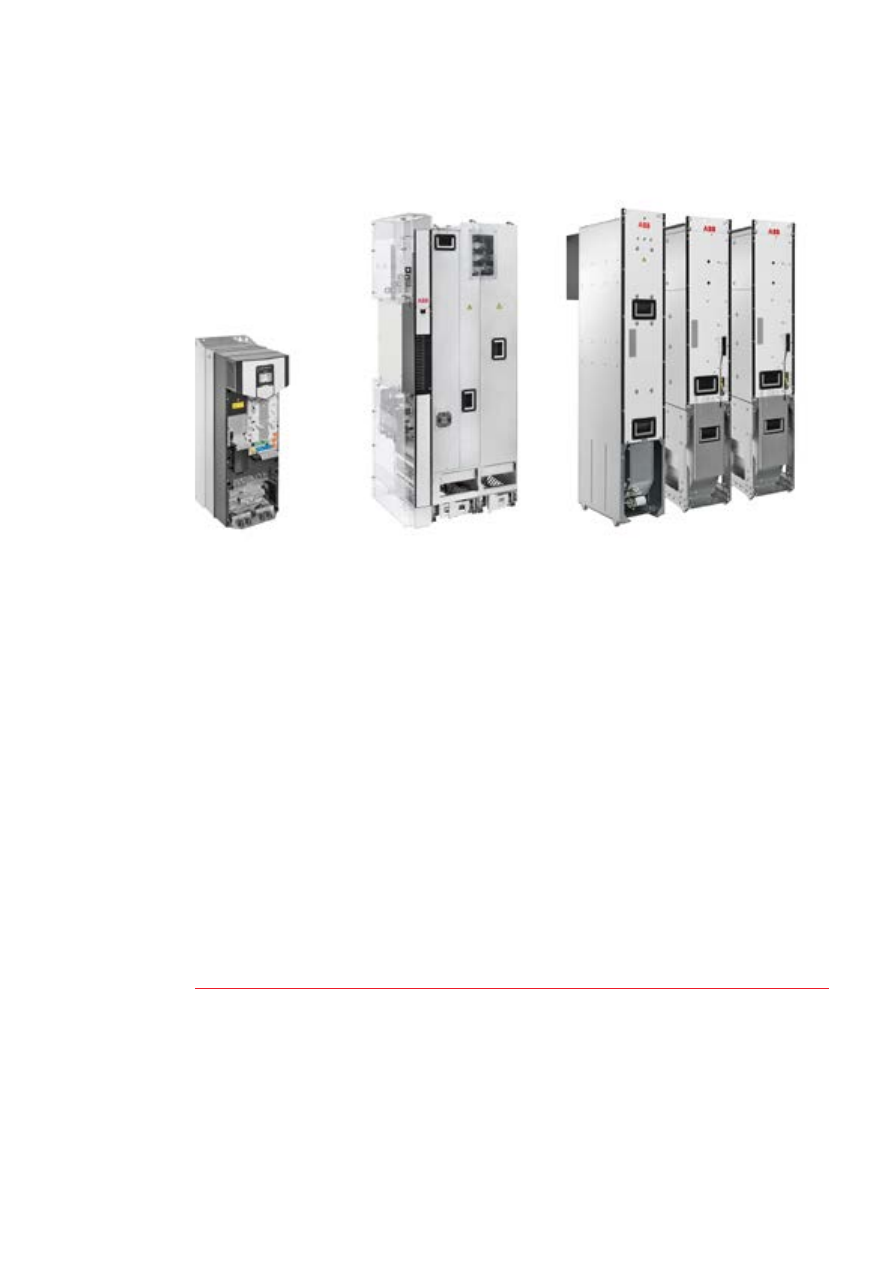

01 ACS880-11+P940
—
02 ACS880-14
frame size R11
—
03 ACS880-14 drive
mocule package,
BLCL line filter and
R8i modules
—
01
—
02
—
03
• Unity power factor. Possibility also for
network power factor correction
• Stable output voltage in all load conditions,
even with fluctuating supply voltage
• Mechanical installation kits for easy
engineering and assembly of module packages
• Possibility for flange (push through) mounting
up to frame R11
32
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Wall-mounted regenerative drive modules,
ACS880-11
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (3 to 110 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(m
3
/h)
ACS880-11-09A4-3
R3
10
13.6
4
9.5
4
8
3
57
361
ACS880-11-12A6-3
R3
12.9
17
5.5
12
5.5
10
4
57
361
ACS880-11-017A-3
R3
17
21.9
7.5
16
7.5
12.9
5.4
57
361
ACS880-11-025A-3
R3
25
28.8
11
24
11
17
7.5
57
361
ACS880-11-032A-3
R6
32
42.5
15
30
15
25
11
71
550
ACS880-11-038A-3
R6
38
54.4
18.5
36
18.5
32
15
71
550
ACS880-11-045A-3
R6
45
64.6
22
43
22
38
18.5
71
550
ACS880-11-061A-3
R6
61
76.5
30
58
30
45
22
71
550
ACS880-11-072A-3
R6
72
103.7
37
68
37
61
30
71
550
ACS880-11-087A-3
R6
87
122.4
45
83
45
72
37
71
550
ACS880-11-105A-3
R8
105
148
55
100
55
87
45
68
700
ACS880-11-145A-3
R8
145
178
75
138
75
105
55
68
700
ACS880-11-169A-3
R8
169
247
90
161
90
145
75
68
700
ACS880-11-206A-3
R8
206
287
110
196
110
169
90
68
805
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (2.2 to 110 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(m
3
/h)
ACS880-11-07A6-5
R3
7.6
9.5
4
7.2
4
5.2
2.2
57
361
ACS880-11-11A0-5
R3
11
13.8
5.5
10.4
5.5
7.6
4
57
361
ACS880-11-014A-5
R3
14
18.7
7.5
13
7.5
11
5.5
57
361
ACS880-11-021A-5
R3
21
26.3
11
19
11
14
7.5
57
361
ACS880-11-027A-5
R6
27
35.7
15
26
15
21
11
71
550
ACS880-11-034A-5
R6
34
45.9
18.5
32
18.5
27
15
71
550
ACS880-11-040A-5
R6
40
57.8
22
38
22
34
18.5
71
550
ACS880-11-052A-5
R6
52
68
30
49
30
40
22
71
550
ACS880-11-065A-5
R6
65
88.4
37
62
37
52
30
71
550
ACS880-11-077A-5
R6
77
110.5
45
73
45
65
37
71
550
ACS880-11-101A-5
R8
101
148
55
91
55
77
45
68
700
ACS880-11-124A-5
R8
124
178
75
118
75
96
55
68
700
ACS880-11-156A-5
R8
156
247
90
148
90
124
75
68
700
ACS880-11-180A-5
R8
180
287
110
171
110
156
90
68
805
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature.
At higher temperatures (up to 55 °C) the derating is 1%/1 °C.
33
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -14 FR A M E R 1 1
—
Ratings, types and voltages
Regenerative drive modules,
ACS880-14 frame R11
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (110 to 355 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-246A-3
R11
246
412
132
234
132
206
110
72
5280
2100
ACS880-14-293A-3
R11
293
492
160
278
160
246
132
72
6400
2100
ACS880-14-363A-3
R11
363
586
200
345
200
293
160
72
8000
2100
ACS880-14-442A-3
R11
442
726
250
420
250
363
200
72
10000
2100
ACS880-14-505A-3
R11
505
726
250
480
250
363
200
72
10000
2100
ACS880-14-585A-3
R11
585
884
315
556
315
442
250
72
12600
2100
ACS880-14-650A-3
R11
650
1010
355
618
355
505
250
72
14200
2100
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (100 to 355 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-240A-5
R11
240
360
132
228
132
180
110
72
5280
2100
ACS880-14-260A-5
R11
260
480
160
247
160
240
132
72
6400
2100
ACS880-14-361A-5
R11
361
520
200
343
200
260
160
72
8000
2100
ACS880-14-414A-5
R11
414
722
250
393
250
361
200
72
10000
2100
ACS880-14-460A-5
R11
460
828
315
450
315
414
250
72
12600
2100
ACS880-14-503A-5
R11
503
920
355
492
355
460
315
72
14200
2100
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (110 to 400 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-142A-7
R11
142
238
132
135
132
119
110
72
5280
2100
ACS880-14-174A-7
R11
174
284
160
165
160
142
132
72
6400
2100
ACS880-14-210A-7
R11
210
348
200
200
200
174
160
72
8000
2100
ACS880-14-271A-7
R11
271
420
250
257
250
210
200
72
10000
2100
ACS880-14-330A-7
R11
330
542
315
320
315
271
250
72
12600
2100
ACS880-14-370A-7
R11
370
660
355
360
355
330
315
72
14200
2100
ACS880-14-430A-7
R11
430
740
400
420
400
370
355
72
16000
2100
34
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Regenerative drive module packages,
ACS880-14
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (160 to 1400 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-0450A-3
R8i + BLCL-13-5 + R8i
450
590
250
432
200
337
160
75
14000
3760
ACS880-14-0620A-3
R8i + BLCL-13-5 + R8i
620
810
355
595
315
464
250
75
18000
3760
ACS880-14-0870A-3
R8i + BLCL-15-5 + R8i
870
1140
500
835
450
651
355
75
27000
3760
ACS880-14-1210A-3
2xR8i + BLCL-24-5 + 2xR8i
1210
1580
710
1162
630
905
500
77
34000
7220
ACS880-14-1430A-3
2xR8i + BLCL-24-5 + 2xR8i
1430
1860
800
1373
710
1070
560
77
38000
7220
ACS880-14-1700A-3
2xR8i + BLCL-25-5 + 2xR8i
1700
2210
1000
1632
900
1272
710
77
51000
7220
ACS880-14-2060A-3
3×R8i + 2xBLCL-24-5 + 3xR8i
2060
2680
1200
1978
1100
1541
800
78
61000
11580
ACS880-14-2530A-3
3xR8i + 2xBLCL-24-5 + 3xR8i
2530
3290
1400
2429
1200
1892
1000
78
76000
11580
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (200 to 1600 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-0420A-5
R8i + BLCL-13-5 + R8i
420
550
250
403
250
314
200
75
13000
3760
ACS880-14-0570A-5
R8i + BLCL-13-5 + R8i
570
750
400
547
355
426
250
75
17000
3760
ACS880-14-0780A-5
R8i + BLCL-15-5 + R8i
780
1020
560
749
500
583
400
75
25000
3760
ACS880-14-1110A-5
2xR8i + BLCL-24-5 + 2xR8i
1110
1450
800
1066
710
830
560
77
32000
7220
ACS880-14-1530A-5
2xR8i + BLCL-25-5 + 2xR8i
1530
1990
1100
1469
1000
1144
800
77
46000
7220
ACS880-14-1980A-5
3×R8i + 2xBLCL-24-5 + 3xR8i
1980
2580
1400
1901
1300
1481
1000
78
59000
11580
ACS880-14-2270A-5
3xR8i + 2xBLCL-24-5 + 3xR8i
2270
2960
1600
2179
1500
1698
1200
78
69000
11580
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (200 to 2200 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-14-0320A-7
R8i + BLCL-13-7 + R8i
320
480
315
307
250
239
200
75
16000
3760
ACS880-14-0390A-7
R8i + BLCL-13-7 + R8i
390
590
355
374
355
292
250
75
19000
3760
ACS880-14-0580A-7
R8i + BLCL-15-7 + R8i
580
870
560
557
500
434
400
75
26000
3760
ACS880-14-0770A-7
2xR8i + BLCL-24-7 + 2xR8i
770
1160
710
739
710
576
560
77
34000
7220
ACS880-14-0950A-7
2xR8i + BLCL-25-7 + 2xR8i
950
1430
900
912
800
711
710
77
40000
7220
ACS880-14-1130A-7
2xR8i + BLCL-25-7 + 2xR8i
1130
1700
1100
1085
1000
845
800
77
48000
7220
ACS880-14-1450A-7
3xR8i + 2xBLCL-24-7 + 3xR8i
1450
2180
1400
1392
1300
1085
1000
78
63000
11580
ACS880-14-1680A-7
3xR8i + 2xBLCL-24-7 + 3xR8i
1680
2520
1600
1613
1500
1257
1200
78
74000
11580
ACS880-14-2230A-7
4xR8i + 2xBLCL-25-7 + 4xR8i
2230
3350
2200
2141
2000
1668
1600
79
95000
14440
35
36
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ultra-low harmonic drive modules
ACS880-31+P940 and ACS880-34
Harmonic distortions can disturb or even damage
sensitive equipment connected in the same
environment. Harmonics also cause additional
losses in the network.
The ACS880-31+P940 and ACS880-34 frame R11
is a compact, complete drive module with
harmonics mitigation built-in. For high power
solutions ABB offering includes ACS880-34 single
drive module packages. The package consists of
an active supply unit with a harmonic line filter
and of a separate inverter unit. R8i modules are
utilzed in both units, and the packages are
ready-dimensioned.
Clean supply network
Our ultra-low harmonic drive produces
exceptionally low harmonic content and exceeds
the requirements of harmonic recommendations
like IEEE 519 and G5/4. Compared to a
conventional drive, the harmonic content is
reduced by up to 97%. The total harmonic
current distortion is typically <3% in nominal
situation and undistorted network.
Minimized downtime
ABB’s ultra-low harmonic drive offers immunity to
network disturbances. The drive will not interrupt
the process or affect its quality in unstable supply
network conditions. Drives’ active supply unit is
able to boost the output voltage to enable full
motor voltage even when the supply voltage is
below nominal. This ensures reliable operation in
weak networks. This voltage boost capability
can also be utilized to overcome voltage drops
caused by long supply or motor cables.
The possibility to stabilize the output voltage
of the drive is an advantage compared to
alternative low harmonic solutions where
voltage cannot be boosted.
Harmonic
content reduction
up to
97%
Harmonic
distortion
typically
3%
Optimized cost and space
The compact ACS880 low harmonic drive solution
has harmonics mitigation built-in. This includes
an active supply unit and low harmonic line filter.
Thus there is no need for external filters, multi-
pulse arrangements or special transformers.
The simple installation offers significant savings
in space, time and cost.
As the risk of overheating of the supply
transformers and cables is lower with lower
harmonic currents, there is no need to over-
dimension equipment.
The drive’s voltage boost capability can be an
advantage in motor dimensioning. With a higher
motor voltage, the same power is achieved with
less current, which improves motor efficiency
and may allow a smaller motor to be used.
Maximized motor performance and efficiency
The drive is able to provide full motor voltage
even if the supply voltage fluctuates. It features
direct torque control (DTC) as standard, making it
suitable also for very demanding applications.
DTC provides precise speed and torque control
for maximum motor performance and motor
efficiency.
—
Keeps the network clean
Efficient energy utilization
Ultra-low harmonic drives achieve a unity power
factor. This high power factor indicates that
electrical energy is used efficiently.
The drive offers the possibility for network power
factor correction to compensate for low power
factors of equipment connected to the same
network. It can help to avoid penalty charges set
by electrical utilities for poor power factors.
Lower harmonics and full motor voltage at all
times means reduced system losses and better
overall system efficiency.
For more information, visit
.
37
U LT R A - LO W H A R M O N I C D R I V E M O D U L E S , AC S 8 8 0 -3 1+P 9 4 0 A N D AC S 8 8 0 -3 4
Ultra-low harmonic single drive moduless,
ACS880-31+P940 and ACS880-34 frame R11
• Power ratings: 2.2 to 400 kW
• Enclosure classes: IP20, in flange mounting
(ACS880-31) heat sink side IP55
Main options:
• Flange mounting
• C2 and C3 EMC filters, see page 66
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Speed feedback interfaces, see page 63
• Functional safety modules, see page 64
• Remote monitoring options, see page 62
• Application-specific software, see page 14
• Du/dt filters, see page 84
• Sine filters, see page 72
Ultra-low harmonic single drive module package,
ACS880-34, BLCL line filter and R8i frames
• Power ratings: 160 to 2200 kW
• Enclosure class: IP00
• External control unit
• Speed controlled cooling fans in R8i modules.
Direct-on-line fans in BLCL filters.
• Internal du/dt filters in R8i modules
Main options:
• C2 EMC filters, see page 66
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Speed feedback interfaces, see page 63
• Functional safety modules, see page 64
• Remote monitoring tool, see page 62
• Application-specific software, see page 14
• Internal heaters in R8i and BLCL modules
• Direct-on-line cooling fans
Higlights
• The total harmonic current distortion is
typically <3% in nominal situation and
undistorted network. Low harmonic content
also at partial loads
• No need for external filters, multi-pulse
arrangements or special transformers
• Simple and cost-effective installation
• Unity power factor. Possibility for network
power factor correction
The drives have an extensive selection of built-in features and options. See page 92.
—
01 ACS880-31+P940
—
02 ACS880-34
frame size R11
—
03 ACS880-34 drive
module package,
BLCL line filter and
R8i modules
—
01
—
02
—
03
• Small installation footprint
• Output voltage stabilization secures operation
in weak networks
• Mechanical installation kits for easy
engineering and assembly of module packages
• Possibility for flange (push through) mounting
up to frame R11.
38
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Wall-mounted ultra-low harmonic drives,
ACS880-31
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (3 to 110 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(m
3
/h)
ACS880-31-09A4-3
R3
10
13.6
4
9.5
4
8
3
57
361
ACS880-31-12A6-3
R3
12.9
17
5.5
12
5.5
10
4
57
361
ACS880-31-017A-3
R3
17
21.9
7.5
16
7.5
12.9
5.4
57
361
ACS880-31-025A-3
R3
25
28.8
11
24
11
17
7,5
57
361
ACS880-31-032A-3
R6
32
42.5
15
30
15
25
11
71
550
ACS880-31-038A-3
R6
38
54.4
18.5
36
18.5
32
15
71
550
ACS880-31-045A-3
R6
45
64.6
22
43
22
38
18.5
71
550
ACS880-31-061A-3
R6
61
76.5
30
58
30
45
22
71
550
ACS880-31-072A-3
R6
72
103.7
37
68
37
61
30
71
550
ACS880-31-087A-3
R6
87
122.4
45
83
45
72
37
71
550
ACS880-31-105A-3
R8
105
148
55
100
55
87
45
68
700
ACS880-31-145A-3
R8
145
178.3
75
138
75
105
55
68
700
ACS880-31-169A-3
R8
169
246.5
90
161
90
145
75
68
700
ACS880-31-206A-3
R8
206
287.3
110
196
110
169
90
68
805
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (2.2 to 110 kW).
Drive type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise level
Air flow
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(m
3
/h)
ACS880-31-07A6-5
R3
7.6
9.5
4
7.2
4
5.2
2.2
57
361
ACS880-31-11A0-5
R3
11
13.8
5.5
10.4
5.5
7.6
4
57
361
ACS880-31-014A-5
R3
14
18.7
7.5
13
7.5
11
5.5
57
361
ACS880-31-021A-5
R3
21
26.3
11
19
11
14
7.5
57
361
ACS880-31-027A-5
R6
27
35.7
15
26
15
21
11
71
550
ACS880-31-034A-5
R6
34
45.9
18.5
32
18.5
27
15
71
550
ACS880-31-040A-5
R6
40
57.8
22
38
22
34
18.5
71
550
ACS880-31-052A-5
R6
52
68
30
49
30
40
22
71
550
ACS880-31-065A-5
R6
65
88.4
37
62
37
52
30
71
550
ACS880-31-077A-5
R6
77
110.5
45
73
45
65
37
71
550
ACS880-31-101A-5
R8
101
148
55
91
55
77
45
68
700
ACS880-31-124A-5
R8
124
178
75
118
75
96
55
68
700
ACS880-31-156A-5
R8
156
247
90
148
90
124
75
68
700
ACS880-31-180A-5
R8
180
287
110
171
110
156
90
68
805
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature.
At higher temperatures (up to 55 °C) the derating is 1%/1 °C.
39
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -3 4 R 1 1
—
Ratings, types and voltages
Ultra-low harmonic drive modules,
ACS880-34 R11
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (110 to 355 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-246A-3
R11
246
412
132
234
132
206
110
72
5280
2100
ACS880-34-293A-3
R11
293
492
160
278
160
246
132
72
6400
2100
ACS880-34-363A-3
R11
363
586
200
345
200
293
160
72
8000
2100
ACS880-34-442A-3
R11
442
726
250
420
250
363
200
72
10000
2100
ACS880-34-505A-3
R11
505
726
250
480
250
363
200
72
10000
2100
ACS880-34-585A-3
R11
585
884
315
556
315
442
250
72
12600
2100
ACS880-34-650A-3
R11
650
1010
355
618
355
505
250
72
14200
2100
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (110 to 355 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-240A-5
R11
240
360
132
228
132
180
110
72
5280
2100
ACS880-34-260A-5
R11
260
480
160
247
160
240
132
72
6400
2100
ACS880-34-361A-5
R11
361
520
200
343
200
260
160
72
8000
2100
ACS880-34-414A-5
R11
414
722
250
393
250
361
200
72
10000
2100
ACS880-34-460A-5
R11
460
828
315
450
315
414
250
72
12600
2100
ACS880-34-503A-5
R11
503
920
355
492
355
460
315
72
14200
2100
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (100 to 400 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-142A-7
R11
142
238
132
135
132
119
110
72
5280
2100
ACS880-34-174A-7
R11
174
284
160
165
160
142
132
72
6400
2100
ACS880-34-210A-7
R11
210
348
200
200
200
174
160
72
8000
2100
ACS880-34-271A-7
R11
271
420
250
257
250
210
200
72
10000
2100
ACS880-34-330A-7
R11
330
542
315
320
315
271
250
72
12600
2100
ACS880-34-370A-7
R11
370
660
355
360
355
330
315
72
14200
2100
ACS880-34-430A-7
R11
430
740
400
420
400
370
355
72
16000
2100
40
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Ultra-low harmonic module packages
ACS880-34
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (160 to 1400 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-0450A-3
R8i + BLCL-13-5 + R8i
450
590
250
432
200
337
160
75
14000
3760
ACS880-34-0620A-3
R8i + BLCL-13-5 + R8i
620
810
355
595
315
464
250
75
18000
3760
ACS880-34-0870A-3
R8i + BLCL-15-5 + R8i
870
1140
500
835
450
651
355
75
27000
3760
ACS880-34-1210A-3
2xR8i + BLCL-24-5 + 2xR8i
1210
1580
710
1162
630
905
500
77
34000
7220
ACS880-34-1430A-3
2xR8i + BLCL-24-5 + 2xR8i
1430
1860
800
1373
710
1070
560
77
38000
7220
ACS880-34-1700A-3
2xR8i + BLCL-25-5 + 2xR8i
1700
2210
1000
1632
900
1272
710
77
51000
7220
ACS880-34-2060A-3
3×R8i + 2xBLCL-24-5 + 3xR8i
2060
2680
1200
1978
1100
1541
800
78
61000
11580
ACS880-34-2530A-3
3xR8i + 2xBLCL-24-5 + 3xR8i
2530
3290
1400
2429
1200
1892
1000
78
76000
11580
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (200 to 1600 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-0420A-5
R8i + BLCL-13-5 + R8i
420
550
250
403
250
314
200
75
13000
3760
ACS880-34-0570A-5
R8i + BLCL-13-5 + R8i
570
750
400
547
355
426
250
75
17000
3760
ACS880-34-0780A-5
R8i + BLCL-15-5 + R8i
780
1020
560
749
500
583
400
75
25000
3760
ACS880-34-1110A-5
2xR8i + BLCL-24-5 + 2xR8i
1110
1450
800
1066
710
830
560
77
32000
7220
ACS880-34-1530A-5
2xR8i + BLCL-25-5 + 2xR8i
1530
1990
1100
1469
1000
1144
800
77
46000
7220
ACS880-34-1980A-5
3×R8i + 2xBLCL-24-5 + 3xR8i
1980
2580
1400
1901
1300
1481
1000
78
59000
11580
ACS880-34-2270A-5
3xR8i + 2xBLCL-24-5 + 3xR8i
2270
2960
1600
2179
1500
1698
1200
78
69000
11580
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (200 to 2200 kW).
Drive type
Frame
size
Nominal ratings Light overload use Heavy-duty use Noise
level
Heat
dissipation
Air
flow
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
ACS880-34-0320A-7
R8i + BLCL-13-7 + R8i
320
480
315
307
250
239
200
75
16000
3760
ACS880-34-0390A-7
R8i + BLCL-13-7 + R8i
390
590
355
374
355
292
250
75
19000
3760
ACS880-34-0580A-7
R8i + BLCL-15-7 + R8i
580
870
560
557
500
434
400
75
26000
3760
ACS880-34-0770A-7
2xR8i + BLCL-24-7 + 2xR8i
770
1160
710
739
710
576
560
77
34000
7220
ACS880-34-0950A-7
2xR8i + BLCL-25-7 + 2xR8i
950
1430
900
912
800
711
710
77
40000
7220
ACS880-34-1130A-7
2xR8i + BLCL-25-7 + 2xR8i
1130
1700
1100
1085
1000
845
800
77
48000
7220
ACS880-34-1450A-7
3xR8i + 2xBLCL-24-7 + 3xR8i
1450
2180
1400
1392
1300
1085
1000
78
63000
11580
ACS880-34-1680A-7
3xR8i + 2xBLCL-24-7 + 3xR8i
1680
2520
1600
1613
1500
1257
1200
78
74000
11580
ACS880-34-2230A-7
4xR8i + 2xBLCL-25-7 + 4xR8i
2230
3350
2200
2141
2000
1668
1600
79
95000
14440
41
42
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Multidrive modules
ACS880-X04
The module selection for building multidrive
configurations includes inverter, diode supply,
IGBT supply, regenerative rectifier, brake and
DC-DC converter units. Their modular design and
side-by-side mounting make installation fast
and easy. Modules with bigger frame sizes are
equipped with wheels so they can easily be
moved in or out of the cabinet for maintenance
purposes. This concept also allows pre-
installation of the power cables inside the
empty cabinet.
Multidrives can be used wherever several motors
form part of a single process. With a compact
module design and high power density, the single
supply and DC bus arrangement with multiple
inverters provides many advantages:
• Savings in cabling, installation and
maintenance costs
• Reduced component count and increased
reliability
• Reduced line power and line currents. As the
energy circulates over the common DC bus, all
energy is not taken from the supply network.
Energy circulation can be used for motor-to-
motor braking without the need for a braking
chopper or regenerative supply unit.
Inverter units (INU)
Inverter units are DC supplied and have built-in
capacitors for smoothing the DC voltage.
The electrical connection to the common DC bus
is fuse protected. An optional switch can be
selected to disconnect the whole drive unit
from the DC bus.
Diode supply units (DSU)
A diode supply unit is used in non-regenerative
drive systems to convert three-phase AC voltage
to DC voltage. Two types of diode supply unit are
available: an uncontrolled 6-pulse diode supply
unit (D6D to D8D) and a half-controlled diode
supply unit with thyristor charging (D7T and
D8T). The DXT modules can be connected parallel
and are able to charge the inverters without
external components.
IGBT supply units (ISU)
IGBT supply units are used in regenerative
drives to convert three-phase AC voltage to
DC voltage. The units provide the same features
as ACS880-11/14 regenerative drives.
The ISU consists of
RXi
and LCL filter modules.
It can operate in both motoring and generating
modes. The DC voltage is constant and the line
current is sinusoidal. The control also provides a
near unity power factor. The supply unit can also
boost DC voltage e.g. when line voltage is low.
Harmonic content remains extremely low due
to DTC control and LCL line filtering.
Regenerative rectifier unit (RRU)
This supply unit is used in regenerative drive
systems to convert three-phase AC voltage to
DC voltage. The RRU consists of R8i and L filter
modules. During motoring the input current flows
through the diodes to the DC bus and the supply
unit works as a diode bridge. In regeneration the
current flows from the DC bus through the IGBTs
to the supply network. The IGBTs' are switched to
conduct only once during each network voltage
cycle. This reduces switching losses and enables
high input and output powers of the R8i module.
Unlike with a thyristor bridge, the IGBTs can be
switched off at any time which improves
reliability.
Brake unit
Brake unit is used for resistor braking. It handles
the energy generated by decelerating motors for
example in emergency stopping. Whenever the
voltage in the common DC bus exceeds a certain
limit, a braking chopper connects the bus to a
braking resistor.
DC-DC converter (DDC)
This converter can transfer energy from a
common DC bus of a drive system into an external
energy storage. From there it can transfer the
energy back to the DC bus when needed. Energy
storages can be batteries or super capacitors.
Applications for energy storage and reuse are
found in a range of industries, such as marine
(heave and peak load compensation), process
industry (electrical braking or DC bus voltage
stabilization) and automotive (charging systems).
The converter unit consists of
R8i and DCL filter
modules.
43
M U LT I D R I V E M O D U L E S , AC S 8 8 0 -X0 4
Multidrive modules, ACS880-X04
• Power ratings:
Inverter units (INU): 1.5 to 3200 kW
Diode supply units (DSU): 55 to 5445 kVA
IGBT supply units (ISU): 5.5 to 3679 kVA
Regenerative rectifier units (RRU):
416 to 4135 kVA
Brake units: 1-phase
P
cont
70 to 714 kW,
3-phase
P
cont
500 to 6500 kW
DC-DC converters (DDC): 305 to 1146 kW
• Voltage range: 380 to 690 V
• Enclosure class: IP00
• All multidrive modules come with a control unit.
The same control units are used with all ACS880
drives. They have three option slots for option
modules, such as I/O extension and fieldbus
adapter modules.
Main options:
• Detailed documentation for cabinet installation
• Cabinet accessory kits
• Marine type approvals
• I/O extension modules, see page 60
• Fieldbus adapter modules, see page 60
• Application specific softwares, see page 14
• Speed feedback interfaces, see page 63
• Remote monitoring options, see page 62
• Functional safety modules, see page 64
• Brake choppers and resistors, see page 76
• Du/dt filters, see page 84
—
01 Multidrive
configuration with
supply unit, DC bus
and multiple inverters
—
02 ACS880-104
inverters modules,
frame sizes R1i to R8i
—
01
—
02
Higlights
• Compact design for easy cabinet assembly
and maintenance
• High power density
• Multidrive concept with one supply unit and
DC bus arrangement with multiple inverters
which reduces line power, cabinet size and
investment costs
The drives have an extensive selection of built-in features and options. See page 96.
• Mechanical and electrical accessories which
provide full design to install the modules into
Rittal TS8 cabinets
DC bus
Supply
unit
Inverter
Inverter
Inverter
44
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Inverter units
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
S
N
Nominal apparent power.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C) the derating is 1%/1 °C.
1)
+A003 Uncontrolled diode bridge, +A018 Half-controlled diode bridge, +A004 12-pulse DSU.
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (1.5 to 2800 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
AC
(A)
I
max
AC
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(kW)
(m
3
/h)
Inverter modules (INU), ACS880-104
ACS880-104-004A8-3
R1i
4.8
7
1.5
4.5
1.5
4
1.5
47
0.07
24
ACS880-104-006A0-3
R1i
6
8.8
2.2
5.5
2.2
5
1.5
47
0.08
24
ACS880-104-008A0-3
R1i
8
10.5
3
7.6
3
6
2.2
47
0.09
24
ACS880-104-0011A-3
R2i
10.5
13.5
4
9.7
4
9
3
39
0.11
48
ACS880-104-0014A-3
R2i
14
16.5
5.5
13
5.5
11
4
39
0.14
48
ACS880-104-0018A-3
R2i
18
21
7.5
16.8
7.5
14
5.5
39
0.17
48
ACS880-104-0025A-3
R3i
25
33
11
23
11
19
7.5
63
0.2
142
ACS880-104-0035A-3
R3i
35
44
15
32
15
29
11
63
0.3
142
ACS880-104-0044A-3
R3i
44
53
18.5
41
18.5
35
15
71
0.35
200
ACS880-104-0050A-3
R3i
50
66
22
46
22
44
22
71
0.41
200
ACS880-104-0061A-3
R4i
61
78
30
57
30
52
22
70
0.5
290
ACS880-104-0078A-3
R4i
78
100
37
74
37
69
30
70
0.6
290
ACS880-104-0094A-3
R4i
94
124
45
90
45
75
37
70
0.74
290
ACS880-104-0100A-3
R4i
104
125
55
100
55
78
37
70
0.75
290
ACS880-104-0140A-3
R6i
141
183
75
135
75
105
55
71
1.1
650
ACS880-104-0170A-3
R6i
169
220
90
162
90
126
55
71
1.4
650
ACS880-104-0210A-3
R6i
206
268
110
198
110
154
75
71
1.8
650
ACS880-104-0250A-3
R6i
246
320
132
236
132
184
90
71
2
650
ACS880-104-0300A-3
R7i
300
390
160
288
160
224
110
72
2.5
940
ACS880-104-0350A-3
R7i
350
455
200
336
160
262
132
72
3.1
940
ACS880-104-0470A-3
R8i
470
620
250
451
250
352
160
72
4.8
1300
ACS880-104-0640A-3
R8i
640
840
355
614
315
479
250
72
6.7
1300
ACS880-104-0760A-3
R8i
760
990
400
730
400
568
315
72
8
1300
ACS880-104-0900A-3
R8i
900
1080
500
864
450
673
355
72
10
1300
ACS880-104-1250A-3
2×R8i
1250
1630
630
1200
630
935
500
74
13
2600
ACS880-104-1480A-3
2×R8i
1480
1930
800
1421
800
1107
630
74
16
2600
ACS880-104-1760A-3
2×R8i
1760
2120
1000
1690
900
1316
710
74
20
2600
ACS880-104-2210A-3
3×R8i
2210
2880
1200
2122
1200
1653
900
76
23
3900
ACS880-104-2610A-3
3×R8i
2610
3140
1400
2506
1400
1952
1000
76
30
3900
ACS880-104-3450A-3
4×R8i
3450
4140
1800
3312
1800
2581
1400
76
40
5200
ACS880-104-4290A-3
5×R8i
4290
5150
2400
4118
2000
3209
1800
77
50
6500
ACS880-104-5130A-3
6×R8i
5130
6160
2800
4925
2400
3837
2000
78
60
7800
45
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -X0 4
—
Ratings, types and voltages
Supply units
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (5.5 to 3788 kVA).
Drive type
Frame size
Nominal ratings No over-
load use
Light
overload
use
Heavy-
duty use
Noise
level
Heat
dissi-
pation
Air
flow
I
N
AC
(A)
I
N
DC
(A)
I
max
DC
(A)
S
N
(kVA)
P
N
DC
(kW)
I
Ld
DC
(A)
P
Ld
DC
(KW)
I
Hd
DC
(A)
P
Hd
DC
(kW) (dBA)
(kW) (m
3
/h)
IGBT supply modules (ISU), ACS880-204
ACS880-204-008A0-3
R1i+WFU-01
8
10
12.6
5.5
5.5
9.3
5.3
7.3
4.1
47
0.22
24
ACS880-204-0018A-3
R2i+WFU-02
18
22
28
12
12
21
12
16
9
39
0.5
48
ACS880-204-0035A-3
R3i+WFU-11
35
42
55
24
24
41
23
32
18
63
0.97
63
ACS880-204-0050A-3
R3i+WFU-21
50
61
79
35
34
58
33
45
26
71
1.39
200
ACS880-204-0093A-3
R4i+WFU-22
93
113
147
64
64
108
61
84
48
70
2.58
290
ACS880-204-0210A-3
R6i+ALCL-05-5
210
255
331
145
144
244
138
190
108
72
4.1
1150
ACS880-204-0420A-3
R8i+BLCL-13-5
423
513
667
293
290
492
279
384
217
72
9.2
2200
ACS880-204-0580A-3
R8i+BLCL-13-5
576
698
908
399
395
670
379
522
296
72
12
2200
ACS880-204-0810A-3
R8i+BLCL-15-5
810
982
1277
561
556
943
533
735
416
72
17.5
2200
ACS880-204-1130A-3
2×R8i+BLCL-24-5 1125 1364
1773
779
772 1309
741
1020
577
74
21.5
4100
ACS880-204-1330A-3
2×R8i+BLCL-24-5 1332 1615
2100
923
914 1550
877 1208
683
74
24
4100
ACS880-204-1580A-3
2×R8i+BLCL-25-5 1584 1921
2497 1097
1086 1844
1043
1437
813
74
31.8
4100
ACS880-204-2350A-3
3×R8i+2×BLCL-24-5 2349 2848
3703 1627
1611 2734
1547
2130
1205
76
47.1
6900
ACS880-204-3110A-3
4×R8i+2×BLCL-25-5 3105 3765
4894 2151
2130 3614
2045
2816
1593
76
63.1
8200
ACS880-204-4620A-3
6×R8i+3×BLCL-25-5 4617 5598
7278 3199
3167 5374
3040
4187
2369
78
94.6 12300
Regenerative rectifier units (RRU), ACS880-904
ACS880-904-0600A-3
1xR8i + BL-15-5
600
727
955
416
393
698
377
544
294
72
8.4
2200
ACS880-904-0900A-3
1xR8i + BL-15-5
900 1091
1433
624
589 1048
566
816
441
72
12.9
2200
ACS880-904-1180A-3
2xR8i + BL-25-5 1180 1431
1879
818
773 1374
742
1070
578
74
15.7
4100
ACS880-904-1770A-3
2xR8i + BL-25-5 1770 2146
2818 1226
1159 2060
1113 1605
867
74
25.2
4100
ACS880-904-2310A-3
4xR8i + 2xBL-25-5 2310 2801
3678 1600
1512 2689
1452 2095
1131
76
31.5
8200
ACS880-904-3460A-3
4xR8i + 2xBL-25-5 3460 4195
5509 2397
2265 4027
2175
3138
1695
76
50.4
8200
Diode supply modules (DSU), ACS880-304
6-pulse diode
1)
ACS880-304-0080A-3+A003
D6D
80
98
137
55
53
94
51
78
42
62
0.8
370
ACS880-304-0170A-3+A003
D6D
173
212
297
120
114
203
110
170
92
62
1.3
370
ACS880-304-0330A-3+A003
D7D
327
400
561
227
216
384
208
320
173
62
2
720
ACS880-304-0490A-3+A003
D7D
490
600
840
339
324
576
311
480
259
62
3
720
ACS880-304-0650A-3+A003
D8D
653
800
1120
452
432
768
415
640
345
65
4.5
900
ACS880-304-0980A-3+A003
D8D
980 1200
1680
679
648 1152
622
960
519
65
6
900
ACS880-304-0650A-3+A018
D8T
653
800
1120
453
432
768
415
598
323
72
5
1300
ACS880-304-0980A-3+A018
D8T
980 1200
1680
679
648 1152
622
898
485
72
7
1300
ACS880-304-1210A-3+A018
2×D8T 1215 1488
2083
842
804 1428
771
1113
601
74
9
2600
ACS880-304-1820A-3+A018
2×D8T 1822 2232
3125 1263
1205 2143
1157
1670
902
74
13
2600
ACS880-304-2730A-3+A018
3×D8T 2734 3348
4687 1894
1808 3214
1736 2504
1352
76
20
3900
ACS880-304-3640A-3+A018
4×D8T 3645 4464
6250 2525
2411 4285
2314
3339
1803
76
27
5200
ACS880-304-4560A-3+A018
5×D8T 4556 5580
7812 3157
3013 5357
2893
4174
2254
77
33
6500
ACS880-304-5470A-3+A018
6×D8T 5467 6696
9374 3788
3616 6428
3471 5009
2705
78
40
7800
12-pulse diode
1)
ACS880-304-0910A-3+A004+A018
2×D7T
911 1116
1562
631
625 1071
600
835
467
74
8
1800
ACS880-304-1210A-3+A004+A018
2×D8T 1215 1488
2083
842
833 1428
800
1113
623
74
9
2600
ACS880-304-1820A-3+A004+A018
2×D8T 1822 2232
3125 1263
1250 2143
1200
1670
935
74
13
2600
ACS880-304-2430A-3+A004+A018
4×D8T 2430 2976
4166 1683
1667 2857
1600
2226
1247
76
18
5200
ACS880-304-3640A-3+A004+A018
4×D8T 3645 4464
6250 2525
2500 4285
2400
3339
1870
76
27
5200
ACS880-304-5470A-3+A004+A018
6×D8T 5467 6696
9374 3788
3750 6428
3600 5009
2805
78
40
7800
46
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Inverter modules
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (1.5 to 3200 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
AC
(A)
I
max
AC
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(kW)
(m
3
/h)
Inverter modules (INU), ACS880-104
ACS880-104-003A6-5
R1i
3.6
5.3
1.5
3.4
1.5
3
1.5
47
0.06
24
ACS880-104-004A8-5
R1i
4.8
7
2.2
4.5
2.2
4
1.5
47
0.07
24
ACS880-104-006A0-5
R1i
6
8.8
3
5.5
3
5
2.2
47
0.08
24
ACS880-104-008A0-5
R1i
8
10.5
4
7.6
4
6
3
47
0.09
24
ACS880-104-0011A-5
R2i
10.5
13.5
5.5
9.7
5.5
9
4
39
0.13
48
ACS880-104-0014A-5
R2i
14
16.5
7.5
13
7.5
11
5.5
39
0.15
48
ACS880-104-0018A-5
R2i
18
21
11
16.8
11
14
7.5
39
0.18
48
ACS880-104-0025A-5
R3i
25
33
15
23
15
19
11
63
0.23
142
ACS880-104-0030A-5
R3i
30
36
18.5
28
18.5
24
15
63
0.28
142
ACS880-104-0035A-5
R3i
35
44
22
32
22
29
18.5
63
0.32
142
ACS880-104-0050A-5
R3i
50
66
30
46
30
44
22
71
0.48
200
ACS880-104-0061A-5
R4i
61
78
37
57
37
52
30
70
0.55
290
ACS880-104-0078A-5
R4i
78
100
45
74
45
69
45
70
0.65
290
ACS880-104-0094A-5
R4i
94
124
55
90
55
75
45
70
0.8
290
ACS880-104-0110A-5
R6i
113
147
75
108
75
85
55
71
1
650
ACS880-104-0140A-5
R6i
136
177
90
131
90
102
55
71
1.2
650
ACS880-104-0170A-5
R6i
165
215
110
158
110
123
75
71
1.5
650
ACS880-104-0200A-5
R6i
197
256
132
189
132
147
90
71
1.8
650
ACS880-104-0240A-5
R6i
240
312
160
230
160
180
110
71
2
650
ACS880-104-0300A-5
R7i
302
393
200
290
200
226
132
72
2.7
940
ACS880-104-0340A-5
R7i
340
442
250
326
200
254
160
72
3.2
940
ACS880-104-0440A-5
R8i
440
580
250
422
250
329
200
72
4.7
1300
ACS880-104-0590A-5
R8i
590
770
400
566
355
441
250
72
6.3
1300
ACS880-104-0740A-5
R8i
740
970
500
710
450
554
355
72
8.1
1300
ACS880-104-0810A-5
R8i
810
1060
560
778
500
606
400
72
9.3
1300
ACS880-104-1150A-5
2×R8i
1150
1500
800
1104
710
860
560
74
12
2600
ACS880-104-1450A-5
2×R8i
1450
1890
1000
1392
900
1085
710
74
16
2600
ACS880-104-1580A-5
2×R8i
1580
2060
1100
1517
1000
1182
800
74
18
2600
ACS880-104-2150A-5
3×R8i
2150
2800
1500
2064
1400
1608
1100
76
24
3900
ACS880-104-2350A-5
3×R8i
2350
3060
1600
2256
1500
1758
1200
76
27
3900
ACS880-104-3110A-5
4×R8i
3110
4050
2000
2986
2000
2326
1600
76
36
5200
ACS880-104-3860A-5
5×R8i
3860
5020
2400
3706
2400
2887
2000
77
44
6500
ACS880-104-4610A-5
6×R8i
4610
6000
3200
4426
2800
3448
2400
78
53
7800
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
S
N
Nominal apparent power.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C) the derating is 1%/1 °C.
1)
+A003 Uncontrolled diode bridge, +A018 Half-controlled diode bridge, +A004 12-pulse DSU.
47
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -X0 4
—
Ratings, types and voltages
Supply units
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 400 V (5.7 to 4735 kVA).
Drive type
Frame size
Nominal ratings No over-
load use
Light
overload
use
Heavy-
duty use
Noise
level
Heat
dissi-
pation
Air
flow
I
N
AC
(A)
I
N
DC
(A)
I
max
DC
(A)
S
N
(kVA)
P
N
DC
(kW)
I
Ld
DC
(A)
P
Ld
DC
(KW)
I
Hd
DC
(A)
P
Hd
DC
(kW) (dBA)
(kW) (m
3
/h)
IGBT supply modules (ISU), ACS880-204
ACS880-204-006A6-5
R1i+WFU-01
6.6
8
10.4
5.7
6
7.7
5.4
6
4.2
47
0.22
24
ACS880-204-0015A-5
R2i+WFU-02
15
18
24
13
13
17
12.3
14
9.6
39
0.5
48
ACS880-204-0029A-5
R3i+WFU-11
29
35
46 25.1
25
34
23.9
26
18.6
63
0.97
63
ACS880-204-0041A-5
R3i+WFU-21
41
50
65 35.5
35
48
33.7
37
26.3
71
1.39
200
ACS880-204-0077A-5
R4i+WFU-22
77
93
121 66.7
66
90
63.4
70
49.4
70
2.58
290
ACS880-204-0210A-5
R6i+ALCL-05-5
210
255
331
182
180
244
173
190
135
72
4.2
1150
ACS880-204-0400A-5
R8i+BLCL-13-5
396
480
624
343
340
461
326
359
254
72
9.2
2200
ACS880-204-0530A-5
R8i+BLCL-13-5
531
644
837
460
455
618
437
482
341
72
11.5
2200
ACS880-204-0730A-5
R8i+BLCL-15-5
729
884
1149
631
625
849
600
661
468
72
16.7
2200
ACS880-204-1040A-5
2×R8i+BLCL-24-5 1035 1255
1631
896
887 1205
852
939
664
74
20.8
4100
ACS880-204-1420A-5
2×R8i+BLCL-25-5 1422 1724
2241 1231
1219 1655
1170 1290
912
74
29.4
4100
ACS880-204-2120A-5
3×R8i+2×BLCL-24-5 2115 2564
3334 1832
1813 2462
1741
1918
1356
76
43.9
6900
ACS880-204-2800A-5
4×R8i+2×BLCL-25-5 2799 3394
4412 2424
2400 3258
2304 2539
1795
76
58.5
8200
ACS880-204-4150A-5
6×R8i+3×BLCL-25-5 4149 5031
6540 3593
3557 4829
3415
3763
2661
78
87.6 12300
Regenerative rectifier units (RRU), ACS880-904
ACS880-904-0600A-5
1xR8i + BL-15-5
600
727
955
520
491
698
471
544
367
72
8.5
2200
ACS880-904-0900A-5
1xR8i + BL-15-5
900 1091
1433
779
737 1047
707
816
551
72
13
2200
ACS880-904-1180A-5
2xR8i + BL-25-5 1180 1431
1879 1022
966 1374
927
1070
722
74
16.1
4100
ACS880-904-1770A-5
2xR8i + BL-25-5 1770 2146
2818 1533
1449 2060
1391 1605
1084
74
25.6
4100
ACS880-904-2310A-5
4xR8i + 2xBL-25-5 2310 2801
3678 2001
1891 2689
1815 2095
1414
76
32.2
8200
ACS880-904-3460A-5
4xR8i + 2xBL-25-5 3460 4195
5509 2996
2832 4027
2719
3138
2118
76
51.1
8200
Diode supply modules (DSU), ACS880-304
6-pulse diode
1)
ACS880-304-0080A-5+A003
D6D
80
98
137
69
66
94
63
78
53
62
0.8
370
ACS880-304-0170A-5+A003
D6D
173
212
297
150
143
203
137
170
114
62
1.3
370
ACS880-304-0330A-5+A003
D7D
327
400
561
283
270
384
260
320
216
62
2
720
ACS880-304-0490A-5+A003
D7D
490
600
840
424
405
576
389
480
324
62
3
720
ACS880-304-0650A-5+A003
D8D
653
800
1120
566
540
768
518
640
432
65
4.5
900
ACS880-304-0980A-5+A003
D8D
980 1200
1680
849
810 1152
778
960
648
65
6
900
ACS880-304-0650A-5+A018
D8T
653
800
1120
566
540
768
518
598
404
72
5
1300
ACS880-304-0980A-5+A018
D8T
980 1200
1680
849
810 1152
778
898
606
72
7
1300
ACS880-304-1210A-5+A018
2×D8T 1215 1488
2083 1052
1004 1428
964
1113
751
74
9
2600
ACS880-304-1820A-5+A018
2×D8T 1822 2232
3125 1578
1507 2143
1446
1670
1127
74
13
2600
ACS880-304-2730A-5+A018
3×D8T 2734 3348
4687 2367
2260 3214
2170 2504
1690
76
20
3900
ACS880-304-3640A-5+A018
4×D8T 3645 4464
6250 3157
3013 4285
2893
3339
2254
76
27
5200
ACS880-304-4560A-5+A018
5×D8T 4556 5580
7812 3946
3767 5357
3616
4174
2817
77
33
6500
ACS880-304-5470A-5+A018
6×D8T 5467 6696
9374 4735
4520 6428
4339 5009
3381
78
40
7800
12-pulse diode
1)
ACS880-304-0910A-5+A004+A018
2×D7T
911 1116
1562
789
781 1071
750
835
584
74
8
1800
ACS880-304-1210A-5+A004+A018
2×D8T 1215 1488
2083 1052
1042 1428
1000
1113
779
74
9
2600
ACS880-304-1820A-5+A004+A018
2×D8T 1822 2232
3125 1578
1562 2143
1500
1670
1169
74
13
2600
ACS880-304-2430A-5+A004+A018
4×D8T 2430 2976
4166 2104
2073 2857
2000
2226
1558
76
18
5200
ACS880-304-3640A-5+A004+A018
4×D8T 3645 4464
6250 3157
3125 4285
3000
3339
2337
76
27
5200
ACS880-304-5470A-5+A004+A018
6×D8T 5467 6696
9374 4735
4687 6428
4500 5009
3506
78
40
7800
48
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Inverter modules
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (4 to 3200 kW).
Drive type
Frame
size
Nominal ratings Light overload use
Heavy-duty use
Noise
level
Heat
dissipation
Air
flow
I
N
AC
(A)
I
max
AC
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
(kW)
(m
3
/h)
Inverter modules (INU), ACS880-104
ACS880-104-007A3-7
R5i
7.3
9.5
5.5
6.9
5.5
5.6
4
62
0.22
280
ACS880-104-009A8-7
R5i
9.8
12.7
7.5
9.3
7.5
7.3
5.5
62
0.28
280
ACS880-104-014A2-7
R5i
14.2
18.5
11
13.5
11
9.8
7.5
62
0.4
280
ACS880-104-0018A-7
R5i
18
23.4
15
17.1
15
14.2
11
62
0.49
280
ACS880-104-0022A-7
R5i
22
29
18.5
20.9
18.5
18
15
62
0.58
280
ACS880-104-0027A-7
R5i
27
35
22
25.7
22
22
18.5
62
0,66
280
ACS880-104-0035A-7
R5i
35
46
30
33.3
30
27
22
62
0,86
280
ACS880-104-0042A-7
R5i
42
55
37
39.9
37
35
30
62
1
280
ACS880-104-0052A-7
R5i
52
68
45
49.4
45
42
37
62
1.12
280
ACS880-104-0062A-7
R6i
62
81
55
60
55
46
45
71
0.8
650
ACS880-104-0082A-7
R6i
82
107
75
79
75
61
55
71
1.1
650
ACS880-104-0100A-7
R6i
99
129
90
95
90
74
75
71
1.3
650
ACS880-104-0130A-7
R6i
125
163
110
120
110
94
75
71
1.5
650
ACS880-104-0140A-7
R6i
144
187
132
138
132
108
90
71
1.8
650
ACS880-104-0190A-7
R6i
192
250
160
184
160
144
132
71
2.5
650
ACS880-104-0220A-7
R7i
217
282
200
208
200
162
160
72
2.8
940
ACS880-104-0270A-7
R7i
270
351
250
259
250
202
200
72
3.3
940
ACS880-104-0340A-7
R8i
340
510
315
326
250
254
200
72
5.2
1300
ACS880-104-0410A-7
R8i
410
620
400
394
355
307
250
72
6.1
1300
ACS880-104-0530A-7
R8i
530
800
500
509
450
396
355
72
7.9
1300
ACS880-104-0600A-7
R8i
600
900
560
576
560
449
400
72
9
1300
ACS880-104-0800A-7
2×R8i
800
1200
800
768
710
598
560
74
12
2600
ACS880-104-1030A-7
2×R8i
1030
1550
1000
989
900
770
710
74
15
2600
ACS880-104-1170A-7
2×R8i
1170
1760
1100
1123
1000
875
800
74
18
2600
ACS880-104-1540A-7
3×R8i
1540
2310
1400
1478
1400
1152
1100
76
23
3900
ACS880-104-1740A-7
3×R8i
1740
2610
1600
1670
1600
1302
1200
76
26
3900
ACS880-104-2300A-7
4×R8i
2300
3450
2000
2208
2000
1720
1600
76
35
5200
ACS880-104-2860A-7
5×R8i
2860
4290
2800
2746
2400
2139
2000
77
43
6500
ACS880-104-3420A-7
6×R8i
3420
5130
3200
3283
3200
2558
2400
78
52
7800
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
S
N
Nominal apparent power.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C) the derating is 1%/1 °C.
1)
+A018 Half-controlled diode bridge, +A004 12-pulse DSU
49
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -X0 4
—
Ratings, types and voltages
Supply units
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (366 to 5445 kVA).
Drive type
Frame size
Nominal ratings No over-
load use
Light
overload
use
Heavy-
duty use
Noise
level
Heat
dissi-
pation
Air
flow
I
N
AC
(A)
I
N
DC
(A)
I
max
DC
(A)
S
N
(kVA)
P
N
DC
(kW)
I
Ld
DC
(A)
P
Ld
DC
(KW)
I
Hd
DC
(A)
P
Hd
DC
(kW) (dBA)
(kW) (m
3
/h)
IGBT supply modules (ISU), ACS880-204
ACS880-204-0310A-7
R8i+BLCL-13-7
306
371
557
366
362
356
348
278
271
72
11.8
2200
ACS880-204-0370A-7
R8i+BLCL-13-7
369
447
671
441
437
430
419
335
327
72
13.5
2200
ACS880-204-0540A-7
R8i+BLCL-15-7
540
655
982
645
639
629
613
490
478
72
17.6
2200
ACS880-204-0720A-7
2×R8i+BLCL-24-7
720
873
1309
860
852
838
818
653
637
74
23.2
4100
ACS880-204-1050A-7
2×R8i+BLCL-25-7 1053 1277
1915 1258
1246 1226
1196
955
932
74
31.7
4100
ACS880-204-1570A-7
3×R8i+2×BLCL-24-7 1566 1899
2848 1872
1853 1823
1779 1420
1386
76
49.6
6900
ACS880-204-2070A-7
4×R8i+2×BLCL-25-7 2070 2510
3765 2474
2449 2409
2351
1877
1832
76
63
8200
ACS880-204-3080A-7
6×R8i+3×BLCL-25-7 3078 3732
5598 3679
3642 3583
3496
2792
2724
78
94.4 12300
Regenerative rectifier units (RRU), ACS880-904
ACS880-904-0600A-7
1xR8i + BL-15-7
600
727
1102
717
678
698
651
544
507
72
9.8
2200
ACS880-904-0900A-7
1xR8i + BL-15-7
900 1091
1653 1076
1016 1048
976
816
760
72
14.3
2200
ACS880-904-1180A-7
2xR8i + BL-25-7 1180 1431
2168 1410
1333 1374
1279
1070
997
74
18.5
4100
ACS880-904-1770A-7
2xR8i + BL-25-7 1770 2146
3252 2115
1999 2060
1919 1605
1495
74
28.1
4100
ACS880-904-2310A-7
4xR8i + 2xBL-25-7 2310 2801
4244 2761
2609 2689
2505 2095
1952
76
37.1
8200
ACS880-904-3460A-7
4xR8i + 2xBL-25-7 3460 4195
6356 4135
3908 4027
3752
3138
2923
76
56.2
8200
Diode supply modules (DSU), ACS880-304
6-pulse diode
1)
ACS880-304-0570A-7+A018
D8T
572
700
980
683
652
672
626
524
488
72
5
1300
ACS880-304-0820A-7+A018
D8T
816 1000
1400
976
932
960
894
748
697
72
6
1300
ACS880-304-1060A-7+A018
2×D8T 1063 1302
1823 1271
1213 1250
1164
974
907
74
9
2600
ACS880-304-1520A-7+A018
2×D8T 1519 1860
2604 1815
1733 1786
1663
1391
1296
74
13
2600
ACS880-304-2280A-7+A018
3×D8T 2278 2790
3906 2723
2599 2678
2495 2087
1944
76
19
3900
ACS880-304-3040A-7+A018
4×D8T 3037 3720
5208 3630
3465 3571
3327
2783
2592
76
26
5200
ACS880-304-3800A-7+A018
5×D8T 3797 4650
6510 4538
4331 4464
4158
3478
3240
77
32
6500
ACS880-304-4560A-7+A018
6×D8T 4556 5580
7812 5445
5198 5357
4990
4174
3888
78
38
7800
12-pulse diode
1)
ACS880-304-0760A-7+A004+A018
2×D7T
759
930
1302
908
898
893
862
696
672
74
8
1800
ACS880-304-1060A-7+A004+A018
2×D8T 1063 1302
1823 1271
1258 1250
1207
974
941
74
9
2600
ACS880-304-1520A-7+A004+A018
2×D8T 1519 1860
2604 1815
1797 1786
1725
1391
1344
74
13
2600
ACS880-304-2130A-7+A004+A018
4×D8T 2126 2604
3646 2541
2515 2500
2415 1948
1882
76
18
5200
ACS880-304-3040A-7+A004+A018
4×D8T 3037 3720
5208 3630
3594 3571
3450
2783
2688
76
26
5200
ACS880-304-4560A-7+A004+A018
6×D8T 4556 5580
7812 5445
5390 5357
5175
4174
4032
78
38
7800
50
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Liquid-cooled modules
ACS880-X04LC and ACS880-1007LC
The compact and robust ACS880 liquid-cooled
drive modules with direct liquid cooling are an
ultimate solution for various applications where
space savings, silent operation or durability in
harsh environments is a must.
Advanced liquid-cooling and compact design
Liquid-cooling offers easy heat transfer without
air filtering problems. Since the coolant takes
care of 98% of the heat losses, no additional
filtered air-cooling is needed. This increases the
total efficiency of the drive installation.
The ACS880 liquid-cooled modules have high
power density making their design extremly
compact. The small footprint enables significant
space and weight reduction.
—
Optimal for harsh environmental
conditions
Optimal solution for different environments
The possibility to have totally enclosed cabinet
structure makes the ACS880 liquid-cooled
modules perfect for harsh environmental
conditions. The modules can even be integrated
into explosion-proof enclosures for installations
in hazardous locations.
The ACS880 liquid-cooled offering fulfills marine
and offshore requirements. The modules have
marine type approvals from various key
classification bodies.
As the direct liquid cooling enables silent
operation, the ACS880 liquid-cooled modules
are suitable for applications where noise levels
are an important environmental factor.
Simple and cost efficient installation
The high-efficient liquid cooling removes the
need for air-conditioning in the installation
rooms, bringing the installation and operation
costs down. As there is no need for additional
air conditioning devices or air ducts, the
installation is significantly simplified.
The used coolant type is Antifrogen® L,
by Clariant International Ltd, cooling liquid
with glycol and inhibitor. It is a ready-made,
commercially available mix, which enables
easy comissioning and prevents the risk of
errors in coolant selection.
—
Robust, reliable and compact
Wide selection of drive module products
Covering a wide power range with very small
foorprint, the liquid-cooled ACS880 is available
for single and multidrive purposes. The product
family includes compact diode supply and
inverter units with parallel connceted modules.
Optional stand-alone liquid cooling units are
offered for cooling the modules. All piping and
heat exchangers can be combined to the same
closed-loop cooling system.
In addition ABB offers an extensive selection of
electrical and mechanical installation accessories
including piping components. These minimize
cabinet engineering and assembly effort and
ensure a safe, tested cabinet design.
51
L I Q U I D - CO O L ED M O D U L E S , AC S 8 8 0 -X0 4 LC A N D AC S 8 8 0 -10 07 LC
Liquid-cooled modules, ACS880-X04LC
• Power ratings:
Supply modules: 745 to 3466 kW
Inverter modules: 250 to 3000 kW
Brake choppers: 54 to 714 kW
• Enclosure class: IP00
• Three phase inverter modules with internal
du/dt filters as standard
• Quick connectors for cooling pipes and motor
cable output connection
Main options:
• Support for 6/12/24-pulse network
configurations
• Electrical and mechanical installation
accessories including piping components
• Wide selection of ACS880 options, such as I/O
extension and fieldbus adapter modules
Higlights
• Advanced liquid-cooling which reduces the
need for air-cooling in installation rooms
• High power density with compact design
• Optimized design for cabinet assembly
The drives have an extensive selection of built-in features and options. See page 96.
Liquid cooling unit, ACS880-1007LC
• Power ratings: 70 to 195 kW cooling power
• Enclosure class: IP54
• Stand-alone cabinet with cooling pipe
connections on the right side
• Built-in cabinet heater
• Heat exchanger for industrial cooling water
• Fulfils marine requirements
Main options:
• Single pump and two pump versions
• Redundant pump version
• Different piping solutions and sea water heat
exchanger available as engineered variants
—

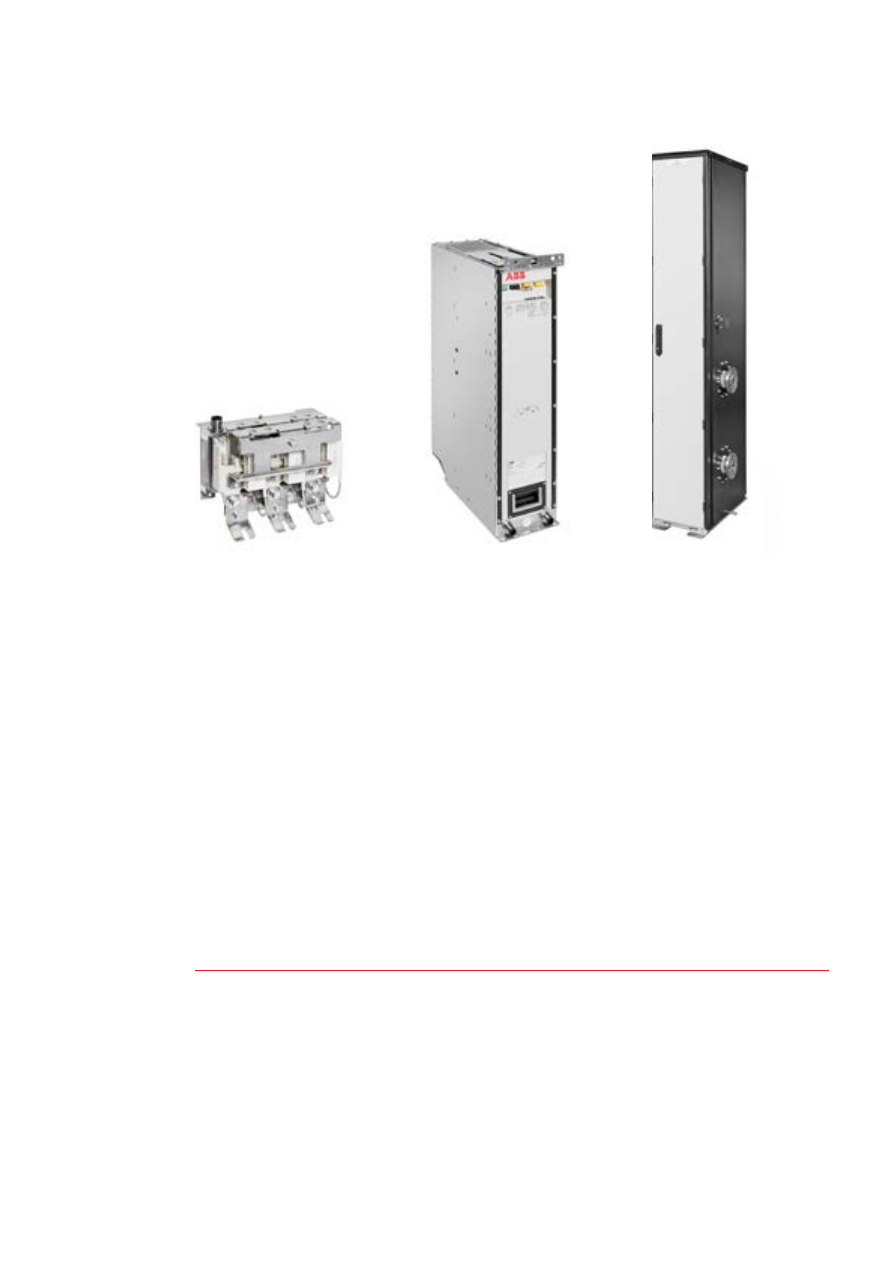

01 ACS880-304LC
diode supply module,
frame D8D
—
02 ACS880-104LC
inverter module,
frame R8i
—
03 ACS880-1007LC
liquid cooling unit,
70 kW
—
01
—
02
—
03
• Silent operation
• Suitable for harsh environments
• Marine approvals from various key
classification bodies
52
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Ratings, types and voltages
Liquid-cooled modules
ACS880-X04LC
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (250 to 3000 kW).
Inverter module type
Frame size
Nominal ratings
Light overload use
Heavy-duty use
Noise
level
1)
Losses
2)
Coolant
flow rate
I
N
(A)
I
max
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW)
(dBA)
P
loss
(kW)
(l/min)
Liquid-cooled inverter modules (INU), ACS880-104LC
ACS880-104LC-0390A-7
R8i
390
590
355
374
355
292
250
63
4.9
16
ACS880-104LC-0430A-7
R8i
430
650
400
413
355
322
250
63
5.4
16
ACS880-104LC-0480A-7
R8i
480
720
450
461
400
359
315
63
6.2
16
ACS880-104LC-0530A-7
R8i
530
800
500
509
450
396
355
63
7
16
ACS880-104LC-0600A-7
R8i
600
900
560
576
560
449
400
63
8
16
ACS880-104LC-0670A-7
R8i
670
1010
630
643
630
501
450
63
9.2
16
ACS880-104LC-0750A-7
R8i
750
1130
710
720
710
561
450
63
10.6
16
ACS880-104LC-0850A-7
R8i
850
1280
800
816
800
636
560
63
12.5
16
ACS880-104LC-1030A-7
2xR8i
1030
1550
1000
989
900
770
710
66
13.6
32
ACS880-104LC-1170A-7
2xR8i
1170
1760
1100
1123
1100
875
800
66
15.6
32
ACS880-104LC-1310A-7
2xR8i
1310
1970
1200
1258
1200
980
900
66
17.9
32
ACS880-104LC-1470A-7
2xR8i
1470
2210
1400
1411
1200
1100
1000
66
20.8
32
ACS880-104LC-1660A-7
2xR8i
1660
2490
1600
1594
1400
1242
1200
66
24.2
32
ACS880-104LC-1940A-7
3xR8i
1940
2910
1800
1862
1800
1451
1400
68
26.7
48
ACS880-104LC-2180A-7
3xR8i
2180
3270
2000
2093
2000
1631
1400
68
30.8
48
ACS880-104LC-2470A-7
3xR8i
2470
3710
2300
2371
2300
1848
1800
68
35.9
48
ACS880-104LC-2880A-7
4xR8i
2880
4320
2700
2765
2700
2154
2000
69
40.7
64
ACS880-104LC-3260A-7
4xR8i
3260
4890
3000
3130
3000
2438
2300
69
47.2
64
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (745 to 3466 kW).
Supply module type
Frame
size
Nominal ratings
Light
overload use
Heavy-
duty use
Noise
level
1)
Losses
2)
Coolant
flow rate
I
N
AC
(A)
I
N
DC
(A)
I
max
DC
(A)
S
N
(kVA)
P
N
DC
(kW)
I
Ld
DC
(A)
P
Ld
DC
(kW)
I
Hd
DC
(A)
P
Hd
DC
(kW)
(dBA)
P
loss
(kW)
(l/min)
Liquid-cooled diode supply modules (DSU), ACS880-304LC
ACS880-304LC-0820A-7+A019
1xD8D
820
1000
1500
980
932
960
895
800
745
63
3.5
12
ACS880-304LC-1540A-7+A019
2xD8D
1540
1880
2820
1840
1752
1805
1682
1504
1401
63
6.6
12
ACS880-304LC-2290A-7+A019
3xD8D
2290
2805
4208
2737
2614
2693
2509
2244
2091
63
9.8
24
ACS880-304LC-3040A-7+A019
4xD8D
3040
3720
5580
3633
3466
3571
3328
2976
2773
63
13
24
1)
Noise level in a typical cabinet installation.
2)
In totally enclosed cabinet 98% of losses are conducted to coolant, 2% to ambient air.
Nominal ratings
I
N
Rated current available continuously without overloadability
P
N
Typical motor power in no-overload use
S
N
Nominal apparent (AC) power
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by module temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes
P
Hd
Typical motor power in heavy-duty use.
Losses
P
loss
Power loss conducted to coolant and emitted to air
The ratings apply at an ambient air temperature of 45 °C and a coolant temperature of 40 °C.
53
R AT I N G S , T Y P E S A N D VO LTAG E S: AC S 8 8 0 -10 07 LC
—
Ratings, types and voltages
Stand-alone liquid cooling unit,
ACS880-1007LC
Range 380 to 690 V
Liquid-cooling unit type
Nominal ratings
Noise
level
Losses
Internal
flow
1)
External
flow
2)
Internal
coolant
volume
External
coolant
volume
P
max
(kW)
(l)
(l)
(dBA)
P
loss total
(kW)
P
loss coolant
(kW)
P
loss air
(kW)
P
drop
(kPa)
(l/min)
(l/min)
ACS880-1007LC-0070
3)
70
17
3
55
0.4
0.3
0.1
150
81/107
120
ACS880-1007LC-0195+C140
3)
/C141
4)
195
31/35
8
55
1.3
1.0
0.3
150
270/355
467
ACS880-1007LC-0195+C123
5)
195
35
8
57
2.1
1.8
0.3
150
310/415
467
1)
120 kPa, Antifrogen® L 25%, 40 °C, 50/60 Hz
2)
36 °C water
3)
Single pump
4)
Redundant, one pump running at a time
5)
Two pumps running
Nominal ratings
P
max
Maximum nominal cooling power
Internal flow
Nominal coolant flow rate from the liquid cooling unit to the drive modules
External flow
Nominal coolant flow rate to the liquid cooling unit from an external cooling circuit
Losses
P
loss total
Power loss conducted to coolant and emitted to air
P
loss coolant
Power loss conducted to coolant
P
loss air
Power loss emitted to air (ambient room)
P
drop
Pressure loss in external cooling unit
54
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—

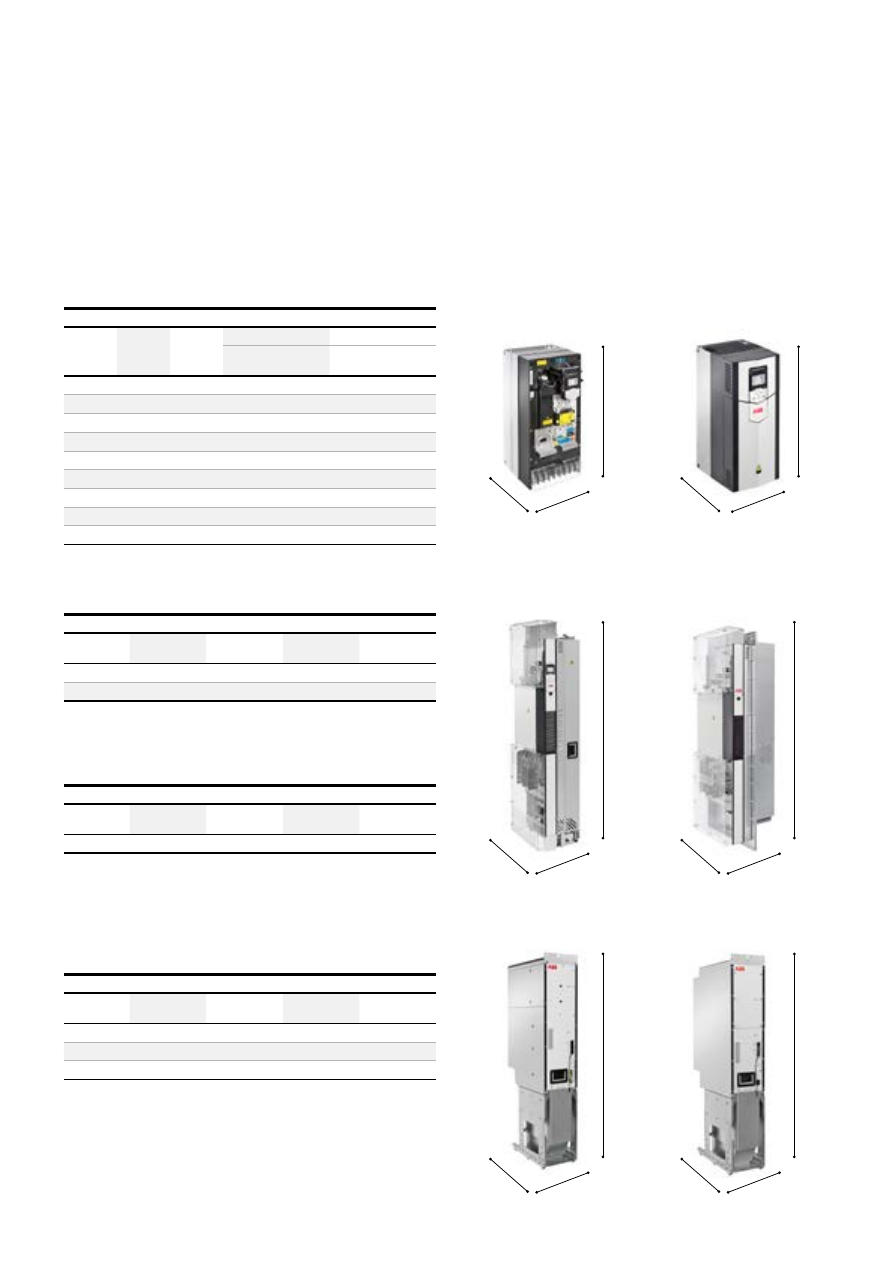

Dimensions
ACS880 drive modules
—
ACS880-04F
—
ACS880-04
—
ACS880-04 D8T
—
ACS880 -04 R8i
ACS880-01+P940, IP20
Frame
size
Height
Width
Depth
Weight
(mm)
(mm)
+P940
(mm)
+P944
(mm)
+P940
(kg)
+P944
(kg)
R1
376
1)
155
226
226
6.1
6.5
R2
376
1)
155
249
249
7.5
7.9
R3
436
1)
173
261
261
9.6
10.1
R4
563
1)
203
333
274
17.1
17.8
R5
653
1)
203
333
274
20.5
21.4
R6
593
252
357
357
38.7
39.5
R7
645
284
365
365
48.0
49.0
R8
724
300
386
386
61.0
62.0
R9
723
380
413
413
86.0
87.0
1)
Comes with main power clamp.
—
ACS880-01+P940
—
ACS880-01+P944
ACS880-04/04XT, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R10
1541
2)
350
2)
506
161
R11
1741
2)
350
2)
506
199
2)
Without pedestal (+0H354) and without IP20 shrouds and full-size
terminals (+0B051+0H371) height is 179 mm less and width 45 mm
less. More information from hardware manual.
ACS880-04F, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R11
1647
3)
620
3)
404
230
3)
Without IP shrouds (+0B051) and full size output bus bars (+0H371)
but with flange.
ACS880-04 module packages nxR8i, IP00
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R8i
1397
240
583
125
D7T
1178
170
417
80
D8T
1397
240
585
180
D
H
W
D
H
W
D
H
W
D
H
W
D
H
W
D
H
W
55

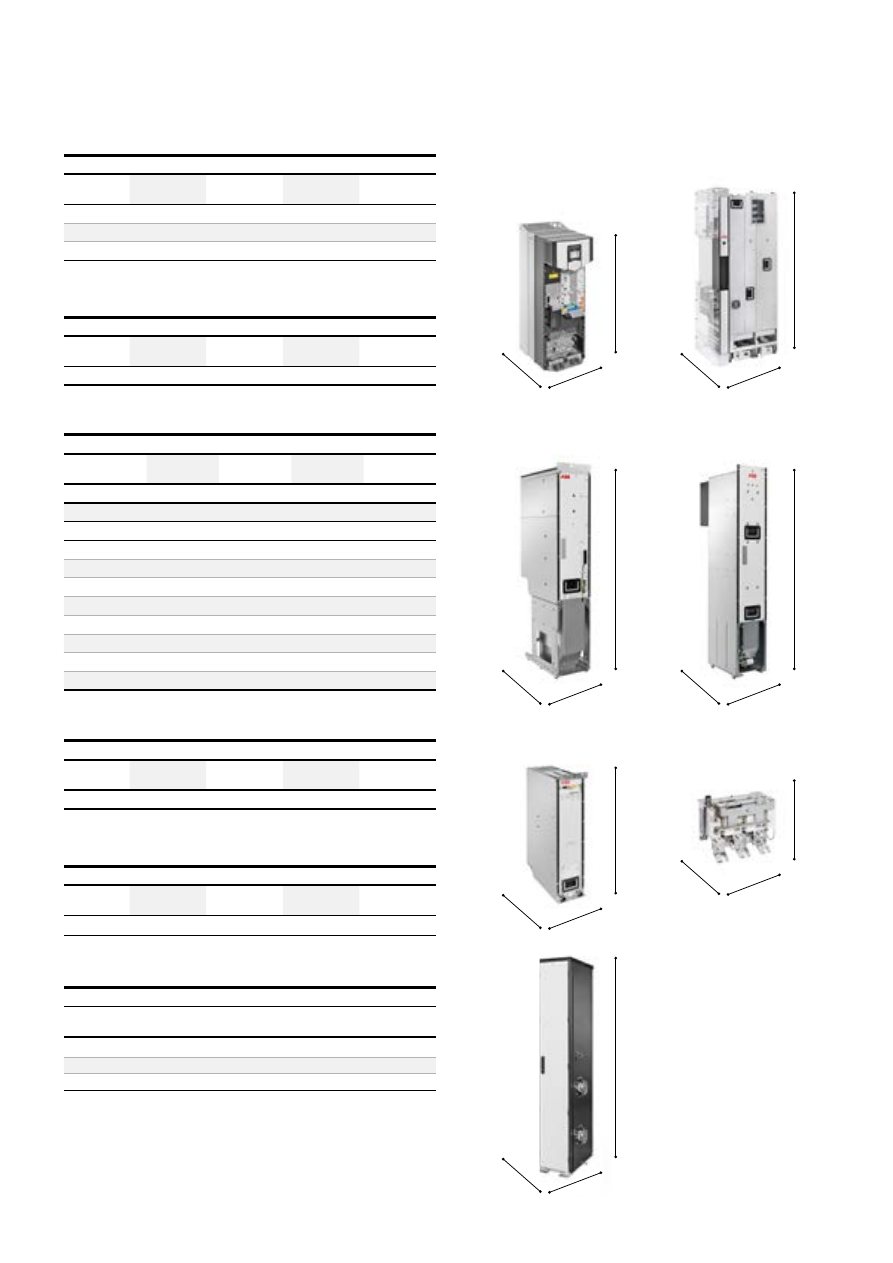

D I M EN S I O N S , AC S 8 8 0 D R I V E M O D U L E S
—
BLCL filter
—
ACS880-14/34 R8i
—
ACS880-304LC
—
ACS880-104LC
—
ACS880-1007LC
—
ACS880-11/31+P940
—
ACS880-14/34 R11
ACS880-11/31+P940, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R3
490
203
349
18.3
R6
771
252
358
59
R8
965
300
430
99/109
1)
1)
99 kg for 105A-3, 145A-3, 101A-5 and 124A-5.
109 kg for 169A-3, 206A-3, 156A-5 and 180A-5.
ACS880-14/34 frame R11, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R11
1741
713
512
365
ACS880-14/34 module packages, IP00
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
Multidrive module
R8i
1397
240
583
125
LCL line filter
BLCL-13-5
1397
240
505
181
BLCL-15-5
1397
240
505
224
BLCL-24-5
1397
240
581
320
BLCL-25-5
1397
240
581
324
BLCL-13-7
1397
240
505
178
BLCL-15-7
1397
240
505
217
BLCL-24-7
1397
240
581
301
BLCL-25-7
1397
240
581
310
ACS880-104LC, IP00
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R8i
880
210
487
59/63
2)
2)
59 kg for 0390A-7 to 0530A-7.
63 kg for 0600A-7 to 0850A-7.
ACS880-304LC, IP00
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
D8D
242
170
292
12
ACS880-1007LC, IP54
Unit type
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
ACS880-1007LC-0070
2003
330
636
200
ACS880-1007LC-0195+C140
2003
630
636
340
ACS880-1007LC-0195+C141/C213
2003
630
636
400
D
H
W
D
H
W
D
H
W
D
H
W
D
H
W
D
H
W
D
H
W
56
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
D
H
W
D
H
W
—

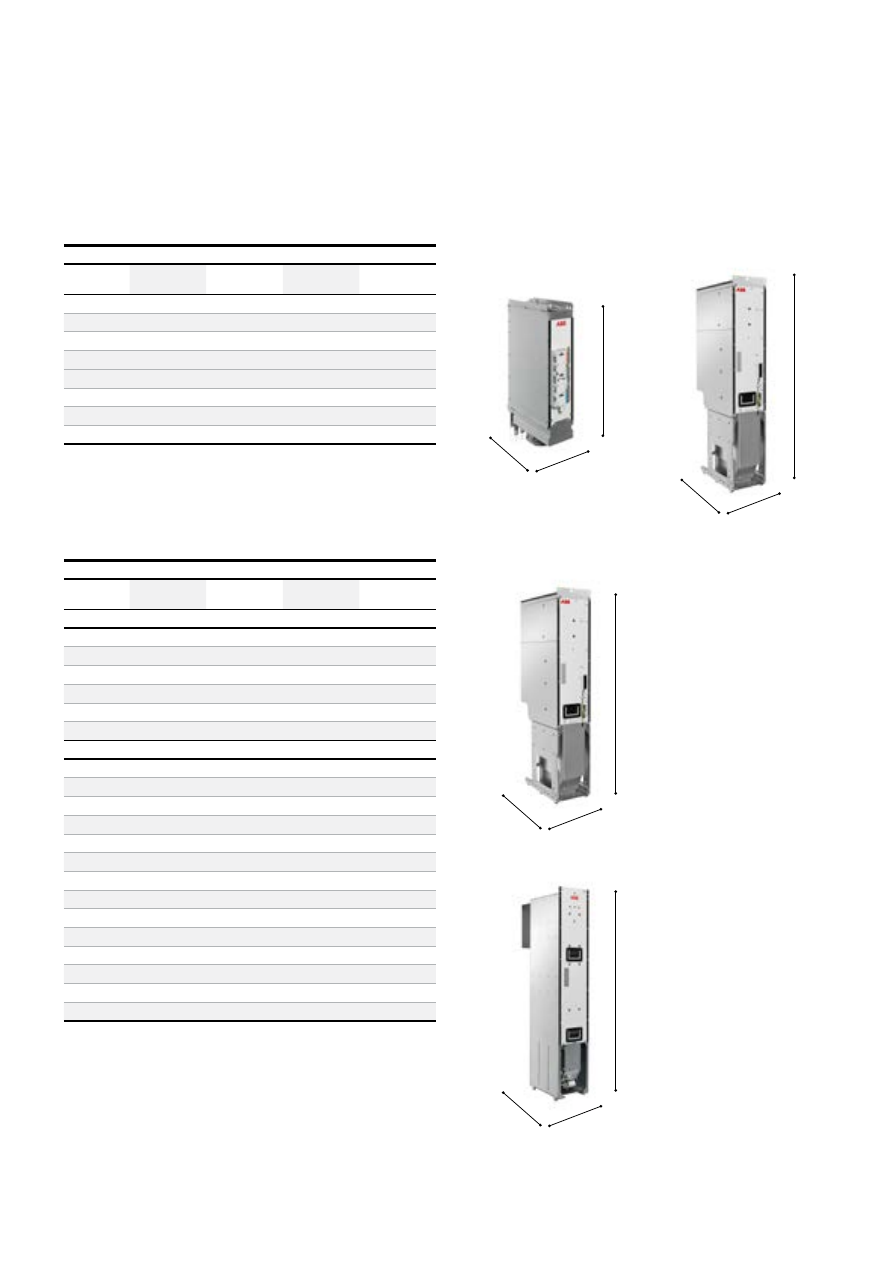

BLCL filter
—
ACS880-204 R8i
—
ACS880-104 R8i
—
ACS880-104 R6i
Inverter modules (INU), ACS880-104, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R1i
364
90
234
4
R2i
380
100
312
6
R3i
467
168
313
11
R4i
467
223
313
18
R5i
596
203
240
14
R6i
890
170
456
38
R7i
890
170
456
39
R8i
1397
240
583
125
With module covers and without strain relief clamps (R1i to R4i).
With module covers (R5i).
IGBT supply modules (ISU), ACS880-204, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
Multidrive module
R1i
364
90
234
4
R2i
380
100
312
6
R3i
467
168
313
11
R4i
467
223
313
18
R6i
890
170
456
38
R8i
1397
240
583
125
LCL line filter
WFU-01
315
213
218
11
WFU-02
315
213
218
11
WFU-11
386
288
256
34
WFU-21
406
318
299
45
WFU-22
406
318
299
51
ALCL-05-5
845
378
305
100
BLCL-13-5
1397
240
505
181
BLCL-15-5
1397
240
505
224
BLCL-24-5
1397
240
581
320
BLCL-25-5
1397
240
581
324
BLCL-13-7
1397
240
505
178
BLCL-15-7
1397
240
505
218
BLCL-24-7
1397
240
581
301
BLCL-25-7
1397
240
581
310
D
H
W
D
H
W
57
D I M EN S I O N S , AC S 8 8 0 D R I V E M O D U L E S
D
H
W
D
H
W
D
H
W
—

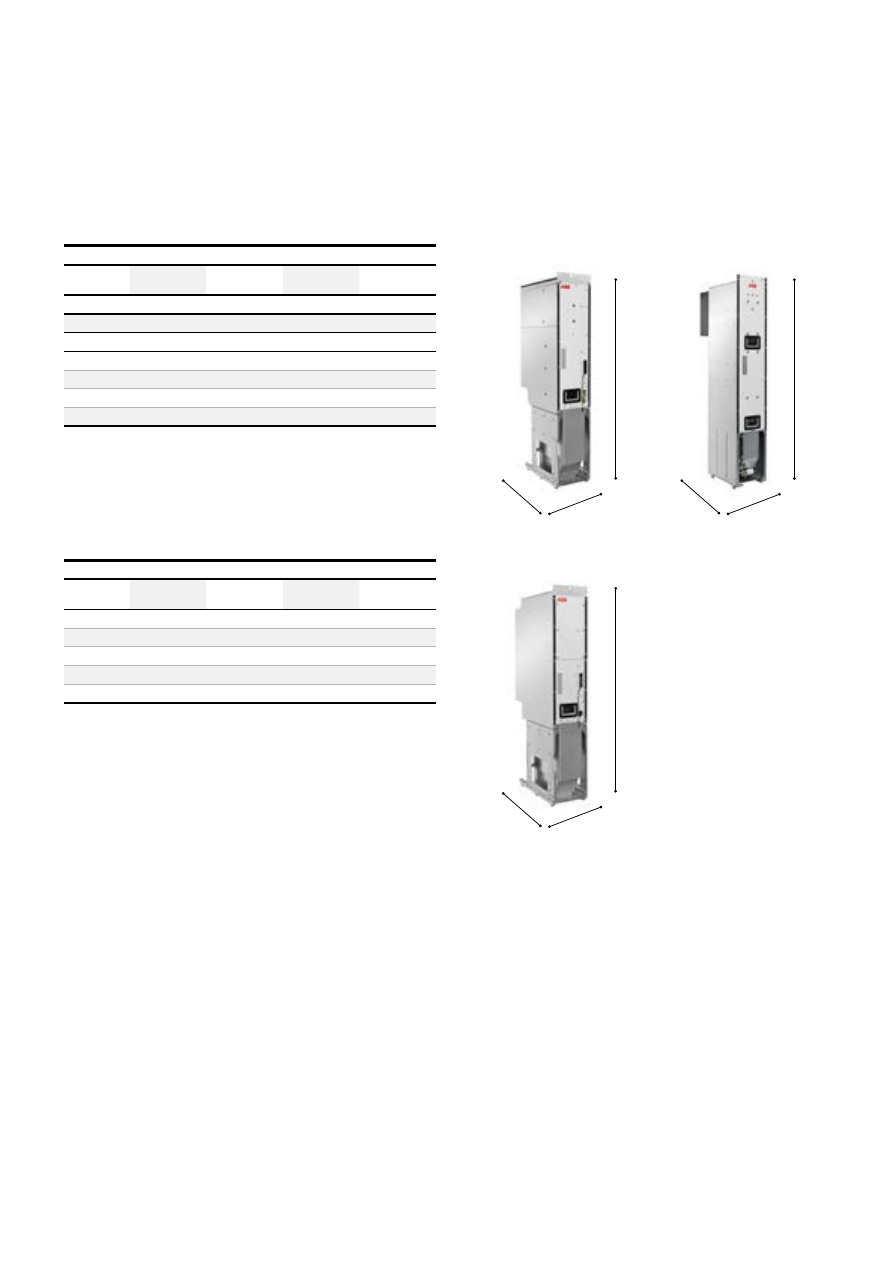

ACS880-304 D8T
—
L filter
—
ACS880-904 R8i
Regenerative rectifier units (RRU), ACS880-904, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
Multidrive module
R8i
1397
240
583
125
L filter
BL-15-5
1397
240
444
155
BL-25-5
1397
240
549
215
BL-15-7
1397
240
444
155
BL-25-7
1397
240
549
215
Diode supply modules (DSU), ACS880-304, IP20
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
D6D
815
170
408
37
D7D
1054
170
417
73
D8D
1397
240
582
173
D7T
1178
170
417
80
D8T
1397
240
585
180
58
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
02
—
01
—
Control panel options
Bluetooth control panel, ACS-AP-W
(standard control panel
*
)
)
Commissioning and operation of the ACS880 is
easy with the assistant control panel. The panel
has a multilingual graphical display, Bluetooth
connectivity and a USB interface for PC tool
connection. The panel can be used with all drives
belonging to ABB’s all-compatible product
portfolio.
There is no need to know any drive parameters,
as the control panel helps you set up the essential
settings quickly and get the drive into action.
The Bluetooth connection enables the use of
mobile apps like Drivetune. This app is available
Option code
Description
Type
+0J400
1)
No control panel
–
As standard or
3AXD50000025965
Assistant control panel with Bluetooth.
*
)
Assistant control panel is included as standard for ACS880-01/11/31
and ACS880-04/04F up to frame size R11.
ACS-AP-W
+J425
1)
Industrial Assistant control panel without Bluetooth connection
ACS-AP-I
3AUA0000108878
Control panel mounting platform, flush mounted, IP54 / UL Type 12
(does not include control panel)
DPMP-01
3AXD50000009374
Control panel mounting platform, surface mounted, IP65 / UL Type 12
(does not include control panel)
DPMP-02
1)
Plus codes are valid for ACS880-01/11/31/04/04F and -14/34 frame R11.
—
Control panel options
—
01 Assistant control
panel with Bluetooth
—
02 Industrial Assistant
control panel without
Bluetooth
—
03 Control panel
mounting platform
DPMP-01
—
04 Control panel
mounting platform
DPMP-02
—
03
for free on the Google Play and the Apple App
store. Drivetune features include: commissioning,
troubleshooting, monitoring and controlling the
drive remotely. Drivetune also has full parameter
access and backup and restore functionality.
Industrial control panel, ACS-AP-I
The ACS-AP-I industrial control panel has the
same functionality as the ACS-AP-W Bluetooth
panel, but without the Bluetooth connectivity.
Control panel mounting platform, DPMP-01/02
The DPMP-01 mounting platform is for flush
mountings, and the DPMP-02 is for surface
mountings.
—
04
59
—
Save time, ease troubleshooting and
improve drive performance with ABB
smartphone apps
Search for support documents and contacts
Easy and fast access to product information and support
Better connectivity and user
experience with Drivetune
Manage your drives and the process lines and
machines they control
Maintain and service all your installed drives
on one or multiple sites
Services and support
on the go with Drivebase
Easy access to cloud-based drive
and process information from
anywhere via an online connection
Access your product and
service information in the
cloud from anywhere
Start up, commission
and tune your drive
and application
Simplified user guidance
with instant access to drive
status and configuration
Performance optimization
via drive troubleshooting
features and fast support
Access your drive’s
diagnostics data
Get 6 months extra warranty
for free by registering your
drive with the Drivebase app
Push notifications for critical
product and service updates
Download the apps using the QR codes below or directly from the app stores
Access information anywhere
60
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Option
code
2)
Fieldbus protocol
Adapter
+K451
DeviceNet™
FDNA-01
+K454
PROFIBUS DP. DPV0/DPV1
FPBA-01
+K457
CANopen®
FCAN-01
+K458
Modbus RTU
FSCA-01
+K462
ControlNet
FCNA-01
+K469
EtherCAT®
FECA-01
+K470
POWERLINK
FEPL-02
+K475
Two port EtherNet/IP™,
Modbus TCP, PROFINET IO,
PROFIsafe
1)
FENA-21
+K491
Modbus/TCP
FMBT-21
+K492
PROFINET IO
FPNO-21
+K490
EtherNet/IP
FEIP-21
1)
For the PROFIsafe to work the PROFINET fieldbus adapter module
(FENA-21) and the safety functions module FSO-12 (+Q973) or
FSO-21 (+Q972) are required.
Option
code
2)
Description I/O module
+L501
4×DI/O, 2×RO
FIO-01
+L500
3×AI (mA/V), 1×AO (mA),
2×DI/O
FIO-11
+L515
2×F-type option
extension slots
FEA-03
+L525
2×AI(mA/V), 2×AO(mA)
FAIO-01
+L526
3×DI (up to 250 V DC or
230 V AC), 2×RO
FDIO-01
2)
Plus codes are valid for ACS880-01/11/31/04/04F and -14/34
frame R11

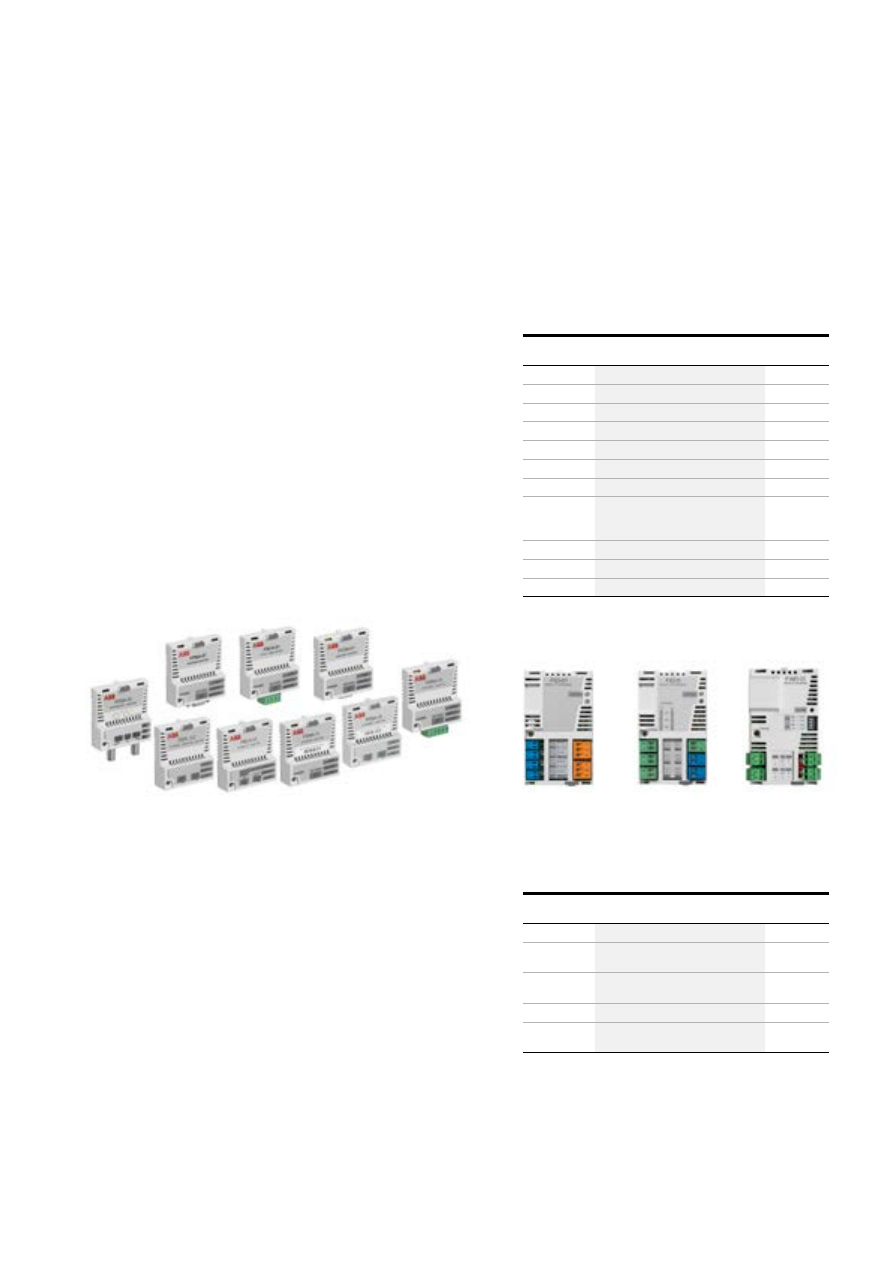

Fieldbus adapter modules
ACS880 industrial drives are compatible
with a wide range of fieldbus protocols.
The drive comes with a Modbus RTU fieldbus
interface as standard.
The ACS880 supports two different
fieldbus connections simultaneously and
offers the possibility for redundant fieldbus
communication. PROFIsafe (functional
safety over PROFINET) is also supported.
—
01 ACS880 is
compatible with many
fieldbus protocols
—
02 Input/output
extension modules
—
01
—
Connectivity to automation systems
Input/output extension modules
Standard input and output can be extended
by using optional analog and digital input/output
extension modules. The modules are easily
installed in the extension slots located on
the drive.
If there are not enough I/O extension slots in
the drive, the FEA-03 module can increase the
number of slots. The FEA-03 has two option slots
for digital I/O extensions and speed feedback
interface modules. The connection to the control
unit is via an optical fiber link, and the adapter
can be mounted on a DIN rail (35 × 7.5 mm).
—
Connectivity adapters
—
Analog and digital input/output extension modules
—
02
61
—
PC tool options
PC tools
The Drive composer PC tool offers fast and
harmonized setup, commissioning and
monitoring for ABB’s all-compatible drives.
The free version of the tool provides startup
and maintenance capabilities, and includes
support for adaptive programming. It also
gathers all drive information, such as parameter
loggers, faults, backups and event lists, into
a support diagnostics file.
Drive composer pro provides additional features,
such as custom parameter windows, graphical
control diagrams of the drive’s configuration,
and improved monitoring and diagnostics.
It also has a graphical interface for configuring
functional safety features.
IEC programming of the drive is accomplished
with ABB Automation Builder software.
Automation Builder can also be used as an
alternative configuration tool to Drive composer.
It supports several ABB automation products,
such as drives, PLCs, HMIs and robots.
—
03 Drive composer
PC tool
Ordering code
Description
PC tool
3AUA0000108087
PC tool for setup, commissioning and monitoring of drives
Drive composer pro
Automation Builder 2.x Basic (1).
Free 61131-3 engineering for simple PLC solutions.
Automation Builder
1)
1SAS010000R0102
Automation Builder 2.x Standard (2). Integrated engineering for
PLC, drives, motion, SCADA and panels.
1SAS010002R0102
Automation Builder 2.x Premium (5). Integrated Engineering and
features for engineering productivity and collaboration.
+N8010
License key for drive application programming based on IEC 61131-3 using
Automation Builder
IEC programming
1)
For IEC programming license key is needed for the ACS880 drive (+N8010)
—
03
—
PC tools
62
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Ordering code
Description
Type
3AUA0000094517
2 x panel bus interface
max. 10 drives
2 x Ethernet interface
SD memory card
USB port for WLAN/3G
NETA-21
—
Remote monitoring options
Remote monitoring access worldwide
The NETA-21 remote monitoring tool gives easy
access to the drive via the Internet or a local
Ethernet network. NETA-21 comes with a built-in
web server. Compatible with standard web
browsers, it ensures easy access to a web-based
user interface. Through the web interface, the
user can configure drive parameters, and monitor
drive log data, load levels, runtime, energy
consumption, I/O data, and the bearing
temperatures of the motor connected to
the drive. One NETA-21 supports up to
10 ABB single drives.
—
01
—
02
—
01 Remote monitoring
tool NETA-21
—
02 RMDE reliability
monitoring device
Ordering code
Description
Type
RMDE-01-1-1
Configurable
product
RMDE reliability
monitoring device
RMDE-01
—
Remote monitoring option
RMDE reliability monitoring device
The RMDE reliability monitoring device collects
drive performance and event data so that it
can be stored remotely and utilized for service,
maintenance and troubleshooting. RMDE consists
of the NETA-21 remote monitoring tool, a modem,
and environmental sensors that enable collection
of measured ambient temperature and humidity
values. The device comes in a compact IP54
enclosure, making it suitable even for harsh
environments.
—
RMDE reliability monitoring device
63
—
Additional interface options
Speed feedback interfaces
for precise process control
ACS880 drives can be connected to various
feedback devices, such as HTL pulse encoders,
TTL pulse encoders, absolute encoders and
resolvers. The optional feedback module is
installed in the option slot on the drive.
It is possible to use two feedback modules
at the same time, either of the same type or
different types
*
)
.
*
)
Excluding FSE-31.
—
03 FEN-01 TTL encoder
interface module
—
04 FDCO-01 DDCS
communication module
Option
code
1)
Description Feedback
module
+L517
2 inputs (TTL pulse encoder),
1 output
FEN-01
+L518
2 inputs (SinCos absolute,
TTL pulse encoder), 1 output
FEN-11
+L516
2 inputs (Resolver, TTL pulse
encoder), 1 output
FEN-21
+L502
1 input (HTL pulse encoder),
1 output
FEN-31
+L521
Pulse encoder interface for
functional safety (for more details
see section “Safety options”)
FSE-31
Option
code
1)
Description
Module
+L503
Optical DDCS (10 Mbd/10 Mbd)
FDCO-01
+L508
Optical DDCS (5 Mbd/10 Mbd)
FDCO-02
1)
Plus codes are valid for ACS880-01/11/31/04/04F
and -14/34 frame R11
—
03
—
04
DDCS communication option modules
The FDCO-0X optical DDCS communication
options are add-on modules on the ACS880
industrial drives control unit. The modules
include connectors for two fiber optic DDCS
channels. The FDCO-0X modules make it
possible to perform master-follower and
AC800 M communication. Alternative way
for drive to drive communication is to use
the standard RS485 connection.
—
Feedback interface modules
—
Optical communication modules
64
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Safety options
Integrated safety
Integrated safety reduces the need for external
safety components, simplifying configuration
and reducing installation space. The safety
functionality is a built-in feature of the ACS880,
with safe torque off (STO) as standard.
The STO function corresponds to an uncontrolled
stop in accordance with stop category 0 of
EN 60204-1. Additional safety functions can be
commissioned with the optional and compact
safety functions module. ACS880 drives offer
functional safety with or without encoder.
The drivesʼ functional safety is designed in
accordance with EN/IEC 61800-5-2 and complies
with the requirements of the European Union
Machinery Directive (2006/42/EC).
—

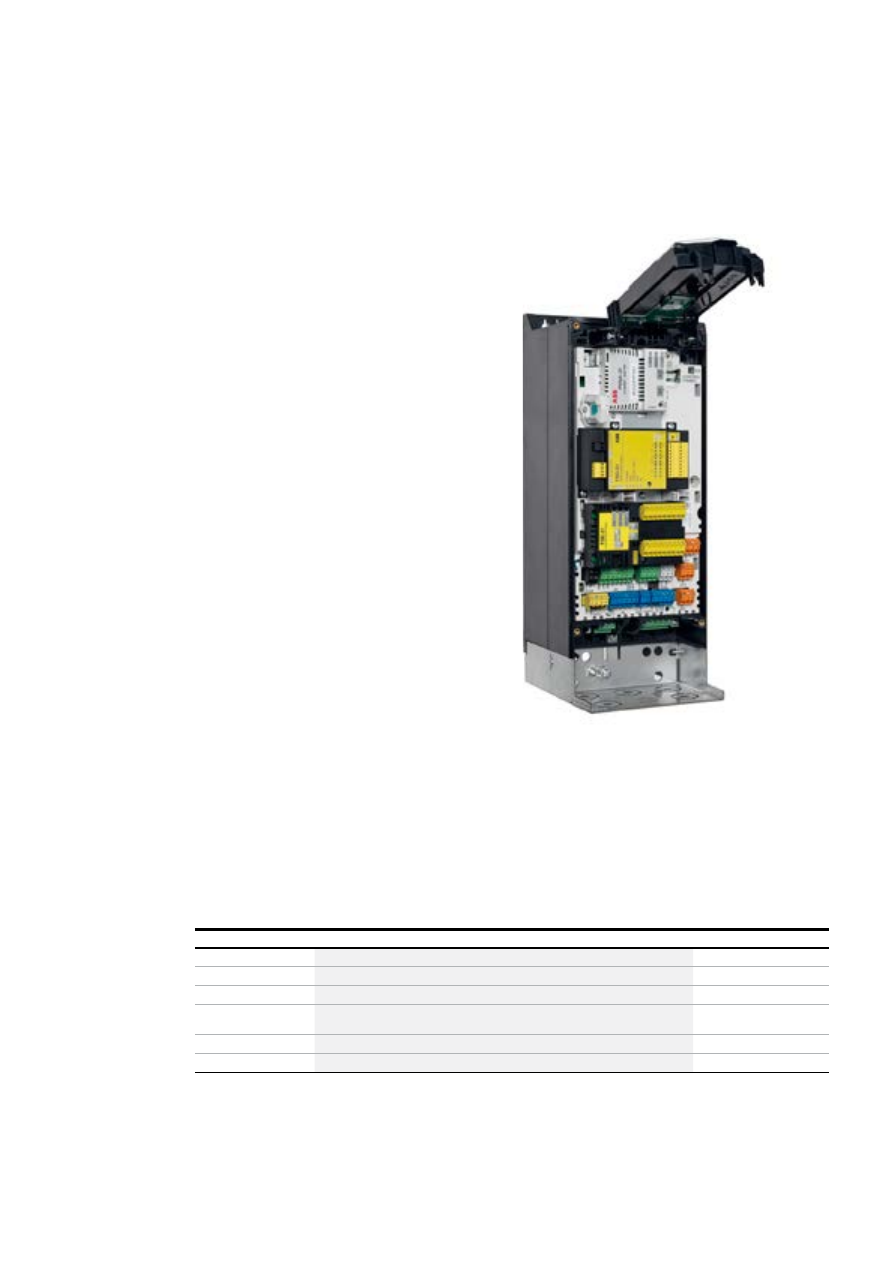

01 ACS880 drive
with FSO-21, FSE-31
and FENA-21
Option code
Description
Safety module
+Q973
1)
Safety functions module FSO-12
FSO-12
+Q972+L521
1)
Safety functions module FSO-21 and encoder FSE-31
FSO-21+FSE-31
+Q971
ATEX-certified safe disconnection function, EX II (2) GD
+Q982
1)
PROFIsafe safety communication: forces to select
a functional safety module and PROFINET fieldbus adapter
FSO-12 or
FSO-21+FENA-21
+L536
1)
Thermistor protection module FPTC-01
FPTC-01
+L537
1)
ATEX-certified thermistor protection module FPTC-02
FPTC-02
1)
Plus codes are valid for ACS880-01/11/31/04/04F and -14/34 frame R11
—
01
—
Safety function modules
65
S A FE T Y O P T I O N S
The safety functions modules
The safety functions module (FSO-12 and -21) is
easy to connect and configure, and offers a wide
range of safety functions and a self-diagnostic
function that meets current safety requirements
and standards, all in one compact module. The
safety functions are seamlessly integrated with
the drive functionality. This reduces engineering
time and implementation of the safety functions
compared to using external safety components.
Typically this also results in reduced total cost
and size and increased reliability.
The safety functions module enables safety
functions with or without an encoder. If the
application requires safe encoder feedback, it can
be established with the safety-certified FSE-31
pulse encoder interface module. The FSE module
provides safe encoder data to the safety
functions module, and can simultaneously be
used as a feedback device for the drive.
Commissioning and configuration of the
safety functions module is done with the
Drive composer pro PC tool, which provides
an easy-to-use graphical user interface.
Larger safety systems can be built using
PROFIsafe over PROFINET connection between
a safety PLC (such as AC500-S) and the ACS880
drive. The connection is achieved using the
FENA-21 or FPNO-21 fieldbus adapter module
and the safety functions module.
The safety functions module can also be ordered
as a spare part kit and installed afterwards to
the drive. The kit includes most common
assembly accessories for ACS880 drives.
The module supports the following safety
functions (which achieve a safety level up to
SIL 3 or PL e (Cat. 3)):
• Safe stop 1 (SS1)
brings the machine to a stop
using a monitored deceleration ramp. It is
typically used in applications where the
machinery motion needs to be brought to a
stop (stop category 1) in a controlled way
before switching over to the no-torque (STO)
state.
• Safe stop emergency (SSE)
can be configured
to, upon request, either activate STO instantly
(category 0 stop), or first initiate motor
deceleration and then, once the motor has
stopped, activate the STO (category 1 stop).
• Safe brake control (SBC)
provides a safe output
for controlling the motor’s external
(mechanical) brakes, together with STO.
• Safely-limited speed (SLS
) ensures that the
specified speed limit of the motor is not
exceeded. This allows machine interaction to be
performed at slow speed without stopping the
drive. The safety function module comes with
four individual SLS settings for speed
monitoring.
• Safe maximum speed (SMS)
monitors that the
speed of the motor does not exceed the
configured maximum speed limit.
• Prevention of unexpected startup (POUS)
ensures that the machine remains stopped
when people are in the danger area.
• Safe direction (SDI)
ensures that rotation is
allowed only in the selected direction (available
only with FSO-21 and FSE-31).
• Safe speed monitor (SSM)
provides a safe
output signal to indicate whether the motor
speed is between user-defined limits (available
only with FSO-21).
Safe Torque Off (STO) over PROFIsafe:
STO is a
standard feature of the ACS880. But if STO needs
to be used over fieldbus, it can be accomplished
with the safety functions module.
Safe temperature monitoring (STM)
can be
done by using FPTC thermistor protection
modules. These modules have SIL 2 or PL c
safety level.
66
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
EMC – electromagnetic compatibility
Each ACS880 model can be equipped with a
built-in filter to reduce high-frequency emissions.
EMC standards
The EMC product standard (EN 61800-3)
covers the specific EMC requirements for drives
(tested with motor and motor cable) within
the EU. EMC standards such as EN 55011 or
EN 61000-6-3/4 are applicable to industrial and
domestic equipment and systems, including
the components inside the drive. Drive units
compliant with EN 61800-3 are also compliant
with comparable categories in EN 55011 and
EN 61000-6-3/4, but not necessarily vice versa.
EN 55011 and EN 61000-6-3/4 do not specify
cable length or require a motor to be connected
as a load. The emission limits are comparable
to EMC standards according to the table
on the next page.
Domestic environments versus public
low voltage networks
The first environment includes domestic
premises. It also includes establishments
directly connected without an intermediate
transformer to a low-voltage power supply
network that supplies buildings used for
domestic purposes.
The second environment includes all
establishments other than those directly
connected to a low-voltage power supply
network that supplies buildings used for
domestic purposes.
—

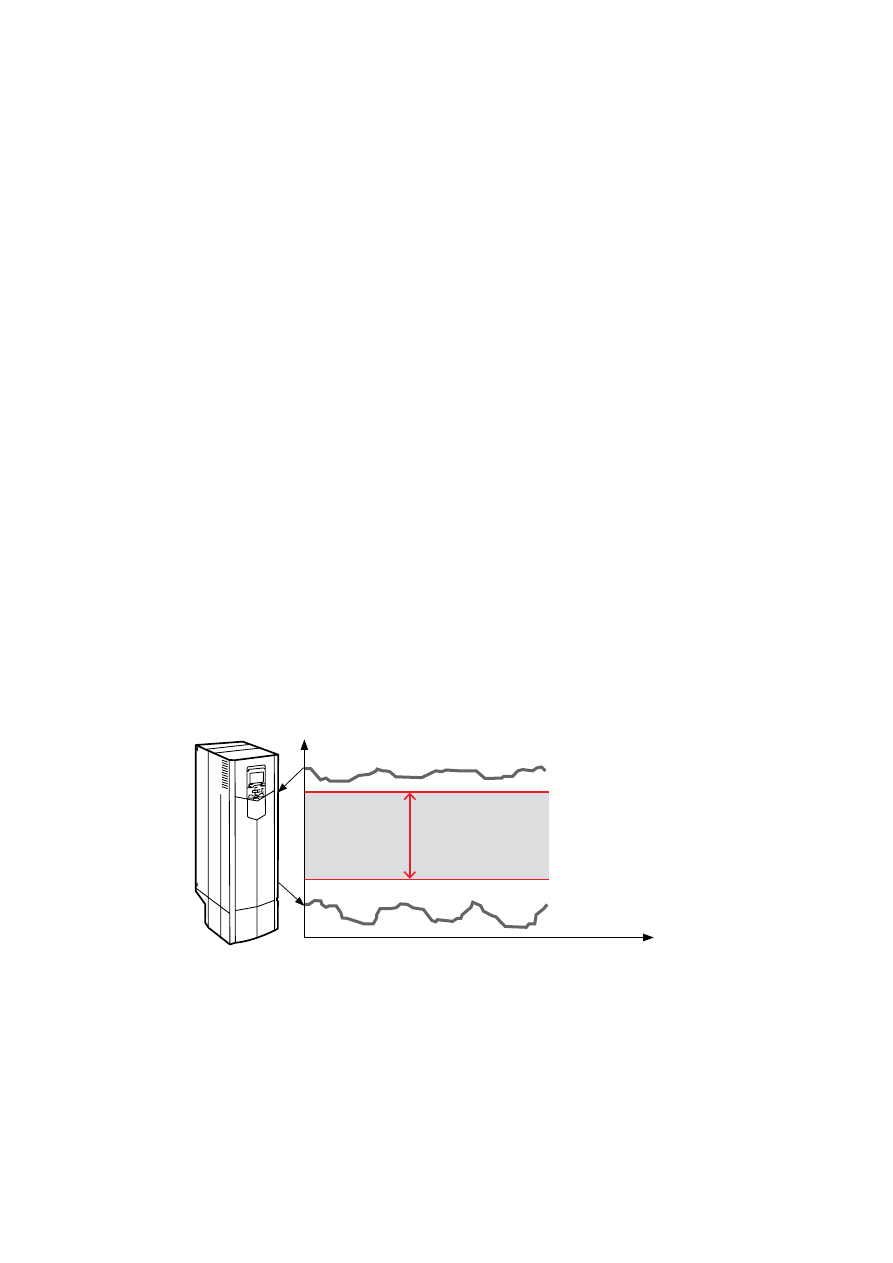

01 Immunity and
emission compatibility
Compatibility
margin
Independent variable e.g. frequency
Disturbance level
Immunity level
Immunity limit
Emission limit
Emission level
—
01
67
EM C – EL EC T R O M AG N E T I C CO M PAT I B I L I T Y
EMC standards
EMC according to EN 61800-3:2004 +
A1:2012 product standard
EN 61800-3
product
standard
EN 55011, product family
standard for industrial,
scientific and medical (ISM)
equipment
EN 61000-6-4, generic
emission standard for
industrial environments
EN 61000-6-3, generic
emission standard for
residential, commercial and
light-industrial environment
1
st
environment, restricted distribution
Category C2
Group 1. Class A
Applicable
Not applicable
2
nd
environment, unrestricted distribution
Category C3
Group 2. Class A
Not applicable
Not applicable
2
nd
environment, restricted distribution
Category C4
Not applicable
Not applicable
Not applicable
Selecting an EMC filter
Drive type
Voltage
(V)
Frame
sizes
1
st
environment,
restricted distribution, C2,
grounded
network (TN)
Option code
2
nd
environment,
C3,
grounded
network (TN)
Option code
2
nd
environment,
C3,
ungrounded
network (IT)
Option code
2
nd
environment,
C4,
grounded
network (TN)
4)
ACS880-01
380 to 500
R1 to R9
+E202
+E200
+E201
1)
As standard
ACS880-01
690
R3 to R9
-
+E200
+E201
1)
As standard
ACS880-04
380 to 500
R10, R11
+E202
+E210
+E210
As standard
ACS880-04
690
R10, R11
-
+E200
+E201
As standard
ACS880-04
380 to 690
n×D8T+ n×R8i
Not for 690 V. Only for 1×D8T
2)
As standard
3)
As standard
3)
As standard
ACS880-04F
380 to 500
R11
+E202
+E210
+E210
As standard
ACS880-04XT
380 to 500
2×R10/11
ARFI-10
+E210
+E210
As standard
ACS880-04XT
690
2×R10/11
-
+E200
+E201
As standard
ACS880-11
380 to 500
R3 to R8
+E202 (not available for R8)
+E200
+E201
As standard
ACS880-31
380 to 500
R3 to R8
+E202 (not available for R8)
+E200
+E201
As standard
ACS880-14
380 to 690
R11
+E202
+E200
-
As standard
ACS880-14
380 to 690
n×R8i
Not for 690 V. Only for 1×R8i
2)
As standard
3)
As standard
3)
As standard
ACS880-34
380 to 690
R11
+E202
+E200
-
As standard
ACS880-34
380 to 690
n×R8i
Not for 690 V. Only for 1×R8i
2)
As standard
3)
As standard
3)
As standard
ACS880-104
380 to 690
R1 to n×R8i
-
As standard
3)
As standard
3)
As standard
ACS880-204
380 to 690
R1i to R4i, R6i,
n×R8i
Not for 690 V.
Only for sizes up to 1×R8i
2)
As standard
3)
As standard
3)
As standard
ACS880-304
380 to 690
D×D, n×DXT
Not for 690 V. Only for 1×D8T
2)
As standard
3)
As standard
3)
As standard
ACS880-104LC
690
n×R8i
-
As standard
3)
As standard
3)
As standard
ACS880-304LC
690
n×D8D
-
As standard
3)
As standard
3)
As standard
1)
2
nd
environment, C4: ACS880-01, 380 to 500 V, frame sizes R1 to R5. ACS880-01, 690 V, frame sizes R3 to R6.
2)
For Category C2 optional equipment is needed, and the drive must be installed according to the instructions given in the manuals.
3)
For Category C3 no optional equipment is needed, but the drive must be installed according to the instructions given in the manuals.
4)
For Category C4 no optional equipment is needed, but the drive must be installed according to the instructions given in the manuals.
68
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Choose the right motor
for your application
Induction motors and the ACS880:
a reliable combination
Induction motors are used throughout industry
in applications that demand robust and high
enclosure motor and drive solutions. ACS880
drives fit perfectly together with this type of
motor by providing comprehensive functionality,
yet simple operation. The drives are ideal for
environments that require a high degree of
protection and small footprint. ACS880 drives
come with DTC as standard, ensuring
high-speed accuracy. Our motors and drives
provide the perfect foundation for energy
efficiency, while delivering capabilities such as
exceeding the nominal motor speed when
maximum power is needed.
Our low-voltage motors for explosive
atmospheres and low-voltage industrial drives
have been tested and certified to verify that,
when correctly dimensioned, they are safe to use
in explosive atmospheres. ABB drives can also be
used with non-ABB Ex motors with ATEX-certified
thermistor protection. If this protection is not
used, the motor and drive combination must be
either type-tested or combined-tested for
potentially explosive atmospheres by the
customer, motor manufacturer or a third party.
It is also important to verify that the motor
can be used with ABB variable speed drives.
Permanent magnet motors and
the ACS880: smooth operation
Permanent magnet technology is used
for improved motor characteristics in terms
of energy efficiency and compactness.
This technology is particularly well-suited for
low-speed control applications, as in some
cases it eliminates the need to use gearboxes.
The actual characteristics of different permanent
magnet motors can vary considerably.
Even without speed or rotor position sensors,
ACS880 drives with DTC can control most
types of permanent magnet motors.
IE4 synchronous reluctance motors and
the ACS880: optimized energy efficiency
Combining the ACS880’s control technology
with our synchronous reluctance (SynRM) motors
provides an IE4 motor and drive package that
ensures high energy efficiency, reduces motor
temperatures and provides a significant
reduction in motor noise. Lower temperature
results in better motor reliability and longer
motor life.
ABB has tested our SynRM motor and drive
packages and produced manufacturer’s
statements providing verified system
(drive and motor) efficiency.
69
C H O OSE T H E R I G H T M OTO R FO R YO U R A P P L I C AT I O N
Cost of
ownership
Purchase
Cost of
running
Cost of
not running
The idea is simple. Take a conventional, proven
stator technology and a totally new, innovative
rotor design. Then combine them with a drive
loaded with new, application-specific software.
Finally, optimize the whole package for
applications such as pumps, fans, compressors,
extruders, conveyors and mixers.
Synchronous reluctance technology combines
the performance of a permanent magnet motor
with the simplicity and service-friendliness of
an induction motor. The new rotor has neither
magnets nor windings and suffers virtually no
Traditional IE2 induction motor
IE4 synchronous reluctance motor SynRM
100%
I
2
R Rotor
I
2
R Stator
Induction motor
Other
60%
I
2
R Stator
SynRM
Other
power losses. Because the footprints are
identical, it is easy to replace an induction
motor with a SynRM motor.
IE4 synchronous reluctance motors have
very low winding temperatures, which
increases the reliability and life of the winding.
More importantly, the cooler synchronous
reluctance rotor means significantly lower
bearing temperatures – an important factor,
because bearing failures cause about 70% of
unplanned motor outages.
—
Losses
70
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
SynRM packages
ACS880-01 for IE4 SynRM
Matched IE4 SynRM
Nominal
ratings
Light
overload
use
Heavy-duty
use
Noise
level
Heat
dissipation
Air
flow
Drive
type
Frame
size
SynRM
motor type
1500 rpm
(50 Hz)
1)
Motor
product code
I
N
(A)
I
MAX
(A)
P
N
(kW)
I
Ld
(A)
P
Ld
(kW)
I
Hd
(A)
P
Hd
(kW) (dBA)
(W) (m
3
/h)
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V for SynRM (4 to 200 kW).
14.3
21
5.5 14.3
5.5
9.8
4
51
232
88
ACS880-01-14A3-3
R2 M3AL 132 SMA 4
3GAL 132 213-_SC
17.7
29
7.5
17.7
7.5
14.3
5.5
51
337
88
ACS880-01-17A7-3
R2 M3AL 132 SMB 4
3GAL 132 223-_SC
25
29
11
24
11
17
7.5
51
337
88 ACS880-01-25A5-3
R2
M3BL 160 MLA
3GBL 162 413-_SC
35
54
15
35
15
25
11
57
562
134 ACS880-01-035A-3
R3
M3BL 160 MLB
3GBL 162 423-_SC
43
64 18.5
43 18.5
35
15
62
667
134 ACS880-01-043A-3
R4
M3BL 180 MLA
3GBL 182 413-_SC
50
76
22
50
22
43
18.5
62
907
280 ACS880-01-050A-3
R4
M3BL 200 MLF
3GBL 202 463-_SC
69 104
30
68
30
50
22
62
1117
280 ACS880-01-069A-3
R5
M3BL 200 MLA
3GBL 202 413-_SC
85 122
37
83
37
69
30
62
1120
280 ACS880-01-085A-3
R5
M3BL 250 SMF
3GBL 252 263-_SC
103 148
45
100
45
85
37
67
1295
435
ACS880-01-103A-3
R6
M3BL 250 SMG
3GBL 252 273-_SC
123 178
55
123
55
103
45
67
1140
435
ACS880-01-123A-3
R6
M3BL 250 SMA
3GBL 252 213-_SC
173 287
75
173
75
123
55
67
2310
450
ACS880-01-173A-3
R7
M3BL 280 SMA
3GBL 282 213-_DC
202 287
90
196
90
169
75
67
2310
450 ACS880-01-202A-3
R7
M3BL 280 SMB
3GBL 282 223-_DC
245 350
110
234
110
202
90
65
3300
550
ACS880-01-245A-3
R8
M3BL 280 SMC
3GBL 282 233-_DC
290 418
132
278
132 245
1)
110
65
3900
550 ACS880-01-290A-3
R8
3)
M3BL 315 SMB
3GBL 312 223-_DC
343 498
160
343
160
290
132
68
4800
1150 ASC880-01-343A-3
R9
5)
M3BL 315 SMC
3GBL 312 233-_DC
427 545
200
400
200 343
2)
160
68
6000
1150
ACS880-01-427A-3
R9
4)
M3BL 315 MLA
3GBL 312 413-_DC
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V for SynRM (7.5 to 200 kW).
14.5
29
11 14.5
11
10
7.5
62
490
280
ACS880-01-14A5-7
R5
M3BL 160 MLA 3GBL 162 413-_SC
8)9)
20.2
54
15 20.2
15
14.5
11
62
660
280
ACS880-01-20A2-7
R5
M3BL 160 MLB 3GBL 162 423-_SC
8)9)
24.8
64 18.5 24.8 18.5
20.2
15
62
864
280
ACS880-01-24A8-7
R5
M3BL 180 MLA 3GBL 182 413-_SC
8)9)
29
64
22
29
22
24.8
18.5
62
864
280
ACS880-01-29A0-7
R5
M3BL 200 MLF 3GBL 202 463-_SC
8)9)
39.9
70
30 39.9
30
29
22
62
998
280
ACS880-01-39A9-7
R5
M3BL 200 MLA 3GBL 202 413-_SC
8)9)
47
71
37
47
37
39.9
30
62
1120
280
ACS880-01-47A5-7
R5
M3BL 250 SMF 3GBL 252 263-_SC
8)9)
60 124
45
60
45
47
37
67
1440
435 ACS880-01-060A-7
R6
M3BL 250 SMG 3GBL 252 273-_SC
8)9)
71 124
55
71
55
60
45
67
1440
435
ACS880-01-071A-7
R6
M3BL 250 SMA 3GBL 252 213-_SC
8)9)
100 198
75
100
75
71
55
67
2310
450
ACS880-01-100A-7
R7
M3BL 280 SMA
3GBL 282 213-_DC
8)
117 198
90
113
90
98
75
67
2310
450
ACS880-01-117A-7
R7
M3BL 280 SMB
3GBL 282 223-_DC
8)
143 274
110
143
110
117
90
65
3900
550
ACS880-01-143A-7
R8
3)
M3BL 280 SMC
3GBL 282 233-_DC
8)
168 274
132
165
132
142
110
65
3900
550
ACS880-01-168A-7
R8
3)
M3BL 315 SMB
3GBL 312 223-_DC
8)
199 384
160
199
160
168
132
68
4200
1150
ACS880-01-199A-7
R9
6)
M3BL 315 SMC
3GBL 312 233-_DC
8)
248 411
200
248
200
199
160
68
4800
1150
ACS880-01-248A-7
R9
4)
M3BL 315 MLA
3GBL 312 413-_DC
8)
1)
130% overload
2)
125% overload
3)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature.
At higher temperature the derating is from 40 to 45 °C 1%/1 °C and 45 to 55 °C 2.5%/1 °C.
4)
For drives with enclosure class IP55 the maximum ambient temperature is 35 °C.
5)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature.
At higher temperature the derating is from 40 to 45 °C 1%/1 °C, 45 to 50 °C 2.5%/1 °C and 50 to 55 °C 5%/1 °C.
6)
For drives with enclosure class IP55 the ratings apply at 40 °C ambient temperature. At higher temperature the derating is from 40 to 45 °C 1%/1 °C.
Note: Maximum ambient temperature is 45 °C.
7)
For other speed/frequency selections, use the DriveSize tool or consult your local ABB sales personnel for accurate dimensioning.
8)
In the same way as with induction motors, also with SynRM motors with 690 V nominal network voltage,
special winding insulation for frequency converter supply is required (option +405).
9)
For motors with frame sizes 160-250 with 690 V nominal network voltage special winding is required (option +209).
71
Sy n R M PAC K AG E S
Nominal ratings
I
N
Rated current available continuously without overloadability at 40 °C.
P
N
Typical motor power in no-overload use.
Maximum output current
I
max
Maximum output current. Available for 10 seconds at start, then as long as allowed by drive temperature.
Light-overload use
I
Ld
Continuous current allowing 110%
I
Ld
for 1 minute every 5 minutes at 40 °C.
P
Ld
Typical motor power in light-overload use.
Heavy-duty use
I
Hd
Continuous current allowing 150%
I
Hd
for 1 minute every 5 minutes at 40 °C.
P
Hd
Typical motor power in heavy-duty use.
72
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Sine filters
Together with a sine filter, ACS880 drives
offer smooth motor operation in both DTC
and scalar modes. The sine filter suppresses
the high-frequency components of the motors
output voltage, creating almost a sinusoidal
voltage wave form for the motor. The filter
offers an optimized LC design that takes into
account the switching frequency, voltage
drop and filtering characteristics.
The ACS880 inverter and sine filter solution can
be used together with a variety of requirements
for products and components:
• For motors without adequate insulation
for the role
• Where the total motor cable length is long as
a result of a number of parallel motors
• For step-up applications, e.g. where a
medium-voltage motor needs to be driven
• For submersible pumps with long motor
cables, e.g. in the oil industry
• When the motor noise needs to be reduced
• When there are industry-specific requirements
for peak voltage level and voltage rise time
—
Sine filter for wall-mounted single drives, ACS880-01
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V.
I
N
P
N
1)
Noise
level
2)
Heat
dissi-
pation
2)
Drive
type
Frame
size
Filter
type
Degree of
protection
Filter
width
Filter
depth
Filter
height
Filter
weight
(A) (kW)
(dB)
(W)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(kg)
IP21
(kg)
2.3
0.8
72
60 ACS880-01-02A4-3
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
3.1
1.1
72
60 ACS880-01-03A3-3
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
3.8
1.5
72
60 ACS880-01-04A0-3
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
5.3
2.2
72
100 ACS880-01-05A6-3
R1 B84143V0006R229
IP00/IP21
235
384
95
152
200
246
5
14.4
7.2
3
72
90
ACS880-01-07A2-3
R1 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
7
14.4
9.2
4
72
90 ACS880-01-09A4-3
R1 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
7
14.4
12.1
5.5
72
80
ACS880-01-12A6-3
R1 B84143V0016R229
IP00/IP21
275
420
122
200
235
290
12
24.4
16
7.5
75
140
ACS880-01-017A-3
R2 B84143V0025R229
IP00/IP21
355
500
120
200
285
360
20
36
24
11
75
140 ACS880-01-025A-3
R2 B84143V0025R229
IP00/IP21
355
500
120
200
285
360
20
36
31
15
75
160 ACS880-01-032A-3
R3 B84143V0033R229
IP00/IP21
355
500
120
200
285
360
24
36
37 18.5
78
220 ACS880-01-038A-3
R3 B84143V0050R229
IP00/IP21
400
650
140
350
360
460
41
90.3
43
22
78
220 ACS880-01-045A-3
R4 B84143V0050R229
IP00/IP21
400
650
140
350
360
460
41
90.3
58
30
78
250 ACS880-01-061A-3
R4 B84143V0066R229
IP00/IP21
400
650
147
350
360
460
43
90.3
64
30
79
310 ACS880-01-072A-3
R5 B84143V0075R229
IP00/IP21
400
650
173
350
360
460
62
90.3
77
37
79
400
ACS880-01-087A-3
R5 B84143V0095R229
IP00/IP21
440
700
164
350
500
580
70
132
91
45
80
600
ACS880-01-105A-3
R6 B84143V0130R230
IP00/IP21
560
850
300
480
420
500
110
192
126
55
80
550
ACS880-01-145A-3
R6 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
112 129.9
153
75
80
550
ACS880-01-169A-3
R7 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
112 129.9
187
90
80
900 ACS880-01-206A-3
R7 B84143V0230S229
IP00/IP21
570
850
285
480
430
500
120
192
209
110
80
900 ACS880-01-246A-3
R8 B84143V0230S229
IP00/IP21
570
850
285
480
430
500
120
192
249
132
80
1570
ACS880-01-293A-3
R8 B84143V0390S229
IP00/IP21
555
850
328
550
580
610
212 268.4
297
160
80
1570
ACS880-01-363A-3
R9 B84143V0390S229
IP00/IP21
555
850
328
550
580
610
212 268.4
352
160
80
1570 ACS880-01-430A-3
R9 B84143V0390S229
IP00/IP21
555
850
328
550
580
610
212 268.4
Nominal ratings
I
N
Rated current of the drive-filter combination available continuously without overload at 40 °C.
P
N
Typical motor power
1)
Please note that sine filters cause a voltage drop, reducing the available shaft power from the motor.
2)
Noise level is a combined value for the drive and the filter. Heat dissipation is a value for the filter.
For further information, please contact your local ABB office.
73
S I N E FI LT ER S
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V.
I
N
P
N
1)
Noise
level
(2
Heat
dissi-
pation
2)
Drive type Frame
size
Filter type Degree of
protection
Filter
width
Filter
depth
Filter
height
Filter
weight
(A) (kW)
(dB)
(W)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(kg)
IP21
(kg)
1.9
0.8
72
60 ACS880-01-02A1-5
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
2.8
1.1
72
60 ACS880-01-03A0-5
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
3.1
1.5
72
60 ACS880-01-03A4-5
R1 B84143V0004R229
IP00/IP21
235
384
95
152
200
246
5
14.4
4.4
2.2
72
100 ACS880-01-04A8-5
R1 B84143V0006R229
IP00/IP21
235
384
95
152
200
246
5
14.4
4.8
3
72
100 ACS880-01-05A2-5
R1 B84143V0006R229
IP00/IP21
235
384
95
152
200
246
5
14.4
7
4
72
90
ACS880-01-07A6-5
R1 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
7
14.4
10.2
5.5
72
90
ACS880-01-11A0-5
R1 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
7
14.4
13
7.5
70
80 ACS880-01-014A-5
R2 B84143V0016R229
IP00/IP21
275
420
122
200
235
290
12
24.4
20
11
75
140 ACS880-01-021A-5
R2 B84143V0025R229
IP00/IP21
355
500
120
200
285
360
20
36
25
15
75
160
ACS880-01-027A-5
R3 B84143V0033R229
IP00/IP21
355
500
120
200
285
360
24
36
32 18.5
78
220 ACS880-01-034A-5
R3 B84143V0050R229
IP00/IP21
400
650
140
350
360
460
41
90.3
35
22
78
220 ACS880-01-040A-5
R4 B84143V0050R229
IP00/IP21
400
650
140
350
360
460
41
90.3
44
30
78
250 ACS880-01-052A-5
R4 B84143V0066R229
IP00/IP21
400
650
147
350
360
460
43
90.3
52
37
78
250 ACS880-01-065A-5
R5 B84143V0066R229
IP00/IP21
400
650
147
350
360
460
43
90.3
61
37
78
310
ACS880-01-077A-5
R5 B84143V0075R229
IP00/IP21
400
650
173
350
360
460
62
132
80
55
80
630 ACS880-01-096A-5
R6 B84143V0130S230
IP00/IP21
565
850
300
480
420
500
110
192
104
55
80
630
ACS880-01-124A-5
R6 B84143V0130S230
IP00/IP21
565
850
300
480
420
500
110
192
140
90
80
550
ACS880-01-156A-5
R7 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
112 129.9
161
110
80
550
ACS880-01-180A-5
R7 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
112 129.9
205
132
80
900 ACS880-01-240A-5
R8 B84143V0230S229
IP00/IP21
570
850
285
480
430
500
120
192
221
132
80
900 ACS880-01-260A-5
R8 B84143V0230S229
IP00/IP21
570
850
285
480
430
500
120
192
289
200
80
1570
ACS880-01-361A-5
R9 B84143V0390S229
IP00/IP21
555
850
328
550
580
610
212 268.4
332
200
80
1570 ACS880-01-414A-5
R9 B84143V0390S229
IP00/IP21
555
850
328
550
580
610
212 268.4
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V.
I
N
P
N
1)
Noise
level
(2
Heat
dissi-
pation
2)
Drive type Frame
size
Filter type Degree of
protection
Filter
width
Filter
depth
Filter
height
Filter
weight
(A) (kW)
(dB)
(W)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(kg)
IP21
(kg)
7.3
5.5
72
90
ACS880-01-07A4-7
R3 B84143V0010R230
IP00/IP21
380
500
110
200
290
360
15
36
9.3
7.5
72
90 ACS880-01-09A9-7
R3 B84143V0010R230
IP00/IP21
380
500
110
200
290
360
15
36
13.5
11
72
130
ACS880-01-14A3-7
R3 B84143V0018R230
IP00/IP21
380
500
121
200
290
360
19
36
17.1
15
72
130
ACS880-01-019A-7
R3 B84143V0018R230
IP00/IP21
380
500
121
200
290
360
19
36
21 18.5
72
160 ACS880-01-023A-7
R3 B84143V0026R230
IP00/IP21
380
500
141
200
290
360
30
68
25
22
72
160
ACS880-01-027A-7
R3 B84143V0026R230
IP00/IP21
380
500
141
200
290
360
30
68
7.3
5.5
72
90
ACS880-01-07A3-7
R5 B84143V0010R230
IP00/IP21
380
500
110
200
290
360
15
36
9.3
7.5
72
90 ACS880-01-09A8-7
R5 B84143V0010R230
IP00/IP21
380
500
110
200
290
360
15
36
13.5
11
72
130
ACS880-01-14A2-7
R5 B84143V0018R230
IP00/IP21
380
500
121
200
290
360
19
36
17.1
15
72
130
ACS880-01-018A-7
R5 B84143V0018R230
IP00/IP21
380
500
121
200
290
360
19
36
21 18.5
72
160 ACS880-01-022A-7
R5 B84143V0026R230
IP00/IP21
380
500
141
200
290
360
30
68
25
22
72
160 ACS880-01-026A-7
R5 B84143V0026R230
IP00/IP21
380
500
141
200
290
360
30
68
33
30
75
250
ACS880-01-035A-7
R5 B84143V0040R230
IP00/IP21
440
650
147
350
355
430
49
90.3
40
37
75
250 ACS880-01-042A-7
R5 B84143V0040R230
IP00/IP21
440
650
147
350
355
430
49
90.3
48
45
78
290 ACS880-01-049A-7
R5 B84143V0056R230
IP00/IP21
440
650
162
350
355
430
52
90.3
56
55
78
290 ACS880-01-061A-7
R6 B84143V0056R230
IP00/IP21
440
600
162
350
355
430
52
90.3
78
75
79
610 ACS880-01-084A-7
R6 B84143V0092R230
IP00/IP21
500
700
193
350
490
580
85
132
92
90
79
610 ACS880-01-098A-7
R7 B84143V0092R230
IP00/IP21
500
700
193
350
490
580
85
132
112
110
80
630
ACS880-01-119A-7
R7 B84143V0130S230
IP00/IP21
565
850
300
480
420
500
110
192
112
110
80
630
ACS880-01-142A-7
R8 B84143V0130S230
IP00/IP21
560
850
230
480
569
500
110
192
138
132
80
930
ACS880-01-174A-7
R8 B84143V0207S230
IP00/IP21
560
850
279
550
570
610
185 268.4
161
132
80
930
ACS880-01-210A-7
R9 B84143V0207S230
IP00/IP21
560
850
279
550
570
610
185 268.4
208
200
80
930
ACS880-01-271A-7
R9 B84143V0207S230
IP00/IP21
560
850
279
550
570
610
185 268.4
74
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Nominal ratings
I
N
Rated current of the drive-filter combination available continuously without overload at 40 °C.
P
N
Typical motor power
1)
Please note that sine filters cause a voltage drop, reducing the available shaft power from the motor.
2)
Noise level is a combined value for the drive and the filter. Heat dissipation is a value for the filter.
For further information please contact your local ABB office.
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V.
I
N
P
N
1)
Noise
level
2)
Heat
dissi-
pation
2)
Drive type Frame
size
Filter type Degree of
protection
Filter
width
Filter
depth
Filter
height
Filter
weight
(A) (kW)
(dB)
(W)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(kg)
IP21
(kg)
9.2
4
72
90 ACS880-11/31-09A4-3
R3 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
5.2
14.4
12.1
5.5
72
80 ACS880-11/31-12A6-3
R3 B84143V0016R229
IP00/IP21
275
420
122
200
235
290
7.9
24.4
16
7.5
75
140 ACS880-11/31-017A-3
R3 B84143V0025R229
IP00/IP21
355
500
120
200
285
360 12.1
36
24
11
75
140 ACS880-11/31-025A-3
R3 B84143V0025R229
IP00/IP21
355
500
120
200
285
360 12.1
36
31
15
75
160 ACS880-11/31-032A-3
R6 B84143V0033R229
IP00/IP21
355
500
120
200
285
360 12.1
36
37 18.5
78
220 ACS880-11/31-038A-3
R6 B84143V0050R229
IP00/IP21
400
650
140
350
360
460 20.2 104.7
43
22
78
220 ACS880-11/31-045A-3
R6 B84143V0050R229
IP00/IP21
400
650
140
350
360
460 20.2 104.7
58
30
78
250 ACS880-11/31-061A-3
R6 B84143V0066R229
IP00/IP21
400
650
147
350
360
460 21.2 104.7
64
37
79
310 ACS880-11/31-072A-3
R6 B84143V0075R229
IP00/IP21
400
650
173
350
360
460 24.9 104.7
77
45
79
400 ACS880-11/31-087A-3
R6 B84143V0095R229
IP00/IP21
440
700
164
350
500
580 36.1 142.1
91
55
80
600 ACS880-11/31-105A-3
R8 B84143V0130R230
IP00/IP21
565
850
300
480
420
500 71.2
204
126
75
80
550 ACS880-11/31-145A-3
R8 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
57 125.6
153
90
80
550 ACS880-11/31-169A-3
R8 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
57 125.6
187
110
80
900 ACS880-11/31-206A-3
R8 B84143V0230S229
IP00/IP21
570
850
285
480
430
500 69.9
204
—
Sine filters for wall-mounted regenerative and ultra-low harmonic drives,
ACS880-11 and ACS880-31
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V.
I
N
P
N
1)
Noise
level
2)
Heat
dissi-
pation
2)
Drive type Frame
size
Filter type Degree of
protection
Filter
width
Filter
depth
Filter
height
Filter
weight
(A) (kW)
(dB)
(W)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(mm)
IP21
(mm)
IP00
(kg)
IP21
(kg)
7
4
72
90 ACS880-11/31-07A6-5
R3 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
5.2
14.4
10.2
5.5
72
90 ACS880-11/31-11A0-5
R3 B84143V0011R229
IP00/IP21
235
384
110
152
200
246
5.2
14.4
13
75
70
80 ACS880-11/31-014A-5
R3 B84143V0016R229
IP00/IP21
275
420
122
200
235
290
7.9
24.4
20
11
75
140 ACS880-11/31-021A-5
R3 B84143V0025R229
IP00/IP21
355
500
120
200
285
360 12.1
36
25
15
75
160 ACS880-11/31-027A-5
R6 B84143V0033R229
IP00/IP21
355
500
120
200
285
360 12.1
36
32 18.5
78
220 ACS880-11/31-034A-5
R6 B84143V0050R229
IP00/IP21
400
650
140
350
360
460 20.2 104.7
35
22
78
220 ACS880-11/31-040A-5
R6 B84143V0050R229
IP00/IP21
400
650
140
350
360
460 20.2 104.7
44
30
78
250 ACS880-11/31-052A-5
R6 B84143V0066R229
IP00/IP21
400
650
147
350
360
460 21.2 104.7
52
37
78
250 ACS880-11/31-065A-5
R6 B84143V0066R229
IP00/IP21
400
650
147
350
360
460 21.2 104.7
61
37
78
310 ACS880-11/31-077A-5
R6 B84143V0075R229
IP00/IP21
400
650
173
350
360
460 24.9 104.7
80
55
80
630 ACS880-11/31-096A-5
R8 B84143V0130S230
IP00/IP21
565
850
300
480
420
500 71.2
204
104
55
80
630 ACS880-11/31-124A-5
R8 B84143V0130S230
IP00/IP21
565
850
300
480
420
500 71.2
204
140
90
80
550 ACS880-11/31-156A-5
R8 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
57 125.6
161
110
80
550 ACS880-11/31-180A-5
R8 B84143V0162S229
IP00/IP21
500
730
300
400
380
430
57 125.6
75
S I N E FI LT ER S
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V.
I
N
P
N
1)
Heat dissipation
2)
Drive type
Frame size
Filter type
(A)
(kW)
(W)
470
250
7000
ACS880-04-505A-3
R10
NSIN0900-6
540
250
9000
ACS880-04-585A-3
R10
NSIN0900-6
600
315
11000
ACS880-04-650A-3
R10
NSIN0900-6
647
355
12000
ACS880-04-725A-3
R11
NSIN0900-6
731
400
14000
ACS880-04-820A-3
R11
NSIN0900-6
785
450
15000
ACS880-04-880A-3
R11
NSIN0900-6
—
Sine filters for single drive modules, ACS880-04
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V.
I
N
P
N
1)
Heat dissipation
2)
Drive type
Frame size
Filter type
(A)
(kW)
(W)
430
250
7000
ACS880-04-460A-5
R10
NSIN0485-6
470
315
9000
ACS880-04-503A-5
R10
NSIN0900-6
514
355
10000
ACS880-04-583A-5
R10
NSIN0900-6
560
400
11000
ACS880-04-635A-5
R10
NSIN0900-6
637
450
13000
ACS880-04-715A-5
R11
NSIN0900-6
730
500
15000
ACS880-04-820A-5
R11
NSIN0900-6
730
500
15000
ACS880-04-880A-5
R11
NSIN0900-6
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V.
I
N
P
N
1)
Heat dissipation
2)
Drive type
Frame size
Filter type
(A)
(kW)
(W)
330
315
7000
ACS880-04-330A-7
R10
NSIN0485-6
340
315
9000
ACS880-04-370A-7
R10
NSIN0485-6
360
355
10000
ACS880-04-430A-7
R10
NSIN0485-6
3)
3)
10000
ACS880-04-425A-7
R11
NSIN0485-6
3)
3)
12000
ACS880-04-470A-7
R11
NSIN0900-6
3)
3)
13000
ACS880-04-522A-7
R11
NSIN0900-6
530
500
14000
ACS880-04-590A-7
R11
NSIN0900-6
550
560
15000
ACS880-04-650A-7
R11
NSIN0900-6
550
630
15000
ACS880-04-721A-7
R11
NSIN0900-6
Nominal ratings
I
N
Rated current of the drive-filter combination available continuously without overload at 40 °C.
P
N
Typical motor power
1)
Please note that sine fi lters cause voltage drop thus reducing the available shaft power from the motor.
2)
Noise level is a combined value for the drive and the fi lter. Heat dissipation is a value for the fi lter. For further information please contact your local ABB office.
3)
For further information please contact your local ABB
ACS880-04XT uses the same same sine filters as ACS880-04, except two filters are needed: one filter for each drive module.
—
Sine filters for single drive modules, ACS880-04XT
—
Sine filters for module packages, ACS880-01/14/34 and
multidrive modules, ACS880-104
Sine filters are available also for ACS880-04/14/34 high power single drive module packages and for
ACS880-104 multidrive modules. Please contact your local ABB office for further information.
76
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Brake options
Brake chopper
Brake chopper handles the energy generated by
a decelerating motor. The chopper connects the
brake resistor to the DC bus whenever the voltage
in the bus exceeds the limit defined by the control
program. Energy consumption by the resistor
losses lowers the voltage until the resistor can be
disconnected. For ACS880 the brake chopper is
either built-in as standard or offered as an
internal or external option:
Brake resistor
The brake resistors (JBR, SACE, SAFUR) are
separately available for ACS880 drive modules.
Resistors other than the standard option
resistors may be used, provided that the
specified resistance value is not decreased and
that the heat dissipation capacity of the resistor
is sufficient for the drive application.
U
N
= 230 V (range 208 to 240 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
0.75
65
JBR-03
80
40
0.14
ACS880-01-04A6-2
R1
1.1
65
JBR-03
80
40
0.14
ACS880-01-06A6-2
R1
1.5
65
JBR-03
80
40
0.14
ACS880-01-07A5-2
R1
2.2
65
JBR-03
80
40
0.14
ACS880-01-10A6-2
R1
4
18
SACE15RE22
22
420
2
ACS880-01-16A8-2
R2
5.5
18
SACE15RE22
22
420
2
ACS880-01-24A3-2
R2
7.5
13
SACE15RE13
13
435
2
ACS880-01-031A-2
R3
11
12
SACE15RE13
13
435
2
ACS880-01-046A-2
R4
11
12
SACE15RE13
13
435
2
ACS880-01-061A-2
R4
18.5
6
SAFUR90F575
8
1800
4.5
ACS880-01-075A-2+D150
R5
22
6
SAFUR90F575
8
1800
4.5
ACS880-01-087A-2+D150
R5
30
3.5
SAFUR125F500
4
3600
9
ACS880-01-115A-2+D150
R6
37
3.5
SAFUR125F500
4
3600
9
ACS880-01-145A-2+D150
R6
45
2.4
SAFUR200F500
2.7
5400
13.5
ACS880-01-170A-2+D150
R7
55
2.4
SAFUR200F500
2.7
5400
13.5
ACS880-01-206A-2+D150
R7
75
1.8
SAFUR200F500
2.7
5400
13.5
ACS880-01-274A-2+D150
R8
—
Brake options, ACS880-01
Brake resistor
Height
Width
Depth
Weight
(mm)
(mm)
(mm)
(kg)
JBR-03
124
340
77
0.8
SACE08RE44
365
290
131
6.1
SACE15RE22
365
290
131
6.1
SACE15RE13
365
290
131
6.8
SAFUR80F500
600
300
345
14
SAFUR90F575
600
300
345
12
SAFUR125F500
1320
300
345
25
SAFUR200F500
1320
300
345
30
—
01 Brake resistor,
SACE15RE13
—
01
Brake chopper
ACS880 type
(frame sizes)
Built-in as
standard
Internal
option
External
option
-01 (R1 to R4)
X
-01 (R5 to R9)
X
-04/04F (R10, R11)
X
-04XT (2×R10/11)
X
-11/14/31/34
(R3 to R8, R11)
X
*
)
-04/14/34 (n×R8i)
X
-X04
X
*
)
For more information, please contact your local ABB office.
77
B R A K E O P T I O N S
U
N
= 400 V (range 380 to 415 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
0.75
78
JBR-03
80
40
0.14
ACS880-01-02A4-3
R1
1.1
78
JBR-03
80
40
0.14
ACS880-01-03A3-3
R1
1.5
78
JBR-03
80
40
0.14
ACS880-01-04A0-3
R1
2.2
78
JBR-03
80
40
0.14
ACS880-01-05A6-3
R1
3
78
JBR-03
80
40
0.14
ACS880-01-07A2-3
R1
4
78
JBR-03
80
40
0.14
ACS880-01-09A4-3
R1
5.5
78
JBR-03
80
40
0.14
ACS880-01-12A6-3
R1
7.5
39
SACE08RE44
44
210
1
ACS880-01-017A-3
R2
11
39
SACE08RE44
44
210
1
ACS880-01-025A-3
R2
15
19
SACE15RE22
22
420
2
ACS880-01-032A-3
R3
18.5
19
SACE15RE22
22
420
2
ACS880-01-038A-3
R3
22
13
SACE15RE13
13
435
2
ACS880-01-045A-3
R4
22
13
SACE15RE13
13
435
2
ACS880-01-061A-3
R4
37
8
SAFUR90F575
8
1800
4.5
ACS880-01-072A-3+D150
R5
45
8
SAFUR90F575
8
1800
4.5
ACS880-01-087A-3+D150
R5
55
5.4
SAFUR80F500
6
2400
6
ACS880-01-105A-3+D150
R6
75
5.4
SAFUR80F500
6
2400
6
ACS880-01-145A-3+D150
R6
90
3.3
SAFUR125F500
4
3600
9
ACS880-01-169A-3+D150
R7
110
3.3
SAFUR125F500
4
3600
9
ACS880-01-206A-3+D150
R7
132
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-246A-3+D150
R8
132
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-293A-3+D150
R8
160
2
SAFUR200F500
2.7
5400
13.5
ACS880-01-363A-3+D150
R9
160
2
SAFUR200F500
2.7
5400
13.5
ACS880-01-430A-3+D150
R9
U
N
= 500 V (range 380 to 500 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
0.75
78
JBR-03
80
40
0.14
ACS880-01-02A1-5
R1
1.1
78
JBR-03
80
40
0.14
ACS880-01-03A0-5
R1
1.5
78
JBR-03
80
40
0.14
ACS880-01-03A4-5
R1
2.2
78
JBR-03
80
40
0.14
ACS880-01-04A8-5
R1
3
78
JBR-03
80
40
0.14
ACS880-01-05A2-5
R1
4
78
JBR-03
80
40
0.14
ACS880-01-07A6-5
R1
5.5
78
JBR-03
80
40
0.14
ACS880-01-11A0-5
R1
7.5
39
SACE08RE44
44
210
1
ACS880-01-014A-5
R2
11
39
SACE08RE44
44
210
1
ACS880-01-021A-5
R2
15
19
SACE15RE22
22
420
2
ACS880-01-027A-5
R3
18.5
19
SACE15RE22
22
420
2
ACS880-01-034A-5
R3
22
13
SACE15RE13
13
435
2
ACS880-01-040A-5
R4
22
13
SACE15RE13
13
435
2
ACS880-01-052A-5
R4
37
8
SAFUR90F575
8
1800
4.5
ACS880-01-065A-5+D150
R5
45
8
SAFUR90F575
8
1800
4.5
ACS880-01-077A-5+D150
R5
55
5.4
SAFUR80F500
6
2400
6
ACS880-01-096A-5+D150
R6
75
5.4
SAFUR80F500
6
2400
6
ACS880-01-124A-5+D150
R6
90
3.3
SAFUR125F500
4
3600
9
ACS880-01-156A-5+D150
R7
110
3.3
SAFUR125F500
4
3600
9
ACS880-01-180A-5+D150
R7
132
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-240A-5+D150
R8
132
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-260A-5+D150
R8
160
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-361A-5+D150
R9
160
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-414A-5+D150
R9
200
2.3
SAFUR200F500
2.7
5400
13.5
ACS880-01-441A-5+D150
R9
78
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
U
N
= 690 V (range 525 to 690 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
5.5
44
SACE08RE44
44
210
1
ACS880-01-07A4-7
R3
7.5
44
SACE08RE44
44
210
1
ACS880-01-09A9-7
R3
11
44
SACE08RE44
44
210
1
ACS880-01-14A3-7
R3
15
44
SACE08RE44
44
210
1
ACS880-01-019A-7
R3
18.5
44
SACE08RE44
44
210
1
ACS880-01-023A-7
R3
22
44
SACE08RE44
44
210
1
ACS880-01-027A-7
R3
6
18
SACE08RE44
44
210
1
ACS880-01-07A3-7+D150
R5
8
18
SACE08RE44
44
210
1
ACS880-01-09A8-7+D150
R5
11
18
SACE08RE44
44
210
1
ACS880-01-14A2-7+D150
R5
17
18
SACE15RE22
22
420
2
ACS880-01-018A-7+D150
R5
23
18
SACE15RE22
22
420
2
ACS880-01-022A-7+D150
R5
28
18
SACE15RE22
22
420
2
ACS880-01-026A-7+D150
R5
33
18
SACE15RE22
22
420
2
ACS880-01-035A-7+D150
R5
45
18
SACE15RE22
22
420
2
ACS880-01-042A-7+D150
R5
45
18
SACE15RE22
22
420
2
ACS880-01-049A-7+D150
R5
55
13
SACE15RE13
13
435
2
ACS880-01-061A-7+D150
R6
65
13
SACE15RE13
13
435
2
ACS880-01-084A-7+D150
R6
90
8
SAFUR90F575
8
1800
4.5
ACS880-01-098A-7+D150
R7
110
8
SAFUR90F575
8
1800
4.5
ACS880-01-119A-7+D150
R7
132
6
SAFUR80F500
6
2400
6
ACS880-01-142A-7+D150
R8
160
6
SAFUR80F500
6
2400
6
ACS880-01-174A-7+D150
R8
200
4
SAFUR125F500
4
3600
9
ACS880-01-210A-7+D150
R9
200
4
SAFUR125F500
4
3600
9
ACS880-01-271A-7+D150
R9
All brake resistors are to be installed outside the converter module. The JBR brake resistors are built-in to an IP20 metal housing.
The SACE brake resistors are built-in to an IP21 metal housing. The SAFUR brake resistors are built-in to an IP00 metal frame.
Ratings
P
brcont
Continuous brake chopper power. The value applies to the minimum resistance value.
With a higher resistance value, the
P
brcont
may increase in some ACS880 units.
R
Resistance value for the listed resistor type.
R
min
Minimum allowable resistance value for the brake resistor.
E
r
Energy pulse that the resistor assembly will withstand (400 s duty cycle).
This energy will heat the resistor element from 40 °C to the maximum allowable temperature.
P
rcont
Continuous power (heat) dissipation of the resistor when placed correctly. Energy
E
r
dissipates in 400 seconds.
—
Brake options ACS880-04XT
ACS880-04XT uses the same same brake options as ACS880-04. The ACS880-04 brake option values are for one module.
As ACS880-04XT has two modules, the values need be multiplied by 2.
79
B R A K E O P T I O N S
—
Brake options, ACS880-04, ACS880-04F and ACS880-X04
U
N
= 400 V (range 380 to 415 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
250
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04/04F-505A/504A-3
R10
315
1.3
2×SAFUR200F500
1.35
10800
27
ACS880-04/04F-585A/584A-3
R10
315
1.3
2×SAFUR200F500
1.35
10800
27
ACS880-04/04F-650A/649A-3
R10
400
0.7
3×SAFUR200F500
0.9
16200
40
ACS880-04/04F-725A-3
R11
400
0.7
3×SAFUR200F500
0.9
16200
40
ACS880-04/04F-820A-3
R11
400
0.7
3×SAFUR200F500
0.9
16200
40
ACS880-04/04F-880A-3
R11
U
N
= 400 V (range 380 to 415 V)
Nominal ratings
Duty cycle
(1min/5min)
Duty cycle
(10s/60s)
Noise
Air
flow
Brake
chopper
type
Brake resistor type
Type
P
brmax
(kW)
R
min
(ohm)
I
max
(A)
I
rms
(A)
P
cont
(kW)
P
br
(kW)
I
rms
(A)
P
br
(kW)
I
rms
(A) dB(A) (m
3
/h)
Brake chopper without brake resistor
230
1.7
384
109
70
230
355
230
355
64
660
NBRA658
–
ACS880-604-0210-3
353
1.2
545
149
96
303
468
353
545
64
660
NBRA659
–
ACS880-604-0320-3
706
2×1.2 1090
298
192
606
936
706 1090
67
1320 2×NBRA659
–
ACS880-604-0640-3
1058
0.4 1635
447
288
909 1404
1059
1635
68
1980 3×NBRA659
–
ACS880-604-0960-3
1411
0.3 2180
596
384
1212
1872
1412
2180
69
2640 4×NBRA659
–
ACS880-604-1280-3
1764
0.24 2725
745
480
1515 2340
1765
2725
70
3300 5×NBRA659
–
ACS880-604-1600-3
2117
0.2 3270
894
576
1818 2808
2118
3270
71
3960 6×NBRA659
–
ACS880-604-1920-3
Brake chopper with the resistor
230
1.7
384
65
42
130
200
224
346
66
2500
NBRA658
1×SAFUR210F575
ACS880-604-0210-3
353
1.2
545
84
54
167
257
287
444
66
2500
NBRA659
2×SAFUR180F460
ACS880-604-0320-3
706
2×1.2 1090
168
108
333
514
575
888
69
5000 2×NBRA659 2×(2×SAFUR180F460)
ACS880-604-0640-3
1058
0.4 1635
252
162
500
771
862
1332
70
7500 3×NBRA659 3×(2×SAFUR180F460)
ACS880-604-0960-3
1411
0.3 2180
336
216
667
1028
1150
1776
71
10000 4×NBRA659 4×(2×SAFUR180F460)
ACS880-604-1280-3
1764
0.24 2725
420
270
833
1285
1437 2220
72
12500 5×NBRA659 5×(2×SAFUR180F460)
ACS880-604-1600-3
2117
0.2 3270
504
324 1000 1542
1724 2664
73
15000 6×NBRA659 6×(2×SAFUR180F460)
ACS880-604-1920-3
U
N
= 500 V (range 380 to 500 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
250
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04/04F-460A/459A-5
R10
250
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04/04F-503A/502A-5
R10
315
1.3
2×SAFUR200F500
1.35
10800
27
ACS880-04/04F-583A/582A-5
R10
315
1.3
2×SAFUR200F500
1.35
10800
27
ACS880-04/04F-635A/634A-5
R10
400
0.7
3×SAFUR200F500
0.9
16200
40
ACS880-04/04F-715A-5
R11
400
0.7
3×SAFUR200F500
0.9
16200
40
ACS880-04/04F-820A-5
R11
400
0.7
3xSAFUR200F500
0.9
16200
40
ACS880-04/04F-880A-5
R11
U
N
= 690 V (range 525 to 690 V)
Braking power
Brake resistor(s)
Drive type
Frame size
P
brcont
(kW)
R
min
(ohm)
Type
R (ohm)
E
r
(kJ)
P
rcont
(kW)
285
2.2
SAFUR200F500
2.7
3600
13
ACS880-04-330A-7
R10
285
2.2
SAFUR200F500
2.7
3600
13
ACS880-04-370A-7
R10
285
2.2
SAFUR200F500
2.7
3600
13
ACS880-04-430A-7
R10
350
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04-425A-7
R11
350
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04-470A-7
R11
350
2.0
2×SAFUR125F500
2.0
7200
18
ACS880-04-522A-7
R11
400
1.8
2×SAFUR125F500
2.0
7200
18
ACS880-04-590A-7
R11
400
1.8
2×SAFUR125F500
2.0
7200
18
ACS880-04-650A-7
R11
400
1.8
2×SAFUR125F500
2.0
7200
18
ACS880-04-721A-7
R11
80
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Ratings
P
brmax
Maximum short time braking power.
R
Recommended braking resistor resistance. Also nominal
resistance of corresponding SAFUR resistor.
R
min
Minimum allowable resistance value for the brake resistor.
E
r
SAFUR resistor nominal braking capacity without forced
cooling. Energy pulse that the resistor assembly will
withstand (400 s duty cycle). This energy will heat the resistor
element from 40 °C to the maximum allowable temperature.
P
cont
Maximum continous braking power. Continuous power (heat)
dissipation of the resistor when placed correctly. Energy
E
r
dissipates in 400 seconds.
I
max
Maximum peak current per chopper during braking.
Current is achieved with recommended resistor resistance.
I
rms
Corresponding rms current per chopper during load cycle.
P
br
Braking power during corresponding duty cycle:
1 min/5 min = 1 minute braking with power
P
br
and
4 minutes unload.
10 s/60 s = 10 second braking with power
P
br
and
50 seconds unload.
Dimensions for choppers
Frame size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
NBRA658
584
334
240
26
NBRA659
584
334
240
26
NBRA669
584
334
240
26
U
N
= 500 V (range 380 to 500 V)
Nominal ratings
Duty cycle
(1min/5min)
Duty cycle
(10s/60s)
Noise
Air
flow
Module
type
Brake resistor type
Type
P
brmax
(kW)
R
min
(ohm)
I
max
(A)
I
rms
(A)
P
cont
(kW)
P
br
(kW)
I
rms
(A)
P
br
(kW)
I
rms
(A) dB(A) (m
3
/h)
Brake chopper without brake resistor
268
2.15
380
101
81
268
331
268
331
64
660
NBRA658
–
ACS880-604-0260-5
403
1.43
571
136
109
317
391
403
498
64
660
NBRA659
–
ACS880-604-0400-5
806 2×1.43 1142
272
218
634
782
806
996
67
1320 2×NBRA659
–
ACS880-604-0800-5
1208
0.45
1713
408
327
951
1173 1209 1494
68
1980 3×NBRA659
–
ACS880-604-1200-5
1611 0.3575 2284
544
436 1268 1564
1612 1992
69
2640 4×NBRA659
–
ACS880-604-1600-5
2014
0.286 2855
680
545 1585
1955
2015 2490
70
3300 5×NBRA659
–
ACS880-604-2000-5
2417
0.225 3426
816
654 1902 2346
2418 2988
71
3960 6×NBRA659
–
ACS880-604-2400-5
Brake chopper with the resistor
268
2
408
45
36
111
137
192
237
66
2500
NBRA658
2×SAFUR125F500
ACS880-604-0260-5
403
1.35
605
67
54
167
206
287
355
66
2500
NBRA659
2×SAFUR200F500
ACS880-604-0400-5
806 2×1.35 1210
134
108
333
412
575
710
69
5000 2×NBRA659 2×(2×SAFUR200F500)
ACS880-604-0800-5
1208
0.45
1815
201
162
500
618
862 1065
70
7500 3×NBRA659 3×(2×SAFUR200F500)
ACS880-604-1200-5
1611 0.3375 2420
268
216
667
824
1150 1420
71 10000 4×NBRA659 4×(2×SAFUR200F500)
ACS880-604-1600-5
2014
0.27 3025
335
270
833
1030
1437
1775
72 12500 5×NBRA659 5×(2×SAFUR200F500)
ACS880-604-2000-5
2417
0.225 3630
402
324 1000
1236
1724
2130
73 15000 6×NBRA659 6×(2×SAFUR200F500)
ACS880-604-2400-5
U
N
= 690 V (range 525 to 690 V)
Nominal ratings
Duty cycle
(1min/5min)
Duty cycle
(10s/60s)
Noise
Air
flow
Module
type
Brake resistor type
Type
P
brmax
(kW)
R
min
(ohm)
I
max
(A)
I
rms
(A)
P
cont
(kW)
P
br
(kW)
I
rms
(A)
P
br
(kW)
I
rms
(A) dB(A) (m
3
/h)
Brake chopper without brake resistor
404
2.72
414 107
119
298
267
404
361
64
660
NBRA669
–
ACS880-604-0400-7
807
1.36
828 214
238
596
534
808
722
64
660 2×NBRA669
–
ACS880-604-0800-7
1211 0.9066
1242 321
357
894
801
1212 1083
64
1320 3×NBRA669
–
ACS880-604-1200-7
1615
0.68
1656 428
476
1192 1068
1616 1444
64
1980 4×NBRA669
–
ACS880-604-1600-7
2019
0.544
2070 535
595 1490
1335 2020 1805
64
2640 5×NBRA669
–
ACS880-604-2000-7
2422 0.2383 2484 642
714
1788 1602 2424
2166
64
3300 6×NBRA669
–
ACS880-604-2400-7
Brake chopper with the resistor
404
1.35
835
97
54
167
149
287
257
66
2500
NBRA669
2 ×SAFUR200F500
ACS880-604-0400-7
807
0.675
1670 194
108
333
298
575
514
69
5000 2×NBRA669 2×(2×SAFUR200F500)
ACS880-604-0800-7
1211
0.45 2505 291
162
500
447
862
771
70
7500 3×NBRA669 3×(2×SAFUR200F500)
ACS880-604-1200-7
1615 0.3375 3340 388
216
667
596
1150
1028
71 10000 4×NBRA669 4×(2×SAFUR200F500)
ACS880-604-1600-7
2019
0.27
4175 485
270
833
745
1437
1285
72 12500 5×NBRA669 5×(2×SAFUR200F500)
ACS880-604-2000-7
2422
0.225
5010 582
324 1000
894
1724 1542
73 15000 6×NBRA669 6×(2×SAFUR200F500)
ACS880-604-2400-7
Heat loss of section with braking resistors is the same as braking power.
Dimensions for resistors
Frame size
Height
mm
Width
mm
Depth
mm
Weight
kg
SAFUR180F460
1320
300
345
32
SAFUR125F500
1320
300
345
25
SAFUR200F500
1320
300
345
30
SAFUR210F575
1320
300
345
27
81
B R A K E O P T I O N S
—
ACS880-604 3-phase dynamic brake units
Ratings
Resistor
R
min
Minimum allowed resistance value of the brake resistor for one phase of the brake module.
R
max
Resistance value of the brake resistor for one phase of the brake module
corresponding to the maximum achieved continuous braking power.
Note: Connect one resistor per brake module phase. For example, a brake unit of frame size
2xR8i including two brake modules → 2 x 3 resistors are needed.
Typical ratings for no-overload use
I
dc
Total input DC current of brake unit.
I
rms
Total rms DC output phase current of brake unit.
I
max
Peak brake current (DC) per chopper module phase.
P
cont.max
Maximum continuous braking power per brake unit.
Cyclic load (1 min/5 min)
I
dc
Total input DC current of brake unit during a period of 1 minute with braking power
P
br
.
I
rms
Total rms DC current per brake unit phase during a period of 1 minute with braking
power
P
br
.
P
br
Short term braking power
U
N
= 400 V (range 380 to 415 V)
Resistor
values
Ratings
R
min
Ratings
R
max
Brake unit type Frame
size
No-overload use
Duty cycle (1min/5min)
No-overload use
Duty cycle (1min/5min)
R
min
(ohm)
R
max
(ohm)
I
dc
DC
(A)
I
rms
DC
(A)
P
rcont
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
min
(kW)
I
dc
DC
(A)
I
rms
DC
(A)
P
contmax
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
max
(kW)
1.7
2.1
781
310
500
370
999
351
640
781
282
500
312
827
291
530 ACS880-604-0500-3
R8i
1.2
1.4 1171
465
750
555 1499
527
960 1171
424
750
468 1241
436
800 ACS880-604-0750-3
R8i
1.7
2.1 1562
621 1000
740 1998
702
1290 1562
565
1000
625 1655
581
1060 ACS880-604-1000-3
2×R8i
1.2
1.4 2342
931 1510 1110 2997
1053
1930 2342
847
1510
937 2482
872
1600 ACS880-604-1510-3
2×R8i
1.2
1.4 3514 1396 2260 1665 4496
1580
2890 3514 1271
2260 1405 3723
1308
2400 ACS880-604-2260-3
3×R8i
1.2
1.4 4685 1862 3010 2220 5994
2106
3860 4685 1694
3010 1874 4964
1744
3190 ACS880-604-3010-3
4×R8i
1.2
1.4 5856 2327 3770 2775 7493
2633
4820 5856 2118
3770 2342 6205
2180
3990 ACS880-604-3770-3
5×R8i
U
N
= 500 V (range 380 to 500 V)
Resistor
values
Ratings
R
min
Ratings
R
max
Brake unit type Frame
size
No-overload use
Duty cycle (1min/5min)
No-overload use
Duty cycle (1min/5min)
R
min
(ohm)
R
max
(ohm)
I
dc
DC
(A)
I
rms
DC
(A)
P
rcont
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
min
(kW)
I
dc
DC
(A)
I
rms
DC
(A)
P
contmax
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
max
(kW)
2.2
2.6
781
310
630
370
999
351
800
781
284
630
312
835
293
670 ACS880-604-0630-5
R8i
1.4
1.7 1171
465
940
555 1499
527
1210 1171
430
940
468 1277
449
1030 ACS880-604-0940-5
R8i
2.2
2.6 1562
621 1260
740 1998
702
1610 1562
568
1260
625 1671
587
1340 ACS880-604-1260-5
2×R8i
1.4
1.7 2342
931 1880 1110 2997
1053
2410 2342
860
1880
937 2555
898
2060 ACS880-604-1880-5
2×R8i
1.4
1.7 3514 1396 2830 1665 4496
1580
3620 3514 1289
2830 1405 3832
1347
3080 ACS880-604-2830-5
3×R8i
1.4
1.7 4685 1862 3770 2220 5994
2106
4820 4685 1719
3770 1874 5110
1795
4110 ACS880-604-3770-5
4×R8i
1.4
1.7 5856 2327 4710 2775 7493
2633
6030 5856 2149
4710 2342 6387
2244
5140 ACS880-604-4710-5
5×R8i
U
N
= 690 V (range 525 to 690 V)
Resistor
values
Ratings
R
min
Ratings
R
max
Brake unit type Frame
size
No-overload use
Duty cycle (1min/5min)
No-overload use
Duty cycle (1min/5min)
R
min
(ohm)
R
max
(ohm)
I
dc
DC
(A)
I
rms
DC
(A)
P
rcont
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
min
(kW)
I
dc
DC
(A)
I
rms
DC
(A)
P
contmax
(kW)
I
max
DC
(A)
I
dc
DC
(A)
I
rms
-
R
min
DC
(A)
P
br
-
R
max
(kW)
3.0
3.6
781
310
870
370
999
351
1110
781
283
870
312
833
293
920 ACS880-604-0870-7
R8i
2.0
2.4 1171
465 1300
555 1499
527
1660 1171
425
1300
468 1249
439
1390 ACS880-604-1300-7
R8i
3.0
3.6 1562
621 1730
740 1998
702
2220 1562
567
1730
625 1665
585
1850 ACS880-604-1730-7
2×R8i
2.0
2.4 2342
931 2600 1110 2997
1053
3330 2342
850
2600
937 2498
878
2770 ACS880-604-2600-7
2×R8i
2.0
2.4 3514 1396 3900 1665 4496
1580
4990 3514 1275
3900 1405 3746
1316
4160 ACS880-604-3900-7
3×R8i
2.0
2.4 4685 1862 5200 2220 5994
2106
6650 4685 1700
5200 1874 4995
1755
5540 ACS880-604-5200-7
4×R8i
2.0
2.4 5856 2327 6500 2775 7493
2633
8320 5856 2125
6500 2342 6244
2194
6930 ACS880-604-6500-7
5×R8i
Dimensions
Frame
size
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
R8i
1397
240
583
125
82
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
ACS880-604LC liquid cooled 1-phase brake units
U
N
= 690 V (range 525 to 690 V)
Nominal ratings
Duty
cycle
(1min/5min)
Duty
cycle
(10s/60s)
Losses Coolant
flow
rate
1)
Air
flow
2)
Module type
Brake
resistor type
Type
P
brmax
(kW)
R
tot
(ohm)
I
max
(A)
I
rms
(A)
P
brcont
(kW)
P
br
(kW)
I
rms
(A)
P
br
(kW)
I
rms
(A)
P
loss
(kW) (l/min) (m
3
/h)
Brake chopper without brake resistor
404
–
414
107
119
298
267
404
361
2.0
1.6
–
NBRW-669C
–
ACS880-604LC-0400-7
807
–
828
214
238
596
534
808
722
4.0
3.2
–
2×NBRW-669C
–
ACS880-604LC-0800-7
1211
–
1242
321
357
894
801
1212 1083
6.0
4.8
–
3×NBRW-669C
–
ACS880-604LC-1200-7
1615
–
1656
428
476
1192 1068
1616 1444
8.0
6.4
–
4×NBRW-669C
–
ACS880-604LC-1600-7
2019
–
2070
535
595
1490
1335 2020 1805
10.0
8.0
–
5×NBRW-669C
–
ACS880-604LC-2000-7
2422
–
2484
642
714
1788 1602 2424
2166
12.0
9.6
–
6×NBRW-669C
–
ACS880-604LC-2400-7
Dimensions
Type
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
Brake chopper
NBRW-669C
583.5
326
192
29
Brake resistor
SAFUR200F500
1320
300
345
32
Ratings
Nominal ratings
P
brmax
Maximum short-term (1 min every 10 mins) braking power.
R
tot
Total brake resistor resistance of the whole brake unit.
I
max
Maximum peak current of the whole brake unit.
I
rms
Corresponding rms current per chopper during load cycle.
P
brcont
Maximum continuous power rating.
Cyclic load (1 min/5 min)
P
br
Maximum braking power, allowed for 1 minute every 5 minutes.
I
rms
Total rms current during a period of 1 minute with braking power
P
br
.
Cyclic load (1 min/5 min)
P
br
Total rms current during a period of 10 seconds with braking power
P
br
.
I
rms
Maximum braking power, allowed for 10 seconds every 60 seconds
Losses
P
loss
Power loss conducted to coolant and emitted to air.
U
N
= 690 V (range 525 to 690 V)
Nominal ratings
Duty
cycle
(1min/5min)
Duty
cycle
(10s/60s)
Coolant
flow
rate
1)
Air
flow
2)
Module type
Brake
resistor type
Type
P
brmax
(kW)
R
tot
(ohm)
I
max
(A)
I
rms
(A)
P
brcont
(kW)
P
br
(kW)
I
rms
(A)
P
br
(kW)
I
rms
(A) (l/min) (m
3
/h)
Brake chopper with the resistor
404
1.35
835
97
54
167
149
287
257
1.6
1840
NBRW-669C
2×SAFUR200F500
ACS880-604LC-0400-7
807
0.68 1670 194
108
333
298
575
514
3.2
4340 2×NBRW-669C
2×(2×SAFUR200F500)
ACS880-604LC-0800-7
1211
0.45 2505 291
162
500
447
862
771
4.8
6180 3×NBRW-669C
3×(2×SAFUR200F500)
ACS880-604LC-1200-7
1615
0.34 3340 388
216
667
596 1150 1028
6.4
8020 4×NBRW-669C
4×(2×SAFUR200F500)
ACS880-604LC-1600-7
2019
0.27 4175 485
270
833
745 1437 1285
8.0
9860 5×NBRW-669C
5×(2×SAFUR200F500)
ACS880-604LC-2000-7
2422
0.23 5010 582
324 1000
894 1724 1542
9.6 11700 6×NBRW-669C
6×(2×SAFUR200F500)
ACS880-604LC-2400-7
1)
Coolant flow rate is for the brake chopper module only.
2)
Air flow is for the brake resistor only, which is air-cooled.
83
B R A K E O P T I O N S
U
N
= 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V.
No overload use
Fast overload
cycle (10 s/60 s)
Heavy overload
cycle (1 min/60 s)
Noise
level
Heat
dissipation
Air
flow
Filter type
Drive type Frame
size
I
dc input
DC (A)
I
rms
DC
(A)
P
N
(kW)
I
max output
DC (A)
I
p2p
(A)
I
fast
(A)
P
fast
(kW)
I
Hd
(A)
P
Hd
(kW) dB(A)
(m
3
/h)
600
600
305
900
22
450
229
510
260
74
5.2
2200
BDCL-14-5 ACS880-1604-0600A-3
R8i
900
900
458
1350
33
675
343
765
389
74
8
2200
BDCL-15-5 ACS880-1604-0900A-3
R8i
1200
1200
611
1800
11
899
458
1020
519
76
10.5
4400 2xBDCL-14-5 ACS880-1604-1200A-3
2xR8i
1800
1800
916
2700
16
1349
687
1529
779
76
16.5
4400 2xBDCL-15-5 ACS880-1604-1800A-3
2xR8i
—
DC-DC converter, ACS880-1604
U
N
= 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V.
No overload use
Fast overload
cycle (10 s/60 s)
Heavy overload
cycle (1 min/60 s)
Noise
level
Heat
dissipation
Air
flow
Filter type
Drive type Frame
size
I
dc input
DC (A)
I
rms
DC
(A)
P
N
(kW)
I
max output
DC (A)
I
p2p
(A)
I
fast
(A)
P
fast
(kW)
I
Hd
(A)
P
Hd
(kW) dB(A)
(m
3
/h)
600
600
382
900
27
450
286
510
324
74
6
2200
BDCL-14-5 ACS880-1604-0600A-5
R8i
900
900
573
1350
41
675
429
765
487
74
9.1
2200
BDCL-15-5 ACS880-1604-0900A-5
R8i
1200
1200
764
1800
14
899
572
1020
649
76
12.1
4400 2xBDCL-14-5 ACS880-1604-1200A-5
2xR8i
1800
1800 1146
2700 20
1349
859
1529
973
76
18.8
4400 2xBDCL-15-5 ACS880-1604-1800A-5
2xR8i
U
N
= 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V.
No overload use
Fast overload
cycle (10 s/60 s)
Heavy overload
cycle (1 min/60 s)
Noise
level
Heat
dissipation
Air
flow
Filter type
Drive type Frame
size
I
dc input
DC (A)
I
rms
DC
(A)
P
N
(kW)
I
max output
DC (A)
I
p2p
(A)
I
fast
(A)
P
fast
(kW)
I
Hd
(A)
P
Hd
(kW) dB(A)
(m
3
/h)
400
400
351
600
38
300
263
340
298
74
6.4
2200
BDCL-14-7 ACS880-1604-0400A-7
R8i
600
600
527
900
56
450
395
510
448
74
10.6
2200
BDCL-15-7 ACS880-1604-0600A-7
R8i
800
800
703
1200
19
600
527
680
597
76
12.8
4400 2xBDCL-14-7 ACS880-1604-0800A-7
2xR8i
1200
1200 1054
1800
28
899
790
1020
895
76
21.5
4400 2xBDCL-15-7 ACS880-1604-1200A-7
2xR8i
Dimensions
Frame size
Height
mm
Width
mm
Depth
mm
Weight
kg
R8i
1397
240
583
125
BDCL-14-5
1397
240
444
195
BDCL-14-7
1397
240
444
195
BDCL-15-5
1397
240
444
255
BDCL-15-7
1397
240
444
255
Ratings
No overload use
I
dc input
Maximum continuous input DC current
I
rms output
Maximum continuous output current
P
N
Maximum continuous output power
I
max output
Maximum instantaneous output current
I
p2p
Maximum output ripple current
Fast/heavy load cycle
I
fast
Continuous output current allowing 10 s
of
I
max
every 60 seconds
P
fast
Continuous output power allowing 10 s
of
I
max
every 60 seconds
I
Hd
Continuous output current allowing overload
of 150%
I
hd
for 1 min every 5 min
P
Hd
Continuous output power allowing 150%
I
hd
for
1 min every 5 min
84
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Du/dt filters
Du/dt filtering suppresses inverter output
voltage spikes and rapid voltage changes that
stress motor insulation. Additionally, du/dt
filtering reduces capacitive leakage currents and
high-frequency emissions from the motor cable,
as well as high-frequency losses and bearing
currents in the motor. The need for du/dt filtering
depends on the motor insulation. For information
on the construction of the motor insulation,
consult the manufacturer.
If the motor does not meet the following
requirements, the lifetime of the motor might
decrease. Insulated N-end (non-driven end)
bearings and/or common mode filters are also
required for motor bearing currents with motors
bigger than 100 kW. For more information, please
see the ACS880 hardware manuals.
Please see below for information about how to
select a filter according to the motor.
Filter selection table for ACS880
Motor type
Nominal AC
supply voltage
Requirements for
Motor insulation system
ABB du/dt and common mode filters, insulated N-end motor bearings
P
N
< 100 kW and
frame size < IEC 315
100 kW ≤
P
N
< 350 kW or
IEC 315 ≤ frame
size < IEC 400
P
N
>
350 kW or
frame size >
IEC 400
P
N
< 134 hp and
frame size < NEMA 500
134 hp ≤
P
N
< 469 hp or
NEMA 500 ≤ frame
size ≤ NEMA 580
P
N
>
469 hp or
frame size >
NEMA 580
ABB motors
Random-wound
M2__, M3__ and
M4__
U
N
≤ 500 V
Standard
–
+ N
+ N + CMF
500 V <
U
N
≤ 600 V
Standard
+ du/dt
+ du/dt + N
+ du/dt + N + CMF
Reinforced
–
+ N
+ N + CMF
600 V <
U
N
≤ 690 V
(cable length ≤ 150 m)
Reinforced
+ du/dt
+ du/dt + N
+ du/dt + N + CMF
600 V <
U
N
≤ 690 V
(cable length > 150 m)
Reinforced
–
+ N
+ N + CMF
Form-wound
HX__ and AM__
380 V <
U
N
≤ 690 V
Standard
n/a
+ N + CMF
P
N
< 500 kW: + N + CMF
P
N
>
500 kW: + du/
dt + N + CMF
Old
1)
form-wound
HX__ and modular
380 V <
U
N
≤ 690 V
Check with the motor
manufacturer
+ du/dt with voltages
over 500 V + N + CMF
+ du/dt with voltages
over 500 V
+ N + CMF
+ du/dt with voltages
over 500 V + N + CMF
Random-wound
HX__ and AM__
2)
0 V <
U
N
≤ 500 V
Enamelled wire with fiber
glass taping
+ N + CMF
+ N + CMF
+ N + CMF
500 V <
U
N
≤ 690 V
+ du/dt + N + CMF
+ du/dt + N + CMF
+ du/dt + N + CMF
HPD
Consult the motor manufacturer.
1)
Manufactured before 1.1.1998.
2)
For motors manufactured before 1.1.1998, check for additional instructions with the motor manufacturer.
Non-ABB motors
Random-wound
and form-wound
U
N
≤ 420 V
Standard:
Û
LL
= 1300 V
–
+ N or CMF
+ N + CMF
420 V <
U
N
≤ 500 V
Standard:
Û
LL
= 1300 V
+ du/dt
+ du/dt + N or
+ du/dt + CMF
+ du/dt + N + CMF
Reinforced:
Û
LL
= 1600 V,
0.2 microsecond rise time
_
+ N or CMF
+ N + CMF
500 V <
U
N
≤ 600 V
Reinforced:
Û
LL
= 1600 V
+ du/dt
+ du/dt + N or
+ du/dt + CMF
+ du/dt + N + CMF
Reinforced:
Û
LL
= 1800 V
–
+ N or CMF
+ N + CMF
600 V <
U
N
≤ 690 V
Reinforced:
Û
LL
= 1800 V
+ du/dt
+ du/dt + N
+ du/dt + N + CMF
Reinforced:
Û
LL
= 2000 V,
0.3 microsecond rise time
3)
–
+ N or CMF
+ N + CMF
1)
If the intermediate DC circuit voltage of the drive is increased from the nominal level due to long term resistor braking cycles, check with the motor manufacturer if
additional output filters are needed in the applied drive operation range.
The abbreviations used in the table are defined below
Abbr.
Definition
U
N
Nominal AC line voltage.
Û
LL
Peak line-to-line voltage at motor terminals which the motor insulation must withstand.
P
N
Motor nominal power.
du/dt
du/dt filter at the output of the drive. Available from ABB as an optional add-on kit.
CMF
Common mode filter. Depending on the drive type, CMF is available from ABB as a factory-installed option (+208) or as an optional add-on kit.
N
N-end bearing: insulated motor non-drive end bearing.
n/a
Motors of this power range are not available as standard units. Consult the motor manufacturer.
85
D U/DT FI LT ER S
External du/dt filter for ACS880-01, ACS880-11 and ACS880-31
du/dt filter type
*
)
3 filters included, dimensions apply to one filter.
Unprotected
(IP00)
Protected
to IP22
Protected
to IP54
N
O
C
H
0
016
-6
0
N
O
C
H
0
03
0
-6
0
N
O
C
H
0
070
-6
0
N
O
C
H
012
0
-6
0
*
)
FO
C
H
026
0
-7
0
FO
C
H
03
20
-5
0
N
O
C
H
0
016
-6
2
N
O
C
H
0
03
0
-6
2
N
O
C
H
0
070
-6
2
N
O
C
H
012
0
-6
2
FO
C
H
026
0
-7
2
FO
C
H
03
20
-5
2
N
O
C
H
0
016
-6
5
N
O
C
H
0
03
0
-6
5
N
O
C
H
0
070
-6
5
N
O
C
H
012
0
-6
5
4
0
0 V
50
0 V
69
0 V
02A4-3
02A1-5
x
x
x
03A3-3
03A0-5
x
x
x
03A4-5
x
x
x
04A0-3
04A8-5
07A3-7
x
x
x
05A6-3
05A2-5
07A4-7
x
x
x
07A2-3
07A6-5
09A8-7
x
x
x
09A4-3
09A9-7
x
x
x
12A6-3
11A0-5
14A2-7
x
x
x
14A3-7
x
x
x
014A-5
018A-7
x
x
x
017A-3
019A-7
x
x
x
021A-5
022A-7
x
x
x
023A-7
x
x
x
025A-3
026A-7
x
x
x
027A-7
x
x
x
027A-5
x
x
x
032A-3
034A-5
035A-7
x
x
x
038A-3
040A-5
042A-7
x
x
x
045A-3
052A-5
049A-7
x
x
x
061A-3
x
x
x
065A-5
061A-7
x
x
x
072A-3
077A-5
x
x
x
087A-3
084A-7
x
x
x
105A-3
096A-5
098A-7
x
x
x
124A-5
119A-7
x
x
145A-3
156A-5
142A-7
x
x
169A-3
180A-5
174A-7
x
x
206A-3
240A-5
210A-7
x
x
246A-3
260A-5
271A-7
x
x
293A-3
x
x
363A-3
361A-5
x
x
430A-3
414A-5
x
x
Applicability
Separate du/dt filters are available for
ACS880-01/04/04F/04XT/11/31 and -14/34 R11.
Unprotected IP00 filters must be placed into
an enclosure that provides an adequate degree
of protection.
—
FOCH0610-70
—
NOCH0016-65
—
NOCH0016-62
—
NOCH0016-60
External du/dt filter for ACS880 -04/04F,
ACS880-14/34 R11 and ACS880-04XT
*
)
FO
C
H
026
0
-5
X
FO
C
H
03
20
-5
X
FO
C
H
06
10
-7
X
FO
C
H
08
75-
7X
FO
C
H
026
0
-7
X
4
0
0 V
50
0 V
69
0 V
240A-5
142A-7
x
260A-5
174A-7
x
210A-7
x
271A-7
x
246A-3
x
293A-3
x
363A-3
302A-5
x
442A-3
361A-5
x
414A-5
x
505A-3
460A-5
330A-7
x
585A-3
503A-5
370A-7
x
650A-3
430A-7
x
330A-7
x
370A-7
x
459A-5
x
460A-5
425A-7
x
430A-7
x
504A-3
502A-5
x
505A-3
503A-5
470A-7
x
584A-3
582A-5
x
585A-3
583A-5
522A-7
x
649A-3
634A-5
x
650A-3
635A-5
590A-7
x
725A-3
715A-5
650A-7
x
820A-3
820A-5
721A-7
x
880A-3
880A-5
x
*
)
Two filters are needed for ACS880-04XT, i.e. one filter per module.
86
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
External du/dt filter for ACS880-104
ACS880-104
N
O
C
H
0
016
-6
0
N
O
C
H
0
03
0
-6
0
N
O
C
H
0
07
0
-6
0
BOC
H
-0
35
0A
-7
4
0
0 V
50
0 V
69
0 V
004A8-3
003A6-5
007A3-7
×
006A0-3
004A8-5
009A8-7
×
008A0-3
006A0-5
014A2-7
×
0011A-3
008A0-5
×
0014A-3
0011A-5
×
0018A-3
0014A-5
×
0018A-5
×
0025A-3
0025A-5
0018A-7
x
0030A-5
0022A-7
x
0035A-3
0035A-5
0027A-7
x
0044A-3
0035A-7
x
0050A-3
0050A-5
0042A-7
x
0061A-3
0061A-5
0052A-7
x
0078A-3
0078A-5
x
0094A-3
0094A-5
x
0100A-3
x
0140A-3
0110A-5
0062A-7
x
0170A-3
0140A-5
0082A-7
x
0210A-3
0170A-5
0100A-7
x
0250A-3
0200A-5
0130A-7
x
0300A-3
0240A-5
0140A-7
x
0350A-3
0300A-5
0190A-7
x
0340A-5
0220A-7
x
0270A-7
x
Dimensions and weights of the du/dt filters
du/dt filter
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
BOCH-0350A-7
2)
310
347
256
16
NOCH0016-60
195
140
115
2.4
NOCH0016-62/65
323
199
154
6
NOCH0030-60
215
165
130
4.7
NOCH0030-62/65
348
249
172
9
NOCH0070-60
261
180
150
9.5
NOCH0070-62/65
433
279
202
15.5
NOCH0120-60
1)
200
154
106
7
NOCH0120-62/65
765
308
256
45
FOCH0260-70
382
340
254
47
FOCH0260-72
900
314
384
73
FOCH0320-50
662
319
293
65
FOCH0320-52
1092
396
413
100
FOCH0610-70
662
319
293
65
FOCH0875-70
662
319
293
65
1)
3 filters included, dimensions apply to one filter.
2)
Values are for three single-phase filters.
All parallel connected ACS880-104 modules in frame size
nxR8i and all 690V ACS880-104 modules in frame size 1xR8i
and nxR8i have du/dt filters built-in as standard (+E205).
Built-in du/dt filters are available as option (+E205) for
ACS880-104 modules in frame size 1xR8i ranging from
380 to 500 V. The built-in du/dt filters in R8i modules
do not impact the module dimensions.
87
A B B AU TO M AT I O N P R O D U C T S
Programmable Logic Controllers PLCs
The AC500, AC500-eCo, AC500-S and
AC500-XC scalable PLC ranges provide
solutions for small, medium and high-
end applications. Our AC500 PLC
platform offers different performance
levels and is the ideal choice for high
availability, extreme environments,
condition monitoring, motion control
or safety solutions.
AC motors
ABB’s low voltage AC motors are de-
signed to save energy, reduce operating
costs and minimize unscheduled down-
time. General performance motors
ensure convenience, while process
performance motors provide a broad
set of motors for the process industries
and heavy-duty applications.
Control panels
CP600-eCo and CP600 HMI control
panels offer a wide range of features
and functionalities for maximum
operability. ABB control panels are
distinguished by their robustness and
easy usability, providing all the relevant
information from production plants and
machines at one single touch.
All-compatible drives portfolio
The all-compatible drives share the
same architecture; software platform,
tools, user interfaces and options.
Yet, there is an optimal drive from the
smallest water pump to the biggest
cement kiln, and everything in the
between.
Automation Builder Engineering suite
ABB Automation Builder is the software
for machine builders and system
integrators wanting to automate their
machines and systems in a unified and
efficient way. Automation Builder
connects the engineering tools for PLC,
safety, control panels, SCADA, drives,
motion and robots.
Jokab safety products
ABB Jokab Safety offers an extensive
range of innovative products and
solutions for machine safety systems.
It is represented in standardization
organizations for machine safety and
works daily with the practical
application of safety requirements
in combination with production
requirements.
—
ACS880 drives are compatible with the
wide ABB product offering
88
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Services to match your needs
Your service needs depend on your operation, life cycle of
your equipment and business priorities. We have identified
our customers’ four most common needs and defined service
options to satisfy them. What is your choice to keep your
drives at peak performance?
Is uptime your priority?
Keep your drives running with precisely
planned and executed maintenance.
Example services include:
• ABB Ability Life Cycle Assessment
• Installation and Commissioning
• Spare Parts
• Preventive Maintenance
• Reconditioning
• ABB Drive Care agreement
• Drive Exchange
Is rapid response
a key consideration?
If your drives require immediate action,
our global network is at your service.
Example services include:
• Technical Support
• On-site Repair
• ABB Ability Remote Assistance
• Response time agreements
• Training
Operational efficiency
Rapid response
89
Option code
Description
+P904
Extension of warranty to 24 months from
commissioning or 30 months from delivery
+P909
Extension of warranty to 36 months from
commissioning or 42 months from delivery
Your choice, your business efficiency
ABB Drive Care agreement lets you focus on your
core business. A selection of predefined service
options matching your needs provides optimal,
more reliable performance, extended drive
lifetime and improved cost control. So you can
reduce the risk of unplanned downtime and find
it easier to budget for maintenance.
We can help you more by knowing where you are!
Register your drive at
for
extended warranty options and other benefits.
The future of your drives depends on
the service you choose.
Whatever you choose, it should be a well-
informed decision. No guesswork. We have the
expertise and experience to help you find and
implement the right service for your drive
equipment. You can start by asking yourself
these two critical questions:
• Why should my drive be serviced?
• What would my optimal service options be?
From here, you have our guidance and full
support along the course you take, throughout
the entire lifetime of your drives.
—
Drives service
Your choice, your future
Need to extend your
assets’ lifetime?
Maximize your drive’s lifetime
with our services.
Example services include:
• ABB Ability Life Cycle Assessment
• Upgrades, Retrofits and Modernization
• Replacement, Disposal and Recycling
Is performance most
critical to your operation?
Get optimal performance out of your machinery
and systems.
Example services include:
• ABB Ability Remote Services
• Engineering and Consulting
• Inspection and Diagnostics
• Upgrades, Retrofits and Modernization
• Workshop Repair
• Tailored services
Life cycle management
Performance improvement
90
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
A lifetime of peak performance
You’re in control of every life cycle phase of your
drives. At the heart of drive services is a four-
phase product life cycle management model.
This model defines the services recommended
and available throughout drives lifespan.
—
Now it’s easy for you to see the
exact service and maintenance
available for your drives.
Product is in
active sales and
manufacturing
phase.
Full range of life cycle
services is available.
Full range of life cycle
services is available.
Product enhancements
may be available
through upgrade and
retrofit solutions.
Limited range of life
cycle services is
available.
Spare parts availability
is limited to available
stock.
Product is no
longer
available.
Product is no longer
available.
ABB drives life cycle phases explained:
Full range of life cycle services and support
Limited range of life cycle
services and support
Replacement and
end-of-life services
Serial production has
ceased. Product may be
available for plant
extensions, as a spare
part or for installed
base renewal.
Pr
o
d
u
ct
S
er
vi
ce
s
Replacement and
end-of-life services
are available.
Keeping you informed
We notify you every step of the way using
life cycle status statements and
announcements.
Your benefit is clear information about your
drives’ status and precise services available.
It helps you plan the preferred service actions
ahead of time and make sure that continuous
support is always available.
Step 1
Life Cycle Status Announcement
Provides early information about the upcoming
life cycle phase change and how it affects the
availability of services.
Step 2
Life Cycle Status Statement
Provides information about the drive's current life
cycle status, availability of product and services,
life cycle plan and recommended actions.
Active
Classic
Limited
Obsolete
91
L I FE T I M E O F P E A K P ER FO R M A N C E
92
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Summary of features and options
Ordering
code
ACS880
-01
+P940/P944
R1 to R9
ACS880-
11/31
+P940
R3 to R8
ACS880-
04/04F
R10 (-04),
R11 (-04/04F)
ACS880-
04XT
2xR10 to
2xR11
ACS880-
04
nxDxT
+ nxR8i
ACS880-
14/34
R11
ACS880-
14/34
nxR8i
+ nxR8i
Mounting
For cabinet mounting
+P940
+P944
–
Mounting direction - bookshelf
Mounting direction - flat (= sideways)
+C173
–
–
1)
1)
–
1)
Flange mounting
+C135
3)
–
–
–
–
Side by side mounting
External drive control unit
–
–
Integrated drive control unit
+P905
6)
–
–
–
Installation frames for drive modules
–
–
–
–
4)
–
Wheels for easy maneuvering of the module
–
–
6)
Cabling
Supply bottom entry (module terminals)
–
–
–
Supply top entry (module terminals)
–
–
–
–
Inverter bottom exit (module terminals)
DC connection bus bars/terminals
+H356
Cabling panel for quick module installation/
removal
+H381
–
–
6)
–
–
Quick connectors for motor cables
–
–
–
–
–
Right hand side terminals (180 degrees turn)
+H391
–
–
6)
–
–
–
Degree of protection
IP00 (UL open type)
+0B051
–
–
IP20 (UL open type)
–
–
Motor control
DTC motor control
Control panel
Intuitive control panel
5)
5)
Integrated control panel holder in the drive
+J414
6)
–
–
–
Control panel mounting platform DPMP-01
(flush) / DPMP-02 (surface)
+J410/
+J413
EMC filters
EMC 1st environment, restricted distribution,
C2, grounded network (TN)
+E202
7)
8)
9)
9)
–
9)
EMC 2nd environment, C3, grounded
network (TN)
+E200
10)
11)
11)
–
–
2)
–
EMC 2nd environment, C3, ungrounded
network (IT)
+E201
12)
11)
11)
–
–
2)
–
EMC 2nd environment, C3, grounded (TN)
and ungrounded (IT)
+E210
–
–
21)
1)
1)
Line filter
AC or DC choke
–
–
–
Advanced line harmonic filter (LCL)
–
–
–
–
Output filter
Common mode filter
+E208
Built-in du/dt filters
+E205
–
–
–
–
–
External du/dt filters
–
–
Braking (see braking unit table)
Brake chopper
+D150
13)
14)
Brake resistor
14)
Standard
Selectable option, with plus code
Selectable option, external, no plus code
93
SU M M A R Y O F FE AT U R E S A N D O P T I O N S
Ordering
code
ACS880
-01
+P940/P944
R1 to R9
ACS880-
11/31
+P940
R3 to R8
ACS880-
04/04F
R10 (-04),
R11 (-04/04F)
ACS880-
04XT
2xR10 to
2xR11
ACS880-
04
nxDxT
+ nxR8i
ACS880-
14/34
R11
ACS880-
14/34
nxR8i
+ nxR8i
Software
Primary control program
Drive application programming based on
IEC 61131-3 using Automation Builder
(available for primary control program)
+N8010
Application control program for winder
+N5000
14)
14)
Application control program for crane
+N5050
14)
14)
Application control program for winch
+N5100
14)
–
14)
Application control program for centrifuge/
decanter
+N5150
14)
14)
14)
14)
14)
Application control program for PCP pump
+N5200
14)
14)
Application control program for Rod pump
+N5250
14)
14)
–
14)
–
Application control program for test bench
+N5300
14)
–
14)
Application control program for cooling tower
direct drive
+N5350
14)
–
–
14)
–
Application control program for override
control
+N5450
14)
14)
Application control program for spinning and
traverse
+N5500
14)
–
–
14)
–
Application control program for chemical
industry process control
+N5550
14)
14)
14)
14)
14)
Application control program for ESP pumps
+N5600
14)
14)
Application control program for tower cranes
+N5650
14)
–
–
14)
–
Support for asynchronous motor
Support for permanent magnet motor
Support for synchrounous reluctance motor
(SynRM)
+N7502
High speed license. Allows high speed
operation above 598 Hz output frequency.
+N8200
17)
–
17)
17)
17)
–
17)
Auxiliary option kits
Main circuit electrical components
–
–
–
–
–
Installation accessories for Rittal TS8 cabinets
Installation accessories for generic cabinets
IP20, IP42 and IP54 door and roof kits
–
–
Approvals
CE
UL, cUL
CSA
EAC/GOST R
15)
RoHS
RCM
–
–
–
Marine type approvals
16)
+C132
16)
–
6)
16)
16)
–
16)
TÜV nord certificate for safety functions
VTT ATEX protective device certificate
+Q971
SEMI F47
Standard
Selectable option, with plus code
Selectable option, external, no plus code
94
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Ordering
code
ACS880
-01
+P940/P944
R1 to R9
ACS880-
11/31
+P940
R3 to R8
ACS880-
04/04F
R10 (-04),
R11 (-04/04F)
ACS880-
04XT
2xR10 to
2xR11
ACS880-
04
nxDxT
+ nxR8i
ACS880-
14/34
R11
ACS880-
14/34
nxR8i
+ nxR8i
Safety functions
22)
Safe torque off (STO)
Safety functions module, FSO-12, without
encoder, programmable functions:
+Q973
- Safe stop 1 (SS1),
- Safely-limited speed (SLS)
- Safe brake control (SBC)
- Safe maximum speed (SMS)
- Safe stop emergency (SSE)
- Prevention of unexpected startup (POUS)
-Safe torque off (STO)
Safety functions module, FSO-21, with
encoder support, programmable functions:
+Q972
- Safe stop 1 (SS1)
- Safely-limited speed (SLS)
- Safe brake control (SBC)
- Safe maximum speed (SMS)
- Safe stop emergency (SSE)
- Prevention of unexpected startup (POUS)
- Safe direction (SDI), requires encoder
feedback, FSE-31
- Safe speed monitoring (SSM)
- Safe torque off (STO)
Pulse encoder interface module, FSE-31
+L521
PROFIsafe over PROFINET
+Q982
ATEX certified thermistor protection module,
FPTC-02
+L537
+Q971
Earth fault protection
Earth fault monitoring, earthed mains
Standard
Selectable option, with plus code
Selectable option, external, no plus code
95
SU M M A R Y O F FE AT U R E S A N D O P T I O N S
Ordering
code
ACS880
-01
+P940/P944
R1 to R9
ACS880-
11/31
+P940
R3 to R8
ACS880-
04/04F
R10 (-04),
R11 (-04/04F)
ACS880-
04XT
2xR10 to
2xR11
ACS880-
04
nxDxT
+ nxR8i
ACS880-
14/34
R11
ACS880-
14/34
nxR8i
+ nxR8i
Control connections (I/O) and communications
2 pcs analog inputs, programmable,
galvanically isolated
2 pcs analog outputs, programmable
6 pcs digital inputs, programmable,
galvanically isolated – can be divided into
two groups
2 pcs digital inputs/outputs
1 pcs digital input interlock
3 pcs relay outputs programmable
Drive-to-drive link/Built-in Modbus
Assistant control panel/PC tool connection
Possibility for external power supply for
control unit
Built-in I/O extension and speed feedback
modules: for more details see sections:
“Input/output extension modules”,
“Speed feedback interfaces for precise
process control” and “DDCS communication
option modules”
18)
Built-in adapters for several fieldbuses:
for more details see section “Fieldbus
adapter modules”
19)
Standard
Selectable option, with plus code
Selectable option, external, no plus code
– Not available
1)
The drive must be installed according to the instructions given in the manuals.
2)
Available with +E210.
3)
Only for ACS880-04F
4)
Only for 6-pulse D8T module
5)
Without control panel, +0J400
6)
Not for ACS880-04F
7)
For frame sizes R1 to R9, 380 to 500 V. Not for 690 V.
8)
+E202 for frame size R8: Please contact your local ABB office to check availability.
9)
For 380 to 500 V and only for frame size 1xD8T (-04 module packages) and for frame size 1xR8i (-14/34 module packages)
10)
For frame sizes R1 to R9, 380 to 500 V and frame sizes R3 to R9, 690 V.
11)
For 525 to 690 V
12)
For frame sizes R6 to R9, 380 to 500 V and frame sizes R7 to R9, 690 V.
2
nd
environment, C4: Frame sizes R1 to R5, 380 to 500 V and frame sizes R3 to R6, 690 V.
13)
Frame sizes R1 to R4 built-in and R5 to R9 as selectable option
14)
Pending
15)
EAC has replaced GOST R
16)
ACS880 marine type approvals and type approved drives are listed at http://new.abb.com/drives/segments/marine/marine-type-approvals.
17)
For further information, please contact your local ABB office.
18)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
The slot number for I/O and encoder options can be extended with FEA-03 option.
19)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
20)
For availability please check with your local ABB.
21)
For 380 to 500 V.
22)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
FSO-xx can also be mounted on a DIN rail by using a separate installation kit. DIN rail mounting does not consume the drivesʼ option slots.
With frames R6 to R11 it is possible to mount the FSO-xx inside the drive without using the driveʼs option slots.
96
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Ordering
code
ACS880-
104
INU
R1i to
nxR8i
ACS880-
204
ISU R1i
to R4i,
R6i and
nxR8i
ACS880-
304
DSU
D6D to
D8D
ACS880-
304
DSU
2xD7T
and
nxD8T
ACS880-
904
RRU
nxR8i
ACS880-
604
nxR8i
ACS880-
1604
nxR8i
ACS880-
104LC
nxR8i
ACS880-
304LC
nxD8D
Mounting
For cabinet mounting
Mounting direction - bookshelf
Mounting direction - flat (= sideways)
1)
1)
1)
1)
1)
1)
1)
–
–
Flange mounting
–
–
–
–
–
–
–
–
–
Side by side mounting
–
External drive control unit
2)
2)
Integrated drive control unit
3)
3)
–
–
–
–
–
–
–
Installation frames for drive modules
5)
5)
–
5)
–
–
–
–
–
Wheels for easy maneuvering of
the module
6)
6)
6)
6)
6)
–
–
Cabling
Supply bottom entry (module terminals)
–
–
Supply top entry (module terminals)
–
–
–
–
–
–
–
–
–
Inverter bottom exit (module terminals)
–
–
–
–
–
DC connection bus bars/terminals
8)
8)
Degree of protection
IP00 (UL open type)
IP20 (UL open type)
–
–
–
–
–
–
–
–
–
Motor control
DTC motor control
–
–
–
–
–
–
–
Control panel
Intuitive control panel
Integrated control panel holder
in the drive
–
8)
–
8)
–
–
–
–
–
–
–
Control panel mounting platform
DPMP-01 (flush) / DPMP-02 (surface)
EMC filters
EMC 1st environment, restricted
distribution, C2, grounded
network (TN)
–
14)
–
14)
–
–
–
–
–
EMC 2nd environment, C3, grounded
(TN) and ungrounded (IT)
15)
15)
15)
15)
15)
15)
15)
15)
15)
Line filter
AC or DC choke
–
–
–
–
–
–
–
LCL or L
–
–
–
–
–
–
–
Output filter
Common mode filter
16)
9)
–
–
–
Built-in du/dt filters
+E205
4)
4)
–
–
4)
4)
4)
–
External du/dt filters
–
–
–
–
–
–
–
–
Braking (see braking unit table)
Brake chopper
17)
–
–
–
–
–
–
–
Brake resistor
–
–
–
–
–
–
–
Regenerative braking
–
–
–
–
–
–
–
Standard
Selectable option, with plus code
Selectable option, external, no plus code
97
SU M M A R Y O F FE AT U R E S A N D O P T I O N S
Ordering
code
ACS880-
104
INU
R1i to
nxR8i
ACS880-
204
ISU R1i
to R4i,
R6i and
nxR8i
ACS880-
304
DSU
D6D to
D8D
ACS880-
304
DSU
2xD7T
and
nxD8T
ACS880-
904
RRU
nxR8i
ACS880-
604
nxR8i
ACS880-
1604
nxR8i
ACS880-
104LC
nxR8i
ACS880-
304LC
nxD8D
Software
Primary control program
–
–
–
–
–
–
–
Drive application programming based
on IEC 61131-3 using Automation Builder
+N8010
–
–
–
–
–
–
Application control program for winder
+N5000
–
–
–
–
–
–
–
–
Application control program for crane
+N5050
–
–
–
–
–
–
–
Application control program for winch
+N5100
–
–
–
–
–
–
–
Application control program for
centrifuge/decanter
+N5150
–
7)
–
–
–
–
–
–
–
–
Application control program for
PCP pump
+N5200
–
–
–
–
–
–
–
–
Application control program for
Rod pump
+N5250
–
–
–
–
–
–
–
–
–
Application control program for
test bench
+N5300
–
–
–
–
–
–
–
Application control program for
cooling tower direct drive
+N5350
–
–
–
–
–
–
–
–
–
Application control program for
override control
+N5450
–
–
–
–
–
–
–
–
–
Application control program for
spinning and traverse
+N5500
–
–
–
–
–
–
–
–
–
Application control program for
chemical industry process control
+N5550
–
7)
–
–
–
–
–
–
–
–
Application control program for
ESP pumps
+N5600
–
–
–
–
–
–
–
–
Application control program for
tower cranes
+N5650
–
–
–
–
–
–
–
–
–
Support for asynchronous motor
–
–
–
–
–
–
–
Support for permanent magnet motor
–
–
–
–
–
–
–
Support for synchrounous reluctance
motor (SynRM)
+N7502
–
–
–
–
–
–
–
–
High speed license. Allows high speed
operation above 598 Hz output
frequency.
+N8200
11)
–
–
–
–
–
–
–
7)
–
Auxiliary option kits
Main circuit electrical components
DC-fuse switch
–
–
–
–
–
–
–
–
Installation accessories for
Rittal TS8 cabinet
Installation accessories for
generic cabinets
IP20, IP42 and IP54 door and roof kits
–
–
Approvals
CE
UL, cUL
7)
7)
CSA
7)
7)
EAC/GOST R
10)
7)
7)
RoHS
RCM
–
–
–
–
–
–
–
–
–
Marine type approvals
19)
+C132
19, 20)
19, 20)
–
19)
–
19)
19)
19)
19)
TÜV nord certificate for safety functions
–
–
–
–
–
–
–
VTT ATEX protective device certificate
+Q971
–
–
–
–
–
–
–
SEMI F47
–
Standard
Selectable option, with plus code
Selectable option, external, no plus code
98
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
Ordering
code
ACS880-
104
INU
R1i to
nxR8i
ACS880-
204
ISU R1i
to R4i,
R6i and
nxR8i
ACS880-
304
DSU
D6D to
D8D
ACS880-
304
DSU
2xD7T
and
nxD8T
ACS880-
904
RRU
nxR8i
ACS880-
604
nxR8i
ACS880-
1604
nxR8i
ACS880-
104LC
nxR8i
ACS880-
304LC
nxD8D
Safety functions
13)
Safe torque off (STO)
–
–
–
–
–
–
–
Safety functions module, FSO-12,
without encoder, programmable
functions:
–
–
–
–
–
–
–
- Safe stop 1 (SS1),
- Safely-limited speed (SLS)
- Safe brake control (SBC)
- Safe maximum speed (SMS)
- Safe stop emergency (SSE)
- Prevention of unexpected
startup (POUS)
- Safe torque off (STO)
Safety functions module, FSO-21, with
encoder support, programmable
functions:
–
–
–
–
–
–
–
- Safe stop 1 (SS1)
- Safely-limited speed (SLS)
- Safe brake control (SBC)
- Safe maximum speed (SMS)
- Safe stop emergency (SSE)
- Prevention of unexpected
startup (POUS)
- Safe direction (SDI), requires
encoder feedback, FSE-31
- Safe speed monitoring (SSM)
- Safe torque off (STO)
Pulse encoder interface module, FSE-31
–
–
–
–
–
–
–
PROFIsafe over PROFINET
–
–
–
–
–
–
–
Earth fault protection
Earth fault monitoring, earthed mains
–
–
–
–
Standard
Selectable option, with plus code
Selectable option, external, no plus code
99
SU M M A R Y O F FE AT U R E S A N D O P T I O N S
Ordering
code
ACS880-
104
INU
R1i to
nxR8i
ACS880-
204
ISU R1i
to R4i,
R6i and
nxR8i
ACS880-
304
DSU
D6D to
D8D
ACS880-
304
DSU
2xD7T
and
nxD8T
ACS880-
904
RRU
nxR8i
ACS880-
604
nxR8i
ACS880-
1604
nxR8i
ACS880-
104LC
nxR8i
ACS880-
304LC
nxD8D
Control connections (I/O) and communications
2 pcs analog inputs, programmable,
galvanically isolated
12)
2 pcs analog outputs, programmable
12)
6 pcs digital inputs, programmable,
galvanically isolated – can be divided
into two groups
12)
2 pcs digital inputs/outputs
12)
1 pcs digital input interlock
12)
3 pcs relay outputs programmable
12)
Drive-to-drive link/Built-in Modbus
12)
Assistant control panel/PC tool
connection
9)
Possibility for external power supply
for control unit
Built-in I/O extension and speed
feedback modules: for more details see
sections: “Input/output extension
modules", "Speed feedback interfaces
for precise process control" and "DDCS
communication option modules"
18)
Built-in adapters for several fieldbuses:
for more details see section “Fieldbus
adapter modules”
21)
Standard
Selectable option, with plus code
Selectable option, external, no plus code
– Not available
1)
The drive must be installed according to the instructions given in the manuals.
Possible for frames R6i-R8i, DxD, DxT, BLCL-, BL- and BDCL-fi lters.
2)
R1i to R7i on the module
3)
R8i as external
4)
Only for R8i module.
5)
Only for R6i-R8i modules, 6-pulse DxT modules and BLCL-fi lters
6)
R1i-R7i, D6D, D7D and D7T modules and 1-phase brake chopper without wheels
7)
Pending
8)
R1i to R5i as standard
9)
Available for R8i and R6i
10)
EAC has replaced GOST R
11)
For further information, please contact your local ABB office.
13)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
FSO-xx can also be mounted on a DIN rail by using a separate installation kit.
DIN rail mounting does not consume the drives' option slots.
12)
Not available for 1-phase brake unit.
14)
For 380 to 500 V and for ISU frame sizes up to 1xR8i and for 1xD8T
15)
The standard module fulfills C3 requirements when installed according to the instructions given in the manuals.
16)
Available for R6i to R8i
17)
Internal with R1i to R4i
18)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
The slot number for I/O and encoder options can be extended with FEA-03 option.
19)
ACS880 marine type approvala and type approved drives are listed at http://new.abb.com/drives/segments/marine/marine-type-approvals.
20)
ACS880-104 and ACS880-204 frames R1i-R4i do not have marine type approval (+C132).
21)
Three option slots are available for I/O extension, speed feedback, fieldbus and functional safety options.
100
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Notes
101
—
Notes
102
A B B I N DUSTR I A L DR I VE S ,
AC S 8 8 0 D R I V E M O D U L E S , C ATA LO G
—
Notes
103
Additional information
We reserve the right to make technical
changes or modify the contents of this
document without prior notice. With
regard to purchase orders, the agreed
particulars shall prevail. ABB does not
accept any responsibility whatsoever for
potential errors or possible lack of infor-
mation in this document.
We reserve all rights in this document
and in the subject matter and illustra-
tions contained therein. Any reproduc-
tion, disclosure to third parties or
utilization of its contents – in whole or
in parts – is forbidden without prior
written consent of ABB.
3A
U
A
0
0
0
0
11
5
0
38 R
E
V J E
N 2
7.
0
4
.2
0
18
© Copyright 2018 ABB. All rights reserved.
Specifications subject to change without notice.
—
For more information, please contact
your local ABB representative or visit
www.abb.com/ACS880
www.abb.com/drives
www.abb.com/drivespartners
www.abb.com/motors&generators
Video playlist:
ACS880 how-to videos
