Low voltage AC drives

ABB industrial drives

ACS880, multidrives
1.5 to 5600 kW
Catalog

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

2  ABB industrial drives ACS880 multidrives |

Catalog

Contents

Simplifying your world without limiting your possibilities

What does all-compatible mean for you?

Cost and time savings with drive-based functional safety

Drive-based application programming

10

Save time, ease troubleshooting and improve drive performance with



ABB smartphone apps

12

How to select a drive

13 Technical

data

14–15 ACS880

multidrives

16–21  Ratings, types and voltages

22

Standard interface and extensions for comprehensive connectivity

23

Standard software for scalable control and functionality

24

Intuitive human-machine interface

25

PC tool for easy startup and maintenance

26

Integrated safety simplifies configuration

28

Designed to control virtually any type of AC motor

29

Drive application programming based on IEC standard 61131-3

30–31  Application control programs

32

Flexible connectivity to automation networks

34

Input/output extension modules for increased connectivity

34

Speed feedback interfaces for precise process control

34

I/O option extension adapter

34

DDCS communication option modules

35

Remote monitoring access worldwide

35

EMC – electromagnetic compatibility

36 Sine

filters

37–38  Brake options, ACS880-607 1-phase brake units

39

Brake options, ACS880-607 3-phase dynamic brake units

40 DC-DC

converter

41

Dimensioning tool for selecting the optimal drive

42–43  Summary of features and options

44–45 Drives

services

ACS880 series drives

Uncompromised productivity

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  3

When your electric motor-driven application requires dependable capability and
scalability to meet your exact requirements for variable speed operation, you need
our ACS880 industrial drives. Our drives are built to truly understand and re

fi

 ne your

business and cover every possible application. We make your opportunities work
with our strong drives series that covers all your process control needs no matter
what your industry. These are our ACS880 industrial drives, our benchmark of
uncompromising productivity, serving you locally on a global scale.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

4  ABB industrial drives ACS880 multidrives |

Catalog

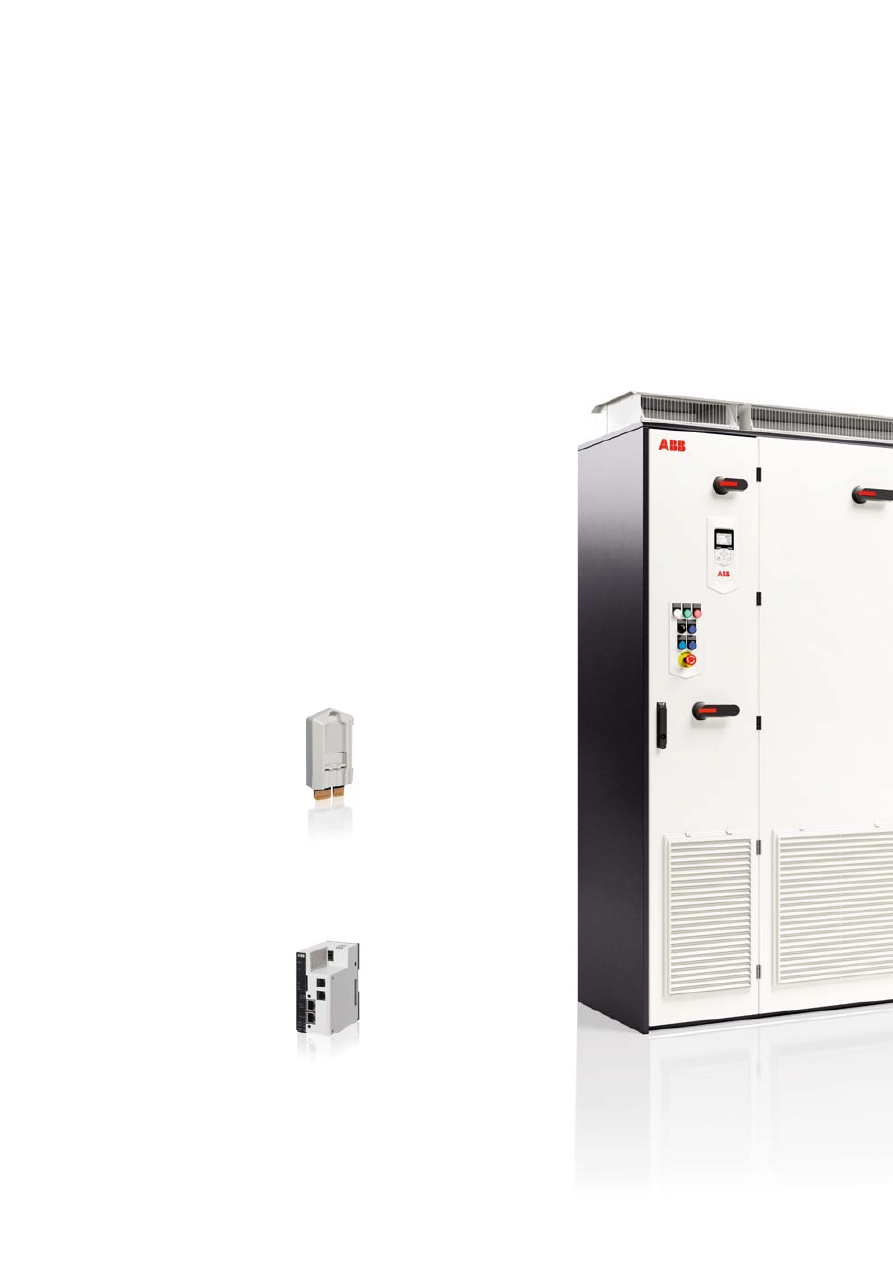

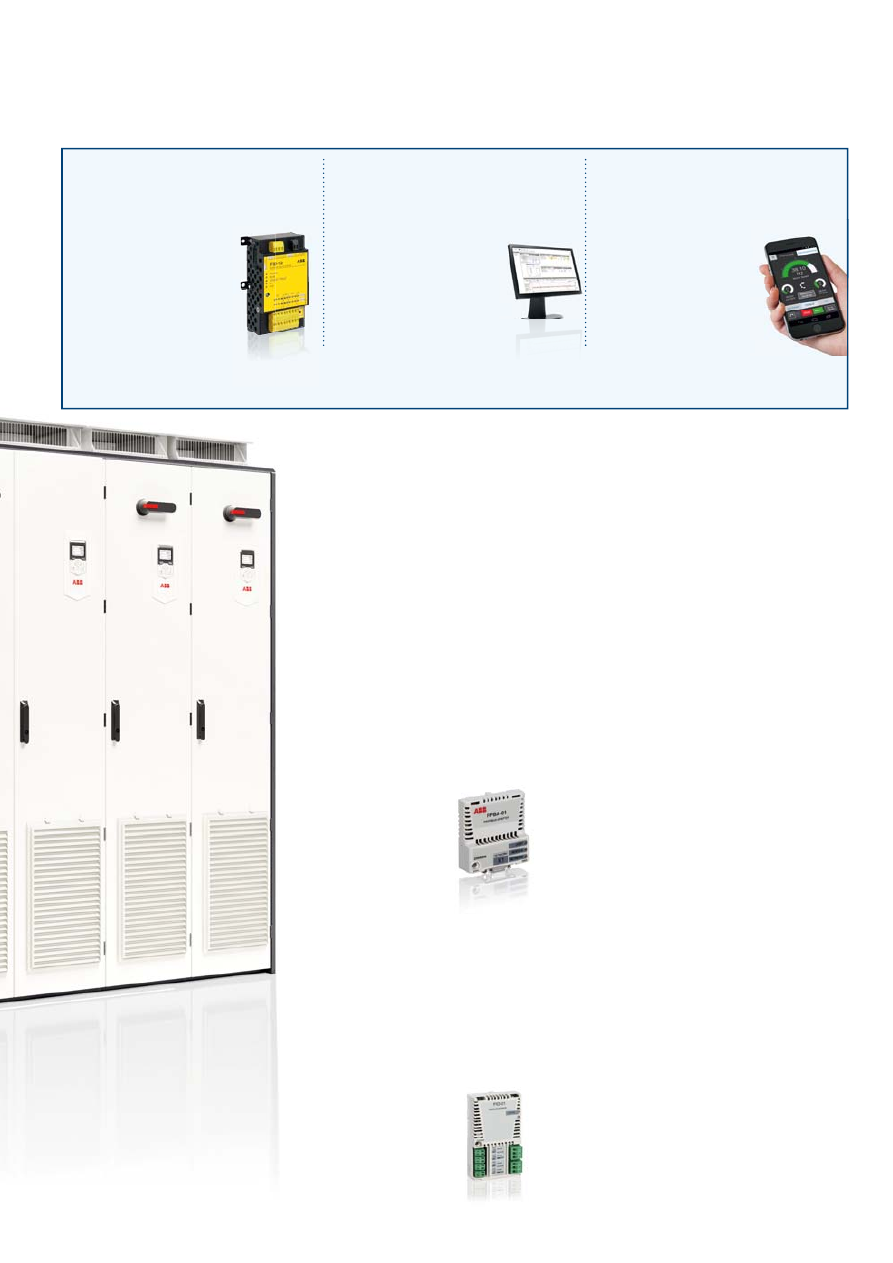

Multidrives

ACS880 industrial drives are designed to provide
customers across several industries and applications with
unprecedented levels of compatibility and flexibility. The
ACS880 multidrives are customized to meet the precise
needs of industries such as metals, pulp and paper, oil and
gas, mining, harbours, offshore, marine, automotive and
power plants. They control a wide range of applications,
such as paper machines, winders, rolling mills, processing
lines, roller tables, cranes, testbenches and drilling.

Robust, long lifetime design

The ACS880 is designed to last for a long time,
even in harsh conditions. The benefits for you
include a nine-year service interval and good
tolerance to vibration and contamination.

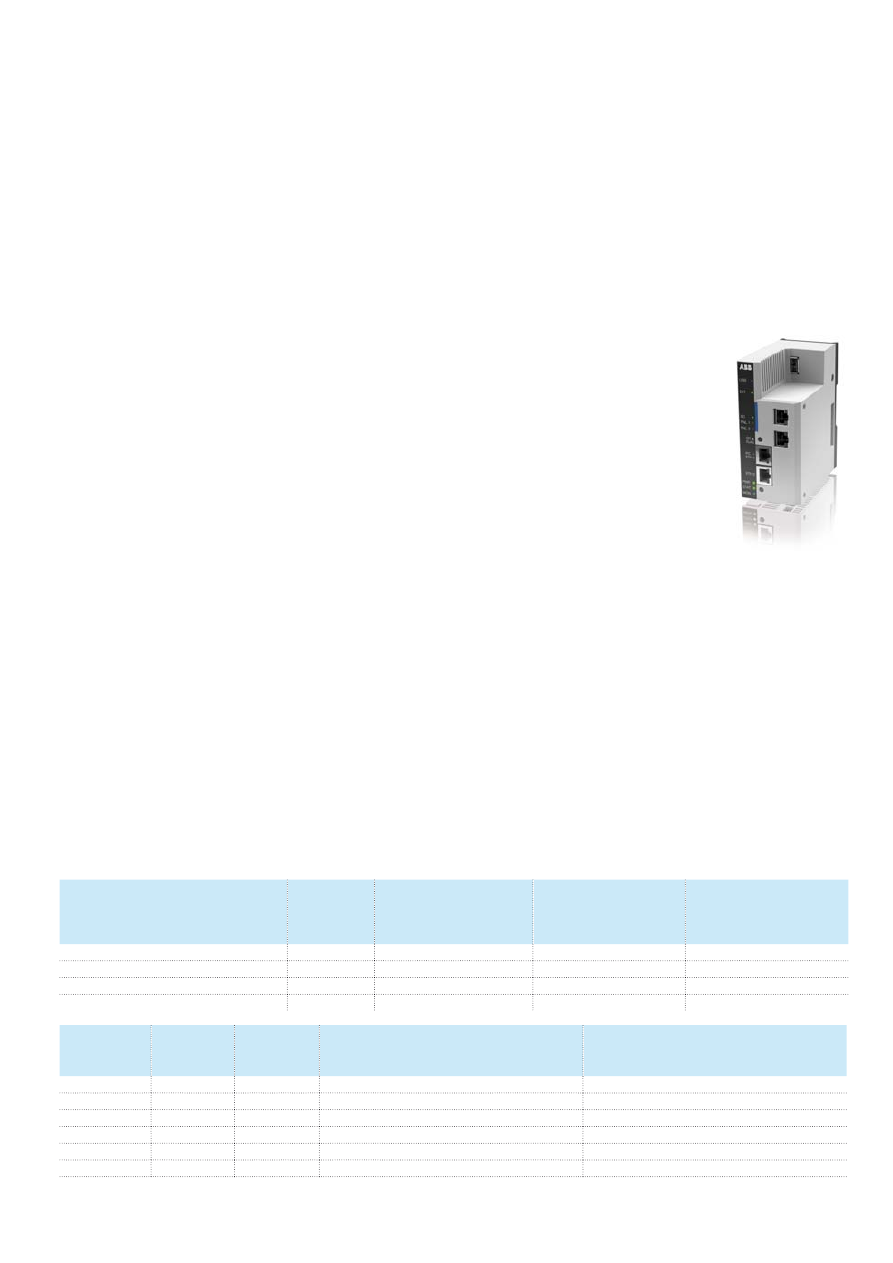

Remote monitoring

With a built-in Web server, NETA-
21 makes worldwide access easy
for industry applications.

See page 33

Energy ef

fi

 ciency

The drive provides features such as an energy optimizer
and energy efficiency information that help you monitor
and save the energy used in the processes.

See page 23

Removable memory unit

Stores all the software and parameter
configurations in  an easily replaceable
and simple-to-install module.

See page 23

Application control programs

A range of ready-made programs to optimize
productivity and usability in applications such as
cranes, winches and artificial lifting.

See page 29

Direct torque control (DTC)

ABB’s signature motor control technology
provides precise speed and torque control
for all applications and virtually any type of
AC motor.

See page 23

Simplifying your world

without limiting your possibilities

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  5

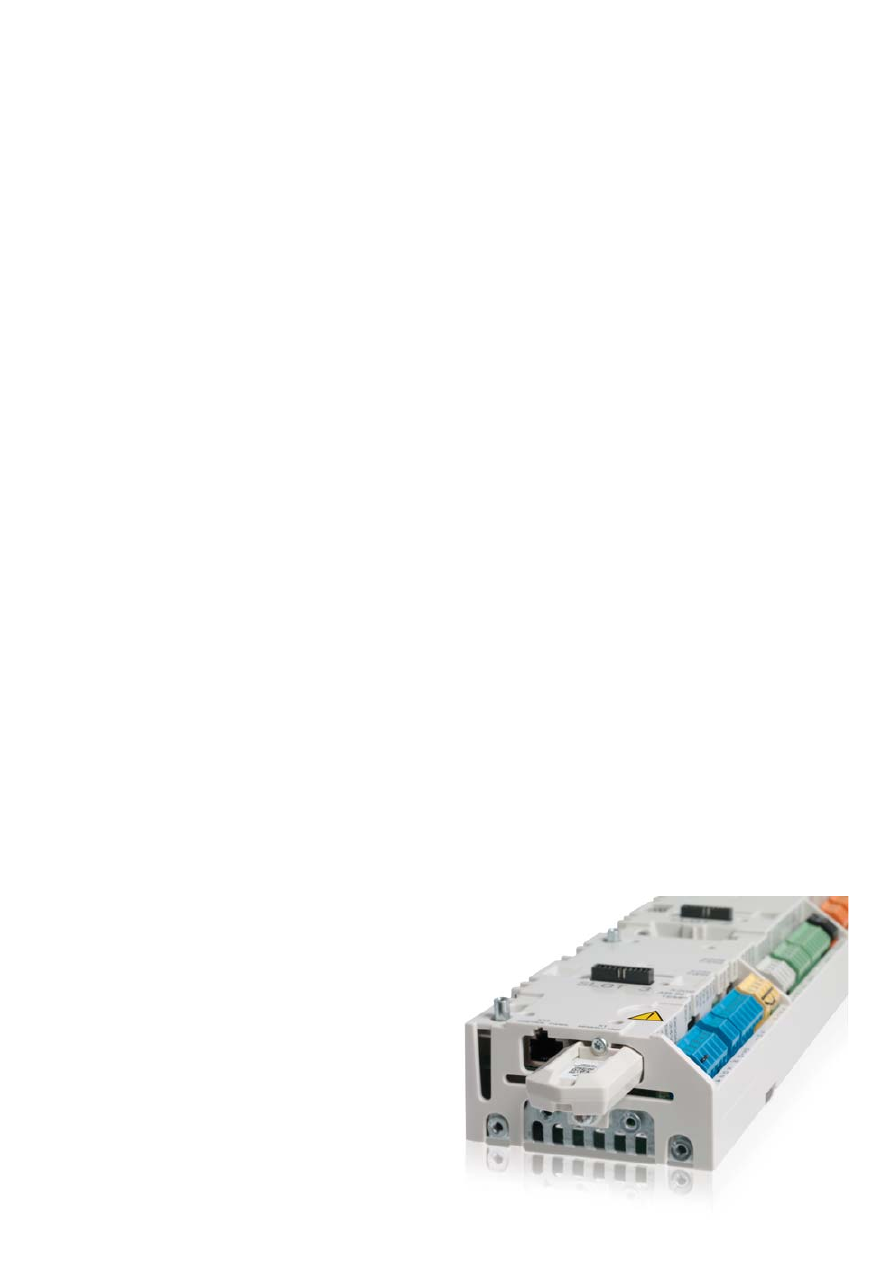

Extended connectivity

In addition to the standard interfaces, the
drive has three built-in slots for additional
input/output extension modules and speed
feedback interfaces.

See page 32

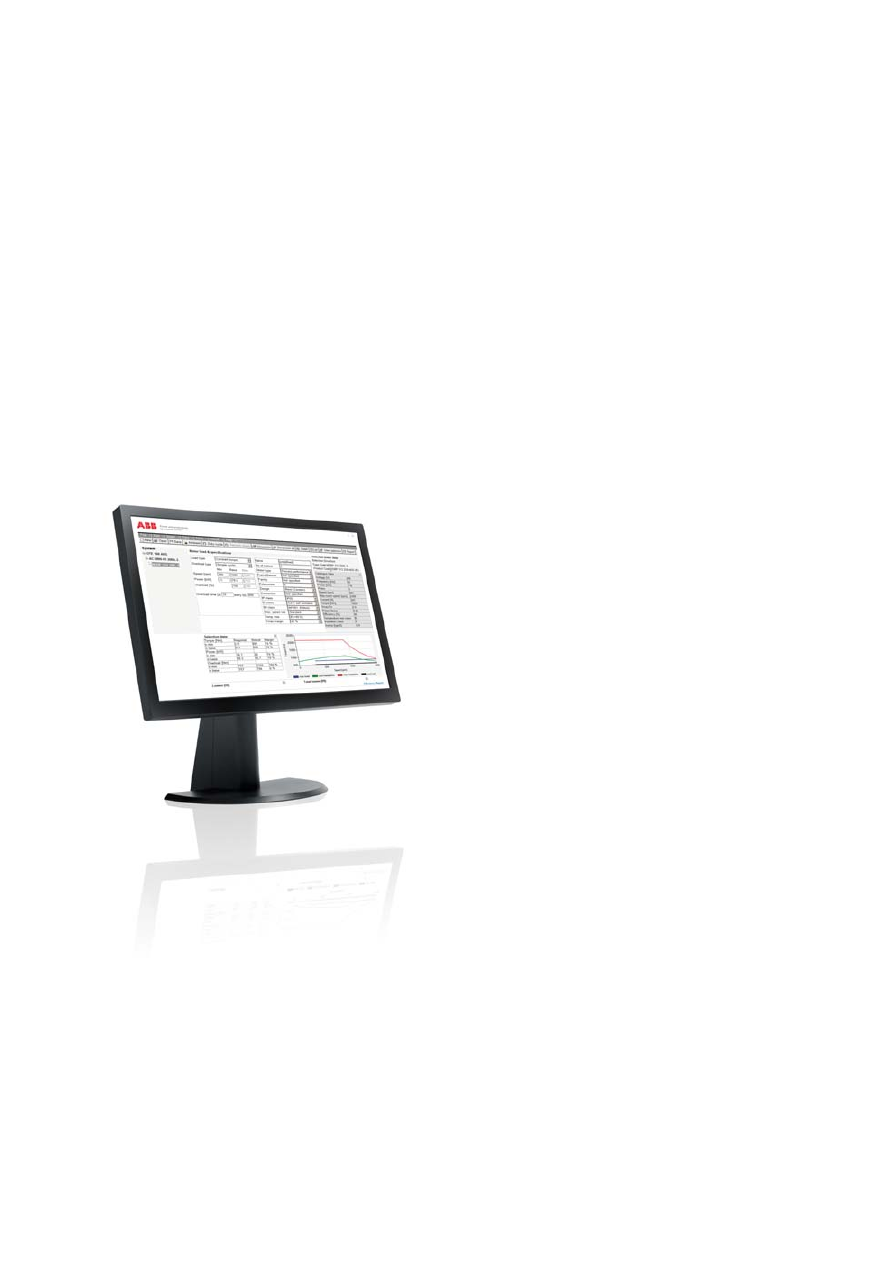

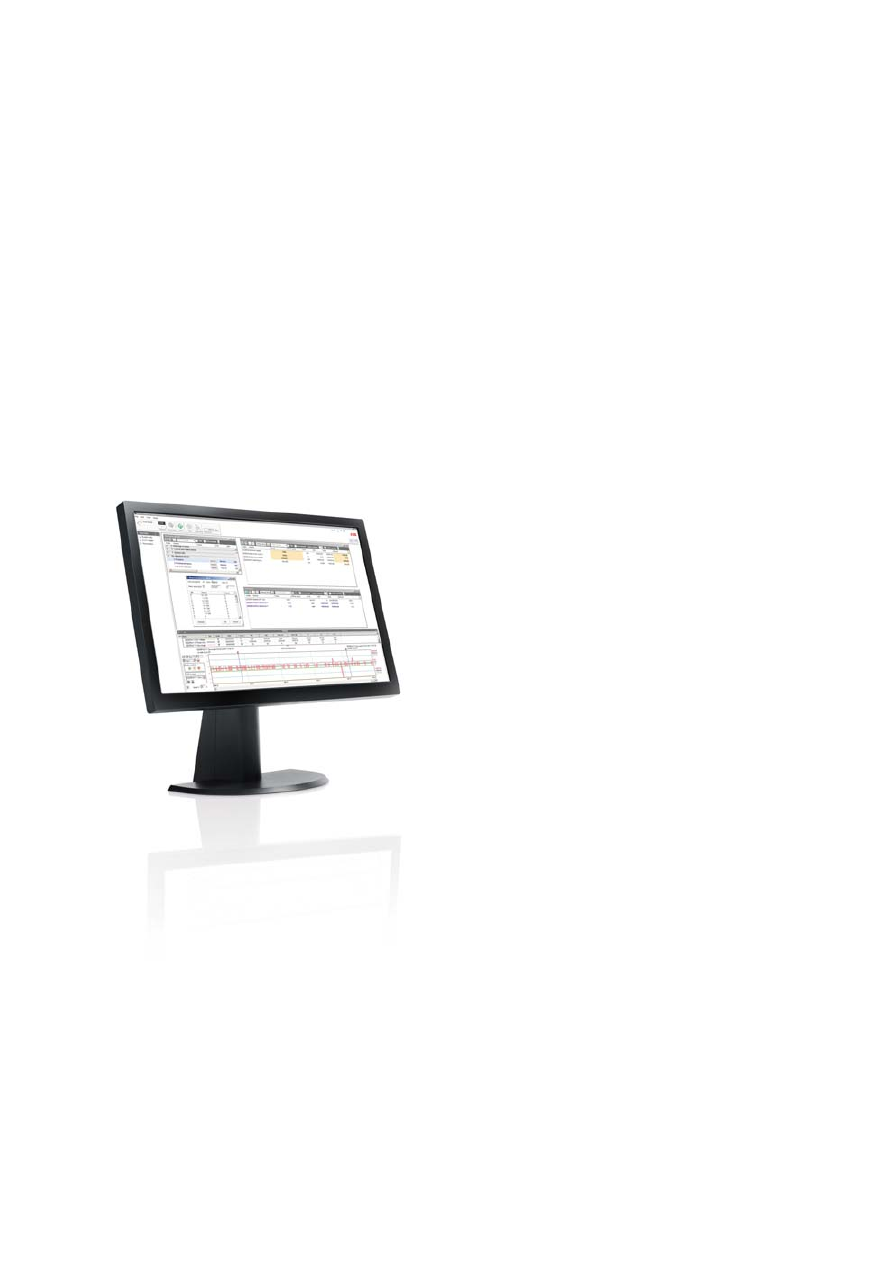

Startup and maintenance tool

Drive composer PC tool for drive startup,
configuration and daily use and process
tuning. PC tool is connected to the drive via
Ethernet or USB interface.

See page 25

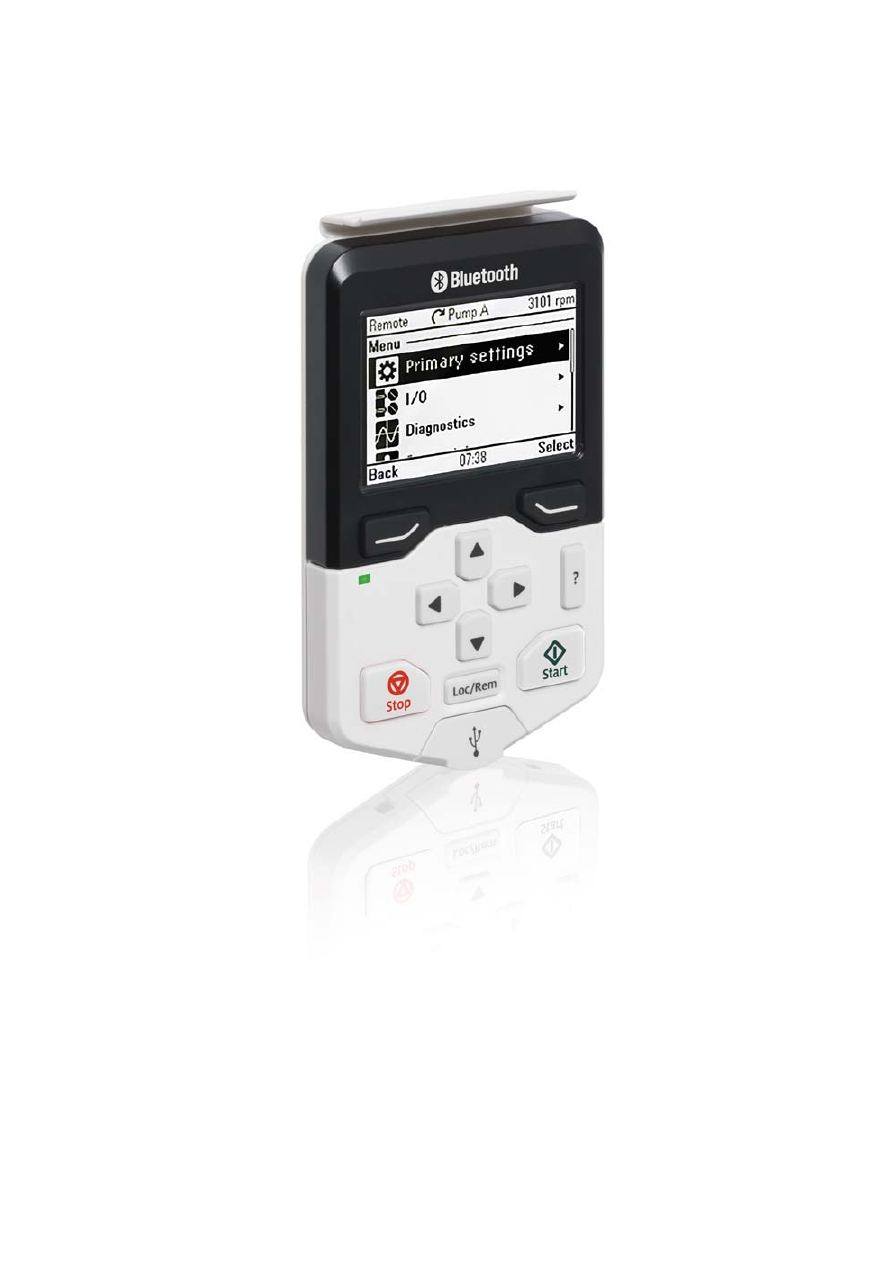

Intuitive human-machine
interface

Intuitive, high-contrast



and high-resolution

display



enabling easy navigation in multiple

languages.

See page 24

Communication with all
major automation networks

Fieldbus adapters enable connectivity with all
major automation networks.

See page 31

Flexible product
con

fi

 gurations

Drives are built to order with a wide range of
options such as braking options and different
enclosure variants.

See product variant pages

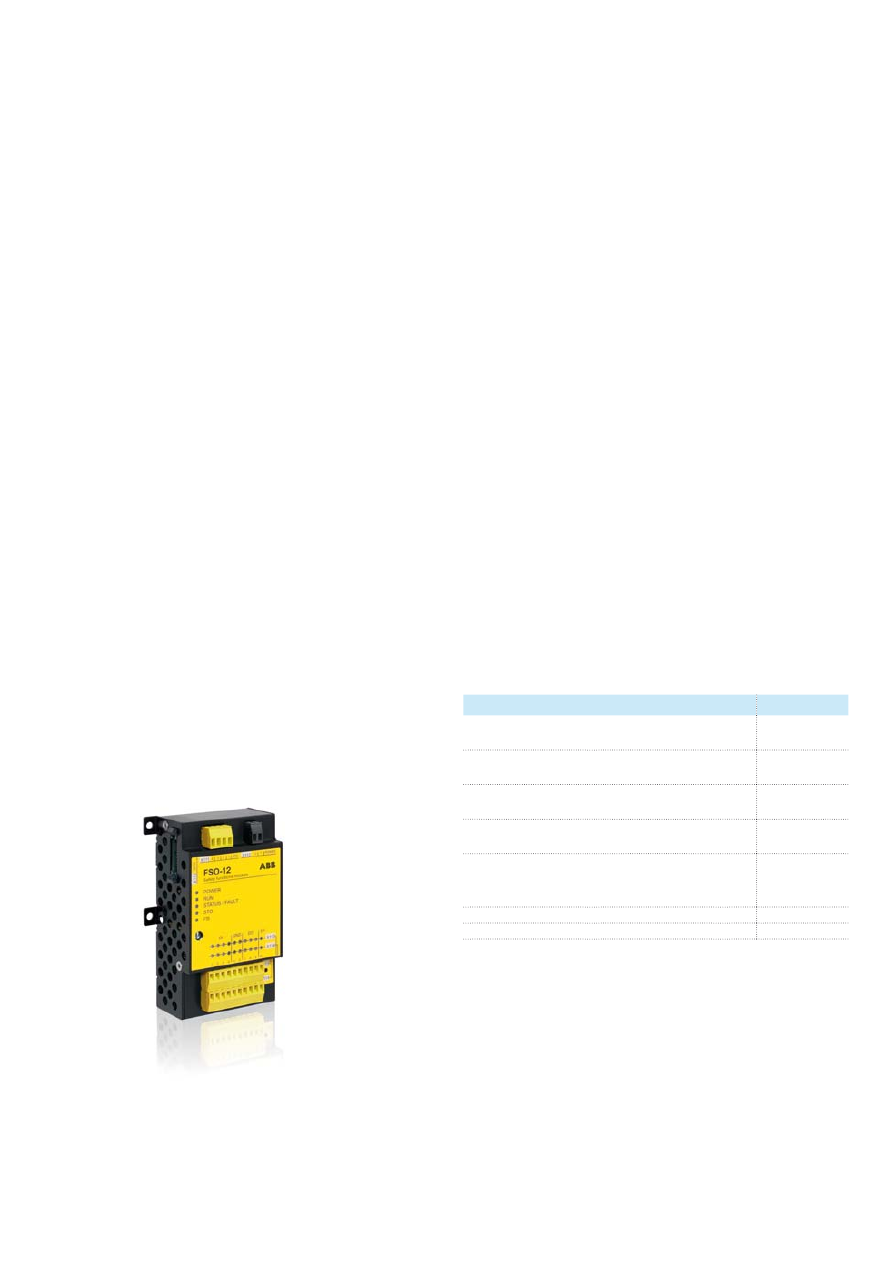

Wide range of
safety features

Safe torque off is built-in
as standard. An optional
safety functions module
provides extended safety
functions, simplifying the
configuration and reducing
installation space.

See page 27

Drive application
programming

Customizable to meet
the precise application
needs based on IEC
61131-3. Uses the same
programming environment
and is also easy to integrate
with other ABB components
such as PLCs and HMIs.

See page 28

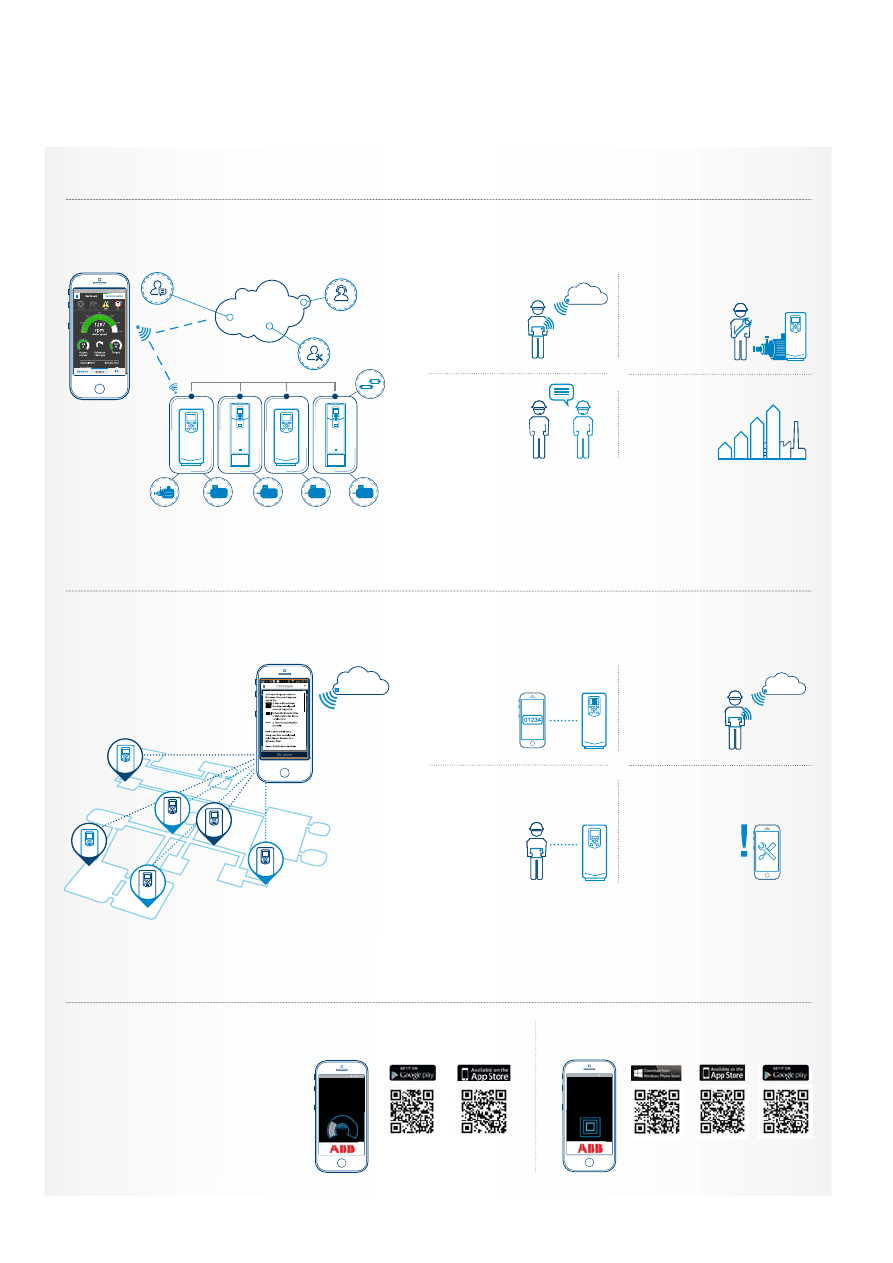

Drives going
mobile

We offer several
smartphone applications
to ease and enhance the
use of ABB drives. These
tools provide a user-friendly
and easy-to-use approach
for the commissioning,
servicing and use of ABB
drives.

See page 10

ndly

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

y

ch

ate

nts

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

6  ABB industrial drives ACS880 multidrives |

Catalog

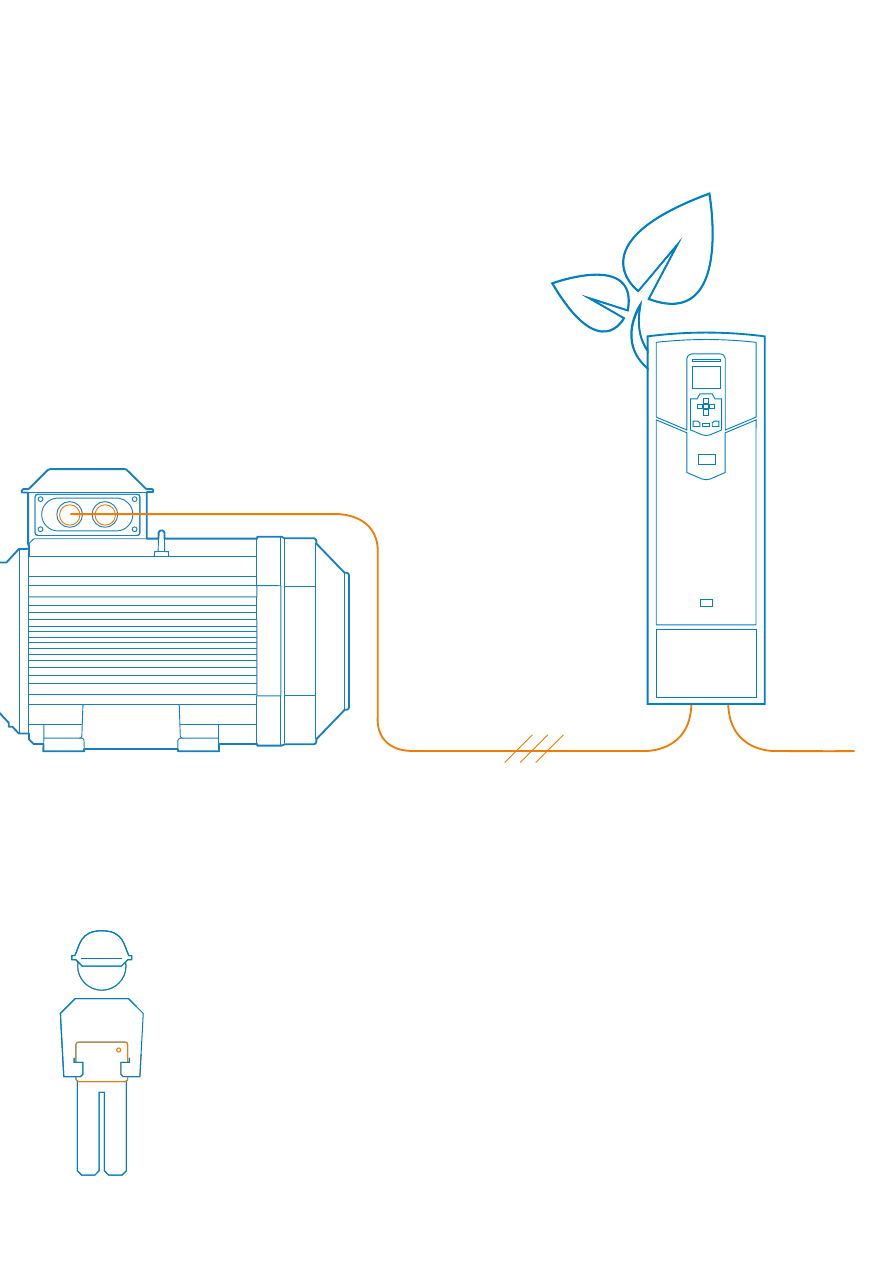

What does all-compatible

mean for you?

Business all-compatible

The all-compatible drives are not just equipment – they are part of your
business strategy. Providing better control over your processes, our
drives mean lower energy consumption, improved productivity, flexibility
and ease of use. In addition to drives, we offer a wide range of products
and services to support your business. With offices in over 90 countries
and a global technical partner network, we are in a good position to offer
technical advice and local support, worldwide.

Process all-compatible

The drives are compatible with all kinds of processes. They control
virtually any type of AC motor, provide extensive input/output
connectivity and support all major fieldbus protocols. The drives cover
a wide voltage and power range. Control performance is scalable from
basic to demanding applications, delivered by direct torque control
(DTC). The flexibility and scalability of the drives enable one drive
platform to control virtually any application or process, making your
drive selection easy.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  7

Human all-compatible

All our drives share easy-to-use interfaces, saving you time during drive
commissioning and maintenance. When you have learned it once, you can use it
with all the drives in our all-compatible drives portfolio.

The control panel supports over 20 languages. With the PC tool, you get extensive
drive monitoring capabilities and quick access to the drive settings. Integrated and
certified safety features provide safety for machine operators.

To further improve the user experience, we have developed mobile apps that can be
utilized in interacting with the drive. These apps give you an easy graphical interface
for management, maintenance and service of your drives.

Environment all-compatible

There is increased demand for industries to reduce their impact on the
environment. Our drives can help you reduce energy consumption in a
wide range of applications. Our drives have an energy optimizer feature
that ensures maximum torque per ampere, reducing energy drawn from the
supply. The built-in energy efficiency calculators help you to analyze and
optimize your processes. We can help you to investigate the energy-saving
potential of selected applications with our six-step energy appraisal.

Our wall-mounted ACS880 industrial drives fulfill the highest IE2 drive (EN
50598-2) energy efficiency class, further reducing environmental impact.
In addition, all ACS880 industrial drives are compatible with high-efficiency
IE4 motors.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

8  ABB industrial drives ACS880 multidrives |

Catalog

Cost and time savings

with drive-based functional safety

With our ACS880 drive, you can achieve SIL 3 / PL e safety level with certi

fi

 ed

safety functions modules. The safety module is easy to integrate inside the drive
and offers you several safety functions. Integration with automation systems is
quick and reliable using PROFIsafe connectivity. ACS880 drives have a safe torque
off (STO) function as a standard.

Scalable safety with
PROFIsafe and Safety PLC

The safety functionality can be scaled
to your needs. From a safety module
integrated to a single relay to a complete
safety system with a PROFIsafe and a
safety PLC, e.g. AC500-S.

Safely limited speed
without encoders

The SIL 3 / PL e certified safely-limited
speed (SLS) function prevents the motor
from exceeding a defined speed limit
with no encoders. This allows machine
interaction to be performed at a safe speed
without stopping the process.

TÜV-certi

fi

 ed safety

design tool

Functional safety design tool
(FSDT-01) is used for machinery
safety. It helps to increase the safety of
users in the vicinity of machines. You can
perform functional safety modeling, design,
calculations and verification for machine
functional safety.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  9

Drive-based

application programming

The built in PLC capability of the ACS880 provides you a possibility to customize
the drive for your application without the cost of extra hardware. As programming
is based on the IEC 61131-3 standard used in AC500 PLCs and by many other
PLC vendors, you do not need to retrain your staff. By decentralizing your machine
control closer to the process, you achieve better control performance.

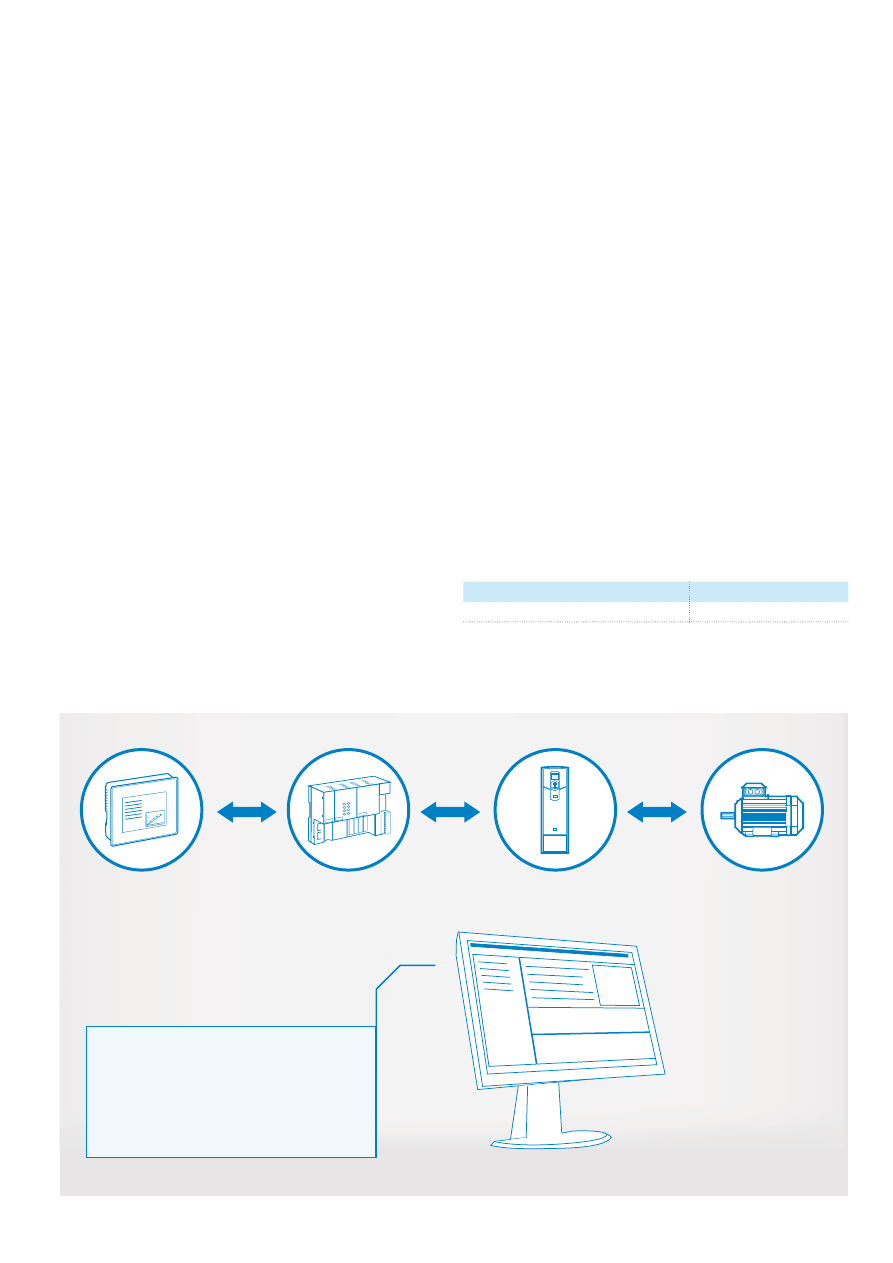

Automation builder

Automation Builder is a software
suite for automation engineering,
which makes programming industry
devices such as drives, PLCs, robots
and human-machine interfaces (HMIs)
easy using one integrated engineering
suite. Automation builder is used both
for engineering devices and entire
automation projects.

Adaptive programming

Adaptive programming is ideal for
creating simple control programs for
various applications. It does not require
expertise in programming and is offered
as a standard in All-compatible drives.

Application programming

Application programming makes it possible for
system integrators and machine builders to integrate
their desired functionality and know-how directly
into the drive. It utilizes standard IEC 61131-3
programming used by many PLCs like the AC500.
This means that programs can be easily moved
from the drive to a PLC and extended into a larger
system.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

10  ABB industrial drives ACS880 multidrives |

Catalog

Access information anywhere

Save time, ease troubleshooting and improve drive performance
with ABB smartphone apps

Easy and fast access to product information
and support

Search for support documents and contacts

Maintain and service all your installed drives on
one or multiple sites

Start up,
commission and
tune your drive
and application

Easy access to
cloud-based
drive and process
information
from anywhere
via an online
connection

Simplified user
guidance with
instant access to
drive status and
configuration

Performance
optimization
via drive
troubleshooting
features and
fast support

Better connectivity and user experience with Drivetune

Services and support on the go with Drivebase

Manage your drives and the process lines and
machines they control

Access
your drive‘s
diagnostics data

Get 6 months
extra warranty
for free by
registering
your drive with
the Drivebase
app

Access your product
and service
information
in the cloud
from anywhere

Push notifications
for critical product
and service
updates

Download the apps using the

QR codes below

 or directly from

the app stores

Drivebase

 for ensured reliability and reduced

downtime on production sites

Drivetune



for commissioning

and managing drives

1 2 :

3

Drivetune

1 2 :3

Drivebase

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  11

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

12  ABB industrial drives ACS880 multidrives |

Catalog

How to select a drive

Many of the features for the ACS880 multidrives are built-in
as standard, making selection easy. A wide range of options
are available to optimize the drive for different requirements.
To choose the right drive for your application, please refer
to the rating tables on pages 14 to 19 or use ABB’s DriveSize
dimensioning tool (page 37). The selected drive has a unique

type designation, which identifies the drive by construction,
power and voltage range. The options are added to the type
designation with a “plus” code. Build up your own ordering
code using the type designation key or contact your local ABB
drives sales of

fi

 ce and let them know your needs/requirements.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  13

Technical data

Type designation:

ACS880

X07

– XXXXX –

X

+

XXXX

Product series

Types and construction

Ratings

Voltages

Options

Mains connection

Voltage and
power range

3-phase,

U

N3

 = 380 to 415 V, +10/-10%

3-phase,

U

N5

 = 380 to 500 V, +10/-10%

3-phase,

U

N7

 = 525 to 690 V, +10/-10%

Inverter units (INU) 1.5 to 5600 kW
Diode supply unit (DSU) 50 to 5500 kVA
IGBT supply unit (ISU) 300 to 6100 kVA
Regenerative rectifier unit (RRU) 400 to 6100 kVA

Frequency

50/60 Hz ±5%

Power factor

IGBT supply module (ISU):
cos

1

= 1 (fundamental)

cos

 = 0.99 (total)

Diode supply module (DSU) and Regenerative
rectifier unit (RRU):
cos

1

= 0.98 (fundamental)

cos

 = 0.93 to 0.95 (total)

Efficiency
(at nominal power)

98% with DSU and RRU
97.5% with ISU

Motor connection

Voltage

3-phase output voltage 0 to

U

N3

 /U

N5

 /U

N7



Frequency

0 to ± 500 Hz

1) 4)

Motor control

Direct torque control (DTC)

Torque control:

Open loop
Closed loop

Open loop
Closed loop

Torque step rise time:
<5 ms with nominal torque
<5 ms with nominal torque
Non-linearity:
± 4% with nominal torque
± 3% with nominal torque

Speed control:

Open loop
Closed loop

Open loop
Closed loop

Static accuracy:
10% of motor slip
0.01% of nominal speed
Dynamic accuracy:
0.3 to 0.4% seconds with 100% torque step
0.1 to 0.2% seconds with 100% torque step

Product compliance

- CE
- Low Voltage Directive 2014/35/EU
- Machinery Directive 2014/30/EU
- EMC Directive 2004/108/EC
- ATEX Directive 2014/34/EU
- Quality assurance system ISO 9001 and Environmental system ISO 14001
- RoHS
- UL, EAC/GOST R

3)

, cUL 508A or cUL 508C, CSA, RCM

- Functional safety: STO TÜV Nord certi

fi

 cate

EMC according to EN 61800-3:2004 + A1:2012

1

st

 environment, restricted distribution category C2, as option 1000 A and

up to 500 V
2

nd

 environment, unrestricted distribution category C3, as option

Environmental limits

Ambient
temperature

Transport
Storage
Operation (air-cooled)

-40 to +70 °C
-40 to +70 °C
0 to +50 °C, no frost allowed
+40 to 50 °C with derating of 1%/1 °C

Cooling method

Air-cooled

Dry clean air

Altitude

0 to 1,000 m
1,000 to 4,000 m

Without derating
With derating of 1%/100 m

5)

Relative humidity

5 to 95%, no condensation allowed

Degree of protection

IP22
IP42, IP54

Standard (IP20 cabinet doors open)
Option

Paint color

RAL 9017, RAL 7035

Contamination levels

No conductive dust allowed

Storage

IEC 60721-3-1, Class 1C2 (chemical gases),
Class 1S2 (solid particles)

Transportation

IEC 60721-3-2, Class 2C2 (chemical gases),
Class 2S2 (solid particles)

Operation

IEC 60721-3-3, Class 3C2 (chemical gases),
Class 3S2 (solid particles)

Vibration

IEC 60068-2-6, 10 to 58 Hz 0.075 mm
displacement amplitude 58 to 150 Hz 10m/s

2

Functional safety

Standard

Internal safety
functions module

Safe torque off (STO according EN/IEC 61800-5-2)
IEC 61508 ed2: SIL 3, IEC 61511: SIL 3,
EN/IEC 62061: SIL CL 3, EN ISO 13849-1: PL e

Safe stop 1 (SS1), safely-limited speed (SLS), safe
stop emergency (SSE), safe brake control, (SBC)
and safe maximum speed (SMS), prevention of
unexpected startup (POUS), Safe direction (SDI),
Safe speed monitor (SSM)
EN/IEC 61800-5-2, IEC 61508 ed2: SIL 3,
IEC 61511: SIL 3,
EN/IEC 62061: SIL CL 3, EN ISO 13849-1: PL e
TÜV Nord certified

2)

Safety functions are implemented in the multidrives with
the safety functions module

Fieldbus
communication

PROFIsafe over PROFINET, certified

C = Chemically active substances

S = Mechanically active substances

1)

 Operation above 120 Hz might require type speci

fi

 c derating, please contact your

local ABB of

fi

 ce

2)

 Please check availably per drive type

3)

 EAC has replaced GOST R

4)

 For higher operational output frequencies please contact your local ABB of

fi

 ce

5)

 Derating reduced by lower than 40 °C ambient temperature

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Drive units

Supply unit

DSU

ISU

Filter

unit

115/230 V

AC

AC

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

Inverter unit

24 VDC

14  ABB industrial drives ACS880 multidrives |

Catalog

ACS880 multidrives

Our ACS880 multidrives are built using ABB’s common
drives architecture. Built to order, the multidrives meet
technical challenges through a wide selection of options that
are mountable within the cabinet. With a compact cabinet
design and high power density, the single supply and DC bus
arrangement with multiple inverters will reduce line power,
cabinet size and investment costs.

Induction motors, permanent magnet synchronous motors,
synchronous reluctance motors and induction servo motors
are all supported as standard without the need for any
additional software. The drive can control the motors in either
open loop or closed loop through its high precision motor
control platform, direct torque control (DTC). Built-in safety
features reduce the need for external safety components.

Main features include



Compact design for easy cabinet assembly and maintenance



High packing density with 16 inverter units up to frame size
R2i can be installed into one cabinet



Diode bridge that is highly reliable with high power density



Fast connectors for motor cables in the bottom part of the
cabinet making installation easy



Degree of protection IP22, IP42 and IP54 for different
environments



Integrated safety including safe torque off (STO) as standard
and several safety functions as options



Drive composer PC tool for commissioning and con

fi

 guration



Intuitive control panel with USB connection



Device panel for optional switches and pilot light



Primary control program – common software used
throughout the ACS880 drive series



Control unit ZCU for inverters (R1i to R7i) and diode supply
unit (D6D to D8D) comes with three option slots for extension
option modules



Control unit BCU is used for ISU (IGBT supply unit) RRU
and DSU (DXT) that comes with integrated branching unit,
and three option slots with an additional slot for DDCS
communication option



Removable memory unit for easy maintenance



Coated boards as standard



Braking options



Cabinet light and heater option



Highly ef

fi

 cient thermal handling as heat loss of each inverter

unit is guided to the back of the cabinet. All cabinets are their
own compartments.



Long lifetime capacitors and high ef

fi

 ciency cooling fan with

speed or on-off control

Constructed for controlling multiple motors

Multidrives are made up of several different units (see figure
below). The most important units are: drive units (known as
inverter units (INU)) and supply units.

The common supply of the multidrive enables the
implementation of overall safety and control functions.

Rectifier

Inverter

Inverter

Inverter

IGBT supply unit (ISU) with 18 inverters

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  15

Overview of the construction

The multidrives principle is based on a common DC bus
arrangement, enabling single power entry and common braking
resources for several drives. There are several possibilities on
the supply side starting from a simple diode supply unit up to
highly sophisticated active IGBT supply units.

Multidrives can be used wherever several motors form part
of a single process. They come with a common DC bus
arrangement, enabling single power entry for several drives.
The energy circulating over the common DC bus results in
energy and cost savings, as not all energy is taken from
the supply network allowing the supply unit in the drive to
have smaller dimensions. A single power line connection
and a common supply unit reduces the need for cabling and
floor space, saving investment and maintenance costs. In
multimotor applications, for example in a paper machine, the
individual inverter modules provide fast communication of
torque and speed signals between the inverters for controlling
the tension in the paper web. Also in cases where the shafts
of the individual motors are not tightly coupled, for example in
sugar centrifuges, each inverter module can be programmed
with a speed profile in order to minimize overall energy
consumption. These two examples merely demonstrate the
range of applications where multidrives offer substantial
benefits over other types of drive constructions. High power
units D7T, D8T, R6i, R7i and nxR8i have speed controlled
cooling fans as a standard.

Inverter units (INU)

Inverter modules are available in 8 different frame sizes.
Frame sizes R1i to n×R8i range from 1.5 to 5600 kW, and the
voltage ranges from 380 to 690 V. Inverter units have built-
in capacitors for smoothing the voltage of the DC busbars.
The electrical connection to the common DC busbar is fuse
protected. An individual inverter unit can be disconnected
from the DC bus, either by a fuse disconnector or by a DC
switch. Each inverter unit has safe torque off (STO) built-in
as standard. Control units in use are ZCU for R1i to R7i and
BCU for n×R8i. The control unit has three slots as standard
(extendable) to place different option modules such as
input/output extension modules, speed feedback modules
and fieldbus adapter modules.

Diode supply unit (DSU)

A diode supply unit is used in non-regenerative drive systems to
convert three-phase AC voltage to DC voltage. Multidrives have
two types of diode supply units. One of these is the 6-pulse
diode supply unit (D6D to D8D). This supply unit is available
only in the limited scope for ACS880 multidrives with a power
range from 60 to 850 kVA that has no charging circuit and is
not parallel connected. The charging is built into the drive units
(R1i to R4i and R6i to R7i). This diode supply unit is controlled
by the ZCU control unit.

The other diode supply unit type (D7T and D8T) offers a power
range from 340 to 5445 kVA, with 1 to 6 parallel modules. This
diode supply module has thyristor charging, BCU control unit
and 6-pulse and 12-pulse versions available.

IGBT supply unit (ISU)

An IGBT supply unit is used in regenerative drive systems to
convert three-phase AC voltage to DC voltage. ISU is made
of nxR8i inverter frames and LCL line filters for a power range
from 300 to 6100 kVA. With power control, it gives the same
firm but gentle performance as direct torque control (DTC)
gives in motor control. The converter can operate in both
motoring and generating modes.

The DC voltage is constant and the line current is sinusoidal. The
control also provides a near unity power factor. The unit can also
boost DC voltages eg, when line voltage is low. Harmonic content
remains extremely low due to excellent control and LCL

fi

 ltering.

ISU is very tolerable to network voltage variations.

Regenerative rectifier unit (RRU)

This supply unit is used in regenerative drive systems to
convert three-phase AC voltage to DC voltage. The RRU is
made of n×R8i inverter units and L filters. The IGBTs’ are
switched conducting only once during each network voltage
cycle. This reduces switching losses and enables higher
powers of the same power module. Operation of RRU is also
reliable during supply network voltage variations.

Brake unit

The brake unit handles the energy generated by decelerating
motors. During resistor braking, whenever the voltage in
the intermediate circuit of a drive exceeds a certain limit, a
braking chopper connects the circuit to a braking resistor.
Offering includes 1-phase brake unit and 3-phase dynamic
brake unit (DBU) which utilizes R8i modules.

DC-DC converter (DDC)

DC-DC converter transfers energy from a common DC link
of a multidrive into an external energy storage. From there
it discharges energy back to the DC link. Energy storages
can be batteries or super capacitors. Typical applications
can be in marine (heave and peak load compensation) and
automotive (battery simulators in test benches and electric car
charging systems) industries. Customer benefits are reduced
costs (less fuel consumption, less or smaller generators in
ships), improved ship performance  and safety in critical
situations.

AC 800M control unit (optional)

The multidrive concept also includes the control unit for the
AC800M process controller and S800 I/O system. The control
unit is equipped with communication interfaces, power supplies
and the front devices necessary for the automation equipment.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

16  ABB industrial drives ACS880 multidrives |

Catalog

Ratings, types and voltages

Inverter units,

U

N

 = 400 V

Inverter unit (INU), ACS880-107

U

N

 = 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V (1.5 to 2800 kW).

Nominal ratings

Light-overload use

Heavy-duty use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame

size

I

N



A (AC)

I

max



A (AC)

P

N



kW

I

Ld

A

P

Ld



kW

I

Hd



A

P

Hd



kW

dB(A)

kW

m

3

/h

4.8

7

1.5

4.5

1.5

4

1.5

47

0.07

24

ACS880-107-004A8-3

R1i

6

8.8

2.2

5.5

2.2

5

1.5

47

0.08

24

ACS880-107-006A0-3

R1i

8

10.5

3

7.6

3

6

2.2

47

0.09

24

ACS880-107-008A0-3

R1i

10.5

13.5

4

9.7

4

9

3

39

0.11

48

ACS880-107-0011A-3

R2i

14

16.5

5.5

13

5.5

11

4

39

0.14

48

ACS880-107-0014A-3

R2i

18

21

7.5

16.8

7.5

14

5.5

39

0.17

48

ACS880-107-0018A-3

R2i

25

33

11

23

11

19

7.5

63

0.20

142

ACS880-107-0025A-3

R3i

35

44

15

32

15

29

11

63

0.30

142

ACS880-107-0035A-3

R3i

44

53

18.5

41

18.5

35

15

71

0.35

200

ACS880-107-0044A-3

R3i

50

66

22

46

22

44

22

71

0.41

200

ACS880-107-0050A-3

R3i

61

78

30

57

30

52

22

70

0.50

290

ACS880-107-0061A-3

R4i

78

100

37

74

37

69

30

70

0.60

290

ACS880-107-0078A-3

R4i

94

124

45

90

45

75

37

70

0.74

290

ACS880-107-0094A-3

R4i

104

125

55

100

55

78

37

70

0.75

290

ACS880-107-0100A-3

R4i

141

183

75

135

75

105

55

71

1.1

650

ACS880-107-0140A-3

R6i

169

220

90

162

90

126

55

71

1.4

650

ACS880-107-0170A-3

R6i

206

268

110

198

110

154

75

71

1.8

650

ACS880-107-0210A-3

R6i

246

320

132

236

132

184

90

71

2

650

ACS880-107-0250A-3

R6i

300

390

160

288

160

224

110

72

2.5

940

ACS880-107-0300A-3

R7i

350

455

200

336

200

262

132

72

3.1

940

ACS880-107-0350A-3

R7i

470

620

250

451

250

352

160

72

4.8

1300

ACS880-107-0470A-3

R8i

640

840

355

614

315

479

250

72

6.7

1300

ACS880-107-0640A-3

R8i

760

990

400

730

400

568

315

72

8

1300

ACS880-107-0760A-3

R8i

900

1080

500

864

450

673

355

72

10

1300

ACS880-107-0900A-3

R8i

1250

1630

630

1200

630

935

500

74

13

2600

ACS880-107-1250A-3

2×R8i

1480

1930

800

1421

800

1107

630

74

16

2600

ACS880-107-1480A-3

2×R8i

1760

2120

1000

1690

900

1316

710

74

20

2600

ACS880-107-1760A-3

2×R8i

2210

2660

1200

2122

1200

1653

900

76

23

3900

ACS880-107-2210A-3

3×R8i

2610

3140

1400

2506

1400

1952

1000

76

30

3900

ACS880-107-2610A-3

3×R8i

3450

4140

1800

3312

1800

2581

1400

76

40

5200

ACS880-107-3450A-3

4×R8i

4290

5150

2400

4118

2000

3209

1800

77

50

6500

ACS880-107-4290A-3

5×R8i

5130

6160

2800

4925

2400

3837

2000

78

60

7800

ACS880-107-5130A-3

6×R8i

Nominal ratings

I

N

Rated current available continuously without overloadability at 40 °C.

S

N

Nominal apparent power.

P

N

Typical motor power in no-overload use.

I

max

Maximum output current. Available for 10 seconds at start, then as
long as allowed by drive temperature.

Light-overload use

I

Ld

Continuous current allowing 110%

I

Ld

 for 1 min/5 min at 40 °C.

P

Ld

Typical motor power in light-overload use.

Heavy-duty use

I

Hd

Continuous current allowing 150%

I

Hd

 for 1 min/5 min at 40 °C.

P

Hd

Typical motor power in heavy-duty use.

The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C)
the derating is 1%/1 °C. The current ratings are the same regardless of the supply
voltage within one voltage range. Dimensioning has to be checked by DriveSize.

Dimensions

Frame size

Height (mm)

Width (mm)

Depth (mm)

Weight (kg)

R1i

2145

2)

400 to 1000

1)

636

4)

200

R2i

2145

2)

400 to 1000

1)

636

4)

200

R3i

2145

2)

400 to 1000

1)

636

4)

210

R4i

2145

2)

400 to 1000

1)

636

4)

220

R6i

2145

2)

400

636

4)

250

R7i

2145

2)

400

636

4)

250

R8i

2145

2)

400

 3)

636

5)

320

2×R8i

2145

2)

600

 3)

636

5)

510

3×R8i

2145

2)

800

 3)

636

5)

660

4×R8i

2145

2)

1200

 3)

636

5)

1020

5×R8i

2145

2)

1400

 3)

636

5)

1070

6×R8i

2145

2)

1600

 3)

636

5)

1320

1)

 Width depends on the amount of inverter units. With option own compartment

(+C204) 400 mm for max. 3 inverters

2)

 Cabinet height 2315 mm for IP54 and 2051 mm for IPxxR. An additional 10 mm

required for marine supports.

3)

 300 mm is required for drive control unit (DCU). One DCU can be used for two drive

units.

4)

 Top exit with backpack for R1i to R7i, additional depth is 130 mm.

5)

 Top exit with backpack for n×R8i, additional depth is 190 mm.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  17

Ratings, types and voltages

Supply units,

U

N

 = 400 V

U

N

 = 400 V (range 380 to 415 V)

Nominal ratings

No-over-

load use

Light-overload

use

Heavy-duty

use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame size

I

N



A (AC)

I

N



A (DC)

I

max



A (DC)

S

N

kVA

P

N

kW (DC)

I

Ld

A (DC)

P

Ld



kW (DC)

I

Hd



A (DC)

P

Hd



kW (DC)

dB(A)

kW

m

3

/h

IGBT supply units (ISU), ACS880-207

423

513

667

293

301

492

289

384

225

72

9.2

2200

ACS880-207-0420A-3

R8i+BLCL-13-5

576

698

908

399

410

670

393

522

307

72

12

2200

ACS880-207-0580A-3

R8i+BLCL-13-5

810

982

1277

561

576

943

553

735

431

72

17.4

2200

ACS880-207-0810A-3

R8i+BLCL-15-5

1125

1364

1773

779

801

1309

769

1020

599

74

21.5

4100

ACS880-207-1130A-3

2×R8i+BLCL-24-5

1332

1615

2100

923

948

1550

910

1208

709

74

23.9

4100

ACS880-207-1330A-3

2×R8i+BLCL-24-5

1584

1921

2497

1097

1127

1844

1082

1437

843

74

31.7

4100

ACS880-207-1580A-3

2×R8i+BLCL-25-5

2349

2848

3703

1627

1672

2734

1605

2130

1250

76

47.1

6900

ACS880-207-2350A-3

3×R8i+2×BLCL-24-5

3105

3765

4894

2151

2210

3614

2121

2816

1653

76

63.1

8200

ACS880-207-3110A-3

4×R8i+2×BLCL-25-5

4617

5598

7278

3199

3286

5374

3154

4187

2458

78

94.5

12300

ACS880-207-4620A-3

6×R8i+3×BLCL-25-5

U

N

 = 400 V (range 230 to 451 V)

Regenerative rectifier units (RRU), ACS880-907

600

735

955

416

397

705

381

550

297

72

8

2200

ACS880-907-0600A-3

1xR8i + BL-15-5

900

1102

1433

624

595

1058

571

824

445

72

13

2200

ACS880-907-0900A-3

1xR8i + BL-15-5

1180

1445

1879

818

780

1387

749

1081

584

74

16

4100

ACS880-907-1180A-3

2xR8i + BL-25-5

1770

2168

2818

1226

1171

2081

1124

1622

876

74

25

4100

ACS880-907-1770A-3

2xR8i + BL-25-5

2310

2829

3678

1600

1528

2716

1467

2116

1143

76

31

8200

ACS880-907-2310A-3

4xR8i + 2xBL-25-5

3460

4238

5509

2397

2288

4068

2197

3170

1712

76

50

8200

ACS880-907-3460A-3

4xR8i + 2xBL-25-5

5130

6283

8168

3554

3393

6032

3257

4700

2538

78

76

12300

ACS880-907-5130A-3

6xR8i + 3xBL-25-5

Diode supply units (DSU), ACS880-307

6-pulse diode

80

98

137

55

53

94

51

78

42

62

1.4

720

ACS880-307-0080A-3+A003

D6D

8)

173

212

297

120

114

203

110

170

92

62

2

720

ACS880-307-0170A-3+A003

D6D

8)

327

400

561

227

216

384

208

320

173

62

3

1070

ACS880-307-0330A-3+A003

D7D

8)

490

600

840

339

324

576

311

480

259

62

4.1

1070

ACS880-307-0490A-3+A003

D7D

8)

653

800

1120

452

432

768

415

640

345

65

5.8

1430

ACS880-307-0650A-3+A003

D8D

8)

980

1200

1680

679

648

1152

622

960

519

65

8

1430

ACS880-307-0980A-3+A003

D8D

8)

653

800

1120

453

432

768

415

598

323

72

5

1300

ACS880-307-0650A-3+A018

D8T

9)

980

1200

1680

679

648

1152

622

898

485

72

7

1300

ACS880-307-0980A-3+A018

D8T

9)

1215

1488

2083

842

804

1428

771

1113

601

74

9

2600

ACS880-307-1210A-3+A018

2×D8T

9)

1822

2232

3125

1263

1205

2143

1157

1670

902

74

13

2600

ACS880-307-1820A-3+A018

2×D8T

9)

2734

3348

4687

1894

1808

3214

1736

2504

1352

76

20

3900

ACS880-307-2730A-3+A018

3×D8T

9)

3645

4464

6250

2525

2411

4285

2314

3339

1803

76

27

5200

ACS880-307-3640A-3+A018

4×D8T

9)

4556

5580

7812

3157

3013

5357

2893

4174

2254

77

33

6500

ACS880-307-4560A-3+A018

5×D8T

9)

5467

6696

9374

3788

3616

6428

3471

5009

2705

78

40

7800

ACS880-307-5470A-3+A018

6×D8T

9)

12-pulse diode

911

1116

1562

631

603

1071

579

835

451

74

8

1800

ACS880-307-0910A-3+A004+A018

2×D7T

10)

1215

1488

2083

842

804

1428

771

1113

601

74

9

2600

ACS880-307-1210A-3+A004+A018

2×D8T

10)

1822

2232

3125

1263

1205

2143

1157

1670

902

74

13

2600

ACS880-307-1820A-3+A004+A018

2×D8T

10)

2430

2976

4166

1683

1607

2857

1543

2226

1202

76

18

5200

ACS880-307-2430A-3+A004+A018

4×D8T

10)

3645

4464

6250

2525

2411

4285

2314

3339

1803

76

27

5200

ACS880-307-3640A-3+A004+A018

4×D8T

10)

5467

6696

9374

3788

3616

6428

3471

5009

2705

78

40

7800

ACS880-307-5470A-3+A004+A018

6×D8T

10)

1)

 690 V, 2400 mm

2)

 690 V, 1940 kg

3)

 690 V, 1130 kg

4)

 2430A-3

5)

 3640A-3

6)

 Valid for ACS880 multidrives limited scope

7)

 Valid for ACS880 multidrives

8)

 +A003 6-pulse, uncontrolled diode bridge

9)

 +A018 6-pulse, half controlled diode bridge

10)

 +A004 12-pulse, DSU

Dimensions (Including ACU, ICU and ISU/DSU/RRU)

Frame size

Height (mm) Width (mm) Depth (mm)

Weight (kg)

IGBT supply units (ISU)

R8i+BLCL-13-5

2145

1000

6)

636

860

R8i+BLCL-13-5

2145

1600

 7)

636

1300

R8i+BLCL-15-5

2145

1000

6)

636

860

R8i+BLCL-15-5

2145

1600

 7)

636

1300

2×R8i+BLCL-24-5

2145

2000

636

1600

2×R8i+BLCL-25-5

2145

2000

636

1720

3×R8i+2xBLCL-24-5

2145

2600

636

2410

4×R8i+2xBLCL-25-5

2145

2800

636

2820

6×R8i+3xBLCL-25-5

2145

4000

636

3960

Regenerative rectifier units (RRU)

R8i+BL-15-7

2145

1600

636

1275

2×R8i+BL-25-7

2145

2000

636

1615

4×R8i+2xBL-25-7

2145

2800

636

2610

4×R8i+2xBL-25-7

2145

3200

636

2610

6×R8i+3xBL-25-7

2145

4000

636

3645

Frame size

Height (mm) Width (mm) Depth (mm)

Weight (kg)

Diode supply units (DSU)
6-pulse diode

D6D

2145

400

636

300

D7D

2145

400

636

350

D8D

2145

700

636

550

D8T

2145

1400

636

850

2×D8T

2145

1600

636

1130

3×D8T

2145

2000

636

1560

4×D8T

2145

2800

1)

636

2140

2)

5×D8T

2145

3000

636

2420

6×D8T

2145

3200

636

2700

12-pulse diode

2×D7T

2145

1800

636

900

2×D8T

2145

1800

636

1180

3)

4×D8T

4)

2145

2400

636

1840

4×D8T

5)

2145

3000

636

2040

6×D8T

2145

3400

636

2900

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

18  ABB industrial drives ACS880 multidrives |

Catalog

Ratings, types and voltages

Inverter units,

U

N

 = 500 V

Inverter unit (INU), ACS880-107

U

N

 = 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V (1.5 to 3200 kW).

Nominal ratings

Light-overload use

Heavy-duty use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame

size

I

N



A (AC)

I

max



A (AC)

P

N



kW

I

Ld

A

P

Ld



kW

I

Hd



A

P

Hd



kW

dB(A)

kW

m

3

/h

3.6

5.3

1.5

3.4

1.5

3

1.5

47

0.06

24

ACS880-107-003A6-5

R1i

4.8

7

2.2

4.5

2.2

4

1.5

47

0.07

24

ACS880-107-004A8-5

R1i

6

8.8

3

5.5

3

5

2.2

47

0.08

24

ACS880-107-006A0-5

R1i

8

10.5

4

7.6

4

6

3

47

0.09

24

ACS880-107-008A0-5

R1i

10.5

13.5

5.5

9.7

5.5

9

4

39

0.13

48

ACS880-107-0011A-5

R2i

14

16.5

7.5

13

7.5

11

5.5

39

0.15

48

ACS880-107-0014A-5

R2i

18

21

11

16.8

11

14

7.5

39

0.18

48

ACS880-107-0018A-5

R2i

25

33

15

23

15

19

11

63

0.23

142

ACS880-107-0025A-5

R3i

30

36

18.5

28

18.5

24

15

63

0.28

142

ACS880-107-0030A-5

R3i

35

44

22

32

22

29

18.5

63

0.32

142

ACS880-107-0035A-5

R3i

50

66

30

46

30

44

22

71

0.48

200

ACS880-107-0050A-5

R3i

61

78

37

57

37

52

30

70

0.55

290

ACS880-107-0061A-5

R4i

78

100

45

74

45

69

45

70

0.65

290

ACS880-107-0078A-5

R4i

94

124

55

90

55

75

45

70

0.80

290

ACS880-107-0094A-5

R4i

113

147

75

108

75

85

55

71

1

650

ACS880-107-0110A-5

R6i

136

177

90

131

90

102

55

71

1.2

650

ACS880-107-0140A-5

R6i

165

215

110

158

110

123

75

71

1.5

650

ACS880-107-0170A-5

R6i

197

256

132

189

132

147

90

71

1.8

650

ACS880-107-0200A-5

R6i

240

312

160

230

160

180

110

71

2

650

ACS880-107-0240A-5

R6i

302

393

200

290

200

226

132

72

2.7

940

ACS880-107-0300A-5

R7i

340

442

250

326

200

254

160

72

3.2

940

ACS880-107-0340A-5

R7i

440

580

250

422

250

329

200

72

4.7

1300

ACS880-107-0440A-5

1×R8i

590

770

400

566

355

441

250

72

6.3

1300

ACS880-107-0590A-5

1×R8i

740

970

500

710

450

554

355

72

8.1

1300

ACS880-107-0740A-5

1×R8i

810

1060

560

778

500

606

400

72

9.3

1300

ACS880-107-0810A-5

1×R8i

1150

1500

800

1104

710

860

560

74

12

2600

ACS880-107-1150A-5

2×R8i

1450

1890

1000

1392

900

1085

710

74

16

2600

ACS880-107-1450A-5

2×R8i

1580

2060

1100

1517

1000

1182

800

74

18

2600

ACS880-107-1580A-5

2×R8i

2150

2800

1500

2064

1400

1608

1100

76

24

3900

ACS880-107-2150A-5

3×R8i

2350

3060

1600

2256

1500

1758

1200

76

27

3900

ACS880-107-2350A-5

3×R8i

3110

4050

2000

2986

2000

2326

1600

76

36

5200

ACS880-107-3110A-5

4×R8i

3860

5020

2400

3706

2400

2887

2000

77

44

6500

ACS880-107-3860A-5

5×R8i

4610

6000

3200

4426

2800

3448

2400

78

53

7800

ACS880-107-4610A-5

6×R8i

Nominal ratings

I

N

Rated current available continuously without overloadability at 40 °C.

S

N

Nominal apparent power.

P

N

Typical motor power in no-overload use.

I

max

Maximum output current. Available for 10 seconds at start, then as
long as allowed by drive temperature.

Light-overload use

I

Ld

Continuous current allowing 110%

I

Ld

 for 1 min/5 min at 40 °C.

P

Ld

Typical motor power in light-overload use.

Heavy-duty use

I

Hd

Continuous current allowing 150%

I

Hd

 for 1 min/5 min at 40 °C.

P

Hd

Typical motor power in heavy-duty use.

The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C)
the derating is 1%/1 °C. The current ratings are the same regardless of the supply
voltage within one voltage range. Dimensioning has to be checked by DriveSize.

Dimensions

Frame size

Height (mm)

Width (mm)

Depth (mm)

Weight (kg)

R1i

2145

2)

400 to 1000

1)

636

4)

200

R2i

2145

2)

400 to 1000

1)

636

4)

200

R3i

2145

2)

400 to 1000

1)

636

4)

210

R4i

2145

2)

400 to 1000

1)

636

4)

220

R6i

2145

2)

400

636

4)

250

R7i

2145

2)

400

636

4)

250

R8i

2145

2)

400

 3)

636

5)

320

2×R8i

2145

2)

600

 3)

636

5)

510

3×R8i

2145

2)

800

 3)

636

5)

660

4×R8i

2145

2)

1200

 3)

636

5)

1020

5×R8i

2145

2)

1400

 3)

636

5)

1070

6×R8i

2145

2)

1600

 3)

636

5)

1320

1)

 Width depends on the amount of inverter units. With option own compartment

(+C204) 400 mm for max. 3 inverters.

2)

 Cabinet height 2315 mm for IP54 and 2051 mm for IPxxR. An additional 10 mm

required for marine supports.

3)

 300 mm is required for drive control unit (DCU). One DCU can be used for two drive

units.

4)

 Top exit with backpack for R1i to R7i, additional depth is 130 mm.

5)

 Top exit with backpack for n×R8i, additional depth is 190 mm.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  19

Ratings, types and voltages

Supply units,

U

N

 = 500 V

U

N

 = 500 V (range 380 to 500 V)

Nominal ratings

No-over-

load use

Light-overload

use

Heavy-duty

use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame size

I

N



A (AC)

I

N



A (DC)

I

max



A (DC)

S

N

kVA

P

N

kW (DC)

I

Ld

A (DC)

P

Ld



kW (DC)

I

Hd



A (DC)

P

Hd



kW (DC)

dB(A)

kW

m

3

/h

IGBT supply units (ISU), ACS880-207

396

480

624

343

340

461

326

359

254

72

9.2

2200

ACS880-207-0400A-5

R8i+BLCL-13-5

531

644

837

460

455

618

437

482

341

72

11.5

2200

ACS880-207-0530A-5

R8i+BLCL-13-5

729

884

1149

631

625

849

600

661

468

72

16.7

2200

ACS880-207-0730A-5

R8i+BLCL-15-5

1035

1255

1631

896

887

1205

852

939

664

74

20.7

4100

ACS880-207-1040A-5

2×R8i+BLCL-24-5

1422

1724

2241

1231

1219

1655

1170

1290

912

74

29.3

4100

ACS880-207-1420A-5

2×R8i+BLCL-25-5

2115

2564

3334

1832

1813

2462

1741

1918

1356

76

43.8

6900

ACS880-207-2120A-5

3×R8i+2×BLCL-24-5

2799

3394

4412

2424

2400

3258

2304

2539

1795

76

58.4

8200

ACS880-207-2800A-5

4×R8i+2×BLCL-25-5

4149

5031

6540

3593

3557

4829

3415

3763

2661

78

87.4

12300 ACS880-207-4150A-5

6×R8i+3×BLCL-25-5

Diode supply units (DSU), ACS880-307

6-pulse diode

80

98

137

69

66

94

63

78

53

62

1

720

ACS880-307-0080A-5+A003

D6D

8)

173

212

297

150

143

203

137

170

114

62

2

720

ACS880-307-0170A-5+A003

D6D

8)

327

400

561

283

270

384

260

320

216

62

3

1070

ACS880-307-0330A-5+A003

D7D

8)

490

600

840

424

405

576

389

480

324

62

4

1070

ACS880-307-0490A-5+A003

D7D

8)

653

800

1120

566

540

768

518

640

432

65

6

1430

ACS880-307-0650A-5+A003

D8D

8)

980

1200

1680

849

810

1152

778

960

648

65

8

1430

ACS880-307-0980A-5+A003

D8D

8)

653

800

1120

566

540

768

518

598

404

72

5

1300

ACS880-307-0650A-5+A018

D8T

9)

980

1200

1680

849

810

1152

778

898

606

72

7

1300

ACS880-307-0980A-5+A018

D8T

9)

1215

1488

2083

1052

1004

1428

964

1113

751

74

9

2600

ACS880-307-1210A-5+A018

2×D8T

9)

1822

2232

3125

1578

1507

2143

1446

1670

1127

74

13

2600

ACS880-307-1820A-5+A018

2×D8T

9)

2734

3348

4687

2367

2260

3214

2170

2504

1690

76

20

3900

ACS880-307-2730A-5+A018

3×D8T

9)

3645

4464

6250

3157

3013

4285

2893

3339

2254

76

27

5200

ACS880-307-3640A-5+A018

4×D8T

9)

4556

5580

7812

3946

3767

5357

3616

4174

2817

77

33

6500

ACS880-307-4560A-5+A018

5×D8T

9)

5467

6696

9374

4735

4520

6428

4339

5009

3381

78

40

7800

ACS880-307-5470A-5+A018

6×D8T

9)

12-pulse diode

911

1116

1562

789

753

1071

723

835

563

74

8

1800

ACS880-307-0910A-5+A004+A018 2×D7T

10)

1215

1488

2083

1052

1004

1428

964

1113

751

74

9

2600

ACS880-307-1210A-5+A004+A018 2×D8T

10)

1822

2232

3125

1578

1507

2143

1446

1670

1127

74

13

2600

ACS880-307-1820A-5+A004+A018 2×D8T

10)

2430

2976

4166

2104

2009

2857

1928

2226

1503

76

18

5200

ACS880-307-2430A-5+A004+A018 4×D8T

10)

3645

4464

6250

3157

3013

4285

2893

3339

2254

76

27

5200

ACS880-307-3640A-5+A004+A018 4×D8T

10)

5467

6696

9374

4735

4520

6428

4339

5009

3381

78

40

7800

ACS880-307-5470A-5+A004+A018 6×D8T

10)

U

N

 = 500 V (range 230 to 525 V)

Regenerative rectifier units (RRU), ACS880-907

600

735

955

520

496

705

476

550

371

72

9

2200

ACS880-907-0600A-5

1xR8i + BL-15-5

900

1102

1433

779

744

1058

714

824

556

72

13

2200

ACS880-907-0900A-5

1xR8i + BL-15-5

1180

1445

1879

1022

976

1387

936

1081

730

74

16

4100

ACS880-907-1180A-5

2xR8i + BL-25-5

1770

2168

2818

1533

1463

2081

1405

1622

1095

74

26

4100

ACS880-907-1770A-5

2xR8i + BL-25-5

2310

2829

3678

2001

1910

2716

1833

2116

1428

76

32

8200

ACS880-907-2310A-5

4xR8i + 2xBL-25-5

3460

4238

5509

2996

2860

4068

2746

3170

2140

76

51

8200

ACS880-907-3460A-5

4xR8i + 2xBL-25-5

5130

6283

8168

4443

4241

6032

4071

4700

3172

78

77

12300

ACS880-907-5130A-5

6xR8i + 3xBL-25-5

Dimensions (Including ACU, ICU and ISU/DSU/RRU)

Frame size

Height (mm) Width (mm)

Depth (mm)

Weight (kg)

IGBT supply units (ISU)

R8i+BLCL-13-5

2145

1000

6)

636

860

R8i+BLCL-13-5

2145

1600

 7)

636

1300

R8i+BLCL-15-5

2145

1000

6)

636

860

R8i+BLCL-15-5

2145

1600

 7)

636

1300

2×R8i+BLCL-24-5

2145

1800

636

1600

2×R8i+BLCL-25-5

2145

2000

636

1720

3×R8i+2xBLCL-24-5

2145

2600

636

2410

4×R8i+2xBLCL-25-5

2145

2800

636

2820

6×R8i+3xBLCL-25-5

2145

4000

636

3960

Regenerative rectifier units (RRU)

R8i+BL-15-7

2145

1600

636

1275

2×R8i+BL-25-7 2145

2000

636

1615

4×R8i+2xBL-25-7

2145

2800

636

2610

4×R8i+2xBL-25-7

2145

3200

636

2610

6×R8i+3xBL-25-7

2145

4000

636

3645

Frame size

Height (mm) Width (mm)

Depth (mm)

Weight (kg)

Diode supply units (DSU)
6-pulse diode

D6D

2145

400

636

300

D7D

2145

400

636

350

D8D

2145

700

636

550

D8T

2145

1400

636

850

2×D8T

2145

1600

636

1130

3×D8T

2145

2000

636

1560

4×D8T

2145

2800

1)

636

2140

2)

5×D8T

2145

3000

636

2420

6×D8T

2145

3200

636

2700

12-pulse diode

2×D7T

2145

1800

636

900

2×D8T

2145

1800

636

1180

3)

4×D8T

4)

2145

2400

636

1840

4×D8T

5)

2145

3000

636

2040

6×D8T

2145

3400

636

2900

1)

 690 V, 2400 mm

2)

 690 V, 1940 kg

3)

 690 V, 1130 kg

4)

 2430A-3

5)

 3640A-3

6)

 Valid for ACS880 multidrives limited scope

7)

 Valid for ACS880 multidrives

8)

 +A003 6-pulse, uncontrolled diode bridge

9)

 +A018 6-pulse, half controlled diode bridge

10)

 +A004 12-pulse, DSU







ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

20  ABB industrial drives ACS880 multidrives |

Catalog

Ratings, types and voltages

Inverter units,

U

N

 = 690 V

Inverter unit (INU), ACS880-107

U

N

 = 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V (4 to 5600 kW).

Nominal ratings

Light-overload use

Heavy-duty use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame

size

I

N



A (AC)

I

max



A (AC)

P

N



kW

I

Ld

A

P

Ld



kW

I

Hd



A

P

Hd



kW

dB(A)

kW

m

3

/h

7.3

9.5

5.5

6.9

5.5

5.6

4

62

0.22

280

ACS880-107-007A3-7

R5i

9.8

12.7

7.5

9.3

7.5

7.3

5.5

62

0.28

280

ACS880-107-009A8-7

R5i

14.2

18.5

11

13.5

11

9.8

7.5

62

0.40

280

ACS880-107-014A2-7

R5i

18

23.4

15

17.1

15

14.2

11

62

0.49

280

ACS880-107-0018A-7

R5i

33

29

18.5

20.9

18.5

18

15

62

0.58

280

ACS880-107-0022A-7

R5i

27

35

22

25.7

22

22

18.5

62

0.66

280

ACS880-107-0027A-7

R5i

35

46

30

33.3

30

27

22

62

0.86

280

ACS880-107-0035A-7

R5i

42

55

37

39.9

37

35

30

62

1.00

280

ACS880-107-0042A-7

R5i

52

68

45

49.4

45

42

37

62

1.12

280

ACS880-107-0052A-7

R5i

62

81

55

60

55

46

45

71

0.8

650

ACS880-107-0062A-7

R6i

82

107

75

79

75

61

55

71

1.1

650

ACS880-107-0082A-7

R6i

99

129

90

95

90

74

75

71

1.3

650

ACS880-107-0100A-7

R6i

125

163

110

120

110

94

75

71

1.5

650

ACS880-107-0130A-7

R6i

144

187

132

138

132

108

90

71

1.8

650

ACS880-107-0140A-7

R6i

192

250

160

184

160

144

132

71

2.5

650

ACS880-107-0190A-7

R6i

217

282

200

208

200

162

160

72

2.8

940

ACS880-107-0220A-7

R7i

270

351

250

259

250

202

200

72

3.3

940

ACS880-107-0270A-7

R7i

340

510

315

326

250

254

200

72

5.2

1300

ACS880-107-0340A-7

R8i

410

620

400

394

355

307

250

72

6.1

1300

ACS880-107-0410A-7

R8i

530

800

500

509

450

396

355

72

7.9

1300

ACS880-107-0530A-7

R8i

600

900

560

576

560

449

400

72

9

1300

ACS880-107-0600A-7

R8i

800

1200

800

768

710

598

560

74

12

2600

ACS880-107-0800A-7

2×R8i

1030

1550

1000

989

900

770

710

74

15

2600

ACS880-107-1030A-7

2×R8i

1170

1760

1100

1123

1000

875

800

74

18

2600

ACS880-107-1170A-7

2×R8i

1540

2310

1400

1478

1400

1152

1100

76

23

3900

ACS880-107-1540A-7

3×R8i

1740

2610

1600

1670

1600

1302

1200

76

26

3900

ACS880-107-1740A-7

3×R8i

2300

3450

2000

2208

2000

1720

1600

76

35

5200

ACS880-107-2300A-7

4×R8i

2860

4290

2800

2746

2400

2139

2000

77

43

6500

ACS880-107-2860A-7

5×R8i

3420

5130

3200

3283

3200

2558

2400

78

52

7800

ACS880-107-3420A-7

6×R8i

3990

5990

3600

3830

3600

2985

2800

78

60

9100

ACS880-107-3990A-7

7×R8i

4560

6840

4400

4378

4000

3411

3200

79

69

10400

ACS880-107-4560A-7

8×R8i

5130

7700

4800

4925

4800

3837

3600

79

78

11700

ACS880-107-5130A-7

9×R8i

5700

8550

5600

5472

5200

4264

4000

79

86

13000

ACS880-107-5700A-7

10×R8i

Dimensions

Frame size

Height (mm)

Width (mm)

Depth (mm)

Weight (kg)

R5i

2145

1)

300 to 500

5)

636

220

R6i

2145

1)

400

636

3)

250

R7i

2145

1)

400

636

3)

250

R8i

2145

1)

400

 2)

636

4)

320

2×R8i

2145

1)

600

 2)

636

4)

510

3×R8i

2145

1)

800

 2)

636

4)

660

4×R8i

2145

1)

1200

 2)

636

4)

1020

5×R8i

2145

1)

1400

 2)

636

4)

1070

6×R8i

2145

1)

1600

 2)

636

4)

1320

7×R8i

2145

1)

2000

 2)

636

4)

1680

8×R8i

2145

1)

2200

 2)

636

4)

1830

9×R8i

2145

1)

2400

 2)

636

4)

1980

10×R8i

2145

1)

2800

 2)

636

4)

2340

1)

 Cabinet height 2315 mm for IP54 and 2051 mm for IPxxR. An additional 10 mm

required for marine supports.

2)

 300 mm is required for drive control unit (DCU). One DCU can be used for two drive

units.

3)

 Top exit with backpack for R1i to R7i, additional depth is 120 mm.

4)

 Top exit with backpack for n×R8i, additional depth is 190 mm.

5)

  Width depends on the amount of inverter units. With option own compartment

(+C204) 500 mm for max. 2 R5i inverters.

Nominal ratings

I

N

Rated current available continuously without overloadability at 40 °C.

S

N

Nominal apparent power.

P

N

Typical motor power in no-overload use.

I

max

Maximum output current. Available for 10 seconds at start, then as
long as allowed by drive temperature.

Light-overload use

I

Ld

Continuous current allowing 110%

I

Ld

 for 1 min/5 min at 40 °C.

P

Ld

Typical motor power in light-overload use.

Heavy-duty use

I

Hd

Continuous current allowing 150%

I

Hd

 for 1 min/5 min at 40 °C.

P

Hd

Typical motor power in heavy-duty use.

The ratings apply at 40 °C ambient temperature. At higher temperatures (up to 50 °C)
the derating is 1%/1 °C. The current ratings are the same regardless of the supply
voltage within one voltage range. Dimensioning has to be checked by DriveSize.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  21

Ratings, types and voltages

Supply units,

U

N

 = 690 V

Diode supply units (DSU), ACS880-307

6-pulse diode

572

700

980

683

652

672

626

524

488

72

5

1300

ACS880-307-0570A-7+A018

D8T

7)

816

1000

1400

976

932

960

894

748

697

72

6

1300

ACS880-307-0820A-7+A018

D8T

7)

1063

1302

1823

1271

1213

1250

1164

974

907

74

9

2600

ACS880-307-1060A-7+A018

2×D8T

7)

1519

1860

2604

1815

1733

1786

1663

1391

1296

74

13

2600

ACS880-307-1520A-7+A018

2×D8T

7)

2278

2790

3906

2723

2599

2678

2495

2087

1944

76

19

3900

ACS880-307-2280A-7+A018

3×D8T

7)

3037

3720

5208

3630

3465

3571

3327

2783

2592

76

26

5200

ACS880-307-3040A-7+A018

4×D8T

7)

3797

4650

6510

4538

4331

4464

4158

3478

3240

77

32

6500

ACS880-307-3800A-7+A018

5×D8T

7)

4556

5580

7812

5445

5198

5357

4990

4174

3888

78

38

7800

ACS880-307-4560A-7+A018

6×D8T

7)

12-pulse diode

759

930

1302

908

866

893

832

696

648

74

8

1800

ACS880-307-0760A-7+A004+A018

2×D7T

8)

1063

1302

1823

1271

1213

1250

1164

974

907

74

9

2600

ACS880-307-1060A-7+A004+A018

2×D8T

8)

1519

1860

2604

1815

1733

1786

1663

1391

1296

74

13

2600

ACS880-307-1520A-7+A004+A018

2×D8T

8)

2126

2604

3646

2541

2426

2500

2329

1948

1814

76

18

5200

ACS880-307-2130A-7+A004+A018

4×D8T

8)

3037

3720

5208

3630

3465

3571

3327

2783

2592

76

26

5200

ACS880-307-3040A-7+A004+A018

4×D8T

8)

4556

5580

7812

5445

5198

5357

4990

4174

3888

78

38

7800

ACS880-307-4560A-7+A004+A018

6×D8T

8)

U

N

 = 690 V (range 525 to 690 V)

Nominal ratings

No-over-

load use

Light-overload

use

Heavy-duty

use

Noise

level

Heat

dissipation

Air

flow

Type designation

Frame size

I

N



A (AC)

I

N



A (DC)

I

max



A (DC)

S

N

kVA

P

N

kW (DC)

I

Ld

A (DC)

P

Ld



kW (DC)

I

Hd



A (DC)

P

Hd



kW (DC)

dB(A)

kW

m

3

/h

IGBT supply units (ISU), ACS880-207

306

371

557

366

362

356

348

278

271

72

11.7

2200

ACS880-207-0310A-7

R8i+BLCL-13-7

369

447

671

441

437

430

419

335

327

72

13.4

2200

ACS880-207-0370A-7

R8i+BLCL-13-7

540

655

982

645

639

629

613

490

478

72

17.6

2200

ACS880-207-0540A-7

R8i+BLCL-15-7

720

873

1309

860

852

838

818

653

637

74

23.0

4100

ACS880-207-0720A-7

2×R8i+BLCL-24-7

1053

1277

1915

1258

1246

1226

1196

955

932

74

31.5

4100

ACS880-207-1050A-7

2×R8i+BLCL-25-7

1566

1899

2848

1872

1853

1823

1779

1420

1386

76

49.4

6900

ACS880-207-1570A-7

3×R8i+2×BLCL-24-7

2070

2510

3765

2474

2449

2409

2351

1877

1832

76

62.7

8200

ACS880-207-2070A-7

4×R8i+2×BLCL-25-7

3078

3732

5598

3679

3642

3583

3496

2792

2724

78

94.0

12300 ACS880-207-3080A-7

6×R8i+3×BLCL-25-7

4104

4976

7464

4905

4856

4777

4661

3722

3632

79

125.3

16400 ACS880-207-4100A-7

8×R8i+4×BLCL-25-7

5130

6220

9330

6131

6070

5971

5827

4653

4540

79

155.5

20500 ACS880-207-5130A-7 10×R8i+5×BLCL-25-7

1)

 690 V, 2400 mm

2)

 690 V, 1940 kg

3)

 690 V, 1130 kg

4)

 2430A-3

Dimensions (Including ACU, ICU and ISU/DSU/RRU)

Frame size

Height (mm) Width (mm)

Depth (mm)

Weight (kg)

IGBT supply units (ISU)

R8i+BLCL-13-7

2145

1600

6)

636

1300

R8i+BLCL-15-7

2145

1600

6)

636

1300

2×R8i+BLCL-24-7

2145

1800

636

1600

2×R8i+BLCL-25-7

2145

1800

636

1600

3×R8i+2×BLCL-25-7

2145

2600

636

2210

4×R8i+2xBLCL-25-7

2145

2800

636

2820

6×R8i+3xBLCL-25-7

2145

3600

636

3720

8×R8i+4xBLCL-25-7

2145

5100

636

4860

10×R8i+5xBLCL-25-7

2145

5900

636

5760

Regenerative rectifier units (RRU)

R8i+BL-15-7

2145

1600

636

1275

2×R8i+BL-25-7

2145

2000

636

1615

4×R8i+2xBL-25-7

2145

2800

636

2610

4×R8i+2xBL-25-7

2145

3200

636

2610

6×R8i+3xBL-25-7

2145

4000

636

3645

Frame size

Height (mm) Width (mm)

Depth (mm)

Weight (kg)

Diode supply units (DSU)
6-pulse diode

D8T

2145

1400

636

850

2×D8T

2145

1600

636

1130

3×D8T

2145

2000

636

1560

4×D8T

2145

2800

1)

636

2140

2)

5×D8T

2145

3000

636

2420

6×D8T

2145

3200

636

2700

12-pulse diode

2×D7T

2145

1800

636

900

2×D8T

2145

1800

636

1180

3)

4×D8T

2145

2400

4)

 636

1840

4)

4×D8T

2145

3000

 5)

636

2040

5)

6×D8T

2145

3400

636

2900

Regenerative rectifier units (RRU), ACS880-907

600

735

1102

717

685

705

657

550

512

72

10

2200

ACS880-907-0600A-7

1xR8i + BL-15-7

900

1102

1653

1076

1027

1058

986

824

768

72

14

2200

ACS880-907-0900A-7

1xR8i + BL-15-7

1180

1445

2168

1410

1346

1387

1292

1081

1007

74

19

4100

ACS880-907-1180A-7

2xR8i + BL-25-7

1770

2168

3252

2115

2019

2081

1939

1622

1510

74

28

4100

ACS880-907-1770A-7

2xR8i + BL-25-7

2310

2829

4244

2761

2635

2716

2530

2116

1971

76

37

8200

ACS880-907-2310A-7

4xR8i + 2xBL-25-7

3460

4238

6356

4135

3947

4068

3789

3170

2953

76

56

8200

ACS880-907-3460A-7

4xR8i + 2xBL-25-7

5130

6283

9424

6131

5853

6032

5618

4700

4378

78

84

12300

ACS880-907-5130A-7

6xR8i + 3xBL-25-7

5)

 3640A-3

6)

 Valid for ACS880 multidrives

7)

 +A018 6-pulse, half controlled diode bridge

8)

 +A004 12-pulse, DSU

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

22  ABB industrial drives ACS880 multidrives |

Catalog

Standard interface and extensions for comprehensive connectivity

Relay outputs

XRO1, XRO2, XRO3

Ready

250 V AC/30 V DC
2 A

NO

13

COM

12

NC

11

Running

250 V AC/30 V DC
2 A

NO

23

COM

22

NC

21

Faulted(-1)

250 V AC/30 V DC
2 A

NO

33

COM

32

NC

31

External power input

XPOW

24 V DC, 2 A

GND

2

+24VI

1

Reference voltage and analog inputs

J1, J2, XAI

AI1/AI2 current/voltage selection

AI1:U

AI2:U

AI1:I

AI2:I

By default not in use.
0(4) to 20 mA,

R

in

 = 100 ohm

 AI2-

7

 AI2+

6

Speed reference



0(2) to 10 V,

R

in

 > 200 kohm

AI1-

5

AI1+

4

Ground

AGND

3

-10 V DC,

R

L

 1 to 10 kohm

-VREF

2

10 V DC,

R

L

 1 to 10 kohm

+VREF

1

Analog outputs

XAO

Motor current

 0 to 20 mA,

R

L

 < 500 ohm

AGND

4

AO2

3

Motor speed



rpm

 0 to 20 mA,

R

L

 < 500 ohm

AGND

2

AO1

1

Drive-to-drive link

J3, XD2D

Drive-to-drive link termination

ON          OFF

Drive-to-drive link or built-in Modbus

Shield

4

BGND

3

A

2

B

1

Safe torque off

XSTO

Safe torque off. Both circuits must be closed
for the drive to start.

IN2

4

IN1

3

SGND

2

OUT

1

Digital inputs

XDI

By default not in use

DI6

6

Constant speed 1 select (1=on)

DI5

5

Acceleration and deceleration select

DI4

4

Reset

DI3

3

Forward (0)/Reverse (1)

DI2

2

Stop (0)/Start (1)

DI1

1

Digital input/outputs

XDIO

Output: Running

DIO2

2

Output: Ready

DIO1

1

Ground selection

Auxiliary voltage output, digital input
interlock

XD24

Digital input/output ground

DIOGND

5

+24 V DC 200 mA

+24VD

4

Digital input ground

DICOM

3

+24 V DC 200 mA

+24VD

2

Digital interlock

DIIL

1

Safety functions module connection

X12

Control panel/PC connection

X13

Memory unit connection

X205

The ACS880 multidrives offer a wide range of standard
interfaces. In addition the drive has three option slots that can
be used for extensions including fieldbus adapter modules,

input/output extension modules, feedback modules and
a safety functions module.

Control
connections

Description

2 analog
inputs (XAI)

Current input: –20 to 20 mA,

R

in

: 100 ohm

Voltage input: –10 to 10 V,

R

in

> 200 kohm

Resolution: 11 bit + sign bit

2 analog
outputs (XAO)

0 to 20 mA,

R

load

 < 500 ohm

Frequency range: 0 to 300 Hz
Resolution: 11 bit + sign bit

6 digital
inputs (XDI)

Input type: NPN/PNP (DI1 to DI5), NPN (DI6)
DI6 can alternatively be used as an input for
a PTC thermistor.

Digital input
interlock (DIIL)

Input type: NPN/PNP

2 digital
inputs/outputs
(XDIO)

As input:
24 V logic levels:
“0” < 5 V, “1” > 15 V

R

in

: 2.0 kohm

Filtering: 0.25 ms
As output:
Total output current from 24 V DC is limited to
200 mA
Can be set as pulse train input and output

3 relay outputs
(XRO1, XRO2,
XRO3)

250 V AC/30 V DC, 2 A

Safe torque off
(XSTO)

For the drive to start, both connections must be
closed, only to be used in inverter units

Drive-to-drive
link (XD2D)

Physical layer: EIA-485

Built-in Modbus

EIA-485

Assistant control
panel/
PC tool
connection

Connector: RJ-45

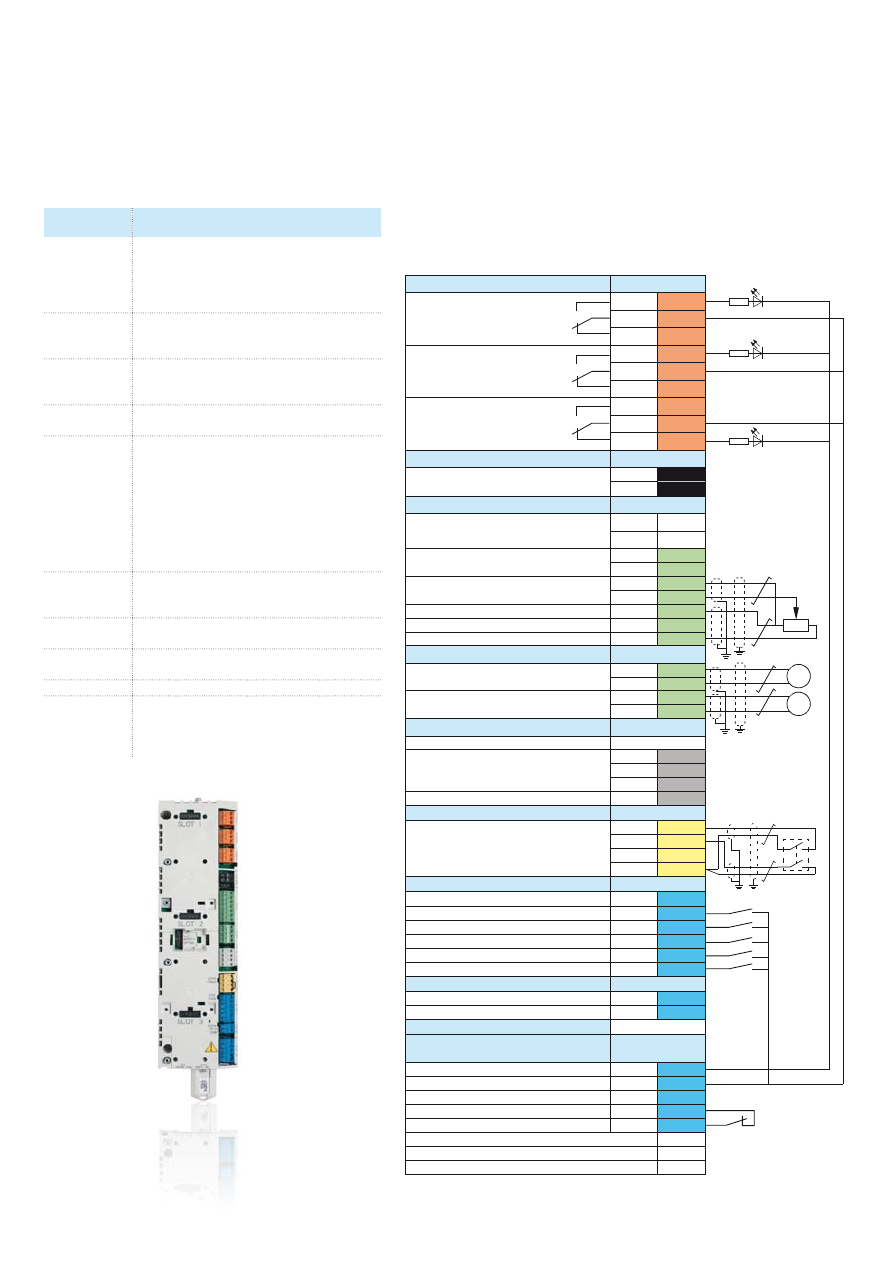

Example of a typical multidrives input/output connection
diagram. Variations may be possible (please see HW manual for
more information).

Control unit ZCU

Fault

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  23

Standard software for scalable control and functionality

The same software, the primary control program, is used
across the whole ACS880 series for controlling inverter
units and motors. Features such as built-in preprogrammed
application macros save time during configuration and drive
commissioning. The application macros help set parameters
for various functions including:



Basic setup for input/output control and fieldbus
adapter control



Hand/auto control for local and remote operation



PID control for closed loop processes



Sequential control for repetitive cycles



Torque control



Four user sets, for saving multiple drive configurations

Direct torque control (DTC)

The inverters are equipped with direct torque control (DTC),
ABB’s signature motor control platform which supports
motors such as induction motors, permanent magnet motors,
servo motors and the new synchronous reluctance motor.
It can also be used with sine filters. DTC helps control the
motor from standstill to maximum torque and speed without
the necessity of encoders or position sensors. DTC allows
high overloadability, gives high starting torque and reduces
stress on mechanics.

Energy efficiency information

The inverters come with built-in energy efficiency information
that helps the user fine-tune processes to ensure optimum
energy use. The energy optimizer mode ensures the maximum
torque per ampere, reducing energy drawn from the supply.
The load profile feature collects inverter values with three
loggers: two amplitude loggers and one peak value logger.
Calculators provide essential energy efficiency information:
used and saved electrical energy, CO

2

 reduction and money

saved.

Additional software features include:



Access levels



Adaptive programming



Automatic reset



Automatic start



Constant speeds



Critical speeds and frequencies



DC hold



DC magnetizing



Diagnostics



Drive-to-drive link for master-follower control



Flux braking



Jogging



Maintenance timer and counters



Mechanical brake control



Motor potentiometer



Output phase order selection, switches rotation direction of
the motor



Oscillation damping



Power loss ride-through



Process PID control with trim function



Programmable and preprogrammed protection functions



Programmable inputs and outputs



Scalar control with IR compensation



Speed controller with auto tuning



Startup assistants



User adjustable load supervision/limitation



User selectable acceleration and deceleration ramps



Variable slope

Removable memory unit

The removable memory unit stores the standard software that
includes user settings, parameter settings and motor data.
Situated on the control unit, the memory unit can easily be
removed for maintenance, update or replacement purposes.
This common type of memory unit is used throughout the
ACS880 series.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

24  ABB industrial drives ACS880 multidrives |

Catalog

Intuitive human-machine interface

The assistant control panel features intuitive use and easy
navigation. High resolution display enables visual guidance.
The panel saves on commissioning and learning time by
means of different assistants, making the drive simple to set
up and use.

It is possible to organize parameters in different ways and
store essential parameters for different configurations
for any specialized application needed. The menus and
messages can be customized for specific terminology so
that each application can be set up and configured to its
optimum performance. This makes the drive easier to use
with information that is familiar to users. With the panel’s
text editor, users can also add information, customize text

and label the drive. Powerful backup and restore functions
are supported as well as different language versions. The
help key provides context sensitive guidance. Faults or
warnings can be resolved quickly since the help key provides
troubleshooting instructions.

One control panel can be connected to several inverters
simultaneously using the panel network feature. The user can
also select the inverter to operate in the panel network. The
PC tool can be easily connected to the drive through the USB
connector on the control panel. There are also control panel
mounting platforms, DPMP-01 (IP54) and DPMP-02 (IP65),
available for cabinet door mounting.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  25

PC tool for easy startup and maintenance

The Drive composer PC tool offers fast and harmonized
setup, commissioning and monitoring for the whole drives
portfolio. The free version of the tool provides startup and
maintenance capabilities, while the professional version
provides additional features such as custom parameter
windows, control diagrams of the drive’s configuration and
safety settings.

The Drive composer tool is connected to the drive using an
Ethernet connection or through the USB connection on the
assistant control panel. Ethernet connection can use a shared
network with Ethernet-based fieldbuses, thus reducing the
amount of cabling. All drive information such as parameters,
event log and system information are gathered into a support
diagnostics file with a single mouse click. This provides faster

fault tracking, shortens downtime and minimizes operational
and maintenance costs.

Drive composer pro

Drive composer pro provides basic functionality, including
parameter settings, downloading and uploading files and
search parameters. Advanced features such as graphical
control diagrams and various displays are also available.
The control diagrams save users from browsing long lists
of parameters and help to set the drive’s logic quickly and
easily. The tool has fast monitoring capabilities of multiple
signals from several drives in a PC tool network. Full backup
and restore functions are also included. Safety settings and
adaptive programming programs can be configured with
Drive composer pro.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

26  ABB industrial drives ACS880 multidrives |

Catalog

Integrated safety reduces the need for external safety
components, simplifying configuration and reducing
installation space. The safety functionality is a built-in feature
of the ACS880, with safe torque off (STO) as standard.
Additional safety functions can be commissioned with the
optional and compact safety functions module. ACS880
drives offer encoderless safety. The drives’ functional safety is
designed in accordance with EN/IEC 61800-5-2 and complies
with the requirements of the European Union Machinery
Directive 2006/42/EC.

Safe torque off as standard

Safe torque off (STO) is used to prevent unexpected startup
and in stopping-related functions, enabling safe machine
maintenance and operation. With safe torque off activated,
the drive will not provide a rotational field. This prevents the
motor from generating torque on the shaft. This function
corresponds to an uncontrolled stop in accordance with stop
category 0 of EN 60204-1.

The safety functions modules

The easy to connect and configure safety functions module
(FSO-12 and -21) offers a wide range of safety functions
and a self diagnostic function that meets current safety
requirements and standards, all in one compact module.

Integrated safety simplifies configuration

ACS880 multidrives with integrated safety features

Compared to using external safety components, the safety
functions module comes with the supported functions
seamlessly integrated with the drive functionality, reducing
the implementation of safety function connections and
configuration. Installation of the module results in less need
for cabling and provides a cost-effective solution.

Commissioning and configuration of the safety functions
module is done with the Drive composer pro PC tool. Larger
safety systems can be built using PROFIsafe over Profinet
connection between a safety PLC (such as AC500-S) and the
ACS880 drive. The connection is achieved using the FENA-21
fieldbus adapter module and the safety functions module.

The safety functions module can also be ordered as a spare
part kit and installed afterwards to the drive. The kit includes
most common assembly accessories for ACS880 drives.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  27

Engineered and verified solutions with the safety
functions module

Safety function

Option code

Emergency Stop, configurable stop cat. 0 or 1; with STO,

with safety functions module (FSO-12/-21)

+Q979 +Q973/

+Q972

Safely-limited speed (SLS) with safety functions module

FSO-12 (without encoder)

+Q966 +Q973

Safely-limited speed (SLS) with FSO-21 and with encoder

FSE-31

+Q965 + Q972

+L521

Prevention of unexpected startup (POUS) with safety

functions module (FSO-12/-21)

+Q950 +Q973/

+Q972

PROFIsafe with safety functions module (FSO-21) and

FENA-21

+Q982

+Q973/+Q972

+K475

Thermistor protection module FPTC-01

+L536

Thermistor protection module FPTC-02

(1

+L537, Q971

Safety data and safety levels up to SIL 3 or PL e can be calculated for engineered

solutions for multidrives cabinets as option.

1)

 ATEX certi

fi

 ed

Safety functions module

The module supports the following safety functions (which
achieve up to SIL 3 or PL e (Cat. 3) safety level:



Safe stop 1 (SS1)

 brings the machine to a stop (STO)

using a monitored deceleration ramp. It is typically used
in applications where the machinery motion needs to be
brought to a stop (stop category 1) in a controlled way
before switching over to the no-torque state.



Safe stop emergency (SSE)

 can be configured to, upon

request, either activate STO instantly (category 0 stop), or
first initiate motor deceleration and then, once the motor
has stopped, activate the STO (category 1 stop).



Safe brake control (SBC)

 provides a safe output for

controlling the motor’s external (mechanical) brakes,
together with STO.



Safely-limited speed (SLS)

 ensures that the specified

speed limit of the motor is not exceeded. This allows
machine interaction to be performed at slow speed without
stopping the drive. The safety function module comes with
four individual SLS settings for speed monitoring.



Safe maximum speed (SMS)

 monitors that the speed of

the motor does not exceed the configured speed limit.



Prevention of unexpected startup (POUS)

 ensures that the

machine remains stopped when people are in a danger area.



Safe direction (SDI)

 ensures that rotation is allowed only

to the selected direction. Available only with FSO-21 and
FSE-31



Safe speed monitor (SSM)

 provides information that

speed is within the configured limits. Available only with
FSO-21

Safe temperature monitoring can be done by using FPTC
thermistor protection modules. These modules have SIL 2 or
PL e safety level.

The safety functions module enables safety functions without
an encoder. If the application requires a safe encoder
feedback it can be established with the safety certified pulse
encoder interface module FSE-31. The module provides
safe encoder data to the safety functions module and can
simultaneously be used as a feedback device for the drive.

Safety functions are designed to the multidrives on project
specific requirements.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

28  ABB industrial drives ACS880 multidrives |

Catalog

Designed to control virtually any type of AC motor

Induction motors

Synchronous reluctance motors

Permanent magnet motors

Our ACS880 drives control virtually any type of AC motor
including induction, permanent magnet, servo and synchronous
reluctance motors. Motor control is optimized with direct
torque control (DTC), ABB’s premium motor control, built-in as
a standard feature in our ACS880 drives. Our robust industrial
drives ensure an energy efficient and reliable motor controller
with significant cost savings for the user.

Direct torque control (DTC) for optimal control of motors

To ensure optimal control of an motor, our ACS880 drives
offer direct torque control (DTC) as a built-in standard
feature. In majority of applications, even with sine filters, the
DTC reduces the need for an expensive speed feedback
encoder. Direct torque control provides fast reaction to load
changes in the motor shaft as well as reference changes on
speed or torque made by the user. It makes the motor run
optimally which lowers energy consumption and wear of the
application.

ACS880 and induction motors form a reliable combination

Induction motors are used throughout the industry in several
types of industry applications which demand robust and
high enclosure motor and drive solutions. The ACS880
drives fit perfectly together with this type of motor, used in
a wide range of industrial environments. The drives fit into
environments that require high degree of protection and offer
narrow facilities. ACS880 drives come with DTC as standard,
which ensures high speed accuracy.

Our low voltage motors for explosive atmospheres and low
voltage industrial drives have been tested and certified to
verify that, when correctly dimensioned, they are safe to use
in explosive atmospheres.

ABB drives can also be used with non-ABB Ex motors with
ATEX-certified thermistor protection. If this protection is not
used, the motor-drive combination must be type tested for
potentially explosive atmospheres by customer or a third
party. It is also important to verify that the motor can be used
with ABB variable speed drives.

ACS880 and permanent magnet motors for smooth
operation

Permanent magnet technology is often used for improved
motor characteristics such as energy efficiency, compactness
and control performance. This technology is particularly well
suited for low speed control industry applications, as they
eliminate the need to use gear boxes. Actual characteristics
between different permanent magnet motors can vary
considerably. ACS880 drives with DTC can control ABB and
most other permanent magnet motors without speed or rotor
position sensors.

ACS880 and IE4 synchronous reluctance motors for a
package with high efficiency

Combining the ACS880’s control technology with our
synchronous reluctance (SynRM) motors provides an IE4
motor and drive package that gives you great energy savings
benefits. The key is in the rotor design. The synchronous
reluctance rotor replaces the traditional induction rotor and
requires no permanent magnets. ABB has tested our SynRM
motor and drive packages and produced manufacturer’s
statements providing verified system (drive and motor)
efficiency.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  29

Automation Builder, ABB’s new software suite for automation
engineering, makes programming of industry devices such
as drives, PLC’s, robots and human machine interfaces (HMI)
easy using one common engineering tool. The Automation
Builder is used both for engineering individual industry
devices and for putting together entire automation projects.
It is based on a widely used software environment that fulfills
many different requirements of industrial automation projects,
according to the IEC standard 61131-3. As a single tool, the
Automation Builder reduces time typically needed for system
configuration and programming. It also reduces the need for
installing and maintaining separate programs simultaneously.
Automation Builder enables the possibility to do online
diagnostic checking of multiple tasks performed by different
industrial devices such as ACS880 drives.

Drive application programming

Automation Builder makes it possible for system integrators
and machine builders to integrate their desired functionality
and know-how directly into ACS880 drives. This is possible as
ACS880 drives come with programming capability embedded
inside the drive. Designing an application program in the
drive makes the end user application run more efficiently,
even without a separate programmable controller. It also
brings higher end-product quality and requires less need for
installation space and wiring.

Automation Builder lets you extend the standard functionality
of parameter functions for ACS880 drives. This makes the
ACS880 drives very flexible to meet exact requirements set for
end user applications. The library management functionality
in Automation Builder shortens engineering time as reuse of
existing program code is possible. Additional features include
the ability to select and use one of five different programming
languages, effective program debugging and user password
protection.

Integrated engineering suite for operating several industry
components together

Using the Drive manager tool embedded in Automation
Builder together with ABB’s AC500 PLC gives the user online
connection to all drives in a fieldbus network. This speeds up
commissioning and makes diagnostic of the entire automation
system easy. Automation Builder saves all the configuration
data of industry devices (including drive parameter settings)
and program code to the same project archive. This makes
engineering work more consistent and manageable.

The drive application programming license should be ordered
together with the drive.

Drive application programming based on IEC standard 61131-3

Drive application programmability

Option

Option code

License key 1)

+N8010

1)

The Automation Builder tools must be ordered separately.

   For further information please contact your local ABB

Automation Builder



One engineering tool to control all industry devices



System configuration and diagnostic



IEC programming



Common project data handling

Industrial

application

Human

Machine

Interface (HMI)

PLC, AC500

LV AC drives

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

30  ABB industrial drives ACS880 multidrives |

Catalog

Application control programs

Our application control programs are developed by working
closely with our customers over many years. This results in
application programs that include the lessons learned from
many customers, and that are designed to give you the

fl

 exibly

to adapt the programs to your speci

fi

 c needs. These programs

enhance application usability and lower energy consumption.
They increase safe operation of the applications and reduce the
need for a PLC. Other bene

fi

 ts include protection of machinery

and optimization of application productivity. The programs also
optimize time usage and lower operational costs.

The ACS880 application control programs come with
adaptive programming features. This makes fine tuning of
the ready-made application control program functionalities
easy. Additionally, we understand that you may need to use
different configurations in your process. That’s why each
of our control programs comes with the ability to configure
up to four different configurations, or “user sets.”  The
ACS880 drives offer integrated safety with safe torque off
(STO) functionality as standard. The optional safety functions
module comes with several safety functions including safe
brake control (SBC).

Control program for cranes

This control program is dedicated for industrial, harbor,
tower and marine deck cranes. It is possible to control crane
movements in hoist and trolley and travel motions using the
same software. The control program comes with integrated
mechanical brake control to assure safe opening and closing
of the mechanical disc or drum brakes. Standalone and
master-follower functionality is supported along with synchro
control of multimotors. The synchro control for common
operation of the load functionality makes it possible to lift and
lower loads, such as containers, in a smooth and balanced
way during transportation. The load speed control function

maximizes the hoist speed for the given load and ensures that
there is sufficient motor torque in the field weakening area.
This minimizes operation time and optimizes crane capacity.
Fieldbus and conventional I/O control is supported. The
antisway function is designed for indoor cranes to prevent
unnecessary swaying of the load.

Control program for marine winches

The control program is designed for electrically driven deck
machinery winches, such as anchor and mooring winches on
different kinds of vessels. Anchoring and mooring on heavy
vessels often involves low-speed, high-torque situations.
Based on the application expertise gained with our customers
over the years, we have developed drives that overcome the
winching challenges and enable precise, dependable and
smooth operation of new winch installations and retrofits of
old winches.

The control program includes built-in anchor, hand-mooring
and auto-mooring functions and parameter sets. The hand-
mooring enables high-speed mode to quickly reel ropes in or
out to achieve pre-tension in the ropes before switching over
to auto-mooring. The operator can control operations from
one of the four available control stands or using a wireless
radio controller. All common control stand interfaces are
supported.

The combination of direct torque control (DTC) and a
winch control program eliminates the need for motor shaft
encoders and gearbox load cell sensors, while the advanced
mechanical brake control for the motor brake reduces stress
on brake and gearbox.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  31

Application control programs

Control program for winder

This control program makes sure that the unwinding and
winding of a roll of web material, such as textile, plastic and
paper is performed optimally. The control program observes
the diameter of rolls and tension of the web material and
makes sure that the drives controlling different parts of the
winder are in sync. Based on the feedback from the dancer or
tension measurement of the web, the speed or torque of the
drive is adjusted appropriately. The result is a straightforward,
cost-effective solution in web handling.

Control program for artificial oil lifting

This control program increases oil production for PCP
(progressive cavity pumps), ESP (electro submersible
pumps) or rod pumps. The program does not require any
feedback encoder to work, which saves costs and increases
reliability. The software also reduces stress on the complete
pump system when optimizing fluid production. Backspin
functionality is especially suitable for PCP and ESP pumps,
which minimizes failure and makes oil pumping safe. Various
startup ramp functions are also available. The sensorless
control function (pump off control) helps to optimize oil
pumping productivity by keeping the energy usage on
a predetermined level. The efficiency of PCP pumps is
significantly increased when using ACS880 drives together
with SynRM motors.

Control program for centrifuge/decanter

This control program is designed to perform practical
programmable sequences for conventional centrifuges. The
program optimizes the separation of solids from the liquids in
centrifuges, separators or decanter centrifuges. The speed
difference of the decanter bowl and the scroll in the decanter
centrifuge is controlled by the drive-to-drive functionality
available in ACS880 drives.

Control program for cooling tower

This program is used in ACS880 drives to control high-torque
and slow-speed synchronous RPM-AC permanent magnet
motors in cooling tower applications. The control program is
the basis for a drive-motor package where the cooling tower
direct drive motor (CTDD) and the ACS880 drive is installed
directly to the fans without any need for gearboxes, drive
shafts or couplings. This provides high torque that is required
for cooling tower applications without additional drivetrain
components. The result is energy savings, reduced mainte-
nance risk and costs, and direct-on-load startup current
peaks. The control program for cooling tower is easy to

commission and use. The ACS880 drives offer a streamlined
parameter set that is focused on the typical cooling tower
direct drive configurations where only necessary parameters
are visible. Other cooling tower features in the drive include
trickle current for keeping the motor warm and dry, a de-icing
function to prevent ice build-up on the fan blades and an anti-
windmill function to prevent rotation of the fan during standby.

Spinning and traverse control program for ring frame
textile machines

This control program offers precise control for over yarn
production. It is designed to run spinning bobbins in ring
frame textile machines. In order to achieve the best possible
doffing, preset speed values based on elapsed time or length
are given.

The traverse functionality is used in textile machines to guide
the yarn into a yarn package.

Control program for tunnel fans in emergency situations

The emergency features of the override control program
activate in case of an emergency, such as a fire in the tunnel.
In this mode, most protections that would normally stop
the drive are disabled. Ordinary start, stop and speed or
frequency references are also disabled. Only the override
reference is active.

Control program for chemical industry process control

The requirements imposed on PROFIBUS-DP communication
by NAMUR NE 122 in the chemical industry can easily be met
with the new PROFIBUS NAMUR control program, which is
available for the complete ACS880 Industrial drive family. The
PROFIBUS NAMUR control program allows communication
between the drive and the process control system using the
VIK-NAMUR profile to be easily and reliably set up with
minimum effort.

In addition to PROFIBUS-DP communication according to
NE122, ACS880 drives offer other features, such as support
for NAMUR NE37 signals. ACS880 drives also conform to
NAMUR NE38, as the DTC can operate with a sine filter. In
addition, the ACS880 has integrated safety functions such as
Safe Torque Off (STO), Safely-Limited Speed (SLS), an ATEX-
certified safe disconnection function, and an integrated
ATEX-certified thermistor protection module certified by TÜV
Nord and VTT expert services Ltd. These features combined
with ABB Ex drive and motor package certifications offer an
excellent solution for the chemical industry.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

32  ABB industrial drives ACS880 multidrives |

Catalog

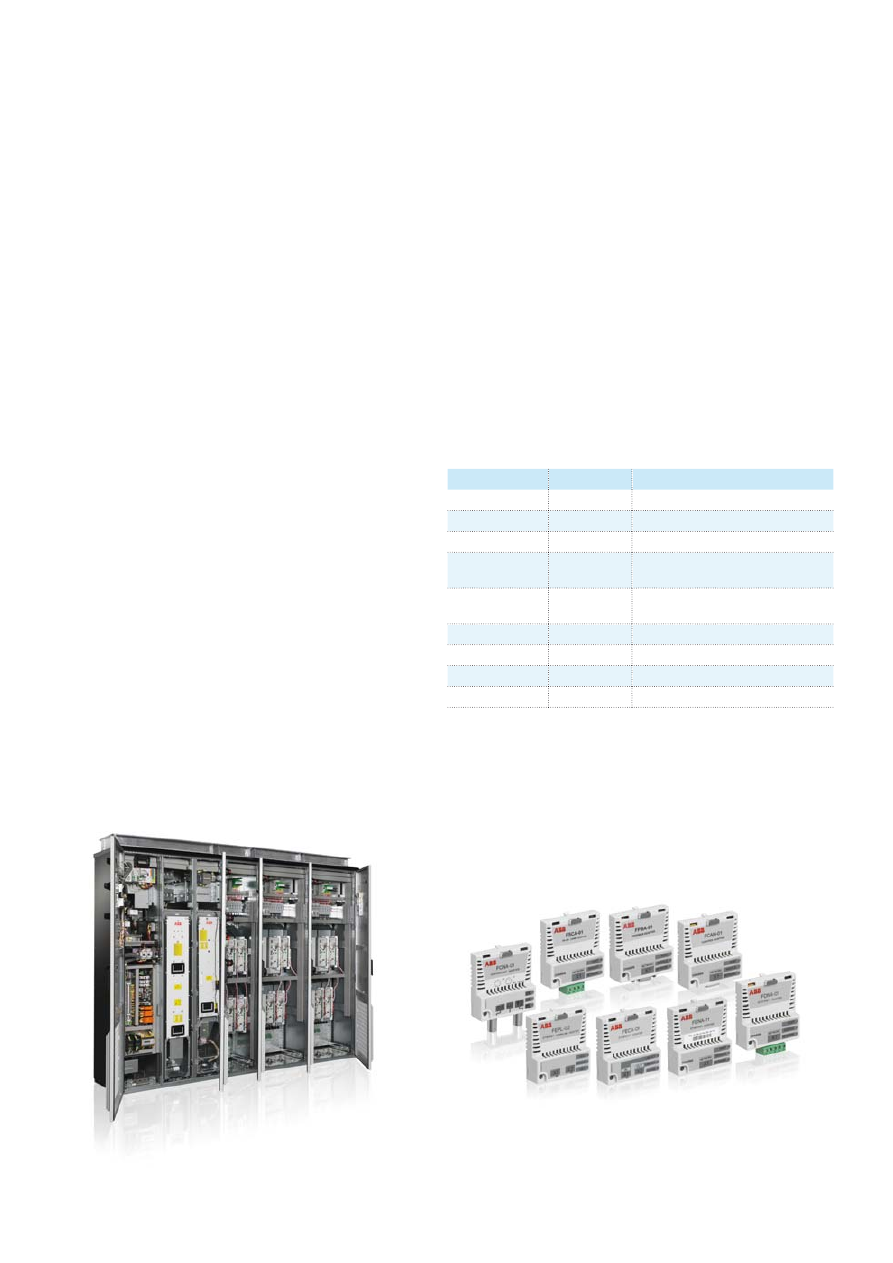

Flexible connectivity to automation networks

Our fieldbus adapter modules enable communication between
drives, systems, devices and software. Our industrial drives
are compatible with a wide range of fieldbus protocols.

The plug-in fieldbus adapter module can easily be mounted
inside the drive. Other benefits include reduced wiring costs
when compared with traditional input/output connections.
Fieldbus systems are also less complex than conventional
systems, resulting in less overall maintenance.

Multiple fieldbus connections for flexible control

ACS880 supports two fieldbus connections simultaneously.
The user has flexibility of choice for control modes, and the
possibility for redundant fieldbus adapters using the same
protocol.

Drive monitoring

A set of drive parameters and/or actual signals, such as
torque, speed, current, etc., can be selected for cyclic data
transfer, providing fast data access.

Drive diagnostics

Accurate and reliable diagnostic information can be obtained
through the alarm, limit and fault words.

Drive parameter handling

The Ethernet fieldbus adapter module allows users to build
an Ethernet network for drive monitoring and diagnostic and
parameter handling purposes.

Cabling

Substituting the large amount of conventional drive control
cabling and wiring with a single cable reduces costs and
increases system reliability and flexibility.

Design

The use of fieldbus control reduces engineering time at
installation due to the modular structure of the hardware and
software and the simplicity of the connections to the drives.

Commissioning and assembly

The modular machine configuration allows pre-commissioning
of single machine sections and provides easy and fast
assembly of the complete installation.

Universal communication with ABB fieldbus adapters

The ACS880 supports the following fieldbus protocols:

Fieldbus adapter modules

Option

Option code

Fieldbus protocol

FPBA-01

+K454

PROFIBUS DP, DPV0/DPV1

FCAN-01

+K457 CANopen

®

FDNA-01

+K451 DeviceNet™

FENA-11

+K473

1 port EtherNet/IP™, Modbus TCP,
PROFINET IO

FENA-21

+K475

2 port EtherNet/IP™, Modbus TCP,
PROFINET IO, PROFIsafe

1)

FECA-01

+K469 EtherCAT

®

FSCA-01

+K458

Modbus RTU

FEPL-02

+K470

POWERLINK

FCNA-01

+K462

ControlNet

TM

1)

 For the PROFIsafe to work PROFINET fieldbus adapter module

(FENA-21) and the safety functions module are required.

ACS880 multidrives with fieldbus adapters and feedback

interface modules

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  33

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

34  ABB industrial drives ACS880 multidrives |

Catalog

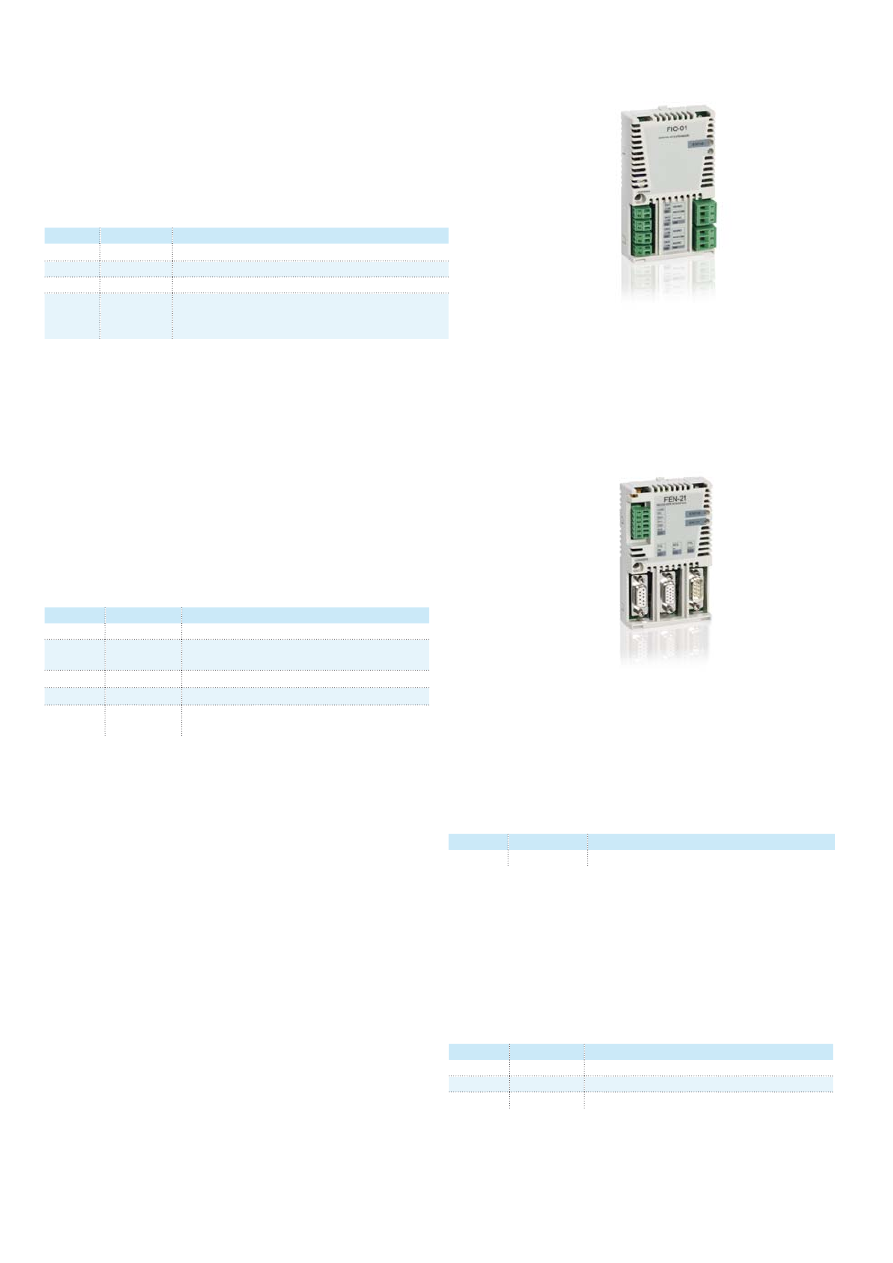

Input/output extension modules for increased connectivity

FIO-01

Analog and digital input/output extension modules

Option Option

code

Connections

FIO-01 +L501

4×DI/O,

2×RO

FIO-11

+L500

3×AI (mA/V), 1×AO (mA), 2×DI/O

FAIO-01    +L525

2×AI (mA/V), 2×AO (mA)

FDIO-01

+L536

2x DI 24...250 V DC or 110…230 V AC
2 x RO 5 A, 24 V DC / 0.4 A, 120 V DC / 1250 VA,
250 V AC

Standard input and output can be extended by using optional
analog and digital input/output extension modules. The
modules are easily installed in the extension slots located on
the control unit.

Option Option

code

Connections

FDCO-01

+L503

Optical DDCS (10 Mbd/10 Mbd)

FDCO-02

+L508

Optical DDCS (5 Mbd/10 Mbd)

RDCO-04 +L509

Optical DDCS (10 Mbd/10 Mbd/10 Mbd/10 Mbd)

The FDCO-0X (used in the ZCU control unit) and RDCO-0X
(used in the BCU control unit) optical DDCS communication
options are add-on modules on the ACS880 industrial drives
control unit. The modules include connectors for two fiber
optic DDCS channels. The DDCS communication option
modules make it possible to perform master-follower and
AC 800M communication.

FEN-21

ACS880 drives can be connected to various feedback
devices, such as HTL pulse encoder, TTL pulse encoder,
absolute encoder and resolver. The optional feedback module
is installed in the option slot on the drive. It is possible to use
two feedback modules at the same time, either of the same
type or different type.

Feedback interface modules

Option Option

code

Connections

FEN-01

+L517

2 inputs (TTL pulse encoder), 1 output

FEN-11 +L518

inputs (SinCos absolute, TTL pulse encoder), 1

output

FEN-21 +L516

inputs (Resolver, TTL pulse encoder), 1 output

FEN-31

+L502

1 input (HTL pulse encoder), 1 output

FSE-31

+L521

2 inputs HTL (SIL/PL classified HTL pulse
encoder)

Speed feedback interfaces for precise process control

DDCS communication option modules

I/O option extension adapter

For additional I/O option slots the FEA-03 is suitable for this
use. An analog and digital input/output extension and speed
feedback interface can be installed on the FEA-03. Two
extension modules can be installed on each I/O extension
slot. The connection to the control unit is via a fiber optic link
and the adapter can be mounted on a DIN rail (35 x 7.5 mm).

I/O extension adapter

Option Option

code

Connections

FEA-03

+L515



2×F-type option extension slots

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  35

EMC – electromagnetic compatibility

EMC standards

EMC according to EN 61800-3:2004 +
A1:2012 product standard

EN 61800-3
product
standard

EN 55011, product family
standard for industrial,
scientific and medical (ISM)
equipment

EN 61000-6-4, generic
emission standard for
industrial environments

EN 61000-6-3, generic
emission standard for
residential, commercial and
light-industrial environment

1

st

 environment, unrestricted distribution

Category C1

Group 1, Class B

Not applicable

Applicable

1

st

 environment, restricted distribution

Category C2

Group 1, Class A

Applicable

Not applicable

2

nd

 environment, unrestricted distribution

Category C3

Group 2, Class A

Not applicable

Not applicable

2

nd

 environment, restricted distribution

Category C4

Not applicable

Not applicable

Not applicable

Each ACS880 model can be equipped with a built-in filter to
reduce high frequency emissions.

EMC standards

The EMC product standard EN 61800-3:2004 + A1:2012
covers the specific EMC requirements stated for drives (tested
with motor and cable) within the EU. EMC standards such
as EN 55011 or EN 61000-6-3/4 are applicable to industrial
and domestic equipment and systems including components
inside the drive. Supply units complying with the requirements
of EN 61800-3 are compliant with comparable categories in
EN 55011 and EN 61000-6-3/4, but not necessarily vice
versa. EN 55011 and EN 61000-6-3/4 do not specify cable

length or require a motor to be connected as a load. The
emission limits are comparable to EMC standards according
to the table below.

1

st

 environment versus 2

nd

 environment

1

st

 environment includes domestic premises. It also includes

establishments directly connected without an intermediate
transformer to a low voltage power supply network that
supplies buildings used for domestic purposes.



2

nd

 environment includes all establishments other than those

directly connected to a low voltage power supply network that
supplies buildings used for domestic purposes.

Type

Voltage Frame

sizes

1

st

 environment, restricted distribution, C2,

grounded network (TN) up to 1000A
Option code

2

nd

 environment, C3, grounded network (TN)  and

ungrounded network (IT)
Option code

ACS880-307

380 to 500 V

D6D to D8D

With option +E210 *

ACS880-207

380 to 500 V

R8i

With option +E202

With option +E210 *

ACS880-307

380 to 500 V

1xD8T

With option +E202

With option +E210 *

ACS880-307

380 to 690 V

D7T to n×D8T

DxT 380 to 500 V up to 980 A

With option +E210 *

ACS880-207

380 to 690 V

nxR8i

With option +E210 *

ACS880-907

380 to 690 V

nxR8i

With option +E210 *

*  Conducted emission and immunity are fulfilled with standard filtering.
   Radiated emission and immunity are as option (Cabinet construction).

NETA-21

Remote monitoring access worldwide

The remote monitoring tool, NETA-21, gives easy access to
the drive via the Internet or local Ethernet network. NETA-21
comes with a built-in web server. Being compatible with
standard web browsers, it ensures easy access to a web-
based user interface. Through the interface the user can ie
configure drive parameters, monitor drive log data, and follow
up load levels, run time, energy consumption, I/O data and
bearing temperature of the motor connected to the drive.

The user can access the remote monitoring tool web page
using 3G modem from anywhere with a standard PC, tablet
or a mobile phone. The remote monitoring tool helps to
reduce cost when personnel are able to monitor or perform
maintenance for unmanned or manned applications in a range
of industries. It is also very useful when more than one user
wants to access the drive from several locations.

Enhanced monitoring functions

The remote monitoring tool supports process and drive
data logging. Values of process variables or drives actual
values can be logged to NETA-21´s SD memory card which
is situated in the remote monitoring tool or sent forward to
a centralized database. NETA-21 does not need an external
database as the remote monitoring tool is able to store
valuable data of the drive during its entire lifetime.

Unmanned monitoring of processes or devices is ensured by
the built-in alarm functions that notify maintenance personnel
if a safety level is reached. Alarm
history with true time stamps are stored
internally to the memory card as well
as technical data, which is provided by
the drive for troubleshooting purposes.
True time stamps are also used with
drives that do not have a real time clock
as standard for ensuring events of all
connected drives.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

36  ABB industrial drives ACS880 multidrives |

Catalog

Sine filters

Together with a sine filter, ACS880 drives offer smooth
motor operation. The sine filter suppresses high frequency
components of the motors output voltage, creating almost a
sinusoidal voltage wave form for the motor. The filter offers
optimized LC design that takes into account switching
frequency, voltage drop and filtering characteristics.

The ACS880 inverter and sine filter solution can be used
together with a variety of requirements for products and
components:

For step-up applications, eg, where medium voltage motor needs to be driven

2 to 13.8 kV AC

Step-down

transformer

Step-up

transformer

Sine
filter

ACS880

2 to 13.8 kV AC



For motors which don’t have adequate insulation for the
drives duty



Where the total motor cable length is long as a result of a
number of parallel motors



For step-up applications, eg, where medium voltage motor
needs to be driven



For submersible pumps with long motor cables, eg, in the
oil industry



When the motor noise needs to be reduced



When there are industry specific requirements for peak
voltage level and voltage rise time

I

N



P

N

 Inverter

type

designation

Filter

size

Filter

Noise

level

dB

Frame

size

A

kW

Height

mm

Width

mm

Depth

mm

Weight

kg

U

N

 = 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V.

470

250

ACS880-107-0470A-3

NSIN-0900-6

2145

1000

636

550

80

R8i

640

355

ACS880-107-0640A-3

NSIN-0900-6

2145

1000

636

550

80

R8i

760

400

ACS880-107-0760A-3

NSIN-0900-6

2145

1000

636

550

80

R8i

900

500

ACS880-107-0900A-3

NSIN-1380-6

2145

1000

636

750

81

R8i

1250

630

ACS880-107-1250A-3

2×NSIN-0900-6

2145

1000

636

1100

82

2×R8i

1480

800

ACS880-107-1480A-3

2×NSIN-0900-6

2145

2000

636

1100

82

2×R8i

1760

1000

ACS880-107-1760A-3

2×NSIN-1380-6

2145

2000

636

1500

82

2×R8i

2210

1200

ACS880-107-2210A-3

2×NSIN-1380-6

2145

2000

636

1500

82

3×R8i

2610

1400

ACS880-107-2610A-3

3×NSIN-1380-6

2145

3000

636

2250

83

3×R8i

3450

1800

ACS880-107-3450A-3

3×NSIN-1380-6

2145

3000

636

2250

83

4×R8i

4290

2400

ACS880-107-4290A-3

4×NSIN-1380-6

2145

4000

636

3000

84

5×R8i

5130

2800

ACS880-107-5130A-3

5×NSIN-1380-6

2145

5000

636

3750

85

6×R8i

U

N

 = 500 V (range 380 to 500 V). The power ratings are valid at nominal voltage 500 V.

440

250

ACS880-107-0440A-5

NSIN-0485-6

2145

400

636

350

80

R8i

590

400

ACS880-107-0590A-5

NSIN-0900-6

2145

1000

636

550

80

R8i

740

500

ACS880-107-0740A-5

NSIN-0900-6

2145

1000

636

550

80

R8i

810

560

ACS880-107-0810A-5

NSIN-1380-6

2145

1000

636

750

81

R8i

1150

800

ACS880-107-1150A-5

NSIN-1380-6

2145

1000

636

750

81

2×R8i

1450

1000

ACS880-107-1450A-5

2×NSIN-0900-6

2145

2000

636

1100

82

2×R8i

1580

1100

ACS880-107-1580A-5

2×NSIN-1380-6

2145

2000

636

1500

82

2×R8i

2150

1500

ACS880-107-2150A-5

2×NSIN-1380-6

2145

2000

636

1500

82

3×R8i

2350

1600

ACS880-107-2350A-5

3×NSIN-1380-6

2145

3000

636

2250

83

3×R8i

3110

2000

ACS880-107-3110A-5

3×NSIN-1380-6

2145

3000

636

2250

83

4×R8i

3860

2400

ACS880-107-3860A-5

4×NSIN-1380-6

2145

4000

636

3000

84

5×R8i

4610

3200

ACS880-107-4610A-5

5×NSIN-1380-6

2145

5000

636

3750

85

6×R8i

U

N

 = 690 V (range 525 to 690 V). The power ratings are valid at nominal voltage 690 V.

340

315

ACS880-107-0340A-7

NSIN-0485-6

2145

400

636

350

80

R8i

410

400

ACS880-107-0410A-7

NSIN-0485-6

2145

400

636

350

80

R8i

530

500

ACS880-107-0530A-7

NSIN-0900-6

2145

1000

636

550

80

R8i

600

560

ACS880-107-0600A-7

NSIN-0900-6

2145

1000

636

550

80

R8i

800

800

ACS880-107-0800A-7

NSIN-0900-6

2145

1000

636

550

80

2×R8i

1030

1000

ACS880-107-1030A-7

NSIN-1380-6

2145

1000

636

750

81

2×R8i

1170

1100

ACS880-107-1170A-7

NSIN-1380-6

2145

1000

636

750

81

2×R8i

1540

1400

ACS880-107-1540A-7

2×NSIN-1380-6

2145

2000

636

1500

82

3×R8i

1740

1600

ACS880-107-1740A-7

2×NSIN-1380-6

2145

2000

636

1500

82

3×R8i

2300

2000

ACS880-107-2300A-7

2×NSIN-1380-6

2145

2000

636

1500

82

4×R8i

2860

2800

ACS880-107-2860A-7

3×NSIN-1380-6

2145

3000

636

2250

83

5×R8i

3420

3200

ACS880-107-3420A-7

3×NSIN-1380-6

2145

3000

636

2250

83

6×R8i

3990

3600

ACS880-107-3990A-7

4×NSIN-1380-6

2145

4000

636

3000

84

7×R8i

4560

4400

ACS880-107-4560A-7

4×NSIN-1380-6

2145

4000

636

3000

84

8×R8i

5130

4800

ACS880-107-5130A-7

5×NSIN-1380-6

2145

5000

636

3750

85

9×R8i

5700

5600

ACS880-107-5700A-7

6×NSIN-1380-6

2145

6000

636

4500

86

10×R8i

Note: Noise level is a combined value for the drive and the filter. Heat dissipation is a combined value for the drive and the filter.

Nominal ratings

I

N

Rated current of the drive-filter combination available continuosly
without overloead at 40 °C.

P

N

Typical motor power

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  37

Brake units

ACS880-607 1-phase brake units

U

N

 = 400 V (range 380 to 415 V)

Nominal ratings

Duty cycle

(1 min/

5 min)

Duty cycle

(10 s/60 s)

Height

2)



Width

1) 3)

Width Noise  Air

flow

Type designation

Module

type

Resistor

type

P

br.max

kW

R

ohm

I

max

A

I

rms





A

P

cont.



kW

P

br.

kW

I

rms

A

P

br.

kW

I

rms

A

mm

mm

mm

dB(A) m

3

/h

Brake unit without brake resistor

353

1.2

  545   149   96

303

468   353   545

2130

400

110

64

660

ACS880-607-0320-3

NBRA659

706

2×1.2   1090   298     192   606

936   706   1090   2130

800

220

67

1320

ACS880-607-0640-3

2×NBRA659

1058

0.4

1635 447 288

909

1404 1059 1635

2130

1200

330

68

1980

ACS880-607-0960-3

3×NBRA659

1411

0.3

2180 596 384

1212 1872 1412 2180

2130

1600

440

69

2640

ACS880-607-1280-3

4×NBRA659

1764

0.24

2725 745 480

1515 2340 1765 2725

2130

2000

550

70

3300

ACS880-607-1600-3

5×NBRA659

2117

0.2

3270 894 576

1818 2808 2118 3270

2130

2400

660

71

3960

ACS880-607-1920-3

6×NBRA659

Brake unit with brake resistor

353

1.2

545

84

54

167

257   287   444

2130   1200

340

66

2500   ACS880-607-0320-3+D151*  NBRA659

  2×SAFUR180F460

706

2×1.2   1090   168   108

333

514   575   888

2130   2400

680

69

5000   ACS880-607-0640-3+D151*  2×NBRA659   2×(2×SAFUR180F460)

1058

0.4

1635 252 162

500

771

862

1332

2130

3600

1020

70

7500 ACS880-607-0960-3+D151* 3×NBRA659 3×(2×SAFUR180F460)

1411

0.3

2180 336 216

667

1028 1150 1776

2130

4800

1)

1360

71

10000 ACS880-607-1280-3+D151* 4×NBRA659 4×(2×SAFUR180F460)

1764

0.24

2725 420 270

833

1285 1437 2220

2130

6000

1)

1700

72

12500 ACS880-607-1600-3+D151* 5×NBRA659 5×(2×SAFUR180F460)

2117

0.2

3270 504 324

1000 1542 1724 2664

2130

7200

1)

2040

73

15000 ACS880-607-1920-3+D151* 6×NBRA659 6×(2×SAFUR180F460)

Brake unit

The brake unit is a cabinet-built option. It handles the energy
generated by a decelerating motor. The brake chopper
connects the brake resistor to the intermediate DC circuit
whenever the voltage in the circuit exceeds the limit de

fi

 ned by

the control program. Energy consumption by the resistor losses
lowers the voltage until the resistor can be disconnected.

Brake resistor for 1-phase brake units

The brake resistors are separately available for ACS880
multidrive cabinets as an option. Resistors other than the
standard option resistors may be used, provided that the
specified resistance value is not decreased and that the heat
dissipation capacity of the resistor is sufficient for the drive
application.

Dynamic braking unit

A brake chopper for application where high continuous braking
power is needed. The power range is 500 to 6500 kW.

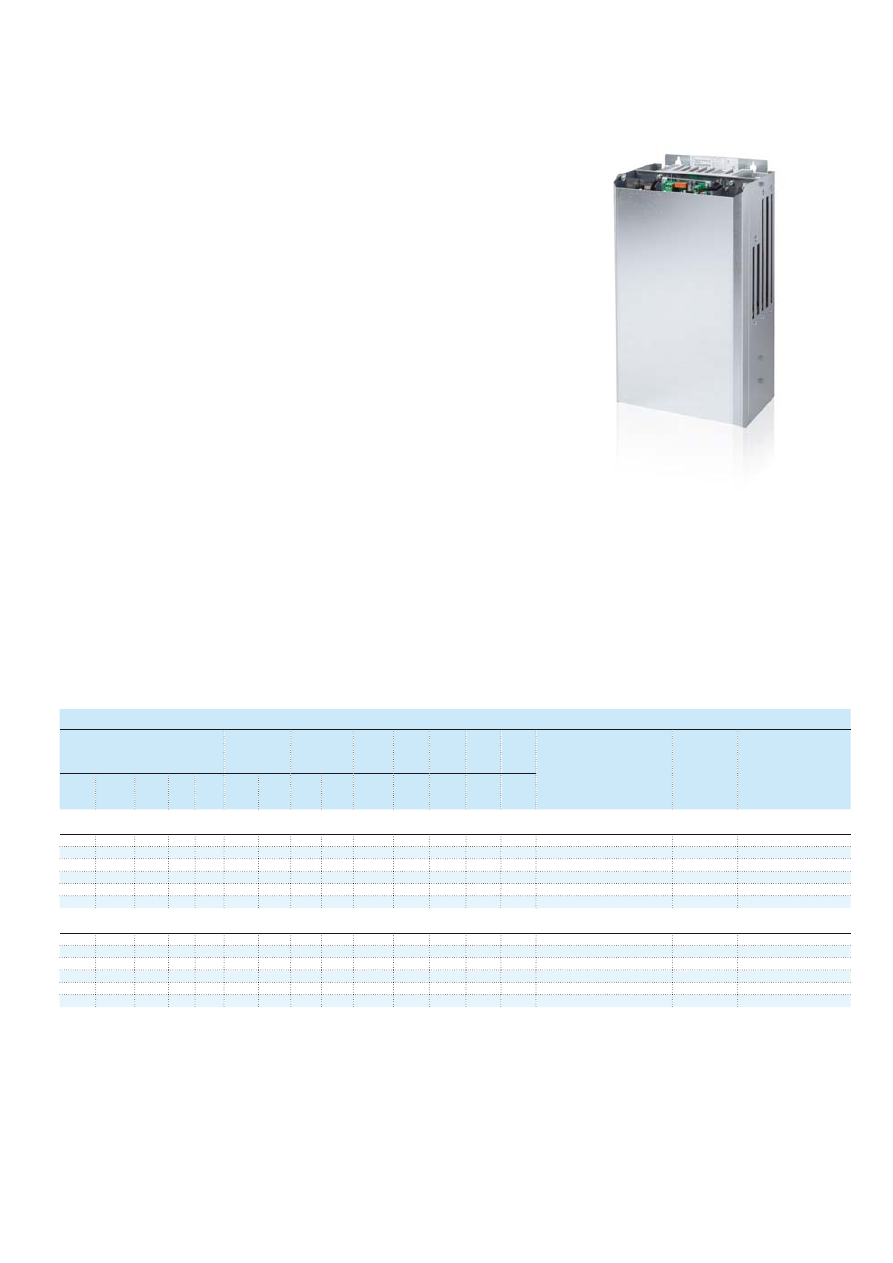

NBRA659 brake unit

Brake options, ACS880-607

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

38  ABB industrial drives ACS880 multidrives |

Catalog

Brake units

ACS880-607 1-phase brake units

E

r

Energy pulse that the resistor assembly will withstand with the 400 seconds duty cycle. This energy will heat the resistor element from 40 °C to the maximum allowable
temperature.

P

br,max

Maximum braking power of the NBRA-6xx chopper and SAFUR resistor combination.

Note: The braking energy transmitted to the resistor during any period shorter than 400 seconds may not exceed

E

r

.

Thus, the standard resistor withstands continuous braking of

P

br,max

 typically 20 to 40 seconds (t =

E

/

P

br,max

 ) during the total cycle time of 400 s.

R

Recommended braking resistor resistance. Also nominal resistance of corresponding SAFUR resistor. Dedicated resistor for each brake chopper.

I

max

Maximum peak current per chopper during braking. Current is achieved with minimum resistor resistance.

I

rms

Corresponding rms current per chopper during load cycle.

Heat loss of brake chopper is 1% of braking power. Heat loss of section with brake resistors is the same as braking power.

1)

Additional 200 mm junction section needed.

2)

  2130 mm + additional 10 mm is required for marine supports.

3)

  Total width of the line-up is the sum of widths of the sections + 30 mm for the end plates.

*  D151 = braking resistor, degree of protection IP22 and IP42 only

U

N

 = 500 V (range 380 to 500 V)

Nominal ratings

Duty cycle

(1 min/

5 min)

Duty cycle

(10 s/60 s)

Height

2)



Width

1) 3)

Width Noise

Air

flow

Type designation

Module

type

Resistor

type

P

br.max

kW

R

ohm

I

max

A

I

rms





A

P

cont.



kW

P

br.

kW

I

rms

A

P

br.

kW

I

rms

A

mm

mm

mm

dB(A) m

3

/h

Brake unit without brake resistor

403

1.43

571   136   109

317

391   403   498

2130

400

110

64

660

ACS880-607-0400-5

NBRA659

806   2×1.43   1142   272   218

634

782   806   996

2130

800

220

67

1320

ACS880-607-0800-5

2×NBRA659

1208 0.4767 1713 408 327

951

1173 1209 1494

2130

1200

330

68

1980

ACS880-607-1200-5

3×NBRA659

1611 0.3575 2284 544 436

1268 1564 1612 1992

2130

1600

440

69

2640

ACS880-607-1600-5

4×NBRA659

2014

0.286

2855 680 545

1585 1955 2015 2490

2130

2000

550

70

3300

ACS880-607-2000-5

5×NBRA659

2417 0.2383 3426 816 654

1902 2346 2418 2988

2130

2400

660

71

3960

ACS880-607-2400-5

6×NBRA659

Brake unit with brake resistor

403

1.35

605

67

54

167

206   287   355

2130   1200

340

66

2500   ACS880-607-0400-5+D151*  NBRA659

  2×SAFUR200F500

806

2×1.35   1210 134 108

333

412

575

710

2130

2400

680

69

5000    ACS880-607-0800-5+D151* 2×NBRA659   2×(2×SAFUR200F500)

1208

0.45

1815 201 162

500

618

862

1065

2130

3600

1020

70

7500 ACS880-607-1200-5+D151* 3×NBRA659 3×(2×SAFUR200F500)

1611 0.3375 2420 268 216

667

824

1150 1420

2130

4800

1)

1360

71

10000 ACS880-607-1600-5+D151* 4×NBRA659 4×(2×SAFUR200F500)

2014

0.27

3025 335 270

833

1030 1437 1775

2130

6000

1)

1700

72

12500 ACS880-607-2000-5+D151* 5×NBRA659 5×(2×SAFUR200F500)

2417

0.225

3630 402 324

1000 1236 1724 2130

2130

7200

1)

2040

73

15000 ACS880-607-2400-5+D151* 6×NBRA659 6×(2×SAFUR200F500)

U

N

 = 690 V (range 525 to 690 V)

Nominal ratings

Duty cycle

(1 min/

5 min)

Duty cycle

(10 s/60 s)

Height

2)



Width

1) 3)

Width Noise

Air

flow

Type designation

Module

type

Resistor

type

P

br.max

kW

R

ohm

I

max

A

I

rms





A

P

cont.



kW

P

br.

kW

I

rms

A

P

br.

kW

I

rms

A

mm

mm

mm

dB(A) m

3

/h

Brake unit without brake resistor

404

2.72

414

107 119

298

267

404

361

2130

400

110

64

660

ACS880-607-0400-7

NBRA669

807

1.36

828

214 238

596

534

808

722

2130

800

110

67

660

ACS880-607-0800-7

2×NBRA669

1211 0.9067 1242 321 357

894

801

1212 1083

2130

1200

220

68

1320

ACS880-607-1200-7

3×NBRA669

1615

0.68

1656 428 476

1192 1068 1616 1444

2130

1600

330

69

1980

ACS880-607-1600-7

4×NBRA669

2019

0.544

2070 535 595

1490 1335 2020 1805

2130

2000

440

70

2640

ACS880-607-2000-7

5×NBRA669

2422 0.4533 2484 642 714

1788 1602 2424 2166

2130

2400

550

71

3300

ACS880-607-2400-7

6×NBRA669

Brake unit with brake resistor

404

1.35

835

97

54

167

149

287

257

2130

1200

340

66

2500 ACS880-607-0400-7+D151

*

NBRA669

2×SAFUR200F500

807

0.675

1670 194 108

333

298

575

514

2130

2400

680

69

5000 ACS880-607-0800-7+D151

* 2×NBRA669 2×(2×SAFUR200F500)

1211

0.45

2505 291 162

500

447

862

771

2130

3600

1020

70

7500 ACS880-607-1200-7+D151

* 3×NBRA669 3×(2×SAFUR200F500)

1615 0.3375 3340 388 216

667

596

1150 1028

2130

4800

1)

1360

71

10000 ACS880-607-1600-7+D151

* 4×NBRA669 4×(2×SAFUR200F500)

2019

0.27

4175 485 270

833

745

1437 1285

2130

6000

1)

1700

72

12500 ACS880-607-2000-7+D151

* 5×NBRA669 5×(2×SAFUR200F500)

2422

0.225

5010 582 324

1000

894

1724 1542

2130

7200

1)

2040

73

15000 ACS880-607-2400-7+D151

* 6×NBRA669 6×(2×SAFUR200F500)

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  39

Brake units

ACS880-607 3-phase dynamic brake units

Resistor

R

min

Minimum allowed resistance value of the brake resistor for one phase of the brake module.

R

max

Resistance value of the brake resistor for one phase of the brake module corresponding to the maximum achieved continuous braking power.

Note: Connect one resistor per brake module phase. For example, a brake unit of frame size 2×R8i including two brake modules –> 2×3 resistors are needed.

Typical ratings for no-overload use

I

dc

Total input DC current of brake unit.

I

 rms

Total rms DC output phase current of brake unit.

I

max

Peak brake current (DC) per chopper module phase.

P

cont.max

Maximum continuous braking power per brake unit.

Cyclic load (1 min/5 min)

I

dc

Total input DC current of brake unit during a period of 1 minute with braking power

P

br

.

I

rms

Total rms DC current per brake unit phase during a period of 1 minute with braking power

P

br

.

P

br

Short term braking power

U

N

 = 400 V (range 380 to 415 V)

Resistors

values

Ratings

R

min

Ratings

R

max

Type designation

Frame

size

No-overload use

Cycle load

(1 min/5 min)

No-overload use

Cycle load

(1 min/5 min)

R

min

ohm

R

max

ohm

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

min

A DC

P

br.

R

min

A DC

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

max

A DC

P

br.

R

max

A DC

1.7

2.1

781

310

500

370

999

351

640

781

282

500

312

827

291

530

ACS880-607-0500-3

R8i

1.2

1.4

1171

465

750

555

1499

527

960

1171

424

750

468

1241

436

800

ACS880-607-0750-3

R8i

1.7

2.1

1562

621

1000

740

1998

702

1290

1562

565

1000

625

1655

581

1060

ACS880-607-1000-3

2×R8i

1.2

1.4

2342

931

1510

1110 2997

1053

1930

2342

847

1510

937

2482

872

1600

ACS880-607-1510-3

2×R8i

1.2

1.4

3514 1396

2260

1665 4496

1580

2890

3514

1271

2260

1405 3723

1308

2400

ACS880-607-2260-3

3×R8i

1.2

1.4

4685 1862

3010

2220 5994

2106

3860

4685

1694

3010

1874 4964

1744

3190

ACS880-607-3010-3

4×R8i

1.2

1.4

5856 2327

3770

2775 7493

2633

4820

5856

2118

3770

2342 6205

2180

3990

ACS880-607-3770-3

5×R8i

U

N

 = 500 V (range 380 to 500 V)

Resistors

values

Ratings

R

min

Ratings

R

max

Type designation

Frame

size

No-overload use

Cycle load

(1 min/5 min)

No-overload use

Cycle load

(1 min/5 min)

R

min

ohm

R

max

ohm

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

min

A DC

P

br.

R

min

A DC

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

max

A DC

P

br.

R

max

A DC

2.2

2.6

781

310

630

370

999

351

800

781

284

630

312

835

293

670

ACS880-607-0630-5

R8i

1.4

1.7

1171

465

940

555

1499

527

1210

1171

430

940

468

1277

449

1030

ACS880-607-0940-5

R8i

2.2

2.6

1562

621

1260

740

1998

702

1610

1562

568

1260

625

1671

587

1340

ACS880-607-1260-5

2×R8i

1.4

1.7

2342

931

1880

1110 2997

1053

2410

2342

860

1880

937

2555

898

2060

ACS880-607-1880-5

2×R8i

1.4

1.7

3514 1396

2830

1665 4496

1580

3620

3514

1289

2830

1405 3832

1347

3080

ACS880-607-2830-5

3×R8i

1.4

1.7

4685 1862

3770

2220 5994

2106

4820

4685

1719

3770

1874 5110

1795

4110

ACS880-607-3770-5

4×R8i

1.4

1.7

5856 2327

4710

2775 7493

2633

6030

5856

2149

4710

2342 6387

2244

5140

ACS880-607-4710-5

5×R8i

U

N

 = 690 V (range 525 to 690 V)

Resistors

values

Ratings

R

min

Ratings

R

max

Type designation

Frame

size

No-overload use

Cycle load

(1 min/5 min)

No-overload use

Cycle load

(1 min/5 min)

R

min

ohm

R

max

ohm

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

min

A DC

P

br.

R

min

A DC

I

dc

A DC

I

rms





A DC

P

cont.max



kW

I

max

A DC

I

dc

A DC

I

rms

R

max

A DC

P

br.

R

max

A DC

3.0

3.6

781

310

870

370

999

351

1110

781

283

870

312

833

293

920

ACS880-607-0870-7

R8i

2.0

2.4

1171

465

1300

555

1499

527

1660

1171

425

1300

468

1249

439

1390

ACS880-607-1300-7

R8i

3.0

3.6

1562

621

1730

740

1998

702

2220

1562

567

1730

625

1665

585

1850

ACS880-607-1730-7

2×R8i

2.0

2.4

2342

931

2600

1110 2997

1053

3330

2342

850

2600

937

2498

878

2770

ACS880-607-2600-7

2×R8i

2.0

2.4

3514 1396

3900

1665 4496

1580

4990

3514

1275

3900

1405 3746

1316

4160

ACS880-607-3900-7

3×R8i

2.0

2.4

4685 1862

5200

2220 5994

2106

6650

4685

1700

5200

1874 4995

1755

5540

ACS880-607-5200-7

4×R8i

2.0

2.4

5856 2327

6500

2775 7493

2633

8320

5856

2125

6500

2342 6244

2194

6930

ACS880-607-6500-7

5×R8i

Dimensions

Frame

size

Height

1)

mm

Width

bottom exit

mm

Width

top exit

 mm

Depth

mm

Noise

level

2)

dB(A)

Air flow

m

3

/h

R8i

2145

500

700

636

72

1300

R8i

2145

500

700

636

72

1300

2×R8i

2145

1000

1400

636

74

2600

2×R8i

2145

1000

1400

636

74

2600

3×R8i

2145

1500

2100

636

76

3900

4×R8i

2145

2000

2800

636

76

5200

5×R8i

2145

2500

3500

636

77

6500

1)

 IP21 and IP42. IP54 additional 170 mm to the height of each R8i cabinet.

2)

 Average noise level with controlled cooling fan.

Note: 400 mm free space needed above cabinet.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

40  ABB industrial drives ACS880 multidrives |

Catalog

DC-DC converter

ACS880-1607

U

N

 = 400 V (range 380 to 415 V). The power ratings are valid at nominal voltage 400 V

No overload use

Fast overload

cycle (10 s/60 s)

Heavy overload

cycle (1 min/60 s)

Noise

level

Heat

dissi-

pation

Air

flow

Filter type

Type designation

Frame

size

I

dc Input

A (DC)

I

rms output

A (DC)

P

N

kW

I

max output

A (DC)

I

p2p

A

I

fast

A

P

fast

kW

I

Hd

A

P

Hd

kW

dBA

kW

m³/h

600

600

305

900

22

450

229

510

260

74

5.2

2200

BDCL-14-5

ACS880-1607-0600A-3

R8i

900

900

458

1350

33

675

343

765

389

74

8

2200

BDCL-15-5

ACS880-1607-0900A-3

R8i

1200

1200

611

1800

44

899

458

1020

519

76

10.5

4400

2xBDCL-14-5

ACS880-1607-1200A-3

2xR8i

1800

1800

916

2700

65

1349

687

1529

779

76

16.5

4400

2xBDCL-15-5

ACS880-1607-1800A-3

2xR8i

U

N

 =

500V (range 380 to 415 V). The power ratings are valid at nominal voltage 500 V

No overload use

Fast overload

cycle (10 s/60 s)

Heavy overload

cycle (1 min/60 s)

Noise

level

Heat

dissi-

pation

Air

flow

Filter type

Type designation

Frame

size

I

dc Input

A (DC)

I

rms output

A (DC)

P

N

kW

I

max output

A (DC)

I

p2p

A

I

fast

A

P

fast

kW

I

Hd

A

P

Hd

kW

dBA

kW

m³/h

600

600

382

900

27

450

286

510

324

74

6

2200

BDCL-14-5

ACS880-1607-0600A-5

R8i

900

900

573

1350

41

675

429

765

487

74

9.1

2200

BDCL-15-5

ACS880-1607-0900A-5

R8i

1200

1200

764

1800

55

899

572

1020

649

76

12.1

4400

2xBDCL-14-5

ACS880-1607-1200A-5

2xR8i

1800

1800

1146

2700

82

1349

859

1529

973

76

18.8

4400

2xBDCL-15-5

ACS880-1607-1800A-5

2xR8i

U

N

 =

690 V (range 380 to 415 V). The power ratings are valid at nominal voltage 690 V)

No overload use

Fast overload

cycle (10 s/60 s)

Heavy overload

cycle (1 min/60 s)

Noise

level

Heat

dissi-

pation

Air

flow

Filter type

Type designation

Frame

size

I

dc Input

A (DC)

I

rms output

A (DC)

P

N

kW

I

max output

A (DC)

I

p2p

A

I

fast

A

P

fast

kW

I

Hd

A

P

Hd

kW

dBA

kW

m³/h

400

400

351

600

38

300

263

340

298

74

6.4

2200

BDCL-14-7

ACS880-1607-0400A-7

R8i

600

600

527

900

56

450

395

510

448

74

10.6

2200

BDCL-15-7

ACS880-1607-0600A-7

R8i

800

800

703

1200

75

600

527

680

597

76

12.8

4400

2xBDCL-14-7

ACS880-1607-0800A-7

2xR8i

1200

1200

1054

1800

113

899

790

1020

895

76

21.5

4400

2xBDCL-15-7

ACS880-1607-1200A-7

2xR8i



Dimensions

Frame

size

Height

1)

mm

Width

mm

Depth

 mm

Weight

kg

R8i

2145

800

636

650

R8i

2145

800

636

680

2xR8i

2145

1600

636

1300

2xR8i

2145

1600

636

1360

3xR8i

2145

2400

636

2040

4xR8i

2145

3200

636

2720

5xR8i

2145

4000

636

3400

1)

 2315 mm for IP54, and 2051 mm for IPXXR

No overload use

I

dc Input

Maximum continuous input DC current

I

rms output

Maximum continuous output current

P

N

Maximum continuous output power

I

max output

Maximum instantaneous output current

I

p2p

Maximum output ripple current

Fast/heavy load cycle

I

fast

Continuous output current allowing 10 s of
Imax (DC) every 60 seconds

P

fast

Continuous output power allowing 10 s of Imax
(DC) every 60 seconds

I

Ld

Continuous output current allowing overload of
150% Ihd for 1 min every 5 min

P

Ld

Continuous output power allowing 150% Ihd for
1 min every 5 min

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  41

Dimensioning tool for selecting the optimal drive

DriveSize is designed to help select the optimal drive, motor
or transformer for the application. Based on data supplied by
the user, the tool calculates and suggests which drive and
motors to use. DriveSize uses technical specifications found
in our technical catalogs and manuals. It provides default
values which can be changed by the user.

DriveSize creates documents for drive and motor dimensioning
based on the load, network and cooling data provided by
the user. Dimensioning results can be viewed graphically and
numerically in the tool.

The tool can be used to calculate currents and network
harmonics for a single supply unit or a whole system. The
user can import a user-defined motor database by using a
separate template that comes with the installation package.
DriveSize is easy to use and has shortcut keys to make
navigation quicker.

Easy to access and use

DriveSize is a free software and can be used either online
or downloaded for PC from www.abb.com/drives.

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

42  ABB industrial drives ACS880 multidrives |

Catalog

Summary of features and options

Power and voltage range

1.5 to 5600 kW, 400 to 690 V

Ordering

code

ACS880-107

inverters

ACS880-207

ISU

(IGBT supply

unit)

ACS880-307

DSU (diode

supply unit)

(6-pulse)

ACS880-307

DSU (diode sup-

ply unit)

(6- and 12-pulse)

ACS880-907

RRU

(regenerative

rectifier unit)

ACS880-607

Brake

units

ACS880-1607

DC-DC

converter

Frame sizes

R1i to n×R8i

Frame sizes

n×R8i

Frame sizes

D6D to D8D

Frame sizes

D7T and n×D8T

Frame sizes

n×R8i

Frame sizes

n×R8i

Frame sizes

n×R8i

Mounting

Free-standing

Cabling

Supply bottom entry

Supply top entry

Inverter bottom exit

Inverter top exit

Degree of protection

IP22 (UL type 1)
IP42 (UL type 1)



1)



1)

IP54 (UL type 12)



1)



1)

Motor control

DTC (direct torque control)

Software

Primary control program, for more details see
section: Drive application programming based
on IEC 61131-3

Drive application programming based on
IEC61131-3 using Automation Builder

+N8010

Application control program for crane

+N5050

Application control program for dual use,
f>598Hz, high speed product

+N8200

Application control program for ESP pumps

+N5600

Application control program for PCP/ESP pump  +N5200



3)

Application control program for PCP/ESP pump
with SynRM

+N5400



3)

Application control program for chemical
industry process control

+N5550

Application control program for test bench

+N5300

Application control program for winch

+N5100

Application control program for winder

+N5000

Support for asynchronous motor

Support for permanent magnet motor

Support for synchrounous reluctance motor
(SynRM)

+N7502

Control panel

Intuitive control panel



13)



13)

Control connections (I/O) and communications

2 pcs analog inputs, programmable,
galvanically isolated



13)

2 pcs analog outputs, programmable



13)

6 pcs digital inputs, programmable, galvanically
isolated - can be divided into two groups



13)

2 pcs digital inputs/outputs



13)

1 pcs digital input interlock



13)

3 pcs relay outputs programmable



13)

Safe torque off (STO)









13)

Drive-to-drive link/Built-in Modbus



13)

Assistant control panel/PC tool connection



13)

Possibility for external power supply for
control unit
Built-in I/O extension and speed feedback
modules: for more details see sections:
“Input/output extension modules for increased
connectivity", "Speed feedback interfaces
for precise process control" and "DDCS
communication option modules"
Built-in adapters for several fieldbuses:
for more details see section
“Flexible connectivity to automation networks”

EMC filters

EMC 1

st

 environment, unrestricted distribution

(category C2)

+E202









3)









14)



3)

EMC 2

nd

 environment, unrestricted distribution

(category C3)

+E210



7)



7)



7)



7)



7)



7)



7)

Line filter

AC or DC choke

LCL

L

Output filters

Common mode filter

+E208



8)



8)









8)

du/dt filters

+E205



9)

Braking (see braking unit table)

Incoming unit apparatus

Disconnector



11)



5)



16)

Air circuit breaker

+F255



12)



5)



17)

Line contactor

+F250



11)









16)

Earthing switch

+F259

Inverter units

DC switch

+F286



6)



15)

R1i - R5i in an own compartment

+C204

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  43

Summary of features and options

 Standard

  Selectable option, with ordering code

– Not available

Notes

1)

  Not available for resistor D151

2)

  EAC will replace GOST R

3)

 Pending

4)

  R6i to R7i 690 V pending

5)

  For DSU 6-pulse: disconnector up to 2×D8T,

 air-circuit

breaker

 3×D8T

Power and voltage range

1.5 to 5600 kW, 400 to 690 V

Ordering

code

ACS880-107

inverters

ACS880-207

ISU

(IGBT supply

unit)

ACS880-307

DSU (diode

supply unit)

(6-pulse)

ACS880-307

DSU (diode sup-

ply unit)

(6- and 12-pulse)

ACS880-907

RRU

(regenerative

rectifier unit)

ACS880-607

Brake

units

ACS880-1607

DC-DC

converter

Frame sizes

R1i to n×R8i

Frame sizes

n×R8i

Frame sizes

D6D to D8D

Frame sizes

D7T and n×D8T

Frame sizes

n×R8i

Frame sizes

n×R8i

Frame sizes

n×R8i

Safety options

Safe torque off (STO)

Safety functions module, FSO-12, without
encoder, programmable functions:

+Q973

Safe stop 1 (SS1)
Safely-limited speed (SLS)
Safe brake control (SBC)
Safe maximum speed (SMS)
Safe stop emergency (SSE)
Prevention of unexpected startup (POUS)

Safety functions module, FSO-21, with encoder
support, programmable functions:

+Q972

Safe stop 1 (SS1)
Safely-limited speed (SLS)
Safe brake control (SBC)
Safe maximum speed (SMS)
Safe stop emergency (SSE)
Prevention of unexpected startup (POUS)
Safe direction (SDI), requires encoder
feedback, FSE-31
Safe speed monitoring (SSM), requires
encoder feedback, FSE-31

Pulse encoder interface module, FSE-31

+L521

Prevention of unexpected startup with safety
relay(s)

+Q957

Prevention of unexpected startup with STO and
safety functions module (FSO-12/-21)

+Q950
+Q973/
+Q972

Emergency stop, category 0 with opening the
main contactor/breaker, with safety relay

+Q951

Emergency stop, category 1 with opening the
main contactor/breaker, with safety relay

+Q952

Emergency stop, category 0 with STO, with
safety relay

+Q963

Emergency stop, category 1 with STO,
with safety relay

+Q964

Emergency stop, configurable category 0 or
1 with STO and safety functions module
(FSO-12/-21)

+Q979
+Q973/
+Q972

PROFIsafe over PROFINET with safety functions
module (FSO-21) and FENA-21

+Q982
+Q972
+K475

Safely-limited speed (SLS) without encoder with
FSO-12/-21 (encoderless)

+Q966
+Q973
+Q972

Safely-limited speed (SLS) with FSO-21 and
encoder FSE-31

+Q965
+Q972
+L521

Earth fault monitoring, earthed mains

Earth fault monitoring, unearthed mains

+Q954

ATEX thermal motor protection for PTC/PT100

+Q971
+L513/
+L514

FPTC-01 thermistor protection module

+L536

FPTC-02 thermistor protection module (ATEX
certified Safe Disconnection Function,
EX II (2) GD)

+L537
+Q971

Approvals

CE
UL, cUL
CSA
EAC (EAC has replaced GOST R)

2)

RoHS
RCM
Marine type approval

+C132



18)

TÜV Nord certificate for STO

TÜV Nord certificate for FSO-12

TÜV Nord certificate for FSO-21

3)

TÜV Nord certificate for FSE-31

3)

  For DSU 12-pulse: disconnector up to 4×D8T,
  air-circuit breaker 6×D8T
 EMC

1

st

 environment, unrestricted distribution

  (category C2) (max 1000 A)

6)

  R1i to R4i for cabinet, individual for R6i to n×R8i.

  Common for cabinet for R1i to R5i, individual for
  R6i to n×R8i

7)

  Conducted emission and immunity are ful

fi

 lled with

 standard

fi

 ltering. Radiated emission and immunity

  are as option (cabinet construction)

8)

  Standard for frame sizes R6i to 10×R8i

9)

  Optional in frame sizes R1i to R8i and 400 V/500 V

10)

  Check availability from your local ABB

11)

  For ISU: 400 to 500 V disconnector and contactor up to

  2×R8i, 690 V disconnector and contactor up to 3×R8i

12)

  For ISU: 400 to 500 V air circuit breaker

 3×R8i,

  690 V air-circuit breaker

 4×R8i

13)

  Not available for 1-phase brake unit

14)

  Available only as 6-pulse D8T

15)

 DC switch for 3-phase dynamic brake unit only

16)

 For RRU: disconnector up to 2xR8i

17)

 For RRU: air circuit breaker >4xR8i

18)

 Marine type approval only available for frames R5i-nxR8i

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

44  ABB industrial drives ACS880 multidrives |

Catalog

The future of your drives depends on the service
you choose.

Whatever you choose, it should be a well-informed decision.
No guesswork. We have the expertise and experience to
help you find and implement the right service for your drive
equipment. You can start by asking yourself these two critical
questions:



Why should my drive be serviced?



What would my optimal service options be?

From here, you have our guidance and full support along the
course you take, throughout the entire lifetime of your drives.

Drives service

Your choice, your future

Service to match your needs

Your choice, your business efficiency

ABB Drive Care agreement lets you focus on your core
business. A selection of predefined service options matching
your needs provides optimal, more reliable performance,
extended drive lifetime and improved cost control. So you can
reduce the risk of unplanned downtime and find it easier to
budget for maintenance.

We can help you more by knowing where you are!

Register your drive at www.abb.com/drivereg for extended
warranty options and other benefits.

Your service needs depend on your operation, life cycle of your equipment and business priorities. We have identified
our customers’ four most common needs and defined service options to satisfy them. What is your choice to keep your
drives at peak performance?

Is rapid response a
key consideration?



If your drives require immediate
action, our global network is at
your service.

Example services include:

 Technical

Support

 On-site

Repair

 Remote

Support

  Response time agreements
 Training

Need to extend your
assets’ lifetime?

Maximize your drive’s lifetime
with our services.

Example services include:

  Life Cycle Assessment
  Upgrades, Retrofits and
 Modernization
  Replacement, Disposal and

Recycling

Is performance
most critical to
your operation?

Get optimal performance out of
your machinery and systems.

Example services include:

 Advanced

services

  Engineering and Consulting
  Inspection and Diagnostics
  Upgrades, Retrofits and
 Modernization
 Workshop

Repair



Tailored services

Is uptime
your priority?

Keep your drives running with
precisely planned and executed
maintenance.

Example services include:

  Life Cycle Assessment
 Installation and

Commissioning

 Spare Parts
 Preventive Maintenance
 Reconditioning
  ABB Drive Care agreement
 Drive Exchange

Performance

improvement

Operational

ef

fi

 ciency

Rapid

response

24

Life cycle

management

Life cycle

management

ABB-ACS880-1.5-to5600-kW-Catalog-html.html
background image

Catalog

 | ABB industrial drives ACS880 multidrives  45

Drives service

A lifetime of peak performance

You’re in control of every life cycle phase of your drives.
At the heart of drive services is a four-phase product life
cycle management model. This model defines the services
