Light Emitting Diodes
ADP Series
Thru-Hole LEDs
ABSOLUTE MAXIMUM RATINGS

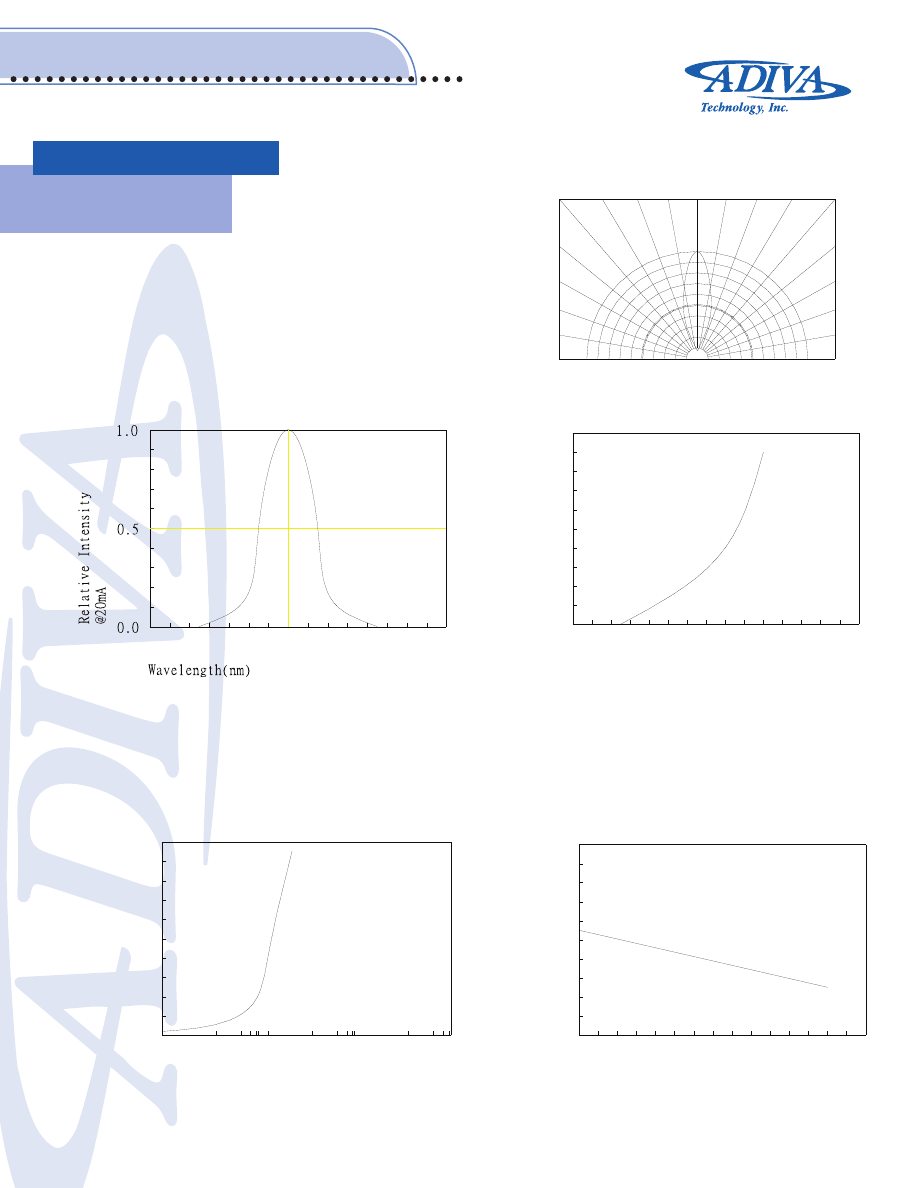

ELECTRICAL-OPTICAL CHARACTERISTICS
FEATURES
INTRODUCTION
SERIES STANDARD SPECIFICATIONS
ORANGE
Unit
V
nm
mcd
www.adivatech.com
(888) 30-ADIVA (23482)
1
The Adiva Thru-Hole LED has a wide range of applications and is incapsulated in water clear epoxy resin with
an 3mm diameter.
• High Luminous intensity,with a longer operation life.
• Excellent consistency on color,intensity and Forward
Current.
• Rugged and reliable design gives high
shock/vibration resistance.
• Excellent Solderability and resistance to soldering
heat.
• High Reliability,100% Probing Test.
• Low thermal resistance

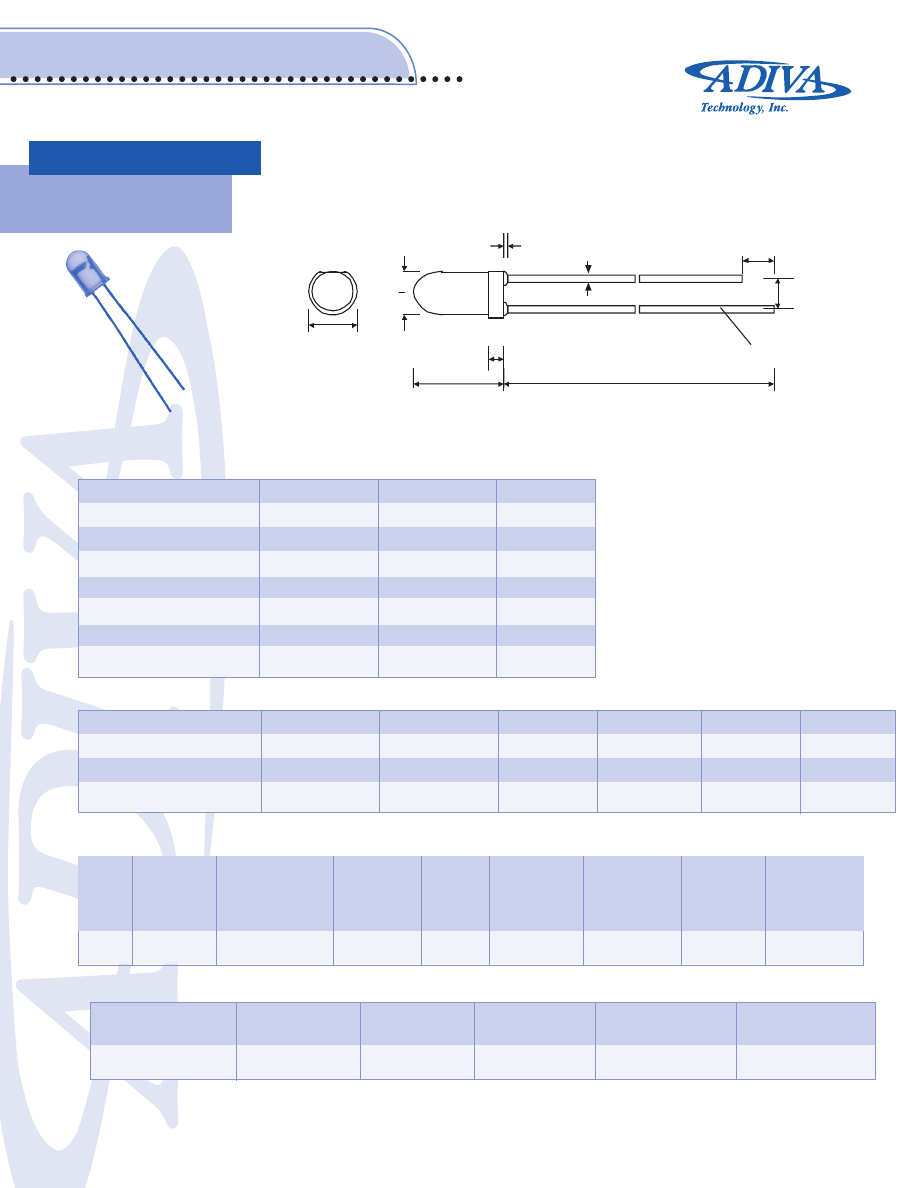

ADP5-31500-S1
Items
Operation Forward Current
Reverse Current
Operating Temperature Range
Power Dissipation
Peak Pulse Forward Current
Storage Temp. Range
Soldering Temperature
Parameter
Forward Voltage
Dominant Wavelength
Luminous Intensity
Shape
3ø
Part Number
ADP5-31500-S1
Diffusion
W.C.
IR(µA)
IF RV=5V
MAX Min
100 20
Emitting
Material
GaAlInP
Viewing Angle
Q
(deg.)
15 - 30
Reverse Voltage
RV
Emitting Color
Orange
Wavelength
nm
610 - 620
Symbol
Vf
λ
D
Iv
Conditions
IF=20mA
IF=20mA
IF=20mA
Min.
1.9
610
2000
Typ.
--
615
2350
Max.
2.5
620
4500
Symbols
If
Ir
Top
PD
PIf
Ts
T
sol
Ratings
30
100
-25 ~ 80
100
100
-30 ~ 100
* 260
Unit
mA
uA
C
mW
mA
C
C
S1
2000 - 4500
Unit
mcd
Bin Ranking
Luminous Intensity
5 V
1.0 ± 0.2
0.5
2.95±0.2
1 MAX.
1.0 MIN.
ANODE
2.54
3.8±0.3
5.3±0.3
26.4 MIN.
