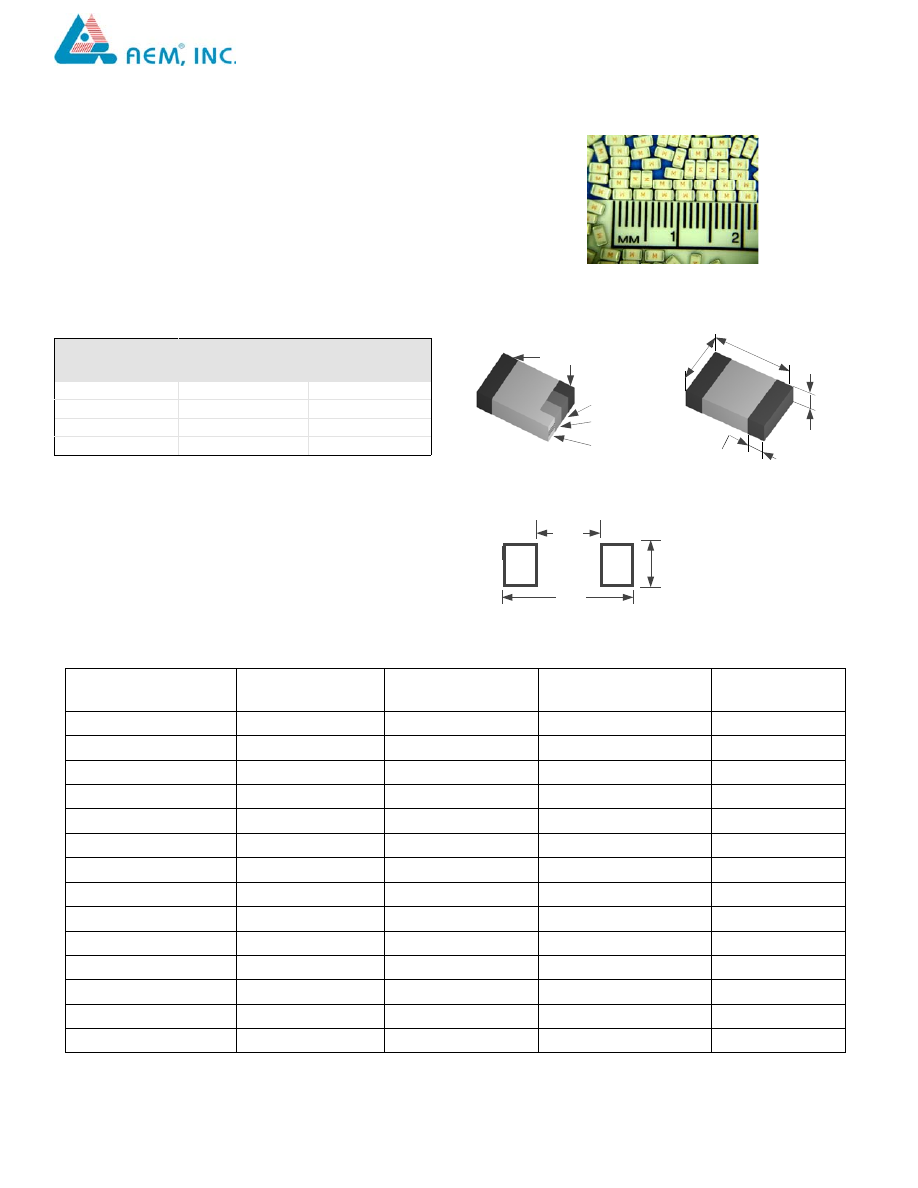

SolidMatrix
®
1206 Slow Blow Surface Mount Fuses
NEW!
Features:
•
High inrush current withstanding capability
•
Multilayer monolithic structure with glass ceramic body and silver
fusing element
•
Sliver termination with nickel and pure-tin solder plating, providing
excellent solderability
•
Compatible with both wave and reflow soldering processes
•
Operating temperature range: -55
°
C + 125
°
C
(with de-rating)
•
RoHS compliant
Agency Approval:
Recognized Under the Components
Program of Underwriters Laboratories, File Number: E232989
Ordering Information:

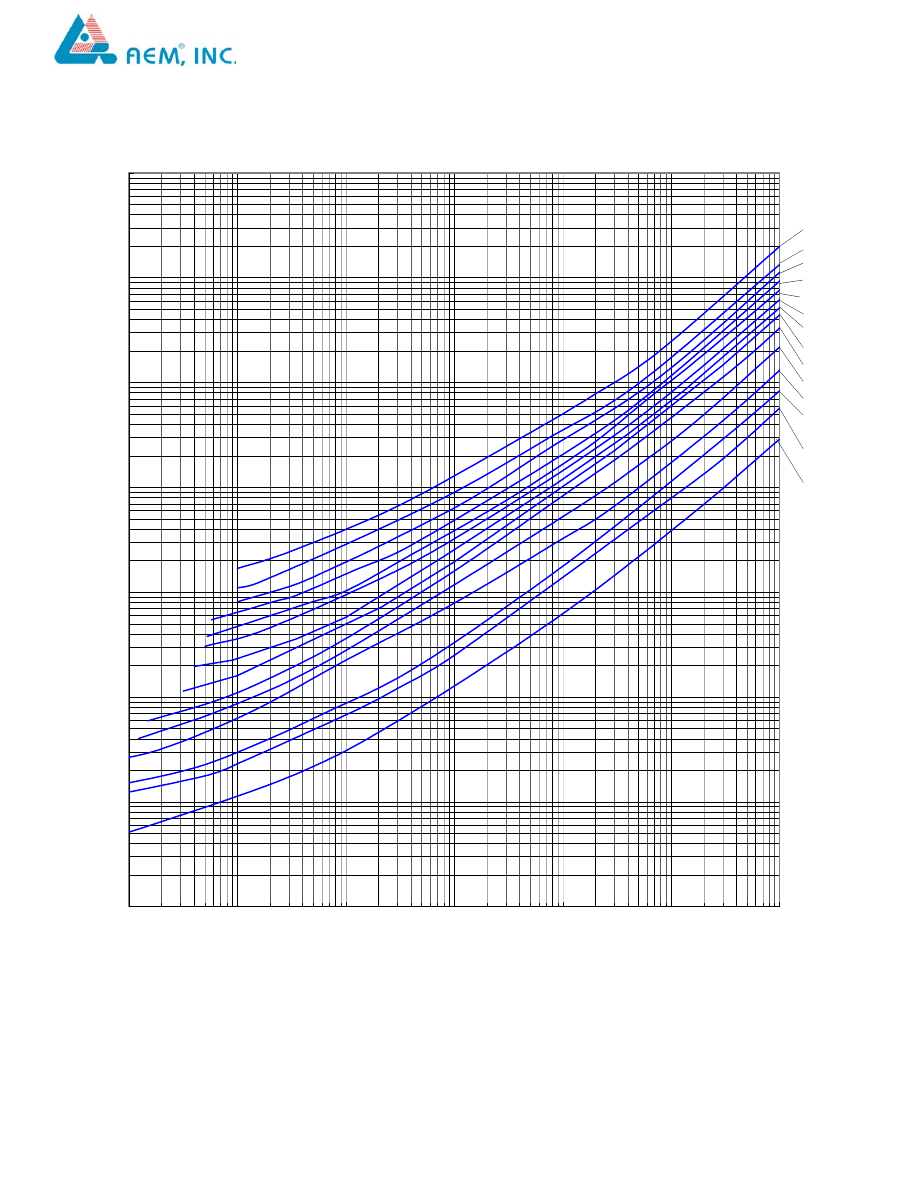

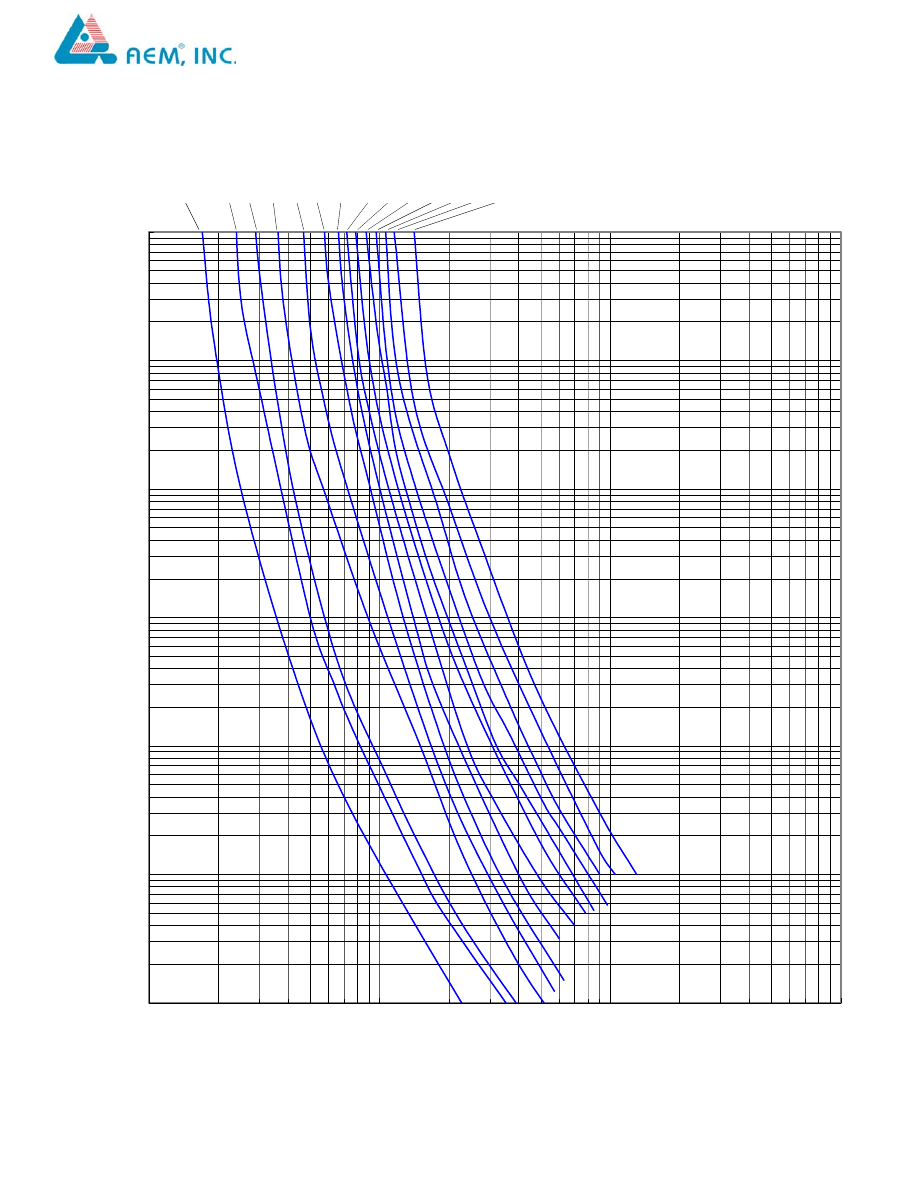

Clear-Time Characteristics ( Slow Blow):
Interrupting Ratings:
1A-5.5A 50A at rated voltages
6A-8A 60A at rated voltage
Shape and Dimensions:
SOLDER
FUSE ELEMENT
NICKEL
SILVER
METALLIZATION
0.126 ± 0.008
(3.20± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.038 ± 0.008
(0.97 ± 0.20)
0.020 ± 0.010
(0.51 ± 0.25)
Recommended Land Pattern:
0.173
(4.40)
0.059
(1.50)
0.071
(1.80)
Inch (mm)
Patents:
U.S. Patent numbers 6,034,589, 6,228,230,
6,602,766, and other pending patents
1. Measured at 10% of rated current and 25ºC ambient
2. Melting I
2
t at 0.001 sec clear-time
% of current
rating
Clear-time at 25
o
C
100%
4 hours (Min)
200%
1 second (Min)
120 seconds (Max)
300%
0.1 seconds (Min)
3 seconds (Max)
800%
0.002 seconds (Min)
0.05 seconds (Max)
Part Number
Current Rating
(A)
Voltage Rating
(VDC)
Nominal Cold DCR
(
Ω
)
1
Nominal I
2
t
(A
2
s)
2
F1206SB1000V063T
1.0
63
0.360
0.11
F1206SB1250V063T
1.25
63
0.200
0.22
F1206SB1500V063T
1.5
63
0.150
0.23
F1206SB2000V063T
2.0
63
0.082
0.63
F1206SB2500V032T
2.5
32
0.070
0.90
F1206SB3000V032T
3.0
32
0.032
1.20
F1206SB3500V032T
3.5
32
0.028
1.60
F1206SB4000V032T
4.0
32
0.024
2.20
F1206SB4500V032T
4.5
32
0.020
3.60
F1206SB5000V032T
5.0
32
0.016
5.30
F1206SB5500V024T
5.5
24
0.014
6.40
F1206SB6000V024T
6.0
24
0.011
8.50
F1206SB7000V024T
7.0
24
0.010
10.0
F1206SB8000V024T
8.0
24
0.009
16.9
