1
Multilayer Ferrite Chip Beads
CHIP SIZE
EIA/EIAJ
LENGTH (L)
INCH (mm)
WIDTH (W)
INCH (mm)
THICKNESS (T)
INCH (mm)
TERMINATION (BW)
INCH (mm)
0402/1005
0.039 ± 0.004
(1.00 ± 0.10)
0.020 ± 0.004
(0.50 ± 0.10)
0.020 ± 0.004
(0.50 ± 0.10)
0.010 ± 0.004
(0.25 ± 0.10)
0603/1608
0.063 ± 0.006
(1.60 ± 0.15)
0.031 ± 0.006
(0.80 ± 0.15)
0.031 ± 0.006
(0.80 ± 0.15)
0.014 ± 0.006
(0.36 ± 0.15)
0805/2012
0.079 ± 0.008
(2.00 ± 0.20)
0.049 ± 0.008
(1.25 ± 0.20)
0.035 ± 0.008
(0.90 ± 0.20)
0.020 ± 0.012
(0.51 ± 0.30)
1206/3216
0.126 ± 0.008
(3.20 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
0.020 ± 0.012
(0.51 ± 0.30)
1210/3225
0.126 ± 0.008
(3.20 ± 0.20)
0.098 ± 0.008
(2.50 ± 0.20)
0.051 ± 0.008
(1.30 ± 0.20)
0.020 ± 0.012
(0.51 ± 0.30)
1806/4516
0.177 ± 0.010
(4.50 ± 0.25)
0.063 ± 0.008
(0.51 ± 0.30)
0.063 ± 0.008
(1.60 ± 0.20)
0.020 ± 0.012
(0.51 ± 0.30)
1812/4532
0.177 ± 0.010
(4.50 ± 0.25)
0.126 ± 0.008
(0.51 ± 0.30)
0.059 ± 0.008
(1.50 ± 0.20)
0.020 ± 0.012
(0.51 ± 0.30)
Other sizes and values may be available upon customer’s request.
Features
•
Monolithic structure for closed magnetic path and high reliability
•
Standard EIA/EIAJ chip sizes such as 0402/1005, 0603/1608,
0805/2012, and 1206/3216
•
A complete set of ferrite and electrode materials providing a wide
range of electrical properties
•
Superior termination bonding strength
•
Nickel barrier with solder overplated termination offering excellent
solderability and solder leach resistance, suitable for both wave and
reflow soldering processes
•
RoHS compliant when -T option is specified
Applications
•
Noise suppression in computers and peripherals
•
Noise suppression in telecommunications
•
Noise suppression in data communications
Operating Temperature
-55ºC — +125ºC
Product Identification
MCB 0805 F 101 P T - T
(1) (2) (3) (4) (5) (6) (7)
(1) Series code:
MCB: Multilayer Ferrite Chip Bead
(2) Dimensions: L x W inches
The first two digits: L (length)
The last two digits: W (width)
(3) Characteristic code: F, G
(4) Value code: Impedance (ohms at 100 MHz)
The first two digits are significant. The last
digit specifies the number of zeros to follow.
(5) Tolerance code:
P = ±25%
Other tolerances may be available upon request.
(6) Package code:
T = Tape & Reel
B = Bulk
(7) Termination type code:
T = 100% Sn Plating

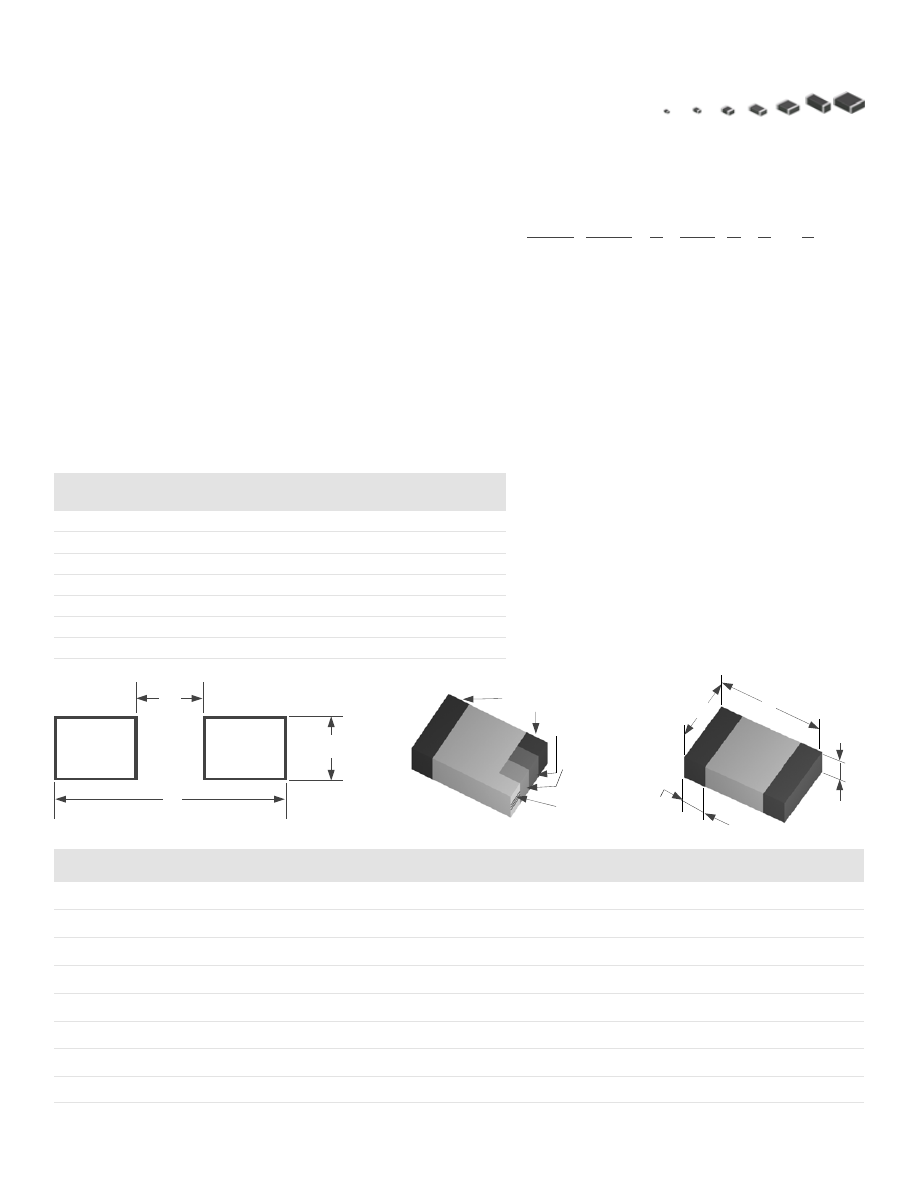

Shape and Dimensions
SOLDER
ELECTRODE
NICKEL
SILVER
METALLIZATION
T
W
L
BW
Recommended PC Board Land Patterns
CHIP SIZE
EIA/EIAJ
L
INCH (mm)
G
INCH (mm)
H
INCH (mm)
0402(1005)
0.063 (1.60)
0.016 (0.40)
0.024 (0.60)
0603(1608)
0.102 (2.60)
0.022 (0.55)
0.037 (0.94)
0805(2012)
0.118 (3.00)
0.026 (0.66)
0.057 (1.45)
1206(3216)
0.173 (4.40)
0.059 (1.50)
0.071 (1.80)
1210(3225)
0.173 (4.40)
0.059 (1.50)
0.106 (2.70)
1806(4516)
0.217 (5.50)
0.110 (2.80)
0.071 (1.80)
1812(4532)
0.217 (5.50)
0.110 (2.80)
0.134 (3.40)
L
G
H
