Hard to resist

w w w . a s j . c o m . s g

Product catalog

Foreword

ASJ  was  formerly  known  as  AIRCO  (S)  Pte  Ltd,  a  divison

of  AIRCO  Speer  Electronics  Inc.  (USA).  Established  in

Singapore since 1969, AIRCO started out with manufacturing

capabilities of Carbon and Metal Film leaded resistors.

In  1980,  AIRCO  divested  away  from  resistive  products,  and

formed the company named ASJ Pte Ltd.

ASJ  Pte  Ltd  and  it’s  manufacturing  plants  are  positioned

under ASJ Holdings group of companies. ASJ Holdings was

the  first  resistor  manufacturer  to  be  listed  on  the  Singapore

Stock Exchange in January 1997, and thereafter, listed on the

Mainboard of the Singapore Stock Exchange in 2002.

With its sales headquarters in Singapore and manufacturing

facilities in Senai, Malaysia, ASJ manufactures and distributes

quality  resistors,  providing  essential  support  to  a  diverse

base  of  customers  from  various  market  segments.    The

close proximity of the sales headquarters and manufacturing

facilities allowed great flexibility and on time delivery support

to  our  extensive  network  of  customers,  which  spans  across

Asia,  Europe  and  the  United  States  of  America.  Flourishing

its’  reputation  over  the  years,  ASJ  is  now  one  of  the  largest

chip resistors manufacturers in South Asia.

Mission





Enhance

customer

satisfaction

by

continuous

improvement and commitment to provide high quality

products





Continual

expansion

of

ASJ

resistors

global

presence





Encompassing range of resistive products





Foster  an  environment  that  encourages  continual

improvement  to  respond  to  the  changing  needs  of

customers

Page

1.0

Product Lineup

2-8

2.0

SMD Resistors Section

2.1

Thick Film

2.1.1

General Purpose Thick Film Chip Resistors

10

2.1.2

Precision Thick Film Chip Resistors

12





2.2

Thin Film

2.2.1

General Purpose Thin Film Chip Resistors

14

2.2.2

Precision Thin Film Chip Resistors

16

2.2.3

Thin Film Current Sensing Chip Resistors

18





2.3

Current Sensing

2.3.1

Milli Ohm Thick Film Chip Resistors

20

2.3.2

Ultra-Low Ohmic Thick Film Chip Resistors

22

2.3.3

Low Ohmic High Power Current Sensing Chip Resistors

24

2.3.4

Metal Element Current Sensing Chip Resistors

26





2.4

Power Chip

2.4.1

High Power Rating Chip Resistors

28

2.4.2

Medium Voltage Chip Resistors

30

2.4.3

High Voltage Chip Resistors

32





2.5

High Ohmic

2.5.1

High Ohmic Value Chip Resistors

34

2.5.2

Ultra-High Ohmic Value Chip Resistors

36

2.5.3

Precision High Ohmic Value Chip Resistors

38





2.6

Array & Networks

2.6.1

Thick Film Chip Resistor Array

40

2.6.2

Thick Film Chip Resistor Network

42

2.6.3

Thin Film Chip Resistor Array

44

2.6.4

Thick Film SIP Networks

46

2.6.5

Precision Thin Film SIP Networks

48





2.7

Speciality

2.7.1

Anti-Sulphur Thick Film Chip Resistors

50

2.7.2

Trimmable Thick Film Chip Resistors

52

2.7.3

SMD Wirewound Resistors (Chip Type)

54





3.0

Packaging / Taping Specifications (SMD)

3.1

Chip Resistors Packaging / Taping

56

3.2

Array Packaging / Taping

57

3.3

Speciality Packaging / Taping

58

3.4

Packing Quantity

59

3.5

Soldering Pad Dimensions

60

4.0

Marking Information

4.1

Resistance Value Code

61

4.2

SMD Chip Resistors Marking Diagrams

62

5.0

Leaded Resistors Section

5.1

Metal Film

5.1.1

General Purpose Metal Film Resistors

64

5.1.2

Precision Metal Film Resistors

66

5.1.3

High Precision Metal Film Resistors

68

5.1.4

Flame-Proof Metal Film Resistors

70

5.1.5

High Power Flame-Proof Metal Film Resistors

72

5.1.6

Fusible Metal Film Resistors

74





5.2

Carbon Film

5.2.1

General Purpose Carbon Film Resistors

76

5.2.2

Flame-Proof Carbon Film Resistors

78





5.3

Metal Oxide

5.3.1

Flame-Proof Metal Oxide Resistors

80





5.4

Metal Glaze

5.4.1

Pulse Loading Metal Glaze Resistors

82





5.5

WireWound

5.5.1

Flame-Proof Coating WireWound Resistors

84

5.5.2

High Power Flame-Proof WireWound Resistors

86

5.5.3

Fusible Flame-Proof WireWound Resistors

88





5.6

Cement

5.6.1

Cement Axial Lead Type Resistors

90

5.6.2

Cement Vertical Lead Type Resistors

92

5.6.3

High Power Cement Vertical Lead Type Resistors

94

5.6.4

Cement Radial Terminals Type Resistors

96

5.6.5

Rectangular Cement Clamp Mounting Type Resistors

98

5.6.6

Cement Radial Lead Type Resistors

100

5.6.7

Fusible Thermal Cement Type Resistors

102





5.7

Jumper

5.7.1

Zero Ohm Jumper Leaded Resistors

104

5.7.2

Jumper Wires

106





5.8

Speciality

5.8.1

Aluminium Housed Resistors

108





6.0

Packaging / Taping Specifications (Leaded
Resistors)

110





7.0

Marking Information



Leaded Resistors Marking information - Colour code

113





8.0

Nominal Standard Resistance Values

114





9.0

Manufacturing, Sales & Distribution
Network

115

www.asj.com.sg

Product Lineup

2

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

THICK FILM CHIP RESIST

ORS

CR

CR05

0201

1/20

1 ≤ R < 10

±1%, ±2%, ±5%

-200 / +400

10 ≤ R ≤ 10M

±200

CR10

0402

1/16

10 ≤ R < 1M

±1%, ±2%, ±5%

±100

1 ≤ R < 10, 1M≤ R <

10M

±200

CR16

0603

1/10

10 ≤ R < 1M

±1%, ±2%, ±5%

±100

CR21

0805

1/8

CR32

1206

1/4

CR40

1210

1/3

1 ≤ R < 10, 1M≤ R ≤

10M

±200

CR50

2010

3/4

CR63

2512

1

CR

CR05

0201

1/20

1 ≤ R < 10

±0.5%

-200 / +400

10 ≤ R ≤ 10M

±200

CR10

0402

1/16

10 ≤ R < 1M

±0.5%

±100

CR16

0603

1/10

CR21

0805

1/8

CR32

1206

1/4

1 ≤ R < 10, 1M≤ R ≤

10M

±200

CR40

1210

1/3

CR50

2010

3/4

CR63

2512

1

THIN FILM CHIP RESIST

ORS

CT

CT10

0402

1/16

10 - 121K

±1%

±50

CT16

0603

1/10

1 - 681K

CT21

0805

1/8

1 - 1.5M

CT32

1206

1/8

1 - 1.5M

CT40

1210

1/4

1 - 1M

CT50

2010

1/2

10 - 1M

CT63

2512

3/4

10 - 1M

CT

CT10

0402

1/16

10 - 121K

±0.1%

±25, ±50

10 - 100K

±10, ±15

10 - 121K

±0.25%

±25, ±50

10 - 100K

±10, ±15

10 - 121K

±0.5%

±25, ±50

CT16

0603

1/10

1K - 47K

±0.05%

±10, ±15, ±25

10 - 681K

±0.1%

±25, ±50

10 - 100K

±10, ±15

1 - 681K

±0.25%

±50

10 - 681K

±25

10 - 100K

±10, ±15

1 - 681K

±0.5%

±50

10 - 681K

±25

CT21

CT32

0805

1206

1/8

100 - 100K

±0.05%

±10, ±15, ±25

10 - 1.5M

±0.1%

±25, ±50

10 - 100K

±10, ±15

1- 1.5M

±0.25%

±50

10 - 1.5M

±25

10 - 100K

±10, ±15

1 - 1.5M

±0.5%

±50

10 - 1.5M

±25

CT40

1210

1/4

100 - 100K

±0.05%

±10, ±15, ±25

10 - 1M

±0.1%

±25, ±50

10 - 100K

±10, ±15

1 - 1M

±0.25%

±50

10 - 1M

±25

10 - 100K

±10, ±15

1 - 1M

±0.5%

±50

10 - 1M

±25

CT50

CT63

2010

2512

1/2

3/4

100 - 100K

±0.05%

±10, ±15, ±25

10 - 1M

±0.1%

±25, ±50

100 - 100K

±10, ±15

10 - 1M

±0.25%

±25, ±50

10 - 100K

±10, ±15

10 - 1M

±0.5%

±25, ±50

CT

CT10

0402

1/16

0.5 ≤ R < 1

±0.5%, ±1%

±50, ±100

CT16

CT21

0603

0805

1/10

1/8

0.2 - 0.3

±0.5%, ±1%

±100

0.31 ≤ R < 1

±0.5%, ±1%

±50

CT50

CT63

2010

2512

3/4

1

0.05 - 0.1

±0.5%, ±1%

±200

0.101 - 0.3

±100

0.31 ≤ R < 1

±50

CT633

2512

3

0.1 ≤ R < 1

±1%

±100

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Product Lineup

3

Series

Type

Case Size / Configura-

tion / L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance Toler-

ance (%)

T.C.R (ppm/°C)

CURRENT SENSING CHIP RESIST

ORS

CR

CR10

0402

1/16

0.1 ≤ R < 1

±1%

±200

0.04 ≤ R < 0.1

±200

0.04 ≤ R < 1

±5%

±200

CR16

0603

1/10

0.1 ≤ R < 1

±1%

±200

0.04 ≤ R < 0.1

±200

0.04 ≤ R < 1

±5%

±200

CR21

0805

1/8

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±200

0.03 ≤ R < 1

±5%

±200

CR32

1206

1/4

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±200

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CR40

1210

1/3

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CR50

2010

3/4

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CR63

2512

1

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CLP

CLP10

0402

1/8

0.1 ≤ R < 1

±1%

±200

0.04 ≤ R < 0.1

±200

0.04 ≤ R < 1

±5%

±200

CLP16

0603

1/5

0.1 ≤ R < 1

±1%

±200

0.04 ≤ R < 0.1

±200

0.04 ≤ R < 1

±5%

±200

CLP21

0805

1/4

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±200

0.03 ≤ R < 1

±5%

±200

CLP32

1206

1/2

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±200

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CLP40

1210

3/4

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CLP50

2010

1

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CLP63

2512

2

0.1 ≤ R < 1

±1%

±100

0.03 ≤ R < 0.1

±100

0.01 ≤ R < 0.03

±1500

0.03 ≤ R < 1

±5%

±200

0.01 ≤ R < 0.03

±1500

CLS

CLS631

2512

1

0.011 - 0.015

±1%

±5%

±50

CLS632

2

0.0035, 0.0065 - 0.01

CLS6325

2.5

0.004, 0.005, 0.006

CLS633

3

0.001 - 0.003

0.0005, 0.00075

±100

www.asj.com.sg

Product Lineup

4

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

HIGH PO

WER CHIP RESIST

ORS

CPW

CPW10

0402

1/8

10 ≤ R < 1M

±0.5%

±1%

±2%

±5%

±100

CPW16

0603

1/5

CPW21

0805

1/4

CPW32

1206

1/2

1 ≤ R < 10

1M - 15M

±200

CPW40

1210

3/4

CPW50

2010

1

CPW63

2512

2

CPM

CPM21

0805

1/8

100K - 10M

±1%, ±5%

±200

CPM32

1206

1/4

100K - 27M

±1%, ±5%

±200

CPM63

2512

1

4.7M - 16M

±5%

±200

CPH

CPH10

0402

1/16

10 - 1M

±1%

±5%

±100

CPH16

0603

1/10

CPH21

0805

1/8

CPH32

1206

1/4

1.02M - 10M

±200

CPH50

2010

1/2

CPH63

2512

1

HIGH OHMIC RESIST

ANCE

VALUES CHIP RESIST

ORS

CH

CH10

0402

1/16

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

102M - 470M

±5%

±500

CH16

0603

1/10

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

102M - 1G

±5%

±500

1.02G - 10G

±1000

CH21

0805

1/8

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

102M - 1G

±5%

±500

1.02G - 10G

±1000

10.2G - 100G

±2000

102G - 1T

±2500

CH32

1206

1/4

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

102M - 1G

±5%

±500

1.02G - 10G

±1000

10.2G - 100G

±2000

102G - 1T

±2500

10M < R ≤ 100M

±0.1%

±0.25%

±0.5%

±25

±50

±100

CH40

1210

1/3

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 39M

±400

39M - 100M

±5%

±300

102M - 470M

±500

CH50

2010

3/4

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

1/2

102M - 470M

±5%

±500

CH63

2512

1

10M < R ≤ 20M

±1%, ±5%

±200

20.5M - 100M

±400

102M - 1G

±5%

±500

10M < R ≤ 100M

±0.1%

±0.25%

±0.5%

±25

±50

±100

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Product Lineup

5

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

ARRA

Y & NETW

ORKS

YCN

YCN052

0201 X 2

1/32

3 ≤ R <10

±2%

±5%

±500

10 ≤ R < 1K

±300

1K - 1M

±200

YCN102

0402 X 2

1/16

1 ≤ R < 10

±1%, ±5%

±300

10 - 1M

±200

YCN104

0402 X 4

1 ≤ R < 10

±1%, ±5%

±300

10 - 1M

±200

YCN162

0603 X 2

10 - 1M

±1%

±200

1 - 10M

±5%

YCN164

0603 X 4

22 - 470K

±0.5%

±200

1 - 10M

±1%

±5%

YCN158

0612

10 - 100K

±5%

±200

YCN358

1225

10 - 330K

LCN

LCN164

0603 X 4

1/16

10 - 330K

±0.1%

±0.5%

±1%

±25

±50

YSN

YSN

A, B, C, D, E, F, G

0.7 - 3

10 - 3M

±1%

±2%

±5%

±50

  ±100

LSN

LSN

A, B

0.12 - 0.9

50 - 100K

±0.1%

±0.25%

±0.5%

±1%

±5

±10

±15

±25

±50

±100

SPECIAL

TY

SAS

SAS10

0402

1/16

0.1 ≤ R < 1

±0.5%, ±1%,

±2%, ±5%

±200

10 ≤ R < 1M

±100

1 ≤ R < 10, 1M ≤ R < 15M

±200

SAS16

0603

1/10

0.1 ≤ R < 1

±0.5%, ±1%

±200

10 ≤ R < 1M

±100

1 ≤ R < 10, 1M ≤ R < 15M

±0.5%

±200

1 ≤ R < 10, 1M ≤ R < 30M

±1%, ±2%, ±5%

±200

SAS21

SAS32

SAS40

SAS50

SAS63

0805

1206

1210

2010

2512

1/8

1/4

1/3

3/4

1

0.1 ≤ R < 1

±0.5%

±100

10 ≤ R < 1M

±100

1 ≤ R < 10, 1M ≤ R < 15M

±200

0.1 ≤ R < 1

±1%

±100

10 ≤ R < 1M

±100

1 ≤ R < 10, 1M ≤ R < 30M

±200

0.1 ≤ R < 1

±2%

±5%

±200

10 ≤ R < 1M

±100

1 ≤ R < 10, 1M ≤ R < 30M

±200

TR

TR10

0402

1/16

10 ≤ R < 1M

1M ≤ R ≤ 10M

0~-30%

0~-15%

±10%

±15%

±100

±200

TR16

0603

1/10

TR21

0805

1/8

TR32

1206

1/4

TR40

1210

1/3

TR50

2010

3/4

TR63

2512

1

SWC

SWC1/2

-

1/2

0.01 - 2K

±0.01%

±0.02%

±0.05%

±0.1%

±0.25%

±0.5%

±1%

±2%

±5%

±5

±10

±20

±25

±30

±50

±100

±200

SWC1

-

1

0.001 - 10K

SWC2

-

2

0.002 - 25K

SWC2SS

-

2

0.1 - 200

SWC27

-

2.7

0.005 - 20K

SWC3

-

3

0.005 - 25K

SWC35

-

3.5

0.005 - 50K

SWC5

-

5

0.005 - 100K

SWC1/2L

-

1/2

0.003 - 0.05

SWC1L

-

1

0.001 - 0.1

SWC2L

-

2

0.002 - 0.2

SWC2SSL

-

2

0.0005 - 0.005

www.asj.com.sg

Product Lineup

6

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

MET

AL FILM RESIST

ORS

MF

MF50

3.4 x 1.9

1/6

1 - 10M

±0.1%

±0.5%

±1%

±2%

±5%

0.1Ω - 1Ω (±200ppm)

1Ω - 10Ω (±100ppm)

10Ω - 1MΩ (±50ppm)

1MΩ - 2.8MΩ (±100ppm)

2.8MΩ - 10MΩ (±150ppm)

MF55

6.3 x 2.3

1/4

0.1 - 10M

MF55SS

3.4 x 1.9

0.4

0.1 - 10M

MF60

9.0 x 3.3

1/2

0.1 - 10M

MF60SS

6.3 x 2.3

0.6

0.1 - 1M

MF65

11.0 x 4.2

1

0.1 - 1M

MF70

16.0 x 5.0

2

0.1 - 10M

MF75

17.0 x 6.0

3

0.1 - 10M

MF55

6.2 x 1.8

1/4

100 - 500K

±0.02%, ±0.05%

±5, ±10

MF60

9.1 x 2.1

1/2

FM

FM50

3.2 X 1.9

1/6

1 - 1M

±1%

±2%

±5%

> 10Ω (±50ppm)

< 10Ω (±100ppm)

FM55

6.2 X 2.3

1/4

1 - 1M

FM55SS

3.2 X 1.9

0.4

1 - 1M

FM60

9.1 X 3.2

1/2

1 - 1M

FM60SS

6.2 X 3.2

0.6

1 - 1M

FM65

11.2 X 4.2

1

1 - 1M

FM70

15.2 X 5.0

2

1 - 1M

FMP

FMP60SS

3.4 x 1.9

1/2

1 - 10M

±1%

±5%

 ±100

FMP65SS

6.3 x 2.4

1

FMP70SS

9.0 x 3.9

2

FMP75

15.5 x 5.0

3

FMP75SS

11.5 x 4.5

3

FMP80SS

17.0 x 7.5

4

FSR

FSR1/4

6.2 x 2.3

1/4W

1 - 2K

±1%

±2%

±5%

< 10Ω (±200ppm,

±400ppm)

≥ 10Ω (±100ppm,

±200ppm)

FSR1/2

9.1 x 3.2

1/2W

FSR1/2SS

6.2 x 2.3

FSR1

11.2 x 4.2

1W

FSR1SS

9.1 x 3.2

FSR2

15.2 x 5.0

2W

FSR2SS

11.2 x 4.2

FSR3SS

15.2 x 5.0

3W

CARBON FILM RESIST

ORS

CF

CF1/6

3.4 x 1.9

1/6

1 - 10M

±2%

±5%

±300ppm

0 to -350ppm

0 to -500ppm

0 to -800ppm

0 to -1,600ppm

0 to -2,000ppm

CF1/4

6.3 x 2.3

1/4

CF1/4SS

3.4 x 1.9

CF1/2

9.0 x 3.3

1/2

CF1/2SS

6.3 x 2.3

CF1

11.0 x 4.2

1

CF1SS

9.0 x 3.3

CF2

15.5 x 5.0

2

CF2SS

11.0 x 4.2

CF3

15.5 x 5.0

3

FP

FP1/6

3.2 x 1.9

1/6

1 - 10M

±2%

±5%

±300ppm

0 to -350ppm

0 to -500ppm

0 to -800ppm

0 to -1,600ppm

0 to -2,000ppm

FP1/4

6.2 x 2.3

1/4

FP1/2

9.1 x 3.2

1/2

FP1

11.2 x 4.2

1

FP2

15.2 x 5.0

2

MET

AL O

XIDE



RESIST

ORS

MO

MO1/4

6.3 x 2.3

1/4

0.1 - 100K

±2%

±5%

±350

MO1/2

9.0 x 3.2

1/2

MO1/2SS

6.3 x 2.3

MO1

11.0 x 4.3

1

MO1SS

9.0 x 3.2

MO2

16.0 x 5.0

2

MO2SS

11.0 x 4.3

MO3

17.0 x 6.0

3

MO3SS

16.0 x 5.0

MO5

25.0 x 8.5

5

MO5SS

25.0 x 8.5

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Product Lineup

7

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

MET

AL GLAZE

RESIST

ORS

MGP

MGP1/4

6.3 x 2.4

1/4

100K - 10M

±5%

±300

MGP1/2

9.0 x 3.3

1/2

MGP1/2SS

6.3 x 2.4

MGP1

11.5 x 4.5

1

MGP2

15.5 x 5.0

2

WIREW

OUND RESIST

ORS

KNP

KNP1/4

6.3 x 2.3

1/4

0.1 - 47

±1%

±2%

±5%

±300

KNP1/2

9.0 x 3.3

1/2

0.1 - 100

KNP1/2SS

6.3 x 2.3

1/2

0.1 - 47

KNP1

12.0 x 4.5

1

0.1 - 100

KNP1SS

9.0 x 3.3

0.1 - 100

KNP2

16.0 x 5.0

2

0.1 - 470

KNP2SS

12.0 x 4.5

0.1 - 100

KNP3

17.5 x 6.5

3

0.1 - 680

KNP3SS

16.0 x 5.0

0.1 - 680

KNP4

17.5 x 6.5

4

0.1 - 1K

KNP5

25.0 x 9.0

5

0.1 - 1K

KNP5SS

17.5 x 6.5

0.05 - 10K

KNP6

25.0 x 9.0

6

0.1 - 1K

KNP7

41.0 x 9.0

7

0.1 - 4.3K

KNP8

41.0 x 9.0

8

0.1 - 18K

KNP10

53.0 x 9.0

10

0.1 - 8.2K

KNH

KNH1

6.3 x 2.4

1

0.1 - 33

±1%

±5%

±300

KNH2

9.0 x 3.3

2

0.1 - 100

KNH3

11.5 x 4.5

3

0.1 - 150

KNH4

15.5 x 5.0

4

0.1 - 330

FWW

FWW1/4

6.2 x 2.3

1/4

0.1 - 10

±1%

±2%

±5%

< 1Ω  (±350ppm)

≥ 1Ω (±200ppm)

FWW1/2

9.1 x 3.2

1/2

0.1 - 47

FWW1/2SS

6.2 x 2.3

0.1 - 10

FWW1

11.2 x 4.2

1

0.1 - 100

FWW1SS

9.1 x 3.2

0.1 - 47

FWW2

15.2 x 5.0

2

0.1 - 220

FWW2SS

11.2 x 4.2

0.1 - 100

FWW3

17.1 x 6.0

3

0.1 - 330

FWW3SS

15.2 x 5.0

0.1 - 220

FWW5SS

17.1 x 6.0

5

0.1 - 330

www.asj.com.sg

Product Lineup

8

Series

Type

Case Size / Configuration

/ L x Ø / L x W x H

Power Rating

(W)

Resistance Range

(

Ω

)

Resistance

Tolerance (%)

T.C.R (ppm/°C)

CEMENT RESIST

ORS

SQP

SQP2

18.0 x 8.0 x 7.0

2

0.1 - 100K

±5%

±300

SQP3

22.0 x 8.0 x 8.0

3

SQP5

22.0 x 10.0 x 9.0

5

SQP7

35.0 x 10.0 x 9.0

7

SQP10

48.0 x 10.0 x 9.0

10

SQP15

48.0 x 12.0 x 12.0

15

SQP20

60.0 x 14.0 x 14.0

20

SQP25

60.0 x 14.0 x 14.0

25

SQM

SQM2

11.0 x 7.0 x 20.0

2

0.1 - 100K

±5%

±300

SQM3

12.0 x 8.0 x 25.0

3

SQM5

13.0 x 9.0 x 25.0

5

SQM7

13.0 x 10.0 x 39.0

7

SQM10

13.0 x 10.0 x 51.0

10

SQM10SS

16.0 x 12.0 x 25.0

10

SQM15SS

16.0 x 12.0 x 35.0

15

PQM

PQM4

20.0 x 7.0 x 8.0

4

0.1 - 2.5K

±5%

±400

PQM5

25.0 x 7.0 x 8.0

5

0.1 - 2.7K

PQM7

25.0 x 9.0 x 10.0

7

0.3 - 3.9K

PQM7SS

38.0 x 7.0 x 8.0

7

0.1 - 2.7K

PQM9

38.0 x 10.0 x 10.0

9

0.3 - 3.9K

SQZ

SQZ5

27.0 x 9.5 x 9.5

5

0.1 - 100K

±5%

±300

SQZ7

35.0 x 9.5 x 9.5

7

SQZ10

48.0 x 9.5 x 9.5

10

SQZ15

48.0 x 12.5 x 12.0

15

SQZ20

60.0 x 15.0 x 13.0

20

SQH

SQH10

48.0 x 10.5 x 10.5

10

0.1 - 100K

±5%

±300

SQH15

48.0 x 12.5 x 12.5

15

SQH20

63.5 x 12.5 x 12.5

20

SQH25

63.5 x 16.0 x 16.0

25

SQH30

75.0 x 19.0 x 19.0

30

SQH40

90.0 x 19.0 x 19.0

40

SQL

SQL2

13.0 x 5.0 x 8.0

2

0.1 - 0.68

±5%

±10%

±250

SQL3

13.0 x 5.0 x 13.0

3

0.05 - 1

SQL5

14.0 x 5.0 18.0

5

0.05 - 3.3

SQL7

26.0 x 5.0 x 18.0

7

SQL10

26.0 x 5.0 x 20.0

10

FTR

FTR100

13.0 x 9.0 x 25.0

-

1 - 10K

±5%

±250

FTR200

13.0 x 9.0 x 38.0

FTR300

14.0 x 12.0 x 35.0

JUMPER

Z

Z16

3.3 x 1.7

-

0.02 Maximum

-

-

Z25

6.3 x 2.3

JW

JW55

60.0 x 0.48

-

0.01 Maximum

-

-

JW56

60.0 x 0.58

JW57

60.0 x 0.7

JW58

60.0 x 0.8

JW60

60.0 X 0.6

SPECIAL

TY

SAT /SAL

SAT5/SAL5

Refer to Specs

5

0.1 - 100

±0.25%

±0.5%

±1%

±5%

±10%

±200

SAT10/SAL10

10

SAT25/SAL25

25

SAT50/SAL50

50

SAT80

80

SAT100

100

0.1 - 3K

SAT250

250

SMD RESISTORS

www.asj.com.sg

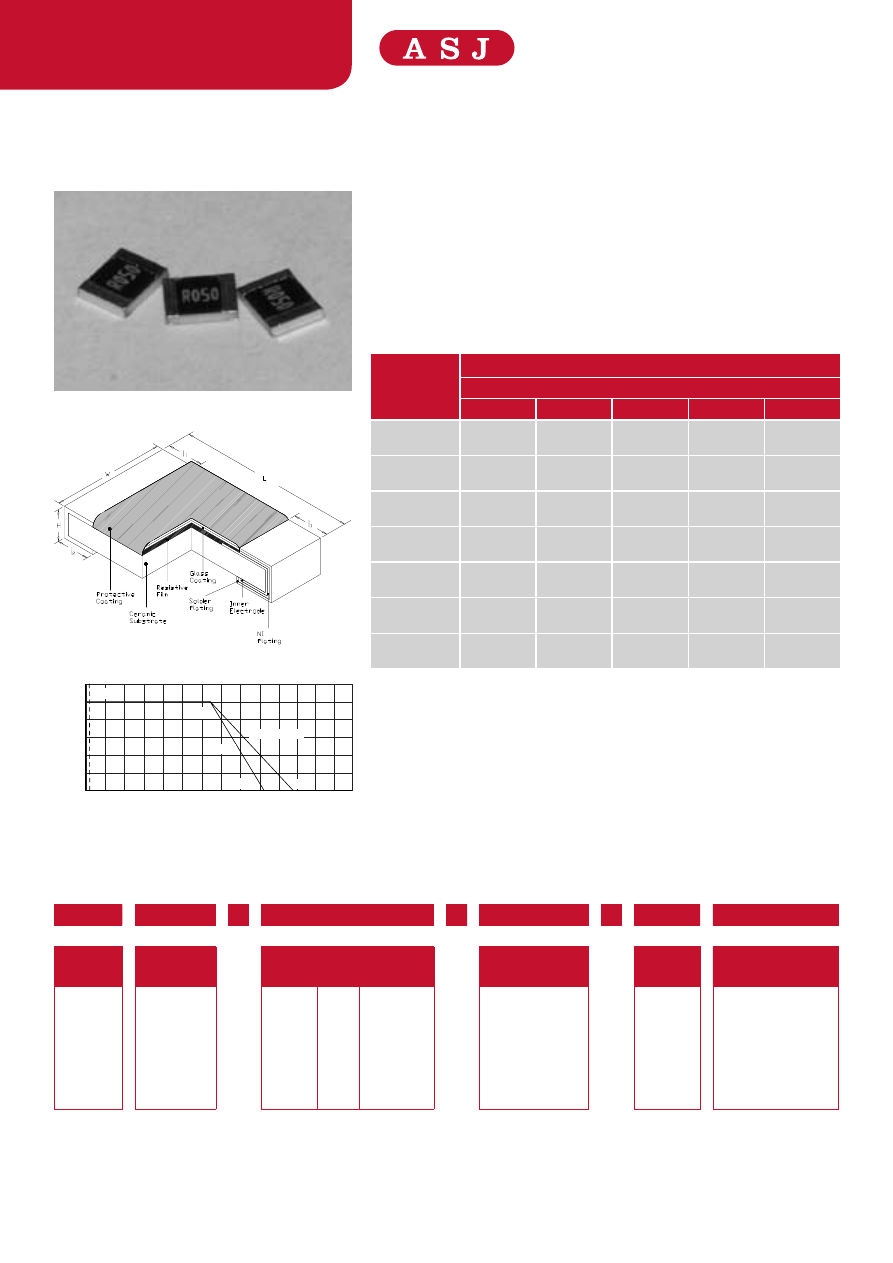

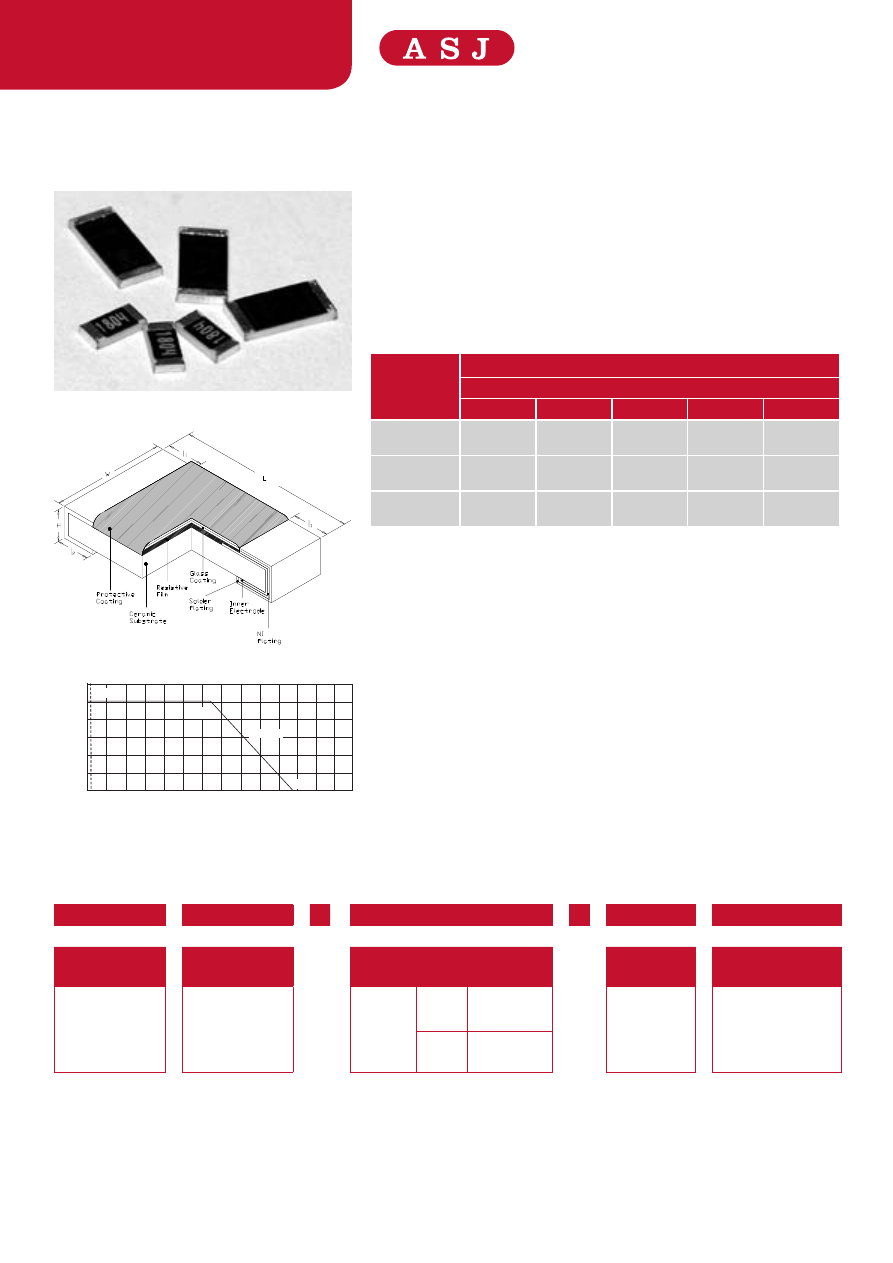

Features

•

Highly reliable multi-layer electrode construction.

•

Compatible with wave and reflow soldering process.

•

Pb Free with Reflow soldering backward compatibility

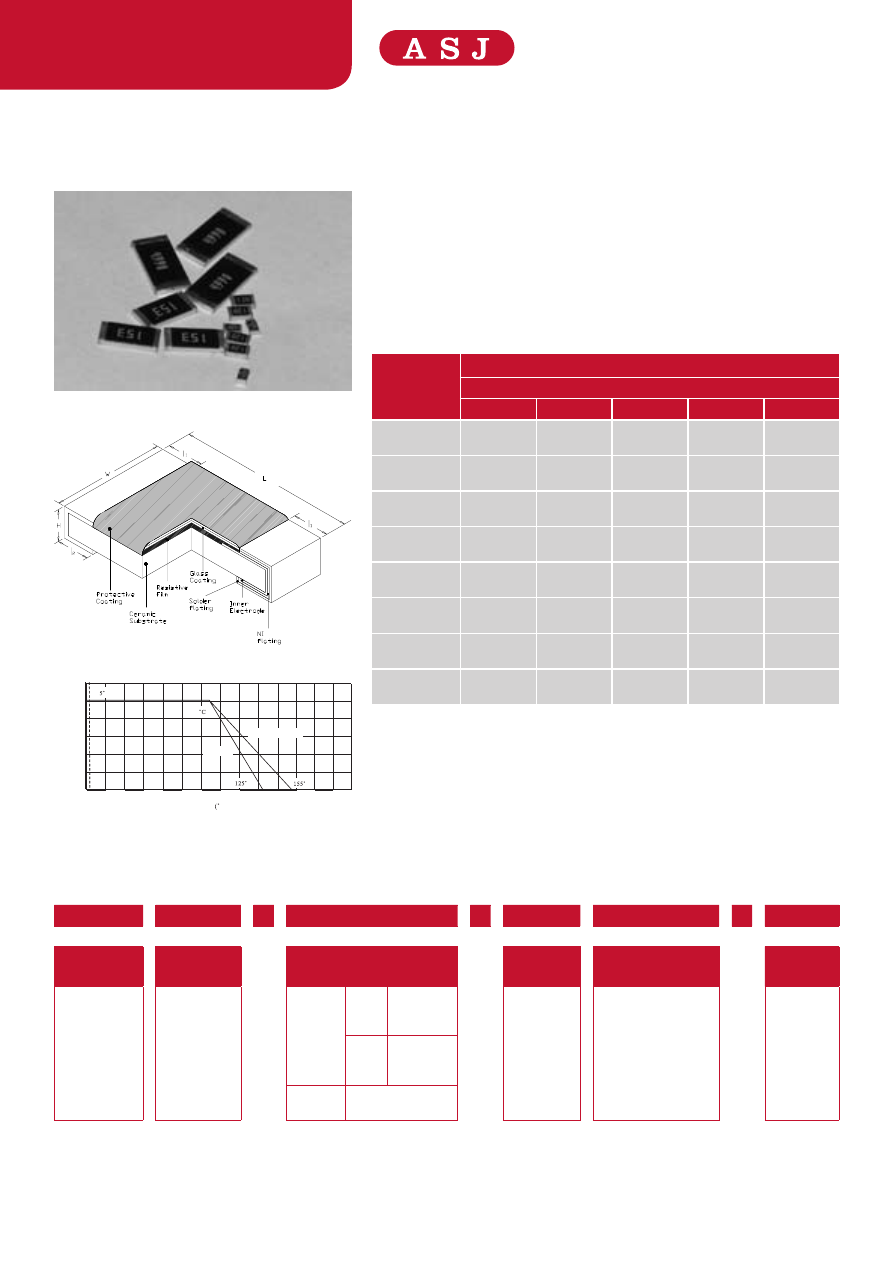

Dimensions and Construction

Ordering Code / Information

10

Dimensions

Type

 Inches (Millimeters)

L

W

H

I

1

I

2

CR05

0201 (0603)

0.024±0.001

(0.60±0.03)

0.012±0.001

(0.30±0.03)

0.009±0.001

(0.23±0.003)

0.005±0.002

(0.13±0.05)

0.006±0.002

(0.15±0.05)

CR10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CR16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CR21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CR32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CR40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CR50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR

10

-

XXXX

-

F

K

-

E

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

T.C.R

(ppm/°C)

General Purpose

Thick Film

Chip Resistors

05 (0201/0603)

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

3-Digit

E24 Series

2.2Ω=2R2

100Ω=101

F = ± 1%

G = ± 2%

J = ± 5%

Z = Zero ohm

E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free



E = ±50

(Leave Blank

for Standard)

4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

Jumper

000 - 5%

0000 - 1%

Thick Film Chip Resistors

General Purpose Thick Film Chip Resistors
(1%, 2%, 5%)

200

120

-40

-20

20

0

40

60

80

100

20

0

160

180

120

140

40

60

80

100

Temperature  C )

Rated Power (%

)

C

C

70

-5 C

(16,21,32,40,50,63)

(05, 10)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Thick Film Chip Resistors

General Purpose Thick Film Chip Resistors

(1%, 2%, 5%)

11

Application and Ratings

Product Type

Power Rating

@ 70°C

T.C.R

(ppm/°C) Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

G(±2%), J(±5%)

Jumper

Rated

Current

Jumper

Resistance

Value

Max Working

Voltage

Max

Overload

Voltage

Operating

Temperature

Range

CR05

0201 ( 0603 )

1/20W

-100 to +600

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

0.5A

15V

50V

-55°C to +125°C

± 250

10Ω ≤ R ≤ 1MΩ

10Ω ≤ R ≤ 1MΩ

CR10

0402 (1005)

1/16W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

1A

50V

100V

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

CR16

0603 (1608)

1/10W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

150V

300V

CR21

0805 (2012)

1/8W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

CR32

1206 (3216)

1/4W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

< 0.05Ω for 5%

< 0.02Ω for 1%

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

2A

-55°C to +155°C

CR40

1210 (3225)

1/3W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

200V

400V

CR50

2010 (5025)

3/4W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

CR63

2512 (6432)

1W

±50

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

3A

±100

10Ω ≤ R < 1MΩ

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

1MΩ ≤ R ≤ 10MΩ

Test

 Specification

 Test Method

Resistance Value

 Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for

5 secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5% + 0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0% + 0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

 ±(1.0% + 0.1Ω)

 For 1% , 2% & 5%

tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

 ±(1.0% + 0.05Ω)

  For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

  ±(2.0% + 0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

 ±(0.5% + 0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours after

test conclusion.

±(1.0% + 0.05Ω)

For 2% & 5% tolerance

www.asj.com.sg

Features

•

Highly reliable multi-layer electrode construction.

•

Compatible with wave and reflow soldering process.

•

Pb Free with Reflow soldering backward compatibility

•

Precision 0.5%

Dimensions and Construction

Ordering Code / Information

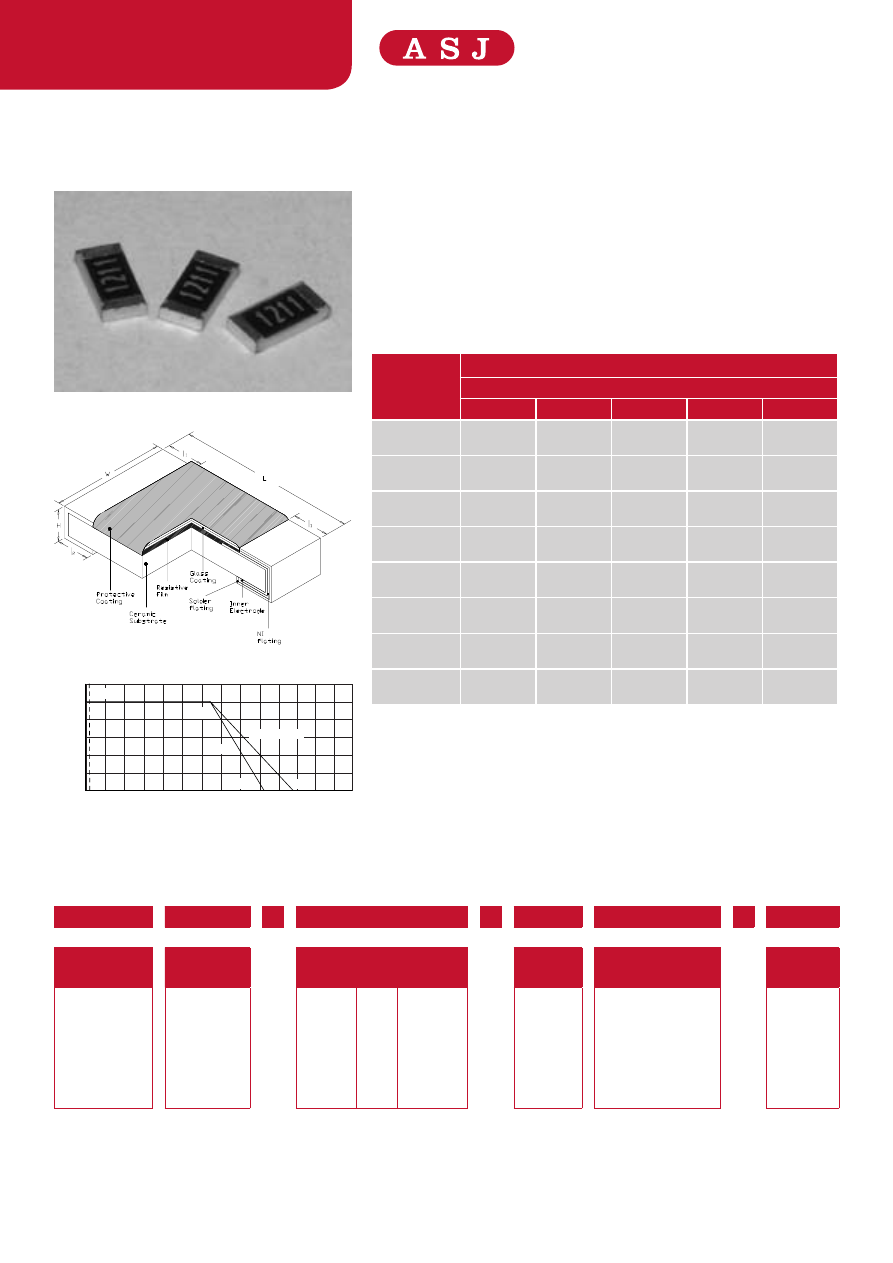

Thick Film Chip Resistors

Precision Thick Film Chip Resistors (0.5% )

12



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CR05

(0201/0603)

0.024±0.001

(0.06±0.03)

0.012±0.001

(0.30±0.03)

0.009±0.001

(0.23±0.003)

0.005±0.002

(0.12±0.05)

0.006±0.002

(0.15±0.05)

CR10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CR16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CR21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CR32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CR40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CR50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR

10

-

XXXX

-

D

K

-

E

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

T.C.R

(ppm/°C)

Precision Thick

Film Chip Resistors

05 (0201/0603)

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

D = ± 0.5%

E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free

E = ±50

(Leave Blank

for Standard)

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(05, 10)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Thick Film Chip Resistors

Precision Thick Film Chip Resistors (0.5% )

13

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96

D(±0.5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature

Range

CR05

0201 (0603)

1/20W

-200 - +400

1Ω ≤ R < 10Ω

50V

100V

-55°C to +125°C

±200

10Ω ≤ R ≤ 10MΩ

CR10

0402 (1005)

1/16W

±100

10Ω ≤ R < 1MΩ

50V

100V

-55°C to +125°C

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR16

0603 (1608)

1/10W

±50

10Ω - 1MΩ

50V

100V

-55°C to +155°C

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR21

0805 (2012)

1/8W

±50

10Ω - 1MΩ

150V

300V

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR32

1206 (3216)

1/4W

±50

10Ω - 1MΩ

200V

400V

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR40

1210 (3225)

1/3W

±50

10Ω - 1MΩ

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR50

2010 (5025)

3/4W

±50

10Ω - 1MΩ

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

CR63

2512 (6432)

1W

±50

10Ω - 1MΩ

±100

10Ω ≤ R < 1MΩ

±200

1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 10MΩ

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

± 0.5%

Apply 2.5 times of rated voltage or maximum overload voltage for

5 secs which is lower

Resistance to Soldering Heat

±(0.5%+0.05Ω)

260°C ± 5°C, 10 seconds ± 1 second

Moisture Resistance

±(1%+0.1Ω)

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

High Temperature Exposure

±(0.5%+0.05Ω)

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

Application and Ratings

www.asj.com.sg

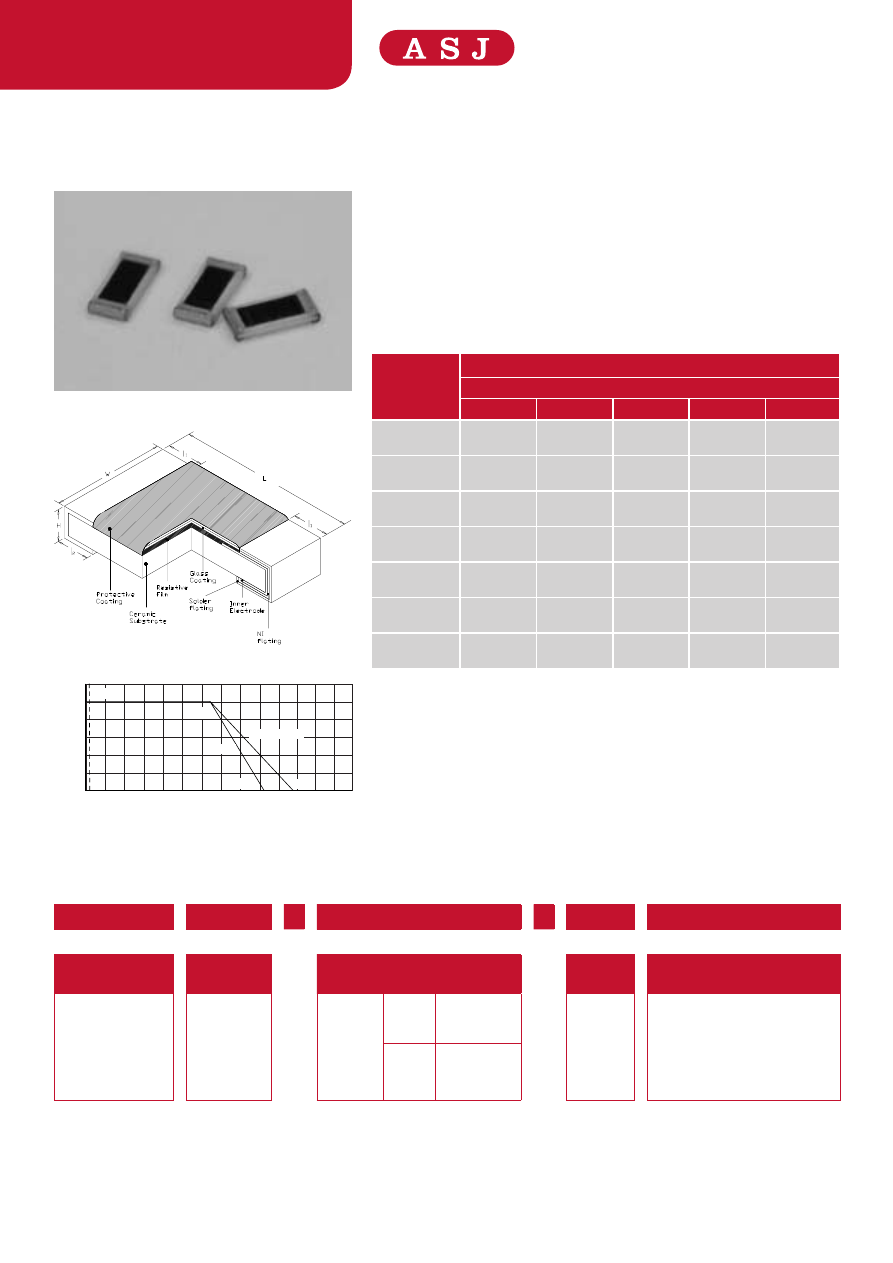

Features

•

Tolerance 1%, Temperature Coefficient of Resistance 50ppm/°C

•

Excellent stability







•

Halogen Free Epoxy





•

Products with lead free terminations meet RoHs requirements

Dimensions and Construction

Ordering Code / Information

Thin Film Chip Resistors

General Purpose Thin Film Chip Resistors

14



Dimensions

Type

Inches (Millimeters)



L

W

H

l

1

l

2

CT10

0402 (1005)

0.040 ± 0.004

(1.00 ± 0.10)

0.020 ± 0.002

(0.50 ± 0.05)

0.012 ± 0.002

(0.30 ± 0.05)

0.008 ± 0.004

(0.20 ± 0.10)

0.010 ± 0.004

(0.25 ± 0.10)

CT16

0603 (1608)

0.063 ± 0.004

(1.60 ± 0.10)

0.031 ± 0.004

(0.80 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.010 ± 0.006

(0.25 ± 0.15)

0.010 ± 0.006

(0.25 ± 0.15)

CT21

0805 (2012)

0.079 ± 0.004

(2.00 ± 0.10)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.014 ± 0.008

(0.35 ± 0.20)

0.014 ± 0.008

(0.35 ± 0.20)

CT32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.063 ± 0.004

(1.60 ± 0.10)

0.022 ± 0.004

(0.55 ± 0.10)

0.018 ± 0.008

(0.45 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CT40

1210 (3225)

0.122 ± 0.004

(3.10 ± 0.10)

0.102 ± 0.006

(2.60 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.020 ± 0.008

(0.50 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.20)

CT50

2010 (5025)

0.200 ± 0.004

(5.00 ± 0.10)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.024 ± 0.008

(0.60 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.2)

CT63

2512 (6432)

0.250 ± 0.004

(6.35 ± 0.10

0.126 ± 0.006

(3.20 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.024 ± 0.008

(0.60 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.20)

CT

10

-

XXXX

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

General Purpose

Thin Film Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

F = ±1%

E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

160

180

200

120

-40

-20

20

0

40

60

120

140

40

60

80

100

80

100

20

0

T emperature  (˚C )

Rated Power (%

)

125˚C

70˚C

-55˚C

(10,16,21,32,40,50,63)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Thin Film Chip Resistors

General Purpose Thin Film Chip Resistors

15

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C) Max

Resistance Range

(E-96, E-24)

F(±1%)

Max Working

Voltage

Max Overload Voltage

Operating Temperature

Range

CT10

0402 (1005)

1/16W

±50

10Ω - 121KΩ

50V

100V

-55°C to +125°C

CT16

0603(1608)

1/10W

±50

1Ω - 681KΩ

75V

150V

CT21

0805 (2012)

1/8W

±50

1Ω - 1.5MΩ

150V

300V

CT32

1206 (3216)

1/8W

±50

1Ω - 1.5MΩ

200V

400V

CT40

1210 (3225)

1/4W

±50

1Ω - 1MΩ

CT50

2010 (5025)

1/2W

±50

10Ω - 1MΩ

CT63

2512 (6432)

3/4W

±50

10Ω - 1MΩ

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

± (0.5%+0.05Ω). No visible damage

Apply 2.5 times of rated voltage or maximum overload voltage for

5secs which is lower

Resistance to Soldering Heat

± (0.5%+0.05Ω). No visible damage

260°C ± 5°C, 10 seconds ± 1 second

Load Life

± (0.5%+0.05Ω)

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

High Temperature Exposure

± (0.5%+0.05Ω)

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

Application and Ratings

www.asj.com.sg

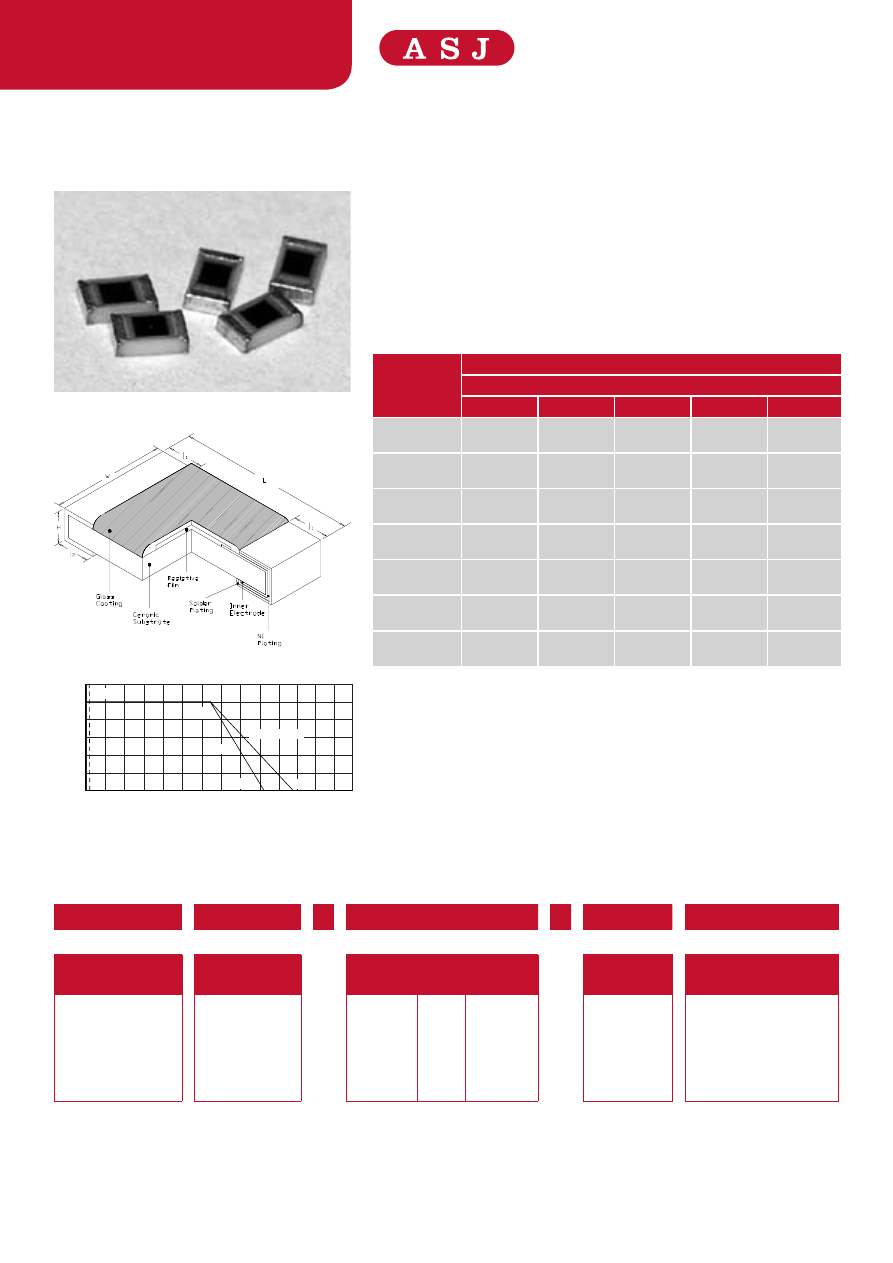

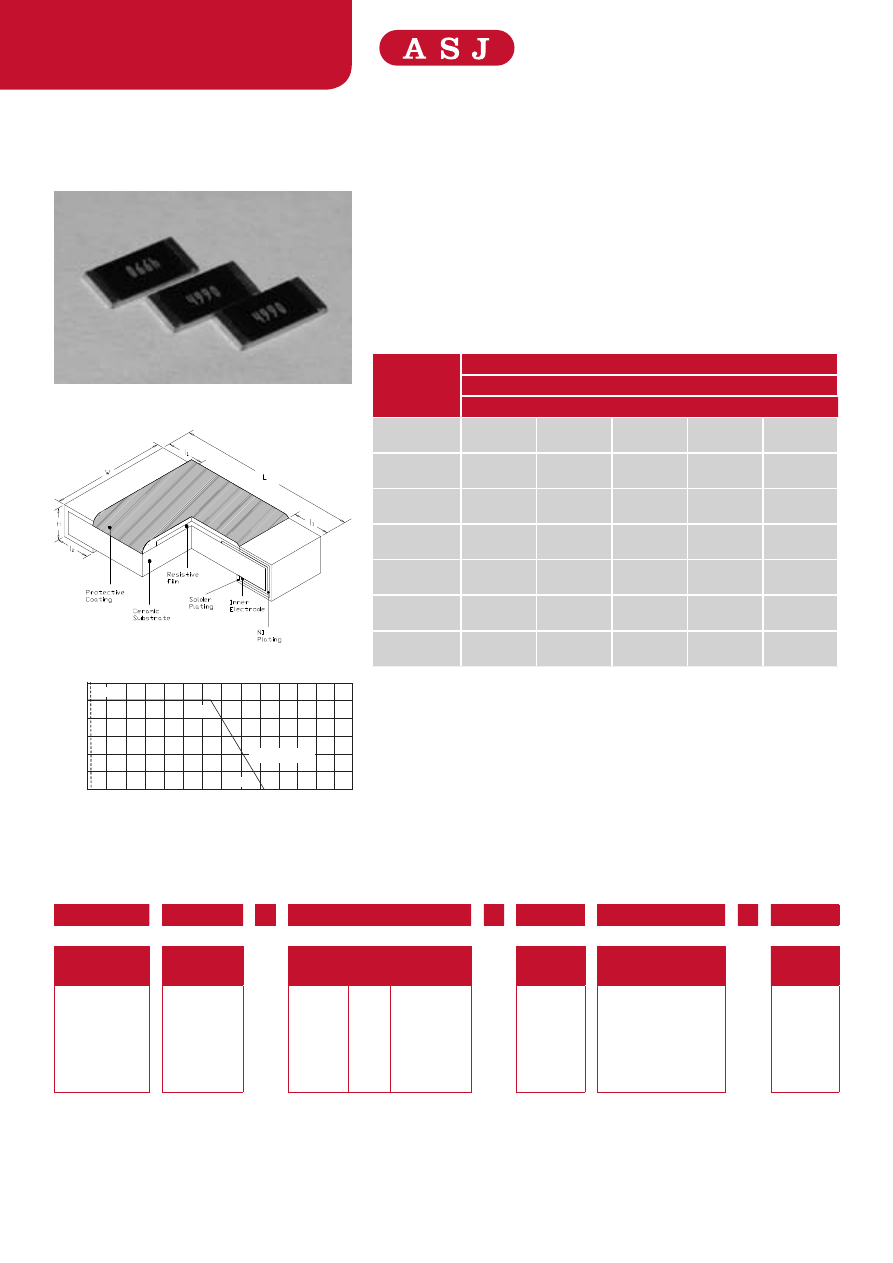

Features

•

Precise Tolerance up to 0.05% and Low T.C.R down to 10ppm/

°

C

•

Excellent stability





•

Halogen Free Epoxy



•

Products with lead free terminations meet RoHs requirements

Dimensions and Construction

Ordering Code / Information

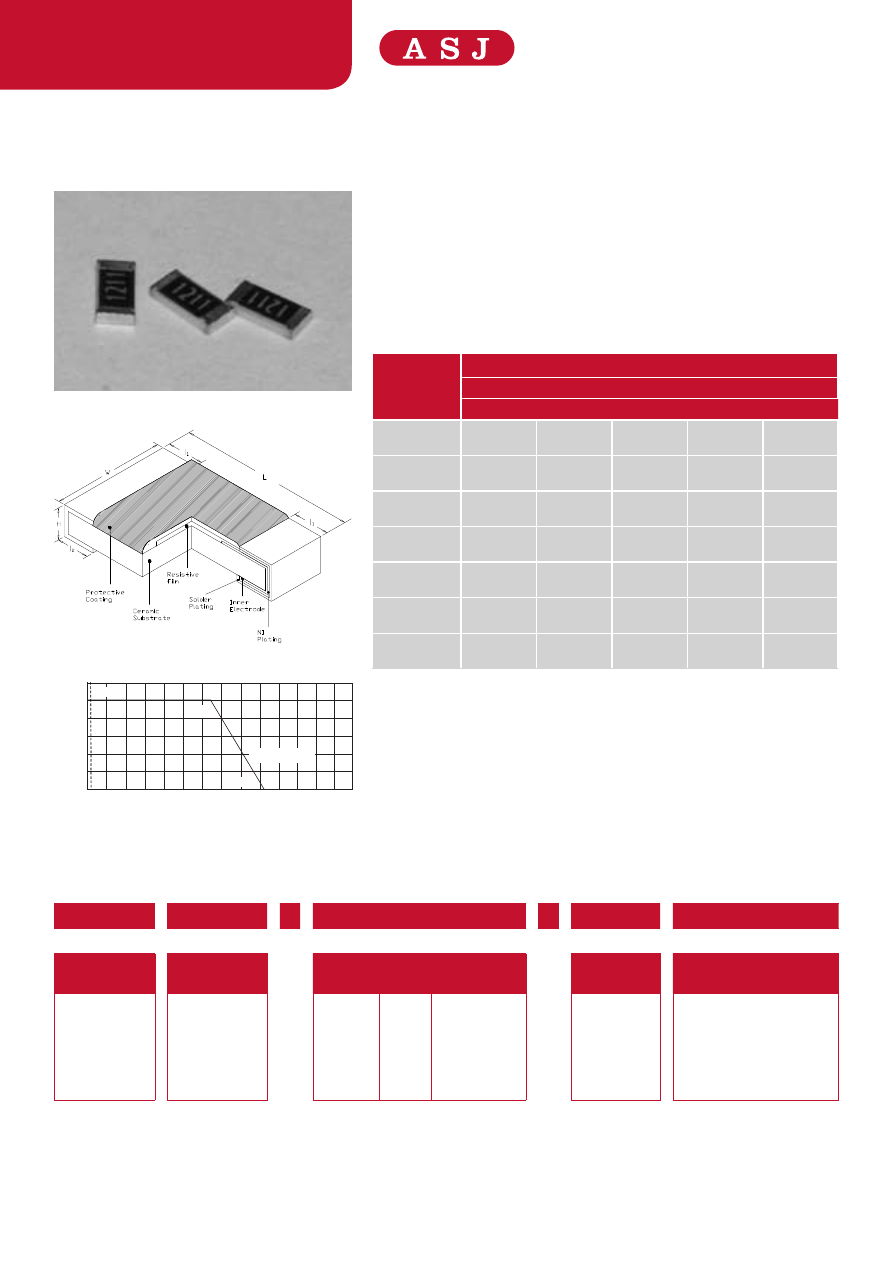

Thin Film Chip Resistors

Precision Thin Film Chip Resistors

16



Dimensions

Type

Inches (Millimeters)



L

W

H

l

1

l

2

CT10

0402 (1005)

0.040 ± 0.004

(1.00 ± 0.10)

0.020 ± 0.002

(0.50 ± 0.05)

0.012 ± 0.002

(0.30 ± 0.05)

0.008 ± 0.004

(0.20 ± 0.10)

0.010 ± 0.004

(0.25 ± 0.10)

CT16

0603 (1608)

0.063 ± 0.004

(1.60 ± 0.10)

0.031 ± 0.004

(0.80 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.010 ± 0.006

(0.25 ± 0.15)

0.010 ± 0.006

(0.25 ± 0.15)

CT21

0805 (2012)

0.079 ± 0.004

(2.00 ± 0.10)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.014 ± 0.008

(0.35 ± 0.20)

0.014 ± 0.008

(0.35 ± 0.20)

CT32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.063 ± 0.004

(1.60 ± 0.10)

0.022 ± 0.004

(0.55 ± 0.10)

0.018 ± 0.008

(0.45 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CT40

1210 (3225)

0.122 ± 0.004

(3.10 ± 0.10)

0.102 ± 0.006

(2.60 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.020 ± 0.008

(0.50 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.20)

CT50

2010 (5025)

0.200 ± 0.004

(5.00 ± 0.10)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.024 ± 0.008

(0.60 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.2)

CT63

2512 (6432)

0.250 ± 0.004

(6.35 ± 0.10

0.126 ± 0.006

(3.20 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.024 ± 0.008

(0.60 ± 0.20)

0.020 ± 0.008

(0.50 ± 0.20)

CT

10

-

XXXX

-

F

K

-

E

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

T.C.R

(ppm/

°

C)

Precision Thin

Film Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E24 & E96

Series

10.2Ω=10R2

10KΩ=1002

A = ±0.05%

B = ±0.1%

C = ±0.25%

D = ±0.5%







E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free









B = ±10

C = ±15

D = ±25

E = ±50







160

180

200

120

-40

-20

20

0

40

60

120

140

40

60

80

100

80

100

20

0

T emperature  (˚C )

Rated Power (%

)

125˚C

70˚C

-55˚C

(10,16,21,32,40,50,63)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Thin Film Chip Resistors

Precision Thin Film Chip Resistors

17

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance Range

(E-96, E-24)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature

Range

A(±0.05%)

B(±0.1%)

C(±0.25%)

D(±0.5%)

CT10

0402 (1005)

1/16W

±50

-

10Ω - 121KΩ

10Ω -121KΩ

10Ω -121KΩ

50V

100V

-55°C to

+125°C

±25

10Ω - 121KΩ

10Ω -121KΩ

10Ω -121KΩ

±15

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

10Ω - 100KΩ

10Ω - 100KΩ

CT16

0603 (1608)

1/10W

±50

-

10Ω - 681KΩ

1Ω - 681KΩ

1Ω - 681KΩ

75V

150V

±25

1KΩ - 47KΩ

10Ω - 681KΩ

10Ω - 681KΩ

10Ω - 681KΩ

±15

1KΩ - 47KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

1KΩ - 47KΩ

10Ω - 100KΩ

10Ω - 100KΩ

CT21

0805 (2012)

1/8W

±50

-

10Ω - 1.5MΩ

1Ω - 1.5MΩ

1Ω - 1.5MΩ

150V

300V

±25

100Ω - 100KΩ

10Ω - 1.5MΩ

10Ω - 1.5MΩ

10Ω - 1.5MΩ

±15

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

CT32

1206 (3216)

1/8W

±50

-

10Ω - 1.5MΩ

1Ω - 1.5MΩ

1Ω - 1.5MΩ

200V

400V

±25

100Ω - 100KΩ

10Ω - 1.5MΩ

10Ω - 1.5MΩ

10Ω - 1.5MΩ

±15

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

CT40

1210 (3225)

1/4W

±50

-

10Ω - 1MΩ

1Ω - 1MΩ

1Ω - 1MΩ

±25

100Ω - 100KΩ

10Ω - 1MΩ

10Ω - 1MΩ

10Ω - 1MΩ

±15

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

CT50

2010 (5025)

1/2W

±50

-

10Ω - 1MΩ

10Ω - 1MΩ

10Ω - 1MΩ

±25

100Ω - 100KΩ

10Ω - 1MΩ

10Ω - 1MΩ

10Ω - 1MΩ

±15

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

CT63

2512 (6432)

3/4W

±50

-

10Ω - 1MΩ

10Ω - 1MΩ

10Ω - 1MΩ

±25

100Ω - 100KΩ

10Ω - 1MΩ

10Ω - 1MΩ

10Ω - 1MΩ

±15

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

-

±10

100Ω - 100KΩ

10Ω - 100KΩ

10Ω - 100KΩ

Test

 Specification

Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

± (0.5%+0.05Ω). No visible damage

Apply 2.5 times of rated voltage or maximum overload voltage for

5 secs which is lower

Resistance to Soldering Heat

± (0.5%+0.05Ω). No visible damage

260°C ± 5°C, 10 seconds ± 1 second

Load Life

± (0.5%+0.05Ω)

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

High Temperature Exposure

± (0.5%+0.05Ω)

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

Application and Ratings

www.asj.com.sg

www.asj.com.sg

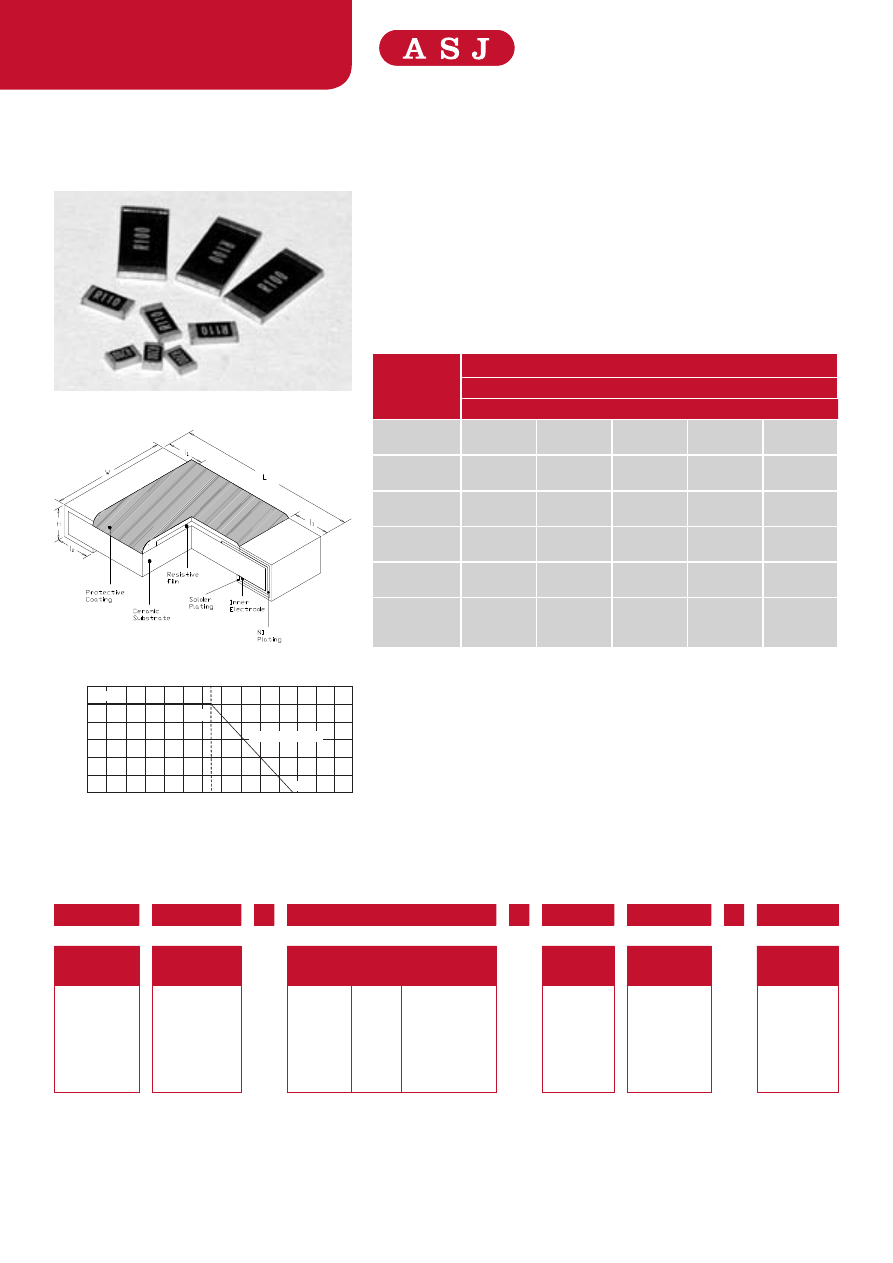

Features

•

Thin film process





•

High power rating up to 3 Watts in 2512 size

•

Precise tolerance down to ±0.5%



•

Extremely low TCR down to ±50 PPM/˚C

•

Resistance values from 50m to 1ohm

•

High purity alumina substrate for high power dissipation

Dimensions and Construction

Ordering Code / Information

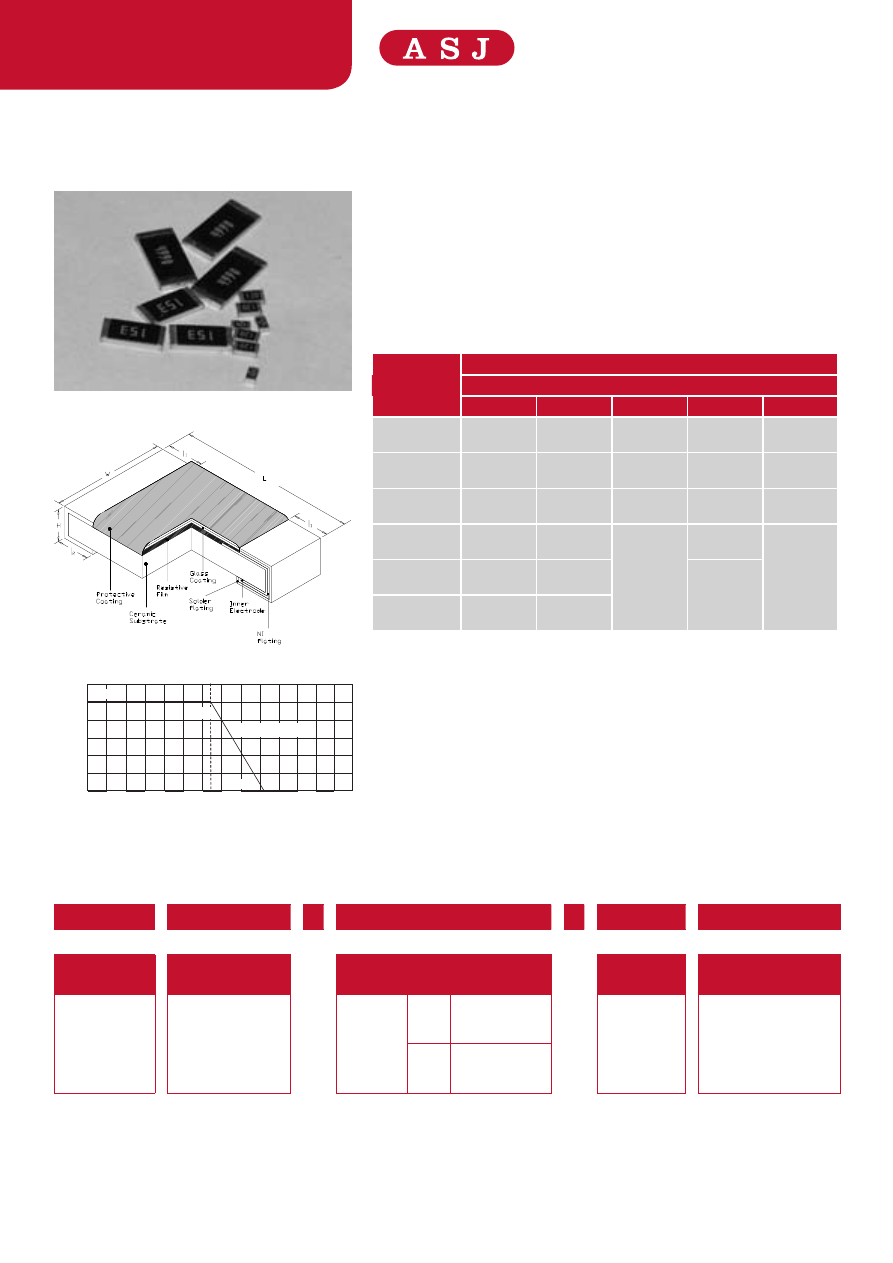

Thin Film Chip Resistors

Thin Film Current Sensing Chip Resistors

18

200

120

-40

-20

20

0

40

60

80

100

20

0

160

180

120

140

40

60

80

100

T emperature  ( C )

Rated Power (%

)

155

70

-55 C

(10,16,21,32,50,63 , 633)



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CT10

0402 (1005)

0.040 ± 0.002

(1.0 ± 0.05)

0.020 ± 0.002

(0.5 ± 0.05)

0.014 ± 0.004

(0.32 ± 0.10)

0.010 ± 0.004

(0.25 ± 0.10)

0.008 ± 0.004

(0.2 ± 0.10)

CT16

0603 (1608)

0.063 ± 0.004

(1.6 ± 0.10)

0.031 ± 0.004

(0.8 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.012 ± 0.008

(0.3 ± 0.20)

0.012 ± 0.008

(0.3 ± 0.20)

CT21

0805 (2012)

0.079 ± 0.006

(2.0 ± 0.15)

0.049 ± 0.006

(1.25 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.012 ± 0.008

(0.3 ± 0.20)

0.016 ± 0.010

(0.4 ± 0.25)

CT32

1206 (3216)

0.120 ± 0.006

(3.05 ± 0.15)

0.061 ± 0.006

(1.55 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.020 ± 0.012

(0.5 ± 0.30)

0.016 ± 0.010

(0.4 ± 0.25)

CT50

2010 (5025)

0.200 ± 0.008

(5.0 ± 0.20)

0.096 ± 0.006

(2.45 ± 0.15)

0.024 ± 0.006

(0.6 ± 0.15)

0.024 ± 0.012

(0.6 ± 0.30)

0.020 ± 0.010

(0.5 ± 0.25)

CT63

CT633

 2512 (6432)

0.25 ± 0.008

(6.35 ± 0.20)

0.124 ± 0.006

(3.15 ± 0.15)

0.024 ± 0.004

(0.6 ± 0.10)

0.024 ± 0.012

(0.6 ± 0.30)

0.022 ± 0.010

(0.55 ± 0.25)

CT

10

-

R500

-

F

K

-

E

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

T.C.R

(ppm/˚C)

Thin Film

Current Sensing

Chip Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

50 (2010/5025)

63 (2512/6432)

633 (2512/6432)

Resistors

4-Digit

E96 & E24 Series

0.47Ω=R470

0.499Ω=R499

D = ±0.5%

F = ±1%











E = 4,000 pcs

L = 5,000 pcs

K = 10,000 pcs









E = ± 50

F = ± 100

G = ± 200







Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Thin Film Chip Resistors

Thin Film Current Sensing Chip Resistors

19

Product Type

Power Rating

@ 70°C

T.C.R

(ppm/°C) Max

Resistance Range

Maximum Working

Voltage

Maximum Overload

Voltage

Operating

Temperature Range

D(±0.5%)

F(±1%)

CT10

0402 (1005)

1/16W

±50, ±100

0.5Ω ≤ R < 1Ω

√(P*R)

2.5*√(P*R)

-55°C + 155°C

CT16

0603 (1608)

1/10W

±100

0.2Ω - 0.3Ω

±50

0.301Ω ≤ R < 1Ω

CT21

0805 (2012)

1/8W

±100

0.2Ω - 0.3Ω

±50

0.301Ω ≤ R < 1Ω

CT32

1206 (3216)

1/4W

±200

-

0.05Ω - 0.1Ω

±100

0.101Ω - 0.3Ω

±50

0.301Ω ≤ R < 1Ω

CT50

 2010 (5025)

3/4W

±200

0.05Ω - 0.1Ω

±100

0.101Ω - 0.3Ω

CT63

2512 (6432)

1W

±50

0.301Ω ≤ R < 1Ω

CT633

2512 (6432)

2W

±100

-

0.1Ω ≤ R < 1Ω

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

As Spec.

As Spec. +25/-55/+25/+125/+25°C

Short Time Overload

±1%

RCWV*2.5 or Max. overload voltage for 5 seconds

Insulation Resistance

>1000MΩ

Apply 100VDC for 1 minute

Endurance

±1%

70 ± 2°C, Max. working voltage for 1000 hrs with 1.5 hrs

“ON” and 0.5 hrs “OFF”

Damp Heat with Load

±0.5%

40 ± 2°C, 90 ~ 95% R.H. Max. working voltage for 1000 hrs

with 1.5 hrs “ON” and 0.5 hrs “OFF”

Bending Strength

As Spec.

Bending amplitude 3mm for 10 seconds

Solderability

95% min. coverage

245 ± 5°C for 3 seconds

Resistance to Soldering Heat

±0.5%

260 ± 5°C for 10 seconds

Dielectric Withstand Voltage

By Type

Apply Max. Overload Voltage for 1 minute

Thermal Shock

±0.5%

-55°C ~150°C, 100 cycles

Low Temperature Operation

±0.5%

1 hour, -65°C followed by 45 minutes of RCWV

Application and Ratings

www.asj.com.sg

Features

•

Resistance Range: 0.1Ω to less than 1Ω

•

Highly reliable multi-layer electrode construction.

•

Compatible with wave and reflow soldering process.

•

Pb-Free with reflow soldering backward compatibility

Dimensions and Construction

Ordering Code / Information

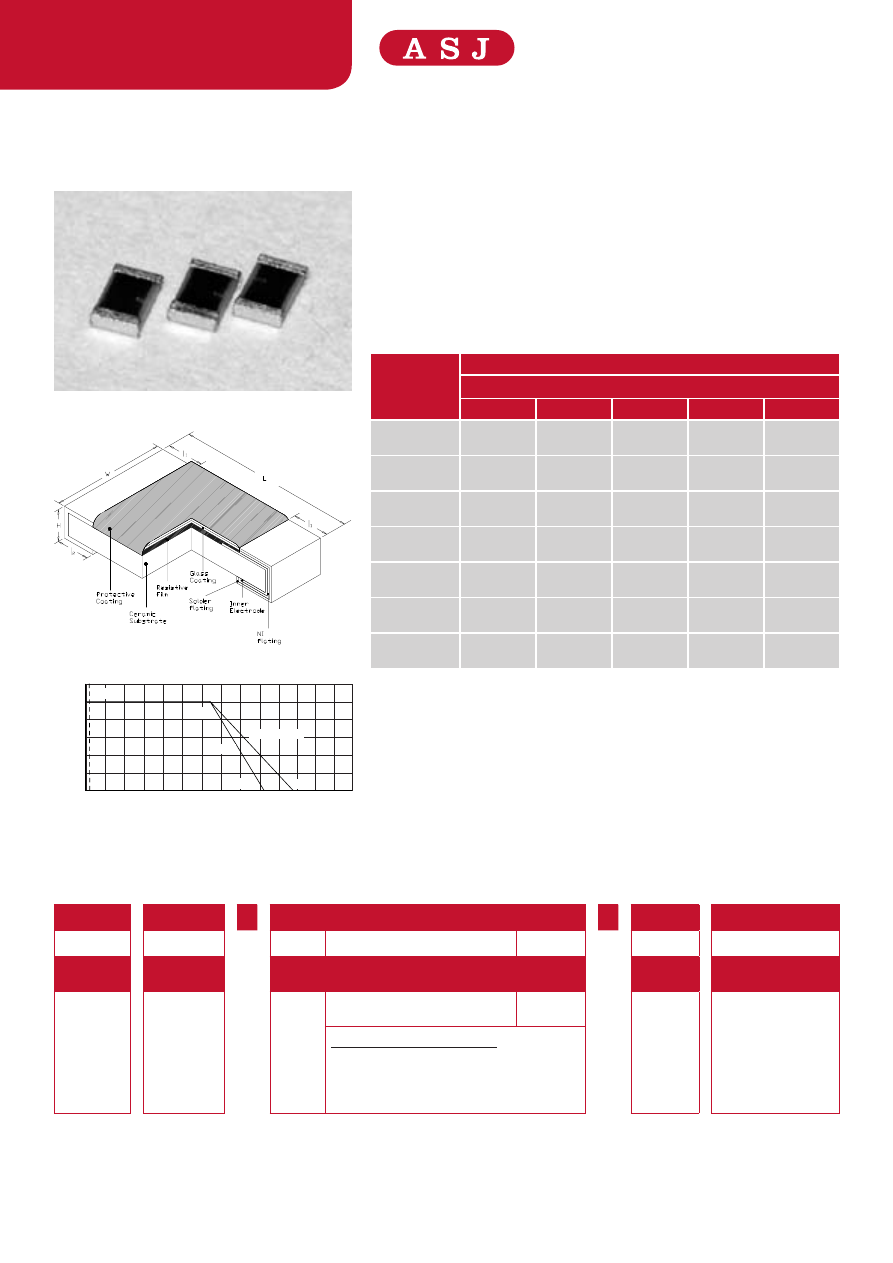

Current Sensing Chip Resistors

Milli Ohm Thick Film Chip Resistors

20



Dimensions

Type

Inches (Millimeters)



L

W

H

l

1

l

2

CR10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CR16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CR21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CR32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CR40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CR50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR

10

-

RXXX

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

Milli Ohm Thick

Film Chip Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E96 & E24 Series

0.47Ω=R470

0.499Ω=R499



F = ± 1%

G = ± 2%

J = ± 5%









E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free









20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Current Sensing Chip Resistors

Milli Ohm Thick Film Chip Resistors

21

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

G(±2%), J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CR10

 0402 (1005)

1/16W

±200

0.1Ω ≤ R < 1Ω

0.1Ω ≤ R < 1Ω

50V

100V

-55°C to +125°C

CR16

0603 (1608)

1/10W

±200

0.1Ω ≤ R < 1Ω

0.1Ω ≤ R < 1Ω

-55°C to +155°C

CR21

0805 (2012)

1/8W

±100

0.1Ω ≤ R < 1Ω

-

150V

300V

±200

-

0.1Ω ≤ R < 1Ω

CR32

1206 (3216)

1/4W

±100

0.1Ω ≤ R < 1Ω

-

200

400V

±200

-

0.1Ω ≤ R < 1Ω

CR40

1210 (3225)

1/3W

±100

0.1Ω ≤ R < 1Ω

-

±200

-

0.1Ω ≤ R < 1Ω

CR50

2010 (5025)

3/4W

±100

0.1Ω ≤ R < 1Ω

-

±200

-

0.1Ω ≤ R < 1Ω

CR63

2512 (6432)

1W

±100

0.1Ω ≤ R < 1Ω

-

±200

-

0.1Ω ≤ R < 1Ω

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±1.0%

For 2% & 5% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for

5secs which is lower

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

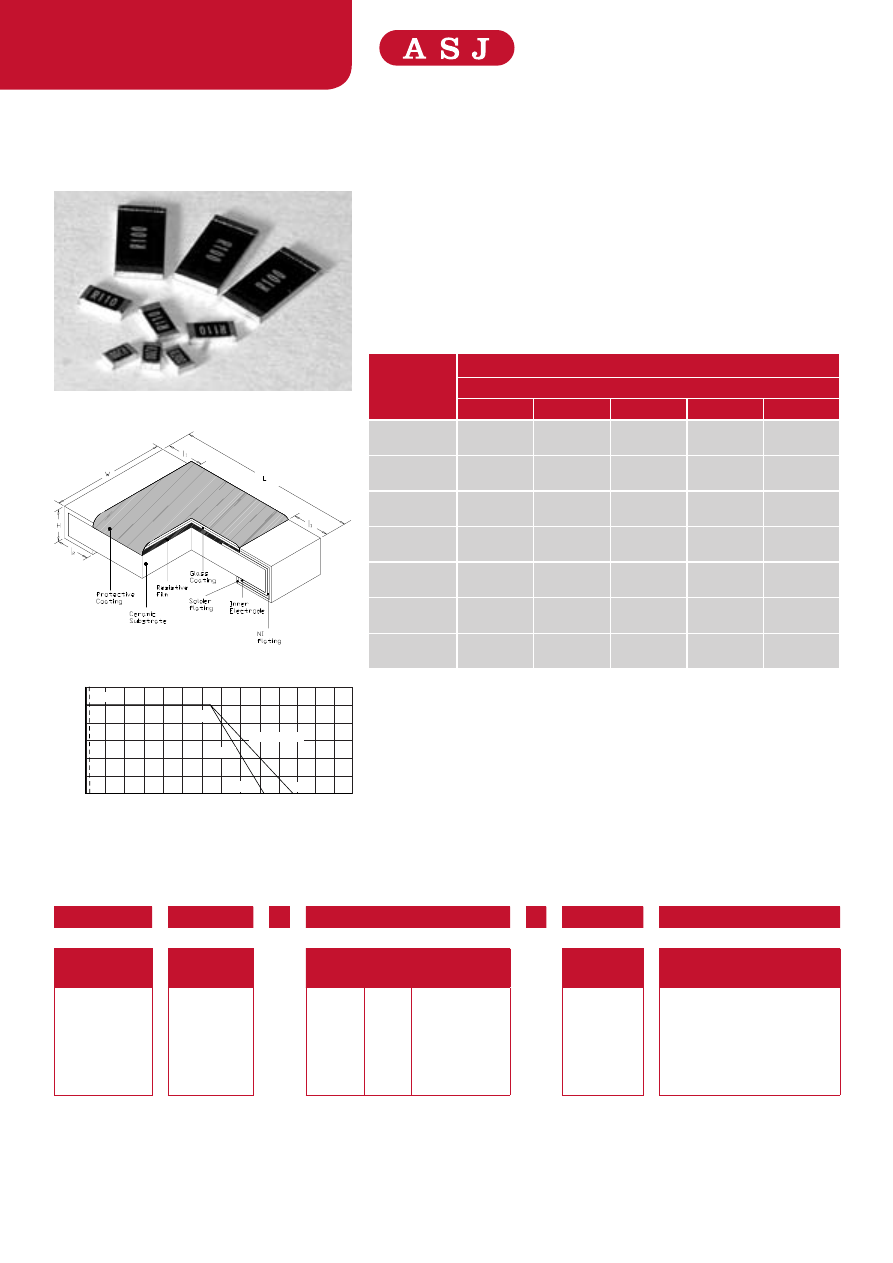

Features

•

Resistance Range: 0.01Ω - 0.1Ω



•

Highly reliable multi-layer electrode construction.

•

Compatible with wave and reflow soldering process.

•

Pb-Free with reflow soldering backward compatibility

Dimensions and Construction

Ordering Code / Information

Current Sensing Chip Resistors

Ultra Low Ohmic Thick Film Chip Resistors

22

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CR10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CR16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CR21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CR32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CR40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CR50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CR

32

-

RXXX

-

HTC

-

F

L

Type

Size

(Inch / mm)

Nominal Resistance

Option

Resistance

Tolerance

Packaging

Ultra Low

Ohmic Thick

Film Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E96 & E24

Series

0.091Ω=R091

0.03Ω=R030



HTC = High

Temperature

Coefficient

(Only applicable for

selection of resistance

range between 0.01Ω

≤ x 0.03Ω with

T.C.R of ±1,500ppm)

F = ±1%

G = ±2%

J = ±5%









E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free















Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Current Sensing Chip Resistors

Ultra Low Ohmic Thick Film Chip Resistors

23

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

G(±2%), J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CR10

0402 (1005)

1/16W

±200

0.04Ω ≤ R < 0.1Ω

50V

100V

-55°C to +125°C

CR16

0603 (1608)

1/10W

-55°C to +155°C

CR21

0805 (2012)

1/8W

±200

0.03Ω ≤ R < 0.1Ω

150V

300V

CR32

1206 (3216)

1/4W

±200

0.03Ω ≤ R < 0.1Ω

200V

400V

±100

0.01Ω ≤ R < 0.03Ω

±1500

CR40

1210 (3225)

1/3W

±100

0.03Ω ≤ R < 0.1Ω

-

±200

-

0.03Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

CR50

2010 (5025)

3/4W

±100

0.01Ω ≤ R < 0.1Ω

-

±200

-

0.01Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

CR63

2512 (6432)

1W

±100

0.03Ω ≤ R < 0.1Ω

-

±200

-

0.03Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

± 0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum
overload voltage for 5secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05

Ω

)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05

Ω

)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1

Ω

) for 1% , 2% & 5% tolerance

resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05

Ω

)

 For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours
Off cycle

±(2.0%+0.1

Ω

)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05

Ω

)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at
24 ± 2 hours after test conclusion.

±(1.0%+0.05

Ω

)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

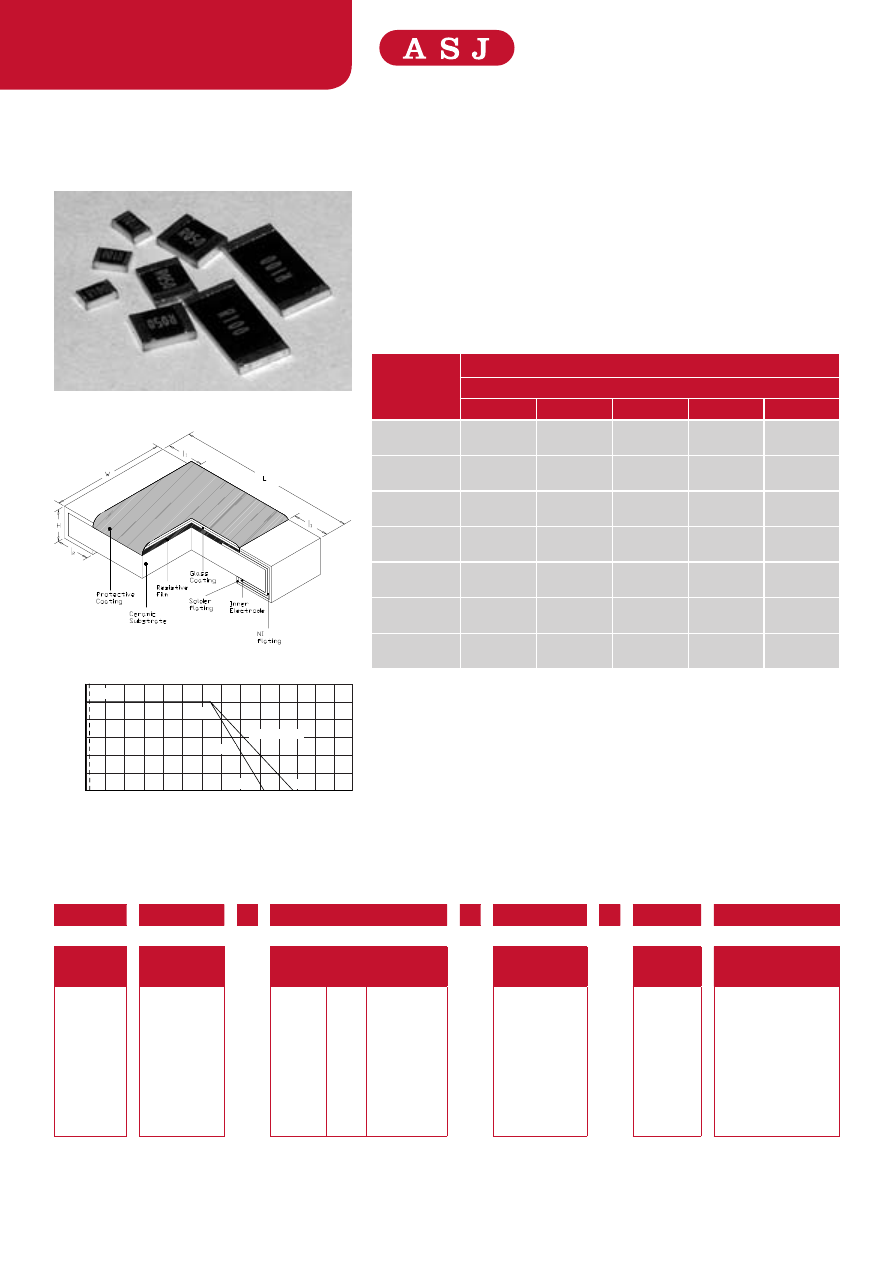

Features

•

Resistance Range: 0.01Ω to less than 1Ω

•

Highly reliable multi-layer electrode construction.

•

Compatible with wave and reflow soldering process.

•

Pb-Free with reflow soldering backward compatibility

Dimensions and Construction

Ordering Code / Information

Current Sensing Chip Resistors

Low Ohmic High Power
Current Sensing Chip Resistors

24

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CLP10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CLP16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CLP21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CLP32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CLP40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CLP50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CLP63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CLP

10

-

RXXX

-

HTC

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Option

Resistance

Tolerance

Packaging

Low Ohmic

High Power

Current

Sensing Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

4-Digit

E24 & E96

Series

0.47Ω=R470

0.499Ω=R499



HTC = High

Temperature

Coefficient

(Only applicable

for selection of

resistance range

between 0.01Ω

≤ x 0.03Ω

with T.C.R of

±1,500ppm)

F = ±1%

G = ±2%

J = ±5%









E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free

















Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Current Sensing Chip Resistors

Low Ohmic High Power

Current Sensing Chip Resistors

25

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

G(±2%), J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CLP10

0402 (1005)

1/8W

±200

0.04Ω ≤ R < 0.1Ω

50V

100V

-55°C to +125°C

CLP16

0603 (1608)

1/5W

-55°C to +155°C

CLP21

0805 (2012)

1/4W

±200

0.03Ω ≤ R < 0.1Ω

150V

300V

CLP32

1206 (3216)

1/2W

±200

0.03Ω ≤ R < 0.1Ω

200V

400V

±100

0.01Ω ≤ R < 0.03Ω

±1500

CLP40

1210 (3225)

3/4W

±100

0.03Ω ≤ R < 0.1Ω

-

±200

-

0.03Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

CLP50

2010 (5025)

1W

±100

0.01Ω ≤ R < 0.1Ω

-

±200

-

0.01Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

CLP63

2512 (6432)

2W

±100

0.03Ω ≤ R < 0.1Ω

-

±200

-

0.03Ω ≤ R < 0.1Ω

±1500

0.01Ω ≤ R < 0.03Ω

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for 5secs

which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours after

test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

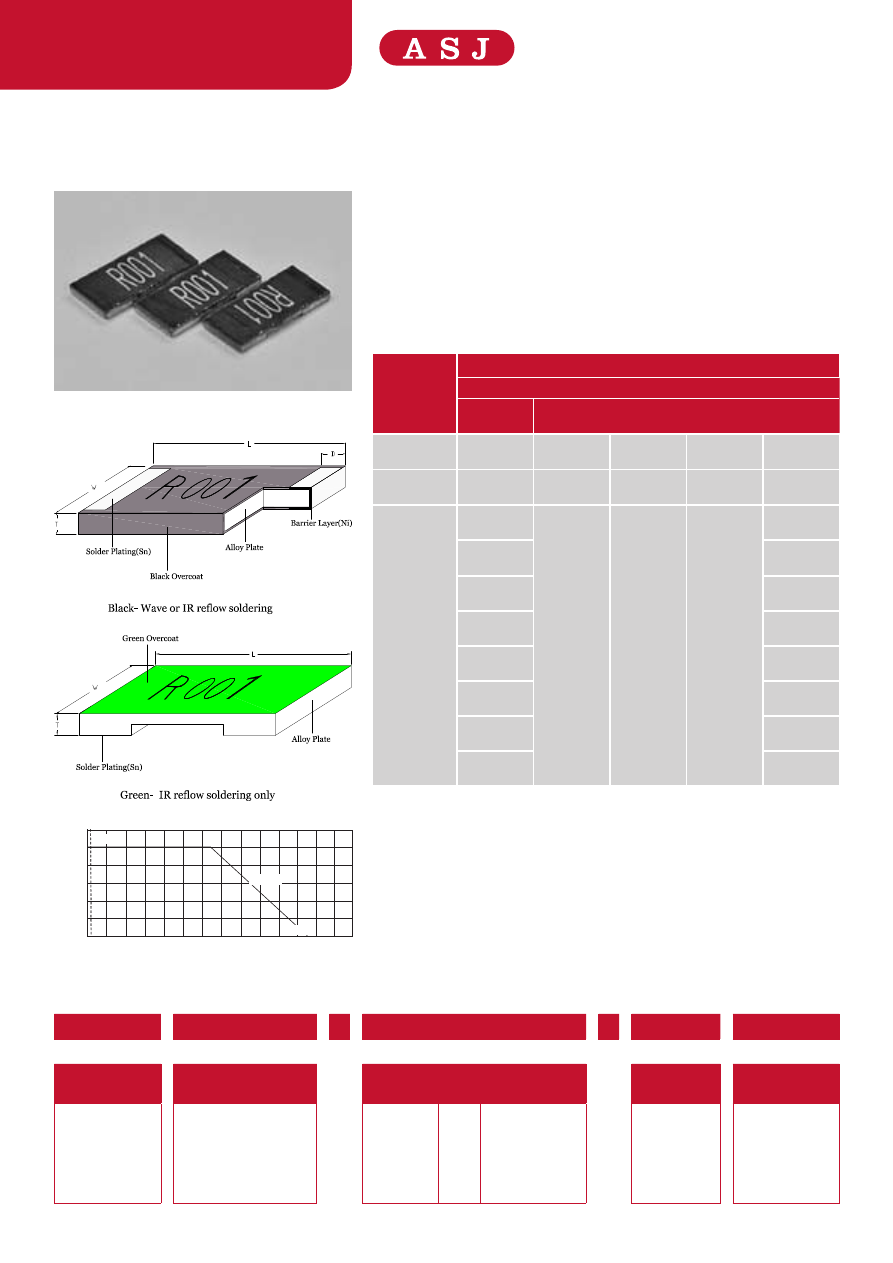

Features

•

Robust metal strip able to withstand high temperature and high current

•

Low TCR and Inductance



•

Resistance range from 0.5mΩ to 15mΩ



•

Designed for current sense circuits in power electronic systems

Dimensions and Construction

Ordering Code / Information

Current Sensing Chip Resistors

Metal Element Current Sensing Chip Resistors

26



Dimensions

Type

Inches (Millimeters)



Resistance

Value

L

W

T

D

CLS32

1206 (3216)

0.001Ω - 0.01Ω

0.126 ± 0.010

(3.20 ± 0.254)

0.063 ± 0.004

(1.60 ± 0.104)

0.024 ± 0.008

(0.60 ± 0.20)

0.039 ± 0.015

(0.98 ± 0.38)

CLS50

2010 (5025)

0.001Ω - 0.01Ω

0.200 ± 0.010

(5.08 ± 0.254)

0.100 ± 0.006

(2.54 ± 0.15)

0.024 ± 0.008

(0.60 ± 0.20)

0.066 ± 0.025

(1.665 ± 0.625)

CLS63

2512 (6432)

0.0005Ω

0.250 ± 0.010

(6.35 ± 0.254)

0.125 ± 0.014

(3.18 ± 0.35)

0.024 ± 0.008

(0.60 ± 0.20)

0.105 ± 0.010

(2.675 ± 0.254)

0.00075Ω

0.097 ± 0.010

(2.475 ± 0.254)

0.001Ω -

0.0015Ω

0.056 ± 0.010

(1.425 ± 0.254)

0.002Ω - 0.003Ω

0.046 ± 0.010

(1.175 ± 0.254)

0.004Ω

0.086 ± 0.010

(2.175 ± 0.254)

0.005Ω - 0.006Ω

0.076 ± 0.010

(1.925 ± 0.254)

0.007Ω

0.056 ± 0.010

(1.425 ± 0.254)

0.008Ω - 0.02Ω

0.046 ± 0.010

(1.175 ± 0.254)

CLS

6325

-

RXXX

-

F

P

Type

Size

(Inch / mm)(Power Rating)

Nominal Resistance

Resistance

Tolerance

Packaging

Metal Element

Current Sensing Chip

Resistors

32 (1206/3216)(1W)

50 (2010/5025)(1.5W)

631 (2512/6432)(1W)

632 (2512/6432)(2W)

6325 (2512/6432)(2.5W)

633 (2512/6432)(3W)

Resistors

4-Digit

E24 & E96 Series

0.0005Ω = R0005

0.001Ω = R001

F = ±1%

J = ±5%





P = 2,000 pcs







20

0

160

180

120

140

40

60

80

100

200

120

-40

-20

20

0

40

60

80

100

T emperature  (˚C )

Rated Power (%

)

170˚C

70˚C

-55˚C

(32,50,63)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Current Sensing Chip Resistors

Metal Element Current Sensing Chip Resistors

27

Product Type

Coating

Power Rating

@ 80°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%), J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CLS32

1206 (3216)

Black

1W

±50

0.001Ω - 0.01Ω

√(P*R)

2.5*√(P*R)

-55°C to +170°C

CLS50

2010 (5025)

Black

1.5W

±50

0.001Ω - 0.01Ω

CLS631
CLS632

CLS6325

CLS633

2512 (6432)

Green

1W

±50

0.011Ω - 0.015Ω

2W

±50

0.0035Ω, 0.0065Ω - 0.01Ω

2.5W

±50

0.004Ω, 0.005Ω, 0.006Ω

3W

±50

0.001Ω - 0.003Ω

±100

0.0005Ω, 0.00075Ω

* Green Coating is only suitable for IR reflow soldering only



Test

 Specification

Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

Black coating

Apply 2.5 times of rated voltage or maximum overload voltage for

5secs which is lower

±1.0%

Green coating

Resistance to Soldering Heat

±0.5%

Black coating

260°C ± 5°C, 10 seconds ± 1 second

±1.0%

Green coating

Load Life

±1.0%

Black coating

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±1.0%

Green coating

Thermal shock

±0.5%

Black coating

-55°C ~ 150°C, 100 cycles

±1.0%

Green coating

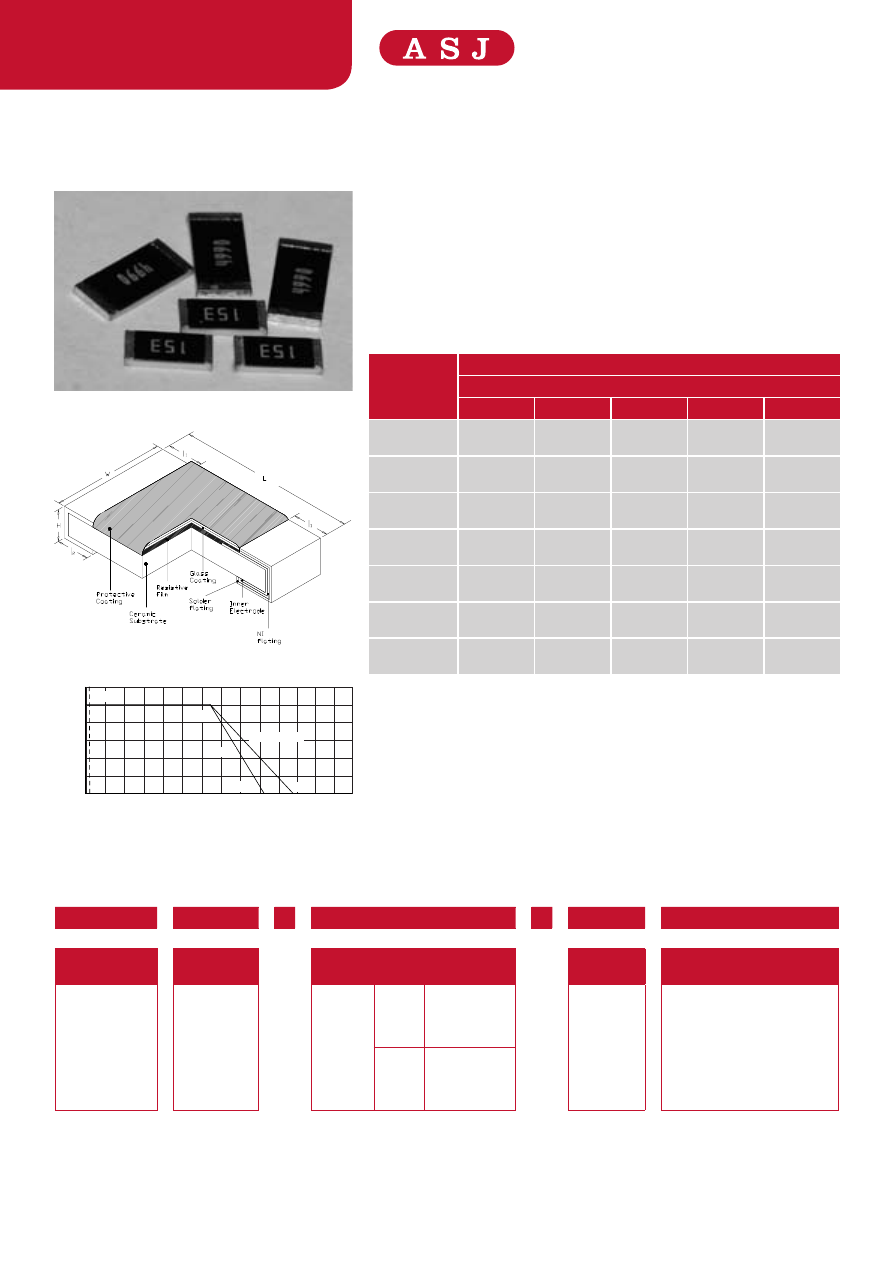

Application and Ratings

www.asj.com.sg

Features

•

Offers double the power rating of standard chip resistors

•

Up to 2W for 2512 case size

•

Pb-Free with reflow soldering backward compatibility

CPW10

0402 (1005)

0.040±0.004

(1.00±0.10)

0.020±0.002

(0.50±0.05)

0.014±0.002

(0.35±0.05)

0.008±0.004

(0.20±0.10)

0.010±0.004

(0.25±0.10)

CPW16

0603 (1608)

0.063±0.004

(1.60±0.10)

0.031±0.004

(0.80±0.10)

0.018±0.004

(0.45±0.10)

0.012±0.008

(0.30±0.20)

0.012±0.008

(0.30±0.20)

CPW21

0805 (2012)

0.079±0.006

(2.00±0.15)

0.049±0.004

(1.25±0.10)

0.020±0.004

(0.50±0.10)

0.016±0.008

(0.40±0.20)

0.016±0.008

(0.40±0.20)

CPW32

1206 (3216)

0.122±0.004

(3.10±0.10)

0.063±0.006

(1.60±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.020±0.010

(0.50±0.25)

CPW40

1210 (3225)

0.122±0.004

(3.10±0.10)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.020±0.010

(0.50±0.25)

0.016±0.008

(0.40±0.20)

CPW50

2010 (5025)

0.200±0.006

(5.00±0.15)

0.098±0.006

(2.50±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

CPW63

2512 (6432)

0.250±0.006

(6.30±0.15)

0.126±0.006

(3.20±0.15)

0.022±0.002

(0.55±0.05)

0.024±0.010

(0.60±0.25)

0.016±0.008

(0.40±0.20)

Dimensions and Construction

Ordering Code / Information

Power Resistors

High Power Rating Chip Resistors

28

CPW

10

-

XXXX

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

High Power Rating

Chip Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

3-Digit

E24 Series

2.2Ω=2R2

100Ω=101

D = ±0.5%

F = ±1%

G = ±2%

J = ±5%







E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free



4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Power Resistors

High Power Rating Chip Resistors

29

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96

D(±0.5%)

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

G(±2%), J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature

Range

CPW10

0402 (1005)

1/8W

±200

0.1Ω ≤ R < 10Ω

50V

100V

-55°C to +125°C

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW16

0603 (1608)

1/5W

±200

0.1Ω ≤ R < 10Ω

-55°C to +155°C

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW21

0805 (2012)

1/4W

±200

0.1Ω ≤ R < 10Ω

150V

300V

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW32

1206 (3216)

1/2W

±200

0.1Ω ≤ R < 10Ω

200V

400V

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW40

1210 (3225)

2/3W

±200

0.1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW50

2010 (5025)

1W

±200

0.1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

CPW63

2512 (6432)

2W

±200

0.1Ω ≤ R < 10Ω

1MΩ ≤ R ≤ 15MΩ

±100

10Ω ≤ R < 1MΩ

Test

Specification

Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for

5 secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolorence resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

Features

•

Higher maximum working voltage compared to standard chip resistors

•

Reliable electrode construction

Dimensions and Construction

Ordering Code / Information

Power Resistors

Medium Voltage Chip Resistors

30



Dimensions

Type

Inches (Millimeters)



L

W

H

l

1

l

2

CPM21

0805 (2012)

0.079 ± 0.006

(2.00 ± 0.15)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.016 ± 0.008

(0.40 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CPM32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.063 ± 0.006

(1.60 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.020 ± 0.010

(0.50 ± 0.25)

0.020 ± 0.010

(0.50 ± 0.25)

CPM63

2512 (6432)

0.250 ± 0.006

(6.30 ± 0.15)

0.126 ± 0.006

(3.20 ± 0.15)

0.022 ± 0.004

(0.55 ± 0.10)

0.024 ± 0.010

(0.60 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CPM

21

-

1000

-

F

L

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

Medium Voltage Chip

Resistors





21 (0805/2012)

32 (1206/3216)

63 (2512/6432)



Resistors

3-Digit

E24 Series

100KΩ=104

F = ±1%

J = ±5%





E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free





4-Digit

E96 Series

100KΩ=1003

160

180

200

120

-40

-20

20

0

40

60

120

140

40

60

80

100

80

100

20

0

T emperature  (˚C )

Rated Power (%

)

155˚C

70˚C

-55˚C

(21,32,63)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Power Resistors

Medium Voltage Chip Resistors

31

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

J(±5%)

Max Working

Voltage

Max Overload

Voltage

Dielectric

Withstanding

Voltage

Operating

Temperature Range

CPM21

0805 (2012)

1/8W

± 200

100KΩ to 10MΩ

400V

800V

-55°C to +155°C

CPM32

1206 (3216)

1/4W

100KΩ to 10MΩ

100KΩ to 27MΩ

500V

1,000V

CPM63

2512 (6432)

1W

-

4.7MΩ to 16MΩ

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for

5secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

  For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

Features

•

Highly reliable multilayer electrode construction

•

Up to 3.0kV for 2512 case size

•

Excellent performance at high voltage

•

Suitable for inverters and camera flash circuits

Dimensions and Construction

Ordering Code / Information

Power Resistors

High Voltage Chip Resistors

32

200

120

-40

-20

20

0

40

60

80

100

20

0

160

180

120

140

40

60

80

100

T emperature  (˚C )

Rated Power (%

)

125˚C

70˚C

-55˚C

(10,16,21,32,40,50,63)



Dimensions

Type

Inches (Millimeters)



L

W

H

I

1

i

2

CPH10

0402 (1005)

0.040 ± 0.004

(1.00 ± 0.05)

0.020 ± 0.002

(0.50 ± 0.0.05)

0.014 ± 0.002

(0.35 ± 0.05)

0.008 ± 0.004

(0.20 ± 0.10)

0.010 ± 0.004

(0.20 ± 0.10)

CPH16

0603 (1608)

0.063 ± 0.004

(1.60 ± 0.10)

0.031 ± 0.004

(0.80 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.012 ± 0.008

(0.30 ± 0.20)

0.012 ± 0.008

(0.30 ± 0.20)

CPH21

0805 (2012)

0.079 ± 0.006

(2.00 ± 0.10)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.014 ± 0.008

(0.35 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CPH32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.061 ± 0.004

(1.55 ± 0.10)

0.022 ±  0.004

(0.55 ± 0.10)

0.020 ± 0.010

(0.50 ± 0.25)

0.020 ± 0.008

(0.50 ± 0.20)

CPH50

2010 (5025)

0.200 ± 0.008

(5.00 ± 0.20)

0.098 ± 0.006

(2.50 ± 0.15)

0.024 ± 0.010

(0.60 ± 0.25)

CPH63

2512 (6432)

0.25 ± 0.008

(6.35 ± 0.20)

0.126 ± 0.006

(3.20 ± 0.15)

CPH

10

-

XXXX

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

High Voltage Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

50 (2010/5025)

63 (2512/6432)

 Resistors

3-Digit

E24 Series

10Ω=100

100Ω=101

F = ± 1%

J = ± 5%

E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

Power Resistors

High Voltage Chip Resistors

33

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature

Range

CPH10

 0402 (1005)

1/16W

±100

±200

 10Ω - 1MΩ

 1.02MΩ - 10MΩ

100V

200V

-55°C to +125°C

CPH16

0603 (1608)

1/10W

200V

400V

CPH21

0805 (2012)

1/8W

400V

800V

CPH32

1206 (3216)

1/4W

500V

1,000V

CPH50

2010 (5025)

1/2W

2,000V

3,000V

CPH63

2512 (6432)

1W

3,000V

4,000V

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±1%

±(1.0%+0.05Ω)

Apply 2.5 times of rated voltage or maximum overload voltage for

5 secs which is lower

±5%

±(2.0%+0.05Ω)

Insulation Resistance

±1%

≥ 10G

Max. overload voltage for 1 minute

±5%

Endurance

±1%

±(2.0%+0.10Ω)

70 ± 2°C, Max. working voltage for 1000 hrs with 1.5 hrs “ON” and

0.5 hrs “OFF”

±5%

±(3.0%+0.10Ω)

Damp Heat with Load

±1%

±(2.0%+0.10Ω)

40 ± 2°C, 90~95% R.H. Max. working voltage for 1000 hrs with

1.5 hrs “ON” and 0.5 hrs “OFF”

±5%

±(3.0%+0.10Ω)

Dry Heat

±1%

±(1.0%+0.05Ω)

at +125°C for 1000 hrs

±5%

±(1.5%+0.10Ω)

Bending Strength

±1%

±(1.0%+0.05Ω)

Bending once for 5 seconds

2010, 2512 sizes: 2mm Other sizes: 3mm

±5%

±(1.0%+0.05Ω)

Solderability

±1%

95% min. coverage

245 ± 5°C for 3 seconds

±5%

Resistance to Soldering Heat

±1%

±(0.5%+0.05Ω)

260 ± 5°C for 10 seconds

±5%

±(1.0%+0.05Ω)

Voltage Proof

No breakdown or flashover

1.42 times RCWV (RMS) for 1 minute

Leaching

Individual leaching area <= 5%

Total leaching area <= 10%

260 ± 5°C for 30 seconds

Rapid Change of Temperature

±1%

±(0.5%+0.05Ω)

-55°C to +125°C, 5 cycles

±5%

±(1.0%+0.05Ω)

Application and Ratings

www.asj.com.sg

Features

•

Resistance range - above 10MΩ to 100MΩ

•

Highly reliable multilayer electrode construction

•

Compatible with all soldering process

Dimensions and Construction

Ordering Code / Information

High Ohmic Chip Resistors

High Ohmic Value Chip Resistors

34

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CH10

0402 (1005)

0.040 ± 0.004

(1.00 ± 0.10)

0.020 ± 0.002

(0.50 ± 0.05)

0.014 ± 0.002

(0.35 ± 0.05)

0.008 ± 0.004

(0.20 ± 0.10)

0.010 ± 0.004

(0.25 ± 0.10)

CH16

0603 (1608)

0.063 ± 0.004

(1.60 ± 0.10)

0.031 ± 0.004

(0.80 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.012 ± 0.008

(0.30 ± 0.20)

0.012 ± 0.008

(0.30 ± 0.20)

CH21

0805 (2012)

0.079 ± 0.006

(2.00 ± 0.15)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.016 ± 0.008

(0.40 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CH32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.063 ± 0.006

(1.60 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.020 ± 0.010

(0.50 ± 0.25)

0.020 ± 0.010

(0.50 ± 0.25)

CH40

1210 (3225)

0.122 ± 0.004

(3.10 ± 0.10)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.020 ± 0.010

(0.50 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH50

2010 (5025)

0.200 ± 0.006

(5.00 ± 0.15)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.024 ± 0.010

(0.60 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH63

2512 (6432)

0.250 ± 0.006

(6.30 ± 0.15)

0.126 ± 0.006

(3.20 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.024 ± 0.010

(0.60 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH

10

-

XXXX

-

F

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

High Ohmic Value Chip

Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)

Resistors

3-Digit

E24 Series

2.2Ω=2R2

100Ω=101

F = ±1%

J = ±5%











E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free

Y = 20,000 pcs Lead Free





4-Digit

E96 Series

10.2Ω=10R2

10KΩ=1002

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

High Ohmic Chip Resistors

High Ohmic Value Chip Resistors

35

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-96, E-24

F(±1%)

Resistance

Range

E-24

J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CH10

0402 (1005)

1/16W

±200

10MΩ < R ≤ 15MΩ

50V

100V

-55°C to +125°C

±500

15MΩ < R ≤ 100MΩ

CH16

0603 (1608)

1/10W

±200

10MΩ < R ≤ 30MΩ

-55°C to +155°C

±500

30MΩ < R ≤ 100MΩ

CH21

0805 (2012)

1/8W

±200

10MΩ < R ≤ 30MΩ

150V

300V

±500

30MΩ < R ≤ 100MΩ

CH32

1206 (3216)

1/4W

±200

10MΩ < R ≤ 30MΩ

200V

400V

±500

30MΩ < R ≤ 100MΩ

CH40

1210 (3225)

1/3W

±200

10MΩ < R ≤ 30MΩ

±500

30MΩ < R ≤ 100MΩ

CH50

2010 (5025)

3/4W

±200

10MΩ < R ≤ 30MΩ

±500

30MΩ < R ≤ 100MΩ

CH63

2512 (6432)

1W

±200

10MΩ < R ≤ 30MΩ

±500

30MΩ < R ≤ 100MΩ

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage

for 5secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings

www.asj.com.sg

Features

•

Resistance Range - above 10MΩ to 1TΩ (10¹²Ω)





•

Tolerance of ±5% for resistance values up to 500MΩ.

•

For resistance range more than 500MΩ to 1TΩ, tolerance available are ±10%

and ±20%

•

Excellent thermal, voltage and environmental stability

Dimensions and Construction

Ordering Code / Information

High Ohmic Chip Resistors

Ultra-High Ohmic Value Chip Resistors

36

20

0

160

180

120

140

0

0

2

0

0

1

0

8

0

6

0

4

120

-40

-20

20

0

40

60

80

100

Temperature (˚C)

R

at

ed P

ow

er (

%

)

125˚C

155˚C

70˚C

-55˚C

(16,21,32,40,50,63)

(10)



Dimensions

Type

  Inches (Millimeters)



L

W

H

l

1

l

2

CH10

0402 (1005)

0.040 ± 0.004

(1.00 ± 0.10)

0.020 ± 0.002

(0.50 ± 0.05)

0.014 ± 0.002

(0.35 ± 0.05)

0.008 ± 0.004

(0.20 ± 0.10)

0.010 ± 0.004

(0.25 ± 0.10)

CH16

0603 (1608)

0.063 ± 0.004

(1.60 ± 0.10)

0.031 ± 0.004

(0.80 ± 0.10)

0.018 ± 0.004

(0.45 ± 0.10)

0.012 ± 0.008

(0.30 ± 0.20)

0.012 ± 0.008

(0.30 ± 0.20)

CH21

0805 (2012)

0.079 ± 0.006

(2.00 ± 0.15)

0.049 ± 0.004

(1.25 ± 0.10)

0.020 ± 0.004

(0.50 ± 0.10)

0.016 ± 0.008

(0.40 ± 0.20)

0.016 ± 0.008

(0.40 ± 0.20)

CH32

1206 (3216)

0.122 ± 0.004

(3.10 ± 0.10)

0.063 ± 0.006

(1.60 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.020 ± 0.010

(0.50 ± 0.25)

0.020 ± 0.010

(0.50 ± 0.25)

CH40

1210 (3225)

0.122 ± 0.004

(3.10 ± 0.10)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.020 ± 0.010

(0.50 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH50

2010 (5025)

0.200 ± 0.006

(5.00 ± 0.15)

0.098 ± 0.006

(2.50 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.024 ± 0.010

(0.60 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH63

2512 (6432)

0.250 ± 0.006

(6.30 ± 0.15)

0.126 ± 0.006

(3.20 ± 0.15)

0.022 ± 0.002

(0.55 ± 0.05)

0.024 ± 0.010

(0.60 ± 0.25)

0.016 ± 0.008

(0.40 ± 0.20)

CH

10

-

XXX

-

J

K

Type

Size

(Inch / mm)

Nominal Resistance

Resistance

Tolerance

Packaging

Ultra High

Ohmic Value

Chip Resistors

10 (0402/1005)

16 (0603/1608)

21 (0805/2012)

32 (1206/3216)

40 (1210/3225)

50 (2010/5025)

63 (2512/6432)



Resistors

3-Digit

E24 Series

100MΩ=107

J = ±5%

K = ±10%

M = ±20%







E = 4,000 pcs Lead Free

L = 5,000 pcs Lead Free

K = 10,000 pcs Lead Free







For Resistance Value 1G and above

Tolerance 5% - Represented by 3 figures,

“G” (For Giga Ohm) and “T” (For Tera Ohm)

indicates the decimal on value (Only

available for E-24 Series)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications with factory before use.

www.asj.com.sg

High Ohmic Chip Resistors

Ultra-High Ohmic Value Chip Resistors

37

Product Type

Power Rating

@ 70°C

T.C.R (ppm/°C)

Max

Resistance

Range

E-24

K(±10%)

Resistance

Range

E-24

J(±5%)

Max Working

Voltage

Max Overload

Voltage

Operating

Temperature Range

CH10

0402 (1005)

1/16W

±500

100MΩ < R ≤ 470MΩ

50V

100V

-55°C to +125°C

CH16

0603 (1608)

1/10W

±500

100MΩ < R ≤ 1GΩ

-55°C to +155°C

±1000

1GΩ < R ≤ 10GΩ

CH21

0805 (2012)

1/8W

±500

100MΩ < R ≤ 1GΩ

150V

300V

±1000

1GΩ < R ≤ 10GΩ

±2000

10GΩ < R ≤ 100GΩ

±2500

100GΩ < R ≤ 1TΩ

CH32

1206 (3216)

1/4W

±500

100MΩ < R ≤ 1GΩ

200V

400V

±1000

1GΩ < R ≤ 10GΩ

±2000

10GΩ < R ≤ 100GΩ

±2500

100GΩ < R ≤ 1TΩ

CH40

1210 (3225)

1/3W

±500

100MΩ < R ≤ 470MΩ

CH50

2010 (5025)

3/4W

±500

100MΩ < R ≤ 470MΩ

CH63

2512 (6432)

1W

±500

100MΩ < R ≤ 1GΩ

Test

 Specification

 Test Method

Resistance Value

Within Resistors specification

To be measure at 25°C

Resistance Temperature Coefficient

Within Specification of TCR

25°C/ +125°C

Short Time Overload

±0.5%

For 1% tolerance

Apply 2.5 times of rated voltage or maximum overload voltage for

5secs which is lower

±1.0%

For 2% & 5% tolerance

Resistance to Soldering Heat

±(0.5%+0.05Ω)

For 1% tolerance

260°C ± 5°C, 10 seconds ± 1 second

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Moisture Resistance

±(1%+0.1Ω) for 1% , 2% & 5% tolerance resistor

40°C ± 2°C, 90% - 95% RH, 1000 hours

Load Life

±(1.0%+0.05Ω)

For 1% tolerance

70°C ± 2°C ,1000 hours, 1.5 hours On,0.5 hours Off cycle

±(2.0%+0.1Ω)

For 2% & 5% tolerance

High Temperature Exposure

±(0.5%+0.05Ω)

For 1% tolerance

125°C , 1000 hours. Unpowered. Measurement at 24 ± 2 hours

after test conclusion.

±(1.0%+0.05Ω)

For 2% & 5% tolerance

Application and Ratings
