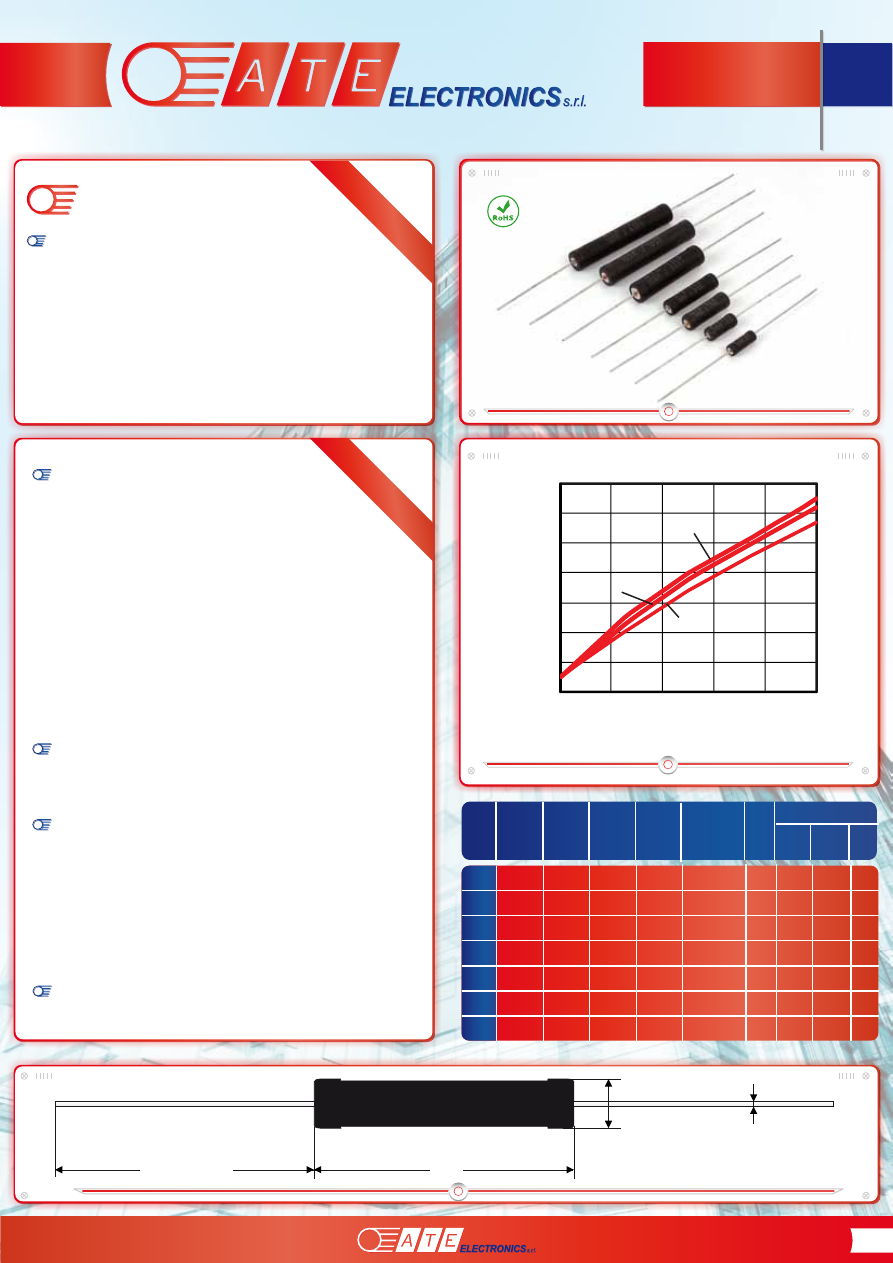

CS Series
FEATURES
Easy replacement of vitreous enamel resistors with no cost increase
and no performance loss.
The whole assembly is coated with multi-layer silicone coating to give
maximum wire protection form -55°C to +350°C.
Performance improvement is obtained by close tolerance, very low
temperature coefficient and excellent stability in operation under severe
environmental conditions.
High level reliability due to ceramic core chemically inert and centerless
ground for uniformity, selected wire element and completely welded
construction terminal to terminal.
WIREWOUND RESISTORS
SILICONE COATED 2 W TO 15 W
Specifications
ELECTRICAL SPECIFICATIONS
- Ohmic values
E24 Series. For out of range or not standard ohmic values,
consult ATE Technical Dept.
- Tolerance
Standard 5%. Available on request up to 1% (for values >R047).
- Temperature coefficient
Typical values: ±100 to ±30 ppm from R10 to Rmax
Consult factory for special applications
- Dielectric strength
500 Vdc 2CS to 6CS
700 Vdc 7CS to 12CS
- Insulation resistance
1000 MOhm minimum.
100 MOhm after moisture test
- Sovraccarico
5s at 10 times rated power
5s at 5 times rated power 2CS and 3CS
- Non inductive
Models of equivalent physical and electrical specifications are also available with
non inductive Ayrton-Perry winding
MECHANICAL SPECIFICATIONS
- Terminal strength
10 lb. pull test.
- Solderability
Continuous, satisfactory coverage when tested in accordance to MIL-PRF-26 H.
MATERIALS
- Core
Ceramic steatite or alumina centerless ground
- Resistive element
Copper-nickel alloy or nickel-chrome alloy with specific temperature coefficient
- End caps
Stainless steel
- Coating
Special high temperature silicone
- Standard terminals
LF tinned copper or LF tinned copperweld
Point of measure: L + 20mm
DERATING
These resistors can be used in a temperature range form -55°C to +350°C
To use these components in applications with working temp. higher +25°C You have
to make a power reduction with linear derating from nominal power to zero at 350°C
These resistors meet or exceed the requirements of
MIL-PRF-26 H specifications.
ATE 10CS
10R J 1210
L
38±3
D
d
CS SERIES
7
EN 2010
Wirewound resistors silicone coated
2 W to 15 W
ATE
Type
MIL PRF
26H
Type
Rated
power
(W)
Resistance
range
(Ohm)
Voltage
Limit
(V)
Temperature
rise
(°C/W)
Weight
(g)
Dimensions
D
(mm)
L
(mm)
d
(mm)
2CS
3CS
5CS
6CS
7CS
10CS
12CS
RW69V
RW74U
RW67V
RW55V
RW68V
RW56V
3
4
-
6
7
10
13
15
0.01- 5K6
0.01- 10K
0.01- 24K
0.01- 27K
0.01- 47K
0.01- 68K
0.01- 82K
130
200
380
435
685
940
1100
91
74
52
45
30
24
21
1.2
1.8
3.2
3.8
7
9
10
5.2±0.5
6±0.5
8±0.5
8±0.5
9.5±0.5
9.5±0.5
9.5±0.5
12±0.8
13.5±0.8
22±1.6
25±1.6
35±1.6
46±1.6
51±1.6
0.8
0.8
0.8
0.8
0.9
0.9
0.9
0
50
100
150
200
250
300
350
0
20
40
60
80
100
T
m
ax
(
°
C)
.
Pn (%)
2CS, 3CS
T
amb
=25
°
C
5CS, 6CS
7CS, 10CS, 12CS
