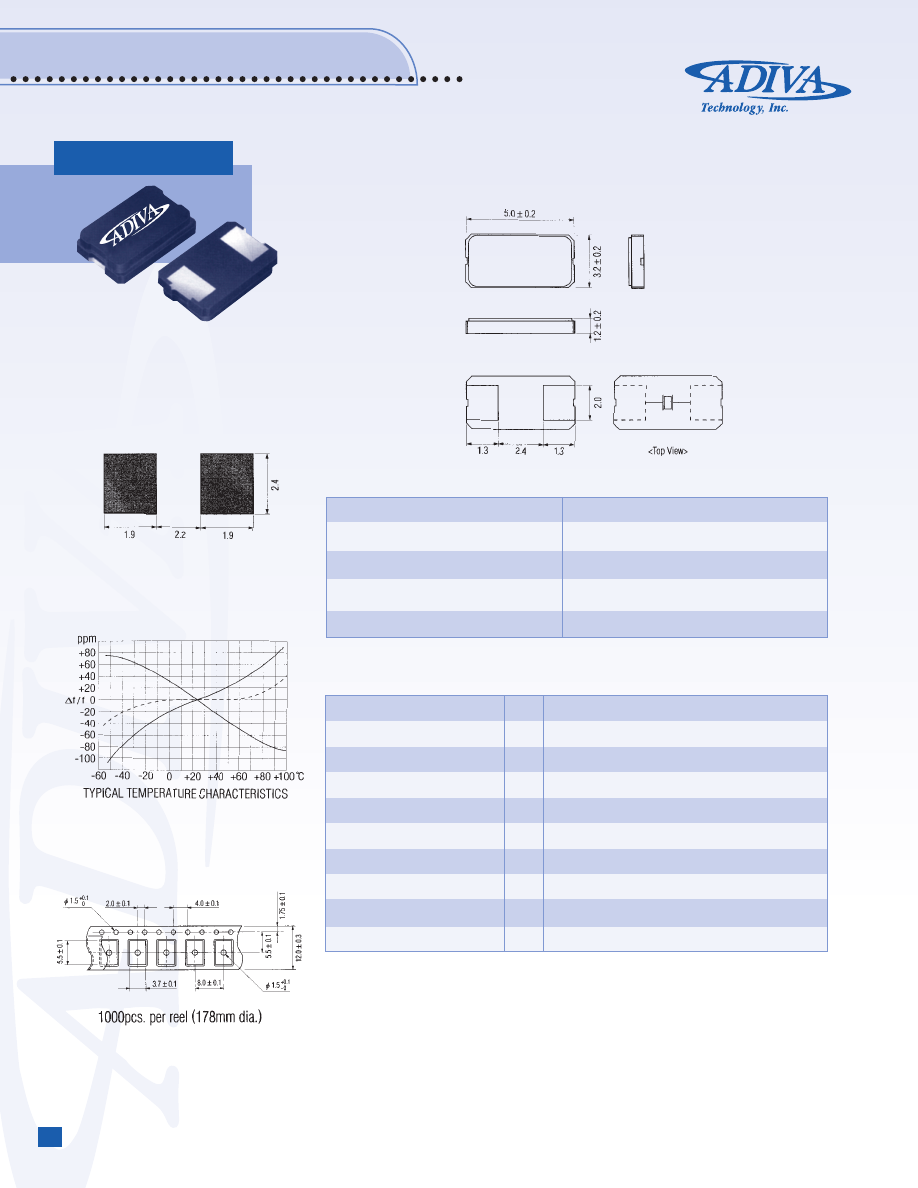

Quartz

ADXSM-350 Series (351)

Surface Mount

ADXSM-351

www.adivatech.com

(888) 30-ADIVA (23482)

O

10

SEE PAGE 8 FOR PART NUMBERING GUIDE

UNIT DIMENSION (unit: mm)

AT-CUT

TAPE SPECIFICATIONS

STANDARD SPECIFICATIONS

Package Type

ADXSM-351

Frequency Range

F

14.300 MHz to 40.000 MHz

Calibration Tolerance

±50 ppm at +25ºC ±3ºC

Temperature Stability (at +25ºC)

±50 ppm over -10ºC to +60ºC

Load Capacitance

Cl

16 pF

Shunt Capacitance

Co

5 pF max.

Drive Level

P

100 µW max.

Aging

#

f/F

±5 ppm max. at +25ºC ±3ºC per year

Cut

AT-Cut

Reflow Soldering Condition

10 seconds max. at +235ºC ±5ºC

PACKAGE DATA

Item / Package

ADXSM-351

LID

Ceramic

BASE

Ceramic

SEALING

Glass-frit/Resin

TERMINAL PLATING

Gold

SOLDERING PATTERN
