ADS2038A

(BACK LIGHT)

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.

BENEFITS

Frequency Range:

0.1 ~ 100 MHz

Inductance Range:

1.0 ~ 4.7 mH

Tested:

100 KHz and 0.05V

Temperature Rise:

≤

30ºC at rated current

Operating Temperature Range:

-40ºC to +85ºC

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

DC

RATED

(uH ±20%)

RESISTANCE (

Ω

)

CURRENT (A)

max.

max.

ADS2038A-102

❑

1.0

4.5

100

ADS2038A-152

❑

1.5

7.5

80

ADS2038A-222

❑

2.2

10

70

ADS2038A-332

❑

3.3

16

50

ADS2038A-472

❑

4.7

25

40

Power Inductors

ADS2038A Series

Surface Mount

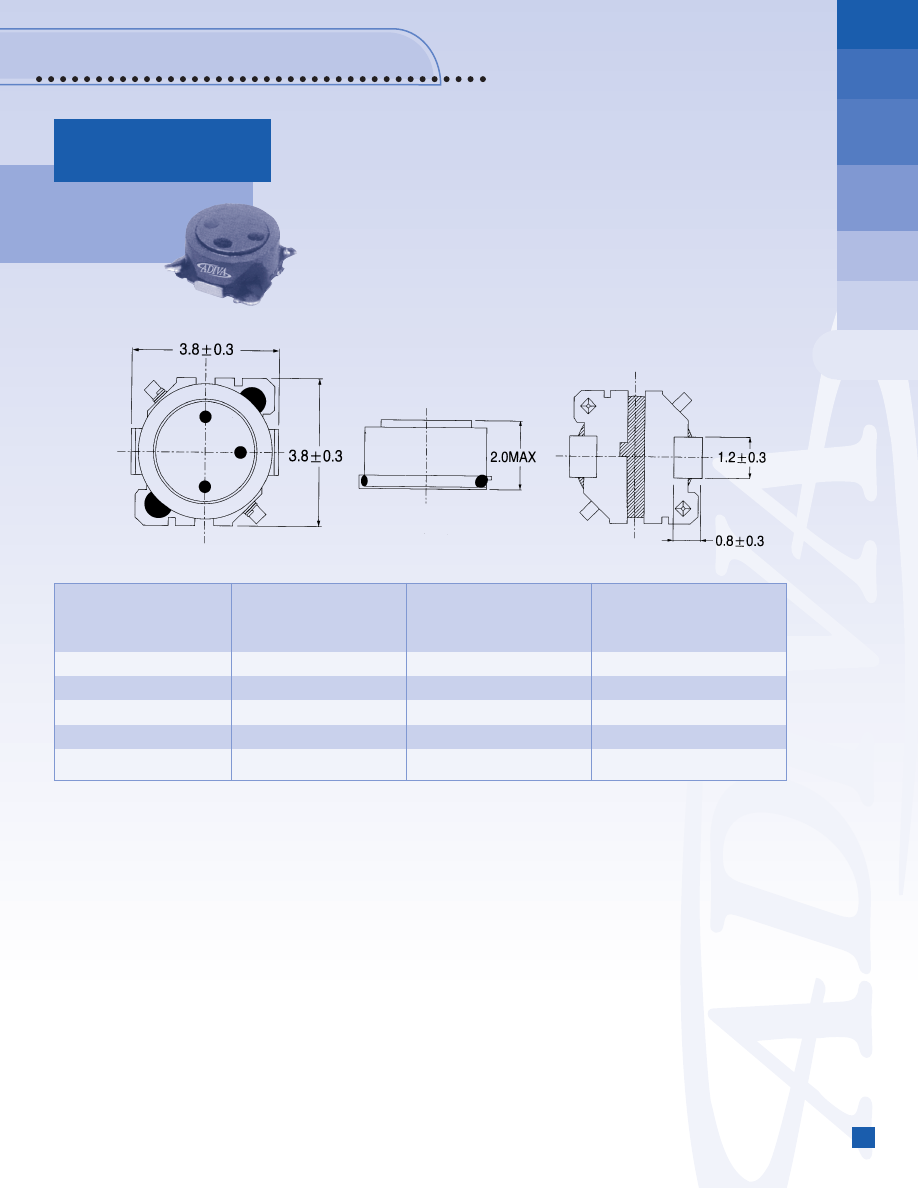

UNIT DIMENSION (unit: mm)
