ADS3060A

Power Inductors

ADS3060A Series

XTAL

OSC

VCXO

VCO

TCXO

VCTCXO

FLTR

RES

IND

Surface Mount

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.

BENEFITS

Frequency Range:

0.1 ~ 10 MHz

Inductance Range:

4.7 ~ 100 uH

Tested:

100 KHz and 0.05V

Operating Temperature Range:

-40ºC to +85ºC

Inductance

measured by HP 4194A, impedance

and gain phase analyzer

Inductance Drop

10% at rated current

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

DC

RATED

(uH ±20%)

RESISTANCE (

Ω

)

CURRENT (A)

max.

max.

ADS3060A-472

❑

4.7

0.08

2.0

ADS3060A-682

❑

6.8

0.10

1.7

ADS3060A-103

❑

10

0.13

1.40

ADS3060A-153

❑

15

0.15

1.20

ADS3060A-223

❑

22

0.18

1.00

ADS3060A-333

❑

33

0.30

0.80

ADS3060A-473

❑

47

0.40

0.65

ADS3060A-683

❑

68

0.60

0.50

ADS3060A-104

❑

100

0.90

0.40

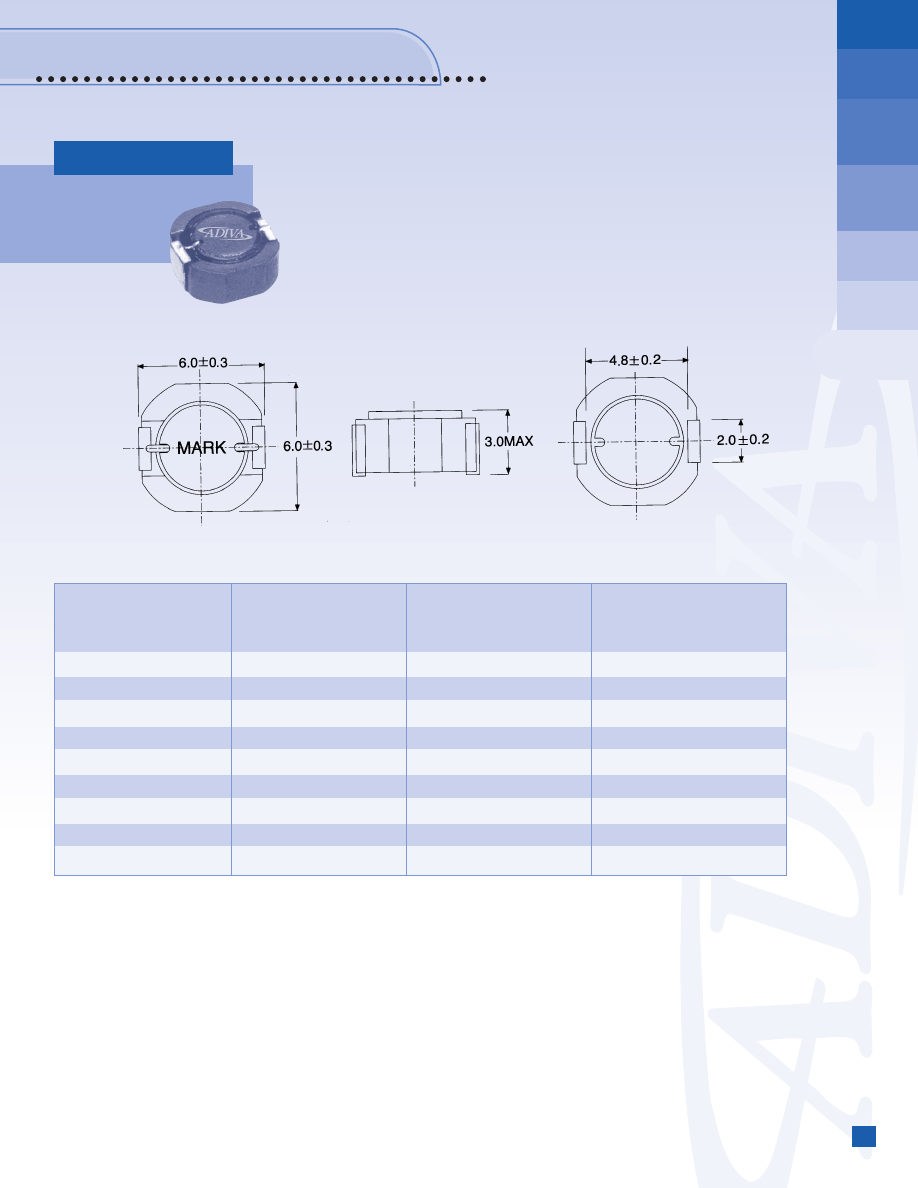

UNIT DIMENSION (unit: mm)
