ADS3316PA
Power Inductors
ADS3316PA Series
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Surface Mount
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.

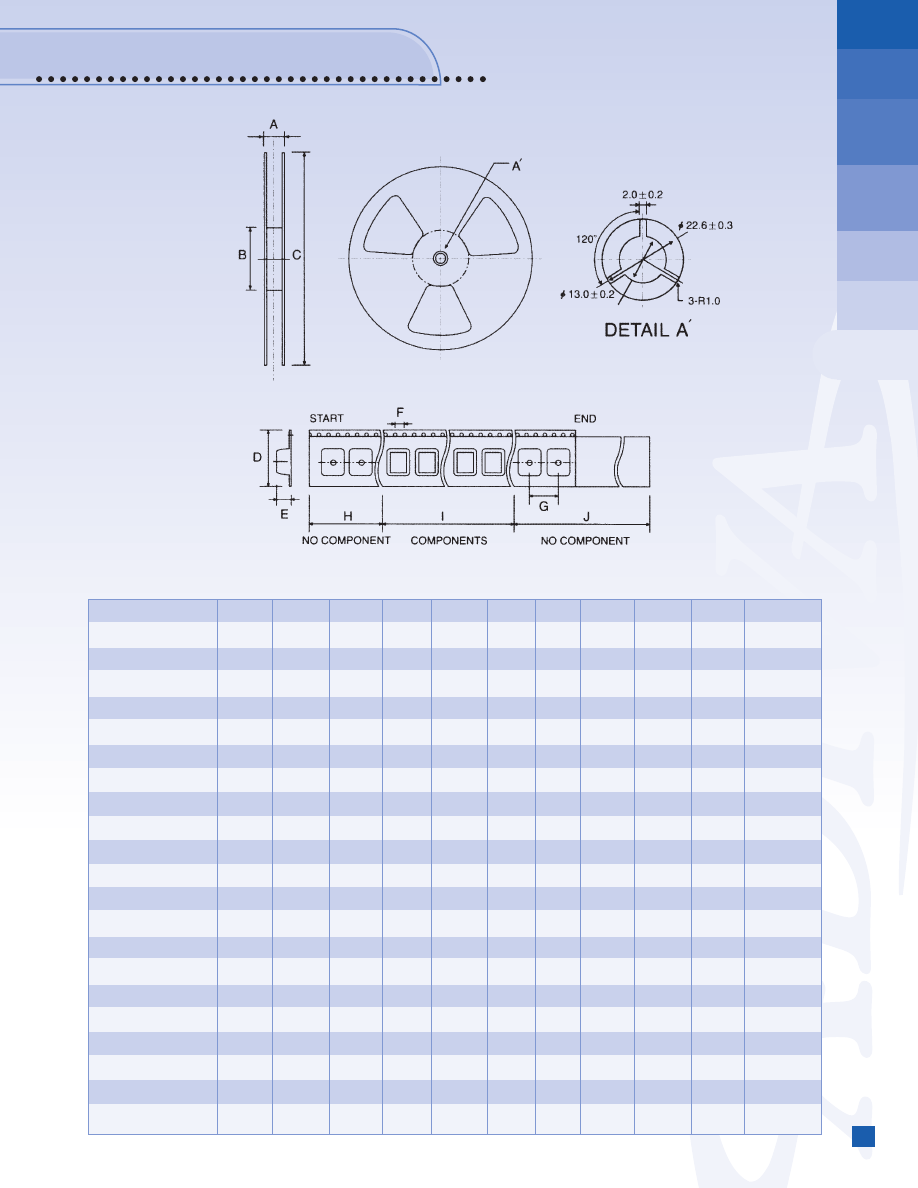

• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.
BENEFITS
Frequency Range:
0.1 ~ 10 MHz
Inductance Range:
1.0 ~ 220 uH
Tested:
100 KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
10% at rated current
STANDARD SPECIFICATIONS
PACKAGE TYPE
INDUCTANCE
DC
RATED
(uH ±20%)
RESISTANCE (
Ω
)
CURRENT (A)
max.
max.
ADS3316PA-102
❑
1.0
0.021
5.6
ADS3316PA-152
❑
1.5
0.022
5.2
ADS3316PA-222
❑
2.2
0.032
5.0
ADS3316PA-332
❑
3.3
0.039
3.9
ADS3316PA-472
❑
4.7
0.054
3.2
ADS3316PA-682
❑
6.8
0.075
2.8
ADS3316PA-103
❑
10
0.101
2.40
ADS3316PA-153
❑
15
0.150
2.00
ADS3316PA-223
❑
22
0.207
1.60
ADS3316PA-333
❑
33
0.334
1.40
ADS3316PA-473
❑
47
0.472
1.00
ADS3316PA-683
❑
68
0.500
0.81
ADS3316PA-104
❑
100
0.700
0.68
ADS3316PA-154
❑
150
1.000
0.55
ADS3316PA-224
❑
220
1.400
0.46

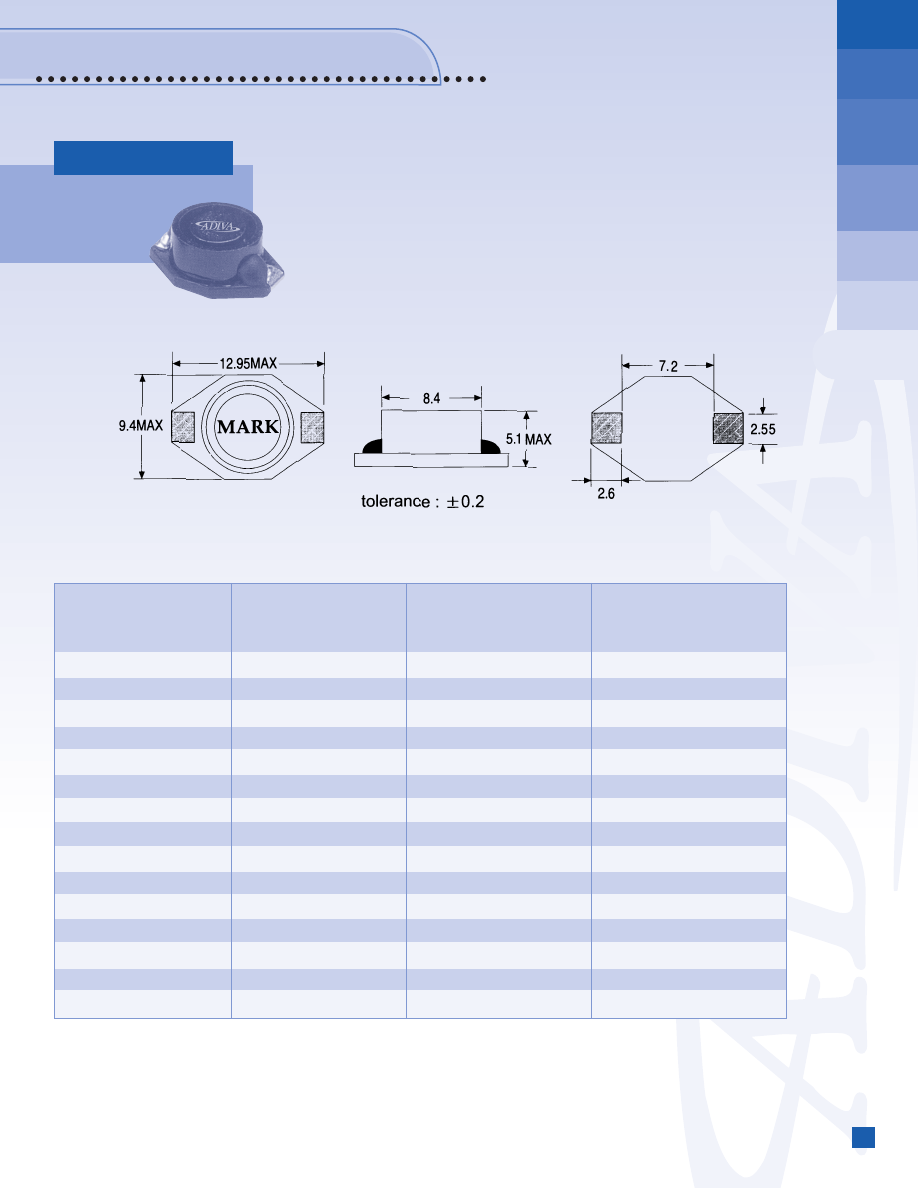

UNIT DIMENSION (unit: mm)
