ADO5022PA
Power Inductors
ADO5022PA Series
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Surface Mount
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.

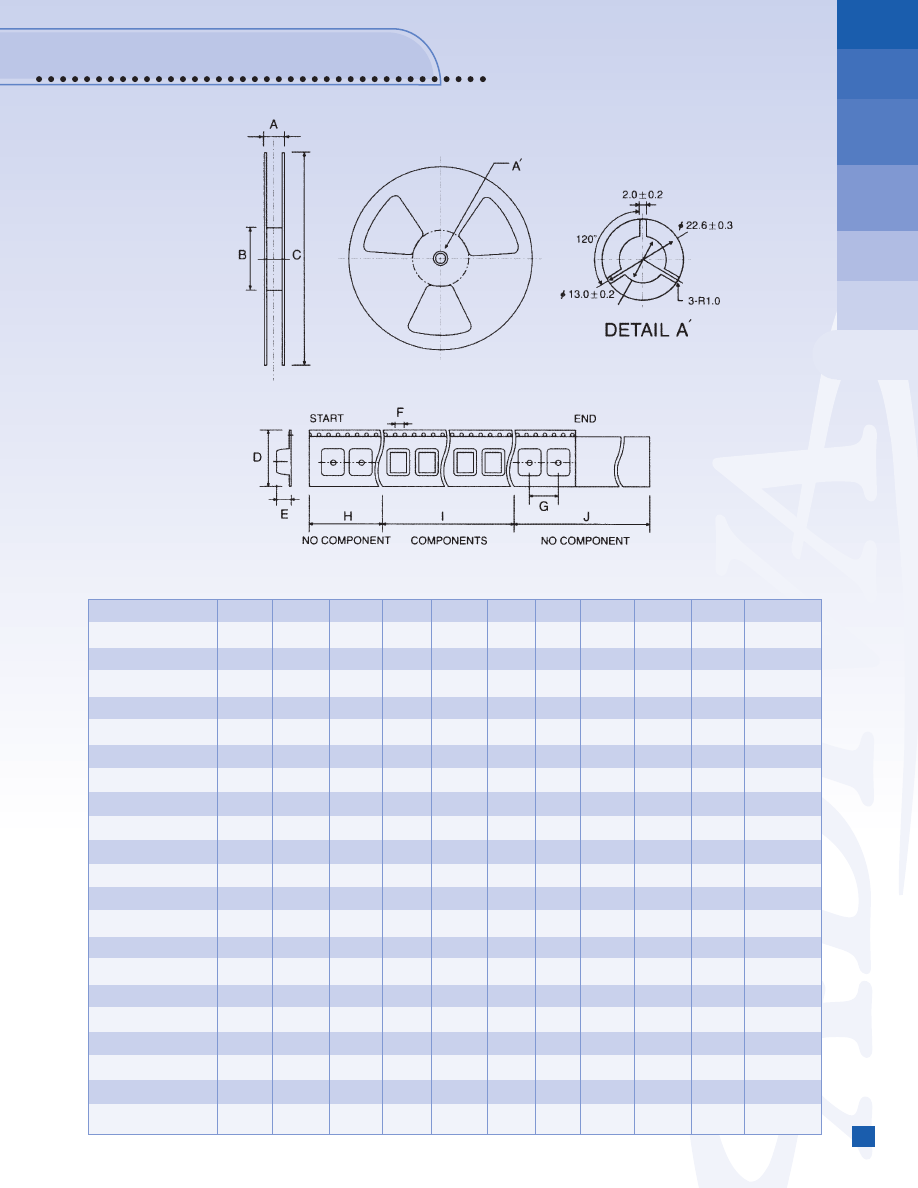

• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.
BENEFITS
Frequency Range: 0.1 ~ 10 MHz
Inductance Range: 1 ~ 1000 uH
Tested:
100 KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
10% at rated current

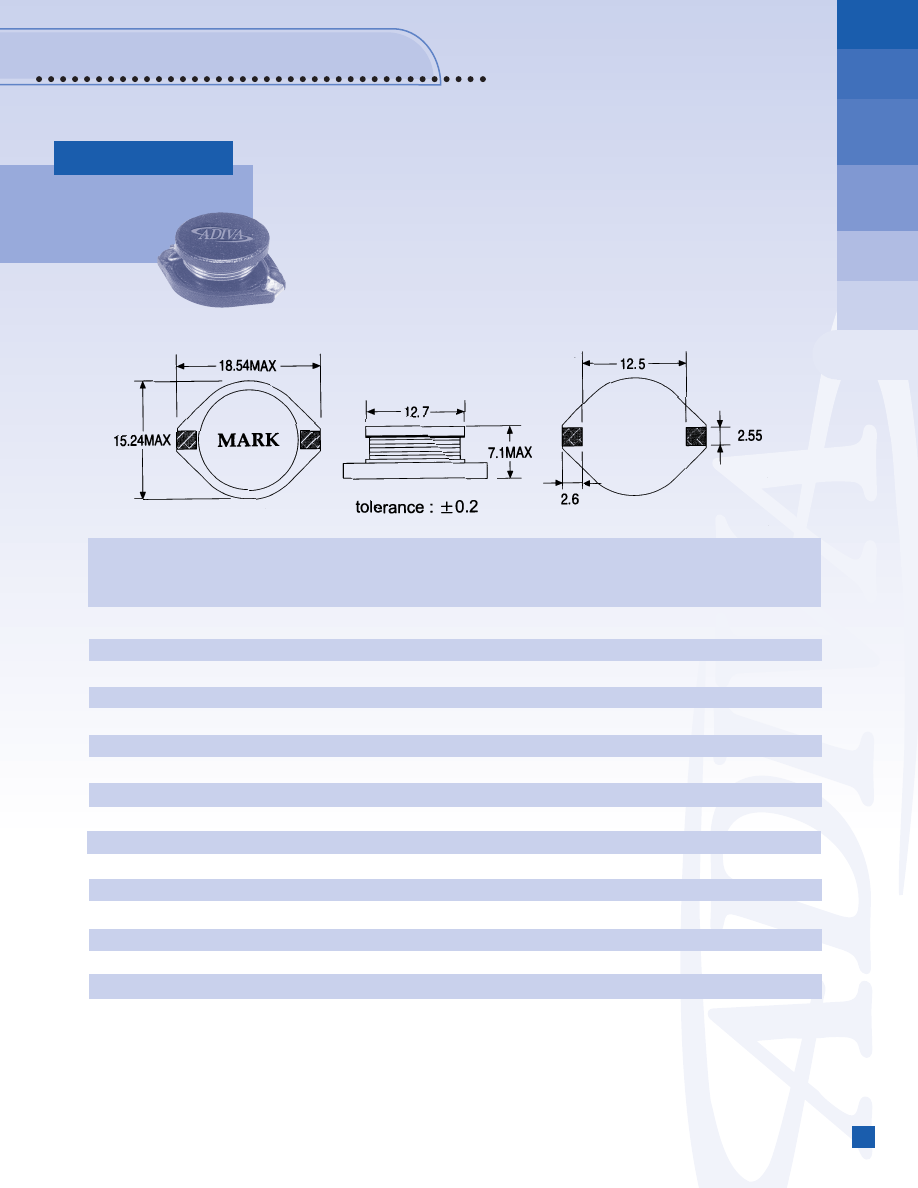

UNIT DIMENSION (unit: mm)
STANDARD SPECIFICATIONS
PACKAGE TYPE
INDUCTANCE
DC
RATED
(uH ±20%) RESISTANCE (
Ω
) CURRENT (A)
max.
max.
ADO5022PA-102
❑
1.0 0.011 20
ADO5022PA-222
❑
2.2 0.043 1.70
ADO5022PA-332
❑
3.3 0.049 1.60
ADO5022PA-562
❑
5.6 0.064 1.40
ADO5022PA-103
❑
10 0.105 1.10
ADO5022PA-153
❑
15 0.132 0.96
ADO5022PA-223
❑
22 0.192 0.75
ADO5022PA-333
❑
33 0.288 0.67
ADO5022PA-473
❑
47 0.372 0.59
ADO5022PA-683
❑
68 0.540 0.45
ADO5022PA-104
❑
100 0.780 0.37
ADO5022PA-154
❑
150 1.260 0.29
ADO5022PA-224
❑
220 2.000 0.22
ADO5022PA-334
❑
330 2.460 0.20
ADO5022PA-474
❑
470 3.780 0.16
ADO5022PA-684
❑
680 5.736 0.13
07/22/02 Revised
