ADS7045A

Power Inductors

ADS7045A Series

XTAL

OSC

VCXO

VCO

TCXO

VCTCXO

FLTR

RES

IND

Surface Mount

FEATURES

• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.

BENEFITS

Frequency Range:

0.1 ~ 10 MHz

Inductance Range:

10 ~ 470 uH

Operating Temperature Range:

-40ºC to +85ºC

Inductance

measured by HP 4194A, impedance

and gain phase analyzer

Inductance Drop

10% at rated current

STANDARD SPECIFICATIONS

PACKAGE TYPE

INDUCTANCE

DC

RATED

(uH ±20%)

RESISTANCE (

Ω

)

CURRENT (A)

max.

max.

ADS7045A-103

❑

10

0.06

1.40

ADS7045A-153

❑

15

0.07

1.20

ADS7045A-223

❑

22

0.10

1.00

ADS7045A-333

❑

33

0.15

0.90

ADS7045A-473

❑

47

0.24

0.75

ADS7045A-683

❑

68

0.30

0.60

ADS7045A-104

❑

100

0.4

0.50

ADS7045A-154

❑

150

0.6

0.40

ADS7045A-224

❑

220

0.8

0.32

ADS7045A-474

❑

470

1.5

0.22

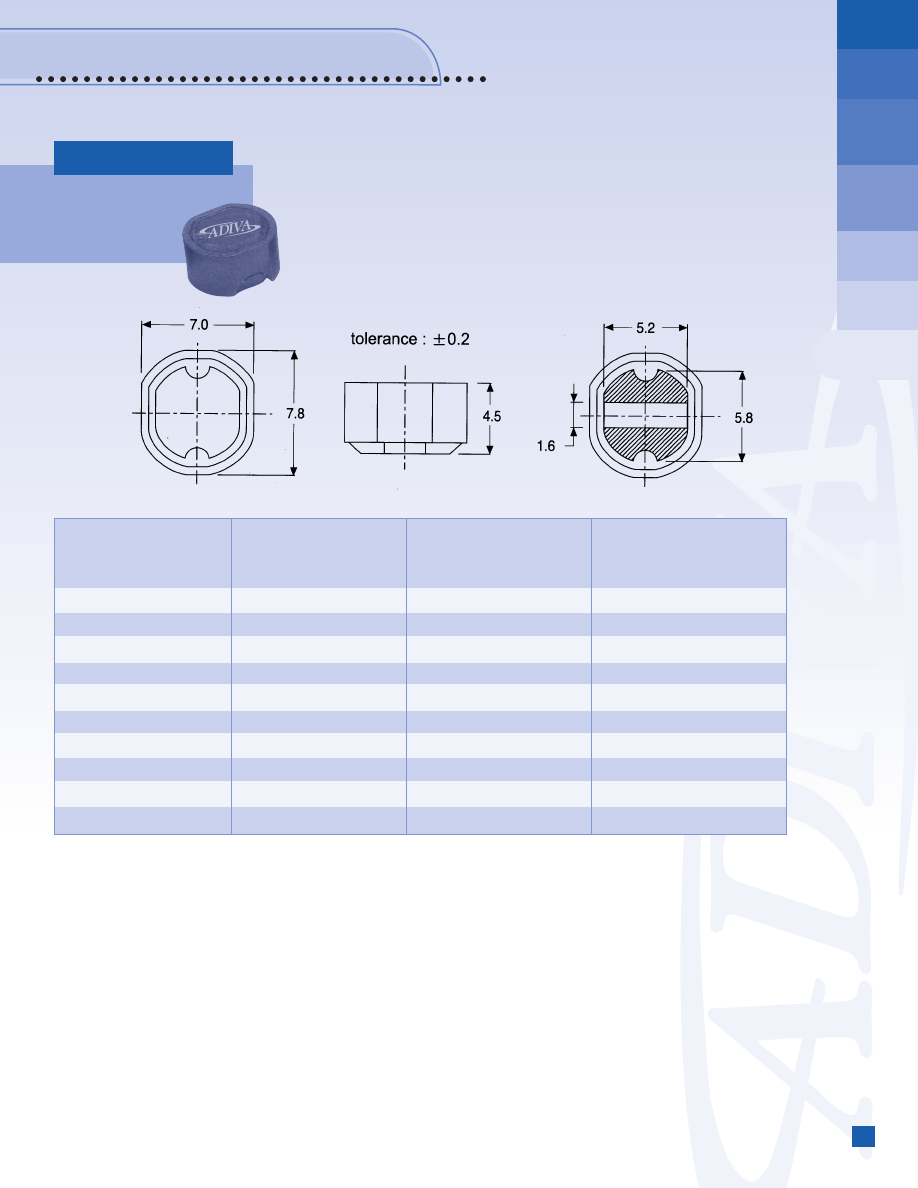

UNIT DIMENSION (unit: mm)
