ADO105A
Power Inductors
ADO105A Series
XTAL
OSC
VCXO
VCO
TCXO
VCTCXO
FLTR
RES
IND
Surface Mount
FEATURES
• Surface mountable device.
• Low Profile.
• Excellent performance & cost effective.
• Tape & Reel for auto-placement.
• Applicable for DC-DC converter.
BENEFITS
Frequency Range:
0.1 ~ 10 MHz
Inductance Range:
8.2 ~ 820 uH
Tested:
* KHz and 0.05V
Operating Temperature Range:
-40ºC to +85ºC
Inductance
measured by HP 4194A, impedance
and gain phase analyzer
Inductance Drop
10% at rated current
STANDARD SPECIFICATIONS
PART NUMBER
INDUCTANCE
FREQUENCY*
DC
RATED
(uH)
(KHz)
RESISTANCE (
Ω
)
CURRENT (A)
max.
max.
ADO105A-822
❑
8.2 ±20%
7960
0.05
2.20
ADO105A-103
❑
10 ±20%
2520
0.06
2.10
ADO105A-123
❑
12 ±20%
2520
0.07
2.07
ADO105A-153
❑
15 ±20%
2520
0.08
2.04
ADO105A-183
❑
18 ±20%
2520
0.09
2.01
ADO105A-223
❑
22 ±20%
2520
0.10
1.96
ADO105A-273
❑
27 ±20%
2520
0.11
1.76
ADO105A-333
❑
33 ±10%
2520
0.13
2.00
ADO105A-393
❑
39 ±10%
2520
0.14
1.37
ADO105A-473
❑
47 ±10%
2520
0.17
1.28
ADO105A-683
❑
68 ±10%
2520
0.22
1.11
ADO105A-823
❑
82 ±10%
2520
0.25
1.00
ADO105A-104
❑
100 ±10%
1
0.35
0.97
ADO105A-124
❑
120 ±10%
1
0.41
0.89
ADO105A-154
❑
150 ±10%
1
0.47
0.79
ADO105A-224
❑
220 ±10%
1
0.73
0.66
ADO105A-274
❑
270 ±10%
1
0.97
0.57
ADO105A-334
❑
330 ±10%
1
1.15
0.52
ADO105A-394
❑
390 ±10%
1
1.30
0.48
ADO105A-474
❑
470 ±10%
1
1.48
0.42
ADO105A-564
❑
560 ±10%
1
1.90
0.34
ADO105A-684
❑
680 ±10%
1
2.25
0.28
ADO105A-824
❑
820 ±10%
1
2.55
0.24

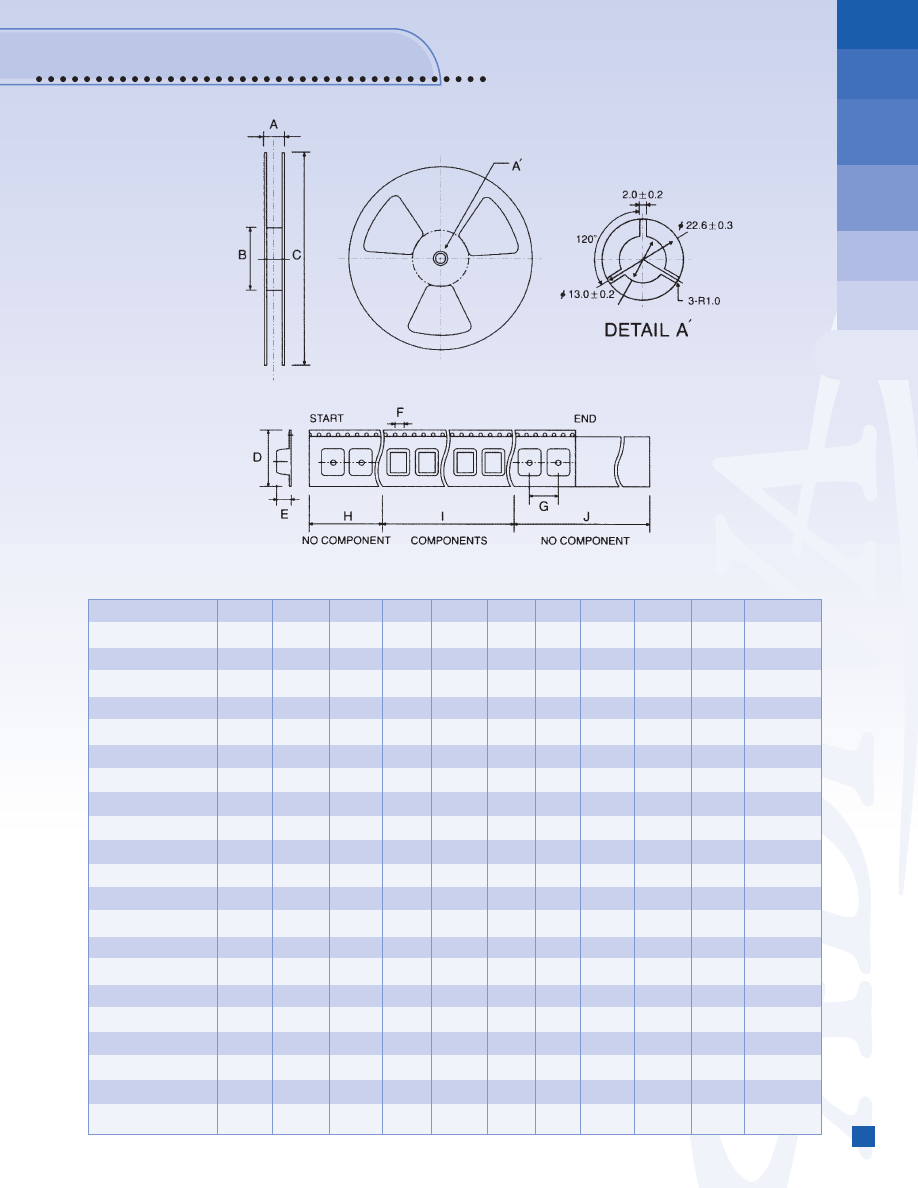

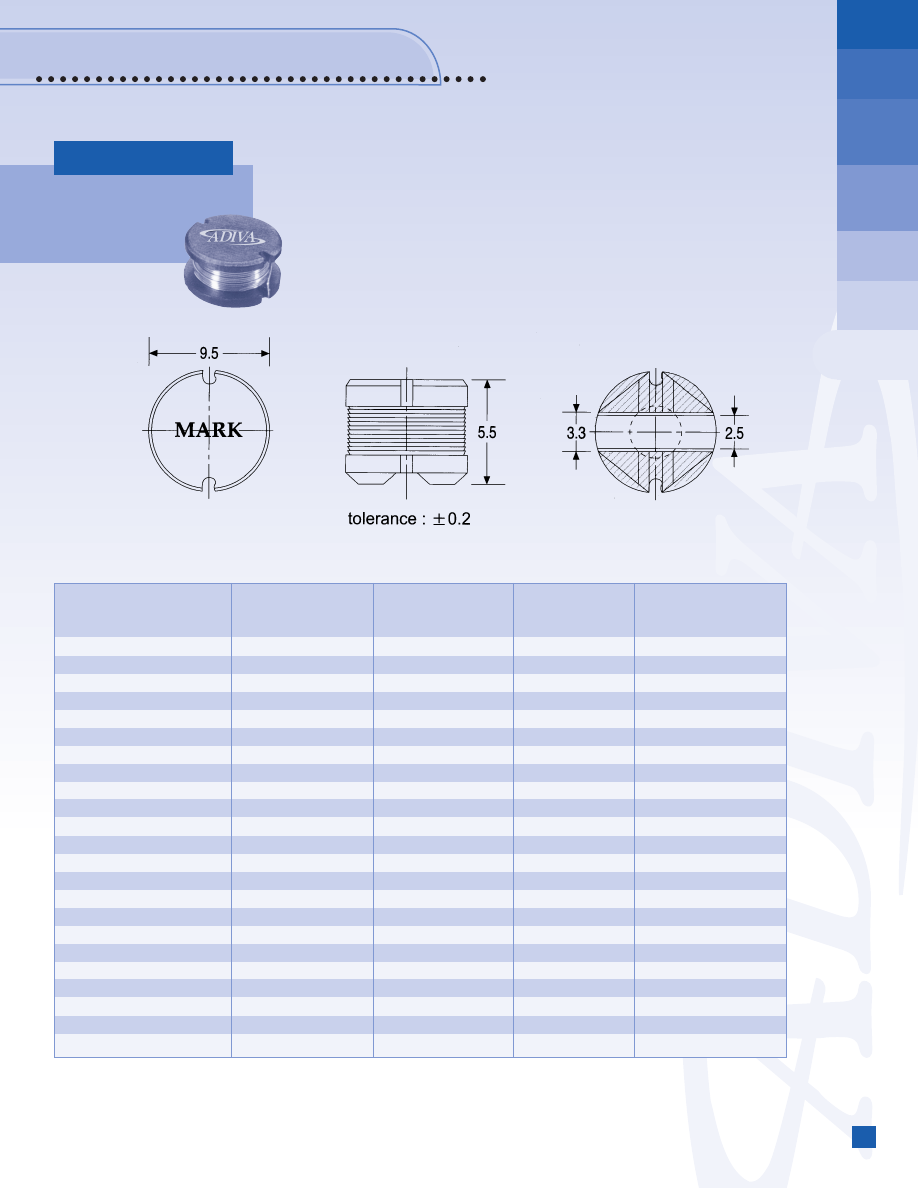

UNIT DIMENSION (unit: mm)
