SEE PAGE 8 FOR PART NUMBERING GUIDE
Quartz
ADX49SMP & ADX49SMP1 Series
Surface Mount
ADX49SMP
ADX49SMP1
FEATURES
• Resistance weld for low aging.
• Custom E.S.R. availability.
• Extended operating temperature range option.
• Fits standard thermoplastic footprint.a
EQUIVALENT SERIES RESISTANCE (E.S.R.)
Frequency (MHz)
Vibration Code
E.S.R. max.
3.18 MHz to 7.00 MHz
AT Cut Fundamental
100~200
Ω
7.01 MHz to 15.99 MHz
AT Cut Fundamental
60~90
Ω
16.00 MHz to 28.0 MHz
AT Cut Fundamental
40
Ω
24.0 MHz to 36.0 MHz
BT Cut Fundamental
40
Ω
36.01 MHz to 40.0 MHz
BT Cut Fundamental
50
Ω
27.0 MHz to 65 MHz
AT Cut 3rd Overtone
100
Ω
STANDARD SPECIFICATIONS
Package Type
ADX49SMP & ADX49SMP1
Conditions
Frequency Range
F
3.180 MHz ~ 65.000 MHz
AT Fund./3rd Overtone
and BT Fund.
Frequency Tolerance
25ºC
#
f/F
±50 ppm std. / ±30 ppm opt.
Reference Temperature
-10ºC ~ +70ºC
±50 ppm std. / ±30 ppm opt.
Adjustment Tolerance
Freq. vs. Temperature Characteristics
Operating Temperature Range
0ºC ~ +70ºC std. / -40ºC ~ +85ºC opt.
Storage Temperature Range
-30ºC ~ +85ºC
Equivalent Series Resistance
ESR
See Table Below
Load Capacitance
CL
18 pF std. (Specify if Different)
Shunt Capacitance
Co
7 pF max.
Drive Level
P
50 ~ 100 µW
Insulation Resistance
500 M
Ω
min.
DC 100V ±15V
Aging (for first year)
#
f/F
±5 ppm max.
T = 25ºC ±3ºC
Sealing
1 x 10
-2
µPa•m
3
/sec. max..
Shock Resistance
Drop Test of 3 times on a Hard Board from 75 cm Height.

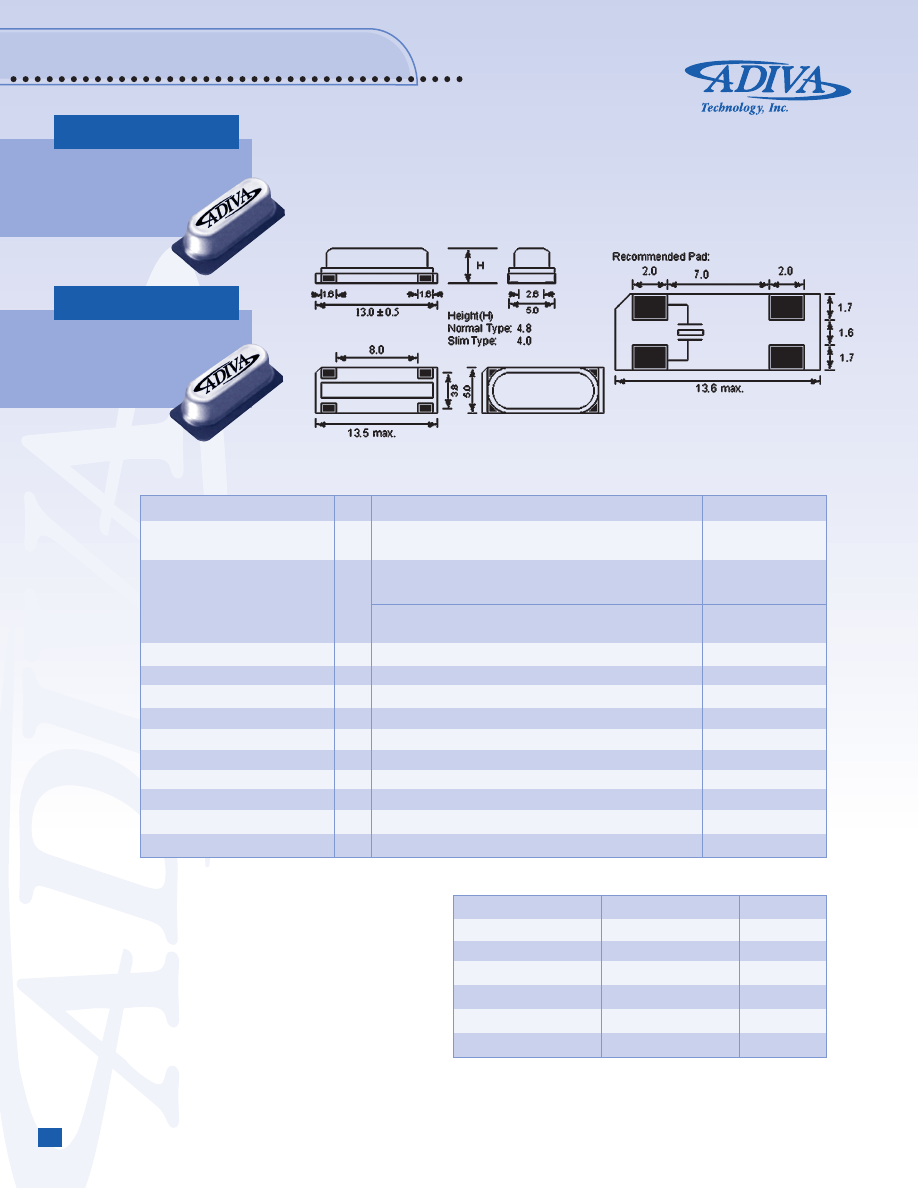

ADX49SMP & ADX49SMP1 (unit: mm)
ADX49SMP = 4.8 (H)
ADX49SMP1= 4.0 (H)
Tape and Reel packaging: 1,000 per reel
