Voltage Controlled Clock

Thru Hole

ADVCXOH

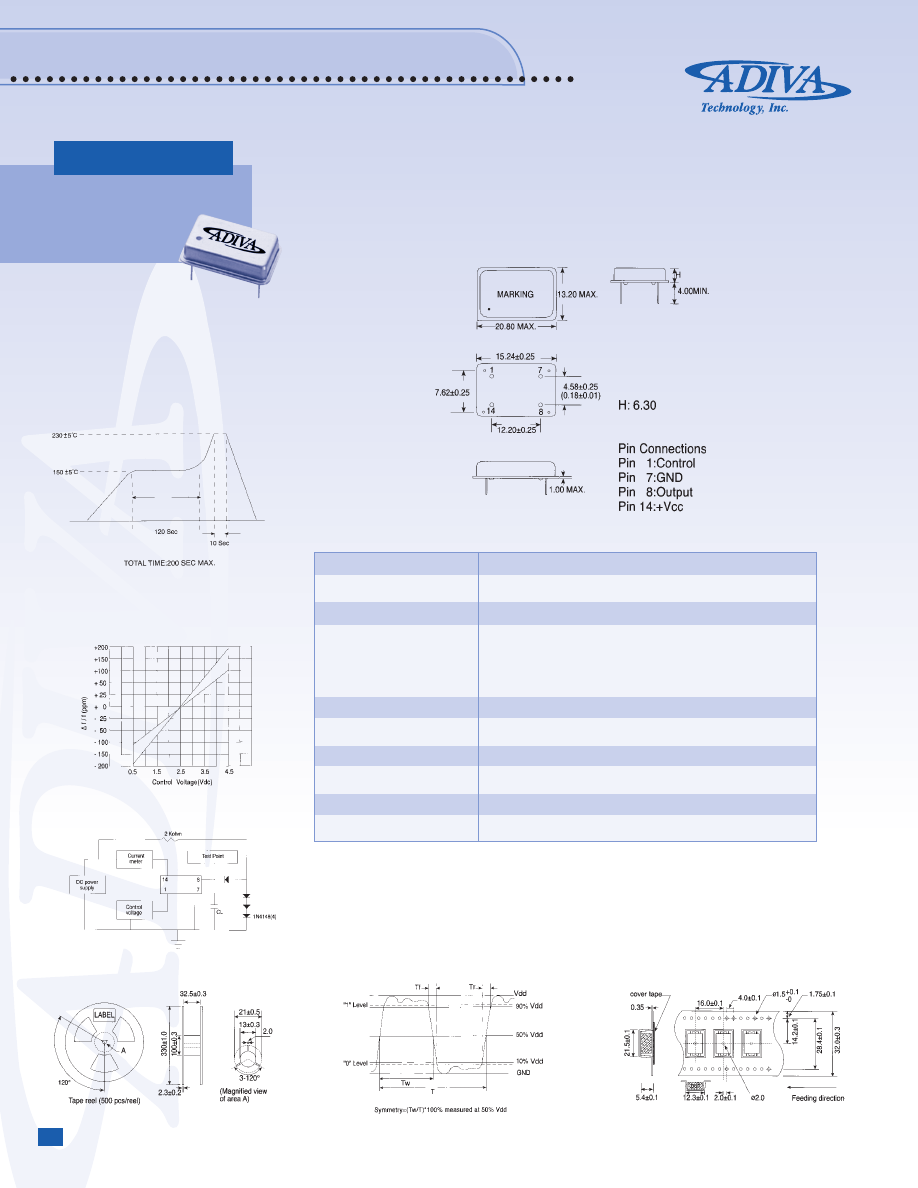

UNIT DIMENSION (unit: mm)

OUTPUT WAVEFORM FOR CMOS

TAPE SPECIFICATIONS

TEST CIRCUIT

SOLDERING REFLOW PROFILE

REEL PACKING (UNIT: mm)

FREQUENCY/MODULATION

VOLTAGE CHARACTERISTICS

FEATURES

• Frequency adjustable
• Superior quality
• Low power consumption

• Application: Data communications,

Set top box, ADSL modem.

STANDARD SPECIFICATIONS

Package Type

ADVCXOH

Standard Frequency

8.192, 10.24, 16.384, 27, 35.328 MHz

Frequency Range

8 ~ 52 MHz

Frequency Stability

vs. Temperature Range

±50 ppm (0ºC ~ 50ºC)

±30 ppm (-20ºC ~ 60ºC)

±50 ppm (0ºC ~ 70ºC)

Custom

Frequency Control Voltage

2.5 ±2.0 Vdc

Frequency Control Range

±100 ppm min.

Output Load

2 TTL or CMOS

Output Symmetry (Tw/T)

40% ~ 60%

Supply Voltage

5.0  ±0.25 Vdc

Aging

±5 ppm/year

O

52

www.adivatech.com

(888) 30-ADIVA (23482)

O

48

Voltage Controlled Clock OSC.

ADVCXO Series

Surface Mount & Thru Hole

ADVCXOG4 pg49
ADVCXOG6 pg49

ADVCXOI pg50
ADVCXOH     pg52

TTL

A

CMOS

B

CMOS Compatible

C

45/55% 5 40/60% 6

Package Type

Output

Frequency Stability

Duty Cycle

20%

A

15%

B

10%

C

Linearity

±100 ppm

A

±50 ppm

B

±30 ppm

C

±25 ppm

D

Custom

E

Deviation

±100 ppm min

A

±75ppm min

B

±50 ppm min

C



❑

 -

A

6

A

A

B    -

❑

M

PACKAGE TYPE
FREQUENCY STABILITY
DUTY CYCLE
DEVIATION

FREQUENCY
OUTPUT
LINEARITY

EXAMPLE

None         Blank
