The APG/UPG magnetic circuit
breaker provides low-cost power
switching, reliable circuit protec-
tion and accurate circuit control
in one complete package. It is
intended for use in data processing
and broadcast equipment, vending
and amusement machines, military
and marine applications, and
wherever precision operation
is required.

Designed using a current

sensitive hydraulic magnetic
principle, the APG/UPG adapts
itself to many applications and
environments. Temperature com-
pensations which affect fuses and
other thermal devices are not a
concern. Nuisance tripping
is minimized.

The APG/UPG is available in a

wide variety of configurations
with a choice of delays and ratings.
In addition, it is available in either
DC, 50/60Hz or 400Hz versions.

Available in single or multi-pole

variations, the APG/UPG comes
with a variety of actuators. To
enhance front-panel aesthetics,
toggle or rocker actuated handles
and caps are available in a variety
of attractive colors.

Multi-pole circuit breakers can

be furnished with either single or
multiple actuators. In addition, a
unique sealed, single handle toggle
version for harsh or military
environments is available in single
or multi-pole configurations.

The UPG circuit breaker is

recognized under UL Standard
1077, file numbers E66410 and
E33504. It is also certified by CSA,
file number LR26229. The APG is
qualified to MIL-PRF-55629.

APG/UPG circuit breakers are

available in one through four pole
assemblies with a variety of pole
arrangements, terminal styles, and
accessories to meet your specifica-
tions, including APG/UPG adapter
plate option to allow mounting in
APL/UPL cutout.

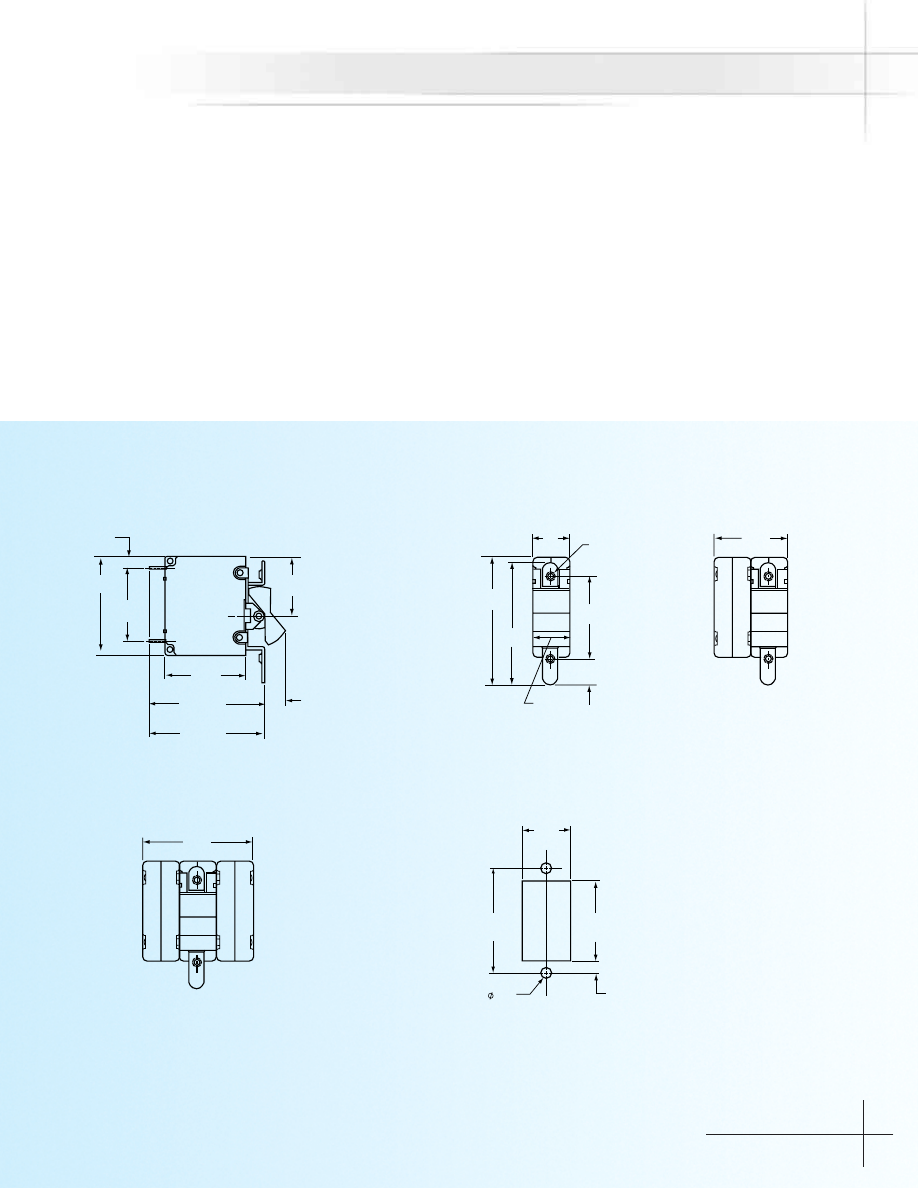

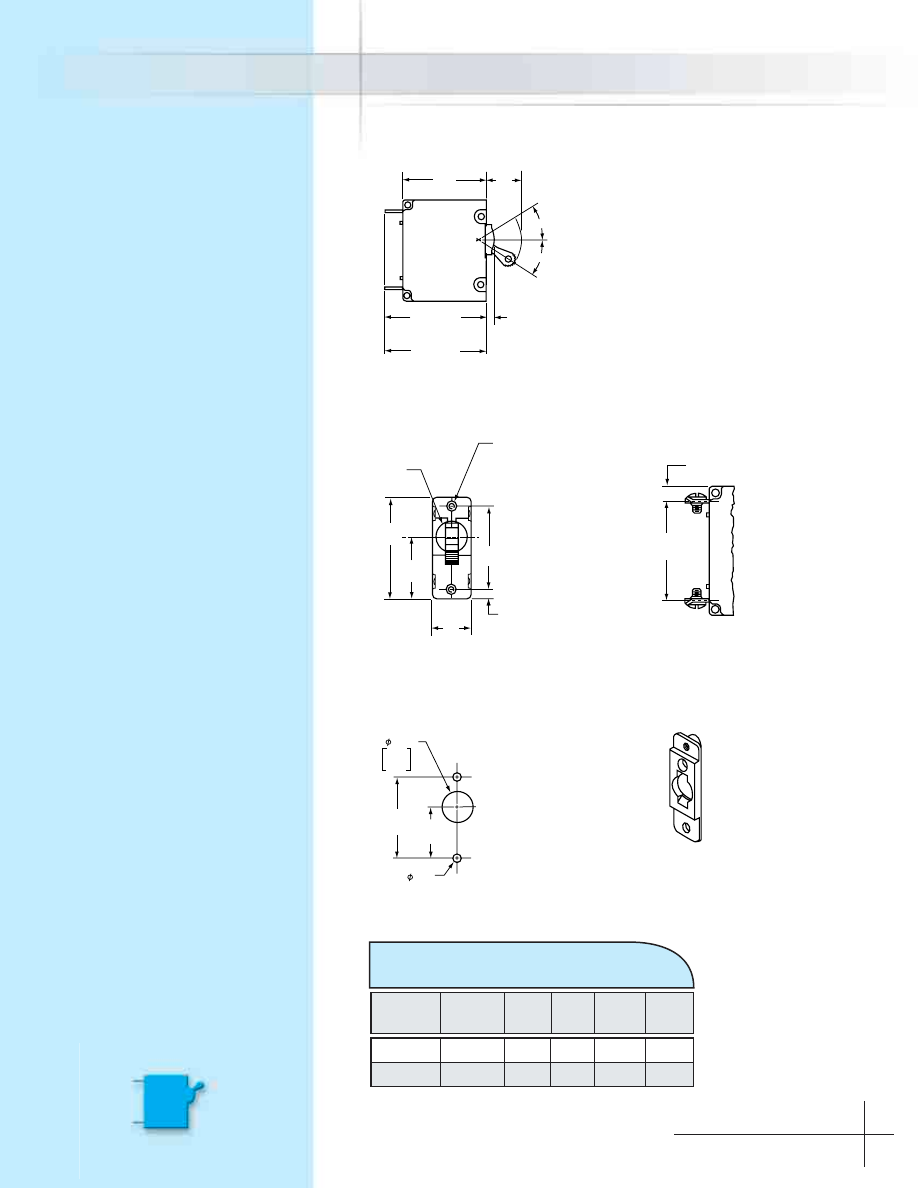

APG / UPG SINGLE POLE CIRCUIT BREAKERS

OFF

2.00

[50.80]

1.22

[31.00]

1.66

[42.16]

.168

[4.27]

.75

[19.05]

.590 DIA.

MAX.

[15.00]

6 – 32 THD.

.187 [4.75] DEEP (TYP.)
M3 1S0.  THD.  OPTIONAL

32º

32º

.69

[17.53]

1.640

[41.66]

APG/UPG – 1

2.00 MAX.

[50.80]

APG/UPG – 6

2.032 MAX.

[51.61]

.13

[3.30]

.23

[5.84]

1.53

[38.86]

1.660

[42.16]

1.050

[26.67]

2X      .156
[3.96]

+.25

-.00

15.87

+.010

-.000

.625

2X

Single Pole, Mounting Detail

Notes:

Tolerance ±.015 [.38]
unless noted.
Dimensions in Brackets
[ ] are millimeters.

* * Allows mounting in

APL/UPL cutout.

Single Pole,Toggle

Single Pole

APG 6-1*

Adapter Plate**

APG/UPG Single Pole Circuit Breakers

Terminals

Push-on

Amp
Rating

8-32

M4

10-32

M5

 30A

> 30A

X



X

X

X

X

Airpax-UPGH66-html.html
background image

MULTI-POLE CIRCUIT BREAKERS

Multi-Pole Circuit Breakers

84

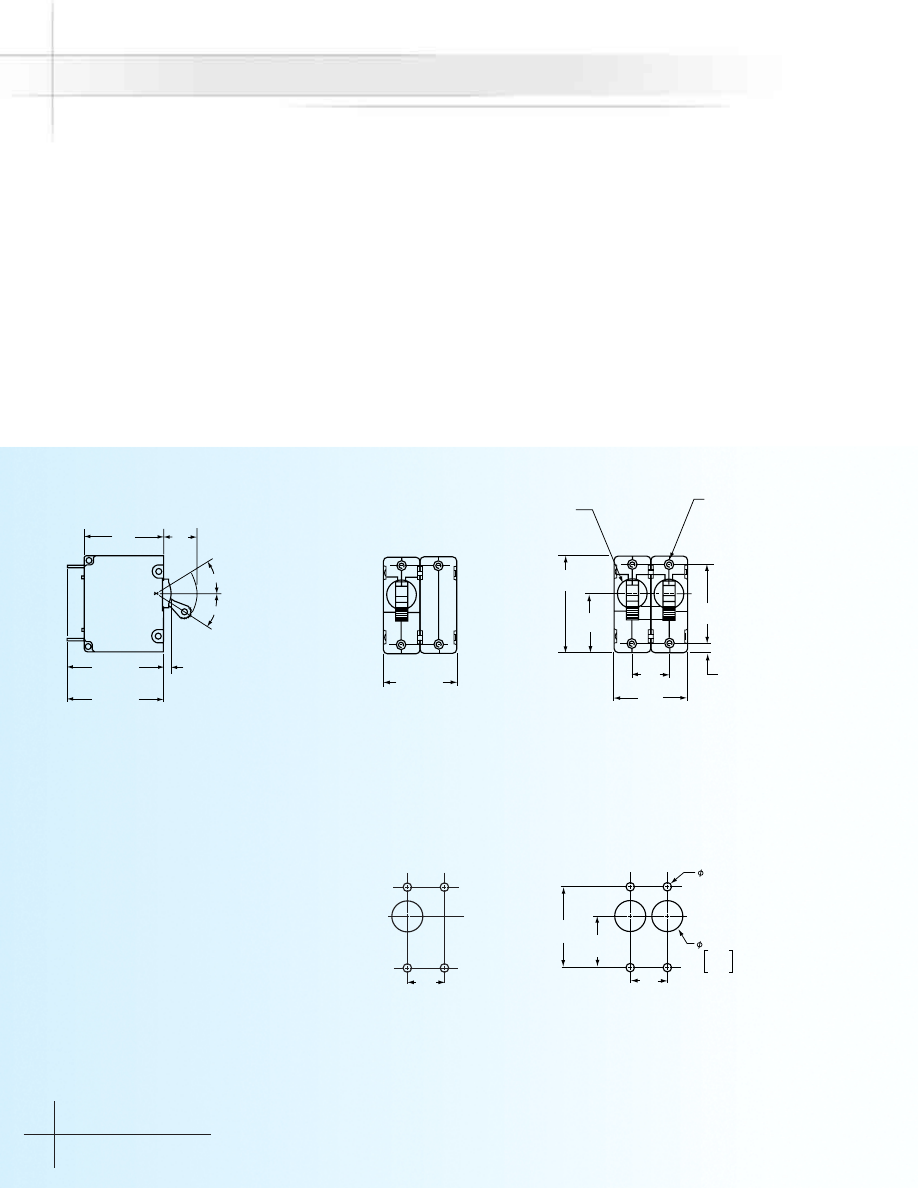

Two Pole Breakers

An assembly consisting of two single pole units, having their trip
mechanisms internally coupled, and with a single toggle handle,
forms the APG/UPG-11. It is also possible to provide a handle per
pole, which is referred to as UPGH11. Individual poles may differ in
ratings, delays and internal connections. An auxiliary switch may be
included in either or both poles if they are of the series trip type.
Screw-type terminals can be provided, in which case the designation
would be APG/UPG-66.

Note:

Tolerance ± .015 [.38] unless noted. Dimensions in Brackets [ ] are millimeters.

See single pole mounting detail for hole sizes and locations.

32º

32º

.69

[17.53]

1.640

[41.66]

APG/UPG – 1

2.00 MAX.

[50.80]

APG/UPG – 6

2.032 MAX.

[51.61]

.13

[3.30]

.750

[19.05]

Two Pole

UPG11

Panel Mounting Detail:

Tolerance ±.005 [.13] unless noted.

OFF

1.515 MAX.

[38.48]

OFF

OFF

1.22

[31.00]

2.00

[50.80]

.75

[19.05]

.168

[4.27]

1.66

[42.16]

.590 DIA.
MAX.
[15.00]

.187 [4.75] DEEP (TYP.)
M3 1S0.  THD.  OPTIONAL

6 – 32 THD.

1.515

MAX.

[38.48]

 +.25

-.00

15.88

+.010

-.000

.625

1.050

[26.67]

1.660

[42.16]

.750

[19.05]

( 1 PER POLE)

(2 PER POLE)

    .156

[3.96]

UPGH11

UPG11

UPGH11

Two Pole

Two Pole*

(Optional, handle
may be in pole 1
instead of pole 2)

Airpax-UPGH66-html.html
background image

.750

[19.05]

.750

[19.05]

2.265 MAX.
[57.53]

OFF

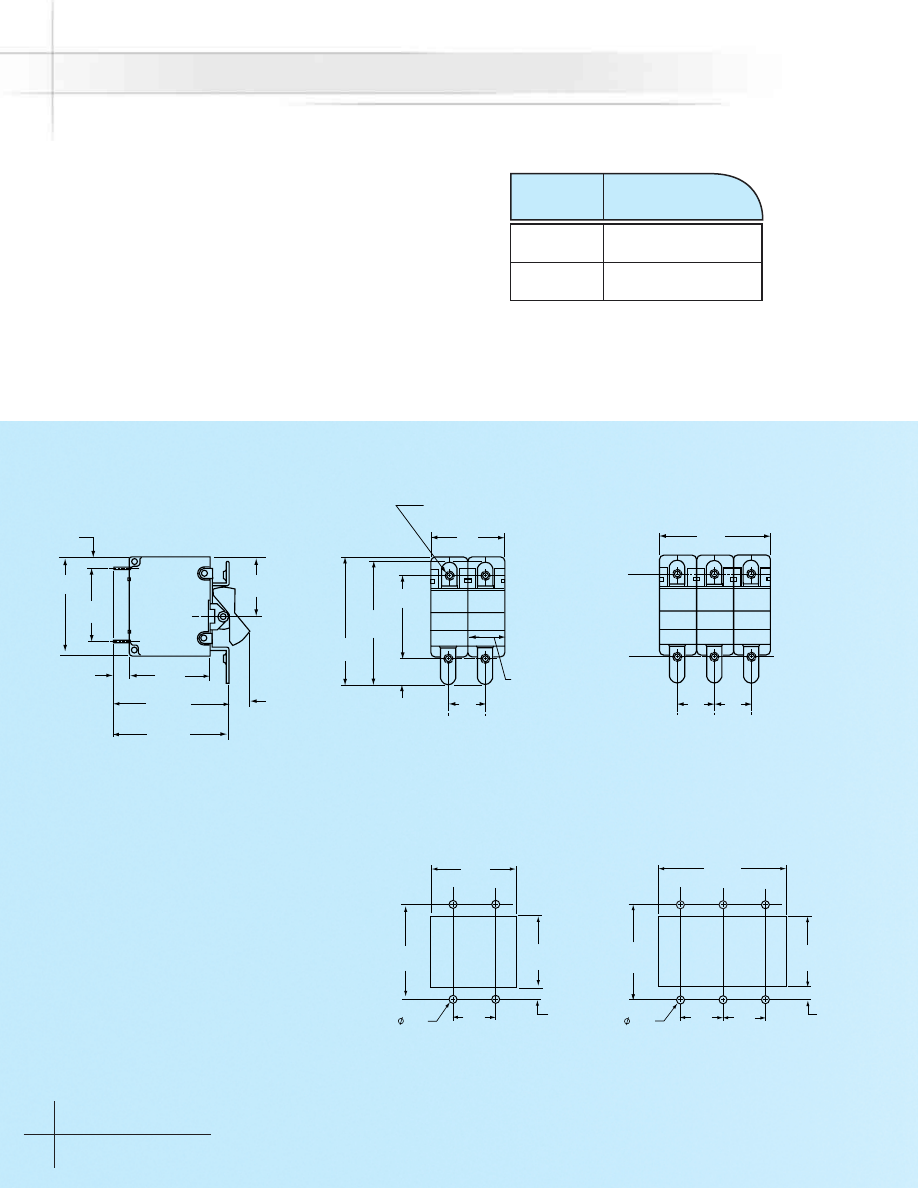

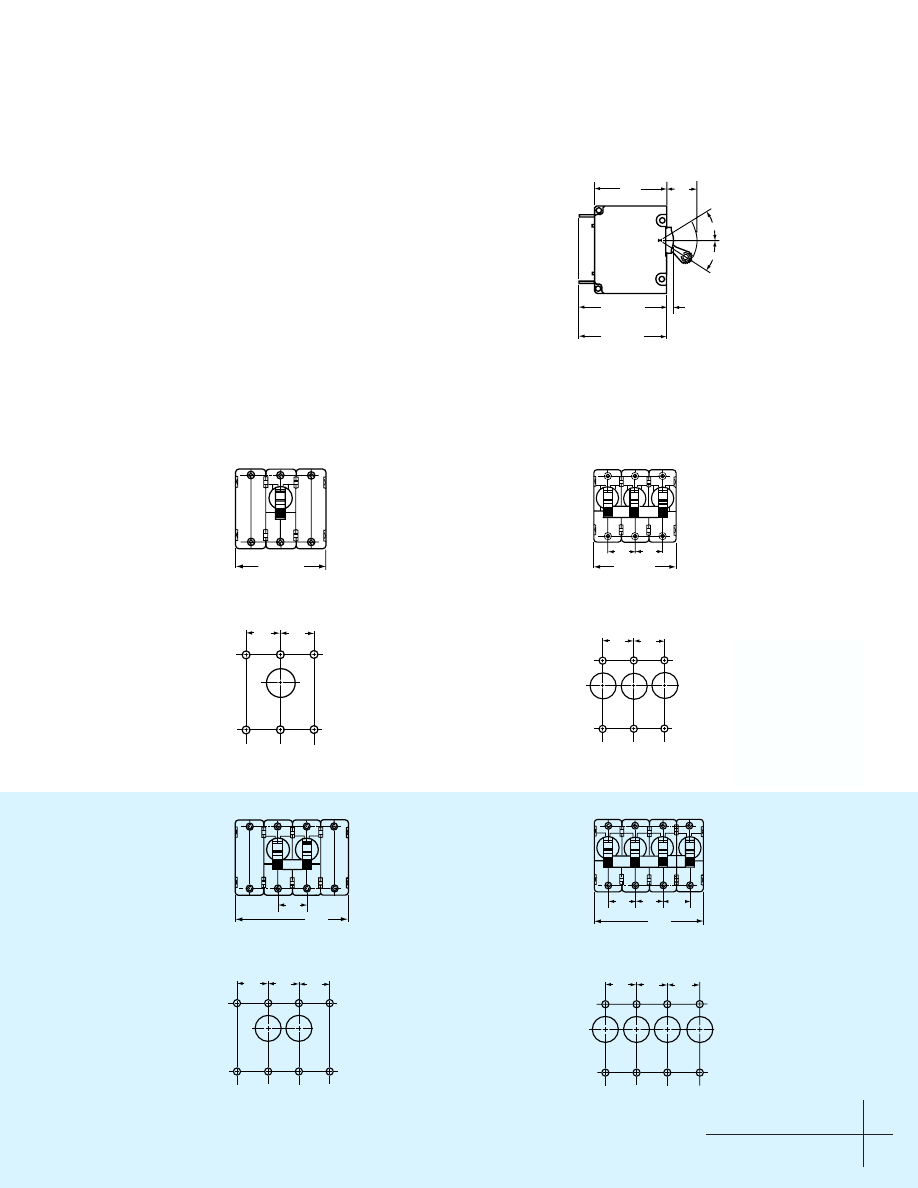

Three Pole and Four Pole Breakers

The three pole structure consists of three single pole units assem-
bled with an internal mechanical interlock which actuates all units
simultaneously. A single toggle handle operates all three poles, or
a handle per pole is available. The four pole structure consists of
four single pole units assembled with an internal mechanical
interlock which actuates all units simultaneously. A double toggle
handle operates all four poles, or a handle per pole is available.
The individual poles need not have identical characteristics and
any series trip pole may have an auxiliary switch. If screw-type
terminals are required, the breaker designation will be APG/UPG-
666 for a three pole version and APG/UPG-6666 for a four
pole version.

Breaker poles are numbered consecutively when viewed from

the terminal side, with the ON position up, starting with Pole #1
on the left side and proceeding to the right.

32º

32º

.69

[17.53]

1.640

[41.66]

APGH/UPGH – 1

2.00 MAX.

[50.80]

APGH/UPGH – 6

2.032 MAX.

[51.61]

.13

[3.30]

Three Pole

OFF

OFF

OFF

.750

[19.05]

.750

[19.05]

2.265 MAX.
[57.53]

UPG 111

UPGH 111

Mounting
Detail

Three Pole*

Three Pole*

.750

[19.05]

.750

[19.05]

85

Multi-Pole Circuit Breakers

OFF

OFF

.750

[19.05]

3.015

MAX.

[76.58]

Four Pole

OFF

OFF

OFF

.750

[19.05]

.750

[19.05]

3.015

MAX.

[76.58]



OFF

.750

[19.05]

Mounting
Detail

APG/UPG only

APGH/UPGH only

.750

[19.05]

.750

[19.05]

.750

[19.05]

Four Pole*

.750

[19.05]

.750

[19.05]

.750

[19.05]

Four Pole*

See single pole mounting

detail for hole sizes

and locations.

Three Pole

Mounting
Detail

Four Pole

Mounting
Detail

Airpax-UPGH66-html.html
background image

APGHX / UPGHX BREAKERS

APGHX / UPGHX Breakers

86

APGHX / UPGHX

Rocker actuated APGHX/UPGHX provides one rocker handle for
each pole of a multi-pole circuit breaker.

Number of

Poles

1.510

±

 .005

[38.35

±

.13]

2.265

±

.005

[57.53

±

.13]

2 Pole

3 Pole

Dimension “A”

1.640

[41.66]

APGX / UPGX – 6

2.422 MAX.

[61.52]

APGX / UPGX – 1

2.390 MAX.

[60.70]

.23

[5.84]

2.00

[50.80]

1.53

[38.86]

.340

[8.64]

1.22

[31.00]

.440

[11.18]

1.510
[38.35]

1.660
[42.16]

1.260
[32.00]

.750
[19.05]

 4X     .156
[3.96]

.200
[5.08]

Two Pole

OFF

ON

OFF

ON

2.59

[65.79]

2.481

[63.02]

1.66

[42.16]

.540

[13.72]

.75

[19.05]

1.515

MAX.

[38.48]

6 – 32 THD. (TYP.)
M3 1S0. THD.
OPTIONAL



±

.005

.735

          [18.67

±



.13

]

HANDLE  WIDTH

OFF

ON

OFF

ON

OFF

ON

2.265

MAX.

[57.53]

.75

[19.05]

.75

[19.05]

1.660
[42.16]

 6X     .156
[3.96]

.750
[19.05]

.750
[19.05]

1.260
[32.00]

.200
[5.08]

2.265
[57.53]

Three Pole

Two Pole

Three Pole

Panel Mounting Detail:

Tolerance ±.005 [.13]
unless noted.

Airpax-UPGH66-html.html
background image

APGX / UPGX BREAKERS

87

APGX / UPGX Breakers

APGX / UPGX

Rocker actuated APGX / UPGX provides one rocker handle per
circuit breaker.

1.640

[41.66]

APGX / UPGX – 6

2.422 MAX.

[61.52]

APGX / UPGX – 1

2.390 MAX.

[60.70]

.23

[5.84]

2.00

[50.80]

1.53

[38.86]

1.22

[31.00]

.440

[11.18]

HANDLE  WIDTH

1.66

[42.16]

.540

[13.72]

2.59

[65.79]

2.481

[63.02]

OFF

ON



±

.005

.735

          [18.67

±



.13

]

.75

   [19.05]

6 – 32 THD. (TYP.)
M3 1SO. THD.
OPTIONAL

OFF

ON

1.515

MAX.

[38.48]

OFF

ON

2.265

MAX.

[57.53]

.750
[19.05]

1.260
[32.00]

1.660
[42.16]

.200
[5.08]

 2X      .156
          [3.96]

Note:

Tolerance ± .015 [.38] unless noted.

Dimensions in Brackets [ ] are millimeters.

Panel Mounting Detail:

Tolerance ±.005 [.13]
unless noted.

Three Pole

One,Two & Three Pole

Single Pole

Two Pole

(Optional, handle may
be in pole 2 instead of
pole 1)

Airpax-UPGH66-html.html
background image

APGN / UPGN BREAKERS

APGN/UPGN Breakers

88

Bat Handle / Panel Seal (APGN / UPGN)

The APGN is designated to provide circuit protection in harsh
and military environments. Waterproof panel integrity is provid-
ed by an “O” ring bushing seal and silicon rubber gland within
the bushing/handle assembly. Single, two or three pole versions
are available with two and three pole versions featuring a single
operating handle and mounting bushing.

.750

[19.05]

2.000

[50.80]

1.220

[31.00] .656

[16.66]

KEYWAY
.060  [1.52] – .065  [1.65]  WIDE
.030  [.76] – .035  [.89]  DEEP

.656
[16.66]

    .515
[13.08]

    .156

[3.96]

13º

±

ON

OFF

13º

±

LOCKWASHER

⁄÷™

 – 32 HEX NUT

RUBBER “O”  RING

APGN – 1

2.200 MAX.

[55.88]

APGN – 6

2.232 MAX.

[56.69]

1.530

[38.86]

.230
[5.84]

.625
[15.88]

.130
[3.30]

  .750

±

.031

19.05

±

 .79

6 – 32 MTG. SCREW

2.265

MAX.

[57.53]

.750

[19.05]

.750

[19.05]

1.515

MAX.

[38.48]

.750

[19.05]

Single Pole

Two Pole

Three Pole

(Optional handle
may be in pole 2
instead of pole 1)

Single Pole

Two Pole*

Three Pole*

Optional Handle

Panel Mounting Detail:

Mounting detail tolerance
±.005 [.13] unless noted.

*See single pole mounting detail

for hole sizes and locations.

Airpax-UPGH66-html.html
background image

APG / UPG HANDLES AND ACTUATORS

Toggle Handles

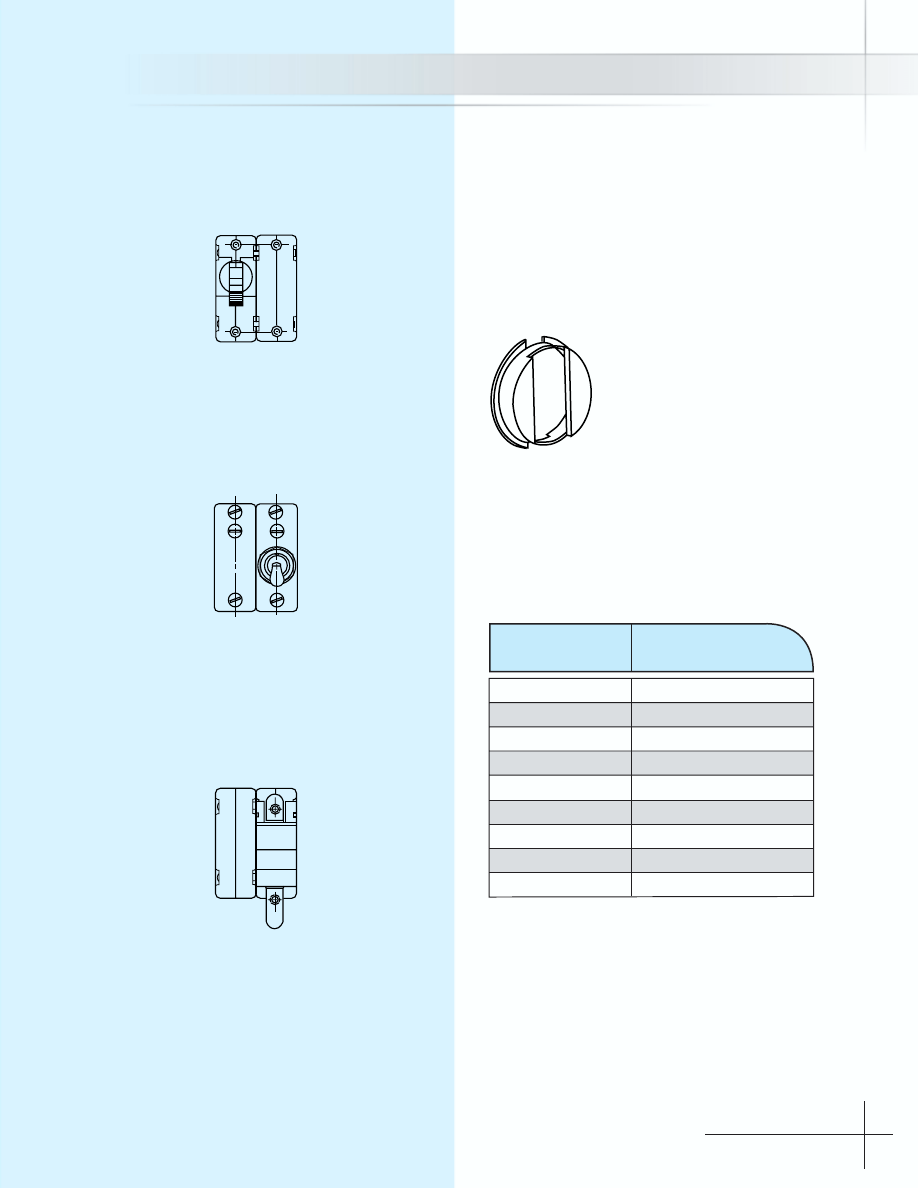

The APG/UPG circuit breaker is available with toggle handles in six
different colors. For attractive panel appearance, color caps are also
available. Handles may be specified in black, white, yellow, red, blue
and green. For multi-pole units, specify handle per unit or handle
per pole.

Color Caps

Order Separately

Red

Green

White

Gray

Blue

Yellow

Orange

Brown

Black

762 - 300 - 8046

762 - 300 - 8043

762 - 300 - 8040

762 - 300 - 8041

762 - 300 - 8042

762 - 300 - 8044

762 - 300 - 8045

762 - 300 - 8047

762 - 300 - 8048

OFF

OFF

ON

Standard Handle Location

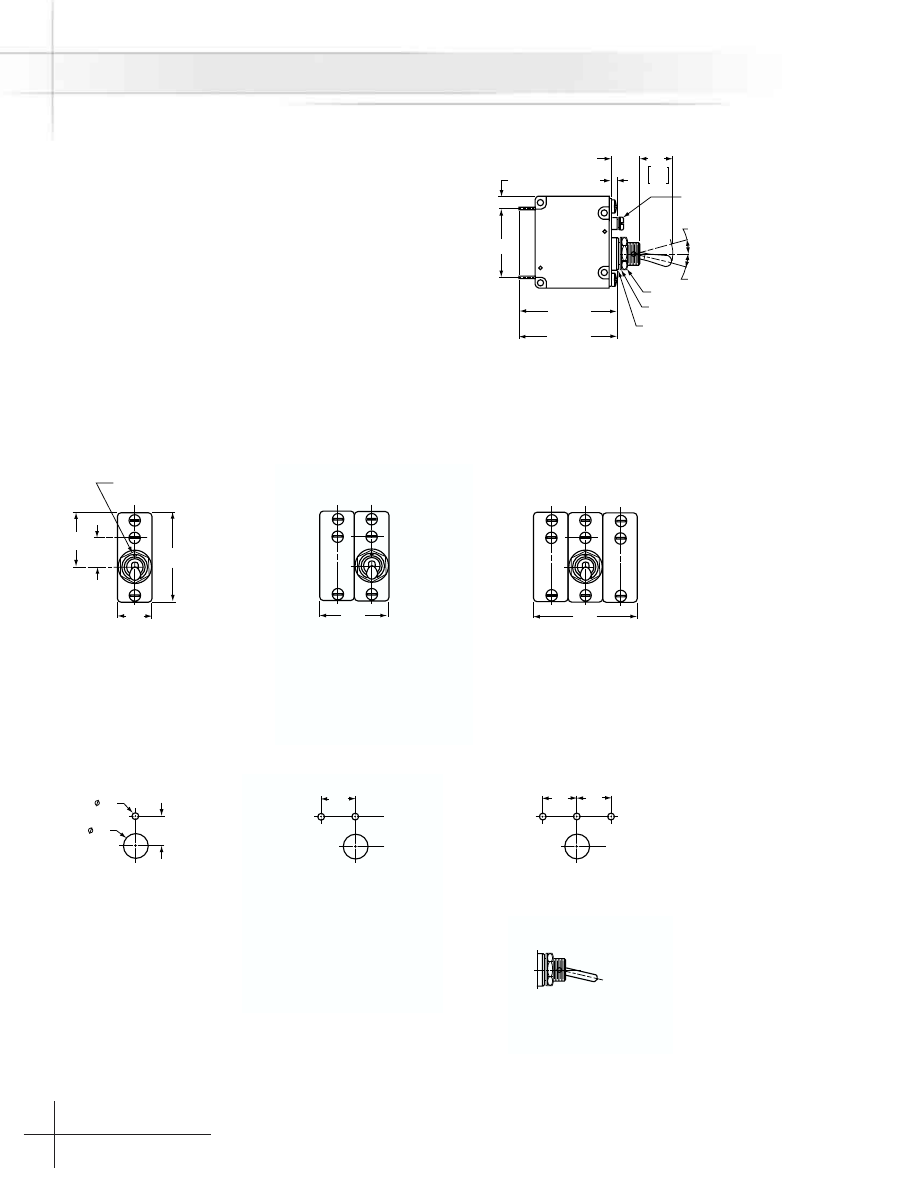

(Applies to 2 Pole Only)

Color Caps

For attractive panel appearance the
following color caps are available for
use on APG/UPG breakers.

Toggle Handles

APG/UPG

Bat Handle/
Panel Seal

APGN/UPGN

Rocker

APGX/UPGX

Note:

Tolerance ± .015 [.38] unless noted.

Dimensions in Brackets [ ] are millimeters.

89

APG/UPG Handles and Actuators

Airpax-UPGH66-html.html
background image

IPG MAGNETIC CIRCUIT BREAKERS

The IPG circuit breakers provide
the advantages of magnetic
“stand alone” protection and
compliance with UL, CSA, SEV,
VDE and IEC standards.

They are UL Recognized, CSA

Certified, VDE approved and
CE compliant to VDE 0642
(EN60934). Additionally, they
conform to the spacing require-
ments of VDE 0730, 0804, 0805
and 0806, and IEC 950 for use
in office machines and data
processing equipment.

IPG circuit breakers have

current ratings from .020 to
50 amperes, 250Vac, 65Vdc, and
an auxiliary switch is available
with either gold or silver
contacts. They feature one
through four pole configura-
tions, with one handle per pole.
A choice of handle actuation
colors, terminals and hardware
are available and international
markings are standard. And,
with an adapter plate, they will
fit in panels cut for Airpax APL
and UPL type breakers.

IPG Magnetic Circuit Breakers

90

2.032

[51.61]

MAX.

.250

[6.35]

1.640

[41.66]

.690

[17.53]

32º

32º

2.000

[50.80]

1.220

[30.99]

.750

[19.05]

1.660

[42.16]

.168

[4.27]

.590 MAX.
[15.00]

6 – 32 THREAD
.140 [3.56] DEEP (TYP.)
M3 ISO  THD.  OPTIONAL

.750

[19.05]

1.515

[38.48]

MAX.

.750

[19.05]

2.265

[57.53]

MAX.

.750

[19.05]

.750

[19.05]

3.015

[76.58]

MAX.

.750

[19.05]

.750

[19.05]

.750

[19.05]

    .156
[3.96]
(2 PER POLE)

1.660

[42.16]

1.050

[26.67]

    .625

         +.25
         –.00

   15.88
   (1 PER POLE)

+.010
–.000

Single Pole

Two Pole

Three  Pole

Four Pole

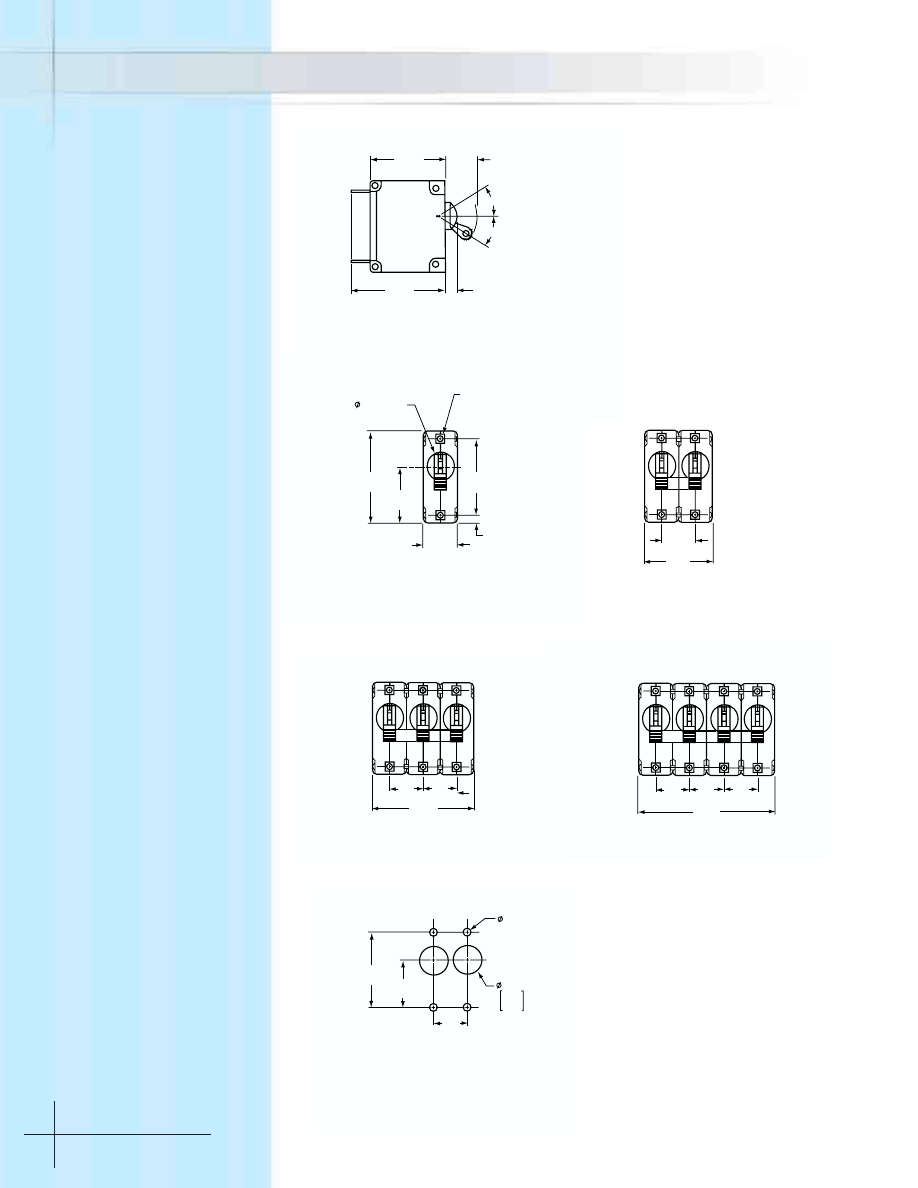

Panel mounting detail:

Tolerance ± .005 [.13] unless noted.

Note

:

Main terminals are stationary male
push-on type .250 [6.35] wide x .031
[.787] thick x .312 [7.92] long or 8-32 x
.187 [4.75] screw type (

30A). 10-32 x

.187 [4.75] screw type (>30A).

Airpax-UPGH66-html.html
background image

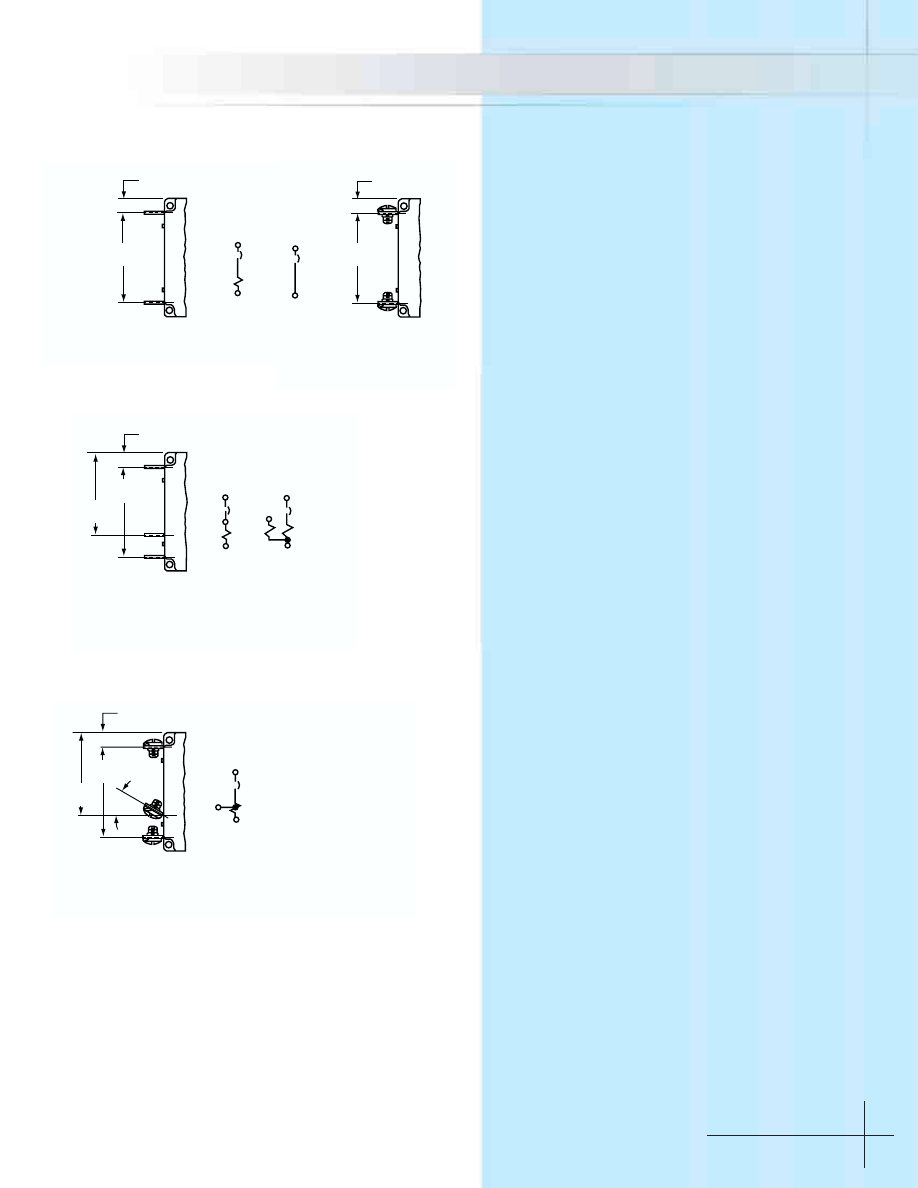

APG / UPG / IPG CONFIGURATIONS

Series Trip

The most popular configuration for magnetic protectors
is the series trip where the sensing coil and contacts are
in series with the load being protected. The handle posi-
tion conveniently indicates circuit status. In addition to
providing conventional overcurrent protection, it’s
simultaneously used as an on-off switch.

Shunt Trip

The shunt trip is designed for controlling two separate
loads with one assembly. The control is established by
providing overload protection for the critical load.
When the current through this load becomes excessive
and reaches the trip point, the protector will open and
remove power from both loads simultaneously. The
total current rating of both loads must not exceed the
maximum contact rating.

.23

[5.84]

1.53

[38.86]

.23

[5.84]

1.53

[38.86]

.23

[5.84]

1.53

[38.86]

1.38

[35.05]

.23

[5.84]

1.53

[38.86]

1.38

[35.05]

30º

Series and Switch Only

Series

Switch Only

Shunt and Dual Coil

Shunt

Dual Coil

Tapped Coil

Tapped Coil

91

APG/UPG/IPG Configurations

Note:

Tolerance ± .015 [.38] unless noted.
Dimensions in Brackets [ ] are millimeters.

Airpax-UPGH66-html.html
background image

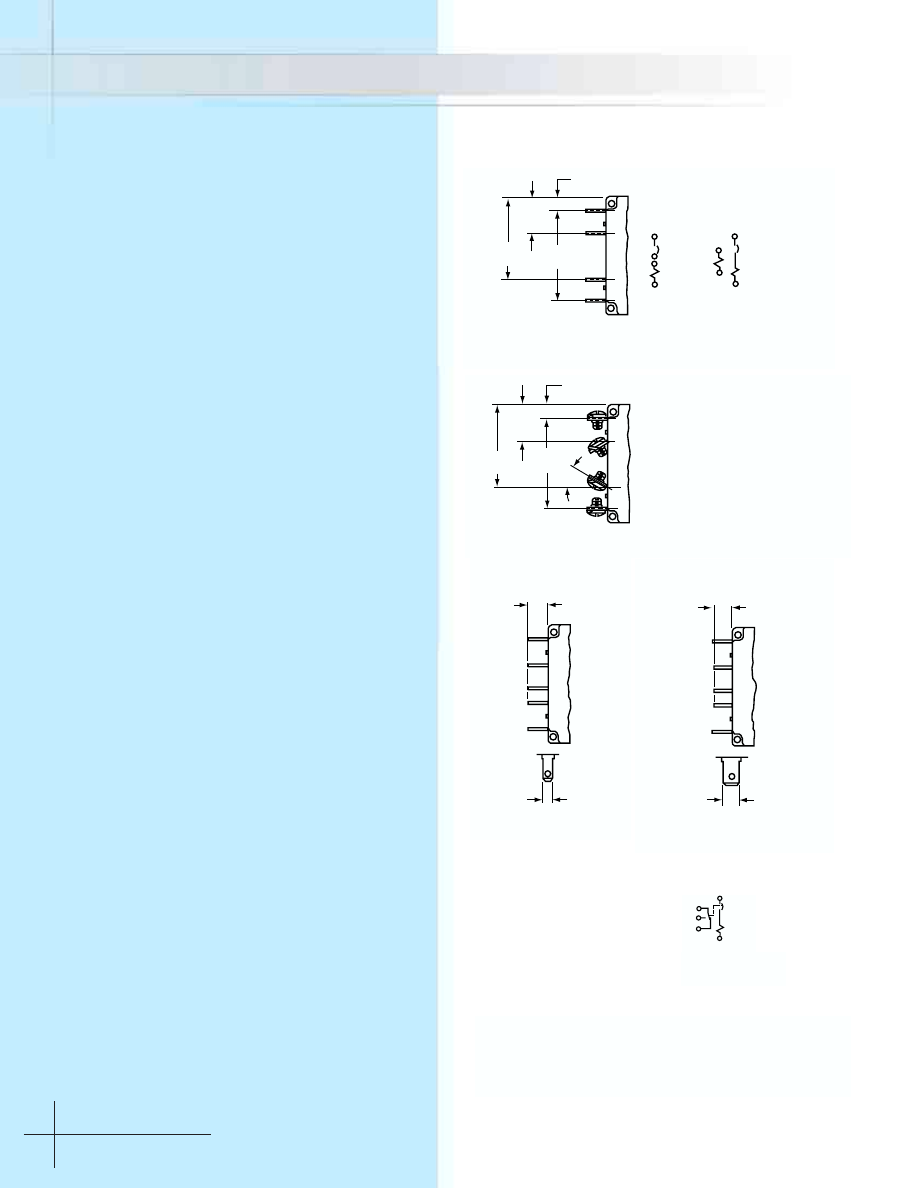

APG / UPG / IPG CONFIGURATIONS

(CONT’D)

APG/UPG/IPG Configurations

92

Relay Trip

This permits the overload sensing coil to be placed in a
circuit which is electrically isolated from the trip contacts.
The coil may be actuated by sensors monitoring pressure,
flow, temperature, speed, etc. Other typical applications
include crowbar, interlock and emergency/rapid
shutdown circuitry. Trip may be accomplished by
voltage or current, which must be removed after trip.

Auxiliary Switch

This is furnished as an integral part of a series pole in
single or multi-pole assemblies. Isolated electrically from
the protector’s circuit, the switch works in unison with the
power contacts and provides indication at a remote
location of the protector’s on-off status.

Voltage Trip

Sometimes called “dump circuits” or “panic trip circuits,”
these units make it possible to open main power contacts
with lower power inputs from one or more sources. This
configuration is becoming increasingly more important
for sensitive circuitry and denser packaging in automation
systems. Available in series, shunt, or relay configurations.

.23

[5.84]

1.53

[38.86]

1.38

[35.05]

.61

[15.50]

.23

[5.84]

1.53

[38.86]

1.38

[35.05]

.61

[15.50]

30º

(TYP.)

.295

[7.49]

.110

[2.79]

.312

[7.92]

.187

[4.75]

Relay and Dual Coil

Relay

Dual Coil

Relay and Four Terminal
Dual Coil with Screw Terminal

Series with Auxiliary Switch
All auxiliary switch terminals
.020[.51] thick
Standard auxiliary switch is REC 4.

-1 REC 4
-1 REG 4
Quick Connect
Terminals

-1 REC 5
-1 REG 5
Quick Connect
Terminals

Note:

Main terminals are stationary male push-on type .250 [6.35] wide,

x .031 [.787] thick, x .312 [7.92] long or 8-32 x [4.75] screw type

(

30A), 10-32 x .187 [4.75] screw type (>30A).

Note:

Tolerance ± .015 [.38] unless noted.

Dimensions in Brackets [ ] are millimeters.

C

NO

NC

Breaker in OFF position

Auxiliary Switch

Airpax-UPGH66-html.html
background image

93

APG/UPG/IPG Operating Characteristics

APG / UPG / IPG OPERATING CHARACTERISTICS

Notes:

 All trip curves and trip currents are specified with the breaker mounted in the normal vertical position at ambient temperture of +25

°

 C. Breakers do not carry current prior to application of overload.



     A:

 Ratings above 30 amps may deviate from the above limits by approximately 10% (130% for delay 49).

Delay

40

41

42

49

43 & 400

50

51

52

59

53 & 500

60

61

62

64

65

66

69

600

100%

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

125%

(Note A)



May Trip

May Trip

May Trip

.150 Max.

May Trip

May Trip

.5-6.5

2-60

.100 Max.

80 - 700

May Trip

.7 - 12

10 - 120

.7-10

7 - 90

50 - 700

.120 Max.

80 - 700

150%

.040 Max.

.5 - 8

5 - 70

.100 Max.

35 - 350

.032 Max.

.3 - 3

1.8 - 30

.070 Max

40 - 400

.040 Max.

.35 - 7

6 - 60

.35 - 6

3 - 40

30 - 400

.100 Max.

45 - 400

200%

.035 Max.

.15 - 1.9

2.2 - 25

.032 Max.

12 - 120

.024 Max.

.1 - 1.2

 1 - 10

.032 Max.

15 - 150

.035 Max.

.130 - 3

 2 - 20

.15 - 3

1 - 12

10 - 150

.050 Max.

15 - 150

400%

.030 Max.

.02 - .4

.40 - 5

.020 Max.

1.5 - 20

.020 Max.

.031 - 5

.15 - 2

.020 Max.

2 - 20

.030 Max.

.030 - 1

.2 - 3

.05 - .6

.2 - 3

1.5 - 20

.022 Max.

2 - 20

600%

.025 Max.

.006 - .25

.012 - 2

.020 Max.

.1 - 4

.018 Max.

.011 - .25

.04 - 1

.020 Max.

.7 - 10

.025 Max.

.015 - .3

.02 - 2

.025 - .3

.08 - 1

.4 - 10

.017 Max.

.2 - 4

800%

.020 Max.

.004 - .1

.006 - .2

.020 Max.

.01 - .250

.016 Max.

.004 - .1

.008 - .5

.020 Max.

.1 - 3

.020 Max.

.01 - .15

.015 - .8

.020 - .22

.03 - .7

.05 - 3

.017 Max.

.025 - 1

1000%

.018 Max.

.004 - .05

.006 - .15

.020 Max.

.009 - .100

.015 Max.

.004 - .08

.006 - .1

.020 Max.

.010 - .100

.018 Max.

.008 - .1

.01 - .25

.015 - .15

.016 - .3

.02 - 2

.017 Max.

.01 - .2

       Notes:

DCR and impedance based on 100% rated current applied and stablized a minimum of one hour.

Tolerance:

 .02 amperes to 2.5 amperes,

±

 20%; 2.6 amperes to 20 amperes,

±

 25%; 21 amperes to 50 amperes,

±

 50%. Consult factory for special values and for coil impedance of delays not shown.

    .05

    .10

    .50

  1.

  5.

10.

15.

20.

30.

50.

50

162.

  35.4

   1.2

      .236

      .021

     .0060

      .0040

      .0032

      .0021

      .0020

59



540.

 105.

     4.2

     1.02

       .048

       .0121

       .0067

       .0047

       .0036

       .0024

460.

155.

     4.5

    1.2

      .059

      .0140

     .0092

      .0052

      .0036

       .0026

640.

150.

    5.6

    1.41

      .070

      .0160

     .0100

     .0070

      .0040

      .0023

60

174.

  42.5

    1.9

      .41

      .030

      .0075

      .0038

       .0024

      .0022

     .0020

69

419.

103.4

    4.

      .955

      .045

      .0105

      .0068

      .0049

      .0032

      .0020

582.

119.0

    4.1

    1.08

      .048

     .0134

      .0070

      .0050

      .0035

      .0025

691.

160.

    6.2

    1.56

      .068

      .0174

      .0120

      .0069

      .0037

     .0030

40-49

1975.

    495.

    22.

      5.01

        .240

       .0520

        .0260

       .0140

       .0079

       .0036

1195.

  284.

    12.

      2.72

       .140

       .0283

        .0140

        .0088

       .0043

       .0028

DC Delays

Resistance in Ohms

Dual Coil
51-52
53

51-52
53

600
61-62
71-72-73

64-65-66
Dual Coil
61-62

41-42
43

Current
Ratings in
Amperes

50/60Hz Delays

Impedance in Ohms

400Hz Delays

Impedance in Ohms

Percentage Overload vs.Trip Time in Seconds

Nominal DCR and Impedance

For dual frequency curves, see page

9

4.

Airpax-UPGH66-html.html
background image

Operating Characteristics & Delay Curves

94

Notes:

  All trip curves and trip currents are specified with the breaker mounted in the normal vertical position at ambient temperture of +25

°

C. Breakers do not carry current

            prior to application of overload.

Delay

71

72

73

100%

No Trip

No Trip

No Trip

135%



.4 -14

 7-130

 50 -700

150%

 .2 - 7

 3 - 60

 30 - 400

 200%

 .1 -3

 1.3  - 20

 10 - 150

 400%

 .027 -  1

 .085 - 3

 .8 - 20

 600%

 .015 - .3

 .02 - 2

 .14 - 4

 800%

 .01 - .15

 .015 - .8

 .025 - 1

1000%

 .008 -  .1

 .01- .26

 .01 - .26

Inrush Pulse Tolerance

It can be seen that the 64, 65 and 66 delays have a high inrush
capability and for most applications an inertia wheel would not be
required. Pulse tolerance is defined as a single pulse of half sine wave
peak current amplitude of 8 milliseconds duration that will not trip
the circuit breaker.

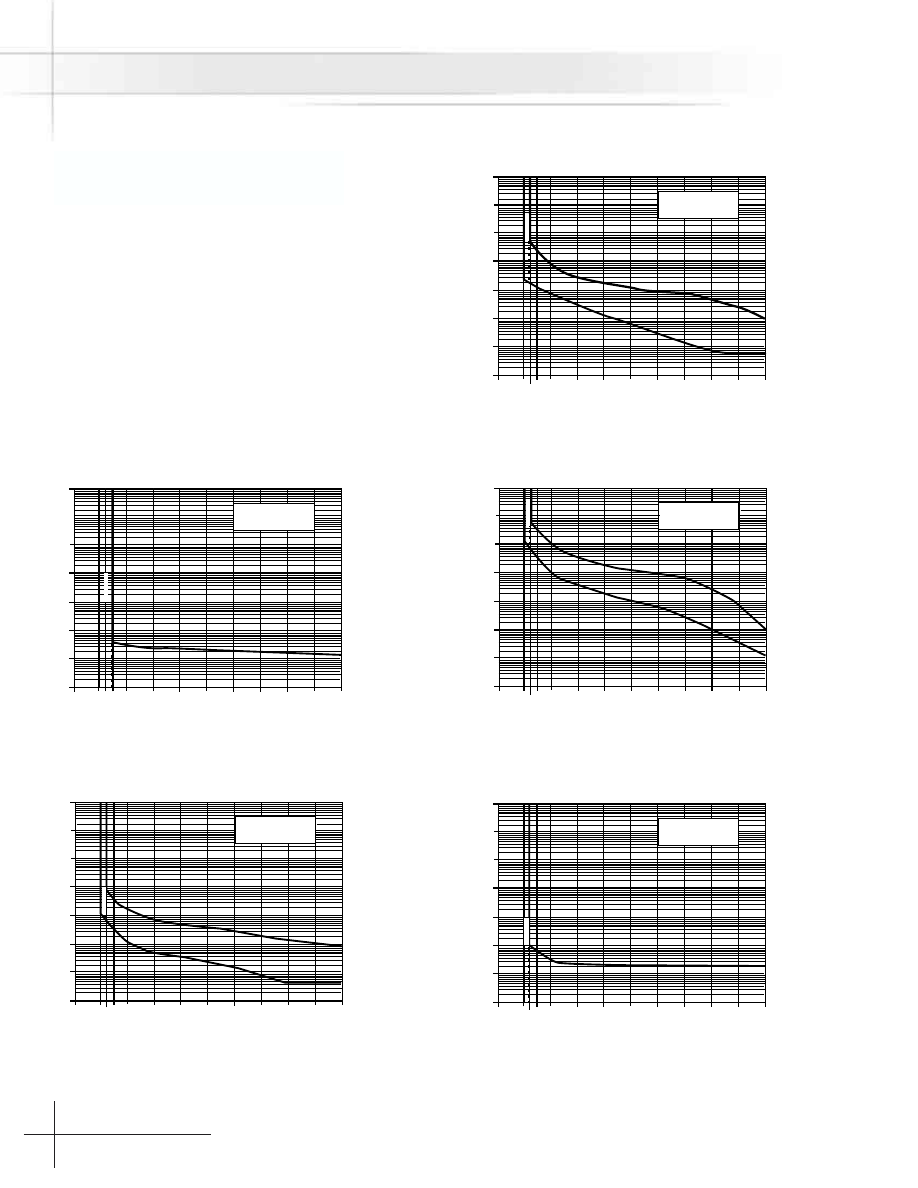

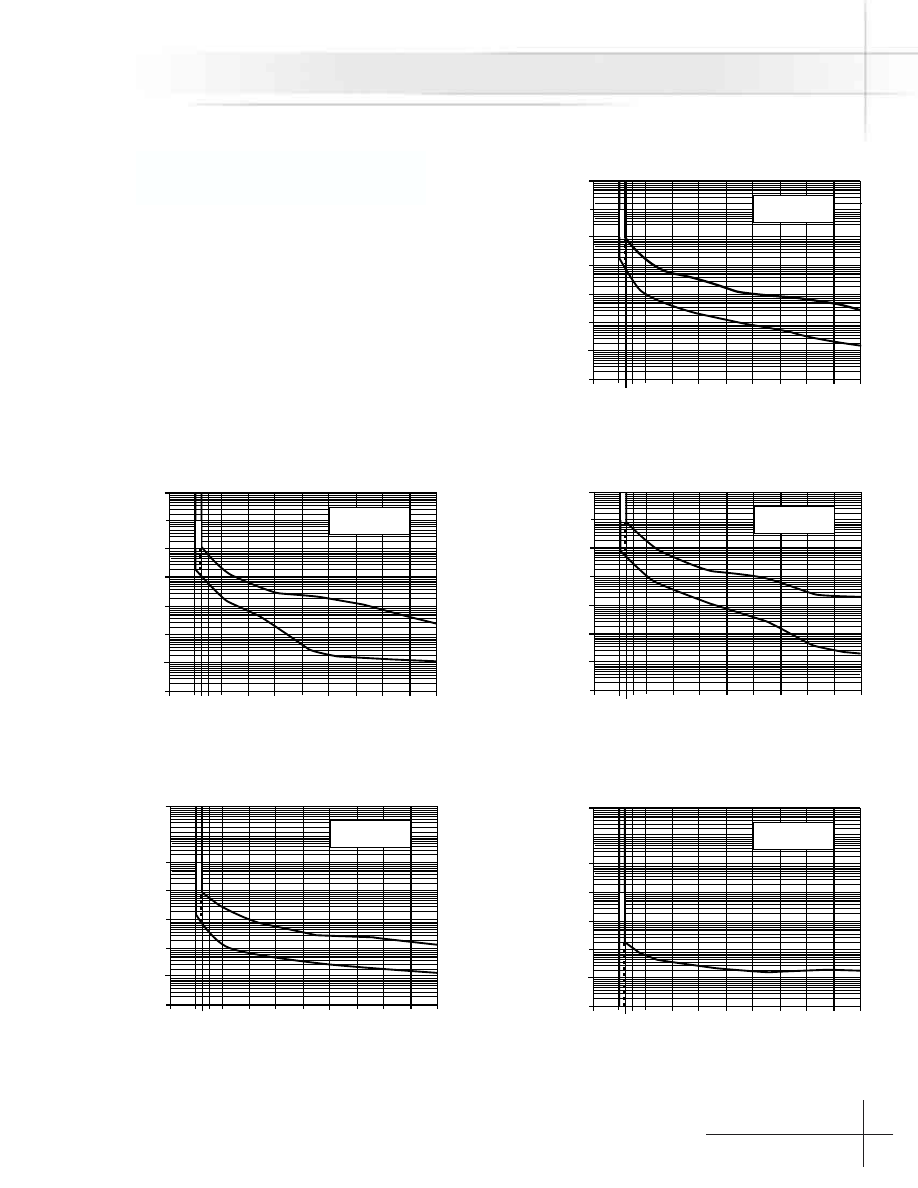

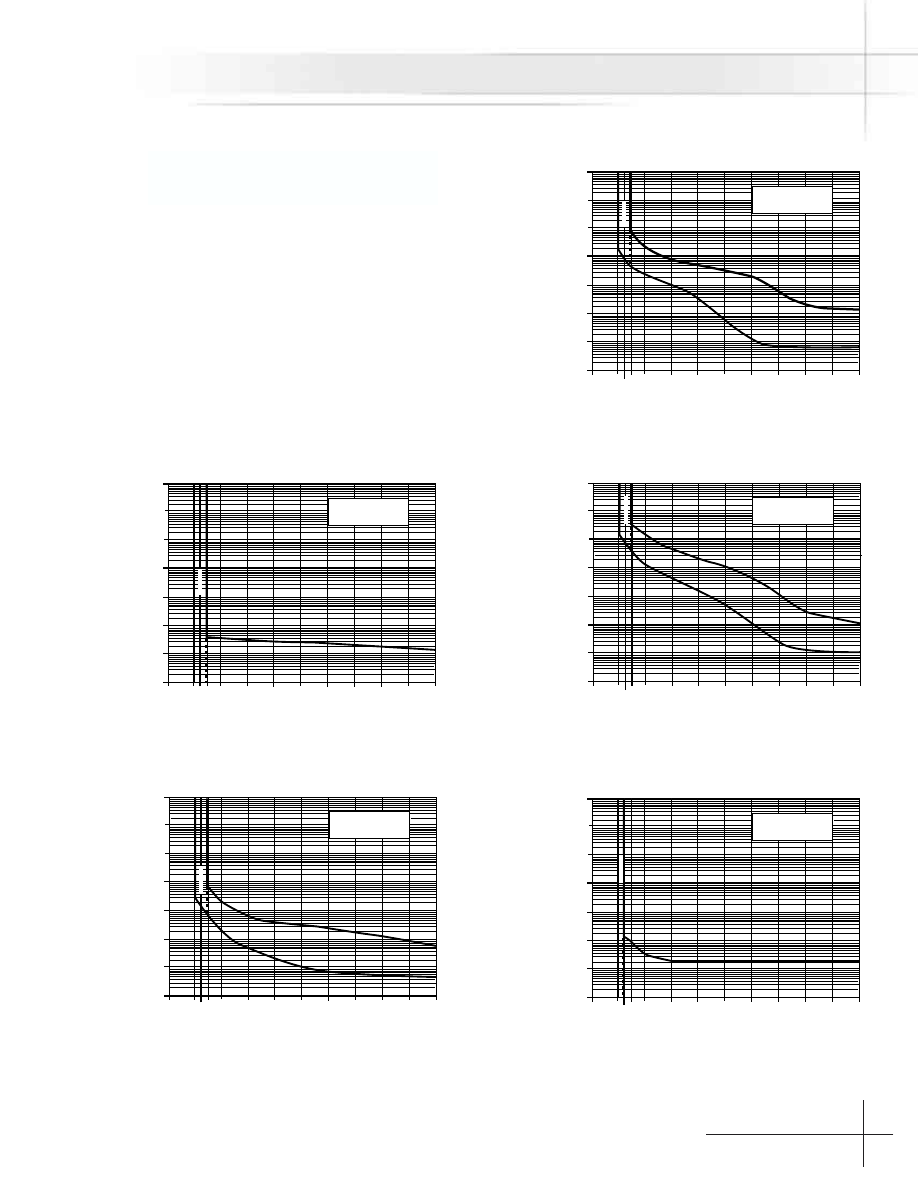

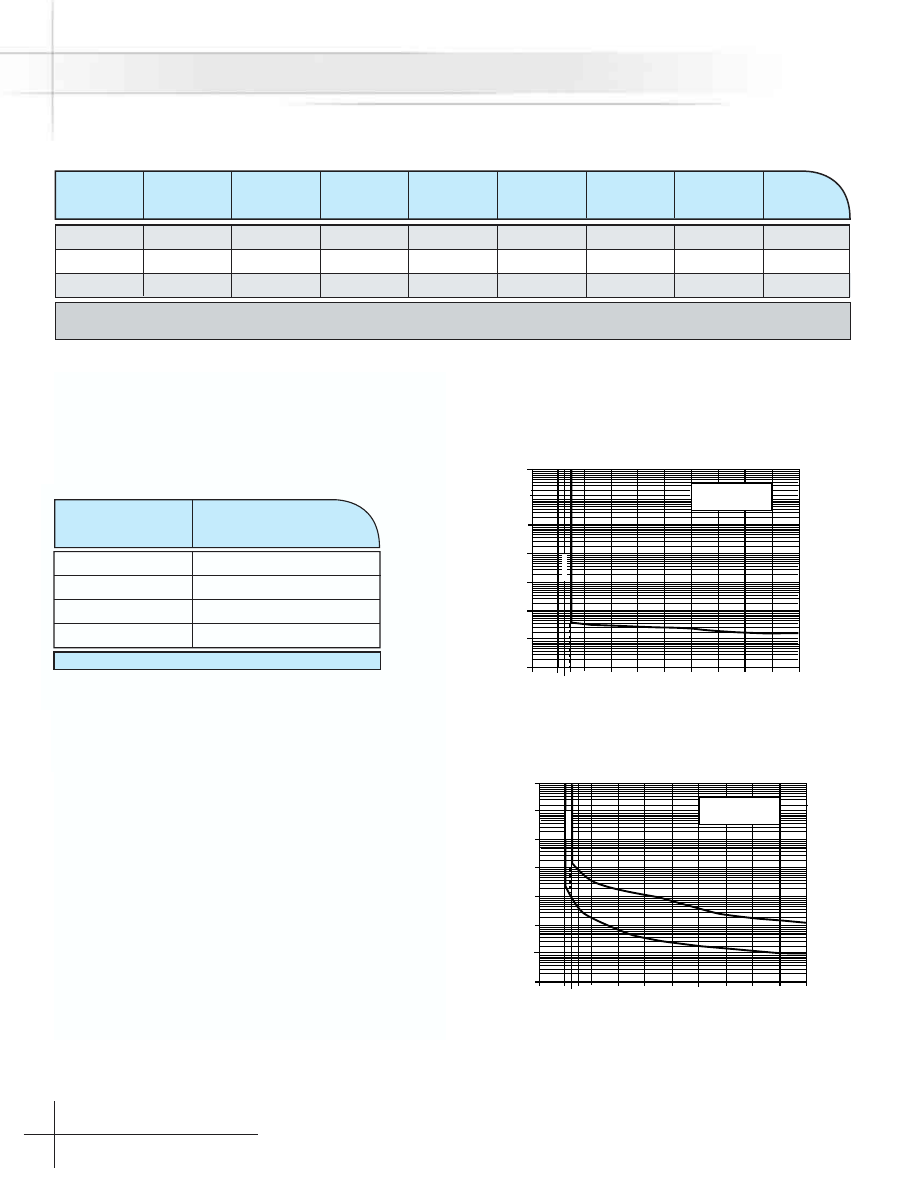

50/60Hz Delay Curves (typ)

A choice of delays is offered for DC, 50/60Hz, and 400 Hz
applications. Delays 40, 50, 60, 49, 59 and 69 provide fast-acting,
instantaneous trip and are often used to protect sensitive electronic
equipment (not recommended where known inrush exists). Delays
41, 51, 61 and 71 have a short delay for general purpose applications.
Delays 42, 52 and 62 are long enough to start certain types of motors
and most transformer and capacitor loads. Delays 43, 53 and 63 are
long delays for special motor applications at 400Hz DC and 50/60Hz.

APG / UPG / IPG OPERATING CHARACTERISTICS AND DELAY CURVES

Delay

Pulse Tolerance

61, 62

   10 times rated current

61F, 62F

   20 times rated current

64, 65, 66

   20 times rated current

64F, 65F, 66F

   35 times rated current

Note:

 These limits do not apply to dual coil and tapped coil units.

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 60

MA

Y

TRIP

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 61

MA

Y

TRIP

Dual Frequency (DC/60Hz)

Airpax-UPGH66-html.html
background image

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 62

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 64

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 69

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 66

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

135

TIME IN SECONDS

DELAY 65

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

50/60Hz Delay Curves (typ)

APG / UPG / IPG DELAY CURVES

95

Delay Curves

Airpax-UPGH66-html.html
background image

Delay Curves

96

APG / UPG / IPG DELAY CURVES

DC Delay Curves (typ)

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 50

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 51

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 59

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 53

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 52

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

Airpax-UPGH66-html.html
background image

97

Delay Curves

APG / UPG / IPG DELAY CURVES

400Hz Delay Curves (typ)

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 40

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

 DELAY 41

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

130

TIME IN SECONDS

DELAY 49

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 43

10000

1000

100

10

1

.1

.01

.001

0         100  150 200        300       400         500        600        700         800        900      1000



PERCENT OF RATED CURRENT

125

TIME IN SECONDS

DELAY 42

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

MA

Y

TRIP

Airpax-UPGH66-html.html
background image

Specifications

98

SPECIFICATIONS

Trip Free

Will trip open on overload, even when forcibly held in the
ON position.

Trip Indication

The operating handle moves positively to the OFF position
on overload.

Ambient Operation

APG/UPG breakers operate normally in temperatures
between -40°C and +85°C.

Insulation Resistance

Not less than 100 megohms at 500Vdc.

Dielectric Strength

APG/UPG/IPG breakers withstand 1500 volts, 60Hz for 60
seconds between all electrically isolated terminals.

Except auxiliary switch terminals shall withstand 600 Volts

at 60Hz.

Endurance

Withstands 10,000 operations at rated voltage and current or
withstands 50 operations of 600% AC or 1000% DC rated
current at rated voltage followed by 6000 operations at rated
voltage and current, in accordance with UL 1077.

Auxiliary Switch Rating

10 Amp

           @              250Vac



           3 Amp

           @

     50Vdc



Agency Approvals

   Note:

  Series fuse to be a branch-circuit UL approved type K-5 back-up fuse rated at not more than four times the rating of the

              highest-rated type UPG (15 amperes minimum).





Voltage (V)

Rated Current (A)
Minimum/Maximum

Interrupting
Capacity (A)

Maximum
Rating (V)

Frequency
(Hz)

Phase

Minimum
Poles

UL/CSA

UL1077/CSA

Maximum
Series Fuse

32

65

130

120

120/240

240

250

250

277

277

125

240

250

250

277

DC

DC

DC

50/60

50/60

50/60

50/60

50/60

50/60

50/60

400

400

400

400

400



-

 -

 -

1

1

1 & 3

1 & 3

1 & 3

1

1

1

1 & 3

1 & 3

1 & 3

1

1

1

2

1

2

1

1

1

1

1

1

.05 - 50

.05 - 30

.05 - 15

.05 - 50

.05 - 50

.05 - 10

.05 - 50

.05 - 50

.05 - 30

.05 - 10

.05 - 30

.05 - 20

.05 - 30

.05 - 30

.05 - 20

2500

2000

1000

3600

1000

5000

1000

3650

1000

5000

2000

2100

1000

3500

1000

none

none

none

200

none

40

none

80

120

40

none

80

none

125

80

Airpax-UPGH66-html.html
background image

99

Specifications

SPECIFICATIONS

Moisture Resistance

Meets all the requirements of MIL-PRF-55629 when tested in
accordance with Method 106 of MIL-Std. 202.

Salt Spray (Corrosion)

Meets requirements of MIL-PRF-55629 when tested in accordance
with Method 101 of MIL-Std. 202.

All APG/UPG breakers are constructed with stainless steel

springs and plated parts. In addition to meeting normal require-
ments for moisture and salt spray resistance, the breaker meets the
fungus resistance requirements of MIL-PRF-55629.

Poles

One through four poles with the UPGH, one through three poles
with all other types.

MIL-PRF-55629 (APG)

Single, two and three pole versions, with and without the auxiliary
switch option, have been qualified to MIL-PRF-55629.

Construction

Series, shunt, relay, dual coil, tapped coil, voltage trip,
no-voltage trip, auxiliary switch, switch only. Various delays
and combinations.

Shock

Withstands 100G or more without tripping while carrying full
rated current per MIL-Std. 202, Method 213, Test Condition I.
Instant trip breakers are tested at 80% of rated current.

Vibration

Withstands 10G without tripping while carrying full rated current
per MIL-Std. 202, Method 204, Test Condition A. Instant trip
breakers are tested at 80% of rated current.



APG/UPG/IPG

                     2.2                      60.5



   APGN/UPGN                             3                         76.2

Ounces           Grams

Recommended Torque  Specifications

6-32 mounting inserts

M3 mounting inserts

8 - 32 screw terminals

M4 screw terminals

10 - 32 screw terminals

M5 screw terminals



2

 - 32 mounting bushing

 6 - 8 inch pounds

 4 - 5 inch pounds

10 - 12 inch pounds

10 - 12 inch pounds

14 - 15 inch pounds

14 - 15 inch pounds

30 - 35 inch pounds

1

Approximate Weight Per Pole

Airpax-UPGH66-html.html
background image

APG / UPG DECISION TABLES

How to Order

The ordering code for APG/UPG circuit breakers may be
determined by following the steps in the decision tables
shown here.

The coding given permits a self-assigning part number but

with certain limitations. Units with mixed ratings, combina-
tions of styles, or constructions not listed in the third decision
table, require a factory-assigned part number. With these, it is
suggested that order entry be by description and/or drawings,
and a part number will be established. Additionally, it is
standard policy to establish a factory-assigned part number
whenever a descriptive drawing exists to provide cross
reference, traceability and manufacturing control.

When specifying a circuit breaker for AC motor start or high

inrush applications, the peak amplitude and surge duration
should be specified for factory assistance in rating selection.

For example, the following is the code for a single pole UPG,

quick-connect type terminal series unit with auxiliary switch,
designed for operation in a 50/60Hz circuit. It has a short time
delay and a rating of 20 amperes. A white handle is specified by
the seventh decision table.

To determine the ordering number for your particular

APG/UPG unit, simply follow the steps shown. You may use
this number to place an order or as a reference for further
questions you may have.

Notes:
A

It is recommended that power leads be soldered to
breakers having quick-connect terminals for current
trip ratings above 10 amperes.

B

The standard current values for 100% of rated
current are listed. Please consult an Airpax office or

sales representative for other values.

C

UL recognized and CSA certified applications
above 30 amperes are restricted to loads having a
power factor of 75 minimum and limited to 32Vdc
only. Standard terminals on ratings over 30 amperes
are 10-32 screw type.

D

Four pole breakers are available only in the
APGH/UPGH and APG/UPG types. The APGH/
UPGH four pole provides one handle per pole,
while the APG/UPG four pole has handles in the
center two poles only, for simplified mounting.

E

Sub panel mount available in APGX/UPGX
configuration only.

F

When “A” is specified in the sixth decision in
conjunction with APG/UPG-6 type, metric screw
terminals are supplied.

G

If a circuit breaker is marked in this manner, it
means 277V per pole – single phase source. Thus, if
a two or three pole unit is marked 277V, all line
terminals must be connected to the same phase,
assuming the 277V is taken from line to neutral of
3 phase 277/480V system.

First Decision

1

Type

Type

APG

UPG

APGX

UPGX

APGN

UPGN

APGH

UPGH

APGHX

UPGHX

Description

One handle per unit

One handle per unit
UL Recognized and
CSA Certified

One rocker handle per unit

One rocker handle per
unit UL Recognized and
CSA Certified

Panel seal
(one bat handle per unit)

Panel seal (one bat handle
per unit) UL Recognized and
CSA Certified

One handle per pole

One handle per pole
UL Recognized and
CSA Certified

One rocker handle per pole

One rocker handle per pole
UL Recognized and
CSA Certified

Second Decision

2

Poles

(Note A)

 Quick-
 Connect
 Terminals

1

11

111

1111

Screw
Terminals

6

66

666

6666

Number
of poles

Single pole unit

Two pole unit

Three pole unit

Four pole unit

(Note D)

Number
of poles

Single pole unit

Two pole unit

Three pole unit

Four pole unit

(Note D)

APG/UPG Decision Tables

100

Airpax-UPGH66-html.html
background image

Fourth Decision

4

Hz and Delay

-40

-41

-42

-43*

-49

-50

-51

-52

-53*

-59

-60

-61

-62

-600*

-64

-65

-66*


-69

-71

-72

-73*

400Hz 150% instant trip

400Hz short delay

400Hz long delay

400Hz motor start

400Hz 130% instant trip

DC 150% instant trip

DC short delay

DC long delay

DC motor start

DC 125% instant trip

50/60Hz 150% instant trip

50/60Hz short delay

50/60Hz long delay

50/60Hz motor start delay

50/60Hz, short delay
(high pulse)

50/60Hz, long delay
(high pulse)

50/60Hz, motor start
(high pulse)

50/60Hz 125% instant trip

DC, 50/60Hz short delay

DC, 50/60Hz long delay

DC, 50/60Hz motor start delay

For addition of inertial delay, add an “F” to any delay
number.  * Not available above 30 amperes.

See page 18 for maximum voltage ratings.

(*Note C)

Standard current ratings listed. For other ratings,
please consult factory.

Fifth Decision

5

Nominal Average  Rating

(Note B)

-101

-251

-501

-751

-102

-252

-502

-752

  .100

  .250

  .500

  .750

1.0

2.5

5.0

7.5

Current
Code

Ratings
(Amps)

Current
Code

-103

-153

-203

-303

-353

-403

-503

  10.0

  15.0

  20.0

  30.0

  35.0*

  40.0*

  50.0*

Ratings
(Amps)

Sixth Decision

6

Optional

-A

-B

-C

-H

Metric thread mounting (Not
available on APGN/UPGN)

(Note F)

Sub panel mount

(Note E)

277Vac 50/60Hz

 (Note G)

International handle markings

One or more descriptions may be used as required.
If this table is not used, go directly to the seventh decision.

Seventh Decision

7

Handle/Actuator Color**

-01

-11

-21

-31

-41

-91

-00

-01

-02

-05

-08

-09

-21

-51

-81

-91

Black w/ white markings

Yellow w/ black markings

Red w/ white markings

Blue w/ white warkings

Green w/ white markings

White w/ black markings

Rocker/Actuator Color

Black w/o markings

Black w/ white markings

Red w/o markings

Opaque white w/o markings

Gray w/o markings

Translucent white w/o markings

Red w/ white markings

Opaque white w/ black markings

Gray w/ black markings

Translucent white w/ black markings

 **Not available for bat handle.
  †Unmarked handles are available. Please consult factory.

Toggle Handle Color †

1

2

3

4

5

UPG   1-1REC4-61-203-09

7

Third Decision

3

Internal Configuration

*Only one auxiliary switch is normally supplied on two and

  three pole units. Can be used for solder terminals also. Switch is

  located in the right-hand pole (viewed from terminal end) unless

  otherwise specified. Multi-pole units with mixed construction,

  poles numbered left to right when viewed from terminal end.

Switch only (omit 4th and
5th decisions)

Series


Auxiliary switch*
.110 quick-connect


Auxiliary switch* (Gold
Contacts) .110 quick-connect

Auxiliary switch*
.187 quick-connect

Shunt (up to 30 amperes only)


Relay (up to 30 amperes only)

-0

-1

-1REC4

-1REG4

-1REC5

-3

-4

Example:

101

APG/UPG Decision Tables

Airpax-UPGH66-html.html
background image

IPG Decision Tables

102

IPG DECISION TABLES

How to Order

The ordering code for IPG circuit breakers may be determined
by following the steps in the decision tables shown here.

The coding given permits a self-assigning part number but

with certain limitations. Units with mixed ratings, combina-
tions of styles, or constructions not listed in the third decision
table, require a factory-assigned part number. With these, it is
suggested that order entry be by description and/or drawings,
and a part number will be established. Additionally, it is
standard policy to establish a factory-assigned part number
whenever a descriptive drawing exists to provide cross
reference, traceability and manufacturing control.

When specifying a circuit breaker for AC motor start or high

inrush applications, the peak amplitude and surge duration
should be specified for factory assistance in rating selection.

For example, the following is the code for a single pole IPG,

quick-connect type terminal series unit with auxiliary switch,
designed for operation in a 50/60Hz circuit. It has a short time
delay and a rating of 20 amperes. Metric mounting inserts and
a white handle are also specified.

To determine the ordering number for your particular IPG

unit, simply follow the steps shown. You may use this number
to place an order or as a reference for further questions you
may have.

First Decision

1

Type

Type

IPG

IPGH

Description

Single pole with one
handle per unit (Not
available in multi-pole
configuration)

Multi-pole with
handle per pole

Std. Handle Color

Black

Black

Second Decision

2

Poles

Push-On

Terminals

1

11

111

1111

Screw
Terminals

6

66

666

6666

Number
of poles

Single pole

Two pole

Three pole

Four pole

Third Decision

3

Internal Configuration

*Only one auxiliary switch is normally supplied on two and
  three pole units. Switch is located in the right-hand pole
  (viewed from terminal end) unless otherwise specified.

Switch only (omit 4th and
5th decisions)

Series

Auxiliary switch*
.110 quick-connect

Auxiliary switch* (Gold
Contacts) .110 quick-connect

Auxiliary switch*
.187 quick-connect

Shunt (up to 30 amperes only)

-0

-1

-1REC4

-1REG4

-1REC5

-3

Notes:
A

It is recommended that power leads be soldered to breakers
having push-on terminals for current trip ratings above
10 amperes.

B

The standard current values for 100% of rated current are listed in
the fifth decision table. Please consult an Airpax office or sales
representative for other values.

C

All IPG breakers meet normal requirements for moisture and salt
spray resistance.

D

UL recognized and CSA certified applications above 30 amperes
are restricted to loads having a power factor of .75 minimum,
and limited to 32Vdc only. VDE approval above 30 amperes is
restricted to 32Vdc and 120Vac 50/60Hz. Standard terminals on
ratings over 30 amperes are 10-32 screw type.

E

When “A” is specified in the sixth decision in conjunction
with IPG-6 type, metric screw terminals are supplied.

Airpax-UPGH66-html.html
background image

Fourth Decision

4

Hz and Delay

-40

-41

-42

-43*

-49

-50

-51

-52

-53*

-59

-60

-61

-62

-64

-65

-66*

-69

400Hz 150% instant trip

400Hz short delay

400Hz long delay

400Hz motor start

400Hz 130% instant trip

DC 150% instant delay

DC short delay

DC long delay

DC motor start

DC 125% instant trip

50/60Hz 150% instant trip

50/60Hz short delay

50/60Hz long delay,

50/60Hz, short delay
(high pulse)

50/60Hz, long delay
(high pulse)

 50/60Hz, motor start
(high pulse)

number.

* Not available above 30 amperes.

(*Note D)

Standard current ratings listed. For other ratings,
please consult factory.

Fifth Decision

5

Nominal Amperage Rating

-101

-251

-501

-751

-102

-252

-502

-752

  .100

.250

  .500

 .750

1.0

2.5

5.0

7.5

Current
Code

Ratings
(Amps)

Current
Code

-103

-153

-203

-303

-353

-403

-503

10.0

15.0

20.0

  30.0

  35.0*

  40.0*

  50.0*

Ratings
(Amps)

Sixth Decision

6

Optional

-A

Metric thread mounting

(Note E)

When this table is not used, table 7 may be substituted
and U.S. thread will be supplied.

Seventh Decision

7

IPG and IPGH

-00

-10

-20

-30

-40

-90

Black

Yellow

Red

Blue

Green

White

Toggle Handle Color

The shaded areas denote VDE approval options.

This approval requires the addition of a V at the end

of the part number. The V will be added to any part

number formed entirely from shaded decisions.

If non-shaded areas are selected, the unit will not

be VDE  approved, but other approvals still apply.

V = VDE Approved

1

2

3

4

IPG   1- 1REC4-

- 20 - -

-V

5 6

7 V

Example:

103

IPG Decision Tables
