2

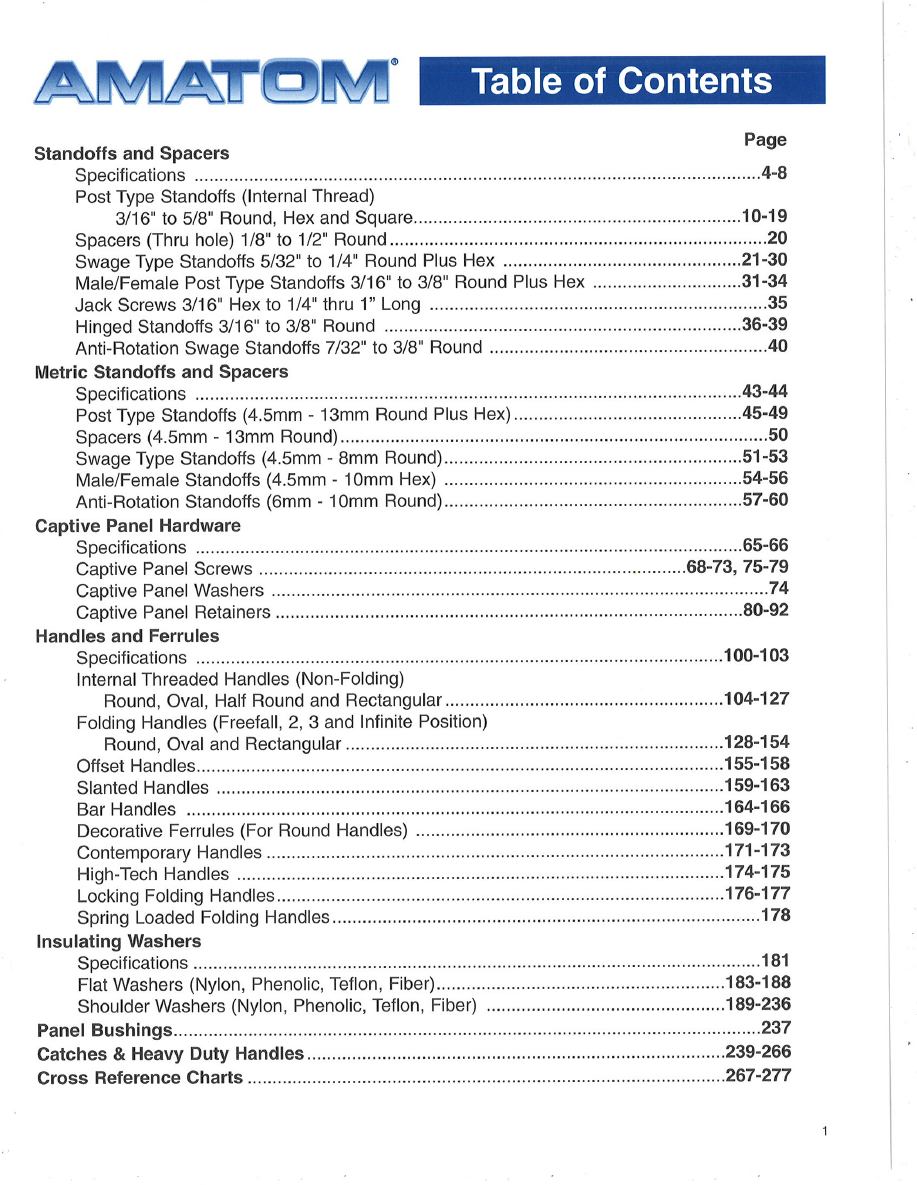

Index

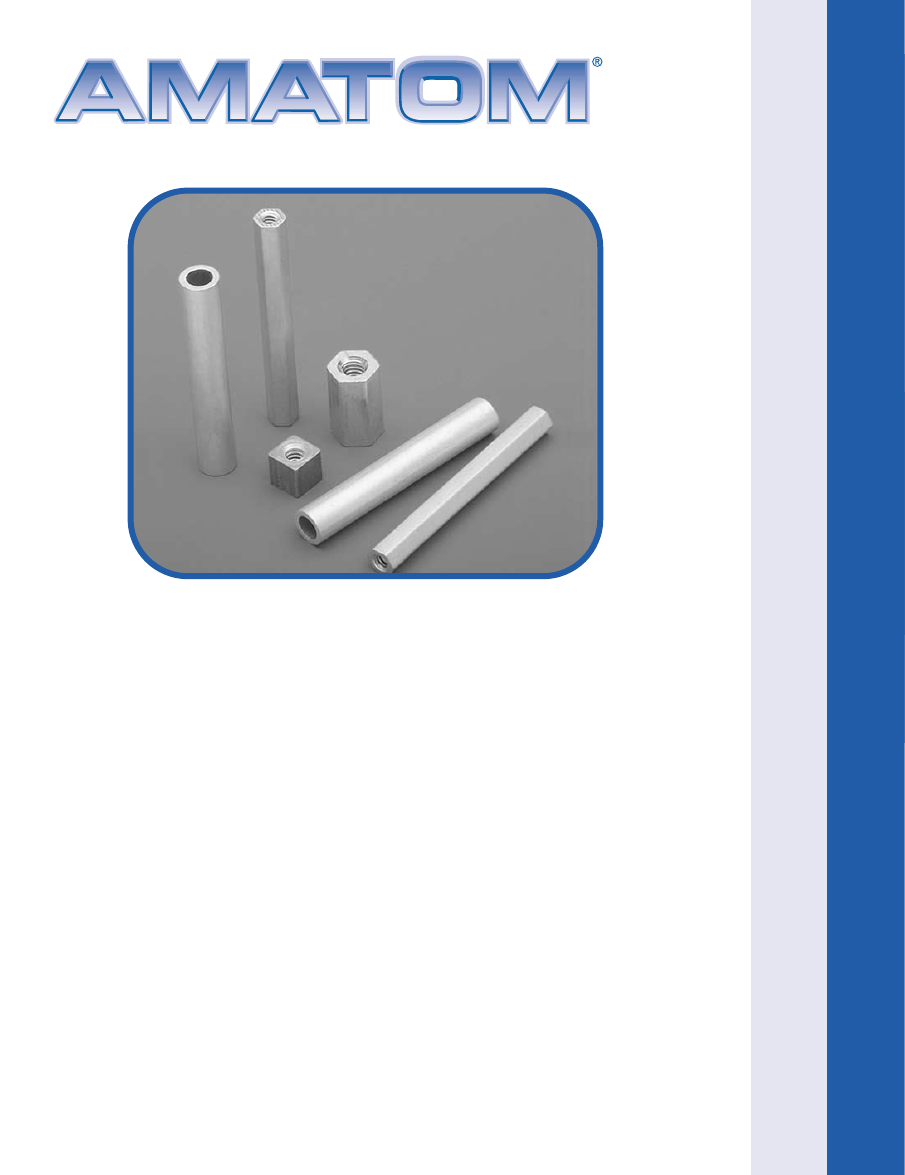

A. Post Type Standoffs (Internal Thread)

3/16" Round, Hex, Square from 1/8" thru 2" long ............................................................10

1/4" Round, Hex, Square from 1/8" thru 5" long ..........................................................11-12

5/16" Round, Hex, Square from 1/8" thru 5" long ........................................................13-14

3/8" Round, Hex, Square from 1/8" thru 5" long, Hex 1/8" thru 10" long ....................15-17

1/2" Round and Hex 1/8" thru 7 1/4" long ........................................................................18

5/8" Round, Hex, Square from 1/8" thru 5" long ..............................................................19

B. Spacers (No Thread)

1/8" Round from 1/8" thru 1/2" long ..................................................................................20

3/16" Round from 1/8" thru 1" long ..................................................................................20

1/4" Round from 1/8" thru 2" long ....................................................................................20

5/16" Round from 1/8" thru 2" long ..................................................................................20

3/8" Round from 1/8" thru 2" long ....................................................................................20

1/2" Round from 1/8" thru 2" long ....................................................................................20

C. Swage Type Standoffs (Internal Thread)

5/32" Round and Hex from 1/8" above Panel thru 1" above Panel ..................................21

3/16" Round and Hex (.125 Shank) from 1/8" above Panel thru 1" above Panel ............22

3/16" Round and Hex (.139 Shank) from 1/8" above Panel thru 1" above Panel ............23

1/4" Round and Hex (.138 Shank) from 1/8" above Panel thru 1" above Panel ..............24

1/4" Round (.188 Shank) from 1/8" above Panel thru 2" above Panel ............................25

1/4" Hex (.188 Shank) from 1/8" above Panel thru 2" above Panel ................................26

5/16" Round from 1/8" above Panel thru 2" above Panel ................................................27

5/16" Hex from 1/8" above Panel thru 2" above Panel ....................................................28

3/8" Round from 1/8" above Panel thru 2" above Panel ..................................................29

3/8" Hex from 1/8" above Panel thru 2" above Panel ......................................................30

D. Male/Female Post Type Standoffs

3/16" Round and Hex from 3/16" thru 1" long “L" dim - Body length................................31

1/4" Round and Hex from 1/4" thru 2" long “L" dim - Body length....................................32

3/8" Round from 1/4" thru 6" long “L" dim - Body length ..................................................33

3/8" Hex from 1/4" thru 6" long “L" dim - Body length ......................................................34

Page

3

Index

E. Jack Screws

3/16" Hex Steel 3/16" long body with 1/4" thru 1" long 4-40 Male Thread ......................35

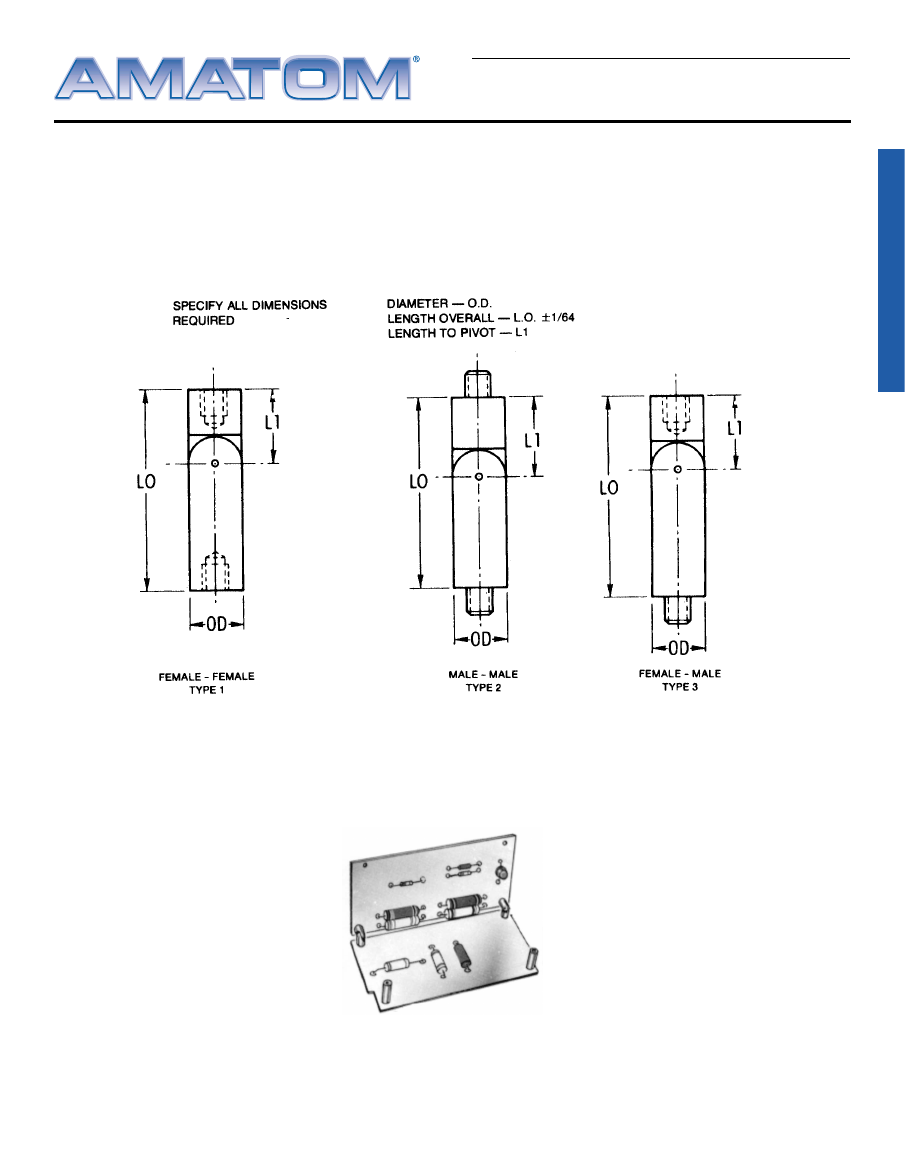

F. Hinged Standoffs

Female/Female (Internal Threads)

3/16" from 3/4" length overall thru 2" length overall..........................................................36

1/4" from 3/4" length overall thru 2" length overall............................................................36

5/16" from 3/4" length overall thru 2" length overall..........................................................37

3/8" from 3/4" length overall thru 2" length overall............................................................37

Male/Male (External Threads)

3/16" from 1/2" length overall thru 2" length overall..........................................................38

1/4" from 1/2" length overall thru 2" length overall............................................................38

5/16" from 1/2" length overall thru 2" length overall..........................................................38

3/8" from 1/2" length overall thru 2" length overall............................................................38

Special Order Hinged Standoffs ....................................................................................39

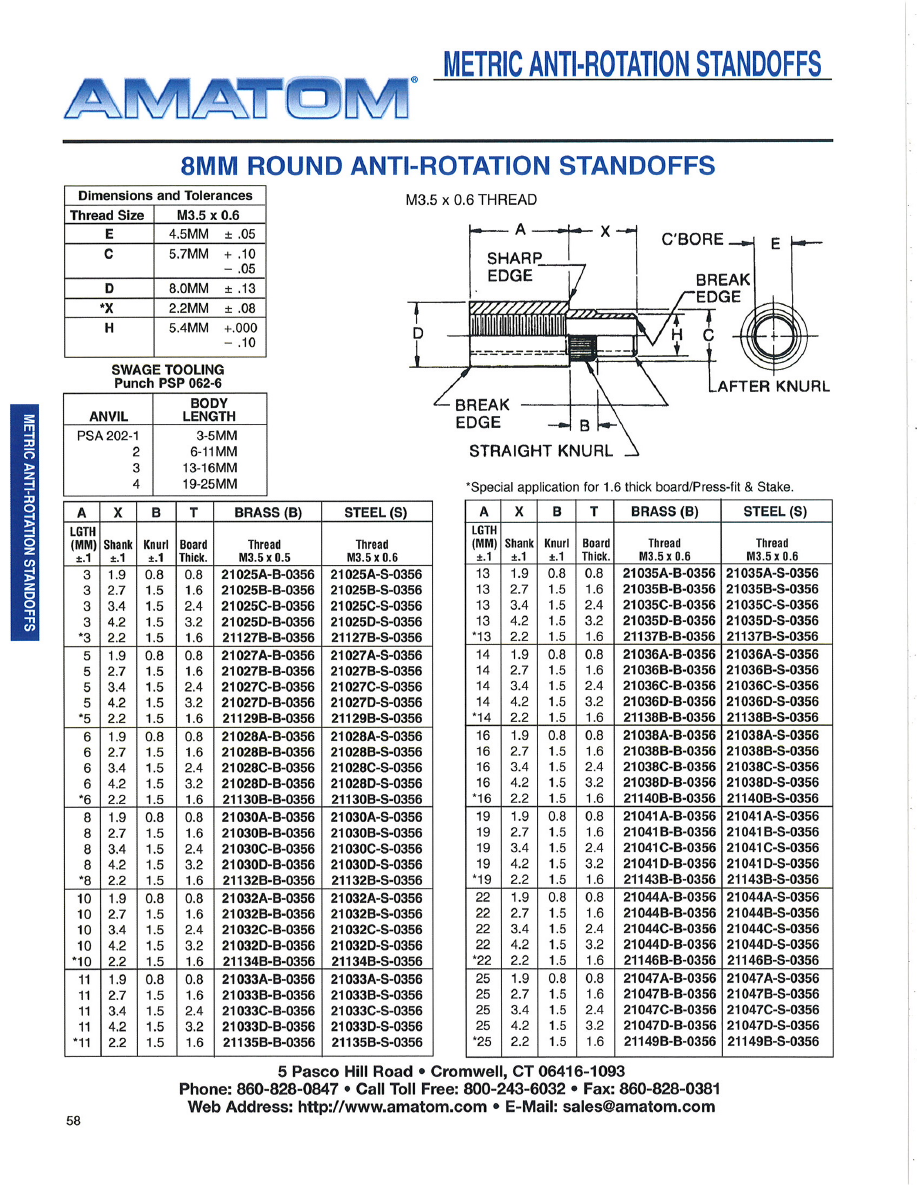

G. Anti-Rotation Swage Standoffs

7/32" from .065 above Panel thru 1" above panel ............................................................40

9/32" from .065 above Panel thru 1" above panel ............................................................40

11/32" from 1/8" above Panel thru 1" above panel ..........................................................40

3/8" from 1/8" above Panel thru 1" above panel ..............................................................40

Page

FEDERAL SUPPLY CODE FOR MANUFACTURERS

FSCM (Cage)

1YGB8

Percentage of Thread

Chart 3B

4

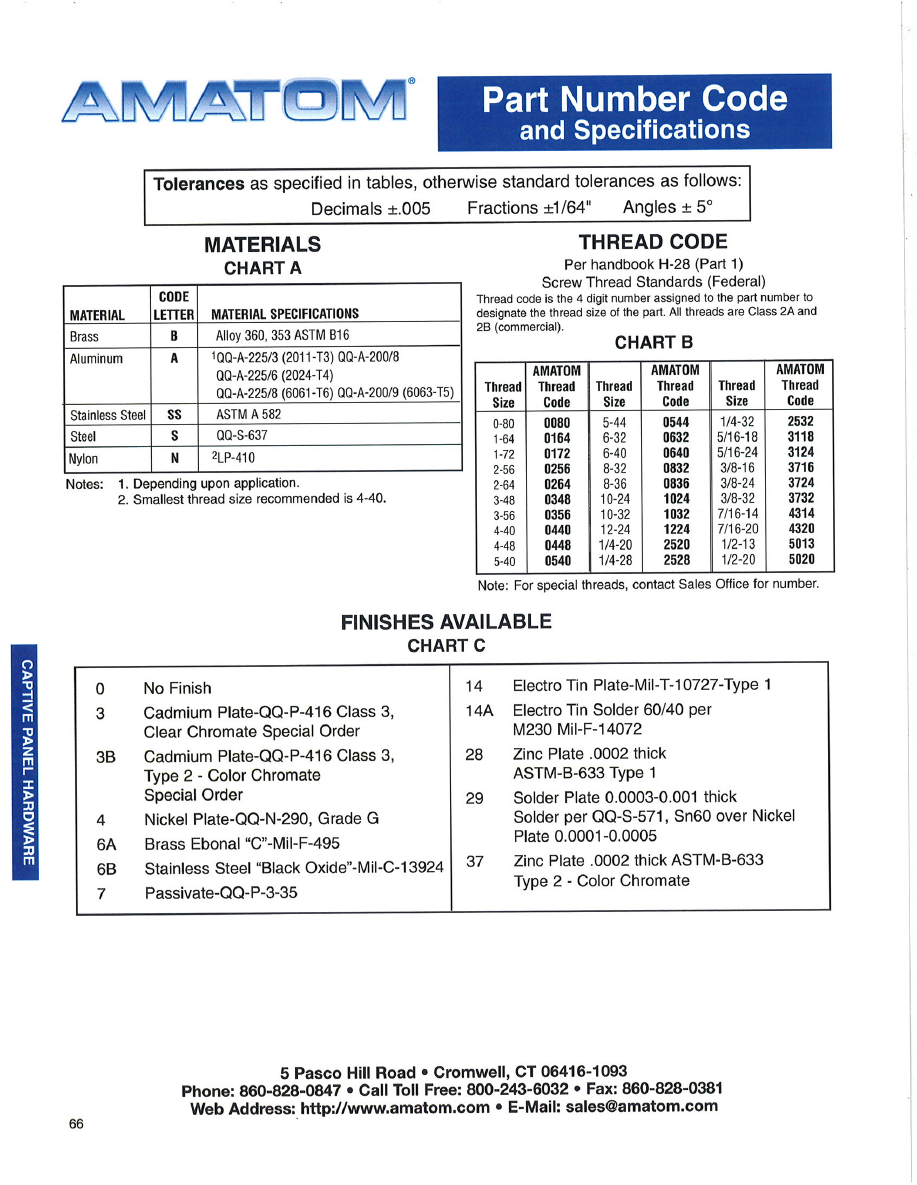

Part Number Code &

Specifications

Materials Chart No. 2

Length of Thread

Brass and Aluminum Parts

Depth of Thread

Chart No. 3A

Recommended Blind Hole Thread Length

in Standoffs
(Drilled and Tapped both ends)

Per Handbook H-28 (Part 1)
Screwthread Standards (Federal)

Screw

% of Thread Allowable

Thread

Roll, or

Size

Cold Form Tap

Cut Tap

2

55

56

4

55

57

6

55

66

8

55

58

10

55

59

12

55

63

1/4

55

67

Code

Material

Letter Material Specifications

Brass

B

Alloy 360, 353 ASTM B16

Aluminum

A

1

QQ-A-225/3 (2011-T3)
QQ-A-225/6 (2024-T4)
QQ-A-225/8 (6061-T6) QQ-A-200/9 (6063-T5)

Stainless Steel

SS

ASTM A582

Steel

S

ASTM A108-81, C12L14

Nylon

N

2

LP-410

Teflon

T

2

Mil-P-14078 Mil-P-19468

Phenolic

PH

3

Mil-P-79 Type PBE XXX (Paper Base)

Phenolic

PH-F

3

Mil-P-79 Type FBE Grade CP-940 or 4 below
Fabic Base

Delrin

D

LP-392

Fibre

F

Mil-F-1148A (Grade CH)

Poly Vinyl Chloride PVC

ASTM D-1784

AMATOM

AMATOM

AMATOM

Thread Size

Thread Code

Thread Size

Thread Code

Thread Size

Thread Code

0-80

0080

5-44

0544

1/4-32

2532

1-64

0164

6-32

0632

5/16-18

3118

1-72

0172

6-40

0640

5/16-24

3124

2-56

0256

8-32

0832

3/8-16

3716

2-64

0264

8-36

0836

3/8-24

3724

3-48

0348

10-24

1024

3/8-32

3732

3-56

0356

10-32

1032

7/16-14

4314

4-40

0440

12-24

1224

7/16-20

4320

4-48

0448

1/4-20

2520

1/2-13

5013

5-40

0540

1/4-28

2528

1/2-20

5020

1. Depending upon application
2. Smallest Thread size recommended is 4-40
3. Mil-P-15035C

Thread Code Chart No. 3

Thread code is the 4 digit number assigned to the part number to designate
the thread size of a part. All threads are Class 2 (A and B) (commercial)*.

*Note: For special threads, contact Amatom Sales Office for Number.

Self Locking Hardware (No lockwashers required)

Amatom threaded hardware is available with HELI-COIL® inserts.
(HELI-COIL® inserts not available in Teflon and Delrin parts.)

To specify parts requiring a HELI-COIL® locking insert - add the letters “HL”
to the thread code, i.e. 80 XX - B - 0440HL

Unless otherwise specified HELI-COIL® inserts will be 1 1/2 x diam. of the
thread.

(Prices available on application only.)

® Reg. U.S. Pat. Off

0-80 thread is tapped thru up to 3/8 in. length
2-56 thread is tapped thru up to 5/8 in. length
4-40 and larger threads are tapped thru up to 1 in.

length

Stainless Steel, Nylon, Phenolic

0-80 thread is tapped thru up to 1/4 in. length
2-56 thread is tapped thru up to 3/8 in. length
4-40 thread is tapped thru up to 1/2 in. length
6-32 and larger threads are tapped thru up to 1 in.

length

Standoffs with longer lengths than shown above
will be tapped both ends to thread depths as indi-
cated in Chart 3A.

NOTE: Standoffs and spacers from 1 1/16 thru 2”
long may be manufactured from tubing or solid
material at our discretion. If your requirement calls
for solid material please specify TBE (tap both
ends) when ordering.

Thread

Screw

Thread

Screw

Size

Engagement

Size

Engagement

0-80

3/16

12-24

1/2

2-56

3/16

1/4-20

9/16

3-48

1/4

1/4-28

1/2

4-40

1/4

5/16-18

9/16

6-32

3/8

3/8-16

9/16

8-32

7/16

3/8-32

3/8

10-24

1/2

7/16-20

9/16

10-32

1/2

Exceptions are noted on catalog pages where
applicable.

Note: Parts will be made by both methods and are
interchangeable, unless customer specifically
requests otherwise.

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

Properties

5

Part Number Code &

Specifications

Clearance Hole Code Chart No. 4

Clearance Code is the size of hole in a spacer, needed to clear the major diameter and not have a sloppy fit.

Code

Length

Panel

Code

Length

Panel

of Shank

Thickness

of Shank

Thickness

A

.075

1/32

D

.165

1/8

B

.105

1/16

E

.230

3/16

C

.135

3/32

F

.290

1/4

Shank Length Code

Chart No. 1

Property

Vulcanized

Nylon

Teflon

Delrin

Fibre

101

Acetal

Tensile Strength psi

6,000-12,000

11,200-16,500

2,700-3,100

13,500

10,000-14,000

10,000

Compressive Strength psi

20,000-30,000

4,000-11,000

700-1,200

36,000

37,000

18,000

Heat Resistance (continuous ºF)

221

250

550

250-275

225-250

250

Dielectric Constant (60 cycles)

4-7

10

2.1

3.7

Dielectric Strength

1/8 thickness (v/mil)

150

300-400

400

325

225

500

Arc Resistance (Sec)

80

140

200

10

10

129

Water Absorption 24 hrs (%)

15-25

1.5

.00

.5

1.8

.12

Rockwell Hardness

R Scale 80

107-119

R-58

M110

M113

R120

Flammability (in/min) .125 in.

Self-Ext.

Non-Flam.

1.1

Specific Gravity

1.0-1.5

1.13-1.14

2.13

1.35

1.33

1.42

I

nformation listed above was obtained from charts submitted by various manufacturers. We believe this information to be accurate, but since test methods

vary, their validity cannot be verified. This chart is compiled for information purposes only.

Tolerances - Functionability

Tolerances in manufacture of standoffs and spacers

Diameter:

Length:

±.006

1. Up to 4” long all are kept to ±.005

except where

2. 4” to 6” long ±.008

otherwise noted

3. Over 6”: long ±.010
4. Nylon Parts ±.015

Amatom reserves the right to make adjustments in
dimensions and specifications at any time without
notice. Customer’s inspection should be deter-
mined primarily on functionability.

Phenolic

XXXP

LE

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

Thread

Clearance

Clearance

Thread

Clearance

Clearance

Size

Hole Range

Hole Code

Size

Hole Range

Hole Code

0-80

.062-.072

.063

10-24

.192-.202

.194

1-64

.075-.085

.076

10-32

.192-.202

.194

1-72

.075-.085

.076

12-24

.218-.228

.219

2-56

.088-.098

.091

1/4-20

.252-.262

.257

2-64

.088-.098

.091

1/4-28

.252-.262

.257

3-48

.101-.111

.104

5/16-18

.3145-.3245

.316

3-56

.101-.111

.104

5/16-24

.3145-.3245

.316

4-40

.114-.124

.115

3/8-16

.377-.387

.381

4-48

.114-.124

.115

3/8-24

.377-.387

.381

5-40

.127-.137

.129

3/8-32

.377-.387

.381

5-44

.127-.137

.129

7/16-14

.4395-.4495

7/16

6-32

.140-.150

.140

7/16-20

.4395-.4495

7/16

6-40

.140-.150

.140

1/2-13

.502-.512

1/2

8-32

.166-.176

.171

1/2-20

.502-.512

1/2

8-36

.166-.176

.171

Note:
1. Size of Clearance Hole

computed as follows:
Minimum I.D.=Thread
Major Diameter + .002

Maximum I.D.=Thread
Major Diameter +.012

2. For special clearance sizes not

listed, designate the inside
diameter required by .xxx of
the decimal equivalent of size
required.

6

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

Manufacturing Notes

Special

Alert

Externally

threaded products

made from

Brass or Steel

i.e. Male/female standoffs

or captive screws

The external threads are manufactured to a
pre-plated condition to accommodate the
plating process. Unplated parts will accept the
standard no-go gauge.

On a special order basis, Amatom will
manufacture these products for applications
that do not require plating, and will not be
made to a pre-plated condition.

Special

Condition

Special

Order

7

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

Specifications

Anti-Rotation Swage Standoffs

3-4 times more holding power than conventional standoffs. The Amatom high torque (anti-rotation)
swage standoff is designed primarily for installation in epoxy glass, phenolic boards and aluminum
panels or chassis. This broaching type standoff literally cuts its way down into the mounting
material, biting in for torque resistance. The knurled shank feature eliminates electrical connection
breaks due to loosening and spinning of the standoff under high torque conditions.

Performance Data

Average Torque Load (inch-pounds)

Method of

4-40

6-32

8-32

10-24

10-32

Installation

Thread

Thread

Thread

Thread

Thread

Straight

35

40

50

50

70

Hole

Methods of Installation

1. Select proper hole size (straight hole):

Anti-Rotation Swage

Plain Swage

Thread Size

4-40

6-32

8-32

10-24

10-32

Hole Diameter same as shank

Shank Dia. “C” Dim.

.179

.226

.263

.285

.285

+.003

Hole Dia. +.005-.000

.166

.213

.250

.272

.272

O.D. Tol. -.000

2. Swage or flare as required:

Swage

Flare

Flare tool supplied by customer.
Flare angle same as countersink.

Note:

For flush flaring into countersunk
hole use shank length .020” shorter
than board thickness

Tool part numbers for swaging are listed along with
anti-rotation and swage standoff part descriptions.

Your torque loads may vary due to differences in installation parameters.
Tests performed on Epoxy Glass G10 boards.

8

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

Part Number Code

ALUM (A)

Notes

0

No Finish

A

1A

Anodize-Mil-A-8625  Type 1
(Chromic) Hot Water Seal
(Dk. Grey)

1B

Anodize-Mil-A-8625  Type 2
(Sulphuric) Hot Water Seal (Clear)

1C

Anodize-Mil-A-8625  Type 2
(Sulphuric) Dichromate Seal
(Yellow/Green)

2

Anodize-Mil-A-8625  Black Type 2

8

Caustic Etch

9

Caustic Etch and Lacquer

10

Alodine 1200

16

Iridite-Clear-Mil-C-5541

17

Iridite-Gold-Mil-C-5541

STEEL (S)

0

No Finish

3

Cadmium Plate-QQ-P-416 Class 3
-Clear Chromate Special Order

3B

Cadmium plate-QQ-P-416
Class 3, Type 2-Color Chromate
Special Order

4

Nickel Plate QQ-N-290, A
Grade F

14

Electro Tin Plate-Mil-T-
10727-Type I

14A

Electro Tin Solder 60/40 Per

B

M230 Mil-F-14072

28

Zinc Plate .0002 thick-ASTM-B-633
Type I

37

Zinc Plate .0002 thick-ASTM-B-633
Type II   (Color Chromate)

Notes:

(A.)  Standard Finish for stocked parts.
(B.)  Not suitable for 2-56 or smaller threads

specify oversized tap when ordering
thread sizes.

Finishes Available

BRASS (B)

Notes

0

No Finish

3

Cadmium Plate-QQ-P-416 Class 1
-Clear Chromate Special Order

3B

Cadmium Plate-QQ-P-416
Class 3, Type 2-Color Chromate
Special Order

4

Nickel plate QQN-290 A Grade G

6A

Brass Ebonal “C” (Black)
Mil-F-495

14

Electro Tin Plate-Mil-T-
10727-Type I

14A

Electro Tin Solder 60/40 per

B

M230 Mil-F-14072

15

Bright Dip (Brass Finish)

28

Zinc Plate .0002 thick-ASTM-B-633

A

Type I

37

Zinc Plate .0002 thick-ASTM-B-633

Type II   (Color Chromate)

Note:  Brass parts stocked with Zinc Plate finish-28.

Refer to chart above for other finishes required.
Finish #3 and 3B available on special order.

STAINLESS STEEL (SS)

6B

Stainless Steel “Black Oxide”
Mil-C-13924

7

Passivate-QQ-P-35

A

PHENOLIC (PH)(PHF)

0

No Finish

A

30

Moisture and Fungus Resistant
Finish Mil-V-173

NYLON (N)

Plain-No finish

STANDOFFS

ST
ANDOFFS

10

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

STANDOFFS 3/16

″

ROUND • HEX • SQUARE

PART NO.

LENGTH

ROUND

HEX

SQUARE

1/8

8075

8100

8125

3/16

8076

8101

8126

1/4

8077

8102

8127

5/16

8078

8103

8128

3/8

8079

8104

8129

7/16

8080

8105

8130

1/2

8081

8106

8131

9/16

8082

8107

8132

5/8

8083

8108

8133

3/4

8084

8109

8134

7/8

8085

8110

8135

1

8086

8111

8136

1-1/16

8087

8112

8137

1-1/8

8088

8113

8138

1-3/16

8089

8114

8139

1-1/4

8090

8115

8140

1-5/16

8091

8116

8141

1-3/8

8092

8117

8142

1-7/16

8093

8118

8143

1-1/2

8094

8119

8144

1-9/16

8095

8120

8145

1-5/8

8096

8121

8146

1-3/4

8097

8122

8147

1-7/8

8098

8123

8148

2

8099

8124

8149

THREAD CODE

THREAD

CODE

2-56

0256

4-40

0440

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

(square not available)

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

3/16

″

3/16

″

3/16

″

BREAK EDGES
C’SK I.D.

STANDOFFS

ST

ANDOFFS

11

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

STANDOFFS 1/4

″

ROUND • HEX • SQUARE

PART NO.

LENGTH

ROUND

HEX

SQUARE

1/8

8150

8209

8269

3/16

8151

8210

8270

1/4

8152

8211

8271

5/16

8153

8212

8272

3/8

8154

8213

8273

7/16

8155

8214

8274

1/2

8156

8215

8275

9/16

8157

8216

8276

5/8

8158

8217

8277

3/4

8159

8218

8278

7/8

8160

8219

8279

1

8161

8220

8280

1-1/16

8162

8221

8281

1-1/8

8163

8222

8282

1-3/16

8164

8223

8283

1-1/4

8165

8224

8284

1-5/16

8166

8225

8285

1-3/8

8167

8226

8286

1-7/16

8168

8227

8287

1-1/2

8169

8228

8288

continued on next page

BREAK EDGES
C’SK I.D.

1/4

″

1/4

″

1/4

″

STANDOFFS

ST
ANDOFFS

12

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

STANDOFFS 1/4

″

ROUND • HEX • SQUARE

BREAK EDGES
C’SK I.D.

1/4

″

1/4

″

1/4

″

PART NO.

LENGTH

ROUND

HEX

SQUARE

1-9/16

8170

8229

8289

1-5/8

8171

8230

8290

1-3/4

8172

8231

8291

1-7/8

8173

8232

8292

2

8174

8233

8293

2-1/8

8175

8234

8294

2-1/4

8176

8235

8295

2-3/8

8177

8236

8296

2-1/2

8178

8237

8297

2-3/4

8179

8238

8298

3

8180

8239

8299

3-1/4

8181

8240

8300

3-1/2

8182

8241

8301

3-3/4

8183

8242

8302

4

8184

8243

8303

4-1/4

8185

8244

8304

4-1/2

8186

8245

8305

4-3/4

8187

8246

8306

5

8188

8247

8307

continued from previous page

STANDOFFS

ST

ANDOFFS

13

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

(square not available)

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

BREAK EDGES
C’SK I.D.

STANDOFFS 5/16

″

ROUND • HEX • SQUARE

PART NO.

LENGTH

ROUND

HEX

SQUARE

1/8

8329

8388

8448

3/16

8330

8389

8449

1/4

8331

8390

8450

5/16

8332

8391

8451

3/8

8333

8392

8452

7/16

8334

8393

8453

1/2

8335

8394

8454

9/16

8336

8395

8455

5/8

8337

8396

8456

3/4

8338

8397

8457

7/8

8339

8398

8458

1

8340

8399

8459

1-1/16

8341

8400

8460

1-1/8

8342

8401

8461

1-3/16

8343

8402

8462

1-1/4

8344

8403

8463

1-5/16

8345

8404

8464

1-3/8

8346

8405

8465

1-7/16

8347

8406

8466

1-1/2

8348

8407

8467

5/16

″

5/16

″

5/16

″

continued on next page

STANDOFFS

ST
ANDOFFS

14

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

(square not available)

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

STANDOFFS 5/16

″

ROUND • HEX • SQUARE

5/16

″

5/16

″

5/16

″

continued from previous page

PART NO.

LENGTH

ROUND

HEX

SQUARE

1-9/16

8349

8408

8468

1-5/8

8350

8409

8469

1-3/4

8351

8410

8470

1-7/8

8352

8411

8471

2

8353

8412

8472

2-1/8

8354

8413

8473

2-1/4

8355

8414

8474

2-3/8

8356

8415

8475

2-1/2

8357

8416

8476

2-3/4

8358

8417

8477

3

8359

8418

8478

3-1/4

8360

8419

8479

3-1/2

8361

8420

8480

3-3/4

8362

8421

8481

4

8363

8422

8482

4-1/4

8364

8423

8483

4-1/2

8365

8424

8484

4-3/4

8366

8425

8485

5

8367

8426

8486

BREAK EDGES
C’SK I.D.

STANDOFFS

ST

ANDOFFS

15

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

(square not available)

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

STANDOFFS 3/8

″

ROUND • HEX • SQUARE

PART NO.

LENGTH

ROUND

HEX

SQUARE

1/8

8508

8567

8627

3/16

8509

8568

8628

1/4

8510

8569

8629

5/16

8511

8570

8630

3/8

8512

8571

8631

7/16

8513

8572

8632

1/2

8514

8573

8633

9/16

8515

8574

8634

5/8

8516

8575

8635

3/4

8517

8576

8636

7/8

8518

8577

8637

1

8519

8578

8638

1-1/16

8520

8579

8639

1-1/8

8521

8580

8640

1-3/16

8522

8581

8641

1-1/4

8523

8582

8642

1-5/16

8524

8583

8643

1-3/8

8525

8584

8644

1-7/16

8526

8585

8645

1-1/2

8527

8586

8646

3/8

″

3/8

″

3/8

″

continued on next page

BREAK EDGES
C’SK I.D.

STANDOFFS

ST
ANDOFFS

16

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

(square not available)

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

✝

Phenolic - PH (Paper Base)

STANDOFFS 3/8

″

ROUND • HEX • SQUARE

continued on next page

PART NO.

LENGTH

ROUND

HEX

SQUARE

1-9/16

8528

8587

8647

1-5/8

8529

8588

8648

1-3/4

8530

8589

8649

1-7/8

8531

8590

8650

2

8532

8591

8651

2-1/8

8533

8592

8652

2-1/4

8534

8593

8653

2-3/8

8535

8594

8654

2-1/2

8536

8595

8655

2-3/4

8537

8596

8656

3

8538

8597

8657

3-1/4

8539

8598

8658

3-1/2

8540

8599

8659

3-3/4

8541

8600

8660

4

8542

8601

8661

4-1/4

8543

8602

8662

4-1/2

8544

8603

8663

4-3/4

8545

8604

8664

5

8546

8605

8665

3/8

″

3/8

″

3/8

″

continued from previous page

BREAK EDGES
C’SK I.D.

STANDOFFS

ST

ANDOFFS

17

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

✝

Phenolic - PH (Paper Base)

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

(square not available)

✝

Phenolic

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

STANDOFFS 3/8

″

ROUND • HEX • SQUARE

PART NO.

LENGTH

ROUND

HEX

SQUARE

5-1/4

8547

8606

8666

5-1/2

8548

8607

8667

5-3/4

8549

8608

8668

6

8550

8609

8669

6-1/4

8551

8610

8670

6-1/2

8552

8611

8671

6-3/4

8553

8612

8672

7

8554

8613

8673

7-1/4

8555

8614

8674

7-1/2

8556

8615

8675

7-3/4

8557

8616

8676

8

8558

8617

8677

8-1/4

8559

8618

8678

8-1/2

8560

8619

8679

8-3/4

8561

8620

8680

9

8562

8621

8681

9-1/4

8563

8622

8682

9-1/2

8564

8623

8683

9-3/4

8565

8624

8684

10

8566

8625

8685

3/8

″

3/8

″

3/8

″

continued from previous page

BREAK EDGES
C’SK I.D.

STANDOFFS

ST
ANDOFFS

18

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

STANDOFFS 1/2

″

ROUND • HEX

PART NO.

LENGTH

ROUND

HEX

1/8

8686

8745

3/16

8687

8746

1/4

8688

8747

5/16

8689

8748

3/8

8690

8749

7/16

8691

8750

1/2

8692

8751

9/16

8693

8752

5/8

8694

8753

3/4

8695

8754

7/8

8696

8755

1

8697

8756

1-1/16

8698

8757

1-1/8

8699

8758

1-3/16

8700

8759

1-1/4

8701

8760

1-5/16

8702

8761

1-3/8

8703

8762

1-7/16

8704

8763

1-1/2

8705

8764

1-9/16

8706

8765

1-5/8

8707

8766

1-3/4

8708

8767

1-7/8

8709

8768

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

✝

Phenolic (round only)

PH

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

LENGTH

ROUND

HEX

2

8710

8769

2-1/8

8711

8770

2-1/4

8712

8771

2-3/8

8713

8772

2-1/2

8714

8773

2-3/4

8715

8774

3

8716

8775

3-1/4

8717

8776

3-1/2

8718

8777

3-3/4

8719

8778

4

8720

8779

4-1/4

8721

8780

4-1/2

8722

8781

4-3/4

8723

8782

5

8724

8783

5-1/4

8725

8784

5-1/2

8726

8785

5-3/4

8727

8786

6

8728

8787

6-1/4

8729

8788

6-1/2

8730

8789

6-3/4

8731

8790

7

8732

8791

7-1/4

8733

8792

1/2

″

1/2

″

1/2

″

1/2

″

THREAD CODE

THREAD

CODE

8-32

0832

10-32

1032

12-24

1224

1/4-20

2520

BREAK EDGES
C’SK I.D.

✝

Phenolic - PH (Paper Base)

STANDOFFS

ST

ANDOFFS

19

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

STANDOFFS 5/8

″

ROUND • HEX

PART NO.

LENGTH

ROUND

HEX

1/8

8863

8922

3/16

8864

8923

1/4

8865

8924

5/16

8866

8925

3/8

8867

8926

7/16

8868

8927

1/2

8869

8928

9/16

8870

8929

5/8

8871

8930

3/4

8872

8931

7/8

8873

8932

1

8874

8933

1-1/16

8875

8934

1-1/8

8876

8935

1-3/16

8877

8936

1-1/4

8878

8937

1-5/16

8879

8938

1-3/8

8880

8939

1-7/16

8881

8940

1-1/2

8882

8941

Refer to page 4 for Thread Depth.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

LENGTH

ROUND

HEX

1-9/16

8883

8942

1-5/8

8884

8943

1-3/4

8885

8944

1-7/8

8886

8945

2

8887

8946

2-1/8

8888

8947

2-1/4

8889

8948

2-3/8

8890

8949

2-1/2

8891

8950

2-3/4

8892

8951

3

8893

8952

3-1/4

8894

8953

3-1/2

8895

8954

3-3/4

8896

8955

4

8897

8956

4-1/4

8898

8957

4-1/2

8899

8958

4-3/4

8900

8959

5

8901

8960

THREAD CODE

THREAD

CODE

10-32

1032

12-24

1224

1/4-20

2520

5/16-18

3118

BREAK EDGES
C’SK I.D.

MATERIAL

CODE

Aluminum

A

Brass

B

Stainless Steel

SS

Nylon

N

✝

Phenolic (round only)

PH

✝

Phenolic - PH (Paper Base)

5/8

″

5/8

″

5/8

″

5/8

″

SPACERS

SP
ACERS

20

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE HEXAGON SPACERS 1/4” - .138 SHANK

ROUND SPACERS

PART NO.

LENGTH

1/8" DIA

3/16" DIA

1/4" DIA

5/16" DIA

3/8" DIA

1/2" DIA

SCREW SIZE: NO.

2

2,4

2,4,6,8

4,6,8,10

6,8,10

6,8,10,12,1/4

1/8

9200

9207

9222

9284

9315

9253

3/16

9201

9208

9223

9285

9316

9254

1/4

9202

9209

9224

9286

9317

9255

5/16

9203

9210

9225

9287

9318

9256

3/8

9204

9211

9226

9288

9319

9257

7/16

9205

9212

9227

9289

9320

9258

1/2

9206

9213

9228

9290

9321

9259

9/16

9214

9229

9291

9322

9260

5/8

9215

9230

9292

9323

9261

11/16

9216

9231

9293

9324

9262

3/4

9217

9232

9294

9325

9263

13/16

9218

9233

9295

9326

9264

7/8

9219

9234

9296

9327

9265

15/16

9220

9235

9297

9328

9266

1

9221

9236

9298

9329

9267

1-1/16

9237

9299

9330

9268

1-1/8

9238

9300

9331

9269

1-3/16

9239

9301

9332

9270

1-1/4

9240

9302

9333

9271

1-5/16

9241

9303

9334

9272

1-3/8

9242

9304

9335

9273

1-7/16

9243

9305

9336

9274

1-1/2

9244

9306

9337

9275

1-9/16

9245

9307

9338

9276

1-5/8

9246

9308

9339

9277

1-11/16

9247

9309

9340

9278

1-3/4

9248

9310

9341

9279

1-13/16

9249

9311

9342

9280

1-7/8

9250

9312

9343

9281

1-15/16

9251

9313

9344

9282

2

9252

9314

9345

9283

SCREW SIZE/I.D. CODE

No.

I.D. Code

No.

I.D. Code

2 .091 091

10 .194 194

4 .115 115

12 .219 219

6 .140 140

1/4 .257 257

8 .171 171

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

Phenolic

PH

(not available in 1/8")

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXX - XX

PART NO.

MATERIAL

FINISH

CLEARANCE

HOLE CODE

DIA.

Note: Maximum and minimum
I.D. on all standard Amatom
spacers will conform to
clearance hole range Chart
No. 4 shown on page 5.

Note: All spacers can be
supplied in hex or square
materials.

Refer to page 8 for Finish
Codes.

Please contact sales office for
parts not listed.

DIA.

Break Edges

C

L

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

21

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND • HEX STANDOFFS 5/32"

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

THREAD CODE

THREAD

CODE

2-56

0256

PART NO.

SHANK

THREAD

MATERIAL

FINISH

All Swage type standoffs through 1" long can be supplied as a swage type spacer. Pick out the diameter, length and swage you
need; find the part number and change the thread to hole size. Example: You need a 1/4 OD brass x 1/2 long body for a 1/16 board
with clearance for a no. 6 screw. Standard part number is 9537B-B-0632. Change part number to 9537B-B-140.

Use chart on page 5 to determine correct clearance hole code

Please Note: Selected Hole size cannot be larger than counterbore diameter.

A

Part No.

Length

Round

Hex

1/8

9505

9598

3/16

9506

9599

1/4

9507

9600

5/16

9508

9601

3/8

9509

9602

7/16

9510

9603

1/2

9511

9604

9/16

9512

9605

5/8

9513

9606

11/16

9514

9607

3/4

9515

9608

7/8

9516

9609

1

9517

9610

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

.

098

5/32

.125

Break
Edge

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

5/32"

5/32"

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 638

PSA 139-1H

1/8-3/16

139-2H

1/4-7/16

139-3H

1/2-11/16

139-4H

3/4-1"

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 638

PSA 139-1

1/8-3/16

139-2

1/4-7/16

139-3

1/2-11/16

139-4

3/4-1"

5/32

″

5/32

″

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

22

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND • HEX STANDOFFS 3/16" - .125

SHANK

Note: For swage type spacer see code page 21.

THREAD CODE

THREAD

CODE

2-56

0256

3-48

0348

.104

.125

3/16

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 638

PSA 201-1H

1/8-3/16

201-2H

1/4-7/16

201-3H

1/2-11/16

201-4H

3/4-1"

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 638

PSA 201-1

1/8-3/16

201-2

1/4-7/16

201-3

1/2-11/16

201-4

3/4-1"

3/16"

A

Part No.

Length

Round

Hex

1/8

9687

9696

3/16

9688

9697

1/4

9689

9698

5/16

9690

9699

3/8

9691

9700

1/2

9692

9701

5/8

9693

9702

3/4

9694

9703

1

9695

9704

3/16

.125

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

3/16

″

3/16

″

.

104

3/16"

3/16

″

3/16

″

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

23

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND • HEX STANDOFFS 3/16" - .139 SHANK

Note: For swage type spacer see code page 21.

THREAD CODE

THREAD

CODE

2-56

0256

3-48

0348

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 607

PSA 201-1H

1/8-3/16

201-2H

1/4-7/16

201-3H

1/2-11/16

201-4H

3/4-1"

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 607

PSA 201-1

1/8-3/16

201-2

1/4-7/16

201-3

1/2-11/16

201-4

3/4-1"

A

Part No.

Length

Round

Hex

1/8

9518

9611

3/16

9519

9612

1/4

9520

9613

5/16

9521

9614

3/8

9522

9615

7/16

9523

9616

1/2

9524

9617

9/16

9525

9618

5/8

9526

9619

11/16

9527

9620

3/4

9528

9621

7/8

9529

9622

1

9530

9623

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

.109

.139

3/16

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

3/16"

3/16

.139

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

.

109

3/16"

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

24

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND • HEX STANDOFFS 1/4" - .138 SHANK

Note: For swage type spacer see code page 21.

THREAD CODE

THREAD

CODE

2-56

0256

4-40*

0440

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 607

PSA 110-1H

1/8-3/16

110-2H

1/4-7/16

110-3H

1/2-11/16

110-4H

3/4-1"

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 607

PSA 110-1

1/8-3/16

110-2

1/4-7/16

110-3

1/2-11/16

110-4

3/4-1"

A

Part No.

Length

Round

Hex

1/8

9705

9714

3/16

9706

9715

1/4

9707

9716

5/16

9708

9717

3/8

9709

9718

1/2

9710

9719

5/8

9711

9720

3/4

9712

9721

1

9713

9722

*We do not recommend this size thread

in this part.

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

1/4

″

1/4

″

.113

.138

1/4

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

1/4"

1/4

.138

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

.

113

1/4"

+.003

-.000

+.003

-.000

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

25

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND STANDOFFS 1/4" - .188 SHANK

A

Part No.

Length

Round

1/8

9531

3/16

9532

1/4

9533

5/16

9534

3/8

9535

7/16

9536

1/2

9537

9/16

9538

5/8

9539

11/16

9540

3/4

9541

13/16

9542

7/8

9543

15/16

9544

1

9545

A

Part No.

Length

Round

1-1/8

9546

1-1/4

9547

1-3/8

9548

1-1/2

9549

1-3/4

9550

2

9551

.150

Drill

Tap

4-40

11/32"

1/4"

6-32

1/2"

3/8"

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 612

PSA 110-1

1/8-3/16

110-2

1/4-7/16

110-3 1/2-11/16
110-4

3/4-2"

+.003

-.000

Length over 1"

Length under 1"

1/4"

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

1/4

″

1/4

″

.188

1/4

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

26

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE HEXAGON STANDOFFS 1/4" - .188 SHANK

A

Part No.

Length

Hex

1/8

9624

3/16

9625

1/4

9626

5/16

9627

3/8

9628

7/16

9629

1/2

9630

9/16

9631

5/8

9632

11/16

9633

3/4

9634

13/16

9635

7/8

9636

15/16

9637

1

9638

A

Part No.

Length

Hex

1-1/8

9639

1-1/4

9640

1-3/8

9641

1-1/2

9642

1-3/4

9643

2

9644

Drill

Tap

4-40

11/32"

1/4"

6-32

1/2"

3/8"

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 612

PSA 110-1H 1/8-3/16

110-2H 1/4-7/16
110-3H 1/2-11/16
110-4H

3/4-2"

Length over 1"

Length under 1"

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

Break
Edge

Note: Available in smaller thread
size than shown. On special order
only.

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

1/4

″

1/4

″

1/4

.188

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

.

150

1/4"

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

27

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND STANDOFFS 5/16"

A

Part No.

Length

Round

1/8

9552

3/16

9553

1/4

9554

5/16

9555

3/8

9556

7/16

9557

1/2

9558

9/16

9559

5/8

9560

11/16

9561

3/4

9562

13/16

9563

7/8

9564

15/16

9565

1

9566

A

Part No.

Length

Round

1-1/8

9567

1-1/4

9568

1-3/8

9569

1-1/2

9570

1-3/4

9571

2

9572

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 675

PSA 202-1

1/8-3/16

202-2

1/4-7/16

202-3 1/2-11/16
202-4

3/4-2"

Length over 1"

Length under 1"

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

5/16

″

5/16

″

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

Drill

Tap

6-32

1/2"

3/8"

8-32

9/16"

7/16"

10-32

5/8"

1/2"

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

.201

±.002

5/16"

.234

5/16

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

.234

5/16

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

28

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

A

Part No.

Length

Hex

1/8

9645

3/16

9646

1/4

9647

5/16

9648

3/8

9649

7/16

9650

1/2

9651

9/16

9652

5/8

9653

11/16

9654

3/4

9655

13/16

9656

7/8

9657

15/16

9658

1

9659

A

Part No.

Length

Hex

1-1/8

9660

1-1/4

9661

1-3/8

9662

1-1/2

9663

1-3/4

9664

2

9665

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 675

PSA 202-1H 1/8-3/16

202-2H 1/4-7/16
202-3H 1/2-11/16
202-4H

3/4-2"

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

SWAGE TYPE HEXAGON STANDOFFS 5/16"

Drill

Tap

6-32

1/2"

3/8"

8-32

9/16"

7/16"

10-32

5/8"

1/2"

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

Length over 1"

Length under 1"

Break
Edge

5/16

″

5/16

″

5/16

.234

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

.

201

5/16"

5/16

.234

3/8

″

3/8

″

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

29

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

SWAGE TYPE ROUND STANDOFFS 3/8"

A

Part No.

Length

Round

1/8

9573

3/16

9574

1/4

9575

5/16

9576

3/8

9577

1/2

9578

9/16

9579

5/8

9580

11/16

9581

3/4

9582

13/16

9583

7/8

9584

15/16

9585

1

9586

A

Part No.

Length

Round

1-1/8

9587

1-1/4

9588

1-3/8

9589

1-1/2

9590

1-3/4

9591

2

9592

Round Swage Tooling

Body

Punch

Anvil

Length

PSP 675

PSA 189-1

1/8-3/16

189-2

1/4-7/16

189-3 1/2-11/16
189-4

3/4-2"

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

Drill

Tap

6-32

1/2"

3/8"

8-32

9/16"

7/16"

10-32

5/8"

1/2"

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

Length over 1"

Length under 1"

.201

±.002

3/8"

.234

3/8

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

.234

3/8

SWAGE STANDOFFS

SW

AGE ST

ANDOFFS

30

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

A

Part No.

Length

Hex

1/8

9666

3/16

9667

1/4

9668

5/16

9669

3/8

9670

7/16

9671

1/2

9672

9/16

9673

5/8

9674

11/16

9675

3/4

9676

13/16

9677

7/8

9678

15/16

9679

1

9680

A

Part No.

Length

Hex

1-1/8

9681

1-1/4

9682

1-3/8

9683

1-1/2

9684

1-3/4

9685

2

9686

Hex Swage Tooling

Body

Punch

Anvil

Length

PSP 675

PSA 189H-1 1/8-3/16

189H-2 1/4-7/16
189H-3 1/2-11/16
189H-4

3/4-2"

SHANK/BOARD THICKNESS CODE

X

T

Shank

Board

Code

±.003

Thickness

.075

1/32

A

.105

1/16

B

.135

3/32

C

.165

1/8

D

.230

3/16

E

.290

1/4

F

Note: For swage type spacer see
code page 21.

Refer to page 4 for Thread Depth.
Refer to page 7 for installation instructions.
Refer to page 8 for Finish Codes.
For parts not listed contact sales office.

SWAGE TYPE HEXAGON STANDOFFS 3/8"

Drill

Tap

6-32

1/2"

3/8"

8-32

9/16"

7/16"

10-32

5/8"

1/2"

THREAD CODE

THREAD

CODE

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX- XX

PART NO.

SHANK

THREAD

MATERIAL

FINISH

Length over 1"

Length under 1"

Break
Edge

3/8

″

3/8

″

3/8

.234

X = LENGTH OF SHANK ±.003
T = THICKNESS OF PANEL
A = LENGTH OF STANDOFF ±.005

Break
Edge

.

201

3/8"

3/8

.234

MALE-FEMALE STANDOFFS

MALE-FEMALE ST

ANDOFFS

31

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

3/16" ROUND • HEX STANDOFFS MALE-FEMALE

THREAD CODE

THREAD

CODE

2-56

0256

4-40

0440

6-32

0632

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

(available in 4-40 only)

Refer to page 8 for
Finish Codes.

For parts not listed
contact sales office.

Available in other
materials, threads,
and lengths.

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

MATERIAL

FINISH

MALE

THD.

FEMALE

THD.

IF MALE AND FEMALE THREADS
ARE DIFFERENT

XXXX - X - XXXX - XXXX- XX

CHART A

THREAD

A

B

Y

2-56

5/32

3/16 .032

4-40

3/16

1/4

.032

6-32

1/4

3/8

.039

APPROX

NO. OF

DIM

ROUND

HEX

THDS

“L”

P/N

P/N

THREAD “B” MIN

MIN.

3/16

9780

9723

2-56

.077

4.25

4-40

.070

2.50

1/4

9781

9724

2-56

.140

7.50

4-40

.133

5.25

5/16

9782

9725

4-40

.195

7.75

CHART B

NOTE: 2-56 thread size in nylon not
available as standard. Special order
only.

Y=.032 MIN
Reference Chart B for shorter length.

Length Part No.

Round

3/16

9780

1/4

9781

5/16

9782

3/8

9783

7/16

9784

1/2

9785

9/16

9786

5/8

9787

11/16

9788

3/4

9789

13/16

9790

7/8

9791

15/16

9792

1

9793

Length Part No.

Hex

3/16

9723

1/4

9724

5/16

9725

3/8

9726

7/16

9727

1/2

9728

9/16

9729

5/8

9730

11/16

9731

3/4

9732

13/16

9733

7/8

9734

15/16

9735

1

9736

3/16

3/16

3/16

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

3/16

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

MALE-FEMALE STANDOFFS

MALE-FEMALE ST

ANDOFFS

32

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

1/4" ROUND • HEX STANDOFFS MALE-FEMALE

Length Part No.

Round

1/4

9794

3/8

9795

1/2

9796

5/8

9797

3/4

9798

7/8

9799

1

9800

1-1/8

9801

1-1/4

9802

1-3/8

9803

1-1/2

9804

1-5/8

9805

1-3/4

9806

1-7/8

9807

2

9808

THREAD CODE

THREAD

CODE

2-56

0256

4-40

0440

6-32

0632

8-32

0832

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

MATERIAL

FINISH

MALE

THD.

FEMALE

THD.

IF MALE AND FEMALE THREADS
ARE DIFFERENT

XXXX - X - XXXX - XXXX- XX

APPROX

NO. OF

DIM

ROUND

HEX

THDS

“L”

P/N

P/N

THREAD “B” MIN

MIN.

5/16

9794

4-40

.133

5.25

6-32

.104

3.25

8-32

.090

2.75

1/4

9737

4-40

.133

5.25

6-32

.104

3.25

8-32

.090

2.75

3/8

9795

9738

6-32

.229

7.00

8-32

.215

6.50

1/2

9796

9739

6-32

.346

11.00

8-32

.340

10.50

CHART B

CHART A

THREAD

A

B

Y

2-56

5/32

3/16 .032

4-40

3/16

1/4

.032

6-32

1/4

3/8

.039

8-32

3/8

7/16 .053

NOTE: 2-56 thread size in nylon not
available as standard. Special order only.

Y=.032 MIN
Reference Chart B for shorter
length.

1/4

1/4

1/4

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

1/4

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

Refer to page 8 for
Finish Codes.

For parts not listed
contact sales office.

Available in other
materials, threads,
and lengths.

Length Part No.

Hex

1/4

9737

3/8

9738

1/2

9739

5/8

9740

3/4

9741

7/8

9742

1

9743

1-1/8

9744

1-1/4

9745

1-3/8

9746

1-1/2

9747

1-5/8

9748

1-3/4

9749

1-7/8

9750

2

9751

MALE-FEMALE ST

ANDOFFS

33

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

MALE-FEMALE STANDOFFS

3/8" ROUND STANDOFFS MALE-FEMALE

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

MATERIAL

FINISH

MALE

THD.

FEMALE

THD.

IF MALE AND FEMALE THREADS
ARE DIFFERENT

XXXX - X - XXXX - XXXX- XX

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

NOTE: 2-56 thread size in nylon not
available as standard. Special order only.

Y=.032 MIN
Reference Chart B for shorter
length.

3/8

3/8

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

Refer to page 8 for Finish Codes.

For parts not listed contact sales
office.

Available in other materials,
threads, and lengths.

CHART A

THREAD

A

B

Y

4-40

3/16

1/4

.032

6-32

1/4

3/8

.039

8-32

3/8

7/16 .053

10-32

3/8

1/2

.065

Length Part No.

Length

Part No.

1/4

9809

2

9823

3/8

9810

2-1/4

9824

1/2

9811

2-1/2

9825

5/8

9812

2-3/4

9826

3/4

9813

3

9827

7/8

9814

3-1/4

9828

1

9815

3-1/2

9829

1-1/8

9816

3-3/4

9830

1-1/4

9817

4

9831

1-3/8

9818

4-1/4

9832

1-1/2

9819

4-1/2

9833

1-5/8

9820

4-3/4

9834

1-3/4

9821

5

9835

1-7/8

9822

6

9836

APPROX

NO. OF

DIM

ROUND

THDS

“L”

P/N

THREAD “B” MIN

MIN.

1/4

9809

4-40

.133

5.25

6-32

.104

3.25

8-32

.090

2.75

10-32

.078

2.25

3/8

9810

6-32

.229

7.00

8-32

.215

6.50

10-32

.203

6.25

1/2

9811

6-32

.346

11.00

8-32

.340

10.50

10-32

.328

10.25

5/8

9812

10-32

.453

14.00

CHART B

MALE-FEMALE STANDOFFS

MALE-FEMALE ST

ANDOFFS

34

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

3/8" HEXAGON STANDOFFS MALE-FEMALE

PART NUMBER

ORDERING SYSTEM

XXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

PART NO.

MATERIAL

FINISH

MALE

THD.

FEMALE

THD.

IF MALE AND FEMALE THREADS
ARE DIFFERENT

XXXX - X - XXXX - XXXX- XX

Length Part No.

Length

Part No.

1/4

9752

2

9766

3/8

9753

2-1/4

9767

1/2

9754

2-1/2

9768

5/8

9755

2-3/4

9769

3/4

9756

3

9770

7/8

9757

3-1/4

9771

1

9758

3-1/2

9772

1-1/8

9759

3-3/4

9773

1-1/4

9760

4

9774

1-3/8

9761

4-1/4

9775

1-1/2

9762

4-1/2

9776

1-5/8

9763

4-3/4

9777

1-3/4

9764

5

9778

1-7/8

9765

6

9779

THREAD CODE

THREAD

CODE

4-40

0440

6-32

0632

8-32

0832

10-32

1032

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Nylon

N

NOTE: 2-56 thread size in nylon not
available as standard. Special order only.

3/8

3/8

L

A

Y

B

FULL THREAD

Break Edge

UNDERCUT 2
THREADS MAX. -
TO MINOR DIAMETER

Refer to page 8 for Finish Codes.

For parts not listed contact sales
office.

Available in other materials,
threads, and lengths.

CHART A

THREAD

A

B

Y

4-40

3/16

1/4

.032

6-32

1/4

3/8

.039

8-32

3/8

7/16 .053

10-32

3/8

1/2

.065

APPROX

NO. OF

DIM

HEX

THDS

“L”

P/N

THREAD “B” MIN

MIN.

1/4

9752

4-40

.133

5.25

6-32

.104

3.25

8-32

.090

2.75

10-32

.078

2.25

3/8

9753

6-32

.229

7.00

8-32

.215

6.50

10-32

.203

6.25

1/2

9754

6-32

.346

11.00

8-32

.340

10.50

10-32

.328

10.25

5/8

9755

10-32

.453

14.00

CHART B

Y=.032 MIN
Reference Chart B for shorter
length.

JACK SCREWS

JACK SCREWS

3/16" HEXAGON JACK SCREWS

A

AMATOM PART NO.

LENGTH

9723-S-440-37 MOD A 1/4

.250

9837-S-0040-37

.312

9838-S-0440-37

.375

9839-S-0440-37

.437

9840-S-0440-37

.500

9841-S-0440-37

.562

9842-S-0440-37

.625

9843-S-0440-37

.687

9844-S-0440-37

.750

9845-S-0440-37

.812

9846-S-0440-37

.875

9847-S-0440-37

.937

9848-S-0440-37

1.000

Finish - 37
Zinc plate .0002 thick per ASTM B-633 Type
11 Class 3 (color chromate)

Steel Material
12L14
Supplied Unassembled

NOTE: AMATOM can quote this part in other
materials as a special order item.

RELATED HARDWARE (sold separately)

P/N 4431 FLAT WASHER #4
P/N 4432 LOCK WASHER #4
P/N 4433 HEX NUT #4

35

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

.187

4-40 UNC-2B
.100 MIN.

4-40 UNC-2A

HINGED STANDOFFS

HINGED ST

ANDOFFS

36

5 Pasco Hill Road • Cromwell, CT 06416-1093

Phone: 860-828-0847 • Call Toll Free: 800-243-6032 • Fax: 860-828-0381

Web Address: http://www.amatom.com • E-Mail: sales@amatom.com

3/16 O.D. Female - Female

Chart Reference

LO

Part No.

Depth of Female Thread (Dim. B)

3/4

17300

Chart A 2-56; Chart B 4-40

7/8

17301

Chart A

1"

17302

Chart A

1-1/8

17303

Chart A

1-1/4

17304

Chart A

1-3/8

17305

Chart A

1-1/2

17306

Chart A

1-5/8

17307

Chart A

1-3/4

17308

Chart A

1-7/8

17309

Chart A

2"

17310

Chart A

HINGED STANDOFFS

FEMALE - FEMALE 3/16" & 1/4"

MATERIAL

CODE

Aluminum

A

Brass

B

Steel

S

Stainless Steel

SS

Stock Materials And Finishes:
• Brass-Zinc Plate (-28 code)
• Aluminum-Plain (-0 code)
• Stainless Steel-Passivated (-7 code)

Refer To Page 8 For Other Finish
Codes.

PART NUMBER

ORDERING SYSTEM

XXXXX - X - XXXX - XX

PART NO.

MATERIAL

FINISH

THREAD

CHART A

STANDARD INTERNAL THREAD

THREAD

DEPTH

2-56

3/16

4-40

1/4

6-32

3/8

8-32

7/16

10-32

1/2

CHART B

INTERNAL THREAD

PART

THREAD

DEPTH

NO.

MIN

17300

4-40

.152

17301

4-40

.214

17315

4-40

.121

17315

6-32

.099

17315

8-32

.090

17316

4-40

.183

17316

6-32,8-32

.152

17317

6-32,8-32

.215

17318

6-32,8-32

.280

17319

6-32,8-32

.340

THREAD CODE

THREAD

CODE

2-56

0256

4-40

0440

6-32

0632

8-32

0832

1/4 O.D. Female - Female

Chart Reference

LO

Part No.

Depth of Female Thread (Dim. B)

3/4

17315

Chart B

7/8

17316

Chart B

1"

17317

Chart A 4-40; Chart B All Others

1-1/8

17318

Chart A 4-40; Chart B All Others

1-1/4

17319

Chart A 4-40; Chart B All Others

1-3/8

17320

Chart A

1-1/2

17321

Chart A

1-5/8

17322

Chart A

1-3/4

17323

Chart A

1-7/8

17324

Chart A

2"

17325

Chart A

Typical Applications:
Allow circuit boards to fold up
providing access for testing and
servicing without disconnecting wires
or components.

Special Sizes and Finishes Available.

3/16" OD 2-56, 4-40

1/4" OD 4-40, 6-32, 8-32
