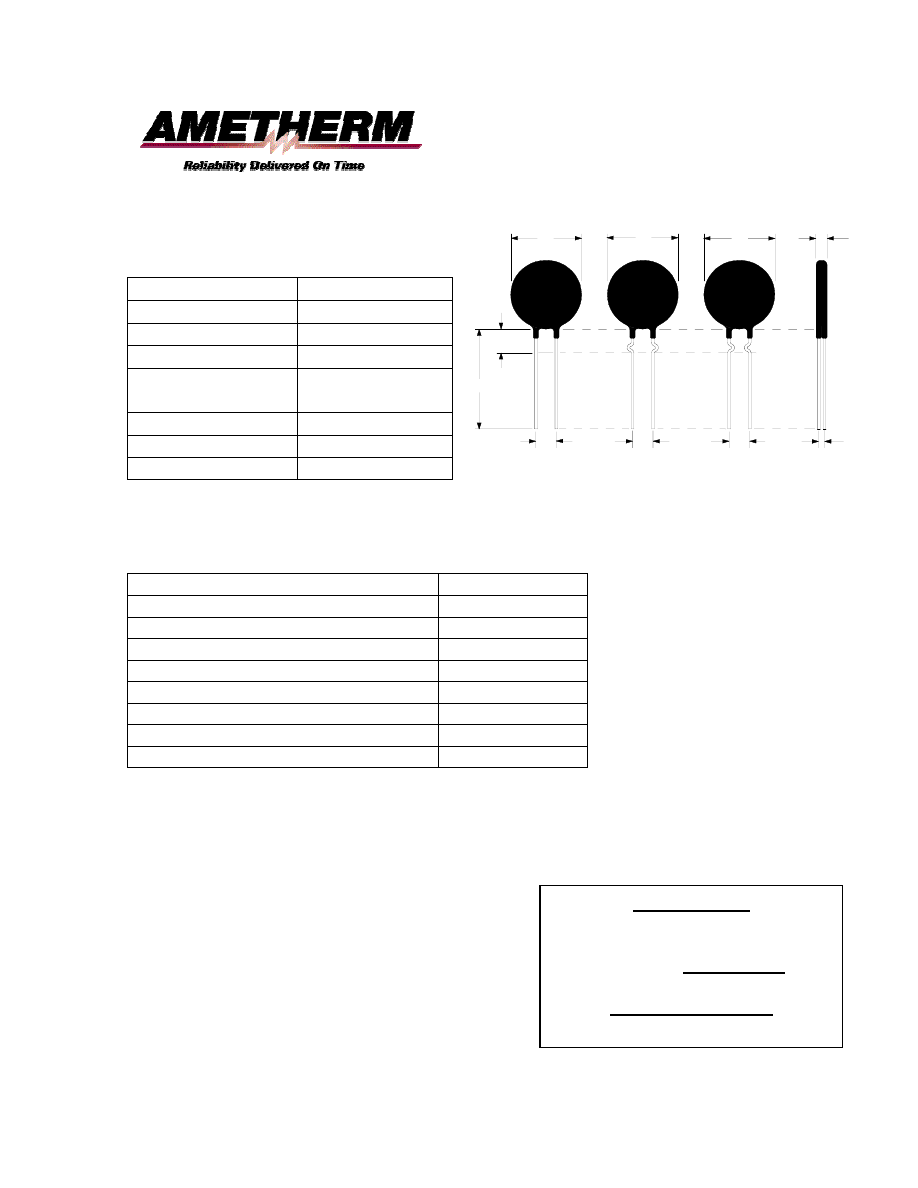

DATA SHEET

P/N: CL06101120








L

OUTSIDE

KINKED LEADS

S

STRAIGHT

LEADS

B

INSIDE

KINKED LEADS

S

S

D

D

D

C

T

Mechanical Specifications



D

6.0 mm

±

 0.5 mm

T

5.0 mm

±

 0.2  mm

Lead Diameter

0.5 mm

±

 0.1 mm

S

6.25 mm

±

.30 mm

L

38.0 mm

±

 1.50

mm

B

5.00 mm

±

 0.2 mm

C

3.60 mm

±

 0.40mm

Straight Lead

Standard





Electrical Specifications





R@25°c

100

Ω



±

30%

 Minimum Switching Current up @ 65°c  0.08 Amp
 Max Continuous Current @ 65°c

0.05 Amp

 Reference Curie Temperature

120 °C

 Maximum Voltage Rating

265 Vrms

 Heat Capacity

0.49 Joules/°C

Dissipation Constant

8.0 Mw/°C

Thermal Time Constant

20 sec.

Body Temperature @ Max Voltage

112 °C
