L

OUTSIDE

KINKED LEADS

S

STRAIGHT

LEADS

B

INSIDE

KINKED LEADS

S

S

D

D

D

C

T

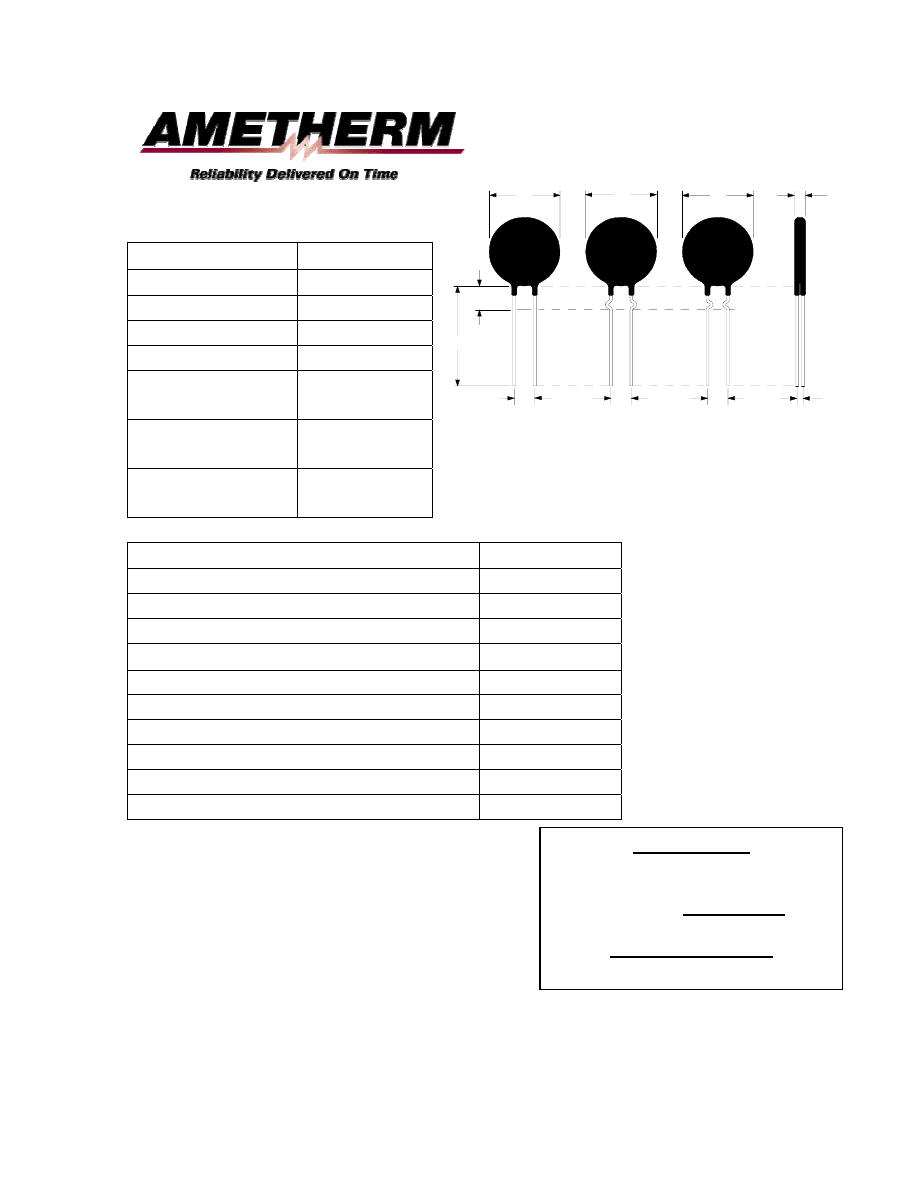

DATA SHEET

P/N:CL10 1R3120




Mechanical Specifications

D

9.0

±

0.5 mm

T

3.0

±

0.5mm

Lead Diameter

0.5 mm

S 5.0

mm

Nom

L 25.0

mm

Min

B for inside

crimped lead.

4.0

±

 0.5 mm

Lead Material

Tinned
Copper

Coating Material  Silicone

Resin

Electrical Specifications



Resistance @ 25°c

1.3

Ω



±

 30%

Max Inrush current

8.0 A

Continuous current @ 25°C

0.70 A

Switching current @ 25°C

1.050 A

Switching Time at Switching Current

T

≤

 8.0 s

Residual Current at Maximum Voltage

0.120 A

 Maximum Voltage rating

30.0V DC

Dissipation constant

10.0mw/c

Thermal time constant

20 sec

Transition Temperature

128°C

Operating Temperature

-10°C/+120°C



Ametherm, Inc

3111 N. Deer Run Road Bldg. 4

Carson City, NV 89701

Telephone:

800-808-2434



Fax: 7

75-

884-0670

www.Ametherm.com







Reliability Delivered On Time
