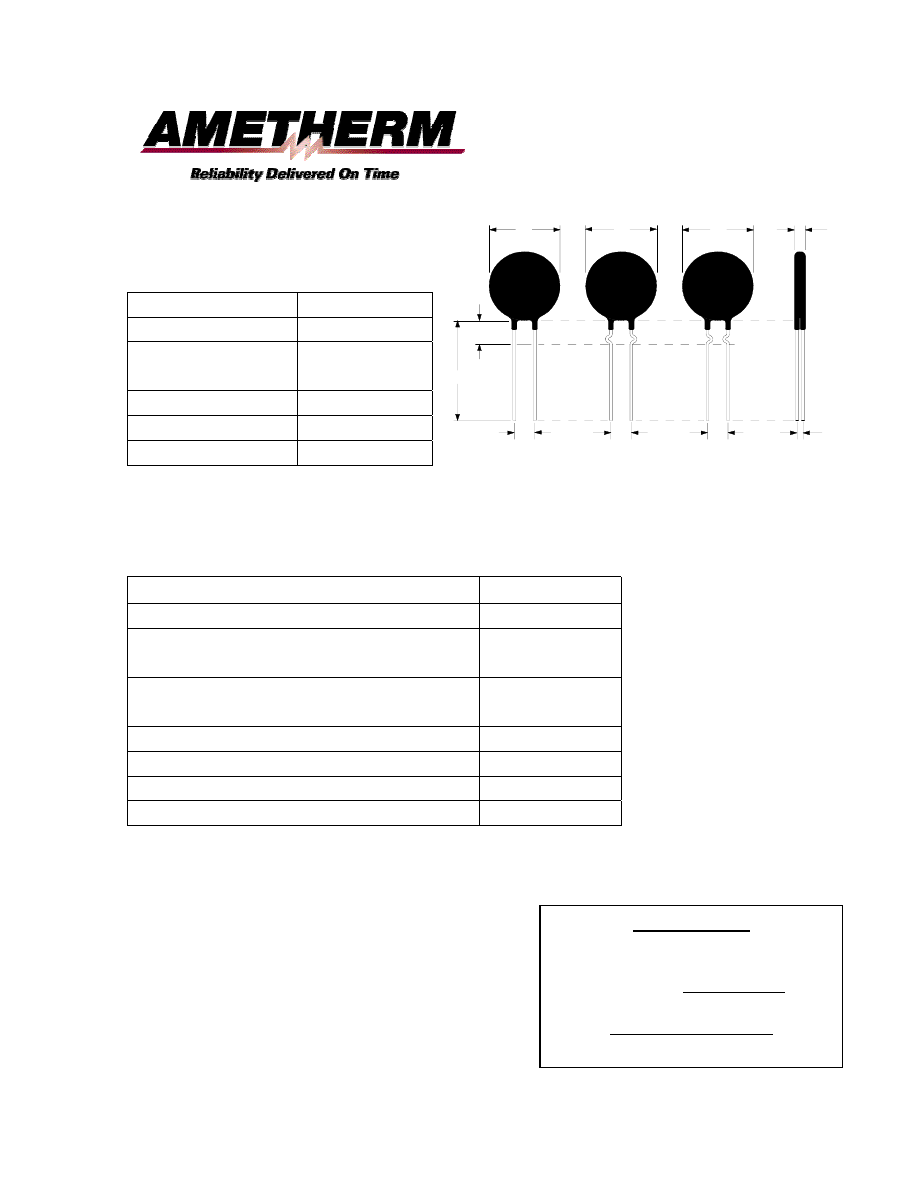

DATA SHEET

P/N:CL10 4R7120






Mechanical Specifications



D 10.0

mm

Max

T 5.0

mm

Max

Lead Diameter

0.635 mm
Nom

S 6.3

mm

Nom

L 38.0

mm

Min

Inside Kink



L

OUTSIDE

KINKED LEADS

S

STRAIGHT

LEADS

B

INSIDE

KINKED LEADS

S

S

D

D

D

C

T






Electrical Specifications





Resistance @ 25°c

4.7

Ω



±

 20%

Max cont/ Min switch currents @ 25 c

.29A/.49A

Max cont@35°c & Min switch
currents@15° c

.28A/.50A

Max cont@55°c & Min switch
currents@0 deg c

.22A/.55A

Max voltage rating

25.0Vrms

Switch temperature

120 deg c

Dissipation constant

9.0mw/c

Thermal time constant

20 sec
