DATA SHEET

P/N:CL12 100120










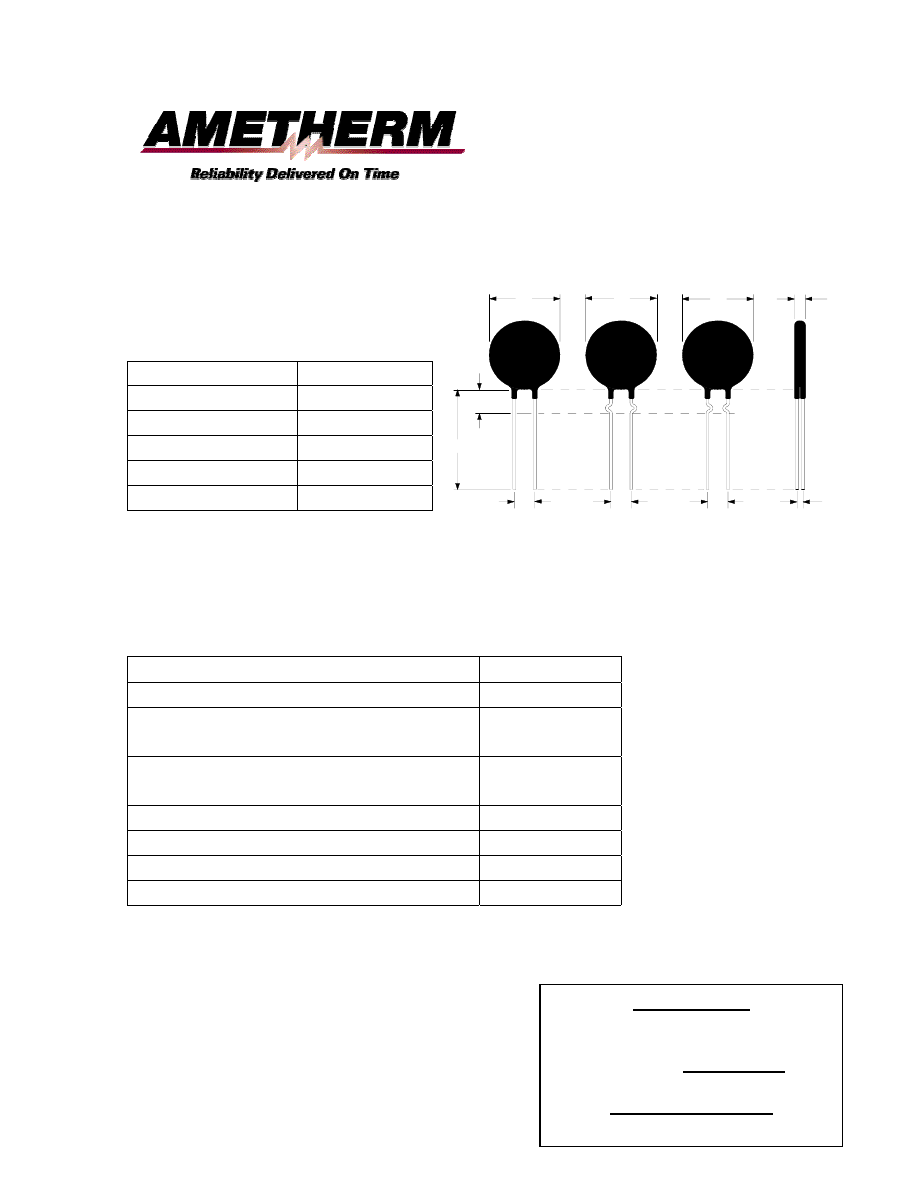

Mechanical Specifications



D 12.0

mm

Max

T 5.0

mm

Max

Lead Diameter

0.635 mm

S 6.3

mm

Nom

L 38.0

mm

Min

Straight lead



L

OUTSIDE

KINKED LEADS

S

STRAIGHT

LEADS

B

INSIDE

KINKED LEADS

S

S

D

D

D

C

T








Electrical Specifications





Resistance @ 25°c

10.0

Ω



±

 30%

Max cont/ Min switch/ currents @ 25 c

.17A/.35A

Max cont/Min switch/ currents@35
c/15 c

.15A/.33A

Max cont/Min switch/ currents@65 c/0
deg c

.12A/.29A

Max voltage rating

265.0Vrms

Switch temperature

120 deg c

Dissipation constant

13.0mw/c

Thermal time constant

40 sec







Ametherm, Inc

3111 N. Deer Run Road Bldg. 4

Carson City, NV 89701

Telephone:

800-808-2434



Fax: 7

75-

884-0670

www.Ametherm.com







Reliability Delivered On Time
