P/N: CL12 151100









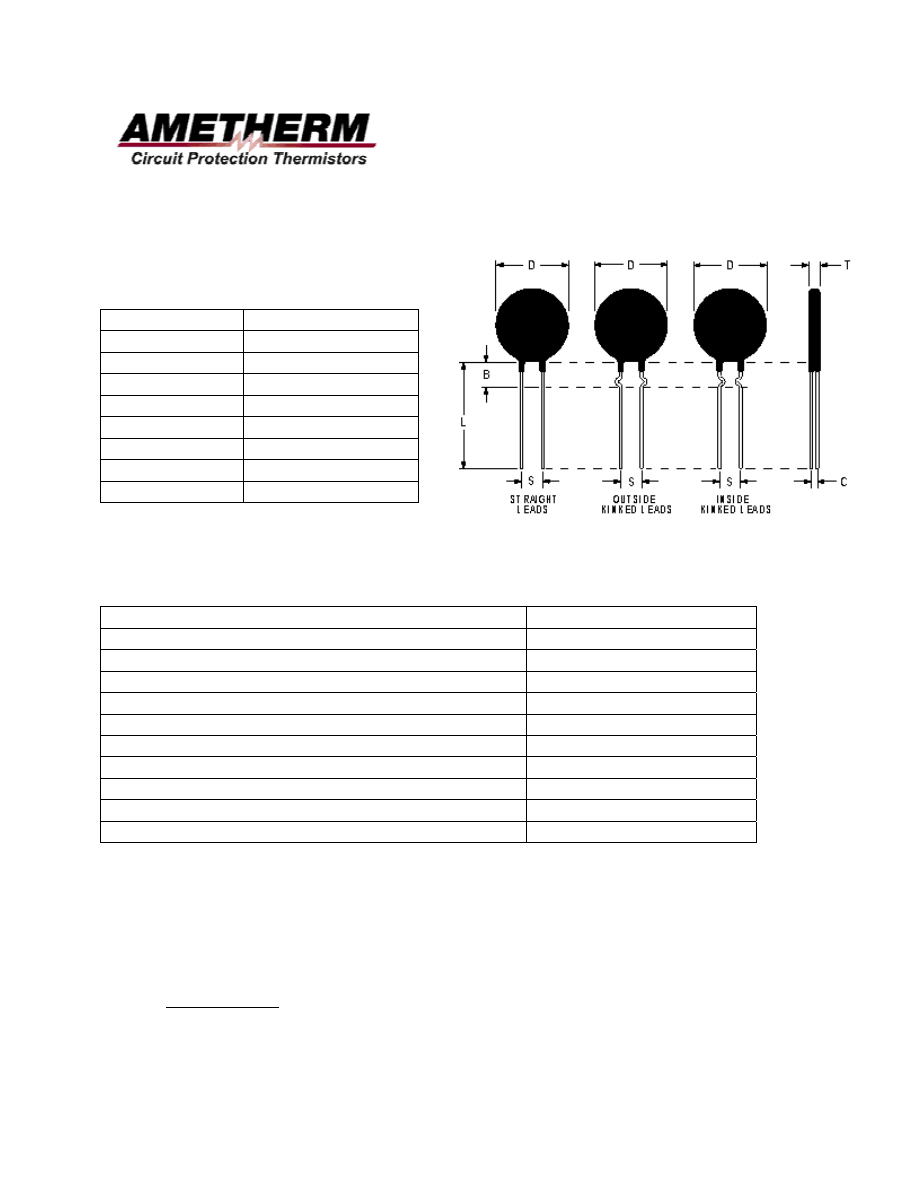

Mechanical Specifications





D

12.0 ± 1.0 mm

T

5.0 ± 0.6 mm

Lead Diameter

0.8 mm

S

7.8 mm Nom

L 38.0

mm

Min

B

4.5 ± 0.5 mm

Straight Lead



Lead Material

Tinned Copper

Coating Material

Silicone Resin





Electrical Specifications


Resistance @ 25º C

150.0

Ω

 ± 30%

Maximum Inrush Current Allowed for 100 cycles only

3.75 Amp

Maximum Switching Current @ 25º C

135 mA Ims

Minimum Continuous Current @ 25º C

70 mA Ims

Switching time @ Max Voltage

Less Than 400 milisec

Max Voltage Rating

440.0 V DC

Residual Current @ Max Voltage

7.0 mA

Switch Temperature

117ºC

Dissipation Constant

13.0 mW/ºC

Thermal Time Constant

40 sec

Operating Temperature Range

-40ºC/125ºC








         Rev

Date:

April

28,

2005
