DATA SHEET

P/N:CL22 100110










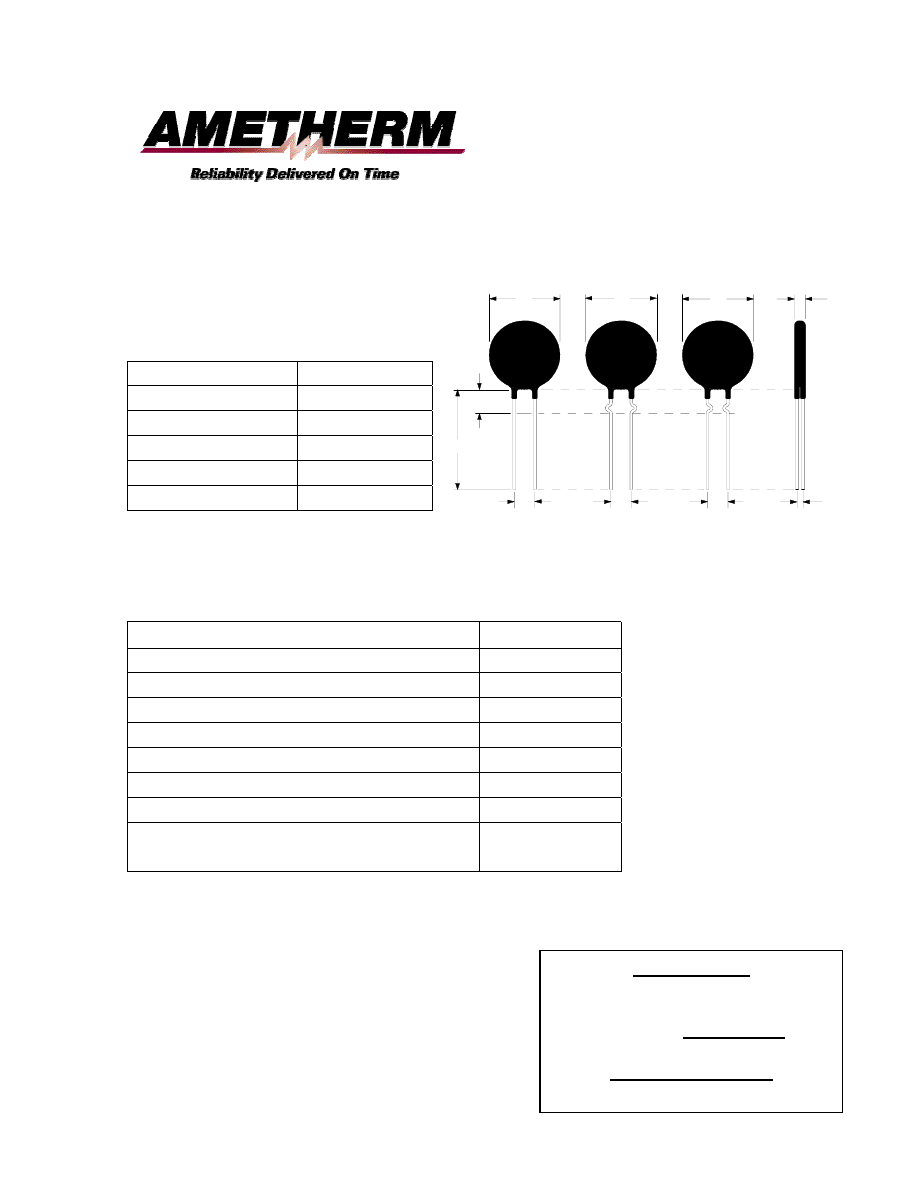

Mechanical Specifications



D 22.0

mm

Max

T 6.0

mm

Max

Lead Diameter

1.0 mm Nom

S 7.8

mm

Nom

L 38.0

mm

Min

Straight Leads

Standard

L

OUTSIDE

KINKED LEADS

S

STRAIGHT

LEADS

B

INSIDE

KINKED LEADS

S

S

D

D

D

C

T






Electrical Specifications





Resistance @ 25°c

10.0

Ω



±

 30%

Transition Temp

110 Deg C

Max voltage Rating

160 v rms

Switch Current @ 25°C

0.800A

Continuous Current @ 25°C

0.400A

Heat Capacity

2.0 Joules/°C

Dissipation Constant

22.50 mW/°C

Thermal Time Constant

65.0 seconds

Max Body Temperature @ Max
voltage

174°C
