DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: NT05 10291
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number NT05 10291
-A
Electrical
Specifications:
Mechanical
Specifications:
Revision Date: August 12, 2002
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Not Available
Zero-Power Resistance @ 25°C
1.0 K
Ω
±
10%
Resistance @ 0°C/ Resistance @ 50°C
8.40
±
2%
Resistance @ 25°C/ Resistance @ 125°C
23.79
±
2%
Beta
3775
±
2%
Temp Coefficient of Resistance @ 25°C
-3.83 %/°C
Operating Temperature Range
-50°C/150°C
Maximum Permissible Power
0.45 W
Dissipation Constant
6.3mW/°C
Thermal Time Constant
20 seconds
D
5.0
±
0.5 mm
T
2.92
±
0.4 mm
Lead Diameter
0.5
±
0.2 mm
S
5.0 mm Nom
L
40.0
±
4.0 mm

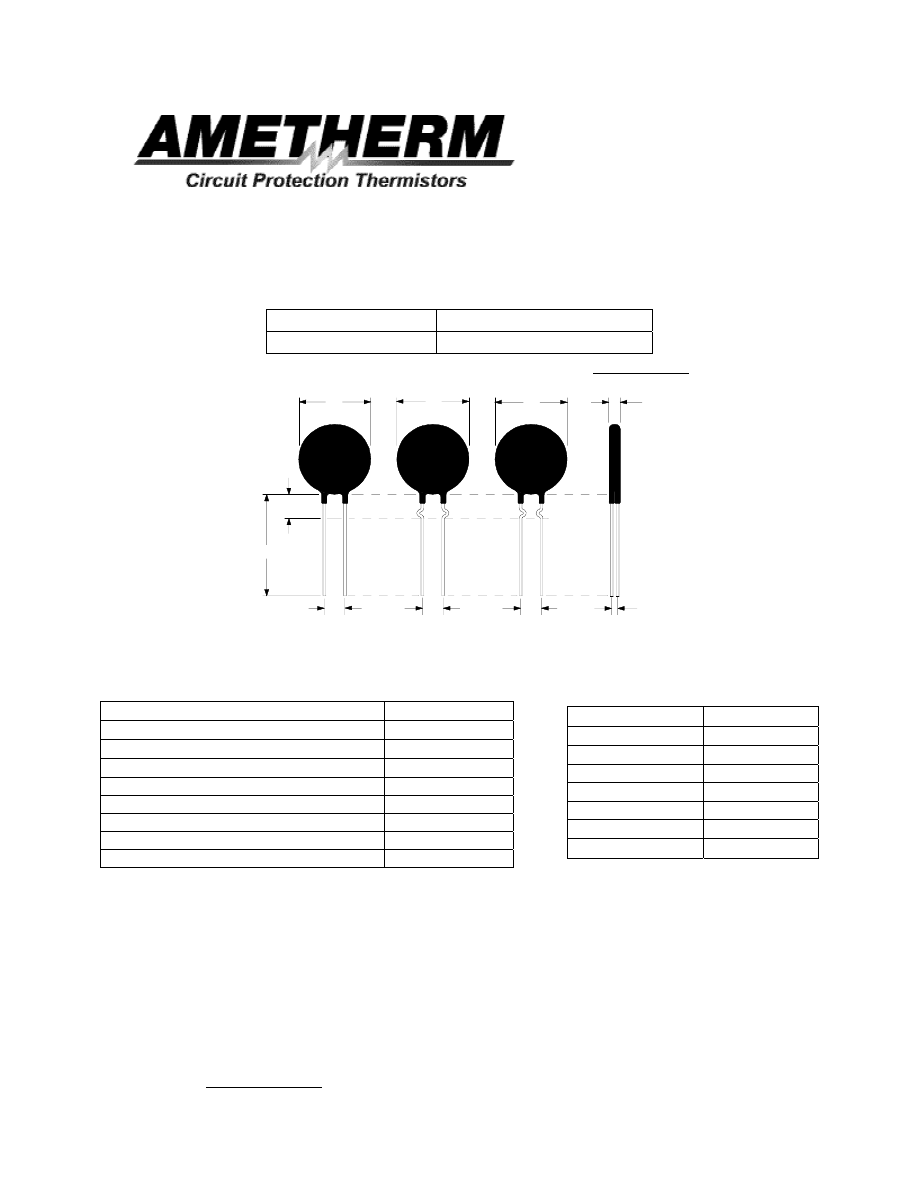

Straight Leads
Standard
B
5.0
±
0.20 mm
C
1.7
±
0.10 mm
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
