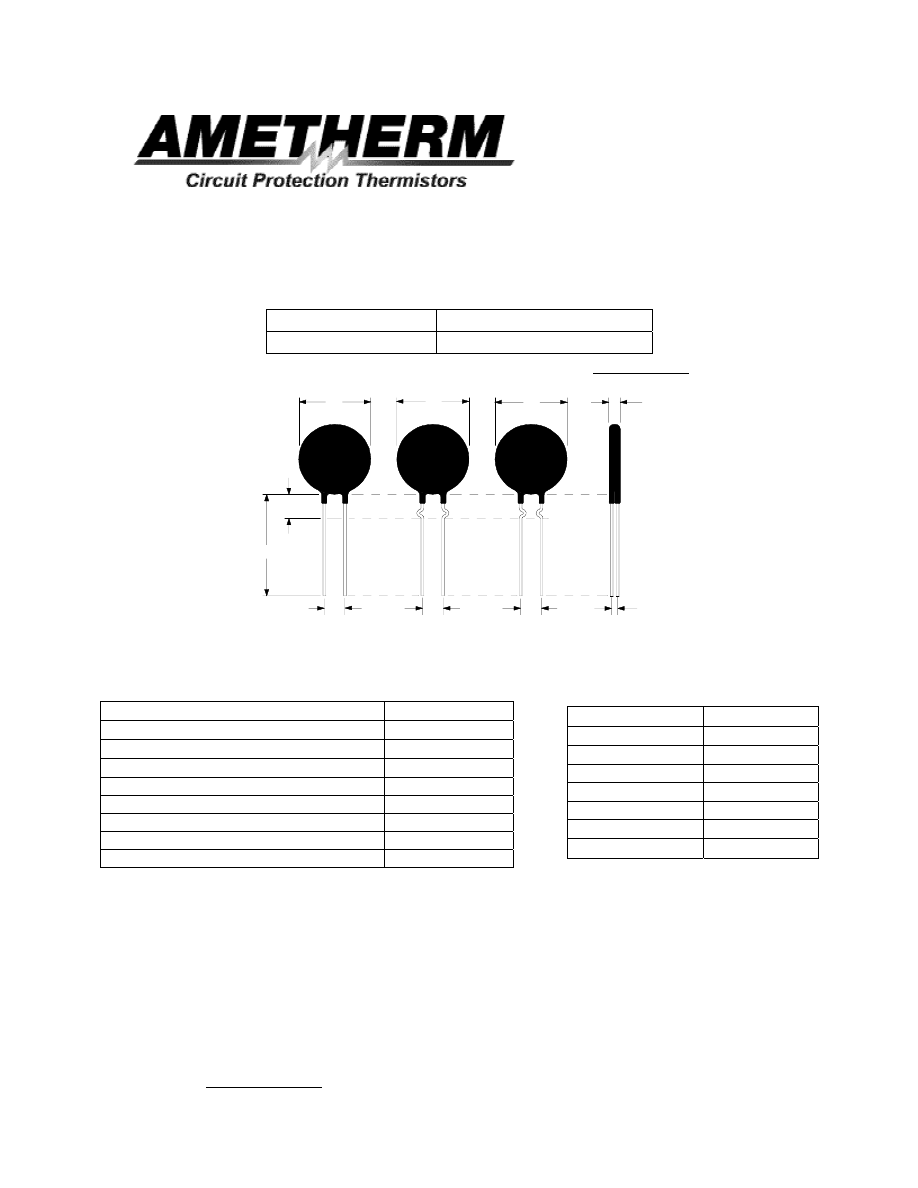

DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: NT10 40191
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number NT10 40191
-A
Electrical
Specifications:
Mechanical
Specifications:
Revision Date: August 21, 2002
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Use
-B
after Ametherm’s part #
Zero-Power Resistance @ 25°C
400
Ω
±
10%
Resistance @ 0°C/ Resistance @ 50°C
9.11
±
2%
Resistance @ 25°C/ Resistance @ 125°C
29.27
±
2%
Beta
3950
±
2%
Temp Coefficient of Resistance @ 25°C
-4.40 %/ °C
Operating Temperature Range
-50°C/ 150°C
Maximum Permissible Power
1.0 W
Dissipation Constant
10.0mW/°C
Thermal Time Constant
15 seconds
D
10.0
±
0.5 mm
T
2.92
±
0.4 mm
Lead Diameter
0.5
±
0.2 mm
S
5.0 mm Nom
L
40.0
±
4.0 mm
Straight Leads
Standard
B
5.0
±
0.20 mm
C
1.7
±
0.10 mm
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
