961 Fairview Carson City, NV 89701 – Phone: 800-808-2434 – Fax: 775-884-0670
D
10 mm max
T
5 mm max
Lead Diameter
0.8 mm nom
S
7.8 mm nom
L
38 mm nom
C
2.40 mm nom
Coating Run Down
3 mm max
Resistance at 25ºC
10 Ω ± 20 %
Max Steady State Current
3 A
Max Rec Energy Rating
17 J
Actual Failure Instantaneous Energy
35 J
Dissipation Constant
11 mW/ºC
Body Temperature at 100% Max Current
151 ºC
Thermal Time Constant
30 sec
Max Cap at 277V
220μf
Material Type
C
Drawn By: A Aubuchon
Date: 3-31-15
Original:
M. Samii
App.
Rev: 1
SL10 10003

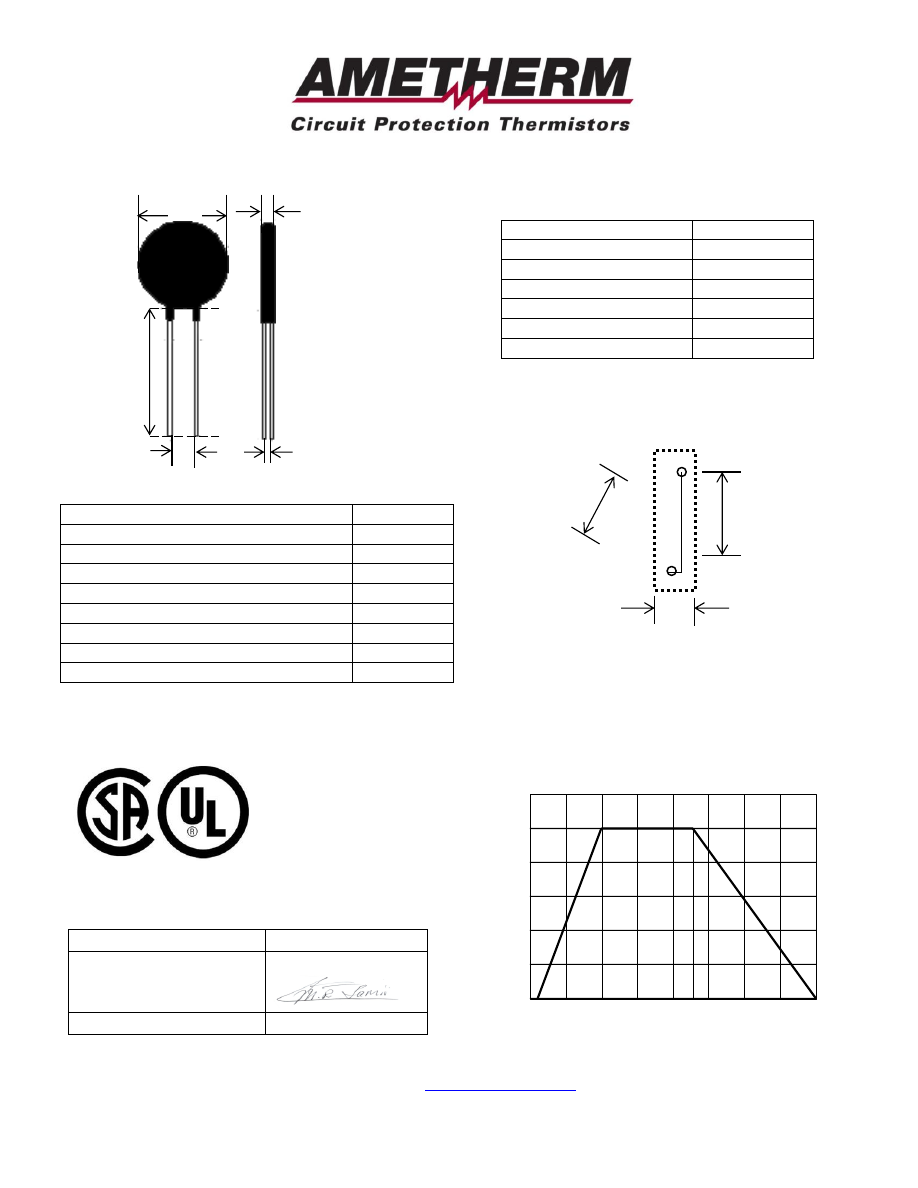

Mechanical Specifications
SL10 10003
D
T
C
L
S

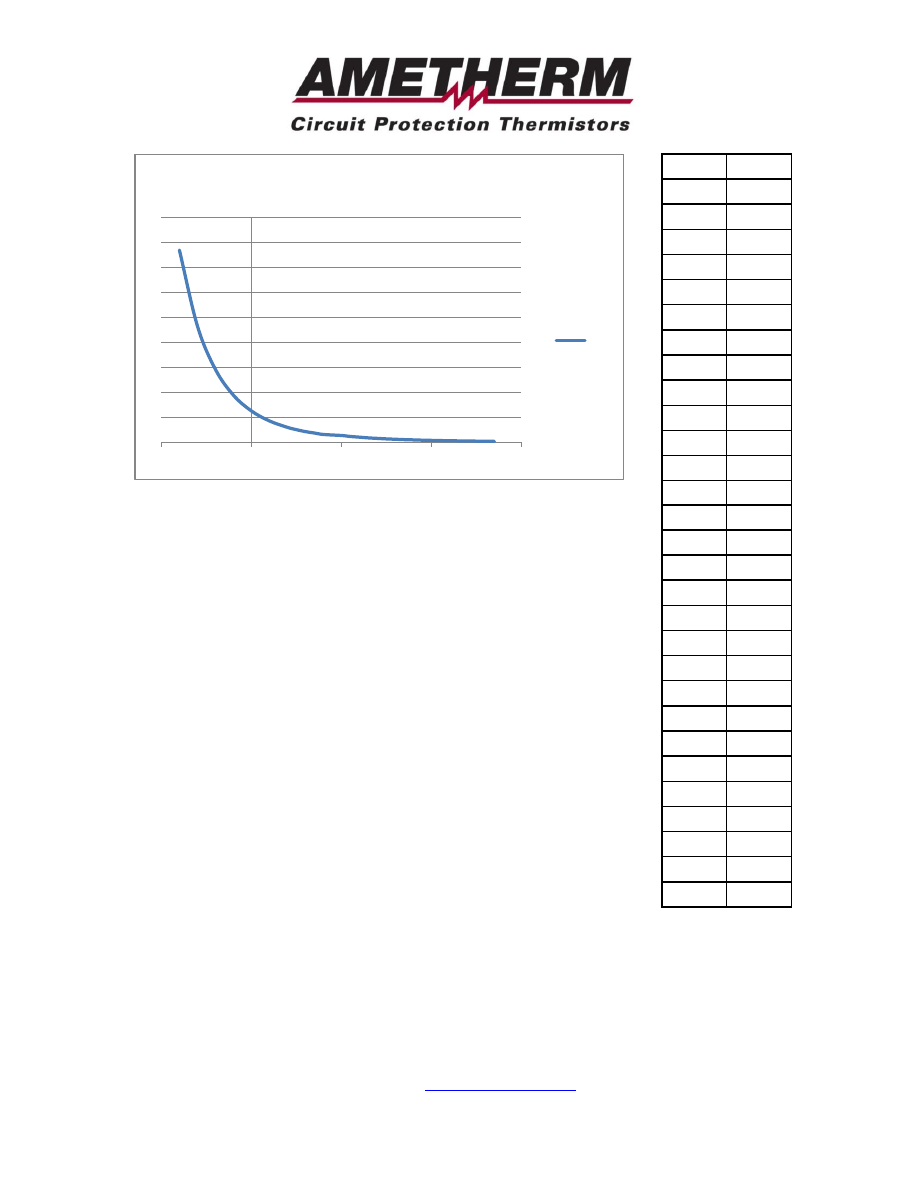

Current & Energy Derating Curve
100
80
60
40
20
0
0
25
50
75
100
125
150
-25
-50
Ambient Temperature
Degrees Centigrade ( C)
Percent
of Rated
Imax
65
-40
Electrical Specifications
Circuit Board Foot Print
S: 7.8 ± 1 mm
B: 7.42 ± 1 mm
C: 2.40 ± 1 mm
S
B
C
Certifications:
File:
CA110861/File: E209153
