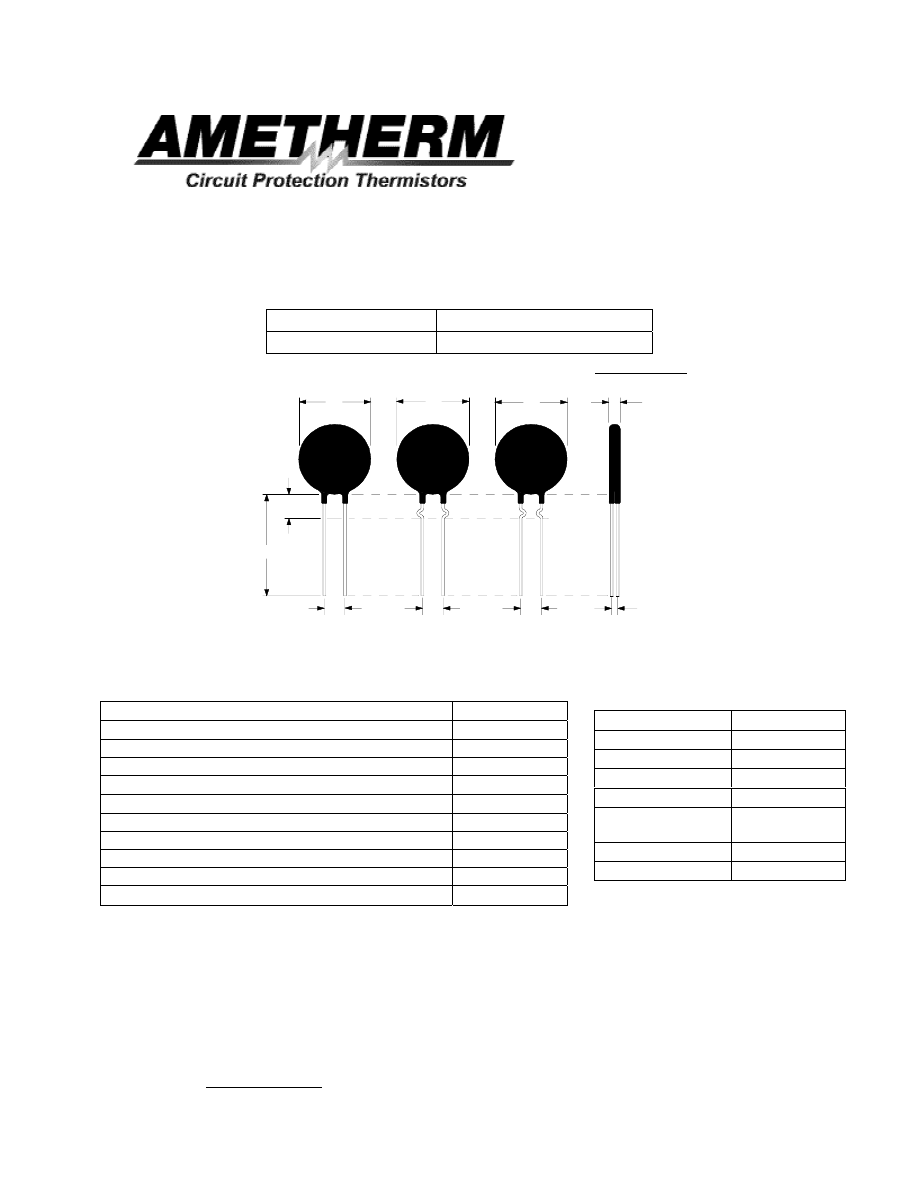

DATA SHEET
Ametherm, Inc
. 3111 N. Deer Run Road #4 Carson City, NV 89701
Telephone: (800) 808-2434 (775) 884-2434 Fax: (775) 884-0670
www.ametherm.com
Part Number: SL12 15003
Ordering Different Lead Types:
For example: to order an inside kinked lead use part number SL12 15003-
A
Electrical
Specifications:
Mechanical
Specifications:
CSA File Number: #CA118061
Revision Date: March 19, 2003
Inside Kinked Leads
Use
-A
after Ametherm’s part #
Outside Kinked Leads
Use
-B
after Ametherm’s part #
Resistance @ 25°C
15.0
Ω
±
20%
Max Steady State Current Up to 65
°
C
3.0 A
Max Recommended Energy Rating (Joules)
40.0 J
Actual Failure Point of Instantaneous Energy (Joules)
105.0 J
Resistance @ 100% of Max Current
0.220
Ω
Resistance @ 50% of Max Current
0.538
Ω
Body Temperature @ 100% Current Rating
142 °C
Dissipation Constant
13.9mW/°C
Thermal Time Constant
54 seconds
Material Type
“C”
Max Recommended Capaciatnce @ 120VAC/240VAC
2700
µ
F/690
µ
F
D
12.0
±
0.5 mm
T
4.5
±
0.2 mm
Lead Diameter
1.0
±
0.1 mm
S
7.8
±
2.0 mm
L
38.0
±
9.0 mm
Straight Leads
Coating Run Down
See Dimension
B Below
B
11.5
±
3.50 mm
C
2.82
±
0.50 mm
L
OUTSIDE
KINKED LEADS
S
STRAIGHT
LEADS
B
INSIDE
KINKED LEADS
S
S
D
D
D
C
T
