.236"

.314" DIA. +/-0.012
(8.0mm DIA.+/-0.3)

NOTES:
1. SPECIFICATIONS CAN BE MODIFIED PER
    CUSTOMER REQUIREMENTS.
2. SEE DATA SHEET FOR ELECTRICAL
    SPECIFICATIONS.
3. QUANTY PER REEL 1500 - 2000

(18mm x .5mm thk)

(12.7mm) TYP

.500" +/-.005"

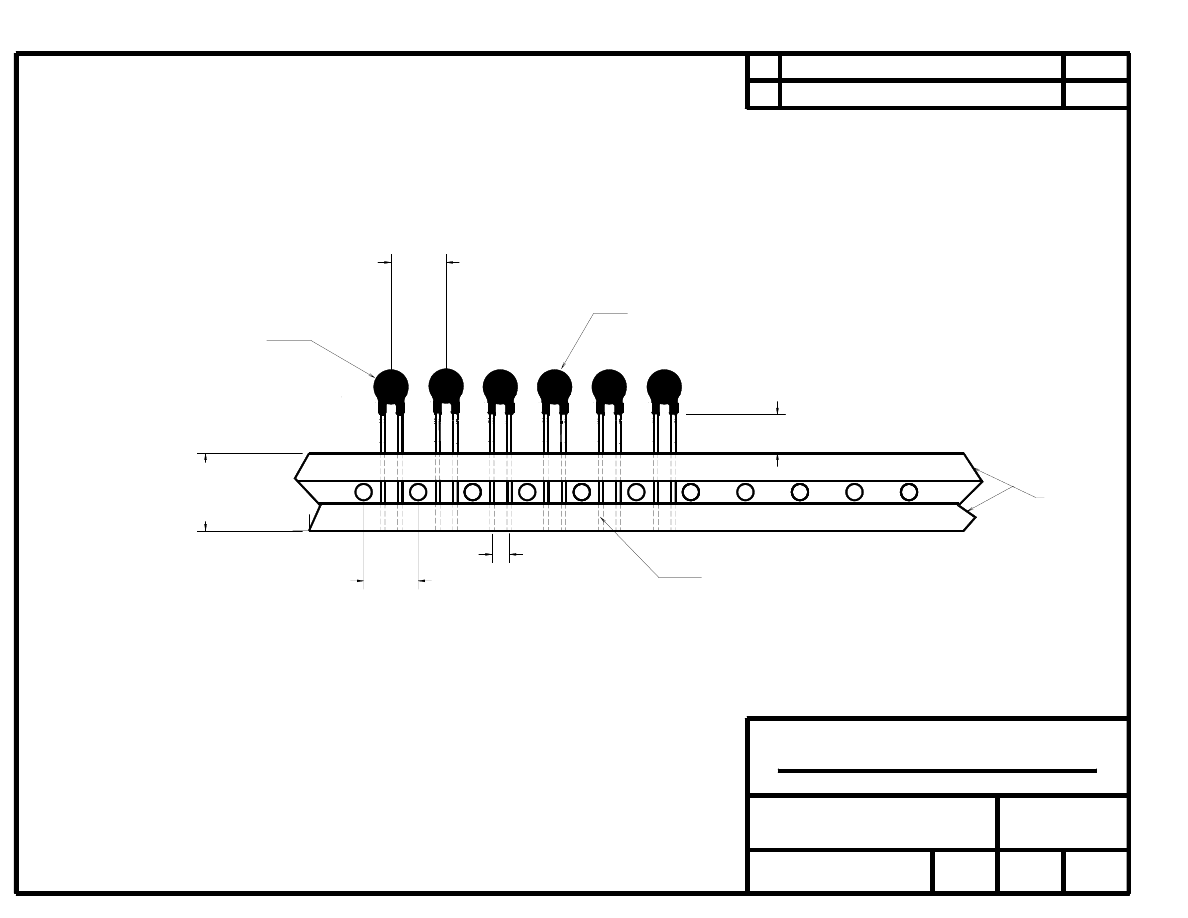

SL08 SERIES

   .500"

(12.7mm)

    TYP

HEAT

TAPE

Reliability Delivered On Time

AMETHERM

SL08 SERIES

ON LS100-20 LEAD

TFM      03JUN02

DRAWN BY & DATE:

DRWG NAME:

LS100-20

LEAD

DRWG NO.:

REV:

SCALE:

N/A

AME-10456A

SHEET:

N/C

1

.460" +/-0.025

(11.68mm +/-0.6)

REV

REASON FOR REVISION

DATE & BY
