miniAMP
Inrush Current Limiters
These miniature inrush current limiters are your solution for space-sensitive
applications. The miniAMP series is designed for applications where board
space is limited and cool operation is desired. The cost effective miniAMP
inrush current limiter is an efficient way to protect components such as
relays, diodes, and fuses from inrush current. The miniAMP series is
available in 3, 5, and 8mm diameters and weigh as little as .06 grams. The
miniAMP series cold resistance ranges from 5 ohm to 220 ohm.
MinAmp-Inrush-Current-Limiters
This inrush current limiter series is rated for 250 mA to 3 Amperes continuous current and up to 20 joules of
input energy. The operating temperature range is -40 to +150 degrees C. The radial leaded inrush current
limiter is available on kinked or straight leads. The standard lead length is 1/2 inch. The miniAMP inrush current
limiters are packaged bulk and are available on Tape and Reel. Lead time for production quantities is less than
two weeks. Evaluation samples are shipped within three days.

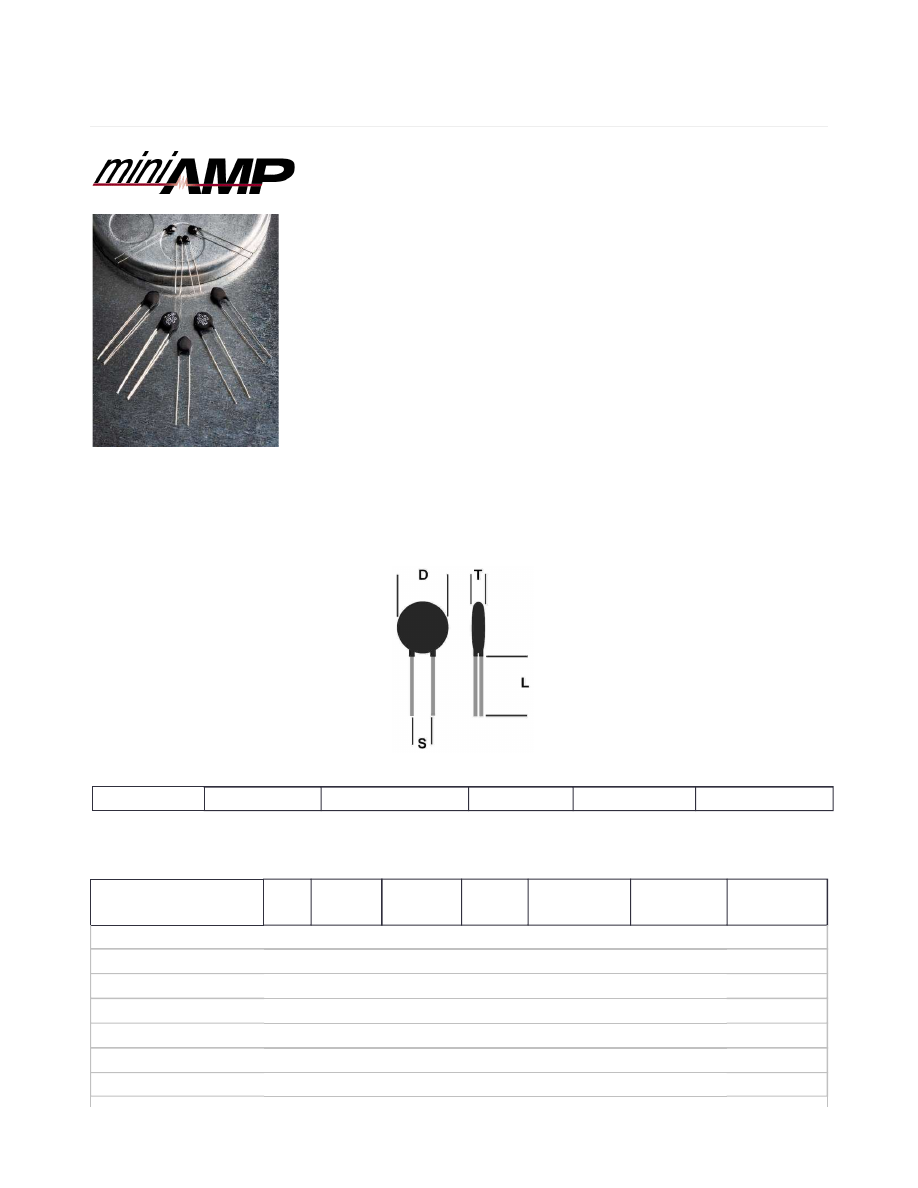

D
T
Lead Diameter
S
L
08 mm Max
3.0 mm Max
.06 mm Nom
5 mm Nom
38.0 mm Min
Straight Leads
Part
UL
CSA
R
SSI
Max
Joules
Max
D Max
(mm)
T Nom
(mm)
SL08 2R503
Y
2.5
3
10
8
4
SL08 4R003
Y
4.0
3
10
8
4
SL05 4R003
4.0
3
5
6
4
SL05 5R001
5.0
1
5
6
4
SL08 5R002
Y
5.0
2
10
8
4
SL08 5R003
Y
5.0
3
10
8
4
SL08 7R002
Y
7.0
2
8
8
3
