Arcotronics Fuel Cells srl - via S. Lorenzo 19

–



40037 - Sasso Marconi - Bologna

–



Italy - Tel: 0039 051 939370 - Fax: 0039 051

842890

R O E N     E S T

Arcotronics Fuel Cells

Angelo D’



Anzi

Roma  Steering Committee IPHE

15-11-07

"Arcotronics Fue cell State of the art of  PEFC"

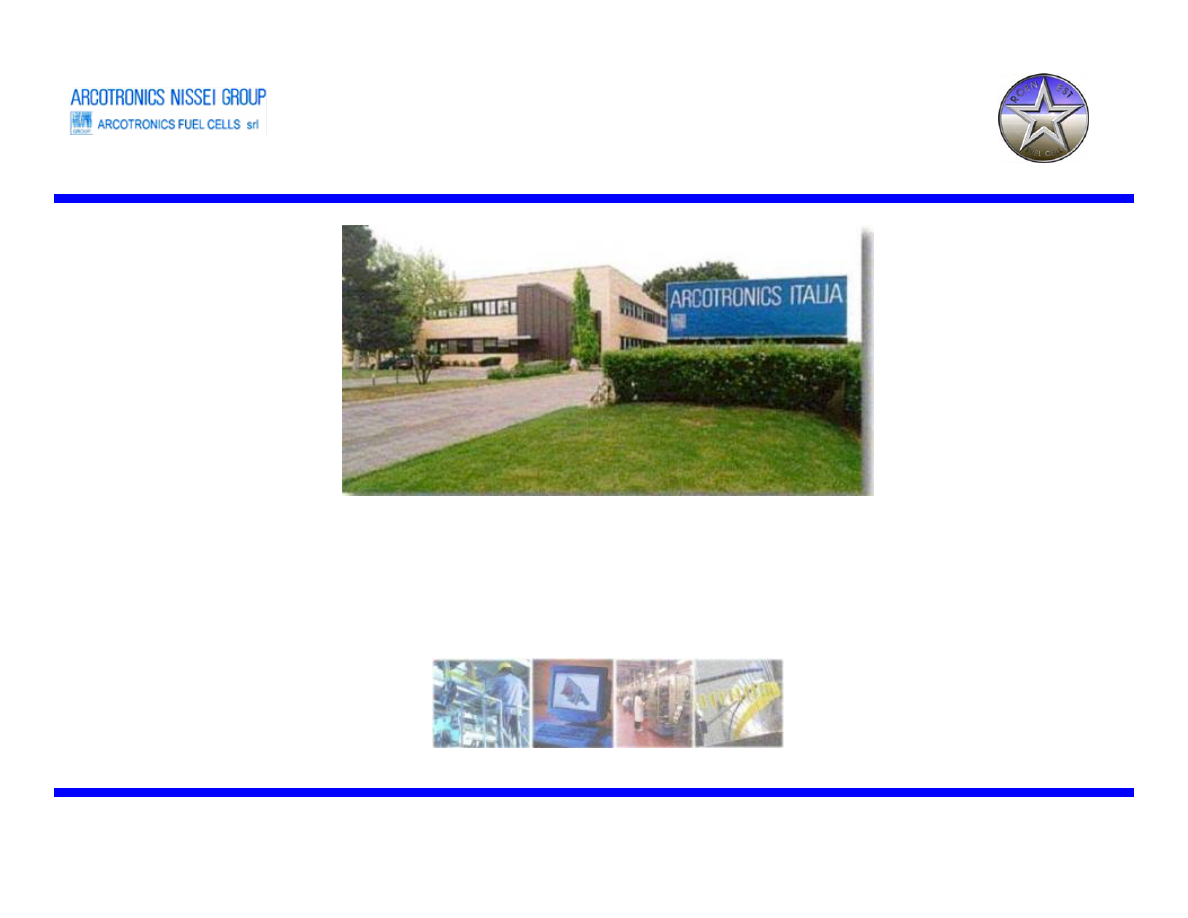

ARCOTRONICS GROUP

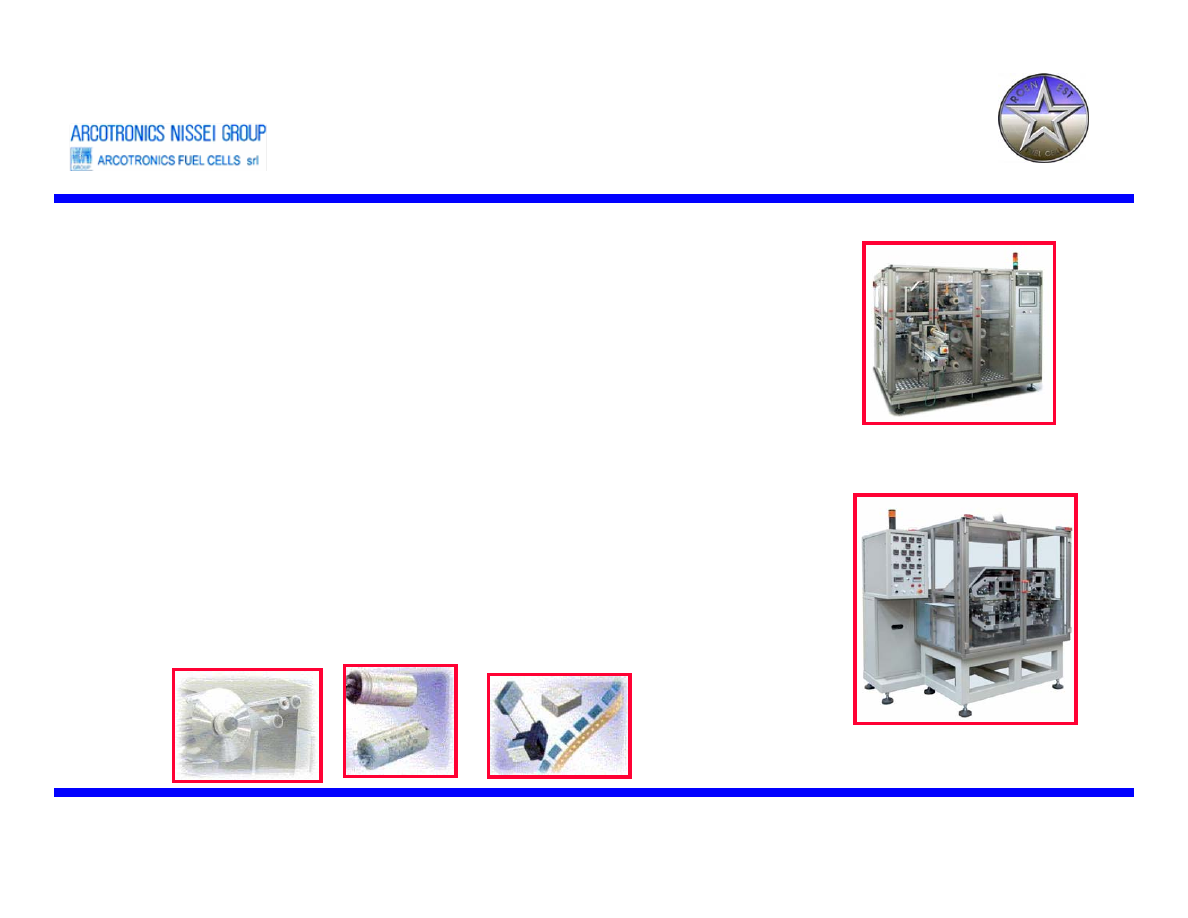

Group Profile

R O E N     E S T

ARCOTRONICS ITALIA SpA -

Via San Lorenzo, 19 40037 Sasso Marconi BO Tel.: (+39) 051 939111 Fax.: (+39) 051 840684

•



Kemet



Group

founded in 1964.

•



Headquarters



in Sasso Marconi



(BO)

Italy.

•



Production world leader in:

metallized



plastic film capacitors a

machinery for the production of

capacitors, batteries.

z

Group turnover $ 200 millions.

z

1800 employees world wide

.

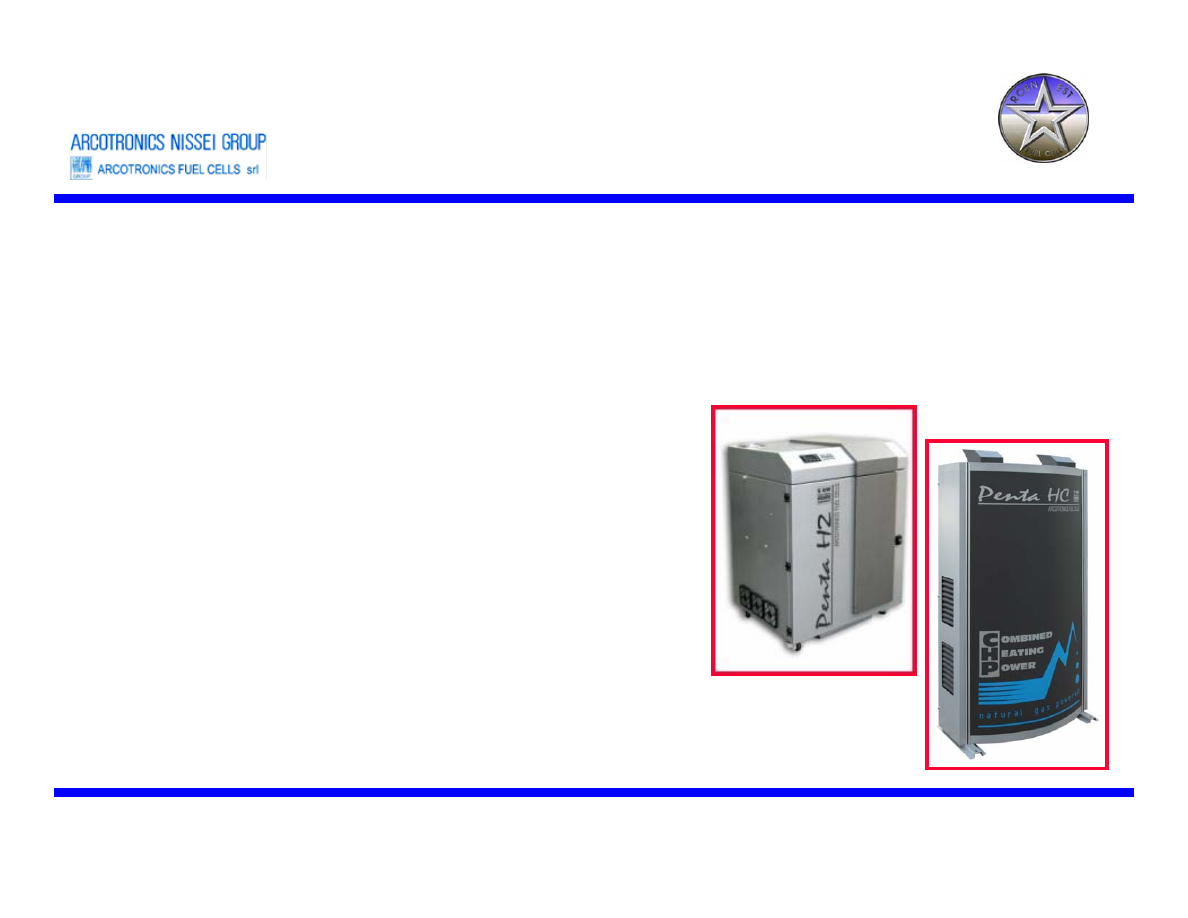

ARCOTRONICS FUEL CELL

Company Profile

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

z

Arcotronics fuel cells s.r.l.
founded



in 2000 with



the name



of ROEN EST srl.

z

In 2003, was incorporaed to ARCOTRONICS GROUP

Registred Capital € 500.000,00

z

Located  in Sasso Marconi, BO

z

N°  employees  20

ARCOTRONICS FUEL CELLS

Our technology

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

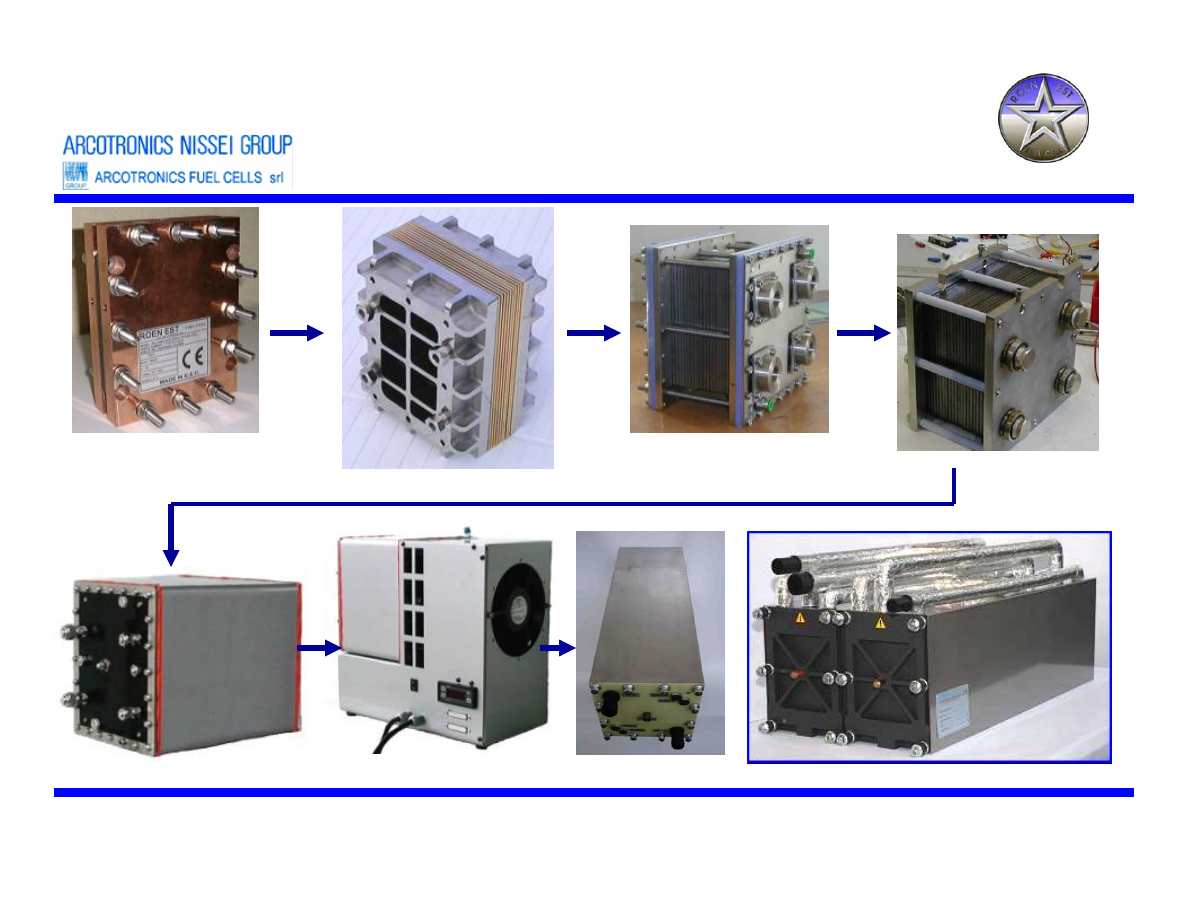

The story

1999-2000

2000

2000-2001

2001

2004

2002

2001-2002

ARCOTRONICS FUEL CELLS

R O E N     E S T

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

2006

ARCOTRONICS FUEL CELLS

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

FUEL CELL STACK

Core Technology for

MEA and

Plates:

MEGA PATENT

(membrane electrode gasket assembly)

HEFC PATENT

(Hybrid electrolyte fuel cells)

SCS under PATENT

(Security coolant system)

POTENZA STACK 500W- 250kW

MEA manufacturing in house

Graphite mould plates

Metallic plates

STATIONARI SYSTEM

AUTOMOTIVE

REGEN BACKUP SYSTEM

WIND SOLAR  UPS

STAND ALONE  SYSTEM

APU - PROFESSIONAL

5 KW SMAL CHP

DOMESTIC COGEN.

1-5 KW APU

SHIP AND RV

80 KW FUEL CELL ENGINES

BUS TRUK CARS SHIP

20 KW FUEL CELL ENGINES

BUS TRUK CARS SHIP

5 KW FUEL CELL ENGINES

SMAL VEHICLE

1,7 FUEL CELL ENGINES

SCOOTERS

SPECIAL

1-250 KW OEM STACS

MILITAY

SUBMARINE

MEA AND PLATES

AEROSPACES

STRATOSFERIC  BALOON

Production model

z

FC components

z

Balance of Plant (BoP)

z

Industrialization

z

Stacks

z

System optimisation

z

Fuel Processors

–



NG

–



LPG

ARCOTRONICS FUEL CELL

Main Activity

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

R&D

Financed projects

Collaborative



projects

Available   products

z

Penta ( H2 1ph 3 ph SA)

z

5 kW oem power system

z

Electrum H2

1 kW system

z

Custom stacks

z

1,7-20 kW fuel cell engine

z

Micro CHP (5 kW CHP)

z

Celco Yacht (15 kW APU)

z

Hyper

z

Marghera Idrogeno in azienda

z

Arezzo Goldsmiths district

z

NEO Fuel Cells vehicle project

z

Aerospace regenerative systems

z

30 kW CHP system

ARCOTRONICS FUEL CELL

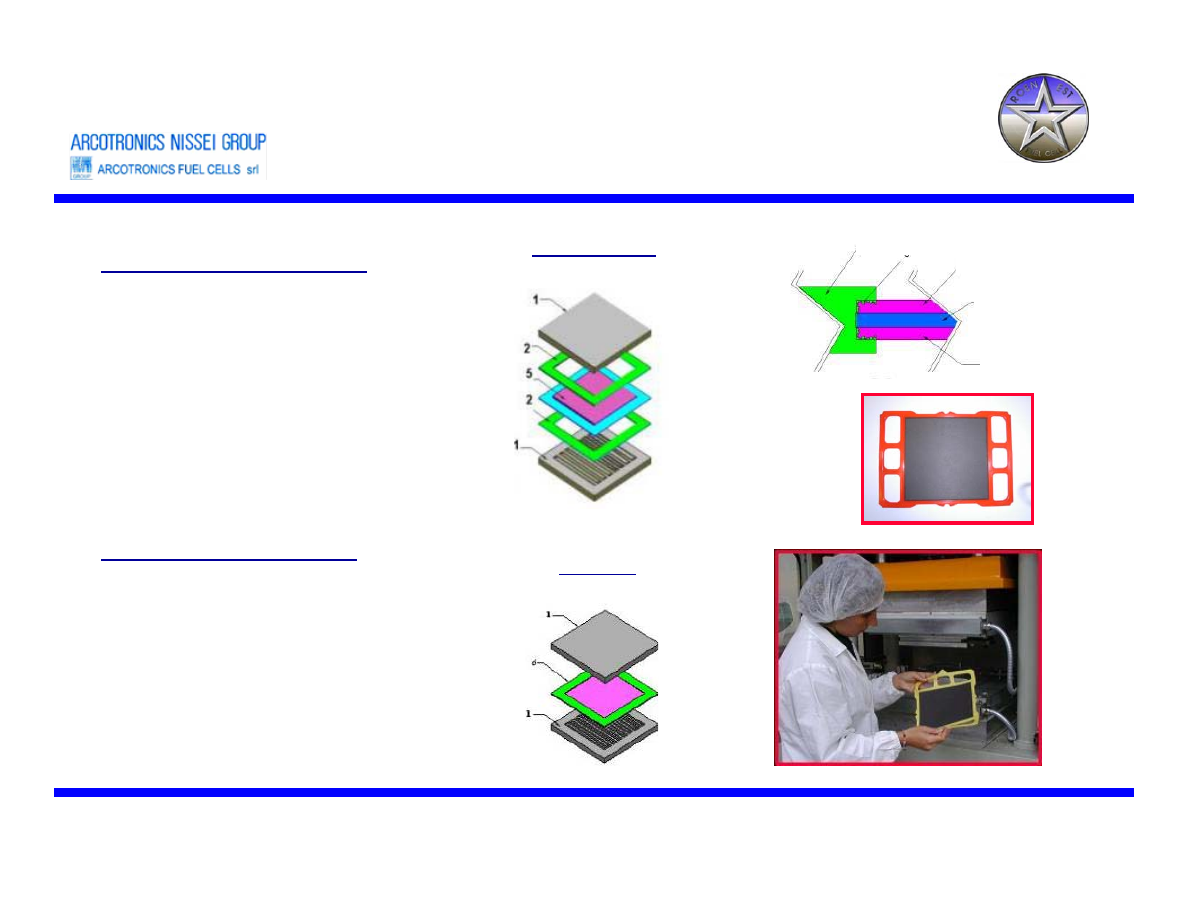

PATENT

MEGA



–



Membrane Electrode Gasket Assembly

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

MEGA Advantages

z

COST REDUCTION

z

MANUFACTURING

z

QUALITY CONTROL

z

SHELF-STORAGE

z

OPERATION

z

MAINTENANCE

gasket

anode

membrane

cathode

MEGA production

z

Injection Moulding

System

z

Silicone based mixture.

z

Low temperature injection

z

Short curing time

MEGA

Traditional

ARCOTRONICS FUEL CELL

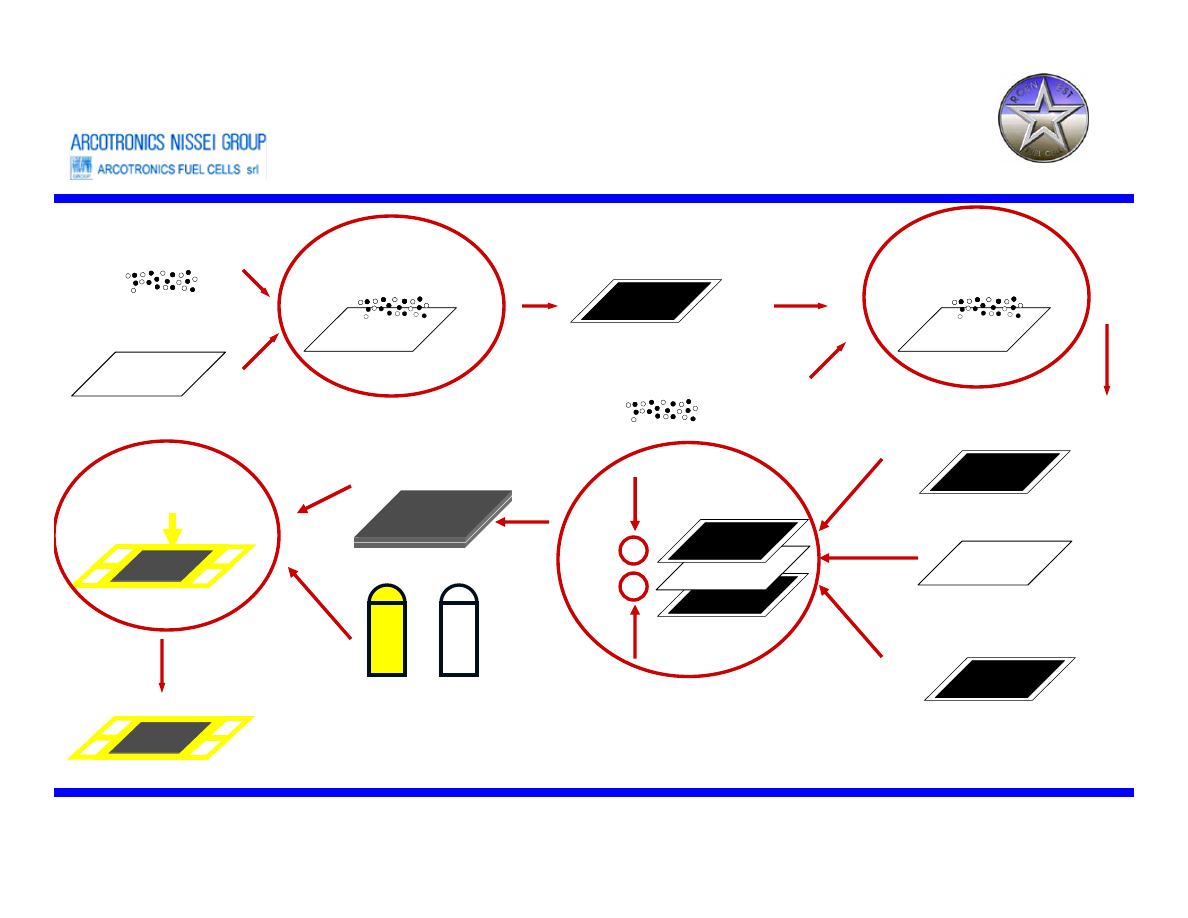

MEGA system Production

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

C + PTFE slurry

Gas Diffusion media

Gas Diffusion Layer

C + ionomer



+ Catalyst slurry

μ

layer deposition

Catalyst

layer deposition

Gas Diffusion Electrodes (GDE)

ANODE

Gas Diffusion Electrodes (GDE)

CATHODE

Membrane

Gasket

injection

Membrane Electrode Assembly

(MEA)

Bicomponent



silicons

Hot press

Membrane Electrode Gasket Assembly (MEGA)

ARCOTRONICS FUEL CELL

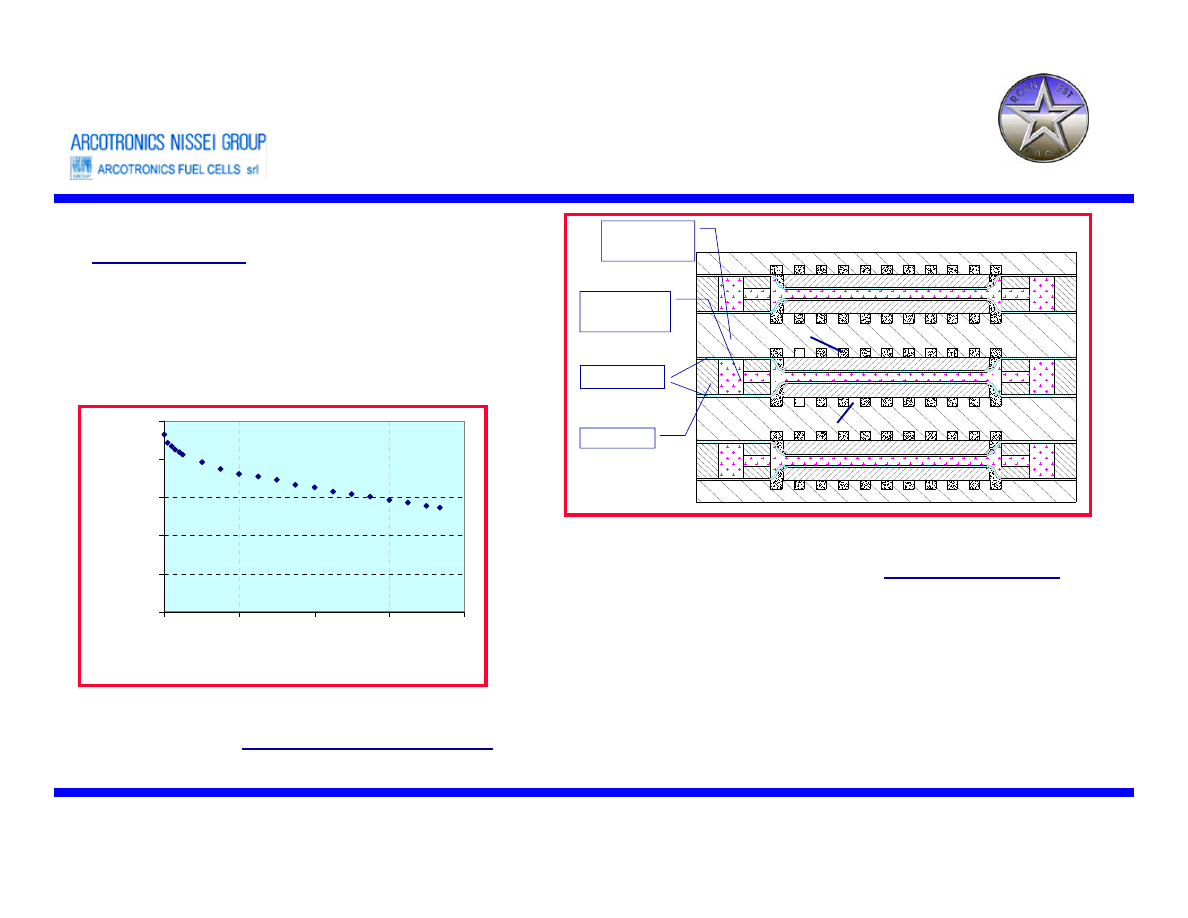

HEFC



–



Hybrid Electrolyte Fuel Cell

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

Why HEFC

z

Humidification management

z

Load following operating

z

MEA degradation

z

Long lifetime is expected

z

No external humidification

z

Direct cooling of the MEAs

z

Uniform operating condition

z

Friendly operating

z

Immediate start-up

z

Full power operating

Bipolar

plates

Separator

H2SO4

solution

Anode

Cathode

Membrane

H2

Air

0

200

400

600

800

1000

0

200

400

600

800

Current density (mA/sqc)

Voltage (mV)

HEFC Advantages

T cell = 65°C

Anode: dead end

Cathode:

λ



= 2

Applications

z

Stationary

z

Transportation

z

Train

z

Bus

z

Automotive
full power

ARCOTRONICS FUEL CELL

SCS

Security coolant system

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

UNDER PATENT

Possibility to use glicole in the cooling circuit

without any risk contamination.

ARCOTRONICS FUEL CELL

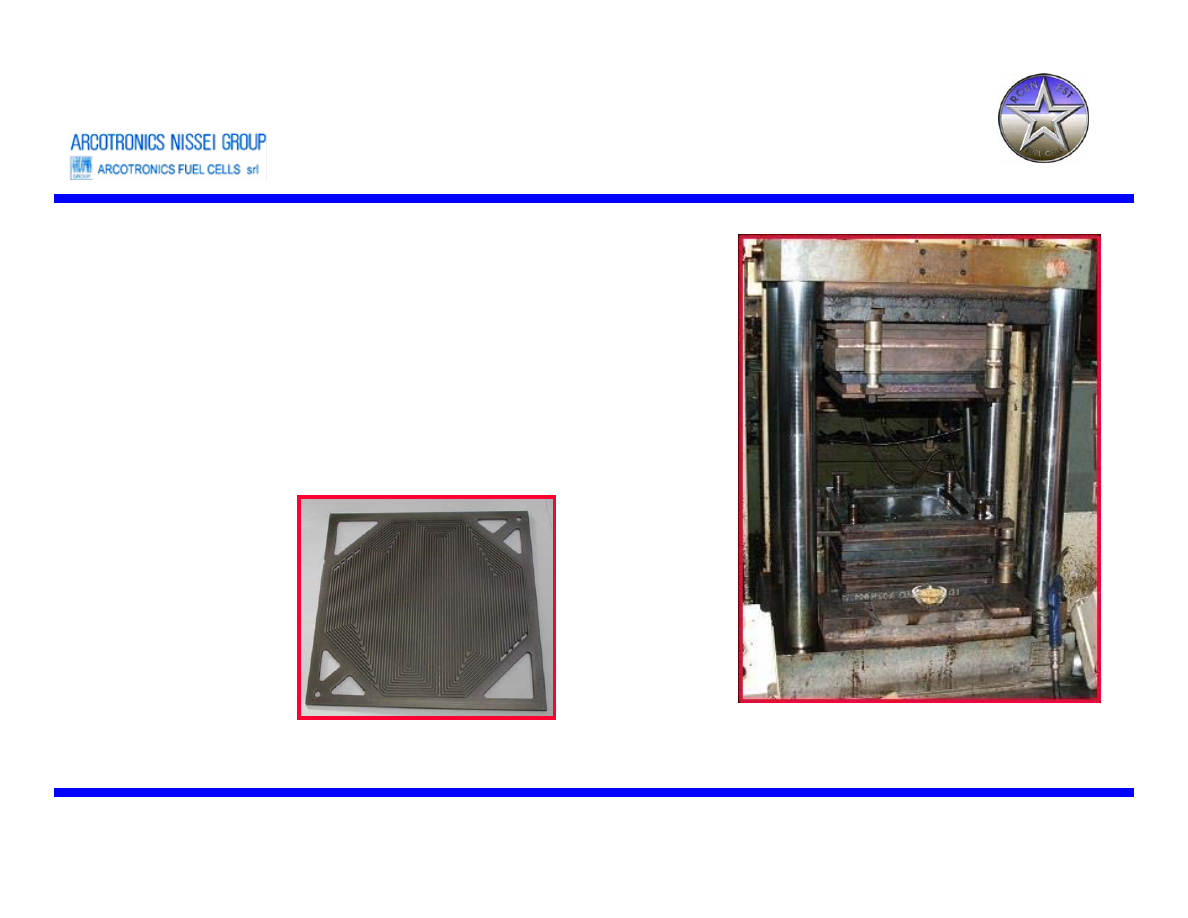

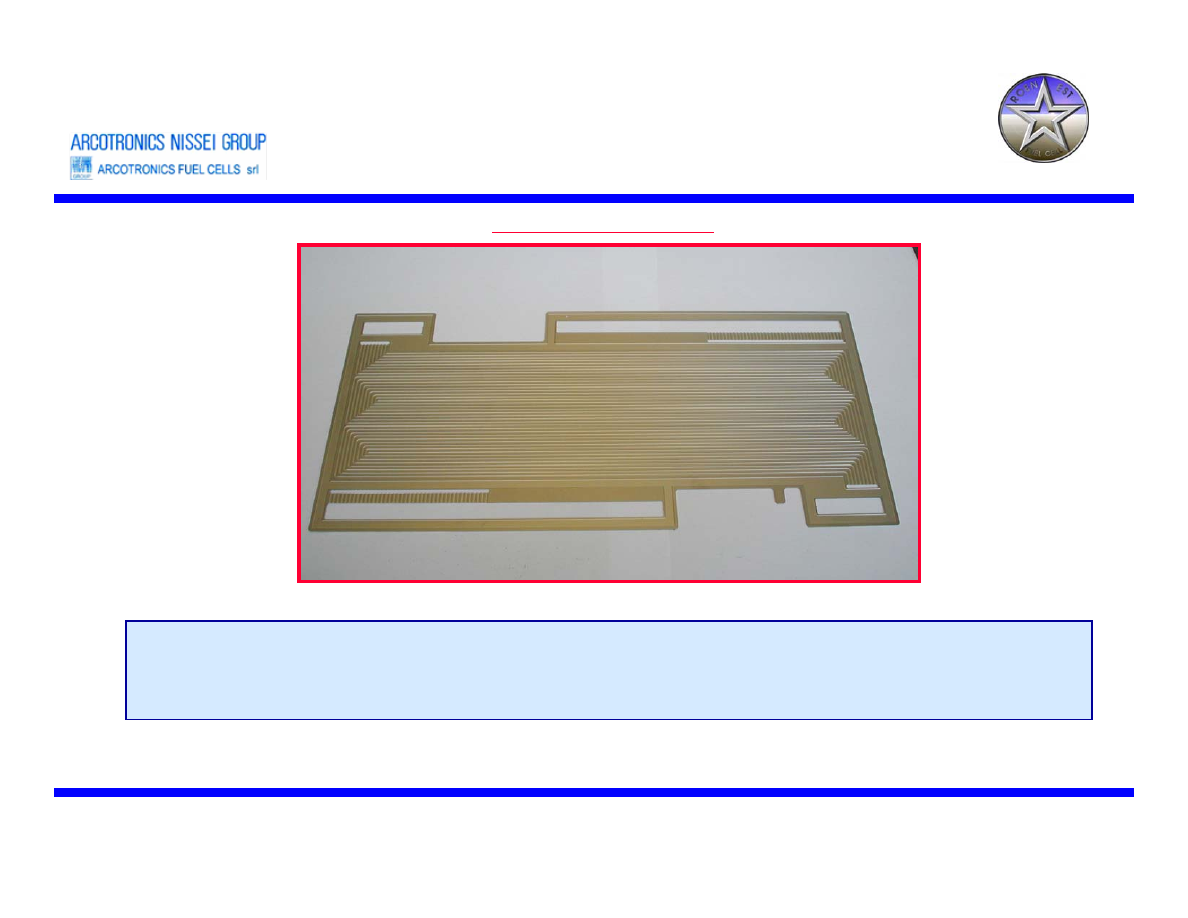

Composite graphite plates

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

z

Moulding time:

< 3 min per plate

z

Price:

< 5 €/plate also for low

volume

ARCOTRONICS FUEL CELLS

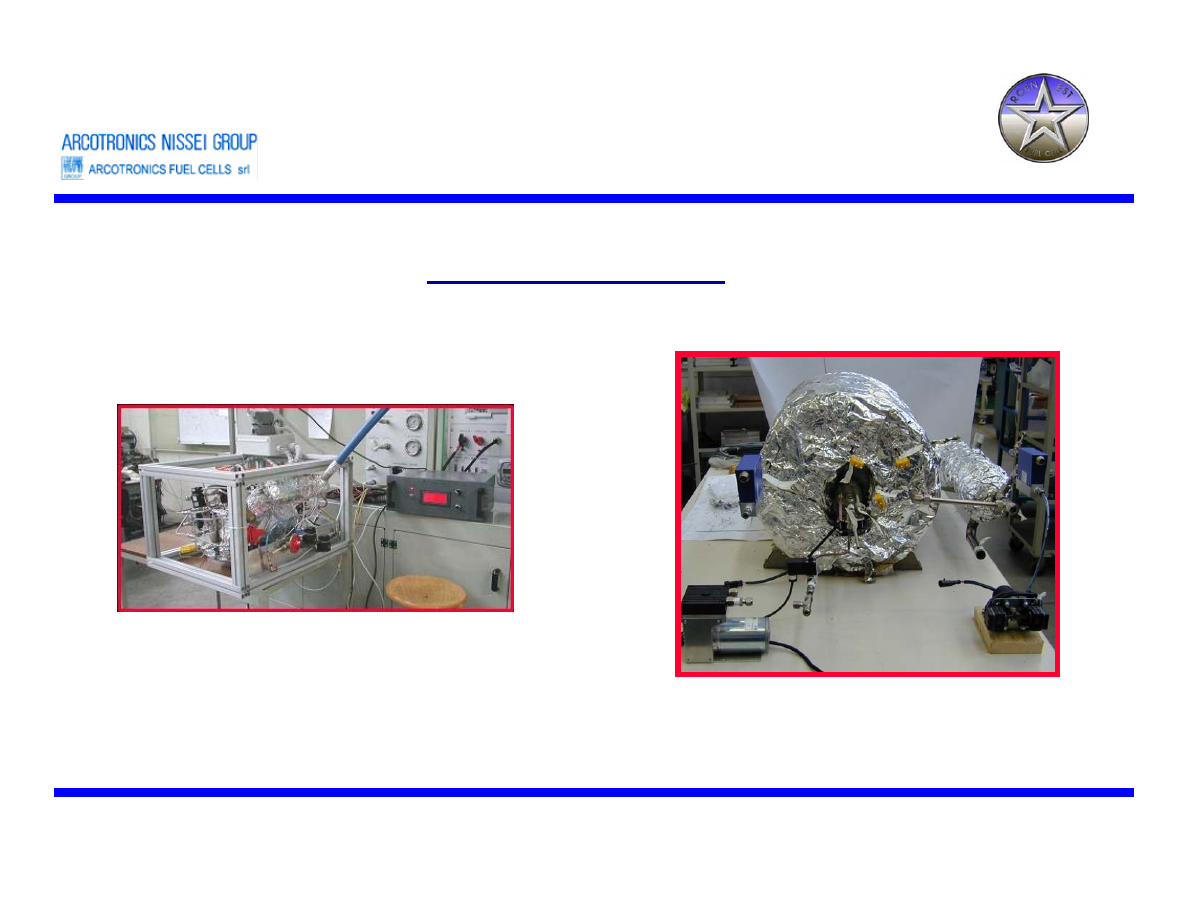

Fuel Processors

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

Primary fuels

z

NG and LPG

ARCOTRONICS FUEL CELLS

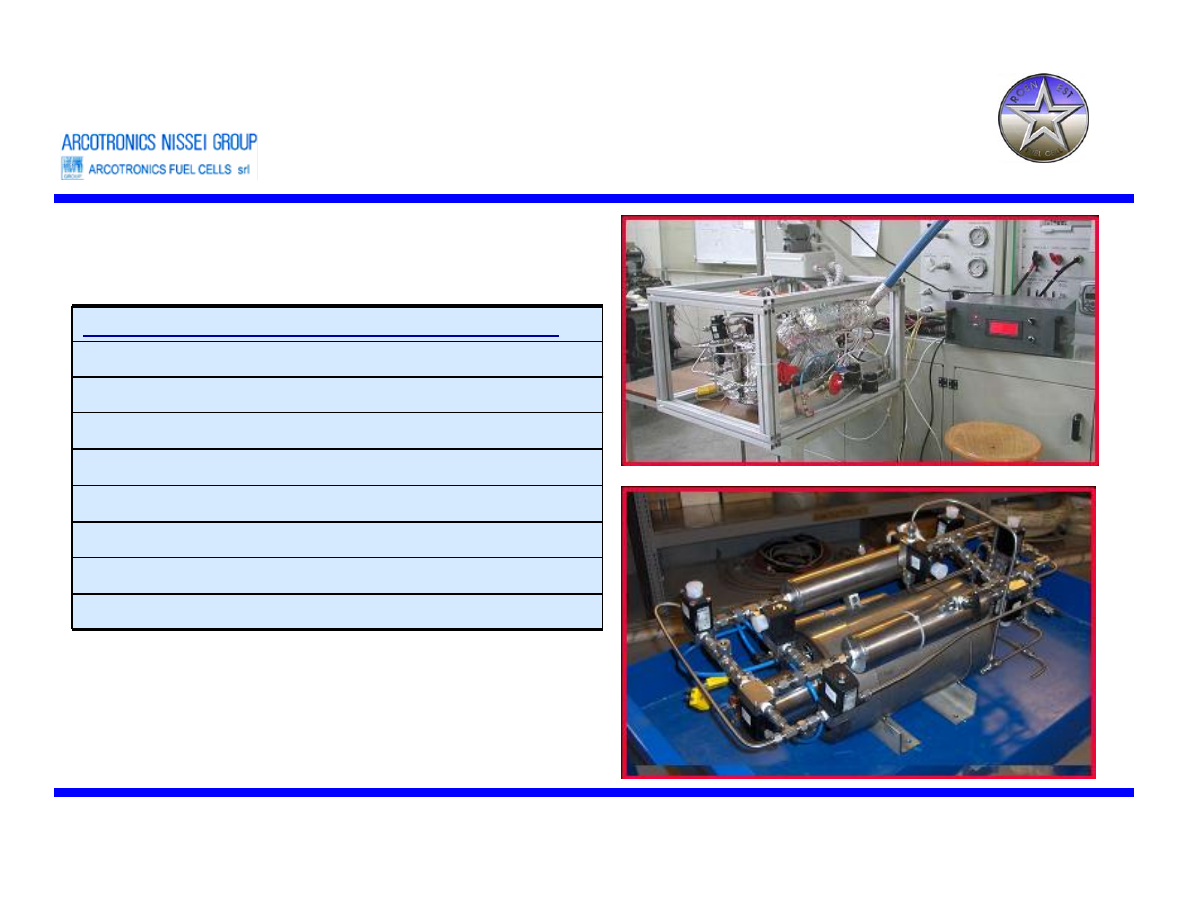

LPG Fuel Processors

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

MAIN CHARACTERISTICS OF THE SYSTEM

Primary fuel

LPG, NG

Gas supply pressure

2-5 bar

LPG consumption

300 g/h

H2 production

1,05 Ncm/h

Operation temperature

0°C to + 50°C

Dimension (L x W x H)

320 x 320 x 440 mm

Weight

< 30  kg

Test on field

2006

ARCOTRONICS FUEL CELLS

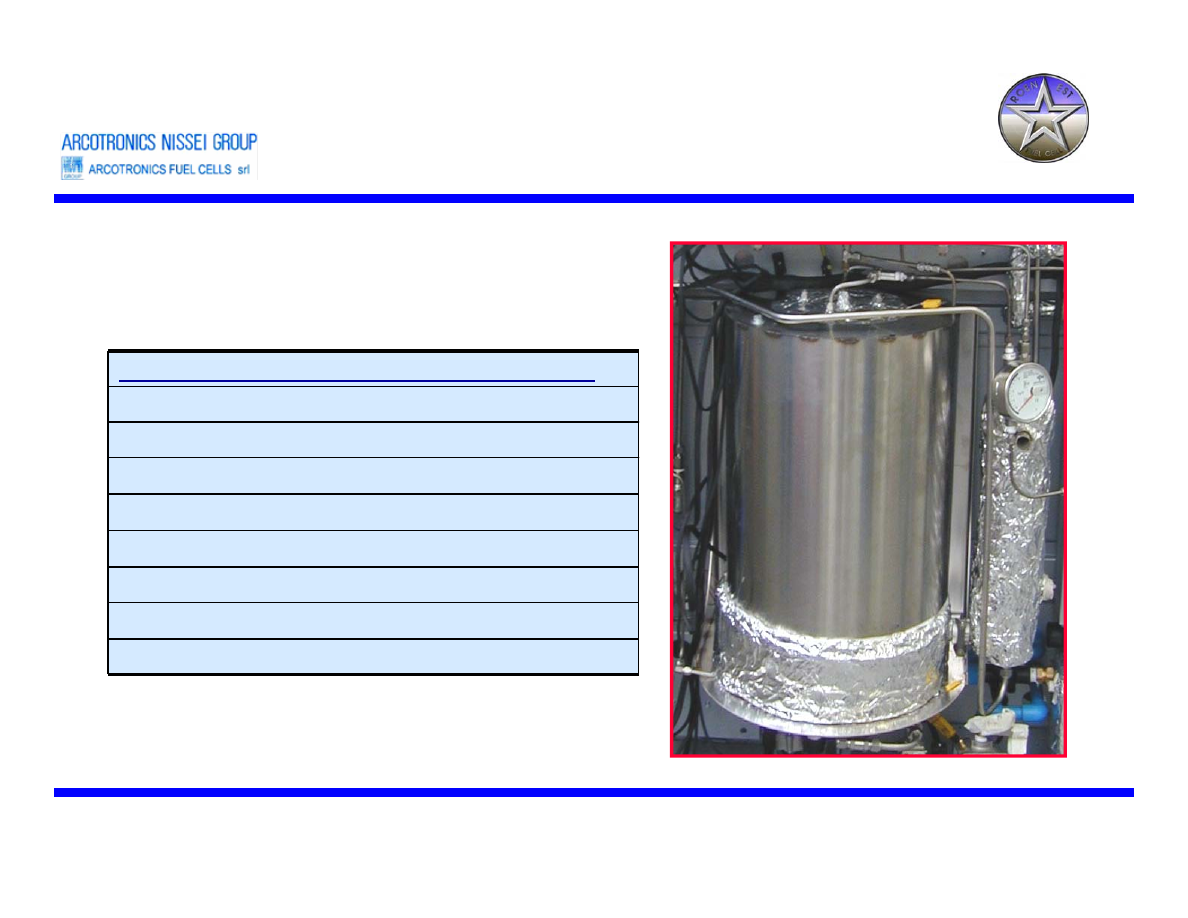

NG Fuel Processors

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

MAIN CHARACTERISTICS OF THE SYSTEM

Primary fuel

NG

Gas supply pressure

0,5-1 bar

NG consumption

1,25 Ncm/h

H2 production

5 Ncm/h

Operation temperature

0°C to + 50°C

Dimension (L x W x H)

450 x 450 x 850 mm

Weight

< 100  kg

Test on field

2006

ARCOTRONICS FUEL CELLS

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

PRODUCTION

ARCOTRONICS FUEL CELL

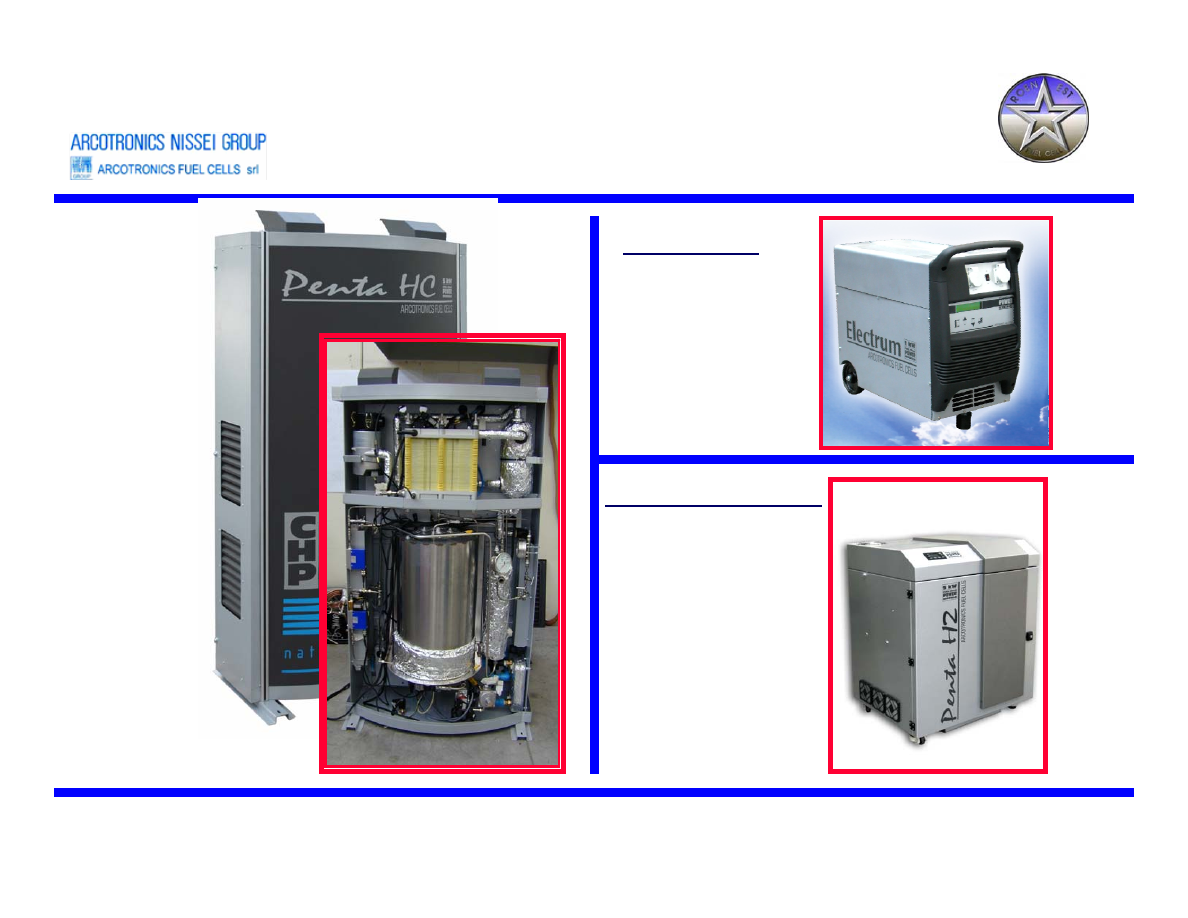

Stationary Available Products

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

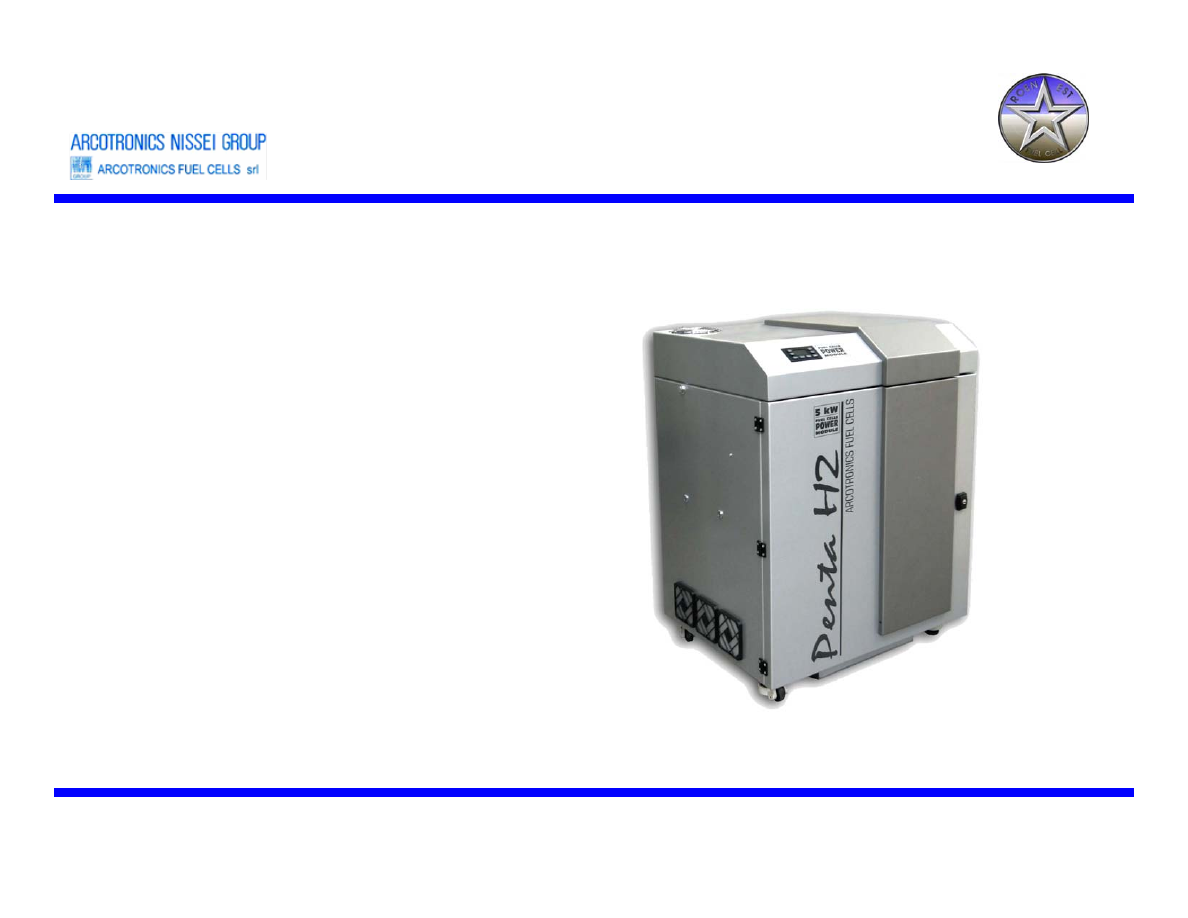

New Penta



H2

Electrum

1 kW

Portable UPS

H2/Air

NG

5 kW

CHP



grid

connected

Natural Gas

Prototipe

stage

5 kW

CHP



grid

connected

H2 fuel

ARCOTRONICS FUEL CELLS

Mobility available products

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

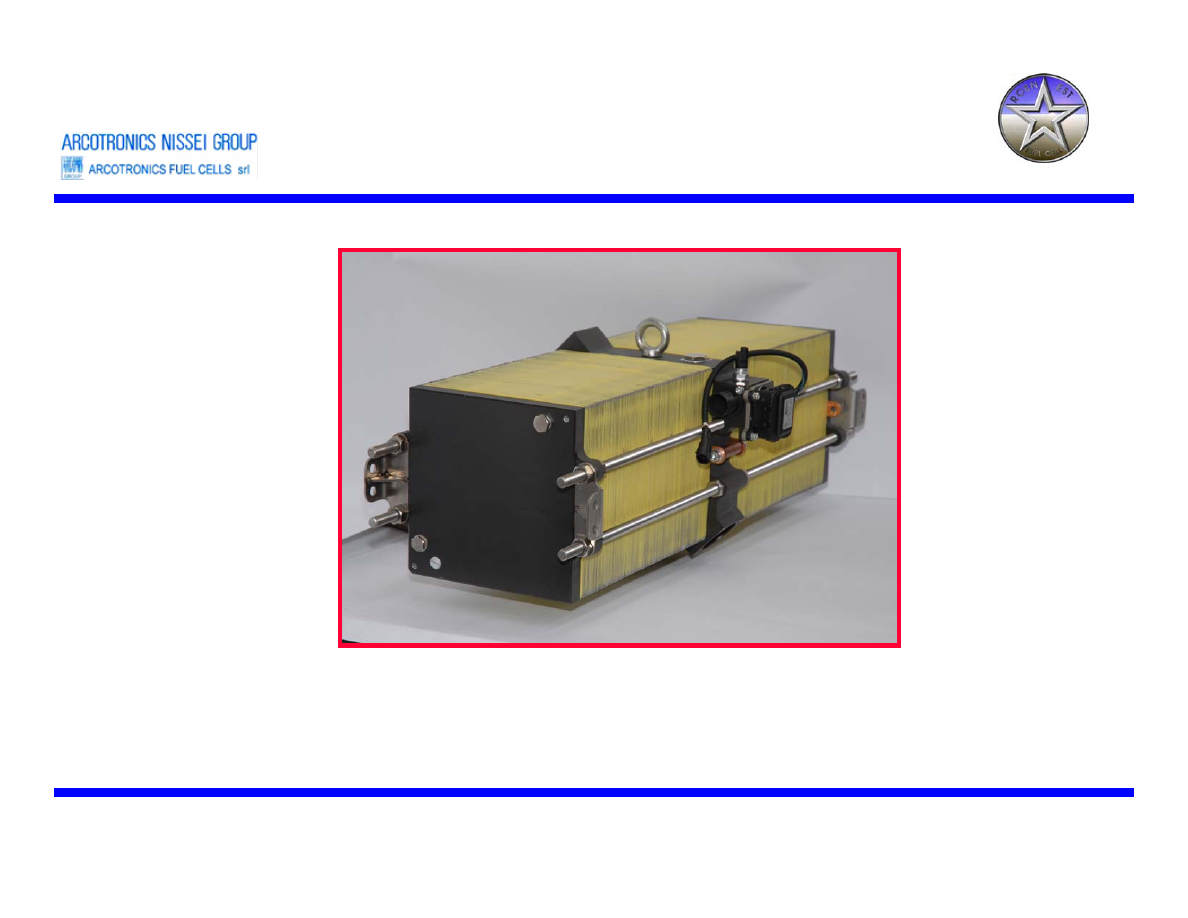

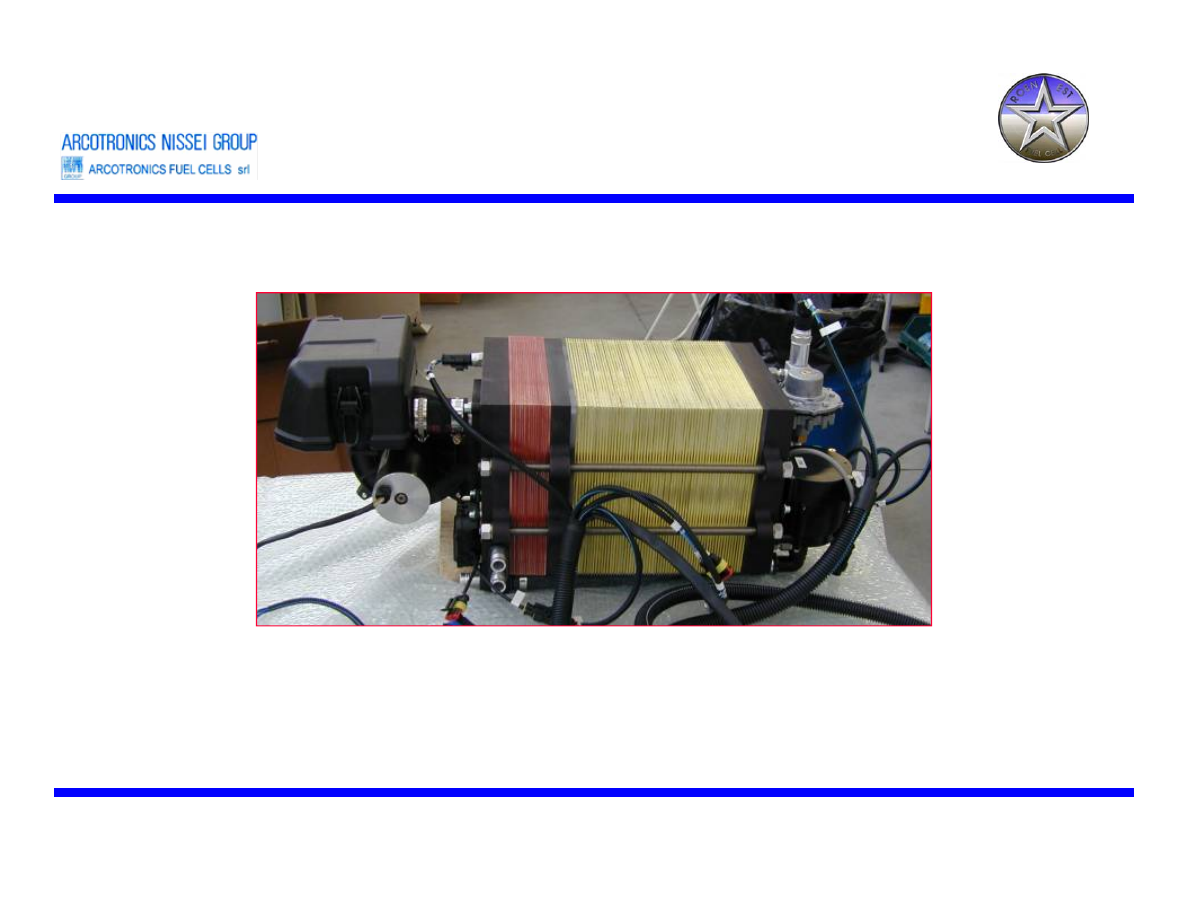

25 kW FC

ARCOTRONICS FUEL CELLS

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

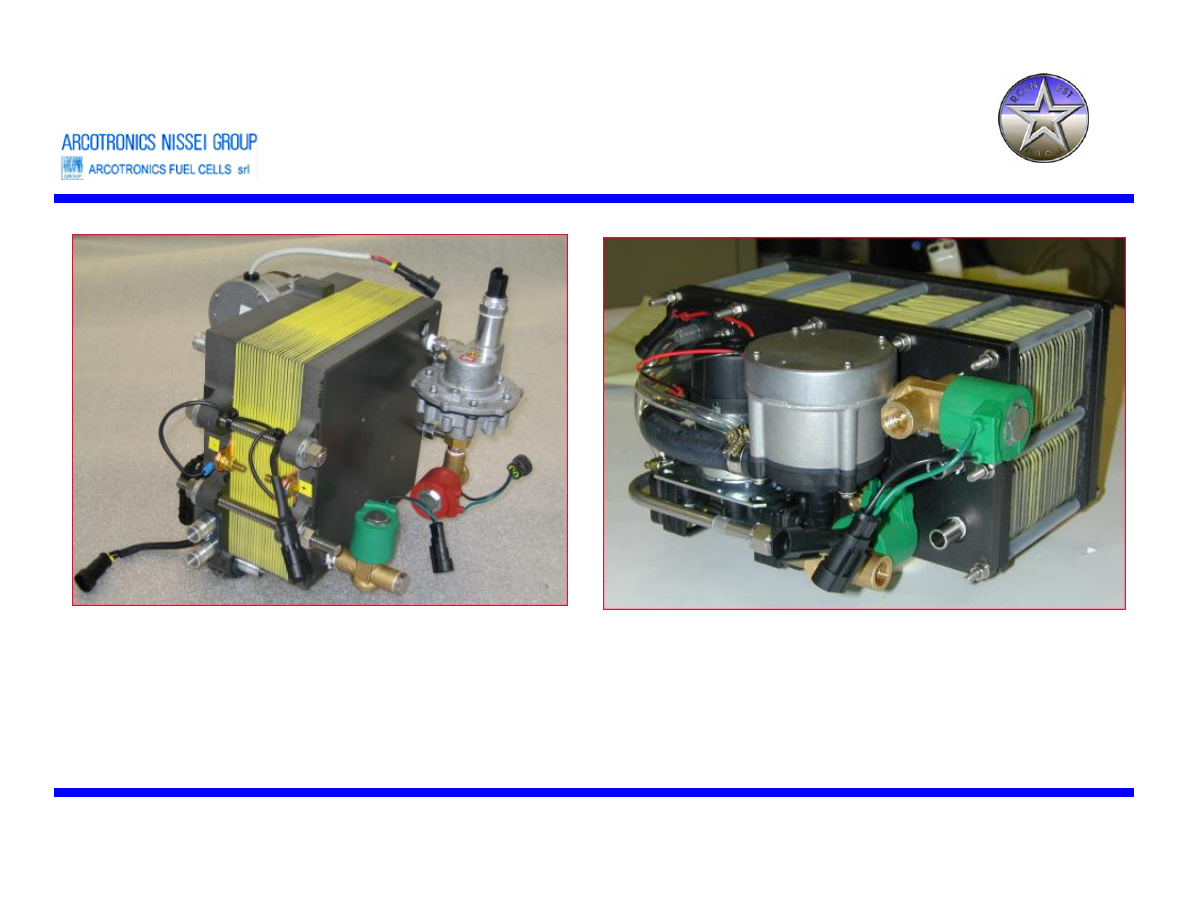

5  kW FCE

Mobility available products

ARCOTRONICS FUEL CELLS

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

0,3-1,5  kW FCE

Mobility available products

ARCOTRONICS FUEL CELLS

PROJECTS IN

PROGRESS

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

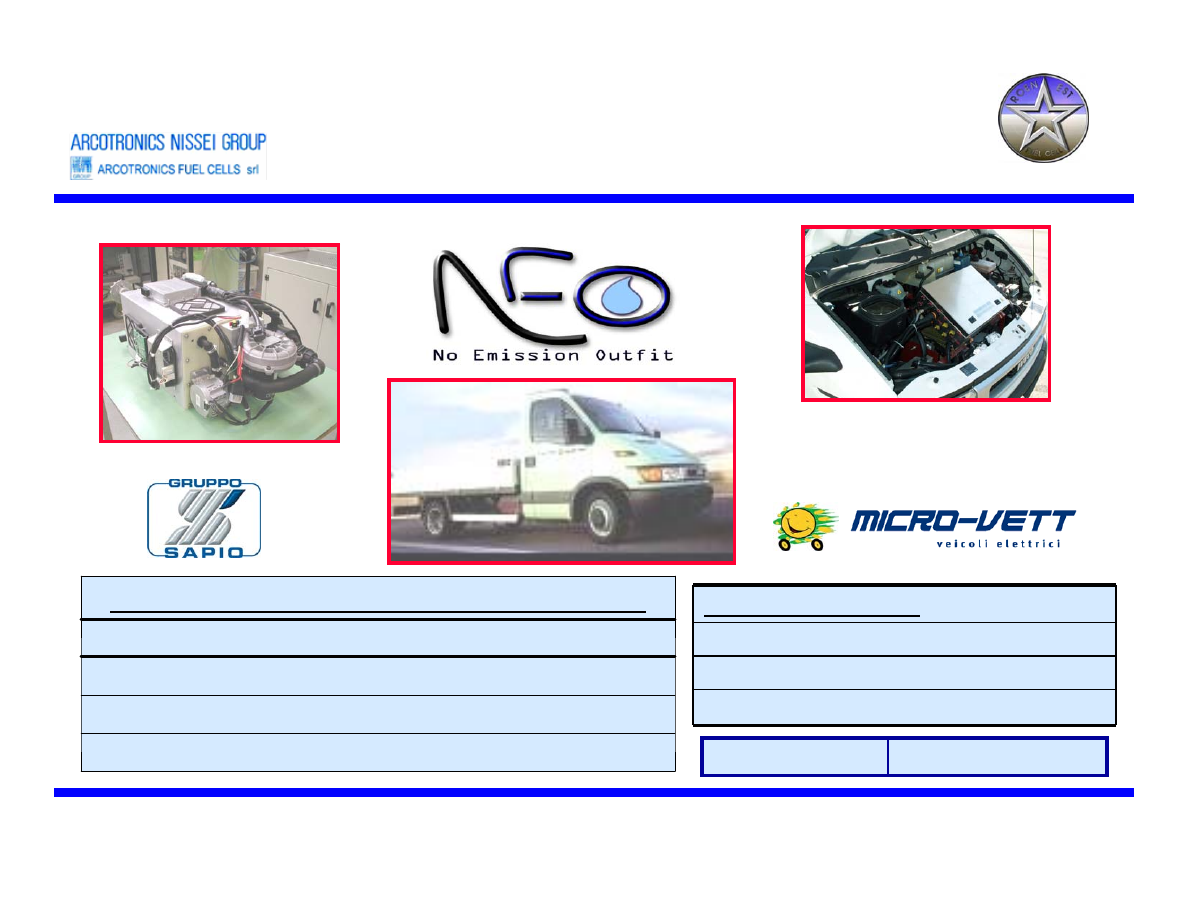

ARCOTRONICS FUEL CELLS

12



kW FC –



hybrid vehicle

Vehicle Performances (Electrical vs. Fuel Cell)

Daily 65 Electrical

Daily 65 H2

Autonomy

70 to 120 km

150 to 250 km

Loading capacity

Up to 3910 kg

Up to 3600 kg

Battery capacity

60 kWh

60 kWh

STACK FEATURES

Nominal Power

12 kW

H

2

Consumption

0.83 Nm

3

/kWh

Dimensions (mm)

250x250x800

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

Test on field

2007

ARCOTRONICS FUEL CELLS

12



kW FC –



hybrid vehicle

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

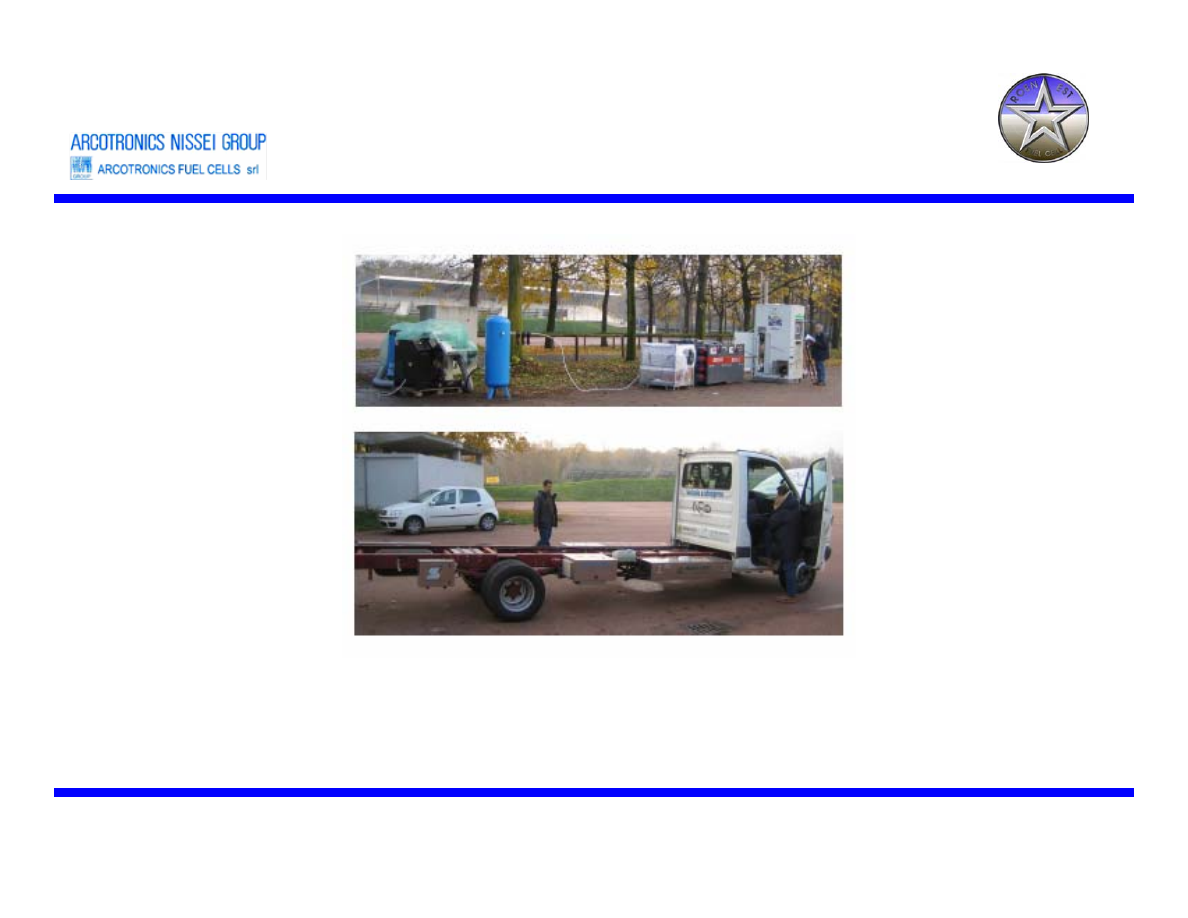

On the  road test

ARCOTRONICS FUEL CELLS

12



kW FC –



hybrid vehicle

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

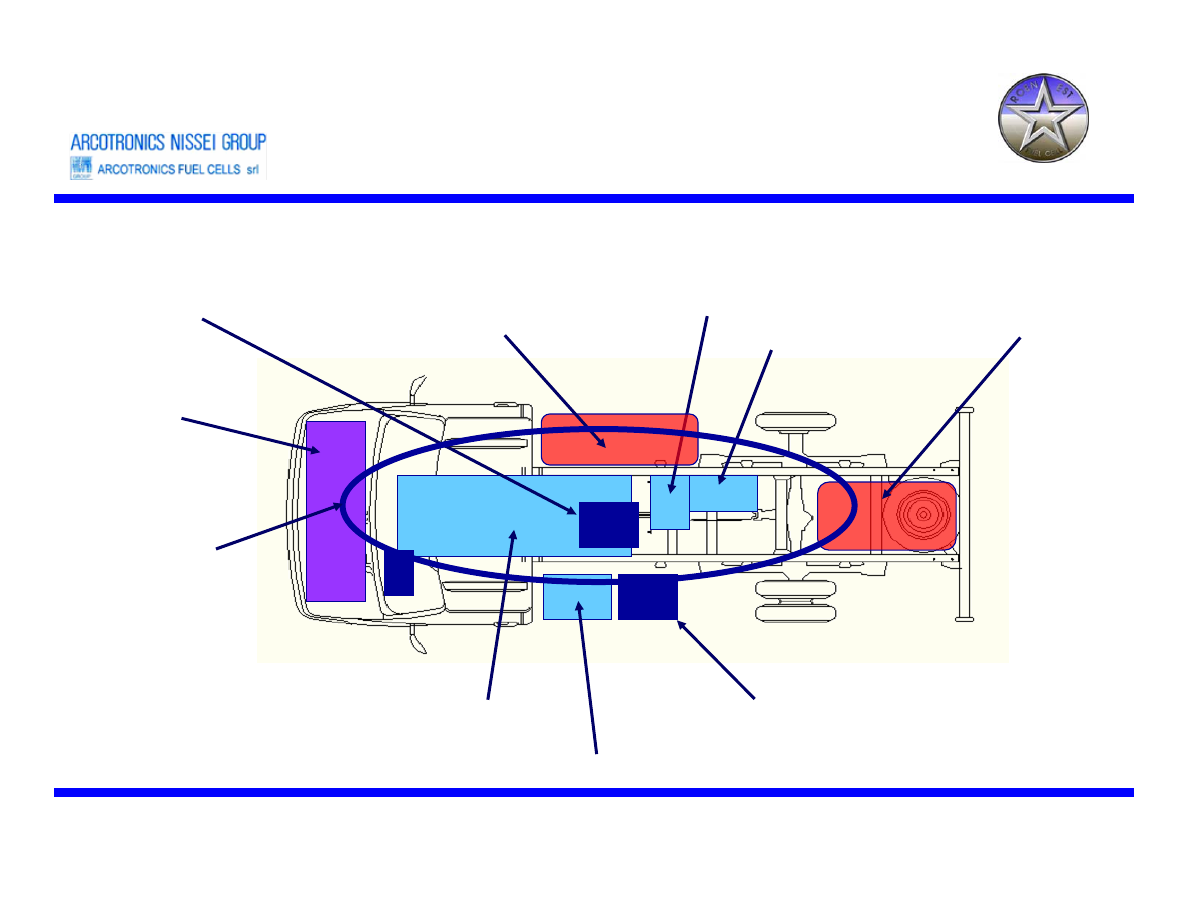

Electric

motor

Power conditioning

Battery

Gear box

inverter

B.M.S.

Battery Management

System

Fuel cell

Hydrogen

cylinder 2

Hydrogen

cylinder 2

Communication

line

ARCOTRONICS FUEL CELLS

12



kW FC –



hybrid vehicle

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

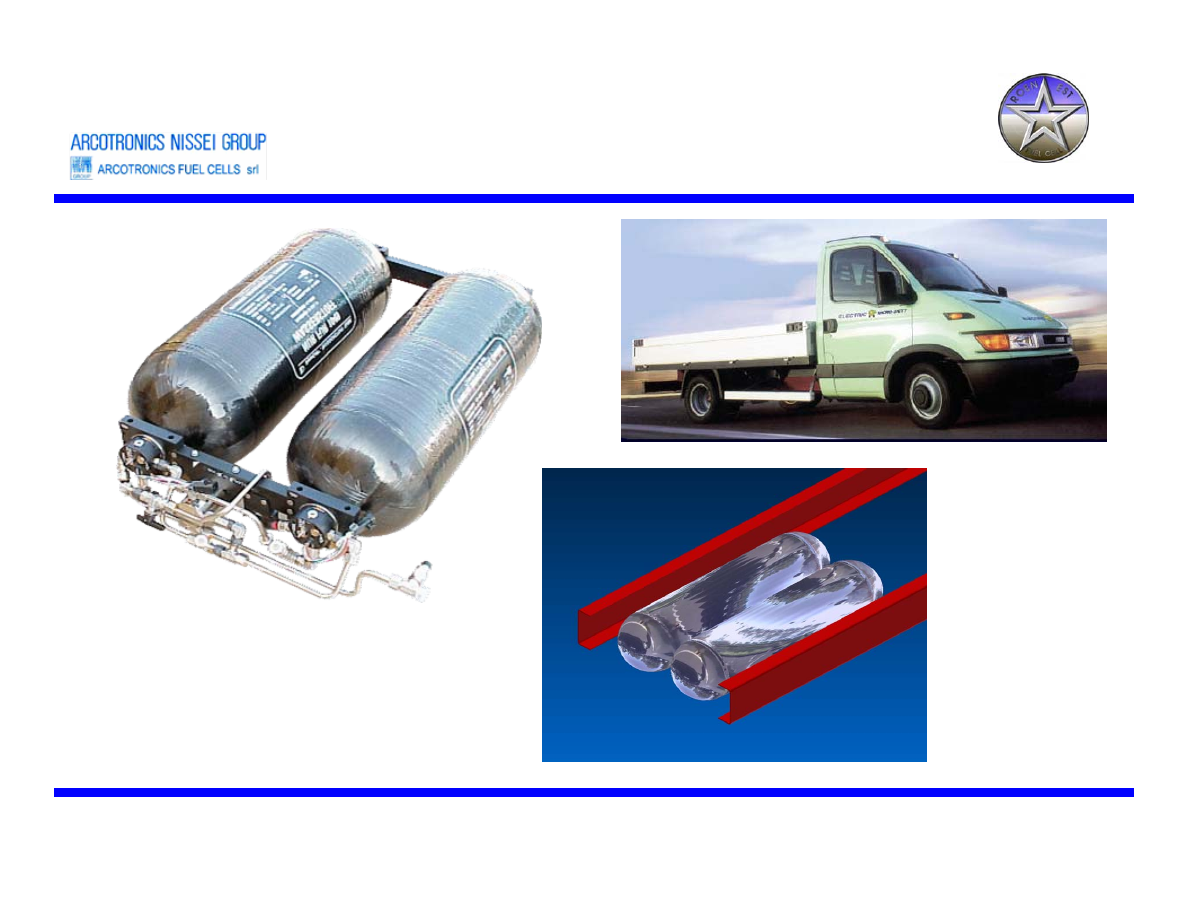

Fuel Storage: 2 x M039H350
Capacity: 2.5 kg H2
Weight: 54 kg

ARCOTRONICS FUEL CELLS

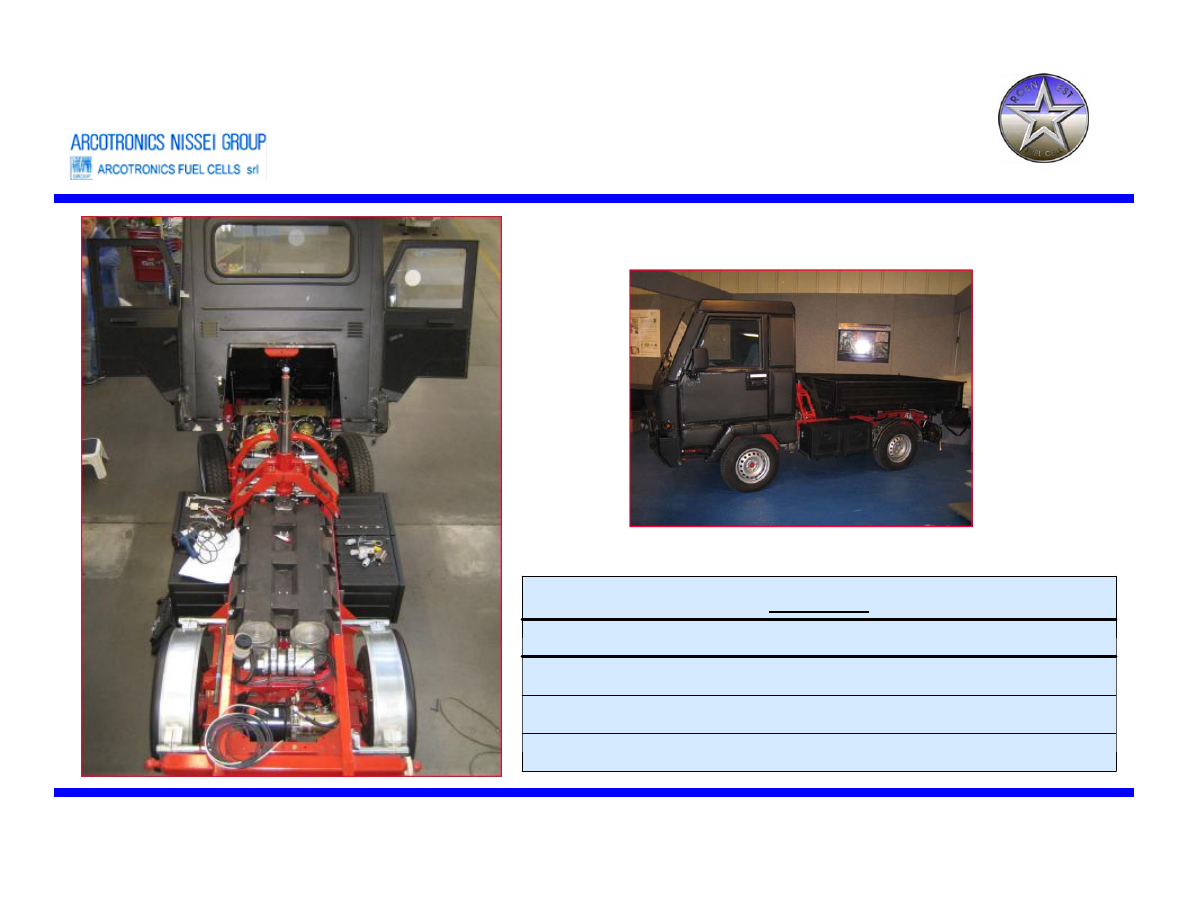

ZEV 1

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

Features

Configuration

Full power

Autonomy

80  km

Loading capacity

Up to 700 kg

FC Max Power

20 kW

ARCOTRONICS FUEL CELLS

ZEV 1

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

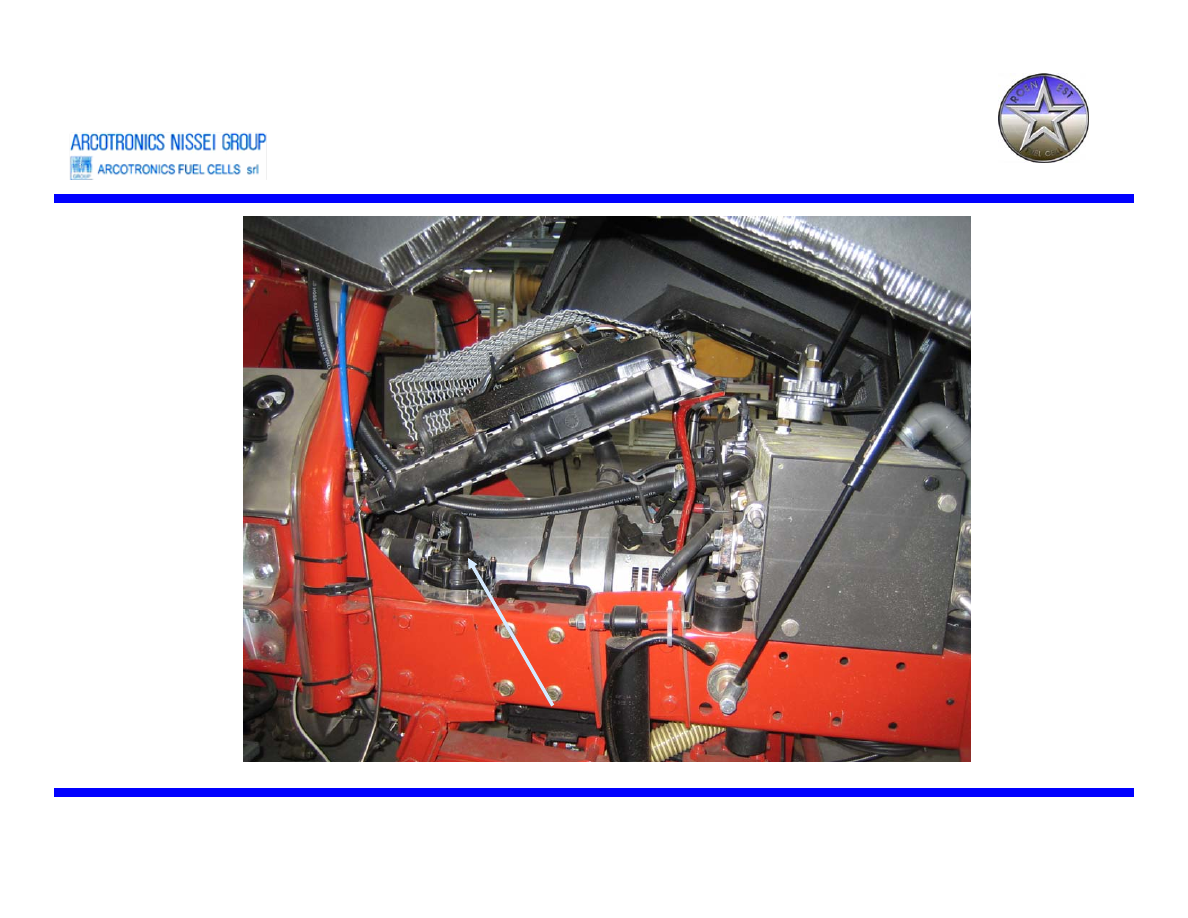

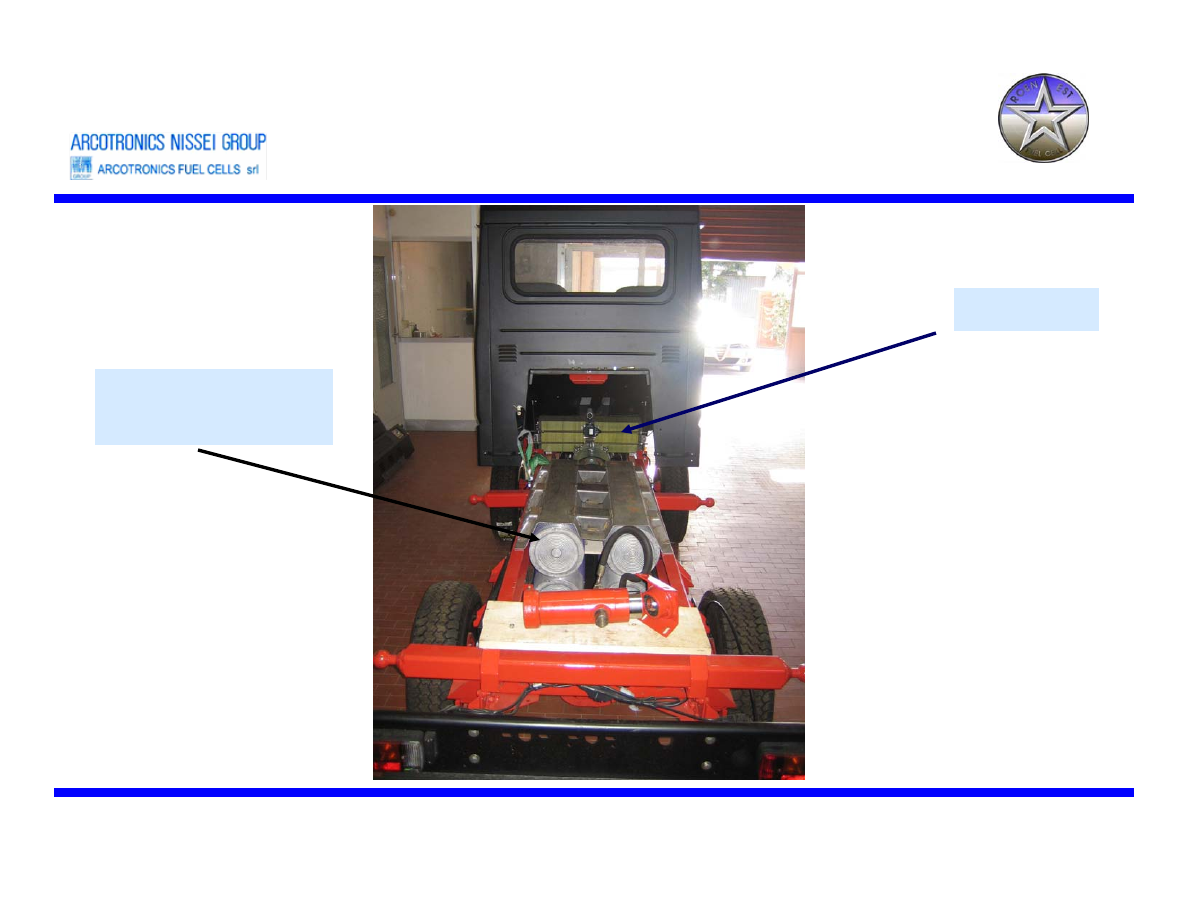

Hydrogen

cylinder

Fuel Cell

ARCOTRONICS FUEL CELLS

ZEV 1

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

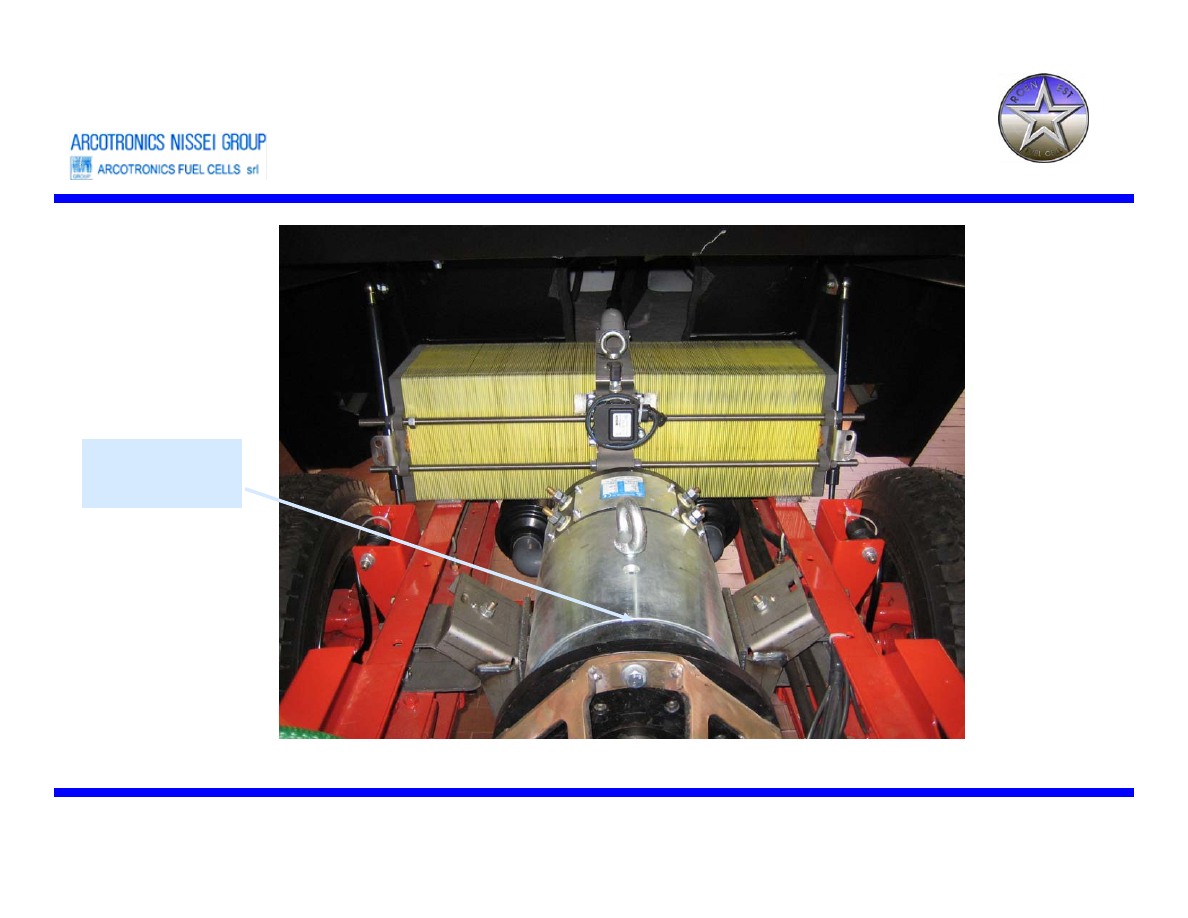

Electric

Motor

ARCOTRONICS FUEL CELLS

ZEV 1

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

ARCOTRONICS FUEL CELLS

ZEV 2

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

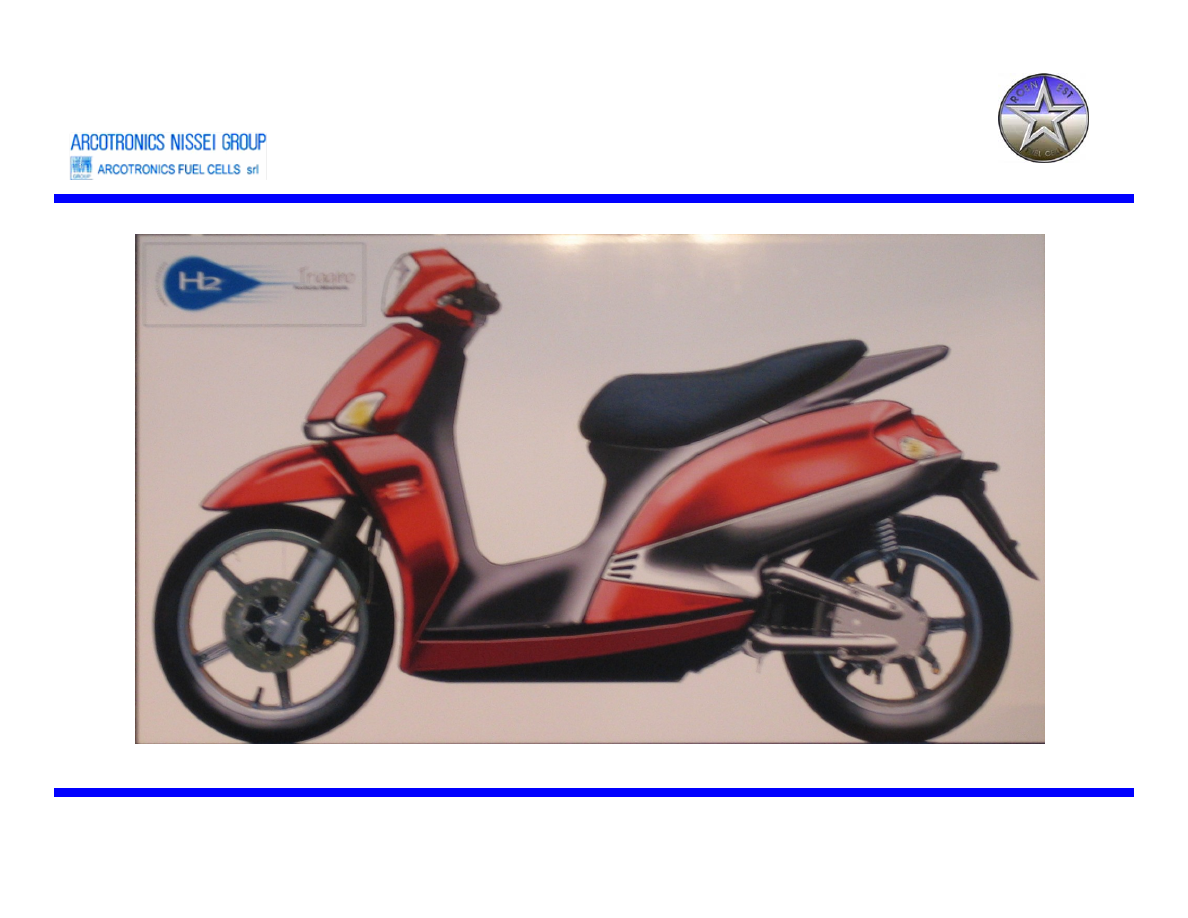

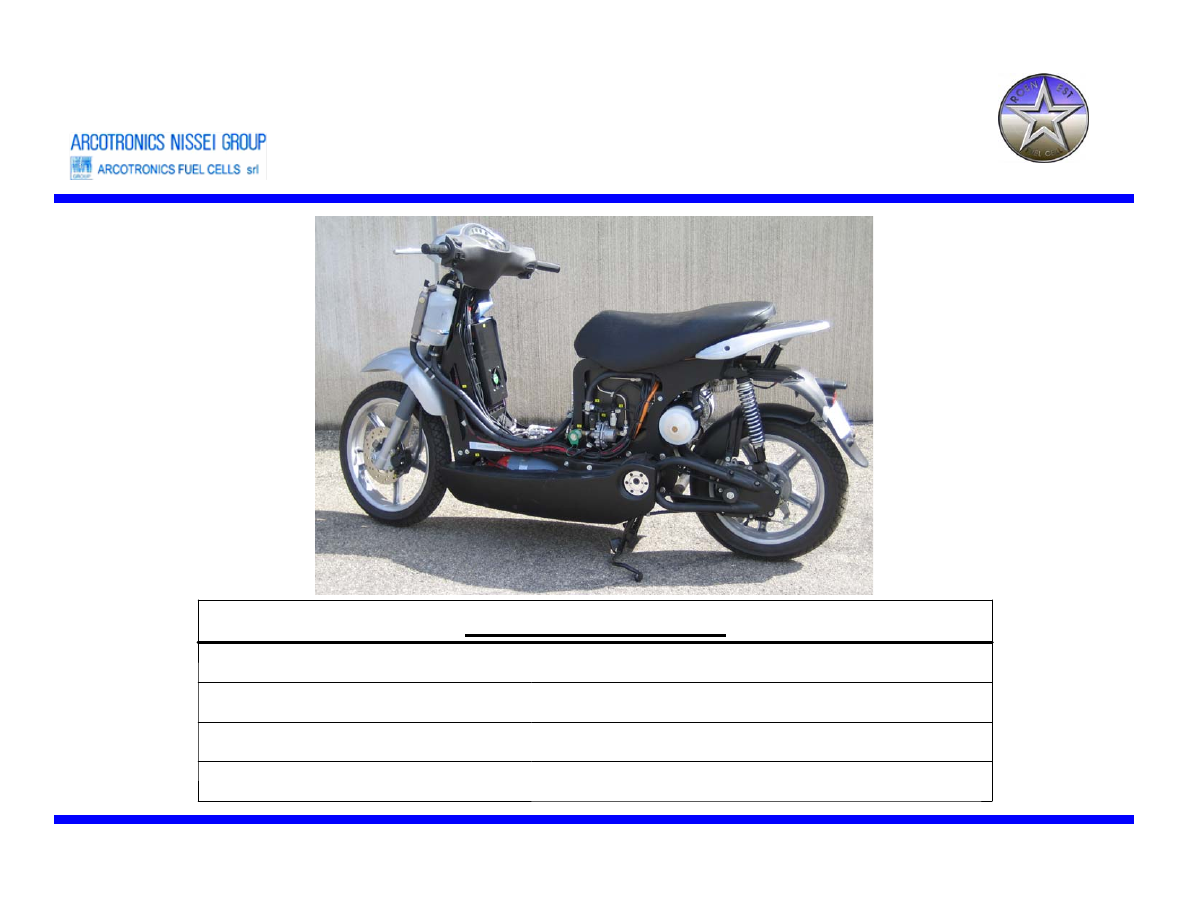

ARCOTRONICS FUEL CELLS

ZEV 2

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

Scooter  Performances

Max Speed

45 km/h

Autonomy

Da 50 a 80 km

Loading capacity

Fino a 108 kg

Hydrogen capacity

160 g

ARCOTRONICS FUEL CELLS

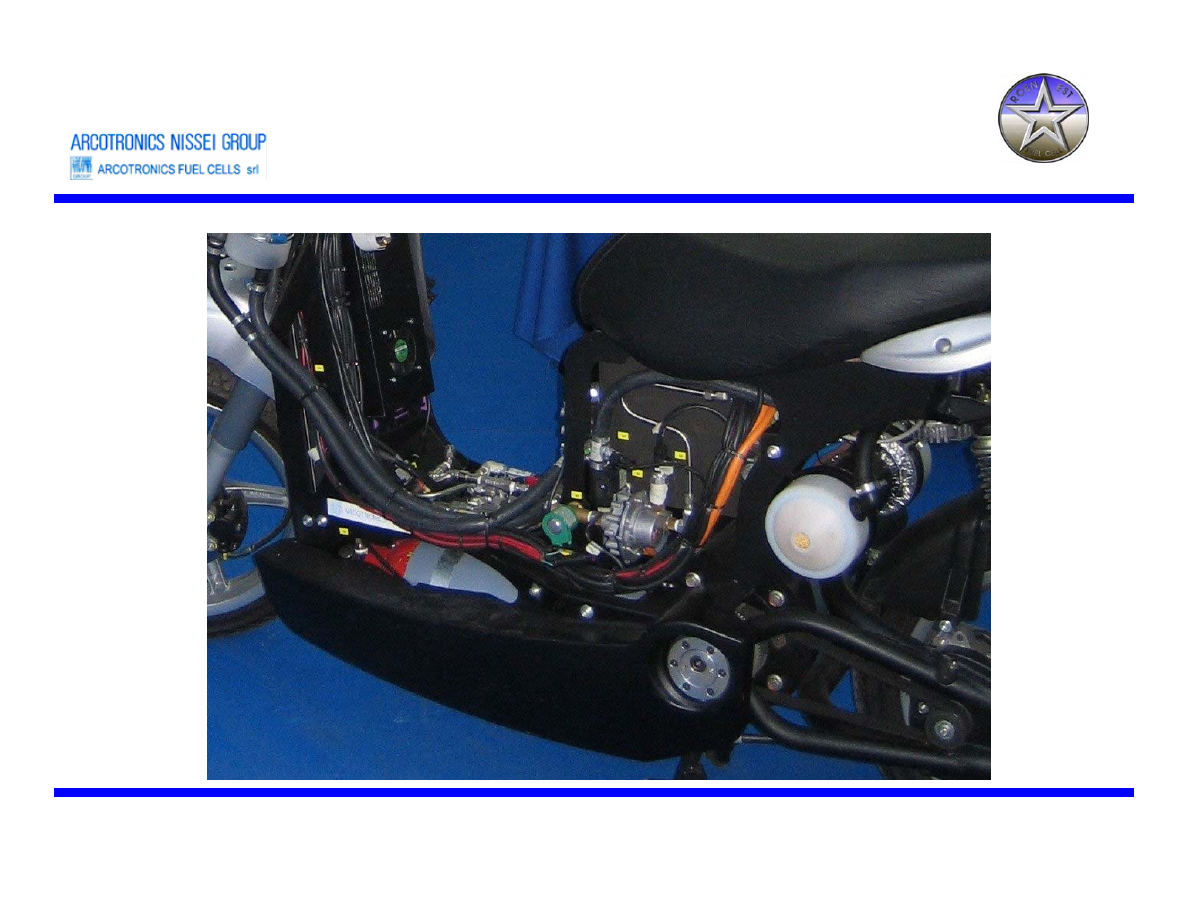

ZEV 2

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

ARCOTRONICS FUEL CELLS

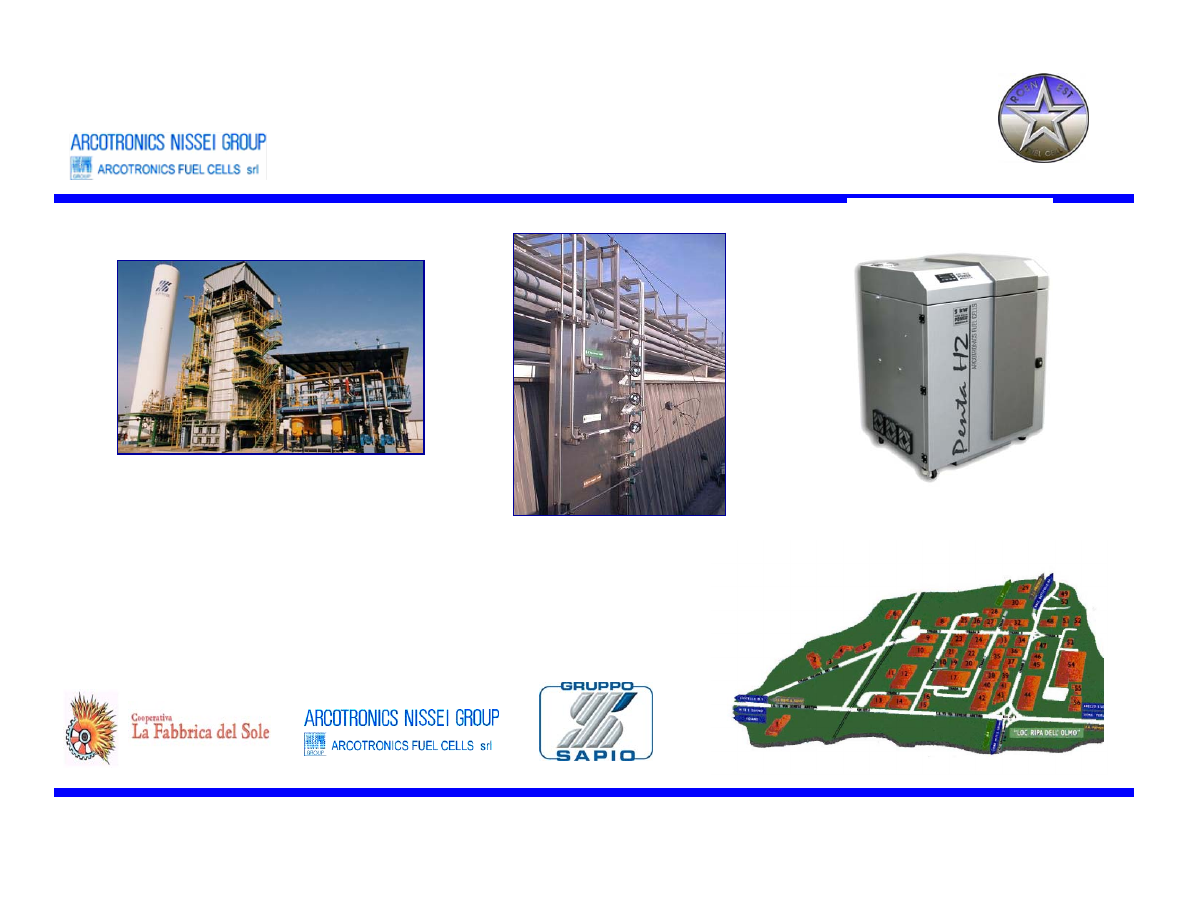

H2 at Arezzo



Goldsmiths



district

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

On site H2 production

H2 pipeline

CHP units

ARCOTRONICS FUEL CELLS

15 kWe



–



Naval



APU

MAIN CHARACTERISTICS OF THE SYSTEM

Primary fuel

Petrol

Nominal electric power

5 kw

Net efficiency

> 30%

Heat recovery possibility

4 kW

Test on field

2007

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

ARCOTRONICS FUEL CELLS

Domestic 4 kWe

MAIN CHARACTERISTICS OF THE SYSTEM

Primary fuel

Natural gas

Electric power

1-4 kw

Thermal power

4-24 kW

Net electric efficiency

> 30 %

Overall efficiency

> 80 %

Test on field

2006

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T

ARCOTRONICS FUEL CELLS

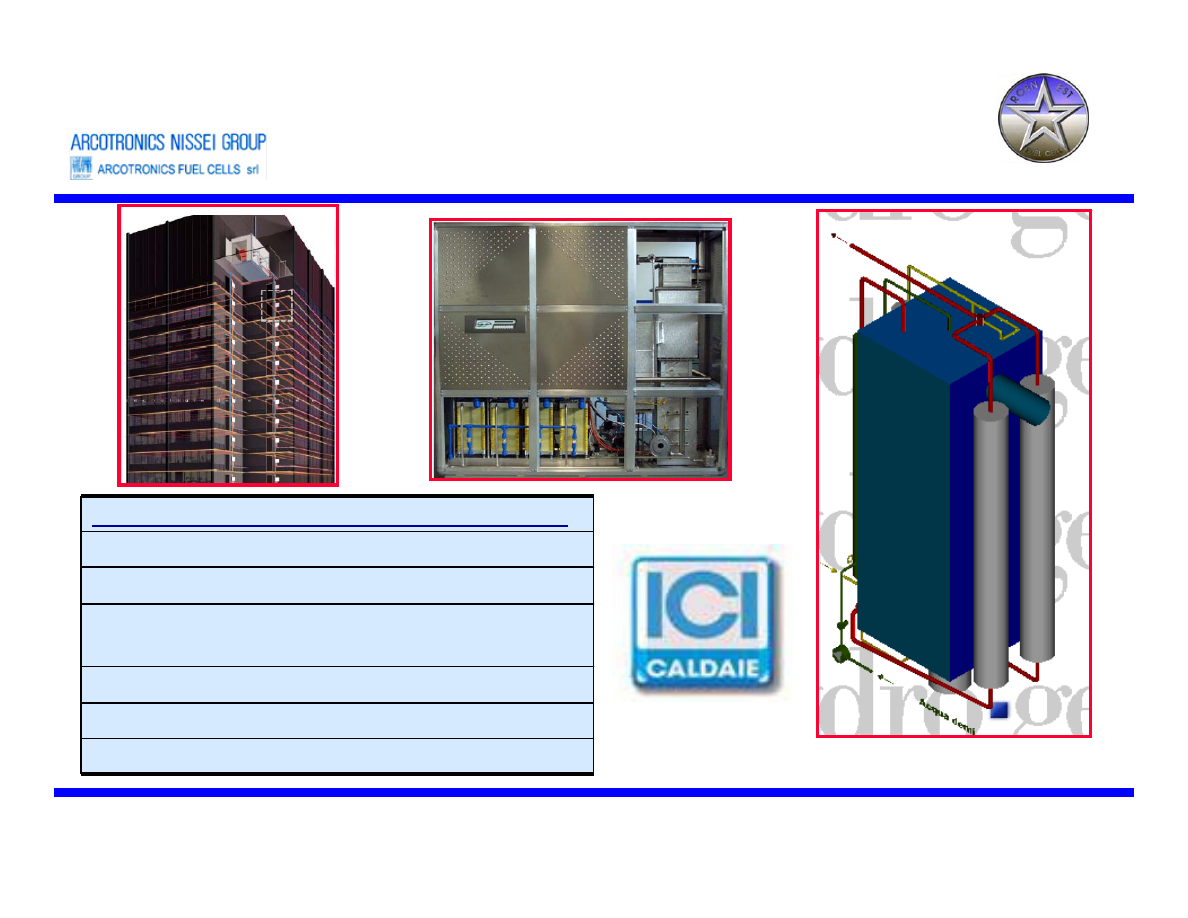

30 kW industrial



CHP

MAIN CHARACTERISTICS OF THE SYSTEM

Primary fuel

Natural gas

Electric power

30 kW

Thermal power @
65°C

45 kW

Net electric efficiency

> 33 %

Overall efficiency

> 80 %

Test on field

2006

ARCOTRONICS FUEL CELLS Srl – www.arcotronicsfuelcells.com

R O E N     E S T
