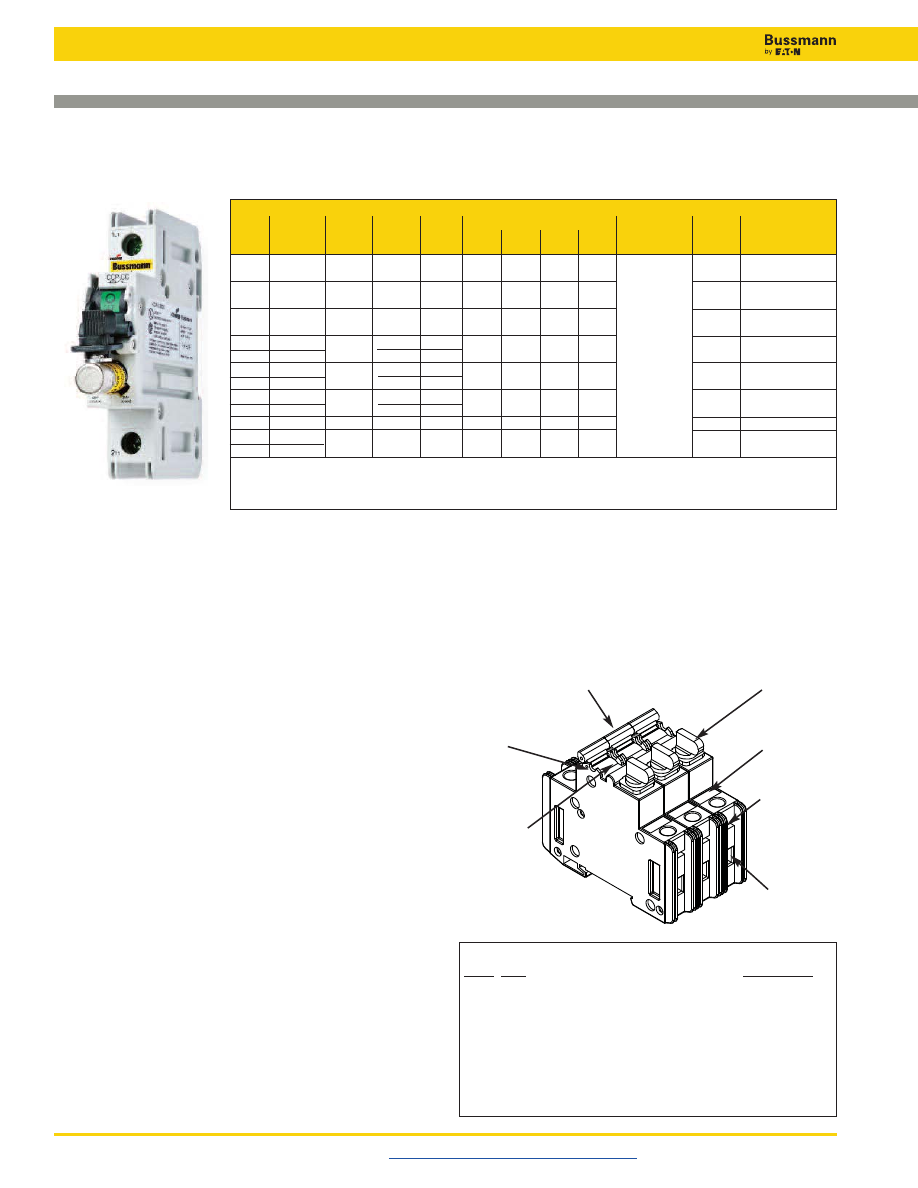

Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
380
Switch
Max Horsepower Rating
Amp
Fuse
Number
120
240
480
600
Wire
Part
Rating
Class
of Poles
Volts
SCCR
Vac
Vac
Vac
Vac
Wire Size
Type*
Number
30
CC
1
600Vac
200kA
0.5
—
—
—
75°C Cu CCP-1-30CC
30
CC
2
600Vac
200kA
—
2
—
—
Single/Dual
75°C Cu CCP-2-30CC
#18-6 Sol/Str
30
CC
3
600Vac
200kA
—
3
4
7.5
75°C Cu CCP-3-30CC
30
UL Midget
1
240Vac
†
10kA
†
—
—
—
—
Single
75°C Cu CCP-1-30M
32**
10x38 IEC
400Vac
†
120kA
†
#4 Sol/Str
30
UL Midget
2
240Vac
†
10kA
†
—
—
—
—
75°C Cu CCP-2-30M
32**
10x38 IEC
400Vac
†
120kA
†
30
UL Midget
3
240Vac
†
10kA
†
—
—
—
—
75°C Cu CCP-3-30M
32**
10x38 IEC
400Vac
†
120kA
†
Spade
30
CC
1
80Vdc
†
20kA
†
—
—
—
—
Terminal
††
75°C Cu CCP-1-30DCC
30
CC
1
80Vdc†
10kA†
—
—
—
—
75°C Cu CCP-1-30DCM
32**
10x38 IEC
* 75°C or higher.
** 32A Class aM, 25A Class gG.
† SCCR May be lower, refer to installed fuse data sheets.
†† Spade terminal, 30A max, insulated flange, wire size #12-10 for #8 stud.
Specifications
Agency Information
• CE Compliant
• RoHS Compliant
• For
Class CC
fuse version
- UL 98 Listed, File E302370, Guide WHTY
- cULus to CSA Standard 22.2 No. 4-04, File 302370,
Guide WHTY7
• For
UL Midget and 10X38 IEC
fuse version
- UL 508 Listed, File E161278, Guide 8R29
- cULus Certified 22.2 No. 14-05
- IEC 60947-3 AC23A
- IEC 60947-3 DC23A
Terminals
• Single/dual conductor box lug or spade terminal suitable
for line, load or accessory connection
• Torque: - #18-10 20Lb-In
- #8-4 35Lb-In
Storage and Operating Temperature
• -20ºC to 75ºC*
* For fuse performance under or above 25ºC, consult fuse performance derating charts
in the Bussmann publication titled
Selecting Protective Devices
(SPD), reorder #3002.
Flammability Rating UL 94V0
Lockout/Tagout Provisions
• 4mm shank lock or standard pin-out devices
Mounting
• 35mm DIN-Rail
Local Open Fuse Indication Minimum Voltage**
• 90Vac for AC versions
• 12Vdc for DC versions
** Circuit must be closed for indication light to illuminate.
Features
• IP20 Finger-safe construction with #10 or larger wire
• Switch interlock prohibits removing the fuse under load
Accessories
• Auxiliary contacts
• PLC Wired remote fuse indication

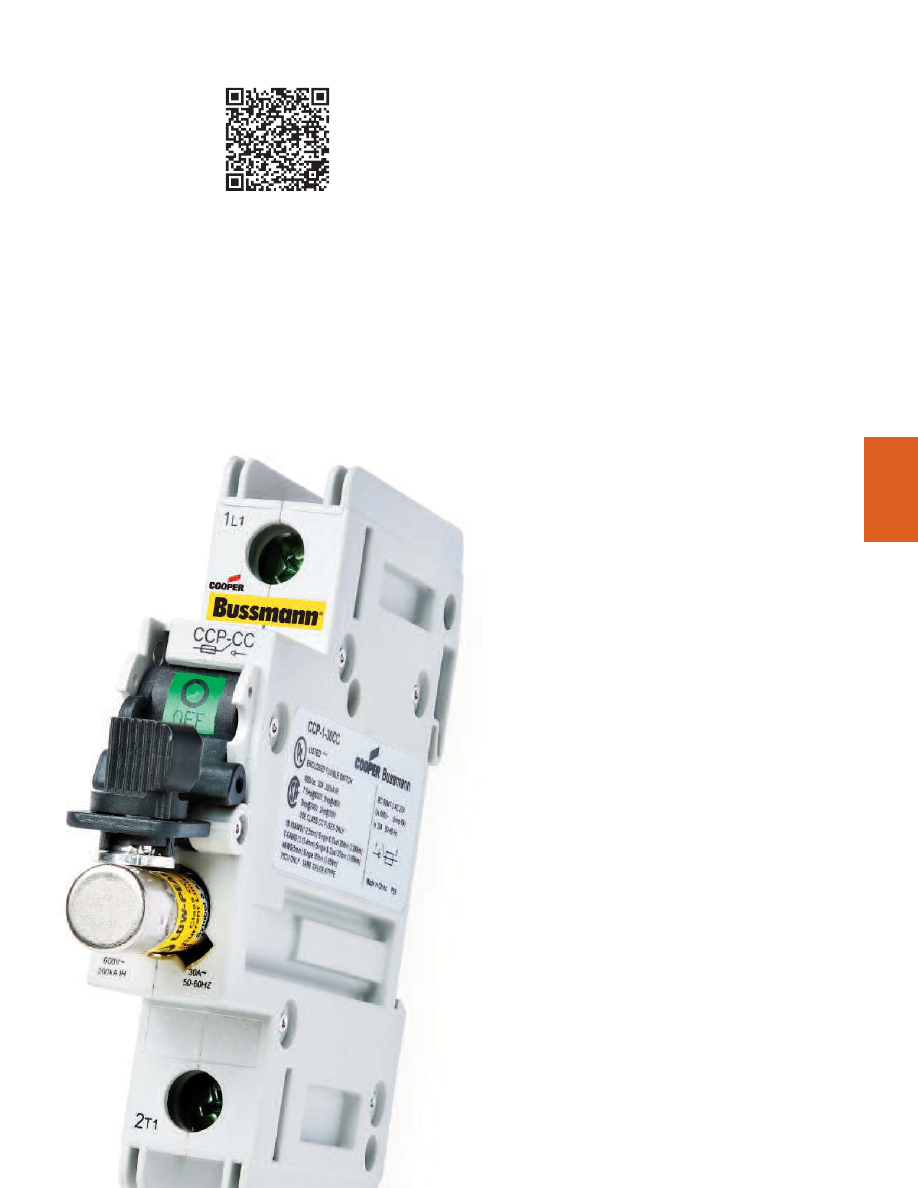

Switch Handle
Padlock Provision
Open Fuse
Indication Light
Fuse Holder
Knob
Spade Terminal
Circuit Marking
Area
Box Lug
Terminal
Compact Circuit Protector (CCP) Disconnect Switch—30A
1-, 2- & 3-Pole, Class CC, UL Midget & 10x38mm IEC
Available Bussmann Fuses
Class Type
Data Sheet #
CC
LP-CC Time-Delay, Current Limiting
1023
CC
FNQ-R Time-Delay
1014
CC
KTK-R Fast-Acting
1015
M
FNM Time-Delay
2028
M
FNQ Time-Delay
1012
M
KTK Fast-Acting
1011
M
BAF Fast-Acting
2011
M
KLM Fast-Acting 600Vac/dc
2020
Data Sheet: 1157
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Compact Circuit Protector (CCP) Disconnect Switch—30A
1-, 2- & 3-Pole, Class CC, UL Midget & 10x38mm IEC
Visit us on the web at
www.cooperbussmann.com/Disconnects
381
Disconnect
Switches
CCP-_-30_ Accessories
Minimum
Signal
Circuit
Agency
Part
Description
Configuration
Output
Voltage
Information
Number
Auxiliary Contacts NO+NC
UL 98 Recognized,
for Switch Status
1 per CCP
5A/240Vac
–
cURus 22.2 No. 4-04,
CCP-AUX*
IEC 60947-5-1 AC15
Wired Remote Fuse Indication
1 per CCP
24Vdc
100Vac
UL 98 Recognized,
CCP-PLC-IND*
for PLC Applications
cURus 22.2 No. 4-04
* Refer to Data Sheet # 1157 for details.

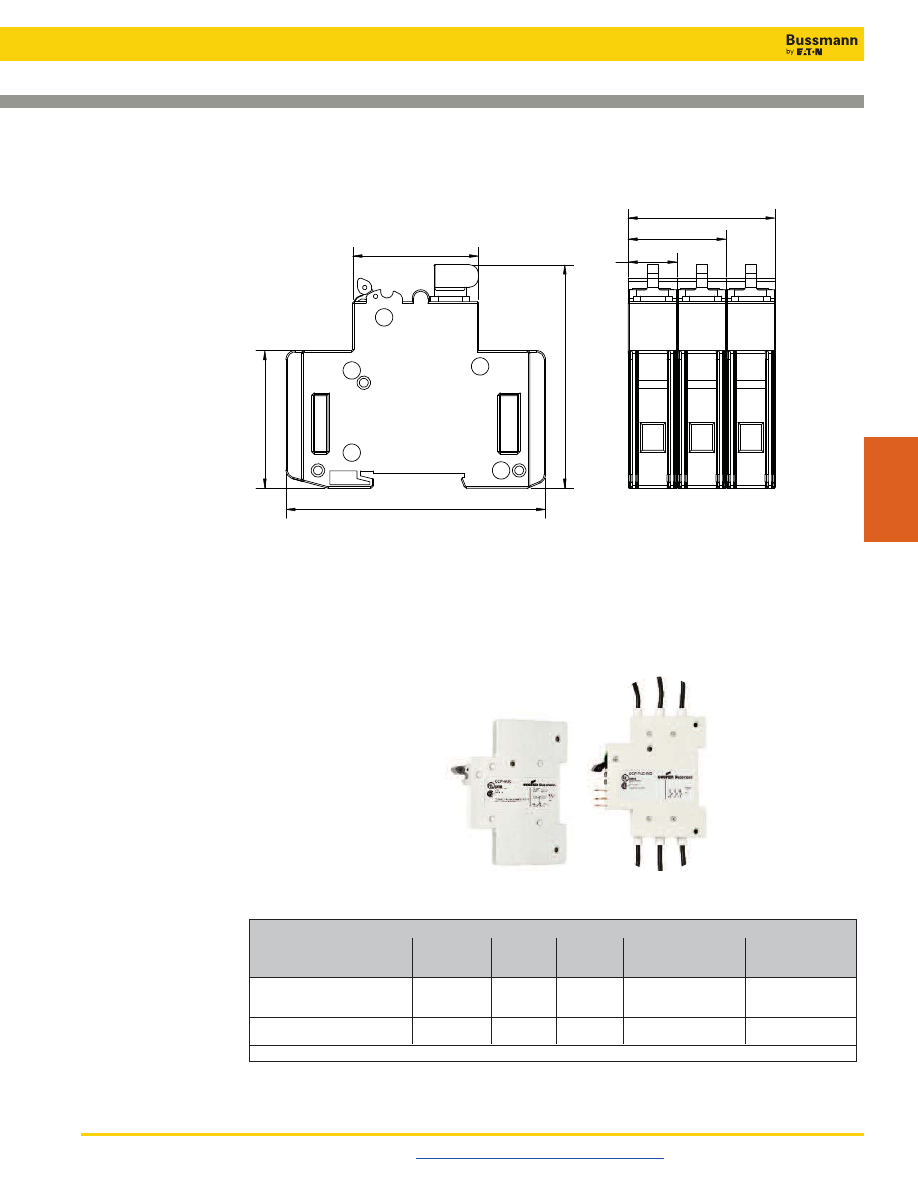

Dimensions – mm (in)
Class CC, UL Midget & I0x38 IEC
92.7
(3.7)
17.5
(0.7)
45
(1.8)
35
(1.4)
79.8
(3.1)
52.5
(2.1)
49.2
(1.9)
Auxiliary Contacts
PLC Indicator
(Includes leads with spade terminals)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
382
Compact Circuit Protector (CCP) Disconnect Switch—30, 60 & 100A
1-, 2- & 3-Pole, Class CF CUBEFuse™
Switch
Max Horsepower Rating
Amp
Fuse
Number
120
240
480
600
Wire
Part
Rating
Class
of Poles
Volts
SCCR
Vac
Vac
Vac
Vac
Wire Size
Type*
Number
30
CF
1
600Vac
200kA
1.5
—
—
—
75°C Cu CCP-1-30CF
125Vdc
30
CF
2
600Vac
200kA
—
3
—
—
Single/Dual
75°C Cu CCP-2-30CF
125Vdc
#18-6 Sol/Str
30
CF
3
600Vac
200kA
—
5
15
10
75°C Cu CCP-3-30CF
125Vdc
Single
60
CF
1
600Vac
200kA
3
—
—
—
#4 Sol/Str
75°C Cu CCP-1-60CF
125Vdc
60
CF
2
600Vac
200kA
—
7.5
—
—
Spade
75°C Cu CCP-2-60CF
125Vdc
Terminal**
60
CF
3
600Vac
200kA
—
7.5
20
10
75°C Cu CCP-3-60CF
125Vdc
100
CF
1
600Vac 200kA
5
—
—
—
Single
75°C Cu CCP-1-100CF
#8-10 Sol/Str
100
CF
2
600Vac 200kA
—
10
—
—
#8-1 Str
75°C Cu CCP-2-100CF
Dual #6 Str
100
CF
3
600Vac 200kA
—
20
50
50
Spade
75°C Cu CCP-3-100CF
Terminal**
* 75°C or higher.
** Spade terminal, 30A max, insulated flange, wire size #12-10 for #8 stud.
Specifications
Agency Information
• CE Compliant
• RoHS Compliant
• UL 98 Listed, File E302370, Guide WHTY
• cULus to CSA Standard 22.2 No. 4-04, File 302370,
Guide WHTY7
Terminals
• Single/dual conductor box lug or spade terminal suitable
for line, load or accessory connection
• Torque: 0-60A: - #18-10 20Lb-In
- #8-4 35Lb-In
70-100A: - #18-10 Single 25Lb-In
- #8-2 Single 35Lb-In
- #1 Single 40Lb-In
- #6 Dual 45Lb-In
Fuses
• Uses finger-safe Class CF CUBEFuse™ with
Class J performance
- Low-Peak™ dual-element, time-delay*
- Non-indicating 1-100A
- Indicating 6-100A
- Fast-Acting** 1-100A
* See Data Sheet # 9000
** See Data sheet # 2147
Storage and Operating Temperature
• -20ºC to 75ºC***
*** For fuse performance under or above 25ºC, consult fuse performance derating charts
in the Bussmann publication titled
Selecting Protective Devices
(SPD) reorder #3002.
Flammability Rating UL 94V0
Lockout/Tagout Provisions
• 4mm shank lock or standard pin-out devices
Mounting
• 35mm DIN-Rail
Local Open Fuse Indication Minimum Voltage
†
• 90Vac/115Vdc
† Circuit must be closed for indication light to illuminate.
Features
• Ampacity rejecting disconnects will not accept
CUBEFuse amp ratings greater than switch rating
• IP20 Finger-safe construction with #10 or larger wire
• Switch interlock prohibits removing the fuse under load
Accessories
• Auxiliary contacts
• PLC Wired remote fuse indication (up to 60A)
Circuit
Marking Area
Lockout Provision
Switch Handle
Spade Terminal
Box Lug
Terminal
Open Fuse
Indication Light
Fuse Holder
Data Sheet: 1157
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Compact Circuit Protector (CCP) Disconnect Switch—30, 60 & 100A
1-, 2- & 3-Pole, Class CF CUBEFuse™
Visit us on the web at
www.cooperbussmann.com/Disconnects
383
Disconnect
Switches

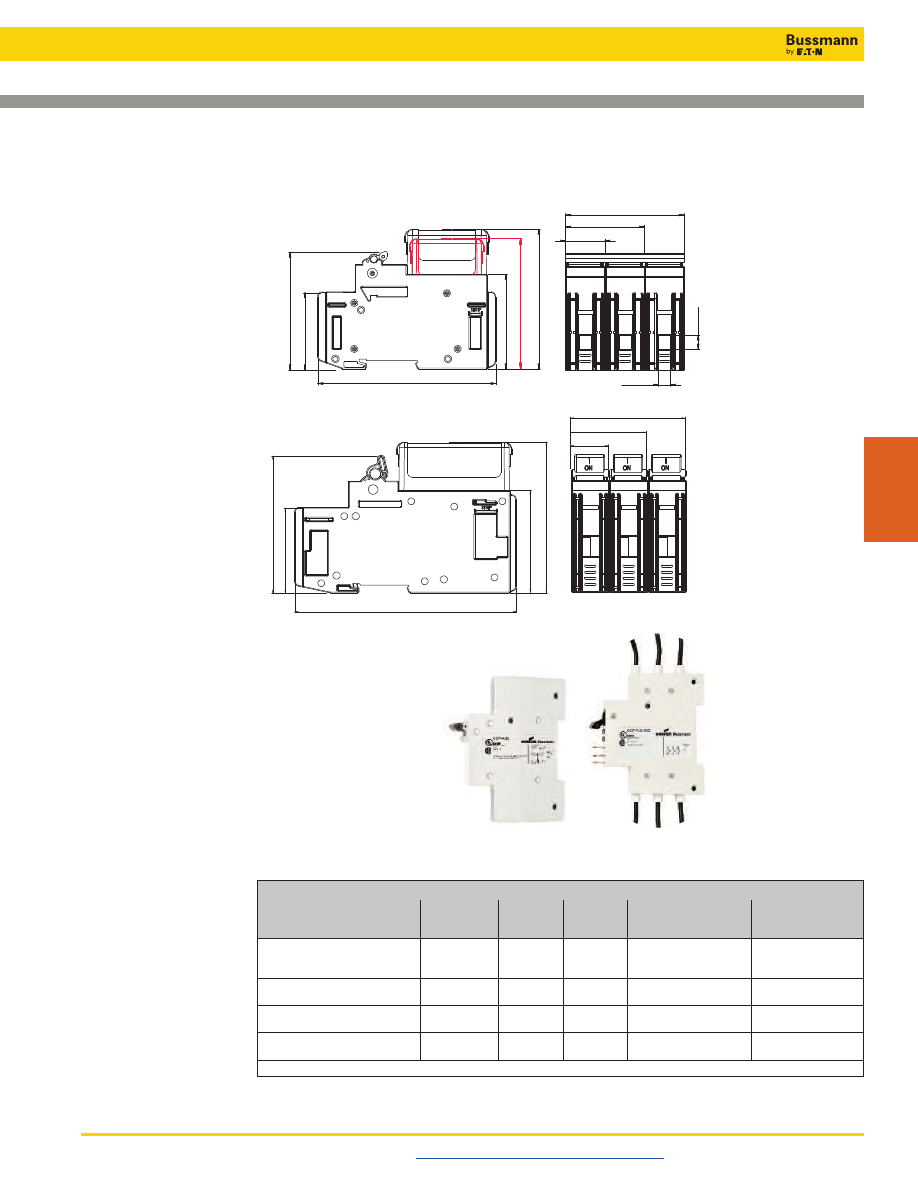

CCP-_-_CF Accessories
Minimum
Signal
Circuit
Agency
Part
Description
Configuration
Output
Voltage
Information
Number
Auxiliary Contacts NO+NC
UL 98 Recognized,
for Switch Status up to 60A
1 per CCP
5A/240Vac
–
cURus 22.2 No. 4-04,
CCP-AUX*
IEC 60947-5-1 AC15
Auxiliary Contacts NO+NC
1 per CCP
5A/240Vac
–
UL 98 Recognized,
CCP-AUX-100*
for Switch Status 70 to 100A
CSA C22.2 No. 4
Wired Remote Fuse Indication
1 per CCP
24Vdc
100Vac
UL 98 Recognized,
CCP-PLC-IND*
for PLC Applications
cURus 22.2 No. 4-04
Wired Remote Fuse Indication
1 per CCP
8A/24Vdc
100Vac
UL 98 Recognized,
CCP-PLC-100*
for PLC Applications up to 60A
CSA C22.2 No. 4
* Refer to Data Sheet # 1157 for details.
Auxiliary Contacts
PLC Indicator
(Includes leads with spade terminals)
Dimensions – mm (in)
30 and 60 Amp
100 Amp
50.4
(2.0)
25.1
(1.0)
75.7
(3.0)
9.1
(0.4)
7.6
(0.3)
60.3 (2.4)
113.9
(4.5)
49.2
(1.9)
75.1
(3.0)
30A
CUBEFuse
83.3 (3.3)
60A
CUBEFuse
89.1 (3.5)
79.5
(3.0)
147.1
(5 8)
50.5
(2.0)
25.15
(1.0)
91.2
(3.6)
56.6
(2.2)
100.0
(3.9)
67.7
(2.7)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

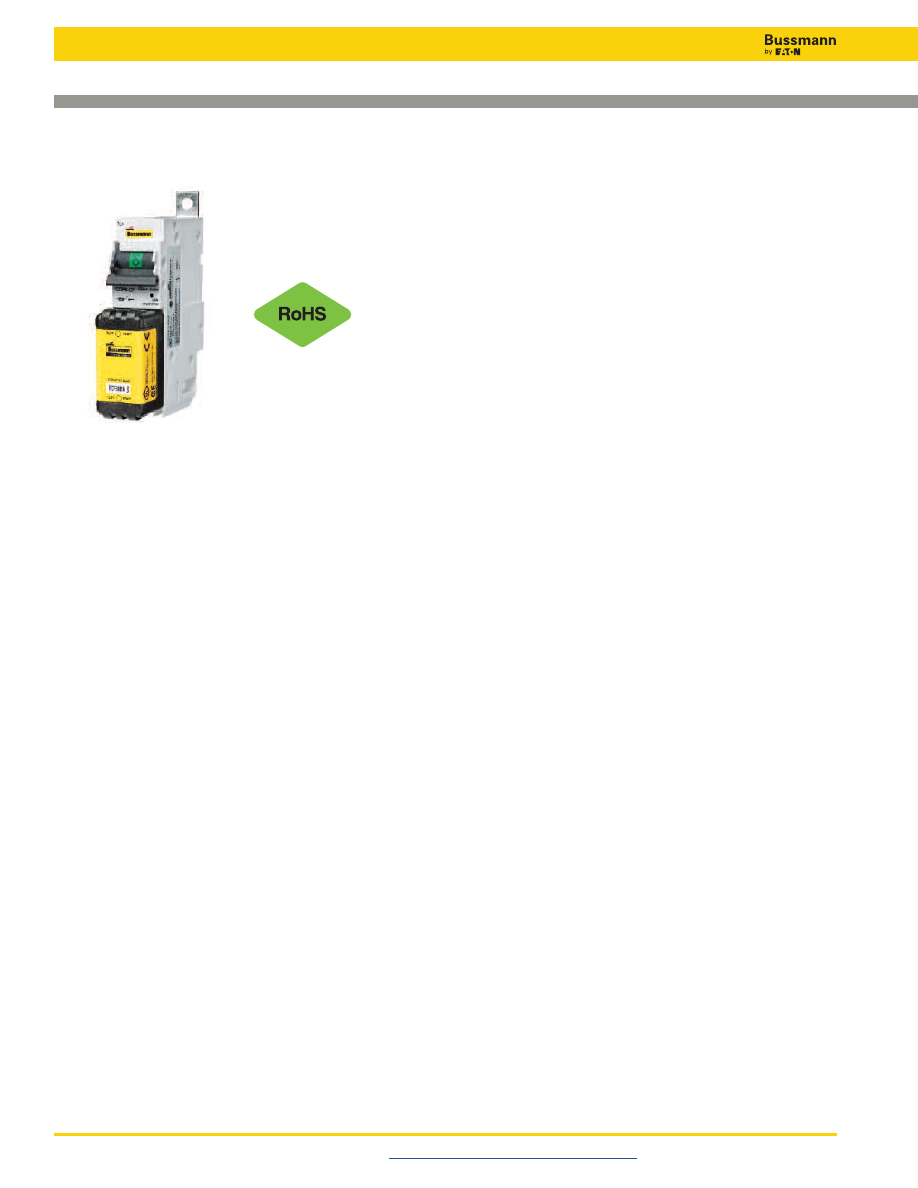

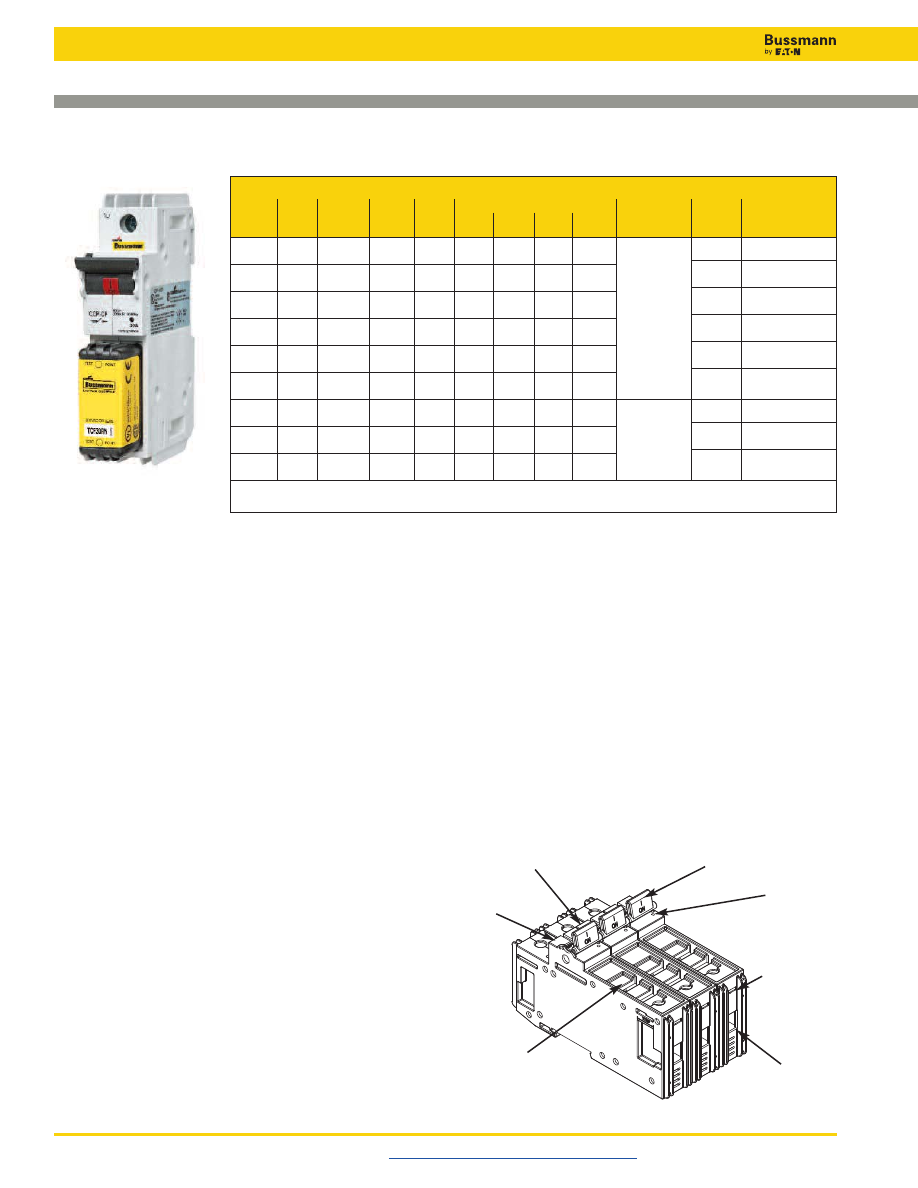

Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
384
Specifications:
• CCPB Ampacity rejection breaks: 15A, 20A, 30A, 40A,
50A, 60A, 70A, 90A and 100A.
• 1-, 2- and 3-Pole versions
• For systems 600Vac (or less)
• Box lug loadside terminal:
• 18-6AWG single & dual rated, solid or stranded –
75°C, Cu only
• 4AWG single – 75°C, Cu only
The revolutionary Bussmann CCPB with CUBEFuse
™
is
designed as a fused branch circuit disconnect with fuse
holder for the Bussmann Quik-Spec™ Coordination
Panelboard. The CCPB with CUBEFuse simplifies selective
coordination and allows for isolation of individual branch
circuit loads for safe work practices.
Agency Information:
UL 98 Listed, File E302370, Guide WHTY
cULus to CSA Standard 22.2 No. 4, File E302370,
Guide WHTY7
CE Compliant
Shipping Weight:
2.03 lbs per carton
Carton quantity:
6 poles
Environmental Data
Storage and operating temperature: -20ºC to 75ºC**
Product Features and Benefits
• Uses finger-safe Class CF Low-Peak
™
CUBEFuse with
current-limiting, time-delay Class J performance*
• High Short-Circuit Current Ratings at 200kA
• Disconnect rated to provide means for load isolation
• Full voltage rated at 600Vac
• UL 98 Listed and suitable for branch circuit disconnect
and branch circuit protection
• 1-, 2- and 3-pole versions are horsepower rated
• Patented rejection feature helps prevent overfusing
• Complies with UL and cULus
• Open fuse indication light per pole
• Additional open fuse indication can be provided by using
the indicating CUBEFuse version
• Built-in switch/fuse interlock prohibits removing the fuse
while energized
• Permanent lockout/tagout provisions
• Lock-ON provision
*See data sheet 9000 for CUBEFuse specifications.
**For fuse performance under or above 25ºC, consult fuse performance
derating charts.
• Box lug loadside terminal torque: 18-10AWG 20 Lb-In
(2.2 N•m), 8-4AWG 35 Lb-In (3.9 N•m)
• Spade terminal load connection:
Max. 30A suitable for use with #8-32UNC screw
• Bolt-on style bus connector, #10-32-UNC Hex flange
Phillips screw, torque to 25 Lb-In (2.8N•m)
• Lockout/tagout: 4mm shank lock
• Bolt-mounted design into Quik-Spec Coordination
Panelboard bus
• Local indication: illumination requires closed circuit and
minimum 90Vac operating voltage
• RoHS compliant
Compact Circuit Protector Base (CCPB)
CUBEFuse
™
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Visit us on the web at
www.cooperbussmann.com/Disconnects
385
Compact Circuit Protector Base (CCPB)
CUBEFuse
™
CCPB Part
Poles
Voltage Time-Delay Time-Delay Fast-Acting Max. Fuse**
SCCR
Hp Ratings***
Numbers Rating Non-Indicating Indicating* Non-Indicating Ampacity
CCPB-1-15CF 1 0.5Hp@120V
CCPB-2-15CF 2 TCF1RN, TCF3RN,
TCF6, TCF10,
FCF1RN, FCF3RN, 1.5Hp@240V
600Vac TCF6RN, TCF10RN,
TCF15
FCF6RN, FCF10RN, 15A 200kA 3Hp@240V
CCPB-3-15CF 3 TCF15RN FCF15RN 5Hp@480V
7.5Hp@600V
CCPB-1-20CF 1 0.75Hp@120V
CCPB-2-20CF 2 2Hp@240V
600Vac
TCF17-1/2RN,
TCF17-1/2, FCF20RN 20A 200kA 3Hp@240V
CCPB-3-20CF 3
TCF20RN
TCF20 7.5Hp@480V
10Hp@600V
CCPB-1-30CF 1 1.5Hp@120V
CCPB-2-30CF 2 3Hp@240V
600Vac
TCF25RN,
TCF25, TCF30 FCF25RN, 30A 200kA 5Hp@240V
CCPB-3-30CF 3
TCF30RN
FCF30RN 15Hp@480V
10Hp@600V
CCPB-1-40CF 1 2.0Hp@120V
CCPB-2-40CF 2 3Hp@240V
600Vac
TCF35RN,
TCF35, TCF40 FCF35RN, 40A 200kA 7.5Hp@240V
CCPB-3-40CF 3
TCF40RN
FCF40RN 20Hp@480V
10Hp@600V
CCPB-1-50CF 1 3.0Hp@120V
CCPB-2-50CF 2 5Hp@240V
600Vac
TCF45RN,
TCF45, TCF50 FCF45RN, 50A 200kA 7.5Hp@240V
CCPB-3-50CF 3
TCF50RN
FCF50RN 20Hp@480V
10Hp@600V
CCPB-1-60CF 1 3.0Hp@120V
CCPB-2-60CF 2 7.5Hp@240V
600Vac TCF60RN TCF60 FCF60RN 60A 200kA 7.5Hp@240V
CCPB-3-60CF 3 20Hp@480V
10Hp@600V
CCPB-1-70CF 1 3.0Hp@120V
CCPB-2-70CF 2 7.5Hp@240V
600Vac TCF70RN TCF70 FCF70RN 70A 200kA 15Hp@240V
CCPB-3-70CF 3 30Hp@480V
CCPB-1-90CF 1 5.0Hp@120V
CCPB-2-90CF 2 FCF80RN, 10Hp@240V
600Vac TCF90RN TCF90 FCF90RN 90A 200kA 20Hp@240V
CCPB-3-90CF 3 40Hp@480V
CCPB-1-100CF 1 5.0Hp@120V
CCPB-2-100CF 2 10Hp@240V
600Vac TCF100RN TCF100 FCF100RN 100A 200kA 20Hp@240V
CCPB-3-100CF 3 50Hp@480V
CUBEFuse™
(Class J performance)
Technical Ratings
*1A and 3A indicating CUBEFuse not available. Correct fit with CCPB disconnect requires indicating CUBEFuse with date code R38 or later.
**Any fuse with an amp rating less than or equal to the max fuse rating may be used.Example: TCF15 may be used with CCPB-1-20CF.
***Do not use UPS/Critical Application fast-acting CF with motors.
Disconnect Switches
Disconnect
Switches
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

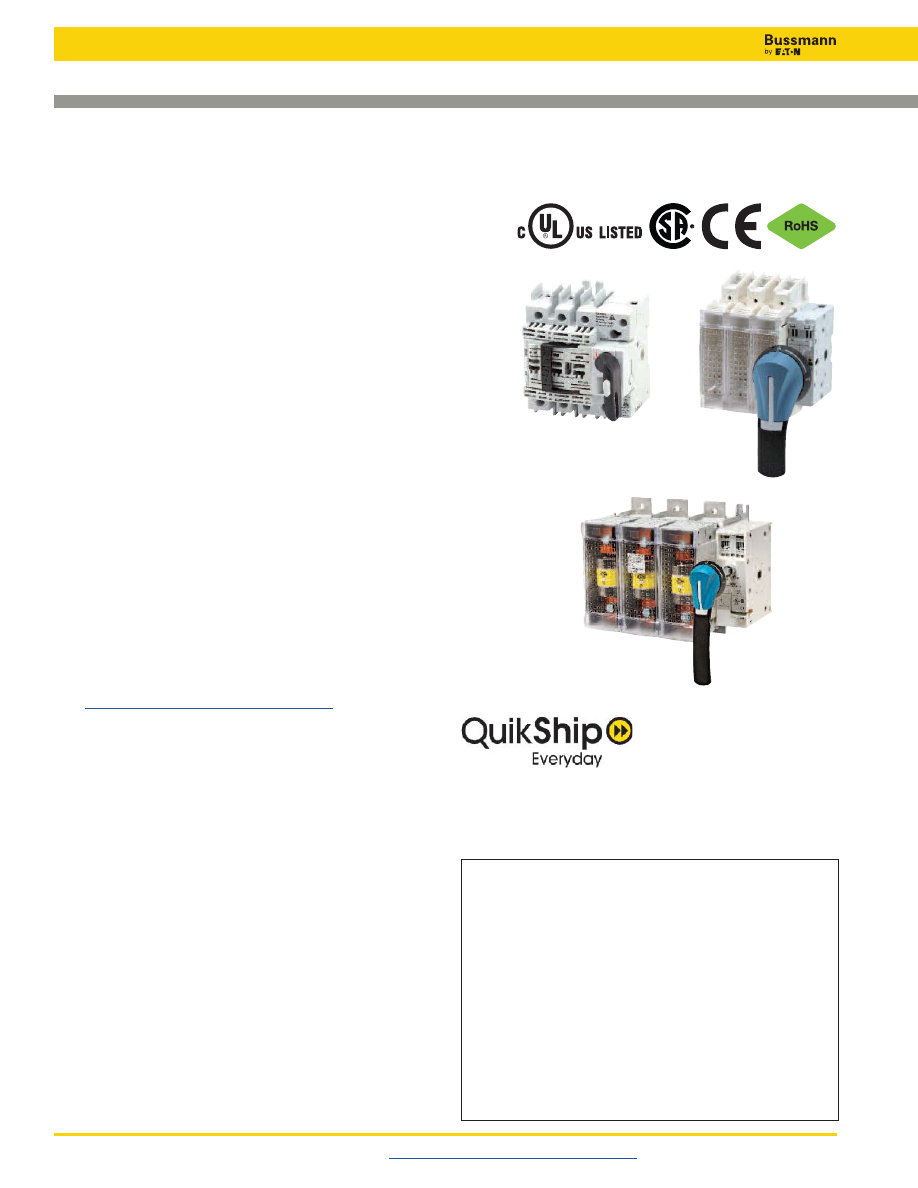

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—30 to 800A
Visit us on the web at
www.cooperbussmann.com/Disconnects
386
Description
Bussmann UL 98 and UL 489 fused disconnect switches
“break” and “make” power circuits ON and OFF load.
The switches employ double break contacts per pole that
help ensure complete isolation of the fuse when the switch is
in the "OFF" position.
Features
• Make and break power under load
• Double break by pole
• DIN-Rail or panel mount (30-100A)
• Up to 200kA Short-Circuit Current Rating
• Finger-safe covers
• Compact footprints available
• Defeatable handles automatically re-latch when the panel
door is closed
• Most disconnect switches are front, right side, flange or
direct handle operable
• NFPA 79 Compliant handle kits
Agency Information
• UL 98, Guide WHTY, File E155130
• UL 489, Guide WJAZ, File E359801
• CSA 22.2 No. 4, File 257020
• Conforms with IEC 60947-3
• NFPA 79 (2002 Edition)
Online Resources
Visit
www.cooperbussmann.com/Disconnects
for:
• CAD Drawings
• Instruction Sheets
• UL Information
Available Bussmann Fuses
Class Type
Data Sheet #
CC
LP-CC Time-Delay, Current Limiting
1023
CC
FNQ-R Time-Delay
1014
CC
KTK-R Fast-Acting
1015
J
LPJ Time-Delay, Current Limiting
1006 (0-60A)
J
1007 (70-600A)
J
With
easy
ID™ open fuse indication
1062 (6-60A)
J
1063 (70-600A)
J
JKS Fast-Acting Fuses
1026 (0-60A)
J
1027 (70-600A)
J
DFJ High Speed Drive Fuse
1048 (0-600A)
L
KRP-C Time-Delay, Current Limiting
1008
L
KTU Fast-Acting
1010
L
KLU Time-Delay
1013
QuikShip Everyday Service ships the most common part
numbers within 24 hours. Contact your Bussmann
representative for details.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

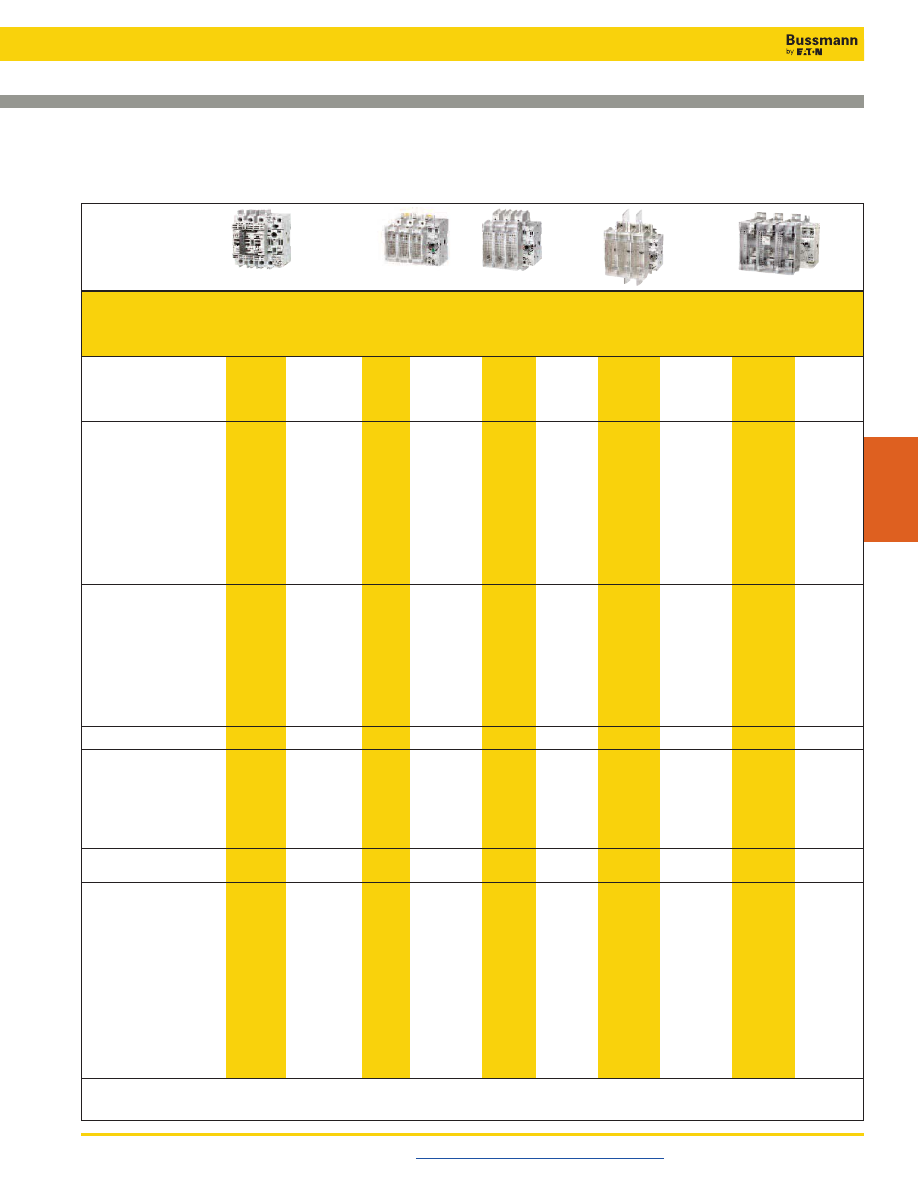

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—30 to 800A
Visit us on the web at
www.cooperbussmann.com/Disconnects
387
Disconnect
Switches
Part Number
2-Pole
—
—
RDF30J-2
RDF60J-2-COMP
RDF60J-2
RDF100J-2
RDF200J-2
RDF400J-2
RDF600J-2
RDF800L-2
3-Pole
RDF30CC-3
RDF30J-3-COMP
RDF30J-3
RDF60J-3-COMP
RDF60J-3
RDF100J-3
RDF200J-3
RDF400J-3
RDF600J-3
RDF800L-3
3-Pole + Neutral
RDF30CC-3N
RDF30J-3N-COMP
—
—
—
—
—
—
—
—
4-Pole
—
—
RDF30J-4
RDF60J-4-COMP
RDF60J-4
RDF100J-4
RDF200J-4
RDF400J-4
RDF600J-4
RDF800L-4
UL Standard
UL 489
UL 489
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
Fuse Class
CC
J
J
J
J
J
J
J
J
L
Max Fuse/Ampacity
30
30
30
60
60
100
200
400
600
800
Switch Type
Compact
Compact
Standard
Compact
Standard
Standard
Standard
Standard
Standard
Standard
Handle Operation
Front
Front
Front/Side
Front/Side
Front/Side
Front/Side
Front/Side
Front/Side
Front
Front
Flange
Flange
Flange
Flange
Flange
UL Electrical Ratings
Max AC Volts
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
Max DC Volts*
—
—
250Vdc
250Vdc
250Vdc
250Vdc
—
250Vdc
600Vdc
600Vdc
Std AC Horsepower Ratings
1-Phase, 240Vac
—
—
3
10
10
10
10
10
—
—
3-Phase, 240Vac
3
3
3
7.5
7.5
15
25
50
75
75
3-Phase, 480Vac
5.0
5.0
5.0
15
15
25
50
100
150
200
3-Phase, 600Vac
7.5
7.5
7.5
15
15
30
60
125
200
250
Max AC Horsepower Ratings
3-Phase, 240Vac
7.5
7.5
7.5
15
15
30
60
125
200
200
3-Phase, 480Vac
15
15
15
30
30
60
125
250
400
500
3-Phase, 600Vac
20
20
20
50
50
75
150
350
500
500
DC Horsepower Ratings
125Vdc
—
—
3
5
5
7.5
—
20
—
—
250Vdc
—
—
5
10
10
20
—
50
—
—
Electrical Characteristics
SCCR
100kA
100kA
200kA
100kA
200kA
200kA
200kA
200kA
200kA
200kA
Terminal Lugs/Kits
Integral
Integral
Integral
Integral
Integral
Integral
•
•
•
•
Mounting Torque - Lb-In (N•m)
—
—
—
—
—
—
160 (18)
310 (35)
310 (35)
310 (35)
Wire Type
75°C Cu
75°C Cu
75°C Cu
75°C Cu
75°C Cu
75°C Cu
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
Wire Range &
Torque - Lb-In (N•m)
Solid
#14-10
#14-10
#14-10
#14-10
#12-10
#12-10
—
—
—
—
27 (3.1)
27 (3.1)
31 (3.5)
31 (3.5)
35.4 (4)
35.4 (4)
—
—
—
—
Stranded
#14-10
#14-10
#14-6
#14-6
#12-1
#12-1
#6-300MCM
#4-600MCM
(2) #2-600MCM
(2) #2-600MCM
27 (3.1)
27 (3.1)
31 (3.5)
31 (3.5)
35.4 (4)
35.4 (4)
275 (31)
550 (62)
375 (42.4)
375 (42.4)
Dual 1/0-250MCM
550 (62)
Mechanical Characteristics
Endurances/Cycles
10,000
10,000
10,000
10,000
10,000
10,000
8000
6000
5000
5000
Physical Characteristics
Dimensions
See drawings on
product pages
Weight - Lbs (KG)
2-Pole
—
—
3.0 (1.3)
3.1 (1.4)
4.0 (1.8)
4.07 (1.8)
5.7 (2.6)
11.4 (5.2)
31.7 (14.4)
31.7 (14.4)
3-Pole
1.3 (0.6)
1.4 (0.6)
3.8 (1.7)
4.1 (1.8)
5.3 (2.4)
5.3 (2.4)
7.8 (3.5)
16.6 (7.6)
44.2 (20.1)
44.2 (20.1)
3-Pole + Neutral
1.4 (0.6)
1.5 (0.7)
—
—
—
—
—
—
—
—
4-Pole
—
—
4.7 (2.1)
4.8 (2.2)
X.X (2.9)
6.49 (2.9)
10.8 (4.9)
21.8 (9.9)
56.8 (25.8)
56.8 (25.8)
Environmental
Operating Temp. Range
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
Flammability Rating
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
Accessories
Lug Kit
Integral
Integral
Integral
Integral
Integral
Integral
•
•
•
•
Handles
Direct
•
•
•
•
•
•
•
•
•
•
Front Selector
•
•
—
—
—
—
—
—
—
—
Front Pistol
•
•
•
•
•
•
•
•
•
•
Side Pistol
—
—
•
•
•
•
•
•
—
—
Flange
Cable
—
—
•
•
•
•
•
—
—
—
Shaft
—
—
•
•
•
•
•
—
—
—
NFPA Through Door Handle
•
•
•
•
•
•
•
•
•
•
Shafts c/s - mm
5x5
5x5
10x10
10x10
10x10
10x10
10x10
10x10
12X12
12X12
Terminal Shrouds
Not Required
Not Required
Not Required
Not Required
Not Required
Not Required
•
•
•
•
Auxiliary Contacts
(1) NO
•
•
•
•
•
•
•
•
•
•
(1) NC
•
•
•
•
•
•
•
•
•
•
AC Ratings
Volts
600
600
600
600
600
600
600
600
600
600
Amps
10
10
10
10
10
10
10
10
10
10
• Available, see product page for details and part numbers.
— Not available.
* General purpose only, not photovoltaic rated.
Specifications
RDF30CC-3
RDF60J-3
RDF200J-3
RDF600J-3
RDF30J-3 / RDF60J-3-COMP
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-05B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-05R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-05TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-05TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles
- shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05RHD
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
4.02~9.65 (102~245)
SH2-200
12.6 (320)
4.02~14.37 (102~365)
SH2-320
15.7 (400)
4.02~17.52 (102~445)
SH2-400
Disconnect Switches

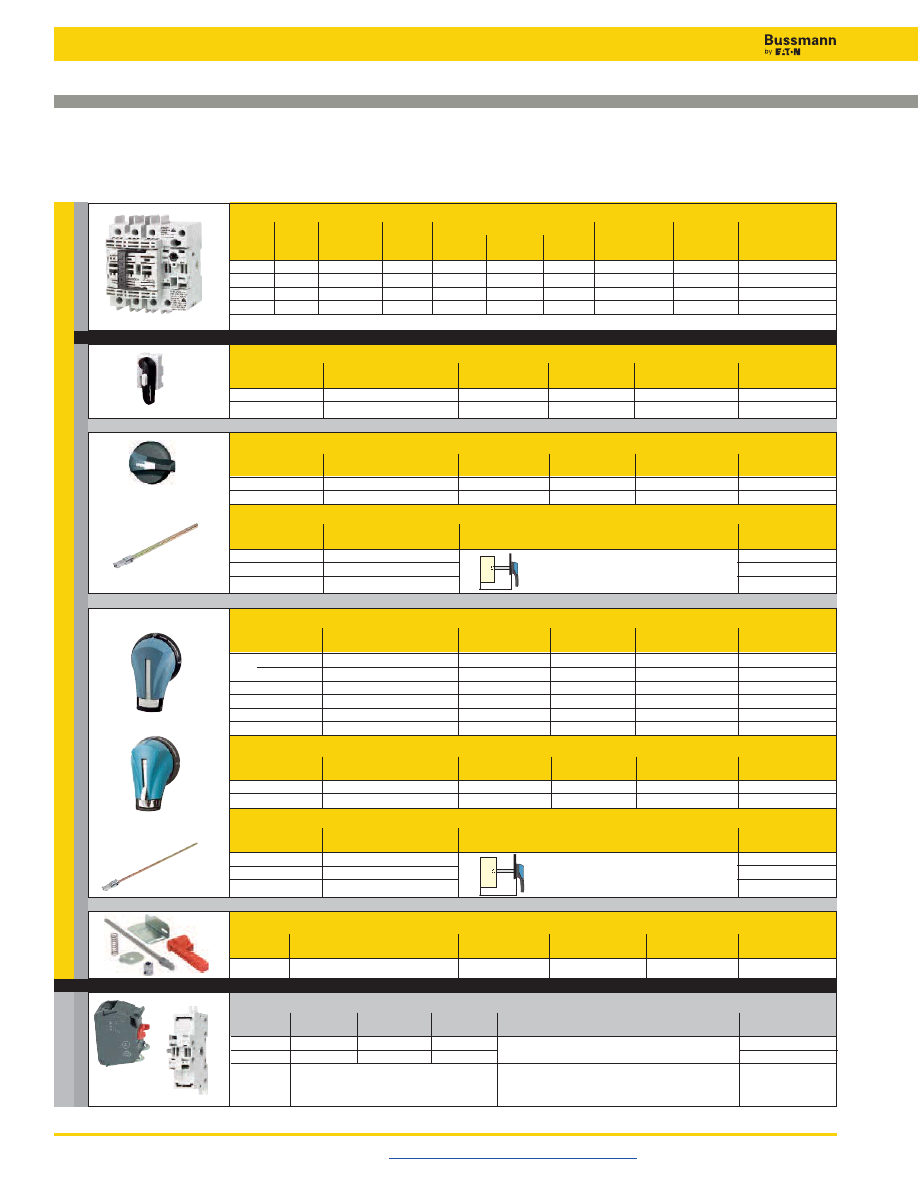

UL 98 Fused Rotary Disconnect Switches—30A
Compact Class CC & Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
388
(1)
(2)
For a Complete Assembly, Please Select:
Select for Standard
Applications
Accessories
Switch
Max Horsepower Rating, 3-Ph
Amp
Fuse
Number
220/
440/
600
Wire
Wire
Part
Rating
Class
of Poles
SCCR
240Vac
480Vac
Vac
Size
Type
Number
30
CC
3
100kA
7.5
15
20
#14-10 Sol/Str
75°C Cu
RDF30CC-3
30
CC
3 + Ntrl*
100kA
7.5
15
20
#14-10 Sol/Str
75°C Cu
RDF30CC-3N
30
J
3
100kA
7.5
15
20
#14-10 Sol/Str
75°C Cu
RDF30J-3-COMP
30
J
3 + Ntrl*
100kA
7.5
15
20
#14-10 Sol/Str
75°C Cu
RDF30J-3N-COMP
*
Neutral is switched.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
RDF30CC-_
Black
Y
Y
DIR-05
RDF30J-_-COMP
Black
Y
Y
DIR-06
External Front Operated Selector Handle -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-04B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-04R
Shafts for Selector Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
4.02~9.65 (102~245)
SH1-200
12.6 (320)
4.02~14.37 (102~365)
SH1-320
15.7 (400)
4.02~17.52 (102~445)
SH1-400
NFPA Through the Door Handle Kit
- to be used with selector handle or front pistol handle
Test
Part
Color
Function
Padlockable
Defeatable
Number
Red
N
Y
N
H79-1
Auxillary Contacts
Contact
Number of Continuous
Voltage
Maximum Number of Auxiliary Contacts
Part
Type
Contacts
Amp Rating
Rating
per Disconnect Switch Part Number
Number
NO
1
10A
600Vac
RDF30CC-_: 4 / 8 with BAC-HOLDER2
BAC05
(1)
NC
1
10A
600Vac
RDF30J-_-COMP: 2 /6 with BAC-HOLDER2
BAC06
(1)
Auxillary
Accepts 4 Auxillary Contacts:
Contact
BAC05 or BAC06
BAC-HOLDER2
(2)
Holder
or
or
or
or
S
WITCH
A
UXILIAR
Y
C
ONT
ACTS
H
ANDLE
X
X
+
+
and…
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

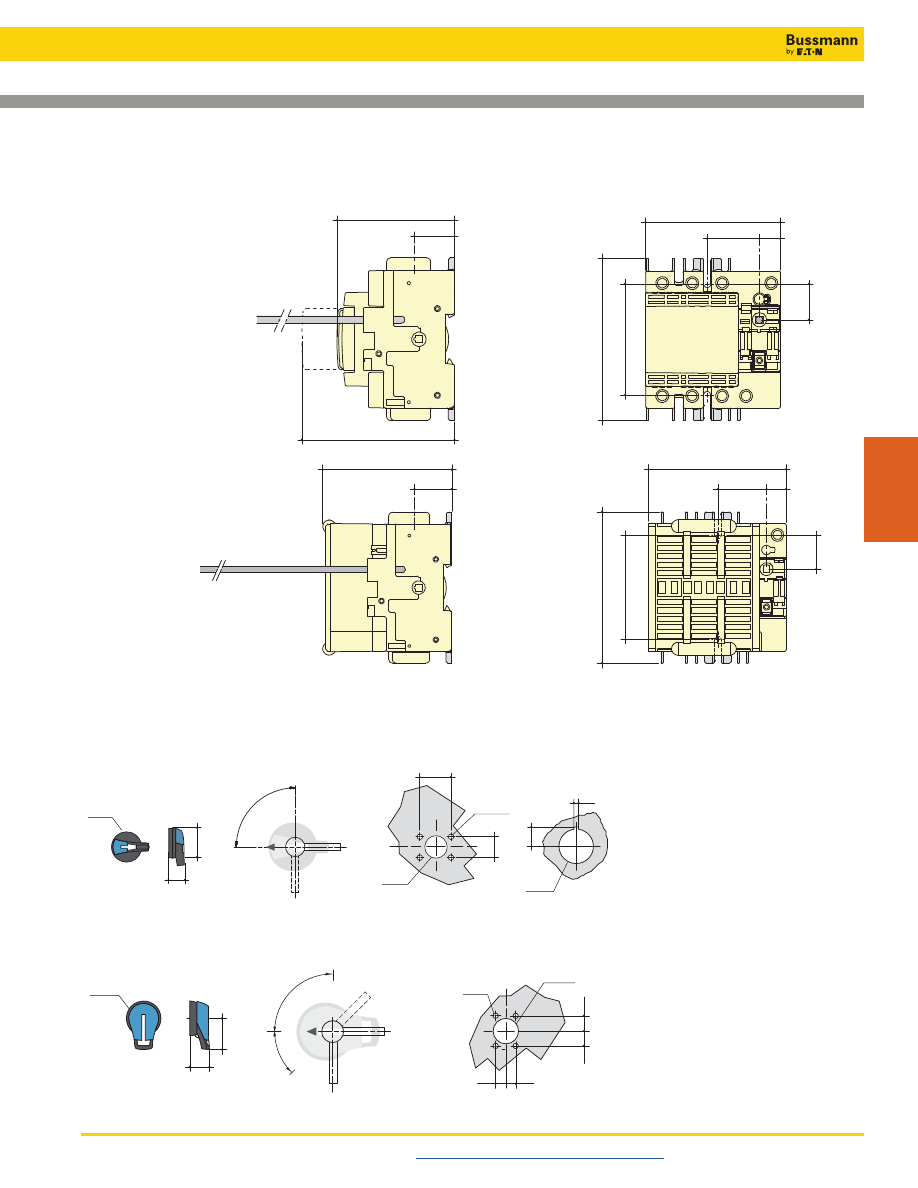

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—30A
Compact Class CC & Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
389
Disconnect
Switches
3.28
83.3
1.12
28.5
5.19 (131.8)
4.56
11
6
3.3
84
1
25.5
3.78
96 1.47
37.5
0.59
15
Fuse Cover Fully Open
3.89
99
1.12
28.5
4.13
105
1.47
37.5
0.59
15
4.56
11
6
3.3
84
1
25.5
Dimensions – in (mm)
• RDF30CC-_
•RDF30J-_-COMP
External Front Pistol Handles
External Front Selector Handle
Door Drilling Layout
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
H4X-05__
H12-05__
Ø3.07
1.73
2.75
65°
TEST
90
°
0
Direction of Front Operation
Pistol Handle Type
Ø78
70
44
I
Ø78
37
88
13.5
Ø 22.5
3
40
4 Ø 7
Ø 31
28
With Mounting Nut
With 4 Mounting Screws
Door Drilling Layout
Selector Handle Type
0
I
90
°
Direction of Front Operation
Ø3.07
1.45
3.46
1.57
4 Ø 0.27
1.10
Ø 1.22
0.11
0.53
Ø 0.88
H4X-04_
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

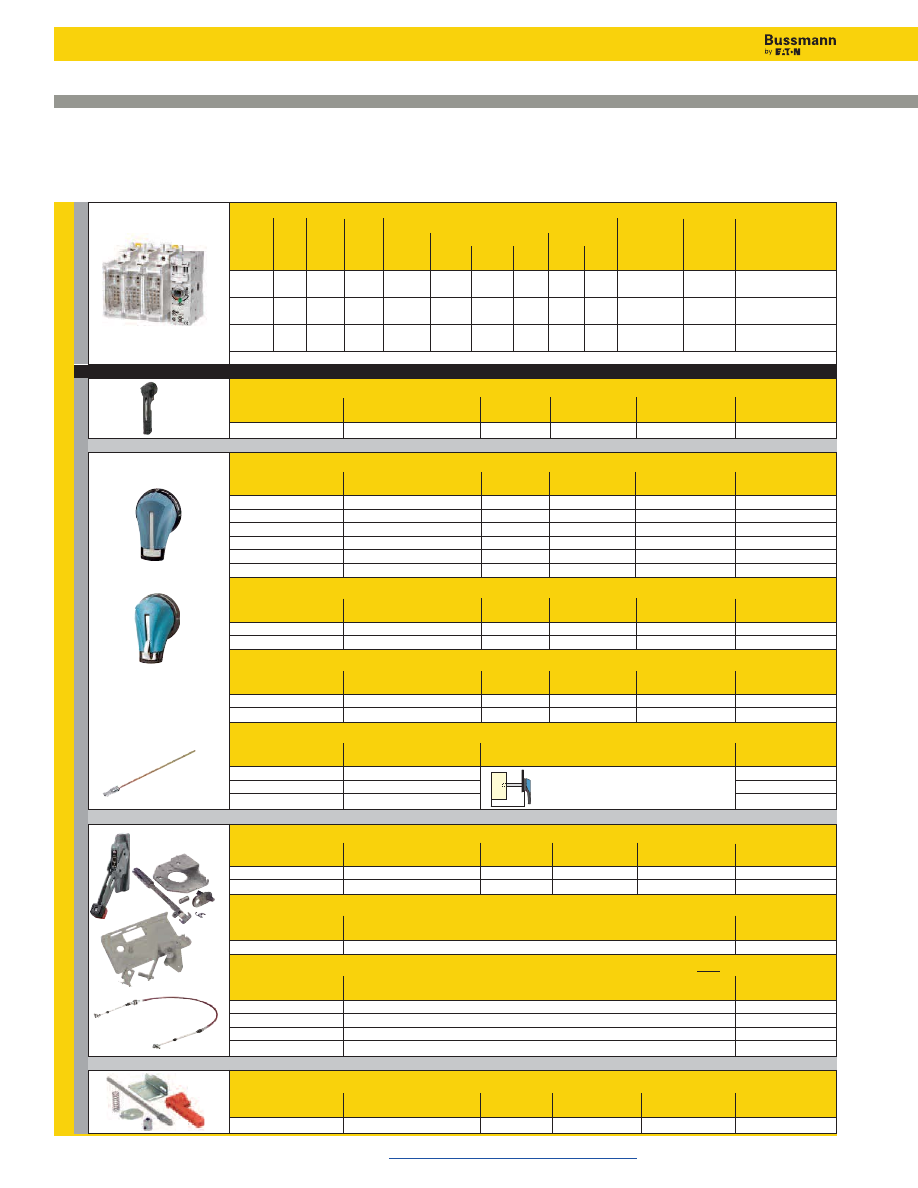

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—30A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
390
NFPA Through the Door Handle Kit
- to be used with selector handle or front pistol handle
Test
Part
Color
Function
Padlockable
Defeatable
Number
Red
N
Y
N
H79-2
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
1-Phase
3-Phase
DC*
Amp
Fuse No. of
220/
220/
440/
600
125
250
Wire
Wire
Part
Rating Class Poles
SCCR 240Vac
240Vac 480Vac Vac
Vdc
Vdc
Size
Type
Number
30
J
2
200kA
3
-
-
-
3
5
#14-10 Sol
75°C Cu
RDF30J-2
#14-6 Str
30
J
3
200kA
-
7.5
15
20
3
5
#14-10 Sol
75°C Cu
RDF30J-3
#14-6 Str
30
J
4
200kA
-
7.5
15
20
3
5
#14-10 Sol
75°C Cu
RDF30J-4
#14-6 Str
* DC Ratings use two poles in series.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y - On Switch
DIR-07
+
(1)
(2)
(3)
(4)
or
or
or
S
WITCH
H
ANDLE
X
or
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-05B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-05R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-05TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-05TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05RHD
External Right Side Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
N/A
H4X-05SB
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
N/A
H4X-05SR
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
5.30~9.06 (135~230)
SH5-200
12.6 (320)
5.30~13.78 (135~350)
SH5-320
15.7 (400)
5.30~16.93 (135~430)
SH5-400
Flange Handle
(1)
- requires shaft operated mechanism or cable operated mechanism + cable
NEMA
Flange
Test
Part
Type
Style
Function
Padlockable
Defeatable
Number
1, 3R, 4, 12
Standard
N
Y
Y
FLH1
1, 3R, 4, 4X, 12
Chrome Plated
N
Y
Y
FLH2
Shaft Operated Flange Mechanism
(2)
- includes shaft
For Enclosure
Part
Depth - in (mm)
Number
6~24 (152~613)
FLRM
Cable Operated Flange Mechanism and Cable
- must select Mechanism
(3)
and
Cable
(4)
Part
Item / Length
Number
Cable Mechanism
FLCM
36” (900mm) Cable
FLC36
60” (1500mm) Cable
FLC60
120” (3000mm) Cable
FLC120
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—30A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
391
Disconnect
Switches

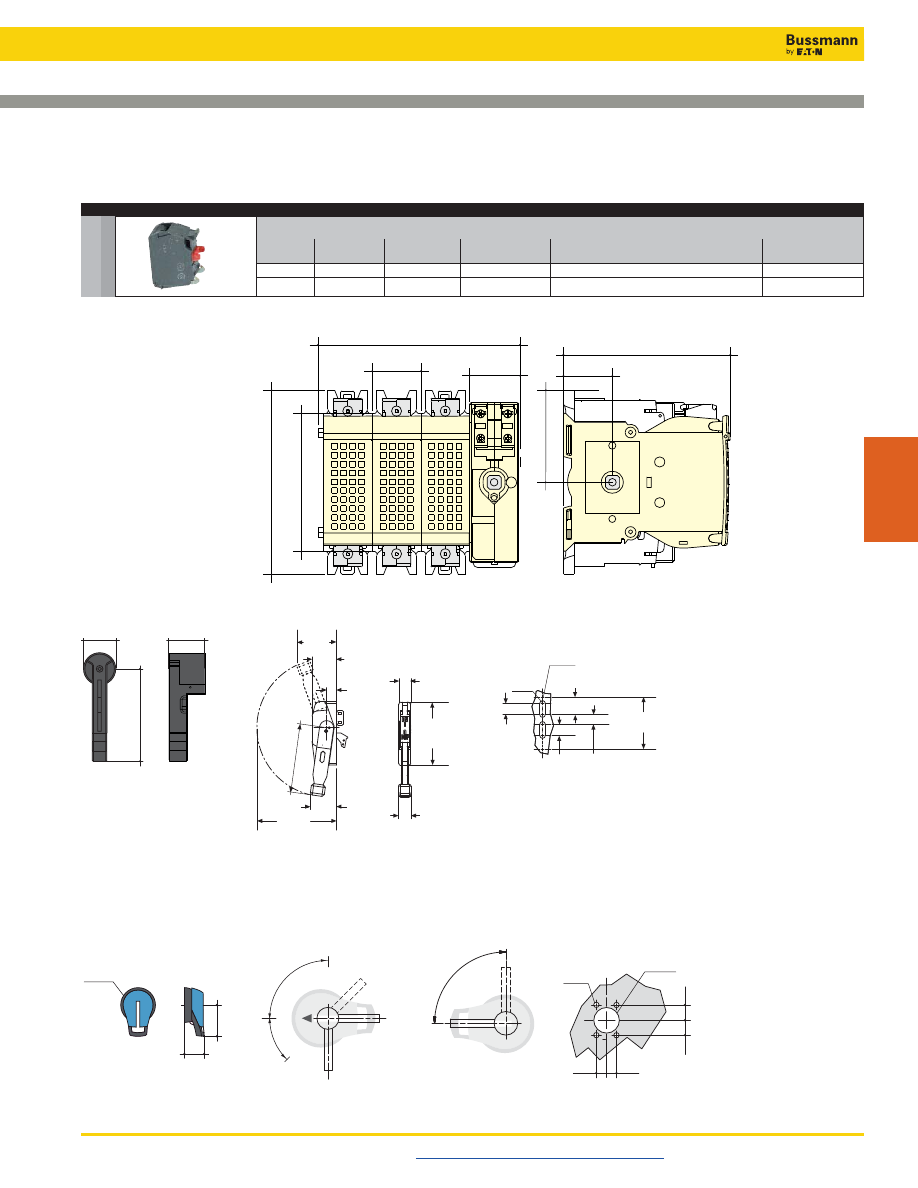

Acc.
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
4
BAC05
NC
1
10A
600Vac
4
BAC06

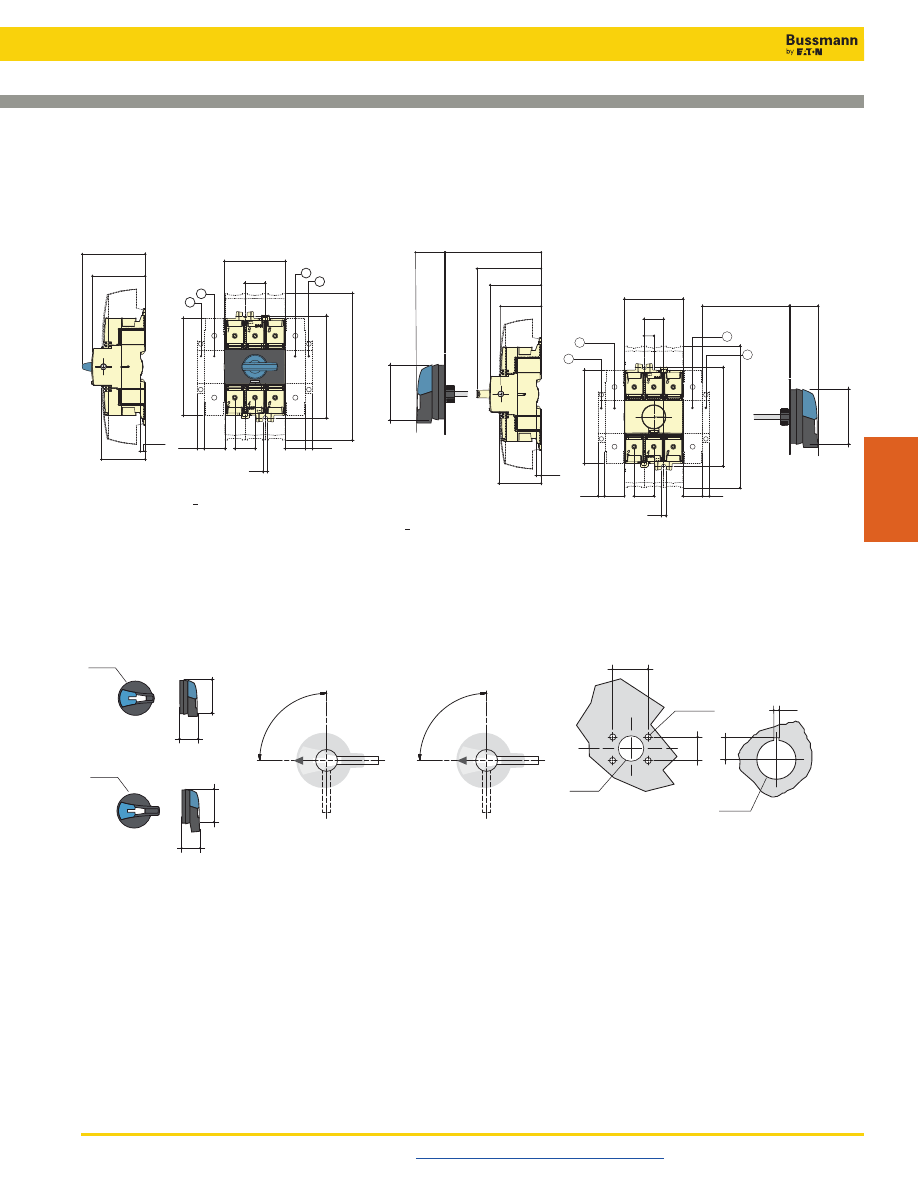

Dimensions – in (mm)
5.35
136
5.87
149.3
1.41
36
1.46
37.2
4.84
123
1.41
36
4.02
102.1
2.68
68.07
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
DIR-07
3.50
(88.9)
2.16
(54.9)
0.86
(21.8)
1.06
(26.9)
4.68
(118.9)
1.55
(39.4)
0.88
(22.3)
1.00
(25.4)
1.00
(25.4)
6.22
(158.0)
2.32
(58.9)
7.10
(180.3)
Ø0.50
(Ø12.7)
Ø0.28
(Ø7.1)
2.70
(68.6)
5.66
(143.8)
Flange Handle
FLH_
External Front & Right Side Pistol Handle
H4X-05__
H12-05__
0
I
90
°
Ø3.07
1.73
2.75
65
°
TEST
90
°
0
Direction of Front Operation
Handle Type
Direction of Right Side Operation
Door Drilling Layout
Ø78
70
44
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
I
and …
A
UX
C
ONT
ACTS
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

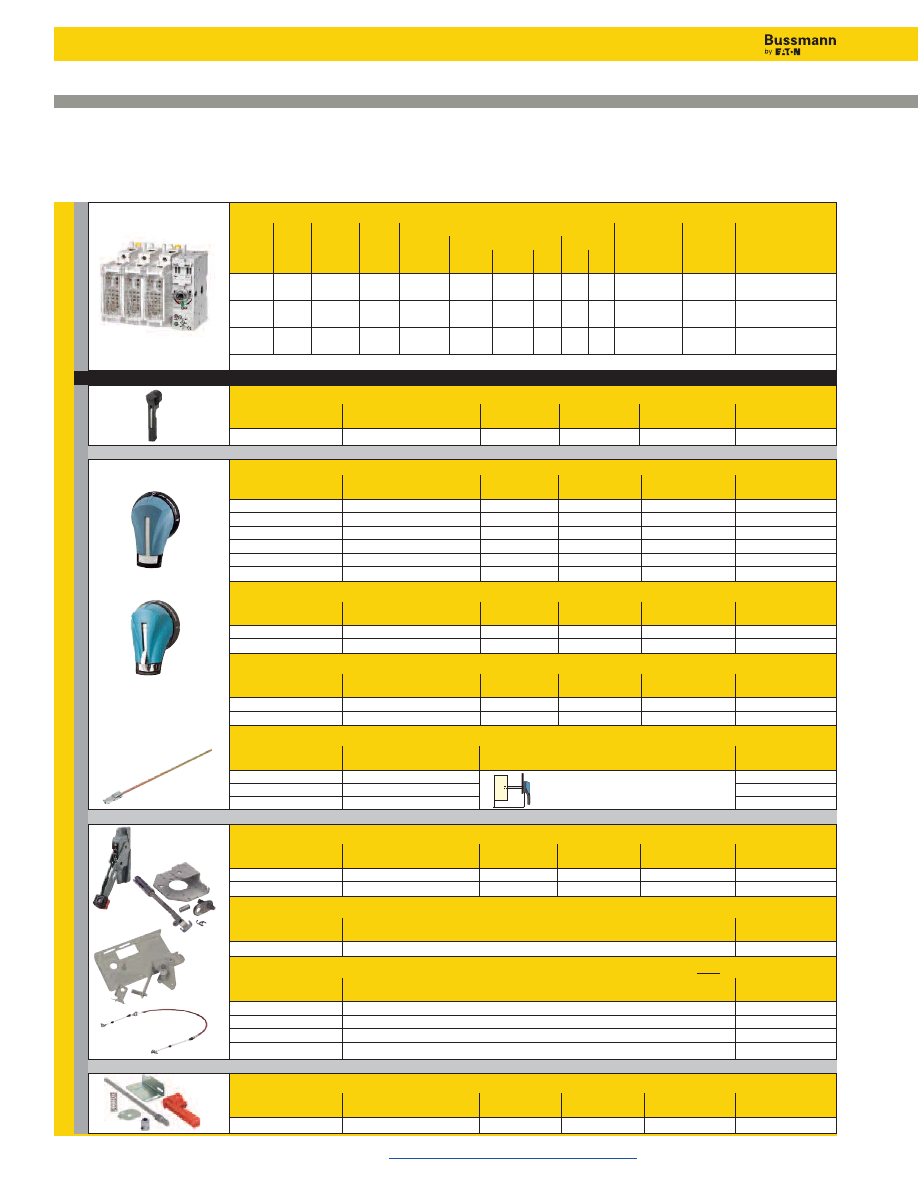

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—60A
Compact Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
392
NFPA Through the Door Handle Kit
- to be used with selector handle or front pistol handle
Test
Part
Color
Function
Padlockable
Defeatable
Number
Red
N
Y
N
H79-2
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
1-Phase
3-Phase
DC*
Amp
Fuse
Number
220/
220/
440/
600
125
250
Wire
Wire
Part
Rating
Class of Poles SCCR
240Vac
240Vac 480Vac Vac Vdc Vdc
Size
Type
Number
60
J
2
100kA
10
-
-
-
5
10
#14-10 Sol
75°C Cu
RDF60J-2-COMP
#14-6 Str
60
J
3
100kA
-
15
30
50
5
10
#14-10 Sol
75°C Cu
RDF60J-3-COMP
#14-6 Str
60
J
4
100kA
-
15
30
50
5
10
#14-10 Sol
75°C Cu
RDF60J-4-COMP
#14-6 Str
* DC Ratings use two poles in series.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y - On Switch
DIR-07
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-05B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-05R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-05TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-05TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-05BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-05RHD
External Right Side Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
N/A
H4X-05SB
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
N/A
H4X-05SR
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
5.30~9.06 (135~230)
SH5-200
12.6 (320)
5.30~13.78 (135~350)
SH5-320
15.7 (400)
5.30~16.93 (135~430)
SH5-400
Flange Handle
(1)
- requires shaft operated mechanism or cable operated mechanism + cable
NEMA
Flange
Test
Part
Type
Style
Function
Padlockable
Defeatable
Number
1, 3R, 4, 12
Standard
N
Y
Y
FLH1
1, 3R, 4, 4X, 12
Chrome Plated
N
Y
Y
FLH2
Shaft Operated Flange Mechanism
(2)
- includes shaft
For Enclosure
Part
Depth - in (mm)
Number
6~24 (152~613)
FLRM
Cable Operated Flange Mechanism and Cable
- must select Mechanism
(3)
and
Cable
(4)
Part
Item / Length
Number
Cable Mechanism
FLCM
36” (900mm) Cable
FLC36
60” (1500mm) Cable
FLC60
120” (3000mm) Cable
FLC120
+
(1)
(2)
(3)
(4)
S
WITCH
H
ANDLE
X
or
or
or
or
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

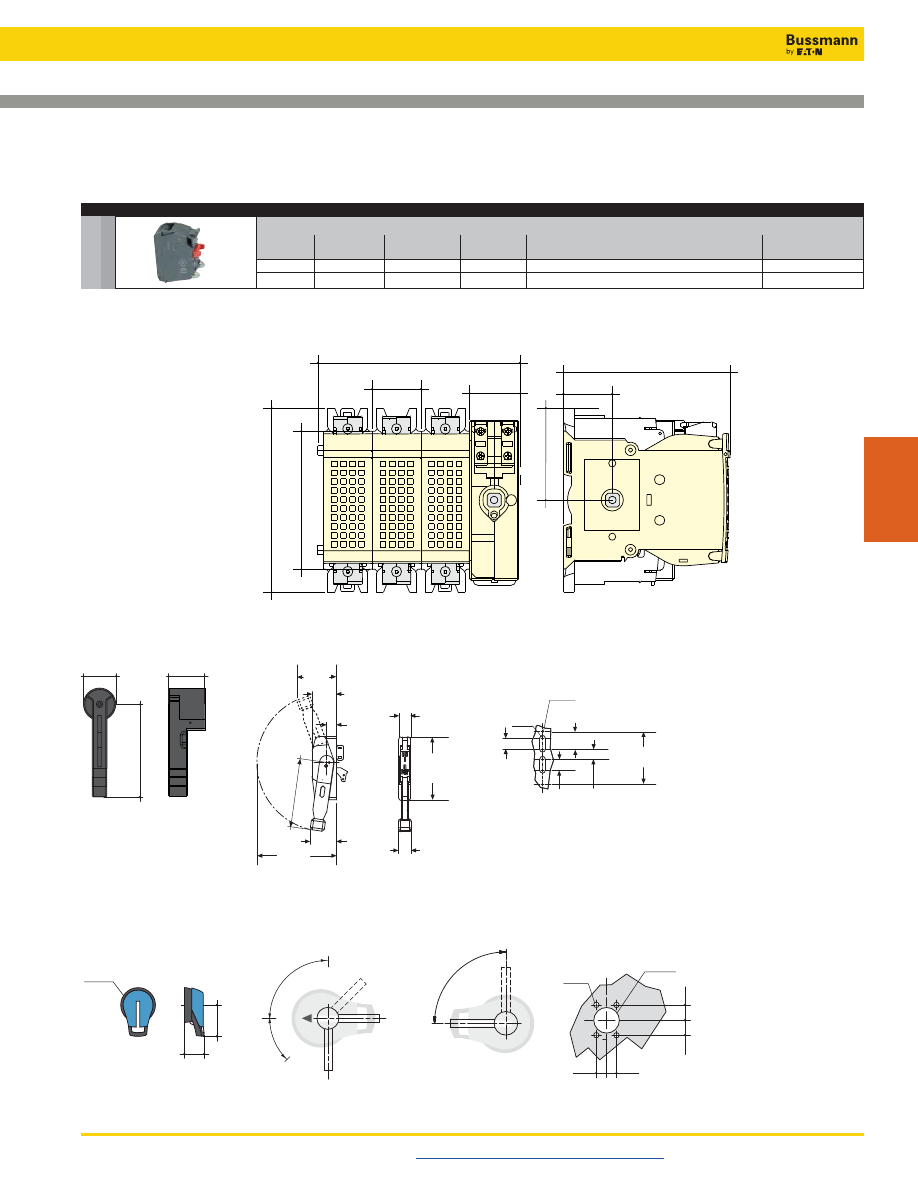

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—60A
Compact Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
393
Disconnect
Switches
Dimensions – in (mm)
5.35
136
5.87
149.3
1.41
36
1.46
37.2
4.84
123
1.41
36
4.02
102.1
2.68
68.07
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
DIR-07
External Front & Right Side Pistol Handle
H4X-05__
H12-05__
0
I
90
°
Ø3.07
1.73
2.75
65
°
TEST
90
°
0
Direction of Front Operation
Handle Type
Direction of Right Side Operation
Door Drilling Layout
Ø78
70
44
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
I
3.50
(88.9)
2.16
(54.9)
0.86
(21.8)
1.06
(26.9)
4.68
(118.9)
1.55
(39.4)
0.88
(22.3)
1.00
(25.4)
1.00
(25.4)
6.22
(158.0)
2.32
(58.9)
7.10
(180.3)
Ø0.50
(Ø12.7)
Ø0.28
(Ø7.1)
2.70
(68.6)
5.66
(143.8)
Flange Handle
FLH_
Acc.
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
4
BAC05
NC
1
10A
600Vac
4
BAC06
and …
A
UX
C
ONT
ACTS
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

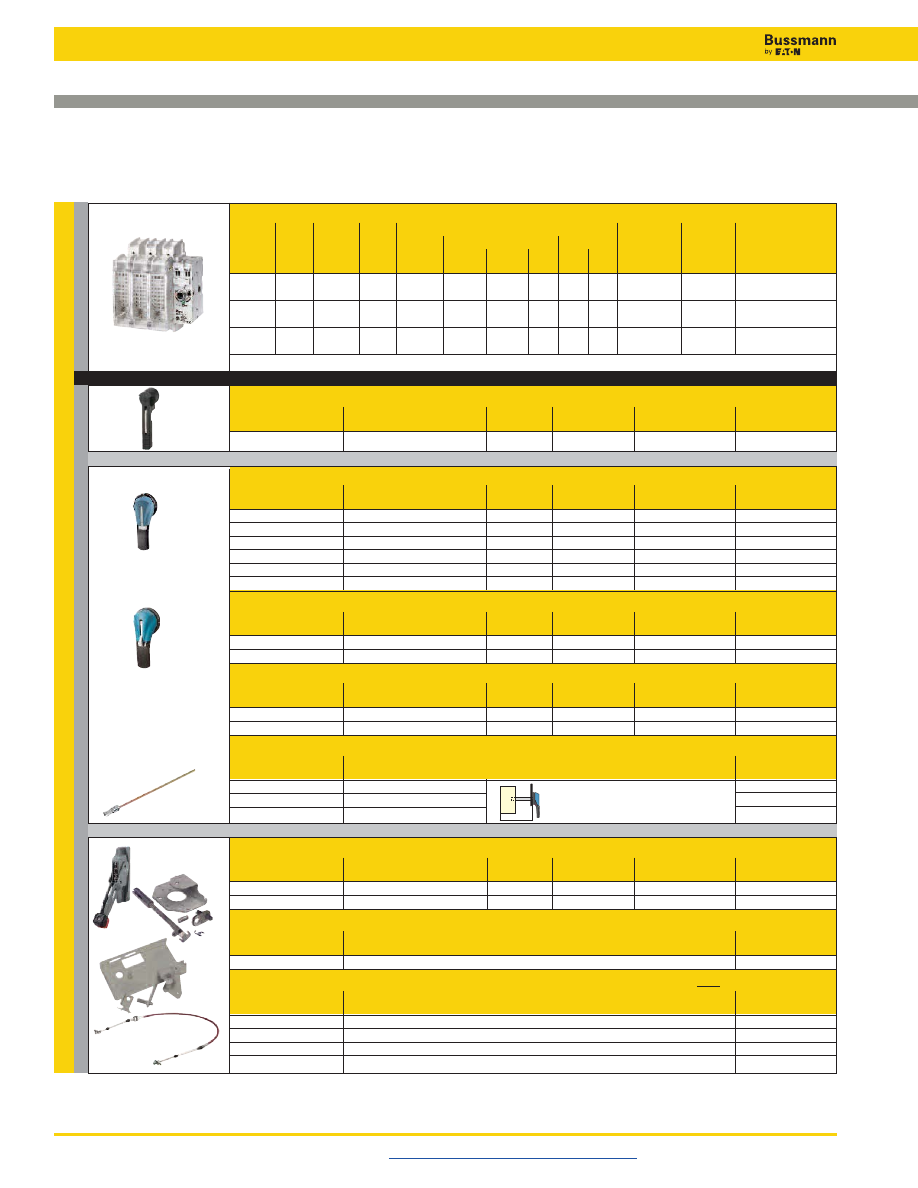

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—60A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
394
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
1-Phase
3-Phase
DC*
Amp
Fuse
Number
220/
220/
440/
600
125
250
Wire
Wire
Part
Rating
Class of Poles SCCR 240Vac
240Vac 480Vac Vac
Vdc Vdc
Size
Type
Number
60
J
2
200kA
10
-
-
-
5
10
#12-10 Sol
75°C Cu
RDF60J-2
#12-1 Str
60
J
3
200kA
-
15
30
50
5
10
#12-10 Sol
75°C Cu
RDF60J-3
#12-1 Str
60
J
4
200kA
-
15
30
50
5
10
#12-10 Sol
75°C Cu
RDF60J-4
#12-1 Str
* DC Ratings use two poles in series.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y
DIR-07
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-03B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-03R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-06TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-06TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06RHD
External Right Side Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
N/A
H4X-06SB
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
N/A
H4X-06SR
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
5.30~9.06 (135~230)
SH5-200
12.6 (320)
5.30~13.78 (135~350)
SH5-320
15.7 (400)
5.30~16.93 (135~430)
SH5-400
Flange Handle
(1)
- requires shaft operated mechanism or cable operated mechanism + cable
NEMA
Flange
Test
Part
Type
Style
Function
Padlockable
Defeatable
Number
1, 3R, 4, 12
Standard
N
Y
Y
FLH1
1, 3R, 4, 4X, 12
Chrome Plated
N
Y
Y
FLH2
Shaft Operated Flange Mechanism
(2)
- includes shaft
For Enclosure Depth
Part
in (mm)
Number
6~24 (152~613)
FLRM
Cable Operated Flange Mechanism and Cable
- must select Mechanism
(3)
and
Cable
(4)
Part
Item / Length
Number
Cable Mechanism
FLCM
36” (900mm) Cable
FLC36
60” (1500mm) Cable
FLC60
120” (3000mm) Cable
FLC120
+
or
(1)
(2)
(3)
(4)
X
S
WITCH
H
ANDLE
or
or
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—60A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
395
Disconnect
Switches
NFPA Through the Door Handle Kit
- to be used with front pistol handle
Test
Part
Color
Function
Padlockable
Defeatable
Number
Red
N
Y
N
H79-2
Dimensions – in (mm)
7.32
186
5.87
149.3
1.41
36
1.46
37.2
4.81
122.2
1.41
36
6.77
172
5.23
133
3.66
92.96
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
DIR-07
External Front and Right Side Pistol Handle
H4X-06__
H12-03__
0
I
90°
6
5°
TEST
90
°
0
Ø78
1.77
4.92
Direction of Front Operation
Handle Type
Direction of Right Side Operation
Door Drilling Layout
Ø3.07
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
45
125
I
3.50
(88.9)
2.16
(54.9)
0.86
(21.8)
1.06
(26.9)
4.68
(118.9)
1.55
(39.4)
0.88
(22.3)
1.00
(25.4)
1.00
(25.4)
6.22
(158.0)
2.32
(58.9)
7.10
(180.3)
Ø0.50
(Ø12.7)
Ø0.28
(Ø7.1)
2.70
(68.6)
5.66
(143.8)
Flange Handle
FLH_
Select
NFP
A H
ANDLE
or
Acc.
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
4
BAC05
NC
1
10A
600Vac
4
BAC06
and …
A
UX
C
ONT
ACTS
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

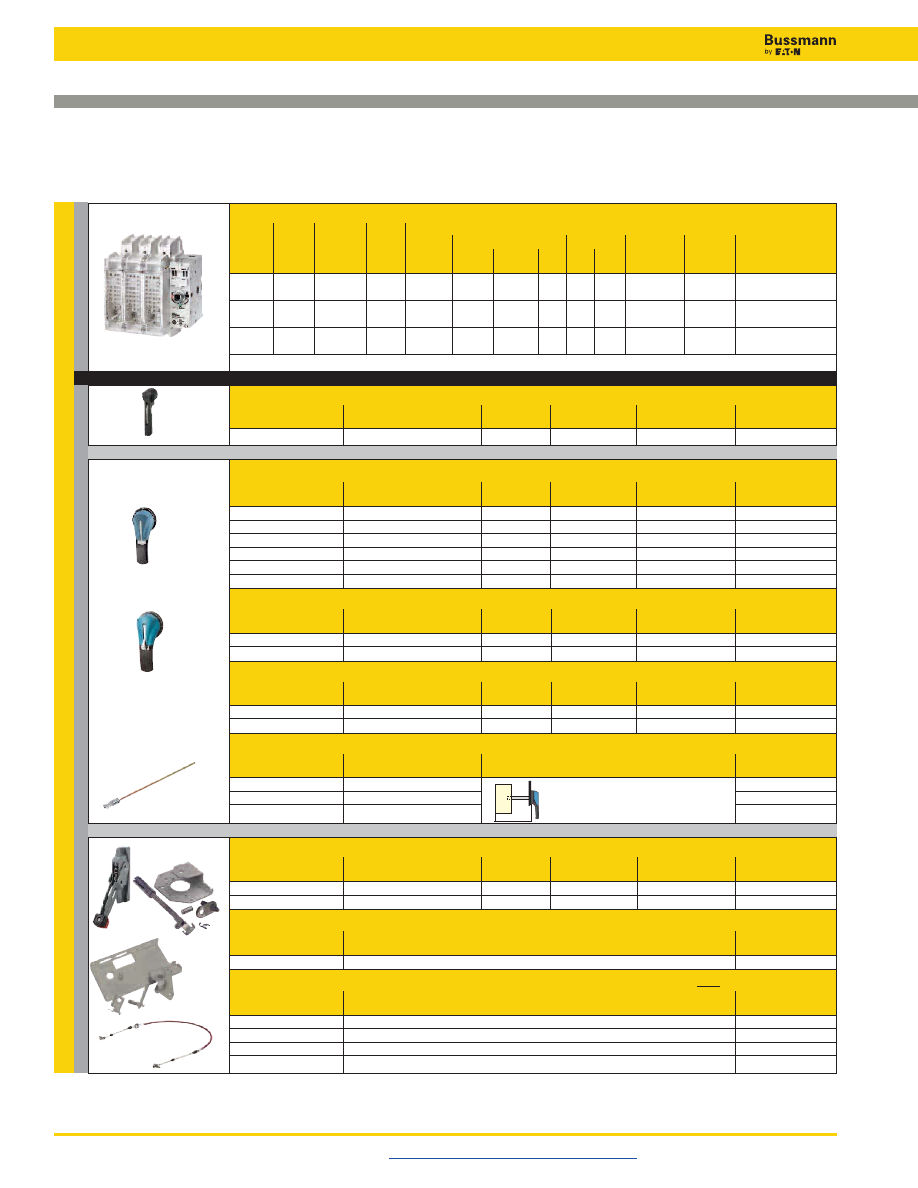

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—100A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
396
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
1-Phase
3-Phase
DC*
Amp
Fuse
Number
220/
220/
440/
600
125
250
Wire
Wire
Part
Rating
Class
of Poles SCCR
240Vac 240Vac
480Vac
Vac Vdc Vdc
Size
Type
Number
100
J
2
200kA
10
-
-
-
7.5
20
#12-10 Sol
75°C Cu
RDF100J-2
#12-1 Str
100
J
3
200kA
-
30
60
75
7.5
20
#12-10 Sol
75°C Cu
RDF100J-3
#12-1 Str
100
J
4
200kA
-
30
60
75
7.5
20
#12-10 Sol
75°C Cu
RDF100J-4
#12-1 Str
* DC Ratings use two poles in series.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y
DIR-07
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-03B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-03R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-06TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-06TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06RHD
External Right Side Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
N/A
H4X-06SB
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
N/A
H4X-06SR
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
5.30~9.06 (135~230)
SH5-200
12.6 (320)
5.30~13.78 (135~350)
SH5-320
15.7 (400)
5.30~16.93 (135~430)
SH5-400
Flange Handle
(1)
- requires shaft operated mechanism or cable operated mechanism + cable
NEMA
Flange
Test
Part
Type
Style
Function
Padlockable
Defeatable
Number
1, 3R, 4, 12
Standard
N
Y
Y
FLH1
1, 3R, 4, 4X, 12
Chrome Plated
N
Y
Y
FLH2
Shaft Operated Flange Mechanism
(2)
- includes shaft
For Enclosure Depth
Part
in (mm)
Number
6~24 (152~613)
FLRM
Cable Operated Flange Mechanism and Cable
- must select Mechanism
(3)
and
Cable
(4)
Part
Item / Length
Number
Cable Mechanism
FLCM
36” (900mm) Cable
FLC36
60” (1500mm) Cable
FLC60
120” (3000mm) Cable
FLC120
+
(1)
(2)
(3)
(4)
X
or
S
WITCH
H
ANDLE
or
or
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

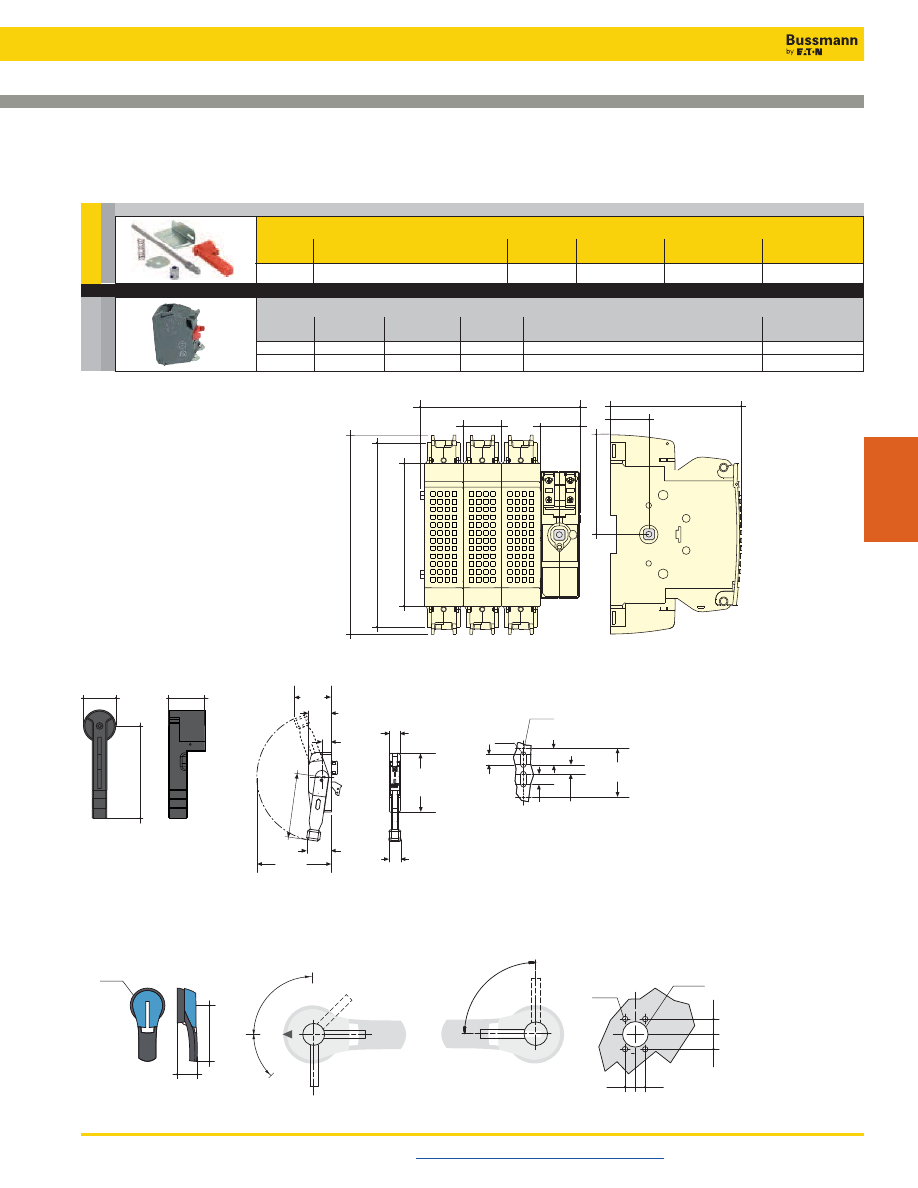

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—100A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
397
Disconnect
Switches
7.32
186
5.87
149.3
1.41
36
1.46
37.2
4.81
122.2
1.41
36
6.77
172
5.23
133
3.66
92.96
Dimensions – in (mm)
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
DIR-07
External Front & Right Side Pistol Handle
H4X-06__
H12-03__
0
I
90
°
65°
TEST
90°
0
Ø78
1.77
4.92
Direction of Front Operation
Handle Type
Direction of Right Side Operation
Door Drilling Layout
Ø3.07
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
45
125
I
3.50
(88.9)
2.16
(54.9)
0.86
(21.8)
1.06
(26.9)
4.68
(118.9)
1.55
(39.4)
0.88
(22.3)
1.00
(25.4)
1.00
(25.4)
6.22
(158.0)
2.32
(58.9)
7.10
(180.3)
Ø0.50
(Ø12.7)
Ø0.28
(Ø7.1)
2.70
(68.6)
5.66
(143.8)
Flange Handle
FLH_
NFPA Through the Door Handle Kit
- to be used with front pistol handle
Test
Part
Color
Function
Padlockable
Defeatable
Number
Red
N
Y
N
H79-2
Select
NFP
A H
ANDLE
or
Acc.
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
4
BAC05
NC
1
10A
600Vac
4
BAC06
A
UX
C
ONT
ACTS
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

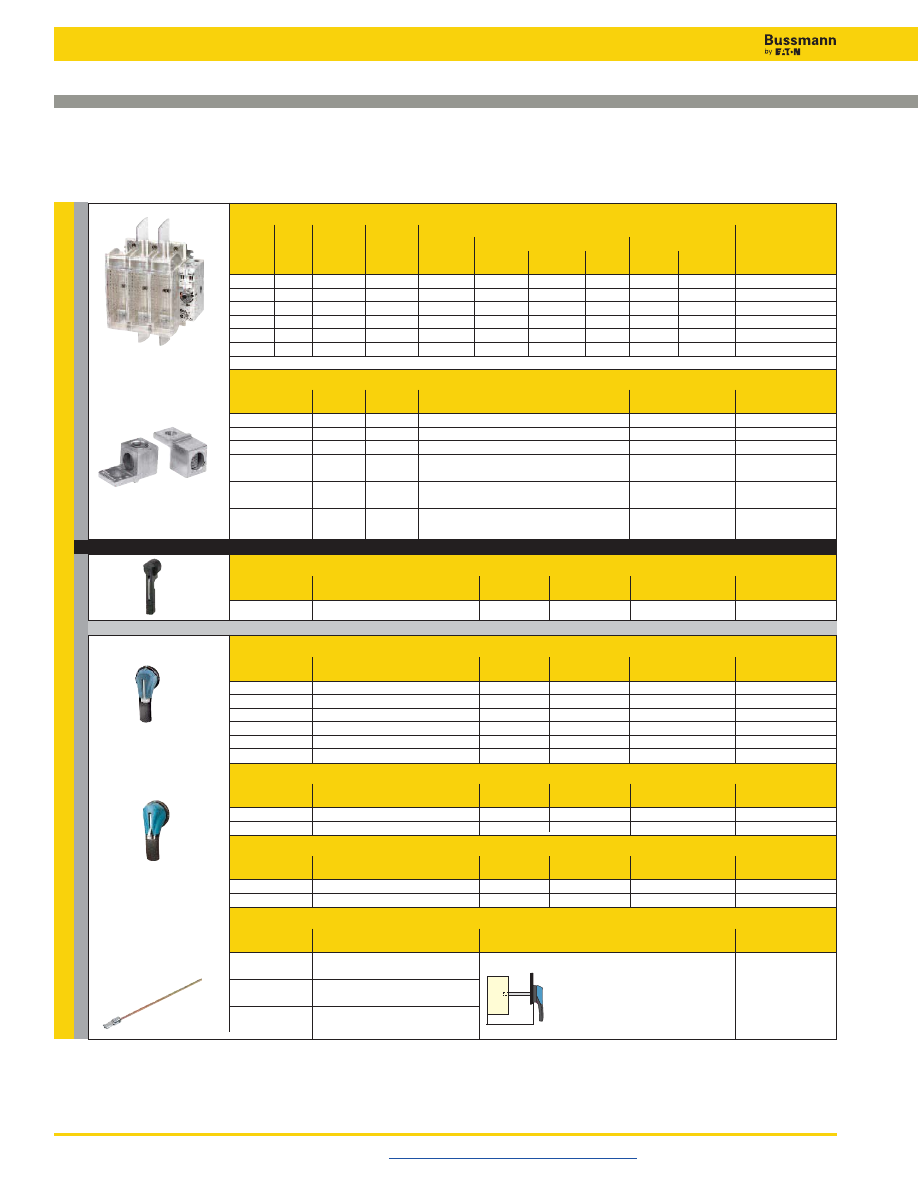

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—200 & 400A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
398
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
1-Phase
3-Phase
DC*
Amp
Fuse
Number
220/
220/
440/
600
125
250
Part
Rating
Class
of Poles
SCCR
240Vac
240Vac
480Vac
Vac
Vdc
Vdc
Number
200
J
2
200kA
10
-
-
-
-
-
RDF200J-2
200
J
3
200kA
-
60
125
150
-
-
RDF200J-3
200
J
4
200kA
-
60
125
150
-
-
RDF200J-4
400
J
2
200kA
10
-
-
-
20
50
RDF400J-2
400
J
3
200kA
-
125
250
350
20
50
RDF400J-3
400
J
4
200kA
-
125
250
350
20
50
RDF400J-4
* DC Ratings use two poles in series.
Terminal Lug Kit
Switch
Number
Lugs
Part
Amp Rating
of Poles
Per Kit
Wire Range
Wire Type
Number
200
2
2
#6-300MCM
75°C Cu/Al
LUG1-2
200
3
3
#6-300MCM
75°C Cu/Al
LUG1-3
200
4
4
#6-300MCM
75°C Cu/Al
LUG1-4
400
2
2
#4-600MCM or
75°C Cu/Al
LUG2-2
Dual 1/0-250MCM
400
3
3
#4-600MCM or
75°C Cu/Al
LUG2-3
Dual 1/0-250MCM
400
4
4
#4-600MCM or
75°C Cu/Al
LUG2-4
Dual 1/0-250MCM
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y
DIR-07
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-03B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-03R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06R
1, 3R, 4, 4X, 12
Black
Y
Y
Y
H4X-06TB
1, 3R, 4, 4X, 12
Red/Yellow
Y
Y
Y
H4X-06TR
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06RHD
External Right Side Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
N/A
H4X-06SB
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
N/A
H4X-06SR
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
200A: 5.70-9.06 (145-230)
SH5-200
400A: 7.87-10.24 (200-260)
12.6 (320)
200A: 5.70-13.78 (145-350)
SH5-320
400A: 7.87-16.93 (200-380)
15.7 (400)
200A: 5.70-16.93 (145-430)
SH5-400
400A: 7.87-18.10 (200-460)
+
+
X
or
S
WITCH
+ L
UGS
H
ANDLE
or
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

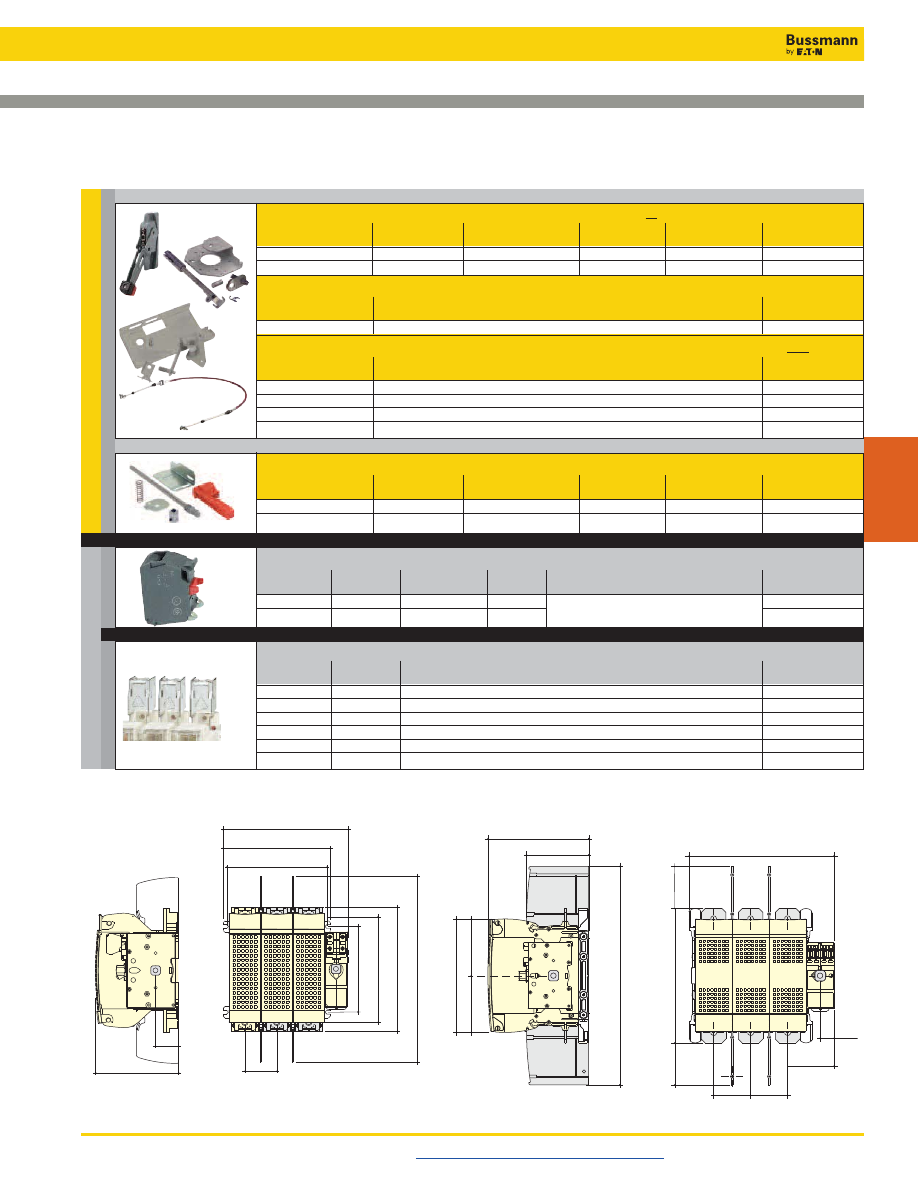

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—200 & 400A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
399
Disconnect
Switches
Select for Standard
Applications
Flange Handle
(1)
200A Only
- requires shaft operated mechanism
or
cable operated mechanism + cable
NEMA
Flange
Test
Part
Type
Style
Function
Padlockable
Defeatable
Number
1, 3R, 4, 12
Standard
N
Y
Y
FLH1
1, 3R, 4, 4X, 12
Chrome Plated
N
Y
Y
FLH2
Shaft Operated Flange Mechanism
(2)
200A Only
- includes shaft
For Enclosure Depth
Part
in (mm)
Number
6~24 (152~613)
FLRM
Cable Operated Flange Mechanism and Cable
200A Only
- must select Mechanism
(3)
and
Cable
(4)
Part
Item
Number
Cable Mechanism
FLCM
36” (900mm) Cable
FLC36
60” (1500mm) Cable
FLC60
120” (3000mm) Cable
FLC120
(1)
(2)
(3)
(4)
NFPA Through the Door Handle Kit
- to be used with front pistol handle
Use with
Test
Part
Switch
Color
Function
Padlockable
Defeatable
Number
RDF200J-_
Red
N
Y
N
H79-2
RDF400J-_
Red
N
Y
N
H79-3
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch Part Number
Number
NO
1
10A
600Vac
RDF200J-__: 4
BAC05
NC
1
10A
600Vac
RDF400J-__: 8
BAC06
Terminal Shrouds
- includes terminal shroud for lineside or loadside
Switch Amp
Number
Part
Rating
of Poles
Number
200
2
TSH8-2TB
200
3
TSH8-3TB
200
4
TSH8-4TB
400
2
TSH9-2TB
400
3
TSH9-3TB
400
4
TSH9-4TB
7.72
196.2
6.61
168
6.18
157
1.41
36
5.11
130
1.96
50
5.28
134.2
6.50
165.2
7.67
195
1
1.46
291.3
7.08
180
4.37
111.1
10.19
(3P)
-
12.79
(4P)
259
(3P)
-
325
(4P)
2.59
66
2.59
66
3.26
83
0.98
24.9
2.95
75
2.95
75
9.44
240
15.35
390
7.97
202.5
3.98
101.25
3.98
101.25
Dimensions – in (mm)
• RDF200J-3
• RDF400J-3
Accessories
A
UX
C
ONT
ACTS
S
HROUDS
H
ANDLE
or
or
and …
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

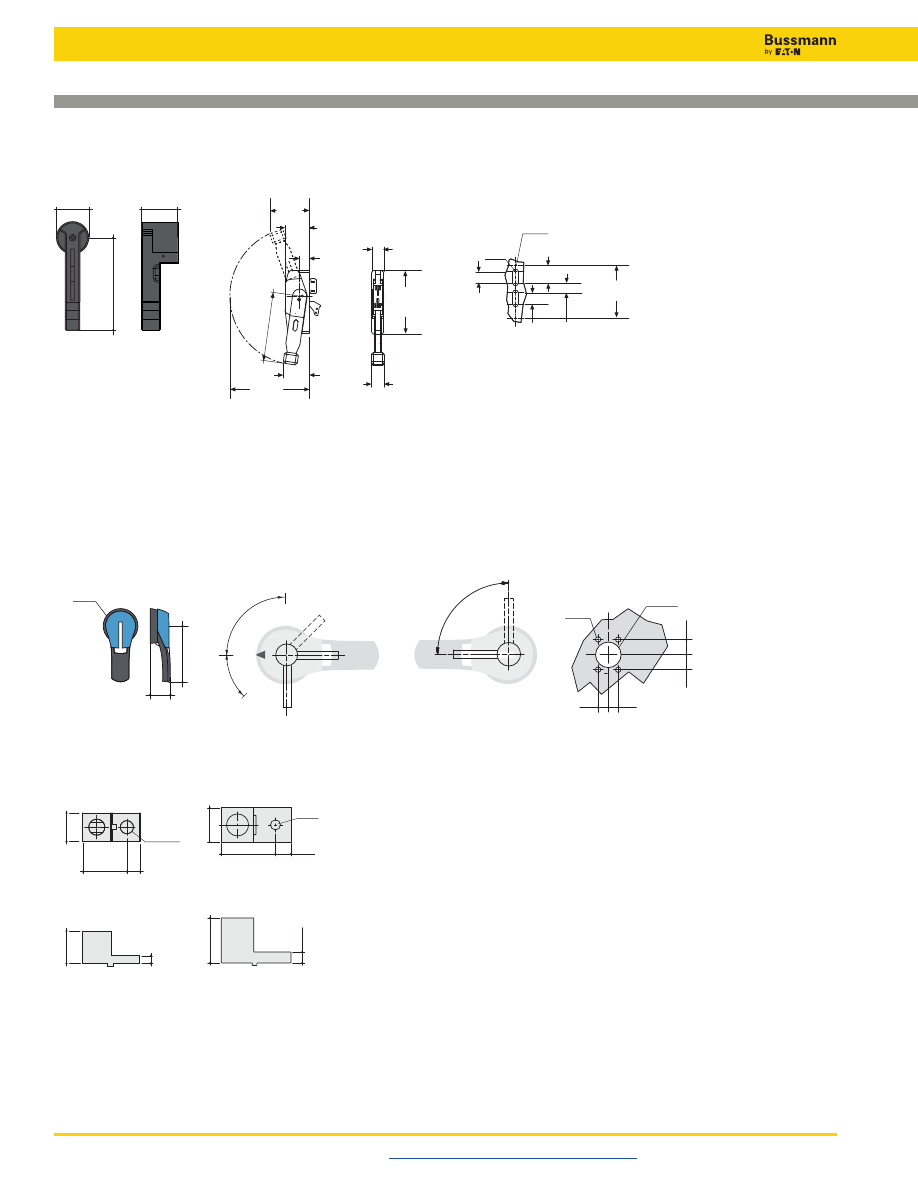

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—200 & 400A
Standard Class J
Visit us on the web at
www.cooperbussmann.com/Disconnects
400
External Front & Right Side Pistol Handle
H4X-06__
H12-03__
0
I
90
°
65°
TEST
90°
0
Ø78
1.77
4.92
Direction of Front Operation
Handle Type
Direction of Right Side Operation
Door Drilling Layout
Ø3.07
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
45
125
I
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
DIR-07
Terminal Lugs
200A
LUG1-__
400A
LUG2-__
1.52
38.8
1
25
1.12
28.6
0.45
Ø11.6
0.46
11.68
0.25
6.35
2.8
71.5
Ø 0.4
Ø 4.7
1.3
35
1.8
46
0.44
11
.1
3
0.63
15.88
3.50
(88.9)
2.16
(54.9)
0.86
(21.8)
1.06
(26.9)
4.68
(118.9)
1.55
(39.4)
0.88
(22.3)
1.00
(25.4)
1.00
(25.4)
6.22
(158.0)
2.32
(58.9)
7.10
(180.3)
Ø0.50
(Ø12.7)
Ø0.28
(Ø7.1)
2.70
(68.6)
5.66
(143.8)
Flange Handle
FLH_
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
401
Disconnect
Switches
Open & Enclosed Rotary Disconnect Switches
In-Stock and Ship Within 24 Hours
The Bussmann
QuikShip Everyday Service
ensures the most common open and
enclosed rotary disconnect switches
ship
within 24 hours
to help you meet project
timelines.
Contact your Bussmann representative for
details.
www.cooperbussmann.com/Disconnects
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

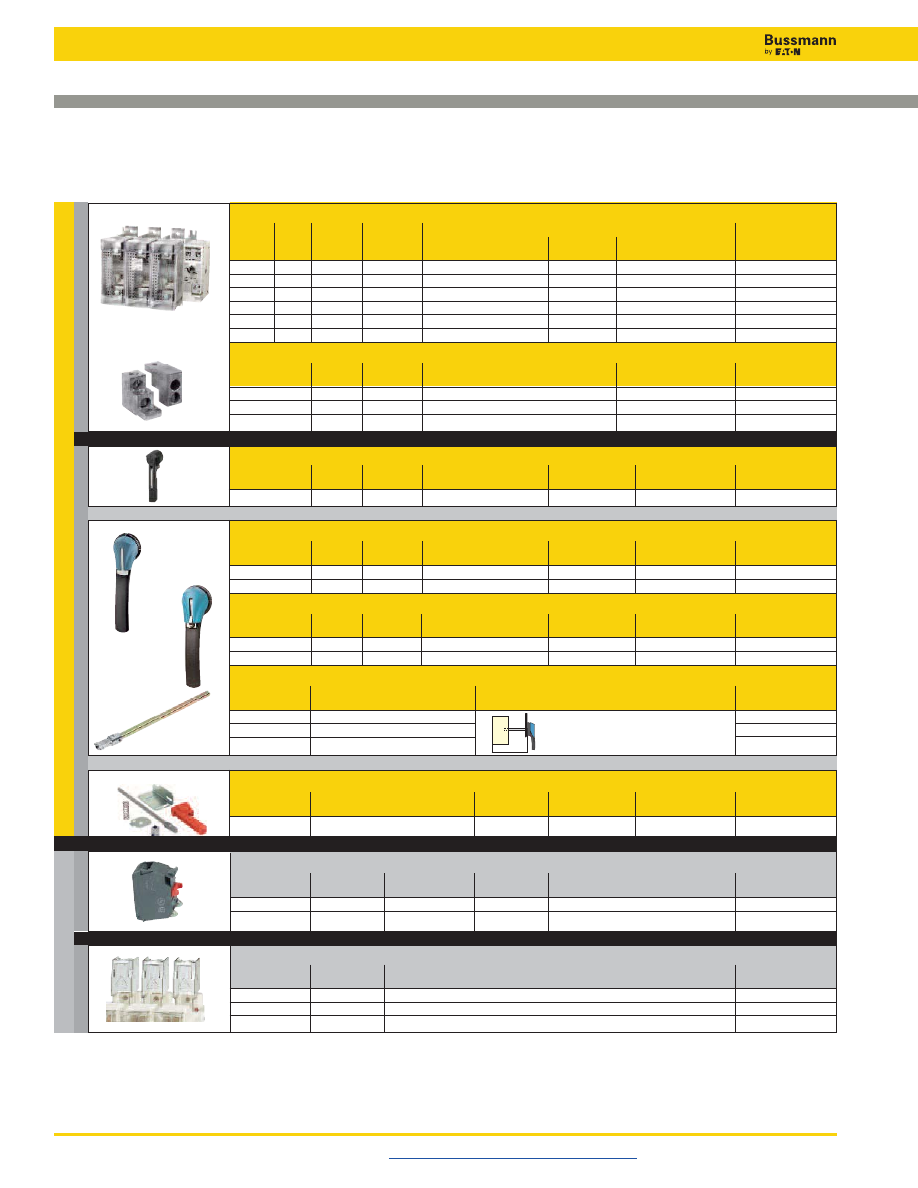

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—600 & 800A
Standard Class J & Class L
Visit us on the web at
www.cooperbussmann.com/Disconnects
402
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating, 3-Phase
Amp
Fuse
Number
220/
440/
Part
Rating
Class of Poles
SCCR
240Vac
480Vac
600Vac
Number
600
J
2
200kA
-
-
-
RDF600J-2
600
J
3
200kA
200
400
500
RDF600J-3
600
J
4
200kA
200
400
500
RDF600J-4
800
L
2
200kA
-
-
-
RDF800L-2
800
L
3
200kA
200
500
500
RDF800L-3
800
L
4
200kA
200
500
500
RDF800L-4
Terminal Lug Kit
Switch
Number
Lugs
Part
Amp Rating
of Poles
Per Kit
Wire Range
Wire Type
Number
600-800
2
2
(2) #2-600MCM
75°C Cu/Al
LUG5-2
600-800
3
3
(2) #2-600MCM
75°C Cu/Al
LUG5-3
600-800
4
4
(2) #2-600MCM
75°C Cu/Al
LUG5-4
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
Y
Y
DIR-08
+
or
+
NFPA Through the Door Handle Kit
- to be used with front pistol handle
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Defeatable
Number
All Switches
Red
N
Y
N
H79-4
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
8
BAC05
NC
1
10A
600Vac
8
BAC06
Terminal Shrouds
- includes terminal shroud for lineside or loadside
Switch Amp
Number
Part
Rating
of Poles
Number
600-800
2
TSH10-2TB
600-800
3
TSH10-3TB
600-800
4
TSH10-4TB
Accessories
A
UX
C
ONT
ACTS
S
HROUDS
S
WITCH
+ L
UGS
H
ANDLE
or
or
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-07B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-07R
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-07BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-07RHD
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
10.63~11.97 (270~304)
SH7-200
12.6 (320)
10.63~16.69 (270~424)
SH7-320
15.7 (400)
10.63~19.84 (270~504)
SH7-400
X
+
and …
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

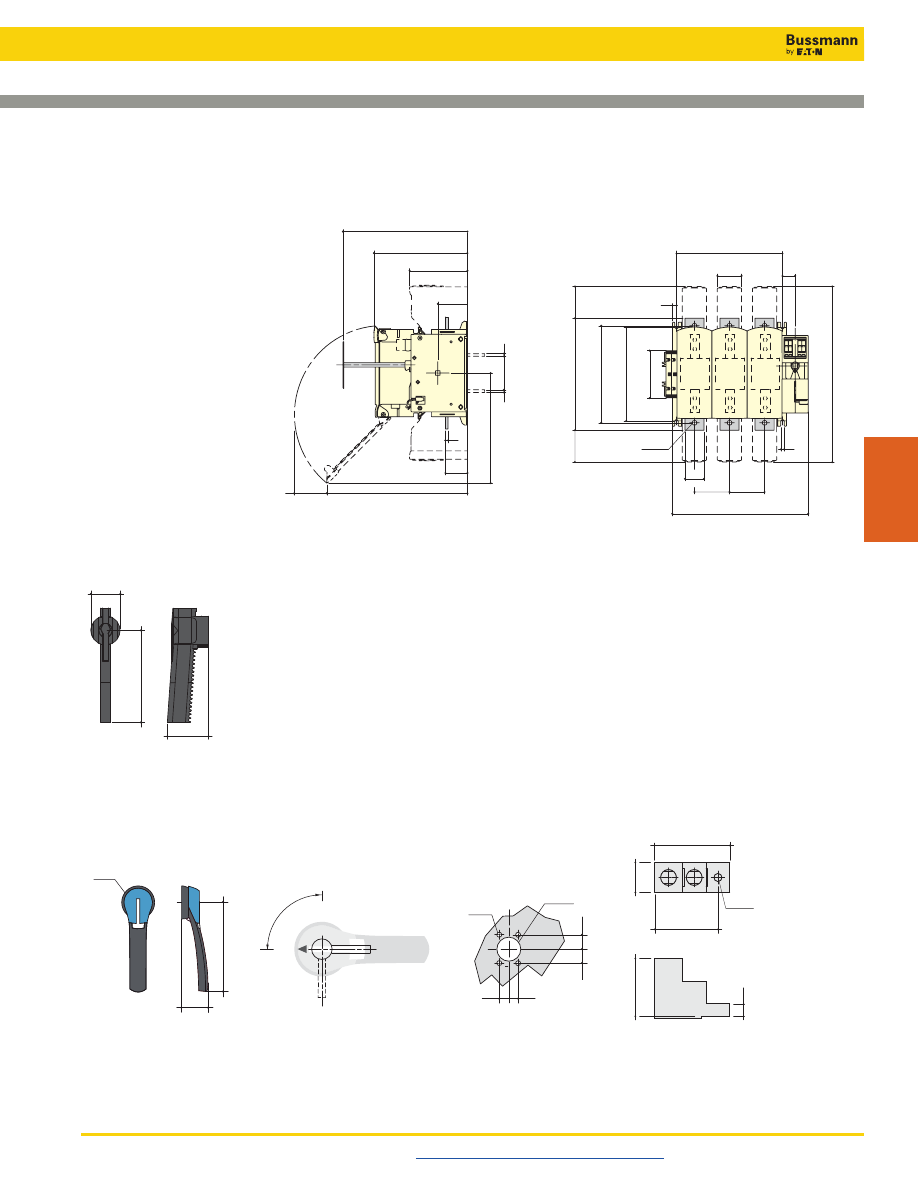

Disconnect Switches
UL 98 Fused Rotary Disconnect Switches—600 & 800A
Standard Class J & Class L
Visit us on the web at
www.cooperbussmann.com/Disconnects
403
Disconnect
Switches
9.84
250
6.10
155
3.12
79.5
0.27
7
2.32
59
14.96
380
Fuse Cover Fully Open
min 10.43
min 265
Ø 0.51
Ø13
0.43
11
11.18 (3P) - 14.88 (4P)
284 (3P) - 378 (4P)
65
34
2.56
1.34
2
51
0.35
9
3.7
3.7
94
14.33 (3P) - 18.03 (4P)
364 (3P) - 458 (4P)
94
fix 9.84 fix 250
5
126.5
11
.8
1
18.54 471
260
10.23
300
3.36 85.5
3.36 85.5
7
0.27
0.27
7
11.81 300
90
3.54
18.58
472
Dimensions – in (mm)
• RDF600J-3
• RDF800L-3
External Front Pistol Handle
H4X-07__
61
210
90°
I
0
Direction of Front Operation
Handle Type
Door Drilling Layout
Ø3.07
Ø78
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
60
2.36
85
3.35
190
7.48
Direct Mount Handle
DIR-08
Terminal Lugs
600 to 800A
LUG5-__
3.15
80
1.49 38
2.87 73
0.40
Ø10.2
3.76
95.5
0.64 16.2
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
404

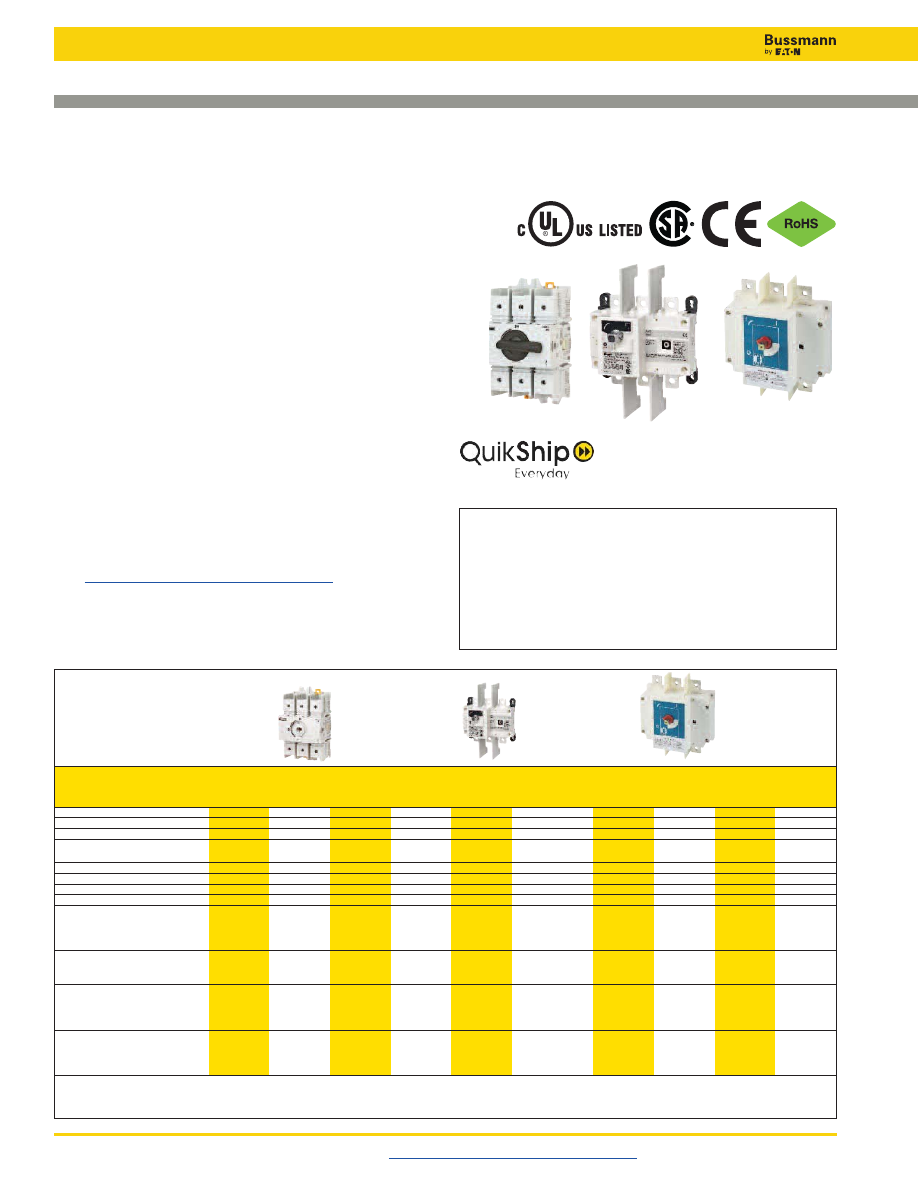

UL 98 Non-Fused Rotary Disconnect Switches—30 to 1200A
QuikShip Everyday Service ships the
most common part numbers within
24 hours. Contact your Bussmann
representative for details.
Description
Bussmann UL 98 non-fused rotary disconnect switches are
versatile switches that “break” and “make” power circuits ON
and OFF load.
Features
• Make and break power under load
• Up to 200kA SCCR
• DIN-Rail or panel mount (30-100A)
• Disconnect switches are front, right side and direct
handle operable (30-100A)
• Finger-safe (30-100A)
• Fully visualized breaking (100-1200A)
Agency Information
• UL98, Guide WHTY, File E155130
• CSA 22.2 No. 4, File 257020
• Conforms with IEC 60947-3
Online Resources
Visit
www.cooperbussmann.com/Disconnects
for:
• CAD Drawings
• Instruction Sheets
• UL Information
Related Cooper Bussmann Products
Fuse Blocks
Data Sheet #
Modular Knifeblade Fuse Blocks 100-600A
3192
Fuses Holders
CH Series Class CC, Midget & 10x38 0-30A 3185
Finger-Safe Optima Series 0-30A
1102
Optima™ Protection Modules 0-30A
1109
CH Series Class J 0-60A
2144
Part Number
3-Pole
RD30-3
RD60-3
RD100-3
RD100-3-SCCR
RD200-3
RD400-3
RD600-3
RD800-3
RD1000-3
RD1200-3
4-Pole
—
—
—
—
RD200-4
RD400-4
RD600-4
RD800-4
RD1000-4
RD1200-4
Thermal Current I
th
@ 40°C (A)
30
60
100
—
—
—
—
—
—
—
Rated insulation voltage U
i
(V)
800
800
800
—
—
—
1000
1000
1000
1000
Rated impulse withstand voltage U
imp
(kV)
8
8
8
—
—
—
12
12
12
12
Rated Operation Currents Ie (A)
Load Duty Category
Rated Voltage
A
(1)
A
(1)
A
(1)
—
—
—
A
(1)
A
(1)
A
(1)
A
(1)
400Vac
AC-22 A
32
63
100
—
—
—
630
800
1000
1200
400Vac
AC-23 A
32
63
100
—
—
—
630
800
1000
1000
690Vac
AC-22 A
32
63
80
—
—
—
500
630
630
630
690Vac
AC-23 A
32
63
63
—
—
—
200
400
400
400
Operational Power (Vac) in AC-23 (kW)
400V w/o prebreak AC
(1)(2)
15
30
45
—
—
—
355
450
560
560
500V w/o prebreak AC
(1)(2)
15
30
45
—
—
—
450
560
560
560
690V w/o prebreak AC
(1)(2)
18.5
30
45
—
—
—
185
400
400
400
Overload Capacity (U
e
415Vac)
Rated short-time
making capacity Icm(kA peak)
(3)
12
12
12
—
—
—
48
75
48
75
Fuse Protected Short-Circuit Withstand
(kA rms prospective)
Short-Circuit Current (kA)
(3)
50
50
25
—
—
—
100
100
100
100
Associated Fuse Rating (A)
(3)
32
63
100
—
—
—
630
800
1000
1250
Connection
Minimum Cu cable cross section (mm
2
)
2.5
2.5
10
—
—
—
2x150
2x185
2x240
—
Minimum Cu busbar section (mm
2
)
—
—
—
—
—
—
2x30x5
2x40x5
2x50x5
2x60x5
Maximum Cu cable section (mm
2
)
70
70
70
—
—
—
—
—
—
—
(1) A/B: Category with index A = frequent operation; category with index B = infrequent operation.
(2) The power value is given for information only; the current values vary from one manufacturer to another.
(3) For a rated operating voltage, U
e
= 400Vac.
IEC Electrical Specifications
RD30-3
RD200-3
RD600-3
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

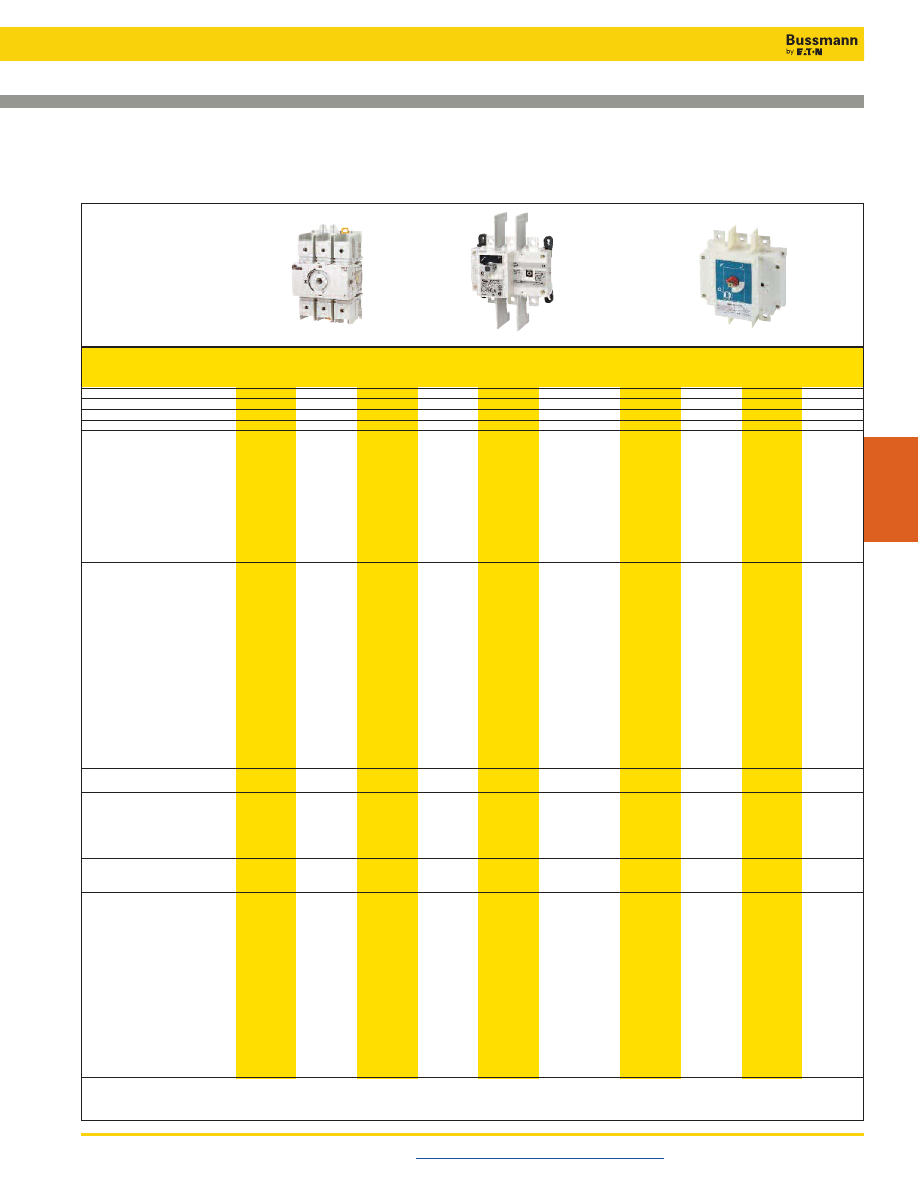

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—30 to 1200A
Visit us on the web at
www.cooperbussmann.com/Disconnects
405
Disconnect
Switches
Part Number
3-Pole
RD30-3
RD60-3
RD100-3
RD100-3-SCCR
RD200-3
RD400-3
RD600-3
RD800-3
RD1000-3
RD1200-3
4-Pole
—
—
—
—
RD200-4
RD400-4
RD600-4
RD800-4
RD1000-4
RD1200-4
UL Standard
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
UL 98
Max Ampacity
30A
60A
100A
100A
200A
400A
600A
800A
1000A
1200A
Switch Type
Compact
Compact
Compact
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Handle Operation
Front/Side
Front/Side
Front/Side
Front
Front
Front
Front
Front
Front
Front
UL Electrical Ratings
Max Voltage (AC)
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
600Vac
Max Voltage (DC)
—
—
—
250Vdc
250Vdc
—
250Vdc
—
—
—
Maximum AC Horsepower Ratings
1-Phase, 120Vac
2
3
5
—
—
—
—
—
—
—
1-Phase, 240Vac
5
10
10
10
10
—
—
—
—
—
3-Phase, 240Vac
10
20
20
30
75
125
200
200
200
200
3-Phase, 480Vac
20
40
50
75
150
250
400
500
500
500
3-Phase, 600Vac
25
50
50
100
200
350
350
500
500
500
DC Horsepower Ratings
125Vdc
—
—
—
—
—
—
20
—
—
—
250Vdc
—
—
—
—
—
—
50
—
—
—
Electrical Characteristics
SCCR with Fuse
100kA
100kA
25kA/100kA*
200kA
200kA
200kA
200kA
100kA
100kA
100kA
Fuse Class
J
J
J
J
J
J
J
L
L
L
Max. Fuse Rating
30A
60A
100A
100A
200A
400A
600A
800A
1000A
1200A
Terminal Lugs/Kits
Integral
Integral
Integral
•
•
•
•
•
•
•
Lug Mounting Torque - Lb-In (N•m)
-
-
-
160 (18)
160 (18)
LUG2-_ 310 (35)
310 (35)
310 (35)
310 (35)
310 (35)
LUG3-_ 398 (45)
Wire Type
75°C Cu
75°C Cu
75°C Cu
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
75°C Cu/Al
Wire Range & Torque - Lb-In (N•m)
Solid
#12-10
#12-10
#12-10
—
—
—
—
—
—
—
35.4 (4)
35.4 (4)
35.4 (4)
—
—
—
—
—
—
—
Stranded
#10-1
#10-1
#10-1
#6-300MCM
#6-300MCM
LUG2-_ #4-600MCM
(2) #2-600MCM
(4) #2-600MCM (4) #2-600MCM
(4) #2-600MCM
35.4 (4)
35.4 (4)
35.4 (4)
275 (31)
275 (31)
550 (62)
375 (42.4)
375 (42.4)
375 (42.4)
375 (42.4)
1/0
1/0
1/0
Dual 1/0-250MCM
39.8 (4.5)
39.8 (4.5)
39.8 (4.5)
550 (62)
2/0
2/0
2/0
LUG3-_:(2) #6-2
44.3 (5)
44.3 (5)
44.3 (5)
200 (22.6)
(2) #1-350MCM
375 (42.4)
Mechanical Characteristics
Endurances/Cycles
10,000
10,000
10,000
10,000
8000
6000
6000
3500
3500
3500
Physical Characteristics
Dimensions
See drawings on product pages
Weight - Lbs (KG)
3-Pole
1.3 (0.6)
1.3 (0.6)
1.3 (0.6)
4.2 (1.91)
4.2 (1.91)
10.0 (4.6)
18.1 (8.2)
19.6 (8.9)
19.6 (8.9)
19.6 (8.9)
4-Pole
—
—
—
—
5.0 (2.3)
12.3 (5.6)
23.9 (10.9)
25.3 (11.5)
25.3 (11.5)
25.3 (11.5)
Environmental
Operating Temperature
-20°C to 70°C
-20°C to 70°C -20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
Flammability Rating
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
Accessories
Lug Kit Part #
3-Pole
Integral
Integral
Integral
•
•
•
•
•
•
•
4-Pole
—
—
—
—
•
•
•
•
•
•
Handles
NEMA 1, 3R, 12
•
•
•
•
•
•
—
—
—
—
NEMA 1, 3R, 4, 4X, 12
•
•
•
•
•
•
•
•
•
•
Direct
•
•
•
•
•
•
•
•
•
•
Front Pistol
—
—
—
•
•
•
•
•
•
•
Front or Side Selector
•
•
•
—
—
—
—
—
—
—
Shaft c/s - mm
5x5
5x5
5x5
10x10
10x10
10x10
12x12
12x12
12x12
12x12
Shaft Guide
•
•
•
•
•
•
•
•
••
•
Shrouds
•
•
•
•
•
•
•
•
•
•
Additional Pole Accessory
•
•
•
—
—
—
—
—
—
—
Auxiliary Contacts
NO + NC
•
•
•
•
•
•
•
•
•
•
(2) NO
•
•
•
—
—
—
—
—
—
—
• Available, see product page for details and part numbers.
— Not available.
* 25kA @ 600Vac, 100kA @ 480Vac.
Specifications
RD30-3
RD200-3
RD600-3
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

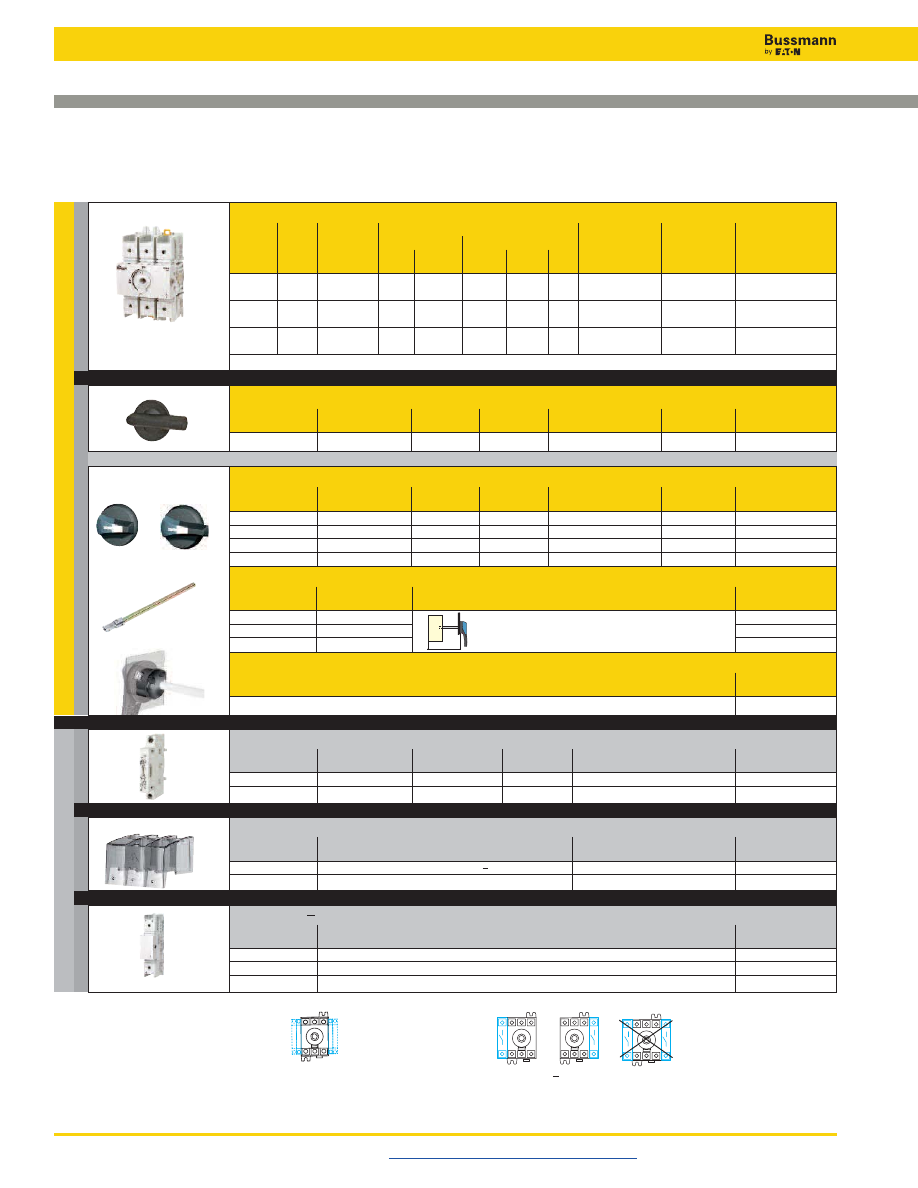

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—30, 60 and Compact 100A
Visit us on the web at
www.cooperbussmann.com/Disconnects
406
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
Switch
1-Phase
3-Phase
Amp
No. of
120
220/
220/
440/
600
Wire
Wire
Part
Rating
Poles
SCCR
Vac
240Vac
240Vac 480Vac Vac
Size
Type
Number
30
3
100kA
2
5
10
20
25
#10-2/0 Str
75°C Cu
RD30-3
#12-10 Sol
60
3
100kA
3
10
20
40
50
#10-2/0 Str
75°C Cu
RD60-3
#12-10 Sol
100
3
25/100kA*
5
10
20
50
50
#10-2/0 Str
75°C Cu
RD100-3
#12-10 Sol
* 100kA @480Vac, 25kA @ 600Vac.
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
N
Y - On Switch
DIR-02
External Front or Right Side Operated Selector Handles -
shaft required
NEMA
Handle
Test
Part
Type
Color
Length
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
Short
N
Y
Y
H4X-01B
(1)
1, 3R, 4, 4X, 12
Red/Yellow
Short
N
Y
Y
H4X-01R
(1)
1, 3R, 4, 4X, 12
Black
Long
N
Y
Y
H4X-02B
(2)
1, 3R, 4, 4X, 12
Red/Yellow
Long
N
Y
Y
H4X-02R
(2)
Shafts for Selector Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
5.9 (150)
3.50~7.60 (89~193)
SH4-150
7.9 (200)
3.50~9.50 (89~241)
SH4-200
12.6 (320)
3.50~14.9 (89~378)
SH4-320
Shaft Guide
Part
Number
Required for 12.6” (320mm) long shafts, optional for other lengths
SH-GUIDE1
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO + NC
1 of each
10A
240Vac
4
BAC01
NO
2
10A
240Vac
4
BAC02
+
+
Terminal Shrouds
- includes terminal shroud for both lineside and loadside
Switch Amp
Number
Location on
Part
Rating
of Poles
Switch
Number
All Switches
1 (for switched 4
th
pole)
Lineside and Loadside
TSH3-1TB
All Switches
3
Lineside and Loadside
TSH3-3TB
Switched 4
th
Pole
- converts 3-pole switch to 4-pole
Switch Amp
Part
Rating
Number
30
POLE98-30
60
POLE98-60
100
POLE98-100
Auxiliary Contact Configurations
Possible 4
th
Pole Configurations
X
Accessories
A
UX
C
ONT
ACTS
S
HROUDS
S
W
. 4
TH
P
OLE
S
WITCH
H
ANDLES
or
+
and …
and …
and …
(2)
(1)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—30, 60 and Compact 100A
Visit us on the web at
www.cooperbussmann.com/Disconnects
407
Disconnect
Switches
Dimensions - in (mm)
Direct Handle Operation
75
64
53
0.24
6
124.6
131.4
189
26
78
8.8
8.8
26
26
26
M5
2.95
2.52
2.09
4.91
0.35
0.35
1.02
1.02
1.02
5.17
7.44
1.02
3.07
2
1
2
1
36
100 min./372 max.
81
64
2.08
0.26
50.6
1.42
3.94 min./14.65 max.
3.19
2.52
1.99
53
6
2.79
71
13
124.6
131.4
189
26
78
36
8.8
8.8
26
26
26
M5
30 min./201 max.
3.07
1.02
0.51
1.18 min./7.91 max.
1.42
4.90
0.34
0.34
1.02
1.02
1.02
5.17
7.44
2.79
71
2
1
2
1
External Front Operation
External Right Side Operation
13.5
Ø 22.5
3
40
4 Ø 7
Ø 31
28
With Mounting Nut
With 4 Mounting Screws
H4X-01_
Door Drilling Layouts
Handle Type
0
I
90
°
Direction of Front Operation
0
I
90
°
Direction of Right Side Operation
1.57
4 Ø 0.27
1.10
Ø 1.22
0.11
0.53
Ø 0.88
Ø3.07
1.42
2.79
Ø78
36
71
Ø78
37
88
Ø3.07
1.45
3.46
H4X-02_
1. Position for 1 switched 4
th
pole (1 per device max.) or 1 auxiliary contact.
2. Position for 1 auxiliary contact only.
Note: Maximum of 4 auxiliary contacts, or 3 auxiliary contacts + one switched 4
th
pole.
External Front or Right Side Operated Selector Handle
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

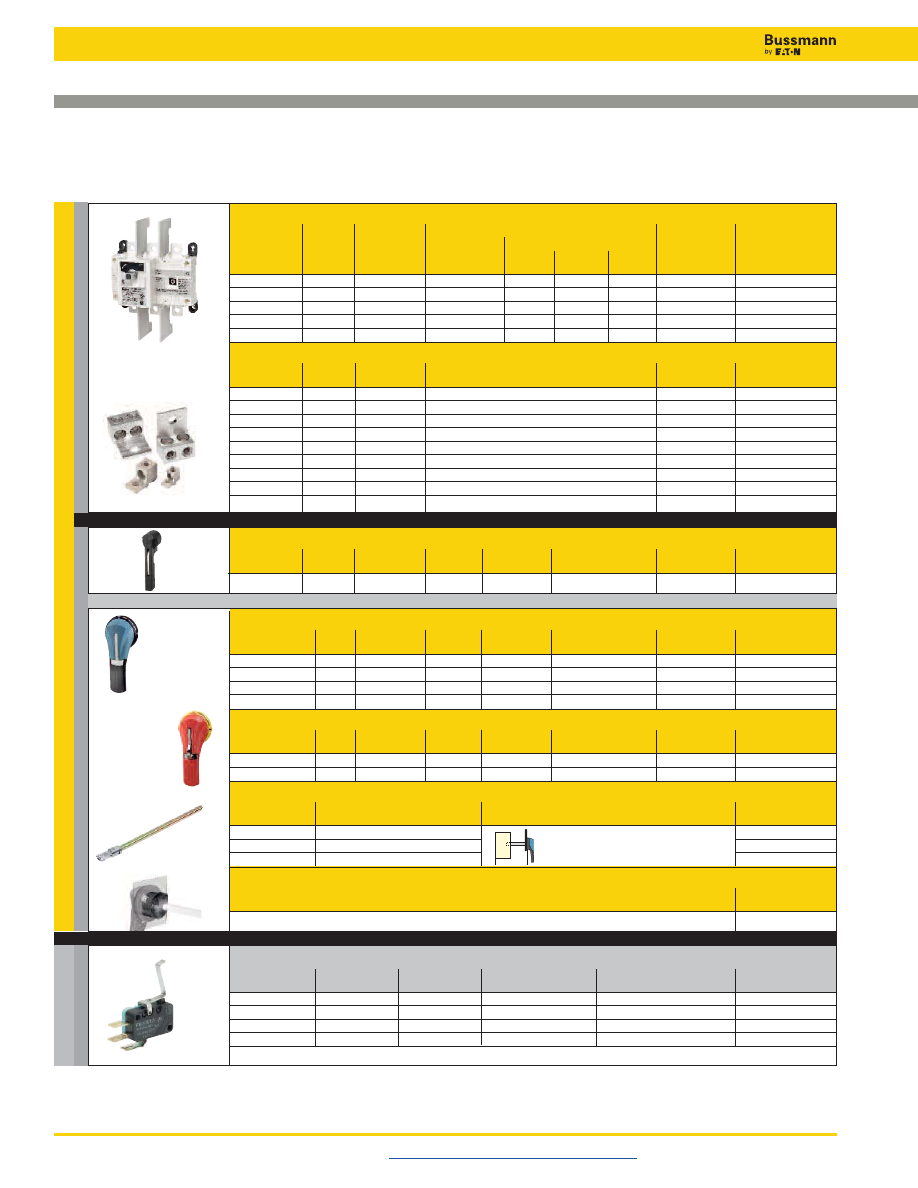

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—100, 200 and 400A
Visit us on the web at
www.cooperbussmann.com/Disconnects
408
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
Switch
1-Phase
3-Phase
Amp
No. of
220/
220/
440/
600
Part
Rating
Poles
SCCR
240Vac
240Vac
480Vac
Vac
Number
100
3
200kA
10
30
75
100
RD100-3-SCCR
200
3
200kA
10
75
150
200
RD200-3
200
4
200kA
10
75
150
200
RD200-4
400
3
200kA
-
125
250
350
RD400-3
400
4
200kA
-
125
250
350
RD400-4
Terminal Lug Kit
Switch
No. of
Lugs
Part
Amp Rating
Poles
Per Kit
Wire Range
Wire Type
Number
100-200
2
2
#6-300MCM
75°C Cu/Al
LUG1-2
100-200
3
3
#6-300MCM
75°C Cu/Al
LUG1-3
100-200
4
4
#6-300MCM
75°C Cu/Al
LUG1-4
400
2
2
#4-600MCM or Dual 1/0-250MCM
75°C Cu/Al
LUG2-2
400
3
3
#4-600MCM or Dual 1/0-250MCM
75°C Cu/Al
LUG2-3
400
4
4
#4-600MCM or Dual 1/0-250MCM
75°C Cu/Al
LUG2-4
400
2
2
(2) #6-350MCM
75°C Cu/Al
LUG3-2
400
3
3
(2) #6-350MCM
75°C Cu/Al
LUG3-3
400
4
4
(2) #6-350MCM
75°C Cu/Al
LUG3-4
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
N
Y
DIR-03
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 12
Black
N
Y
Y
H12-03B
1, 3R, 12
Red/Yellow
N
Y
Y
H12-03R
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06B
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06R
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-06BHD
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-06RHD
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
5.31~10.43 (135~265)
SH5-200
12.6 (320)
5.31~15.16 (135~385)
SH5-320
15.7 (400)
5.31~18.31 (135~465)
SH5-400
Shaft Guide
Part
Number
Required for 15.7” (400mm) long shafts, optional for other lengths
SH-GUIDE2
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO + NC
1 of each
10.1A
125-250Vac
2
BAC03*
NO + NC
1 of each
10.1A
125-250Vac
2
BAC04*
NO + NC
1 of each
1A
125Vac
2
BAC11*
NO + NC
1 of each
1A
125Vac
2
BAC12*
* For one auxiliary contact, install either BAC03 or BAC11. For two auxiliary contacts, install BAC03 + BAC04, or BAC11 + BAC12.
+
+
+
X
Accessories
and …
A
UX
C
ONT
ACTS
S
WITCH
+ L
UGS
H
ANDLE
or
or
+
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

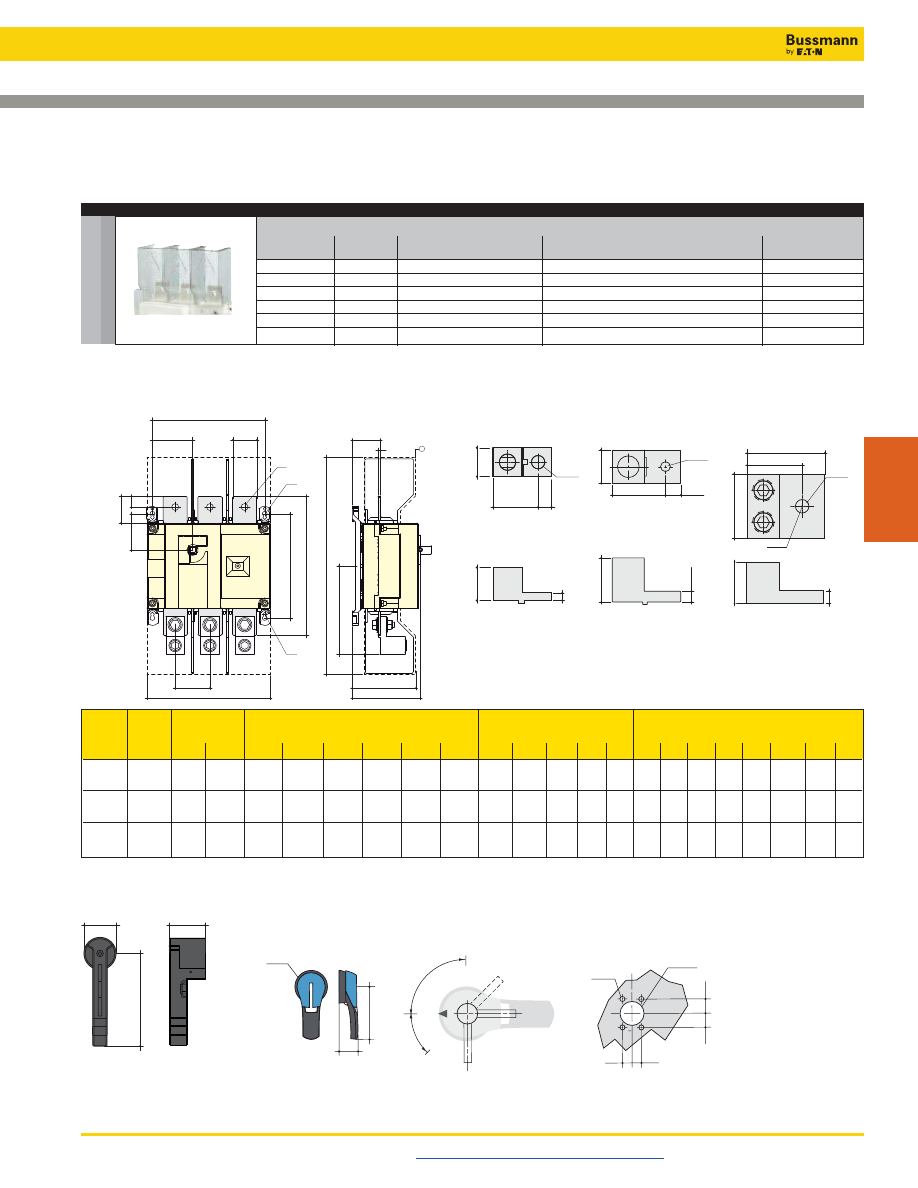

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—100, 200 and 400A
Visit us on the web at
www.cooperbussmann.com/Disconnects
409
Disconnect
Switches
Accessories
Terminal Shrouds
- includes terminal shroud for lineside or loadside
Switch Amp
Number
Location on
Part
Rating
of Poles
Switch
Number
100-200A
3
Lineside
TSH4-3T
100-200A
3
Loadside
TSH4-3B
100-200A
4
Lineside or Loadside
TSH4-4TB
400A
3
Lineside
TSH5-3T
400A
3
Loadside
TSH5-3B
400A
4
Lineside or Loadside
TSH5-4TB
Y
AC
KC
A
V
N
AA
H
Z
J1
U
R1
M
AD
T
F
C
1
R2
W
Switch Overall Terminal
Switch
Switch
Rating Dimen. Shrouds
Body
Mounting
Connection
(A)
C
AC
AD
F 3p.
F 4p.
H
J1 3p. J1 4p. K
M 3p. M 4p. N
R1
R2
T
U
V
W
Y
Z
AA
AC
100
3.72
10.1
3.05
7.09
9.06
4.22
2.17
4.13
1.8
6.3
8.27
5.31
0.35 0.27 1.97 0.98 1.18 0.43 0.14 1.35 6.3
0.6
(94.6)
(256)
(77.5) (180)
(230)
(107)
(55)
(105)
(45.6) (160) (210) (135) (9)
(7)
(50) (25)
(30) (11)
(3.5) (34.4) (160) (15)
200
3.72
10.1
3.05
7.09
9.06
4.22
2.17
4.13
1.8
6.3
8.27
5.31
0.35 0.27 1.97 0.98 1.18 0.43 0.14 1.35 6.3
0.6
(94.6)
(256)
(77.5) (180)
(230)
(107)
(55)
(105)
(45.6) (160) (210) (135) (9)
(7)
(50) (25)
(30) (11)
(3.5) (34.4) (160) (15)
400
4.92
16
4.15
9.05
11.4
6.53
2.95
5.31
2.65
8.26
10.6
7.67
0.35 0.27 2.56 1.77 1.97 0.43 0.2
2.08 10.2 0.8
(128)
(406)
(115)
(230)
(290)
(166)
(75)
(135)
(67.5) (210) (270) (195) (9)
(7)
(65) (45)
(50) (13)
(5)
(53)
(260) (20)
Dimensions - in (mm)
1.57
40
5.31
135
1.79
45.5
Direct Mount Handle
H4X-06__
H12-03__
65°
TEST
90
°
0
Ø78
1.77
4.92
Direction of Front Operation
Handle Type
Door Drilling Layout
Ø3.07
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
45
125
I
External Front Handle
Terminal Lugs
400A
LUG2-__
100 to 200A
LUG1-__
400A
LUG3-__
1.52
38.8
1
25
1.12
28.6
0.45
Ø11.6
0.46
11.68
0.25
6.35
2.8
71.5
Ø 0.4
Ø 4.7
1.3
35
1.8
46
0.44
11
.1
3
0.63
15.88
0.88
73.15
2.31
58.67
0.53
13.46
1.19
30.23
1.94 49.30
0.25
6.35
1.25
31.75
DIR-03
and …
S
HROUDS
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

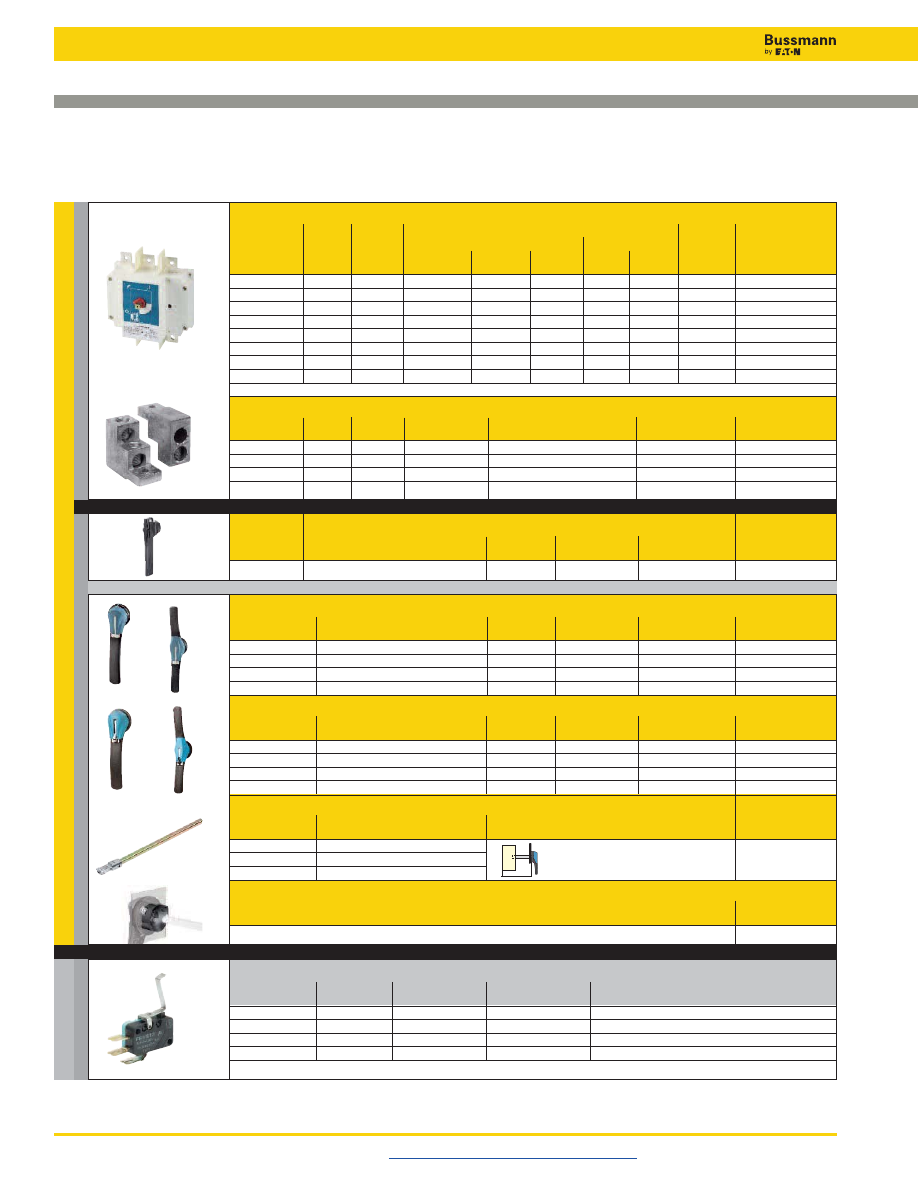

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—600, 800, 1000 and 1200A
Visit us on the web at
www.cooperbussmann.com/Disconnects
410
For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Max Horsepower Rating
Switch
3-Phase
DC*
Amp
No. of
220/
440/
600
125
250
Part
Rating
Poles
SCCR
240Vac
480Vac
Vac
Vdc
Vdc
Number
600A
3
200kA
240
400
350
20
50
RD600-3
600A
4
200kA
240
400
350
20
50
RD600-4
800A
3
100kA
200
500
500
-
-
RD800-3
800A
4
100kA
200
500
500
-
-
RD800-4
1000A
3
100kA
200
500
500
-
-
RD1000-3
1000A
4
100kA
200
500
500
-
-
RD1000-4
1200A
3
100kA
200
500
500
-
-
RD1200-3
1200A
4
100kA
200
500
500
-
-
RD1200-4
* DC Ratings use two poles in series.
Terminal Lug Kit
Switch
No. of
Lugs
Lugs Required
Wire
Part
Amp Rating
Poles
Per Kit
per Pole
Range
Wire Type
Number
600
3
3
1
(2) #2-600MCM
75°C Cu/Al
LUG5-3
600
4
4
1
(2) #2-600MCM
75°C Cu/Al
LUG5-4
800-1200
3
6
2
(4) #2-600MCM
75°C Cu/Al
LUG6-6
800-1200
4
8
2
(4) #2-600MCM
75°C Cu/Al
LUG6-8
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
N
Y
DIR-04
External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-07B
(1)
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-07R
(1)
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-08B
(2)
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-08R
(2)
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles -
shaft required
NEMA
Test
Part
Type
Color
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-07BHD
(3)
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-07RHD
(3)
1, 3R, 4, 4X, 12
Black
N
Y
Y
H4X-08BHD
(4)
1, 3R, 4, 4X, 12
Red/Yellow
N
Y
Y
H4X-08RHD
(4)
Shafts for Pistol Handles
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
7.9 (200)
8.70~13.50 (221~343)
SH6-200
12.6 (320)
8.70~18.23 (221~463)
SH6-320
15.7 (400)
8.70~21.38 (221~543)
SH6-400
Shaft Guide
Part
Number
Required for 15.7” (400mm) long shafts, optional for other lengths
SH-GUIDE2
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO + NC
1 of each
10.1A
125-250Vac
2
BAC03*
NO + NC
1 of each
10.1A
125-250Vac
2
BAC04*
NO + NC
1 of each
1A
125Vac
2
BAC11*
NO + NC
1 of each
1A
125Vac
2
BAC12*
* For one auxiliary contact, install either BAC03 or BAC11. For two auxiliary contacts, install BAC03 + BAC04, or BAC11 + BAC12.
+
or
+
+
X
(1)
(2)
(3)
(4)
Accessories
A
UX
C
ONT
ACTS
S
WITCH
+ L
UGS
H
ANDLE
or
+
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

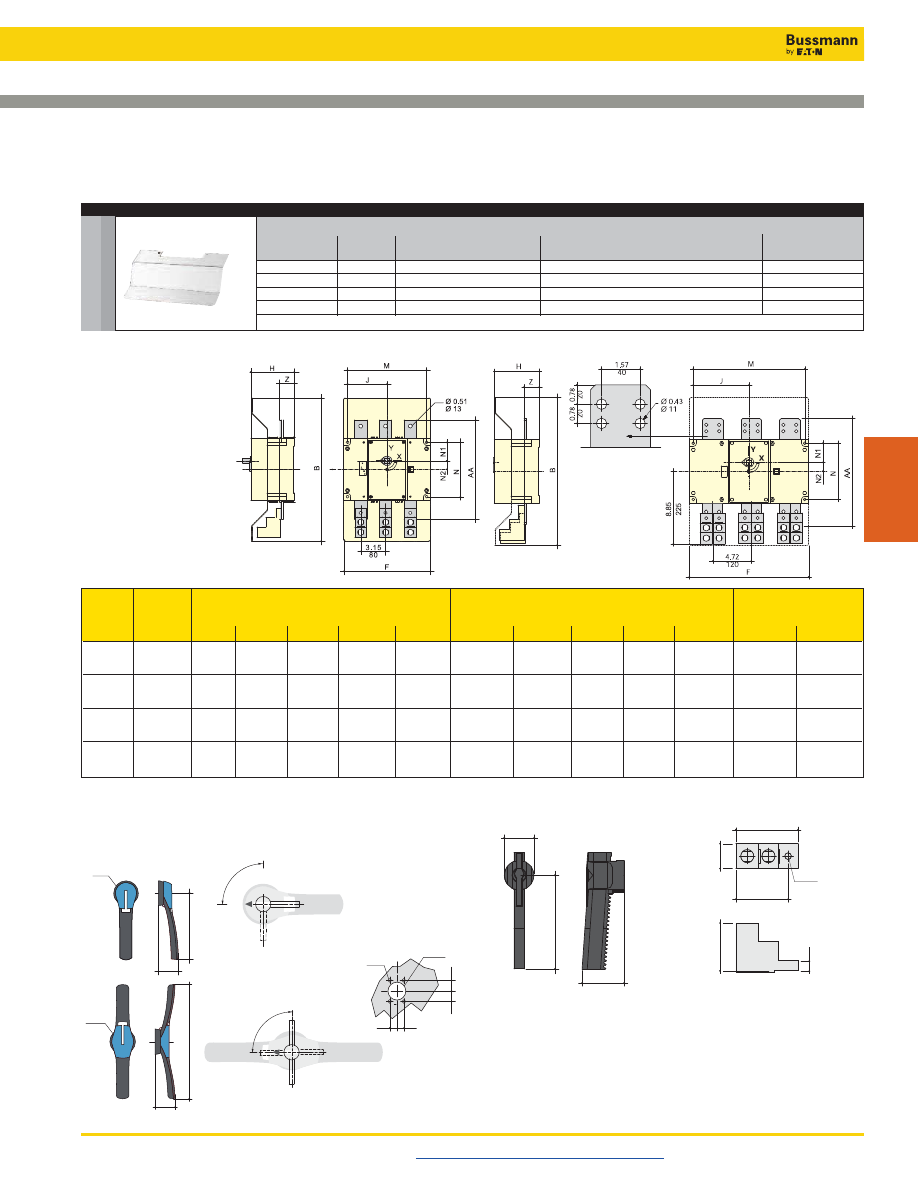

Disconnect Switches
UL 98 Non-Fused Rotary Disconnect Switches—600, 800, 1000 and 1200A
Visit us on the web at
www.cooperbussmann.com/Disconnects
411
Disconnect
Switches
Accessories
Terminal Shrouds*
- includes terminal shroud for lineside or loadside
Switch Amp
Number
Location on
Part
Rating
of Poles
Switch
Number
600A
3
Lineside or Loadside
TSH6-3TB
600A
4
Lineside or Loadside
TSH6-4TB
800-1200A
3
Lineside or Loadside
TSH7-3TB
800-1200A
4
Lineside or Loadside
TSH7-4TB
* Shroud for lineside included with switch.
600A
Switch Terminal
Switch
Switch
Rating Shrouds
Body
Mounting
Connection
(A)
B
F 3p.
F 4p.
H
J 3p.
J 4p.
M 3p.
M 4p.
N
N1
N2
AA
Z
600
18.12
11
14.17
5.5
5
6.59
10.03
13.19
6.88
2.34
1.10
12.6
1.85
(460)
(280)
(360)
(140)
(127.5)
(167.5)
(255)
(335)
(175)
(59.5)
(28)
(320)
(47)
800
18.12
14.64
19.37
5.5
6.83
9.19
13.66
18.38
6.88
2.34
1.10
13
1.85
(460)
(372)
(492)
(140)
(173.5)
(233.5)
(347)
(467)
(175)
(59.5)
(28)
(330)
(47)
1000
18.12
14.64
19.37
5.5
6.83
9.19
13.66
18.38
6.88
2.34
1.10
13
1.85
(460)
(372)
(492)
(140)
(173.5)
(233.5)
(347)
(467)
(175)
(59.5)
(28)
(330)
(47)
1200
18.12
14.64
19.37
5.5
6.83
9.19
13.66
18.38
6.88
2.34
1.10
13
1.85
(460)
(372)
(492)
(140)
(173.5)
(233.5)
(347)
(467)
(175)
(59.5)
(28)
(330)
(47)
800 to 1200A
H4X-07__
61
210
90
°
0
Direction of Front Operation
Handle Type
Door Drilling Layout
Ø3.07
Ø78
0.78
4 Ø 0.27
0.55
Ø 1.46
4 Ø 7
Ø 37
20
20
14
0.55
14
0.78
8.27
2.4
H4X-08__
2.36
13.78
Ø3.07
90
°
I
0
Ø78
350
60
I
Terminal Lugs
600 to 1200A
LUG5-__, LUG6-__
3.15
80
1.49 38
2.87 73
0.40
Ø10.2
3.76
95.5
0.64 16.2
60
2.36
85
3.35
190
7.48
Direct Mount Handle
DIR-04
External Front Pistol Handles
Dimensions - in (mm)
and …
S
HROUDS
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches

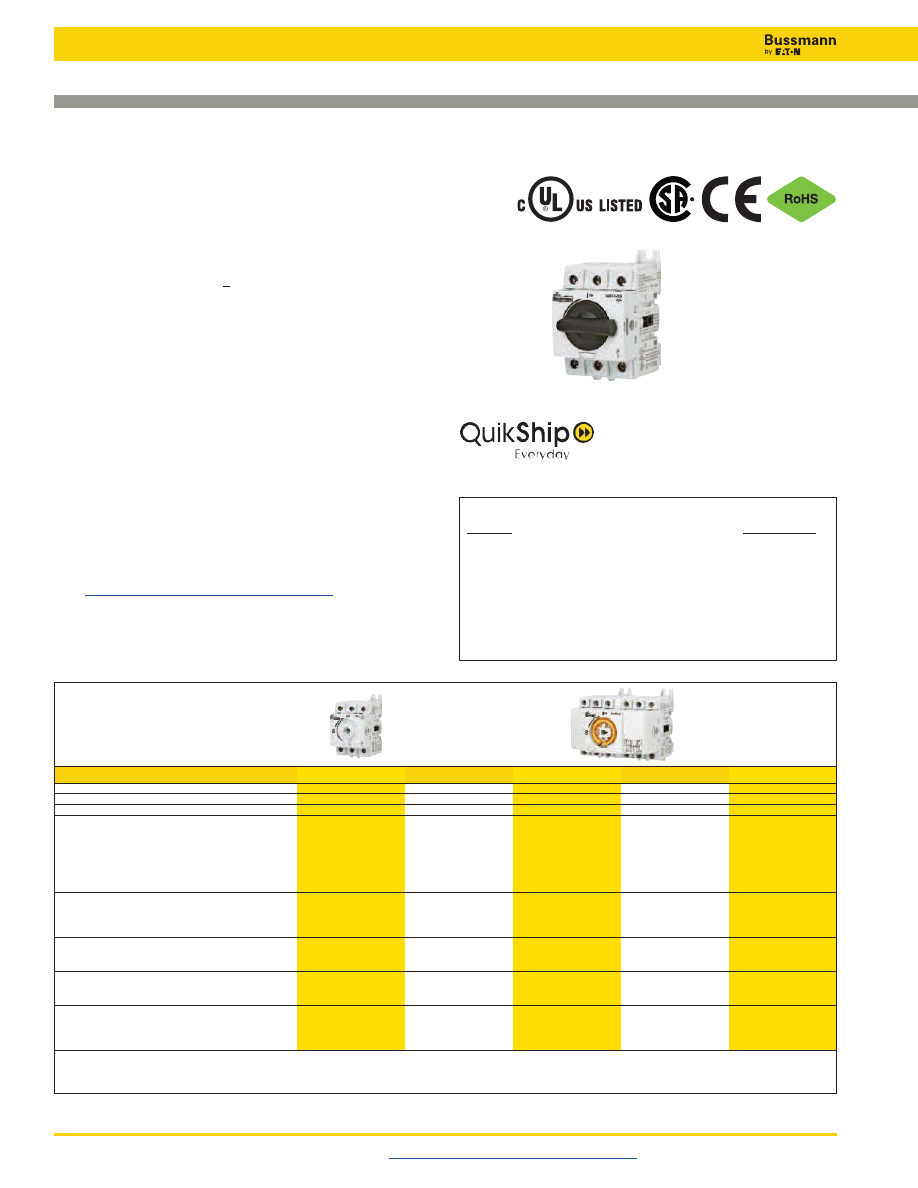

UL 508 Non-Fused Rotary Disconnect Switches—16 to 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
412
Description
Bussmann UL 508 load break disconnect switches allow safe
control and safe disconnection of any motor application or to
isolate a circuit within the panel.
These disconnect switches are compact and offer a wide
variety of accessories like 4
th
poles, auxiliary contacts, door
mounting and 6/8-Pole kits.
Features
• Suitable as motor disconnect
• DIN-Rail or panel mount
• Door mount option
• Disconnect switches are front, right side or
direct handle operable
• Finger-safe
Agency Information
• UL508, Guide NLRV, File E155129
• CSA C22.2 No. 14, File 257020
• Conforms with IEC 60947-3
Online Resources
Visit
www.cooperbussmann.com/Disconnects
for:
• CAD Drawings
• Instruction Sheets
• UL Information
Related Cooper Bussmann Products
Product
Data Sheet #
Fuses Blocks
Modular Knifeblade Fuse Blocks 100-600A
3192
Fuses Holders
CH Series Class CC, Midget & 10x38 0-30A 3185
Finger-Safe Optima Series 0-30A
1102
Optima™ Protection Modules 0-30A
1109
CH Series Class J 0-60A
2144
Part Number
RD16-3-508
RD25-3-508
RD40-3-508
RD63-3-508
RD80-3-508
Thermal Current I
th
at 40°C (A)
16
25
40
63
80
Rated insulation voltage U
i
(V)
800
800
800
800
800
Rated impulse withstand voltage U
imp
(kV)
8
8
8
8
8
Rated Operation Currents I
e
(A)
Load Duty Category
Rated Voltage
A/B
(1)
A/B
(1)
A/B
(1)
A/B
(1)
A/B
(1)
500Vac
AC-22 A/AC-22 B
16/16
25/25
40/40
63/63
80/80
500Vac
AC-23 A/AC-23 B
16/16
25/25
25/25
63/63
63/63
690Vac
AC-21 A/AC-21 B
16/16
25/25
40/40
63/63
80/80
690Vac
AC-22 A/AC-22 B
16/16
25/25
32/40
40/63
63/80
690Vac
AC-23 A/AC-23 B
16/16
25/25
25/25
40/40
40/40
Operational Power in AC-23 (kW)
400Vac without prebreak AC
(1)(2)
7.5
11
18.5
30
37
500Vac without prebreak AC
(1)(2)
7.5
11
15
30
37
690Vac without prebreak AC
(1)(2)
7.5
15
18.5
30
37
Overload Capacity (U
e
415 Vac)
Rated short-time withstand current 0.3 s. I
CW
(kA rms)
(3)
2.5
2.5
2.5
3
3
Rated short-time making capacity I
cm
(kA peak) (3)
6
6
6
9
9
Fuse Protected Short-Circuit Withstand (kA rms Prospective)
Prospective short-circuit current (kA rms)
(3)
50
50
50
50
50
Associated fuse rating (A)
(3)
16
25
40
63
80
Connection
Minimum Cu cable cross section (mm
2
)
1.5
1.5
1.5
2.5
2.5
Maximum Cu cable section (mm
2
)
16
16
16
35
35
Tightening torque min/max (N•m)
2/2.2
2/2.2
2/2.2
3.5/3.85
3.5/3.85
(1) A/B: Category with index A = frequent operation; category with index B = infrequent operation.
(2) The power value is given for information only; the current values vary from one manufacturer to another.
(3) For a rated operating voltage, U
e
= 400Vac.
IEC Electrical Specifications
RD16-3-508
RD16-3-508 with 6-Pole Conversion Kit
QuikShip Everyday Service ships the
most common part numbers within
24 hours. Contact your Bussmann
representative for details.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

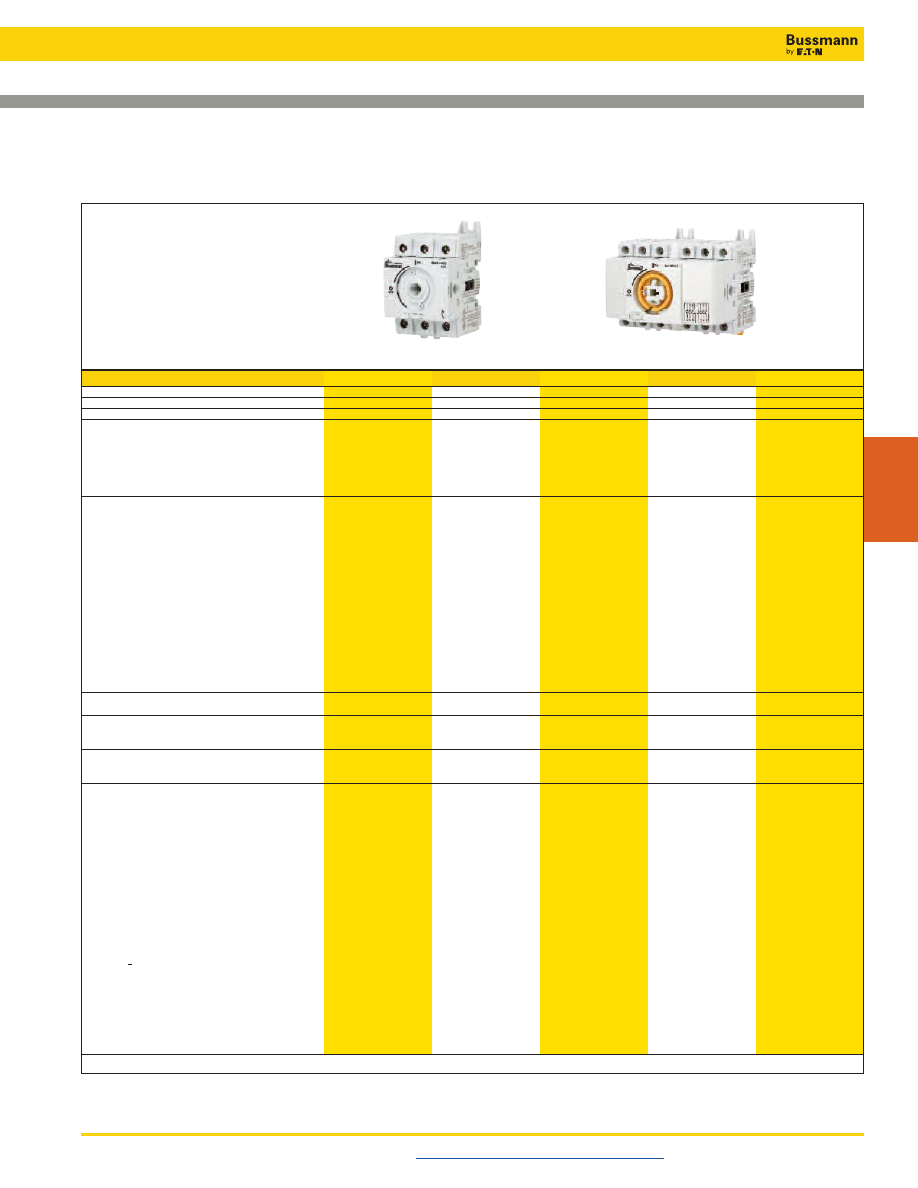

Disconnect Switches
UL 508 Non-Fused Rotary Disconnect Switches—16 to 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
413
Disconnect
Switches
Part Number
RD16-3-508
RD25-3-508
RD40-3-508
RD63-3-508
RD80-3-508
UL Standard
UL 508
UL 508
UL 508
UL 508
UL 508
Max Ampacity
16A
25A
40A
63A
80A
Handle Operation
Front/Side
Front/Side
Front/Side
Front/Side
Front/Side
UL Electrical Ratings
Max Voltage (AC)
600Vac
600Vac
600Vac
600Vac
600Vac
Maximum Horsepower Ratings
3-Phase, 208Vac
3
7.5
7.5
15
15
3-Phase, 240Vac
5
7.5
7.5
20
20
3-Phase, 480Vac
10
15
20
40
40
3-Phase, 600Vac
10
20
25
40
40
Electrical Characteristics
SCCR with Fuse
65kA
65kA
10/65kA
50/65kA
50/65kA
Recommended Upstream
Fuse Class
J
J
J
J
J
Max. Fuse Rating
30A
30A
60/30A
100/60A
100/60A
Terminals
Integral
Integral
Integral
Integral
Integral
Wire Type
75°C Cu
75°C Cu
75°C Cu
75°C Cu
75°C Cu
Wire Range & Torque - Lb-IN (N•m)
Solid
Single
#14-10
#14-10
#14-10
#14-10
#14-10
26.5 (3)
26.5 (3)
26.5 (3)
31.1 (3.5)
31.1 (3.5)
Dual
#12
#12
#12
#12
#12
26.5 (3)
26.5 (3)
26.5 (3)
31.1 (3.5)
31.1 (3.5)
Stranded
Single
#14-4
#14-4
#14-4 #14-1
#14-1
26.5 (3)
26.5 (3)
26.5 (3)
31.1 (3.5)
31.1 (3.5)
Dual
#14-12
#14-12
#14-12
#10-6
#10-6
26.5 (3)
26.5 (3)
26.5 (3)
31.1 (3.5)
31.1 (3.5)
Mechanical Characteristics
Endurances/Cycles
10,000
10,000
10,000
10,000
10,000
Physical Characteristics
Dimensions - See drawings on product pages
Weight - Lb (KG)
0.5 (0.2)
0.5 (0.2)
0.5 (0.2)
0.7 (0.32)
0.7 (0.32)
Environmental
Operating Temperature
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
-20°C to 70°C
Flammability Rating
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
UL 94-V0
Accessories
Handles
Direct
DIR-01
DIR-01
DIR-01
DIR-01
DIR-01
Short Selector/NEMA 1, 3R, 4, 4X, 12
H4X-01B
H4X-01B
H4X-01B
H4X-01B
H4X-01B
H4X-01R
H4X-01R
H4X-01R
H4X-01R
H4X-01R
Long Selector/NEMA 1, 3R, 4, 4X, 12
H4X-02B
H4X-02B
H4X-02B
H4X-02B
H4X-02B
H4X-02R
H4X-02R
H4X-02R
H4X-02R
H4X-02R
Shafts - 5x5mm
5.9”/150mm
SH4-150
SH4-150
SH4-150
SH4-150
SH4-150
7.9”/200mm
SH4-200
SH4-200
SH4-200
SH4-200
SH4-200
12.6”/320mm
SH4-320
SH4-320
SH4-320
SH4-320
SH4-320
Shaft Guide
SH-GUIDE1
SH-GUIDE1
SH-GUIDE1
SH-GUIDE1
SH-GUIDE1
Door Mount Kit
DOOR-508
DOOR-508
DOOR-508
DOOR-508
DOOR-508
Shrouds/Switch Amps
1-Pole
TSH1-1TB
TSH1-1TB
TSH1-1TB
3-Pole (Loadside and Lineside)
TSH1-3TB
TSH1-3TB
TSH1-3TB
TSH2-3TB
TSH2-3TB
Switched 4
th
Pole/Switch Amps
POLE-16
POLE-25
POLE-40
—
—
Auxiliary Contacts
NO + NC (1 ea.)
BAC01
BAC01
BAC01
BAC01
BAC01
(2) NO
BAC02
BAC02
BAC02
BAC02
BAC02
AC Ratings
Volts
240Vac
240Vac
240Vac
240Vac
240Vac
Amps
10A
10A
10A
10A
10A
6-/8-Pole Conversion Kit
Gangs two switches of same rating, 16-80A switch amps
KIT-6POLE
KIT-6POLE
KIT-6POLE
KIT-6POLE
KIT-6POLE
— Not available.
Specifications
RD16-3-508
RD16-3-508 with 6-Pole Conversion Kit
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
UL 508 Non-Fused Rotary Disconnect Switches—16, 25, 40, 63 and 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
414

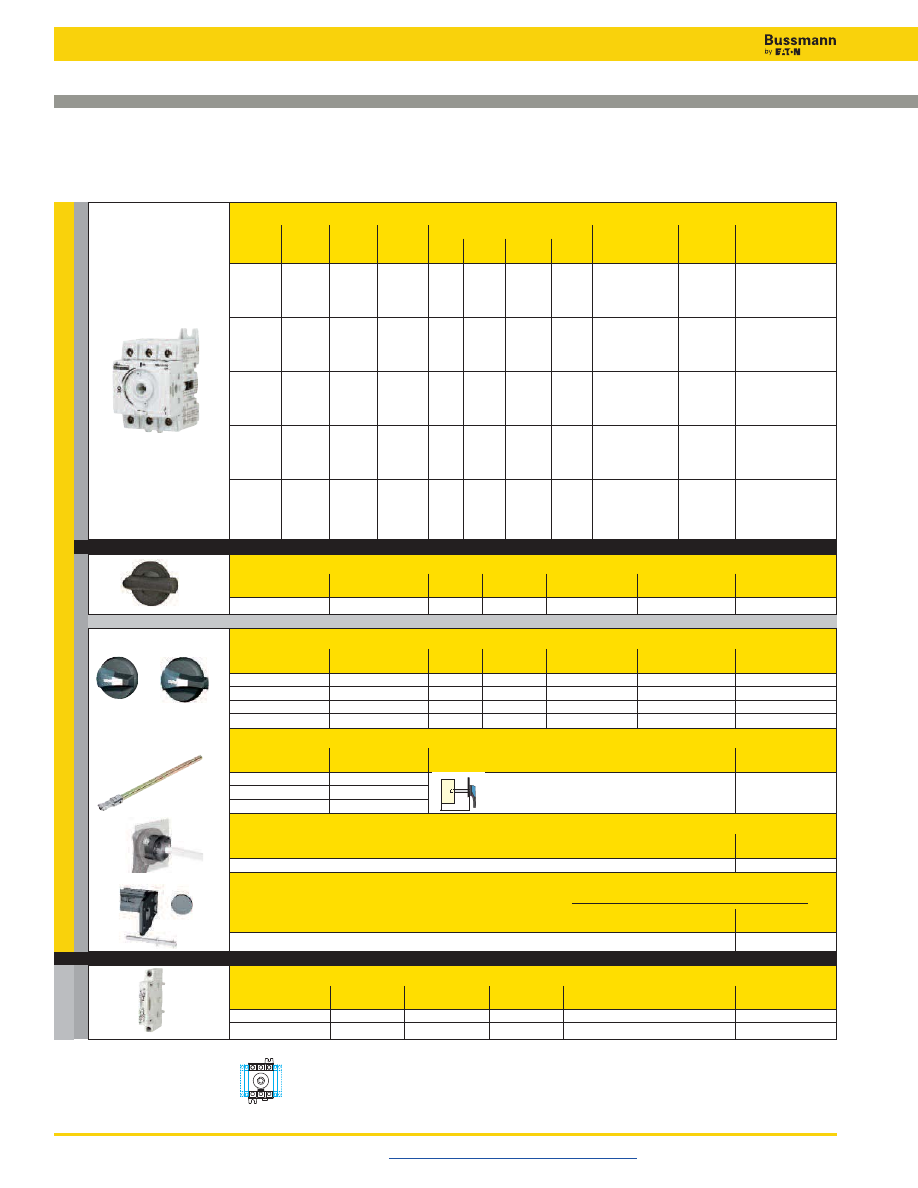

For a Complete Assembly, Please Select:
Select for Standard
Applications
Switch
Switch
Max
Max Horsepower Rating, 3-Ph
Amp
No. of
SCCR
Class J
208
220/
440/
600
Part
Rating
Poles
@600V
Fuse
Vac
240Vac 480Vac
Vac
Wire Size
Wire Type
Number
#14-#10 Sol
16
3
65kA
30A
3
5
10
10
Dual #12 Sol
75°C Cu
RD16-3-508
#14-#4 Str
Dual #14-#12 Str
#14-#10 Sol
25
3
65kA
30A
7.5
7.5
15
20
Dual #12 Sol
75°C Cu
RD25-3-508
#14-#4 Str
Dual #14-#12 Str
#14-#10 Sol
40
3
10kA
60A
7.5
7.5
20
25
Dual #12 Sol
75°C Cu
RD40-3-508
65kA
30A
#14-#4 Str
Dual #14-#12 Str
#14-#10 Sol
63
3
50kA
100A
15
20
40
40
Dual #12 Sol
75°C Cu
RD63-3-508
65kA
60A
#14-#1 Str
Dual #10-#6 Str
#14-#10 Sol
80
3
50kA
100A
15
20
40
40
Dual #12 Sol
75°C Cu
RD80-3-508
65kA
60A
#14-#1 Str
Dual #10-#6 Str
Direct Mount Handle -
mounts directly to switch, no shaft required
For Switch
Test
Part
Part Number
Color
Function
Padlockable
Number
All Switches
Black
N
Y - On Switch
DIR-01
External Front or Right Side Operated Selector Handles -
shaft required
NEMA
Handle
Test
Part
Type
Color
Length
Function
Padlockable
Defeatable
Number
1, 3R, 4, 4X, 12
Black
Short
N
Y
Y
H4X-01B
(1)
1, 3R, 4, 4X, 12
Red/Yellow
Short
N
Y
Y
H4X-01R
(1)
1, 3R, 4, 4X, 12
Black
Long
N
Y
Y
H4X-02B
(2)
1, 3R, 4, 4X, 12
Red/Yellow
Long
N
Y
Y
H4X-02R
(2)
Shafts for Selector Handles
- required for 12.6” (320mm) shafts
Length
Mounting Depth
Part
in (mm)
(X) in (mm)
Number
5.9 (150)
3.50-7.60 (89-193)
SH4-150
7.9 (200)
3.50-9.50 (89-241)
SH4-200
12.6 (320)
3.50-14.9 (89-378)
SH4-320
Shaft Guide
Part
Number
Required for 12.6” (320mm) long shafts, optional for other lengths.
SH-GUIDE1
Door Mount Kit
- for mounting switch on the right side of the enclosure or directly on the enclosure door
using switch side operation shaft location. Kit includes a shaft.
Order switch and selector handle separately
.
Switch
Part
Rating
Number
All Switches - kit includes shaft
DOOR-508
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO + NC
1 Ea
10A
240Vac
4
BAC01
NO
2
10A
240Vac
4
BAC02
+
+
+
(2)
(1)
Auxiliary Contact
Configurations
X
Acc.
A
UX
C
ONT
ACTS
S
WITCH
H
ANDLE
or
+
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
UL 508 Non-Fused Rotary Disconnect Switches—16, 25, 40, 63 and 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
415
Disconnect
Switches

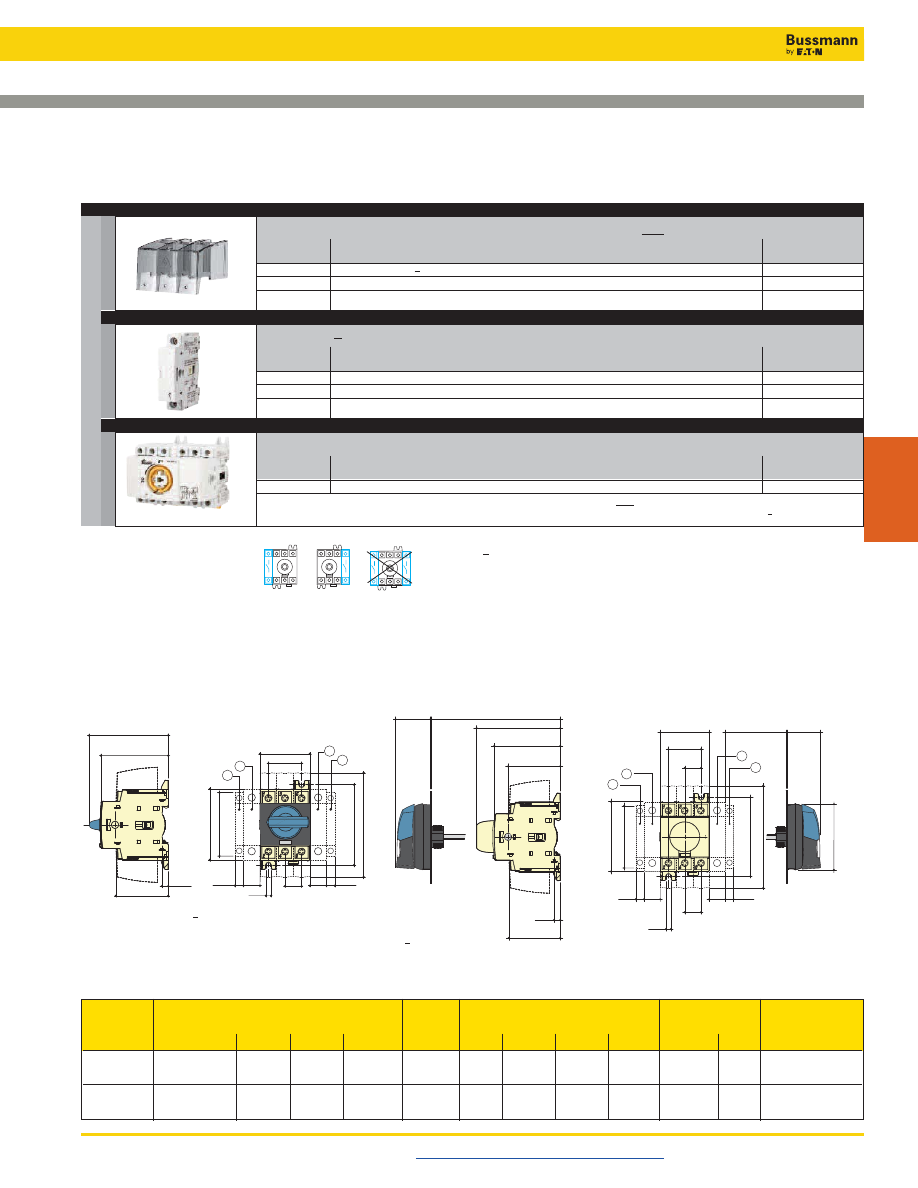

Accessories
Switched 4
th
Pole
- converts 3-pole switch to 4-pole switch
Switch Amp
Part
Rating
Number
16
POLE-16
25
POLE-25
40
POLE-40
6-Pole Conversion Kit
- creates a 6-pole switch by ganging two 3-pole switches of equal rating
Switch Amp
Part
Rating
Number
All Switches
KIT-6POLE*
* Kit ships with a direct handle. If external handle is needed order a selector handle
and
shaft for the UL 508 Rotary Disconnect Switches.
Note: To create an 8-pole switch from 16 to 40 amp switches, use two 3-pole switches of equal ratings plus two switched 4
th
poles (part # POLE-_).
Terminal Shrouds
- includes terminal shroud for both lineside
and
loadside
Switch Amp
Number
Location on
Part
Rating
of Poles
Switch
Number
16-40A
1 (for switched 4
th
pole)
Lineside and Loadside
TSH1-1TB
16-40A
3
Lineside and Loadside
TSH1-3TB
63-80A
3
Lineside and Loadside
TSH2-3TB
Switched 4
th
Pole
Configurations.
Order switches separately.
Dimensions – in (mm)
Direct Handle Operation
External Front Operation
External Side Operation
Overall
Terminal Switch
Switch
Switch
Dimensions
Shroud
Body
Mounting
Connection
Rating (A)
D min
D max
E min
E max
AC
F
F1
G
J
M
N
T
16 to 40
1.18
9.25
3.94
14.64
4.33
1.77
0.59
2.67
0.59
1.18
2.95
0.59
(30)
(235)
(100)
(372)
(110)
(45)
(15)
(68)
(15)
(30)
(75)
(15)
63 to 80
1.18
9.25
3.93
14.64
4.33
2.06
0.69
2.99
0.69
1.38
3.35
0.69
(30)
(235)
(100)
(372)
(110)
(52.5)
(17.5)
(76)
(17.5)
(35)
(85)
(17.5)
2.67
F
T
M5
M
N
G
AC
2.52
0.24
1.97
2.95
F1
F1
0.35
2
1
2
1
75
64
6
50
68
8.8
8.8
0.35
J
2.68
F
T
M5
M
1.42
D
N
G
AC
E
1.42
3.19
2.52
0.23
1.96
1.99
F1
0.35
F1
ø 2.79
36
81
64
50.6
6
50
8.8
8.8
68
ø 71
36
0.35
2
2
1
1
1. Position for 1 switched 4
th
pole (1 per device max.) or 1 auxiliary contact.
2. Position for 1 auxiliary contact only.
Note: Maximum of 4 auxiliary contacts, or 3 auxiliary contacts + one switched 4
th
pole.
and …
S
HROUDS
S
W
. 4
TH
P
OLE
6-P
OLE
K
IT
and …
and …
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

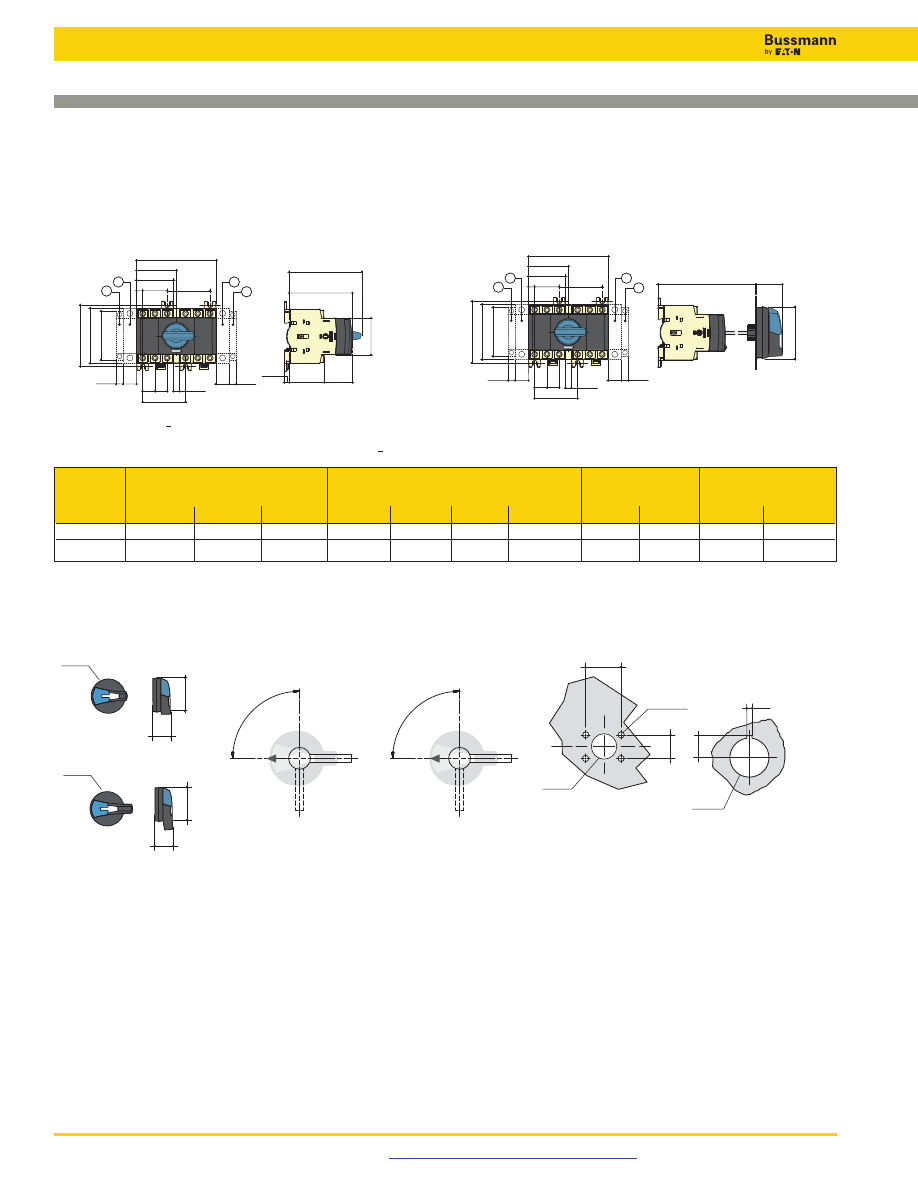

Disconnect Switches
UL 508 Non-Fused Rotary Disconnect Switches—16, 25, 40, 63
and 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
416
External Selector Handles
13.5
Ø 22.5
3
40
4 Ø 7
Ø 31
28
With Mounting Nut
With 4 Mounting Screws
H4X-01_
Door Drilling Layouts
Handle Type
0
I
90
°
Direction of Front Operation
0
I
90
°
Direction of Right Side Operation
1.57
4 Ø 0.27
1.10
Ø 1.22
0.11
0.53
Ø 0.88
Ø3.07
1.42
2.79
Ø78
36
71
Ø78
37
88
Ø3.07
1.45
3.46
H4X-02_
1. Position for 1 switched 4
th
pole (1 per device max.) or 1 auxiliary contact.
2. Position for 1 auxiliary contact only.
Note: Maximum of 4 auxiliary contacts, or 3 auxiliary contacts + one switched 4
th
pole.
External Front Operation for 6/8-Pole Disconnects
1.77
3.07
1.36
1.69
0.24
3.50
X
N G
2.67
T T
0.29
2.06
M
F2
2.06
F
J
F1
F1
0.35
2
1
2
1
89
78
43
34.7
6
45
52.5
68
8.8
52.5
8.8
7.5
0.35
1.42
E
ø
2.79
X
N G
2.67
T T
0.29
2.06
M
F2
2.06
F
J
F1
F1
0.35
2
1
2
1
36
ø
71
52.5
68
8.8
52.5
8.8
7.5
0.35
Overall
Switch
Switch
Switch
Dimensions
Body
Mounting
Connection
Rating (A)
E min
E max
F
F1
F2
G
J
M
N
T
X
16 to 40
4.13 (105)
14.64 (372) 3.83 (97.5) 0.59 (15)
1.77 (45)
2.67 (68) 1.92 (48.75) 1.18 (30)
2.95 (75) 0.59 (15)
0.29 (7.5)
63 to 80
4.13 (105)
14.65 (372) 4.13 (105)
0.69 (17.5) 2.06 (52.5) 2.99 (76) 2.06 (52.5)
1.38 (3.5)
3.35 (85) 0.69 (17.5) 0.34 (8.75)
Dimensions – in (mm)
Direct Front Operation for 6/8-Pole Disconnects
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

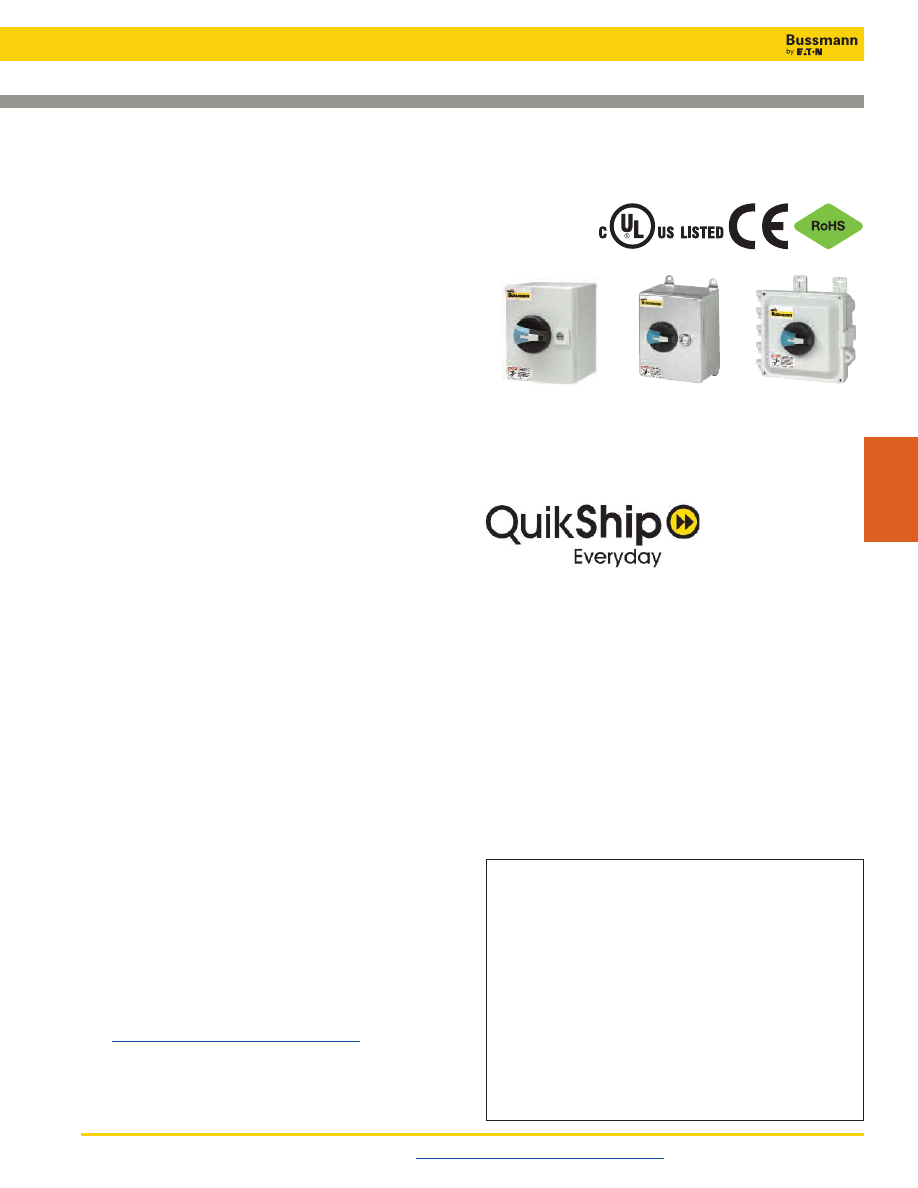

Disconnect Switches
UL 98 & UL 508 Enclosed Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
417
Disconnect
Switches
Description
Fused and non-fused enclosed Rotary Disconnect Switches
from 16 to 1200A in NEMA 1, 3R, 4, 4X, 12 enclosures.
Features
• UL 98 Listed for general purpose, main disconnect, or
branch circuit protection up to 600Vac/dc
• UL 508 Listed for motor disconnect applications up to
600Vac
• Multiple field installed accessories enhance the enclosed
disconnect switches to fit the desired application
• Lockout/tagout: Up to three
1
⁄
4
˝ shank padlocks can be
installed on external handles
Ratings:
• Volts: 600Vac
250-600Vdc*
• Amps: 16-1200A
• Short-Circuit Current Ratings: UL 98: 25kA-200kA
UL 508: 10kA-65kA
*Some non-fused disconnect switches are not rated for DC applications.
Specifications
• Operating temperature: -20ºC to 70ºC
• 4X Plastic Enclosure Flammability Rating:
Polycarbonate UL 94-5VA-0
Fiberglass UL 94-5V
Agency Information
• UL 98 Listed: File E182262, Guide WIAX, WIAX7
• UL 508 Listed: File E155129, Guide NLRV, NLRV7
• cULus Listed to CSA Standard 22.2, No. 14
• cULus Listed to CSA Standard 22.2, No. 4
• Conforms with IEC 60947-3
• CE Compliant
• RoHS Compliant
Field Installed Accessories
• Auxiliary contacts
• Terminal shrouds
Online Resources
Visit
www.cooperbussmann.com/Disconnects
for:
• CAD Drawings
• Instruction Sheets
• UL Information
NEMA 1, 3R, 4 & 12
NEMA 4X
Polycarbonate
or Fiberglass
NEMA 4X
Stainless Steel
Available Bussmann Fuses
Class Type
Data Sheet #
CC
LP-CC Time-Delay, Current Limiting
1023
CC
FNQ-R Time-Delay
1014
CC
KTK-R Fast-Acting
1015
J
LPJ Time-Delay, Current Limiting
1006 (0-60A)
J
1007 (70-600A)
J
With
easy
ID™open fuse indication
1062 (6-60A)
J
1063 (70-600A)
J
JKS Fast-Acting Fuses
1026 (0-60A)
J
1027 (70-600A)
J
DFJ High Speed Drive Fuse
1048 (0-600A)
L
KRP-C Time-Delay, Current Limiting
1008
L
KTU Fast-Acting
1010
L
KLU Time-Delay
1013
QuikShip Everyday Service ships the most common part
numbers within 24 hours. Contact your Bussmann
representative for details.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

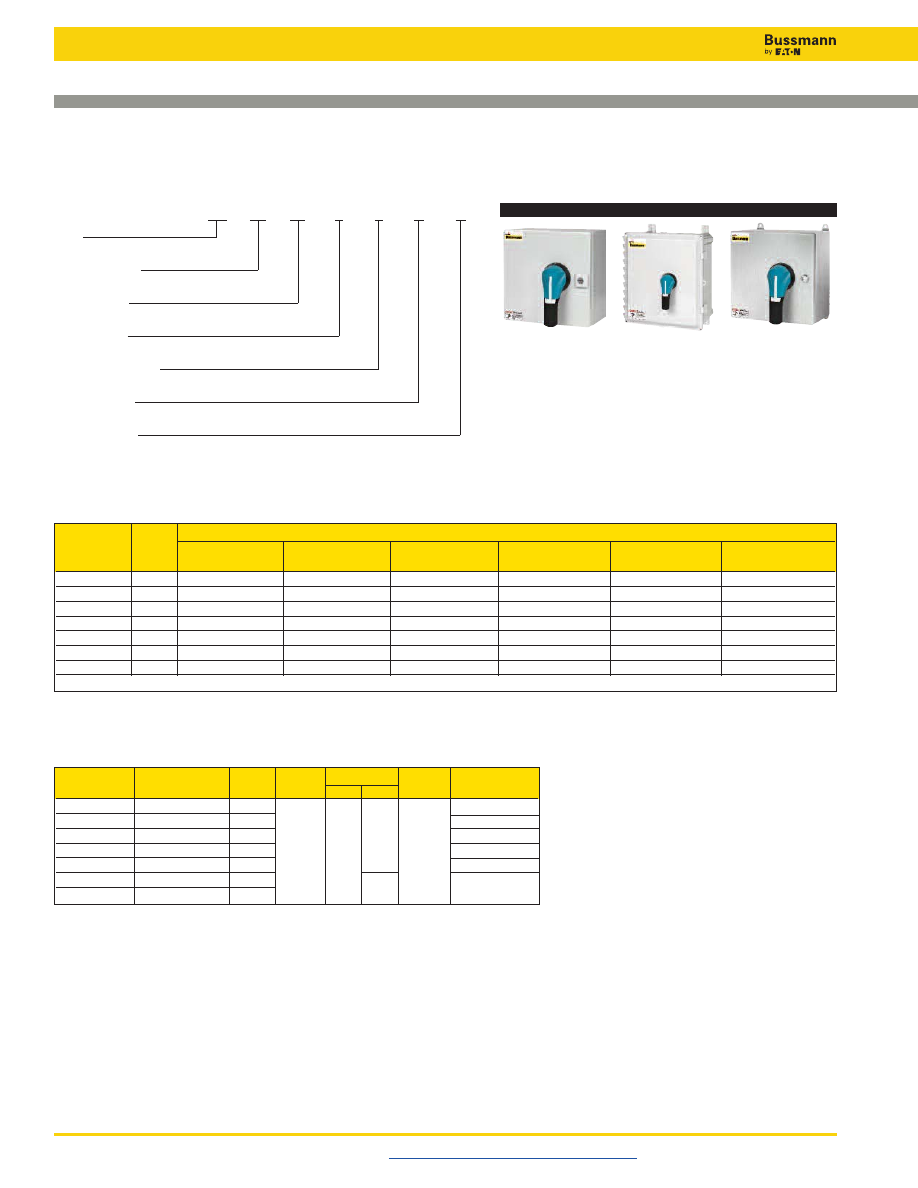

Disconnect Switches
UL 98 Enclosed Fused Disconnects—30 to 800A
Visit us on the web at
www.cooperbussmann.com/Disconnects
418
UL General
NEMA Enclosure Type & Part Number
Purpose
Fuse
Amp Rating
Type
1
3R
4
4X Plastic
(1)
4X Stainless
12
30
J
ER1-30J3PB
ER3R-30J3PB
ER4-30J3PB
ER4P-30J3PB
ER4X-30J3PB
ER12-30J3PB
60
J
ER1-60J3PB
ER3R-60J3PB
ER4-60J3PB
ER4P-60J3PB
ER4X-60J3PB
ER12-60J3PB
100
J
ER1-100J3PB
ER3R-100J3PB
ER4-100J3PB
ER4P-100J3PB
ER4X-100J3PB
ER12-100J3PB
200
J
ER1-200J3PB
ER3R-200J3PB
ER4-200J3PB
ER4P-200J3PB
ER4X-200J3PB
ER12-200J3PB
400
J
ER1-400J3PB
ER3R-400J3PB
ER4-400J3PB
ER4P-400J3PB
ER4X-400J3PB
ER12-400J3PB
600
J
ER1-600J3PB
ER3R-600J3PB
ER4-600J3PB
ER4P-600J3PB
ER4X-600J3PB
ER12-600J3PB
800
L
ER1-800L3PB
ER3R-800L3PB
ER4-800L3PB
ER4P-800L3PB
ER4X-800L3PB
ER12-800L3PB
(1) Enclosures ≤100A are polycarbonate, flammability rating UL 94-5VA-V0, ≥200A are fiberglass, flammability rating UL 94-5V.
Switch
Disconnect
Fuse
No. of
Voltage
SCCR
Max Hp Rating
Amp Rating
Switch
Type
Poles
Vac
Vdc
@ Vac
@ 600Vac
30
RDF30J-3
J
20
60
RDF60J-3
J
250
50
100
RDF100J-3
J
600
200kA
75
200
RDF200J-3
J
3
150
400
RDF400J-3
J
350
600
RDF600J-3
J
600
500
800
RDF800L-3
L
Switch Ratings
- for wire types, ranges and tightening torques, see table on page 387
3-Pole UL 98 600Vac
Part Number System:
ER
4X - 60
J
3
P
B
ER
E
nclosed
R
otary Disconnect
NEMA Rating
1, 3R, 4, 4X (SST), 4P (4X Plastic), 12
Amp Rating
30, 60, 100, 200, 400, 600, 800
Fuse Class
J = Class J, L = Class L
Number of Poles
3 = 3-Pole
Handle Type
P = Pistol
Handle Color
B = Black, R = Red
NEMA 1, 3R, 4 & 12
NEMA 4X Plastic
NEMA 4X Stainless
Part Numbers
- All part numbers provided with integral or installed lugs and a black selector handle.
Order red/yellow handle by changing the suffix “B” to “R.”
30-800A
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

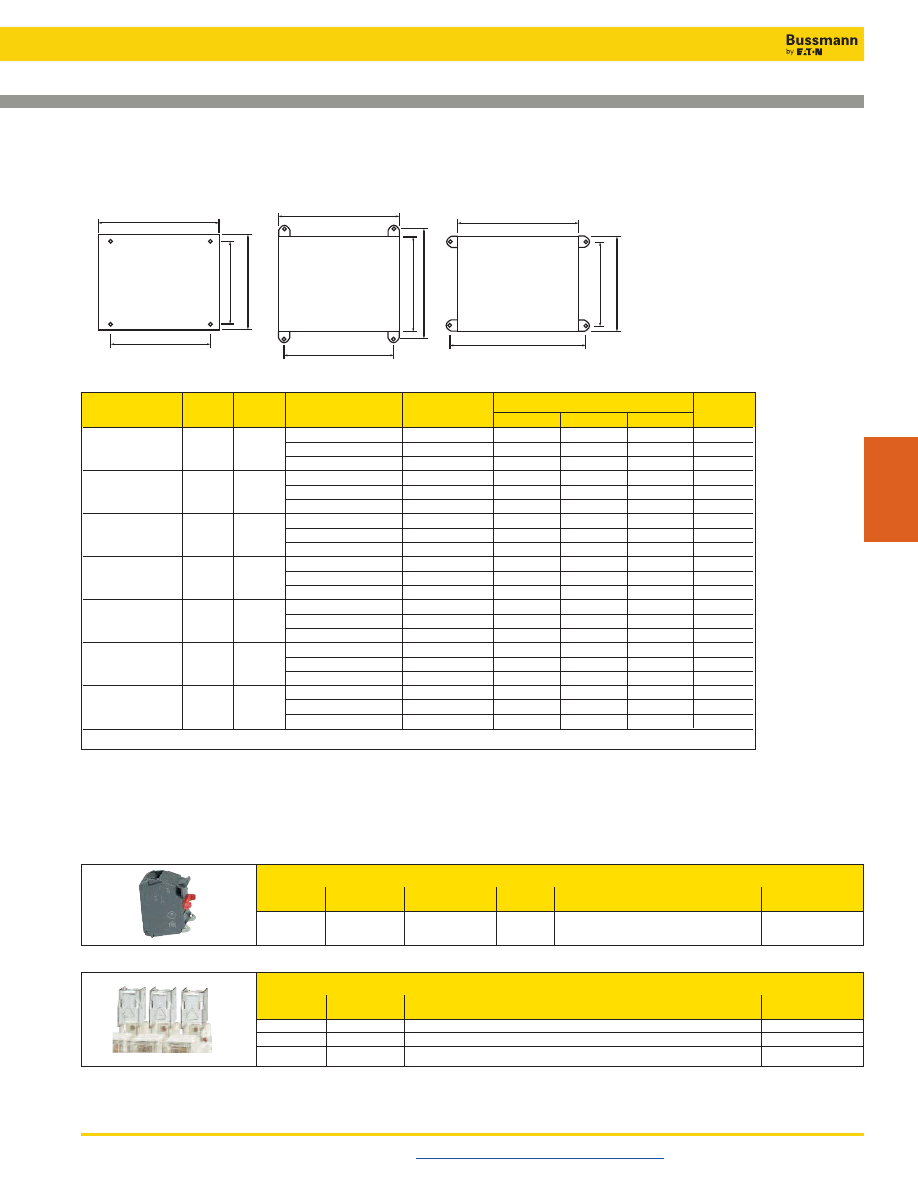

Disconnect Switches
UL 98 Enclosed Fused Disconnects—30 to 800A
Visit us on the web at
www.cooperbussmann.com/Disconnects
419
Disconnect
Switches
Part
Amp
Fuse
NEMA
Mounting Centers H x W
Weight
Number Family
Rating
Type
Enclosure Type
H x W x D
A
B
C
Lbs
1, 3R, 4, 12
10x10x6
8.3x8.3
15
ER_-30J
30
J
4X-SST
10x10x6
9.5x8.3
8.3x9.5
15
4X-Plastic
(1)
12x10x6
12x5.6
7.64x10
8
1, 3R, 4, 12
12x10x6
10.3x8.3
19
ER_-60J
60
J
4X-SST
12x10x6
11.5x8.3
10.3x9.5
19
4X-Plastic
(1)
13x13x6
14x7.6
9.6x12
11
1, 3R, 4, 12
14x12x6
12.3x10.3
21
ER_-100J
100
J
4X-SST
14x12x6
13.5x10.3
12.3x11.5
21
4X-Plastic
(1)
13x13x6
14x7.6
9.6x12
12
1, 3R, 4, 12
24x20x8
22x18.1
55
ER_-200J
200
J
4X-SST
24x20x8
23.2x18.1
22x19.3
55
4X-Plastic
(1)
27x21x10
25.75x14
39
1, 3R, 4, 12
48x36x12
45.75x34.9
188
ER_-400J
400
J
4X-SST
48x36x12
46.9x34.9
45.75x36.1
188
4X-Plastic
(1)
51x37x14
50.1x28.5
186
1, 3R, 4, 12
48x36x12
45.75x34.9
216
ER_-600J
600
J
4X-SST
48x36x12
46.9x34.9
45.75x36.1
216
4X-Plastic
(1)
51x37x14
50.1x28.5
214
1, 3R, 4, 12
48x36x12
45.75x34.9
216
ER_-800L
800
L
4X-SST
48x36x12
46.9x34.9
45.75x36.1
216
4X-Plastic
(1)
51x37x14
50.1x28.5
214
(1) Enclosures ≤100A are polycarbonate, flammability rating UL 94-5VA-V0, ≥200A are fiberglass, flammability rating UL 94-5V.
Enclosure Weights - Lbs & Dimensions - in
Available Field-Installed Accessories -
Order Separately
Auxiliary Contacts - for 30 to 800 Amp Switches
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO
1
10A
600Vac
30 to 200A: 4
BAC05
NC
1
10A
600Vac
400 to 800A: 8
BAC06
Terminal Shrouds - for 200 to 800 Amp Switches
- includes terminal shroud for lineside or loadside
Switch
Number
Part
Amp Rating
of Poles
Number
200
3
TSH8-3TB
400
3
TSH9-3TB
600-800
3
TSH10-3TB
W
W
W
MW
MW
MW
H
H
H
MH
MH
MH
A
B
C
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

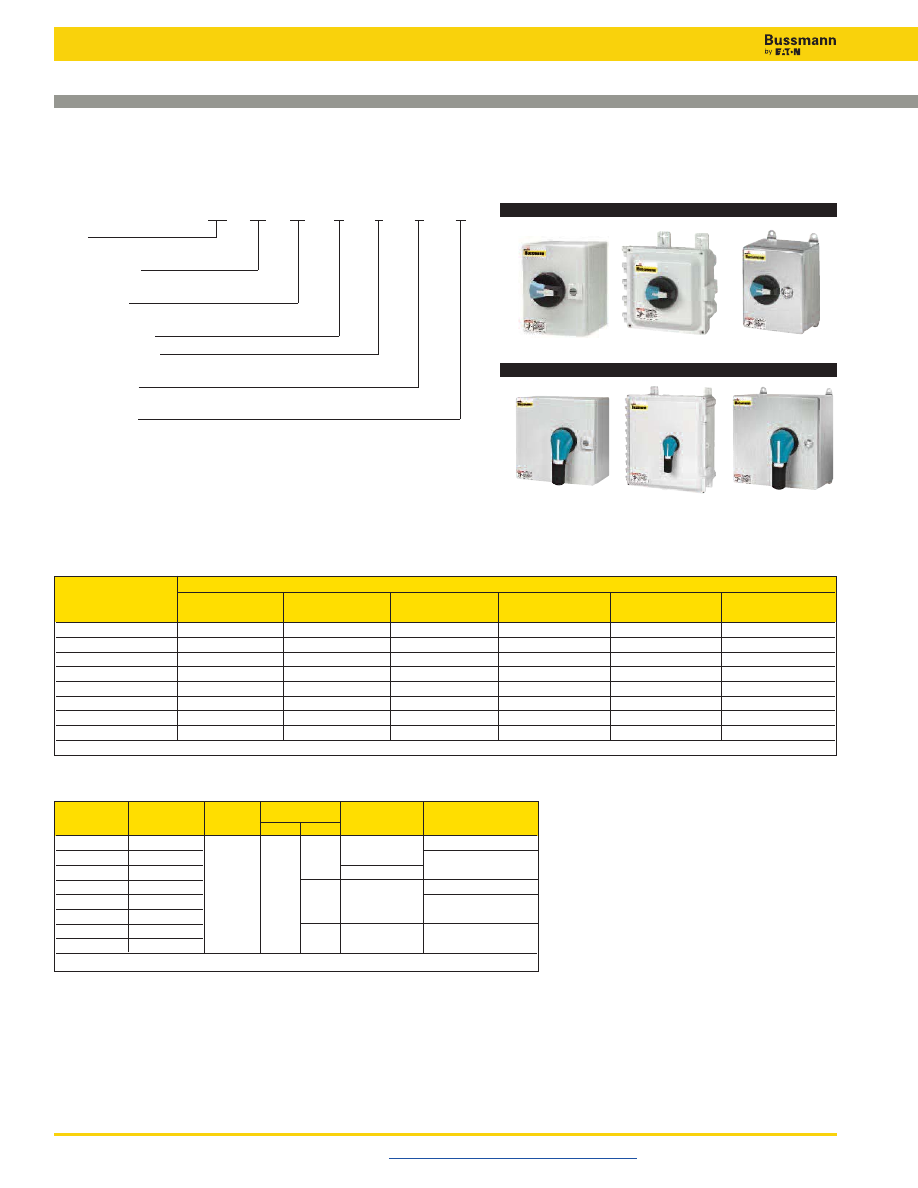

Disconnect Switches
UL 98 Enclosed Non-Fused Disconnects—30 to 1200A
Visit us on the web at
www.cooperbussmann.com/Disconnects
420
Switch
Disconnect
No. of
Voltage
SCCR
Max Hp Rating
Amp Rating
Switch
Poles
Vac
Vdc
@ Vac
@ 600Vac
30
RD30-3
100kA
25
60
RD60-3
N/A
50
100
RD100-3
25kA/100kA*
200
RD200-3
200
400
RD400-3
3
600
250
200kA
350
600
RD600-3
800
RD800-3
N/A
100kA
500
1200
RD1200-3
* 25kA @ 600Vac, 100kA @ 480Vac.
Switch Ratings
- for wire types, ranges and tightening torques, see table on page 405
Part Numbers
- All part numbers provided with integral or installed lugs and a black selector handle.
Order red/yellow handle by changing the suffix “B” to “R.”
3-Pole UL 98 600Vac
UL General
NEMA Enclosure Type & Part Number
Purpose
Amp Rating
1
3R
4
4X Plastic
(1)
4X Stainless
12
30
ER1-30N3SB
ER3R-30N3SB
ER4-30N3SB
ER4P-30N3SB
ER4X-30N3SB
ER12-30N3SB
60
ER1-60N3SB
ER3R-60N3SB
ER4-60N3SB
ER4P-60N3SB
ER4X-60N3SB
ER12-60N3SB
100
ER1-100N3SB
ER3R-100N3SB
ER4-100N3SB
ER4P-100N3SB
ER4X-100N3SB
ER12-100N3SB
200
ER1-200N3PB
ER3R-200N3PB
ER4-200N3PB
ER4P-200N3PB
ER4X-200N3PB
ER12-200N3PB
400
ER1-400N3PB
ER3R-400N3PB
ER4-400N3PB
ER4P-400N3PB
ER4X-400N3PB
ER12-400N3PB
600
ER1-600N3PB
ER3R-600N3PB
ER4-600N3PB
ER4P-600N3PB
ER4X-600N3PB
ER12-600N3PB
800
ER1-800N3PB
ER3R-800N3PB
ER4-800N3PB
ER4P-800N3PB
ER4X-800N3PB
ER12-800N3PB
1200
ER1-1200N3PB
ER3R-1200N3PB
ER4-1200N3PB
N/A
ER4X-1200N3PB
ER12-1200N3PB
(1) Enclosures ≤100A are polycarbonate, flammability rating UL 94-5VA-V0, ≥200A are fiberglass, flammability rating UL 94-5V.
NEMA 1, 3R, 4 & 12
30-100A
NEMA 4X
200-1200A
NEMA 1, 3R, 4 & 12
NEMA 4X
NEMA 4X Stainless
NEMA 4X Stainless
Part Number System:
ER
4X - 60
N
3
S
B
ER
E
nclosed
R
otary Disconnect
NEMA Rating
1, 3R, 4, 4X (SST), 4P (4X Plastic), 12
Amp Rating
30, 60, 100, 200, 400, 600, 800, 1200
N = Non-Fused
Number of Poles
3 = 3-Pole
Handle Type*
P = Pistol, S = Selector
Handle Color
B = Black, R = Red
* ≤100A = Selector only, ≥200A = Pistol only.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

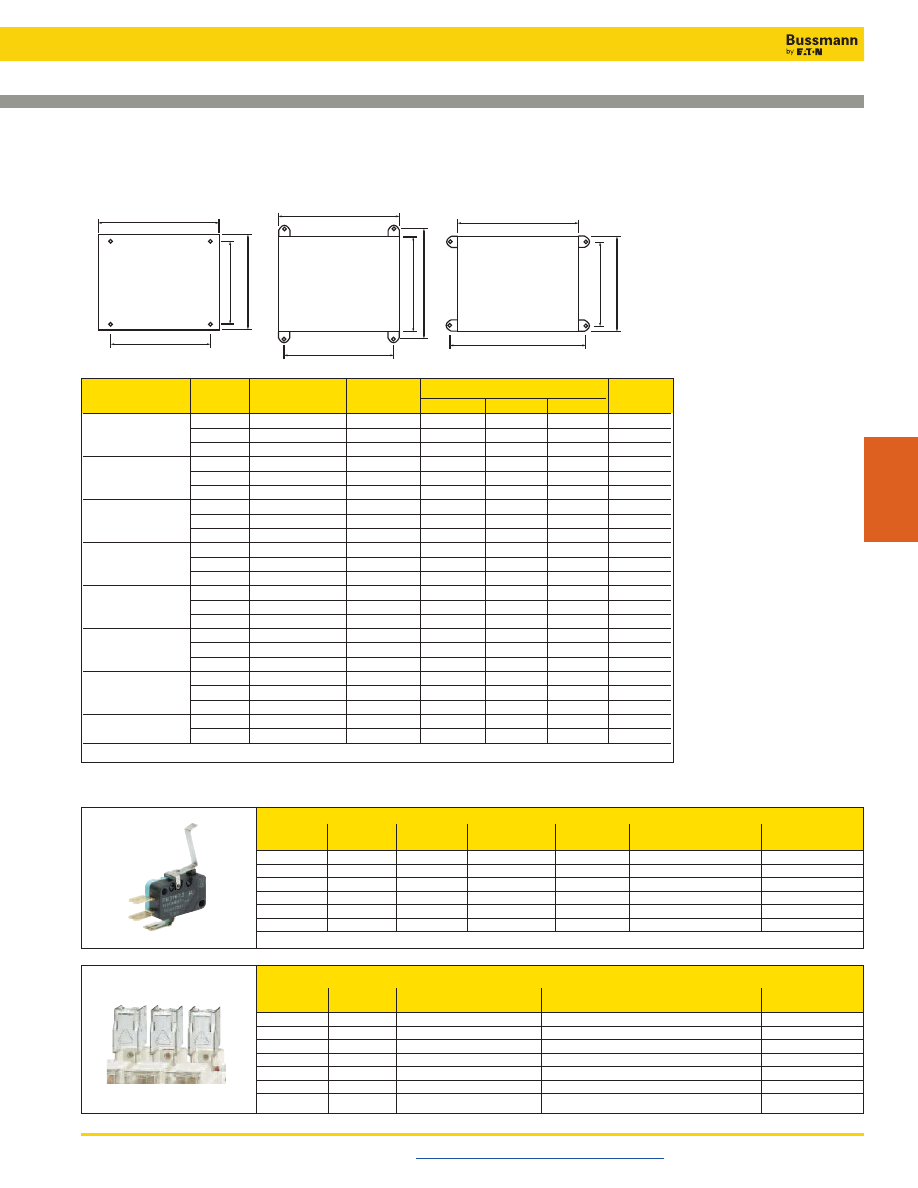

Disconnect Switches
UL 98 Enclosed Non-Fused Disconnects—30 to 1200A
Visit us on the web at
www.cooperbussmann.com/Disconnects
421
Disconnect
Switches
Part
Amp
NEMA
Mounting Centers H x W
Weight
Number Family
Rating
Enclosure Type
H x W x D
A
B
C
Lbs
1, 3R, 4, 12
10x8x6
8.3x6.3
11
ER_-30
30
4X-SST
10x8x6
9.5x6.3
8.3x7.5
11
4X-Plastic
(1)
9x9x6
10x3.6
5.6x8
5
1, 3R, 4, 12
10x8x6
8.3x6.3
12
ER_-60
60
4X-SST
10x8x6
9.5x6.3
8.3x7.5
12
4X-Plastic
(1)
9x9x6
10x3.6
5.6x8
5
1, 3R, 4, 12
12x10x6
10.3x8.3
12
ER_-100
100
4X-SST
12x10x6
11.5x8.3
0.3x9.5
12
4X-Plastic
(1)
13x13x6
14x7.6
9.6x12
8
1, 3R, 4, 12
20x16x8
18.1x14.2
39
ER_-200
200
4X-SST
20x16x8
19.3x14.2
18.1x15.4
39
4X-Plastic
(1)
23x17x12
21.5x10.1
31
1, 3R, 4, 12
36x30x8
33.9x28.3
122
ER_-400
400
4X-SST
36x30x8
35.1x28.3
33.9x29.5
122
4X-Plastic
(1)
40x32x14
38.1x23.9
103
1, 3R, 4, 12
48x36x12
45.8x34.9
209
ER_-600
600
4X-SST
48x36x12
47x34.9
45.8x36.1
209
4X-Plastic
(1)
51x37x 14
50.1x28.5
187
1, 3R, 4, 12
48x36x12
45.8x34.9
211
ER_-800
800
4X-SST
48x36x12
47x34.9
45.8x36.1
211
4X-Plastic
(1)
51x37x 14
50.1x28.5
189
ER_-1200
1200
1, 3R, 4, 12
60x36x16
57.5x33.9
268
4X-SST
60x36x16
58.7x33.9
57.5x35.1
268
(1)
Enclosures ≤100A are polycarbonate, flammability rating UL 94-5VA-V0, ≥200A are fiberglass, flammability rating UL 94-5V.
Enclosure Weights - Lbs & Dimensions - in
Available Field-Installed Accessories -
Order Separately
Auxiliary Contacts - for 30 to 1200 Amp Switches
Switch
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Amp Rating
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
30-100
NO + NC
1 of each
10A
240Vac
4
BAC01
30-100
NC
2
10A
240Vac
4
BAC02
100-1200
NO + NC
1 of each
10.1A
125-250Vac
2
BAC03*
100-1200
NO + NC
1 of each
10.1A
125-250Vac
2
BAC04*
100-1200
NO + NC
1 of each
1A
125Vac
2
BAC11*
100-1200
NO + NC
1 of each
1A
125Vac
2
BAC12*
* For one auxiliary contact, install either BAC03 or BAC11. For two auxiliary contacts, install BAC03 + BAC04, or BAC11 + BAC12.
Terminal Shrouds - for 200 to 800 Amp Switches
Switch
Number
Location
Part
Amp Rating
of Poles
on Switch
Number
30-100
3
Lineside and Loadside
TSH3-3TB
200A
3
Lineside
TSH4-3T
200A
3
Loadside
TSH4-3B
400A
3
Lineside
TSH5-3T
400A
3
Loadside
TSH5-3B
600A
3
Lineside or Loadside
TSH6-3TB
800-1200A
3
Lineside or Loadside
TSH7-3TB
W
W
W
MW
MW
MW
H
H
H
MH
MH
MH
A
B
C
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

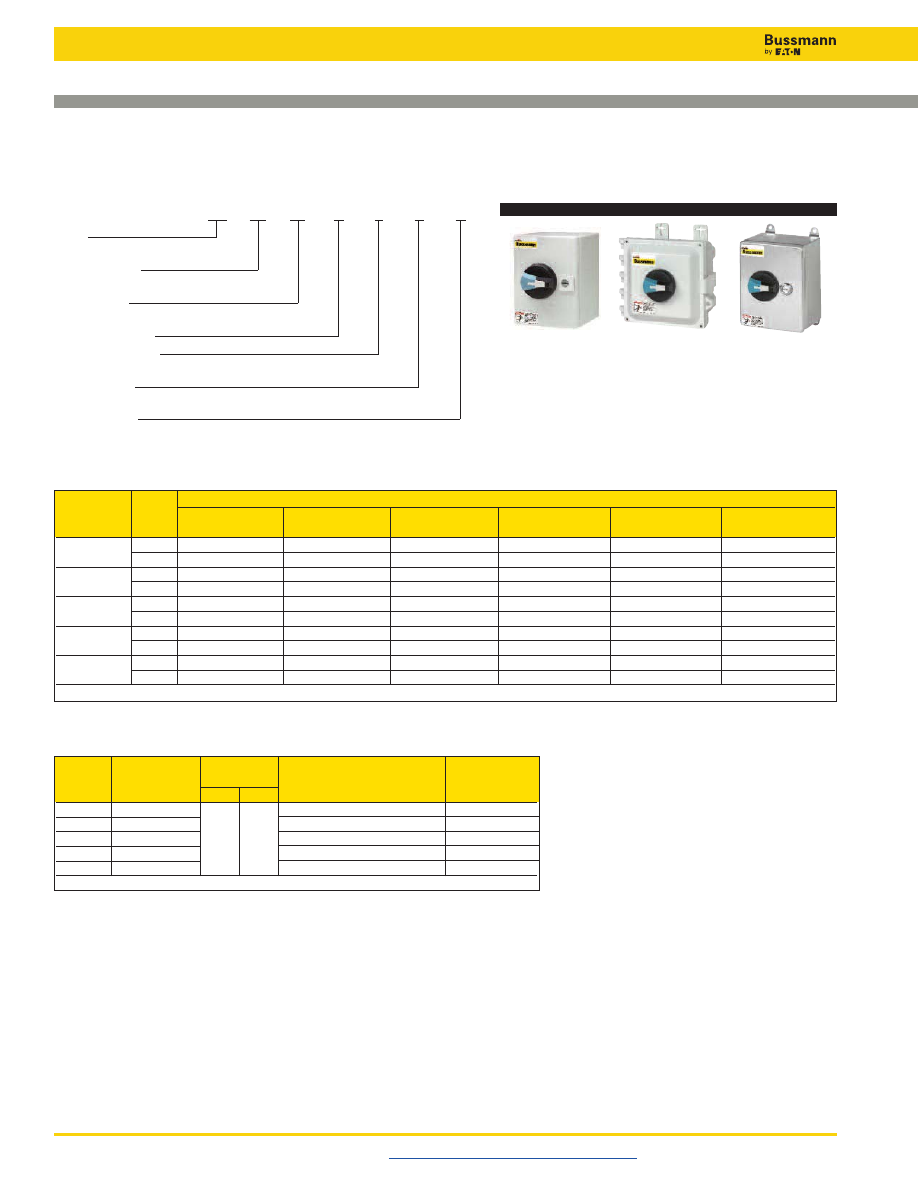

Disconnect Switches
UL 508 Enclosed Non-Fused Disconnects—16 to 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
422
3-/6-Pole UL 508 600Vac
Switch
SCCR with
Max Hp
Amp
Disconnect
Voltage
Max Upstream
Rating
Rating
Switch
Vac
Vdc
Class J Fuse
@ 600Vac
16
RD16-3-508
65kA / 30A
10
25
RD25-3-508
65kA / 30A
20
40
RD40-3-508
600
N/A
65kA / 30A — 10kA / 60A
25
63
RD63-3-508
65kA / 60A — 50kA / 100A
40
80
RD80-3-508
65kA / 60A — 50kA / 100A
40
Note: Voltage, SCCR and Horsepower ratings are the same for 3- and 6-pole UL 508 non-fused disconnect switches.
Switch Ratings
- for wire types, ranges and tightening torques, see table on page 413
UL General
NEMA Enclosure Type & Part Number
Purpose
No. of
Amp Rating
Poles
1
3R
4
4X Plastic
(1)
4X Stainless
12
16
3
ER1-16N3SB
ER3R-16N3SB
ER4-16N3SB
ER4P-16N3SB
ER4X-16N3SB
ER12-16N3SB
6
ER1-16N6SB
ER3R-16N6SB
ER4-16N6SB
ER4P-16N6SB
ER4X-16N6SB
ER12-16N6SB
25
3
ER1-25N3SB
ER3R-25N3SB
ER4-25N3SB
ER4P-25N3SB
ER4X-25N3SB
ER12-25N3SB
6
ER1-25N6SB
ER3R-25N6SB
ER4-25N6SB
ER4P-25N6SB
ER4X-25N6SB
ER12-25N6SB
40
3
ER1-40N3SB
ER3R-40N3SB
ER4-40N3SB
ER4P-40N3SB
ER4X-40N3SB
ER12-40N3SB
6
ER1-40N6SB
ER3R-40N6SB
ER4-40N6SB
ER4P-40N6SB
ER4X-40N6SB
ER12-40N6SB
63
3
ER1-63N3SB
ER3R-63N3SB
ER4-63N3SB
ER4P-63N3SB
ER4X-63N3SB
ER12-63N3SB
6
ER1-63N6SB
ER3R-63N6SB
ER4-63N6SB
ER4P-63N6SB
ER4X-63N6SB
ER12-63N6SB
80
3
ER1-80N3SB
ER3R-80N3SB
ER4-80N3SB
ER4P-80N3SB
ER4X-80N3SB
ER12-80N3SB
6
ER1-80N6SB
ER3R-80N6SB
ER4-80N6SB
ER4P-80N6SB
ER4X-80N6SB
ER12-80N6SB
(1) Polycarbonate enclosure flammability rating UL 94-5VA-V0.
NEMA 1, 3R, 4 & 12
NEMA 4X Plastic
NEMA 4X Stainless
Part Number System:
ER
4X - 63
N
6
S
B
ER
E
nclosed
R
otary Disconnect
NEMA Rating
1, 3R, 4, 4X (SST), 4P (4X Plastic), 12
Amp Rating
16, 25, 40, 63, 80
N = Non-Fused
Number of Poles
3 = 3-Pole, 6 = 6-Pole
Handle Type
S = Selector
Handle Color
B = Black, R = Red
Part Numbers
- All part numbers provided with a black selector handle. Order red/yellow handle by changing the suffix “B” to “R.”
16-80A
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

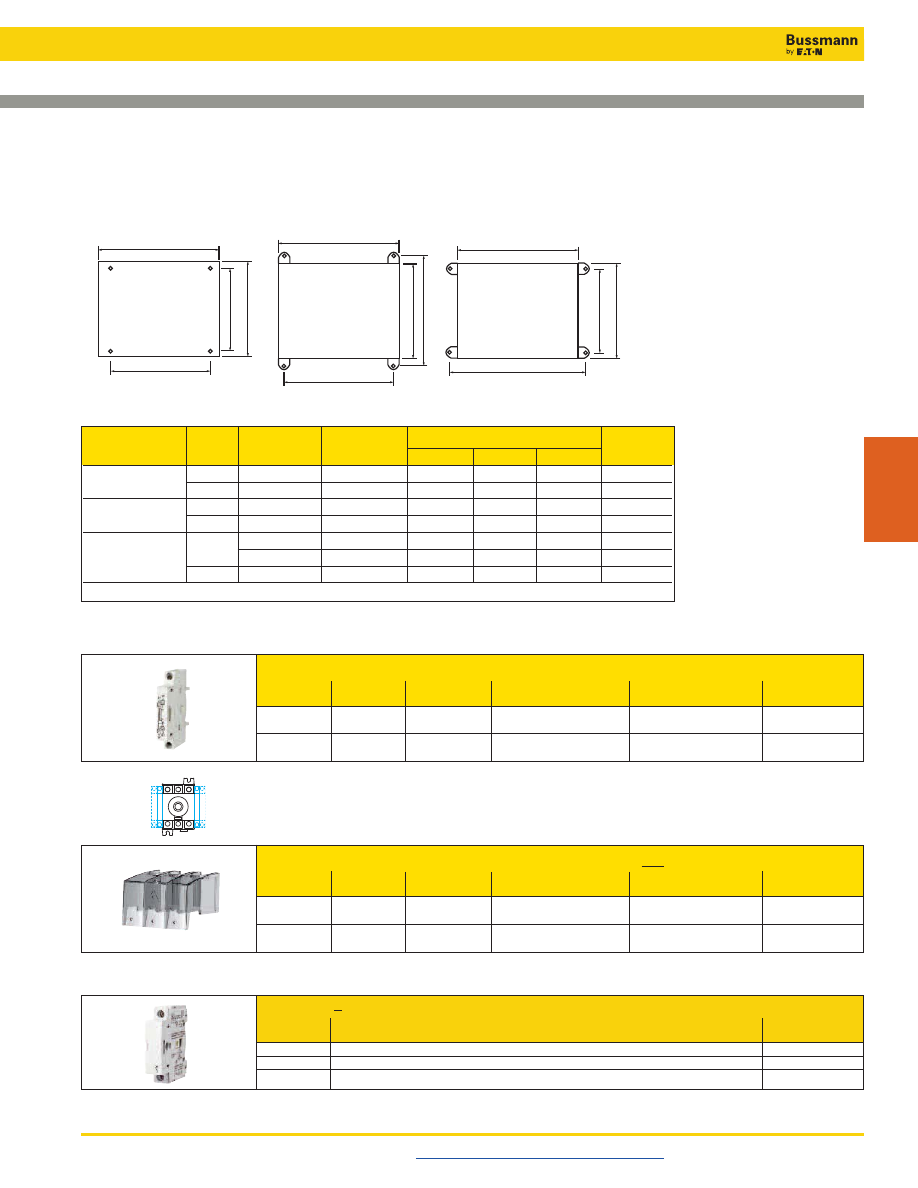

Disconnect Switches
UL 508 Enclosed Non-Fused Disconnects—16 to 80A
Visit us on the web at
www.cooperbussmann.com/Disconnects
423
Disconnect
Switches
NEMA
No. of
Switch Amp
Mounting Centers H x W
Weight
Enclosure Type
Poles
Ratings
H x W x D
A
B
C
Lbs
1, 3R, 4, 12
3
16-80A
8x6x6
6.3x4.3
8
6
16-80A
10x8x6
8.3x6.3
11
4X-SST
3
16-80A
8x6x6
7.5x4.3
6.3x5.5
8
6
16-80A
10x8x6
9.5x6.3
8.3x7.5
11
3
16-63A
7.4x8.7x5.8
8x3.6
3.6x8
4
4X-Plastic
(1)
80A
9.4x8.7x5.9
10x3.6
5.6x8
5
6
16-80A
11.4x10.7x6.3
12x5.6
7.64x10
6
(1) Polycarbonate.
Enclosure Weights - Lbs & Dimensions - in
Auxillary Contacts
Contact
Number of
Continuous
Voltage
Max Number of Aux
Part
Type
Contacts
Amp Rating
Rating
Contacts per Switch
Number
NO + NC
1 Ea
10A
240Vac
4
BAC01
NO
2
10A
240Vac
4
BAC02
Auxiliary Contact Configurations
Terminal Shrouds
- includes terminal shroud for both lineside
and
loadside
Switch
Number
Location on
Part
Amp Rating
of Poles
Switch
Number
16-40A
3
Lineside and Loadside
TSH1-3TB
63-80A
3
Lineside and Loadside
TSH2-3TB
Available Field-Installed Accessories -
Order Separately
W
W
W
MW
MW
MW
H
H
H
MH
MH
MH
A
B
C
Switched 4
th
Pole
- converts 3-pole switch to 4-pole switch
Switch Amp
Part
Rating
Number
16
POLE-16
25
POLE-25
40
POLE-40
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
Disconnect Switches
Visit us on the web at
www.cooperbussmann.com/Disconnects
424
15149 Series
Specifications
Description:
Fused, dead front disconnect switches
Ratings:
Volts: — 600Vac
Amps: — 0-30A
SCCR: — 200kA RMS Sym.
Dielectric SCCR:
2200V
Motor Rating:
5Hp
Poles:
2 to 3
Agency Information:
UL Recognized, file E120756 for
General Industrial installations. Guide WGEU2. CSA
certified, file LR37129-6. Examined under the new proposed
standard UL 1429 which imparts a stricter set of test
conditions than the former program that combined the
applicable portions for UL 512 (Fuse Holders) and UL 98
(Enclosed Switches).
Features and Benefits
• Fuse holders in the pull-out head eliminate possibility of
electric shock while changing fuse.
• Accepts Class J fuses
Ordering Information
To order, specify: 15149 + number of poles.
Example: 15149-2 = 2-pole device.
Flexibility and Convenience Make
Point-of-Use Configuration Easy
Full range of open disconnect switches with
versatile options and accessories that ship
within 24 hours
www.cooperbussmann.com
Fused, Dead Front Disconnect Switches
™
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
