For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

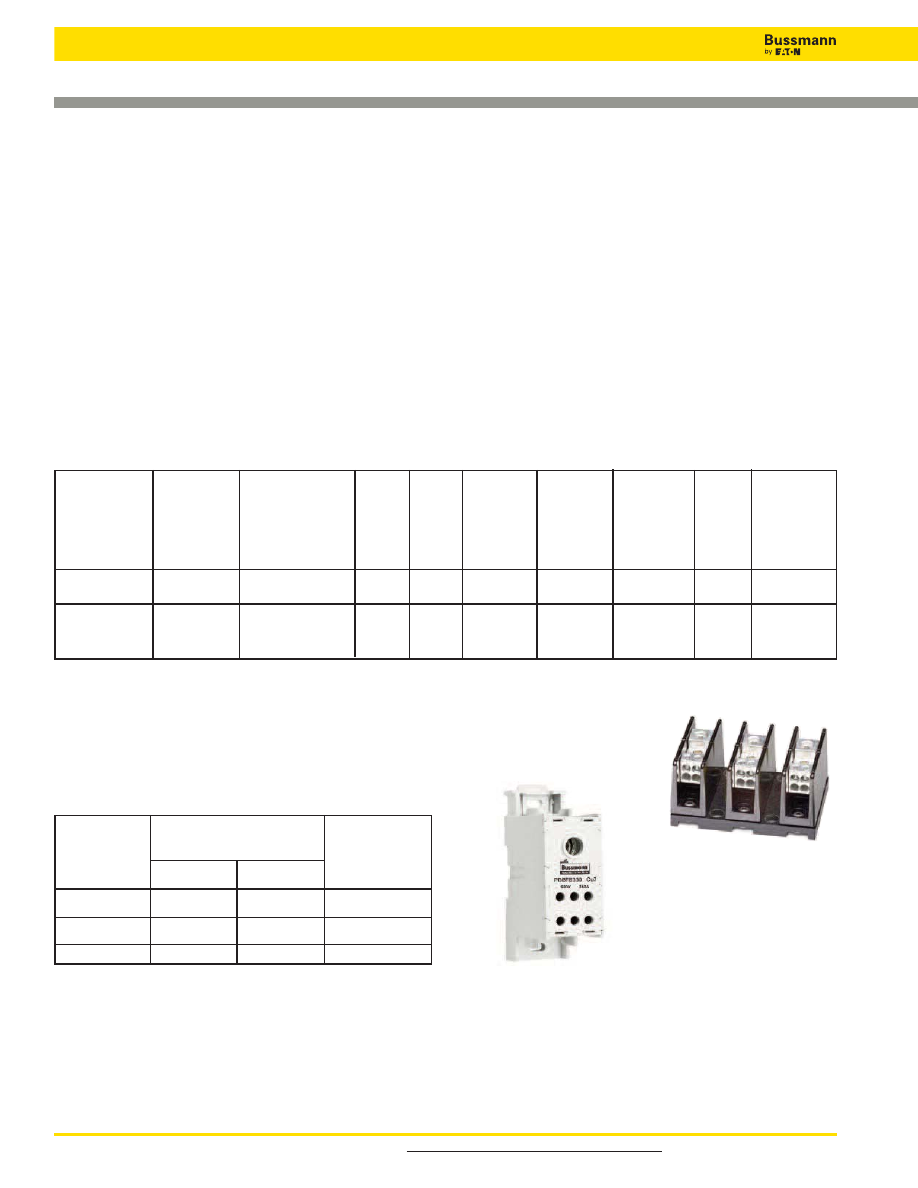

324

Power Distribution & Terminal Blocks

Selection Table for SCCR Power Distribution Blocks and
Power Terminal Blocks

Short-Circuit Current Rated Power Distribution
Blocks

Bussmann offers three distinctly different styles of short-
circuit current rated power distribution blocks (PDBs) and
power terminal blocks (PTBs) to match different
application needs. The differences are whether the power
distribution blocks are enclosed or not, and whether they are
UL 1953 Listed PDBs or UL 1059 Recognized PTBs, which
have different minimum spacing requirements. The table on
this page can assist in the selection of the right series for
your application requirements.

Why these are important?

Assembly short-circuit current ratings (SCCRs) are now
required in the 2011 NEC

and UL 508A Listed Industrial

Control Panels. Marking the SCCR on Industrial Control
Panels (NEC

409.110), Industrial Machinery Electrical

Panels (NEC

607.3(A)), and HVAC equipment (NEC

440.4(B)) is required by the National Electrical Code. PDBs or
PTBs not marked with a SCCR, typically are the weakest link
and may limit an assembly to no more than 10kA SCCR. The
PDBFS and PDB Series have increased spacing required
where used in feeder circuits in equipment listed to UL508A
(UL1059 PTBs must be evaluated for proper spacings). Also,
for building wiring systems, the PDBFS Series and PDB
Series power distribution blocks can be used to meet the new
2013 NEC

requirements in section 376.56(B) for PDBs in

wireways.

Industrial

Control

HVAC

Wireways

Description

Catalog

High

Spacing**

Panels

NEC

Page

Enclosed SCCR*

1” Air

UL 508A

1995

376.56(B)

2” Surface

Branch

Feeder

(Requires

Circuit

UL 1953)

Series PDBFS

325

UL 1953 Listed

Yes

†

Yes

Series PDB

326

UL 1953 Listed

No***

Yes

w/optional

cover

Selection Table

† IP20 Finger-safe under specific conditions, see datasheet 1149.

*When protected by proper fuse class with maximum ampere rating specified or less.

**See

PDB Spacing Requirements for Equipment

table below.

***Optional covers are available. Not IP20, but provide a safety benefit.

****No, except: Yes, if single pole units installed with proper spacings.

Spacing between

live parts of

live parts and

UL Standard

opposite polarity

grounded parts

or enclosure

@600V

508A Feeder

Circuits

508A Branch

Circuits

1995 HVAC

Through air

Over surface

@600V

1˝

2˝

1˝

⁄

Note: Refer to Specific UL standards for complete spacing details.

PDB & PTB Minimum Spacing

Requirements for Equipment

Data Sheet: 1049

Series PDBFS

Series PDB

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

325

wer Distrib

ution

& T

minal Blocks

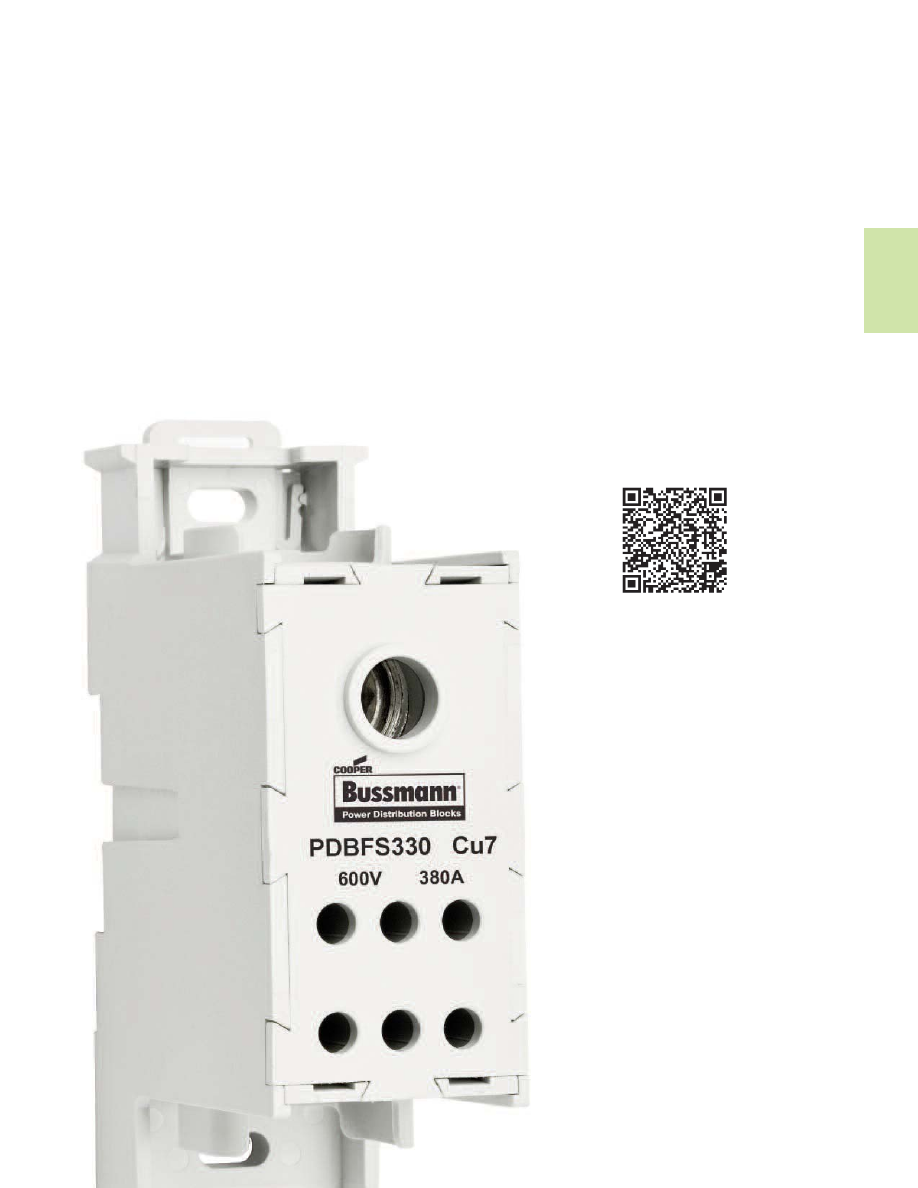

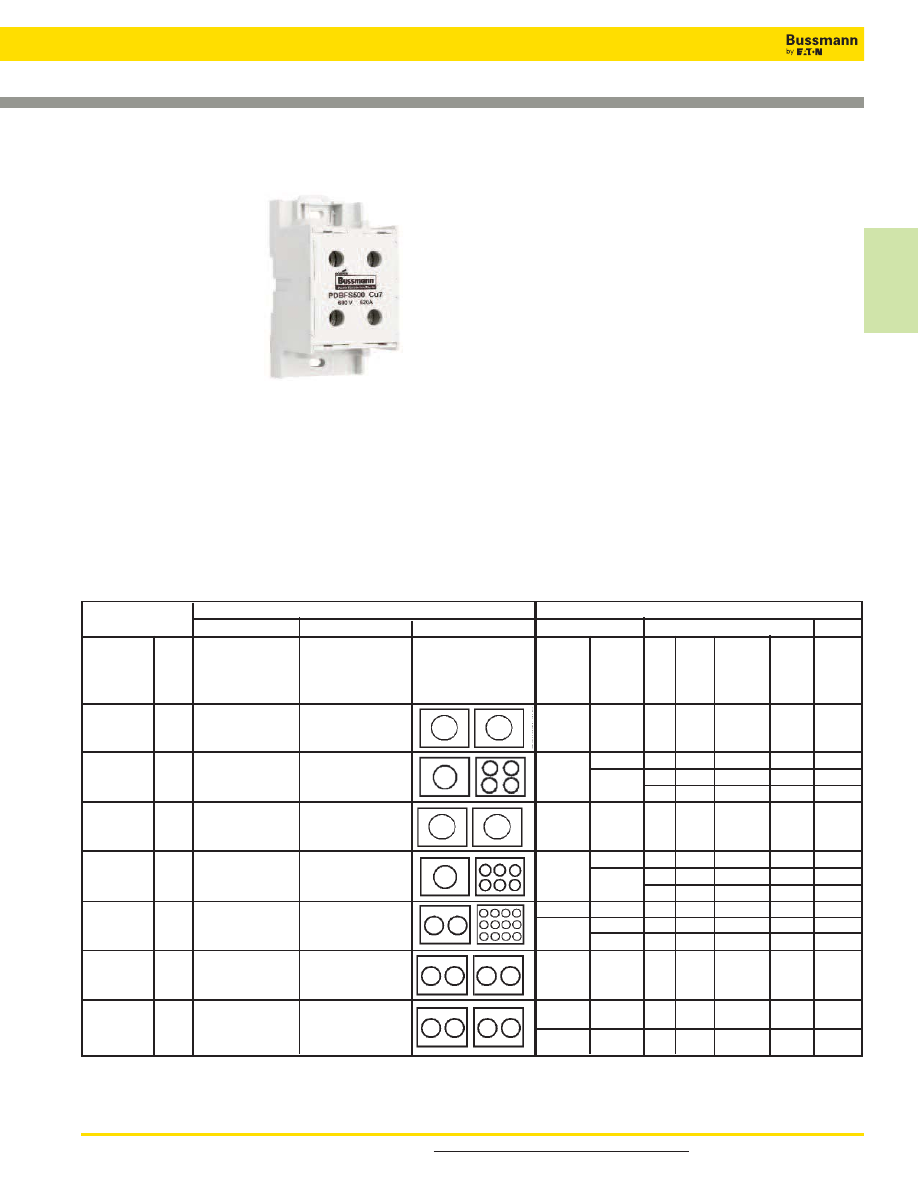

Series PDBFS of Power Distribution Blocks

Feature/Benefits

• Enclosed, safer

installation; IP20
finger-safe under specific
conditions

• High short-circuit current

ratings up to 200kA:
PDBs do not have to be
the weak link in achieving
high SCCR for an
industrial control panel

• Small footprint saves

panel space

• Listed to UL 1953 which has minimum spacing

requirements at 600V of at least 1” through air and 2” over
surface required for feeders in UL 508A Industrial Control
Panels

• For 2D CAD drawings visit www.cooperbussmann.com

Agency/Standards

• UL Listed 1953, Guide QPQS, File E256146
• CSA Certified, Class 6228-01, File 47235
• IEC 60947-7-1
• IEC 60529, IP20 (finger-safe) under specific wiring

conditions

Electrical

• 600Vac/dc (UL 1953), 690Vac/dc (IEC)
• IP20 finger-safe under specific conditions
• Short-circuit current ratings up to 200kA, see table
• Ampacities up to 760 amps
• Cu wire range 14 AWG to 500 kcmil or 2.5 to 240 mm

Mechanical

• DIN-Rail or panel mount; PDBFS330 & PDBFS504 panel

mount only

• Captive termination screws; screws do not get misplaced
• Wire ready: captive termination screws shipped backed out

to save time on conductor installations

• Sliding DIN-Rail latch for easy mounting
• Single pole, gang mountable for multiple pole applications

with interlocking dovetail accessory (optional)

• Flammability, UL 94V0
• Tin-plated Al connectors suitable for Cu conductors
• Elongated hole for panel mounting; easier mounting with

greater flexibility in matching up with drilled panel holes

• Part 2A1279: Interlocking dovetail pin accessory

One pin interlocks two units, two pins to interlock three units

• DIN-Rail end anchors required to prevent damage to block

when torquing

Data Sheet: 1049

Power Distribution & Terminal Blocks

Terminal Copper Conductor Capability Short-Circuit Current Rating Data

Line Load

Configuration

Conductors Max Fuse Class & Amp**

Catalog

Number

Openings per Pole

Line

Load

RK1

RK5

(All Single

Amps

Wire Range

AWG or

LPJ

JJS

LPS-RK

FRS-R

SCCR

Pole)

Line Load

kcmil

JJN

LPN-RK

FRN-R

PDBFS204

175A

2/0 to 8 AWG

2/0 to 8

2/0 to 8 200

200

100

200kA

70 to 10 mm

2/0 to 8 AWG

4 to 14 AWG

4 to 12 200

200

100

200kA

PDBFS220

175A

70 to 10 mm

25 to 2.5 mm

2/0 to 8

4 to 14

175

100

100kA

200

100

50kA

350kcmil to 6 AWG 350kcmil to 6 AWG

PDBFS303

310A

185 to 16 mm

350 to 6

350 to 6 400

400

200

100

200kA

500kcmil to 6 AWG

2 to 14 AWG

2 to 6

400

200

100

200kA

PDBFS330

380A

240 to 16 mm

35 to 2.5 mm

500 to 6

2 to 14

200

100

50kA

175

100

100kA

300kcmil to 4 AWG

4 to 14 AWG

300

4 to 8

600

400

200

200kA

PDBFS377

570A

150 to 12 mm

25 to 2.5 mm

300 to 4

400

200

100

100kA

4 to 14 200

200

100

50kA

PDBFS500

620A

350kcmil to 4 AWG 350kcmil to 4 AWG

350 to 4

350 to 4 600

600

400

200

200kA

185 to 12 mm

500kcmil to 6 AWG 500kcmil to 6 AWG

500

600 800*

600

200

200kA

PDBFS504

760A

240 to 16 mm

500 to 6

500 to 6 600

600

400

200

100kA

Ampacities 75C per NEC® Table 310.16 and UL508A Table 28.1
*Class L 800A (KRP-C 800_SP) or less fuses suitable for this particular SCCR case.
** Class G 60A (SC-60) or less or Class CC 30A (LP-CC-30, FNQ-R-30, KTK-R-30) or less are suitable for all SCCRs in this table.

Series PDBFS

Electrical

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

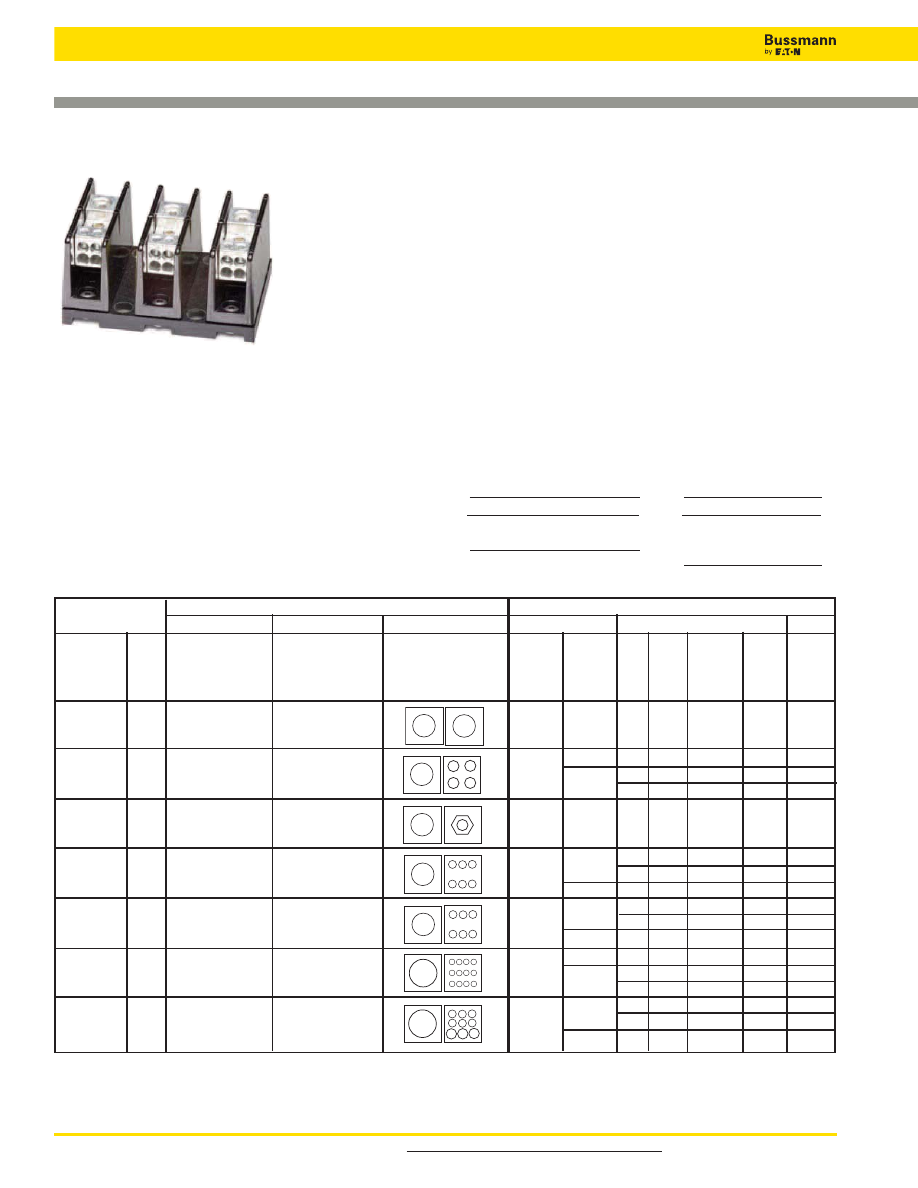

326

Power Distribution & Terminal Blocks

Series PDB of Power Distribution Blocks

Feature/Benefits

• High short-circuit current ratings up to 200kA. These

PDBs do not have to be the weak link in achieving high
SCCR for an industrial control panel

• Listed to UL 1953 which has minimum spacing

requirements at 600V of at least 1” through air and 2” over
surface required for feeder in UL 508A Industrial Control
Panels

• For 2D CAD drawings visit www.cooperbussmann.com

Agency/Standards

• UL Listed 1953, Guide QPQS, File E256146

Electrical

• 600Vac/dc (UL 1953)
• Short-circuit current ratings up to 200kA, see table
• Wire range 14 AWG to 350 kcmil Cu
• Spacing between uninsulated opposite polarities or ground

meets UL 1953 which requires at least 1” through air and
2” over surface

• Ratings available with circuit breakers

Mechanical

• Panel mount
• Flammability, UL 94V0
• Tin-plated Al connectors suitable for Cu conductors

Terminal Copper Conductor Capability Short-Circuit Current Rating Data

Line Load

Configuration

Conductors Max Fuse Class & Amp*

Catalog

Number

Openings per Pole

Line

Load

RK1

RK5

Amps

Wire Range

AWG or

LPJ

JJS

LPS-RK

FRS-R

SCCR

Pole

Line Load

kcmil

JJN

LPN-RK

FRN-R

PDB204-1
PDB204-3

175A

2/0 - 8 AWG

2/0 - 8

200

200kA

4 - 12

200

†

200kA

PDB220-1

175A

2/0 - 8 AWG

4 - 14 AWG

2/0 - 8

175

†

175

†

100

†

100kA

PDB220-3

200

†

200

†

100

†

50kA

PDB280-1

175A

2/0 - 8 AWG

1/4-20 X 3/4 STUD

2/0 - 8

Stud

200

100

200kA

PDB280-3

PDB321-1

4 -12

400

200

†

100

†

200kA

PDB321-2

175A

2/0 - 8 AWG

4 - 14 AWG

2/0 - 8

400

†

400

†

400

†

100

†

100kA

PDB321-3

175

†

175

†

100

†

100kA

PDB323-1

400

200

†

100

†

200kA

PDB323-3

310A 300kcmil - 4 AWG

4 - 12 AWG

300 - 4

4 - 8

400

†

400

†

400

†

100

†

100kA

10 - 12 175

†

175

†

100

†

100kA

PDB370-1

4 - 8

400

200

†

100

†

200kA

PDB370-3

310A 350kcmil - 4 AWG

4 - 14 AWG

350 - 4

10 - 14

400

†

400

†

400

†

100

†

100kA

175

†

175

†

100

†

100kA

PDB371-1

1/0 - 6

400

200

†

100

†

200kA

PDB371-3

310A 350kcmil - 4 AWG

(6) 2 - 12 AWG

350 - 4

400

†

400

†

400

†

100

†

100kA

(3) 1/0-12

8 - 12

175

†

175

†

100

†

100kA

Ampacities 75ºC per NEC® Table 310.16 and UL508A Table 28.1
* Class G 60A (SC-60) or less or Class CC 30A (LP-CC-30, FNQ-R-30_SP, KTK-R-30) or less are suitable for all these SCCR in this table.
† Higher SCCR may be available, check data sheet 1049.

Series PDB

Data Sheet: 1049

Optional covers

Covers are ordered for each individual pole, i.e., three
1-pole covers for 3-pole block, see table A.
Except PDB321 blocks have one cover for 1-, 2- or 3-pole
versions, see table B.

Table A Table B

Block

Cover

Block

Cover

PDB2XX-(pole): CPB162-1

PDB321-1

CPDB-1

PDB3XX-(pole): CPDB-1

PDB321-2

CPDB-2

PDB321-3

CPDB-3

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

327

wer Distrib

ution

& T

minal Blocks

163 Series

Replaces Bussmann 164 Series

Specifications

Description:

Power terminal

block.

Dimensions:

See Dimensions

illustrations.

Construction:

Tin-plated

aluminum connectors.

Poles:

1- to 3-Poles, See

Catalog Numbers table on the
following page.

Wire Range:

See Catalog

Numbers table on the following
page.

Ratings:

Volts: — 600Vac/dc

Amps: — See catalog Numbers table on the following page.

SCCR:— 10kA per UL 508A table SB4.1 (except for select

products noted in table)

Agency Information:

CE, UL Recognized: Guide XCFR2,

UL E62622, General Industrial Class per UL1059, CSA
Certified: CSA 053787

Flammability Rating:

UL 94V0

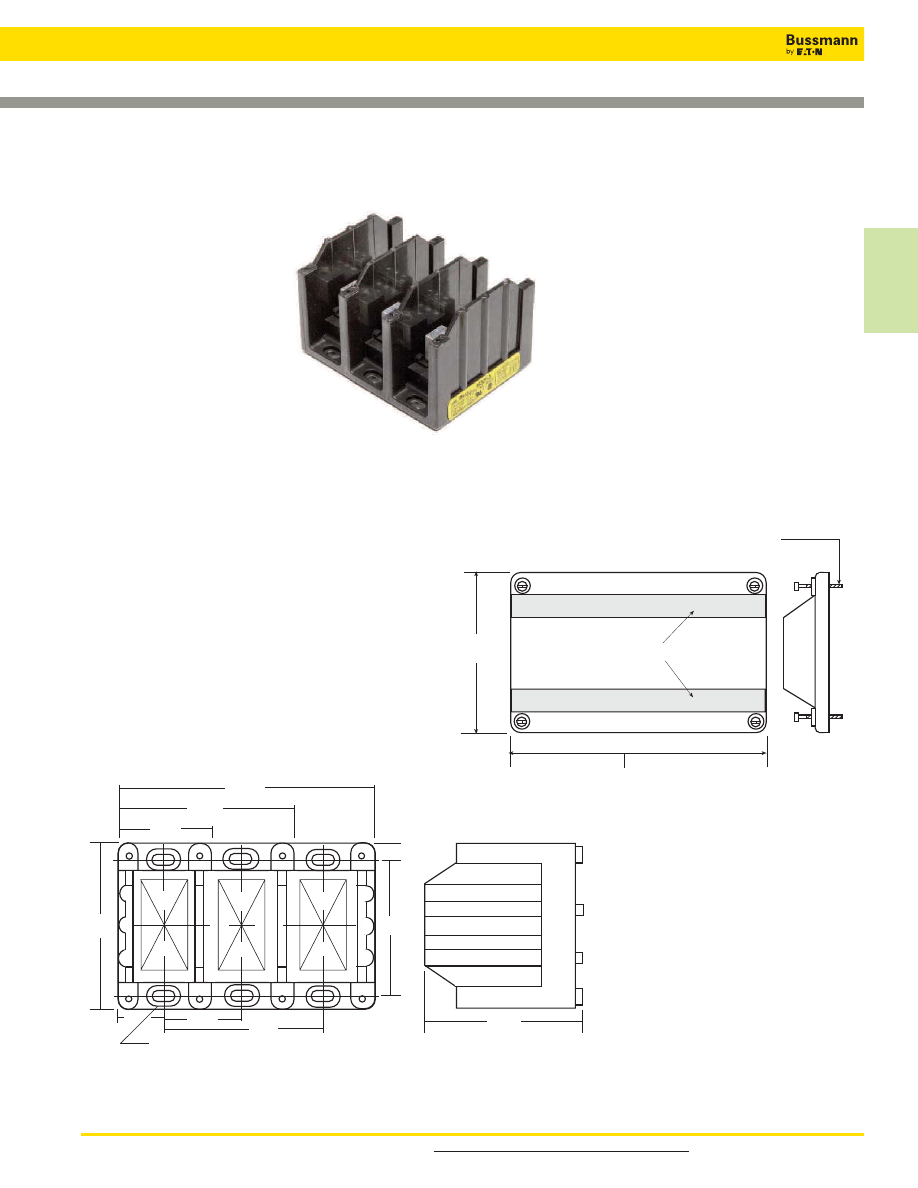

Dimensions

Series 163 Power Terminal Blocks

1-pole

1.96"

2-pole

3.58"

3-pole

5.20"

.31"

1.62"

3.25"

Mtg. hole 0.21 x 0.41,

c'bore 0.42 x 0.62 x 0.12 deep

3.32"

0.97"

4.00"

3.37"

Supplied with (4) #4 thread-cutting

screws assembled as shown

Textured surface for marking

CPDB-1 (single pole) 2.10"
CPDB-2 (two pole) 3.72"
CPDB-3 (three pole) 5.34"

4.14"

(See Following Page for Ratings)

Data Sheet: 1049

Power Distribution & Terminal Blocks

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

Series 163 Power Terminal Blocks

Catalog Numbers

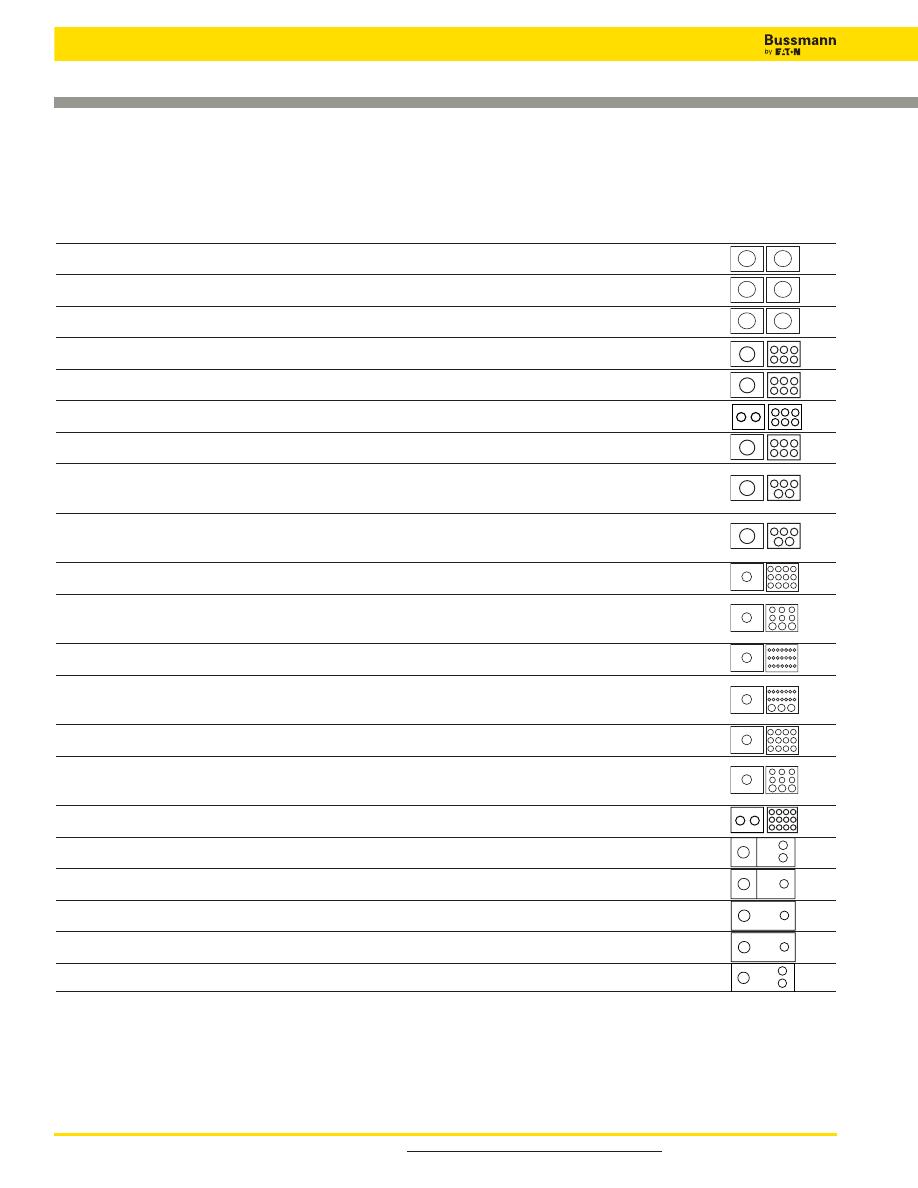

Basic
Catalog

Wire Size

Amps/

Numbers

(Poles) Lineside

(Poles) Loadside

Pole

Line/Load

16301*

250kcmil-6 AWG Cu Only

255

16303

350kcmil-6 AWG Cu-Al

310

16306

500kcmil-6 AWG Cu-Al

380

16321**

2/0-14 AWG CU, 2/0-8Al

(6)4-14 AWG Cu, 4-8 AWG Al

175

16323**

350kcmil-6 AWG Cu-Al

(6)4-14 AWG Cu, 4-12 AWG Al

310

16325

(2)2/0-14 AWG Cu, 2/0-8 AWG Al

(6)4-14 AWG Cu, 4-8 AWG Al

350

16330

500kcmil-6 AWG Cu-Al

(6) 2-14 AWG Cu, 2-12 AWG Al

380

16332

350kcmil-6 AWG Cu-Al

(3) 2-14 AWG Cu, 2-8 AWG Al

310

(2) 1/0-14 AWG Cu, 1/0-8 AWG Al

16335

500kcmil-6 AWG Cu-Al

(3) 2-14 AWG Cu, 2-8 AWG Al

380

(2) 1/0-14 AWG Cu, 1/0-8 AWG Al

16370**

350kcmil-6 AWG Cu-Al

(12)4-14 AWG Cu, 4-12 AWG Al

310

16371**

350kcmil-6 AWG Cu-Al

(6) 2-14 AWG Cu, 2-8 AWG Al

310

(3) 1/0-14 AWG Cu, 1/0-8 AWG Al

16372

350kcmil-6 AWG Cu-Al

(21) 10-14 AWG Cu, 10 AWG Al

310

16373

350kcmil-6 AWG Cu-Al

(14) 10-14 AWG Cu, 10 AWG Al

310

(3) 1/0-14 AWG Cu-Al

16375

600kcmil-2 AWG Cu-Al

(12)4-14 AWG Cu, 4-12 AWG Al

420

16376

600kcmil-2 AWG Cu-Al

(6) 2-14 AWG Cu, 2-8 AWG Al

420

(3) 1/0-14 AWG Cu, 1/0-8 AWG Al

16377

(2)300kcmil-4 AWG Cu-Al

(12)4-14 AWG Cu, 4-12 AWG Al

570

16378

500kcmil-6 AWG Cu-Al

Stud Size (2) 1/4-20 x 1

380

16383

500kcmil-6 AWG Cu-Al

Stud Size (1) 3/8-16 x 1

380

16390

⁄

-16 x 1

⁄

Stud Size

⁄

-16 x 1

⁄

Stud Size

250

16394

⁄

-13 x 1

⁄

Stud Size

⁄

-13 x 1

⁄

Stud Size

400

16395

⁄

-16 x 1

⁄

Stud Size

(2)

⁄

-20 x

⁄

Stud Size

310

*Copper connectors for use with copper wire only.
**SCCR up to 200kA

Ordering Information

163 Series blocks are available in 1-, 2- or 3-poles. To order: Basic Catalog Number + Number of poles.

Examples:

16301-1 = one-pole block

16301-3 = three-pole block

Data Sheet: 1049

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

328

Power Distribution & Terminal Blocks

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

329

wer Distrib

ution

& T

minal Blocks

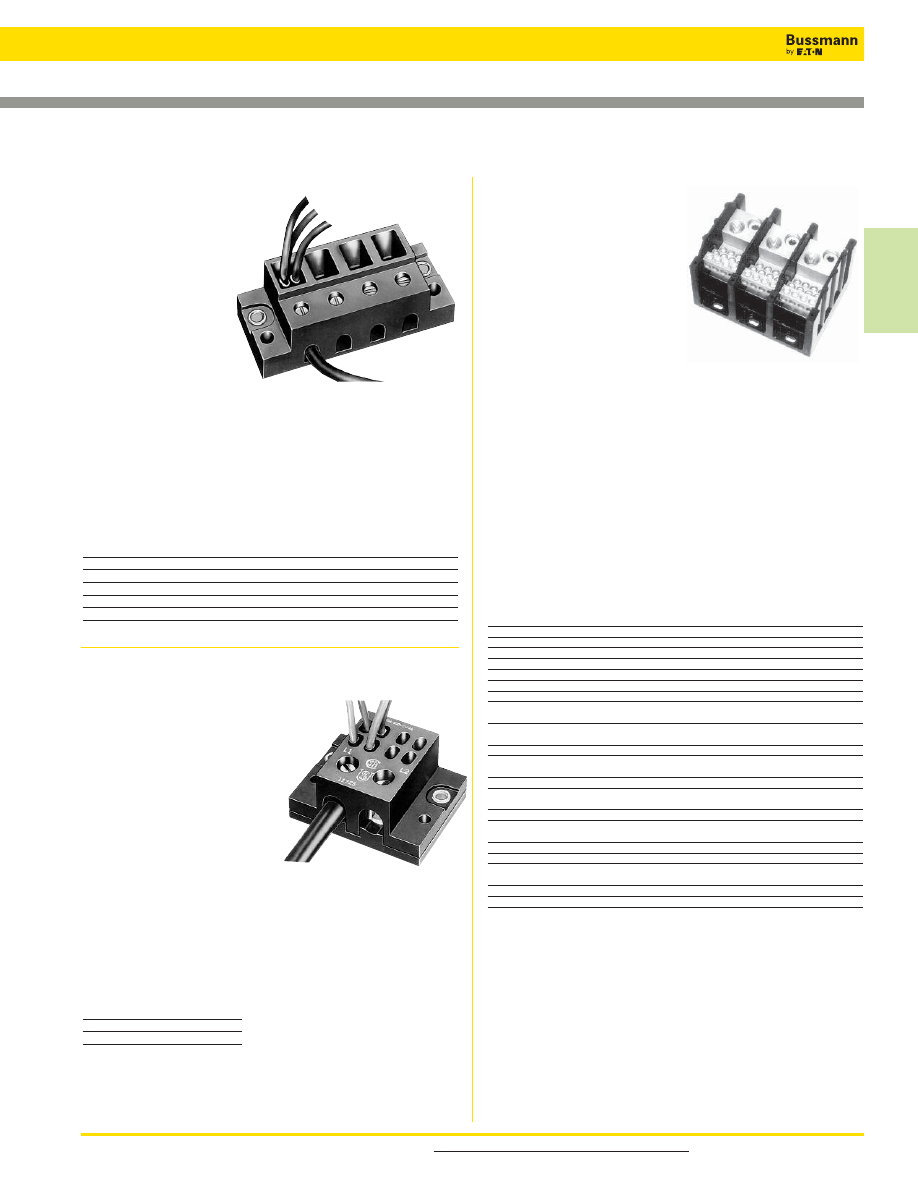

Power Terminal Blocks

Series 11725

Specifications

Description:

Screw

connection line side, (4) 0.250"
quick-connect load side power
terminal block.

Poles:

2-, 3- or 4-poles.

Wire Range:

2 – 14 AWG

Cu/8 AWG Al.

Ratings:

Volts: — 600Vac/dc

Amps: — Up to 70A

SCCR:— 10kA per UL 508A table SB4.1

Agency Information:

CE, UL Guide XCFR2, E62622;

CSA 47235.

Torque Rating:

45 lb-in max.

Catalog Numbers

Catalog
Numbers

Poles

11725-2

11725-3

11725-4

Series 11675

Specifications

Description:

Screw

connection line side, (3)
0.250" quick-connect
load side power
terminal block.

Poles:

2- to 12-poles.

Wire Range:

8 – 14 AWG Cu.

Ratings:

Volts: — 250Vac/dc

Amps: — Up to 40A

SCCR:— 10kA per UL 508A table SB4.1

Agency Information:

CE, Guide XCFR2, UL E62622;

CSA 47235.

Torque Rating:

9 lb-in max.

Catalog Numbers

Catalog

Numbers

Poles

Numbers

Poles

11675-2

11675-8

11675-3

11675-9

11675-4

11675-10

11675-5

11675-11

11675-6

11675-12

11675-7

Data Sheets: 1117 (Series 160, 162, 165); 1148 (Series 163)

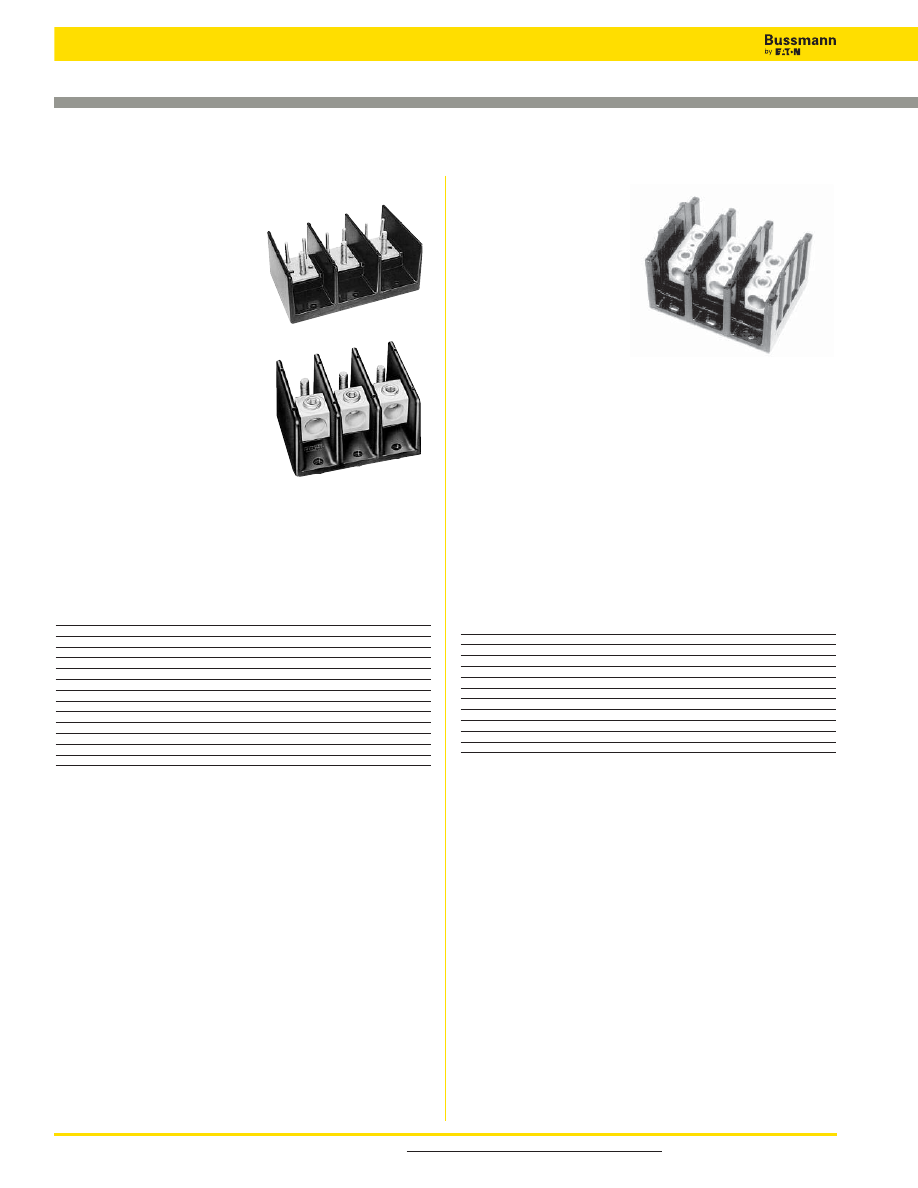

Series 160, 162, 163
& 165

Specifications

Description:

Power

terminal blocks.

Construction:

Molded black

thermoplastic.

Wire Range:

See Catalog

Numbers table.

Poles:

Series 160: 2-, 3- or 4-poles

Series 162, 163 and 165: 1-, 2- or 3-poles

Ratings:

Volts: — 600Vac/dc

Amps: — Up to 1520A

SCCR:— 10kA per UL 508A table SB4.1 (except for select

products noted in table)

Agency Information:

CE, Guide XCFR2, UL E62622

General Industrial Class per UL 1059; CSA Class 6228-01,
File 53787.

Flammability Rating:

UL 94V0.

Catalog Numbers

Connector

Catalog Line

Load

Material &

Agency

Numbers Connection

Connection Ampacity

Information

16021*

2/0-#14Cu, 2/0-#8Al

(6)#4-#14Cu, #4-#8Al

175A

UL/CSA

16023*

350kcmil-#6Cu/Al

(6)#4-#14Cu, #4-#12Al

310A

UL/CSA

16220**

2/0-#14Cu, 2/0-#8Al

(4)#4-#14Cu, #4-#8Al

175A

UL/CSA

16321**

2/0-#14Cu, 2/0-#8Al

(6)#4-#14Cu, #4-#8Al

175A

UL/CSA

16323**

350kcmil-#6Cu/Al

(6)#4-#14Cu, #4-#12Al

310A

UL/CSA

16325

(2)2/0-#14Cu, 2/0-#8Al

(6)#4-#14Cu, #4-#8Al

350A

UL/CSA

16330

500kcmil-#6Cu/Al

(6)#2-#14Cu, #2-#12Al

380A

UL/CSA

16332

350kcmil-#6Cu/Al

(3)#2-#14Cu, #2-#8Al

310A

UL/CSA

(2)1/0-#14Cu, 1/0-#8Al

16335

500kcmil-#6Cu/Al

(3)#2-#14Cu, #2-#8Al

380A

UL/CSA

(2)1/0-#14Cu, 1/0-#8Al

16370**

350kcmil-#6Cu/Al

(12)#4-#14Cu, #4-#12Al

310A

UL/CSA

16371**

350kcmil-#6Cu/Al

(6)#2-#14Cu, #2-#8Al

310A

UL/CSA

(3)1/0-#14Cu, 1/0-#8Al

16372

350kcmil-#6Cu/Al

(21)#10-#14Cu, #10Al

310A

UL/CSA

16373

350kcmil-#6Cu/Al

(3)1/0-#14Cu/Al

310A

UL/CSA

(14)#10-#14Cu, #10Al

16375

600kcmil-#2Cu/Al

(12)#4-#14Cu, #4-#12Al

420A

UL/CSA

16376

600kcmil-#2Cu/Al

(6)#2-#14Cu, #2-#8Al

420A

UL/CSA

(3)1/0-#14Cu, 1/0-#8Al

16377

(2)300kcmil-#4Cu/Al

(12)#4-#14Cu, #4-#12Al

570A

UL/CSA

16400

(4)500kcmil-#6Cu/Al

(22)#2-#14Cu/Al

1520A

UL/CSA

16528

(2)600kcmil-#2Cu/Al

(4)3/0-#6Cu/Al

840A

UL/CSA

(4)#4-#14Cu/Al

16530

(2)500kcmil-#6Cu/Al

(12)#4-#14Cu/Al

760A

UL/CSA

16541

(1)500kcmil-#6Cu/Al

(21)#6-#14Cu/Al

380A

UL/CSA

*160 Series Bases have mounting holes outside the barriers. Other bases (162 through 165)
have mounting holes within barriers. See Data Sheet for dimensional drawings.
**SCCR up to 200kA

How To Order

Catalog Number + # of Poles

Example: 16021 – 3 (complete part number)

Optional Covers:

160 Series: CPB160 - (pole)
162 Series: CPB162 - (pole)
163 Series: CPDB- (pole)
165 Series: CPDB165 (1 for each pole)

Power Distribution & Terminal Blocks

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

330

Power Distribution & Terminal Blocks

Power Terminal Blocks: Stud & Splicer

Data Sheets: 1117 (Series 162, 165); 1148 (Series 163)

Series 162, 163 & 165

Specifications

Description:

Power stud

terminal blocks.

Construction:

Molded black

thermoplastic.

Poles:

1-, 2- or 3-poles.

Wire Range:

See Catalog

Numbers table.

Ratings:

Volts: — 600Vac/dc

Amps: — Up to 760A

SCCR:— 10kA per UL 508A

table SB4.1 (except
where noted)

Agency Information:

CE,

Guide XCFR2, UL E62622
General Industrial Class per UL 1059; CSA Class 6228-01,
File 53787.

Flammability Rating:

UL 94V0.

Stud Block Catalog Numbers

Connector

Catalog

Line

Load

Material &

Agency

Numbers

Connection (Poles)

Ampacity

Information

Connector to Stud

16280*

2/0-#14Cu-Al

⁄

-20 X

⁄

Stud

Al-175A

—

16281

2/0-#14Cu-Al

⁄

-20 Tapped hole

Al-175A

—

16378

500kcmil-#6Cu-Al

(2)

⁄

-20 x 1 Stud

Al-380A

CSA

16383

500kcmil-#6Cu-Al

(1)

⁄

-16 x 1 Stud

Al-380A

CSA

16582

(2)500kcmil-#6Cu-Al

(2)

⁄

-16 x 1

⁄

Stud

Al-760A

CSA

Stud to Stud

16290

⁄

-20 x

⁄

Stud

⁄

-20 x

⁄

Stud

Cu-175A

—

16390

⁄

-16 x 1

⁄

Stud

⁄

-16 x 1

⁄

Stud

Cu-250A

CSA

16394

⁄

-13 x 1

⁄

Stud

⁄

-13 x 1

⁄

Stud

Cu-400A

CSA

16395

⁄

-16 x 1

⁄

Stud

(2)

⁄

-20 x

⁄

Stud

Cu-310A

CSA

16591

⁄

-16 x 1

⁄

Stud

(2)

⁄

-16 x 1

⁄

Stud

Cu-400A

CSA

16593**

⁄

-13 X 1 Stud

⁄

-13 X 1 Stud

Cu-600A

CSA

Nuts are not supplied with blocks
*SCCR up to 200kA
** 1-Pole not available

How To Order

Catalog Number + # of Poles

Example: 16000 – 3 (complete part number)

Optional Covers:

160 Series: CPB160 - (pole)
162 Series: CPB162 - (pole)
163 Series: CPDB - (pole)
165 Series: CPDB165 (1 for each pole) - new style

CPB165 - (pole) - old style

Series 160, 162,
163 & 165

Specifications

Description:

Power

splicer
terminal blocks.

Construction:

Molded

black thermoplastic.

Wire Range:

See

Catalog Numbers table.

Poles:

Series 160: 2-, 3- or 4-poles

Series 162, 163 and 165: 1-, 2- or 3-poles

Ratings:

Volts: — 600Vac/dc

Amps: — Up to 760A

SCCR:— 10kA per UL 508A table SB4.1 (except for select

products noted in table)

Agency Information:

CE, Guide XCFR2, UL E62622

General Industrial Class per UL 1059; CSA Class 6228-01,
File 53787.

Flammability Rating:

UL 94V0.

Catalog Numbers

Connector

Catalog Line

Load

Material &

Agency

Numbers Connection

Connection Ampacity

Information

16000*

2/0-#8Cu/Al

Al-175A

16003*

250kcmil-#6Cu Only

Cu-255A

16005*

350kcmil-#6Cu/Al

Al-310A

16200

#2-#14Cu, #2-#8Al

Al-115A

16201

1/0-#14Cu Only

Cu-150A

16204**

2/0-#8Cu/Al

Al-175A

16301

250kcmil-#6Cu Only

Cu-255A

UL/CSA

16303

350kcmil-#6Cu/Al

Al-310A

UL/CSA

16306

500kcmil-#6Cu/Al

Al-380A

UL/CSA

16500

(2)350kcmil-#4Cu/Al

Al-620A

UL/CSA

16504

(2)500kcmil-#6Cu/Al

Al-760A

UL/CSA

*160 Series Bases have mounting holes outside the barriers. Other bases (162 through 165)
have mounting holes within barriers. See Data Sheet for dimensional drawings.
**SCCR up to 200kA

How To Order

Catalog Number + # of Poles

Example: 16000 – 3 (complete part number)

Optional Covers:

160 Series: CPB160 - (pole)
162 Series: CPB162 - (pole)
163 Series: CPDB - (pole)
165 Series: CPDB165 (1 for each pole) - new style

CPB165 - (pole) - old style

Data Sheets: 1117 (Series 160, 162, 165); 1148 (Series 163)

For Short-circuit current rated stud power distribution
blocks, go to the Series PDB and Series 162 & 163
with high SCCR.

For Short-circuit current rated and/or finger-safe
splicer blocks, go to the Series PDBFS, Series PDB or
Series 162 & 163 with high SCCR.

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com

For product data sheets, visit www.cooperbussmann.com/DatasheetsEle

331

wer Distrib

ution

& T

minal Blocks

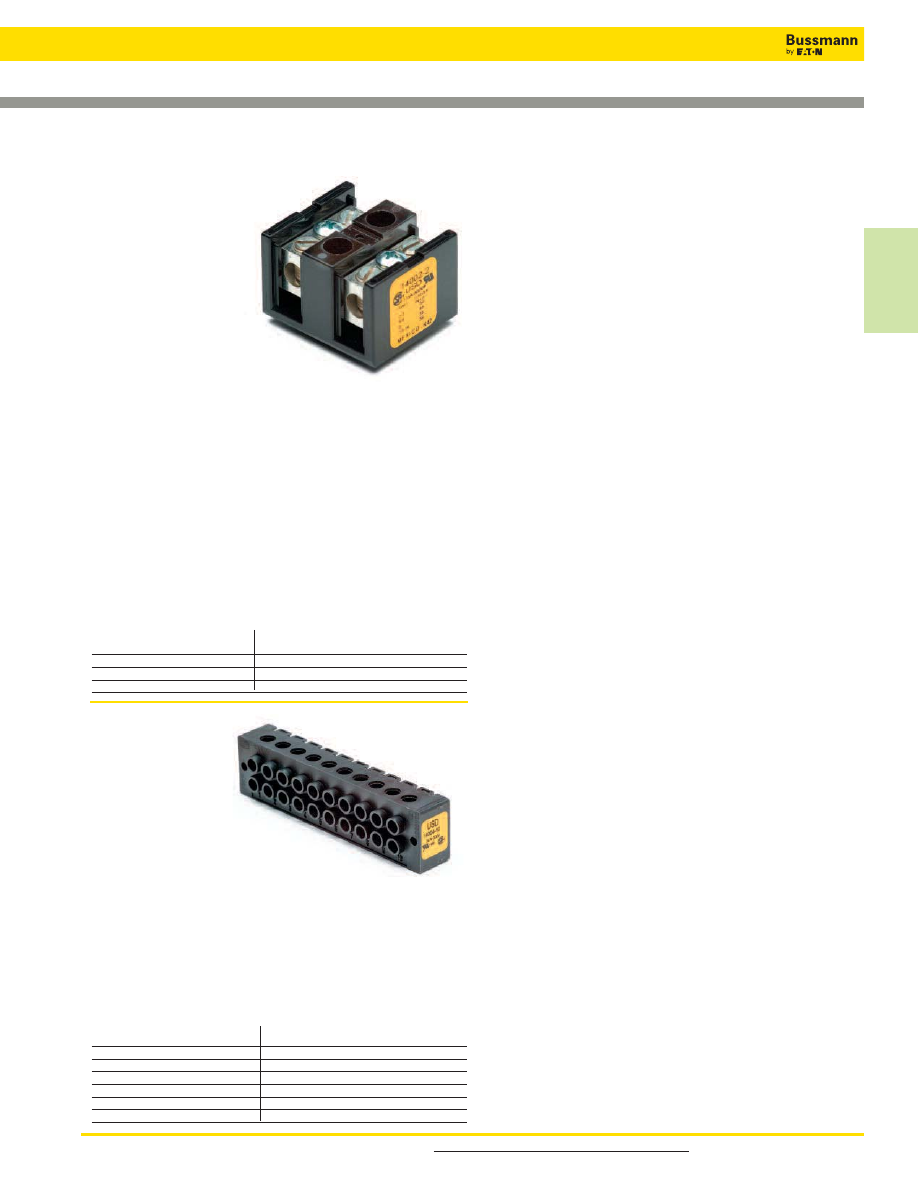

Series 14004

Specifications

Description:

Dead

front terminal block.

Poles:

2- to 12-poles.

Wire Range:

4 – 14 AWG Cu/
8 AWG Al.

Ratings:

Volts: — 600Vac/dc

Amps: — 90A

SCCR:— 10kA per UL 508A table SB4.1

Agency Information:

CE, Guide XCFR2, UL E62622;

CSA 47235.

Marking:

Marking strip optional, consult factory.

Catalog Numbers

Catalog

Numbers

Poles

Numbers

Poles

14004-2

14004-8

14004-3

14004-9

14004-4

14004-10

14004-5

14004-11

14004-6

14004-12

14004-7

Series 14002

Specifications

Description:

Barrier

terminal block.

Poles:

2- to 6-poles.

Wire Range:

2 – 14

AWG Cu/8 AWG Al.

Ratings:

Volts: — 600Vac/dc

Amps: — 115A

SCCR:— 10kA per

UL 508A table SB4.1

Agency Information:

CE, Guide XCFR2, UL E62622;

CSA 47235.

Torque Ratings*:

2-3, 50 lb-in; 4-6, 45 lb-in; 8, 40 lb-in;

10-14, 35 lb-in.

*Consult factory for torque ratings for CP and Q options.

Marking:

Marking strip optional, consult factory.

Options For Load Side Connector

CP: Sems pressure plate, rated 60A, 600V

Q: Quick-Connect, rated 50A, 600V

To order options, enter letter code in front of Catalog
Number: i.e., CP14002-2.

Catalog Numbers

Catalog

Numbers

Poles

Numbers

Poles

14002-2

14002-5

14002-3

14002-6

14002-4

Power Terminal Blocks: Barrier & Dead Front

Power Distribution & Terminal Blocks

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - sales@steveneng.com - www.stevenengineering.com
